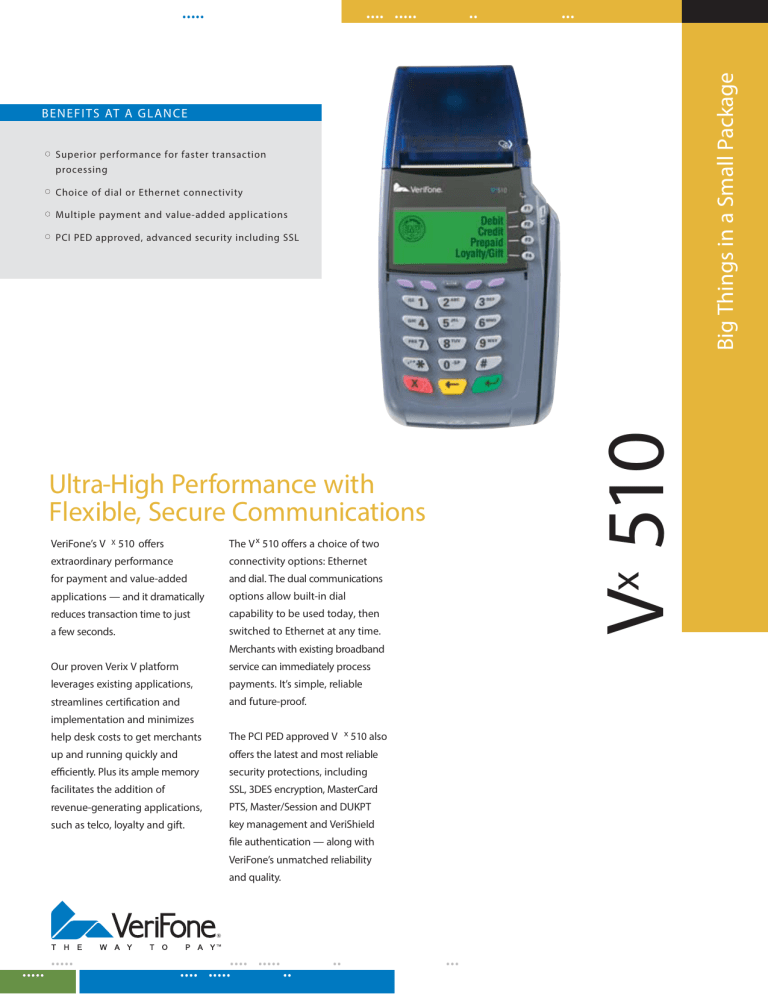

Ultra-High Performance with Flexible, Secure

Ultra-High Performance with Flexible, Secure
.... .....
..
...
Big Things in a Small Package
.....
BENEFITS AT A GLANCE
Superior performance for faster transaction
processing
Choice of dial or Ethernet connectivity
Multiple payment and value-added applications
V 510
PCI PED approved, advanced security including SSL
Ultra-High Performance with
Flexible, Secure Communications
X
The V x 510 offers a choice of two
510 offers
extraordinary performance
connectivity options: Ethernet
for payment and value-added
and dial. The dual communications
applications — and it dramatically
options allow built-in dial
reduces transaction time to just
capability to be used today, then
a few seconds.
switched to Ethernet at any time.
x
VeriFone’s V
Merchants with existing broadband
Our proven Verix V platform
service can immediately process
leverages existing applications,
payments. It’s simple, reliable
streamlines certification and
and future-proof.
implementation and minimizes
x 510 also
help desk costs to get merchants
The PCI PED approved V
up and running quickly and
offers the latest and most reliable
efficiently. Plus its ample memory
security protections, including
facilitates the addition of
SSL, 3DES encryption, MasterCard
revenue-generating applications,
PTS, Master/Session and DUKPT
such as telco, loyalty and gift.
key management and VeriShield
file authentication — along with
VeriFone’s unmatched reliability
and quality.
.....
.....
.... .....
.... .....
..
..
...
...
.....
.....
.... .....
..
.... .....
..
...
...
SPECIFICATIONS
Big Things in a Small Package
Processor
Dial Modem
200 MHz ARM9 32-bit RISC processor
Standard 14.4 kbps modem
supporting Bell 103/212a, CCITT V.21/
V.22/V.22bis/V.32/V.32bis
(300/1200/2400/9600/14400 and HC Fast
Connect for 1200 bps)
Memory
3 MB – dial only
6 MB (4 MB Flash, 2 MB SRAM)
12 MB (8MB Flash, 4MB SRAM)
Protocols
Display
128 x 64 pixel graphical LCD
with backlighting; supports
8 lines x 21 characters
Application selects between
asynchronous protocols (Visa 1, Visa 2,
and others) and synchronous protocols
(including ISO 8583/SDLC)
Magnetic Card Reader
Security
Triple track (tracks 1, 2, 3), high
coercivity, bi-directional
SSL/TLS, 3DES encryption; MasterCard
PTS approved; Master/Session and
DUKPT key management; PCI PED
approved; VeriShield file authentication
Smart Card Reader (Optional)
ISO 7816, 1.8V, 3V, 5V or synchronous
and asynchronous cards
Physical
Length: 209 mm (8 in.); Width: 102 mm
(4 in.); Height: 72mm (2.8 in.) Weight:
Terminal/500 g (1.10 lbs.), Full
Shipping/1,326 g (2.84 lbs.)
Keypad
3 x 4 numeric keypad, plus
8 soft-function keys and
4 screen-addressable keys
Environmental
0ºC to 40ºC (32ºF t o 104ºF) operating
temperature; 5% to 90% relative
humidity, non-condensing
Two RS-232 ports, one telco port
and one Ethernet port support
communications and peripherals
including PIN pads and check readers
Voltage
AC Input 100 - 240 VAC, 50/60 Hz;
DC Output 8.6 - 9.4 VDC, 4.0 Amp
Printer
Integrated thermal with graphics
capabilities, 32 or 42 columns;
standard roll paper 58 mm (2.25 in.) x
25 M (82 ft.), single ply
x
V 510
Peripheral Ports
Features & Benefits
Unmatched Performance
• 200 MHz 32-bit RISC processor —
the fastest processor in the industry
for multi-tasking capabilities
• Up to 12 MB of lightning-fast DMM
(dynamically managed memory)
provide exceptional processing on
debit, credit, EBT and value-added
transactions
• IP/dial capabilities are built into the
same device, so it is easy to switch from
one communication option to the other
• File compression, used in conjunction
with high-speed networks or highspeed modems, greatly streamlines
application downloads
• Exceptional graphics handling by both
display and printer quickly renders
logos, graphical fonts and characterbased languages
Advanced Security And
Superior Reliability
• Latest security protections include
advanced 3DES encryption, Master/
Session and Derived Unique Key Per
Transaction (DUKPT) management,
and sophisticated VeriShield file
authentication and tamper resistance
• PCI PED approved for debit -based
transactions
• Application separation at both the
hardware and software level minimizes
or eliminates the need to recertify
existing payment applications every
time an application is added or modified
Easy to Use
• Intuitive ATM-style interface, large
backlit display, ergonomic keys
and bold menu prompts minimize
clerk training, speed lines, and
reduce errors
• Sleek and stylish, with an extremely
small footprint and “hand-over”
design for customer PIN entry
• VeriFone’s VeriShield Retain file
authentication software provides
unsurpassed security and protection
against unauthorized access to
payment devices, while also securely
accommodating trusted third parties.
• MasterCard PTS approved for
advanced encryption protection of
IP-based communication
• Integrated high-speed thermal
printer is quiet and fast with drop-in,
“clam shell” loading to simplify paper
changing and eliminate jams
T:
+44 (0)1844 264 000
E:
[email protected]
W: www.boxtechnologies.com
20 Thame Park Business Centre,
Wenman Road, Thame, Oxfordshire, OX9 3XA
