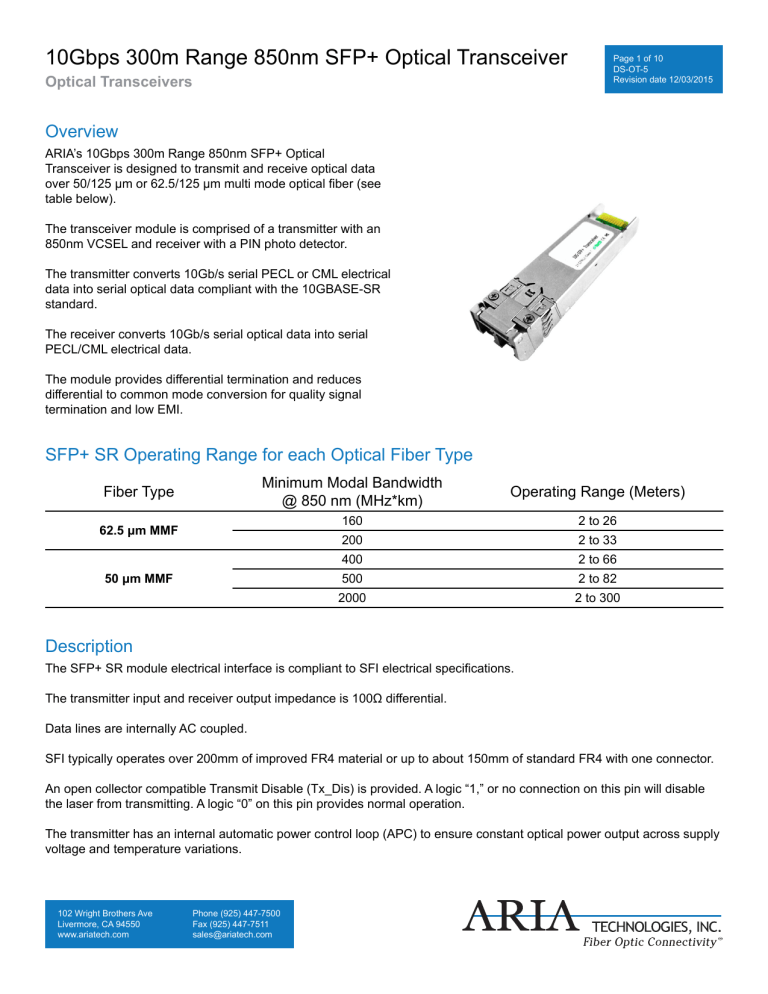

Overview
ARIA’s 10Gbps 300m Range 850nm SFP+ Optical
Transceiver is designed to transmit and receive optical data
over 50/125 μm or 62.5/125 μm multi mode optical fiber (see
table below).
The transceiver module is comprised of a transmitter with an
850nm VCSEL and receiver with a PIN photo detector.
The transmitter converts 10Gb/s serial PECL or CML electrical
data into serial optical data compliant with the 10GBASE-SR
standard.
The receiver converts 10Gb/s serial optical data into serial
PECL/CML electrical data.
The module provides differential termination and reduces
differential to common mode conversion for quality signal
termination and low EMI.
SFP+ SR Operating Range for each Optical Fiber Type
Fiber Type
Minimum Modal Bandwidth
@ 850 nm (MHz*km)
Operating Range (Meters)
160
2 to 26
200
2 to 33
400
2 to 66
500
2 to 82
2000
2 to 300
62.5 μm MMF
50 μm MMF
Description
The SFP+ SR module electrical interface is compliant to SFI electrical specifications.
The transmitter input and receiver output impedance is 100Ω differential.
Data lines are internally AC coupled.
SFI typically operates over 200mm of improved FR4 material or up to about 150mm of standard FR4 with one connector.
An open collector compatible Transmit Disable (Tx_Dis) is provided. A logic “1,” or no connection on this pin will disable
the laser from transmitting. A logic “0” on this pin provides normal operation.
The transmitter has an internal automatic power control loop (APC) to ensure constant optical power output across supply
voltage and temperature variations.
102 Wright Brothers Ave
Livermore, CA 94550
www.ariatech.com
Phone (925) 447-7500
Fax (925) 447-7511
[email protected]
10Gbps 300m Range 850nm SFP+ Optical Transceiver
Optical Transceivers
Page 2 of 10
DS-OT-5
Revision date 12/03/2015
An open collector compatible Transmit Fault (TFault) is provided. TX_Fault is a module output contact that when high,
indicates that the module transmitter has detected a fault condition related to laser operation or safety. The TX_Fault
output contact is an open drain/collector and shall be pulled up to the Vcc_Host in the host with a resistor in the range
4.7-10 kΩ.
TX_Disable is a module input contact. When TX_Disable is asserted high or left open, the SFP+ module transmitter
output shall be turned off. This contact shall be pulled up to VccT with a 4.7-10kΩ resistor.
An open collector compatible Loss of Signal is provided. Rx_LOS when high indicates an optical signal level below that
specified in the relevant standard. The Rx_LOS contact is an open drain/collector output and shall be pulled up to
Vcc_Host in the host with a resistor in the range 4.7-10 kΩ, or with an active termination.
Power supply filtering is recommended for both the transmitter and receiver.
The Rx_LOS signal is intended as a preliminary indication to the system in which the SFP+ is installed that the received
signal strength is below the specified range. Such an indication typically points to non-installed cables, broken cables, or a
disabled, failing or a powered off transmitter at the far end of the cable.
Features
•
Applications are: 10GBASE-SR at 10.3125Gbps,10GBASE-SW at 9.953Gbps and other optical links
•
Optical interface compliant to IEEE 802.3ae
•
Electrical interface compliant to SFF-8431
•
Hot Pluggable
•
Operating case temperature: 0 to 70 °C
•
Low power consumption
•
Maximum link length of 300m on 2000MHz/km MMF
•
All-metal housing for superior EMI performance
•
Advanced firmware allows customer system encryption information to be stored in the transceiver
•
Cost effective SFP+ solution, enables higher port densities and greater bandwidth
•
RoHS6 compliant (lead free)
102 Wright Brothers Ave
Livermore, CA 94550
www.ariatech.com
Phone (925) 447-7500
Fax (925) 447-7511
[email protected]
10Gbps 300m Range 850nm SFP+ Optical Transceiver
Page 3 of 10
DS-OT-5
Revision date 12/03/2015
Optical Transceivers
Absolute Maximum Rating
These values represent the damage threshold of the module. Stress in excess of any of the individual absolute maximum
ratings can cause immediate catastrophic damage to the module even if all other parameters are within recommended
operating conditions.
Parameter
Symbol
Min.
Max.
Units
Power Supply Voltage
Vcc
0
+3.6
V
Storage Temperature
Tc
-40
+85
°C
Operating Case Temperature
Tc
0
+70
°C
Relative Humidity
RH
5
95
%
Pmax
-
0
dBm
RX Input Average Power
Recommended Operating Environment
Recommended operating environment specifies parameters for which the electrical and optical characteristics hold unless
otherwise noted.
Parameter
Power Supply Voltage
Operating Case Temperature
Symbol
Min.
Typical
Max.
Units
Vcc
3.135
3.300
3.465
V
Tc
0
25
70
°C
Low Speed Characteristics
Parameter
Symbol
Power Consumption
TX_Fault, RX_LOS
TX_DIS
RS0,RS1
102 Wright Brothers Ave
Livermore, CA 94550
www.ariatech.com
Phone (925) 447-7500
Fax (925) 447-7511
[email protected]
Min.
Max.
Units
-
-
1
W
VOL
0
0.4
V
VOH
Host_Vcc-0.5
Host_Vcc+0.3
V
VIL
-0.3
0.8
V
VIH
2.0
VCCT+0.3
V
VIL
-0.3
0.8
V
VIH
2.0
VCCT+0.3
V
10Gbps 300m Range 850nm SFP+ Optical Transceiver
Page 4 of 10
DS-OT-5
Revision date 12/03/2015
Optical Transceivers
Optical Characteristics
The following optical characteristics are defined over the recommended operating environment unless otherwise specified.
Parameter
Symbol
Min.
Typical
Max.
Units
Transmitter
Center Wavelength
RMS Spectral Width
1
2
Average Optical Power
3
Extinction Ratio
Transmitter Dispersion Penalty
5
Relative Intensity Noise
Optical Return Loss Tolerance
λt
840
850
860
nm
Pm
-
-
-
nm
Pavg
-6.5
-
-1
dBm
ER
3.5
-
-
dB
TDP
-
-
3.9
dB
Rin
-
-
-128
dB/Hz
-
-
-
12
dB
Receiver
Center Wavelength
4
Receiver Sensitivity
Stressed Sensitivity in OMA
4
Los Function
Overload
4
Receiver Reflectance
λr
840
850
860
nm
Psens
-
-
-11.1
dBm
-
-
-
-7.5
dBm
Los
-30
-
-12
dBm
Pin
-
-
-1.0
dBm
-
-
-
-12
dB
Notes:
1. Trade-offs are available between spectral width, center wavelength and minimum OMA, as presented in the “Electrical Characteristics” table.
2. The optical power is launched into MMF.
3. Measured with a PRBS 231-1 test pattern @10.3125Gbps.
4. Measured with a PRBS 231-1 test pattern @10.3125Gbps,BER≤10-12.
5. 12dB reflection.
102 Wright Brothers Ave
Livermore, CA 94550
www.ariatech.com
Phone (925) 447-7500
Fax (925) 447-7511
[email protected]
10Gbps 300m Range 850nm SFP+ Optical Transceiver
Page 5 of 10
DS-OT-5
Revision date 12/03/2015
Optical Transceivers
Minimum 10GBASE-SR OMA as a Function of Wavelength and Spectral Width
RMS Spectral Width (nm)
0.1 to 0.15 to 0.2 to 0.25 to 0.3 to
0.15
0.2
0.25
0.3
0.35
Center
Wavelength
(nm)
Up to
0.05
0.05 to
0.1
840 to 842
-4.2
-4.2
-4.1
-4.1
-3.9
-3.8
842 to 844
-4.2
-4.2
-4.2
-4.1
-3.9
844 to 846
-4.2
-4.2
-4.2
-4.1
846 to 848
-4.3
-4.2
-4.2
-4.1
848 to 850
-4.3
-4.2
-4.2
850 to 852
-4.3
-4.2
852 to 854
-4.3
854 to 856
0.35 to
0.4
0.4 to
0.45
-3.5
-3.2
-2.8
-3.8
-3.6
-3.3
-2.9
-4.0
-3.8
-3.6
-3.3
-2.9
-4.0
-3.8
-3.6
-3.3
-2.9
-4.1
-4.0
-3.8
-3.6
-3.3
-3.0
-4.2
-4.1
-4.0
-3.8
-3.6
-3.4
-3.0
-4.2
-4.2
-4.1
-4.0
-3.9
-3.7
-3.4
-3.1
-4.3
-4.3
-4.2
-4.1
-4.0
-3.9
-3.7
-3.4
-3.1
856 to 858
-4.3
-4.3
-4.2
-4.1
-4.0
-3.9
-3.7
-3.5
-3.1
858 to 860
-4.3
-4.3
-4.2
-4.2
-4.1
-3.9
-3.7
-3.5
-3.2
Electrical Characteristics
The following electrical characteristics are defined over the recommended operating environment unless otherwise
specified.
Parameter
Data Rate
Power Consumption
Symbol
Min.
Typical
Max.
Units
-
-
10.3125
-
Gbps
-
-
1200
1500
mW
Transmitter
Single Ended Output Voltage Tolerance
-
-0.3
-
4.0
V
C Common Mode Voltage Tolerance
-
15
-
-
mV
VI
400
-
1600
mV
Tx Input Diff Voltage
Tx Fault
1
Data Dependent Input Jitter
Data Input Total Jitter
VoL
-0.3
-
0.4
V
DDJ
-
-
0.10
UI
TJ
-
-
0.28
UI
-
-0.3
-
4.0
V
Vo
300
-
850
mV
Receiver
Single Ended Output Voltage Tolerance
Rx Output Diff Voltage
Rx Output Rise and Fall Time
2
Tr/Tf
30
-
-
ps
Total Jitter
TJ
-
-
0.70
UI
Deterministic Jitter
DJ
-
-
0.42
UI
Notes:
1. At 0.7 mA.
2. 20% to 80%.
102 Wright Brothers Ave
Livermore, CA 94550
www.ariatech.com
Phone (925) 447-7500
Fax (925) 447-7511
[email protected]
10Gbps 300m Range 850nm SFP+ Optical Transceiver
Optical Transceivers
Figure 1: Interface to Host PBC
Figure 2: Module Contact Assignment
102 Wright Brothers Ave
Livermore, CA 94550
www.ariatech.com
Phone (925) 447-7500
Fax (925) 447-7511
[email protected]
Page 6 of 10
DS-OT-5
Revision date 12/03/2015
10Gbps 300m Range 850nm SFP+ Optical Transceiver
Optical Transceivers
Page 7 of 10
DS-OT-5
Revision date 12/03/2015
Pin Definition
Pin
Symbol
1
VEET
Transmitter ground
2
2
Tx_Fault
3
Tx_DIS
4
5
6
Transmitter fault
3
Transmitter Disable. Laser output disabled on high or open
2
SDA
SCL
2-Wire serial interface data line
2
2-Wire serial interface clock line
4
MOD_ABS
5
7
RS0
8
RX_LOS
9
Name/Description
1
RS1
Module absent. Grounded within the module
Rate select 0
2
5
Loss of signal indication. Logic 0 indicates normal operation
Rate Select 1
VEER
1
Receiver ground
11
VEER
1
Receiver ground
12
RD-
10
Receiver inverted data out. AC coupled
13
RD+
14
VEER
15
VCCR
Receiver power supply
16
VCCT
Transmitter power supply
17
1
VEET
18
TD+
19
TD-
20
Receiver data out. AC coupled
1
Receiver ground
Transmitter ground
Transmitter DATA in. AC Coupled
Transmitter inverted DATA in. AC Coupled
1
VEET
Transmitter ground
Notes:
1. Module circuit ground is isolated from module chassis ground within the module.
2. Should be pulled up with 4.7kΩ-10kΩ on host board to a voltage between 3.15V and 3.6V.
3. Tx_Disable is an input contact with a 4.7kΩ-10kΩ pullup to VccT inside the module.
4. Mod_ABS is connected to VeeT or VeeR in the SFP+ module. The host may pull this contact up to Vcc_Host with a
resistor in the range 4.7kΩ-10kΩ. Mod_ABS is asserted “High” when the SFP+ module is physically absent from a host slot.
5. RS0 and RS1 are module inputs and are pulled low to VeeT with > 30 kΩ resistors in the module.
102 Wright Brothers Ave
Livermore, CA 94550
www.ariatech.com
Phone (925) 447-7500
Fax (925) 447-7511
[email protected]
10Gbps 300m Range 850nm SFP+ Optical Transceiver
Optical Transceivers
Figure 3. Host Board Power Supply Filters Circuit
Figure 4. Host-Module Interface
102 Wright Brothers Ave
Livermore, CA 94550
www.ariatech.com
Phone (925) 447-7500
Fax (925) 447-7511
[email protected]
Page 8 of 10
DS-OT-5
Revision date 12/03/2015
10Gbps 300m Range 850nm SFP+ Optical Transceiver
Optical Transceivers
Page 9 of 10
DS-OT-5
Revision date 12/03/2015
Figure 5: Mechanical Specifications
Regulatory Compliance
This SFP+ Transceiver is designed to be Class I laser safety compliant and is certified per the following standards:
Feature
Laser Safety
Product Safety
Environmental
Protection
EMC
102 Wright Brothers Ave
Livermore, CA 94550
www.ariatech.com
Agency
Standard
Certificate/ Comments
FDA
CDRH 21 CFR 1040 and Laser
Notice No.50
1120292-000
UL
UL and CUL EN60950-2:2007
SGS
RoHS Directive 2002/95/EC
WALTEK
EN 55022:2006+A1:2007
EN 55024:1998+A1+A2:2003
Phone (925) 447-7500
Fax (925) 447-7511
[email protected]
E347511
GZ1001008918/CHEM
WT10093759-D-E-E
10Gbps 300m Range 850nm SFP+ Optical Transceiver
Optical Transceivers
Page 10 of 10
DS-OT-5
Revision date 12/03/2015
Ordering Information
Part Number
Product Description
AT-10GBPS-300M-SRC
850nm,10Gbps,SFP + 300m, 0ºC - +70ºC
References
1. “Specifications for Enhanced Small Form Factor Pluggable Module SFP+”, SFF-8431, Rev 4.1, July 6, 2009.
2. “Improved Pluggable Formfactor”,SFF-8432, Rev 4.2, Apr 18,2007
3. IEEE802.3ae – 2002
4. “Diagnostic Monitoring Interface for Optical Transceivers” SFF-8472, Rev 10.3, Dec 1,2007
102 Wright Brothers Ave
Livermore, CA 94550
www.ariatech.com
Phone (925) 447-7500
Fax (925) 447-7511
[email protected]
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
