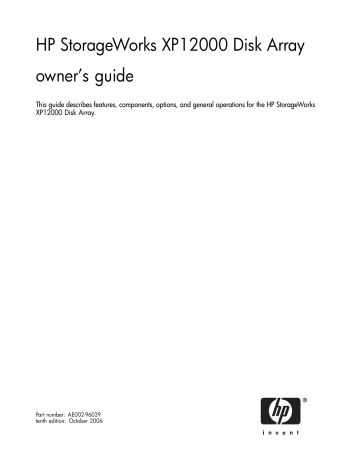

HP StorageWorks XP12000 Disk Array owner’s guide

This guide describes features, components, options, and general operations for the HP StorageWorks

XP12000 Disk Array.

Part number: AE002-96029 tenth edition: October 2006

Legal and notice information

© Copyright 2004-2006 Hewlett-Packard Development Company, L.P., all rights reserved.

Confidential computer software. Valid license from HP required for possession, use or copying. Consistent with

FAR 12.211 and 12.212, Commercial Computer Software, Computer Software Documentation, and Technical

Data for Commercial Items are licensed to the U.S. Government under vendor’s standard commercial license.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services.

Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Intel, Itanium, Pentium, Intel Inside, and the Intel Inside logo are trademarks or registered trademarks of Intel

Corporation or its subsidiaries in the United States and other countries.

Microsoft, Windows, Windows XP, and Windows NT are U.S. registered trademarks of Microsoft Corporation.

Adobe and Acrobat are trademarks of Adobe Systems Incorporated.

Java is a U.S. trademark of Sun Microsystems, Inc.

Oracle is a registered U.S. trademark of Oracle Corporation, Redwood City, California.

Linux is a U.S. registered trademark of Linus Torvalds.

UNIX is a registered trademark of The Open Group.

Printed in the U.S.

Contents

Preface . . . . . . . . . . . . . . . . . . . . . . . . .

6

About this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Intended audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Disk arrays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Related documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Document conventions and symbols . . . . . . . . . . . . . . . . . . . . . . . 7

Rack stability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

HP technical support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Subscription service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

HP web sites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1 Overview . . . . . . . . . . . . . . . . . . . . . .

11

Continuous data availability . . . . . . . . . . . . . . . . . . . . . . . . . .

11

Nondisruptive service and upgrades . . . . . . . . . . . . . . . . . . . . . .

12

Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13

Scalability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13

Data integrity and high availability . . . . . . . . . . . . . . . . . . . . . . .

14

Summary of features . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15

Web-based array management . . . . . . . . . . . . . . . . . . . . . .

15

Operating systems . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15

External storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

16

Included components . . . . . . . . . . . . . . . . . . . . . . . . . . .

16

Required additional components . . . . . . . . . . . . . . . . . . . . . .

17

Optional components . . . . . . . . . . . . . . . . . . . . . . . . . .

17

Hardware specifications . . . . . . . . . . . . . . . . . . . . . . . . .

18

2 Hardware . . . . . . . . . . . . . . . . . . . . . .

21

Physical components . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

22

Disk control frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

22

Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23

Unit emergency power off switch . . . . . . . . . . . . . . . . . . . . . .

28

Service processor (SVP) . . . . . . . . . . . . . . . . . . . . . . . . . .

28

Disk drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

28

HP StorageWorks Continuous Track XP . . . . . . . . . . . . . . . . . . .

28

Disk array frames . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

29

Disk drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

29

RAID options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

29

HP StorageWorks XP12000 Disk Array

3

Backup batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

30

Disk array management . . . . . . . . . . . . . . . . . . . . . . . . . . .

31

Operating specifications . . . . . . . . . . . . . . . . . . . . . . . . . . .

32

Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

32

Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

33

Mechanical vibration . . . . . . . . . . . . . . . . . . . . . . . . . . .

33

AC line voltage requirements . . . . . . . . . . . . . . . . . . . . . . .

34

50-amp, 50 or 60 Hz, single-phase DKC . . . . . . . . . . . . . . . .

34

30-amp, 50 or 60 Hz, single-phase DKC . . . . . . . . . . . . . . . .

34

30-amp, 50 or 60 Hz, three-phase DKC . . . . . . . . . . . . . . . . .

35

50-amp, 50 or 60 Hz, single-phase DKU . . . . . . . . . . . . . . . .

35

30-amp, 50 or 60 Hz, single-phase DKU . . . . . . . . . . . . . . . .

36

30-amp, 50 or 60 Hz, three-phase DKU . . . . . . . . . . . . . . . . .

36

3 Operations . . . . . . . . . . . . . . . . . . . . . .

37

General safety guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . .

38

Powering down the disk array . . . . . . . . . . . . . . . . . . . . . . . . .

40

Planned power off . . . . . . . . . . . . . . . . . . . . . . . . . . . .

40

Emergency power off . . . . . . . . . . . . . . . . . . . . . . . . . . .

40

To power off the disk array in an emergency: . . . . . . . . . . . . . .

41

Recovering from an unplanned power outage . . . . . . . . . . . . . . . . . .

42

Manual restart after power is restored . . . . . . . . . . . . . . . . . . . .

42

To restart the disk array manually: . . . . . . . . . . . . . . . . . . .

42

Automatic restart when power is restored . . . . . . . . . . . . . . . . . .

43

4 Software . . . . . . . . . . . . . . . . . . . . . . .

45

Storage area management software . . . . . . . . . . . . . . . . . . . . . .

46

HP OpenView Storage Area Manager suite . . . . . . . . . . . . . . . . .

46

HP Storage Essentials . . . . . . . . . . . . . . . . . . . . . . . . . . .

47

Device and configuration management software . . . . . . . . . . . . . . . . .

48

HP StorageWorks XP Remote Web Console and Command View XP Advanced

Edition (AE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

48

HP StorageWorks LUN Configuration and Security Manager XP . . . . . . . .

48

HP StorageWorks Cache LUN XP . . . . . . . . . . . . . . . . . . . . . .

49

HP StorageWorks Data Integrity Check for XP . . . . . . . . . . . . . . . .

49

HP StorageWorks LUN Security XP Extension . . . . . . . . . . . . . . . . .

49

HP StorageWorks External Storage XP . . . . . . . . . . . . . . . . . . .

50

HP StorageWorks XP Tiered Storage Manager . . . . . . . . . . . . . . . .

51

HP StorageWorks XP Disk/Cache Partition . . . . . . . . . . . . . . . . . .

51

HP StorageWorks XP Data Shredder . . . . . . . . . . . . . . . . . . . .

51

Performance management software . . . . . . . . . . . . . . . . . . . . . . .

52

HP StorageWorks Auto LUN XP . . . . . . . . . . . . . . . . . . . . . .

52

HP StorageWorks Performance Advisor XP Software . . . . . . . . . . . . . .

52

HP StorageWorks Performance Control XP . . . . . . . . . . . . . . . . . .

52

Replication software . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

53

HP StorageWorks Business Copy XP and Snapshot XP . . . . . . . . . . . . .

53

4

HP StorageWorks Continuous Access Synchronous . . . . . . . . . . . . . .

53

HP StorageWorks Continuous Access Asynchronous . . . . . . . . . . . . . .

53

HP StorageWorks Continuous Access Journal . . . . . . . . . . . . . . . .

53

HP StorageWorks RAID Manager XP . . . . . . . . . . . . . . . . . . . .

53

HP StorageWorks Flex Copy XP . . . . . . . . . . . . . . . . . . . . . .

54

Multipathing/high availability software . . . . . . . . . . . . . . . . . . . . .

54

HP StorageWorks Secure Path . . . . . . . . . . . . . . . . . . . . . . .

54

Mainframe software . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

55

HP StorageWorks Data Exchange XP . . . . . . . . . . . . . . . . . . . .

55

Business continuity solutions . . . . . . . . . . . . . . . . . . . . . . . . . .

56

HP OpenView Data Protector . . . . . . . . . . . . . . . . . . . . . . .

56

HP StorageWorks Cluster Extension XP . . . . . . . . . . . . . . . . . . .

56

HP StorageWorks Fast Recovery Solution for Windows 2003 . . . . . . . . . .

57

5 Troubleshooting . . . . . . . . . . . . . . . . . . . .

59

Service information messages . . . . . . . . . . . . . . . . . . . . . . . . .

59

Failure detection and reporting process . . . . . . . . . . . . . . . . . . . . .

60

6 Regulatory statements . . . . . . . . . . . . . . . . .

61

FCC EMC statement (USA) . . . . . . . . . . . . . . . . . . . . . . . . . .

61

IEC statement (worldwide) . . . . . . . . . . . . . . . . . . . . . . . . . . .

61

EMC statement (Canada) . . . . . . . . . . . . . . . . . . . . . . . . . . .

61

Spécification ATI Classe A (France) . . . . . . . . . . . . . . . . . . . . . . .

62

VCCI EMC statement (Japan) . . . . . . . . . . . . . . . . . . . . . . . . .

62

BSMI EMC statement (Taiwan) . . . . . . . . . . . . . . . . . . . . . . . . .

62

RRL EMC statement (Korea) . . . . . . . . . . . . . . . . . . . . . . . . . .

62

Harmonics conformance (Japan) . . . . . . . . . . . . . . . . . . . . . . . .

63

German noise declaration

. . . . . . . . . . . . . . . . . . . . . . . . . .

63

Laser safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

64

Japan DENAN law cordset caution . . . . . . . . . . . . . . . . . . . . . . .

65

European WEEE statements . . . . . . . . . . . . . . . . . . . . . . . . . .

66

Glossary . . . . . . . . . . . . . . . . . . . . . . . .

73

Index . . . . . . . . . . . . . . . . . . . . . . . . .

81

HP StorageWorks XP12000 Disk Array

5

Preface

About this guide

This guide provides information about owning and operating the HP XP12000 Disk

Array.

Intended audience

This guide is intended for system administrators with knowledge of:

• the host hardware

• the operating system

• RAID technology

Disk arrays

Unless otherwise noted, the term disk array refers to the HP XP12000 Disk Array.

Related documentation

The following documents provide related information:

• HP StorageWorks XP12000 Disk Array site preparation guide

• HP StorageWorks Remote Web Console XP user guide

• HP StorageWorks Command View XP Advanced Edition user guide

• HP StorageWorks Disk Array XP Operating System configuration guide

You can find these documents from the Manuals page of the HP Business Support Center web site: http://www.hp.com/support/manuals

In the Storage section, click Storage array systems and then select your product.

6

Preface

Document conventions and symbols

Convention

Blue text:

Document conventions and symbols

Blue, underlined text: http://www.hp.com

Bold text

Element

Cross-reference links and e-mail addresses

Italic text

Monospace text

Monospace, italic

text

Monospace, bold

text

Web site addresses

• Keys that are pressed

• Text typed into a GUI element, such as a box

• GUI elements that are clicked or selected, such as menu and list items, buttons, tabs, and check boxes

Text emphasis

• File and directory names

• System output

• Code

• Commands, their arguments, and argument values

• Code variables

• Command variables

Emphasized monospace text

WARNING!

Indicates that failure to follow directions could result in bodily harm or death.

CAUTION:

Indicates that failure to follow directions could result in damage to equipment or data.

IMPORTANT:

Provides clarifying information or specific instructions.

NOTE:

Provides additional information.

HP StorageWorks XP12000 Disk Array

7

TIP:

Provides helpful hints and shortcuts.

Rack stability

Rack stability protects personnel and equipment.

WARNING!

To reduce the risk of personal injury or damage to equipment:

• Extend leveling jacks to the floor.

• Ensure that the full weight of the rack rests on the leveling jacks.

• Install stabilizing feet on the rack.

• In multiple-rack installations, fasten racks together securely.

• Extend only one rack component at a time. Racks can become unstable if more than one component is extended.

HP technical support

Telephone numbers for worldwide technical support are listed on the HP support web site: http://www.hp.com/support/ .

Collect the following information before calling:

• Technical support registration number (if applicable)

• Product serial numbers

• Product model names and numbers

• Error messages

• Operating system type and revision level

• Detailed questions

For continuous quality improvement, calls may be recorded or monitored.

8

Preface

Subscription service

HP strongly recommends that customers register online using the Subscriber’s Choice web site: http://www.hp.com/go/e-updates .

Subscribing to this service provides you with e-mail updates on the latest product enhancements, newest driver versions, and firmware documentation updates as well as instant access to numerous other product resources.

After subscribing, locate your products by selecting Business support and then Storage under Product Category.

HP web sites

For additional information, see the following HP web sites:

• http://www.hp.com

• http://www.hp.com/go/storage

• http://www.hp.com/service_locator

• http://www.hp.com/support/manuals

• http://www.hp.com/support/downloads

HP StorageWorks XP12000 Disk Array

9

10

Preface

1 Overview

This disk array is part of the HP StorageWorks XP Disk Array family of products, which provide reliable and secure data storage and protection. These disk arrays also support multiple operating systems, platforms, and RAID groups. Advantages include:

• Continuous data availability

• Nondisruptive service and upgrades

• Connectivity

• Scalability

• Data integrity and high availability

Continuous data availability

The HP StorageWorks Disk Array XP family includes the first RAID disk arrays to provide truly continuous data availability. XP disk arrays are designed for nonstop operation and continuous access to all user data.

The following features ensure continuous data availability:

• No single point of component failure, which enables uninterrupted access to data

• Component and function redundancy, providing full fault tolerance for disk array microprocessors, control storage, cache, control and data buses, power supplies, and cooling fans

• Can sustain multiple component failures and still continue to provide full access to stored data

Note that although access to data is not compromised, the failure of a key component can cause a temporary reduction in disk array performance.

HP StorageWorks XP12000 Disk Array

11

Nondisruptive service and upgrades

Without disrupting normal disk array operations (if alternate pathing is used), an HP support representative can:

• Remove, service, repair, or replace hardware subassemblies

• Use the built-in service processor (SVP) to upgrade microcode

Alternate paths can be established using host failover software, alternate Fibre Channel paths, or both.

CAUTION:

The disk array has no user-serviceable components. The SVP does not include a keyboard or monitor and is not a customer-accessible component. Only an HP support representative should open the cabinets.

HP StorageWorks Continuous Track XP monitoring software detects internal hardware component problems and automatically reports them to the HP Storage Technology

Center (STC) before they are noticed by operators and users. An HP support representative can then verify the problem and perform the appropriate maintenance activity, with no interruption to applications or hosts. For more information on Continuous

Track XP, see

HP StorageWorks Continuous Track XP

.

12 Overview

Connectivity

The system can be configured to provide the following types of host connections:

Fibre Channel: Open Systems; FC-AL or Fabric; 1, 2, or 4 Gbps, single or multimode; LC-Duplex

ESCON: mainframe, serial

FICON: mainframe, LC-Duplex, single or multimode, 1, 2, or 4 Gbps

iSCSI: 8 ports per adapter, 1 Gbps

NAS: 8 ports per adapter, 1 Gbps

Scalability

The disk array is scalable to accommodate your current and future storage capacity needs.

The minimum XP12000 configuration includes one DKC containing 9 to 128 disk drives.

You can expand the disk array to include one to four DKUs, each containing up to 256 disk drives. The maximum array configuration can contain 1152 disk drives providing up to 332 TB of raw storage capacity in a single array.

Your HP support representative can add DKUs and disk drives online with no interruptions to applications or hosts.

HP StorageWorks XP12000 Disk Array

13

Data integrity and high availability

To provide the highest levels of data integrity and availability, the HP StorageWorks XP

Disk Array family uses RAID technologies and redundant hardware throughout the disk arrays, including:

• RAID1, RAID5, RAID6 (mixing RAID levels is allowed)

• Mirrored write cache

• Dual channel adapters (CHAs) and array control processors (ACPs)

• Dual and concurrently active data and control paths through the array

• Split power domains on internal data paths

• Hot-pluggable boards

• Hot-pluggable fans, power supplies, and controllers

• Online upgradable firmware

The following features and products help ensure the disk array meets your requirements for high availability:

• Capability to “phone home” to the multidisciplinary HP Storage Technology Center

(STC). See

HP StorageWorks Continuous Track XP .

• Capability to “phone home” to the multidisciplinary HP Storage Technology Center

(STC) using HP StorageWorks Continuous Track XP

• Advanced remote diagnostics

• Full solution (host-SAN-storage) support

• Full software and solution integration enabled by HP software products. See

“Chapter 4 Software” for details.

14 Overview

Summary of features

This section summarizes the features and specifications of the system. For the most current product information, visit the HP web site: http://h18006.www1.hp.com/ storage/enterprisestorage.html

.

Web-based array management

The disk array comes with HP StorageWorks Remote Web Console, a browser-based interface that runs on the SVP and enables you to manage one disk array. For managing multiple arrays, the optional HP StorageWorks Command View XP or Command View

XP Advanced Edition runs on a single Windows-based Device Manager server and can be accessed using remote web-based clients.

Operating systems

The disk array supports these operating systems:

• HP-UX

• Linux

• Windows

• HP OpenVMS

• HP Tru64

• Sun Solaris

• IBM AIX

• MPE/iX

• Novell NetWare

• SGI IRIX64

• Guardian for HP NonStop servers

• VMware

• Z/OS

The disk array also supports various mainframe operating systems through ESCON and FICON host interconnections. For the latest information on supported operating systems and versions, contact your HP support representative or visit the HP web site: www.hp.com

.

HP StorageWorks XP12000 Disk Array

15

External storage

The disk array connects to the following external storage systems and can provide access to and management of external volumes:

• HP StorageWorks XP48, XP128, XP256, XP512, XP1024, XP10000, and

XP12000 disk arrays

• HP StorageWorks Modular Smart Array MSA1000 and MSA1500

• HP StorageWorks EVA3000, EVA4000, EVA5000, EVA6000, and EVA8000 disk arrays

• Specific disk array models of other manufacturers. Consult your HP representative for details.

For more information about HP external storage, see the HP StorageWorks Command

View XP for XP Disk Arrays user guide or Command View XP Advanced Edition for

XP Disk Arrays user guide as applicable.

Included components

The HP XP12000 base product includes the following hardware, software, services, and support:

• One HP XP12000 DKC

• Basic redundant power supplies and base batteries for up to 64 GB of cache and up to 64 disk drives

• HP microcode

• Continuous Track XP

• Modem

• This owner’s guide

• An XP operating system configuration guides CD

• RAID Manager library

• Site preparation services

• Installation and configuration services

• Proactive 24 support for one year

• Reactive hardware support, 24x7, for two years

• Software support for one year (included with software title)

16 Overview

Required additional components

• Cache memory

• Shared memory

• ACP pair

• CHIP pair

• Hard disk drives

• HP StorageWorks XP Remote Web Console

• HP StorageWorks LUN Configuration and Security Manager XP

Optional components

HP offers an extensive list of optional products and services tailored for XP disk arrays, including a full suite of software products. HP StorageWorks Command View XP or

Command View XP Advanced Edition are among these options. For more information, see

HP StorageWorks XP Disk Array family of software products

and contact your HP support representative.

HP StorageWorks XP12000 Disk Array

17

Hardware specifications

Feature

Power

DKC/DKU

Maximum hard disk drives

Maximum spare disk drives

Maximum parity groups/subsystem

Maximum disk drive capacity

Maximum cache

Available hard disk drives

Maximum shared memory

ACP pairs

CHIP pairs (FC, ESCON, FICON, NAS, or iSCI)

Configuration disk

SVP code

High-availability secondary SVP

RAID level

Maximum LDEVs

Specification

Single-phase or 3-phase

One XP12000 DKC, zero to four XP12000

DKUs

1152

40

280

332 TB

256 GB

73 GB 15000 RPM FC

146 GB 10000 or 15000 RPM FC

300 GB 10000 RPM FC

12 GB (Available shared memory depends on the configuration)

1 to 4 (Each CHIP pair above 4 reduces

ACP slots by 1)

1 to 7 (Each CHIP pair above 4 reduces

ACP slots by 1)

XP12000-specific

XP12000-specific

Optionally available

RAID 1 (2D+2D)

RAID 1 (4D+4D)

RAID 5 (3D+1P)

RAID 5 (7D+1P)

RAID 6 (6D+2P)

16,384 for OPEN systems; 65,536 for mainframes (OPEN system LDEVS must be in first 16K; mainframe LDEVS may occupy any part of the available range.)

18 Overview

Feature

Available LUNs

Maximum LUNs per port

Maximum ports

Specification

229,376

1024

Fibre Channel: 224 ports

ESCON: 112 ports

FICON: 112 ports

NAS: 32 ports iSCSI: 56 ports

HP StorageWorks XP12000 Disk Array

19

20 Overview

2 Hardware

The HP StorageWorks XP series of disk arrays are high-performance RAID-capable disk array systems used to store large quantities of data in an efficient and secure manner.

There are no single points of failure in the disk arrays. They include redundant logic assemblies, controllers, disk drives, and power supplies, all of which can be removed or replaced without interrupting access to data.

CAUTION:

Only your HP support representative can remove or replace hardware.

HP StorageWorks XP12000 Disk Array

21

Physical components

The disk array includes the following major hardware components:

• One disk control frame (DKC)

• Zero to four disk array frames (DKUs)

• One service processor (SVP)

To monitor and manage the array, a Device Manager server is also required.

The following figure shows the disk array with the maximum of four DKUs. The DKC alone constitutes the minimum configuration.

Disk control frame

The DKC controls the disk array. It contains the control panel, connection hardware, power supplies, SVP, and control boards for the disk array. It also contains 9 to 128 disk drives.

22

Hardware

Control panel

Once the disk array is powered on and running normally, no user operations are required at the control panel, except when instructed by your HP support representative.

The following figure shows the control panel location and layout. The accompanying table explains the control panel functions.

HP StorageWorks XP12000 Disk Array

23

Item

Label

1 SUB-SYSTEM

READY

2 SUB-SYSTEM

ALARM

3 SUB-SYSTEM

MESSAGE

4 SUB-SYSTEM

RESTART

Indicator Description

LED

(Green)

During normal operation, this LED should be on.

ON: Input/output operation on the channel interface is enabled.

OFF: The system is not accepting data.

LED (Red) During normal operation, this LED should be off.

ON: One or more of the following:

The DC is under the voltage of the

DKC part. The DC is over current.

The temperature is abnormally high.

An unrecoverable failure has occurred. If the disk array is set up to “phone home” to STC, your HP support representative is notified automatically. If the disk array is not set up to “phone home,” place a service call to HP to have the message evaluated to determine if any action is required.

BLINKING: The DC is under the voltage of the

DKU part.

LED

(Amber)

During normal operation, this LED should be off.

ON: A service information message (SIM) has been issued from either storage cluster.

If the disk array is set up to “phone home” to STC, your HP support representative is notified automatically. If the disk array is not set up to phone home, place a service call to HP to have the message evaluated to determine if any action is required.

BLINKING: An SVP failure has occurred. The disk array will continue to operate normally.

Place a service call to HP to ensure notification.

SVP failures might not be reported automatically to STC.

Switch If a blocked path occurs between a host and a disk drive, this switch is used to unfence the fenced drive path and to release Write

Inhibit.During normal operation, this switch should be in the upper position.Restarting the subsystem performs a soft reset to try to recover.

If the system restart does not unblock the path, an HP support representative will be notified.

Do not change the switch position unless directed to do so by HP service personnel.

24 Hardware

Item

5

6

7

8

9

Label

REMOTE

MAINTENANCE

PROCESSING

REMOTE

MAINTENANCE

ENABLE/DISABLE

BS-ON

PS-ON

PS ENABLE

Indicator Description

LED

(Amber)

During normal operation, this LED may be on if remote maintenance is allowed (the

REMOTE MAINTENANCE ENABLE/DISABLE switch is in the ENABLE position).

ON: Remote maintenance is in progress.

An HP support representative is probably working on the system, but the system is online and accepting data.

Switch

LED

(Amber)

Used to permit remote service maintenance. During normal operation, this switch should be in the ENABLE position.

DISABLE: No one can provide remote maintenance.

ENABLE: An HP support representative can provide remote maintenance.Do not change the switch position unless directed to do so by

HP service personnel.

During normal operation, this LED should be on.

ON: The disk array is plugged in and receiving power from the primary AC outlet.

The SVP is receiving power from the outlet.

OFF: The disk array is not receiving power from the primary AC outlet. Check the electrical outlets in your building.

LED

(Green)

Switch

During normal operation, this LED should be on.

ON: The PS ON/OFF switch is on. If the

SUB-SYSTEM READY light (1) is also on, the disk array is ready to receive data.

OFF: The PS ON/OFF switch is off and the disk array is not ready to receive data.

Used to enable the PS ON/OFF switch

(10). During normal operation, this switch should be in the “Disable” position (opposite the ENABLE position).

ENABLE: The PS ON/OFF switch can be used.

DISABLE: The PS ON/OFF switch cannot be used. Do not change the switch position unless directed to do so by HP service personnel.

HP StorageWorks XP12000 Disk Array

25

Item

10

Label

PS ON/OFF

11

EMERGENCY

Indicator Description

Switch Used to power on/off the disk array. During normal operation, this switch should be in the ON position.

The switch functions only if:

The PS ENABLE switch (9) is in the ENABLE position.

AND

The PS REMOTE/LOCAL switch

(13) is in the LOCAL position. Do not change the switch position unless directed to do so by

HP service personnel.

LED (Red) During normal operation, this LED should be on.

ON:

The UNIT EMERGENCY POWER OFF switch on the back of the disk array cabinet is in the

ON position.

OFF:

The UNIT EMERGENCY POWER OFF switch is in the OFF position. Place a service call to

HP to have an HP support representative reset the switch.

26

Hardware

Item

12

13

14

Label

AUTO PS-ON

ENABLE/

DISABLE

PS REMOTE/

LOCAL

LED TEST/CHK

RST

Indicator Description

Switch

Switch

Switch

Used to enable the automatic power on restart feature, which specifies how the disk array is powered on when the AC power is turned on or restored after a power outage.

ENABLE: When the AC power is turned on, the disk array is powered on automatically.As with all sophisticated electronic equipment, unstable power conditions during a restart can cause problems. This switch should be in the ENABLE position only if the power to the disk array is subject to power conditioning equipment, such as a UPS, to ensure that the power restored to the disk array is stable. If your site does not have a UPS, keep this switch in the DISABLE position. After a power outage, follow the manual restart procedure only after power has been restored and verified to be stable.

DISABLE: The disk array must be powered on manually, using the PS ON/OFF switch

(10) or the host power control interface (PCI)

(mainframe only).Do not change the switch position unless directed to do so by HP service personnel.

Determines how the disk array is powered on or off. During normal operation, this switch may be in either position, depending on your operating environment.

REMOTE: Disk array is powered on/off by the instructions of the host PCI (mainframe only).

LOCAL: Disk array is powered on/off by the PS

ON/OFF switch (10).Do not change the switch position unless directed to do so by HP service personnel.

Used by an HP support representative to test the functioning of the LEDs on the control panel or to reset various alarms. During normal operations, this switch should be in the middle position between LED TEST and CHK RST. Do not change the switch position unless directed to do so by HP service personnel.

HP StorageWorks XP12000 Disk Array

27

Unit emergency power off switch

The UNIT EMERGENCY POWER OFF switch is located on the back of the DKC cabinet.

For more information about this switch, see

Emergency power off.

Service processor (SVP)

The Service Processor inside the controller performs these functions:

• Collects performance data on the system for diagnostic testing and analysis

• Provides your HP support representative with access to the system

• Hosts system management software

Your HP support representative uses the SVP to configure, maintain, and upgrade the system software and hardware. The SVP is not a customer-accessible component.

To protect your security, the SVP does not have access to any user data stored on array disks.

If you have extreme availability requirements, an optional second SVP is available.

Disk drives

The DKC must contain at least nine hard disk drives and can contain up to 128. For more information about disk drives, see the following section about disk drives in the DKUs.

HP StorageWorks Continuous Track XP

HP Continuous Track XP is a program in the system that detects and reports problems even before they are noticed by operators and users. HP Continuous Track XP “phones home” to the HP Storage Technology Center (STC), providing:

• Periodic “well” checkups

This checkup records the health of the disk array on a day-to-day basis. Every

24 hours, HP Continuous Track XP calls STC (your HP support representative sets the time of the call). When a successful connection is made, status information is transferred from the disk array to STC. If any configuration changes have been made, configuration information is also sent.

• Incidental “sick” calls

When an error occurs, a service information message (SIM) is generated, stored in the disk array for use by your HP support representative, and reported to STC. For more information, see

Service information messages

.

Note that the “phone home” capability can be turned off, if desired. HP Continuous Track

XP still monitors the disk array, but does not automatically notify HP if a problem occurs.

28

Hardware

Disk array frames

DKUs are optional cabinets that allow you to expand the disk array’s storage capacity.

DKUs contain physical disk drives. The disk array can include up to four DKUs. Four

DKUs fully populated with disk drives provide up to 332 TB of raw storage capacity.

Disk drives

Each DKU can contain up to 256 hard disk drives. The disk array automatically detects and corrects disk errors, and an HP support representative can replace any of the disk drives without disrupting user activity.

The disk array must contain at least one spare disk drive and can contain up to 40. Any of the spare disk drives can back up any other disk drive of equal rotational speed and equal or lesser capacity, in any DKU, even if the failed disk and the spare disk are in different array domains.

The XP12000 supports 73 GB, 146 GB, and 300 GB Fibre Channel disk drives. Fibre

Channel drives are intended as a high capacity, high performance storage option for high priority applications such as OLTP, Oracle, SAP, and Exchange.

RAID options

The disk array supports RAID1 (2D+2D or 4D+4D), RAID5 (3D+1P or 7D+1P), and

RAID6 (6D+2P) array groups. RAID levels may be intermixed.

HP StorageWorks XP12000 Disk Array

29

Backup batteries

In each frame (DKC and DKU), internal nickel-metal-hydride batteries provide backup power for the cache memory, shared memory, ACPs, CHIPs, and disk drives. If AC input power is lost, the backup batteries enable the disk array to continue normal operations for up to one minute. If power is not restored within one minute, the disk array executes either the De-Stage or Backup battery operation mode.

1

2

If power is restored during the de-staging process, the disk array continues with the data de-staging and power off processes.

If power is restored during the battery backup period, the disk array either automatically restarts or must be restarted manually, depending on the setting of the AUTO PS-ON ENABLE/DISABLE switch on the control panel.

HP representatives will help you determine the best battery mode for your configuration, and will configure the selected mode during installation.

30

Hardware

Disk array management

HP Remote Web Console (RWC) allows browser-based management of a single disk array. The optional HP Command View XP Advanced Edition software may be installed on an optional Device Manager server to enable additional management capabilities, including the ability to manage multiple arrays. Other HP StorageWorks XP Disk Array software may also be installed on this host; see

HP StorageWorks XP Disk Array family of software products

for information about optional HP software products.

To protect your security, Remote Web Console and HP Command View XP Advanced

Edition do not have access to user data stored on the disk array.

You may use an existing host (such as your storage administrator’s PC) as the Device

Manager server provided that it meets system requirements for the software you plan to deploy.

The CV XP AE Device Manager server connects to the disk array(s) using an Ethernet

LAN connection, as shown in the following figure.

3

4

5

Item

1

2

Description

Host computer

Host connection: Fibre Channel, ESCON, FICON, NAS, or iSCSI

DKC

Ethernet LAN

Device Manager Server

HP StorageWorks XP12000 Disk Array

31

Operating specifications

This section provides some general specifications. For complete specifications, see the system site preparation guide, available on the HP XP Disk Array web site: http://h18006.www1.hp.com/storage/xparrays.html

.

Temperature

Temperature range type

Recommended operating temperature range

Operating temperature

Nonoperating temperature range

Shipping and storage temperature

(product packed in factory packing)

Temperature shock immunity (maximum rate of temperature change)

Over-temperature warning

Over-temperature shutdown

Range

21 to 24 degrees C, 70 to 75 degrees F

16 to 32 degrees C, 61 to 89 degrees F

–10 to +43 degrees C, 14 to 109 degrees F

–25 to +60 degrees C, –13 to +140 degrees F

10 degrees C per hour, 18 degrees F per hour

At 40 degrees C, 104 degrees F

At 60 degrees C, 140 degrees F

32

Hardware

Humidity

Protect the disk array from excessive humidity. You should not observe condensation in or around the product under any conditions. There is no procedure for recovery from moisture condensation.

Humidity range type

Recommended operating humidity range at

22 degrees C (71 degrees F)

Operating humidity range at 22 degrees C

(71 F)

Nonoperating humidity range

Shipping and storage humidity range

(product packed in factory packing)

Noncondensing relative humidity (RH)

50% to 55%

20% to 80%

8% to 90%

5% to 95%

Mechanical vibration

Maximum operating acceleration is 0.05G at a frequency range of 10 to 300 Hz.

HP StorageWorks XP12000 Disk Array

33

AC line voltage requirements

This section lists the AC power recommendations for each power cord. Each DKC or

DKU has two or four power cords. In case of a failure of the power source for one cord, the power requirements, and therefore the current requirement for the remaining power cord, will double.

For details on electrical specifications, cabling, and connectors, see the HP

StorageWorks XP12000 Disk Array site preparation guide.

50-amp, 50 or 60 Hz, single-phase DKC

Parameter 200

VAC

208 VAC

60 Hz only

220

VAC

230

VAC

240

VAC

Rated line current per power cord (amps RMS)

Number of power cords

Recommended circuit breakers

Number of circuit breakers

22.6

2

50A

2

21.7

2

50A

2

20.5

2

50A

2

19.6

2

50A

2

18.8

2

50A

2

30-amp, 50 or 60 Hz, single-phase DKC

Parameter

Rated line current per power cord (amps RMS)

200

VAC

11.3

Number of power cords

Recommended circuit breakers

Number of circuit breakers.

Units with only two power cords require only two circuit breakers.

4

30A

4

208 VAC

60 Hz only

10.9

4

30A

4

220

VAC

10.3

4

30A

4

230

VAC

9.8

4

30A

4

240

VAC

9.4

4

30A

4

34 Hardware

30-amp, 50 or 60 Hz, three-phase DKC

Parameter

200

VAC

208 VAC

60 Hz only

220

VAC

230

VAC

240

VAC

380

VAC

400

VAC

415

VAC

Rated line current per power cord

(amps RMS)

Number of power cords

Recommended circuit breakers

Number of circuit breakers

13

2

30A

2

12.5 11.9

11.3

10.9

6.9

6.5

2 2 2 2 2 2 2

30A 30A 30A 30A 30A 30A 30A

2 2 2 2 2 2

6.3

2

50-amp, 50 or 60 Hz, single-phase DKU

Parameter 200

VAC

208 VAC

60 Hz only

Rated line current per power cord (amps RMS)

Number of power cords

Recommended circuit breakers

Number of circuit breakers

18

2

50A

2

17.3

2

50A

2

220

VAC

16.4

2

50A

2

230

VAC

15.7

2

50A

2

240

VAC

15

2

50A

2

HP StorageWorks XP12000 Disk Array

35

30-amp, 50 or 60 Hz, single-phase DKU

Parameter

200

VAC

208 VAC

60 Hz only

Rated line current per power cord (amps RMS)

Number of power cords

Recommended circuit breakers

Number of circuit breakers.

Units with only two power cords require only two circuit breakers.

9

4

30A

4

8.7

4

30A

4

220

VAC

8.2

4

30A

4

230

VAC

7.8

4

30A

4

30-amp, 50 or 60 Hz, three-phase DKU

Parameter 200

VAC

208 VAC

60 Hz only

220

VAC

230

VAC

240

VAC

380

VAC

400

VAC

415

VAC

Rated line current per power cord

(amps RMS)

Number of power cords

Recommended circuit breakers

Number of circuit breakers

10.4

2

30A

2

10 9.4

9 8.7

5.5

5.2

5

2 2 2 2 2 2 2

30A 30A 30A 30A 30A 30A 30A

2 2 2 2 2 2 2

240

VAC

7.5

4

30A

4

36

Hardware

3 Operations

During normal operations, the disk array does not require your intervention and you should not attempt to open the disk array cabinets.

The disk array reports any service information messages (SIMs) to the SVP and the

Device Manager server. If the array is set up to “phone home,” the SVP automatically reports SIMs to the HP Storage Technology Center (STC). For more information about

SIMs, see

Service information messages .

HP StorageWorks XP12000 Disk Array

37

General safety guidelines

Carefully read these safety guidelines and follow them when working with the disk array.

• Fully understand and follow all hazard warnings in this guide and on warning labels on the disk array. These hazard warnings help you to prevent or reduce the risk of death, personal injury, or product damage. Hazard warnings include alert headings consisting of an alert symbol and the word Caution or Warning.

CAUTION:

This indicates a hazardous situation which, if not avoided, will or can result in serious product damage or loss of data.

WARNING!

This indicates a potentially hazardous situation which, if not avoided, can result in death or serious injury.

• Replace any warning label that becomes dirty or starts peeling off.

• Keep in mind that the hazard warnings in this guide and on the disk array cannot cover every possible hazard because it is impossible to predict and evaluate all potentially hazardous circumstances. Be alert and use common sense. If you have any questions, contact your HP support representative.

• Follow the safety guidelines and procedures in all documentation for this and related products.

CAUTION:

Disk array maintenance must be done only by trained and qualified HP support representatives. Only an HP support representative can power off the disk array, except in an emergency.

CAUTION:

Do not perform any procedures not described in this guide. If you have any questions or concerns, contact your HP support representative.

WARNING!

Do not touch areas marked HAZARDOUS, even with the power off. These areas contain high-voltage power.

38 Operations

CAUTION:

If you detect any abnormal noise, smell, or smoke coming from the disk array, immediately power off the disk array by following the emergency power off procedure later in this chapter. For routine power off in non-emergency situations, contact your HP support representative.

CAUTION:

Do not power off the system unless it is an emergency situation and you follow the procedure for Emergency power off.

CAUTION:

Keep the front and rear doors closed at all times.

CAUTION:

Keep the tops and sides of the cabinets clear to allow air to flow properly.

CAUTION:

Use the supplied power cord. The power cord may not be used with other products.

HP StorageWorks XP12000 Disk Array

39

Powering down the disk array

Two situations may arise when you need to power down the system:

• Planned power off

• Emergency power off

Planned power off

Occasionally, you may need to plan a site power outage, such as during alterations to the data center, inspections, or work by the electric company. If a scheduled power outage will affect the disk array, contact your HP support representative to schedule a planned power off.

CAUTION:

Only a trained HP support representative can shut down and power off the disk array.

Do not attempt to power down the disk array other than during an emergency.

Emergency power off

In an emergency, it is critical to remove power to the disk array as quickly as possible.

CAUTION:

Performing the emergency power off procedure immediately shuts down the disk array, neglecting the array’s normal power off sequence. Jobs in process are aborted and their integrity after recovery is not guaranteed. Use this power off method only in an emergency. Only a qualified HP support representative can reset the switch and restore power to the disk array.

Emergency situations in which you should consider performing the emergency power off procedure are:

• A physical location catastrophe such as a flood, hurricane, tornado, or earthquake

• Any circumstance that presents the threat of injury or death to a person

• You detect any smoke, abnormal loud noise, or smell coming from the disk array

40 Operations

To power off the disk array in an emergency:

1.

Locate the UNIT EMERGENCY POWER OFF switch on the back side of the DKC. Its location is shown in the following figure.

2.

Pull the switch up and then out towards you.

The disk array shuts down immediately. The UNIT EMERGENCY POWER OFF switch mechanically locks itself in the off position to prevent anyone from restoring power in a potentially hazardous situation.

WARNING!

The UNIT EMERGENCY POWER OFF switch provides only partial power off capability.

AC input power remains present at the primary circuit.

3.

When the emergency situation is over, call the HP support center. Only a qualified

HP support representative can reset the switch and restore power to the disk array.

HP StorageWorks XP12000 Disk Array

41

Recovering from an unplanned power outage

Unplanned power outages occur when the primary building power is lost due to electrical blackouts, thunderstorm activity, or similar occurrences, and input AC power is not received by the disk array. The disk array will maintain its state and recover when power is restored.

The disk array cache is powered by backup batteries that will maintain the array state for up to 48 hours, depending on the selected battery operation mode. For more information, see “

Backup Batteries .”

Manual restart after power is restored

CAUTION:

After power is restored to your site and before restoring power to the disk array, HP recommends that you have an electrician verify the power to ensure that all phases are restored and input power to the disk is stable.

Contact your HP representative for help recovering from a power outage.

To restart the disk array manually:

1.

Move the PS ENABLE switch to the ENABLE position.

2.

Move the PS ON/OFF switch to the ON position.

The following LED power sequence occurs:

BS-ON turns amber.

PS-ON turns green.

SUB-SYSTEM MESSAGE may turn amber if the disk array is not configured to

“phone home,” signifying a SIM was generated because of the power outage.

SUB-SYSTEM READY turns green, indicating the system is ready.

CAUTION:

Powering on the disk array can take up to 10 minutes, depending on the number of disks installed in the disk array. Power on is complete only when the SUB-SYSTEM READY LED turns green.

Move the PS ENABLE switch to “DISABLE” (opposite ENABLE).

42 Operations

Automatic restart when power is restored

CAUTION:

As with all sophisticated electronic equipment, unstable power conditions during a restart can cause problems. HP recommends automatic power on restart only if the power to the disk array is subject to power conditioning equipment, such as a UPS, to ensure that the power restored to the disk array is stable. If your site does not have a

UPS, HP recommends that the disk array be configured for manual restart, meaning the POWER ENABLE switch on the control panel is in the DISABLE position. After a power outage, follow the manual restart procedure only after power has been restored and verified stable.

With automatic restart enabled, the disk array automatically restarts and returns to service when power is restored.

During the automatic restart, the following LED power sequence occurs:

• BS-ON turns amber.

• PS-ON turns green.

• SUB-SYSTEM MESSAGE may turn amber if the disk array is not configured to

“phone home,” signifying a SIM was generated because of the power outage.

• SUB-SYSTEM READY turns green, signifying the system is ready.

CAUTION:

Powering on the disk array can take up to 10 minutes and is complete only when the SUB-SYSTEM READY LED turns green.

To enable automatic restart:

Move the AUTO PS-ON ENABLE/DISABLE switch to the ENABLE position.

HP StorageWorks XP12000 Disk Array

43

44 Operations

4 Software

This chapter describes HP’s suite of software products available for your system. HP

StorageWorks software:

• Augments critical array capabilities

• Helps optimize your IT resources

• Improves overall storage availability

• Simplifies disaster recovery

• Improves data security

Before installing a software package, refer to the software product documentation to verify equipment requirements.

To learn more about HP software products, or to obtain software updates, visit the HP web site: http://www.hp.com

.

HP StorageWorks XP12000 Disk Array

45

Storage area management software

HP OpenView Storage Area Manager suite

HP OpenView Storage Area Manager provides comprehensive, centralized management across distributed, heterogeneous storage networks. The HP Storage Area Manager product suite includes the following applications:

• HP Storage Node Manager

• HP Storage Accountant

• HP Storage Allocater

• HP Storage Builder

• HP Storage Optimizer

HP Storage Area Manager provides:

• Automatic discovery and mapping of supported devices in the storage network, including hosts, interconnect devices, bridges, storage devices, and NAS devices

• Integrated device, capacity, performance, allocation, and cost management

• Support for Storage Management Initiative Specification (SMI-S) devices

• Monitoring and management of all discovered devices

• Centralized monitoring, management, and planning for Oracle and Microsoft

Exchange applications

• Event management including the ability to set thresholds and configure triggers to perform automated actions when event criteria is met

• Reports to identify wasted or unused storage space

• Reports to identify trends to analyze and predict storage demand

• Integration with third-party reporting tools

46

Software

HP Storage Essentials

The HP Storage Essentials suite delivers integrated heterogeneous functionality for network (DAS, SAN, NAS) management, storage resource management, provisioning and application infrastructure monitoring. The HP Storage Essentials framework allows you to add the following plugins to expand functionality as needed:

• HP Provisioning Manager

• HP Chargeback Manager

• HP Global Reporter

• HP Report Designer

• HP Oracle Viewer

• HP Sybase Viewer

• HP Exchange Viewer

• HP File System Viewer

• HP NetApp Viewer

HP StorageWorks XP12000 Disk Array

47

Device and configuration management software

HP StorageWorks XP Remote Web Console and Command View

XP Advanced Edition (AE)

HP Remote Web Console (RWC) which comes installed on the SVP, is the standard software package for managing the XP disk array. RWC allows you to install and manage the disk array but does not allow you to manage multiple arrays. To manage multiple HP XP disk arrays, you will need the optional HP Command View XP Advanced

Edition software.

The optional HP Command View XP Advanced Edition (CV XP AE) provides a browser-based common management platform from which you can manage the HP XP family of disk arrays. CV XP AE installs on a management workstation that you provide and from there can manage multiple XP arrays—even globally distributed arrays.

HP Remote Web Console XP and/or HP Command View XP Advanced Edition provide:

• Web-browser based GUI interface

• Visual representation and management of host and storage resources

• Common user interface for launching XP management applications

• Security through authentication, authorization, and encryption

• Event level integration into the leading network and system management solutions

HP StorageWorks LUN Configuration and Security Manager XP

HP LUN Configuration and Security Manager XP provides additional LUN configuration and security options. You can add and delete paths, create custom-sized volumes, and configure foolproof LUN security that provides controlled, secure access to data stored on the XP disk array—preventing unauthorized servers from accessing your data. It also configures the array to meet changing storage requirements and enables users to share a single Fibre Channel array among multiple servers.

HP LUN Configuration and Security Manager XP allows you to:

• Create, define, and configure LUNs on the disk array

• Consolidate LUNs (combine up to 36 LUNs)

• Create small size LUNs to accommodate data locked into cache

• Establish security at the LUN level so that you can enable multiple server connectivity to the disk array

• Hide LUNs assigned to one server from other servers during IOSCAN operations

• Configure LUSE and create custom volume sizes

48

Software

HP StorageWorks Cache LUN XP

HP Cache LUN XP lets you reserve areas of memory cache on the HP XP disk arrays to store frequently accessed information. It improves file access times and enables faster data transfers. Assigning information to on-board cache speeds up access to your data because cache-resident data is available at host data transfer speeds for both read and write operations.

HP Cache LUN XP redirects I/O requests from the XP disk drives to data locked in the array’s cache. It’s transparent, simple to implement, and it delivers immediate performance gains. Cache memory for HP Cache LUN XP can be set as low as one logical block or 512 MB. As your needs grow, you can increase cache volumes in increments of one logical block to a maximum of 1,024 cached volumes.

HP StorageWorks Data Integrity Check for XP

HP Data Integrity Check for XP corrects extraneous data problems in the I/O path from server to array. It provides XP disk arrays with an added level of protection when deployed in Oracle database environments, eliminating data corruption-related downtime and ensuring business continuity. It comprises flexible tools for solution configuration and management and supports raw disk, LVM, and VxVM environments.

The software is compatible with HP-UX, Sun Solaris, and MC/Service Guard for HP-UX.

Key features and benefits include:

• Enhanced data protection in Oracle environments

• Implementation on Oracle’s Hardware Assisted Resilient Data (HARD) framework

• Correction of any random data corruption in the I/O path from server to array

• Averts unplanned downtime

• Increases uptime and business continuity

HP StorageWorks LUN Security XP Extension

HP LUN Security XP Extension helps you manage business-critical or sensitive data by providing a highly secure method of LDEV access control, allowing you to protect critical data from being changed.

Key features and benefits include:

• Creation of read-only volumes

• Protection of datasets from write and read access

• Protection from local and remote replication activities

• Data read only by authorized applications

• Access attributes assigned to each logical volume

• Global masking for protection from all host servers

HP StorageWorks XP12000 Disk Array

49

• Rejection of file system device inquiry requests

• Reporting of access failures to host server

• Allows XP disk array deployment in data retention solutions that assist in meeting SEC-related data integrity requirements

(Once the retention period is set, it cannot be changed. Purchase and deployment of this product does not by itself ensure that regulatory/legal requirements for data retention will be met, and compliance is not implicitly or explicitly guaranteed.)

• Firmware-based solution accessible from Remote Web Console XP

HP StorageWorks External Storage XP

HP StorageWorks External Storage XP enables you to connect low-cost and/or legacy external storage utilizing the superior functionality of XP disk arrays.

Key features and benefits include:

• Accessed as a full privilege internal XP disk array LUN

• Use without restrictions:

As a regular XP disk array LUN

As part of a Flex Copy XP or Business Copy

With full solutions support

• Facilitates data migration

• Reduces costs by allowing less expensive secondary storage

50

Software

HP StorageWorks XP Tiered Storage Manager

HP StorageWorks XP Tiered Storage Manager is a plug-in for the HP StorageWorks

Command View XP Advanced Edition Software. The plug-in migrates data to tiered storage systems according to quality of service requirements, matching the defined quality requirements of the data to the appropriate storage tier. It is a completely non-disruptive application that you can schedule or start immediately, once you have designed a migration plan. The software relieves you of data migration concerns, allowing you to define the migration criteria once and then let the software handle migration automatically. Management via the HP Command View XP Advanced Edition

Software GUI ensures user friendly operation of the migration setup and process.

Attributes include such data as volume type, capacity, emulation type, RAID level and disk type. Groups are created which place similar demands on the storage resources.

HP StorageWorks XP Disk/Cache Partition

HP StorageWorks XP Disk/Cache Partition software runs on the disk array and can help Enterprise customers subdivide a large disk array into smaller storage segments for accomplishing corporate storage related initiatives such as consolidation, tiered storage, chargeback, and application usage tracking. Each domain or partition is separately configured and managed. Each partition has its own assigned host ports, disk groups, and cache. This software can reduce storage costs by dividing the disk array into smaller segments suitable for departmental usage, while retaining superb performance and high availability.

HP StorageWorks XP Data Shredder

HP StorageWorks XP Data Shredder securely erases selected data volumes with up to eight overwrite passes to minimize the chance that unauthorized users could recreate the data. It is a valuable software application for critical data stored in enterprise environments where secure erasure is an absolute requirement.

HP StorageWorks XP12000 Disk Array

51

Performance management software

HP StorageWorks Auto LUN XP

HP Auto LUN XP provides monitoring and disk usage analysis for your disk array based on user thresholds. HP Auto LUN develops a plan to migrate impacted data volumes to lower usage LUNs, using the data acquired during monitoring. You can perform the migration manually or automatically.

HP StorageWorks Performance Advisor XP Software

HP Performance Advisor XP Software is an Internet application used to monitor real-time performance of the HP StorageWorks XP family of disk array products. Using a simple, browser-based interface, you can quickly customize performance data collection and set performance alarms. HP Performance Advisor XP provides real-time and historical data on:

• LDEV I/Os

• Front-end and back-end port utilization

• Internal bus utilization

• Cache usage

You can easily integrate with other well-known performance management software to view your performance metrics.

HP StorageWorks Performance Control XP

HP Performance Control XP is a performance allocation and management tool for XP disk arrays. It lets you allocate storage performance resources to hosts by means of policies you define.

It ensures that critical business processes have all the XP disk array performance they need to meet business objectives. You can ensure that processes such as backups and data warehouse loads get the array bandwidth necessary to meet deadlines. HP

Performance Control XP enables sophisticated service provider solutions based on distinct levels of service.

HP Performance Control XP has a rich feature set for flexible policy definition, scheduling, monitoring, and analysis.

52

Software

Replication software

HP StorageWorks Business Copy XP and Snapshot XP

HP Business Copy allows you to make up to nine ongoing copies of data for nonproduction activities such as backup, batching, and system testing. HP Business Copy and the disk array now support enhanced HP Snapshot features. HP Snapshot is optional software that creates multiple, point-in-time, online, local copies without impacting primary production operation. The enhanced HP Snapshot features include support for snapshots on external storage, up to 128 snapshot pools per system, and restoring data from any previous generation. HP Snapshot may require additional shared memory.

HP StorageWorks Continuous Access Synchronous

HP Continuous Access Synchronous software allows you to make ongoing synchronous copies of array data to a remote array located many miles away from the source array.

HP StorageWorks Continuous Access Asynchronous

HP Continuous Access Asynchronous is similar to HP Continuous Access Synchronous, but operates in asynchronous mode. Transactions to be written to the secondary array are kept in cache memory on the local array in a “side-file.” This potentially increases performance in remote copying. Copy operations are sequence-stamped to ensure they are executed and sorted correctly at the remote disk array.

HP StorageWorks Continuous Access Journal

HP StorageWorks Continuous Access Journal is an asynchronous mirroring program similar to HP Continuous Access Asynchronous except that transactions to be written to the secondary array are kept in a disk-based journal file. This provides better performance for secondary systems that are not highly available or that may be subject to bandwidth contention from other applications. HP Continuous Access Journal supports cascading configurations, multiple target sites, external storage connections, up to

256 journal groups, online journal volume expansion, and several Open system and mainframe emulation modes.

HP StorageWorks RAID Manager XP

HP StorageWorks RAID Manager XP (RM) enables you to perform operations with HP

StorageWorks Continuous Access and HP StorageWorks Business Copy XP (BC) by issuing commands from a host to the disk array. The RM software interfaces with the host system software and host high availability (HA) software, as well as with the BC and Continuous Access software on the disk array.

HP StorageWorks XP12000 Disk Array

53

HP StorageWorks Flex Copy XP

HP Flex Copy XP enables bidirectional, server-independent data transfer between the

HP XP12000 and these HP Disk Array storage systems: XP48/128/256/512/1024,

MSA1000, MSA1500, EVA 3000, EVA 4000, EVA 5000 EVA 6000, EVA 8000. Data can be transferred locally within a single data center or over metropolitan distances in a distributed storage network, without consuming server or LAN performance resources.

This capability allows for more efficient, cost-effective leverage of business-critical data in a wide range of storage solutions, resulting in enhanced IT effectiveness and better return-on-investment in storage infrastructures. These storage solutions include nearline/array-based storage backup, data distribution and concentration, and hierarchical storage management.

Multipathing/high availability software

HP StorageWorks Secure Path

HP Secure Path is a family of high availability multipathing software products providing continuous data access from the disk array to host servers running Windows Server

2003, Windows 2000, Windows NT, Linux, Sun Solaris, Novell NetWare, IBM AIX, and HP-UX.

Redundant hardware, advanced RAID technology and Secure Path’s automated failover capability enhance fault tolerance and availability. Secure Path effectively eliminates controllers, disk drives, interconnect hardware and host bus adapters as single points of failure. Secure Path:

• Ensures increased business efficiency by maintaining high availability of business-critical data and by simplifying the task of path management

• Monitors path status, and in the case of a path failure, automatically re-routes data to an alternate path

• Allows easy path management from a single application with graphical displays and task automation

54

Software

Mainframe software

HP offers a wide range of mainframe software, including disaster recovery applications, point-in-time copy solutions, backup applications, and migration solutions. HP mainframe applications merge open systems and mainframe storage with the HP XP family of arrays for maximum flexibility, scalability, and ease of management:

• Disaster recovery: Hitachi Business Continuity Manager, Hitachi Extended

Remote Copy, Hitachi Universal Remote Replicator, and TrueCopy

• Point-in-time copy: Database Divider, FlashCopy V2, Logical Volume Divider,

Shadowimage

• Mainframe backup: Hitachi Mainframe Backup and Restore

• Mainframe migration: HODM

• Other mainframe software: AutoLUN, Cache Manager, Cache Residence

Manager, External Storage Management, HMDE, HPAV, LDEV Guard, Santinel

+ Port Security, Virtual LVI/LUN

HP StorageWorks Data Exchange XP

HP Data Exchange XP provides high-speed bidirectional data sharing between mainframe systems and open systems. File translations are provided through a file conversion utility.

HP StorageWorks XP12000 Disk Array

55

Business continuity solutions

HP OpenView Data Protector

Backup and restore with HP OpenView Data Protector.

• Offers new levels of recovery with a service-driven management approach

• Enterprise-wide data protection

• Eliminate recovery windows with instant recovery, system disaster recovery, and direct backup

HP StorageWorks Cluster Extension XP

HP Cluster Extension XP offers protection against system downtime from a variety of faults, failures, and disasters. It enables flawless integration of an HP XP disk array’s remote mirroring capabilities with high-availability server clustering solutions, including clusters covering metropolitan distances and based on SUN, AIX, Linux, and Microsoft systems (similar functionality exists for HP-UX servers with HP cluster software).

This extended-distance solution allows for more robust disaster recovery topologies as well as automatic failover, failback, and redirection of mirrored pairs for fast recovery.

A host-based utility, HP Cluster Extension XP requires HP Continuous Access and HP

Continuous Access Extension.

Key features and benefits include:

• Automatic failover/failback disaster recovery solutions for Serviceguard for Linux,

Windows with Microsoft Cluster Server (MSCS), Solaris with Veritas Cluster

Server (VCS), and AIX with IBM’s HACMP cluster software

• Seamless integration of remote mirroring with server clusters

• A fully scripted turnkey solution for disaster recovery

• Allows consolidated disaster recovery across heterogeneous server clusters

• Speeds recovery implementation

• Simplifies automatic failover and failback; no user intervention is required

56

Software

HP StorageWorks Fast Recovery Solution for Windows 2003

HP Fast Recovery Solution (FRS) for Windows 2003 enables quick recovery of Microsoft

Exchange and SQL databases. Using the HP Business Copy secondary volumes, FRS can recover these databases in minutes rather than hours.

Key features and benefits include:

• Management of recovery databases using secondary volumes

• An easy-to-use GUI

• Integrity check features

• Log file recovery

• Reduces downtime with quick recovery

• Saves time and money

• Compatible with any backup solution

• Eliminates access conflicts with backup devices

HP StorageWorks XP12000 Disk Array

57

58

Software

5 Troubleshooting

Service information messages

The system generates service information messages (SIMs) to identify normal operations, service requirements, and failures. SIMs are generated by the SVP and the system microprocessors. Your HP support representative uses the SIMs to monitor and troubleshoot the system. You can view SIMs using the system’s management software.

HP StorageWorks XP12000 Disk Array

59

Failure detection and reporting process

If a failure occurs in the system, the failure is detected and reported to the system log, the

SIM log, and the HP STC, as shown in the following figure and table.

Item

1

2

3

4

5

Description

A failure is detected in the system.

The failure is reported to the system.

The system stores the failure information in the system log.

The generated SIMs are stored on the system for use by HP support representatives, and logged on the Device Manager server as remote SIMs

(R-SIMs).If the system is not set up to “phone home,” when a SIM is generated, the amber message LED on the system control panel turns on. Call HP to determine the reason for the message.

If the system is set up to “phone home,” HP Continuous Track XP reports the SIMs to STC through a dedicated dialup connection.SIMs are classified according to severity: service, moderate, serious, or acute. Service and moderate levels do not require immediate attention and are addressed during routine maintenance.

These failures are often corrected before the failure becomes apparent. Serious and acute levels are reported immediately to STC to ensure that the problem is addressed as soon as possible.

60

Troubleshooting

6 Regulatory statements

FCC EMC statement (USA)

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his or her own expense. The end user of this product should be aware that any changes or modifications made to this equipment without the approval of Hewlett-Packard could result in the product not meeting the Class A limits, in which case the FCC could void the user’s authority to operate the equipment.

Hewlett-Packard’s device certification tests were conducted with HP computer systems and HP shielded cables, such as those you received with your product. Changes or modifications not expressly approved by Hewlett-Packard could void the user’s authority to operate the equipment. Cables used with this device must be properly shielded to comply with the requirements of the FCC.

IEC statement (worldwide)

This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.

EMC statement (Canada)

This Class A digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Cet appareil numérique de la Classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

HP StorageWorks XP12000 Disk Array

61

Spécification ATI Classe A (France)

DECLARATION D’INSTALLATION ET DE MISE EN EXPLOITATION d’un matériel de traitement de l’information (ATI), classé A en fonction des niveaux de perturbations radioélectriques émis, définis dans la norme européenne EN 55022 concernant la

Compatibilité Electromagnétique.

VCCI EMC statement (Japan)

BSMI EMC statement (Taiwan)

RRL EMC statement (Korea)

62

Regulatory statements

Harmonics conformance (Japan)

German noise declaration

XP12000: Schalldruckpegel Lp = 70 dB(A)

Am Arbeitsplatz (operator position)

Normaler Betrieb (normal operation)

Nach ISO 7779:1988 / EN 27779:1991 (Typprüfung)

HP StorageWorks XP12000 Disk Array

63

Laser safety

When equipped with native Fibre Channel adapters, this product contains a laser internal to the Optical Link Module (OLM) contained on the 8-port Fibre Channel

Adapter board and 8-port FICON board, and on the 16-port Fibre Channel Adapter board and 16-port FICON board for connection to a fibre communications network.

In the USA, the OLM is certified as a Class 1 laser product conforming to the PRT requirements contained in the Department of Health and Human Services (DHHS) regulation 21 CFR, Subchapter J. The certification is indicated by a label on the plastic

OLM housing. Outside the USA, the OLM is certified as a Class 1 laser product conforming to the requirements contained in IEC 825-1:1993 and EN 60825-1:1994, including Amendment 11:1996.

The following figure shows the Class 1 information label that appears on the plastic housing of the OLM.

CLASS 1 LASER PRODUCT

Complies with

21 CFR 1040.10 and 1040.11

Each communications port consists of a transmitter and receiver optical subassembly.

The transmitter subassembly contains an internal semiconductor laser diode in the wavelength range of 770 to 850 nanometers. In the event of a break anywhere in the fibre path, the OLM control system prevents laser emissions from exceeding Class 1 levels. Class 1 laser products are not considered hazardous.

WARNING!

There are no user maintenance operations, service operations, or adjustments to be performed on the Optical Link Module.

64

Regulatory statements

Japan DENAN law cordset caution

Please use the supplied power cord. The power cord may not be used with other products.

HP StorageWorks XP12000 Disk Array

65

European WEEE statements

Czech

Danish

Dutch

66

Regulatory statements

English

Estonian

Finnish

HP StorageWorks XP12000 Disk Array

67

French

German

Greek

68

Regulatory statements

Hungarian

Italian

Latvian

HP StorageWorks XP12000 Disk Array

69

Lithuanian

Polish

70

Regulatory statements

Portuguese

Slovak

Slovenian

HP StorageWorks XP12000 Disk Array

71

Spanish

Swedish

72

Regulatory statements

Glossary

ACP

AL

AL-PA allocation array group

ASE

BC

Array control processor. On some XP models, such as the

XP12000, the ACP handles the passing of data between the cache and the physical drives. On other XP models, such as the XP10000, this function is handled by the disk adapter on the MIX board.

Arbitrated loop.

Arbitrated loop physical address.

The ratio of allocated storage capacity versus total capacity as a percentage. “Allocated storage” refers to those LDEVs that have paths assigned to them. The allocated storage capacity is the sum of the storage of these LDEVs. Total capacity refers to the sum of the capacity of all LDEVs on the disk array.

A group of 4 or 8 physical hard disk drives (HDDs) installed in an XP disk array and assigned a common RAID level. RAID1 array groups consist of 4 (2D+2D) or 8 HDDs (4D+4D). RAID5 array groups include a parity disk but also consist of 4 (3D+1P) or 8 HDDs (7D+1P). All RAID6 array groups are made up of

8 HDDs (6D+2P).

Application System Engineer.

The HP StorageWorks Business Copy XP software program, which enables you to maintain up to nine internal copies of logical volumes on the disk array.

C-Track

Continuous Access The HP StorageWorks Continuous Access program, which enables you to replicate data stored on a local disk array to a remote disk array.

cache

The HP StorageWorks Continuous Track XP software program, which detects internal hardware component problems on a disk array and automatically reports them to the HP STC.

Very high speed memory that is used to speed I/O transaction time. All reads and writes to the XP array family are sent to the cache. The data is buffered there until the transfer to/from physical disks (with slower data throughput) is complete.

HP StorageWorks XP12000 Disk Array

73

74

CE channel adapter

(CHA) channel host interface processor

(CHIP) channel processor

(CHP) command device

The benefit of cache memory is that it speeds I/O throughput to the application. The larger the cache size, the greater the amount of data buffering that can occur and the greater throughput to the applications.

XP arrays support a range of cache memory. In the event of power loss, battery power holds up the contents of cache for up to 36 hours.

Customer engineer.

The channel adapter (CHA) provides the interface between the disk array and the external host system. Occasionally this term is used synonymously with the term channel host interface processor (CHIP).

Synonymous with the term channel adapter (CHA).

control unit

CU

CVS

The processors located on the channel adapter (CHA).

Synonymous with CHIP.

A volume on the disk array that accepts Continuous Access or Business Copy control operations which are then executed by the disk array.

To organize the storage space attached to the DKC, you can group similarly configured logical devices (LDEVs) with unique control unit images (CUs). CUs are numbered sequentially. The disk array supports a certain number of CUs, depending on the disk array model. Each CU can manage multiple LDEVs.

Therefore, to uniquely identify a particular LDEV requires both the CU number and the LDEV number.

Control unit.

Custom volume size. CVS devices (OPEN-x CVS) are custom volumes configured using array management software to be smaller than normal fixed-size OPEN system volumes.

Synonymous with volume size customization (VSC).

Synonymous with the term ACP.

disk adapter

(DKA) disk unit (DKU) disk controller

(DKC)

The array hardware that houses the disk array physical disks.

The array hardware that houses the channel adapters and service processor (SVP).

Glossary

disk recovery and restore unit (DRR)

The unit responsible for data recovery and restoration in the event of a cache failure.

The physical disk locations associated with a parity group.

disk group disk type

The manufacturing label burned into the physical disk controller firmware. In most cases, the disk type is identical to the disk model number.

emulation modes

The logical devices (LDEVs) associated with each

RAID group are assigned an emulation mode that makes them operate like OPEN system disk drives.

The emulation mode determines the size of an LDEV.

EPO

ESCON expanded LUN

ExSA failover

FC

FC-AL

FCP fence level

FICON

OPEN-3: 2.46 GB

OPEN-8: 7.38 GB

OPEN-9: 7.42 GB

OPEN-E: 13.56 GB

OPEN-K: Not available on this array

OPEN-L: 36 GB

OPEN-M Not available on this array

OPEN-V: User-defined custom size

Emergency power off.

Enterprise System Connection (the IBM trademark for optical channels).

A LUN is normally associated with only a single LDEV. The

LUSE feature allows a LUN to be associated with 1 to 36

LDEVs. Essentially, LUSE makes it possible for applications to access a single large pool of storage. The LUSE feature is available when the HP StorageWorks LUN Configuration

Manager product is installed.

Extended serial adapter.

Disconnecting a failed unit or path and replacing it with an alternative unit or path in order to continue functioning.

Fibre Channel.

Fibre Channel arbitrated loop.

Fibre Channel Protocol.

A level for selecting rejection of a write I/O request from the host according to the condition of mirroring consistency.

IBM mainframe Fiber Optic Connection.

HP StorageWorks XP12000 Disk Array

75

76

GB

GLM

HA

HBA host mode hot standby

HP

I/O

LAN

LD, LDEV

LED local disk

LU

LUN

LUSE m

MB

MCU

Glossary

Gigabytes.

Gigabyte link module.

High availability.

Host bus adapter. A built-in function or a card installed in a

PC or other host computer to enable connection of the host to the SAN.

Each port can be configured for a particular host type. These modes are represented as two-digit hexadecimal numbers. For example, host mode 08 represents an HP-UX host.

Using two or more servers as a standby in case of a primary server failure.

Hewlett-Packard Development Company.

Input/output (applies to an operation or device).

Local area network.

Logical device. An LDEV is created when a RAID group is carved into pieces according to the selected host emulation mode (that is, OPEN-3, OPEN-8, OPEN-9). The number of resulting LDEVs depends on the selected emulation mode. The term LDEV is often used synonymously with the term volume.

Light emitting diode.

A disk in the host.

Logical unit.

Logical unit number. A LUN results from mapping a SCSI logical unit number, port ID, and LDEV ID to a RAID group.

The size of the LUN is determined by the emulation mode of the LDEV, and the number of LDEVs associated with the LUN.

For example, a LUN associated with two OPEN-3 LDEVs has a size of 4,693 MB.

Logical unit size expansion. See also Expanded LUN.

Meters.

Megabytes.

Main control unit.

NVS

OFC

OLM

OS

MIX mirroring consistency mm

MR ms, msec mutual hot standby system

NAS node

A circuit board in the disk control unit that includes disk adapters and channel adapters for interfacing disk drives and the host to cache memory.

The consistency (usability) of data in a volume (for example,

S-VOL).

Millimeters.

Magnetoresistive.

Milliseconds.

Two servers that are poised to cover for each other if necessary.

PA parity group partition path

PCI port

Network attached storage.

Logically speaking, an environment where instances can be executed. Physically, a processor, which is an element of a cluster system.

Nonvolatile storage.

Open Fibre Control.

Optical link module.

Operating system.

Physical address.

A parity group is a disk configuration in which multiple disks work together to provide redundancy. Synonymous with “array group.”

Dividing a specific physical disk into two or more areas as if there are two or more physical disks.

Paths are created by associating a port, a target, and a LUN

ID with one or more LDEVs.

Power control interface or peripheral component interconnect.

A physical connection that allows data to pass between a host and the disk array. The number of ports on an XP disk array depends on the number of supported I/O slots and the number of ports available per I/O adapter. The XP family of disk arrays supports Fibre Channel (FC) ports as well as other port types. Ports are named by port group and port letter, such as CL1-A. CL1 is the group, and A is the port letter.

HP StorageWorks XP12000 Disk Array

77

78

SIM

SMI-S

SMS

SNMP

SSID

STC

SVP

RAM

RM

R-SIM

R/W, r/w script file

SCSI shell script sidefile

P-P

PS

RS

RAID

RAID group

RAID level

Point-to-point.

Power supply.

Russellstoll

®, a brand of electrical plugs and receptacles manufactured by Thomas &

Betts Corporation.

Redundant array of independent disks.

See “array group.”

A RAID Level is one of the ways that disk drives are grouped together to improve performance, data availability/reliability or both. RAID levels are defined from RAID0 to RAID6. HP

StorageWorks Disk Arrays in the XP product family support

RAID1, RAID5 and RAID6. Not all of these RAID levels are supported by all XP family members. Consult the owner’s guide or your HP representative for the details of which RAID levels are supported by your specific XP disk array.

Random access memory.

HP StorageWorks RAID Manager XP, a command line interface for managing XP arrays.

Remote service information message.

Read/write.

A file containing a shell script.

Small computer system interface.

A command sequence executed by a UNIX shell.

An area of cache used to store the data sequence number, record location, record length, and queued control information.

Service information message.

Storage Management Initiative Specification.

System managed storage.

Simple Network Management Protocol.

Storage subsystem identification.

HP Storage Technology Center.

Service processor, which is the PC built into the disk controller.

The SVP provides a direct interface into the disk array. SVP use is reserved for HP support representatives only.

Glossary

TB

TCP/IP

TID

VSC

VOLID volume

Terabyte.

Transmission control protocol/Internet protocol

Target ID.

Volume size customization. Synonymous with CVS.

Volume ID.

Synonymous with LDEV.

HP StorageWorks XP12000 Disk Array

79

80

Glossary

Index

Symbols features software

, 14

A

AC line voltage

, 34

AC power cords

, 34

array management

, 15

audience

, 6

Auto LUN XP

, 52

automatic restart

, 27, 43

B backup battery operation mode

, 30

batteries, backup

, 30, 42

business continuity solutions

, 56

Business Copy

, 53

C cache battery backup

, 30

Cache LUN XP

, 49

Command View XP

, 15, 31, 48

Command View XP Advanced Edition ,

48

components hardware

, 22

included

, 16

optional

, 17

required additional

, 17

configuration management software ,

48

connectivity

, 13

Continuous Access

, 53

Continuous Access Extension

, 53

Continuous Track XP

, 12, 14, 28, 60

control panel

, 23

conventions text symbols

, 7

conventions, document ,

D data availability

, 11

Data Exchange XP

, 55

data integrity

, 14

destage battery operation mode

, 30

device management software

, 48

Device Manager server (formerly

Management server)

, 31

disk array features connectivity

, 13

continuous data availability

, 11

data integrity

, 14

hardware

, 16

high availability

, 14

nondisruptive service and upgrades ,

12

scalability

, 13

software

, 14, 16

summary of

, 15

disk array frame. See DKU

, 29

disk control frame. See DKC

, 22

disk drives

, 28, 29

DKC

, 22, 22

DKU

, 22, 29

document related documentation

, 6

document conventions , documentation

HP web site

, 6

E emergency power off

, 39, 40

emergency power off switch

, 28

environmental specifications

, 32

HP StorageWorks XP12000 Disk Array

81

82 external storage

, 16

F failure detection and reporting process ,

60

features data integrity

, 14

high availability

, 14

Flex Copy XP

, 54

H hardware control panel

, 23

disk array frame

, 29

disk control frame

, 22

disk drives

, 28, 29

features

, 16

normal operations

, 37

physical components

, 22

RAID options

, 29

service processor. See SVP

, 28

specifications

, 32

hazard warnings

, 38

help obtaining

, 8

high availability

, 14

high availability software

, 54

HP

Subscriber’s choice web site

, 9

technical support

, 8

HP Storage Technology Center. See

STC

, 12

humidity specifications

, 33

L line voltage

, 34

LUN Configuration and Security

Manager XP

, 48

M mainframe software

, 55

maintenance, remote

, 25

management server

, 22, 48

Management server (now Device

Manager server)

, 31

manual restart

, 42

mechanical vibration specifications

, 33

multipathing software

, 54

N normal operations

, 37

O

OpenView Data Protector

, 56

OpenView Storage Area Manager suite

, 46

operating systems

, 15

P

Performance Advisor

, 52

performance management software ,

49

phone home

, 14, 24, 60

See also Continuous Track XP

, 24

physical components. See hardware ,

22

power cords

, 34

power off emergency

, 39, 40

planned

, 40

recovery from unplanned

, 42, 43

unplanned

, 30

powering down

, 40

powering down the disk array

, 39, 40

R rack stability warning

, 8

RAID levels

, 14

RAID options

, 29

recovering from a power outage

, 42,

43

regulatory statements

, 61, 64

related documentation

, 6

remote maintenance

, 25

Remote Web Console XP

, 31, 48

replication software

, 53

restart automatic

, 43

manual

, 42

S safety guidelines

, 38

scalability

, 13

Secure Path

, 54

service

, 12

service information messages

, 59

service processor. See SVP

, 28

software and solution integration

, 14

Auto LUN XP

, 52

business continuity solutions

, 56

Business Copy

, 53

Cache LUN XP

, 49

Command View XP

, 48

Continuous Access

, 53

Continuous Access Extension

, 53

Data Exchange XP

, 55

device and configuration management

, 48

features

, 14, 16

Flex Copy XP

, 54

LUN Configuration and Security

Manager XP

, 48

mainframe

, 55

multipathing/high availability

, 54

OpenView Data Protector

, 56

OpenView Storage Area Manager suite

, 46

Performance Advisor

, 52

performance management

, 49

products for XP disk arrays

, 45, 56

replication

, 53

Secure Path

, 54

storage area management

, 46

specifications

, 32

STC

, 12, 14, 24, 60

storage area management software ,

46

Storage Technology Center. See STC ,

12

Subscriber’s choice, HP

, 9

SVP

, 22, 28, 59

symbols in text

, 7

T technical support

, 14

HP

, 8

service locator web site

, 9

temperature specifications , 32 text symbols

, 7

U unit emergency power off switch

, 26,

28, 39

upgrades

, 12

V vibration specifications

, 33

W warning rack stability

, 8

web sites

HP

, 9

HP Subscriber’s choice

, 9

product manuals

, 6

HP StorageWorks XP12000 Disk Array

83

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
