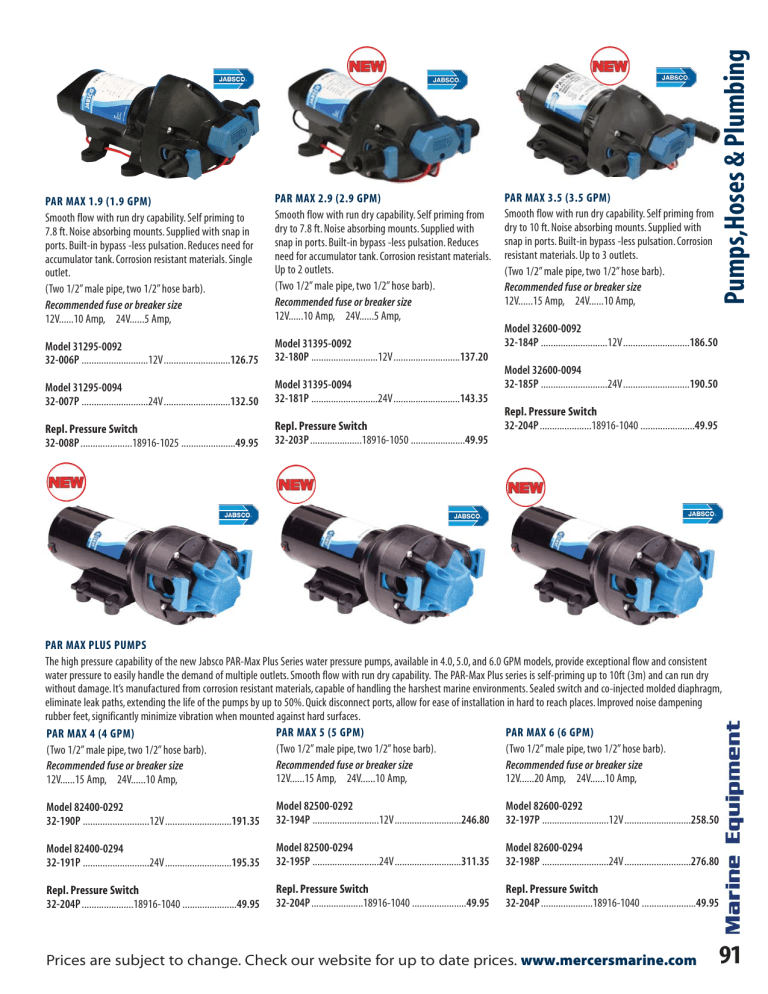

PAR MAX 1.9 (1.9 GPM)

Smooth flow with run dry capability. Self priming to

7.8 ft. Noise absorbing mounts. Supplied with snap in ports. Built-in bypass -less pulsation. Reduces need for accumulator tank. Corrosion resistant materials. Single outlet.

(Two 1/2” male pipe, two 1/2” hose barb).

Recommended fuse or breaker size

12V......10 Amp, 24V......5 Amp,

Model 31295-0092

32-006P ...........................12V...........................126.75

Model 31295-0094

32-007P ...........................24V...........................132.50

Repl. Pressure Switch

32-008P .....................18916-1025 ......................49.95

PAR MAX 2.9 (2.9 GPM)

Smooth flow with run dry capability. Self priming from dry to 7.8 ft. Noise absorbing mounts. Supplied with snap in ports. Built-in bypass -less pulsation. Reduces need for accumulator tank. Corrosion resistant materials.

Up to 2 outlets.

(Two 1/2” male pipe, two 1/2” hose barb).

Recommended fuse or breaker size

12V......10 Amp, 24V......5 Amp,

PAR MAX 3.5 (3.5 GPM)

Smooth flow with run dry capability. Self priming from dry to 10 ft. Noise absorbing mounts. Supplied with snap in ports. Built-in bypass -less pulsation. Corrosion resistant materials. Up to 3 outlets.

(Two 1/2” male pipe, two 1/2” hose barb).

Recommended fuse or breaker size

12V......15 Amp, 24V......10 Amp,

Model 31395-0092

32-180P ...........................12V...........................137.20

Model 32600-0092

32-184P ...........................12V...........................186.50

Model 31395-0094

32-181P ...........................24V...........................143.35

Model 32600-0094

32-185P ...........................24V...........................190.50

Repl. Pressure Switch

32-203P .....................18916-1050 ......................49.95

Repl. Pressure Switch

32-204P .....................18916-1040 ......................49.95

PAR MAX PLUS PUMPS

The high pressure capability of the new Jabsco PAR-Max Plus Series water pressure pumps, available in 4.0, 5.0, and 6.0 GPM models, provide exceptional flow and consistent water pressure to easily handle the demand of multiple outlets. Smooth flow with run dry capability. The PAR-Max Plus series is self-priming up to 10ft (3m) and can run dry without damage. It’s manufactured from corrosion resistant materials, capable of handling the harshest marine environments. Sealed switch and co-injected molded diaphragm, eliminate leak paths, extending the life of the pumps by up to 50%. Quick disconnect ports, allow for ease of installation in hard to reach places. Improved noise dampening rubber feet, significantly minimize vibration when mounted against hard surfaces.

PAR MAX 4 (4 GPM)

(Two 1/2” male pipe, two 1/2” hose barb).

Recommended fuse or breaker size

12V......15 Amp, 24V......10 Amp,

PAR MAX 5 (5 GPM)

(Two 1/2” male pipe, two 1/2” hose barb).

Recommended fuse or breaker size

12V......15 Amp, 24V......10 Amp,

PAR MAX 6 (6 GPM)

(Two 1/2” male pipe, two 1/2” hose barb).

Recommended fuse or breaker size

12V......20 Amp, 24V......10 Amp,

Model 82400-0292

32-190P ...........................12V...........................191.35

Model 82400-0294

32-191P ...........................24V...........................195.35

Model 82500-0292

32-194P ...........................12V...........................246.80

Model 82500-0294

32-195P ...........................24V...........................311.35

Model 82600-0292

32-197P ...........................12V...........................258.50

Model 82600-0294

32-198P ...........................24V...........................276.80

Repl. Pressure Switch

32-204P .....................18916-1040 ......................49.95

Repl. Pressure Switch

32-204P .....................18916-1040 ......................49.95

Repl. Pressure Switch

32-204P .....................18916-1040 ......................49.95

Prices are subject to change. Check our website for up to date prices.

www.mercersmarine.com

91

HIGH VOLUME WATER PRESSURE SYSTEM WITH

ACCUMULATOR TANK (4.5 GPM)

Integrated pump and accumulator tank system

•Compact design installs easily in convenient locations

•May be mounted vertically or horizontally •Supplies 4.5

GPM (17.0l/Min) up to 6 GPM (22.7l/Min) with fully charged tank •Can run dry without harm •FDA materials in pump and accumulator tank for drinking water •Selfpriming up to 10 ft. (3.1 M) •Includes assorted ports for easy installation •Accumulator tank has total volume of

1.1 Gal. (4.1 Lt.) •Dimensions: 7.2”h x 11.3”w x 12.8”l

•Pressure Shut Off: 40 PSI (2.8 bar)

32-303P ................12V, max. amps 10................618.00

32-304P .................24V, max. amps 5.................628.00

32-305P................32V, max. amps 3.8 ..............639.00

32-299P ...............115V, max amps 1.5 ..............645.00

Repl. Pressure Switch

32-307P .......................2090-104 ........................46.95

PRESSURE WATER SYSTEM (3.3 GPM)

Delivers smooth, steady water flow from 1 to 3.3 GPM without the need for an accumulator tank •Pumps over

3.3 GPM •Special internal bypass feature eliminates pulsating water and pressure switch chatter •Designed for up to 5 fixtures •Runs dry without harm to the pump.

Self priming to 6 ft suction lift. C/W snap-in ports for

1/2” hose barb and 1/2” thread (QEST Type) •Dimensions:

3.75”h x 6.3”w x 8.2”l •Pressure shut off 35 PSI.

32-296P .............115V, 0.4 [email protected] ............228.00

Repl. Pressure Switch

32-307P .......................2090-104 ........................46.95

HIGH PRESSURE WATER SYSTEM (4.5 GPM)

Flojet’s premium plus water pressure system has become a favorite for both recreational and commercial users

•Self priming, smooth flow operation •Includes plug in fittings for 3/4” hose barb and 3/4” garden hose •Pump inlet strainer •270 GPH capacity •Pressure shut off 40

PSI. Self priming to 10 ft suction lift.

32-298P ............115V, 0.5 amp @ 10 PSI............329.00

FLOJET WASHDOWN PUMP

Premium choice in washdown pumps, the FLOJET delivers high performance with over 4.5 GPM. Powerful favorite in commercial fishing and work boat markets.

Automatic high performance pump for deck and anchor washdown. Self-priming. May also be used for full flow bait tank circulation. Complete with high pressure nozzle and strainer. C/W two 3/4” hose barb ports and two garden hose ports.

32-306P ..................12V, 4325-143L..................309.00

INLET WATER STRAINER

Keeps debris from entering your water system. Features stainless steel, 40 mesh screen and transparent threaded cover, allowing for easy cleaning. 1/2” hose barb ports.

32-313P...............................................................20.95

JABSCO PAR MAX 4 (4.3 GPM)

Compact, low profile design •Four Chamber Diaphragm

Water System Pump •Provides a smooth flow for up to 4 outlets at low amp draw •Corrosion proof base and marine grade components •C/W snap-in ports for 1/2” hose barb and 1/2” thread (QEST Type) •230 GPH capacity. Self priming to 10 ft suction lift.

Recommended fuse or breaker size

24V......7 Amp,

MINI- PAR ELECTRIC GALLEY PUMP (1 GPM)

An economical light duty galley pump ideally suited for small pleasure craft. Draws only 1.6 amps. This pump is not self priming and must be mounted below water supply. Uses 3/8” hose. Not for commercial use. (12v-1

GPM). Use 3 amp fuse.

32-061P .....................42510-0000 ......................57.75

32-238P ..............24V, 3 amps @ 10 PSI .............299.00

Repl. Pressure Switch/Par-Max 4

32-038P .....................18916-0040 ......................46.35

For replacement pressure switches for pumps not shown in this catalogue, please contact us with the Pump Model #

MANUAL GALLEY PUMP

Chrome plated zinc alloy, plastic body, above base 5” high, full body 10” high, use 3/8” hose. Manual operation.

32-076R...............................................................49.95

92

Visit

www.mercersmarine.com

for all the latest pricing and information.

STAINLESS STEEL ROUND SINK

10 1/4 “ I.D. x 11 1/2” O.D. x 7 1/8” Deep

32-118R...............................................................96.35

STAINLESS STEEL ROUND SINK

9 7/8” I.D. x 11 1/2” O.D. x 5” Deep

32-117R...............................................................69.95

BARKA RECTANGULAR SINK

13” x 13” x 7” Deep

32-205K.............................................................239.95

GALLEY FAUCET

An exceptional quality faucet constructed of heavy-duty chrome plated brass with swivel spout. 1/2” male pipe thread. Uses 1/2” coupling and insert adaptor to connect to 1/2” hose.

32-074P...............................................................52.45

Adaptor fitting

Adapts above faucet from 13mm to 1/2” hose barb.

32-160P.................................................................4.95

TWIN FAUCET

Same high-quality as single faucet to the left. This unit is designed for boats with hot and cold water systems.

Comes with adaptor for 1/2” male pipe thread. Uses 1/2” coupling and insert adaptor to connect to 1/2” hose.

32-075P...............................................................94.95

BARKA SINK DRAIN

Brass body, plastic nuts, strainer and tail piece. Takes 5/8”

Hose.

32-206K...............................................................37.95

SINK DRAIN

Drain fits both “Round” sinks above. Designed for 5/8” hose.

32-077K...............................................................17.90

SHOWER & BASIN FAUCET

An attractive style faucet for use in either basin or shower. Hot/Cold. Pull out flexible extension hose is approx. 4' in length. Supplied with 2 fittings which accept 1/2" NPT coupling.

32-065M............................................................136.45

FLUSH MOUNT SHOWER UNIT

Manufactured from high tech plastic material. Flush mount design allows for installation in transom or head.

Spray shower head comes with water conserving button and 10’ of hose. 10.3” W x 5.75”H x 4.65”D.

32-334P.............................................................119.95

Prices are subject to change. Check our website for up to date prices.

www.mercersmarine.com

93

3700 BILGE PUMPS

Heavy duty construction for both commercial and pleasure boat use. 1 1/2” discharge outlet. For automatic use, a “Superswitch” is recommended.

32-012P ..........12v, 15.5 amps, 3700 gph ..........277.45

32-013P ...........24v, 6.9 amps, 3500 gph ...........291.20

32-014P ...........32v, 5.0 amps, 3500 gph ...........288.05

32-099P ....................Repl. Strainer........................9.50

GENERAL PURPOSE PUMPS

This model is designed for use as a washdown pump, but can also be used for fire fighting. This unit is not self priming and must be mounted below the waterline.

Although not designed as a high pressure pump, it delivers lots of water.

Requires 1 1/2” intake and discharge hose.

32-015P ...........12v,15.5 amps, 3800 gph ..........309.00

32-314P............24v, 6.9 amps, 3700 gph ...........316.25

32-016P............32v, 5.0 amps, 3700 gph ...........344.50

RULE-MATE AUTOMATIC BILGE PUMPS

Automatic Bilge Pumps feature a pump and a nonmercury float switch in a single, compact housing. There is no on/off cycling and therefore, no power use until the pump comes on. The pump remains on until the float drops and the pump senses no load against the impeller.

1 1/8” discharge hose.

32-337P............12v, 4.8 amps, 1500 gph ...........249.65

32-338P............12v, 8.4 amps, 2000 gph ...........321.45

2000 BILGE PUMPS

Engineered to commercial standards, the rule 2000 is the best selling, high capacity, submersible pump in the world. 1 1/8” discharge outlet.

32-084P....................12v, 8.4 amps ...................167.45

32-085P .....................24v, 4 amps.....................183.90

32-086P....................32v, 3.1 amps ...................184.85

32-098P ....................Repl. Strainer......................10.05

1000 BILGE PUMP

Very popular pump for many deep “V” hull boats. Gas resistant strainer base measures 2 3/4” x 2 1/2” for installation in very small areas. 1 1/8” discharge outlet.

32-082P....................12V, 2.9 amps .....................56.65

ECO-FRIENDLY RULE-MATE AUTOMATIC BILGE

PUMPS

No float switch required. Pump activates when water reaches 2 3/4” and shuts off when water is pumped out.

The 500gph pump has a 3/4” outlet, and the 1100gph has 1 1/8” outlet. Supplied with one straight and one

90 degree adaptor.

32-335P ..............12v, 2 amps, 500 gph................80.75

32-336P............12v, 3.4 amps, 1100 gph ...........135.40

1500 BILGE PUMP

High pumping capacity and reliability at a lower cost.

More exclusive design features than any comparable competitive pump. 1 1/8” discharge outlet.

32-083P .....................12V, 4 amps.....................121.20

32-098P ....................Repl. Strainer......................10.05

500 BILGE PUMP

This unit offers many design features while keeping size and cost to a minimum. Pumps 500 gph and has 3/4” outlet.

32-081P....................12v, 1.9 amps .....................34.55

Bulkhead mounting bracket

32-097P.................................................................6.75

LOPRO 900 GPH BILGE PUMP

900 GPH Low Profile Bilge Pump. Fits into hard to reach places. Threaded discharge ports with mulitiple fittings available (3/4” , 1” & 1 1/8” fittings). Features a tricuspid check valve to minimize back flow of water. Height of the pump is only 2-1/4". The entire discharge body swivels up to 180° for ease of installation. The hose attached can also swivel 360° to route the hose perfectly.

Non-automatic

requires float and or panel switch to automate.

32-024P .....................12V, 4 amps.......................61.45

Automatic

32-025P .....................12V, 4 amps.......................82.75

94

Visit

www.mercersmarine.com

for all the latest pricing and information.

LIVEWELL PUMP“STC” TOURNAMENT SERIES

Removable motor cartridge. For Thru-Hull Applications

Straight 4 3/4" (121mm) Pickup Tube. Flow Rate 800 gph

(3028 lph). Discharge 1 1/8 inch (28.6 mm).

Voltage 12 Vdc. Amp Draw 2.8 amp. Fuse Size 5.0 amp.

32-355P...........Model 403-STC (Straight) ............69.80

LIVEWELL PUMP “C” TOURNAMENT SERIES

Removable motor cartridge.For Thru-Hull Applications

Angled 4" (102mm) Pickup Tube. Flow Rate 800 gph

(3028 lph). Discharge 1 1/8 inch (28.6 mm). Voltage 12

Vdc. Amp Draw 2.8 amp. Fuse Size 5.0 amp.

32-357P ..........Model 403-C (90 degrees)............69.50

HIGH WATER BILGE ALARM

This unit consists of a float switch and an indash gauge that features visible & audible alarms. This unit allows unmanned compartments to be constantly monitored.

For additional compartments just add a Rule-A-Matic switch.

32-094P .........................12 volt...........................93.15

32-106P .........................24 volt...........................93.15

RULE-A-MATIC FLOAT SWITCH

Year after year this switch is the choice of most yatchsmen, commercial fishers and boatbuilders the world over. For use with pumps drawing up to 14 amps.

32-091P ..............................................................46.20

SUPERSWITCH

The RULE Super Switch is designed for the toughest applications. Good for all voltages up to 110v. Sets the industry standard. C/W built-in fuse.

32-011P .............................................................. 67.60

ECO SWITCH

An ecologically sound automatic bilge pump switch, featuring non-mercury design. As water rises in the bilge, air is forced up the tube which is attached to the switch. The air pressure activates the switch and controls the pump. There are no moving parts, all wiring is out of the water and there are no submerged electrical connections. For pumps drawing up to 20 amps.

32-350P ...........................12V.............................76.95

32-351P ...........................24V.............................78.55

Imported

HAND PUMP

Deluxe Rule Model

Consists of ABS plastic with comfortable grip handle.

1-1/2” diameter. 24” in length. Hose not included.

1-1/8” required.

32-080P...............................................................62.00

Imported Model

Plastic construction with removable foot valve for easy cleaning. 24” overall length. Supplied with 36” of 1-1/8” hose.

32-070P...............................................................19.95

38-265

32-103

38-700

RULE IN-LINE SUBMERSIBLE PUMP 500GPH

Multi-application submersible for water and diesel.

Delivers 500GPH. Pumps fresh, sea water and diesel.

Rapid diesel refueling and transfer with no spillage.

Easy pump-out in tight areas. water transfer; deck

showers; general wash-down; baitwell tank

aeration. Robust, slim-line with clip on easily cleaned filter. Continuous duty.Pump size 1 1/2” Dia x 6 1/2”L.

Supplied with 13 ft of hose and power cable. Removable shut-off nozzle for inline installation if required.

32-168P ............ Pump Only,12V, 6 amps .............74.35

32-169P ...............Complete Pump Kit...............108.35

HOSE ADAPTOR

38-265P .........1 1/2” pump to 1 1/8” hose. ............8.75

IN-LINE CHECK VALVES

Prevents water back flow.

38-700P ............Heavy Duty, 1 1/2” hose..............22.85

32-103P .....Medium Duty, 1” and 1 1/2” hose ........5.99

AMAZON UNIVERSAL HAND DIAPHRAGM PUMP

The Amazon hand pump from Jabsco gives 1320 gph flow rate. Excellent solids handling capability. Quick release clamp ring gives quick access for blockage clearance. Includes one push-fit elbow which swivels

360 degrees for flexible installation. Connections for

1-1/2” hose. Comes with detachable handle.

32-162P.............................................................114.05

Replacement Parts

32-165P.............Universal Thru-deck kit ..............21.65

32-166P....Addition push-fit 90 degree elbow .....15.95

32-167P ..............Diaphram Service Kit................30.50

Prices are subject to change. Check our website for up to date prices.

www.mercersmarine.com

95

3-WAY BILGE PUMP SWITCH PANEL

Very attractive rocker switch design. Controls any pump equipped with an automatic float switch. This unit features a black plastic panel, has a built-in fuse holder and an internally lighted rocker switch with 3 positions

(automatic, off, or manual) with Rule “fail-safe” spring return to “off” from the “manual” position.

32-294P ...........................12V.............................41.45

ROTARY BARREL PUMP

Diamond brand

Comes with pipe and 8’ of vinyl discharge hose. 18L per minute capacity.

32-067M..............................................................52.95

ELECTRIC DRILL PUMP

A great little pump from JABSCO designed to pump most liquids and especially useful for Engine Oil Changes. This pump will pump hot oil and comes with 3’ of 1/2” discharge hose and 40” of 1/4” hose suitable for dipstick hole. Two 3/4” garden hose adaptors are also supplied.

Fits into 1/4” or 3/8” drill. Drill not included.

32-110P ...................Cap. - 200 GPH.....................61.90

3 WAY BILGE PUMP SWITCH PANEL

Controls any pump equipped with an automatic float switch. Toggle has 3 positions (automatic, off, or manual) and has a “fail-safe” spring return to “off” from the

“manual” position. Panel is black stainless steel and has red indicator light and fuse holder.

32-092P ...........................12V.............................40.40

32-093P...................... 24V & 32V .......................42.10

TRANSFER PUMP

Safety experts caution against the unsafe practice of siphoning petroleum by mouth, warning especially that it can result in loss of life. Beckson’s answer is the patented Siphon-Mate™ pump; a combination displacement lift pump and siphon pump with valves suitable for transferring fuel. Pump half strokes to start flow. Once flow begins, fully extending the handle will allow siphoning, providing that the source is higher in elevation than the receptacle. Intended usage: Diesel, oil and water. Note: Great item to carry on your snowmobile or ATV.

32-114K...............................................................44.95

“LITTLE PAL” UTILITY PUMP

Compact multi purpose hand pump does many draining and liquid transfer jobs, yet small enough to fit into a tool box. Includes 2 feet of hose and draw tube for draining crank case oil through dipstick tube.

32-332P...............................................................61.25

WATERPROOF BILGE PUMP SWITCH

3-position rocker switch has auto/off and spring control to manual position. Comes with indication LED’s. Uses

AGC fuses. Aluminum face plate is 2”W x 3 1/2”H.

32-037R ...........................12V.............................11.95

ENGINE OIL CHANGE PUMP

Comes with 1/4” hose to fit dipstick hole. Brass and neoprene construction.

32-066R.............................................................. 17.95

SHOWER DRAIN BOX

A compact, full capacity shower drain system.

Automatically turns on after the water starts, and shuts off when the water is removed. Activated by a Rule-A-

Matic® float switch. Other features include a clear screw down cover, a removable strainer for easy cleaning, and an internal check valve to prevent back flow.

Flow rate : 800GPH. Discharge : 3/4”.

3 Inlet Ports Accept 3/4” , 1”, 1 1/8” & 1 1/2”

32-348R ...........................12V .......................... 182.95

32-349R ...........................24V .......................... 187.10

96

Visit

www.mercersmarine.com

for all the latest pricing and information.

MANUAL MARINE TOILET

“The World’s Most Popular Toilet”

This Jabsco Manual Toilet is both functional and stylish.

The pump assembly is angled forward to provide a natural smooth stroke while the convenient dry bowl selector is easy to operate. The base assembly is fully skirted to eliminate the debris traps associated with most toilets. The 2” pump body is made of white cycloac and can be installed on the left side if required. All fasteners are stainless steel and bronze.

1 1/2” outlet & 3/4” intake.

38-146P....................29090 – 3000...................229.00

REPLACEMENT PARTS FOR JABSCO TOILETS

Complete pump assembly for above model

38-147P.............................................................118.90

Service kit for above model 29090 toilet including all valves, o-rings, gaskets, etc.

38-148P.............For 29090-3000 Model ..............82.85

Toilet Base complete with plug and o-ring assembly for above 29090 toilet.

38-646P...............................................................54.75

Seat, lid & hinge set for all Jabsco toilets shown

38-282P...............................................................63.30

ELECTRIC MARINE TOILET

This Jabsco Electric Toilet is equipped with a dual function pump which eliminates having to mess with hand pumps and dry bowl valves. With the simple push of a button the self priming flush pump rinses the bowl as the macerator pump grinds up waste and pumps it out. Includes heavy-duty push button switch and 1 1/2” to 1” adaptor for discharge hose. 3/4” inlet, 1” outlet.

38-152M...........................12v ...........................593.55

38-153M...........................24v ...........................590.65

SEAL & GASKET SERVICE KIT

38-155M ....................37040-0000 ......................64.25

REPLACEMENT PARTS

38-277M............12v 37064-0000 motor............186.10

38-278M............24v 37065-0000 motor............210.15

38-285M .............. 37020-0000 switch ................62.75

COMPLETE MACERATOR KIT (MOTOR INCL.)

38-750M................12v #37041-0010 ................290.35

38-751M................24v #37041-0011 ................311.45

Replacement Impeller

32-119R......................6303-0003 .......................26.90

The JABSCO Electric Toilet is designed to lift water to a height of 4 feet. For installation where the toilet is located more than 4 feet above the waterline, an inline auxiliary pump may be required.

Call Mercer’s Marine at 709-466-7430 if you have any questions concerning marine toilets.

SEALAND 510+ FLUSH TOILET

This toilet is designed to operate with an independant outside water source. Many options are available in different voltages. Please inquire! This unit is a large toilet with a 3” discharge outlet. When the water source is provided, you simply raise the side lever to the required amount of water then press the lever to flush. A standard 5” floor flange which accepts 3” ABS pipe is optional. Color: White

38-741K ..........................Toilet..........................525.00

Replacement Parts for 510+

38-745K .....................Floor flange.......................20.95

38-744K ..........Water Valve Kit (#314349)............44.95

38-746K.......Spring Cartridge Kit (#236096) ........39.95

38-748K ..........Ball & Shaft Kit (#318162)............49.95

38-743K ..........Pedal Cover Kit (#310114)............33.95

38-747K ......Floor flange Seal Kit (#310063)........26.95

Replacement Parts for Sealand 310 ONLY

38-735K ..........Water Valve Kit (#311641)............44.95

38-283

32-062

Y –VALVES

For a quick changeover in pumping waste either overboard or into holding tank. Also useful for pumping two bilges with one pump.

Jabsco model - Lockable

38-283P..........................1 1/2” ...........................85.80

Imported model (Plastic)

32-062R.............................1” ..............................13.95

32-063R..........................1 1/2” ...........................13.95

VENTED LOOPS

Used where toilets are installed below the waterline to prevent siphoning. Constructed of cast bronze.

38-233P........................... 3/4” ............................46.90

38-156P..........................1 1/2”.........................105.65

TOILET HOSE COLLAR

For use over corrugations in toilet hose for connection to toilet outlet. Install one on both ends of toilet hose for snug fit and leak-proof operation.

38-151R..........................1 1/2” .............................3.29

MACERATOR PUMP

The Jabsco macerator pumps are the ideal answer to simple holding tank pumpouts. The macerator section grinds waste into small particles so it easily passes through the pump’s 1” hose barbed discharge port. The pumps are self-priming and can empty a typical 30 gallon (115 litre) holding tank in less than 3 minutes.

The intake port with 1 1/2” NPT can be screwed directly into a tank’s female discharge fitting or the pump may be positioned remotely for installation versatility.

38-284P .........................12 volt ........................223.20

38-302P .........................24 volt ........................257.20

Prices are subject to change. Check our website for up to date prices.

www.mercersmarine.com

97

TOILET TREATMENT (32OZ)

Toilet chemical for holding tanks. Non-formaldehyde, non-staining, biodegradable formula allows pump out at any dumping station. Lubricates drain valves.

One ounce treats five gallons

52-282R .........................Lemon...........................22.50

52-284R ...........................Pine ............................22.50

DECK FILLS FOR HOSE

316 Stainless, C/W key. (Not from Perko)

1 1/2” MODEL

38-642R ......................1 1/2” Gas ........................27.90

38-643R.....................1 1/2” Diesel ......................27.90

38-644R.....................1 1/2” Water ......................27.90

2” MODEL

38-639R..........................2” Gas ...........................33.50

38-638R........................2” Diesel .........................33.50

38-640R........................2" Water .........................33.50

“PERKO” DECK FILLS FOR PIPE

Our most popular Commercial Quality Deck Fill. Plain cast bronze. Complete with key. Unmarked.

38-134R..........................1 1/2" .........................108.95

38-135R.............................2” ............................172.55

REPLACEMENT COVER

38-267R..........................1 1/2” ...........................73.85

38-268R.............................2” ............................114.40

PERKO 1 1/2” DECK FILLS FOR HOSE

Chrome plated brass deck plate. Excellent quality, comes with O-ring and key.

38-137R..........................Diesel ...........................99.95

38-138R..........................Water ...........................99.95

PERKO 1 1/2” LOCKABLE DECK FILL (HOSE)

Chrome plated zinc with black plastic flange and cap.

Lockable cap has cover for keyhole. C/W 2 keys.

38-506R............................Gas .............................60.40

PERKO 1 1/2” COMBINATION FILL & TANK VENT

Chrome plated bronze cap with black plastic base and straight neck. Vent hose 5/8”.

38-293R............................Gas .............................57.45

38-294R..........................Diesel ...........................57.45

38-295R..........................Water ...........................57.45

1 1/2” NYLON DECK FILL FOR HOSE

A nylon deck plate, very economical. Comes with I.D. labels.

38-286R..........................1 1/2" ............................ 8.50

PERKO 1 1/2” COMBINATION FILL & TANK VENT

Black plastic construction with integral tank vent with flame arrestor. No deck key or ground wire required. Flip top cap.

38-139R ...................90

0 neck - Gas.....................30.50

38-140R .................90

0 neck - Water ..................30.50

38-141R .............35

0 angled neck - Gas ..............30.50

PERKO DECK PLATE KEYS

Fits “Perko” deck fills above.

38-144R ..............1 1/2” Perko Deck Fill..................4.70

38-145R .................2” Perko Deck Fill.....................5.65

FUEL TANK VENTS

Chrome Plated Brass

38-142R..................90

0 x 9/16” hose ...................12.90

38-143R ..............Straight x 9/16” hose................12.35

38-624R................Straight x 1/2” NPT .................13.25

98

Visit

www.mercersmarine.com

for all the latest pricing and information.

DIESEL FUEL FILTER/WATER SEPARATORS

“Fuel is your biggest expense, don’t make it your biggest headache as well”; install a RACOR Filter in your fuel line today. We have models from 30 GPH to 360 GPH. RACOR’s

Turbine Series are available in single or double manifold series which allows for isolation of one unit, while servicing the other.

You can determine your engine’s approximate fuel flow rate by using this simple formula:Fuel Flow = HP x 0.18

MODEL 500 FG

Flowrate: 60 GPH. 3/4” - 16 SAE Ports.

Complete with 2 micron element. Plastic bowl.

44-144M ........................................................... 313.00

MODEL 900 FH

Flowrate: 90 GPH. 7/8” - 14 SAE Ports.

Complete with 2 micron element. Plastic bowl.

44-148M ........................................................... 445.00

MODEL 1000 FH

Flowrate: 180 GPH. 7/8” - 14 SAE Ports.

Complete with 2 micron element. Plastic bowl.

44-151M............................................................492.00

MODEL 500 MA

Flowrate: 60 GPH. 3/4” - 16 SAE Ports.

Complete with 2 micron element. Plastic bowl, comes with metal shield.

44-654M............................................................383.00

MODEL 900 MA

Flowrate: 90 GPH. 7/8” - 14 SAE Ports.

Complete with 2 micron element. Plastic bowl with metal shield.

44-655M ........................................................... 560.00

MODEL 1000 MA

Flowrate: 180 GPH. 7/8” - 14 SAE Ports. Complete with 2 micron element. Plastic bowl with metal shield.

44-596M ........................................................... 612.00

MODEL 75/500 FGX

Flowrate: 120 GPH, 3/4” - 16 SAE Ports, pressure differential gauge and isolation valve, complete with 2 micron elements. Plastic bowls.

44-541K.......................................................... 1225.00

MODEL 75/900 FHX

Flowrate: 180 GPH, 7/8” - 14 SAE Ports. Complete with pressure differential gauge and isolation valve. C/W 2 micron elements. Plastic bowls.

44-1366K........................................................ 1765.00

MODEL 75/1000 FHX

Flowrate: 360 GPH, 7/8” - 14 SAE Ports. Complete with 2 micron elements with pressure gauge and isolation valve.

Plastic bowls.

44-578K...........................................................1795.00

MODEL 75/500 MAX

Flowrate: 120 GPH, 3/4” - 16 SAE Ports, Complete with pressure differential gauge and isolation valve. C/W 2 micron elements. Plastic bowls with metal shields.

44-598K...........................................................1390.00

MODEL 75/900 MAX

Flowrate: 180 GPH, 7/8” - 14 SAE Ports. Complete with pressure differential gauge and isolation valve. C/W 2 micron elements. Plastic bowls with metal shields.

44-804K...........................................................1950.00

MODEL 75/1000 MAX

Flowrate: 360 GPH, 7/8” - 14 SAE Ports. Complete with 2 micron elements with pressure gauge and isolation valve.

Plastic bowls with metal shields.

44-597K.......................................................... 1989.00

Prices are subject to change. Check our website for up to date prices.

www.mercersmarine.com

99

RACOR AQUABLOC ELEMENTS

Always rely on Racor Aquabloc replacement elements. Elements are available in 2, 10, and 30 micron protection ratings.The lower the micron rating, the finer the protection. The 2 micron element (SM) is for secondary/final filtration and has brown end caps.The 10 micron element (TM) can be used for primary or secondary/final filtration and has blue end caps. The 30 micron element (PM) is for primary filtration and has red end caps.

MODEL 500 REPLACEMENT ELEMENTS PARTS - Models 500FG, 75/500FGX, 500MA, 75/500Max

44-145M.........2010SM, 2 micron (Brown) ..........14.25

44-797M .........2010TM, 10 micron (Blue)............14.25

44-798M..........2010PM, 30 micron (Red) ............14.25

44-146M ..............repl. bowl with seal ................88.95

44-147M .............drain valve with seal................55.50

44-803M...................repl. T-Handle .....................49.95

MODEL 900 REPLACEMENT ELEMENTS PARTS - Models 900FG, 75/900FGX, 900MA

44-149M.........2040SM, 2 micron (Brown) ...........14.25

44-799M .........2040TM, 10 micron (Blue)............14.25

44-800M..........2040PM, 30 micron (Red) ............14.25

44-150M ..............repl. bowl with seal ................88.95

44-147M .............drain valve with seal................55.50

44-803M...................repl. T-Handle .....................49.95

MODEL 230

Flowrate: 30 GPH. 1/4” NPT Ports. Complete with 2 micron element. Plastic bowl.

44-141M............................................................193.00

Replacement Element& Parts For Model 230 Filter

44-656M.....Repl. Element (R20S - 2 Micron) .......40.95

44-147M.....................Drain Valve .......................55.50

44-143M ....Repl. Bowl (For Models 220/230) ....104.95

MODEL 1000 REPLACEMENT ELEMENTS PARTS - Models 1000FG,75/1000FGX,1000MA,75/1000Max

44-152M.........2020SM, 2 micron (Brown) ..........16.75

44-801M .........2020TM, 10 micron (Blue)............16.75

44-802M..........2020PM, 30 micron (Red) ............16.75

44-150M ..............repl. bowl with seal ............... 88.95

44-147M .............drain valve with seal ............... 55.50

44-803M...................repl. T-Handle .................... 49.95

FEMALE PIPE ADAPTORS

44-382P ...........3/4”- 16 SAE x 3/8”FNPT ..............2.39

44-916P ...........3/4” - 16 SAE x 1/2”FNPT...............3.19

44-917P ...........7/8” - 14 SAE x 1/2”FNPT...............3.59

44-918P ...........7/8” - 14 SAE x 3/4”FNPT...............7.15

UNIVERSAL IN-LINE FUEL FILTER

A quality Racor Filter is suitable for O/B motors and other installations where fuel contamination can be troublesome. Designed for gas or diesel. 1/4” female

NPT ports.

44-657M...............Model 025/RAC-02 ...............121.00

Replacement Element

44-658M ........................S25-02 ..........................26.00

UNIVERSAL GAS FILTER / WATER SEPARATOR

Universal inboard or I/O gas filter. A multi-port head allows easy installation anywhere in engine compartment.

1/4” NPTF ports. Flowrate: 60 GPH. Complete unit includes mounting head, metal bowl and element.

44-153M...............Model 320-RAC-02 ...............151.00

Replacement Element

44-154M ......................S-3228UL ........................40.95

BRASS HOSE COUPLERS

HOSE BARB TO MALE PIPE

44-1169R ............1/8” NPT x 1/4” hose .................1.02

44-1170R ............1/8” NPT x 3/8” hose ..................0.97

44-1171R ............1/4” NPT x 1/4” hose..................1.10

44-1172R ...........1/4” NPT x 5/16” hose .................1.30

44-1174R........... 3/8” NPT x 5/16” hose ................2.30

44-1173R ............1/4” NPT x 3/8” hose ..................1.12

44-1175R ............3/8” NPT x 3/8” hose..................1.60

44-1177R ............1/2” NPT x 3/8” hose..................2.81

44-1176R ............3/8” NPT x 1/2” hose ..................1.62

44-1178R ............1/2” NPT x 1/2” hose ..................2.95

44-1179R ............1/2” NPT x 5/8” hose ..................3.02

44-1180R ............3/4” NPT x 1/2” hose ..................4.59

90

0

ELBOW HOSE BARB

44-1181R ............1/8” NPT x 1/4” hose ..................3.06

44-1183R ............1/8” NPT x 3/8” hose ..................3.42

44-1184R ............1/4” NPT x 1/4” hose ..................3.29

44-1186R ............1/4” NPT x 3/8” hose..................3.17

44-1187R ............1/4” NPT x 1/2” hose ..................4.43

44-1189R ............3/8” NPT x 3/8” hose..................2.99

44-1190R ............3/8” NPT x 1/2” hose ..................4.23

44-1191R.............1/2” NPT x 3/8” hose .................3.71

44-1192R ............1/2” NPT x 1/2” hose ..................6.30

SPIN ON ELEMENT

For Model 220 Filters

R24 S - 2 micron element.

44-142M..............................................................41.95

100

Visit

www.mercersmarine.com

for all the latest pricing and information.

FLARED AND COMPRESSION FITTINGS

COMPRESSION UNION T/T

42-193R...............3/8”tube x 3/8”tube ..................2.50

SHORT TUBE NUT

42-453R ...........................1/4”...............................0.77

42-360R ..........................5/16”..............................1.06

42-361R ...........................3/8”...............................1.12

42-206R ...........................1/2”...............................1.55

42-387R .................5/8” (Long Tube) .....................4.20

TUBE TO TUBE 90 0 ELBOWS

42-392R ......................3/8” x 3/8” .........................3.60

42-203R ......................1/2” x 1/2” .........................4.79

42-393R ......................5/8” x 5/8” .........................6.98

COMPRESSION TEE

42-199R ................3/8” x 3/8” x 3/8” ....................5.90

TUBE TO TUBE JOINER

42-363R .....................3/8” to 3/8”.........................1.78

42-202R .....................1/2” to 1/2”.........................2.54

42-364R .....................5/8” to 5/8”.........................3.94

FEMALE CONT. TUBE TO FEMALE PIPE

42-397R...............1/4”pipe x 3/8”tube ..................1.60

42-398R...............3/8”pipe x 3/8”tube ..................2.14

42-399R...............3/8”pipe x 1/2”tube ..................3.22

COMPRESSION ELBOW TUBE TO TUBE

42-194R ......................3/8” x 3/8” .......................11.22

TUBE TO MALE PIPE CONNECTOR

42-454R ...............1/8”NPT x 1/4”tube...................0.79

42-455R ...............1/4”NPT x 1/4”tube...................1.13

42-365R ..............1/4”NPT x 5/16”tube..................1.51

42-366R ...............1/4”NPT x 3/8”tube...................1.53

42-200R ...............1/4”NPT x 1/2”tube...................2.27

42-204R ...............3/8”NPT x 1/2”tube...................1.98

42-367R ...............3/8”NPT x 5/8”tube...................3.80

INVERTED BRASS PLUGS

42-400R ...........................1/4”...............................0.79

42-402R ...........................3/8”...............................1.26

42-403R ...........................1/2” ..............................2.36

MALE CONT. TUBE TO M. PIPE

42-195R ...............1/4”NPT x 3/8”tube...................1.82

MALE COMPRESSION ELBOW TUBE TO M. PIPE

42-196R ...............1/4”NPT x 3/8”tube...................8.23

TUBE TEE

42-368R ...........................3/8”...............................4.30

42-207R ...........................1/2”...............................5.87

42-369R ...........................5/8” ..............................9.22

INVERTED BRASS UNION

42-404R ...........................1/4”...............................6.50

42-405R ...........................3/8”...............................6.99

TEE - TUBE x TUBE x PIPE

42-370R ...............1/4”NPT x 3/8”tube...................5.85

42-371R ...............1/4”NPT x 1/2”tube...................8.33

42-372R ...............3/8”NPT x 1/2”tube...................8.33

INVERTED TEE 3 TUBE ARMS

42-407R ...........................1/4”...............................5.02

42-408R ...........................3/8” ..............................6.08

90

0

ELBOW TUBE TO PIPE

42-456R ...............1/8”NPT x 1/4”tube...................2.57

42-457R ...............1/8”NPT x 3/8”tube...................3.24

42-388R ...............1/4”NPT x 3/8”tube...................2.81

42-201R ...............1/4”NPT x 1/2”tube...................3.89

42-205R ...............3/8”NPT x 1/2”tube...................3.62

42-389R ...............3/8”NPT x 5/8”tube...................7.11

42-390R ...............1/2”NPT x 3/8”tube...................4.07

42-391R ...............1/2”NPT x 5/8”tube...................6.41

FEMALE ELBOW TUBE TO FEMALE PIPE

42-409R...............1/4”NPT x 1/4” tube ..................4.34

42-410R...............1/4”NPT x 3/8” tube ..................3.87

42-411R...............3/8”NPT x 3/8” tube ..................3.94

42-412R...............3/8”NPT x 1/2” tube ..................5.63

NUTS

42-198R ...........................3/8”...............................0.50

SLEEVE

42-197R .....................For 3/8”nut.........................0.65

BRASS HOSE COUPLERS

HOSE BARB TO MALE PIPE

44-1169R ............1/8” NPT x 1/4” hose .................1.02

44-1170R ............1/8” NPT x 3/8” hose ..................0.97

44-1171R ............1/4” NPT x 1/4” hose..................1.10

44-1172R ...........1/4” NPT x 5/16” hose .................1.30

44-1174R........... 3/8” NPT x 5/16” hose ................2.30

44-1173R ............1/4” NPT x 3/8” hose ..................1.12

44-1175R ............3/8” NPT x 3/8” hose..................1.60

44-1177R ............1/2” NPT x 3/8” hose..................2.81

44-1176R ............3/8” NPT x 1/2” hose ..................1.62

44-1178R ............1/2” NPT x 1/2” hose ..................2.95

44-1179R ............1/2” NPT x 5/8” hose ..................3.02

44-1180R ............3/4” NPT x 1/2” hose ..................4.59

90

0

ELBOW HOSE BARB

44-1181R ............1/8” NPT x 1/4” hose ..................3.06

44-1183R ............1/8” NPT x 3/8” hose ..................3.42

44-1184R ............1/4” NPT x 1/4” hose ..................3.29

44-1186R ............1/4” NPT x 3/8” hose..................3.17

44-1187R ............1/4” NPT x 1/2” hose ..................4.43

44-1189R ............3/8” NPT x 3/8” hose..................2.99

44-1190R ............3/8” NPT x 1/2” hose ..................4.23

44-1191R.............1/2” NPT x 3/8” hose .................3.71

44-1192R ............1/2” NPT x 1/2” hose..................6.30

Prices are subject to change. Check our website for up to date prices.

www.mercersmarine.com

101

3.2 US Gal 6.6 US Gal

3 US Gal

6 US Gal

9 US Gal

PORTABLE FUEL TANKS

Portable tanks are lightweight, with stout handles for easy transport. Tanks are non-corrosive, unbreakable, and dent resistant. Features 90 degree 1/4” NPT fuel withdrawl elbow that rotates 360 degrees eliminating a kinked fuel line hose.

Includes mechanical direct-sight gauge with easy to read indicator.

48-021R......................................3.2 US Gal............................................. 46.50

Dimensions 14.25”L x 10.25”W x 9”H

48-022R.......................................6.6 US Gal............................................ 54.95

Dimensions 21.25”L x 14”W x 9.75”H

48-090R........................................9 US Gal.............................................. 79.95

Dimensions 22.9”L x 14.30”W x 11.75”H

NEPTUNE OUTBOARD MOTOR TANKS

Non-corrosive "Neptune" tanks are tough and light weight with baffled, manually vented closure caps and a universal 1/4" NPT fuel pick-up adapter.

Meets ABYC standards. ISO and CSA certified.

48-029R.........................................3 gal............................................... 34.95

Dimensions 16.75" L x 10.75" W x 8.00" H

48-030R.........................................6 gal............................................... 39.95

Dimensions 20.50"L x 12.75"W x 10.50"H

FUEL TANK CONNECTORS

Screws into O/B tanks at top of page

OLD STYLE JERRY CAN

6 us Gallons. 22.7 litres. CSA B 376. Flexible vented spout.

Rear vent. Spout and covers below, will fit this can.

Preferred by snowmobilers and boaters.

48-033K...............................................................18.95

OMC Tank Fitting

48-006R.......................33400-10 ..........................9.25

Yamaha Tank Fitting

48-008R.......................33470-10 ........................10.25

New Merc. Tank Fitting

48-056R.......................33477-10 ........................10.95

SELF-VENTING JERRY CANS & ACCESSORIES

Comes complete with a “self venting spout with automatic shut-off “ that stops overflows. Closes automatically and self seals to guard against unwanted vapour emissions when not in use.

48-016K......................................................................1.25 USG.................................................................. 6.75

48-018K.......................................................................2.5 USG.................................................................. 8.50

48-017K. ......................................................................6.6 USG.................................................................. 17.50

48-065K. ..................................................Replacement Covers (2) & Lid...................................................... 3.99

48-066K. ............................................................Replacement Spout........................................................... 3.99

Honda Tank Fitting

48-074R.......................33501-10 ..........................6.95

102

Visit

www.mercersmarine.com

for all the latest pricing and information.

42-840

“SWINGARM” ELECTRIC FUEL SENDERS

Gather fuel level information the same way as the mechanical sending units. It connects to a dash mounted gauge without a conversion capsule. Internal components will not rust or corrode.

For Tanks 6” to 12”

42-812R......................035722-10 .......................35.50

For Tanks 6” to 24”

42-813R......................035729-10 .......................37.95

“REED SWITCH” ELECTRIC FUEL SENDERS

Collect fuel level information more consistently than swingarm senders. They achieve this by taking the measurment from the float(which is a moving part).

However, the fluctuation is much less because the range of motion is much less. Stainless Steel construction provides efficient performance.

For Tanks 8” (7” Sender)

42-815R......................035769-10 .......................57.95

For Tanks 9” (8” Sender)

42-816R......................035761-10 .......................55.95

For Tanks 11” (10” Sender)

42-817R......................035762-10 .......................56.50

FUEL INDICATOR KIT

Complete fuel sending kit. Easy to install, great accuracy, and great looks at an economical price. For tanks from

4” to 24”.

42-229R ............................Kit..............................79.95

42-840R..............Gauge Only (57902P) ...............34.25

42-228R..........Fuel Sender Only (90424P) ...........47.95

20 US Gal

12 US Gal

SHUT OFF VALVE

1/4”FNPT Female/Female Brass shut-off. Meet ABYC H-

24 requirements and provide anti-siphon protection.

48-095R.......................1/4” FNPT ........................29.95

1/4” NPT x Hose Size

See Page 101

TOPSIDE FUEL TANKS

Topside fuel tanks have a manually vented fuel cap which ensures easy gripping with exclusive ribbed design that floats. Features 90 degree 1/4” NPT fuel withdrawal elbow that rotates 360 degrees eliminating a kinked fuel line hose. Includes mechanical direct-sight gauge with easy to read indicator. ATTN: 20 gal tank uses 1/4” NPT fitting,

seen on page 101 (This tank will not accept Fuel Tank Connectors on page 102)

20 US GALLON

Dimensions 28”L x 15”W x 12.37”H

48-025R.............................................................410.00

12 US GALLON

Dimensions 24.3”L x 18.1”W x 10.75”H

48-092R...............................................................86.50

Prices are subject to change. Check our website for up to date prices.

www.mercersmarine.com

103

HOSE TO ENGINE FITTINGS FUEL LINE ASSEMBLIES

Approx. OL Length = 7ft

Keep your fuel lines operating at peak performance to insure your outboard motor runs smoothly. Moeller offers a wide variety of OE compatible replacement assemblies.

HOSE TO TANK FITTINGS

OMC

48-011R.......................33480-10 ..........................5.75

OMC Hose Kit

3/8” I.D. hose Bombardier (Johnson/Evinrude) fuel line assembly.

48-003R.......................34391-10 ........................44.25

OMC

48-011R.......................33480-10 ..........................5.75

Yamaha

48-010R.......................33481-10 ..........................6.50

Yamaha Hose Kit

3/8” I.D. hose Yamaha fuel line assembly.

48-004R.......................34394-10 ........................46.50

Yamaha

48-010R.......................33481-10 ..........................6.50

New Merc.

48-070R.......................33482-10 ..........................7.10

New Style Merc. Hose Kit

3/8” I.D. hose Mercury two prong clip style fuel line assembly. 1998 and newer engines.

48-002R.......................34385-10 ........................47.75

New Merc.

48-012R.......................33486-10 ..........................6.95

Honda

48-077R.......................33497-10 ..........................8.95

Honda Hose Kit (Not a Scepter/Moeller Product)

3/8” I.D. hose Honda style fuel line hose accessories.

48-001R.......................18-81042 ........................69.95

Honda

48-076R.......................33502-10........................14.50

104

Visit

www.mercersmarine.com

for all the latest pricing and information.

PRIMER BULBS

Original equipment quality. UV and alcohol resistant. Fits

3/8” diameter hose. Use stainless steel clamps.

48-013R...............................................................12.50

SPILL PROOF SPOUT

Stops overflows, closes automatically and self-seals to guard against unwanted vapor emissions when not in use. Ecologically friendly. Automatic shut-off.

48-064R.................................................................9.95

MOTOR FLUSHERS

For use with outboards or inboard/outboards with side wall inlets. Flushes away salt by connecting to a fresh water garden hose.

46-542R ................................................................ 6.50

48-040

DURAMAX 14 GAL PORT-A-TANK SYSTEM

Composed of a durable, high density polyethlene in vibrant red for use with gasoline, diesel, or kerosene fuels. Comes complete with a patented Flo n’ Go hand pump and pump holder handle. Sturdy 152mm wheels make maneuverability a breeze over rough terrains. Dual mechanical shut-off valves, at both tank and hose, for spill proof Flo n’ Go disconnection. Meets D.O.T. and UN transportation requirements.

48-027M............................................................159.00

PLASTIC WHEEL CHOCKS

Use when vehicle is parked. Use when changing tires.

Durable and lightweight.

90-235R ..................7”L x 5”W x 4”H .....................4.95

48-041

9” FUNNEL WITH STRAINER

Plastic funnel with strainer. 4.09 litre capacity. Rugged and flexible. Available with or without anti-splash guard.

48-040M ..............Without anti-splash ............... 10.95

48-041M.................With anti-splash .................. 12.95

UNIVERSAL MAXFLO NOZZLE

Included rubber cones fit most neck openings. Rubber cone design doesn’t rely on US neck finish sizes.

48-062R...............................................................38.95

2 IN 1 FUNNEL

Plastic funnel with strainer. 5 1/2” dia. Comes with a 10” flexible extension spout.

48-014M ............................................................... 2.50

6.6 GAL JERRY CAN/PUMP KIT

Patented design. Handle pump control allows for auto shut off and restart as well as clean hassle free siphon control. Pumps gas in any direction(including upward) for easy, clean fill ups even in hard to reach places.

48-020R..................6.6 Gal/25 Litre ...................63.95

FULTON TRI FOLD RAMP

One of Fulton's hottest selling ramps. This ramp features a tri-fold design with a 1500 lb. distributed load capacity, and a 400 lb. point load capacity. Constructed of durable, rust-resistant extruded aluminum side rails and center rungs riveted at 8" spacing. Full width top plate with non-marring vinyl backing. Side rails feature patented raised edge to help guide wheels when loading. 45" wide x 69" long. Folds to 15" width for easy transport or storage. Includes (2) attachment chains to secure ramp to vehicle.

90-216K............................77”.............................. 359.00

Prices are subject to change. Check our website for up to date prices.

www.mercersmarine.com

105

4-STROKE O.B. MOTOR BRACKET

Built for newer, heavier 4-stroke high torque motors weighing up to 169 lbs. Rated from 7 1/2 to 30 H.P., long or short shaft. Black satin anodized aluminum body.

Heavy duty stainless steel torsion springs help to counter balance the weight and makes motor easier to raise and lower. Heavy duty 11 1/2” x 10 3/4” x 2” thick poly motor pad is durable and tough. 5 vertical running positions and a new twist-lock knob secures this bracket in place.

Comes with a heavy duty motor safety cable.

Vertical travel 9 1/2”.

46-775P ....................Model 71090....................391.60

OUTBOARD MOTOR BRACKET

Constructed of tough anodized aluminum with stainless steel springs and bolts. Rated for motors from 7 1/2 H.P.

to 20 H.P., long or short shaft up to 115 lbs.. Poly pad measures 11 1/2” x 10 3/4” x 2”.

Vertical travel 11 1/4”.

46-743P ....................Model 71057....................215.15

ALUMINUM 4-STROKE O.B. MOTOR BRACKET

•Accommodates long or short shaft motors

Motor Safety Cable included for added protection

•With 5 vertical running position lock bar to compensate for water surface and boat load conditions – Hard coated for added resistance to wear

•New, ergonomically designed twist lock safety knobs secure bracket in place

•Heavy-duty stainless steel torsion springs help counterbalance motor’s weight

•Black satin Anodized aluminum body resists corrosion

•2" Thick, Extra Wide Black Poly Mounting Board –

Weatherable and maintenance free

•Aircraft Type Stainless Steel Hardware – For increased durability with nylon friction resistant washers

H.P. Rating: Over 7 1/2 to 25. Motor Weight Not to

Exceed: 175 lbs. Vertical Travel: 15 1/2"

Mtg. Pad: Poly Mounting Board Dimensions 11 1/2"W x

12"H x 2"T

PLATFORM O/B MOTOR BRACKET

Tough 304 stainless steel bracket. 1 1/2” x 8” poly pad.

Rated for 15 H.P..

46-398P ....................Model 71078....................127.75

46-776P ....................Model 71091....................542.35

OUTBOARD MOTOR BRACKET

“Stainless Steel” Top quality bracket at an economical price. Rated for motors up to 20 H.P., 115 lbs., long or short shaft. Heavy duty stainless steel torsion springs enable the design to be easily lowered or raised. All hardware is stainless steel and it features a unique adjustable bracket to set “trim angle”. Comes with new

2” thick, 7 5/8” x 7 1/8” high poly mounting board.

Designed for the newer, wider style motors. Vertical travel 11 1/4”.

46-312P ....................Model 71056....................275.55

STATIONARY O/B BRACKET FOR 4 STROKE

•Fixed height for auxiliary or trolling motor – 4-stroke

•304 stainless brackets and hardware

•Mounts to transom

•Motor Safety Cable included

H.P. Rating to 30, Motor Weight Not to Exceed 263 lbs.,

Poly Mtg Board Dimensions 11 1/2"W x 12"H x 2"T,

Mtg. Bracket Dimensions 12 1/4"W x 6 1/4"H

46-402P ....................Model 71099....................138.95

OUTBOARD MOTOR TILTER

•Leverage tool for use with manual lift motors

•Tilts motors back easier with less strain

•Adjustable to fit shroud of outboards with hand holds

•Compact for stowage

•All contact points are cushioned

46-403P ....................Model 71036......................96.25

See pages 5,6 & 7 for Stainless Steel fasteners for attaching bracket to boat.

106

Visit

www.mercersmarine.com

for all the latest pricing and information.

ECONOMY ALUMINUM O.B. MOTOR BRACKET

Rated for lighter engines up to 20 H.P. (Not recommended for heavy 4 stroke). Plastic board size

8-1/4"W x 10-3/8"H x 2"Thick.

46-401P ....................Model 72534....................154.70

ECONOMY STAINLESS O.B. MOTOR BRACKET

304 Stainless Steel. Rated for lighter engines up to 20

H.P. (Not recommended for heavy 4 stroke). Plastic board size 8 1/4"W x 10 3/8"H x 2"Thick.

46-950P ....................Model 72533....................218.35

HEAVY DUTY MOTOR SAFETY CABLE

•Secures motor to motor bracket or boat

•Black poly vinyl cover

•Stranded Steel Cable, .133" in Diameter

•Secures motor to motor bracket or boat

•Black poly vinyl cover

46-313P ....................Model 71030......................19.95

OUTBOARD MOTOR EXTENSION HANDLE

30” to 47” telescoping handle. For twist grip outboard motors. Anodized aluminum, stainless steel and tough polycarbonate non-slip comfort grip. Access hole for kill button.

46-396K...............................................................62.95

TRANSOM PAD

Rubber pad is oil and weather reisistant. Reduces motor vibration noise. Protects transom.

90-219P..........................07517 ...........................17.95

Prices are subject to change. Check our website for up to date prices.

www.mercersmarine.com

107

24-100

Optional Quick

Release Bracket

BOARDING LADDERS

The EZZ-IN boarding ladder is an industry leader. Features comfortable and sturdy plastic construction, 15” steps and all stainless steel fasteners. 1” aluminum tube. Hooks & stand-offs fold away so ladder stays flat. Soft vinyl tips on stand-offs. Ladder floats.

24-044R .....................36” (3 step).......................61.75

24-045R .....................48” ( 4 step) ......................70.95

TELESCOPING DROP LADDER

3 step telescoping ladder conveniently folds over flat on platform for storage. Step treads have plastic covering for safety and comfort. Made from 304 polished stainless steel. 32” deployed, 14 1/2” stowed, 12” wide.

24-030P.............................................................133.85

ANODIZED ALUMINUM DOCK/RAFT LADDER -

FIXED MODEL

10 degree angled design provides effortless boarding.

All aluminum heavy walled 1" diameter tube construction. Quick release pins allow easy removal for seasonal storage or periods of non-use. Wide track 18" ladder with full 16" width steps. Comfortable anodized aluminum traction tread curved step surface. Dual handrails 15" height and extends 14" deep onto dock.

Assembly is quick and easy with all stainless steel hardware. Capacity 300 lbs boarding weight.

Aluminum extruded curved step 4"deep.

24-031P ...................3 Step (15330) ..................353.60

24-032P ...................4 step (15340) ..................408.75

Quick Release Ladder Bracket (Optional)

24-100P...............................................................57.20

GULL WING STEP BOARDING LADDER

Easy boarding for swimmers or divers with fins or heavy gear. Steps fold out in unison and lock in place. Features quick release mounting hardware with built-in angle adjustment and breakaway feature. When removed, the compact size allows for easy storage in locker. Heavy duty stainless steel vertical rails rated up to 400 pounds boarding weight.

24-046P.............................................................499.00

OUTBOARD SWIM PLATFORM

Designed for outboard boats. High density polyethylene platform measures 15 1/2”L x 18”W x 15 1/2”D. Uses one

1” stainless steel wrap around rail and one underside rail.

Reversible. Available with or without ladder.

24-060P .....................with ladder.....................229.95

24-059P...................without ladder ..................154.95

108

Visit

www.mercersmarine.com

for all the latest pricing and information.

Garelick Pilot & Helm Seats

GULFPORT HIGH BACK HELM SEAT

The Gulfport is quality engineered for commercial boat applications; these durable seats offer comfort and convenience. Internal welded tubular frame, molded foam and marine grade vinyl, with seat back and arm adjustments, make this helm seat a desirable choice at a great value.

•Backrest width (without armrests): 19"

•Seat measures (with armrests): 24" width x 19" depth x

34" height

•Contour molded shaped seat and back high density foam provide lumbar support for promoting good posture while helping reduce fatigue.

24-067K ..........................Black..........................747.35

NEW ORLEANS HIGH BACK HELM SEAT

The New Orleans High Back Helm Seat is a premium choice and features a built-in back angle recline adjustment, along with fold up, thick padded upholstered arm rests. Internal welded tubular frame, molded contour seat and back foam, and marine grade vinyl will offer long lasting comfort and upscale appearance in any pilot house.

•Backrest width (without armrests): 21"

•Seat measurements (with armrests): 26.5" width x 18.5" depth x 32" height

•Contour molded shaped seat and back high density foam provide lumbar support for promoting good posture while helping reduce fatigue

24-065K ..........................Black........................1038.20

PACIFIC SUSPENSION HELM SEAT

Each Pacific seat is built to the toughest marine standards, using weather-, water- and corrosion-resistant materials.

The patented "knee action" mechanical suspension system absorbs the energy of each wave and allows the seat to move in the same motions of the workmen minimizing the impact of a rough ride. With this unique suspension, operators help maintain constant positive steering and throttle control.

Built-in cushioned and contoured lumbar support and heavy-duty shock absorbers tame high-speed waves and reduce fatigue. High resilience molded foam seat cushion materials provide optimum tail bone and hip support.

•Adjustable backrest

•Fold-up upholstered cushioned armrests

•Firm to soft knob control

•Height, fore and aft slide adjustment levers

24-068K ..........................Black........................1216.95

GARELICK FOOT REST FOR PEDESTAL

•1" thick black HDPE traction grooved surface.

•Fits all 4.0" fixed height Garelick/EEz-In seat bases.

24-074K.............................................................428.40

GARELICK TOGGLE BOLTS

Secure seats and table bases to decks or any accessory to cabin walls. Made of 304 Stainless Steel. These easy-to use togglers save time and labor and provide added strength and reinforcement to pedestal installations.

24-075R ..................................................47.20 per pk.

GARELICK CHAIR STAND

The 4-Leg Chair Stand has a leg span of 29" and is built on a sturdy, all welded, corrosion resistant frame of black painted marine grade aluminum alloy. The 360° swivel and rocking mechanism and built in 180° footrest add comfort and style. Includes adjustable padded rubber foot pads for leveling.

24-076K.............................................................790.80

GARELICK ADJUSTABLE SEAT PEDESTAL

•SWIVEL: 360 degree free rotation or positive lock in 45 degree increments

•SLIDE: 6" of fore and aft travel with positive locking at 1" increments.

•LIFT: Vertical travel of 4" is operated from a single lever in a lift-to-lift motion.

•4" diameter pedestal and 12" base plate

24-072K .................21” to 25” 78325 ..............1683.35

Prices are subject to change. Check our website for up to date prices.

www.mercersmarine.com

109

Helmsmen Seat

SeaPost engineers have a solid understanding of ergonomics and have carefully studied seats functions, shapes and positioning in relation to the users body •This assures the best comfort whether on a short trip or long voyage •Seats are fully “marinized” with a two-coat metal finish and have non-corrosive hardware •Most seats are available in vinyl or special cloth covering.

Torsion Seat

HIGH BACK HELMSMEN SEAT “MODULE”

7” fore and aft travel with fingertip adjustment. Fold up footrest adjusts to 3 height positions. Adjustable seat tilt allows 4 different positions. 9” diameter polymer swivel is the largest and most dependable made and assures dependability in heavy seas.

Module Size: 18” High

24-258K...........................................................1298.80

SeaPost Seats, now sold as separate parts.

“4” parts required for Helmsmen seat

(Seat,Arms,Module & Base).

“3” parts required for

Torsion seat

(Seat,Arms & Torsion Assembly).

SEAPOST MEDIUM BASE ASSEMBLY

Base Assembly Size: 19 1/2” W x 19 1/2”D x 8”H

24-260K.............................................................318.10

SEAPOST SIERRA TORSION ASSEMBLY & COVER

These specifications apply to the “Sierra Torsion Seat” with the purchase of the following 2 items.

**A High Back Helm Seat and Torsion Assembly**

HIGH BACK HELM SEATS

Offshore quality Helmsman seat. Fold up armrests with angle adjustments. Built in lumbar support. Serpentine seat springs isolate shock from heavy seas while high density seat cushions are padded and contour molded for added comfort. Seat Size including arm attached: 24” W x 21”D x 34 1/2”H

Supplied in the following fabrics and colors:

The high strength torsion bar is an engineering marvel allowing 4” of shock absorbing ride zone. Built in damper smooths out the roughest ride. Front hand wheel adjusts the weight control of this mechancial suspension seat to isolate shock and operate smoothly between 110 and 275 pounds. 7” fore and aft slide offers finger tip adjustment. Serpentine seat springs isolate shock from rough seas while seat cushions and padding are contour molded for added comfort

SEAT WITHOUT ARMS

24-250K ....................................................Black Vinyl Seat (Without Arms) ........................................................547.25

24-251K ....................................................Black Cloth Seat (Without Arms) ........................................................578.35

24-252K ..............................................Charcoal Grey Cloth Seat (Without Arms)..................................................578.35

ARMS

24-253K ............................................................Black Vinyl Arms (Pair)................................................................202.90

24-254K ............................................................Black Cloth Arms (Pair)................................................................216.30

24-255K......................................................Charcoal Grey Cloth Arms (Pair) ........................................................216.30

24-262K.............................................................625.90

SEA POST REPLACEMENT PARTS

Sea Post replacement covers are available. Contact us for further information.

110

Visit

www.mercersmarine.com

for all the latest pricing and information.

COMMERCIAL HELMSMAN SEAT

Large molded seamless cushions. Heavy “Welded” aluminum frame. Seat: 18 1/4” x 16” x 6”. Back:18 1/4” x

10 1/2” x 5”. Molded back and arms with waterproof foam padding. Tough “Anodized” aluminum extrusions are used in back and front arm supports.

25 1/4”W x 19.5”D x 20”H.

24-000P ..........................Black..........................648.45

CITATION HIGH BACK “PREMIUM” FOLD DOWN SEAT

Beautiful Two-color Upscale 30oz. Marine grade vinyl with UV inhibitor, superior abrasion resistance and finish to resist dirt and grime. Dual Durometer High Density Foam - longer lasting comfort. Contour styling for greater thigh and back support. Dimensions: 17” W x 17” D x 24” H.

24-103P ....................................................................White/Grey ........................................................................260.65

24-104P....................................................................Offshore Blue ......................................................................260.65

24-106P ......................................................................Grey/Grey..........................................................................260.65

MULTI PURPOSE HELMSMAN SEAT

A versatile seat with arm chair comfort. Features sewn cushions and mildew resistant marine vinyl material with attractive design. Sewn with dacron thread.

Durable 1” aluminum frame and matching padded arm rests.

24”W x 19”D x 17.5”H.

24-003P ...........................Blue ..........................298.55

24-111P..........................White .........................298.55

ROTATIONAL MOLDED SEAT

Constucted of tough UV resistant polyethylene.White

snap on removable cushions. If seat slide is required, order #24-095.

24-039P.............................................................343.15

CONTOUR CAPTAINS CHAIR

Rotationally molded polyethylene construction. Deep bucket seat styling. Ideal for runabouts. New modern appearance. 23 1/2”W x 22.5”D x 19”H.

Requires additional installation hardware. See info guide below.

24-089P.................White / Grey Trim ................499.50

GARELICK SIDE-GUNWALE SEAT

Provides extra seating in the cockpit. Mounts on either starboard or port side. Comes with Shur Loc catches which provide permanent or temporary mounting. Firm

2.5" thick resilient foam. Marine grade white vinyl covered seat 18" x 16". Anodized aluminum tube frame.

Hypalon cushioned support leg. Folds flat, maximum height 24"

24-098P.............................................................333.35

COMPACT ROTO MOULDED SEAT

Moulded seat. Constructed of exceptionally strong UV resistant white polyethylene. Front waterfall edges and natural drain center eliminates water build up.

Removable blue marine vinyl snap-on cushion. See info guide to the right for required installation hardware.

24-064P.............................................................179.95

INFORMATION GUIDE

Optional installation requirements for 24-089 &

24-064 seats

A seat slide or reinforcement bracket MUST be mounted directly to the bottom of these seats.

Your options are listed below.

360

O

Swivel mount (Non-sliding)

Use 24-093 reinforcement bracket. This bracket must be attached directly to the bottom of the seat. The spider is mounted directly to the bracket allowing 360

O swivel and attachment.

Fore and aft mount

Use 24-095 seat slide. This slide must be attached directly to the bottom of the seat. The spider is mounted to the seat slide, eliminating the need of purchasing the reinforcement bracket, 24-093.

See page 115 for swivels, slides and brackets.

Prices are subject to change. Check our website for up to date prices.

www.mercersmarine.com

111

WISE DELUXE LOUNGE SEATS

Seats feature state of the art high impact plastic frames. High efficiency molded plastic bases feature vinyl finish and are scuff and mark resistant. Compression foam padding remains firm for all day comfort and is plastic sealed to resist moisture. 28 oz marine grade vinyl which is mildew resistant and UV treated.

Seat: 27-1/2”H x 18”W x Reclined 66”

Base: 10”H x 13-1/2”W x 36-1/4”L Model WD505

24-123P................................................................Light Blue/White ..................................................................349.95

24-124P ......................................................................Grey/Red..........................................................................349.95

24-125P ....................................................................Grey/Navy ........................................................................349.95

WISE PREMIUM FOLDING SEAT

Features state of the art high impact plastic frames. High back provides extra back and shoulder support.

Compression foam padding remains firm for all day comfort and is plastic sealed to resist moisture. Heavy duty 28 oz marine grade vinyl is mildew resistant and

UV treated. Heavy duty aluminum hinges. Swivel not included. 23-3/4”H x 16-3/4”W x 20-1/2”D

24-133R .......................Grey/Red.......................163.15

SEAT SWIVEL

6-3/4

″ Square x 1-1/8″ High, With 4 Hole Mounting

Pattern. 0-Degree Non-Locking Swivel. Rotates 360°

Mild Steel E-Coat Finish. Also fits most Garelick and Wise seats. Some exceptions may apply.

24-550R...............................................................16.95

REMOVABLE BRACKET

Non-Locking 7

″ x 7″ Removable Seat Bracket. Fits

“Springfield” swivel to the left. Marine Grade Black

Plastic.

24-553R...............................................................21.95

SPRINGFIELD SLIDE & SWIVEL PEDESTALS

2-7/8

″ Locking Pedestal With 9″ Round Base, Anodized

Finish. Includes Locking Trac-Lock™ Slide & Swivel.

24-557R ......................12” Height......................179.95

24-558R ......................18” Height......................217.95

24-559R ......................24” Height......................279.50

WISE SEAT MOUNT

Cast Aluminum Seat Mount Spider. 5-1/4" hole pattern.

Stainless steel handle to lock seat mount in place on locking and non locking pedestals. Stainless steel handle to tighten or release seat mount or to enable swivel action.

24-176R.........WP94 (For 2 7/8” Pedestals) ..........54.20

WISE SEAT SLIDE WITH MOUNT

Anodized aluminum pedestals. Slide plate fits most seats.

24-177R........WD375 (For 2 3/8” Pedestals) .......119.25

24-178R........WD374 (For 2 7/8” Pedestals) .......119.25

112

Visit

www.mercersmarine.com

for all the latest pricing and information.

HIGH BACK FOLDING SEATS

Now A Comfortable Cushioned Seat To Support Your Backside. Durable Upholstery, Folds Easily, Strap With Snap To

Keep Seat Secure. Rigid Injection Molded Frame. Heavy-Duty Aluminum Powder Coated Hinges.Swivel not included.

See Page 112 or 115 for swivels.

19”H x 16”W x 15.5”D

24-517R......................................................................Blue/Grey ..........................................................................79.85

24-518R ..................................................................Grey/Charcoal ........................................................................79.85

24-519R ......................................................................Red/Grey ............................................................................79.85

24-521R ........................................................................Camo ..............................................................................89.55

FIRST MATE SEAT

First Mate Molded Seats Are One Piece Molded Shells,

Made From PP Plastic. Durable And Lightweight, For

Years of Care Free Use.

Universal Mounting Pattern 5

″ x 5″.

15”H x 17.5”W x 15.5”D

24-508R...........................Grey ............................35.95

ECONOMY FOLDING SEATS

Now A Comfortable Cushioned Seat To Support Your Backside.Durable Upholstery, Folds Easily, Strap With Snap To

Keep Seat Secure. Rigid Injection Molded Frame. Heavy-Duty Aluminum Powder Coated Hinges. Swivel not included.

See Page 112 or 115 for swivels.

19”H x 16”W x 15.5”D

24-509R ......................................................................Off White............................................................................63.10

24-510R ..........................................................................Red ................................................................................63.10

24-511R ..........................................................................Blue ................................................................................63.10

24-516R ........................................................................Camo ..............................................................................82.35

TRAVELER FOLDING SEAT WIHTOUT CUSHION

Supper Strong Copolymer Frame. Extra Wide Contoured

Seat With Curved Back. Durable Strap Holds Seat Closed

When Folded Down. Swivel not included. See Page 112 or 115 for swivels.

14”H x 20”W x 18”D

24-505R..........................White ...........................48.35

See Page 112 for

Springfield Seat

Swivels

24-498

24-499

24-500

24-501

24-504

TRAVELER FOLDING SEATS WITH CUSHION

Supper Strong Copolymer Frame. Extra Wide Contoured Seat With Curved Back. Durable Strap Holds Seat Closed When Folded Down. Swivel not included. See Page 112 or 115 for swivels. 14”H x 20”W x 18”D

24-498R .....White Shell/Blue-White Cushion.......70.95

24-499R.....Grey Shell/Charcoal-Grey Cushion ......70.95

24-500R ......Grey Shell/ Blue-White Cushion .......70.95

24-501R ......White Shell/Solid Blue Cushion .......70.95

24-504R.......................... Camo ...........................81.35

Prices are subject to change. Check our website for up to date prices.

www.mercersmarine.com

113

PREMIUM SKIPPER FOLDING SEATS

External injection molded frame for structural support.

Premium high quality upholstery and cushions for maximum support and comfort. Weather resistant marine grade vinyl with optimal UV protection. Subtle curves provide lumbar support. Swivel not included. See

Page 112 or 115 for swivels.

24”H x 18”W x 17.5”D

24-522R....................Charcoal/Grey ...................199.95

24-523R.......................Blue/Grey ......................199.95

FISH PRO FOLDING SEATS

Exceptional High Back Contour Lumbar Cushion Cradles

Your Back For Maximum Support. Designed For Style,

Comfort And Durability. Folds Down Easily. Concealed

Pinch Proof Hinge. Optional Armrest Can Be Added (Sold

Separately). Swivel not included. See Page 112 or 115 for swivels.

26.5”H x 19.5”W x 23.5”D

24-526R....................Charcoal/Grey ...................249.95

One Piece “Optional” Armrests

24-531R...........................Grey ..........................101.15

DLX SPORT BUCKET SEAT

Plush Foam Padding Covered With Marine Grade Vinyl.

Open Back For Style And Comfort, Allowing Air Flow.

Flip Up Bolster Converts Easily From Sit Down To Stand

Up Or Leaning Support. Rugged Aluminum Tubing Bent

And Welded With Molded Foam, Designed For Durability

And Comfort. Swivel not included. See Page 112 or 115 for swivels.

24-532R......................White/Blue .....................419.95

DOUBLE BUCKET SEAT

Bench Seating For Two. Unique Flip Back Feature Allows

For Fore And Aft Seating. Thick Foam Padding Covered In

Marine Grade Vinyl Over A High-Strength Composite

Substrate. Works With Pedestals Or Box Style Mounting.

Provides 35-1/2

″ Of Seating Area.

24-538R..........................White .........................529.95

SWINGBACK COOLER SEAT

Back Rest Conveniently Flips In either Direction. Thick

Foam. Padding Covered In Marine Grade Vinyl. Seat/Lid

Opens Up To Cooler, Keeping Your Drinks And Food Fresh

All Day. Aluminum Rails With Stainless Steel Hardware.

72 qt Model: 37” H x 32” W x 18-1/2”D

24-539R.............................................................949.00

GARELICK VALUE SEAT/PEDESTAL PACKAGE

Our complete value priced chair package.Compact

design makes it ideal for most applications.Affordable

upgrade or replacement.Made for easy maintenance.

Rotationally molded of tough UV resistant white polyethylene.Marine grade white vinyl, Snap-on removable cushions.Anodized aluminum pedestal base,

360° locking aluminum swivel casting, 9"

(23cm)diameter support base.

Value Package - Includes seat cushions, 15" (38cm) anodized ribbed pedestal base. W:20" (51cm), D: 23"

(58cm), H: 19" (48cm)

24-300P.............................................................289.00

114

Visit

www.mercersmarine.com

for all the latest pricing and information.

Surface

Mount

STAINLESS STEEL SEAT SWIVEL

Heavy duty design with the offshore market in mind.

Rotates 360 0 - fits most standard seat hole patterns. Self lubricated non-corrosive poly swivel bearings.

Works for most Springfield and Wise seats. Please inquire.

24-020P..........................75020 ...........................36.95

Flush

Mount

SEAT PEDESTALS AND TOP SPIDER

Pedestals are made of anodized aluminum tubing 2 7/8” dia. – base dia. is 9”.

24-054P ........................9” Fixed........................137.70

24-058P .......................18” Fixed.......................154.90

24-004P....................18” – 24” Adj. ...................207.55

24-005P .......................30” Fixed.......................179.95

SEAT SWIVEL

360 0 Seat swivel. Fits all our seats. Ball bearing construction.

Works for most Springfield and Wise seats. Please inquire.

24-047P ...................6” x 6” (75016) ....................21.95

STOWABLE TABLE PEDESTALS

Allows removability of dinette tables. Constructed of anodized marine aluminum. Special design assures solid table. Post is 2 1/4” O.D.

24-055P .....................28 3/4” Post ......................50.85

24-056P.................Flush Mount Base ..................57.85

24-057P ...............Surface Mount Base ................57.85

STAINLESS TABLE BRACKET

This stainless steel bracket set allows removal / replacement of table with ease. C/W 2 wall plates and 2 brackets. 3 3/4”L x 2”W x 3/4”H.

46-325R........................................................ 12.95 ea.

SEAT SLIDE

This unit allows the boat seat to travel fore & aft.

Mounts between seat & pedestal.

24-007P ............8 1/2”W x 8”L, 6” travel............138.95

24-095P ...........8 1/2”W x 13”L, 7” travel...........164.95

ADJUSTABLE FOOT REST

Fits any 2 7/8”’pedestals. Cast aluminum construction with non-slip strips for footrest.

24-006P............................................................ 179.95

TOP SPIDER

Fits any 2 7/8” diameter pedestal.

24-048P .........................Swivel...........................63.95

REINFORCEMENT BRACKET

24-093P...............................................................43.90

ADJUSTABLE SEAT SWIVEL CLAMP

Accepts standard boat seats, fits tank or bench tops.

Durable – All metal construction. Quick mounting and dismounting, includes 360° swivel. Vinyl covered clamps.

Width adjusts from 8" - 18"

24-049P...............................................................64.95

TEAK FOOTREST

Heavy duty wrap around aluminum extrusion with brushed anodized aluminum & teak inserts. 7 1/2”H x

15”W x 8 1/4”D.

24-043P.............................................................181.35

Prices are subject to change. Check our website for up to date prices.

www.mercersmarine.com

115

Diamond Sea-Glaze windows are known world wide for quality. We can supply sizes and types for most vessels.

Offshore ocean-going to inshore recreational, Diamond

Sea-Glaze has the right window for you.

Below see some sketches of common types of windows.

Call us for additional information.

Special Order Custom Styles

HORIZONTAL SLIDER

FIXED - MITERED OR RADIUS CORNERS

HALF DROP OR FULL DROP

Outside view of

Right hand dutch door (Old type lockset & Door Division)

Outside view of

Left hand dutch door (New type lockset & Door Division)

Mercer’s Marine is your exclusive Atlantic Canada distributer of Diamond Sea-Glaze windows and doors.

•We can “custom order” your size requirements, please allow approx. 10 weeks for delivery.

•We keep the following “common sizes in stock” for immediate delivery.

WEATHER TIGHT INSULATED DOORS

Diamond Sea-Glaze weather tight aluminum doors are pre-hung in a frame and are double skin constructed. Comes with gasketed seams, stainless steel hinges and tightening dogs. Includes lockset with 2 sets of keys on floating key ring. Mill finish. 4” radius corners.

R250 Double Panel Doors (Dutch)

Ord. No. Hinged Cut Out Size Price

34-097K ..................................Right Hand........................................20”W x 55”H ............................................P.O.R.

34-098K ....................................Left Hand ........................................20”W x 55”H ............................................P.O.R.

34-093K ..................................Right Hand........................................24”W x 62”H ............................................P.O.R.

34-094K ....................................Left Hand ........................................24”W x 62”H ............................................P.O.R.

34-079K ..................................Right Hand........................................28”W x 66”H ............................................P.O.R.

34-080K ....................................Left Hand ........................................28”W x 66”H ............................................P.O.R.

34-171K ..................................Right Hand ......................................32.5”W x 66”H ..........................................P.O.R.

34-172K ....................................Left Hand........................................32.5”W x 66”H ..........................................P.O.R.

FULL VENT

R250 Single Panel Door

Ord. No. Hinged Cut Out Size Price

34-095M..................................Right Hand........................................24”W x 62”H ............................................P.O.R.

34-096M ..................................Left Hand ........................................24”W x 62”H ............................................P.O.R.

34-083M..................................Right Hand........................................28”W x 66”H ............................................P.O.R.

34-082M ..................................Left Hand ........................................28”W x 66”H ............................................P.O.R.

1/3 & 1/2 VENT

INFORMATION GUIDE

We can supply custom made doors and windows in most sizes. When ordering, please advise us on

"Cutout Size". This is also known as “Rough-Stud Opening”. To determine if you require a left or right hand door, note the following: When viewing the door from “OUTSIDE” your vessel, HINGES on the left indicate LEFT HAND door, HINGES on the right indicate RIGHT HAND door. Remember, these marine doors open “OUTWARDS” only. Powder Coating available by special order. Allow 10 weeks delivery.

Available by special order. DSG

“Sliding Doors”.

Please call for details.

116

Visit

www.mercersmarine.com

for all the latest pricing and information.

ANODIZED ALUMINUM MARINE WINDOWS

Features: •Windows glazed with 6mm glass •Extruded aluminum frames •Clear anodized finish •Water tight seals

•Flanged for 7/8" wall thickness, with inside clamp-on trim ring •Dimensions given are cut out size (rough stud opening) •Please note: Window photos show outside window frame •Inside finished trim rings are included in price.

•Quality window designed for inshore vessels.

RECTANGULAR FIXED

24"W x 18"H.

34-077K ................................................................P.O.R

28"W x 20"H.

34-076K ................................................................P.O.R

SHAPED SLIDERS

30" long length x 22 3/4" short length x 20" high. For use on starboard side with long length at bottom or port side with long length at top.

34-073K............................................................ 465.00

For use on port side with long length at bottom or starboard side with long length at top.

34-072K............................................................ 465.00

SQUARE FIXED

20"H x 20"W.

34-085K ................................................................P.O.R

RECTANGULAR PORTS

Durable white ABS construction. Features: watertight neoprene gasket, stainless steel hardware and selfdraining. Opening models come complete with screens.

Opening ports have 1” spigot on interior. Non-opening ports have 2” spigot.

34-030P..................7” x 14” opening .................218.00

34-031P ..............7” x 14” non-opening .............167.00

34-032P..................5” x 12” opening .................188.00

34-033P ..............5” x 12” non-opening .............141.00

RECTANGULAR SLIDER

28" wide x 20" high, can be used either on port or starboard side. Can be installed horizontally or vertically.

34-074K.............................................................445.00

RECTANGULAR SMALL SLIDER

18” W x 10” H. Can be used on either port or starboard side, vertical or horizontal. Good window for head or aft wheel-house vent.

34-147K ................................................................P.O.R

BECKSON PORTS

Opening Model

Same description as model above. (With Screen)

34-034P ..........................8” dia .........................188.00

SQUARE SLIDER

20"H x 20"W. Can be used port or starboard, vertically or horizontally.

34-075K.............................................................417.50

PLEASE NOTE

No slider window is 100% watertight in all sea conditions. The track in which the glass slides must be drilled with a small bit to allow water drainage. Call for details.

BECKSON FIXED PORTS

34-035P .........................6" dia............................30.35

34-036P..........................8" dia ...........................48.25

Prices are subject to change. Check our website for up to date prices.

www.mercersmarine.com

117

FLUSH WATERTIGHT SOLID HATCHES

Bomar is one of the world's largest producers of cast aluminum hatches.

Features include: •Watertight to 30' head •Opens from above & below deck •Fastest opening hatch •All hardware is stainless steel or Almag 35 aluminum.

BOMAR OVAL HATCHES

FLUSH MOUNT

Clear opening 15” x 24”

Deck Cutout – 17 3/4” x 26 3/4”,

O.D. Flange – 21 3/4” x 30 1/2”. Weight 34 lbs.

34-004K...........................................................1050.00

HINGED MODEL

This hatch is often used between various watertight bulkheads.

Clear opening – 15” x 24”,

Deck Cutout – 20 1/2” x 26 3/4”,

O.D. Flange – 23 1/4” x 30 1/2”. Weight 36 lbs.

34-005K...........................................................1695.00

BOMAR ROUND HATCHES

Clear Deck O.D.

Order No.

Opening Cutout Flange Weight Price

34-000K ..........................15" ................................18" ..........................21 1/2" ............................23lbs.............1145.00

34-001K ..........................18" ................................21" ..........................24 1/2" ............................28lbs.............1175.00

34-002K ..........................20" ................................23" ..........................26 1/2" ............................32lbs.............1195.00

34-003K ..........................24" ................................27" ..........................30 1/2" ............................40lbs.............1650.00

We stock parts for Bomar Hatches on this page. Please Inquire.

BOMAR SQUARE DECK HATCH

Clear opening 24” x 24”, Deck Cutout 27” x 27”,

O.D. Deck Flange 31” x 31” Weight 45 lbs.

34-078K...........................................................1995.00

“ANCHOR” BRAND DECK HATCHES

•Stainless steel corrosive-free frame

•Marine grade aluminum corrosion-resistance plate

•Anti-corrosion design: no chemical reaction from aluminum to stainless steel contact.

•Anti-slip surface safety pattern

•Watertight

•Secure sealing system

•Installs flush with deck

Order No.

Clear Opening Deck Cutout O.D. Flange Price

34-125K ....................14” x 22” ......................16 1/2” x 24 1/2”......................................19” x 27” .................... 395.00

34-126K ....................22” x 22” ......................24 1/2” x 24 1/2”......................................27” x 27” .................... 612.00

34-127K ....................18” x 28” ......................20 1/2” x 30 1/2”......................................23” x 33” .................... 630.00

34-128K ....................22” x 28” ......................24 1/2” x 30 1/2”......................................27” x 33” .................... 680.00

34-131K ..........................................................Stainless Socket Wrench ................................................................34.50

34-133K ..........................................................Gasket Material/Per Foot..................................................................6.50

BOMAR GASKET MATERIAL

Fits all “BOMAR” hatches above. Peel off adhesive.

34-084K ......................................................... 8.95 /ft.

118

Visit

www.mercersmarine.com

for all the latest pricing and information.

COMMERCIAL DUTY DECK HATCHES

Strong cast aluminum hatch with heavy tinted insert and reinforcing bars. S.S. adjuster and 2 tie down dogs.

Commercial Fishers’ Choice!

Model 139 MEDIUM

Hole Cut-Out : 19 7/16" x 19 7/16"

O.D. Flange : 22 3/8" x 22 3/8"

Cut Out Radius : 3/4"

O.D. Radius : 2 1/4"

34-007K...........................................................1650.00

Model 139 LARGE

Hole Cut-Out : 24” x 24”

O.D. Flange : 27 1/8" x 27 1/8"

Cut Out Radius : 1 1/16"

O.D. Radius : 2 9/16"

34-008K...........................................................2195.00

Model 139 LARGE Inside / Outside Opening

Same specs as 34-008 only can be opened from inside and outside of vessel.

34-009K ....................139 Large I/O ................ 2995.00

Model 139 Gasket Material

Fits all 139 series hatches.

34-090K .......................................................... 5.50/Ft.

NIBO DECK HATCHES

Bomar anodized heavy duty aluminum frame. Heavy tinted acrylic lens. Heavy hinge and adjusters. 2 Dogs.

Superb finish. Used on many custom yachts.

Model 1070-10A

Hatch Opening:15-7/16” x 15-7/16”

Hole Cut-Out:16-1/2” x 16-1/2”

O.D. Deck Flange:18-3/16” x 18-3/16”

34-019K.............................................................469.00

34-165K ..................Inside Trim Ring ...................64.95

34-168K.......................Screen Kit ........................54.95

Model 1039-10A

Hatch Opening:19-1/8” x 19-1/8”

Hole Cut-Out:20-1/4” x 20-1/4”

O.D. Deck Flange:21-7/8” x 21-7/8”

34-020K.............................................................549.00

34-166K ..................Inside Trim Ring ...................69.95

34-169K.......................Screen Kit ........................64.95

Model 1049-10AX

Hatch Opening:24” x 24”

Hole Cut-Out:25-1/8” x 25-1/8”

O.D. Deck Flange:26-3/4” x 26-3/4”

34-021K.............................................................795.00

34-167K ..................Inside Trim Ring ...................99.95

34-170K.......................Screen Kit ........................74.95

HATCH ADJUSTER

Chrome plated brass.

46-059R ............Adjusts from 10” to 17”.............. 22.95

46-069R.......Adjust from 12 3/4” to 20 3/8” ....... 40.95

NIBO GASKET MATERIAL

Fits hatches above.

34-089K..........................................................5.50 /Ft.

GRAY LEXAN DECK HATCHES

Our best selling hatch, now with improved mechanism and hardware. This hatch is manufactured by Bomar and carries the reputation for quality. Made of tough injection molded polycarbonate with stainless steel hardware, tinted lens allows light to enter, low profile, quick acting handles, replaceable gasket, totally waterproof. Color: Molded Black.

Model G-910 : Hole Cut-Out 9-1/2” x 9-1/2”

34-010K.............................................................219.00

34-011K ..................Inside Trim Ring ...................32.95

Model G-966 : Hole Cut-Out 16-7/8” x 16-7/8”

34-013K.............................................................299.00

34-014K ..................Inside Trim Ring ...................34.95

Model G-995 : Hole Cut-Out 19-3/4” x 19-3/4”

34-016K.............................................................435.00

34-017K ..................Inside Trim Ring ...................39.95

Gray Gasket material

Fits all Gray hatches above.

34-090K..........................................................5.50 / Ft.

FLUSH LIFTING HANDLES

Chrome plated zinc. Perko Product – so you know it’s good! Countersunk for #8 screws.

46-436R ......................3” x 2 1/4”........................20.95

As above, only stainless steel. Imported. Countersunk for

#6 screws. Good quality.

46-731R ......................3” x 2 1/4”........................12.95

HEAVY DUTY BRONZE DECK PLATES

Machined finished. •Opening I.D. 6” •Hub O.D. 6 1/2”

•Length under flange 3/4” •Flange O.D. 8 1/8” • #12 screw size • Heavy Duty - Weight 5 lbs.

34-120M......................6” Model ......................232.75

CAST BRONZE DECK PLATE

Polished finish. O-ring sealed cover. Countersunk for #10 screws.

34-042R..........................3” I.D. ...........................64.95

STAINLESS STEEL DECK PLATE

High polished, stainless steel. Countersunk for #10 screws.

34-041R ..........................4”I.D. ...........................73.20

Machined finished. •Opening I.D. 4” •Hub O.D. 4 3/8”

•Length under flange 5/8” •Flange O.D. 5 3/4” • #12 screw size • Heavy Duty - Weight 3 lbs.

34-110M ................. NEW 4” Model .................145.00

Prices are subject to change. Check our website for up to date prices.

www.mercersmarine.com

119

BOMAR INSPECTION HATCHES

Features: Molded high impact polycarbonate UV stabilized, locking smooth action “T” handles, extra heavy duty construction, stainless steel hinge pins, flush mount, tapered edges, non-skid surface, and quality finish.

Ord. # Opening Cut Out Size Flange O.D. Handles & Color Price

34-200M ..........................7” x 11” ................................8 3/16” x 12 3/16” ..................................10 1/4” x 14 1/4” ....................................1 & White........................................82.95

34-201M ..........................7” x 11” ................................8 3/16” x 12 3/16” ................................10 1/4” x 14 1/4” ....................................1 & Black ........................................82.95

34-204M ..........................9 3/4” x 19 1/2” ....................12” x 21 1/16” ........................................13 3/4” x 23 1/2” ....................................2 & White ....................................146.00

34-205M ..........................9 3/4” x 19 1/2” ....................12” x 21 1/16” ........................................13 3/4” x 23 1/2” ......................................2 & Black ......................................146.00

34-208M..............................14” x 16” ..............................16 1/4” x 17 5/8” ....................................18 1/8” x 20 3/16”....................................2 & White ....................................123.00

34-209M..............................14” x 16” ..............................16 1/4” x 17 5/8” ..................................18 1/8” x 20 3/16”....................................2 & Black ......................................123.00

34-212M..............................9 3/4” x 26 3/4”....................11 3/8” x 28 3/8” ..................................14” x 31”..................................................2 & White ....................................168.00

34-213M..............................9 3/4” x 26 3/4”....................11 3/8” x 28 3/8” ..................................14” x 31”..................................................2 & Black ......................................168.00

NON OPENING WATERTIGHT PORTS

Manufactured by Beckson Marine. These economical ports are constructed of solid plastic and come with clear lens. Hull thickness for above models = minimum

1/2" to maximum 1 1/8”. Color: White.

Sizes given are cutout sizes.

34-037P ............3 1/2” x 20” rectangular .......73.50/ea.

34-039P.............3 1/2” x 22 1/2”shaped .......73.50/ea.

Sold as pair - Port & Starboard

34-038P ..................3 1/2” x 22 1/2”............152.00 pr.

FIXED PORT

Economical non opening port. 304 Stainless Steel construction. Approximately 15” x 5”

34-026R .........................................................47.35 ea

Twist & Lock

ABS DECK PLATES

TWIST & LOCK LID

Watertight with o-ring. Seal on lid. White

Pry-Out

34-047R.................4”I.D. - 5 3/4” O.D ..................11.95

34-048R ....................6”I.D. - 8” O.D .....................16.25

34-049R.................8”I.D. - 9 7/8” O.D ..................32.50

PRY OUT LID

34-153R.................4”I.D. - 5 3/4” O.D ..................11.95

34-154R ....................6”I.D. - 8” O.D .....................16.25

34-155R.................8”I.D. - 9 7/8” O.D ..................32.50

BECKSON FIXED PORT

Model PF 100-SB

Similar in construction to those above only for hull thickness of minimum 3/16" to max. 5/8". Clear lens, black trim ring. Popular item.

Inside frame dim. 3 1/4” x 21 1/4”.

Outside frame dim. 5 1/2” x 23 1/2”

34-040P ........................................................65.95/ea.

POLYCARBONATE DECK PLATES

UV Stabilized. O-ring sealed lid.

7 5/16” I.D. - 10 9/16” O.D. - 8 1/2” cut out

34-215P ....................8” dia., white......................53.95

34-216P.....................8” dia., black ......................53.95

9 1/4” I.D. - 12 1/2” O.D. - 10 1/2” cut out

34-218P ...................10” dia., white.....................60.95

34-219P....................10” dia., black .....................60.95

RING PULL

Hand cast brass, triple chrome plated. Often used on lighter hatches as a lift.

46-086R ...................2 1/2” x 1 7/8”.......................7.95

120

Visit

www.mercersmarine.com

for all the latest pricing and information.

Model

870 CHR

STAINLESS STEEL CLAM SHELL VENTS

304 stainless steel construction.

34-220R .......6 3/16”L x 5 3/4”W x 2 3/8”H ........16.95

34-221R ......7 5/8” L x 6 7/8”W x 2 13/16”H........24.70

Model

1312 CHR

COWL VENTS

Model 870 CHR

Flanged front with air intake for 3" hose. Heavy chrome plated. 5"L x 4"H x 2 3/4"W.

34-062R...............................................................42.95

Model 1312 CHR

Chrome plated with black plastic base. Uses 3" blower hose which threads into intake. 5 1/2"L x 4 1/2"W x 2

1/2"H.

34-063R...............................................................34.75

SOLAR POWERED VENTILATORS

A simple way to ventilate your boat using the sunlight to operate the fan. Waterproof and totally safe. Cut out hole is 4 9/16”. Outside flange is 8 1/2”.

34-055R .........................Plastic...........................44.95

34-057R ...................Stainless Steel.....................59.95

P.V.C. VENTS WITH COVER

34-050R......................3" Opening .......................22.40

34-051R......................4" Opening .......................25.85

P.V.C. VENTILATOR WITH COVER

Low profile.

34-052R......................4” Opening .......................24.95

STAINLESS STEEL LOUVERED VENTS

Used for ventilation of engine compartments or wherever ventilation is required. Inset = 1". Screw size is #6.

3 Louvered Vent

Outside flange 4 5/16" x 8".

Cutout 3 3/8" x 7 3/8”

34-067R...............................................................12.95

5 Louvered Vent

Outside flange 4 5/16" x 12 5/8".

Cut out 3 3/8" x 12".

34-068R...............................................................18.95

STAINLESS STEEL VENTILATOR

No more dampness, mildew or condensation. Provides good air circulation. A closable lid can be activated from inside the boat if weather conditions require. 8” dia.

stainless steel dome with 3” deck opening.

34-056R...............................................................39.95

MUSHROOM VENT

6" flange.

34-054R......................4” Opening .......................10.95

STAINLESS STEEL ROUND LOUVERED VENT 5”

Stainless Steel

34-069R.............................5” ................................4.65

STAINLESS STEEL LOUVERED VENTS

34-064R................Approx. 4 1/2" x 5" ...................3.50

34-065R...................Approx. 5" x 9" ......................7.70

34-066R..................Approx. 6" x 10" ...................10.30

BRONZE MUSHROOM VENT

Hole cut out is 3 1/4”. O.D. flange is 5 1/2”.

34-044R..........................3” I.D. .........................115.00

STAINLESS STEEL BUTTERFLY VENT 5”

Open or closed option vent. Stainless Steel

34-070R.............................5” ................................8.30

SURE-SEAL VERSATUBES

Versatile storage tubes of clear PVC mounted onto our watertight Sure-Seal 4" diameter deck plates give the boater protection of valuables that would be damaged by moisture. Can be mounted vertically or horizontally.

34-119R .....................4"ID X 12"D.......................32.95

Prices are subject to change. Check our website for up to date prices.

www.mercersmarine.com

121

Norcold offers a complete lineup of the finest recreational refrigerators available,when you demand the best in gas absorption refrigerators.

These refrigerators are designed to be “Built In” . Refrigerator door requires front decorative panel for finished appearance.

Accepts 3/16” wood panel or plexi-glass front. Not supplied.

Very Important

For proper operation and cooling, the ventilation instructions for these refrigerators must be followed. Please read your owner’s manual before installing your new refrigerator.

AC / DC / PROPANE (3-WAY )

6.3 cubic feet. Eye-level, easy-to-see and operated LCD control panel with built-in diagnostics. Superior cooling unit for superior performance, exceptional durability and long life. Adjustable thermostat so user can respond to high or low ambient temperature swings. Thermostat back-up system allows operation until service is performed. Removable, adjustable shelving and door bins for maximum flexibility.

Easy-to-clean, no-tarnish white powder-coated shelves. Door ajar alarm.

Convenient product storage: twin transparent plastic crispers; 1-gallon shelf storage; 2-liter and 1/2 gallon door storage. Made in America. 3 year warranty.

Approximate Freezer Compartment Size: 17” W x 18”H x 14”D

Shipping weight:140 lbs. Cut out size: 52 7/8”H x 23 1/2”W x 24”D.

72-000K..............................6.3 cu. ft. (N641.3).............................. 1795.00

AC / DC / PROPANE (3-WAY )

7.5 cubic feet. Eye-level, easy-to-see and operated LCD control panel with built-in diagnostics. Superior cooling unit for superior performance, exceptional durability and long life. Adjustable thermostat so user can respond to high or low ambient temperature swings. Thermostat back-up system allows operation until service is performed. Removable, adjustable shelving and door bins for maximum flexibility.

Easy-to-clean, no-tarnish white powder-coated shelves. Door ajar alarm.

Convenient product storage: twin transparent plastic crispers; 1-gallon shelf storage; 2-liter and 1/2 gallon door storage. Made in America. 3-year warranty!

Approximate Freezer Compartment Size: 19” W x 14”H x 14”D

Shipping weight:140 lbs. Cut out size: 59 7/8”H x 23 1/2”W x 24”D.

72-005K..............................7.5 cu. ft. (N841.3).............................. 1950.00

HOT WATER HEATERS

Heat your water by running your engine’s cooling water through the built in heat exchanger.

Also has 120 VAC x 1500 Watt electric heater for dockside use. Constructed of aluminum tanks

AC / DC / PROPANE (3-WAY )

and insulated stainless steel housings. Unique to Force 10 is the addition of a temperature

Improved - replaces the N500. Largest capacity - 5.5 cubic feet - in its class. Adjustable thermostat so user can adjust to own preference. Automatic re-ignite on gas if flame goes control valve (TCV Optional). It controls coolant flow through the heat exchanger, preventing excessively high water temperature and reducing the risk of scalding. Complete with ignition out. Superior cooling performance. Convenient, eye-level controls. Easy-to-clean, no-tarnish white powder-coated shelves. Adjustable, removable door bins. One-gallon container shelf protected controls and pressure relief valve. For convenience, all connections are located on the same side of the units. “GALVANIC ISOLATOR” is highly recommended .

storage, and 2-liter and 1/2 gallon door bin storage. Made in America. 3-year warranty!

Galvanic corrosion is not covered under warranty. UL marine approved.

Draws 14.2 amps. Shipping weight: 109lbs.

36-300K.................6gals (15.6”x19.5”x13.6”H) Model 40600................... 375.00

Approximate Freezer Compartment Size: 17” W x 6”H x 13”D

36-302K................11gals (18.75”x21.5”x16”H) Model 41100................... 459.00

Cut out size : 42-5/8”H x 23-11/16”W x 24”D

36-304K................20gals (18.75”x18.75”x29.5”H) Model 41800............. 699.00

72-001K.......................................5.5 cu. ft. (N510.3)...................................... 1465.00

122

Visit

www.mercersmarine.com

for all the latest pricing and information.

See Next page for Propane Accessories

DICKINSON PROPANE SEA•B•QUE

These barbeques are excellent in design and application. Manufactured from high-grade 20 gauge 304 stainless steel in an octagonal shape. Handles attached to the rollaway top allow for effortless opening and closing even when the the barbeque is hot. The design prevents flame-out in the windiest of conditions.

Small Sea•B•Que

Sturdy, neat and compact. The ideal small stainless steel barbeque for two people.

Dimensions: 24.2” W x 10”D x 12.4” H.

36-217M ............................................................295.00

36-251P ................BBQ Cover (Black)..................36.95

Large Sea•B•Que

One of the largest and most robust stainless boat barbeques on the market. Cooking barbequed food for you and your friends has never been more satisfying.

Dimensions: 28” W x 12.25”D x 14.5” H.

36-218M ............................................................379.00

36-252P ................BBQ Cover (Black)..................37.95

DICKINSON ROUND PROPANE SEA•B•QUE

The innovative Dickinson Round Sea•B•Que combines legendary quality, a tough round design and the rugged good looks that make for an unbeatable marine grill.

The high efficiency burner and parabolic design give you all the power and heat you would expect but half the propane consumption. Free standing and comes with electric ignition. Cooking Surface: 14 3/8” diameter.

Dimensions: 20” W x 12”D x 10” H.

36-215M ............Heat Output: 5,500 BTU ..........340.00

36-250P ................BBQ Cover (Black)..................39.95

S.S. FOOD TRAY & CUTTING BOARD

36-221P ........................Sm BBQ ........................41.95

36-222P..........................Lg BBQ ..........................45.50

VERTICAL/HORIZONTAL RAIL MOUNT KIT

Strong and sturdy mount for any Dickinson BBQ. Use with square or round rail 7/8” to 1 1/4” thick. Use on vertical, horizontal or some angled portions of rail

36-214P...............................................................76.00

BBQ SCOTTY “POST AND SOCKET” TYPE MOUNT

This kit attaches to a Scotty type fishing rod holder or instrument mount socket. It fits all BBQ models and features the quick release snap latch kit for easy removal or replacement of your BBQ. The universal angle knuckle allows positioning at any angle.

36-209P...............................................................92.00

PEDESTAL MOUNT

The Dickinson pedestal mount is the perfect way for you to mount your Sea-B-Que in locations such as a deck, or patio, boat, swim platform or pontoon boat. Features the quick release latch for easy removal and storage of your

Barbeque. BBQ NOT INCLUDED.

36-224P.............................................................119.95

BBQ TAFF RAIL MOUNT

The Taff Rail Mount Kit uses high quality stainless steel tubes and sockets to create a stand off mount for your

BBQ that can be installed in a cap rail or taff rail, and the rails slide out and fold for easy storage

36-212P...............................................................79.95

BBQ FISHING ROD HOLDER MOUNT

A versatile mounting kit for your BBQ. Crafted from the most durable materials, the fishing rod holder mount kit adapts to most fishing rod holders and has a universal level joint and a quick release snap latch for easy use.

36-213P...............................................................84.95

STRAIGHT-THRU FITTING

For LPG hose (1/4” & 1/8” ID) Copper Tube (1/4” to 3/8”

ID). Nylon and rubber sealing gland. Liquid and vapor tight. Fits over and seals around 1/4" to 3/8" LPG copper tubing (before flare nuts attached) through bulkheads and decks up to 1/2" thick.

36-238K...............................................................19.95

Prices are subject to change. Check our website for up to date prices.

www.mercersmarine.com

123

Dickinson stainless steel stoves and heaters offer quality and dependability. The cookstoves feature cast iron tops, stainless steel construction, sea rails, and fast efficient oven heat. Both the cookstoves and stainless steel heaters are supplied with a 12 Volt blower and speed control. For 24 Volt or 32 Volt you must add a resistor, or damage will occur.

BERING (DIESEL COOKSTOVE)

Economical model. Overall size is 24”W x 15”D x 20”H.

Heat output of 6500 BTU - 16250 BTU. Oven size 10.5”W x 13”D x 10.5”H. Weighs 80 lbs. Flue Size 5”.

PACIFIC (DIESEL COOKSTOVE)

Mid-size model. Overall size 22”W x 18”D x 20”H. Heat output of 6500 BTU - 16250 BTU. Oven size 10.5”W x

13”D x 10.5”H. Weighs 110lbs. Flue size 5”.

ADRIATIC (DIESEL COOKSTOVE)

For Medium size boats. Overall size is 26”W x 18”D x

20”H. Heat output of 6500 BTU - 16250 BTU. Oven size

15”W x 13”D x 10.5”H. Weighs 125 lbs. Flue size 5”.

36-254P ..........................................................2150.00

36-255P ..........................................................2575.00

36-256P ..........................................................2825.00

Propane BBQ Accessories

Propane Hose with Standard Connector

36-245P............................6ft. .............................38.95

36-246P............................8ft. .............................45.95

Propane Hose”T” Type

36-248P............................8ft. .............................50.95

Accessory “T” Connector

Enables on board propane system to be used without disconnecting other appliances.

36-092P .............................................................. 40.95

Dickinson Gas Control with Regulator

36-244P ............................... ...............................49.95

ATLANTIC (DIESEL COOKSTOVE)

For larger boats. Overall size is 30”W x 20”D x 25”H. Heat output of 8125 BTU - 24375 BTU. Oven size is 16”W x

14.5”D x 12”H. Weighs 160lbs. Flue size 5”.

36-257P ..........................................................3775.00

MEDITERRANEAN 3 BURNER PROPANE STOVE

This stove/oven features 2 efficient 7,000 BTU burners, and one larger 11,000 BTU burner, all equipped with safety 'flame-out' protection. 100% stainless steel.

Thermostatically controlled oven complete with broiler.

7000 BTU oven burner and 4500 BTU over broiler. Pot holders. Removable cutting board.

Overall dimensions: 20 3/8” W x 20 1/4” D x 21 3/4” H.

Cut out dimensions: 22” W x 20” D x 23 3/4” H.

36-204M ................Model 00-MED3B ..............2100.00

Gimbal Installation Kit

36-205M..............................................................38.95

124

Visit

www.mercersmarine.com

for all the latest pricing and information.

3 BURNER PROPANE STOVE / OVEN

Attractive styling! Features include: •Piezo ignition

•Black acrylic style oven door. Cut out size – 20”W x 17”D x 19 5/8”H O.D. – 20 7/8”W x 20”D x 22 3/4”H

36-116K.............................................................950.00

3 BURNER SUBURBAN PROPANE STOVE

22” Suburban gas range offers high efficiency, well insulated oven with an especially large broiler. Door is black textured steel. Piezo ignitor. 9000 BTU/h front burner with linear valve. 2 6500 BTU rear burners.

Cut out size – 20 5/8”W x 21 3/4”H x 18 5/8”D

36-242K.............................................................695.00

DICKINSON TWO BURNER PROPANE DROP-IN

COOKTOP

The perfect galley solution for small boats or for all applications where space is at a premium. The dickinson

Two Burner Drop-in Cooktop features heavy duty stainless steel construction with powerful 11,000 and

7,000 BTU burners. The unit is easily installed and comes with pot holders and a hardwood cutting board.

Cut out Dimensions: 21 1/2” W x 12 1/2”D x 4 1/4” H.

36-220K ............................................................715.00

NEWPORT (DIESEL HEATER)

Bulkhead mounted heater. Overall size is 9”W x 10”D x

19”H. Heat output of 6500 BTU - 16250 BTU.

Weighs 20lbs. Flue size 3”.

36-278P ..........................................................1195.00

DICKINSON NEWPORT PROPANE CABIN HEATER

The Newport propane heater is beautifully crafted in stainless steel and is an attractive and functional addition to any boat interior. Boaters enjoy the comfort of dry heat and the ambiance of a warm cozy fireplace.

Large ceramic glass flame-viewing window with high radiant efficiency. Easy to install – easy to use. Two models to choose from.

Kit includes: Blower fan to enhance hot air circulation.

Stainless steel wall mounting plate. Exclusive Dickinson stainless steel, flexible direct-vent pipe 2.5” x 28”’.

Exclusive Dickinson stainless steel direct-vent through deck fitting & flue cap.

Model P9000

Dimensions: 8 1/2” W x 5 1/2”D x 14” H.

Fuel Consumption: Low: 1 lb - 7 hours, 20lb -140 hours

High: 1 lb - 5 hours,20lb -100 hours

Heat Rating: Low: 5,500 BTU High: 7,500 BTU

36-048K ..........................................................1025.00

Model P12000

Dimensions: 10” W x 7 1/4”D x 16” H.

Fuel Consumption: Low: 1 lb - 5.5 hours, 20lb -110 hours

High: 1 lb - 3.9 hours, 20lb - 78 hours

Heat Rating: Low: 7,000 BTU, High:9,700 BTU

36-049K ..........................................................1175.00

ALASKA (DIESEL HEATER)

Free standing heater. Overall size 9”W x 10”D x 20”H.

Heat output of 6500 BTU - 16250 BTU. Weighs 20lbs. Flue size 3”.

36-230P ..........................................................1135.00

GALVANIZED TURBINE SMOKE HEADS OR VENTS

Rotation assures draft. Seld aligning ball bearings for smooth operation. For use with oil stoves or used as a cabin vent.

36-026K..........................5” Dia .........................175.00

Prices are subject to change. Check our website for up to date prices.

www.mercersmarine.com

125

Thru-deck

S.S. “DP” Cap

45

O

Elbow

Barometric Damper

3” Pipe Guard

H-cap

COOKSTOVE ACCESSORIES (5” PIPE AND FLU)

36-040P ......................................5" x 22" S.S. Stove Pipe......................................56.50

36-100P ..............................5" S.S. Thru-Deck C/W Dress Ring ............................138.00

36-041P ..........................................5" x 45

0

S.S. Elbow ........................................56.50

36-133P........................................5” Barometric Damper ....................................109.00

36-035P ....................................5” Stainless Steel “DP” Cap ................................154.00

36-141P ......................................5” Stainless Steel H-Cap ..................................154.00

HEATER ACCESSORIES (3” PIPE AND FLU)

36-015P............................................3" x 22" S.S. Pipe ..........................................39.50

36-073P ..............................3" S.S. Thru-Deck C/W Dress Ring ..............................91.00

36-042P..........................................3" x 45

0

S.S. Elbows ........................................48.95

36-132P........................................3” Barometric Damper ......................................87.00

36-074P ......................................3" x 18" S.S. Pipe Guard......................................82.00

36-014P ....................................3" Stainless Steel “DP” Cap ................................114.00

36-142P ......................................3” Stainless Steel H-Cap ..................................114.00

DICKINSON REPLACEMENT STOVE PARTS

36-004P ..................................12v Blower Motor C/W Fan ................................102.00

36-055P ..................................Resistor for 24v Step Down ....................................7.50

36-056P....................................Resistor for 32v Step Down ....................................7.50

36-020P ......................................Super Heater for 6” Pot ......................................40.95

36-023P ................................Diesel oil Carburetor (Atlantic) ..............................216.00

36-009P ....................Diesel oil Carburetor (Bering, Pacific, Adriatic) ..................216.00

36-008P ..........................Diesel oil Carburetor (Alaska, Newport)........................216.00

36-011P ....................................Rep. Cast Iron Top (Bering)..................................380.00

36-005P ....................................Rep. Cast Iron Top (Pacific)..................................410.00

36-007P ..................................Rep. Cast Iron Top (Atlantic) ................................585.00

36-019P ........................................6 3/4” x 10” Stove Lid........................................66.50

36-057P ....................................5” Flue Collar (Inside Tabs)....................................31.95

36-051P ......................................6” Burner Pot for Bering....................................209.00

36-139P ..............................6” Burner Pot for Pacific/Adriatic ............................193.65

36-052P ............................................6” Burner Ring ............................................23.50

36-054P ..........................................7” Burner Ring Set........................................119.95

36-060P ........................................Fire Brick 4” x 8’ x 1” ........................................17.95

36-058P ....................................5lb. Bag Furnace Cement ....................................26.95

36-059P ....................................MICA Window For Bering ....................................21.95

BLOWER SPEED CONTROL

Supplied on all new Dickinson stoves and heaters. Separate on/off switch with a variable potentiometer for more control of blower speed. Parts can easily be removed from enclosure for replacement on older stove models.

36-001P..........12V.......... 59.95

36-002P..........24V.......... 59.95

36-003P..........32V.......... 59.95

FUEL PUMP

Adjustable pressure pump with built in regulator makes it ideal for internally vented systems. Prevents excessive fuel pressure build up from occuring at carburetor. Reduces chances of vapor lock. For non fuel-injection applications. An ideal pump for oil stoves when a gravity fed system is not possible or preferred. Adjustable from

1.75 to 5 psi. Factory set at 2.5 psi.

36-006P........................................... 179.00

SIGMAR STOVE PARTS

36-082P ..........................Carburetor for 170 (180, 190)/200/250........................216.00

36-102P ................................Rep. Stove Lid for 190/200/250..............................135.00

36-109P ..................12V Replacement Blower C/W fan (190/200/250) ..............114.00

36-076P ................................12V Speed Control (All Models)................................59.95

36-077P ................................24V Speed Control (All Models)................................59.95

36-078P ................................32V Speed Control (All Models)................................59.95

36-119P ........................S.S. Super Heater(170/180/190/200/250) ......................39.95

36-120P ........................S.S. Burner Ring (170/180/190/200/250) ........................42.95

36-113P ....................................Mica Window (All Models) ..................................21.95

36-207P....................................S.S. Drip tray for 190 model ..................................79.00

36-210P....................................S.S. Drip tray for 200 model ................................100.40

36-211P....................................S.S. Drip tray for 250 model ................................111.65

SIGMAR HEATER PARTS

36-080P ................................Carburetor for 100/120 Models..............................216.00

36-082P ..........................Carburetor for 170 (180, 190)/200/250........................216.00

36-114P ....................12V Motor c/w Fan in pipe(100/120/170/180)..................102.00

36-125P ......................................Burner Ring (100/120) ......................................39.75

36-127P ....................Stainless Steel Super Heater System (100,120)....................38.00

RADEX CABIN HEATERS

Heat your cabin by using your engine’s hot water. Stainless steel construction, 12V fan,

3/4” hose connections.

Radex I

10” W x 7” H x 5” D. (One - 100 CFM fan).

36-045P..........12,000 BTU.......... 292.00

Radex II

17” W x 7” H x 5” D. (Two - 100 CFM fans).

36-046P..........24,000 BTU.......... 399.00

Radex Motor & Fan

36-144P..........12V (100 CFM)....... 54.00

RADEX MOUNTING BRACKETS

Bulkhead Flush Mount

36-095P .....................For Radex 1.......................34.50

36-096P ....................For Radex 11......................46.95

Floor, Ceiling or Regular Bulkhead Mount for

Radex I or II

36-094P...............................................................27.50

126

Visit

www.mercersmarine.com

for all the latest pricing and information.

Maradyne Heaters are designed with the marine environment in mind.

Heaters conform to SAE J1171, ISO 8846 and ISO 9097 for ignition protection. All heaters are made from non-corrosive materials. All hardware is marine grade.

2 VENT CABIN HEATER KIT 9”

•28000 BTU output • Kit includes 2 adjustable louvers,mounting brackets, stainless steel mounting hardware, 3 speed switch and plate, 9’ wiring harness,

25’ of 3” vent hose. •Requires 5/8 water hose. •Built in cooling duct to direct cool air across the motor to extend motor life.

•Amp Draw @12V , 4.9/6.6/9.6

Dimensions 9.5”W x 6.5”H x 9”D

36-330P ...........................12V.......................... 397.00

36-331P ...........................24V.......................... 415.00

3 VENT CABIN HEATER KIT 16”

•40000 BTU output • Kit includes 3 adjustable louvers, mounting brackets, stainless steel mounting hardware, 3 speed switch and plate, 9’ wiring harness,

37’ of 3” vent hose. •Requires 5/8 water hose.

•Amp Draw @12V , 5.7/7.1/11.6

Dimensions 15.9”W x 7”H x 9.6”D

36-333P ...........................12V.......................... 415.00

36-334P ...........................24V.......................... 429.00

4 VENT CABIN HEATER KIT 16”

•40000 BTU output • Kit includes 4 adjustable louvers, mounting brackets, stainless steel mounting hardware, 3 speed switch and plate, 9’ wiring harness,

50’ of 3” vent hose. •Requires 5/8 water hose.

•Amp Draw @12V , 5.5/7.1/11.6

Dimensions 15.9”W x 7”H x 9.6”D

36-336P ...........................12V .......................... 435.00

36-337P ...........................24V .......................... 439.00

9” GRILL CABIN HEATER KIT

•28000 BTU output • Heater mounts using grill front panel, 3 speed switch and plate, 9’ wiring harness • Built in cooling duct to direct cool air across the motor to extend motor life •Requires 5/8 water hose.

•Amp Draw @12V , 4.9/6.6/9.6

Dimensions 9.5”W x 6.5”H x 9”D

36-342P ...........................12V.......................... 269.00

36-343P ...........................24V.......................... 289.00

16” GRILL CABIN HEATER KIT

•40000 BTU output • Heater mounts using grill front panel, 3 speed switch and plate, 9’ wiring harness •Requires 5/8 water hose.

•Amp Draw @12V , 5.5/7.1/11.6

Dimensions 15.9”W x 7”H x 9.6”D

36-345P ...........................12V .......................... 314.00

36-346P ...........................24V .......................... 314.00

REPLACEMENT PARTS

36-356P..............................12V Single Blower Motor....................................... 115.00

36-357P..............................24V Single Blower Motor................................. ..... 115.00

36-358P..............................12V Double Blower Motor......................................125.00

36-359P..............................24V Double Blower Motor......................................125.00

36-362P..............................4 Position Switch with Knob....................................18.95

36-363P..............................3” Dome Style Louvered Vent...................................17.95

36-366P..............................Maradyne Repl. Core 2 outlet.................................102.00

36-367P..............................Maradyne Repl. Core 3 & 4 outlet...........................135.00

Prices are subject to change. Check our website for up to date prices.

www.mercersmarine.com

127

AQUAMAT™

Tired of dirty footprints on your boat’s floor? Aquamat is the ultimate solution. Useful in all environments indoors and out. Manufactured AQUAMAT™ from a fast-drying resilient PVC compound specially formulated for mould and mildew prevention. Low profile AQUAMAT™ TILES provide a fast draining, sure-grip surface. Protects boat decks, storage lockers, floors and vehicles from damage caused by impact with hard or heavy objects. Ideal as a fatigue relief mat in work areas. Can be cut easily to fit irregular areas. Perfect around swimming pools and marinas where slippery surfaces may be a liability. Tile Measures: 11 3/4” x 11 3/4” each

46-1754P...........................................................6 Grey Tiles per pack........................................................... 45.60

Azul Blue

DECKADENCE MARINE FLOORING

Designed to deliver comfort and durability for boaters. It simply lifts up, hoses off, cleans easily, with EXTREME

DURABILITY, virtually impact resistant with amazing recovery. This superior product, combining its cushioning properties with its non-skid attributes, provides the safest of surfaces under your feet imaginable. The installation of

DMF will help silence above deck noise, quite engine sound levels and insulate the below deck area from the intense

Interlocking Edge

Regular Edge

ANTI-FATIGUE MATTING

Has an ergonomic surface that is waterproof, skidproof, dirt resistant and easy to clean. It can be swept or washed with conventional cleaning products. It is used in both industrial and commercial applications.

• It reduces fatigue caused by long hours in a standing position.

• It prevents injury and stress and can cushion a fall.

• It insulates from cold and humidity.

• It absorbs vibration from machinery and reduces noise.

• It is durable and resistant to calcium, frost and most acids.

Made from 100% recycled rubber.

Regular Edge

56-052A .....................4’ x 6’ Sheet.......................P.O.R.

Note: Flooring is priced per sq. ft. (Minimum width would be 4ft wide x 1ft in length.)

Full roll quantity is 4ft wide x 40ft in length.

56-061R.................................................Azul Blue................................... 10.95 sq.ft.

56-050A .....................4’ x 6’ Sheet.......................P.O.R.

3M 1099 ADHESIVE

Used for applying hull liner and other products.

52-188P .........................1 Litre ...........................69.95

3M™ SUPER 77™ SPRAY ADHESIVE

High tack, high coverage and fast drying for permanently attaching foils, carpeting, lightweight foams, paper, cardboard, felt and cloth to painted or unpainted metals, wood and hardboard.

52-190P ..........................467g.............................22.95

3M SAFETY-WALK TAPE

Anti-slip material for medium and heavy traffic areas .

Ideal for boat walkways and decks. Black.

56-013M............................2” ...........................1.79/ft.

56-014M............................4” ...........................3.35/ft.

56-015M............................6” ...........................5.29/ft.

Per Roll

56-016M........................2” x 60’ ..........................89.95

56-017M........................4” x 60’ ........................167.95

56-018M........................6” x 60’ ........................265.95

128

Visit

www.mercersmarine.com

for all the latest pricing and information.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
