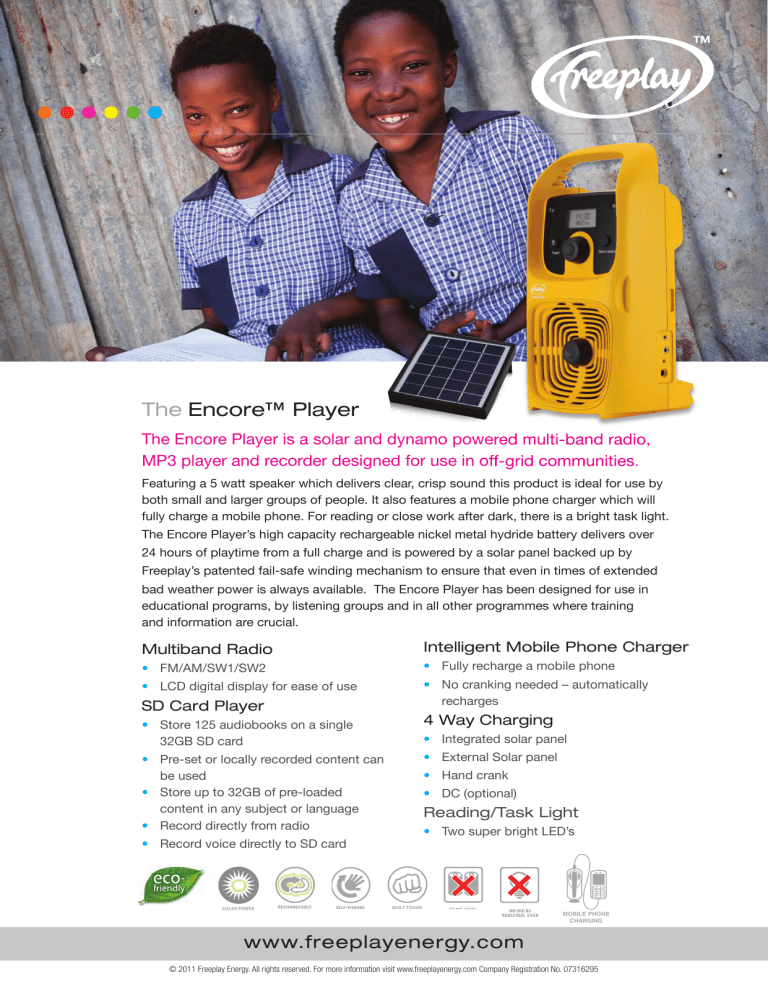

The Encore™ Player
The Encore Player is a solar and dynamo powered multi-band radio,
MP3 player and recorder designed for use in off-grid communities.
Featuring a 5 watt speaker which delivers clear, crisp sound this product is ideal for use by
both small and larger groups of people. It also features a mobile phone charger which will
fully charge a mobile phone. For reading or close work after dark, there is a bright task light.
The Encore Player’s high capacity rechargeable nickel metal hydride battery delivers over
24 hours of playtime from a full charge and is powered by a solar panel backed up by
Freeplay’s patented fail-safe winding mechanism to ensure that even in times of extended
bad weather power is always available. The Encore Player has been designed for use in
educational programs, by listening groups and in all other programmes where training
and information are crucial.
Multiband Radio
Intelligent Mobile Phone Charger
• FM/AM/SW1/SW2
• Fully recharge a mobile phone
• LCD digital display for ease of use
• No cranking needed – automatically
recharges
SD Card Player
• Store 125 audiobooks on a single
32GB SD card
4 Way Charging
• Pre-set or locally recorded content can
be used
• Store up to 32GB of pre-loaded
content in any subject or language
• Record directly from radio
• External Solar panel
• Integrated solar panel
• Hand crank
• DC (optional)
Reading/Task Light
• Two super bright LED’s
• Record voice directly to SD card
SOLAR POWER
BUILT TOUGH
MOBILE PHONE
CHARGING
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
Specification: Encore™ Player
The Encore Player is a solar and dynamo powered multi-band radio, MP3 player
and recorder designed for use in off-grid communities.
Model: Encore™ Player
Power Source
Solar Panel
• Self-charge via
• Integrated
crank handle.
polycrystalline
• Integrated solar
200mW.
panel
• External 2W as
• External solar panel
standard
• 12 V DC
Cable
Battery
3m Reinforced cord
Rechargeable 3.6V
NiMh 1800mAh
LED
Phone Charging
Memory
2 x 50,000 hours’ life
USB 5V 400mA
Charging cable
and phone tips
as standard
Standard SD card up to
32GB (over 125
complete audiobooks
books can be stored on
a single 32GB SD
memory card)
Performance Parameters
Fully Charged Battery
•
•
•
Fully charging the Encore Player battery will take approximately 6 to 8 hours using the external solar panel
A fully charged battery will operate the Encore Player for 30 hours on low volume and 10 hours at high volume
To charge the battery via Adaptor/DC will take approximately 5 hours
External 2W Solar Panel
•
•
•
1 hour in the sun provides energy for approximately 6 to 8 hours of radio playtime at medium volume.
1 hour in the sun provides energy for approximately 8 hours of light on bright setting and 12 to 14 hours on economy setting.
Player should be powered by the external solar panel for optimum solar performance in solar conditions
Winding
•
•
1 minute winding provides energy for 45 to 60 minutes of radio playtime at low volume and 30 minutes at higher volume.
1 minute winding provides energy for 60 minutes of light at economy setting and 30 minutes on bright setting.
•
•
1 hour in the sun (external 2W panel) provides energy for approximately 20 minutes of talk time.
1 minute of winding provides energy for approximately 3 minutes of mobile phone talk time, and several hours.
of standby time (smart phones use more power so these will reduce).
It will take approximately 3 hours of sunlight (external panel) to recharge a standard mobile phone.
Mobile Phone
Charging
•
Freeplay Energy Ltd,
10th Floor, 6 Mitre Passage,
Greenwich, London, SE10 0ER
T: +44 (0) 7876 572120
E: [email protected]
••••••
Speaker
4-inch, 5 W,
8-ohm loudspeaker
SOLAR POWER
Antennae
Frequencies
FM and SW: User
FM: 88-108 MHz
replaceable 680mm unbreakable
AM (MW): 500-1700 kHz
flexible steel wire antenna.
SW1: 3-10 Mhz
AM (MW): Internal extra length ferrite rod
SW2: 10-22 Mhz
antenna. 5m crocodile clip SW antenna
Dimensions of Gift Box
Length: 157mm
Depth: 138mm
Height: 293mm
Weight: 1601g
BUILT TOUGH
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
MOBILE PHONE
CHARGING
••••••
The Encore™ Digital
The Encore Digital is part of the famous Freeplay Encore radio range.
Encore Digital offers outstanding performance and is ideal for both
everyday use and as an emergency preparedness tool. Without the need
for replaceable batteries this radio is always ready for when you need it.
Providing numeric information on an LCD digital display, great sound and
sensitive reception this radio is the best in its category.
The Encore Digital multi-band radio is designed and engineered to be rugged and
durable. It is completely reliant on alternative energy sources, and is especially
suited for tough environments and emergency situations. Offering sustainable
access to information and with an extensive range of features, this innovative tool
combines radio, mobile phone charger and table light in one simple to use package.
Powered by solar energy and a fail-safe winding mechanism, the Encore Digital has
outstanding audio quality and can deliver important informational content anytime,
anywhere.
Multiband Radio
4 Way Charging
• 4 band radio - FM /AM/ SW1/ SW2
for global reception
• Integrated solar panel
Intelligent Mobile Phone Charger
• Hand crank
• Dedicated charging for mobile phones
and other small portable devices
• DC (optional)
• No cranking needed – automatically
recharges
• Built-in dual brightness
reading/task light
SOLAR POWER
• External Solar panel
Reading/Task Light
BUILT TOUGH
MOBILE PHONE
CHARGING
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
Specification: Encore™ Digital
A robust solar wind-up multiband radio specifically designed for use in low
resource and off-grid environments
Model: Encore™ Digital
Power Source
Solar Panel
• Self-charge via crank
handle.
• Integrated Solar Panel.
• Optional external Solar panel
• 12V DC
Cable
• Integrated: 200mW
polycrystalline.
• External options:
choice of 250mW
or 2W
3m Reinforced cord
Battery
LED
Phone Charging
Rechargeable 3.6V
NiMh 600mAh.
Higher capacity
on request.
2 x 50 000 hrs life
USB 5V 400mA
Charging cable and
phone tips
Performance Parameters (Solar performance is based on the 2W external panel in full sunlight conditions)
Fully Charged Battery
•
•
•
Fully charging the Encore Digital (600mAh battery) will take approximately 2 hours using the external solar panel.
A fully charged battery will operate Encore Digital for 30 hours on low volume and 10 hours at high volume
To charge the battery via Adaptor/DC will take approximately 5 hours
External 2W Solar Panel
•
•
1 hour in the sun provides energy for approximately 6 to 8 hours of radio playtime at medium volume
1 hour in the sun provides energy for approximately 8 hours of light on bright setting and 12 to 14 hours on economy setting
Winding
•
•
1 minute winding provides energy for 45 to 60 minutes of radio playtime at low volume and 30 minutes at higher volume
1 minute winding provides energy for 60 minutes of light at economy setting and 30 minutes on bright setting
•
•
1 hour in the sun (external 2W panel) provides energy for approximately 20 minutes of talk time
1 minute of winding provides energy for approximately 3 minutes of mobile phone talk time, and several hours of standby
time (smart phones use more power so these will reduce)
It will take about 3 hours of sunlight (external panel) to recharge a standard mobile phone
Mobile Phone
Charging
•
Freeplay Energy Ltd,
10th Floor, 6 Mitre Passage,
Greenwich, London, SE10 0ER
T: +44 (0) 7876 572120
E: [email protected]
••••••
Speaker
4-inch, 5 W, 8-ohm
loudspeaker
SOLAR POWER
Antennae
Frequencies
FM and SW: User replaceable 680mm
FM: 88-108 MHz
unbreakable flexible steel wire antenna.
AM (MW): 500-1700 kHz
AM (MW): Internal extra length ferrite rod
SW1: 3-10 Mhz
antenna.
SW2: 10-22 Mhz
5m crocodile clip SW antenna
Dimensions
Length: 157mm
Depth: 138mm
Height: 293mm
Weight: 1378g
BUILT TOUGH
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
MOBILE PHONE
CHARGING
••••••
The Encore™ Primary
Encore Primary has been designed for anytime, anywhere listening and is used in
classrooms, by listening groups and displaced populations. Time and time again
it has been shown that access to radio information greatly enhances the lives of
people in vulnerable communities. This is why we created the Encore Primary.
The Encore Primary is a multi-band radio, mobile phone charger and table light in one
easy to use package. It has been designed for the toughest conditions and delivers
complete independence from grid power or disposable batteries, ensuring access to
vital information at all times.
Powered by solar energy and Freeplay’s patented fail-safe winding mechanism, the
Encore Primary provides outstanding audio quality suitable for families and larger
groups, excellent reception and a simple to read dial scale for easy tuning.
Multiband Radio
4 Way Charging
• 4 band radio - FM /AM/ SW1/ SW2
for global reception
• Integrated solar panel
Intelligent Mobile Phone Charger
• Hand crank
• Dedicated charging for mobile phones
and other small portable
devices
• DC (optional)
• External Solar panel
Reading/Task Light
• Built-in dual brightness
reading/task light
• No cranking needed – automatically
recharges
SOLAR POWER
BUILT TOUGH
MOBILE PHONE
CHARGING
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
Specification: Encore™ Primary
A robust solar wind-up multiband radio specifically designed for use in low
resource settings and off-grid environments
Model: Encore™ Primary
Options
Power Source
Solar Panel
Battery
LED
Phone Charging
• Self-charge via crank
handle.
• Integrated Solar Panel.
• Optional external Solar panel
• 12V DC
• Integrated: 200mW
polycrystalline.
Rechargeable 3.6V
NiMh 600mAh.
Higher capacity
on request.
2 x 50,000
hours’ life
USB 5V 400mA.
Charging cable and
phone tips.
External
Charging
12 V DC
External Solar
Panel
Battery
Capacity
Choice of 250mW
or 2W
Higher capacity
(Includes 3 metre
on request
reinforced cord)
Performance Parameters (Solar performance is based on the 2W external panel in full sunlight conditions)
Fully Charged Battery
•
•
•
Fully charging the Encore Primary (600mAh battery) will take approximately 2 hours using the external solar panel.
A fully charged battery will operate Encore Player for 30 hours on low volume and 10 hours at high volume.
To charge the battery via Adaptor/DC will take approximately 5 hours.
External 2W Solar Panel
•
•
1 hour in the sun provides energy for approximately 6 to 8 hours of radio playtime at medium volume.
1 hour in the sun provides energy for approximately 8 hours of light on bright setting and 12 to 14 hours on economy setting.
Winding
•
•
1 minute winding provides energy for 45 to 60 minutes of radio playtime at low volume and 30 minutes at higher volume.
1 minute winding provides energy for 60 minutes of light at economy setting and 30 minutes on bright setting.
•
•
1 hour in the sun (external 2W panel) provides energy for approximately 20 minutes of talk time.
1 minute of winding provides energy for approximately 3 minutes of mobile phone talk time, and several hours.
of standby time (smart phones use more power so these will reduce).
It will take approximately 3 hours of sunlight (external panel) to recharge a standard mobile phone.
Mobile Phone
Charging
•
Freeplay Energy Ltd,
10th Floor, 6 Mitre Passage,
Greenwich, London, SE10 0ER
T: +44 (0) 7876 572120
E: [email protected]
••••••
Speaker
4-inch, 5 W,
8-ohm loudspeaker
SOLAR POWER
Antennae
Frequencies
FM and SW: User replaceable 680mm
FM: 88-108 MHz
unbreakable flexible steel wire antenna.
AM (MW): 500-1700 kHz
AM (MW): Internal extra length ferrite rod
SW1: 3-10 Mhz
antenna.
SW2: 10-22 Mhz
5m crocodile clip SW antenna.
Dimensions
of Gift box
Length: 157mm
Depth: 138mm
Height: 293mm
Weight: 1378g
BUILT TOUGH
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
MOBILE PHONE
CHARGING
••••••
The Indigo Plus™ Lantern
Indigo Plus is Freeplay Energy’s latest lighting product. With nine ultra-bright
LED lights and a built-in task light, this compact lantern eliminates the need for
kerosene and expensive batteries so allowing users to carry out tasks in safer,
well lit surroundings.
• Charge via solar, hand crank and USB
Shine Time
• Rechargeable NiMH battery built in
Main Light
• 9 ultra-bright white LEDs all positioned for optimum light output efficiency
3 hrs max brightness
60 hrs night light
• Dimmer switch adjusts brightness from night light to ultra-bright
(Fully Charged Battery)
Flashlight 50 hrs
• Separate task light for spot beam and flashlight use
• Ultra tough reinforced ABS
• Up to 60 hours’ constant shine time on low setting
• Recharge mobile phones in an emergency
••••••
BUILT TOUGH
NO KEROSENE
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
CHARGE
VIA USB
MOBILE PHONE
CHARGING
(Mobile phone not
included. Charging kit
optional extra)
Specification: Indigo Plus™ Lantern
A compact, versatile ultra-bright lantern which is both rechargeable and
self-powered, with no bulbs to burn out or batteries to replace.
2W solar panel
available as an
optional extra
NAME
Indigo Plus™
AC ADAPTOR/ USB CHARGING
Power In
PRODUCT DESCRIPTION
(AC adaptor not included) External Solar Panel charging
Rechargeable, self-charge wind-up lantern
Power Out
POWER SOURCE
Wind-Up Mechanism
Cellphone Charging Output
AC alternator driven by crank via a transmission
8 hrs to 100% capacity via USB input port
Compatible with standard USB /mini cable
Charge Rate
Battery
DIMENSIONS
3.6V NiMH pack
LIGHT SOURCE
Cluster of 9 bright white 5 mm LEDs for space illumination
Height:
205mm (8")
Diameter: 75mm (2.9")
Weight: 452g
One ultra-bright white LED flashlight
Freeplay Energy Ltd,
SHINE PERFORMANCE
Fully Charged Battery
Cluster: 60 hours (night light) / 3 hrs (full power)
Single LED: 50 hours
10th Floor, 6 Mitre Passage,
Greenwich, London, SE10 0ER
T: +44 (0) 7876 572120
E: [email protected]
••••••
BUILT TOUGH
NO KEROSENE
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
CHARGE
VIA USB
MOBILE PHONE
CHARGING
••••••
The Companion Assist™ Radio
Assisting those in need is in the DNA of this great little radio. Designed
specifically for humanitarian purposes, this FM/AM/SW radio and flashlight
combo with mobile phone charging capability ensures that no distance is too
great and no environment is too tough to overcome.
Play / Shine Times
(Fully Charged Battery)
Radio 12 hrs
Light 10-12 hrs
• Solar/self-powered
• Designed for use in Aid & Development applications
• Best sound in its class
• Sustainable access to information, communication and light
• Ideal for rapid deployment
• Compact, durable and efficient
• Choice of telescopic or unbreakable flexible aerial
• Intuitive interface with great tuning resolution
• Low distribution costs without compromising on performance
• Siren Alert
••••••
SOLAR POWER
BUILT TOUGH
MOBILE PHONE
CHARGING
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
Specification: Companion Assist™ Radio
Highly dependable, solar and self-powered flashlight and mobile phone
charger with built-in siren.
NAME
MOBILE PHONE CHARGING
Companion Assist™
Assist has a power output socket on the side of the radio
that may be used to recharge mobile phones.
PRODUCT DESCRIPTION
The Companion Assist radio is a simple to use, highly
dependable, self-powered solar radio and flashlight
combination. It is designed for a range of applications in
both the developed and developing world.
A glass-reinforced nylon handle with comfortable knob
harnesses human energy by cranking. The handle is
connected to the 3-phase alternator via a transmission.
Winding will not damage the radio and all the generated
power will be conserved and stored.
Several antenna options are available.
Power Management
••••••
SPEAKER
7cm 3 W, 8-ohm loudspeaker
A polycrystalline 3.6V 20mA solar panel is integrated into the
radio. This serves to play the radio or to charge its batteries
without having to wind.
10th Floor, 6 Mitre Passage,
Greenwich, London, SE10 0ER
T: +44 (0) 7876 572120
E: [email protected]
A siren feature allows the user in distress to attract attention
to their predicament.
POWER SOURCE
Self-Charge
Solar Panel
Freeplay Energy Ltd,
SIREN ALERT
A rechargeable NiMH 3 cell battery pack stores the energy
generated from human and solar power.
The radio will play for 20 to 30 minutes at good volume per
30-second wind.
LIGHT
The Assist has two ultra-bright LEDs built into a flashlight
feature on the side of the radio. When switched on these
LEDs provide a useful beam of light.
SOLAR POWER
ANTENNA
FM and SW Telescopic antennas may be subject to breakage
in tough user environments, therefore an unbreakable flexible
steel wire antenna is offered as standard, or in addition to a
telescopic antenna. In remote regions where radio signals
may be weak an optional accessory 5m cable-antenna with
crocodile attachment clips onto the fitted antenna to increase
the sensitivity of the radio.
AM signals are received via an internal ferrite rod antenna..
FREQUENCIES
FM: 88-108 Mhz
SW1 5-10 MHz
AM (MW): 500-1700 kHz SW2 10-18 MHz
DIMENSIONS
Height:
Width:
Depth:
Weight:
BUILT TOUGH
83mm
150mm
52mm
220g
MOBILE PHONE
CHARGING
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
••••••
The Companion™ Radio
Small in size but big on performance, Companion is ideal for rapid deployment in
emergencies and for difficult to reach locations. Companion minimises inventory
holding and logistics costs.
This compact little FM/AM radio, flashlight and mobile phone charger really
is a friend in need.
Play / Shine Times
(Fully Charged Battery)
Radio 11 hrs
Light 13 hrs
• Provides instant access to information, communication and light
• Self-charge, solar and external recharge options
• Promises assured listening anytime, anywhere
• Designed to work in off-grid situations
• Rugged, long-lasting and efficient
••••••
SOLAR POWER
BUILT TOUGH
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
CHARGE
VIA USB
MOBILE PHONE
CHARGING
Specification: Companion™ Radio
Dependable, self-powered solar radio, flashlight and mobile phone
charger combination.
NAME
LIGHT
Companion™
The Companion has three ultra-bright LEDs built into a
flashlight feature on the side of the radio. When switched on
these LEDs provide a useful beam of light.
PRODUCT DESCRIPTION
The Companion radio is a dependable self-powered solar
radio and flashlight combination, designed for a range of
applications in both the developed and developing world.
It also has a power-out feature that facilitates the charging
of mobile phones in an emergency.
POWER SOURCE
Self-Charge
A glass-reinforced nylon handle with comfortable knob
harnesses human energy by cranking. The handle is
connected to the 3-phase alternator via a transmission.
Solar Panel
USB
10th Floor, 6 Mitre Passage,
Greenwich, London, SE10 0ER
T: +44 (0) 7876 572120
E: [email protected]
The Companion may also be fully recharged via a standard
USB cable.
Power Management
A rechargeable NiMH 3 cell battery pack stores the energy
generated from human and solar power.
The radio will play for 20 to 30 minutes at good volume per
30-second wind.
••••••
If selected as an option, the radio may be recharged by
standard USB cable.
MOBILE PHONE CHARGING
The Companion has a power-out socket that delivers power
from the alternator to a mobile phone. Connectivity is via a
cable with adaptor tips customised for each particular mobile
phone. Adaptor tips are not included.
SPEAKER
4cm 1 W, 8-ohm loudspeaker
A polycrystalline 3.6V 20mA solar panel is integrated into the
radio. This serves to play the radio or to charge its batteries
without having to wind.
Freeplay Energy Ltd,
OTHER CHARGING OPTIONS
SOLAR POWER
ANTENNA
FM: Telescopic antenna
AM (MW): internal ferrite rod antenna.
FREQUENCIES
FM: 88-108 Mhz
AM (MW): 520-1700 kHz
DIMENSIONS
Height:
Width:
Depth:
Weight:
63mm
130mm
45mm
220g
BUILT TOUGH
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
CHARGE
VIA USB
MOBILE PHONE
CHARGING
Nearly 25% of humanity survives
without access to electrity...
••••••
√
Safe
√
√
Clean
No running costs
√
Ultra Bright
Many turn to
kerosene
for lighting.
...That’s why we developed the
Freeplay Energy Centre
Dangerous
Unhealthy
Expensive
The Freeplay Energy Centre™
The Freeplay Energy Centre is a solar powered lighting system and mobile phone
charger. The kit has built-in overcharge and over-discharge protection, is compact
to keep shipping costs low and is designed to be up and running in minutes. Each
kit is supplied with one 4-watt crystalline solar panel, a power pack with lithium
battery and controller, two bright LED bulbs each with a clear lens and
connecting cables.
NO KEROSENE
What can a Freeplay Energy Centre do for a family?
• Protect family health by reducing exposure to pollutants
Shine Time
(Fully Charged Battery)
2 x LED Bulb
8 hrs
1 x LED Bulb
16 hrs
••••••
• Allow good reading light for children to study at night
• Provide a charging point for mobile phones and other portable devices
• Eliminate the risk of fire from a candle or kerosene lantern
• Save them money – sunlight is free!
SOLAR POWER
BUILT TOUGH
MOBILE PHONE
CHARGING
www.freeplayenergy.com
© 2012 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
Specification: Energy Centre™
The Freeplay Energy Centre is the perfect solution for people living off
grid. It uses solar energy to provide lighting and to charge mobile devices.
NO KEROSENE
Model: Energy Centre
Solar Panel
Solar Panel Cable
Length
Battery
4 Watt / 11 Volt
Crystalline
5 Metres
7.4 Volt 2200 mAH,
Lithium
2 x LED Bulb
LED Driver
50 000 Hours Life,
1 Watt Super Bright Constant Current Driver
LED, Rainproof
• Simple to set up
2 x LED Bulb Cable
Length
Mobile Phone
Charging
5 Metres
Constant Voltage
Supply
Charge time with Solar Panel*
• Power source - solar panel or AC
adapter (optional)
Time
% Battery Charged
3 Hours
50%
5 Hours
70%
8 Hours
100%
• Rechargeable & replaceable battery
• Charging indicator
• Bulbs with on/off switch
• Mobile phone USB charger
4 Watt / 11 Volt Crystalline
solar panel included
• Compact – lower cost shipping
*Under good sunshine
Freeplay Energy Ltd,
10th Floor, 6 Mitre Passage,
Greenwich, London, SE10 0ER
T: +44 (0) 7876 572120
E: [email protected]
••••••
Working time: After battery has
been fully charged
PACKAGING DETAILS
Inner carton: 264 x 228 x 62mm
Weight:
1.5KG per piece
Pieces:
12 per outer carton
SOLAR POWER
BUILT TOUGH
2 x LED Bulbs
1 x LED Bulb
8 Hours
16 Hours
MOBILE PHONE
CHARGING
www.freeplayenergy.com
© 2012 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
••••••
The Tuf™ Radio
The next generation emergency preparedness radio brought to you by Freeplay Energy
TheTufsolar&wind-upmultibandradioisanessentialpartofanyemergency
preparednesskit.Information,communicationandlightarelifesaversin
situationswherenormalutilitiesaredown.Tufradioprovidesregularand
specificweatherinformationaswellasemergencylightingandcellphone
charging,withouttheneedfordisposablebatteriesoraccesstoanelectricity
source.Youareguaranteednevertobewithoutpoweragain.
Play/ShineTimes
(Fully Charged Battery)
Radio10hrs
Light12hrs
• Perfectforoff-gridsituations
• Rechargeablebycranking,solarandUSBcable
• Emergencyphonecharging
• NOAAweatherband
• Digitallytuned
• Ultra-brightLEDlightsourcewith50,000hourslifetime
••••••
BUILT TOUGH
NO KEROSENE
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
CHARGE
VIA USB
MOBILE PHONE
CHARGING
Specification: Tuf™ Radio
Dependable,self-poweredsolarradio,flashlightandmobilephone
chargercombination.
NAME
MOBILEPHONECHARGING
Tuf™ Radio
USB 5V output port for recharging phone and light personal
electronics.The Tuf has a power-out socket that delivers
power from the alternator to a mobile phone. Connectivity is
via a cable with adaptor tips customised for each particular
mobile phone. All accessoy ports have a rubber cover.
Adaptor tips are not included but are available as an
accessory
PRODUCTDESCRIPTION
The Tuf radio is a rugged, robust self-powered solar radio,
flashlight & emergency phone charging combination designed
specifically for emergency preparedness kits and for use in
disaster relief management.
POWERSOURCE
SolarPanel
SPEAKER
40mm 8 Ohm speaker with metal speaker grill
Poly-crystalline solar panel, 5V 30mA, with solar charging
indication. This serves to play the radio or to charge its batteries without having to wind.
USB
The Tuf may also be fully recharged via a standard USB cable.
Headphone listening socket
ANTENNA
FM: Telescopic antenna
AM (MW): internal ferrite rod antenna.
FREQUENCIES
PowerManagement
A rechargeable 3,6V NiMh rechargeable battery pack stores
the energy generated from human and solar power.
Digitally tuned, PLL (phase-locked loop) radio
FM: 88-108 Mhz
AM (MW): 530-1700 kHz
Freeplay Energy Ltd,
LONGLIFEBATTERYOPTION
WB (weatherband), 7 NOAA (162Mhz)
weatherband channels
10th Floor, 6 Mitre Passage,
Greenwich, London, SE10 0ER
T: +44 (0) 7876 572120
E: [email protected]
Because products for emergency preparation applications are
often stored without use for long periods Freeplay offers the
option of a low self-discharge battery. This will ensure that the
battery is able to withstand storage for extended periods.
FEATURES
DIMENSIONS
Length:
144mm
Diameter: 60mm
Weight:
300g
12/24 hour clock, Backlit LCD display, Battery level indicator
and tough carabeneer carrying handle.
••••••
BUILT TOUGH
NO KEROSENE
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
CHARGE
VIA USB
MOBILE PHONE
CHARGING
••••••
The Lifeline™ Radio
The Freeplay Lifeline is the world’s best and most popular humanitarian radio. This
iconic product has brought untold benefits and hope to millions of listeners in low
resource settings in the developing world. Lifeline ensure that radio content can be
effectively and realiably heard by people anytime, anywhere.
Play Time
• Powerful speaker makes it ideal for group listening
Radio 24 hrs
• Intuitive user interface means that it can be operated easily by adults
and children alike
(Fully Charged Battery)
• Detachable solar panel allows the user to place the panel in the sun and
use the radio in the shade or indoors
• Internal battery can store power for use at night
• When there is no sun, Lifeline can be powered by winding a crank
• The internal mechanisms are free from grease to ensure the radio
operates even in very dusty and arid environments
••••••
SOLAR POWER
BUILT TOUGH
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
Specification: Lifeline™ Radio
Highly dependable self-powered solar & wind-up radio.
NAME
SPEAKER
Lifeline™
A 4-inch, 5 W (max), 8-ohm loudspeaker.
PRODUCT DESCRIPTION
ANTENNA
A highly dependable self-charge and solar FM/AM/SW radio
specifically designed for use in humanitarian projects and in
low resource settings in the developing world. Lifeline ensures
that radio content can be effectively and reliably heard by
people anytime, anywhere. It has been deployed in the
world’s harshest environments and has changed the lives of
millions of people by offering education, critical information
and hope.
User replaceable 680mm flexible steel wire antenna
(not telescopic).
POWER SOURCE
Self-Charge
DIMENSIONS
Direct drive spur gear transmission running with no lubrication
or grease driving a high power 3-phase alternator with high
efficiency rectification (total system efficiency of 70%).
FREQUENCIES
FM: 88-108 MHz
AM (MW): 500-1700 kHz
SW1 3-10 Mhz
SW2 10-22 Mhz
Height:
Width:
Depth:
Weight:
336 mm (13.25”)
194 mm (7.6”)
124 mm (4.9”)
1.9 kg (4.9 lb)
Solar Panel
Latched and magnetically adhered, detachable polycrystalline
5V 52mA (@ 95,000 lux) solar panel. Solar panel with
2.1-metre nylon filament reinforced cord.
POWER STORAGE AND MANAGEMENT
Rechargeable NiMH 3 cell AA 3.6V pack, 1300 mAh
capacity battery pack.
Freeplay Energy Ltd,
Easily replaceable with any 3 cell NiMH pack using
Molex plug #5264-N
10th Floor, 6 Mitre Passage,
Greenwich, London, SE10 0ER
T: +44 (0) 7876 572120
E: [email protected]
Radio will still function when cranked with absent, faulty, or
dead battery pack, but will cease to play when cranking
stops. The radio will not be damaged under these conditions.
••••••
Radio will still function when exposed to sun with absent,
faulty, or dead battery pack
SOLAR POWER
BUILT TOUGH
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
••••••
The Clamp Charger™
Instant power in off-grid environments. This stand-alone charger for small
electronic devices enables users to reap the benefits of the electronic age,
facilitating communication, education, lighting and employment.
• Perfect backup for small solar installations, guaranteeing
100% power availability
• Will charge mobile phones , GPS, lanterns, radios, MP3 and can
also be the power source for a small domestic lighting system
• Born out of the One Laptop per Child $100 laptop programme
• The only one of its kind in the world
• Efficient energy conversion and long-lasting components
• Power source for LED lighting installations
••••••
BUILT TOUGH
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
The Freeplay Clamp charger is integral to the success of the
One Lap Top Per Child challenge.
Specification: Clamp Charger™
Stand-alone charger for small electronic devices.
NAME
SPECIFICATIONS
Clamp Charger™
•
•
PRODUCT DESCRIPTION
The Charger is clamped to a stable surface or post. By
cranking the handle, human energy is harvested from the
user. This energy is converted into electricity and made
available to power products. The electrical output is regulated
to a factory pre-set voltage, generally 12V DC but this can
be customer specified to almost any value. The charger is
equipped with an LED charge level indicator that illuminates
once the minimum crank speed is reached. The handle can
be turned in both directions and the faster the handle is
turned the higher the level of power generated. The power
output cable can be fitted with a wide range of connectors,
as specified by the customer.
•
•
•
•
•
Industrial standard materials used throughout.
Electricity generated by AC alternator, via crank
and gearbox.
Output is regulated, factory set to any value between
4V and 18V DC.
Output power at 130 RPM is approximately 12W
Wide range of connector configurations.
Foldable handle
LED indicator for minimum effective cranking speed.
DIMENSIONS
Length:
Width:
Depth:
Weight:
164mm
72mm
104mm
640gm
Freeplay Energy Ltd,
10th Floor, 6 Mitre Passage,
Greenwich, London, SE10 0ER
T: +44 (0) 7876 572120
E: [email protected]
••••••
BUILT TOUGH
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
••••••
The Lumiere™ Solar Flashlight
This solar-powered, waterproof LED flashlight provides a multitude of uses for
people in off-grid communities and the displaced. Powered by the sun and
by a hand crank, the flashlight is also waterproof to a depth of 5 meters and
has an emergency flash feature.
Shine Time
(Fully Charged Battery)
Light 4 hrs
• Solar or hand crank
• Charged in direct sunlight
• Three settings
• Waterproof (to 5 meters)
• No batteries
••••••
SOLAR POWER
NO KEROSENE
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
Specification: Lumiere™ Solar Flashlight
A solar, hand crank & waterproof LED flashlight
NAME
LIGHT SOURCE
Lumiere™
3 LEDs
PRODUCT DESCRIPTION
DIMENSIONS
The Lumiere is a solar, hand crank LED flashlight with three
settings for a variety of applications in the home or outside.
Height:
Width:
Depth:
Weight:
POWER SOURCE
Built-in solar panel and hand crank
Freeplay Energy Ltd,
10th Floor, 6 Mitre Passage,
Greenwich, London, SE10 0ER
T: +44 (0) 7876 572120
E: [email protected]
••••••
45mm
147mm
61.5mm
176g
PERFORMANCE
ITEM
PARAMETER
UNIT
Max. Luminous flux of 3 LEDs
8
Lm
Max. Luminous flux of 1 LED
3
Lm
Lighting time of 3 LEDs after being charged fully
4
Hour
Lighting time of 3 LEDs after 1 minute cranking
60
Minute
Lighting time of 1 LED after 1 minute cranking
80
Minute
Flashing time after 1 minute cranking
110
Minute
Lighting time of 3 LEDs after being charged by direct sunlight for 1 hour
90
Minute
Lighting time of 1 LED after being charged by direct sunlight for 1 hour
120
Minute
Flashing time after being charged by direct sunlight for 1 hour
140
Minute
Fully charged time by sunlight
8
Hour
Flash frequency
About 2
Hz
SOLAR POWER
NO KEROSENE
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
••••••
The Mini Sherpa™ Flashlight
Small in size but big on performance, Mini Sherpa is ideal for rapid deployment in
emergencies and for difficult to reach terrains. Mini Sherpa minimises inventory
holding and logistics costs. This compact and dependable little flashlight brings
light and safety when it is most needed.
Shine Time
(Fully Charged Battery)
Light 11 hrs
• Ultra compact design
• Rechargeable NiMH battery built in
• Self-charge and rechargeable (via standard USB cable)
• Compact, dependable self-powered flashlight with very bright LED
• Penetrating beam
• Efficient energy conversion
• Ultra robust reinforced ABS
• Non-slip rubber grip
••••••
BUILT TOUGH
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
Specification: Mini Sherpa™ Flashlight
Compact, tough, self-powered flashlight.
NAME
POWER SOURCE
Self-Charge
Mini Sherpa Flashlight™
PRODUCT DESCRIPTION
The Mini Sherpa is a dependable self-powered LED flashlight.
By incorporating failsafe Freeplay wind-up technology and a
state of the art LED, the Sherpa introduces a new level of
dependability into the flashlight industry. It is compact and
rugged, ideal for emergency and everyday use and you never
need batteries ever again. Freeplay is the original wind-up
company, we created the industry, and we bring you
quality where it matters.
Wind-up Mechanism: AC alternator driven by crank
via a transmission
Battery
3.6V NiMH pack
LIGHT SOURCE
One ultra-bright white LED
ADAPTOR CHARGING
Via standard USB cable
DIMENSIONS
Height:
Width:
Length:
Weight:
48mm
48mm
124mm
160g
COLOUR/FINISHES
Yellow and black with soft touch rubberised finish
Freeplay Energy Ltd,
10th Floor, 6 Mitre Passage,
Greenwich, London, SE10 0ER
T: +44 (0) 7876 572120
E: [email protected]
••••••
BUILT TOUGH
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
••••••
The Sherpa™ Flashlight
This is the toughest self-powered flashlight in the world. When disaster strikes
or people flee from danger, Sherpa guarantees light in these difficult situations.
Durable and dependable this is the flashlight to rely on.
Shine Time
(Fully Charged Battery)
Max Bright 5 hrs
Economy 18 hrs
• Dependable self-powered LED flashlight
• Rechargeable NiMH battery built in
• Choice of energy saving and full power settings
• Up to 18 hours of continuous shine time
• Single LED with 100,000 hour life
• Recharge via USB cable (not supplied)
• Splash resistant
• Non-slip rubber grip
••••••
BUILT TOUGH
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
Specification: Sherpa™ Flashlight
Compact, durable, self-powered and rechargeable flashlight.
NAME
SHINE TIME
Fully Charged Battery
Sherpa Flashlight™
11 hours (normal beam)
PRODUCT DESCRIPTION
The Freeplay Sherpa is a dependable self-powered LED
flashlight incorporating failsafe Freeplay wind-up technology
and a state of the art LED. Sherpa introduces a new level of
dependability into flashlights. It is compact and rugged, ideal
for emergency and everyday use and never needs batteries
again. A bright white LED is collimated by a parabolic reflector
to give a super bright beam. Sherpa is also rechargeable
from a standard USB cable, and can be kept fully charged
for the moment it is needed.
POWER SOURCE
Self-Charge
5 hours (Maxbrite)
1 Minute wind
25 minutes (normal beam)
USB Charge Rate
4 hours - 100% capacity
DIMENSIONS
Height:
Width:
Length:
Weight:
55mm
60mm
160mm
285g
Wind-up: AC alternator driven by the crank via a transmission
Adaptor Charging
Via standard USB cable
Rechargeable Battery
Freeplay Energy Ltd,
Rechargeable 3.6V Ni-MH battery pack
10th Floor, 6 Mitre Passage,
Greenwich, London, SE10 0ER
T: +44 (0) 7876 572120
E: [email protected]
Light Source
••••••
Ultra-bright high power white LED
BUILT TOUGH
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
••••••
The Kito™ flashlight
A simple, rugged and reliable self-powered flashlight for use anytime, anywhere,
the Kito has no frills, just great durability and performance and can provide instant
light when needed.
Shine Time
(Fully Charged Battery)
Light 11 hrs
• Built-in crank means never running out of power
• Ideal for off-grid situations
• Made from super tough ABS
• 60 minutes of light from only 60 seconds of winding
• Ultra-bright white LED with 100,000 hour life
• Splash proof
• Comfortable to carry, even with gloves
••••••
BUILT TOUGH
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
Specification: Kito™ Flashlight
Tough, self-powered flashlight.
NAME
DIMENSIONS
Kito™
Height:
Width:
Length:
Weight:
PRODUCT DESCRIPTION
A 10mm bright white LED combined with a patented wind-up
system converts over 70% of applied energy into electricity.
This gives more shine for less wind. Kito is made from quality
materials and has class-leading performance.
112mm
80mm
184mm
450g
COLOUR/FINISHES
Black with soft-touch rubberised finish
POWER SOURCE
Wind-Up Mechanism
AC alternator driven by crank via a transmission
Battery
3.6V NiMH pack
LIGHT SOURCE
One ultra-bright white LED
SHINE PERFORMANCE
60 second wind for 1 hour shine
Freeplay Energy Ltd,
10th Floor, 6 Mitre Passage,
Greenwich, London, SE10 0ER
T: +44 (0) 7876 572120
E: [email protected]
••••••
BUILT TOUGH
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
••••••
The Lifelight™
The definitive humanitarian lantern, designed especially for the humanitarian
sector. Powered both by the sun and by human energy, this lantern guarantees
light, night after night after night.
Shine Time
(Fully Charged Battery)
Max 8 hrs
Economy 30 hrs
Night 180 hrs
• Innovative and dependable solution to lighting challenges in
the developing world
• Providing a clean, dependable and sustainable lighting solution
• Has the power to increase economic productivity, improve
general health and create safer conditions at night
• Simple and intuitive to use
• Robustly constructed with practically no breakable parts
• Combines solar power, efficient LED technology and human crank
energy to deliver a clean and dependable light source
• Choice of 4 different light settings
••••••
SOLAR POWER
BUILT TOUGH
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
NO KEROSENE
Specification: Lifelight™
A rugged solar & wind-up lantern for the developing world.
NAME
LIGHT SOURCE
LIfelight™
Space illumination: Four ultra-bright, wide-angle white LEDs
Task and flashlight: One ultra-bright, narrow-angle white LED
Four intensity settings: bright, economy, task-light/flashlight
and night-light.
PRODUCT DESCRIPTION
Sunlight is abundant in much of the developing world. The
Lifelight’s detachable solar panel allows the user to place the
panel in the sun during the day storing power for later use at
night. When there is no sun, it can be powered by winding a
crank that converts 72% of human energy to stored electrical
energy and light.
POWER
Solar Panel
BATTERY
Rechargeable NiMh 600mAh battery
PERFORMANCE
Fully Charged Battery
1.5W (or customer specified) polycrystalline solar panel in
tough casing
Night light: 85 hours
Economy: 16 hours
Bright: 6 hours
Task: 23 hours
Wind-Up Mechanism
Per One Minute Wind
AC alternator driven by crank via a transmission
Night light: 2.5 hours
Economy: 40 minutes
Bright: 12 minutes
Task: 60 minutes
DIMENSIONS
Height:
236mm
Diameter: 78mm
Weight: 440gm
Freeplay Energy Ltd,
10th Floor, 6 Mitre Passage,
Greenwich, London, SE10 0ER
T: +44 (0) 7876 572120
E: [email protected]
••••••
SOLAR POWER
BUILT TOUGH
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
NO KEROSENE
••••••
The FreeCharge 12V™
Mobile phones, GPS, flashlights and lanterns need never fail when most needed.
This portable, lightweight energy source for personal electronic products ensures
that a recharge is never more than a wind away.
• Powered entirely by human energy
• Powers any device for which you have a cigarette lighter adaptor
• Independent of all conventional power supplies
• Standard cigarette lighter adaptor socket ensures compatibility for
practically all mobile phones and personal electronic devices (iPod,
GPS, PDA etc.) from obsolete older models to those yet to be released
••••••
BUILT TOUGH
MOBILE PHONE
CHARGING
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
Specification: FreeCharge 12V™
Ideal backup power supply for small electronic devices.
NAME
TYPICAL PERFORMANCE
Mobile Phones
FreeCharge 12V™
PRODUCT DESCRIPTION
An ideal portable backup power supply for small electronic
products. FreeCharge ensures that users will always be able
to make that emergency call, get a GPS location fix, or just
listen to a few more songs on an MP3 player.
POWER SOURCE
Power System:
AC alternator driven by the crank via a transmission.
Dissimilar transmission materials provide improved gear
meshing and wear characteristics.
Output:
Standard cigarette lighter socket
12V nominal, 14.2V regulated maximum (other customised
outputs, eg with product specific parameters are available by
special order).
Freeplay Energy Ltd,
10th Floor, 6 Mitre Passage,
Greenwich, London, SE10 0ER
T: +44 (0) 7876 572120
E: [email protected]
••••••
For mobile phone applications talk time performance from the
FreeCharge is influenced by several factors. These include
phone make and model, network provider signal strength,
handset battery condition, duration and effort of winding and
the characteristics of the cigarette lighter adaptor used.
It is recommended that a minimum of 3 minutes winding be
applied before the phone is used. Generally, about three
minutes of talk time per minute of winding is achievable.
DIMENSIONS
Height:
Width:
Length:
Weight:
52mm
60mm
135mm
310g
The output current is generally determined by the recipient
device specifications. If the device allows it, currents of up
to 800mA are available if the FreeCharge is cranked
energetically enough.
BUILT TOUGH
MOBILE PHONE
CHARGING
www.freeplayenergy.com
© 2011 Freeplay Energy. All rights reserved. For more information visit www.freeplayenergy.com Company Registration No. 07316295
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
