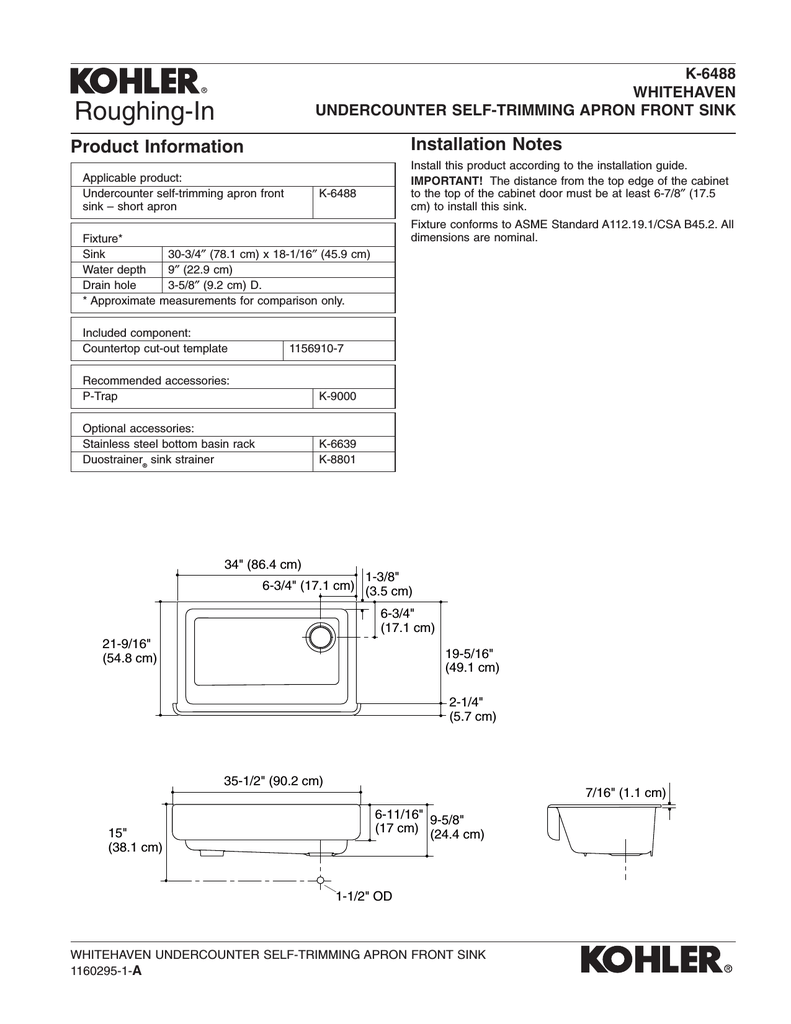

KOHLER K-6488-0 Installation Guide

K-6488
WHITEHAVEN
UNDERCOUNTER SELF-TRIMMING APRON FRONT SINK
Roughing-In
Installation Notes
Product Information
Applicable product:
Undercounter self-trimming apron front
sink – short apron
Install this product according to the installation guide.
IMPORTANT! The distance from the top edge of the cabinet
to the top of the cabinet door must be at least 6-7/8″ (17.5
cm) to install this sink.
K-6488
Fixture conforms to ASME Standard A112.19.1/CSA B45.2. All
dimensions are nominal.
Fixture*
Sink
30-3/4″ (78.1 cm) x 18-1/16″ (45.9 cm)
Water depth
9″ (22.9 cm)
Drain hole
3-5/8″ (9.2 cm) D.
* Approximate measurements for comparison only.
Included component:
Countertop cut-out template
1156910-7
Recommended accessories:
P-Trap
K-9000
Optional accessories:
Stainless steel bottom basin rack
Duostrainer® sink strainer
K-6639
K-8801
34" (86.4 cm)
1-3/8"
6-3/4" (17.1 cm) (3.5 cm)
6-3/4"
(17.1 cm)
21-9/16"
(54.8 cm)
19-5/16"
(49.1 cm)
2-1/4"
(5.7 cm)
35-1/2" (90.2 cm)
15"
(38.1 cm)
7/16" (1.1 cm)
6-11/16" 9-5/8"
(17 cm) (24.4 cm)
1-1/2" OD
WHITEHAVEN UNDERCOUNTER SELF-TRIMMING APRON FRONT SINK
1160295-1-A
