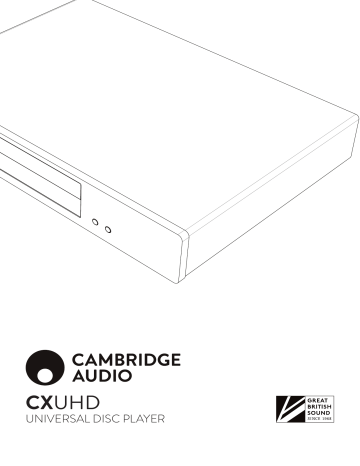

CXUHD
UNIVERSAL DISC PLAYER
Contents
Important safety instructions ................................................................. 3
Limited warranty...................................................................................... 5
Compatible disc types............................................................................ 6
Discs that cannot be played................................................................... 6
Rear panel connections.......................................................................... 7
Front panel controls................................................................................ 7
Remote control........................................................................................ 8
Connecting to a wired network............................................................... 9
Connecting to a wireless network.......................................................... 9
Audio output connections..................................................................... 10
HDMI connections................................................................................. 10
Operating instructions........................................................................... 11
Getting started..................................................................................... 11
Options menu........................................................................................ 11
Skip playback....................................................................................... 11
Go to................................................................................................... 11
Repeat................................................................................................. 11
Audio language (soundtrack) selection................................................... 11
Subtitle selection.................................................................................. 11
Audio return channel (ARC) selection..................................................... 11
Playback by chapter or track number.................................................... 11
Pure audio mode.................................................................................. 11
Shuffle and random modes................................................................... 11
Connecting a USB drive....................................................................... 11
Using the home menu........................................................................... 12
Playing music files................................................................................ 12
Playing movie files................................................................................ 12
Viewing photo files................................................................................ 12
Setup menu........................................................................................... 13
Playback setup...................................................................................... 13
Video output setup................................................................................ 13
Picture adjustment................................................................................ 13
Device setup.......................................................................................... 13
Firmware upgrade................................................................................ 13
Firmware notification............................................................................. 13
Standby mode..................................................................................... 13
Auto power off...................................................................................... 13
Reset factory defaults........................................................................... 13
Network setup....................................................................................... 14
Internet connection............................................................................... 14
Wireless setting.................................................................................... 14
Technical specifications........................................................................ 15
Troubleshooting..................................................................................... 15
2
Make sure you register your purchase.
Visit: www.cambridgeaudio.com/vip
By registering, you'll be the first to know about:
• Future product releases
• Software upgrades
•N
ews, events and exclusive offers plus
competitions!
© Copyright Cambridge Audio Ltd 2017.
"HDMI","HDMI logo" and "High-Definition Multimedia Interface" are
trademarks or registered trademarks of HDMI Licensing LLC.
"Blu-ray Disc", "Blu-ray", "Blu-ray 3D", "BD-Live", "BONUSVIEW", and
the logos are trademarks of Blu-ray Disc Association.
Java is a trademark of Oracle and/or its affiliates.
DVD Logo is a trademark of DVD Format/Logo Licensing Corp.,
registered in the U.S., Japan and other countries.
Super Audio CD, SACD and the SACD logo are joint trademarks of
Sony Corporation and Philips Electronics N.V. Direct Stream Digital
(DSD) is a trademark of Sony Corporation.
"AVCHD" and the "AVCHD" logo are trademarks of Panasonic
Corporation and Sony Corporation.
Designed for Windows Media, Microsoft, HDCD, and the HDCD logo
are trademarks or registered trademarks of Microsoft Corporation in the
United States and/or other countries.
"Cinavia" is trademark of Verance Corporation.
All other trademarks are the properties of their respective owners.
CXUHD
ENGLISH
Important safety instructions
For your own safety please read the following important safety instructions carefully
before attempting to connect this unit to the mains power supply. They will also
enable you to get the best performance from and prolong the life of the unit:
1. Read these instructions.
2. Keep these instructions.
The lightning flash with the arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of un-insulated 'dangerous voltage' within
the product's enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
3. Heed all warnings.
4. Follow all instructions.
6. Clean only with a dry cloth.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance instructions in the service
literature relevant to this appliance.
7. D
o not block any ventilation openings. Install in accordance with the
manufacturer's instructions.
The unit is of Class 1 construction and must be connected to a mains socket outlet
with a protective earthing connection.
5. Do not use this apparatus near water.
8. D
o not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that produce heat.
9. D
o not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding-type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10. P
rotect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. U
nplug this apparatus during lightning storms or when unused for long periods
of time.
13. R
efer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as the power-supply cord or
plug having been damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPARATUS TO RAIN OR MOISTURE AND OBJECTS FILLED
WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THIS
APPARATUS.
Batteries (battery pack or batteries installed) shall not be exposed to
excessive heat such as sunshine, fire or the like.
TO COMPLETELY DISCONNECT THIS APPARATUS FROM THE AC MAINS,
DISCONNECT THE POWER SUPPLY CORD PLUG FROM THE AC RECEPTACLE.
POUR DECONNECTER COMPLETEMENT L'APPAREIL DU RESEAU
D'ALIMENTATION, DECONNECTER LE CORDON D'ALIMENTATION DE LA PRISE
MURALE.
THE MAINS PLUG OF THE POWER SUPPLY CORD SHALL REMAIN READILY
ACCESSIBLE. LA PRISE DU RESEAU D'ALIMENTATION DOIT DEMEURER
AISEMENT ACCESSIBLE"
Only use the mains cord supplied with this unit.
This product utilises a Laser. Use of controls or
adjustments or performance of procedures other than
those specified herein may result in hazardous radiation
exposure. Do not open covers and do not repair
yourself. Refer servicing to qualified personnel.
WEEE symbol
The crossed-out wheeled bin is the European Union symbol for
indicating separate collection for electrical and electronic equipment.
This product contains electrical and electronic equipment which should
be reused, recycled or recovered and should not be disposed of with
unsorted regular waste. Please return the unit or contact the authorised dealer from
whom you purchased this product for more information.
CE mark
This product complies with European Low Voltage (2014/35/EU),
Electromagnetic Compatibility (2014/30/EU) and Environmentallyfriendly design of Energy-related Products (2009/125/EC) Directives when used
and installed according to this instruction manual. For continued compliance only
Cambridge Audio accessories should be used with this product and servicing must
be referred to qualified service personnel.
RCM (Regulatory Compliance Mark)
This product meets Australia, New Zealand Safety, EMC and Radio
Communications requirements of the ERAC and ACMA.
CU-TR mark
This product meets Russia, Byelorussia and Kazakhstan electronic
safety approvals.
Ventilation
Important – The unit will become hot when in use. Do not stack multiple units on
top of each other. Do not place in an enclosed area such as a bookcase or in a
cabinet without sufficient ventilation.
Ensure that small objects do not fall through any ventilation grille. If this happens,
switch off immediately, disconnect from the mains supply and contact your dealer
for advice.
Please ensure there is ample ventilation (at least 20cm clearance on the top, side
and rear). Do not put any objects on top of this unit. Do not situate it on a rug or
other soft surface and do not obstruct any air inlets or outlet grilles. Do not cover
the ventilation grilles with items such as newspapers, tablecloths, curtains, etc.
Positioning
Choose the installation location carefully. Avoid placing it in direct sunlight or close
to a source of heat. No naked flame sources, such as lighted candles, should be
placed on the unit. Also avoid locations subject to vibration and excessive dust,
cold or moisture. The unit can be used in a moderate climate.
This unit must be installed on a sturdy, level surface. Do not place in a sealed area
such as a bookcase or in a cabinet. Do not place the unit on an unstable surface
or shelf. The unit may fall, causing serious injury to a child or adult as well as serious
damage to the product. Do not place other equipment on top of the unit.
Due to stray magnetic fields, turntables or CRT TVs should not be located nearby
due to possible interference.
This label is located on the laser protective housing inside the product.
Use of the apparatus in tropical climates (The equipment shall be used at maximum
45 degree C ambient temperature).
Electronic audio components have a running in period of around a week (if used
several hours per day). This will allow the new components to settle down and the
sonic properties will improve over this time.
Power sources
The unit should be operated only from the type of power source indicated on the
marking label. If you are not sure of the type of power-supply to your home, consult
your product dealer or local power company.
This unit can be left in Standby mode when not in use and will draw <0.5W in this
state. To turn the unit off, unplug it from the mains socket.
3
Overloading
Do not overload wall outlets or extension cords as this can result in a risk of fire
or electric shock. Overloaded AC outlets, extension cords, frayed power cords,
damaged or cracked wire insulation and broken plugs are dangerous. They may
result in a shock or fire hazard.
Be sure to insert each power cord securely. To prevent hum and noise, do not
bundle the interconnect leads with the power cord or speaker leads.
Cleaning
To clean the unit, wipe its case with a dry, lint-free cloth. Do not use any cleaning
fluids containing alcohol, ammonia or abrasives. Do not spray an aerosol at or near
the unit.
Battery disposal
Please dispose of any discharged batteries according to local environmental/
electronic waste disposal guidelines.
Connections
IMPORTANT Note:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20cm between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
2.4GHz operation of this product in the USA is firmware-limited to channels 1
through 11, 5G channels are 36-48, 52-64, 100-140, 149-161.
Modifications
The FCC requires the user to be notified that any changes or modifications to this
device that are not expressly approved by Cambridge Audio, may void the user's
authority to operate the equipment.
Canada-Industry Canada (IC)
Contains IC: 20960-WUS14
Before making any connections, make sure all power is turned off and only use
suitable interconnects.
This radio transmitter model number WUS-AC14 has been approved by Industry
Canada.
Servicing
This Class B digital apparatus complies with Canadian standard ICES-003. This
device complies with Industry Canada License exempt RSS standard(s). Operation
is subject to the following two conditions.
These units are not user serviceable. Never attempt to repair, disassemble or
reconstruct the unit if there seems to be a problem. A serious electric shock could
result if this precautionary measure is ignored. In the event of a problem or failure,
please contact your dealer.
Wi-Fi information
(1) this device may not cause interference and (2) this device must accept any
interference, including interference that may cause undesired operation of the
device.
IMPORTANT NOTE:
IC Radiation exposure statement
This equipment complies with RSS-102 limits set fourth for an uncontrolled
environment. This equipment should be installed and operated with a minimum
distance of 20cm between the radiator and your body.
FCC statement
DECLARATION OF CONFORMITY WITH FCC RULES FOR
ELECTROMAGNETIC COMPATIBILITY
We, Cambridge Audio, of Gallery Court, Hankey Place, London SE1 4BB,
declare under our sole responsibility that this device,
CXUHD with Wi-Fi module
to which this declaration relates, complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause
undesired operation.
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio frequency energy, and
if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try and correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
•C
onnect the equipment to an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this
equipment.
The transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Industrie Canada (IC)
Contient IC: 20960-WUS14
Cet émetteur radiophonique numéro de modèle WUS-AC14 a été approuvé par
Industrie Canada.
Cet appareil numérique de Classe B est conforme à la norme canadienne ICES003. Cet appareil est conforme aux normes RSS exemptes de licence d’Industrie
Canada. Son fonctionnement est soumis aux deux conditions suivantes :
(1) cet appareil ne doit pas provoquer d'interférence nuisible et (2) cet appareil doit
accepter toute interférence reçue, y compris les interférences pouvant provoquer
un fonctionnement indésirable.
NOTE IMPORTANTE:
IC Déclaration sur la radioexposition
Cet équipement est conforme aux limites RSS-102 préconisées pour un
environnement non contrôlé. Cet équipement doit être installé et utilisé à une
distance minimale de 20 cm entre le radiateur et votre corps.
L'émetteur ne doit pas être co-placé ni fonctionner en conjonction avec une autre
antenne ou transmetteur.
Europe-European Union Notice
Radio products with the CE alert marking comply with the RED Directive (2014/53/
EU) issued by the Commission of the European Community.
2.4G
Radio Frequency: 2412-2472MHz, the Max. EIRP power 18dBm.
5G
Radio Frequency: 5180-5825MHz, the Max. EIRP power 17dBm.
This product can be used across EU member states, compliance with this directive
implies conformity to the following European Norms.
• EN 60065 – Product Safety.
•E
N 300 328, EN 301 893, EN 62311, EN 300 440 – Technical requirement for
radio equipment.
• EN 301 489 – General EMC requirements for radio equipment.
4
CXUHD
ENGLISH
Limited warranty
Cambridge Audio warrants this product to be free from defects in materials and
workmanship (subject to the terms set forth below). Cambridge Audio will repair
or replace (at Cambridge Audio's option) this product or any defective parts in this
product. Warranty periods may vary from country to country. If in doubt consult your
dealer and ensure that you retain proof of purchase.
To obtain warranty service, please contact the Cambridge Audio authorised dealer
from which you purchased this product. If your dealer is not equipped to perform
the repair of your Cambridge Audio product, it can be returned by your dealer to
Cambridge Audio or an authorised Cambridge Audio service agent. You will need
to ship this product in either its original packaging or packaging affording an equal
degree of protection.
Proof of purchase in the form of a bill of sale or receipted invoice, which is evidence
that this product is within the warranty period, must be presented to obtain warranty
service.
This warranty is invalid if (a) the factory-applied serial number has been altered or
removed from this product or (b) this product was not purchased from a Cambridge
Audio authorised dealer. You may call Cambridge Audio or your local country
Cambridge Audio distributor to confirm that you have an unaltered serial number
and/or you made a purchase from a Cambridge Audio authorised dealer.
This warranty does not cover cosmetic damage or damage due to acts of God,
accident, misuse, abuse, negligence, commercial use, or modification of, or to
any part of, the product. This warranty does not cover damage due to improper
operation, maintenance or installation, or attempted repair by anyone other than
Cambridge Audio or a Cambridge Audio dealer, or authorised service agent which
is authorised to do Cambridge Audio warranty work. Any unauthorised repairs will
void this warranty. This warranty does not cover products sold AS IS or WITH ALL
FAULTS.
REPAIRS OR REPLACEMENTS AS PROVIDED UNDER THIS WARRANTY ARE THE
EXCLUSIVE REMEDY OF THE CONSUMER. CAMBRIDGE AUDIO SHALL NOT BE
LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH
OF ANY EXPRESS OR IMPLIED WARRANTY IN THIS PRODUCT. EXCEPT TO THE
EXTENT PROHIBITED BY LAW, THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF
ALL OTHER EXPRESS AND IMPLIED WARRANTIES WHATSOEVER INCLUDING,
BUT NOT LIMITED TO, THE WARRANTY OF MERCHANTABILITY AND FITNESS
FOR A PRACTICAL PURPOSE.
Some countries and US states do not allow the exclusion or limitation of incidental
or consequential damages or implied warranties so the above exclusions may not
apply to you. This warranty gives you specific legal rights, and you may have other
statutory rights, which vary from state to state or country to country.
For any service, in or out of warranty, please contact your dealer.
5
Compatible disc types
BD-Video
Supports 4K Ultra HD Blu-ray and Blu-ray with Bonus View
and BD-Live content, including Blu-ray 3D discs. A 3D-capable
display with compatible glasses is required for 3D playback.
BD-R/RE, both single- and dual-layer are also supported.
Region management information
This player is designed and manufactured to respond to the region management
information. If the region number of a BD-Video or DVD disc does not correspond
to the region number of this player, this player cannot play the disc.
BD-Video: This player plays BD-Video with marks that match the code on the back
of the unit (i.e. A, B or C).
Discs that have no region coding are also playable. These usually have all 3 region
codes on the packaging in a pyramid.
DVD-Video
DVD movie discs in DVD+RW/DVD+R/DVD-RW/DVD-R
formats.
DVD-Audio
DVD format discs containing multi-channel or stereo high
resolution audio of up to 24/96 5.1 or 24/192 resolution with
video or still pictures. Some DVD-Audio discs also contain a
DVD-Video portion.
DVD-Video: This player plays DVD-Video with marks that match the region code
on the back of the unit (i.e. 1, 2, 3, 4 or 5).
Discs that are encoded for All regions are also playable.
Super Audio CD
Supports playback of stereo and multi-channel Single Layer
and Hybrid Super Audio CDs.
Compact Disc
Supports playback of CD-DA, HDCD, CD-R, CD-RW.
High-definition digital video camera format, often in the form of
a DVD±R or flash memory.
Discs that cannot be played
– BDs with cartridge
– DVD-RAMs
– HD-DVDs
– Data portion of CD-Extras
DVDs / Blu-Rays with a different region code to the Blu-ray player you have
purchased.
ome DualDiscs: A DualDisc is a two sided disc with DVD on one side and digital
S
audio on the other side. The digital audio side does not generally meet the technical
specifications of the Compact Disc Digital Audio (CD-DA) format so playback is not
guaranteed.
Audio discs with copy-protection may not be playable.
BD-ROM compatibility
Since the Blu-ray Disc specifications are new and evolving, some discs may not
play properly depending on the disc type, version and encoding. It is possible that
a Blu-ray disc manufactured after the player was manufactured uses certain new
features of the Blu-ray Disc specifications. To ensure the best possible viewing
experience, the player may need a firmware or software update from time to time.
Copyright protection
This Product incorporates copy protection technology that is protected by U.S.
patents and other intellectual property rights of Rovi Corporation. The use of Rovi
Corporation's copy protection technology in the product must be authorized by Rovi
Corporation. Reverse engineering and disassembly are prohibited.
Cinavia notice
This product uses Cinavia technology to limit the use of unauthorized copies of
some commercially-produced film and videos and their soundtracks. When a
prohibited use of an unauthorized copy is detected, a message will be displayed
and playback or copying will be interrupted.
This product incorporates proprietary technology under license from Verance
Corporation and is protected by U.S. Patent 7,369,677 and other U.S. and
worldwide patents issued and pending as well as copyright and trade secret
protection for certain aspects of such technology. Cinavia is a trademark of Verance
Corporation. Copyright 2004-2013 Verance Corporation. All rights reserved by
Verance. Reverse engineering or disassembly is prohibited.
This update includes Cinavia® content protection technology. Information about
Cinavia technology is provided at the Cinavia Online Consumer Information Center
at http://www.cinavia.com.
More information about Cinavia technology is provided at the Cinavia Online
Consumer Information Center at http://www.cinavia.com. To request additional
information about Cinavia by mail, send a postcard with your mailing address to:
Cinavia Consumer Information Center, P.O. Box 86851, San Diego, CA, 92138,
USA.
Disc care and handling
To keep the disc clean from scratches or fingerprints, handle the disc by its edge.
Do not touch the recording surface.
Blu-ray Discs record data in very high density and the record layer is very close
to the disc surface. For this reason, Blu-ray Discs are more sensitive to dust and
fingerprints than DVD. Should you encounter playback problems and see dirty
spots on the disc surface, clean the disc with a cleaning cloth. Wipe the disc from
the Center out along the radial direction. Do not wipe the disc in a circular motion.
Do not use record cleaning sprays or solvents such as benzene, thinner and antistatic spray.
Do not attach labels or stickers to discs as this may cause the disc to warp,
become imbalanced or too thick, resulting in playback problems.
Avoid exposing the discs to direct sunlight or heat sources.
Do not use the following discs:
–D
iscs with exposed adhesive from removed stickers or labels. The disc may get
stuck inside the player.
– Warped or cracked discs.
– Irregularly shaped discs, such as heart or business card shapes.
6
CXUHD
ENGLISH
Rear panel connections
9
1
2
3
4
5
6
7
8
10
11
1. Ethernet LAN port
7. RS232C
Used for control of the CXUHD in custom install situations.
2. HDMI output 1 (primary output)
8. Trigger out/in
This output is the primary output and is 4K UHD compatible. HDMI 1 supports
Audio Return Channel from TVs that have this function. See later section.
9. Vent grille
3. HDMI output 2 (audio only)
10. Wireless module
4. HDMI input
11. AC power socket
5. Digital outputs
6. USB 3.0 inputs
Port for interfacing to a flash/memory card or Mass Storage Device (such as a
portable hard-drive).
Front panel controls
CXUHD
4
3
1
5
2
6
1. Standby/On
5. Display
2. Skip
6. Eject
3. IR sensor
7. Play/Pause
7
4. Disc tray
7
Front panel display
1
2
3
4
5
6
7
8 9 10 11
12
13
2
1
3
4
1. Main display – Text messages and numeric display
2. H
DR icon – Indicates the current playing content is High-Dynamic Range.
5
6
7
8
3. Disc type indication – Indicates the currently playing disc type
4. A
udio type indication – Indicates the type of audio tracks being played
5. Title – When illuminated, the displayed time applies to a title
6. Chapter – When illuminated, the displayed time applies to a chapter
9
7. Track – When illuminated, the displayed time applies to a track
10
8. R
emaining – When illuminated, the displayed time is the remaining play
time
11
11
9. M
ulti-channel Indication – Indicates the audio being played is multichannel surround
12
13
14
15
16
16
10. Mute icon – Indicates that the audio is muted
11. Playback status – Indicates playback status such as Play, Pause
12. N
etwork status – Indicates that the player is connected to a wired /
wireless network
13. P
layback modes – Indicates playback modes such as Repeat, Repeat
All, and Random Mode
10
17
18
19
20
21
22
23
24
Remote control
1. Backlight button
Illuminates the buttons.
25
26
2. Open/Close
27
28
3. Standby/On
29
30
4. Info
31
32
33
34
Press to show/hide the on screen information display.
5. Page / Page 
Show previous/next page.
6. Numerical buttons
Used to enter numeric values such as the number of a desired chapter or track
to go to.
7. Mute
(Cambridge Audio CXR/TVB2/TV2/CXA)
8. Clear
Press to remove current track programs.
9. Go To
Press once to bring up an OSD bar showing (from left to right) Playing Status, Title,
Chapter, Time Counter, Progress Indicator, and Total Time.
10. Volume
(Cambridge Audio CXR/TVB2/TV2/CXA)
11. Skip
8
CXUHD
12. Stop
13. Play/Pause
ENGLISH
Connecting to a wired network
Ethernet connection
14. Enter
15. Navigation
Press the directional arrows to move around menus.
Network cable (ethernet)
16. Scan
Scan forwards and backwards.
Broadband
router/modem
Internet
17. Pop up menu
Show BD pop-up menu or DVD menu.
18. Setup menu
Press to enter the Setup menu. Please refer to the "Blu-ray player setup" section of
this manual for more information.
19. Top menu
Show BD top menu or DVD title menu.
20. Back
Broadband Internet connection
Plug one end of a network cable (Category 5/5E straight through Ethernet cable)
into the LAN port on the back of the unit. Plug the other end of the network cable
into a LAN port on your broadband router or modem.
Connecting to a wireless network
Press to return to the previous menu.
Wireless aerial
21. Sound track
Press to change soundtrack where available.
22. Options
For Blu-ray/DVD disc, Press to access Subtitle Adj, 3D, Zoom, Angle, PIP, SAP.
For CD disc, press to access Shuffle/Random, Repeat. This button varies by disc
type.
23. Pure audio
Wireless broadband
router/modem
Internet
Turn off the video outputs and Front panel display.
24. Inputs
Broadband Internet connection
Press to cycle between Playback from the BD player itself and the different digital
inputs.
25. Colour buttons
Make sure the broadband Internet connection is available and the Wi-Fi function on
your wireless router or access point has been turned on.
These button functions varies.
26. Home
Press to go to the Home menu.
27. HDR
Choose the output mode for High-Dynamic Range content.
28. Amp/AVR control buttons
The CXUHD remote volume up down buttons can be made to control a Cambridge
Audio amplifier or AV receiver.
29. A/B
Press to mark a segment between A and B for repeated playback.
30. Subtitle
31. Repeat
Press to access Repeat function.
32. Dim
Adjusts the brightness of the front panel display.
33. Zoom
34. Res
Press to switch the output resolution to the TV.
9
Audio output connections
AV receiver
In
OR
HDMI connections
HDMI cable
In
Out
In
AV receiver
TV/Monitor with HDMI input
HDMI cable
HDMI cable
In
TV/Monitor with HDMI input
Connecting separately to a display and audio system using dual HDMI
In
In
TV/Monitor
10
AV Receiver
Operating instructions
Getting started
Turn on the power of the CXUHD, TV, amplifier/AV receiver and any other
components which are connected to the CXUHD. Make sure the TV and the audio
receiver are set to the correct input channel.
1. Press the Open/Close button to open the disc tray.
2. Place the disc on the tray, label side facing up.
3. The player will read the disc information and start playback.
Viewing pictures on DVD-Audio discs
Some DVD-Audio discs contain static pictures, such as photos of the band or
narration of the album. When a DVD-Audio track is playing, you may use the Page
 and Page  buttons to select the picture.
Pure audio mode
1. P
ress the Pure Audio button on the remote control to turn off video and enter
Pure Audio mode. Video output will be turned off.
4. D
epending on the content of the disc, a menu or navigation screen may appear.
Please use the Navigation  and Enter button to select the content to
play.
2. Press the Pure Audio button again to resume video and cancel Pure Audio mode.
5. To stop playback, press the  button.
When playing a CD or SACD, press the Blue button on the remote control to
activate the Shuffle and Random modes. Each press of the Blue button switches
the playback mode in the following sequence: Shuffle, Random and Normal.
6. To turn off the player, press the Standby/On button.
Options menu
Pressing the Options button on the remote during playback opens up a menu bar
at the bottom of the screen for various settings and playback features.
Use the or buttons on the remote to highlight an item, then press the Enter
button to confirm.
Shuffle and random modes
Connecting a USB drive
The CXUHD is equipped with two USB 3.0 ports. You may use any USB port to
plug in a USB drive loaded with digital music, movies and photo files.
upported USB drives can be formatted with the FAT (File Allocation Table), FAT32,
S
exFAT or NTFS (New Technology File System) file systems.
The Options menu selections differ depending on content type.
For a more detailed Setup menu information, please visit our
website www.cambridgeaudio.com for the product reference
manual and FAQ.
Fast forward/rewind search
Press to toggle between 1X, 2X, 3X, 4X and 5X playback speed. Press the 
button for backward or the  button for forward playback.
Skip playback
Press the Skip  or  button once to skip by one track/chapter on the disc.
Go to
Press the Go To button on the remote once to access Time Search and enter the
required time from the start of the disc as H:MM:SS (Hours, Minutes, Seconds) using
the numerical keys or the () navigational buttons. Press twice to access
Chapter Time Selection and enter the required time from the start of the chapter.
Press three times to access the Display information.
Repeat
Note: The Repeat function is available only during playback.
Press the Repeat button to access Repeat function. When pressed repeatedly the
Repeat function will cycle as follows:
DVD and DVD-Audio: Repeat Chapter, Repeat Title, Repeat All, Repeat Off.
Blu-ray Disc: Repeat Chapter, Repeat Title, Repeat Off.
CD and SACD: Repeat One, Repeat All, Repeat Off.
Audio language (soundtrack) selection
Press the Soundtrack button on the remote control during playback.
Subtitle selection
When playing a DVD, Blu-ray disc or other video programs recorded with subtitles,
press the Subtitle button on the remote control to select the desired subtitle.
Audio return channel (ARC) selection
The ARC source is also available in the Inputs menu. Press the Inputs button on the
remote to bring up the Input Source menu.
Playback by chapter or track number
During the playback of a disc, you can use the numerical buttons on the remote
control to directly jump to a specified chapter or track number. For example:
1. To select the seventh track, press the number 7 button on the remote.
2. T
o select the 16th track, press the number 1 button followed by the number 6
button in quick succession.
Note: Certain DVD-Audio and Blu-ray Discs may not allow for direct chapter
selection.
11
ENGLISH
CXUHD
Using the home menu
Playing movie files
You can bring up the Home Menu with the HOME button on the remote control.
Currently there are seven selections:
Select the Data Disc or USB device that contains the movie files. The player will take
a moment to read the media and list the folders and movie files.
Playing music files
In the movie browser, use the / buttons to move the cursor and select the
movie file. Press the Enter or  buttons to start playback.
Select the "Data Disc" or USB device that contains the music files. The player will
take a moment to read the disc and list the folders and music files.
In the music browser, use the / button to move the cursor and select music
files. Press the Enter or  button to start playback.
The following operations are available while the Now Playing screen is shown:
Normal playback control – , , , /, , and .
Special playback modes – Repeat and Shuffle/Random (Blue colour button).
Return to the browser without stopping the music: Press the Return button.
Stop playback and return to the browser: Press the  button once.
12
Viewing photo files
Select the Data Disc or USB device that contains the photo files. The player will take
a moment to read the media and list the folders and photo files.
In the photo browser, use the / button to move the cursor and select photo
files. Press the Enter or  button to play back the photos as a full screen slideshow.
Press the Options button to access the features like Image Zooming and Image
Rotation.
Setup menu
Device setup
Firmware upgrade
Setup Menu
1 Setup
Playback
2 Mode
Auto Play
● On3
Video Output Setup
Auto Resume
● On
Audio Output Setup
Language
Device Setup
Closed Caption
Network Setup
Subtitle Shift
●0
Exit
OSD Position
●0
OSD Mode
● Normal
Set the auto play mode for CD, SACD, DVD and BD
Via USB – You may download the firmware files from Cambridge Audio's web site
to a USB drive and then use the USB drive to upgrade the player.
Via Network – If the player has a working Internet connection, you may upgrade
the player directly over the Internet. Please follow the instructions on your TV screen.
Firmware notification
On (default) – Check for new firmware version automatically and notify the user
about new firmware. Requires working network connection.
Exit
Off – Do not check for new firmware version automatically.
Standby mode
1. Setup menu section is the uppermost menu level.
2. Menu item is the parameter to be adjusted which appears in the Center column
of the Setup menu.
3. Selection is the actual numeric or descriptive element that represents the
change being made to the selected parameter.
For a more detailed setup menu information, please visit our website
www.cambridgeaudio.com for the product reference manual and
FAQ.
Energy Efficient (default) – Player starts slower, but uses only 0.5W in standby.
Network Standby – This mode allows to wake the player in standby mode over
the network. The player takes less time to start up but consumes more power in
standby mode.
Auto power off
Allows the player to auto-shutdown after 30 minutes of inactivity. This can help to
reduce power consumption and increase player life.
On (default) – Enable the Auto Power Off.
Playback setup
Off – Disable the Auto Power Off.
Reset factory defaults
Erase accounts and settings (default) – Resets all settings to the factory default
value and remove all application activations and account information, such as your
YouTube accounts.
Setup Menu
Playback Setup
Auto Play Mode
● On
Video Output Setup
Auto Resume
● On
Audio Output Setup
Language
Device Setup
Closed Caption
Network Setup
Subtitle Shift
●0
Exit
OSD Position
●0
OSD Mode
● Normal
Set the auto play mode for CD, SACD, DVD and BD
Erase settings – Resets all settings to the factory default value, but keeps the
application activations and account information.
Exit
Parental control
This is used to set parental control ratings in order to prevent minors from watching
inappropriate content. If you have not set a parental control password yet, the
default password is "0000".
Video output setup
Picture adjustment
To use Picture adjustment, press the Setup menu button on the remote control
to enter the player's Setup Menu, and then choose "Video Setup > Picture
adjustment", then select the video output to be adjusted.
Picture Adjustment
To change a picture adjustment parameter, use the Navigation  buttons to
highlight the parameter and to change its value.
13
ENGLISH
CXUHD
Network setup
Internet connection
Ethernet (default) – Connect to internet through the Ethernet cable, please refer
to the connection instructions of the manual. Choosing this will make the "Wireless
Setting" option grey and un-selectable.
Start New – Creates a new wireless configuration. The CXUHD supports three
wireless configuration methods:
Wireless – Connect to internet through the external wireless adaptor, please refer
to the connection instructions of the manual. Choosing "Wireless" will start the
wireless setting procedure, and also make the "Wireless Setting" option in the next
row selectable.
Off – Internet access is prohibited. This will make all the remaining options in
Network Setup screen grey and un-selectable.
Wireless setting
The player first searches for the previous wireless settings. If they exist, a message
will pop up to remind you.
Scan – Scans for an available wireless network. .
Manual – Allows you to manually enter the information for a wireless network.
WPS – Starts the Wi-Fi Protected Setup.
Use Previous – Uses the previous wireless settings.
After verifying the previous settings, the player will test the connection and display
the results.
14
Technical specifications
Troubleshooting
Disc typesUHD Blu-ray, Blu-ray, Blu-ray 3D, DVD-Video,
DVD-Audio, AVCHD, SACD, CD, Kodak Picture
CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/
RE
There is no power
BD ProfileBD-ROM Version 3.1 Profile 6
(also compatible with BD-ROM Version 2.5
Profile 5)
Ensure the AC power cord is connected securely.
Ensure the plug is fully inserted into the wall socket and is switched on.
Check fuse in the mains plug or adaptor.
The Player will not read the disc
Architecture
Decoder
Mediatek MTK8591
Check the disc is not loaded upside down.
External Storage 2 x USB 3.0
Check that the disc is not too scratched or dirty.
Video Frame Rates
24Hz/50Hz/60Hz
The disc type is not supported by this unit.
Video format/file formatMPEG2, MPEG 2 HD, MPEG4, MPEG4 support HD, AVC, VC-1, XVID, AVI, AVC, MKV (4.1),
DAT, VOB, WMV, MOV, MP4, MPEG-PS, FLV,
MTS, M2TS, M2T, M4V, QT
Check its region and type.
Audio file format supportAAC, WMA, MP3, APE, Ogg Vorbis, FLAC, WAV
There is no picture
Picture file format support
JPG, BMP, GIF, PNG
ENGLISH
CXUHD
Functions on some discs may not work on this unit. This is not a malfunction of the
player.
Check that the video cable is connected properly.
Check that the TV input is selected correctly.
Notes:
• Whilst we strive to maintain maximum file compatibility, because of inconsistencies
in how some file formats are generated and a constantly changing industry we
cannot guarantee the playability of all file formats above.
• BD ISO files are not supported for copyright reasons.
• Some forms of M4A, WMA or APE with embedded covers are not supported.
Check that the video format is supported.
Check that the 'Pure Audio' mode is not enabled.
The Disc is skipping
Check that the disc is not too scratched or dirty.
Ensure that the CXUHD is on a firm surface and not subject to vibrations.
HDMI input and output 1Video
UHD/1080p24/1080p/1080i/720p/576p/576i/
480p/480i, 3D frame-packing 720p/1080p24.
Remote Control is not working
Audio
up to 7.1ch/192kHz PCM, up to 5.1ch DSD,
Bitstream.
The remote is too far from the unit or out of the effective range.
HDMI output 2 (audio only)Audio
up to 7.1ch/192kHz PCM, up to 5.1ch DSD,
Bitstream.
Ethernet
1000 BASE-T
PSUUniversal switch-mode 100 – 240V AC, IEC inlet
Max power consumption 35W
Standby consumption (Quick Start mode off)
<0.5W
Dimensions (H x W x D)
82 x 430 x 312mm
(3.2 x 16.9 x 12.3'') with feet
Weight (unboxed)
5.0kg (11.0lbs)
Wi-Fi
802.11B, G, N (2.4GHz), 802.11A, N, AC (5GHz).
Cambridge Audio's policy is one of continuous improvement. Design and
specifications are therefore subject to change without prior notice.
The batteries are flat.
Files on a connected USB device do not play
If the USB drive is incompatible, or the player encounters errors while reading the
USB drive or flash memory card, the screen displays "Device Error". In this case
please verify that the USB drive is compatible, and try to unplug the device and
re-insert again.
In some cases, an incompatible USB device may cause the CXUHD to stop
responding. If this occurs simply turn off the power, remove the USB device, and
turn the player back on.
The file type is incompatible. Check the supported file types.
The drive requires too much power from the USB socket.
Problems using HDMI
Ensure that your screen supports HDCP (High-Definition Copy Protection).
Ensure your screen is capable of displaying the resolution being output by the Bluray player.
Note: Cables which run over 5m may cause sync or grounding issues.
For more frequently asked questions (FAQs), technical advice and information on
getting the most out of your CXUHD, please visit the Support section on Cambridge
Audio's website:
www.cambridgeaudio.com/support.php
15
Cambridge Audio is a brand of Audio Partnership Plc
Registered Office: Gallery Court, Hankey Place
London SE1 4BB, United Kingdom
Registered in England No. 2953313
© 2017 Cambridge Audio Ltd
AP35783/1
www.cambridgeaudio.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
