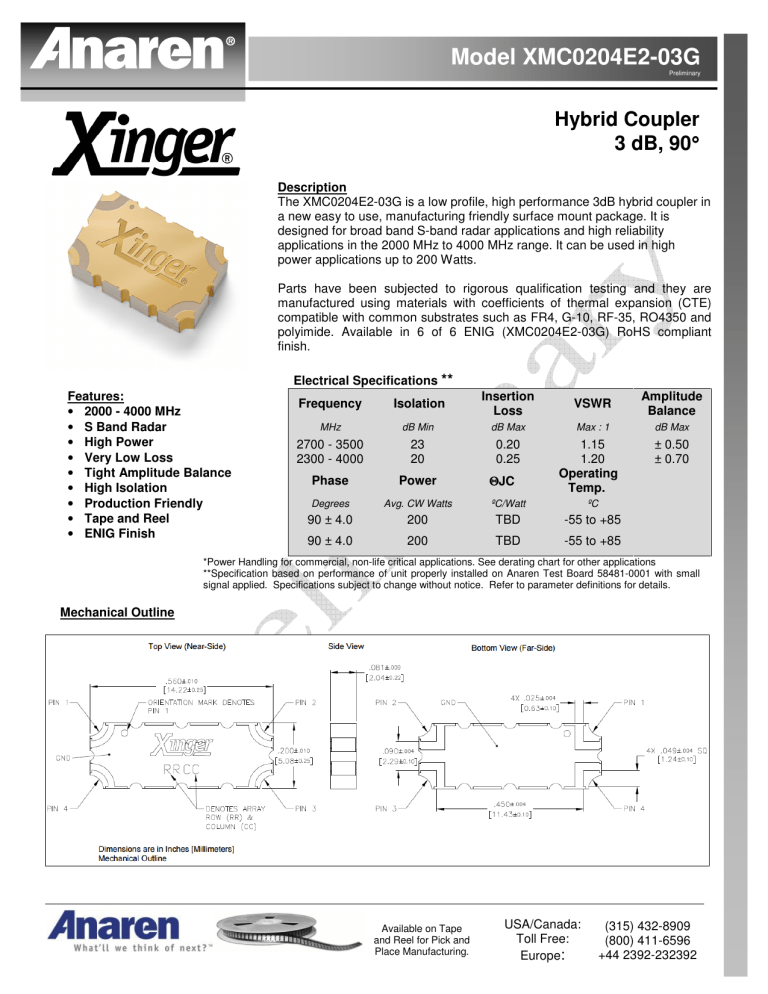

Model XMC0204E2-03G
Model XMC0204E2-03G
Preliminary
Hybrid Coupler
3 dB, 90°°
Description
The XMC0204E2-03G is a low profile, high performance 3dB hybrid coupler in
a new easy to use, manufacturing friendly surface mount package. It is
designed for broad band S-band radar applications and high reliability
applications in the 2000 MHz to 4000 MHz range. It can be used in high
power applications up to 200 Watts.
Parts have been subjected to rigorous qualification testing and they are
manufactured using materials with coefficients of thermal expansion (CTE)
compatible with common substrates such as FR4, G-10, RF-35, RO4350 and
polyimide. Available in 6 of 6 ENIG (XMC0204E2-03G) RoHS compliant
finish.
Electrical Specifications **
Features:
• 2000 - 4000 MHz
• S Band Radar
• High Power
• Very Low Loss
• Tight Amplitude Balance
• High Isolation
• Production Friendly
• Tape and Reel
• ENIG Finish
Frequency
Isolation
Insertion
Loss
VSWR
Amplitude
Balance
MHz
dB Min
dB Max
Max : 1
dB Max
2700 - 3500
2300 - 4000
23
20
0.20
0.25
Phase
Power
ΘJC
1.15
1.20
Operating
Temp.
Degrees
Avg. CW Watts
ºC/Watt
ºC
90 ± 4.0
200
TBD
-55 to +85
90 ± 4.0
200
TBD
-55 to +85
± 0.50
± 0.70
*Power Handling for commercial, non-life critical applications. See derating chart for other applications
**Specification based on performance of unit properly installed on Anaren Test Board 58481-0001 with small
signal applied. Specifications subject to change without notice. Refer to parameter definitions for details.
Mechanical Outline
Available on Tape
and Reel for Pick and
Place Manufacturing.
USA/Canada:
Toll Free:
Europe:
(315) 432-8909
(800) 411-6596
+44 2392-232392
Model XMC0204E2-03G
Preliminary
Hybrid Coupler Pin Configuration
The XMC0204E2-03G has an orientation marker to denote Pin 1. Once port one has been identified the other ports are
known automatically. Please see the chart below for clarification:
Configuration
Splitter
Splitter
Splitter
Splitter
Pin 1
Input
Isolated
Pin 2
Isolated
Input
-3dB ∠θ − 90
-3dB ∠θ
-3dB ∠θ
-3dB ∠θ − 90
*Combiner
*Combiner
*Combiner
*Combiner
A ∠θ − 90
A ∠θ
Isolated
Output
A ∠θ
A ∠θ − 90
Output
Isolated
Pin 3
-3dB ∠θ − 90
-3dB ∠θ
Input
Isolated
Pin 4
-3dB ∠θ
-3dB ∠θ − 90
Isolated
Input
Isolated
Output
Output
Isolated
A ∠θ − 90
A ∠θ
A ∠θ
A ∠θ − 90
*Note: “A” is the amplitude of the applied signals. When two quadrature signals with equal amplitudes are
applied to the coupler as described in the table, they will combine at the output port. If the amplitudes are
not equal, some of the applied energy will be directed to the isolated port.
USA/Canada:
Toll Free:
Europe:
(315) 432-8909
(800) 411-6596
+44 2392-232392
Available on Tape and
Reel for Pick and Place
Manufacturing.
