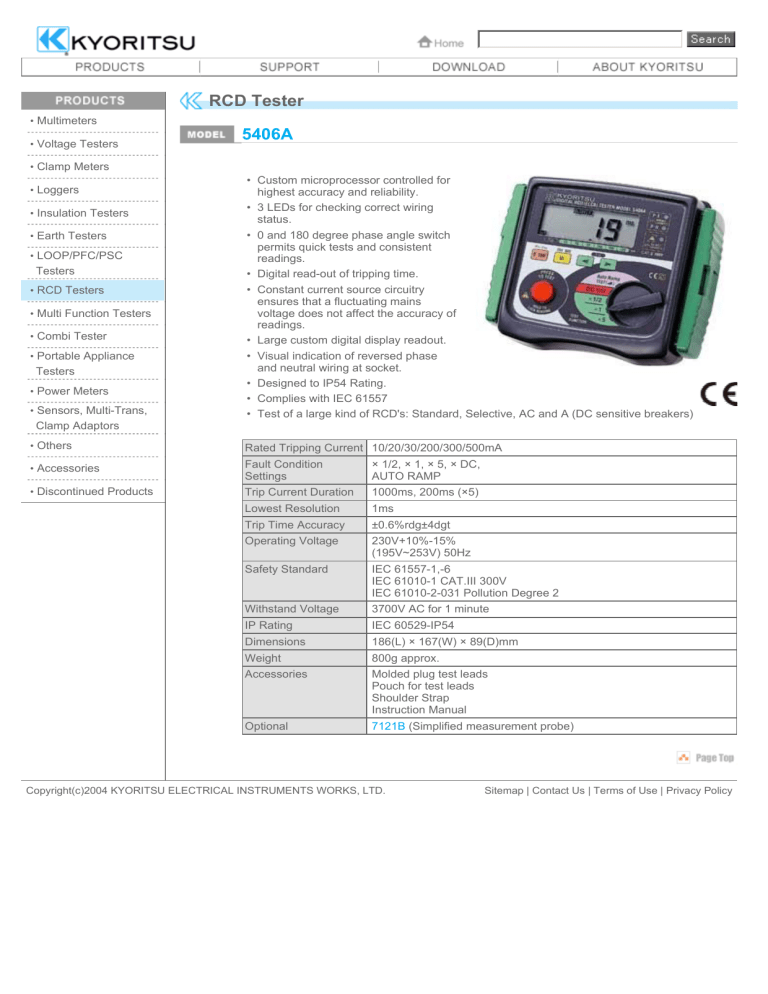

RCD Tester 5406A
RCD Tester
• Multimeters
• Voltage Testers
5406A
• Clamp Meters
• Loggers
• Insulation Testers
• Earth Testers
• LOOP/PFC/PSC
Testers
• RCD Testers
• Multi Function Testers
• Combi Tester
• Portable Appliance
Testers
• Power Meters
• Sensors, Multi-Trans,
• Custom microprocessor controlled for
highest accuracy and reliability.
• 3 LEDs for checking correct wiring
status.
• 0 and 180 degree phase angle switch
permits quick tests and consistent
readings.
• Digital read-out of tripping time.
• Constant current source circuitry
ensures that a fluctuating mains
voltage does not affect the accuracy of
readings.
• Large custom digital display readout.
• Visual indication of reversed phase
and neutral wiring at socket.
• Designed to IP54 Rating.
• Complies with IEC 61557
• Test of a large kind of RCD's: Standard, Selective, AC and A (DC sensitive breakers)
Clamp Adaptors
• Others
Rated Tripping Current |10/20/30/200/300/500mA
• Accessories
Fault Condition
Settings
|× 1/2, × 1, × 5, × DC,
|AUTO RAMP
• Discontinued Products
Trip Current Duration
|1000ms, 200ms (×5)
Lowest Resolution
|1ms
Trip Time Accuracy
|±0.6%rdg±4dgt
Operating Voltage
|230V+10%-15%
|(195V~253V) 50Hz
Safety Standard
|IEC 61557-1,-6
|IEC 61010-1 CAT.III 300V
|IEC 61010-2-031 Pollution Degree 2
Withstand Voltage
|3700V AC for 1 minute
IP Rating
|IEC 60529-IP54
Dimensions
|186(L) × 167(W) × 89(D)mm
Weight
|800g approx.
Accessories
|Molded plug test leads
|Pouch for test leads
|Shoulder Strap
|Instruction Manual
Optional
|7121B (Simplified measurement probe)
