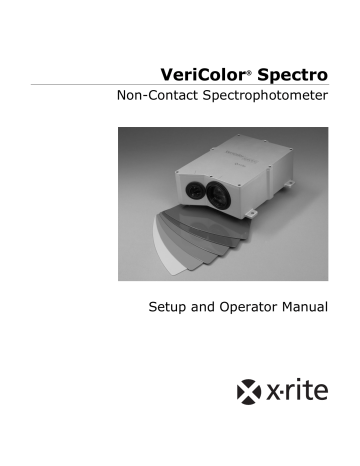

VeriColor® Spectro

VeriColor

®

Spectro

Non-Contact Spectrophotometer

Setup and Operator Manual

V E R I C O L O R ® S P E C T R O

CE Declaration

Hereby, X-Rite, Incorporated, declares that this VS410 is in compliance with the essential requirements and other relevant provisions of Directive(s) EMC 2004/108/EC, LVD 2006/95/EC, and RoHS 2011/65/EU.

Federal Communications Commission Notice

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Industry Canada Compliance Statement

This Class A digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.

Equipment Information

Use of this equipment in a manner other than that specified by X-Rite, Incorporated may compromise design integrity and become unsafe.

WARNING: This instrument is not for use in explosive environments.

ADVERTENCIA - NO use este aparato en los ambientes explosivos.

AVVERTIMENTO - NON usare questo apparecchio in ambienti esplosivi.

WARNUNG: Das Gerät darf in einer explosiven Umgebung NICHT verwendet werden.

AVERTISSEMENT: Cet instrument ne doit pas être utilisé dans un environnement explosif.

Instructions for disposal: Please dispose of Waste Electrical and Electronic Equipment (WEEE) at designated collection points for the recycling of such equipment.

Proprietary Notice

The information contained in this manual is derived from patent and proprietary data of

X-Rite, Incorporated. The contents of this manual are the property of X-Rite, Incorporated and are copyrighted. Any reproduction in whole or part is strictly prohibited. Publication of this information does not imply any rights to reproduce or use this manual for any purpose other than installing, operating, or maintaining this instrument. No part of this manual may be reproduced, transcribed, transmitted, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, magnetic, mechanical, optical, manual, or otherwise, without the prior written permission of an officer of X-Rite, Incorporated.

This product may be covered by one or more patents. Refer to the instrument for actual patent numbers.

Copyright © 2013 by X-Rite, Incorporated “ALL RIGHTS RESERVED”

X-Rite and VeriColor are registered trademarks of X-Rite, Incorporated. All other logos, brand names, and product names mentioned are the properties of their respective holders.

3


Warranty Information

X-Rite warrants this Product against defects in material and workmanship for a period of twelve (12) months from the date of shipment from X-Rite’s facility, unless mandatory law provides for longer periods. During such time, X-Rite will either replace or repair at its discretion defective parts free of charge.

X-Rite’s warranties herein do not cover failure of warranted goods resulting from: (i) damage after shipment, accident, abuse, misuse, neglect, alteration or any other use not in accordance with X-Rite’s recommendations, accompanying documentation, published specifications, and standard industry practice; (ii) using the device in an operating environment outside the recommended specifications or failure to follow the maintenance procedures in X-Rite’s accompanying documentation or published specifications; (iii) repair or service by anyone other than X-Rite or its authorized representatives; (iv) the failure of the warranted goods caused by use of any parts or consumables not manufactured, distributed, or approved by X-Rite; (v) any attachments or modifications to the warranted goods that are not manufactured, distributed or approved by X-Rite. Consumable parts and

Product cleaning are also not covered by the warranty.

X-Rite‘s sole and exclusive obligation for breach of the above warranties shall be the repair or replacement of any part, without charge, which within the warranty period is proven to X-

Rite‘s reasonable satisfaction to have been defective. Repairs or replacement by X-Rite shall not revive an otherwise expired warranty, nor shall the same extend the duration of a warranty.

Customer shall be responsible for packaging and shipping the defective product to the service center designated by X-Rite. X-Rite shall pay for the return of the product to

Customer if the shipment is to a location within the region in which the X-Rite service center is located. Customer shall be responsible for paying all shipping charges, duties, taxes, and any other charges for products returned to any other locations. Proof of purchase in the form of a bill of sale or receipted invoice which is evidence that the unit is within the

Warranty period must be presented to obtain warranty service. Do not try to dismantle the

Product. Unauthorized dismantling of the equipment will void all warranty claims. Contact the X-Rite Support or the nearest X-Rite Service Center, if you believe that the unit does not work anymore or does not work correctly.

THESE WARRANTIES ARE GIVEN SOLELY TO BUYER AND ARE IN LIEU OF ALL OTHER

WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED

WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR

APPLICATION, AND NON-INFRINGEMENT. NO EMPLOYEE OR AGENT OF X-RITE, OTHER

THAN AN OFFICER OF X-RITE, IS AUTHORIZED TO MAKE ANY WARRANTY IN ADDITION TO

THE FOREGOING.

IN NO EVENT WILL X-RITE BE LIABLE FOR ANY OF BUYER’S MANUFACTURING COSTS,

OVERHEAD, LOST PROFITS, GOODWILL, OTHER EXPENSES OR ANY INDIRECT, SPECIAL,

INCIDENTAL OR CONSEQUENTIAL DAMAGES BASED UPON BREACH OF ANY WARRANTY,

BREACH OF CONTRACT, NEGLIGENCE, STRICT TORT, OR ANY OTHER LEGAL THEORY. IN

ANY EVENT OF LIABILITY, X-RITE’S MAXIMUM LIABILITY HEREUNDER WILL NOT EXCEED

THE PRICE OF THE GOODS OR SERVICES FURNISHED BY X-RITE GIVING RISE TO THE

CLAIM.

4


Table of Contents

Overview

VeriColor Spectro Description

Unpacking and Inspection

VeriColor Spectro Installation

Mounting and Height Setup

Height Insensitivity

Measurement Angle

VeriColor Spectro Dimension Drawing

Cable Connection and Wiring

Hardware Interface Description

Discrete Input Lines

Power/Comm/Control Cable (p/n: VCS50-EUR8-DB5)

Discrete Output Lines

Discrete Interface Cable (p/n: SE108-EUR8-5M)

Computer Interface

Status LED Indicator

Software Installation and Overview

Basic System Requirements

Installing the Software

Starting the Application

Application Overview

VeriColor Spectro System Operation

Configuring the Software Options

Administrative (Admin) Setup

Language Tool

Targeting a Part

Calibration/Verification of the VeriColor Spectro

Attaching the Calibration Tool

Performing Calibration (first time, out of box)

Performing Verification

Performing Calibration (after verification failure)

Calibration Configuration

Color Standards and Projects

Creating Palettes and Color Standards

Verify Mode

Project Mode

Configuration PLC Values

Monitor Mode

Selecting a Single Standard (no auto target)

Selecting a Project for Auto Targeting

Measuring a Standard

Setting Tolerances

Creating a Standard from a Series of Measurements

Manual Sample Measurement

Interval Sample Measurements

Viewing Sample Data

Lookup Mode

Compare Mode

Selecting a Standard from File

Measuring a Standard

Setting Tolerances

Selecting a Trial from file

Measuring a Trial

Deleting Trials

5

7

7

7

8

8

10

10

11

12

14

14

14

15

17

17

18

19

19

19

19

20

51

54

56

56

57

57

58

58

58

46

46

47

47

48

49

49

50

32

33

34

36

36

41

42

44

21

21

21

28

29

30

30

31


General Maintenance

Repair Information

Cleaning the Spectro Instrument Lenses

Cleaning the Calibration Tool

Hardware Troubleshooting

Appendices

Specifications

Accessories

Electrical Interface Details

60

60

60

60

61

63

63

64

65

6


Overview

VeriColor Spectro Description

The VeriColor

®

Spectro is used to evaluate and identify colors in industrial applications. The

VeriColor Spectro is a spectrophotometer that delivers 100% in-line, non-contact, absolute

(L*a*b*) color measurement and identification.

Like other color sensors, the VeriColor Spectro allows you to “learn” (measure) standard colors and measure samples for comparison. The system uses these comparisons to determine the closest standard or pass/fail a sample based on a tolerance.

The system is composed of two main components: the VeriColor Spectro which stores standard colors and captures sample color, and the software application.

Sensor Lens

Illumination Lens

Mounting Flange (4)

RS-232 Connector

RS-485 / PLC Connector

Status LED Indicator

Unpacking and Inspection

After removing the VeriColor Spectro from the shipping carton, inspect it for damage. If any damage has occurred during shipping, immediately contact the transportation company. Do not proceed with installation until the carrier's agent has inspected the damage.

Your VeriColor Spectro was packaged in a specially designed carton to assure against damage. If shipment is necessary, the VeriColor Spectro should be packaged in the original carton along with all the accessories. If the original carton is not available, contact X-Rite to have a replacement shipped to you.

Packaging Contents:

•

VeriColor

•

5 Meter Male 8-Circuit Open Ended Cable

•

5 Meter Female 8-Circuit Open Ended

•

Calibration

•

Height

•

VeriColor Spectro Application Software CD

•

Setup and Operation Manual

•

Registration Form (multi-language)

P/N SE108-EUR8-5M

P/N VCS50-EUR8-5DB

P/N VS410-500-CD

P/N VS410-500

P/N SD01-99

7


VeriColor Spectro Installation

Mounting and Height Setup

VeriColor Spectro must be set to measure at a distance of 4” nominal to the measurement surface. The distance is that from the center of the illumination lens to the sample. The height gauge can be used to easily obtain the required height.

CAUTION: Keep the sensor lens and illumination lens free from dust, smudge marks, and finger prints.

1. Mount the VeriColor Spectro in a 0°/30° geometry direction to the fixture using the holes provided at each flange.

2. Make sure the notch in the height gauge is facing the sensor lens and attach the height gauge to the illumination lens using of the handle. A magnetic strip along the top edge of the gauge holds it in place.

0°/30° Mounting

Mounting

flange (4)

Height Gauge

Notch

Handle

8

Sensor lens

Height gauge attached

3. Insert the software CD into your computer's CD-ROM drive. Browse to the TargetUtilitiy folder and double-click the Setup.exe file to install the utility to your computer. Remove the CD.

4. Install cabling to the instrument as explained in the Cable Connection and Wiring section if it has not already been done.

5. Make sure that you exit any application that may be communicating with the VS410.

Launch the utility at Programs > X-Rite >

VS410 Target Alignment Utility. The

VS410 Target Alignment Utility window appears on the screen.

Note: If the red ring and white light do not illuminate from the VS410, you will need to configure the RS232. Click the Configure menu item and set/check the port selection and baud rate (115200).


6. Adjust the height of the instrument until the flashing red targeting ring aligns with the outer edges of the two small illuminated areas (A & B) projected from the height gauge.

When the ring is positioned properly, the correct instrument height (4”) from the measurement surface is obtained.

4 inch height

Sample Part

Ring gets smaller when too close

Incorrect!

Instrument too close

The height is set correctly when the image below appears on the measurement surface.

Ensure that the flashing red ring aligns with the outer edges of the illuminated area

Two small illuminated areas

Incorrect!

Instrument too high

Measurement surface

Ring gets larger when too high

7. After the proper instrument height is set, click Done to close the utility window and remove the height gauge from the illumination lens.

NOTE: The instrument can also be mounted in a 30°/0° geometry if desired. However, you will need to manually measure the distance to the part surface. The distance is measured from the center of the sensor lens to the measurement surface. The height gauge cannot be used for this type of configuration.

9


Height Insensitivity

Vericolor Spectro must be set 4” nominal to measurement surface and can tolerate a fluctuation of +/-

0.20”. This means that if the sample being measured fluctuates up or down by no more than +/-0.20”, the measurement will not be affected beyond specified tolerances

(refer to the Specifications in the

Appendix). Any more than +/- 0.20” it is suggested that the sample being measured be stabilized to prevent the variation in the measurement distance.

4.20"

Sample Part

3.80"

Sample Part

Measurement Angle

It is important when installing the instrument in-line that the geometry and axis angle be set appropriately. The 0°/30° position is preferred for best repeatability and correlation to an X-Rite 964 or similar hand held spectrophotometer. Other angles may be used (example 7.5/37.5) but care must be taken to avoid sensing specular reflections from the illuminator. Once the instrument has been trained on a sample in the preferred position, it is critical that future samples be measured for comparison against the standard at the same measurement angle. Any deviation in the measurement angle (called off axis measurement) will affect the color reading and indicate a fail condition, when in fact the sample might be completely within the specified tolerance range.

90°

It is preferred that the instruments mounting plane be as close to 90° to sample plane as possible.

Sample Part

It is recommended that once the mounting angle of measurement is determined, the instrument fixed position should be marked or documented. This will allow you to more easily reposition the instrument to the original and correct position when measuring that sample profile and color.

10

VeriColor Spectro Dimension Drawing


11


Cable Connection and Wiring

The VeriColor Spectro is designed to utilize the same cable configuration as the VeriColor

Solo; however, due to the increased power requirements of the VeriColor Spectro, RS232 communication should be limited to cable lengths of less than 15 meters. For cable distances longer than 15 meters it is recommended that the RS485 communication scheme be utilized.

The VeriColor Spectro RS485 communications wiring may be configured as either half or full duplex on a single drop RS485 line. Usage of the RS485 communication requires proper ground termination for both the power supply cable and the RS485 cable; any notable differences in potential between the cable grounds may result in intermittent communication, communication failure and possible damage to the instrument.

1. After the instrument has been mounted, attach the female connector of the

'Power/Comm/Control' cable (p/n: VCS50-EUR8-5DB) to the male connector (longer, threaded), located on the back end of the VeriColor Spectro, and tighten.

2. The other end of this cable has a DB9 connector and several stripped and tined wires.

This end interface to power, computer and discrete devices. a. Instrument power is applied via the white (+) and brown (-) wires (+24 Vdc ±2 Vdc)

IMPORTANT: A limited current source must be used. The applied operational power shall be a filtered +24 Vdc, ±2 Vdc tolerance, having a 3-Amp capacity. b. RS232 communications is obtained via the pre-wired DB9 connector. c. If manual or discrete operation is needed, attach the appropriate wires to controlling device (relay, PLC terminal, etc.). These lines are the READ, 10's, 1's, and DSR inputs and are low-power, active high inputs. Refer to next section for details.

3. If discrete output, PLC feedback or RS485 interfacing is needed, attach and tighten the male connector of the 'Discrete Interface' cable (p/n: SE108-EUR8-5M) to the female connector (short, non-threaded). The connector is located on the back of the VeriColor

Spectro instrument.

4. The other end of this cable has several stripped and tined wires allowing low power interface to discrete devices and/or attachment to an RS485 port (4-wire). a. 'Pass', 'Fail', 'Action' and 4 discrete channels are the default output signal set-up. b. Optional RS485 control (communications) is set-up by changing the 4 discrete channels. c. Attach the appropriate wires to the controlling device (relay, PLC terminal, etc.).

These outputs all use a common feed or return line. Refer to next section for details.

5. See the diagrams on the next several pages and appendices for electrical interface details plus examples.

12


DB9 Connector

Pin 5 – #2 Ground (brown)

Pin 2 – #3 Txout (green)

Pin 3 – #4 Rvin (yellow)

Power/Comm/Control Cable

(VCS50-EUR8-5DB)

#2 – Negative (brown)

#1 - +24 Vdc (white)

#5 – DSR (gray)

#6 – 10's (pink)

#7 – 1's (blue)

#8 – READ (red)

Cable Shield

(Panel or fixture ground)

Discrete Interface Cable

(SE108-EUR8-5M)

#1 – PASS (white)

#2 – FAIL (brown)

#3 – Output Comm (green)

#4 – CH-E 16 / 'ACTION' (yellow)

#5 – CH-D 8 / RS485-TX-A (gray)*

#6 – CH-C 4 / RS485-RX-A (pink)*

#7 – CH-B 2 / RS485-RX-B (blue)*

#8 – CH-A 1 / RS485-TX-B (red)*

Cable Shield**

*Connect the “#5 – CH-D 8 / RS485-TX-A (gray)” and “#6 – CH-C 4 / RS485-RX-A (pink)” wires together for

Half Duplex. Also, connect the “#7 - CH-B 2 / RS485-RX-B (blue)” and “#8 – CH-A 1 / RS485-TX-B (red)” wires together for Half Duplex.

**Use as common return to controller ground (insert a 10 Ω resistor if voltage potential between the controller and VeriColor Spectro is significant).

13


Hardware Interface Description

The VeriColor Spectro interconnects externally using serial communications and/or discrete signals to a computer or programmable device; detailed as follows. Additionally, there is a visual indicator which provides system status during set-up or local maintenance monitoring.

Refer to the appendices for electrical interface details and examples.

Discrete Input Lines

These control lines are part of the 'Power/Comm/Control' cable and are low power, active high inputs, as referenced to the ground return power supply input. Each input has an on/off timing cycle which creates the signal that the VeriColor Spectro recognizes and then takes a responsive action.

The active high condition means to initiate an action utilizing a positive voltage signal

(+12Vdc to +24Vdc) for a specific time period. The time period is typically 65 milli-seconds,

±15 milli-seconds in duration. The 'Discrete Select Request' (DSR) has longer special conditions that are explained later.

Power/Comm/Control Cable (p/n: VCS50-EUR8-DB5)

Discrete Select Request (DSR) – gray wire

This input is used to prompt the selection of a different color standard before the next measurement is taken. It is the control input (request) that allows the toggling of the 1's and

10's input, so it must be activated first.

During the activation of DSR, new measurement triggers are locked out (ignored) until DSR is completed. Each time DSR is enabled, the color number selection starts at 0 (zero) and increments according to the 1's and 10's toggling. After the new color number has been selected, when DSR is completed, the new color number is stored. If the DSR input is released without changing the color number (toggling the 1's or 10's), the color number remains at the previous stored value.

There is a maximum of 250 colors that can be stored and therefore selected.

Due to the requirement that this input remain on (active) while the 1's and 10's are toggled, the time duration or period is dependent on the number of those 1 and 10 activations combined.

1's Select – blue wire

This input can only be used while DSR is active.

Each time this input is toggled the color number will increment by 1.

This input can be used at the same time as the 10's input, so it should only toggle a maximum of 9 times to prevent selection errors.

10's Select – pink wire

This input can only be used while DSR is active.

Each time this input is toggled the color number will increment by 10.

This input can be used at the same time as the 1's input, so it should only toggle a maximum of 24 times to prevent selection errors (i.e. 24 toggles times 10 is 240 and added with 9 ones is 249).

14


Discrete Output Lines

These individual signal lines are part of the 'Discrete Interface' cable and all are low power outputs which use a common control line referenced (“ComO”; the green wire). This common line is either a supply or ground return connection for these outputs. a. Low power means these outputs are intended for +9Vdc min to +24Vdc max @ 120 mA.

Refer to Electrical Interface Details in the Appendix for additional information. b. All outputs default as normally open contacts, but can be configured as to normally closed contacts. Note they still all use a common control line. c. If the common control line is connected to ground, then all outputs are in low-side or return path configuration. This means when VeriColor Spectro activates the 'pass' output, it is providing a ground return for an external light or relay coil to turn on. See Figure 1.

Discrete I/O Connections (Example: Low-side output enable)

+24 Vdc

Action

Fail

Rx

Pass

Rx

Rx read brn

2

red

8

nu nu nu nu wht brn grn yel

4

5

1

2

3

6

7

8

J1

Pwr & RS232 male 8-pin

VC Spectro

J2

Discrete I/O female 8-pin

Pin 4

Rx = current limiting resistor as needed

Connector J2

Pin 1

Pin 2

Pin 3

Color

White

Brown

Green

Yellow

Description

PASS = pass result

FAIL = fail result

ComO = common discrete outputs

CH-E = 'ACTION' result nu = not used

Output

Output

Output

Output

Pin 5

Pin 6

Pin 7

Pin 8

Gray

Pink

Blue

Red

TXD A

RXD A

RXD B

TXD B

RXD A

TXD A

TXD B

RXD B

Output

Output

Output

Output

A (-) B (+)

Figure 1

d. If the common is connected to power (voltage ranging from +9Vdc to +24Vdc), then all outputs are in high-side or supply path configuration. This means when VeriColor Spectro activates the 'pass' output it is providing a positive voltage signal for an external light or relay coil to turn on. See figure 2 on the next page.

15


Discrete I/O Connections (Example: High-side output enable)

+24 Vdc read brn

2

J1

Pwr & RS232 male 8-pin

red

8

Pass

Rx

Fail

Rx

+24 Vdc

Rx nu nu nu nu wht brn grn yel

5

6

7

8

1

2

3

4

VC Spectro

J2

Discrete I/O female 8-pin

Action

Rx = current limiting resistor as needed nu = not used

Connector J2

Pin 1

Pin 2

Pin 3

Pin 4

Pin 5

Pin 6

Pin 7

Pin 8

Color

White

Brown

Green

Yellow

Gray

Pink

Blue

Red

Description

PASS = pass result

FAIL = fail result

ComO = common discrete outputs

CH-E = 'ACTION' result

TXD A

RXD A

RXD B

TXD B

A (-) B (+)

RXD A

TXD A

TXD B

RXD B

Output

Output

Output

Output

Output

Output

Output

Output

Figure 2

In the default project set-up these wires are all discrete lines. Pass, Fail and ComO are always the same, while CH-A through CH-D and Action can have an alternate configuration. a. Action is the default but can be configured as CH-E (channel-E). b. CH-A through CH-D are the defaults but can be configured into a 4-wire RS485 port.

Once these lines are set as RS485, they cannot also be used as discrete outputs.

16


Discrete Interface Cable (p/n: SE108-EUR8-5M)

Pass – white wire

This output is a VeriColor Spectro measurement response. It is activated when the last sample was determined to be within the set tolerance for the selected color.

Fail – brown wire

This output is a VeriColor Spectro measurement response. It is activated when the last sample was determined to NOT be within the set tolerance for the selected color, or had a greater difference than allowed for the selected color.

Action – yellow wire

In the default set-up state 'Action', this output activates to a VeriColor Spectro measurement response. It is activated when the last sample was determined to be within the set tolerance for the selected color, but is either very close to being out of tolerance or is statistically trending toward the limits.

However, if configured as a discrete channel output 'CH-E', then its activation will depend on how the user has determined what this output is used as (project set-up conditions).

CH-A through CH-D / RS485

In the default set-up state 'CH-A through CH-D', these outputs activate to a VeriColor

Spectro measurement response. Their activation will depend on how the user has determined what this output is used as (project set-up). They can be individual control lines or a group output (binary/HEX).

However, if configured as an RS485, 4-wire port, then only RS485 operation is allowed.

•

CH-A / RS-485-Tx-A - red wire

•

CH-B / RS-485-Rv-A - blue wire

•

CH-C / RS-485-Rv-B - pink wire

•

CH-D / RS-485-Tx-B - gray wire

NOTE: Connect the “CH-A / RS-485-Tx-A - red wire” and “CH-B / RS-485-Rv-A - blue wire” together for Half Duplex. Also, connect the “CH-C / RS-485-Rv-B - pink wire” and “CH-D /

RS-485-Tx-B - gray wire” together for Half Duplex.

Computer Interface

Normal computer communications between the user and the VeriColor Spectro is by the serial RS232 interface. This interface is part of the 'Power/Comm/Control' cable, which has a

DB9 connector pre-wired for this feature. The VeriColor Spectro can also be configured to communicate using RS485, if the appropriate discrete outputs are project set-up to operate in this mode. Other communication schemes can be utilized if an external adapter is attached

(see note on RS232 to RS485 Adaptors below).

Note: On the Use of RS232 to RS485 Adaptors

While RS232 to RS485 adaptors are common and relatively inexpensive, the use of such adaptors can be problematic in half duplex operation. For example, many such adaptors do not have adequate power resources to generate currents for the longer periods of time necessary when operating at low baud rates into terminated lines. Furthermore, until recently, adaptors did not have the intelligence to know when to hold or release the transmit condition. Often, a delay was inserted to hold the transmit condition until it was thought that no more characters were coming through the RS232 interface. This delay was accomplished with a simple timer that required the user to change a resistor in the adaptor to select the right delay for the right baud rate. This meant that any requirements that differed from the adaptor's default state would require the operator to “tweak” hardware or configuration jumpers until things began to work properly.

17


X-Rite recommends the use of PCI to RS485 adaptors for installations where a PC is the controlling device. These adaptors are usually free from the limitations previously mentioned, may provide features that simply are not available in other adaptor designs, and are cost effective. Ethernet to RS485 and USB to RS485 adaptors are also available, and while these types may be ideal for a given installation, they usually have fewer configuration options.

Important: The VeriColorSpectro does NOT support simultaneous communication over

RS232 and RS485. Response should be finished before attempting to use the other port.

RS232 Interface

The default computer communications is by way of the serial RS232 interface which is part of the 'Power/Comm/Control' cable, via a DB9 connector.

The communications protocol is serial using X-Rite's RCI command set. See appropriate documentation for this command set.

Status LED Indicator

On the back plate of the VeriColor Spectro, located between the 2 rear mounted connectors, is a LED indicator which visually provides system status. This LED indicator is capable of displaying three colors: green, amber and red. A description of each color status is listed below.

Off (no color) – This generally indicates the VeriColor Spectro has no power.

Solid Green – indicates the VeriColor Spectro is ready and waiting for further input (discrete input or serial port).

Solid Amber – indicates the VeriColor Spectro is busy and performing a requested task.

Whenever a PLC input or serial command is being processed, the status light should remain amber until it is ready for the next request.

Solid Red – indicates system error/failure. If this occurs then the VeriColor Spectro is not functioning and cannot be used until the problem is resolved.

Flashing Amber – When the VeriColor Spectro is first powered up, it will slowly flash while undergoing system test, and waiting for the illumination LED pack to warm up to temperature.

Flashing Red – Indicates that the VeriColor Spectro is above operating temperature and will shut down shortly.

Flashing Green – Indicates that the red LED has burned out and the yellow light is non operable.

18


Software Installation and Overview

The VeriColor Spectro system includes a software application that provides an interface for the VeriColor Spectro. The application is used to configure the VeriColor Spectro, store projects which consist of color standards, and provide visual feedback of sample measurements.

Before installing the software, make sure the VeriColor Spectro is set up as explained earlier and the cable is connected to appropriate communication port.

Basic System Requirements

•

Windows 2000 or XP Pro

•

Minimum Screen resolution (1024 x 768)

Installing the Software

The software uses a standard Windows installation procedure.

1. Insert the software CD into your computer's CD-ROM drive. Browse to the Application folder and double-click the setup.exe file on the CD.

2. The setup program guides you through the rest of the installation process. Follow the instructions on each setup screen to complete the installation.

Starting the Application

The software application can be launched using the “VeriColor Spectro” short-cut on the desktop or from within the Programs> VeriColor Spectro application group.

NOTE: If the VeriColor Spectro is not connected to COM 1, you will need to select the correct communications port after launching the application for the first time. Click Admin and select the General page to set correct COM port. Refer to Configuring the Software Options later in this section for additional information. After the correct port is selected, you will need to perform a calibration. Please refer to the Calibration procedure in the System Operation section for additional information.

19


Application Overview

The VeriColor Spectro application consists of four menus and five application modes. The menus are located at the top and the mode bottoms are at the bottom of the application.

Menus

•

File – used to exit the application and launch a language translation tool (if activated in Admin)

•

Instrument – used for testing, calibrating and targeting of the VeriColor Spectro

•

Admin – used to configure the default settings for the application

•

Setup - used to create palettes and standards

Application Modes

•

Verify – used to find the closest stored standard to a measured sample

•

Project – used to create projects

•

Lookup – used to auto select a standard from a palette

•

Compare – used to compare stored or measured trial and standard data

•

Monitor - used to monitor sample measurements after the system is set up

Refer to the VeriColor System Operation section that follows for detailed information on setting up the software and using the VeriColor Spectro with the software application.

20


VeriColor Spectro System Operation

Configuring the Software Options

The software should be configured before proceeding with the color standards setup and sample measurements.

Administrative (Admin) Setup

Administrative setup is used to configure the General, Verify, Lookup, Compare, and Monitor options. The Admin dialog is accessed by clicking Admin menu at the top of the application.

General Screen Page

The general screen is used to establish serial communications, select the language the application will run in, and setup password protection.

1. Click in the COM port field and enter an appropriate port number, or use the up/down arrows to select the connection port. The default port is 1.

2. Click in the Set White Verification … field and select the number of days that pass before you would like to be reminded to perform a verification. Use the up/down arrows to select the number of days, ranging from 1 to 30. The default number is 1.

3. Select the Language that you would like that application to run in by clicking the appropriate option. The default language is set to English. If the desired language is not available, you can use the Language Tool option located in the File menu to localize the application to a different language. Refer to the Language Tool later in this section.

NOTE: The Allow Editing Language option must be checked before the Language Tool item appears in the File menu. The default is un-checked.

4. You can password protect the Admin menu, Setup menu, and Project mode from unauthorized access by checking the desired Password for option and entering a password in the New password field. The password must be between 2 and 7 characters

21

V E R I C O L O R ® S P E C T R O to be acceptable. You will then be asked to enter this password before you can access the mode selected.

5. Click the OK button to save your setting and exit Admin; or select the Verify, Lookup,

Compare, or Monitor page to continue with option settings.

Verify Screen Page

The verify screen is used to choose how the measurement will be triggered and the

Tolerance dE value used for Verify mode.

22

1. Select Manual, Timed interval, or External Trigger as the trigger mode. This determines the measurement method that is used in Verify mode. The default mode is

Timed interval. Manual selection requires a Measure button click for each measurement.

Timed interval allows automatic interval measurements to take place. External trigging requires an external device (PLC) to activate a measurement.

2. Click in the Tolerance dE field and enter desired tolerance value. This determines the dE value used in the Verify mode.

3. Click the OK button to save your setting and exit Admin; or select the General, Lookup,



Lookup Screen Page

The lookup screen is used to enter the Tolerance dE cmc value used for Lookup mode.

1. Click in the Tolerance dE cmc field and enter desired tolerance value. This determines the dE cmc value used in the Lookup mode.

2. Click the OK button to save your setting and exit Admin; or select the General, Verify,


23


Compare Screen Page

The compare screen is used to enter sample/operator information for the Compare mode screen and print outs.

24

1. Click in the Term 1 and/or Term 2 fields and enter desired text. This determines the default attributes that appear in the Compare mode.

2. Click in the Operator field(s) and enter the desired name(s). This establishes a list of operators that can be selected from in the Compare mode.

3. Click in the Title, Company, Street and Town fields and enter appropriate information.

This determines the information that will be printed in a Compare report. Checking with

mean value causes the average values to also print on the report.

4. Click the OK button to save your setting and exit Admin, or select the General, Verify,

Lookup, or Monitor page to continue with option settings.


Monitor Screen Page

The monitor screen is used to set the triggered mode, auto target options, and storing options.

1. Select Manual, Timed interval, or External Trigger as the trigger mode. This determines the measurement method that is used in Monitor mode. The default mode is

Timed interval. Manual selection requires a Measure button click for each measurement.

Timed interval allows automatic interval measurements to take place. The interval amount is set in the Monitor mode. External trigging requires an external device (PLC) to activate a measurement.

2. Check Only last record for PASS/FAIL to display only the last failed (red), warning

(yellow), or pass (green) measurement status in the traffic light after a measurement.

When the option is unchecked (default setting), the traffic light will continue to display a failed or warning status until the single measurement or measurement average that caused the condition scrolls from the screen in the trend graph. Note: When unchecked, the alert level will also increase if applicable (warning to fail). Refer to Viewing Sample

Data in the Monitor Mode section for additional information.

3. Check Auto Target from Project to automatically search the selected database for a standard that more closely matches the sample measurement. Search criteria is set by entering the delta E value in the Limit for holding field. Limit for holding value causes

VeriColor Spectro to compare the sample against the selected standard until the set dE value is exceeded. Once exceeded, VeriColor Spectro searches the database for a closer standard match.

4. Check the Log data option to automatically save measurement data in the Monitor mode to a .txt file. The default setting is not checked. Refer to the next page for additional information and to view sample log data reports. Check Unlimited number of records if you do not want to save the trend data to a file. The default setting is not checked.

5. Click the OK button to save your setting and exit Admin, or select the General, Verify,

Lookup, or Compare pages to continue with option settings.

25


Real-time Log Data Access

Data can be accessed during a monitoring process without interruption to the active job.

1. Enable “Log Data” in Admin/Monitor Mode.

2. During a run, open the LogData folder.

3. Open the most recent .txt file. This is the current file being logged.

4. Once open, you can review the historical data, or copy and save the contents into a .csv file for future review.

5. Close the .txt file.

All measurements that were taken while the file was open will now auto populate into the

.txt file so no measurements will be lost.

The file should not be left open for an extended period of time to avoid any potential buffer overrun issues that may cause the data to be lost. If an extended review of the data is desired, it is best to copy and paste into a .csv file and close the .txt (log) file.

[Max 20,000 records, SAVE possible] What this means:

When only checking the Log Data option, the application will automatically log each measurement during a run and save this data to a .txt file. The .txt file will save 20,000 records or measurements, and then auto save and close. A new .txt file will automatically open and continue logging data for the run. During the time the first file closes and the second file opens, one measurement will be lost. The first file will end at 20,000 and the second file will begin at 20,002.

This will continue as long as the run lasts and end when the instrument is stopped from measuring.

The following are sample reports:

1 st

Log File

26

2 nd

Log File


27


Language Tool

The language tool is used to localize or update the application string text to a language of choice if the desired language is not available in the Admin dialog. The Language Tool dialog is accessed by selecting the File menu and then Language Tool.

NOTE: The Language Tool option will not appear if it is not activated in the Admin/General page.

28

1. Select a form to translate from the Choose Form dropdown list. The list contains all the forms (screens) present in the application. When you select a form, the text for that form appears in the columns below. The column on the left is the reference column and cannot be edited. The column on the right is the column that is used to localize the text strings.

2. Translate the text in the column on the right and then select another form.

3. Click the Test in Form button to view the translation made to the application without saving them.

4. Click the Save to file button to save the localized text strings to the application. You will need to restart the application for the changes to take affect.


Targeting a Part

Because the VeriColor Spectro instrument over illuminates, it is sometime difficult to tell exactly where the instrument is viewing to determine color. This is particular true for small part measurements.

Targeting a part is the method of adjusting the VeriColor Spectro to the required position for part measurements. Performing the targeting procedure is only needed if the location of the part to be measured is critical. For example, the measurement area is small or very close to the spot size of the VeriColor Spectro.

1. Targeting is started by selecting Target Light from the Instrument menu, Setup menu,

Verify mode, Lookup mode, Compare mode, or Monitor mode.

2. Target Light dialog and a red ring (elliptical at 0°/30° and circle at 30°/0°) approximately

1.00” in diameter begins flashing. This is the VeriColor Spectro's measurement viewing area.

You can turn the targeting light off or on by clicking the appropriate button.

3. Without disturbing the pre-aligned height and position of the VeriColor Spectro, carefully adjust the VeriColor Spectro (x and y coordinates) so the red circle is centered on the area of the part you wish to measure.

NOTE: The illumination area is an approximation and is intended to help you visually locate your sample. When the instrument is mounted at 0°/30°, the illumination will be more of an elliptical shape, and you should make your 1.00” reference starting from the outside edge of the illuminating circle.

0°/30° Mounting

Approximate

Illumination area

Outside edge

Red alignment spot

1” diameter

4. After the desired positioning is achieved, secure the VeriColor Spectro.

5. Click the Close button to turn off the light and close the Target Light dialog.

Area of part to measure

29


Calibration/Verification of the VeriColor Spectro

The VeriColor Spectro comes with a calibration tool that is used to verify measurement performance and for calibrating the instrument.

Calibration should be performed the very first time you turn on the system, and anytime thereafter that the user defined white verification tolerance is exceeded.

Verification is performed whenever a verification is requested by the software (user definable from 1 to 30 days), or anytime that measurement performance is in question. Poor measurement performance can be caused by dust or dirt on the sensor lens and illumination lens. Refer to the Cleaning section later in this document for procedure on cleaning the

VeriColor Spectro instrument.

NOTE: The calibration tool supplied with your VeriColor Spectro is configured for that specific instrument. If a replacement calibration tool is used, you will need to reconfigure the instrument for that replacement tool. Refer to Calibration Configuration later in this section for details on reconfiguring for a new calibration tool.

Attaching the Calibration Tool

IMPORTANT: Do not touch the white reference in the bottom of the calibration tool. It must be kept clean to ensure accurate measurements. Always store the calibration tool in its bag when not in use. If the calibration tool requires cleaning, refer to the General Maintenance section later in this manual.

1. Locate the calibration tool that is shipped with your VeriColor Spectro instrument.

2. Make sure the cutout side of the calibration tool is facing the sensor lens side. Attach the tool onto the illumination lens of the VeriColor Spectro instrument. A magnetic ring along the top edge of the tool holds it place.

30

Sensor lens

Cutout

NOTICE: Caution should be used not to touch the white reference in the bottom of the calibration tool.


Performing Calibration (first time, out of box)

1. Make sure the VeriColor Spectro is connected and setup according to procedures shown in the Installation section and then launch the application. A “Need white calibration” screen appears. Click the OK button.

2. The Calibration dialog appears. Click the White Calibration button.

3. Make sure that the lenses on the VeriColor Spectro are clean (refer to the Cleaning section later in this document) and then click OK on the “Insure lenses are …” screen.

4. Attach the calibration tool as requested. Refer to Attaching the Calibration Tool as previously explained. When tool is properly attached, click the OK button on the “attach calibration tube” screen.

The instrument takes five calibration measurements.

NOTE: If an error message appears after calibration, make sure the calibration tool is located correctly over the illumination lens and is clean. You may also want to clean the illumination lens and sensor lens on the VeriColor Spectro. Refer to the General Maintenance section for cleaning procedures. After checking the calibration tool and cleaning the instrument, click the White Calibration button again and repeat the procedure.

If an error still appears after calibration, contact X-Rite Customer Support at the number listed on the back cover of this manual.

5. Click Exit on the Calibration dialog.

6. Close the application.

7. Restart the application and perform a White Verification as explained on the following page.

31


Performing Verification

1. Start the application; if verification is not automatically required, select the Instrument menu and then the Calibrate item to display the Calibration dialog. The screen lists information on when the last verification and calibration were performed on the VeriColor

Spectro instrument.

32

2. You should perform a white verification if time has expired since your last defined verification time period. (The white verification time interval is set in the

Admin/General page.) Click White Verification.


4. Attach the calibration tool as requested. Refer to Attaching the Calibration Tool as previously explained. When the tool is properly attached, click the OK button on the

“attach calibration tube” screen.

The instrument takes one measurement, updates the White Verification Difference value and the Last Verification Time stamp date. The value listed is the White

Verification Dif field is the difference between the cal values stored in the instrument and the measured values.

5. Click OK on the Verification Ok screen.

6. Click the Exit button and remove the calibration tool and place in its storage bag.

NOTE: If an “Out of white verification tolerance” appears, you will need to perform a calibration procedure. Refer to the next page.


Performing Calibration (after verification failure)

Instrument calibration is required when the white verification measurement fails. The verification measurement fails when the user defined white verification tolerance value is exceeded. This tolerance is set on the Configuration Calibration dialog.

1. Click OK on the “Out of White Verification Tolerance screen”.


3. Attach the calibration tool as requested. Refer to Attaching the Calibration Tool as previously explained. When the tool is properly attached, click the OK button on the

“attach calibration tube” screen.

4. The instrument takes five calibration measurements and updates the Last Calibration

Time stamp.

5. Click OK on the “Calibration Ok” screen.

6. Remove the calibration tool and place in its storage bag.

NOTE: If an error message appears after calibration, make sure the calibration tool is located correctly over the illumination lens and is clean. You may also want to clean the illumination lens and sensor lens on the VeriColor Spectro. Refer to the General Maintenance section for cleaning procedures. After checking the calibration tool and cleaning the instrument, click the White Calibration button again and repeat the procedure.

If a failure still occurs, contact X-Rite Customer Support at the number listed on the back cover of this manual.

33


Calibration Configuration

The configuration dialog is used to enter the white verification tolerance value and select the mounting geometry. The other options are only edited if a replacement cal tube or reference is used.

To access the Configuration dialog, click the Configuration button on the Calibration dialog.

34

Entering a White Verification Tolerance

The tolerance value entered is used to determine the verification difference tolerance. The default value is set to 1.00.

1. Click in the White Verification Tol field and edit the value.

2. Click the Load New Values button to download to the instrument.

3. Click the Close button to close the Configuration Calibration Values dialog.

Selecting the Mounting Geometry

This option is used to select the mounting geometry of the VeriColor Spectro.

1. Select 0°/30° or 30°/0° option.



Editing the Calibration Tool Plaque Value (for X-Rite calibration tool replacement)

Each calibration tool has unique calibration values assigned to it that are specific to the instrument that it is used with. If the calibration tool is replaced with another, values assigned to the replacement tool must be entered into VeriColor Spectro via the software application. The White Cal Plaque Values fields in the software list all wavelength values for the current (old) plaque. The “old” values are also mirrored in the new column until edited.

Refer below for the procedure.

NOTE: Please write down and retain the current serial number listed in the “old” column before making any changes. The factory wavelength values for that column will need to be reentered if the “old” X-Rite calibration tool is ever reused.

1. Locate the serial number that is assigned to the calibration tool you are using. The serial number is located on the end cap of the tool.

2. Click in the Calibration Plaque SN field and enter the serial number.

3. Click in the 390 wavelength field in the New column and edit the value to match the value of the “new” calibration tool.

4. Continue until all wavelength values match the values listed on the “new” calibration tool you are using.



7. Perform a calibration procedure with the replacement calibration tool.

Editing the White Calibration Plaque Values (for non X-Rite calibration reference)

If desired, you can use a non X-Rite calibration reference with the VeriColor Spectro. Values assigned to the reference must be entered into VeriColor Spectro via the software application. The White Cal Plaque Values fields in the software list all wavelength values for the current (old) plaque. The “old” values are also mirrored in the new column until edited.

Refer below for the procedure.

NOTE: Please write down and retain the current serial number listed in the “old” column before making any changes. The factory wavelength values for that column will need to be reentered if the “old” X-Rite calibration tool is ever reused.

1. Click in the Calibration Plaque Value field and enter the value 100.

2. Click in the 390 wavelength field in the New column and edit the value to match the value of your white reference.

3. Continue until all wavelength values match the values listed on the calibration reference you are using.



6. Perform a calibration procedure with your calibration reference.

35


Color Standards and Projects

Color Standards and Projects are created using the Setup menu and Project mode functions.

Up to 250 color standards can be created and saved in a project for transferring to the

VeriColor Spectro instrument.

When creating a standard in Setup Mode, it is best to create the standard in the way in which the instrument will be reading the sample for comparison. If the instrument is mounted inline and the sample will be moving, it is best to create the standard in this dynamic environment. It is recommended that the standard be created based on the average of a series of multiple measurements (5 – 10).

Creating Palettes and Color Standards

The Setup mode is used to create and edit standards and palettes. A palette is used for grouping color standards.

The Setup dialog is accessed by clicking the Setup menu item at the top of the application.

1. Click the New Palette button, enter a palette name and click OK. Color standards are grouped in palettes.

36

2. If desired, set the Averaging from 1 (no average) to a maximum of 20, using the up/down arrows. The average number must be selected before a standard name is entered.


3. Click the Add Standard button. The Choose Standard field changes to Name of new

standard. Enter a standard name in the field and click Enter or press the Enter key on the keyboard.

4. Position the color standard under the VeriColor Spectro as specified earlier, or click

Import CSV to import the standard data. Refer to Importing a CSV File later in this section for more detailed information on using this feature.

5. Perform targeting if required (refer to Targeting a Part earlier in this section) and then click the Measure button on the Setup dialog to take the measurement.

6. Take additional measurement if averaging is used for the color standard.

7. Click the Save button to save the standard to the database and return to the main Setup dialog. The color standard number, measurement time stamp, simulated color, and data values are displayed below the name.

8. If required, enter specific tolerance values other than the default values for the standard.

Refer to the next page for information on adjusting tolerances.

9. Continue with additional color standards by clicking the Add Standard button.

10. When you have finished creating color standards, click the Close button to return to the main application screen. Continue on to the Creating Project section.

11. Refer to the following pages for information on additional Setup dialog controls.

37


Tolerancing

Whenever a new standard is created and saved, it is stored with the default tolerances. If you need to use specific tolerances for individual standards, you would use the tolerancing option.

1. Click the Tolerance button on the Setup dialog to open the Tolerances dialog. Within the

Tolerance dialog, you have the ability to enter individual tolerances and an action limit.

38

2. Select Type of Tolerance dropdown list select the tolerance type. Available types are: dLab+-, DLCH+-, dEcmc,and dEab, or None at all.

3. Click in the Tolerance fields and edit the default tolerance limits for the selected standard.

4. Click in the Action limit [%] and edit the percentage value. This option is used to establish the percentage amount required to trigger a yellow “warning” display in the traffic light. This signifies that a sample is trending toward a fail condition, but still is within the defined tolerance. You can select between 25 and 99 as a action limit percentage. This percentage is applied to the upper and lower user defined tolerances in

L* a* b*, L* c* h, * dEcmc, and DE*.

EXAMPLE: If the tolerance for a standard is 1.00 dE on L*, a* and b*, setting the action limit to 75% will activate the yellow warning light if the standard drifts to or above 0.75

DE on one or more of the L*a*b* values. The same is true for L*c*h* and DE* if these tolerancing modes are selected.

The default setting is no value entered.

5. If you want only the current standard to use the edited tolerances, click the OK button to save the tolerances and exit the dialog. If you want all of the new standards stored to use these tolerances, click the save as default button. You will be asked to confirm that you want to overwrite the default tolerances. Click OK to continue and then click OK again to exit the Tolerance dialog.

Clicking the Use Default button will set the tolerance type and limits to the current system default settings.


Additional Setup Dialog Controls

















(1) Choose Palette list displays the current palette (if available) selected. The same control can be used to select a different palette if more than one exists.

(2) Rename Palette button is used to rename the selected palette.

(3) Delete Palette button is used to delete the selected palette. All associated color standards will also be deleted.

(4) Choose Standard list displays the current standard in the field. The same control can be used to select a different standard if more than one exists.

(5) Standards field lists the number of standards that exist in the selected palette.

(6) Edit Standard button is used to edit the name or measured data of a standard. You would first select the standard from the Choose Standards list to edit and then click the

Edit Standards button.

(7) Delete Standard button is used to access the Delete Standards dialog where standards are deleted.

(8) Import CSV button is used to import reflectance data for use as a new standard or existing standard. Refer to the next page for details.

39


Importing a CSV File

The CSV import function allows you to create a new standard or edit a previously created standard in Setup. This is accomplished by measuring a sample in monitor mode and then saving the data using the process below to import as a new standard.

NOTE: When importing .csv data using Import CSV, the data is not added to the existing standard when editing. The existing standard data is replaced with the new data.

Creating a .csv file for a standard

1. Take a series of measurements in monitor mode and save the data to an Excel

“master” .csv file. Any new measurements that you want to add to the master file should be saved in a new file. The data is then selected from the new file and then copied into the master .csv.

2. Delete any data not needed in the “master file” and then average the R values.

3. Once averaged, copy the reflectance values into fields “B1” through “AF1” of the

NewImport.csv file located on the VeriColor Spectro CD. Field “A1” is reserved for import code VS31RV required by the software.

4. Save the NewImport.csv file to a location on your computer where it can be accessed for importing.

5. Use the Import CSV function in Standard Setup to import the newly created

NewImport.csv file from the stored location on your computer.

Example .csv file

40


Verify Mode

The Verify mode is used to locate a standard color that closely matches a measured sample.

The standard found is based on the project selected and the tolerance dE entered in the

Admin/Verify page.

The Verify dialog is accessed by clicking the Verify button at the bottom of the application.

1. Select the project where your color standards are stored from the Project drop down list.

Color standards from the selected project appear in the numbered list on the right side of the screen.

2. If desired, set the Averaging from 1 (no average) to a maximum of 20, using the up/down arrows.

3. Determines the amount of time that needs to elapse between timed interval sample measurements. Set the amount of time in the Interval fields using up/down arrows.

Time intervals can range from 4 second up to 60 minutes.

CAUTION: Do not set the time interval to anything less than 4 seconds. This can result in a software error loop requiring a possible re-boot of the PC.

4. Position the color standard under the VeriColor Spectro as specified earlier.

5. Perform targeting if required (refer to Targeting a Part earlier in this section) and then click the Measure button on the Verify dialog to take the measurement.

The closest color standard name and simulated color appears in the first rectangle, with the color name highlighted in the list. The simulated measured color appears in the second rectangle. If the standard found is within the specified tolerance, PASS appears next to the measured color rectangle. If the standard found is not within the specified tolerance, FAIL appears next to the measured color rectangle.

6. When you have finished with the Verify mode, click the Close button to return to the main application screen.

41


Project Mode

The Project mode is used for project maintanence (create, delete and edit), perform uploads/downloads to the instrument, and setup PLC configurations. A single project can consist of up to 250 color standards and configuration settings. After creating a project, it would be downloaded and stored in the VeriColor Spectro instrument. Once the VeriColor

Spectro instrument is programmed with a project, it can execute independent of the software application.

The Project dialog is accessed by clicking the Project button at the bottom of the application.

1. Select the palette where your color standards are stored from the Palette pull down list.

Color standards from the selected palette appear in the Standards numbered list on the left side of the screen.

2. Click the New project button, enter a project name and click OK. The new name will appears in the Project list.

42

The Projects list is used to select the project from the database that you would like to download to the instrument. The selected project shows all associated standards in the

Standards number list on the left.


3. Using your mouse, drag and drop the color standards from the left Standards list to the right Standards list. This will save the color standards under the newly created project.

IMPORTANT: When using a mouse with a scroll wheel, be careful not to use the scroll wheel when the focus is in either of the two Standards lists (Palettes or Projects). The standard that is selected can accidentally be reordered or possibly deleted from the list.

Color standards that are moved to the right column will be “grayed out” in the left column.

4. Click the Save Project button to save the project to the database.

5. To download the Project to the VeriColor Spectro, click the Download project to

instrument button. You will be prompted that the existing project in the instrument will be deleted. Click Yes to continue.

6. When you have finished creating project, click the Close button to return to the main application screen.

Additional Project Dialog Controls



Drag outside of list to delete













(1) Upload project from instrument button is used to retrieve the project currently stored in VeriColor Spectro. The retrieved project name and standards will appear in the list on the right side of the screen.

43


(2) Delete color standards from project list is performed by clicking on the standard in right side list and dragging it outside of the list.

(3) Standards field lists the number of standards that exist in the selected project.

(4) Delete Project button is used to delete the selected project.

(5) Rename Project button is used to rename the selected project.

(6) Configuration button is used to access the Configuration PLC Values dialog. Refer below for detailed information.

(7) Clear project from instrument button is used to clear the current project stored in the instrument.

Configuration PLC Values

The Configuration PLC Values dialog is used to configure the instrument for use with external

PLC control.

The Configuration PLC Values dialog is accessed by clicking the Configuration button at the bottom of the Project dialog.

44

Auto Transmit – Determines if measurement data is automatically transmitted after a measurement. When set to OFF (default setting), no data is automatically transmitted after a measurement. When set to ON, you would choose what data is transmitted.

Select Status only, LabCh (Smp), LabCh (Std, Dif), Refl (Smp), or Refl (Smp, Std) option for the type of data to transmit.

Output – Allows you to select an instrument configuration that dedicates the outputs of channels A-E to support your setup requirements.

 Discrete Outputs – Channels A-D provide Binary outputs indicating the number

(max. 15) of the closest matching standard within the downloaded project.

 RS485 Port – Channels A-D are used to support communications for an RS485 connection.




Action Indicator – Configures the output of channel E to function as a Warn indicator in correlation to the assigned action limit applied to the active standard.

 Bit 5 of Binary Output - Configures the output of channel E to function as Bit 5 in the Binary output configuration indicating the number (max. 31) of the closest matching standard within the downloaded project.

Searching – Determines the standard search method. When set to Searching disabled

(default setting), no standard search is used. The active standard is used for sample comparison. When set to Searching enabled, the instrument is searched for the closest standard match to the measured sample.

Averaging - Determines the method used to derive an average, along with the number of measurement taken to obtain a normal or weighted value digitally filtered average, and how much time elapses between measurements. The Digital Filtering option is an alternative to simply averaging a set of readings. This method applies a weighting factor across multiple readings selected. The averaging control can be turned off by setting it to

(0) zero (default setting), or adjusted from 2 to 10 measurements to average. Time delayed between measurements can be set from 0 to 10 seconds. When the control is set to 0, the Measure button must be clicked to take the measurement. When set to a time increment (10 = 1 sec, 20 = 2 sec., etc.), the instrument will pause the defined amount between measurements.

PLC - Determines the amount of time the instrument will “pause” after seeing the Read input go activate (discrete input only), and how long the instrument holds its outputs active after a measurement occurs. The Time between external trigger and reading control occurs before an actual measurement is taken and can be adjusted from 0 to 10 seconds, in tenths of a second increments (11 = 1.1 sec, 22 = 2.2 sec., etc.). The Time

output control remains active control can be set from 0 to 100 seconds, in tenths of a second increments (11 = 1.1 sec, 22 = 2.2 sec., etc.).

Use Defaults button

Clicking the Use Defaults button will set all options in the Configuration PLC dialog to the factory default settings.

Load Settings button

Clicking the Load Setting button will download the current settings in the Configuration

PLC dialog to the Vericolor Spectro instrument.

45


Monitor Mode

The Monitor mode is the “main” mode of the application. The Monitor mode is used to view sample measurement performance once the color standards are set up.

The Monitor dialog is accessed by clicking the Monitor button at the bottom of the application.

The first step is to select a target (standard) or measure a target (standard). If Auto Target was setup in the Admin/Monitor page, you would select the project where the standards are located. If auto targeting is not used, you would select a specific target.

Selecting a Single Standard (no auto target)

1. Click the Target from file button to open a dialog where a stored standard is selected as the target color.

46

2. Click the left arrow button (<) located between the Palette and Project lists to active the

Palette list.


3. Select the palette from the Palette list where the standard is stored.

4. Click the right arrow button (>) located between the Palette and Project lists to active the Project list.

5. Select the project from the Project list that the standard is associated with.

6. Select the standard from the as standard list.

7. Click Choose to select the standard and close the Standard from file dialog. The standard name appears in the Target field, and the data values and tolerances appear below that.

Selecting a Project for Auto Targeting

NOTE: Auto targeting is setup in the Admin/Monitor page and cannot be selected in the

Monitor mode. You can select a specific standard here; however the standard may change to a closer standard based on the sample measurement taken.

1. Click the Target from file button to open the Standard from file dialog.

2. Note that the Palette list and Project list are disabled on this dialog.

Select the standard from the as standard list.

3. Click Choose to select the standard and close the Standard from file dialog. The standard name appears in the Target field, and the data values and tolerances appear below that.

Auto Target appears to the left of the Target from file button to let you know auto targeting is activated.

Measuring a Standard

NOTE: Auto targeting must be disabled (unchecked) in the Admin/Monitor page to allow a target measurement.

1. Prepare the sample for measurement.

2. Perform targeting if required (refer to Targeting a Part earlier in this section) and then click the Measure target button. If a previous target exists, you will be asked if you want to overwrite the current standard. Click Yes to continue. The sample is measured and the data, default tolerances, and simulated color appear in the target area.

47


3. If you would like to name the target, click in the Target field and enter a name.

Setting Tolerances

The Tolerance button is used to open the Tolerance dialog. Here the tolerance type, tolerance limits, and action limit for the standard used in Monitor mode are set or adjusted.

Tolerances that were created for a standard opened from the file will be carried over. You can edit these tolerances without overwriting the stored tolerance values.

1. Click in the Tolerance button to open the dialog where the tolerances are edited.

48

2. Select the desired tolerance from the Type of Tolerance list.

3. Enter tolerance values in the available fields and adjust the Action limit if required.

4. Click OK when finished. Adjusted values or new values now appear in the tolerance fields below the standard data.


Creating a Standard from a Series of Measurements

NOTE: Auto targeting must be disabled (unchecked) in the Admin/Monitor page to create a standard from a series of measurements.

1. Prepare the sample(s) for measurement that will be used for that standard.

2. Click the Measure target button to obtain the first standard measurement.

3. Set the amount of time that elapses between measurements in the Interval fields using up/down arrows. Time intervals can range from 2 second up to 60 minutes.

4. Click the Start new series button at the bottom of the Monitor dialog to start the measurement sequence.

5. After the required amount of samples are measured for the average, click the Pause button.

6. Click the Mean as Target button that appears at the top of the dialog after the Pause button was clicked. You will be asked to confirm that you want to overwrite the existing standard. Click Yes to continue.

Clicking the Mean as Target button will change the standard to the mean average of the series of measurements taken. The target name changes to “Mean” and indicates the number of samples measured to obtain an average.

IMPORTANT

If you choose your standard from file, and then change the standard to the mean average of the series of measurements, the tolerances that carried over from the standard from file will no longer apply. You will need to manually adjust the tolerance to compensate for the difference in the current mean average vs. the standard from file.

Example: My tolerance is 1.0 DE on L*, a*, and b*. My sample has been running at 0.50 DE to the standard. I choose to change the standard to the mean average of this series. My new standard is now 0.5 DE beyond the original standard tolerance. A tolerance of 1.0 means that I can be running at a DE of 1.5 to the original standard and the instrument will give a pass indication.

In order to avoid this, the tolerance for the new Standard should be adjusted from 1.0 DE to

0.5 DE.

Also, the new standard created from the mean average cannot be saved or replace the current standard in file.

Manual Sample Measurement

Manual measurement mode is used to take single sample measurements. Manual should appear as the trigger method. If not, the option will need to be set as the trigger mode in the

Monitor options page of the Admin dialog.

49


1. Select the standard as previously explained and prepare a sample for measurement.

2. If desired, set the Averaging Samples from 1 (no average) to a maximum of 20, using the up/down arrows.

3. Click the Start new series button at the bottom of the Monitor dialog.

4. Click the Measure button at the bottom of the Monitor dialog. A single measurement is taken and results displayed on the screen.

5. Each time the button is clicked, a measurement is taken and results displayed.

6. Click End of Series button at the bottom of the Monitor dialog to end the manual measurement mode.

7. Click the Store button (if activated) to save the measurement data as a .txt, .csv, or .mif file.

Interval Sample Measurements

Interval measurement mode causes the VeriColor Spectro to take continuous measurements at specified intervals. Timed interval should appear as the trigger method and an interval time amount should be set. If not, the option will need to be set as the trigger mode in the

Monitor options page of the Admin dialog.

50

1. Select the standard as previously explained and prepare the samples for measurement.

2. Determines the amount of time that needs to elapse between timed interval sample measurements. Set the amount of time in the Interval fields using up/down arrows.

Time intervals can range from 2 second up to 60 minutes.

3. If desired, set the Averaging Samples or Sliding Averaging from 1 (no averaging) to a maximum of 20, using the up/down arrows. Sliding average reports the average across the number of measurements defined as they are measured. For example, if 5 is selected as the sliding average, then the last 5 measurements taken are continually averaged.

NOTE: It is possible for the traffic light to display as red (failed) even if the last sample measured in the sliding average group were in tolerance. Refer to the Traffic Light explanation later in this section for additional details.

4. Perform targeting if required (refer to Targeting a Part earlier in this section), and then click the Start new series button at the bottom of the Monitor dialog to start the measurement sequence.

NOTE: You can click the Pause button at the bottom of the dialog to temporarily stop a measurement sequence. Once a measurement sequence is paused, the button's name changes to Run, allowing you to restart the measurement sequence.


5. Click End of Series button at the bottom of the Monitor dialog to end the interval measurement sequence.

6. Click the Store button (if activated) to save the measurement data as a .txt, .csv, or .mif file.

Viewing Sample Data

Trial Data

The table on the right of the Monitor dialog displays the data for the current measurement. A color patch that simulates the trial color is displayed to the right of sample data. You can switch between absolute and difference data by clicking between the abs and dif buttons.

Trend Graph and Controls

The trend graph displays the pass/warning/fail status of the last 25 sample measurements.

Graph bars represents individual measurements or averaged measurements if sliding averaging is used. Upper and lower “Action” and “Fail” limit lines display as yellow and red respectively only on applicable tolerance options correlating to the active standard. You can also enable/disable controls line in the trend by using the control lines button on the left. See next page for details.

The graph controls are located on the left side of the screen.

(zoom in) – The zoom in button increasing the trend graph viewing scale.

51


(zoom out) – The zoom out button decreasing the trend graph viewing scale.

(grid ) – The grid button is used to turn the grid pattern off and on in the trend graph.

(upper/lower control lines) - The upper/lower control lines button is used to turn the control lines off and on for the trend graph. The “red” lines are the fail limits and the “yellow” lines are the warning or action limits.

(date/number stamp) – The date/number stamp button toggles between date-time and number for each measurement. When the button is down, the date and time display. When the button is up, the measurement number appears.

Traffic Light

The traffic light on the right of the screen provides pass/warning/fail status of sample measurements. The green light indicates the measurement is within tolerance and is a pass.

The yellow light indicates that the measurement is trending toward a fail condition, but is still within tolerance. And the red light indicates the measurement is outside of tolerance and is in a fail condition. Any pre-set attribute that is out of tolerance will cause a fail condition.

Pass (green) Warning (yellow) Fail (red)

52

The traffic light reacts differently based on the “sliding averaging” setting and the “Only Last

Record for PASS/FAIL” option setting in the Admin/Monitor page. Refer below for an explanation of the setting conditions.

No Averaging (sliding average = 1) and Only Last Record for PASS/FAIL enabled (checked)

•

Green light = current measurement is a pass.

•

Yellow light = current measurement is ok but trending toward fail.

•

Red light = current measurement is a fail.

No Averaging (sliding average = 1) and Only Last Record for PASS/FAIL disabled (unchecked)

•

Green light = all measurements displaying within the active trend graph window are passing.


•

Yellow light = One or more of the measurements displaying within the active trend graph window has triggered the (warn condition) action limit. Yellow will continue to display until the single measurement that caused the condition scrolls from the screen in the trend graph (after 25 measurements), or a fail (red) condition occurs. In this case, the light will change to red.

•

Red light = One or more of the measurements displaying within the active trend graph window has failed. Red will continue to display until the single measurement that caused the fail condition scrolls from the screen in the trend graph (after 25 measurements). At that point, the light could change to green or yellow if the current measurement is in passing or warning condition.

Averaging (sliding average = 2 or more) and Only Last Record for PASS/FAIL enabled

(checked)

•

Green light = current grouped measurement average is a pass.

•

Yellow light = current grouped measurement average has triggered the (warn condition) action limit.

•

Red light = current grouped measurement average is a fail.

Averaging (sliding average = 2 or more) and Only Last Record for PASS/FAIL disabled

(unchecked)

•

Green light = all of the grouped measurement averages displaying within the active trend graph window are passing.

•

Yellow light = one or more of the grouped measurement averages displaying within the active trend graph window has triggered the (warn condition) action limit. Yellow will continue to display until the measurement group average that caused the condition scrolls from the screen in the trend graph, or a failed (red) average condition occurs. In this case, the light will change to red.

•

Red light = one or more of the grouped measurement averages displaying within the active trend graph window has failed. Red will continue to display until the measurement group average that caused the fail condition scrolls from the screen in the trend graph. At that point, the light could change to green or yellow if the current measurements average is in passing or a warning condition.

Additional Monitor Dialog Controls

- Store button is used to save the standard and sample measurement data in a .txt, .csv, or .mif file format. For a .csv file format, refer to Importing a CSV File in the Color

Standards and Projects section for more detailed information on using this feature.

- Close button closes the Monitor dialog returns you to the main application screen.

53


Lookup Mode

The Lookup mode is used to quickly locate color standards from the database that closely match the sample being measured. Up to 10 color standards and associated palettes are displayed starting with the closest match listed in the first position. Matches are based on the delta E cmc value set in the Admin/Lookup page.

The Lookup dialog is accessed by clicking the Lookup button at the bottom of the application.

54

1. Click in the Target field and enter a name for the sample to be measured.

2. If desired, set the Averaging Target from 1 (no averaging) to a maximum of 20, using the up/down arrows. This determines the amount of measurements required to obtain an average in Lookup mode.

3. Prepare the sample for measurement.

4. Perform targeting if required (refer to Targeting a Part earlier in this section) and then click the Measure button. Color standards are listed in ascending order based on delta

DEcmc criteria along with their palette location.


5. If you would like to receive a report of the search results, click the Print button. A report that includes the measurement data for the measured target and all the standards will be sent to your default printer.

Sample Lookup Report

6. When you have finished with the Lookup mode, click the Close button to return to the main application screen.

55


Compare Mode

The Compare mode is useful for quickly determining the color difference between a standard and trial. A standard and trial can be measured or retrieved from a file. Up to 10 trial measurements can be taken for a standard.

Printed reports can be configured to include the Mean values if enabled in the

Admin/Compare page.

Measurements taken on this screen do not affect the current setup, log file, or require the

VeriColor Spectro instrument to be setup with a project.

The Compare dialog is accessed by clicking the Compare button at the bottom of the application.

56

1. Select the operator that will be running the compare from the Operator drop down list.

The operator names listed are entered in Compare options page of the Admin dialog.

2. Enter required information in the two fields below the operator's name. In the dialog above, they are Lot ID: and Serial ID:. The text to the left of the two fields is specified in the Compare options page in the Admin dialog.

3. Enter additional information/comments in the Comment field.

Selecting a Standard from File

1. Click the Standard from file button to open a dialog where a stored standard can be selected as the target color.



Palette list.




6. Select the standard from the as standard list.

7. Click Choose to select the standard and close the Standard from file dialog. The standard name appears in the standard field.

Measuring a Standard

1. Prepare the standard for measurement.

2. If desired, set the Averaging Standard from 1 (no averaging) to a maximum of 20, using the up/down arrows. This determines the amount of measurements required to obtain an average.

3. Perform targeting if required (refer to Targeting a Part earlier in this section) and click the Measure standard button. If a previous standard exists, you will be asked if you want to overwrite the current standard. Click Yes to continue. The standard is measure and the data and simulated color appear in the target area.

4. Enter a name for the standard in the Std field.

Setting Tolerances

The Tolerance button is used to open the Tolerance for the Compare dialog. Here the tolerance type and tolerance limits for the standard used in Compare mode are set or adjusted. Tolerances that were created for a standard opened from the file will be carried over. You can edit these tolerances without overwriting the stored tolerance values.

1. Click in the Tolerance button to open a dialog where the tolerances are edited.

2. Select the tolerance type and edit tolerance values in the fields and click OK when finished. Adjusted values now appear in the tolerance fields below the standard data.

57


Selecting a Trial from file

1. Click the Trial from file button to open a dialog where a stored standard can be selected as the trial color.


Palette list.




6. Select the standard from the as trial list.

7. Click Choose to select the standard as a trial and close the Trial from file dialog. The name appears in the first Trial field along with the data values and simulated color patch.

8. Select additional trials from file up to a total of 10. The bottom row of the data fields displays the mean values of all the selected trials.

Measuring a Trial

1. Prepare the trial for measurement and perform targeting if required (refer to Targeting a

Part earlier in this section).

2. Click the Measure trial button. The trial is measured and the data and simulated color appear in the target area.

3. Enter a name for the trial in the Trial field.

4. Click the abs or dif buttons to display trial data as either absolute data or difference data to the standard.

5. Measure additional trials up to a total of 10. The bottom row of the data fields displays the mean values of all the measured trials.

Deleting Trials

1. Click the Delete trial button to open the Delete trial dialog.

58

2. Click Delete last, Delete all, or delete a range of trials. To delete a range of trial, enter the range and click the Delete range button. For example, to delete trials 3 through 6, you would enter 3:6 in the field. You can also delete a group of selected trials by entering individual numbers in the field separated by commas (i.e., 1,3,8).

3. Click the Close button when you are finished.


Additional Compare Dialog Controls

- Print button prints the standards and trial data to the default printer. Refer to the next page for a sample print out.

- Save button is used to save the standard and sample measurement data in a .txt, .csv, or .mif file format.

- Close button closes the Compare dialog and returns you to the main application screen.

Sample Compare Report

59


General Maintenance

Repair Information

The VeriColor Spectro is covered by a one-year limited warranty and should be referred to the factory or an authorized service center for repairs within the warranty period. Attempts to make repairs within this time frame may void the warranty.

X-Rite provides a factory repair service to their customers. Because of the complexity of the circuitry, all repairs should be referred to the factory or an authorized service center (call: 1-

888-826-3042 or 1-616-803-2100).

X-Rite will repair any VeriColor Spectro past warranty. Shipping cost to the factory or authorized service center shall be paid by the customer.

Cleaning the Spectro Instrument Lenses

Normally, use low-pressure air to blow away any dust or debris on the lenses (or use a soft lens brush).

To remove dirt or finger prints, clean with a soft cotton cloth rubbing in a circular motion.

Use of a coarse cloth or unnecessary rubbing may scratch the lens surface and eventually cause permanent damage.

For a more thorough cleaning, photographic lens tissue and photographic-type lens cleaning fluid or isopropyl alcohol may be used. Always apply the fluid to the cleaning cloth – never directly on the lens.

Cleaning the Calibration Tool

Caution should be used not to touch the white reference in the bottom of the calibration tool.

ONLY use clean, dry low-pressure air to remove any contaminates from the white reference in the calibration tool.

Store the calibration tool in the bag provided when not in use.

60


Hardware Troubleshooting

This section deals primarily with troubleshooting problems with the PLC discrete inputs.

Problem Topic Explanation/Solution

VeriColor Spectro will not power up.

Improper power connection. Terminal screws not tightened firmly on wires.

Terminal not plugged in properly.

Loose or broken power wires.

Contamination has entered the terminal and is preventing a reliable connection.

Fix the short or overload problem, wait a little bit and re-apply power.

Over-current situation caused by a short or overload. Re-settable fuse opens.

Over-voltage situation

(exceeds 30VDC). Resettable fuse opens.

Power supply does not provide enough current at power-up.

“Read” input does not work, system does not measure.

LED indicator light does not work (solid amber) with input.

Problems getting discrete inputs to work.

Most often the problem would be wiring/electrical problems.

Voltage spec is 24V +/- 10%. Correct voltage supplied to VeriColor Spectro and then re-apply power.

Make sure power supply can provide at least 3 Amps at start up.

Instrument may have just powered up and is still trying to initialize (flashing amber).

Wait until the VeriColor Spectro indicates a solid “green” before attempting to measure.

Terminal screws not tightened firmly on wires, or loose or broken wires.

Supplying too much voltage can cause damage to the circuitry. Instrument will need service.

61


Problem Topic Explanation/Solution

Problems with discrete Outputs.

Wiring/Electrical problems.

See Cable Connection and

Wiring section for electrical wiring diagram.

Terminal screws not tightened firmly on wires.

Terminal not plugged in properly.

Loose or broken power wires.

Instrument will not communicate.

Check cables first. It might be a quick fix and are the cheapest parts to replace.

Contamination has entered the terminal and is preventing a reliable connection.

Go over the entire system looking for loose or obviously damaged cables.

A cable that is shorted out can cease all communications.

A cable that is loose might cause intermittent communications and constant resetting of the head. Ensure a proper connection.

62


Appendices

Specifications

NOTE: Performance specifications based on an operating temperature of 10° - 50°C (50° – 122°F)

General

Instrument Type: ........................ Spectrophotometer

Geometry: ................................. 0°/30° or 30°/0° (results below based on 0°/30°)

Monochromator: ......................... Dual beam, 31 channel

Light Source: .............................. Full System LED

Measurement Size: ...................... 25.4 mm (1 in.) for 30°/0° geometry

25.4 mm x 29.21 mm (1 in. x 1.15 in.) for 0°/30° geometry

Measuring Distance: .................... 101.6 mm (4 in.) nominal to measuring surface

Acceptability to Variation in Depth of Measuring Field: ...................... ±5.08 mm (±.20 in.) with 0.2 Δ E max

Operating Temp: ......................... 0° - 50°C (32° – 122°F) performance based on 10° - 50°C (50° - 122°F)

Operational Humidity: .................. 0 - 85% relative, non-condensing

Storage Temp: ........................... -20° - 70°C (-4° – 158°F)

Operating Voltage: ...................... 24VDC ±2VDC @ 2.45A Max.

Communication I/O: .................... RS-232, RS-485, PLC discreet

Functional Size ........................... L: 22.86 cm (9 in.), W: 15.3 cm (6 in.),

H: 7.62 cm (3 in.)

Weight ...................................... 2.81 kg (6.2 lbs)

Mounting Requirements: .............. Manual Fixture

Enclosure: .................................. Designed to meet NEMA 4 / IP56

Performance

Warm up Time: ........................... 2 - 3 min. typical at 23°C (73.4°F)

Measurement Time: ..................... 750 ms

Cycle Time: ................................ (1 sec. time interval between measurements)

Ambient Light Rejection: .............. 3000 Lux

Short Term Repeatability: ............ 0.02 avg. Δ Eab (20 measurements at 3 sec. intervals on a white ceramic tile)

Long Term Repeatability: ............. 0.15 avg. Δ Eab (over the calibration interval)

Inter-Instrument Agreement: ....... 0.20 avg. Δ Eab based on 12 BCRA Series II tiles

Calibration Interval: .................... Validation recommended - 30 days / 50,000 measurements (whichever comes first)

More frequent verifications may be required if cleanliness of the system is not maintained.

Measurement Range: ................... 0 to 150% Reflectance

Spectral Range: .......................... 400 nm to 700 nm

Spectral Interval: ........................ 10 nm measured, 10 nm output

Product Life: ............................... 5 years minimum

LED Life: .................................... > 10 million measurements (20 million typical)

Operational Random Vibration: ..... IEC 60068-2-64 – 1 g rms 20-2000 Hz

Operational Shock ....................... IEC 60068-2-27 – 30 g amplitude 11 ms duration any axis

63


Environmental

Usage: ...................................... Indoor Only

Altitude: .................................... 2000 m

Pollution Degree: ........................ 2

Overvoltage: .............................. Category II

Safety Compliance

Underwriters Laboratories: ........... UL 61010-1

Canadian Standards Assn.: ........... CSA 22.2 No. 1010.1

International Electrotechnical

Committee: ................................ IEC (EN) 61010-1

Design and specifications subject to change without notice.

Accessories

The following accessory items can be purchased from X-Rite by calling 1-888-826-3042 or by visiting our website at: www.xrite.com.

5 Meter Female – Open Ended Cable (8 circuit)/DB9 P/N VCS50-EUR8-5DB

5 Meter Male – Open Ended Cable (8 circuit) P/N SE108-EUR8-5M

1 Meter – Right-angle Interconnect Cable (8 circuit) P/N SE108-EUR8-1RA

64


Electrical Interface Details

Power/Comm/Control Cable

Item Pin Name Description Active Comments

1

2

3

4

5

6

7

8

Cable

Shield

J1 -1

J1 -2

J1 -3

J1 -4

J1 -5

J1 -6

J1 -7

J1 -8

-

Power

Negative

Tx out

RV in

DSR

10's

1's

Read

Shield

+24 Vdc

Power Return

RS232 Transmit Out

RS232 Receive In

Discrete Select

Request

Ten's Digit

One's Digit

Take a

Measurement

-

-

-

-

-

High

See Note 1

High (50 msec. pulse)



-

Discrete Interface Cable

Item Pin Name

Default Option

(see Note 2)

1

2

J2 -1

J2 -2

Pass

Fail

Pass

Fail

4

5

6

7

8

Cable Shield

J2 -4

J2 -5

J2 -6

J2 -7

J2 -8

-

Common

ACTION

CH-D 8

CH-C 4

CH-B 2

CH-A 1

Shield

Common

CH-E 16

RS485TX-A

RS485RX-A

RS485RX-B

RS485TX-B

Pass output

Fail output

Output Common

(see Note 3)

ACTION and/or

Channel-E

Channel-D or

RS485-TX-A

Channel-C or

RS485-RX-A

Channel-B or

RS485-RX-B

Channel-A or

RS485-TX-B

-

2.45 Amp max.

1.40 Amp Typ.

Negative side of 24Vdc power supply

RS232-TX

RS232-RV

Input +24V max, +12V min. rating, 100mA max.

DSR must be active to work

Input +24V max, +12V min rating, 100mA max.





Connect to the panel or fixture ground

State

See Note 3

See Note 3

See Note 3

See Note 3

See Note 3

See Note 3

See Note 3

See Note 3

- Connect to the panel or fixture ground

65


NOTE 1

Due to the requirement that this input remains on (active) while the 1's and 10's input are toggled, the on time duration (or period) is dependent on the number of 1 and 10 activations that transpire.

NOTE 2

In the default project set-up these wires are all discrete lines. Pass, Fail and ComO are always the same, while CH-A through CH-D and Action can have an alternate configuration. a. Action is the default but can be configured as CH-E (channel-E). b. CH_A through CH-D are the defaults but can be configured into a 4-wire RS485 port.

Once these lines are set as RS485, they cannot also be used as discrete outputs.

NOTE 3

These individual signal lines are part of the 'Discrete Interface' cable and all are low power outputs which use a common control line referenced (“ComO”; the green wire). This common line is either a supply or ground return connection for these outputs. a. Low power means these outputs can only handle up to +24Vdc at 80-milliamps max. b. All outputs default as normally open contacts, but can be configured as to normally closed contacts. Note they still all use a common control line. c. If the common control line is connected to ground, then all outputs are in low-side or return path configuration. This means when VeriColor Spectro activates the 'pass' output, it is providing a ground signal for an external light or relay coil to turn on. d. If the common is connected to power (voltage ranging from +9Vdc to +24Vdc), then all outputs are in high-side or supply path configuration. This means when VeriColor Spectro activates the 'pass' output it is providing a positive voltage signal for an external light or relay coil to turn on.

66

Corporate Headquarters

X-Rite, Incorporated

4300 44th Street SE

Grand Rapids, Michigan 49512

Phone 1 800 248 9748 or 1 616 803 2100

Fax 1 800 292 4437 or 1 616 803 2705

European Headquarters

X-Rite Europe GmbH

Althardstrasse 70

8105 Regensdorf

Switzerland

Phone (+41) 44 842 24 00

Fax (+41) 44 842 22 22

Asia Pacific Headquarters

X-Rite Asia Pacific Limited

36th Floor, No. 169 Electric Road

Hong Kong, China

Phone (852)2568-6283

Fax (852)2885 8610

Please visit www.xrite.com

for a local office near you.

P/N VS410-500 Rev. E

No results
