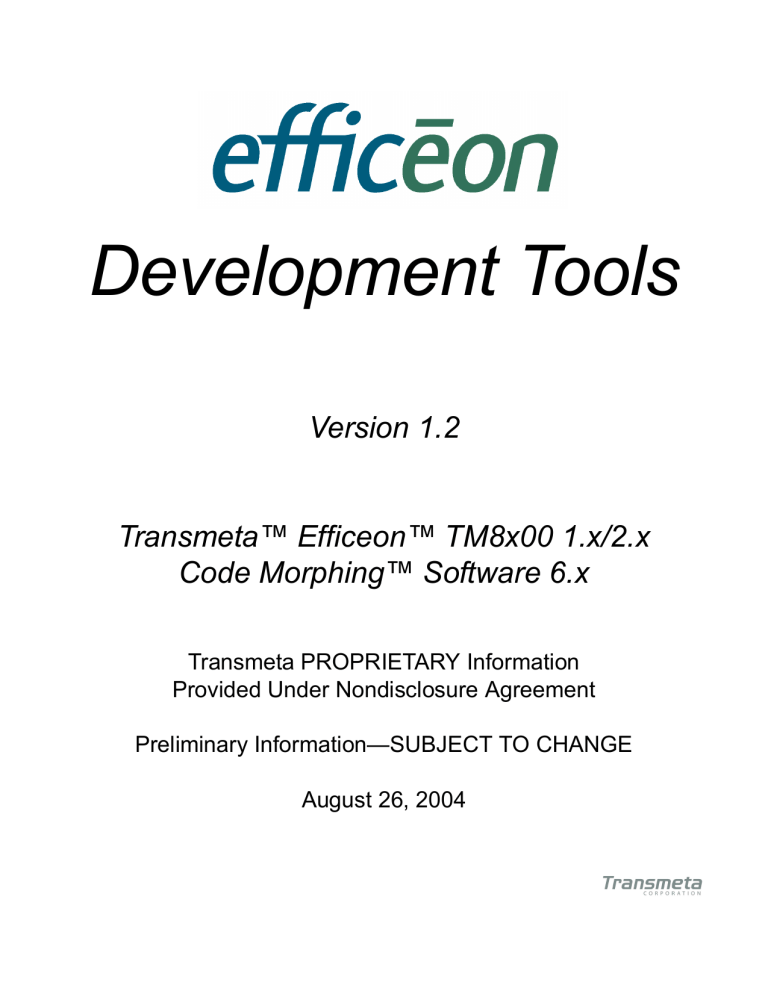

Development Tools Guide
Development Tools
Version 1.2
Transmeta™ Efficeon™ TM8x00 1.x/2.x
Code Morphing™ Software 6.x
Transmeta PROPRIETARY Information
Provided Under Nondisclosure Agreement
Preliminary Information—SUBJECT TO CHANGE
August 26, 2004
Efficeon Tools Guide
August 26, 2004
Property of:
Transmeta Corporation
3990 Freedom Circle
Santa Clara, CA 95054
USA
(408) 919-3000
http://www.transmeta.com
The information contained in this document is provided solely for use in connection with Transmeta products, and Transmeta reserves all rights
in and to such information and the products discussed herein. This document should not be construed as transferring or granting a license to
any intellectual property rights, whether express, implied, arising through estoppel or otherwise. Except as may be agreed in writing by
Transmeta, all Transmeta products are provided “as is” and without a warranty of any kind, and Transmeta hereby disclaims all warranties,
express or implied, relating to Transmeta’s products, including, but not limited to, the implied warranties of merchantability, fitness for a
particular purpose and non-infringement of third party intellectual property. Transmeta products may contain design defects or errors which may
cause the products to deviate from published specifications, and Transmeta documents may contain inaccurate information. Transmeta makes
no representations or warranties with respect to the accuracy or completeness of the information contained in this document, and Transmeta
reserves the right to change product descriptions and product specifications at any time, without notice.
Transmeta products have not been designed, tested, or manufactured for use in any application where failure, malfunction, or inaccuracy
carries a risk of death, bodily injury, or damage to tangible property, including, but not limited to, use in factory control systems, medical devices
or facilities, nuclear facilities, aircraft, watercraft or automobile navigation or communication, emergency systems, or other applications with a
similar degree of potential hazard.
Transmeta reserves the right to discontinue any product or product document at any time without notice, or to change any feature or function of
any Transmeta product or product document at any time without notice.
Trademarks: Transmeta, the Transmeta logo, Crusoe, the Crusoe logo, Efficeon, the Efficeon logo, Code Morphing, LongRun, and
combinations thereof are trademarks of Transmeta Corporation in the USA and other countries. Other product names and brands used in this
document are for identification purposes only, and are the property of their respective owners.
Copyright © 2004 Transmeta Corporation. All rights reserved.
2
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Directory of Contents
Chapter 1
Configuration Tools Overview ...................................................................................................................... 5
1.1
ROM Image Creation .................................................................................................................. 5
1.2
Installation ................................................................................................................................... 6
1.3
Example: Creating a ROM Image Programming File .................................................................. 8
Chapter 2
ROM Creation Utilities and Templates ......................................................................................................... 9
Chapter 3
Bringup Tools .............................................................................................................................................. 21
Chapter 4
Debugging Hardware Interfaces and Tools ............................................................................................... 29
4.1
System Debug Interface............................................................................................................ 29
4.2
Debugging Interfaces ................................................................................................................ 30
TDM-2 .................................................................................................................................... 31
Macraigor Raven ....................................................................................................................... 33
Chapter 5
Virtual x86 In-Circuit Emulator (VICE) ........................................................................................................ 35
5.1
Feature Overview...................................................................................................................... 36
5.1.1
Operational Notes....................................................................................................... 37
5.1.2
Known Issues ............................................................................................................. 37
5.2
Installation ................................................................................................................................. 38
5.2.1
System Requirements ................................................................................................ 38
5.2.2
Software Installation ................................................................................................... 38
5.2.3
Host to Target Connection.......................................................................................... 38
5.3
Text Command Interface........................................................................................................... 39
5.3.1
Command Prompt....................................................................................................... 39
5.3.2
Commands ................................................................................................................. 39
5.3.3
Syntax Notes .............................................................................................................. 53
5.3.4
Command Summary ................................................................................................... 57
Appendix A
POST Codes ................................................................................................................................................. 61
Appendix B
OEM-template.rcl ......................................................................................................................................... 63
Appendix C
Recommended Reading .............................................................................................................................. 71
Glossary ....................................................................................................................................................... 73
Index ............................................................................................................................................................. 83
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
3
Directory of Contents
4
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Efficeon Tools Guide
August 26, 2004
Chapter 1
Configuration Tools
Overview
The following chapters provide information about tools provided by Transmeta that are used to implement,
configure, and debug a system based on a Transmeta Efficeon™ processor. Tools include the following:
•
ROM Creation Utilities and Templates (page 9)
Utilities for assembling and examining a 2MB ROM image. Includes makerom, print-oct, print-ver,
disasm-rom, and rom-format.
•
Bringup Tools (page 21)
Console tool for viewing results of Power-On Self Test codes while booting (POSTCodeTool), in-system
programming of LPC flash memory (FlashTool), system reset (ResetTool), processor state listing
(scandump), and debug module detection (TDM2Detect and defaultTDM). The DOSFlash suite of
utilities enables ROM management from DOS.
•
Debugging Hardware Interfaces and Tools (page 29)
The LPC interface, system debug interface, and physical debugging devices.
•
Virtual x86 In-Circuit Emulator (VICE) (page 35)
In-circuit emulator and debugger.
1.1 ROM Image Creation
This section describes the process of creating a system ROM image, and then programming the image into
an LPC flash ROM using the Efficeon™ TM8x00 ROM tools.
For detailed information about ROM images, see Chapter 2 Code Morphing Software Image in the Efficeon
System Configuration Guide.
An Efficeon system ROM contains Code Morphing software code, boot code, OEM system-specific
configuration information in the OEM configuration table, and the system BIOS code. The components of the
system ROM image are combined into a single programming image using utilities described in ROM Creation
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
5
Efficeon Tools Guide
August 26, 2004
Configuration Tools Overview
Utilities and Templates on page 9. ROM programming images created by this process are programmed into
the target system LPC flash ROM using a Transmeta flash ROM programming tool (see flashtool on
page 22). When the system is rebooted, power-on self-test (POST) codes can be viewed with
POSTCodeTool (see page 21).
The figure below graphically shows the Efficeon TM8x00 LPC flash ROM image creation and programming
process. The associated Efficeon TM8x00 tools and documents required for each step in the process are
shown in the rectangular boxes connected to either side of the activity bubbles in the figure.
Efficeon TM8x00 ROM Image Creation and LPC Flash ROM Programming
BIOSGuide
CMSRelease
Bundles
g
DevelopBIOS
BIOSPorting
Guide
CMS Rel Notes
CMSGuide
ToolsGuide
ToolsGuide
Edit OEM
TemplateFile
BIOS Image
CMS
Version
ProgramROM
(In-System)
flashtool
TextEditor
SystemInfo
OEMTemplateFile
ROM Image
ToolsGuide
makerom
=
BIOS Image
=
BIOS Guide
=
BIOS Porting Guide
=
CMSGuide
=
CMSImage
CMS Release Bundles =
=
CMS Rel Notes
=
OEMTemplate
=
ROMImage
=
ROMProgrammer
=
System Info
=
Debug Module
=
Text Editor
=
Tools Guide
ROMImage
CreateROM
OEM System BIOS Object Code Image
Efficeon TM8x00 BIOS Programmer's Guide
Efficeon TM8x00 BIOS Porting Guide
Efficeon TM8x00 Code Morphing Software Guide
Efficeon TM8x00 Code Morphing Software Object Code Image
Efficeon TM8x00 Code Morphing Software Release Bundle File(s)
Efficeon TM8x00 Code Morphing Software Release Notes
Efficeon TM8x00 CMS OEM Configuration Table Definition File
OEM System LPC Flash ROM Image
Off-Line Flash ROM Programmer
Efficeon TM8x00 System Components
Macraigor Raven Debug Module
Standard Text File Editor
Efficeon TM8x00 Bringup/Debug Tools Guide
DebugModule
ROM
Programmer
makerom
flashtool
ProgramROM
(Offline)
= Efficeon TM8x00 ROM creation utility
= Efficeon TM8x00 Flash Programmer Tool
1.2 Installation
See the Development Tools Release Notes and Errata for system requirements.
The Development Tools installer requires the Microsoft .NET framework version 1.1 or later. This can be
obtained by using "Windows Update" to install the latest system software.
Note that if you update your system regularly, it is very likely that you already have installed the latest .NET
framework.
6
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Configuration Tools Overview
There are three components required in order to produce Code Morphing software ROM images:
•
TM8x00 Development Toolset
•
TM8x00 System Components
•
TM8x00 Code Morphing Software
Installing the Development Toolset
Install the TM8x00 Development Toolset first. This installer provides a default path where the tools should be
installed. The other two installers install in the same path as the TM8x00 Development Toolset directory
without prompting.
Please note that Transmeta provides “.msi” files for installation. “MSI” is a short form for Microsoft Installer.
These installers are supported only under Windows XP or Windows 2000/SP3.
The default installation path is:
C:\Program Files\Transmeta\TM8x00 Development Tool Set\
This path is recommended by Transmeta—all relevant documentation refers to that default path. It is highly
recommended that this path be used to install the tools.
Note that the installer installs mac_tdmd.exe as a Windows service. After installing the DevTools package,
you must perform a few steps to start mac_tdmd.exe in order to use the Macraigor Raven debugger to
communicate with your target system. For details, see Connecting and Configuring the Macraigor Raven on
page 33.
To install the Development Toolset, double-click on the installer and follow all instructions.
Installing the System Components
The tools are now accessible from a command prompt. However, a ROM image can not be created until the
System Components and Code Morphing software are installed.
Note that these installers use the installation path provided by the Development Toolset.
Run the System Components installer. Click Next to continue, and then click Next at the confirmation page to
continue installation.
Installing Code Morphing Software
After installation finishes, run the Code Morphing software installer. Click Next to continue, and then click Next
at the confirmation page to continue installation.
The tools, components, and Code Morphing software are now installed and ready to program.
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
7
Efficeon Tools Guide
August 26, 2004
Configuration Tools Overview
1.3 Example: Creating a ROM Image
Programming File
There are several steps to create a ROM image and upload it to an Efficeon system, as shown in the following
example. These examples assume that the tools software, components software, and Code Morphing
software have been installed as described in the previous section.
1.
Copy the OEM-template.rcl file and edit.
The file OEM-template.rcl contains a basic template for the OEM configuration table. Fields in the table
are described in OEM-template.rcl on page 13.
2.
a.
Copy this file to working directory from the sub-folder TM8x00 System Components in the tools
installation folder.
b.
Edit the file using any text editor.
Create a ROM image using makerom.
Once you have a system BIOS, completed OEM-template.rcl file, and Code Morphing software, you can
assemble a system ROM image file using makerom, as in this example:
System BIOS image file: MyBIOS (binary)
OEM configuration table: OEM-template.rcl
Code Morphing software: version 6.0.0#9
makerom MyImage OEM-template.rcl 6.0.0#9 MyBIOS
The resulting binary file MyImage contains the new system ROM.
3.
Connect debug device to your system, and select it using the instructions in Debugging Interfaces on
page 30.
4.
Flash the ROM image into your system.
Use flashtool to flash the image onto the system ROM using the LPC bus:
flashtool MyImage
5.
Restart the system:
resettool -r
6.
Start POSTCodeTool, which also resets the system when using a TDM2 device.
postcodetool
8
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Chapter 2
ROM Creation Utilities
and Templates
2.1 makerom
Create a 2MB ROM image with customer's BIOS. Requires a Code Morphing Software revision in the format
x.y.z#a (for example, 6.0.0#9) and an OEM definitions file. If the BIOS image file is omitted, a 1344kb CMS
image is created, without an embedded BIOS.
Note that OEMTemplate.rcl must be edited prior to using makerom. See OEM-template.rcl on page 13.
makerom Usage
makerom [options/switches] <output> <OEM> <CMS> [BIOS]
-V
| --version
Print version information for this utility
-h
| --help
Print usage information and exit
-v
| --verbose
Print additional information
<output>
(REQUIRED) output image file (binary format)
<OEM>
(REQUIRED) input OEM definitions file
<CMS>
(REQUIRED) input CMS revision
[BIOS]
Optional input BIOS image file
For information about the OEM definitions file, see OEM-template.rcl on page 13.
2.2 print-ver
"print-ver" extracts and prints version information from a 2MB ROM image. It is useful when the origin of a
particular image is unknown. It can be used on images created by makerom (see makerom on page 9), or on
images extracted from the LPC ROM using flashtool (see flashtool on page 22).
print-ver Usage
usage: print-ver [options/switches] <image>
-V
| --version
Print version information for this utility
-h
| --help
Print usage information and exit
-o<value> | --output=<value>
output file containing version information
-v
| --verbose
Print additional information
<image>
(REQUIRED) binary image file to extract
version information from
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
9
Efficeon Tools Guide
August 26, 2004
ROM Creation Utilities and Templates
print-ver Example
C:\>print-ver image.bin
Version Information from Image: "image.bin"
Primary Boot:
"20030926 00:47 official release
Primary CMS:
"20030926 00:47 official release
Primary OEM-Config: "4.2" @ 2003-10-03 10:37:27
Recovery Boot:
"20030926 00:47 official release
Recovery CMS:
"20030926 00:47 official release
Recovery OEM-Config: "4.2" @ 2003-10-03 10:37:27
6.0.0#9"
6.0.0#9"
6.0.0#9"
6.0.0#9"
2.3 print-oct
print-oct extracts the OEM-specific section of the OEM configuration table from a 2MB ROM image and prints
it in a human-readable format. It is useful when the exact settings in the table are unknown. It can be used on
images created by makerom (see makerom on page 9), or on images extracted from the LPC ROM using
flashtool (see flashtool on page 22) with "flashtool --dump".
For more information about the OEM configuration table, see OEM-template.rcl on page 13. :
print-oct Usage
print-oct [options/switches] <image> <CMS>
-V
| --version
Print version information for this utility
-b<num>
| --BIOSsize=<num>
size of BIOS (in KBytes)
Default value = 704
-h
| --help
Print usage information and exit
-o<value> | --output=<value>
output file containing OEM Config Table
-r
| --recovery
print recovery OEM Config table
-v
| --verbose
Print additional information
<image>
(REQUIRED) binary image file containing
OEM Config table
<CMS>
(REQUIRED) input CMS revision
print-oct Example
C:\>print-oct image.bin
vr_100mV_ramp_time
vr_voltage[0]
vr_voltage[1]
vr_voltage[2]
. . .
longrun_frequencies[6]
longrun_frequencies[7]
6.0.0#9
=>
0x0023;
=>
0x06d6;
=>
0x06a4;
=>
0x0672;
=>
=>
#
#
#
#
@
@
@
@
0x0000; # @
0x0000; # @
256
260
262
264
(`oem)
(`oem)
(`oem)
(`oem)
648 (`oem)
650 (`oem)
2.4 disasm-rom
disasm-rom breaks 2MB ROM images down into their components. It can be used on images created by
makerom (see makerom on page 9), or on images extracted from the LPC ROM using flashtool (see flashtool
on page 22).
disasm-rom takes an image file (image.bin) as input, and creates several files as a result. See below for an
example. images.bin is created from either "flashtool --dump" or "makerom".
10
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
ROM Creation Utilities and Templates
To use disasm-rom, you need to know which version of CMS was used to create the image. Use print-ver to
identify the CMS version (see print-ver on page 9).
disasm-rom Usage
disasm-rom [flags/switches] <image> <CMS>
-V
--version
Print version information for this utility
and exit
-b<num>
--BIOSsize=<num>
size of BIOS (in KBytes)
Default value = 704
-h
--help
Print usage information and exit
-o<value> --output=<value>
output folder/file for extracted images
Default value = "."
-r<value> --region=<value>
name of region to extract, default is to
extract ALL regions.
Valid choices are:
BIOS
primaryBoot
primaryCMS
primaryOEM
recoveryBoot
recoveryCMS
recoveryOEM
-v
--verbose
Print additional information during
execution
<image>
(REQUIRED) binary image file to extract
all components from
<CMS>
(REQUIRED) input CMS revision
Examples
C:\>disasm-rom image.bin 6.0.0#9
. . . the following files are created in the same directory:
720,896
28,672
28,672
655,360
655,360
4,096
4,096
image-BIOS.bin
image-Boot-P.bin
image-Boot-R.bin
image-CMS-P.bin
image-CMS-R.bin
image-OEM-P.bin
image-OEM-R.bin
<-<-<-<-<-<-<--
704k BIOS image
28k primary boot code
28k recovery boot code
640k primary CMS code
640k recovery CMS code
4k primary OEM config table
4k recovery OEM config table
. . . the following file is also located in the directory:
2,097,152 image.bin
<--
2MB LPC ROM input image
C:\>disasm-rom -o MyPrimaryBoot.bin -r primaryBoot TwoMegImage.bin 6.0.1#5
Extracting Primary Boot Image
...
Creates a single output file called "MyPrimaryBoot.bin" in the current folder
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
11
Efficeon Tools Guide
August 26, 2004
ROM Creation Utilities and Templates
2.5 rom-format
rom-format is a ROM file format converter. It converts from any format to any format. The input file format is
determined automatically. Output format is selected on the command line and can be one of "compressed",
"binary" or "s-record". The "compressed" format utilizes a proprietary Transmeta compression algorithm and
is not compatible with any other compression standard. The in-system ROM programming utility, "DOSFlash"
uses files in the TMTA compressed format. (See DOSFlash on page 26.)
rom-format Usage
usage: rom-format [flags/switches] <input> <output
-V
| --version
Print version information and exit
-f<value> | --format=<value>
Desired output file format. Valid choices are:
compressed, binary, s-record
-h
| --help
Print usage information and exit
-v
| --verbose
Print additional information during execution
<input>
(REQUIRED) input image file to convert (any
format)
<output>
(REQUIRED) converted output image file
2.6 make-SPD
make-SPD enables customers to easily create and modify SPD data. SPD stands for "Serial Presence
Detect", a 64-byte table containing information about a memory module. Typically this information is available
from a serial ROM on the memory module. Systems which do not incorporate memory modules (for board
space and cost considerations) must specify this information directly to Code Morphing software for memory
configuration.
make-SPD creates an S-record file containing 64 bytes of SPD information. This file may be used inside the
OEM-template.rcl file (see page 13) for those systems using soldered down memory (these systems typically
do not have an SPD ROM containing SPD data).
To use this utility, copy the file SPD-template.rcl from the following directory to your project directory:
C:\Program Files\Transmeta\TM8x00 Development Tool Set\TM8x00 System Components
Rename the template to accurately reflect the memory device. Then edit the file, changing every instance of
?? to the actual SPD value for the device. Any remaining ?? causes a syntax error from make-SPD. SPD
information is available from the memory manufacturer.
Note: change only the text ??; altering any other text in the file can cause a syntax error. For more information
about SPD fields, see the SPD specification, and contact the memory manufacturer.
Finally, run make-SPD according to the usage below. This creates a file containing SPD data suitable for use
with makerom (see makerom on page 9).
make-SPD Usage
make-SPD [flags/switches] <SPD>
-V
--version
-h
--help
-o<value> --output=<value>
-v
--verbose
<SPD>
12
Print version info for this utility and exit
Print usage information and exit
Output SPD file name
Print additional information during execution
(REQUIRED) input SPD setting file
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
ROM Creation Utilities and Templates
2.7 OEM-template.rcl
This file is a template for OEM-related options. It is used as input to makerom (see makerom on page 9). This
section describes the template file and how to change it to meet your project needs.
Be sure to use the OEM-template.rcl file that came with your system. Older configuration files may not have
the settings you need to properly configure your system. The revision number for the file can be found on the
in the fifth line of the file with the tag "Revision:". Refer to this revision when contacting your Transmeta
representative. To see an example template file see Appendix B, OEM-template.rcl on page 63.
Note
The examples shown in this section are not indicative of correct values—they are for example purposes
only. Setting your file to these values will not result in an operable system.
2.7.1
System Specific Information
CPU SKU
In section 1, the CPU SKU defines valid frequency and voltage combinations for your CPU. Normally there is
one conservative "debug" or "bring-up" SKU, and one or more "performance" SKUs for production. The SKU
definitions in the template file describe the maxiumum frequency and voltage for that SKU.
Uncomment the line in section 1 that matches the SKU for your situation. Transmeta recommends using the
bring-up SKU while in development, and then switching to your specific production SKU for final testing and
production.
For example, the following SKU definition is for a TM8600 running at 1GHz on a maximum of 7.5 watts:
# SKU = "860012.BPLAAA1000"; # TM8600; 1000MHz/7.5W/CR70
Change the line to:
SKU = "860012.BPLAAA1000"; # TM8600; 1000MHz/7.5W/CR70
Voltage Regulator Table
Each voltage regulator has a unique Voltage Regulator Digital to Analog (VRDA) table associated with it.
Currently, there is only one voltage regulator approved for use with the Efficeon microprocessor—the Maxim
1718.
Uncomment the line in section 2 that matches the voltage regulator in your system.
For example:
# VRDA = "MAX1718";# Currently only MAXIM 1718 is supported
Change the line to:
VRDA = "MAX1718";# Currently only MAXIM 1718 is supported
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
13
Efficeon Tools Guide
August 26, 2004
ROM Creation Utilities and Templates
ROM Selection
The ROM which stores Code Morphing Software determines the capacity for future upgrades. Currently, there
are three 2MB ROMs approved for use with the Efficeon processor—the Sharp LH28F016, the SST
49LF080A, and the STMicro M50LPW116. Contact your Transmeta representative to discuss which ROM is
most appropriate for your system.
After a ROM has been selected, a virtual ROM model must be entered in the template file. Efficeon
processors use a virtual ROM model to perform in-system and secure upgrades. There is a virtual ROM
model for each of the supported physical LPC ROMs.
Uncomment the line in section 3 that corresponds to the ROM in your system. For example:
# VIRTUAL_ROM = "SHARP_LHF00L01"; # Was called LH28F016 in pre-production
# VIRTUAL_ROM = "SST_49LF080A";
# VIRTUAL_ROM = "STMICRO_M50LPW116";
Change the line to:
# VIRTUAL_ROM = "SHARP_LHF00L01"; # Was called LH28F016 in pre-production
# VIRTUAL_ROM = "SST_49LF080A";
VIRTUAL_ROM = "STMICRO_M50LPW116";
2.7.2
Platform Identifier Fields
Each configuration must include a unique signature consisting of: a customer ID supplied by Transmeta, a
number indicating the platform variant, and additional optional information provided by the OEM. This
signature is used to ensure that secure upgrades can be safely performed on the OEM system, and that
different systems can be uniquely identified.
Transmeta-Provided Customer Identifier and Platform Identifier Fields
Transmeta assignes each customer an identification number in hexadecimal format. Contact your Transmeta
representative for this number.
In section 4.1, uncomment the CustomerID line and enter your customer ID in place of
<customer-platform-id>.
For example:
# CustomerID
= <customer-platform-id>; # Hexidecimal value in
# the range of 1..0xFFF
Change the line to:
CustomerID
= 0xD42; # Hexidecimal value in
# the range of 1..0xFFF
The platform variant differentiates systems produced by the same OEM. This number is assigned based on
how many distinct Efficeon systems are developed by one OEM. Contact your Transmeta representative for
this number, which should stay the same for a given project.
14
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
ROM Creation Utilities and Templates
Uncomment the PlatformVariation number and enter your platform variation in place of <platformvariation>. For example:
# PlatformVariation = <platform-variation>;
# Hexidecimal value in
# the range of 1..0xFF
Change the line to:
PlatformVariation = 0x01;
# Hexidecimal value in
# the range of 1..0xFF
Customer Platform Identification Field
This optional section enables OEMs to specify unique identifiers. The use of this field is unspecified by
Transmeta, and may be used by the OEM in any manner. This field is visible in the PCI configuration space of
the nortbridge as a DWORD identifed as bus=0, device=0, func=0, reg=0xC4.
To set a value for this field, in section 4.2 uncomment the line for upgrade_oem_id1 and replace the 0 with
your desired hexadecimal value. For example:
# upgrade_oem_id1 => 0;
Change the line to:
upgrade_oem_id1 => 1234;
2.7.3
Upgrade Security Options
Upgrade security options comprise section 5 of the template file.
The LPC flash ROM is protected by x86-visible Northbridge registers (see the section entitled ROM Write
Protection Control in Chapter 2 Buses and Connections in the Efficeon BIOS Programmer’s Guide). The
default state of these registers is to write-protect the Flash ROM.
Efficeon processors support both secure and insecure upgrades. A secure upgrade is possible only with a
signed upgrade image generated by Transmeta. An insecure upgrade can be performed with any ROM
image—it is not necessary to obtain Transmeta’s assistance to perform insecure upgrades. This mechanism
is designed to enable OEMs to easily perform and test upgrades during development, but to turn this
capability off for production units entering the field.
This template file provides two fields to control upgrade security, as described below. Transmeta strongly
recommends also reading the technical bulletin entitled ROM Security and BIOS ROM Protection for further
information.
global_write_security
The field global_write_security controls write access to the Northbridge field
global_write_enable. Potential values include:
Value
Description
0
Secure (default value)
1
Hardware dongle required
2
Insecure
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
15
Efficeon Tools Guide
August 26, 2004
ROM Creation Utilities and Templates
bios_write_security
The field global_write_security controls controls permission to decrease the protected ROM size (in
Northbridge field rom_protected_size). Potential values include:
Value
Description
0
BIOS writing is controlled (i.e. BIOS_WE is enabled) (default value)
1
BIOS writing is insecure
Update Security Settings
During development and debugging, provide settings as necessary for your security needs.
Transmeta recomends one of the following configurations for production systems, since these ensure that the
Code Morphing software image in the Flash ROM cannot be overwritten:
bios_write_security
global_write_security
0x0 (BIOS_WRITE_CONTROLLED) 0x1 (BIOS_INSECURE)
(ROM_WRITE_SECURE) 0x00 RECOMMENDED
(ROM_WRITE_HW_DONGLE) 0x01 RECOMMENDED
(ROM_WRITE_INSECURE) 0x02 UNSAFE
UNSAFE
For example, for a development system:
upgrade_options.global_write_security
upgrade_options.bios_write_security
=> 0;
=> 0;
# Default is "rom_write_secure"
# Default is
# "bios_write_controlled"
=> 2;
=> 1;
# Default is "rom_write_secure"
# Default is
# "bios_write_controlled"
=> 0;
=> 0;
# Default is "rom_write_secure"
# Default is
# "bios_write_controlled"
Change the lines to:
upgrade_options.global_write_security
upgrade_options.bios_write_security
For a production system, change the lines to:
upgrade_options.global_write_security
upgrade_options.bios_write_security
For more information about this field, see the technical bulletin entitled ROM Security and BIOS ROM
Protection.
Signed Upgrades
Transmeta provides a secure upgrade mechanism (with signed Code Morphing software images) that
operates independently of the above protection mechanisms. For more information, see the document
Transmeta Code Morphing Software Upgrade API.
16
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
2.7.4
ROM Creation Utilities and Templates
LongRun Frequencies
Section 6 enables OEMs to specify custom LongRun settings in a given SKU. It is strongly recommended that
this field be left at its defaults—the LongRun frequencies provided by Transmeta have been optimized for
each SKU. Consultation with a Transmeta representative is required for changing these values.
2.7.5
CPU Features
Various CPU features are available in section 7.
Processor Serial Number
Set cpu_feature.psn_disable to 1 to permanently disable the processor serial number. The default is 0,
i.e. PSN is enabled. For example:
cpu_feature.psn_disable
=> 0;
To disable PSN, change the line to:
cpu_feature.disable_ecc
=> 1;
To leave PSN enabled, do not change the line.
Disable ECC
Set cpu_feature.disable_ecc to 1 to treat ECC memory as non-ECC memory. The default is 1,
indicating that ECC is disabled. For example:
cpu_feature.disable_ecc
=> 1;
To enable ECC, change the line to:
cpu_feature.disable_ecc
=> 0;
To leave ECC disabled, do not change the line. Note that enbling ECC results in a small performance penalty.
Enable SSTL-2 Termination
Set cpu_feature.SSTL2_termination to 1 to indicate that SSTL_2 termination is in use for the DRAM
bus. The default is 0, indicating that termination is not in use. For example:
cpu_feature.SSTL2_termination
=> 0;
To indicate SSTL_2 termination in the DRAM bus, change the line to:
cpu_feature.SSTL2_termination
=> 1;
Leave the line as it is to indicate that termination is not in use.
NX Support
Set FIXME to 1 to enable support for the No-Execute (NX) command. The default is FIXME. For example:
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
17
Efficeon Tools Guide
August 26, 2004
ROM Creation Utilities and Templates
Change the line to:
2.7.6
Memory Configuration
Section 8 provides memory configuration parameters. For DIMMs, the SPD chip on the memory module itself
provides all necessary configuration information. For soldered memory, SPD information can be provided by
creating a configuration file based on a template.
Other memory parameters can be set individually with the other fields shown in this section. See below for
details.
Memory SPD Data for Soldered Down Memory
For memory that is soldered down, OEMs normally need only specify the SPD data using an SPD
configuration file. Modifying the provided template file SPD-template.rcl with information provided by the
memory vendor, and then use the utility make-SPD (see page 12) to create an SPD s-record file.
Specify this file in OEM-template.rcl by uncommenting the appropriate line(s) that contain the fields
MemSPDfile_0 and/or MemSPDfile_1, and specify the absolute pathname to the valid SPD file inside the
single quotes on that line.
For example:
# MemSPDfile_0 = 'FULL PATH TO VALID SPD FILE (S-RECORD FORMAT)';
Change the line to:
MemSPDfile_0 = 'C:\my_dev_folder\SPD\my_mem_spd_file.srec';
SPD ROM Address
Hexadecimal address of first SPD ROM on SMBUS. Contact your Transmeta representative if you need to
change this field. The field is shown below:
mem_smbus_spd_base_addr
=> 0x50;
Clock Assignments
Table mapping DIMM slot number to clocks for that DIMM. Contact your Transmeta representative if you need
to change this field. The field is shown below:
mem_slot_to_clocks
=> {0x07, 0x38, 0x00, 0x00};
Lowest Memory Frequency
Lower limit of memory frequency in increments of 100/6 MHz. Contact your Transmeta representative if you
need to change this field. The field is shown below:
mem_freq_min
18
=> 5;
# 83.33 MHz
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
ROM Creation Utilities and Templates
Highest Memory Frequency
Upper limit of memory frequency in increments of 100/6 MHz. Contact your Transmeta representative if you
need to change this field. The field is shown below:
mem_freq_max
2.7.7
=> 10; # 166.67 MHz
Code Morphing Software Memory Size
This field indicates the size of the block of memory (in MB) reserved for Code Morphing software. Valid values
range from 8MB to 128MB, with a recommended absolute minimum of 24MB. The default is 32MB. Contact
your Transmeta representative if you need to change this field.
cms_memory_size
2.7.8
=>
32;
Debugging Options
Several options are avilable for debugging purposes. Unless you have a board issue you should not need to
adjust the defaults. Boot code sets the drive strengths based on the loading it detects. Unless the board
layout deviates from the norm as detailed in the Efficeon System Design Guide in trace lengths and loading,
the settings should not need adjustment. Transmeta highly recommends allowing boot code to do the tuning,
and only manually adjusting for known layout or loading deviations.
Debug Port I/O Address
This field enables developers to specify an I/O port address to be used for BIOS (and other) POST codes. Set
to a port number, or to 0 to disable.
io_port_debug_led
=> 0x0000;
# Default is disabled
S-CLK Delays
This field provides a table which maps sclkdly values to maximum memory frequency (in 16.67MHz
increments). this table depends on the length of the DDR traces on the board. Longer traces mean that lower
values of sclkdly top out at lower frequencies.
sclkdly_to_mem_frequency
=> {7, 10, 255, 255};
The sclkdly_to_mem_frequency is used to accommodate the board round trip time. In general, the default
value of {7,10,255,255} sets the sclkdly to 1 at 167Mhz and should be used for short trace layout.
{7,8,255,255} sets the sclkdly to 2 at 167Mhz and should be used for long trace layout.
These only affect the drive strength of the CPU driving the memory. Memory drive strength back into the CPU
receiver is not programmable in the same way. There is a DRAM MRS setting for weak drivers, but that is not
applicable for any socketed memory where the load may vary.
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
19
Efficeon Tools Guide
August 26, 2004
ROM Creation Utilities and Templates
Minimum and Maximum Loads
These fields provide tables which specifies how many chip loads in each signal group can be driven with the
drive strength set to 0 (the minimum) or 7 (the maximum). The minimum load table depends strongly on board
capacitance. The maximum load table depends weakly on board capacitance.
group_to_min_loads
=> {0, 0, 0, -1};
group_to_max_loads
=> {18, 18, 18, 9};
These 2 group settings are used to control the drive strength for 4 different signal groups, namely CLK, CTRL
(CS#, CKE), Address/RAS/CAS/WE, and DQ/DQS in that order. For the above default settings, the 1st three
groups are driven with the maximum 18 drivers when the total load is 11 or higher. The last group DQ/DQS is
driven with the maximum drivers when the total load is 5 or higher.
It is possible to use linear interpretation to pick the driver vs. load pair. For example, for a given memory
module of 1GB on both slots, assume parameters of 32x8-2B per module. Is this correct? If so, the first group
(CLK) will have 8 loads, so the number of drivers will be 12. The second and third groups (CTRL and
Address/RAS/CAS/WE) will have 32 loads, so the number of driver will be the maximum. The last group
(DQ/DQS) will have 4 loads, so the number or driver will be 12—this is because the line has shifted down by
1 and slope change to 9, roughly speaking.
There is normally no need to change these numbers unless developers see problems with DIMMs due to
loading. In that case, the memory must be well-characterized to make the right adjustment.
20
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Chapter 3
Bringup Tools
3.1 POSTCodeTool
NOTE: POSTCodeTool is supported only with Code Morphing software 6.0.2 or greater.
A console application used to view Power On Self Test (POST) codes output during the boot process.
postcodetool Usage
postcodetool [options] [state...]
-d<file>
--desc=<file>
-n<value> --target=<value>
-s<num>
-x<num>
-V
--seconds=<num>
--exit=<num>
--verbose
-h
-v
--help
--version
select a postcode description file
override default target with an
alternate target hostname
total seconds to check codes
exit code (exit when POST equals this value)
verbose mode---print additional
information when displaying codes
Print usage information and exit
Print version information and exit
The -d option maps POST codes to descriptions. Note that many POST codes are vendor-specific—for this
reason, you must specify a file that contains a mapping of vendor codes to descriptions. Code Morphing
software POST codes are described in Appendix A, POST Codes on page 61. Contact your Transmeta
representative for further information.
postcodetool Example
C:\> postcodetool --seconds=15 --desc=vendor-provided-post-codes
CMSB
0x6802: Completed reading SPD data
CMSB
0x6900: Memory Configuration complete
CMSB
0x5830: Memory Configuration Complete
CMSB
0x5865: Begin XBOOT initialzation
CMSB
0x5880: Begin CMS decompression
CMSB
0x5890: Main CMS successfully decompressed
CMSB
0xACED: CMS loaded, jumping to CMS
CMSN
0xAC04: Begin CMS nucleus initialization for regular cold boot
CMSN
0xAC14: CMS component initialization complete for cold boot
CMSN
0xAC18: x86 install state complete
CMSN
0xAC1C: About to execute first x86 instruction
. . .
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
21
Efficeon Tools Guide
August 26, 2004
Bringup Tools
3.2 TDM2Detect and defaultTDM
TDM2Detect is a Windows application to display all the Transmeta Debug Module (TDM) devices that can be
accessed through the local network. defaultTDM.exe is a simple console command which has no parameters.
TDM2Detect does not detect Macraigor Raven devices. For the Macraigor, simply run defaultTDM, or use
TDM2Detect to set the default host as “localhost. Also, note that the Macraigor can not communicate with the
target unless mac_tdmd is running. For details on the Macraigor device, see Macraigor Raven on page 33.
TDM2Detect Usage: Select the TDM-2 in the listbox and click "Select As Default" to set that TDM-2 as the
default. This TDM-2 is now the default device for all the tools. Note that in order for TDM2Detect to function
on Efficeon processors, the default device must be set to 3 (TCP/IP).
defaultTDM Usage: defaultTDM target
When used with no parameters, defaultTDM sets the default Transmeta Debug Module (Macraigor in this
case) to the local machine. In other words, if you connect the Macraigor device to the same machine that you
run the tools from, use "defaultTDM" with no parameters. If your Macraigor device is connected to another
machine, include the name of that machine on the command line. In this case, the Development Tools must
be installed on both the machine connected to the Macraigor device and the machine where the tools will run.
3.3 flashtool
A console application to flash, erase, peek, or poke the ROM using the Transmeta Debug Cable.
flashtool Usage
flashtool [OPTIONS]
-h
|
-v
|
-e
|
-p<addr>
|
-o<addr>,<val> |
[file]
--help
--version
--erase
--peek=<addr>
--poke=<addr>,<val>
-r<addr>
| --peek32=<addr>
-s<addr>,<val> | --poke32=<addr>,<val>
-i
| --info
-n<name>
| --target=<name>
-d[filename]
| --dump[=filename]
-c
| --checksum
Print this message.
Display version information.
Erase the entire flash device.
Read the flash location 'addr'.
Write the byte value 'val' to flash
location 'addr'.
Read 32-bit flash loaction 'addr'.
Write the 32-bit 'val' to flash
location 'addr'.
Display information about the flash
device(s).
Override TARGET_TDM environmnt variable and specify alternate target.
Dump flash contents to file. If
<filename> ends in '.srec', an SREC
formatted file is generated. Otherwise, a binary file is written. If
<filename> is omitted, the SREC
contents are written to stdout.
Generate a 32-bit checksum of ROM
contents. Checksum is computed
after all write operations (if any)
are complete.
file is the name of a ROM image file to be written to the flash. Binary and S-Record formats are supported.
S-Record files must use the .srec extension.
22
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Bringup Tools
Multiple S-Record files can be specified on a single command line, and they will be combined into one image.
They are combined by overlaying at the offset addresses embedded in each file.
Note: all flash access commands will reset the target.
flashtool supports flashing through JTAG and the following ROM types:
•
SST 49LF080
•
Sharp LHF00L01
•
ST Micro M50LPW116
3.4 scandump
This tool extracts critical internal state information from the TM8x00 device via JTAG scan chains, and writes
this information to a text file which can be used by Transmeta engineers to analyze the state of the processor
at the time the scan was performed. This file does not contain any information which is directly usable by a
customer—it must be forwarded to TMTA for analysis.
scandump Usage
scandump [OPTIONS]
-h
|
-v
|
-o<filename>
|
-c<comment>
|
-n<name>
|
--help
--version
--output=<filename>
--comment=<comment>
--target=<name>
Print this message.
Display version info.
Select output file
Add comment to output file
Override TARGET_TDM environment
variable and specify an alternate
target debug device.
When to Use scandump
scandump should be used only when it is necessary to perform a post-mortem analysis with a hung system.
scandump should not be used when there is a BSOD, or the mouse is still moving, or the keyboard is still
active. The scanning process turns off the processor’s internal clocks, hence it is not possible to resume
normal operation following a scandump. Since it is only used post-mortem, a hard reset is required anyway.
How to Use scandump
•
The --output=filename option provides a filename for the results of the JTAG scan. Use descriptive file
names, especially when taking multiple scandumps. The –o option can be anywhere in the command
line. If you do not use the –o option, the results of the scandump appear on the host console.
•
The --comment=comment option adds a text comment to the scandump filename (used only in
conjunction with the -o option). There can be no spaces in the text comment. Typically this is used to
include the Code Morphing software version number in the output. The –c option can be anywhere in the
command line.
•
scandump --target=name overrides the TARGET_TDM variable and selects an alternate target. This is
normally not required with the Macraigor Raven debugging device, but it is useful when doing remote
scandumps with the TDM-2 device over a network.
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
23
Efficeon Tools Guide
August 26, 2004
Bringup Tools
Note that the Macraigor device requires that either defaultTDM.exe has been run, or the target must be
manually set to “localhost,” as the Macraigor device is not detected automatically with TDM2Detect. For
details on the Macraigor device, see Macraigor Raven on page 33. For details on the TDM-2 device, see
TDM-2 on page 31.
•
Before sending the output file to Transmeta, examine it carefully. The file should contain random
characters (not all one character, such as all Fs). If it is all (or mostly) a repetition of one character, then
the scandump was not successful.
•
When sending a scandump to Transmeta for analysis, you must specify the version of Code Morphing
software being used on the platform. The results from scandump cannot be completely analyzed without
knowing the Code Morphing software version.
•
When sending the file, include any other pertinent information, i.e.
-
Type of system (name of customer platform or reference design)
-
How did the system hang (during boot, BSOD, no response to keyboard and mouse, etc.)?
-
The application being executed (if any)
-
The operating system being used
-
Abnormal thermal activity, i.e. CPU appeared to be very hot
-
Does the hang occur on all systems, or on a subset of all systems?
scandump Examples
Command Line
Result
scandump
The target is examined using the default target debugging
device. Results are displayed on the host console and not
saved to a file.
scandump –o wizbang0302.txt
The target is examined and the results are stored in a file
named wizbang0302.txt
scandump –o wizbang0302.txt
–c cms6.0.0#12
The target is examined and the results are stored in a file
named wizbang0302.txt, with the text “cms6.0.0#12”
added to the file as a comment
scandump –n localhost options...
The target is examined using the Macraigor debugging
device. (This is not necessary as long as you have already
run defaultTDM.exe as explained above.)
3.5 TMTASysInfo
This utility extracts system information from the system under debug via the JTAG connector. By default it
extracts the electronic serial number from the TM8x00 processor as well as the silicon revision. The "raw"
option includes the unprocessed ID scan chains from the processor, the "verbose" option included additional
24
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Bringup Tools
manufacturing information. If the "cmsversion" option is selected, tmtaSysInfo also attempts to extract version
information from the LPC ROM in a fashion similar to print-ver (see print-ver on page 9).
TMTASysInfo Usage
tmtaSysInfo [OPTIONS]
-h
-c
information from ROM
-r
-V
-v
-o<filename>
-n<name>
--help
--cmsversion
--raw
--verbose
--version
--output=<filename>
--target=<name>
Print this message.
Display CMS version
Display raw scan chains
Display more information
Display version info.
Select output file
Override TARGET_TDM
environment variable and
specify an alternate
target TDM-2.
TMTASysInfo Examples
C:\> tmtaSysInfo
Silicon Revision: 1.2
Electronic Serial Number: G44124-23-14-07
C:\> tmtaSysInfo --raw
Unique ID: 2000039C17220922
ID Code: 000C24C01189
Silicon Revision: 1.2
Electronic Serial Number: G44124-23-14-07
C:\> tmtaSysInfo --raw --verbose
System Info: TDM = transmeta-tdm
Unique ID: 2000039C17220922
ID Code: 000C24C01189
Silicon Revision: 1.2
Lot ID: 44124
Wafer ID: 23
Die Coordinates: X=14; Y=7
Fab: G
Foundry: 3
Process: 0
Process Rev: 0
Electronic Serial Number: G44124-23-14-07
C:\> tmtaSysInfo --cmsversion
Silicon Revision: 1.2
Electronic Serial Number: G44124-23-14-07
Primary Boot Version: "20031217 22:31 official release 6.0.1#5"
Primary CMS Version: "20031217 22:31 official release 6.0.1#5"
Recovery Boot Version: "20031217 22:31 official release 6.0.1#5"
Recovery CMS Version: "20031217 22:31 official release 6.0.1#5"
Primary OEM Configuation Table Version: 4.6; Configured: 2004-01-21 15:58:17
Recovery OEM Configuration Table Version: 4.6; Configured: 2004-01-21 15:58:17
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
25
Efficeon Tools Guide
August 26, 2004
Bringup Tools
3.6 resettool
A console application to perform system reset, CPU reset, jtag reset, or power reset.
resettool Usage
resettool [OPTIONS]
OPTIONS are:
-h
| --help
-v
| --version
-n <name>
| --target=<name>
Print this message
Display version information.
Use TDM named <name>. Default specified
by $TARGET_TDM environment variable.
Note: the remaining options are processed in the order they appear on the command line
-r[<state>] | --sys_reset[=<state>]
-R[<state>] |
-j[<state>] |
-s<action>
|
-i[<num>]
|
Control system-wide reset on target.
<state> is either 0, 1, 3, or 4
(default 4 if omitted).
--cpu_reset[=<state>] Control CPU reset on target. <state> is
0, 1, 2, or 3 (default 3 if omitted).
--jtag_reset[=<state>] Control JTAG reset on target. <state> is
0, 1, 2, or 3 (default 3 if omitted).
--soft_power=<action> Press the target system's soft power
button. <action> is a number with the
following meaning:
0 == turn off
!0 == turn on
--ignore_pwr[=<num>]
If <num> is 1, ignore whether the target
is powered off when attempting a reset. If
<num> is 0, issue an error if reset is
attempted with a powered off target. (<num>
default is 1 if omitted.) The options list
is treated as though it starts with -i0.
The <state> numbers mean the following:
0 == release (i.e. tri-state)
1 == assert (i.e. drive low)
2 == deassert (i.e. drive high)
3 == pulse (i.e. assert then release)
4 == release all three reset signals and then pulse system reset
Note that the target system may not always respond as expected to resettool commands involving the soft
power button ("-s" option) due to the way the southbridge interprets certain hardware signals from the
debugger. Specifically, issuing a "resettool -s0" command immediately after a "resettool -r1" command does
not power off the system; the "-r1" command causes the southbridge to think the system is already off.
To return the system to a known state, issue a "resettool -r" command followed by a "resettool -s1" command
3.7 DOSFlash
DOSFlash contains several utilities, as shown in the following sections.
26
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Bringup Tools
DOSFlash Utility
DOSFlash can read and write the LPC system ROM from DOS in a TM8x00 system. Execution from a
Windows command prompt is not supported. However, DOSFlash runs under MS-DOS, PC-DOS, FreeDOS,
a Windows 9x bootable floppy disk, or a "Safe mode command prompt only" boot of Windows 9x.
DOSFlash cannot override the ROM security features in the OEM configuration table. Therefore, the field
global_write_security must have either the value 01b or the value 10b. If the value is 01b, then the CPU pin
L_SECURE must be low when DOSFlash is run. Note that the value 01b is not recommended for production
systems. If DOSFlash is unable to run, it prints an error message explaining why.
DOSFlash Usage
DOSFlash.exe [OPTIONS]
-r<value> | --read-rom=<value>
Dump the ROM contents to the specified file
-w<value> | --write-rom=<value> Flash the ROM using the specified image file
-p<value> | --params=<value>
Use the ROM device model in the provided file
instead of the one specified in the existing
OEM config table
-h
| --help
Print usage information and exit
-v
| --version
Print version information and exit
Either the --read-rom or --write-rom option must be specified. If both are specified, DOSFlash reads
the current ROM contents before writing the new image file. The ROM image files read and written by
DOSFlash are compressed using a proprietary Transmeta algorithm.
When writing the ROM, DOSFlash uses the ROM device model specified in the upgrade_virtual_rom_model
field of the OEM configuration table. If that ROM device model is incorrect, then the flash operation fails. This
indicates a problem with the OEM configuration table that will prevent secure field upgrades from working.
The table should be corrected at the earliest opportunity. DOSFlash can work around this problem by using a
separate file that contains a complete ROM device model. That file is specified on the command line with the
--params option.
make-flash-floppy Utility
The utility make-flash-floppy creates a bootable DOS floppy disk containing DOSFlash and ROM image
file. The ROM image file must be provided on the command line.
make-flash-floppy Usage
usage: make-flash-floppy [options/switches] <image>
<image>
(REQUIRED) ROM image file to place on floppy disk.
-h | --help
Print usage information and exit.
-v | --version
Print version information and exit.
The floppy disk is created using a separate utility called rawrite and a floppy image file. The floppy image
file, rawrite, and DOSFlash must all be present in the same directory as the make-flash-floppy utility.
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
27
Efficeon Tools Guide
August 26, 2004
Bringup Tools
28
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Chapter 4
Debugging Hardware
Interfaces and Tools
Note
The next chapter describes VICE, the Transmeta in-circuit emulator/debugger. See Virtual x86 In-Circuit
Emulator (VICE) on page 35.
4.1 System Debug Interface
The Efficeon™ TM8x00 System Design Guide describes the recommended JTAG interface debug connector
for TM8x00 processor-based system designs.
The system debug interface uses the TM8x00 processor 16-pin JTAG interface, of which a subset is the
standard 5-pin JTAG interface. This interface supports IEEE 1149.1, EXTEST, SAMPLE/PRELOAD,
BYPASS, and HiZ instructions. The processor JTAG interface operates up to 100 MHz. The JTAG interface
debug connector pinout is described in the table below.
TM8x00 System Debug Connector
Pin Number
Signal Name
Description
1
SYS_RST#
System reset signal, active low.
2
CPU_RST#
TM8x00 processor RESET# signal, active low.
3
GND
System ground.
4
DBG_RDY
TM8x00 processor DBG_RDY (debug ready) signal.
5
GND
System ground.
6
TDO
TM8x00 processor JTAG interface TDO (data output) signal.
7
GND
System ground.
8
TCK
TM8x00 processor JTAG interface TCK (clock input) signal.
9
GND
System ground.
10
TMS
TM8x00 processor JTAG interface TMS (test mode select) signal.
11
GND
System ground.
12
TDI
TM8x00 processor JTAG interface TDI (data input) signal.
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
29
Efficeon Tools Guide
August 26, 2004
Debugging Hardware Interfaces and Tools
TM8x00 System Debug Connector (Continued)
Pin Number
Signal Name
Description
13
GND
System ground.
14
TRST#
TM8x00 processor JTAG interface TRST# (reset) signal, active low.
15
PWR_BTN#
System power button signal, active low.
16
PWR_DET
System power detect signal.
The figure below shows an example TM8x00 system debug interconnection diagram. The debug connector is
shown routed to the required signals on the system motherboard.
Example TM8x00 System Debug Interconnection Diagram
DBG_RDY
TDO
CPU_RST#
TRST#
TDI
TMS
TCK
10k
SYS_RST#
PWR_BTN#
V3_3
PWR_DET
Debug Connector
TM8000
Voltage Supervisors
V5_0_PWG
V3_3_PWG
V2_5_PWG
DBG_RDY
TDI
TDO
TMS
TCK
TRST#
RESET#
A_RST#
PWROK_CORE
V_CPU_CORE
Regulator
ENABLE
PWG
PWROK_IO
V1_5_PWG
V1_2_PWG
1k
V1_25_PWG
V_GX_CORE_PWG
V5_0_ALWAYS_PWG
V3_3_ALWAYS_PWG
1k
Southbridge
1k
PWRBTN#
PWG
CPURST#
PCIRST#
RSMRST#
PCI_RST#
V2_5_ALWAYS_PWG
See the Efficeon™ TM8x00 Data Book and Efficeon™ TM8x00 System Design Guide for more details on the
TM8x00 processor JTAG interface and the recommended system debug connector.
4.2 Debugging Interfaces
The minimum system requirement for the Efficeon Configuration Tools is a 500MHz Pentium-III or equivalent,
with at least 512 MB RAM. Windows 2000/SP3 and XP are supported; Windows 9x and Windows Me are not
supported. If your system has no parallel port, a PCMCIA parallel port adapter such as the Qualtech SPP-100
may be used.
There are two supported debugging interfaces:
30
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Debugging Hardware Interfaces and Tools
•
TDM-2, the Transmeta Debug Module version 2
•
Macraigor Raven
TDM-2
The Transmeta debug module-2 (TDM-2) provides the host system with access to the target system through
the TM8x00 debug interface. The TM8x00 software tools require either the TDM-2 or Macraigor Raven (see
later section on Macraigor Raven) in order to access and control the target system. The TDM-2 is a hardware
device that connects between the network and target system as shown in the diagram below. The host uses
the TDM-2 through the network connection to access the target system.
Connecting the TDM-2 to the Host and Target Systems
Windows
Host System
Network
Target System
Network
Interface
TDM-2
Debug
Port
Network
Interface
TM8x00
Debug
Connector
16-Signal
Gold Flex Cable
Debug Port Connector
- to Ribbon Cable Adapter
The TDM-2 front and rear panel displays and connectors are shown in the figures below.
Transmeta TDM-2 Displays and Connectors
Front Panel
Rear Panel
xx.xx.xx.xx.xx.xx
88 88
RESERVED
TDM2 TARGET
STATUS STATUS
RJ45
Network
Connector
DEBUG PORT
USB
COM2
1
0
COM1
FLASH
xx.xx.xx.xx.xx.xx (12 character label)
RJ45 network connector
TDM-2 network adapter MAC address
Reserved connector
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
31
Efficeon Tools Guide
August 26, 2004
Debugging Hardware Interfaces and Tools
Transmeta TDM-2 Displays and Connectors (Continued)
Front Panel
Rear Panel
LED POST code displays
Debug port connector
TDM2 status LED
USB port connector
Target status LED
COM2 serial port connector
COM1 serial port connector
AC power cable connector
Compact flash memory socket
AC power switch and red LED power indicator
Connecting and Configuring the TDM-2
The procedure below describes how to connect the TDM-2 to the network and the target system, and how to
set up the host system to access the target system and TDM-2 through the TM8x00 tools.
NOTE
The network to which the host computer and TDM-2 are connected must have a DHCP server (which
automatically assigns an IP address to the TDM-2 and maps the TDM-2 MAC address to this assigned IP
address) to use the configuration procedure described here. If there is no DHCP server on the network,
another method must be used for assigning and determining the IP address of the TDM-2.
If tdm2detect cannot be used and no default TDM-2 is assigned for the host system, the TM8x00 tools
require the target TDM-2 IP address to be explicitly called out on the command line.
32
1.
Connect the power cord to the TDM-2 (rear panel) and plug the other end of the power cord into a
standard AC outlet.
2.
Plug a standard RJ45 network cable into the TDM-2 network connector socket (rear panel) and plug the
other end of the network cable into a live network connection.
3.
Turn on the TDM-2 using the power switch on the rear panel. Wait until the front panel display changes
from ‘88.88’ and the ‘TDM-2 Status’ light comes on. The TDM-2 requires less than a minute to complete
it’s power-on diagnostics, boot-up, and network configuration.
4.
Make sure the host computer is connected to the same network as the TDM-2. Then run the Transmeta
tdm2detect utility on the host computer:
a.
Open the tdm2detect Windows application from the host computer desktop.
b.
tdm2detect will display a list of TDM-2 devices it detects on the network.
c.
In the list of TDM-2 devices displayed by tdm2detect, look for the TDM-2 that has the same MAC
address as the TDM-2 you want to use. Note that the TDM-2 MAC address can be found on a label
on the front panel of the TDM-2 (see front panel figure above).
d.
In the tdm2detect window, highlight the TDM-2 you wish to use (based on the MAC address), and
click ‘Select As Default’ to set the selected TDM-2 as the default TDM-2 for the host system. This
TDM-2 is now the default TDM-2 for all the TM8x00 tools. tdm2detect also shows the IP address
assigned to the TDM-2.
5.
Connect the TDM-2 flex cable to the Transmeta TDM-2 debug port connector-to-flex cable adapter
provided with the TDM-2.
6.
Plug the debug port connector-to-flex cable adapter into the TDM-2 rear-panel debug port connector.
7.
Connect the free end of the TDM-2 flex cable to the target system TM8x00 debug connector.
8.
Power on the target system. The host, target, and TDM-2 are now ready for use.
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Debugging Hardware Interfaces and Tools
Macraigor Raven
The Macraigor Raven provides the host system with access to the target system through the TM8x00 debug
interface. The TM8x00 software tools require either the Macraigor Raven or TDM-2 (see prior section on
TDM-2) in order to access and control the target system.The Macraigor Raven is a lower-cost (than TDM-2)
hardware device that connects between the host and target systems, as shown in the diagram below. The
host uses the Macraigor Raven through a parallel port connection to access the target system.
Connecting and Configuring the Macraigor Raven
Connecting the Macraigor Raven to the Host and Target Systems
Windows
Host System
Target System
power
adapter
Macraigor
Raven
16-Signal
Parallel
Port
LPT1
1.
25-Signal
Parallel Cable
Parallel
Port
TM8x00
Debug
Gold Flex Cable Connector
Transmeta
adapter
Ensure that the host system parallel port is set to EPP mode.
Failure to set the parallel port to “EPP” mode may result in JTAG scan failures. The parallel port is
configured from your BIOS setup screen. If the BIOS allows you to configure more than one parallel port,
configure LPT1.
2.
3.
Connect all Raven hardware as follows:
a.
Power down your target TM8x00 system.
b.
Connect the Transmeta adapter to the Macraigor Raven.
c.
Connect the other end of the adapter to the target system using the gold flex cable provided.
d.
Connect the parallel port cable to the host computer. If your system has multiple parallel ports, you
must connect to LPT1.
e.
Connect the other end of the parallel port cable to the Macraigor Raven.
f.
Connect the Macraigor power adapter to the Raven.
g.
Plug in the Macraigor power adapter.
Install the TM8x00 Development Tool Kit.
Follow all instructions carefully. Note, the Efficeon Tools installer installs the mac_tdmd server as a
Windows service. mac_tdmd must be running in order for any of the tools to operate correctly. The
installer will ask you if you'd like to start the mac_tdmd service automatically. If you select "Yes", you are
done. If you select "No", you must manually start the service as described in the next step.
Reboot the host computer when complete.
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
33
Debugging Hardware Interfaces and Tools
4.
Efficeon Tools Guide
August 26, 2004
If you chose not to start the mac_tdmd service automatically in the previous step, you must start it
manually. To manually start the mac_tdmd service, please perform the following steps:
a.
Go to Control Panels->Administrative Tools and double-click on "Services"
b.
Double-click on "Transmeta DevTools Server (for Macraigor)"
c.
From the "General" tab, click on the Start button to start, Stop button to stop.
d.
If you want mac_tdmd.exe to automatically restart if it crashes, go to the Recovery tab and select
"Restart the Service" in the appropriate drop down windows.
To view any error/warning output:
a.
Go to Control Panels->Administrative Tools and double-click on "Event Viewer"
b.
Under "Event Viewer (Local)" click on Application
c.
In the "Application" window, if there are any output message, you can get more details by doubleclicking on any message.
This completes the installation procedure
Note for TDM-2 Users
If you have previously installed and used the TM8x00 Development Tools with a TDM2 unit supplied by
Transmeta, you may need to reconfigure your default TDM settings.
The default TDM is set using the TDM2Detect utility. Start the TDM2Detect program and manually set the
default target to “localhost”. TDM2Detect does NOT detect Macraigor Raven devices, so all entries must be
done manually.
If you have never run TDM2Detect, no reconfiguration is necessary. The installer automatically sets the
default target TDM to “localhost”. For more information on TDM2Detect, see TDM2Detect and defaultTDM
on page 22.
34
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Chapter 5
Virtual x86 In-Circuit
Emulator (VICE)
vice is a Windows-based virtual x86 in-circuit emulator for the Efficeon processor. vice is a powerful
debugging tool used during bringup to assist in debugging system designs and BIOS development. vice
uses a traditional host/target emulator model, the target being the Code Morphing software component of the
Efficeon processor environment, which provides a set of debug operations and a virtual in-circuit emulator
software interface (API). The Windows host system provides a user interface on a machine independent from
the target system. By utilizing a separate host system, instabilities in the target system being debugged do not
interfere with the debugger software running on the host.
Code Morphing software includes integrated standard in-circuit emulator functionality, together with some
powerful extended capabilities. The vice host user interface Windows application communicates with vice
through a Windows DLL. The vice API DLL allows direct program control of vice. The connection layer
provides the hardware mechanism (JTAG interface) for the host to communicate with the target. The figure
below shows the software architecture of the Efficeon virtual in-circuit emulator.
Efficeon Virtual In-Circuit Emulator Software Architecture
Efficeon
Code Morphing Software
Target
Windows Host
Code Morphing Software
User Interface
Virtual ICE API
Virtual ICE API DLL
Connection Layer
Interface Cable
Connection Layer
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
35
Virtual x86 In-Circuit Emulator (VICE)
Efficeon Tools Guide
August 26, 2004
5.1 Feature Overview
General
Debugging can begin before the first x86 instruction is executed.
A hard CPU reset can be issued to reset/reboot the system without losing debugging context.
The host can halt the target at any time and provide a consistent x86 state.
At any time, the host can force a non-maskable system reboot as though the reset button had been pressed.
Registers
Supports reading and writing all x86 registers, including MSRs, MMXs, XMMs, and MTRRs, and CPUID
values.
Memory
There are certain necessary features related to memory contents. Memory can be examined, set, filled,
tested, dumped. Memory access can be done in bytes, words, or dwords. Memory addressing can be
physical, linear, or logical, with a SMM enable/disable qualifier.
Memory addresses can be described in a selector:offset form where the offset is an expression that can
include labels, registers, and constants. The ICE performs paging translations if enabled, or accepts the
address in the physical space.
I/O Ports
The ICE supports reading and writing arbitrary data to/from the I/O during a debug session. This is done
without perturbing the x86 processor state. I/O references can be bytes, words, or dwords.
Configuration Registers
A "scan" of the HT bus can be done by the ICE to inquire the device configuration on the bus. This is done
without any x86 instructions executed.
All device configuration registers can be read/written, including registers in the virtual northbridge (VNB).
Breakpoints
Stopping the processor can be done with breakpoints or by use of the halt command. Breakpoints can be set
in the following circumstances:
36
•
The x86 IP hits a particular valid address. Read and/or write to a particular memory address, I/O port, or
interrupt. A maximum of four instruction breakpoints can be active at one time.
•
The processor is reset. When enabled, every processor reset or power-up generates this breakpoint.
This breakpoint is enabled by default when the ICE is started.
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Virtual x86 In-Circuit Emulator (VICE)
After hitting a breakpoint or halting the processor, the user can:.
•
Step an instructions (or 1 repetition through a LOOPx or REP prefixed instruction), a source line, into a
routine call, or into an interrupt service routine.
•
Continue execution.
•
Issue other ICE commands
System Management Mode
This ICE is operational during SMM, and can access the SMM memory, when not in SMM by adding a type
cast to the memory address. Breakpoints can be set on the SMM handler.
5.1.1 Operational Notes
The Virtual x86 ICE, like all debuggers and ICE’s, may change the behavior of the system, or have side
effects. The following is a list of things to keep in mind when using the Virtual ICE, but this not necessarily a
complete list.
•
The target is halted at every reset to allow the host to down load the list of current breakpoints, even if the
reset breakpoint interrupt is disabled.
•
Normally DMA requests are serviced when halted in the ICE, and during host to target communications.
The exception to this is at the reset, prior to the executing the first x86 instruction DMA requests are
ignored.
•
Interrupt requests are ignored when halted in the ICE, and during host to target communications.
•
The ICE uses the debug registers for x86 breakpoints.
•
There are real time affects to the ICE being attached.
•
The parallel port interface to the ICE can affect power management, and be affected by x86 programs
writing to the assigned port.
•
The PCI commands perform I/O cycles to the PCI configuration registers. There is the side effect of
changing the PCI configuration address register when issuing these commands.
•
Setting invalid combinations of CR0 and other registers cause the ICE and processor to hang.
5.1.2 Known Issues
The ICE uses the debug registers for execution breakpoints, but currently doesn’t protect them from x86
accesses. Programs can actually disable the ICE breakpoints without the ICE knowing about it.
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
37
Virtual x86 In-Circuit Emulator (VICE)
Efficeon Tools Guide
August 26, 2004
5.2 Installation
5.2.1 System Requirements
Minimum host system requirements are at least a 500MHz Pentium III or equivalent with at least 512MB of
memory. Windows 2000/SP3 and XP are supported; Windows 9x and Windows Me are not supported. If your
system has no parallel port, a PCMCIA parallel port adapter such as the Qualtech SPP-100 may be used.
5.2.2 Software Installation
The VICE software is installed as part of the Efficeon™ Development Tool Set.
The default installation location is: C:\Program Files\Transmeta\TM8x00 Development Tool Set
When installation is complete, you can start VICE using the desktop icon or by selecting VICE from the
Transmeta sub-folder in the Programs folder under your Start menu.
5.2.3 Host to Target Connection
The debugging device is connected to the host via a network cable. VICE uses Windows socket APIs to
communicate with the debugging device.
TDM-2 devices can be connected to the same LAN as the host system, or it can be directly connected to the
host via a cross-over cable or a stand-alone hub. In all cases, the operating system MUST be set to "obtain
an IP address automatically". For Macraigor Raven devices to connect, mac_tdmd must be running, and no
cross-over cable is used. For connection details, see Debugging Interfaces on page 30.
TDM2detect can be used to detect all debugging devices accessible from the host system—see TDM2Detect
and defaultTDM on page 22). One of the features of the TDM2detect is to set the default debugging device to
which VICE should connect. For Efficeon processors, this default value must be set to 3 (TCP/IP). Upon
starting up, VICE uses the following algorithm to locate the device to which it should connect:
38
•
If VICE can only detect one debugging device, VICE connects to it.
•
If VICE detects more than one debugging device, the default device (set by TDM2detect) is used.
•
Otherwise, an error is displayed.
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Virtual x86 In-Circuit Emulator (VICE)
5.3 Text Command Interface
The ICE is started by executing the program vice.exe. Optionally, a file containing VICE commands to
execute prior to prompting the user can be provided on the command line.
Users can also optionally specify the Code Morphing software version on the command line as shown below.
This setting overrides the default provided with VICE.
usage: vice [options/switches] command_file
Option
-cvalue
Description
--cms=value
Specify the Code Morphing software version on the command line. This
setting overrides the default provided with VICE.
For example, if you have two target systems with different versions of Code
Morphing software, you can use the same installation of VICE by providing
the Code Morphing software version. It is normally recommended to simply
use the version of VICE that is provided with Code Morphing software.
Example:
vice -cms 6.0.0#12
-nvalue
--target=value Specify the target TDM. This setting overrides the default setting.
-h
--help
Display VICE help message.
-v
--version
Display VICE version.
Upon exit, the return code from vice is dependent upon the value specified on the quit command. If no value
is given with the quit command, the return code is 0.
5.3.1 Command Prompt
The prompt displayed shows the last known status of the CPU:
Prompt
Meaning
ICE:
The CPU is currently executing instructions. All commands are still active, but CPU execution is
halted when a command requires interaction with the target to perform the command. After the
command completes CPU execution is resumed, except for the halt command.
ICE>
The CPU is stopped waiting for user input.
ICE?
The CPU run/stop state is unknown by the ICE. This happens when the host and target are not
physically or logically connected. (Cable disconnected, or the CPU is in a power-management
suspend/sleep state).
Entering a command or just hitting the return key at the command prompt causes the ICE to query the CPU
for its current running state.
5.3.2 Commands
The commands are loosely based on the other common DOS debugger command sets, with additions
provide to give a richer debugging control. Commands are entered at the prompt, and executed when
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
39
Efficeon Tools Guide
August 26, 2004
Virtual x86 In-Circuit Emulator (VICE)
RETURN is entered. Multiple commands can be placed on one line if separated by semi-colons. Commands
can be grouped together into a compound command by using braces {}.
See Numeric Values on page 53 and Addresses on page 56 for input and display formats.
5.3.2.1 Assembly/Disassembly
a—Assembly
Assemble code into memory. ICE displays the address and waits for the user to enter assembly mnemonics.
Syntax
a [address_range]
Example
ICE> a cs:ip
u—Unassemble
Disassemble instructions at the specified address range, using the current CPU state. If no address range is
given, disassembly continues from the previous command that generated disassembly output (this includes a
register dump). If the length is given as part of the address range, it specifies the number of instructions to be
disassembled. If no length or ending address is provided, eight instructions are disassembled.
Syntax
u [address_range]
Example
ICE> u cs:ip
07C0:0000 4A
07C0:0001 6F
07C0:0002 72 64
07C0:0004 61
07C0:0005 6E
dec
outsw
jc
popa
outsb
dx
0068h
The current setting of the D/B flag in the CS attributes is used to determine whether the code should be
disassembled as 16-bit or 32-bit instructions. This can be overridden by casting the starting address with a
use16 or use32 (see Type Casts on page 55.)
5.3.2.2 Breakpoints
The breakpoint commands allow the user to create and control breakpoints. As breakpoints are created they
are assigned a monotonically increasing breakpoint numbers starting at one, with a maximum of 32,767
breakpoint numbers. The numbering is reset to one only if the command bc * is issued.
bpx—Set Instruction Breakpoint
Create a new breakpoint at the instruction address. The supplied address must be the first byte of the
instruction. Any number of instruction breakpoints can be created, but only four instruction breakpoints can be
enabled at one time.
Syntax
bpx address [if (conditional_expression)]
Example
ICE> bp 7c00:0
ICE> bp f000:e05b
Abbreviation bp
40
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Virtual x86 In-Circuit Emulator (VICE)
Note: The instruction breakpoints use the CPU debug registers, and are subject to the limitations of
instruction breakpoints imposed by those registers (i.e. Internally the address is converted to a linear
address).
bpr, bpw, bprw—Set Memory Read/Write Breakpoint
Create a new breakpoint at the read and/or write of the memory address.
Syntax
bpr address [if (conditional_expression)]
bpw address [if (conditional_expression)]
bprw address [if (conditional_expression)]
Example
ICE > bpr 2345:0
bpio—Set Breakpoint on I/O Location
Create a breakpoint on an I/O location.
Syntax
bpio port [if (conditional_expression)]
Example
ICE> bpio 5
bpint—Set Interrupt Breakpoint (reset, icebp, int3, num)
Create a breakpoint on one of the following conditions: CPU reset, init, or shutdown; the icebp instruction;
intercept the int3 instruction; or on a specific interrupt number. The reset breakpoint is enabled by default
when the ICE is started, but can be disabled or cleared like any other breakpoint.
Syntax
bpint
bpint
bpint
bpint
Example
ICE> bpint reset
ICE> bpint int3 if(edx == 5)
reset
icebp [if (conditional_expression)]
int3 [if (conditional_expression)]
num [if (conditional_expression)]
bl—List Breakpoints
List one or more breakpoints. The breakpoint number, type, address and if they are currently disabled is
displayed. A * next to the breakpoint number denotes the most recently hit breakpoint. Breakpoint types are
exe for instruction execution, and reset for CPU reset/init. Reset breakpoints have no associated address.
Syntax
bl [list|*]
Example
ICE>
01 02*03 03 -
bl
reset
exe 7C00:0000
int3 if(…) hit 0 times
exe F000:E05B disabled
Note: A list specifier of * indicates all breakpoints.
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
41
Efficeon Tools Guide
August 26, 2004
Virtual x86 In-Circuit Emulator (VICE)
bd—Disable Breakpoints
Disable one or more breakpoints. This allows you to have the CPU not trigger a given breakpoint, but
maintain the breakpoint information for later use. The be command can restore the breakpoint functionality.
Syntax
bd list|*
Example
ICE>
ICE>
01 02 03 -
bd 1,3
bl
reset disabled
exe 7C00:0000
exe F000:E05B disabled
Note: A list specifier of * indicates all breakpoints.
be—Enable Breakpoints
Make one or more breakpoints functional, allowing the CPU to trigger the beakpoint if hit again.
Syntax
be list|*
Example
ICE>
ICE>
01 02 03 -
be 1
bl
reset
exe 7C00:0000
exe F000:E05B disabled
Note: A list specifier of * indicates all breakpoints.
bc—Clear Breakpoints
Disable and delete one or more breakpoints. If * is used as a breakpoint number list, the breakpoint
numbering sequence is reset to start at 1. Once a breakpoint is cleared it cannot be re-enabled, but its
breakpoint number is not reused unless the command bc * is issued, clearing all breakpoints.
Syntax
bc list|*
Example
ICE>
ICE>
01 03 -
bc 2
bl
reset
exe F000:E05B disabled
Note: A list specifier of * indicates all breakpoints.
5.3.2.3 Memory/Data Operations
These commands allow the user to display and modify sections of memory, I/O or PCI space. The default
address type is memory, but can be overridden with IO or PCI type casts (see Type Casts on page 55).
42
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Virtual x86 In-Circuit Emulator (VICE)
dump, db, dw, dd—Dump Data
Display the contents of a range of addresses in the specified address space. If no address range is supplied
the defaults to a continuation of the previous dump command. If an address is supplied, but no length or
ending address is supplied as part of the range, the range is assumed to be 128 bytes.
Syntax
dump [address_range]
d[b|w|d] [address_range]
Example
ICE> dw 40:0 l 30
07C0:0000 : 6F4A 6472 6E61 2F20 4D20 6369 6168 6C65
07C0:0010 : 2D20 4120 7475 6F68 7372 0000 0000 0000
07C0:0020 : 0000 0000 0000 0000 0000 0000 0000 0000
ICE> d (io) 20
0020: 00 B8 FF FF 00 08 FF FF : 00 08 FF FF 00 08 FF FF
Abbreviation d
The b, w, or d suffix on the command sets the default data reference size of byte, word, or dword,
respectively. Bytes are assumed if no suffix is given, or the address does not contain a size cast.
The address is displayed as address type that was specified (logical, linear or physical), with a
trailing l or p for linear and physical (respectively). Data is displayed as a string of digits with separators to
make them more readable. For byte-wide memory data, the ASCII characters are displayed at the end of
each line with periods for non-printable characters.
enter, eb, ew, ed—Enter Data
Write a list of data values, starting at the given address. The data values are entered into the target addresses
from left to right.
Syntax
enter address [=] expression_list
e[b|w|d] address [=] expression_list
Example
ICE> ew 40:0 03F8 02F8
Abbreviation e
The b, w, or d suffix on the command sets the default data reference size of byte, word, or dword,
respectively. Bytes are assumed if no suffix is given, or the address does not contain a size cast.
fill, fb, fw, fd—Fill Data
Fill an address range with a value or a repeating set of values. The expression list is used in a left to right
order repeating until the address range is completely filled.
Syntax
fill address_range [=] expression_list
f[b|w|d] address_range [=] expression_list
Example
ICE> fw b800:0 l 1000 = 0720
Abbreviation f
The b, w, or d suffix on the command sets the default data reference size of byte, word, or dword,
respectively. Bytes are assumed if no suffix is given, or the address does not contain a size cast.
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
43
Efficeon Tools Guide
August 26, 2004
Virtual x86 In-Circuit Emulator (VICE)
5.3.2.4 TCP/IP Support
attach—Connect to a host
Connect to host host_name.
Syntax
attach host_name
Example
ICE> attach
ICE> attach mike_tdm2
ICE> attach 23.98.98.99
connect—Connect to a host and issue hard reset
Connect to host host_name and issue a “reset hard” command (see reset—Reset the CPU on page 49).
Syntax
connect host_name
Example
ICE> connect
ICE> connect mike_tdm2
ICE> connect 23.98.98.99
disconnect—Disconnect from a host
Disconnect from the currently connected host. If continue is specified, a "go" command (see go—Go
Command on page 47) is issued before disconnecting.
Syntax
disconnect [continue]
Example
ICE> disconnect
ICE> disconnect continue
5.3.2.5 I/O Logging Support
iolog—I/O Logging Support
Add, delete, list, or dump contents of the I/O log.
Syntax
iolog
iolog
iolog
iolog
Example
ICE> iolog add 4
ICE> iolog add 1
add port
delete port
list
dump
The I/O log is stored in a limited buffer inside the processor. A processor reset clears the buffer contents.
There are commands to start logging, stop, remove, list the logged ports, and dump the buffer contents.
44
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Virtual x86 In-Circuit Emulator (VICE)
5.3.2.6 I/O Operations
in, ib, iw, id—Input Command
Read from a device I/O port and display the value.
Syntax
in address
i[b|w|d] address
Example
ICE> i 21
B8
Abbreviation i
The b, w, or d suffix on the command sets the default data reference size of byte, word, or dword,
respectively. Bytes are assumed if no suffix is given, or the address does not contain a size cast.
out, ob, ow, od—Output Command
Write to a device I/O port and display the value.
Syntax
out address [=] value
o[b|w|d] address [=] value
Example
ICE> o 21 B9
Abbreviation o
The b, w, or d suffix on the command sets the default data reference size of byte, word, or dword,
respectively. Bytes are assumed if no suffix is given, or the address does not contain a size cast.
5.3.2.7 Register Command
register—Register Read/Write
Read CPU registers, or write a single CPU register.
Syntax
register [reg] [[=] expression]
Example
ICE> r
EAX=F00004E3 EBX=00126080 ECX=12BC51C8 EDX=6CD60040
ESP=001231C8 EBP=0012325C ESI=E0ED0000 EDI=000E3264
EIP=0001515A Flags=3A96
CS=00A7 DS=00AF SS=00AF ES=00AF FS=00CF GS=00CF
00A7:1515A 25 FF 00
and
ax, 00FFh
ICE> r ax
AX=04E3
Abbreviation r
If the register is not specified, the set of common integer registers, flags and a disassembly of the instruction
at the current CS:EIP is displayed. If a register is specified, that register is displayed (if no expression is
supplied) or modified (if an expression value is supplied).
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
45
Efficeon Tools Guide
August 26, 2004
Virtual x86 In-Circuit Emulator (VICE)
5.3.2.8 MSR Command
msr—MSR Read/Write
Read or write the CPU model specific register. See the CPU specification for a list of valid registers and their
definition. Referencing invalid MSRs returns an error, but does not cause the CPU to fault.
Syntax
msr reg [[=] value]
Example
ICE> msr 80860000
0000000000000542
5.3.2.9 CPUID Command
cpuid—CPUID View
Display the CPUID information for the specified index. Referencing invalid CPUID indexes returns an error,
but does not cause the CPU to fault.
Syntax
cpuid index
Example
ICE> cpuid 0
EAX=00000003
EBX=756E6547
ECX=3638784D
EDX=54656E69
ICE> cpuid 3
EAX=00000000
EBX=00129189
ECX=00000000
EDX=00000000
....
Genu
Mx86
ineT
....
ëæ..
....
....
5.3.2.10 PCI Commands
pci scan—Scan PCI Bus for Devices
Scan the PCI bus and display the PCI bus, device number, vendor id and device id for all the devices found in
the system.
46
Syntax
pci scan
Example
ICE> pci scan
Bus 00 Device 00 - 1279 0295
Bus 00 Device 07 - 8086 7110
Bus 00 Device 0A - 5333 8A01
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Virtual x86 In-Circuit Emulator (VICE)
pci, pcib, pciw, pcid—Display or Modify PCI Configuration Registers
Display or modify PCI configuration registers in the specified PCI bus/device/function.
Syntax
pci[b|w|d] [[[[bus:]device:]function:]reg [length number]]
pci[b|w|d] [[[[bus:]device:]function:]reg [[=] expression_list ]]
Example
ICE> pci 7:0:0 l 20
00:07:00:00 86 80 10 71 0F 00 80 02-01 00 01 06 00 00 80 00
00:07:00:10 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00
For fields not specified the previously specified values are used. The address is displayed a bus, device,
function and register separated by colons. The data is displayed in the same format as the dump command
(see dump, db, dw, dd—Dump Data on page 43).
The b, w, or d suffix on the command sets the default data reference size of byte, word, or dword,
respectively. Bytes are assumed if no suffix is given, or the address does not contain a size cast.
pci info—Display ICE PCI Information
Display the current default PCI bus, device and function used by the pci command (see pci, pcib, pciw,
pcid—Display or Modify PCI Configuration Registers on page 47).
Syntax
pci info
Example
ICE> pci info
Current Bus=00 Device=07 Function=00
pci dump—Scan and Display PCI Bus
Display the current PCI bus, device and function used by the pci command. This command is a combination
of pci scan (see pci scan—Scan PCI Bus for Devices on page 46) and pcid (see pci, pcib, pciw, pcid—
Display or Modify PCI Configuration Registers on page 47).
Syntax
pci dump
5.3.2.11 Execution Control Commands
go—Go Command
Continue execution of the processor until the next breakpoint condition (if one exists), or until the user issues
the halt command.
Syntax
go
Example
ICE> g
Abbreviation g
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
47
Efficeon Tools Guide
August 26, 2004
Virtual x86 In-Circuit Emulator (VICE)
halt—Halt Execution
Halt execution of the processor.
Syntax
halt
Example
ICE> halt
trace—Single Step
Single-step execution on the processor. count is the number of times to single-step; if it is not provided, one
step is implied. Also see strace—Single Step Without Register Display on page 49.
Syntax
trace [count]
Example
ICE> t
EAX=F00004E3 EBX=00126080 ECX=12BC51C8 EDX=6CD60040
ESP=001231C8 EBP=0012325C ESI=E0ED0000 EDI=000E3264
EIP=0001515A Flags=3A96
CS=00A7 DS=00AF SS=00AF ES=00AF FS=00CF GS=00CF
00A7:1515A 25 FF 00
and
ax, 00FFh
ICE> t
EAX=F00000FF EBX=00126080 ECX=12BC51C8 EDX=6CD60040
ESP=001231C8 EBP=0012325C ESI=E0ED0000 EDI=000E3264
EIP=0001515A Flags=3A96
CS=00A7 DS=00AF SS=00AF ES=00AF FS=00CF GS=00CF
00A7:1515D 26 FF 00
and
bx, 00FFh
Abbreviation t
proc—Step Over the Call
Single-step execution on the processor. This is the same as trace except CALL instruction targets are
completed as one instruction rather than stepping into the CALLed routine. (See trace—Single Step on
page 48.)
Syntax
proc [count]
Example
ICE> proc 4
reset hard—Reset the Debug Connect
Instruct the TDM to assert the system reset line on the debug connector.
48
Syntax
reset hard
Example
ICE> reset hard
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Virtual x86 In-Circuit Emulator (VICE)
reset—Reset the CPU
The x86 processor is reset and execution is started.
Syntax
reset
Example
ICE> reset
…
ICE> r
EAX=00000000 EBX=00000000 ECX=00000000 EDX=00000542
ESP=00000000 EBP=00000000 ESI=00000000 EDI=00000000
EIP=0000FFF0 Flags=0002
CS=F000 DS=0000 SS=0000 ES=0000 FS=0000 GS=0000
F000:FFF0 EA 5B E0 00 F0
jmp
F000h:E05Bh
strace—Single Step Without Register Display
Same as trace (see trace—Single Step on page 48), but without register display.
Syntax
strace [count]
Example
ICE> strace
CS=00A7 DS=00AF SS=00AF
00A7:1515A 25 FF 00
ES=00AF
FS=00CF
and
GS=00CF
ax, 00FFh
5.3.2.12 File Operations
load—Load File Into Memory
Load a file into memory. There are two file formats supported. The input file format is binary if no srecord
parameter is supplied. Binary files are loaded at the address specified or, if no address is given, the binary
image is loaded starting at address zero.
Syntax
load filename [destination_address] [binary]
load filename srecord
Example
ICE> load image.bin 1000:100
ICE> load test.hex srec
File types are assumed to be binary if no type is specified. The binary parameter can be supplied for clarity.
If the srecord parameter is use the file is read as a S-record file, and the addresses specified in the file are
use for the data.
Note: $0 contains the starting address at the end of the execution of the code if available; if not, it contains
the starting load address.
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
49
Efficeon Tools Guide
August 26, 2004
Virtual x86 In-Circuit Emulator (VICE)
<—Pipe Input
Read source command from the specified input file until end of the file, or a pipe input command is given
without a file name. The pipe input command supports nested input files, so input files can reference other
input files. If no file name is provided, the current input file is closed.
Syntax
< [filename]
Example
ICE> < cmd_file.ice
<<—Close All Input Files
Close all the nested input files, and return to accepting user input.
Syntax
<<
Example
ICE> <<
>, >>—Pipe Output
Direct the output to the specified file. Output redirection stops when a pipe output command is given without
a file name. If no file name is provided, the output file is closed.
Syntax
> [filename]
>> [filename]
Example
ICE> > logfile.txt
// Overwrite output file.
// Append to output file.
5.3.2.13 Conditional Execution
if—Conditionally Execute Command
Evaluate the expression, and perform the command if the expression yields true. Note that the command can
be a compound command using {}, but it can not extend beyond the end of the line.
Syntax
if ( expression ) command [ else command ]
Example
ICE> if (bx == ax) print “Current AX/BX is
Current AX/BX is E05B
“, bx
5.3.2.14 Miscellaneous Commands
wait—Wait for Breakpoint
Wait until the next breakpoint is hit, or until an optional timeout. This command is useful in scripts for
automatically pausing the script until a breakpoint is hit. wait can also pause until a key is pressed, if the
keyboard argument is specified.
50
Syntax
wait [timeout_in_seconds] [keyboard]
Example
ICE> g ; wait 5 ; halt
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Virtual x86 In-Circuit Emulator (VICE)
gowait—Go and Wait for Breakpoint
Go and wait for a breakpoint. Same as using go without arguments and then executing a wait for a particular
amount of time.
Syntax
gowait [timeout_in_seconds] [keyboard]
Example
ICE> gowait 5
help—Help Command
Command-line help. This feature is only partially implemented as of this writing.
Syntax
help [command]
?
cls—Clear Screen
Clear the console window.
Syntax
cls
?—Evaluate Expression
Evaluate the expression or expressions and display the results.
Syntax
? expression_list
Example
ICE> ? ( cs << 4 ) + ip
FE05B
quit—Exit the ICE
Exit the ICE. The expression value is the return code value when the ICE exits. If no expression is supplied,
the return value is zero.
Syntax
quit [expression]
Abbreviation q
version—Version Information
Display the version information for CMS, the ICE DLL, and the ICE user interface.
Syntax
version
Abbreviation ver
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
51
Efficeon Tools Guide
August 26, 2004
Virtual x86 In-Circuit Emulator (VICE)
//—Comment
Comment to end of line. The rest of the input line after the // is ignored. This command enables comments to
be placed in command files.
Syntax
// comment
;—Command separator
Separate multiple commands on the same line.
Syntax
command ; command ; …
Example
ICE: r ax ; wait 5 ; halt ; r ax
AX=046C
AX=2624
{ }—Multiple Command Grouping
Group commands together to be treated as one command.
Syntax
{ commands }
Example
ICE> if ( ax != 3 ) { r ax ; r bx }
AX=04E3
BX=6080
print—Print a List of Expressions
Print a list of comma-delimited expressions that can consist of any combination of valid expression, including
strings.
Syntax
print expression_list
Example
ICE> print “Current BX is “, bx
Current BX is 42
set—Set/Show Feature
Set or show VICE environment features. This feature is only partially implemented as of this writing.
Syntax
52
set
set [feature]
set [feature [= value]]
// Show all the features.
// Show a single feature.
// Set a single feature.
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Virtual x86 In-Circuit Emulator (VICE)
Valid features are as follows:
VICE Features
Feature
Description
target
The target interface connection. FIXME
0 = TDM
1 = MI2
2 = Parallel port
lptbase
The parallel port I/O base address for the target connection.
input
A flag to determine if the input characters and prompt are displayed.
output
A flag to set if the output data is displayed to the console.
bundlepath
The path where the bundle is located.
lines
Number of lines in the ICE text command box.
!—Execute OS Console Command
Execute an OS console command.
Syntax
! command
Example
ICE> ! dir ..\debug\*.ice
Volume in drive T is ICE
Directory of T:\working.r4.ice\src\ice\debug
test
exp
reg
qqq
ice
ice
ice
ice
4 file(s)
0 dir(s)
263
778
999
999
06-17-99 6:12p
06-15-99 8:47a
06-26-99 6:40a
06-26-99 6:40a
3,039 bytes
2,876,590,080 bytes free
test.ice
exp.ice
reg.ice
qqq.ice
5.3.3 Syntax Notes
5.3.3.1 Numeric Values
All numeric values entered or displayed are expressed as a sequence of digits valid for the selected base.
The default base for all numbers is 16. The default base for user entered values can be overridden by
providing a prefix or suffix to the number.
Base
Prefix
Suffix
Examples
Binary
0y
y
0y101, 110y
Octal
0o
q or o
0o377, 177q, 322o
Decimal
0n
t
0n255, 128t
Hex
0x
h
0xFE, 0A3h
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
53
Efficeon Tools Guide
August 26, 2004
Virtual x86 In-Circuit Emulator (VICE)
5.3.3.2 Supported Registers
Supported registers are as follows:
EAX
AX
AH
AL
EBX
BX
BH
BL
ECX
CX
CH
CL
EDX
DX
DH
DL
ESI
SI
EDI
DI
ESP
SP
EBP
BP
EIP
IP
EFLAGS
FLAGS
CS
DS
ES
FS
GS
SS
MM0
MM1
MM2
MM3
MM4
MM5
MM6
MM7
FP0
FP1
FP2
FP3
FP4
FP5
FP6
FP7
ST0
ST1
ST2
ST3
ST4
ST5
ST6
ST7
CR0
CR2
CR3
CR4
DR0
DR1
DR2
DR3
DR4
DR5
DR6
DR7
CS.BASE
CS.LIMIT
CS.ATTR or CS.AR
DS.BASE
DS.LIMIT
DS.ATTR or DS.AR
ES.BASE
ES.LIMIT
ES.ATTR or ES.AR
FS.BASE
FS.LIMIT
FS.ATTR or FS.AR
GS.BASE
GS.LIMIT
GS.ATTR or GS.AR
SS.BASE
SS.LIMIT
SS.ATTR or SS.AR
GDT.BASE
GDT.LIMIT
GDT.ATTR or GDT.AR
LDT.BASE
LDT.LIMIT
LDT.ATTR or LDT.AR
IDT.BASE
IDT.LIMIT
IDT.ATTR or IDT.AR
TSS.LIMIT
TSS.ATTR or TSS.AR
TR
LDTR
TSS.BASE
SMBASE (read only)
Notes:
DR0-DR7 are read only.
FP0-7 are an alias for ST0-7
Setting invalid combinations of CR0 causes the ICE and processor to hang.
5.3.3.3 Expressions
The ICE supports expression for most address and data values. These expressions are a subset of C
expressions. Expressions can include type casting, constants, registers and symbols.
Supported expression operators are as follows:
54
+
Addition
!
Logical NOT
-
Subtraction
&&
Logical AND
*
Multiplication
||
Logical OR
/
Division
<
Less than
%
Modulus
<=
Less than or equal to
&
Bitwise AND
>
Greater than
^
Bitwise-exclusive-OR
>=
Greater than or equal to
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Virtual x86 In-Circuit Emulator (VICE)
|
Bitwise OR
==
Equal
<<
Left shift
!=
Not equal
>>
Right shift
*
Pointing to
~
One's complement
(type)
Type cast
There are some command formats where full expressions are not supported, i.e., you can only use a limited
expression. This means that you can use a variable, constant or a parenthesized full expression. In other
words, (2*4) is valid, but 2*3 is not. Often if the command supports an optional equal sign (=), the version
without the equal sign only supports a limited expression, and with the equal sign supports a full expression.
Expression Lists
Expression lists are groups of expressions delimited by either spaces or commas. Delimiting expressions in
the list by using spaces limits the format of the expression to a limited expression. Using commas as the list
delimiter allows use of full expressions. For example:
1 3 4
is a limited expression list, but:
1+2, -4, -5
is a full expression list because commas are shown as separators for the expressions.
Type Casts
Type casting follows the C syntax for forcing a conversion of one type to another. In the ICE, casting can
modify the address format, data type, or access width. The casting is done by placing the type in parentheses
prior to the expression to be cast. For example the command:
d (io word) 43
casts the value 43 to be an I/O port address with a 16 bit access to the port.
Supported type casts are as follows:
Cast
Description
byte
Makes the references with 8 bit accesses.
word
Makes the references with 16 bit accesses.
dword
Makes the references with 32 bit accesses.
io
Convert to a I/O address.
pci
Convert to a PCI address.
real
Assume a real mode address.
linear
Convert to a linear address.
physical
Convert to a physical address.
use16
Override the default disassembly output to be 16 bit code.
use32
Override the default disassembly output to be 32 bit code.
smm
Make the memory reference as if the CPU was in SMM.
nonsmm
Make the memory reference as if the CPU was not in SMM.
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
55
Efficeon Tools Guide
August 26, 2004
Virtual x86 In-Circuit Emulator (VICE)
5.3.3.4 Addresses
An address refers to a memory space, I/O space or PCI configuration space. The assumed address space
varies depending on the command. For memory, the format of an address is selector:offset. Both
selector and offset are expression, with the selector being optional. For I/O, the format of an address is a 16bit port number. For PCI, the format of an address is bus:device:function:register, where everything
but register is optional.
Sometimes, addresses are displayed in the form “selector.base+offset”. For instance,
CS.base+0xf000. This means that the processor is in protected mode, but the hidden descriptor registers
do not represent the current descriptor entry in the descriptor table. This usually happens between the time
the processor enters protected mode and the selector is reloaded. In such a case, ICE does what the
processor does: it uses the hidden selector register contents.
There are four basic memory addressing modes: real, logical, linear and physical. The default assumption
about the address mode depends upon the current CPU addressing mode.
Address mode type casting is the method for using addressing modes and address spaces different from the
default for a given command. Casting is done by prefixing the address with (type). Possible address type
casts are: real, linear, physical, smm, nonsmm, io and pci. For example:
(smm linear) BFEFC
Addresses are displayed in the same format entered, except that linear and physical address are displayed
with a l or p suffix, respectively.
Address Ranges
Address ranges can be specified in one of two forms: a start and end address, or a start address and length.
If the length is used, it is specified as the number of units being referenced (bytes, words, dwords, or
instructions). The syntax for the ranges are:
address … address
address length length
Address Type Conversion
This feature is only partially implemented as of this writing.
To
From
Numeric
Value
Logical
Linear
Physical
-
offset = value
adrs = value
adrs = value
value =
offset
-
Logical
adrs =
selector base+offset
adrs = selector base+offset,
page table walk
value =
adrs
offset = adrs
-
adrs = page table walk
Linear
value =
Physical adrs
offset = adrs
adrs = adrs
-
Numeric
Value
For value, adrs and offset assignments there is no lookup, just a direct use of the number.
56
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Virtual x86 In-Circuit Emulator (VICE)
Selector base+offset: The logical address is used to look up the linear address.
Page table walk = The linear address is used to find the physical address in the page tables.
Examples:
Expression
Address
(lin) 40
40l
(phy) 40
40l
(lin) 40:17
GDT(40).Base+17
(phy) 30:12
TLB( GDB(30).Base+12 )
(lin phy) 35 35p
(lin) 400p
400l
Accessing SMM Memory
The ICE views SMM as an attribute on the memory address. The default view of SMM is the CPU's current
SMM state. The SMM state can be overridden with the smm and nonsmm type casts. This allows the user
to look at the contents of hidden SMM memory without having the CPU in SMM. For example, in order to
examine the current contents of the SMM memory state save map you would do the following:
ICE> dw (smm lin) BFEF8
000BFEF8l 0000 000B 0002
000BFF08l 0000 0000 C502
000BFF18l 8000 0012 FF3C
000BFF28l 0000 0000 0001
000BFF38l 4093 0000 FFFF
000BFF48l FFFF 0000 0000
000BFF58l 0000 0004 4093
000BFF68l 0093 0000 FFFF
0003
0000
0000
0000
0000
0005
0000
0000
0000
8C29
FF34
FFFF
0000
0093
FFFF
0000
0000
0000
0000
FFFF
0005
0000
0000
0000
01F0
87BE
8600
0000
0093
FFFF
0000
0093
0000
0000
01FF
0004
0000
FFFF
0000
0000
The following table summarizes the interaction between SMM memory accesses and paging in the ICE.
SMM
Paging
OFF
ON
OFF
Linear used as actual
Linear with SMM modification
ON
Linear-to-physical lookup
Linear used as actual
5.3.4 Command Summary
Following is a summary of all available commands, their usage and valid abbreviations (if any), and the page
in this document where the full documentation entry can be found:
Command
Usage
a—Assembly
a [address_range]
Abbrev
40
u—Unassemble
u [address_range]
40
bpx—Set Instruction Breakpoint
bpx address [if (conditional_expression)]
bp
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Page
40
57
Efficeon Tools Guide
August 26, 2004
Virtual x86 In-Circuit Emulator (VICE)
Command
Usage
bpr, bpw, bprw—Set Memory
Read/Write Breakpoint
bpr address [if (conditional_expression)]
bpw address [if (conditional_expression)]
bprw address [if (conditional_expression)]
41
bpio—Set Breakpoint on I/O
Location
bpio port [if (conditional_expression)]
41
bpint—Set Interrupt Breakpoint
(reset, icebp, int3, num)
bpint
bpint
bpint
bpint
41
bl—List Breakpoints
bl [list|*]
41
bd—Disable Breakpoints
bd list|*
42
be—Enable Breakpoints
be list|*
42
bc—Clear Breakpoints
bc list|*
42
dump, db, dw, dd—Dump Data
dump [address_range]
d[b|w|d] [address_range]
d
43
enter, eb, ew, ed—Enter Data
enter address [=] expression_list
e[b|w|d] address [=] expression_list
e
43
fill, fb, fw, fd—Fill Data
fill address_range [=] expression_list
f[b|w|d] address_range [=] expression_list
f
43
attach—Connect to a host
attach host_name
44
connect—Connect to a host and
issue hard reset
connect host_name
44
disconnect—Disconnect from a
host
disconnect [continue]
44
iolog—I/O Logging Support
iolog
iolog
iolog
iolog
44
in, ib, iw, id—Input Command
in address
i[b|w|d] address
i
45
out, ob, ow, od—Output
Command
out address [=] value
o[b|w|d] address [=] value
o
45
register—Register Read/Write
register [reg] [[=] expression]
r
45
msr—MSR Read/Write
msr reg [[=] value]
46
cpuid—CPUID View
cpuid index
46
pci scan—Scan PCI Bus for
Devices
pci scan
46
pci, pcib, pciw, pcid—Display or
Modify PCI Configuration
Registers
pci[b|w|d] [[[[bus:]dev:]func:]reg [length num]]
pci[b|w|d] [[[[bus:]dev:]func:]reg [[=]expr_list]]
47
pci info—Display ICE PCI
Information
pci info
47
go—Go Command
go
g
47
trace—Single Step
trace [count]
t
48
proc—Step Over the Call
proc [count]
48
halt—Halt Execution
halt
48
58
Abbrev
reset
icebp [if (conditional_expression)]
int3 [if (conditional_expression)]
num [if (conditional_expression)]
add port_range
delete port_range
list
dump
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Page
Efficeon Tools Guide
August 26, 2004
Virtual x86 In-Circuit Emulator (VICE)
Command
Usage
Abbrev
Page
reset hard—Reset the Debug
Connect
reset hard
48
reset—Reset the CPU
reset
49
load—Load File Into Memory
load filename [destination_address] [binary]
load filename srecord
49
<—Pipe Input
< [filename]
50
<<—Close All Input Files
<<
50
>, >>—Pipe Output
> [filename]
>> [filename]
if—Conditionally Execute
Command
if ( expression ) command [ else command ]
50
wait—Wait for Breakpoint
wait [timeout_in_seconds] [keyboard]
50
gowait—Go and Wait for
Breakpoint
gowait [timeout_in_seconds] [keyboard]
51
help—Help Command
help [command]
?
51
cls—Clear Screen
cls
51
?—Evaluate Expression
? expression_list
quit—Exit the ICE
quit [expression]
q
version—Version Information
version
ver 25
51
//—Comment
// comment
52
;—Command separator
command ; command ; …
52
{ }—Multiple Command Grouping
{ commands }
52
print—Print a List of Expressions
print expression_list
52
set—Set/Show Feature
set
// Show all the features
set [feature]
// Show a single feature
set [feature [= value]] // Set a single feature
52
!—Execute OS Console
Command
! command
53
50
// Overwrite output file
// Append to output file
51
q
51
Much of the command syntax can be abbreviated, by shorting the command or one of its parameters. The
following list shows the shortest valid abbreviations:
Abbreviation
Meaning
Abbreviation
Meaning
l
length
r
register
phy
physical
t
trace
lin
linear
q
quit
u
unassemble
ver
version
d
dump
key
keyboard
e
enter
bp
bpx
f
fill
srec
srecord
i
in
bin
binary
o
out
a
assemble
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
59
Virtual x86 In-Circuit Emulator (VICE)
60
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Efficeon Tools Guide
August 26, 2004
Appendix A
POST Codes
This section describes the Code Morphing software POST and error codes for Transmeta Efficeon™
processors.
A POST code is a “progress marker”, and if displayed indicates the executed code stream has successfully
moved past that point. Code Morphing software boot code typically issues a POST code prior to some new
functional section of code being executed, and if the next POST code never appears, the last POST code
issued indicates the last known working section of code executed before a problem arose.
An error code is a status descriptor giving some information about a problem encountered. Code Morphing
software typically issues an error code after doing something and finding a problem with it.
POST and error codes are two bytes in length. xx in the second byte position indicates a variable value, that
for most codes is 00. The table below lists the Efficeon TM8x00 Code Morphing software (CMS) POST and
error codes.
Table 1:
Efficeon POST Codes in Receipt Order
Code
Description
04 00
Hello world, posts within 10 instructions of boot
58 20
Checksums match, caches initialized, late boot code decompressed and running—before memory
configuration
9x xx
Error computing chip capacity, where xxx = calculated size
a0 xx
Error in configuring and sizing memory (xx = nonzero)
68 02
Finished reading SPD data
69 xx
Memory configured, xx = result (00 = success)
6a xx
Memory verified, xx = memory verification return val (00 = success)
68 03
Finished configuring memory (Note, sometimes this code doesn't show up because it is emitted in
quick succession with 5830, too fast for the debugger to recognize)
58 30
Memory successfully configured
58 65
(if xboot present) before xboot init
58 80
Before CMS decompression
58 90
Main CMS successfully decompressed
58 91
Main CMS decompression failed, decompressed recovery CMS
AC ED CMS decompressed, instructions begin
AC 04
Begin CMS nucleus initialization for regular cold boot
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
61
Efficeon Tools Guide
August 26, 2004
POST Codes
Table 1:
62
Efficeon POST Codes in Receipt Order (Continued)
Code
Description
AC 06
Begin CMS nucleus initialization for resume path
AC 14
CMS component initialization complete for cold boot
AC 16
CMS component initialization complete for resume path
AC 18
CMS x86 install state complete
AC 1C
CMS about to execute first x86 instruction
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Appendix B
OEM-template.rcl
Following is an example template file. Note that this file is provided as an example only—the file supplied with
your version of Code Morphing software will not be identical to the example shown here. Be sure to use the
template associated with your version of Code Morphing software.
Example 1:
Example OEM-template.rcl
################################################################################
##
## Default OEM Settings file
##
## $Revision: 1.13 $
##
################################################################################
################################################################################
##
## 1.) SKU Selection
##
## Each configuration can support exactly one TM8x00 SKU. The SKU setting
## selected below must match exactly the particular SKU for this platform.
##
## Uncomment exactly one of the following SKUs:
##
## Rev 1.2 silicon
# SKU = "r1.2_debug";
# TM8600; Conservative "bring up" SKU, 533MHz at 1.0 volts
# SKU = "860012.BPLAAA1000"; # TM8600; 1000MHz/7.5W/CR70;
SKU ID: 860012.BPLAAA1000
#
################################################################################
##
## 2.) Core Voltage Regulator Selection
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
63
Efficeon Tools Guide
August 26, 2004
OEM-template.rcl
Example 1:
Example OEM-template.rcl (Continued)
##
## Each voltage regulator has a unique Voltage Regulator Digital to
## Analog table (VRDA) associated with it.
##
## To select your regulator, uncomment exactly one of the following VRDAs:
# VRDA = "MAX1718";# Currently only MAXIM 1718 is supported
################################################################################
##
## 3.) Virtual ROM Model
##
## The TM8x00 uses the following virtual ROM model information to perform in-system
## and secure upgrades. There is a virtual ROM model for each LPC ROM support by
## the TM8x00.
##
## Uncomment the line containing the LPC ROM for your system:
# VIRTUAL_ROM = "SHARP_LHF00L01";
# Was called LH28F016 in pre-production
# VIRTUAL_ROM = "SST_49LF080A";
# VIRTUAL_ROM = "STMICRO_M50LPW116";
#################################################################################
##
## 4.) Platform Identifier Fields
##
## Your configuration must include a "unique signature" consisting of a
## Customer ID and a platform variation number and possibly additional
## information (if desired). This information is used to ensure that
## secure upgrades can safely performed on your system and that different
## systems can be uniquely identified.
##
## 4.1) Customer ID and Platform Variation
##
## The Customer ID is assigned to you by Transmeta.
Transmeta assigns
## one Customer ID per company in hexidecimal format.
If you do not
## know your Customer ID, please contact your Transmeta representitive.
##
## The platform variation number is used to differentiate distictly
## different systems produced by the same company.
The platform variation
## number is assigned based on how many separate TM8x00 based designs
64
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Example 1:
OEM-template.rcl
Example OEM-template.rcl (Continued)
## there are at your company. For example, if this is the fifth TM8x00
## design at your company, assign the value 5 for the platform variation.
##
## Uncomment each of the following lines and replace the angle bracket
## sequences with the appropriate hexidecimal numeric value.
# CustomerID
= <customer-platform-id>; # Hexidecimal value in
# the range of 1..0xFFF
# PlatformVariation = <platform-variation>;
# Hexidecimal value in
# the range of 1..0xFF
## Note:
## The "CustomerID" and "PlatformVariation" are combined for form a
## single composite value (upgrade_oem_id0) in the OEM Configuration
## table as follows:
##
upgrade_oem_id0 = CustomerID << 8 | PlatformVariation
## 4.2) Additional Platform Identification
##
## If desired, an additional 32 bits of platform identifcation may be
## specified. The use of this field is unspecified by Transmeta and may
## be used by the OEM in any way they see fit.
This field is visible
## in the PCI configuration space of the northbridge as the DWORD
## identified as bus=0,device=0,func=0,reg=0xc4. As such, the OEM may
## find this field useful for assisting in software distribution that
## is platform specific.
# upgrade_oem_id1 => 0;
################################################################################
##
## 5.) Upgrade Options
##
## 5.1) Security Options
##
## The TM8x00 supports both "secure" and "insecure" upgrades. A "secure"
## upgrade is only possible with a special signed upgrade image generated
## by Transmeta. An "insecure" upgrade can be performed with any ROM
## image. It is not necessary to obtain Transmeta's assistance to perform
## insecure upgrades. It is generally desirable for fielded systems to
## be secure but may be desireable for systems to remain insecure during
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
65
Efficeon Tools Guide
August 26, 2004
OEM-template.rcl
Example 1:
Example OEM-template.rcl (Continued)
## the development and debug phases of development.
##
## The bitfield global_write_security is 2 bits wide, and it controls write
## access to the VNB field global_write_enable.
Here are the meanings of
## the possible values:
##
##
0 = rom_write_secure
##
1 = rom_write_hw_dongle
##
2 = rom_write_insecure
##
3 = invalid
upgrade_options.global_write_security
=> 0;
# Default is "rom_write_secure"
## The bitfield bios_write_security controls permission to decrease the VNB
## field rom_protected_size.
Here are the meanings of the possible values:
##
##
0 = bios_write_controlled (GPI: BIOS_WE enable)
##
1 = bios_write_insecure
upgrade_options.bios_write_security
=> 0;
# Default is
# "bios_write_controlled"
#################################################################################
##
## 6.) Longrun Frequencies
##
## The longrun frequencies provided by Transmeta have been optimized for
## each SKU.
It is possible that special circumstances would require a
## special set of Longrun frequencies. Please consult with your Transmeta
## representative before overriding the default Longrun settings table.
## Frequencies must be specified in ascending order (lowest to highest)
## If a non-standard longrun table is required, fill in the table below
## with desired longrun frequencies in ascending order. A table of all
## "0" indicates that the Transmeta supplied SKU defaults should be used.
longrun_frequencies
=> {0, 0, 0, 0, 0, 0, 0, 0};
#################################################################################
##
## 7.) CPU Features
##
## 7.1) Processor Serial Number
66
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Example 1:
OEM-template.rcl
Example OEM-template.rcl (Continued)
## Set to "1" to permanently disable the processor serial number (PSN).
cpu_feature.psn_disable
=> 0;
## 7.2) ECC Memory Disable
## Set to "1" to treat ECC memory as non-ECC memory.
cpu_feature.disable_ecc
=> 1;
## 7.3)
## Set to "1" to indicate that SSTL_2 termination is in use for the DRAM bus.
cpu_feature.SSTL2_termination
=> 0;
#################################################################################
##
## 8.) Memory Configuration
##
## 8.1) SPD Data For Soldered Down Memory -- PLEASE READ CAREFULLY
##
## To enable the use of soldered down memory, uncomment
## one or more of the following lines. The full path to
## the appropriate SPD s-record file should be included
## within the single quotes.
##
## Use the Transmeta utility "make-SPD" to create the appropriate SPD
## file based on information provided by your memory vendor.
Modify the
## file "SPD-template.rcl" with this information. See the Tools Guide
## for complete directions on how to use this utility.
# MemSPDfile_0 = 'FULL PATH TO VALID SPD FILE (S-RECORD FORMAT)';
# MemSPDfile_1 = 'FULL PATH TO VALID SPD FILE (S-RECORD FORMAT)';
## 8.2) SPD ROM Address
## The address (in hexidecimal) on SMBUS of the first SPD ROM
mem_smbus_spd_base_addr
=> 0x50;
## 8.3) Clock Assignements
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
67
Efficeon Tools Guide
August 26, 2004
OEM-template.rcl
Example 1:
Example OEM-template.rcl (Continued)
## This table maps DIMM slot numbers to the clocks needed for that
## DIMM.
mem_slot_to_clocks
=> {0x07, 0x38, 0x00, 0x00};
## 8.4) Lowest Memory Frequency
## Specify the lower limit of memory frequency in 100/6 MHz increments.
mem_freq_min
=> 5;
# 83.33 MHz
## 8.5) Highest Memory Frequency
## Specify the upper limit of memory frequency in 100/6 MHz increments.
mem_freq_max
=> 10; # 166.67 MHz
## 8.6) CMS Memory Allocation
## Size of the block of memory (in MB) to reserve for CMS usage. Legal
## values range from 8 to 128 with a recommended absolute minimum of
## 24 MB.
cms_memory_size
=>
32;
#################################################################################
##
## 9.) Debug Information
##
## 9.1) Debug port I/O address
## Specify the I/O port address used for BIOS (and other application)
## POST codes (0 to disable)
io_port_debug_led
=> 0x0000;
# Default is disabled
## 9.2) S-Clk Delays
## Table mapping sclkdly values to max. memory freq. (in 16.67 MHz
## incr.). This table depends on the length of the DDR traces on the
## board. Longer traces mean that lower values of sclkdly top out at
## lower frequencies.
sclkdly_to_mem_frequency
=> {7, 10, 255, 255};
## 9.3) Minimum Loads
## Table specifying how many chip loads in each signal group can be
68
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Example 1:
OEM-template.rcl
Example OEM-template.rcl (Continued)
## driven with drive strength set to 0 (min).
It depends strongly on
## board capacitance.
group_to_min_loads
=> {0, 0, 0, -1};
## 9.4) Maximum Loads
## Table specifying how many chip loads in each signal group canbe
## driven with drive strength set to 7 (max).
It depends weakly on
## board capacitance.
group_to_max_loads
=> {18, 18, 18, 9};
#################################################################################
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
69
OEM-template.rcl
70
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Efficeon Tools Guide
August 26, 2004
Appendix C
Recommended
Reading
The following documents should be used in conjunction with this guide. Due to the preliminary nature of this
document, not all reference documents may be available.
•
Efficeon™ Data Book
•
Efficeon™ BIOS Programmer’s Guide
•
Efficeon™ Functional and Specification Errata
•
Efficeon™ System Design Guide
•
Efficeon™ Code Morphing Software Release Notes
•
Macraigor Raven User’s Guide
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
71
Recommended Reading
72
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Efficeon Tools Guide
August 26, 2004
Glossary
A
ABI—Application Binary Interface. The detailed low-level conventions that applications use to communicate
with an operating system or a language/environment library. An ABI is the low-level realization of an API. It
consists of the register conventions, parameter passing and return conventions, invocation of the O/S
conventions (e.g. through an exception, etc.), etc.
ACPI—Advanced Configuration and Power Interface. An operating-system-centric power management
scheme based on a description of a set of hardware interfaces that the operating system can use to both
change the active and suspend power states of the CPU and to determine the relative advantages and
implement an appropriate policy. BIOS sets up the ACPI tables, and the OS uses the tables to enter and exit
states and decide when it is profitable to do it.
AGP—Advanced Graphics Port. An interface added to modern northbridge chips used by graphics
accelerators. It is similar to the PCI bus, but wider and running at a faster frequency. It is logically a PCI bus
on its own right, but running at a higher frequency.
API—Application Programming Interface. The high-level (often C-language) interface that applications use to
communicate with an operating system or a language/environment library. By extension, the high-level
interface presented by any subsystem (e.g. a telephony API).
APIC—Advanced Programmable Interrupt Controller. An extension to the x86 architecture which allows finer
granularity of control over interrupts and more interrupt sources without sharing an IRQ. The APIC
architecture is composed of two components, the local APIC in each CPU, and the I/O APICs in the
southbridge and elsewhere. The APICs communicate either by a dedicated protocol (dedicated bus in the P6
class of Intel CPUs) to arbitrate interrupt delivery.
atom—An individually-encoded operation in a VLIW instruction. A VLIW instruction, also called a molecule,
consists of a collection of operations called atoms. Atoms are similar to the instructions in RISC architectures.
B
BIOS—Basic Input Output System. A collection of software utilities that virtualizes some of the platform for
the benefit of the operating system. Typically it gains control after reset (power up), and after configuring
some platform-specific hardware, loads the operating system into memory and transfer control to it. It remains
resident as a set of subroutines to virtualize the keyboard, the mouse, the screen, the disk, etc. Modern
operating systems bypass the BIOS for most services, and the BIOS has become almost exclusively a boot
loader.
bridge—A device connected to two or more buses that forwards requests or transactions from one to
another. The northbridge, among oth er things, is a bridge logically connecting the processor local (or frontside) bus to the PCI (and AGP) bus. Some southbridges, among other things, are bridges connecting the PCI
bus to an ISA bus.
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
73
Efficeon Tools Guide
August 26, 2004
Glossary
C
CMS—Code-Morphing™ Software. A dynamic translator and interpreter system that emulates some wellestablished architecture (e.g. x86) on top of Transmeta's unique VLIW hardware.
CPU—Central Processing Unit. The processor in a computer system. It executes the SW instructions which
advance state and may in turn access peripheral devices. Generally excludes memory and I/O devices,
unless embedded in the CPU.
CPX—Cycles Per X-tick. A measure of x86 machine efficiency/performance. At the same frequency and
running the same application or benchmark, a lower CPX generally indicates better performance.
D
DDR—Double Data Rate. A bus protocol technique in which data is transferred on both rising and falling
edges of the bus clock, effectively achieving twice the data throughput. It is the counterpart to SDR on which
data is transferred only on rising or falling edges of the clock. Examples of DDR interfaces are the TM8000 MI
(memory interface) unit, and the HyperTransport link from the TM8000 Virtual Northbridge to the southbridge.
DIMM—Dual In-line Memory Module. A memory (DRAM) module with a particular organization.
DMA—Direct Memory Access. Traditionally, the ability of devices on a bus to access main memory without
the processor's intervention—a form of doing I/O where the CPU is not directly involved in the transfers,
unlike programmed I/O (PIO). In modern computer systems the DMA facility is implemented in the memory
controller, called the northbridge in PC terminology. In Transmeta products, the processor is involved to
maintain T-cache coherence.
DRAM—Dynamic Random Access Memory. RAM implemented by capacitor circuits (single transistor cells,
typically). Very dense, but requires frequent refreshing since the capacitors slowly discharge (leak),
eventually losing their data contents. In addition, reads typically require rewriting because driving the output
lines also discharges the capacitors. Refresh is sometimes implemented internally by parallel read/write.
E
ECC—Error Correcting Code. A system in which data words (esp. memory) are extended with a few extra bits
such that some number of bit errors can be detected and some (smaller) number of bit errors can be
corrected. Typically done on 64-bit words with 1 bit error correction and 2 bit error detection because a simple
scheme requires only 8 additional bits, thereby taking no more storage than byte-parity and enabling the use
of the same memory DIMMs.
EIP—Extended Instruction Pointer. The architectural 32-bit register in an x86 (a.k.a. IA-32) processor that
holds the address of the currently executing instruction. The lower 16 bits are called the IP or `instruction
pointer'.
EISA—Extended Industry Standard Architecture. A 32-bit peripheral (I/O) bus defined by several companies
in the PC industry as a counterpart to IBM's proprietary MCA bus. Never dominant, it was superseded by the
PCI bus.
F
FPR—Floating-Point Register. A register in the floating-point unit. It can contain floating-point data, integer
data, or packed media data. It cannot be used to address memory directly.
FPU—Floating-Point Unit. A part of a modern CPU that contains floating-point registers and implements
floating-point and media operations.
front-side bus—A bus connecting a CPU (or CPU core) to the memory controller/northbridge. Also called
the processor local bus. It is typically CPU-core specific, and may be only conceptual when the northbridge is
physically in the same chip as the CPU core, as in Transmeta products.
G
74
GART—Graphics Address Relocation Table. A facility in modern AGP-enhanced northbridge chips used to
give SW and the graphics accelerator the illusion that they are dealing with contiguous physical memory
which is in fact sparsely allocated out of a page pool by the operating system without regard to contiguity.
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Glossary
GR—General Register Same as GPR.
GPR—General Purpose Register. An integer register that can be used to contain integer data or memory
addresses. As opposed to dedicated or special-purpose registers such as floating-point registers or special
registers that control the memory subsystem, etc.
H
HT(1)—HyperTransport. See LDT.
HT(2)—HyperTransport controller. The unit in the TM8000 Virtual Northbridge that implements the
HyperTransport host bridge.
HW—Hardware
HyperTransport—A new name for LDT.
I
ICE—In-Circuit Emulator. A hardware device that allows very low-level debugging of a target system when
controlled by software from a debugging host. It typically allows single stepping of system instructions and
low level operations before and while the operating system and/or BIOS are running.
I/O, IO—Input Output
IOIO—I/O-port I/O. On the x86 architecture, I/O performed by using IO ports, i.e. in and out instructions to
ports. These ports are not memory-mapped. They are an altogether different address space.
IP(1)—Internet Protocol. A low-level network protocol that covers routing and delivery over large area
networks. UDP and TCP are protocols built on top of IP, which is often built on top of Ethernet and other such
protocols.
IP(2)—Intellectual Property. Knowledge protected by trade secret, copyright, or patents. Sometimes used to
describe some synthesizable logic (e.g. Verilog) that provides some modular functionality and that companies
license to other companies for the use in their chips, e.g. an IDE controller.
IRQ—Interrupt request line. Each interrupt request line results in a distinct interrupt vector to the CPU.
Interrupt request lines can be uniquely assigned to devices or shared between devices. When unique, the
interrupt handler can know exactly which device needs service. When shared, the interrupt handler must poll
the devices that share the line to figure out which need service.
ISA(1)—Instruction Set Architecture. The software-visible portion of a CPU's organization. It typically consists
of the resources (e.g. registers), operations (e.g. instructions), and encodings of both that software needs to
use to make use of the computer. On traditional CPU families, what is common between the members of the
family and allows SW to run across the family.
ISA(2)—Industry Standard Architecture. The 16-data-bit, 24-address-bit memory and peripheral (I/O) bus for
the IBM PC-AT—the first with an Intel 286 processor. Until recently, all PCs had one. The trend these days,
especially in laptops, but even on desktops, is to abandon it after moving all legacy devices to the
southbridge.
L
L1—Level-1. First level of the cache hierarchy. On the TM8000 there is an L1 data cache and an L1
instruction cache.
L2—Level-2. Second level of the cache hierarchy. On the TM8000 there is a combined data and instruction
L2 cache.
LDT—Lightning Data Transport. A peripheral interconnect fabric designed by AMD to replace the PCI bus
and possibly others (AGP). Logically it is very similar to PCI. Physically it is not a bus at all, but instead a
point-to-point connection. LDT devices can be daisy chained and additional chains can be split from the
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
75
Efficeon Tools Guide
August 26, 2004
Glossary
primary chain. It is the TM8000’s primary external interface. During 2001, LDT has been renamed
'HyperTransport'.
LongRun—A Transmeta technology that allows the x86 processor to change operating clock frequency and
supply voltage on the fly to consume as little power as possible while satisfying the computational needs of
the running OS and applications. It is implemented by a combination of HW (SW-controlled frequency and
voltage) and SW (mechanisms and policies for frequency and voltage ramping).
LongRun Advanced Thermal Management—A Transmeta technology
l-value—Left value. A compiler term describing a location written by an assignment statement. Opposed to rvalue which is a value that can be stored into such a location. Thus an assignment consists of an l-value and
an r-value.
M
MCA(1)—Machine Check Architecture. An x86 extension that allows diagnostic software to inspect the state
of some internal processor registers when an MCE is raised. It is processor-specific.
MCA(2)—Micro-Channel Architecture. A 32-bit peripheral (I/O) bus defined by IBM to supersede the ISA bus
in the PS2 PC architecture. It was proprietary, and hence other companies came up with a different standard,
EISA, that ultimately proved more popular. The fiasco over MCA marked the end of IBM's dominance of the
PC system architecture.
MCE—Machine Check Exception. An x86 exception raised by an x86 processor when it encounters some
irrecoverable internal condition. It indicates a failure in the processor, not the running program at the time the
fault is raised.
MI—Memory Interface. The unit in the Virtual Northbridge that controls and communicates with the DRAM
DIMMs. It supports only DDR DIMMs.
MMIO—Memory-mapped I/O. Input/output to devices by using accesses to the regular "memory" address
space. Device control registers and buffers are mapped into the "memory" address space and respond to
ordinary reads and writes on the bus by effecting the appropriate action.
MMX—Multi Media eXtensions. SIMD integer extensions to the x86 architecture.
molecule —A VLIW instruction encoding multiple operations that logically occur simultaneously. Each
individual operation is called an atom.
MTRR—Memory Type Range Register. An x86 architectural extension by which the memory attributes of an
access (cacheability) can be described at the physical level -- the address space can be divided into multiple
regions with different cacheability properties for reads and writes. It was introduced by Intel to handle several
problems in earlier systems where the cacheability of an access was known to the northbridge (PAB bits) but
not the processor. It is in effect a processor-local "copy" of the PAB bits and memory top register.
N
NaN—Not A Number. An IEEE 754 format floating-point "value" that does not have a numeric value. They
are computed as the masked response to invalid operations (e.g. divide 0 by 0), and also sometimes used for
uninitialized memory. They come in two flavors. Signalling NaNs (SNaN) raise the invalid numeric exception
unconditionally. Quiet NaNs (QNaN) only raise it in certain circumstances. Typical masked response is to
produce quiet NaNs that will propagate through the computation contaminating the result (only comparisons
can eliminate NaNs -- arithmetic produces NaN outputs when given any NaN inputs).
Natural Alignment—A power-of-two-sized memory operand is naturally aligned if the address of the
operand is an integer multiple of the size of the operand. For example a 1-byte-sized operand is always
naturally aligned. An 8-byte-sized operand is naturally aligned only at addresses that are multiples of 8, etc.
NC—Non-cached or Non-cacheable. A memory (load/store) operation that does not go through the cache
subsystem. It may be an operation to an IO port (IOIO), memory mapped IO (MMIO), or a memory-bound
76
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Glossary
operation that CMS has decided must follow the NC path in order to guarantee cache coherence in the
system as a whole or for performance reasons.
NMI—Non-Maskable Interrupt. An interrupt that cannot be blocked by software. The x86 NMI is only blocked
by the execution of the SMI handler. Transmeta HW allows blocking x86 NMI, but CMS makes it appear that
it is not blocked except in this circumstance.
normal memory—An x86 address space region where reads and writes (or x86 instruction fetches) can be
optimized and reordered because it corresponds to cacheable DRAM on the memory controller in the
northbridge.
Northbridge—A part of a PC's chip set that implements the memory controller, the DMA engine, and the PCI
bus master. Modern ones also implement AGP. It is connected to the CPU via a non-standard local (or frontside) bus, and is connected to the southbridge via the PCI bus and a few additional signals.
O
OOL(1)—Out-Of-Line subroutine. A subroutine in CMS that implements the functionality of some complex
x86 instruction. Rather than inlining the code in translations and the interpreter, these out of line handlers are
used instead. The OOL doesn't have to implement the complete instruction -- part of it (e.g. loading from the
stack) can be done in line.
OOL(2)—Object Oriented Language. Sometimes used abbreviation for a high-level computer language
whose principal data items are organized as objects with lifetimes and properties independent of the
programs that manipulate them. Often used for languages with message-based invocation semantics and
modularity and encapsulation organized around data instead of code.
OS—Operating System. The main control program of a computer system. It typically multiplexes the
computer's resources (including execution time) among competing application programs and provides
several services to them such as uniform I/O APIs that abstract the details of the individual devices in use.
P
PAB—Programmable Attribute Bits. The set of bits in a traditional northbridge that control the access to the
legacy region (640K - 1M), especially in regards to ROM shadowing. The PAB bits allow reads and writes to
independently be routed to memory or the PCI bus.
PAE—Physical Address Extension. An extension to the x86 architecture by which physical addresses can be
36-bits wide, instead of the usual 32-bits wide. Each PTE/PDE becomes 8 bytes long instead of the usual 4
bytes long, the page tables are 3 levels deep instead of the usual 2 levels, and the large pages (as in PSE)
are 2MB instead of 4MB.
PAT—Physical Attribute Table. An x86 architectural extension by which the memory attributes of an access
(cacheability) can be described at a virtual level instead of physical level. Each virtual to physical mapping
has a memory type index in the relevant PTE that indexes the PAT to produce a memory type that is then
combined with the type from the MTRRs to produce the actual memory type for the access.
PC(1)—Personal Computer. A computer intended to be used by a single person, i.e. traditionally running a
single-user operating system. More commonly, an x86-compatible computer, i.e. what used to be called an
IBM-compatible computer, irrelevant of whether the operating system running on it makes it multi-user or not.
PC(2)—Program Counter. The conceptual register in a processor that holds the address of executing
instructions. In pipelined processors there may not be such a register -- each pipeline stage may have its
own copy. PCs are usually not visible as registers -- they are reified on interrupts/exceptions, and reflected
on resume from exception/interrupt return. In the x86 architecture, the PC is called EIP.
PCI—Peripheral Component Interconnect. The peripheral (I/O) bus of a modern PC. It is a 32-bit bus with
multiple address spaces: The I/O port (IOIO) address space, the ordinary memory-mapped (MMIO) address
space, and the configuration address space. It was first introduced in the PC architecture by Intel with the
Pentium processor, to rationalize and standardize the multiple peripheral buses then extant (VESA local bus,
EISA, MCA, ISA). Although memory-like devices can be added to the bus, this is unusual, and memory is
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
77
Efficeon Tools Guide
August 26, 2004
Glossary
typically elsewhere on a system. The system's northbridge typically connects to both memory and the PCI
bus, but the memory is not on the PCI bus, although accessible from it by using DMA.
PDE—Page Directory Entry. A data structure in the page tables that aggregates a collection of virtual to
physical mappings. It does not describe any virtual to physical mapping itself, but allows the page table
walker to find the individual mappings. In the usual two-level x86 page table structure, the PDEs are the level
between the root and the PTEs.
PGE—Page Global Extension. An extension to the x86 architecture by which specially-marked 'global' virtual
to physical mappings survive TLB invalidations and can only be invalidated explicitly.
PIC—Programmable Interrupt Controller. Traditionally, a device on a PC's motherboard that multiplexed
interrupts to the CPU. These days the PIC is implemented as part of modern southbridges, and not as
separate components.
PIO—Programmed I/O (input/output). A way of doing I/O where the CPU actively executes instructions to
perform the actual transfer of data, as opposed to DMA, where the CPU is passive: the transfer of data is
done by an asynchronous device without any CPU instructions needed except to set up the transfer.
PSE—Page Size Extensions. An extension to the x86 architecture by which virtual pages can be either 4MB
(large pages) or the usual 4KB. Virtual to physical mappings for large pages take the place of PDEs in the
page tables.
PSE-36—Page Size Extensions - 36 bits. An extension to the x86 architecture that combines features of PSE
and PAE. The PTEs and PDEs remain as in the normal 2-level page tables, but the 4MB pages can be
mapped to a full 36-bit address space, instead of the usual 4KB address space.
PTE—Page Table Entry. A data structure in the page tables that describes the virtual to physical mapping for
a single virtual page. In the usual multi-level x86 page table structure, the PTEs are the level farthest from the
root.
Q
QNaN—Quiet NaN. See NaN.
R
RAM—Random Access Memory. The main memory of a computer system, addressable in no particular
order.
ROM—Read-Only Memory. A memory-like device that can only be read and not written. Most modern ROMs
are not really ROMs at all, but Flash ROMs or EEPROMs. EEPROMs are electrically-erasable
programmable read-only memories, i.e. memory-like devices that are easy to read and difficult -- but possible
-- to write. Flash ROMs are similar to EEPROMs that cannot be erased at the individual byte or word level but
can be erased in units of moderate to large sectors. These EEPROMs and Flash ROMs are treated largely
like true ROMs, except when their contents are upgraded, which is a very infrequent operation. Programming
them (i.e. writing to them), is usually called "flashing", perhaps because early EPROMS (erasable
programmable read-only memories) could only be erased by exposing them to ultra violet light.
r-value—Right value. See l-value.
S
SDR—Single Data Rate. A bus protocol technique in which data is transferred once per clock cycle, typically
on rising edges of the clock. It is the counterpart to DDR in which data is trasferred twice per cycle.
serialization —The property that prevents two operations from being either reordered or carried out
simultaneously. There are many forms of serialization in the x86 architecture, including but not restricted to
code serialization and data serialization.
serializing instruction—An instruction that has some serialization property with respect to other instructions.
x86 serializing instructions can be strong or weak.
78
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Glossary
SIMD—Single Instruction Multiple Data. A form of obtaining parallelism that consists on having single
instructions operate on multiple data items simultaneously. The operations are usually uniform. The Intel
variants of this, called MMX, SSE, and SSE2 divide large (64-bit or 128-bit) registers into multiple same-sized
fields, and the operations operate on all the fields independently.
SMC—Self-Modifying Code. Code that either modifies its own instructions (the proper usage), or has its
instructions modified by other pieces of code (the general usage). Particular common patterns are Bit-blit
generators, which frequently generate code on the fly in a common buffer, dynamic compilers (such as CMS
itself), and runtime patching of immediates.
SMI—System Management Interrupt. A special interrupt in an x86 CPU that causes the CPU to enter SMM.
SMM—System Management Mode. An extension to the x86 architecture that allows BIOSs to control
peripheral devices without OS awareness. Often used to implement power-management functions such as
powering off and restarting disks without the OS being aware. SMM has access to regions of memory
(SMRAM) that the regular OS cannot address. SMM is the state of the processor when servicing an SMI.
SMP—Simultaneous Multi-Processor. A multi-CPU computer system (a multicomputer) where the CPUs
logically share memory so that ordinary accesses from one CPU are visible from other CPUs without
additional software support. The rules for serialization and ordering of memory references and visibility
among the multiple CPUs can vary a lot. The memory may be either uniformly accessible or non-uniformly
accessible, where logically there is no difference, but there is a large performance difference depending on
the locality of the memory being accessed.
SMRAM—System Management RAM. An alternate address space, or extension of the regular x86 physical
address space, used in SMM.
SNaN—Signalling NaN. See NaN.
Southbridge—A part of a PC's chip set that implements several sundry functions: bridge between the PCI
and ISA buses, power-control of the platform, IDE bus controllers, serial, parallel, mouse, and keyboard ports,
USB controllers, audio devices, ROM control, etc. Connected to the Northbridge via a PCI or LDT interface
and to both the northbridge and the CPU through additional signals.
SRAM—Static Random Access Memory. RAM implemented out of storage cells that do not decay if
unattended. Much less dense than DRAM, but typically much faster and not requiring refresh. Common
modern designs are made out of 6 or 4 transistor cells (6T or 4T).
SSE—Streaming SIMD Extensions. SIMD floating-point extensions to the x86 architecture. There are two
levels: SSE proper which introduced SIMD 32-bit (single precision) floating-point operations, and SSE2 which
introduced SIMD 64-bit (double precision) floating-point operations. The extensions also include integer and
MMX operations on the new XMM registers.
SSM—State Save Map. Data structure in SMRAM where an x86 CPU saves its state on entry to SMM and
from where it restores it on exit from SMM.
sticky bit—A bit in a register is said to be sticky when it records a condition in a monotonic way. That is,
when the condition arises, it changes state, and does not change back even if the condition disappears. It is
only changed back by explicit software intervention.
STPCLK—Stop Clock. A (logical) signal in a PC system originating in the southbridge and used to stop the
CPU at an appropriate point. Such stop can be a prelude to power down, or a temporary stop due to power
management events. STPCLKs can be expected, when the CPU initiates a power management transition or
shutdown, or unexpected, when the southbridge initiates clock throttling often caused by overheating.
STPGRNT—Stop Grant. A (logical) signal in a PC system originating in a CPU and used to inform the
southbridge that a preceding STPCLK has been honored. Typically the STPGRNT must follow quickly after
the STPCLK because southbridges are intolerant of many intervening transactions.
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
79
Efficeon Tools Guide
August 26, 2004
Glossary
strapping options—Hardware interface pins whose logic value is sampled at reset time by hardware in
order to choose an option among initial configuration possibilities. Examples of such strapping options are
processor number for SMP systems, device ID selection addresses for identical devices on a bus, etc.
strongly-serializing instruction—A serializing instruction that constitutes an absolute barrier to previous
and following instructions or memory operations. All previous instructions are guaranteed to have completed
by the time that the strongly serializing instruction executes, and all following instructions are guaranteed not
to have started until after the strongly serializing instruction completes. Strongly serializing instructions cause
write combiners to be drained.
SW—Software
T
TBD—To Be Determined. Something not yet fully understood or specified.
thread—A control-flow and register state within an address space. Several threads can execute within a
single process. Each thread typically has its own logical register set and stack but shares the address space
and O/S resources with other threads in the same process. Sometimes threads also have thread-local data.
Win32 threads and POSIX threads are the most common thread APIs.
TLB—Translation Look-aside Buffer. A hardware (and sometimes software) structure used to accelerate
memory references in a paged environment. It is a cache of mappings from virtual addresses to physical
addresses and some attributes of the mappings used to avoid walking the page tables on every access.
These virtual to physical mappings are called translations, but are not to be confused with the instruction
translations that CMS produces.
trip count—The number of iterations that a loop executes when entered from outside. Integer loops often
have very low trip counts, in the vicinity of 3. Floating-point and media loops often have very high trip counts
(hundreds of thousands or millions). Many loop optimizations are only worthwhile if the typical trip count is
moderately high.
U
ULP—Unit of Least Precision. The least significant bit position in a floating-point number. Often used to
describe the accuracy of the implementation of some floating-point function (e.g. transcendentals). If the
accuracy is within 1/2 ULP, the answer is exact. If within 1 ULP, then a result is off by at most the quantity that
a bit in the least significant position of the mantissa would represent, and so on.
UMA—Unified Memory Architecture. A system setup where all graphics memory (frame buffer and off frame
storage for display lists, textures, etc.) lives in system memory -- directly accessible by the CPU, rather than
in dedicated memory that the CPU cannot directly access. In other contexts, the acronym stands for 'uniform
memory architecture', as opposed to 'non uniform memory architecture'.
USB—Universal Serial Bus. A bus in modern PCs that is distinguished by using a serial protocol over a small
number of wires. Several devices that used to be connected through dedicated interfaces are now connected
to the computer through this bus.
V
VICE—Virtual In-Circuit Emulator. A software component of Code Morphing software, coupled with a
software program running on a debugging host that together emulate a true x86 ICE.
Visible interrupts—Interrupts that are not invisible interrupts.
VLIW—Very Long Instruction Word. A style of ISA characterized for large (in bits) instructions that group
several independent operations that are executed in parallel and atomically.
VNB—Virtual North Bridge. A software component of CMS that logically emulates the registers and
operations of a physical northbridge chip, mapping them to whatever hardware the Transmeta product
implements directly.
80
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Glossary
VSB—Virtual South Bridge. A software component of CMS that logically emulates the registers and
operations of a physical southbridge chip, mapping them to whatever hardware the Transmeta product
implements directly.
W
weakly-serializing instruction —A serializing instruction that has some reordering properties with respect to
some other instructions but not all. Thus some instructions are serialized with respect to a weakly serializing
instruction, but not all instructions are.
X
x86—Of or compatible with 80x86 processors manufactured by Intel. Common x86 platforms include Intel’s
Pentium processors, AMD Athlon processors, and Transmeta processors.
X-bus —A derivative of the 8088's original bus. The 8088 was a variant of the 8086 (first processor in the
x86 architecture line from Intel) with only an 8-bit-wide data bus (20-bit addresses). It is still often found
hanging off the southbridge in a PC system to connect to the flash ROM containing the BIOS, and a few very
simple devices such as the keyboard controller.
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
81
Efficeon Tools Guide
August 26, 2004
Glossary
82
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Efficeon Tools Guide
August 26, 2004
Index
D
defaultTDM 22
disasm-rom 10
DOSFlash 27
F
flashtool 22
M
make-flash-floppy 27
makerom 9
O
OEM Configuration Table 13
OEM-template.rcl 13
overview 5
P
POSTCodeTool 21
print-oct 10
print-ver 9
R
resettool 26
rom-format 12
S
scandump 23
T
TDM2Detect 22
TMTASysInfo 24
V
VICE 35
command prompt 39
commands 39
connecting to target 38
installation 38
interface 39
overview 36
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
83
Efficeon Tools Guide
August 26, 2004
84
Transmeta Proprietary Information Provided Under Nondisclosure Agreement
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
