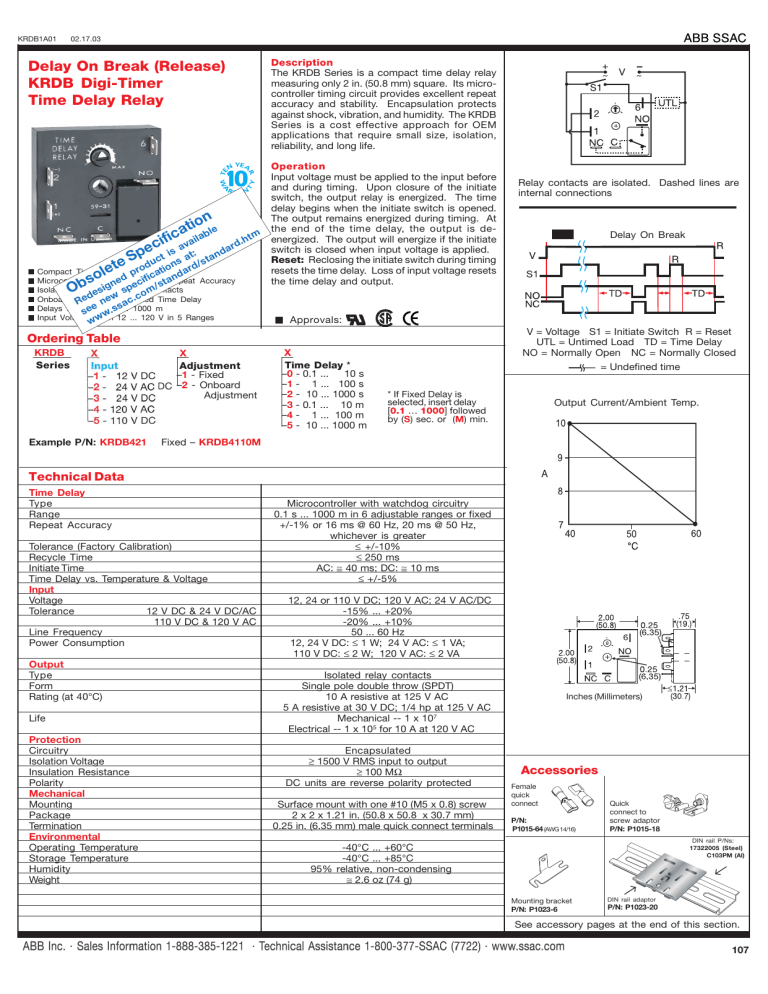

Delay On Break (Release) KRDB Digi-Timer Time Delay
KRDB1A01
02.17.03
Delay On Break (Release)
KRDB Digi-Timer
Time Delay Relay
Description
The KRDB Series is a compact time delay relay
measuring only 2 in. (50.8 mm) square. Its microcontroller timing circuit provides excellent repeat
accuracy and stability. Encapsulation protects
against shock, vibration, and humidity. The KRDB
Series is a cost effective approach for OEM
applications that require small size, isolation,
reliability, and long life.
Operation
Input voltage must be applied to the input before
and during timing. Upon closure of the initiate
switch, the output relay is energized. The time
delay begins when the initiate switch is opened.
The output remains energized during timing. At
n
tioble
the end of the time delay, the output is dea
m
c
a
t
energized. The output will energize if the initiate
.h
ifi avail
d
c
r
switch is closed when input voltage is applied.
e t is t: nda
p
S duc ns a /sta
Reset: Reclosing the initiate switch during timing
e
t Relay
ro atio dard
resets the time delay. Loss of input voltage resets
e
Compact Time Delay
l
p
oCircuitry,
n
d c+/-1%
ific staRepeat
Microcomputer
Accuracy
e
s
the time delay and output.
n
b sig Output
e Contacts
/
Isolated O
10 A SPDT
sp om
de ew or Fixed
c
.
e
Onboard Adjustment
Time
Delay
R e n sac
Delays from e
ms
.s ... 1000 m
s100 w
Input Voltages from
Approvals:
ww 12 ... 120 V in 5 Ranges
X
Input
–1 - 12 V DC
–2 - 24 V AC/DC
–4 - 120 V AC
–5 - 110 V DC
Example P/N: KRDB421
X
Adjustment
–1 - Fixed
–2 - Onboard
Adjustment
X
Time Delay *
–0 - 0.1 ...
10 s
–1 - 1 ... 100 s
–2 - 10 ... 1000 s
–3 - 0.1 ... 10 m
–4 - 1 ... 100 m
–5 - 10 ... 1000 m
Delay On Break
V = Voltage S1 = Initiate Switch R = Reset
UTL = Untimed Load TD = Time Delay
NO = Normally Open NC = Normally Closed
= Undefined time
Ordering Table
KRDB
Series
Relay contacts are isolated. Dashed lines are
internal connections
* If Fixed Delay is
selected, insert delay
[0.1 … 1000] followed
by (S) sec. or (M) min.
Output Current/Ambient Temp.
Fixed – KRDB4110M
Technical Data
Time Delay
Type
Range
Repeat Accuracy
Tolerance (Factory Calibration)
Recycle Time
Initiate Time
Time Delay vs. Temperature & Voltage
Input
Voltage
Tolerance
12 V DC & 24 V DC/AC
110 V DC & 120 V AC
Line Frequency
Power Consumption
Output
Type
Form
Rating (at 40°C)
Life
Protection
Circuitry
Isolation Voltage
Insulation Resistance
Polarity
Mechanical
Mounting
Package
Termination
Environmental
Operating Temperature
Storage Temperature
Humidity
Weight
Microcontroller with watchdog circuitry
0.1 s ... 1000 m in 6 adjustable ranges or fixed
+/-1% or 16 ms @ 60 Hz, 20 ms @ 50 Hz,
whichever is greater
≤ +/-10%
≤ 250 ms
AC: ≅ 40 ms; DC: ≅ 10 ms
≤ +/-5%
12, 24 or 110 V DC; 120 V AC; 24 V AC/DC
-15% ... +20%
-20% ... +10%
50 ... 60 Hz
12, 24 V DC: ≤ 1 W; 24 V AC: ≤ 1 VA;
110 V DC: ≤ 2 W; 120 V AC: ≤ 2 VA
Isolated relay contacts
Single pole double throw (SPDT)
10 A resistive at 125 V AC
5 A resistive at 30 V DC; 1/4 hp at 125 V AC
Mechanical -- 1 x 107
Electrical -- 1 x 105 for 10 A at 120 V AC
Encapsulated
≥ 1500 V RMS input to output
≥ 100 MΩ
DC units are reverse polarity protected
Surface mount with one #10 (M5 x 0.8) screw
2 x 2 x 1.21 in. (50.8 x 50.8 x 30.7 mm)
0.25 in. (6.35 mm) male quick connect terminals
Inches (Millimeters)
Accessories
Female
quick
connect
P/N:
P1015-64 (AWG 14/16)
Quick
connect to
screw adaptor
P/N: P1015-18
DIN rail P/Ns:
17322005 (Steel)
C103PM (Al)
-40°C ... +60°C
-40°C ... +85°C
95% relative, non-condensing
≅ 2.6 oz (74 g)
←
Mounting bracket
P/N: P1023-6
→
DIN rail adaptor
P/N: P1023-20
See accessory pages at the end of this section.
