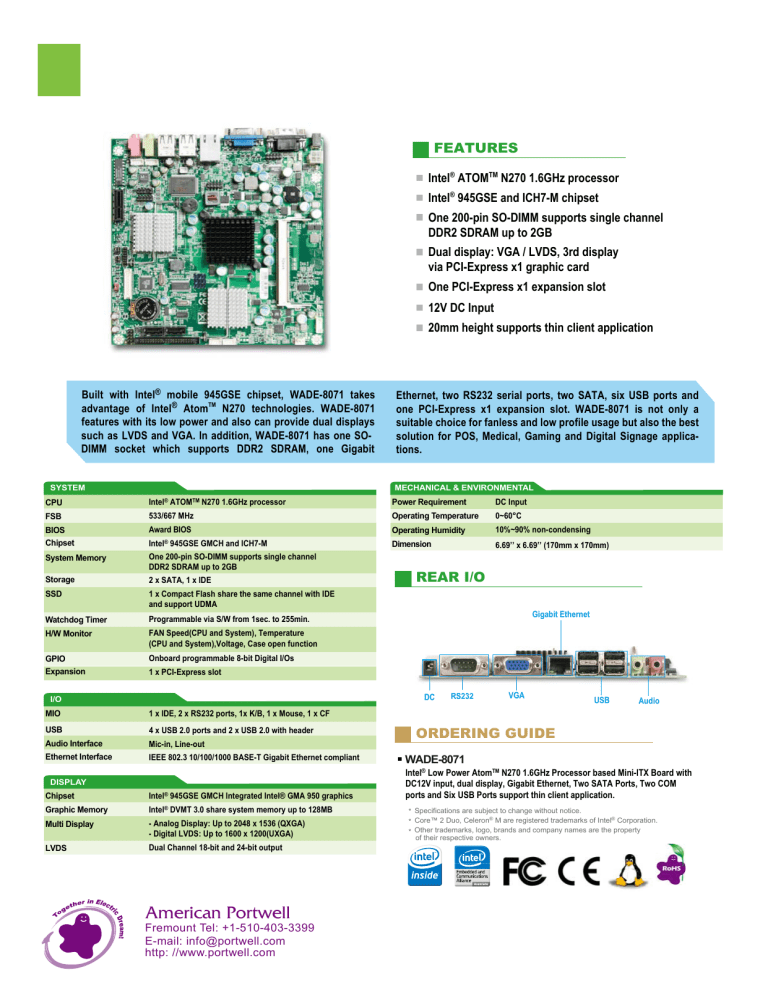

WADE-8071
Intel® Low Power AtomTM N270 1.6GHz Processor based
Mini-ITX Board with DC12V input, dual display, Gigabit
Ethernet, Two SATA Ports, Two COM ports and Six USB
Ports support thin client application
FEATURES
Intel® ATOMTM N270 1.6GHz processor
Intel® 945GSE and ICH7-M chipset
One 200-pin SO-DIMM supports single channel
DDR2 SDRAM up to 2GB
Dual display: VGA / LVDS, 3rd display
via PCI-Express x1 graphic card
One PCI-Express x1 expansion slot
12V DC Input
20mm height supports thin client application
Built with Intel® mobile 945GSE chipset, WADE-8071 takes
advantage of Intel® AtomTM N270 technologies. WADE-8071
features with its low power and also can provide dual displays
such as LVDS and VGA. In addition, WADE-8071 has one SODIMM socket which supports DDR2 SDRAM, one Gigabit
Ethernet, two RS232 serial ports, two SATA, six USB ports and
one PCI-Express x1 expansion slot. WADE-8071 is not only a
suitable choice for fanless and low profile usage but also the best
solution for POS, Medical, Gaming and Digital Signage applications.
MECHANICAL & ENVIRONMENTAL
SYSTEM
CPU
Intel® ATOMTM N270 1.6GHz processor
Power Requirement
DC Input
FSB
533/667 MHz
Operating Temperature
0~60°C
BIOS
Chipset
Award BIOS
Operating Humidity
10%~90% non-condensing
Dimension
6.69’’ x 6.69’’ (170mm x 170mm)
System Memory
Intel® 945GSE GMCH and ICH7-M
One 200-pin SO-DIMM supports single channel
DDR2 SDRAM up to 2GB
Storage
2 x SATA, 1 x IDE
SSD
1 x Compact Flash share the same channel with IDE
and support UDMA
Watchdog Timer
Programmable via S/W from 1sec. to 255min.
H/W Monitor
FAN Speed(CPU and System), Temperature
(CPU and System),Voltage, Case open function
GPIO
Expansion
Onboard programmable 8-bit Digital I/Os
Gigabit Ethernet
1 x PCI-Express slot
DC
I/O
MIO
REAR I/O
RS232
VGA
USB
Audio
1 x IDE, 2 x RS232 ports, 1x K/B, 1 x Mouse, 1 x CF
USB
4 x USB 2.0 ports and 2 x USB 2.0 with header
Audio Interface
Mic-in, Line-out
Ethernet Interface
IEEE 802.3 10/100/1000 BASE-T Gigabit Ethernet compliant
DISPLAY
Chipset
Intel® 945GSE GMCH Integrated Intel® GMA 950 graphics
Graphic Memory
Intel® DVMT 3.0 share system memory up to 128MB
Multi Display
- Analog Display: Up to 2048 x 1536 (QXGA)
- Digital LVDS: Up to 1600 x 1200(UXGA)
LVDS
Dual Channel 18-bit and 24-bit output
American Portwell
Fremount Tel: +1-510-403-3399
E-mail: [email protected]
http: //www.portwell.com
ORDERING GUIDE
WADE-8071
Intel® Low Power AtomTM N270 1.6GHz Processor based Mini-ITX Board with
DC12V input, dual display, Gigabit Ethernet, Two SATA Ports, Two COM
ports and Six USB Ports support thin client application.
* Specifications are subject to change without notice.
* Core™ 2 Duo, Celeron® M are registered trademarks of Intel® Corporation.
* Other trademarks, logo, brands and company names are the property
of their respective owners.
