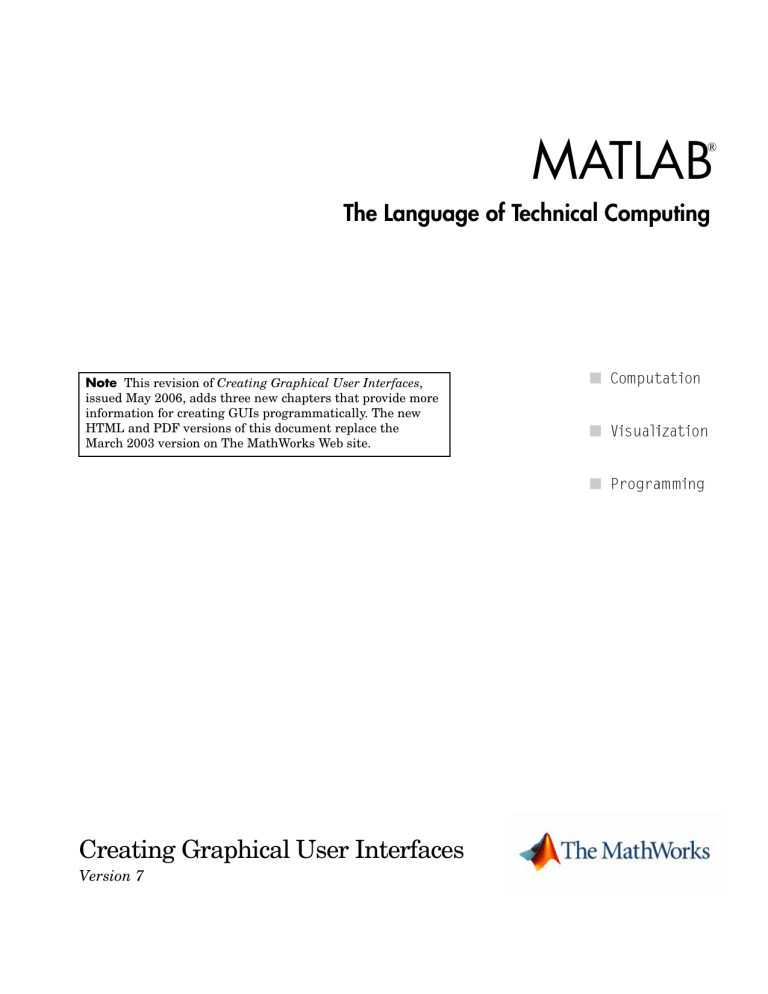

MATLAB®

M

ATLAB

®

The Language of Technical Computing

Note This revision of Creating Graphical User Interfaces, issued May 2006, adds three new chapters that provide more information for creating GUIs programmatically. The new

HTML and PDF versions of this document replace the

March 2003 version on The MathWorks Web site.

Creating Graphical User Interfaces

Version 7

How to Contact The MathWorks:

www.mathworks.com

comp.soft-sys.matlab

www.mathworks.com/contact_TS.html

[email protected]

[email protected]

[email protected]

[email protected]

[email protected]

Web

Newsgroup

Technical support

Product enhancement suggestions

Bug reports

Documentation error reports

Order status, license renewals, passcodes

Sales, pricing, and general information

508-647-7000 (Phone)

508-647-7001 (Fax)

The MathWorks, Inc.

3 Apple Hill Drive

Natick, MA 01760-2098

For contact information about worldwide offices, see the MathWorks Web site.

MATLAB Creating Graphical User Interfaces

© COPYRIGHT 2000 - 2006 by The MathWorks, Inc.

The software described in this document is furnished under a license agreement. The software may be used or copied only under the terms of the license agreement. No part of this manual may be photocopied or reproduced in any form without prior written consent from The MathWorks, Inc.

FEDERAL ACQUISITION: This provision applies to all acquisitions of the Program and Documentation by, for, or through the federal government of the United States. By accepting delivery of the Program or

Documentation, the government hereby agrees that this software or documentation qualifies as commercial computer software or commercial computer software documentation as such terms are used or defined in

FAR 12.212, DFARS Part 227.72, and DFARS 252.227-7014. Accordingly, the terms and conditions of this

Agreement and only those rights specified in this Agreement, shall pertain to and govern the use, modification, reproduction, release, performance, display, and disclosure of the Program and Documentation by the federal government (or other entity acquiring for or through the federal government) and shall supersede any conflicting contractual terms or conditions. If this License fails to meet the government's needs or is inconsistent in any respect with federal procurement law, the government agrees to return the

Program and Documentation, unused, to The MathWorks, Inc.

Trademarks

MATLAB, Simulink, Stateflow, Handle Graphics, Real-Time Workshop, and xPC TargetBox are registered trademarks of The MathWorks, Inc. Other product or brand names are trademarks or registered trademarks of their respective holders.

Patents

The MathWorks products are protected by one or more U.S. patents. Please see www.mathworks.com/patents for more information.

Revision History

November 2000

June 2001

July 2002

June 2004

October 2004

March 2005

September 2005

March 2006

May 2006

Online only

Online only

Online only

Online only

Online only

Online only

Online only

Online only

Online only

New for MATLAB 6.0 (Release12)

Revised for MATLAB 6.1 (Release 12.1)

Revised for MATLAB 6.5 (Release 13)

Revised for MATLAB 7.0 (Release 14)

Revised for MATLAB 7.0.1 (Release 14SP1)

Revised for MATLAB 7.0.4 (Release 14SP2)

Revised for MATLAB 7.1 (Release 14SP3)

Revised for MATLAB 7.2 (Release 2006a)

Revised for MATLAB 7.2

Getting Started

About GUIs in MATLAB

1

What Is a GUI? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

How Does a GUI Work? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Where Do I Start? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Creating a GUI with GUIDE

2

GUIDE: A Brief Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Laying Out a GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Programming the GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Example: Simple GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

View Completed Layout and Its GUI M-File . . . . . . . . . . . . . . . 2-4

Laying Out a Simple GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Opening a New GUI in the Layout Editor . . . . . . . . . . . . . . . . . 2-5

Setting the GUI Figure Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Adding the Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Aligning the Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10

Adding Text to the Components . . . . . . . . . . . . . . . . . . . . . . . . 2-12

Completed Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

Saving the GUI Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18

Contents

i

ii

Contents

Programming the GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20

Generating Data to Plot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-20

Programming the Pop-Up Menu . . . . . . . . . . . . . . . . . . . . . . . . 2-22

Programming the Push Buttons . . . . . . . . . . . . . . . . . . . . . . . . 2-24

Running the GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-27

Creating a GUI Programmatically

3

Example: Simple GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

View Completed Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Function Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Functions Used to Create the Simple GUI . . . . . . . . . . . . . . . . . 3-4

Other MATLAB Functions Used in the GUI . . . . . . . . . . . . . . . 3-4

Creating a GUI M-File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Laying Out a Simple GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Creating the Figure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Adding the Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

Initializing the GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-11

Programming the GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-14

Programming the Pop-Up Menu . . . . . . . . . . . . . . . . . . . . . . . . 3-14

Programming the Push Buttons . . . . . . . . . . . . . . . . . . . . . . . . 3-15

Associating Callbacks with Their Components . . . . . . . . . . . . 3-15

Running the Final GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Final M-File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17

Running the GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-19

Creating GUIs with GUIDE

What Is GUIDE?

4

GUIDE: An Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

GUI Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

GUI Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

GUIDE Tools Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Preferences and Options

5

GUIDE Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Confirmation Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Backward Compatibility Preference . . . . . . . . . . . . . . . . . . . . . . 5-4

All Other Preferences . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

GUI Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Resize Behavior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9

Command-Line Accessibility . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10

Generate FIG-File and M-File . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11

Generate FIG-File Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-13

Laying Out a GUI

6

Designing a GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

Starting GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

iii

iv

Contents

Selecting a GUI Template . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5

Accessing the Templates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5

Template Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6

Setting the GUI Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-13

Adding Components to the GUI . . . . . . . . . . . . . . . . . . . . . . . . 6-15

Available Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16

Adding Components to the Layout Area . . . . . . . . . . . . . . . . . . 6-19

Assigning an Identifier to Each Component . . . . . . . . . . . . . . . 6-24

Adding Text to the Components . . . . . . . . . . . . . . . . . . . . . . . . 6-25

Working with Components in the Layout Area . . . . . . . . . . . . 6-32

Moving Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-35

Resizing Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-38

Aligning Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-40

Alignment Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-40

Property Inspector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-42

Grid and Rulers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-43

Guide Lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-44

Setting Tab Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-46

Creating Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-49

Menus for the Menu Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-50

Context Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-58

Creating Toolbars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-62

Viewing the Object Hierarchy . . . . . . . . . . . . . . . . . . . . . . . . . 6-63

Designing for Cross-Platform Compatibility . . . . . . . . . . . . 6-64

Default System Font . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-64

Standard Background Color . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-65

Cross-Platform Compatible Units . . . . . . . . . . . . . . . . . . . . . . . 6-66

Saving and Running the GUI

7

Naming a GUI and Its Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

The GUI Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

File and GUI Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

Renaming GUIs and GUI Files . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

Saving a GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

Ways to Save a GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4

Saving a New GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5

Saving an Existing GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8

Running a GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-10

From the GUIDE Layout Editor . . . . . . . . . . . . . . . . . . . . . . . . 7-10

From the Command Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-10

From an M-file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-11

Programming the GUI

8

Callbacks: An Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

What Is a Callback? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

Kinds of Callbacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

GUI Files: An Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6

M-Files and FIG-Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6

GUI M-File Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-7

Adding Callback Templates to an Existing GUI M-File . . . . . . 8-8

Associating Callbacks with Components . . . . . . . . . . . . . . . . 8-9

Setting Callback Properties Automatically . . . . . . . . . . . . . . . . 8-9

Callback Syntax and Arguments . . . . . . . . . . . . . . . . . . . . . . . 8-12

Naming of Callback Functions . . . . . . . . . . . . . . . . . . . . . . . . . 8-12

Changing Callback Names Assigned by GUIDE . . . . . . . . . . . 8-13

Input Arguments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-14

v

vi

Contents

handles Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-14

Initialization Callbacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-16

Opening Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-16

Output Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-18

Examples: Programming GUI Components . . . . . . . . . . . . . 8-20

Push Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-20

Toggle Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-21

Radio Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-22

Check Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-22

Edit Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-23

Slider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-24

List Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-24

Pop-Up Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-25

Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-26

Button Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-27

Axes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-28

ActiveX Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-32

Menu Item . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-39

Managing Application-Defined Data

9

Mechanisms for Managing Data . . . . . . . . . . . . . . . . . . . . . . . . 9-2

GUI Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2

Application Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-4

UserData Property . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-6

Sharing Data Among a GUI’s Callbacks . . . . . . . . . . . . . . . . . 9-7

GUI Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-7

Application Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10

UserData Property . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11

Examples of GUIDE GUIs

10

GUI with Multiple Axes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-2

Techniques Used in the Example . . . . . . . . . . . . . . . . . . . . . . . 10-2

View Completed Layout and Its GUI M-File . . . . . . . . . . . . . . 10-3

Design of the GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3

Plot Push Button Callback . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-6

List Box Directory Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-9

View Layout and GUI M-File . . . . . . . . . . . . . . . . . . . . . . . . . . 10-9

Implementing the GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-10

Specifying the Directory to List . . . . . . . . . . . . . . . . . . . . . . . . 10-10

Loading the List Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-12

Accessing Workspace Variables from a List Box . . . . . . . . 10-16

Techniques Used in This Example . . . . . . . . . . . . . . . . . . . . . 10-16

View Completed Layout and Its GUI M-File . . . . . . . . . . . . . 10-17

Reading Workspace Variables . . . . . . . . . . . . . . . . . . . . . . . . . 10-17

Reading the Selections from the List Box . . . . . . . . . . . . . . . . 10-17

A GUI to Set Simulink Model Parameters . . . . . . . . . . . . . 10-20

Techniques Used in This Example . . . . . . . . . . . . . . . . . . . . . 10-20

View Completed Layout and Its GUI M-File . . . . . . . . . . . . . 10-20

How to Use the GUI (Text of GUI Help) . . . . . . . . . . . . . . . . . 10-21

Running the GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-22

Programming the Slider and Edit Text Components . . . . . . . 10-23

Running the Simulation from the GUI . . . . . . . . . . . . . . . . . . 10-25

Removing Results from the List Box . . . . . . . . . . . . . . . . . . . 10-27

Plotting the Results Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-28

The GUI Help Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-29

Closing the GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-30

The List Box Callback and Create Function . . . . . . . . . . . . . 10-30

An Address Book Reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-32

Techniques Used in This Example . . . . . . . . . . . . . . . . . . . . . 10-32

Managing Shared Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-32

View Completed Layout and Its GUI M-File . . . . . . . . . . . . . 10-33

Running the GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-33

Loading an Address Book Into the Reader . . . . . . . . . . . . . . . 10-35

vii

viii

Contents

The Contact Name Callback . . . . . . . . . . . . . . . . . . . . . . . . . . 10-38

The Contact Phone Number Callback . . . . . . . . . . . . . . . . . . . 10-39

Paging Through the Address Book — Prev/Next . . . . . . . . . . 10-40

Saving Changes to the Address Book from the Menu . . . . . . 10-42

The Create New Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-44

The Address Book Resize Function . . . . . . . . . . . . . . . . . . . . . 10-44

Using a Modal Dialog to Confirm an Operation . . . . . . . . 10-47

View Completed Layouts and Their GUI M-Files . . . . . . . . . 10-47

Setting Up the Close Confirmation Dialog . . . . . . . . . . . . . . . 10-48

Setting Up the GUI with the Close Button . . . . . . . . . . . . . . 10-49

Running the GUI with the Close Button . . . . . . . . . . . . . . . . 10-50

How the GUI and Dialog Work . . . . . . . . . . . . . . . . . . . . . . . . 10-51

Creating GUIs Programmatically

Laying Out a GUI

11

Designing a GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-2

Creating and Running the GUI M-File . . . . . . . . . . . . . . . . . 11-4

File Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-4

File Template . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-5

Running the GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-5

Creating the GUI Figure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-7

Adding Components to the GUI . . . . . . . . . . . . . . . . . . . . . . . 11-10

Available Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-10

Adding User Interface Controls . . . . . . . . . . . . . . . . . . . . . . . 11-13

Adding Panels and Button Groups . . . . . . . . . . . . . . . . . . . . . 11-26

Adding Axes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-31

Adding ActiveX Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-34

Aligning Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-35

Setting Tab Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-38

How Tabbing Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-38

Default Tab Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-38

Changing the Tab Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-40

Creating Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-42

Adding Menu Bar Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-42

Adding Context Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-46

Creating Toolbars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-52

Designing for Cross-Platform Compatibility . . . . . . . . . . . 11-58

Default System Font . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-58

ix

x

Contents

Standard Background Color . . . . . . . . . . . . . . . . . . . . . . . . . . 11-59

Cross-Platform Compatible Units . . . . . . . . . . . . . . . . . . . . . . 11-60

Programming the GUI

12

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-2

Initializing the GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-4

Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-5

Callbacks: An Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-8

What Is a Callback? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-8

Kinds of Callbacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-8

Associating Callbacks with Components . . . . . . . . . . . . . . . . 12-11

Examples: Programming GUI Components . . . . . . . . . . . . 12-14

Programming User Interface Controls . . . . . . . . . . . . . . . . . . 12-14

Programming Panels and Button Groups . . . . . . . . . . . . . . . 12-20

Programming Axes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-23

Programming ActiveX Controls . . . . . . . . . . . . . . . . . . . . . . . 12-27

Programming Menu Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-27

Programming Toolbar Tools . . . . . . . . . . . . . . . . . . . . . . . . . . 12-30

Managing Application-Defined Data

13

Mechanisms for Managing Data . . . . . . . . . . . . . . . . . . . . . . . 13-2

Nested Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-2

GUI Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-2

Application Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-4

UserData Property . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-6

Sharing Data Among a GUI’s Callbacks . . . . . . . . . . . . . . . . 13-8

Nested Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-8

GUI Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-11

Application Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-14

UserData Property . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-16

Examples of GUIs Created Programmatically

14

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-2

GUI with Axes, Menu, and Toolbar . . . . . . . . . . . . . . . . . . . . . 14-3

The Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-3

Techniques Used in the Example . . . . . . . . . . . . . . . . . . . . . . . 14-5

View the Completed GUI M-Files . . . . . . . . . . . . . . . . . . . . . . . 14-5

Creating the Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-5

Creating the GUI and Its Components . . . . . . . . . . . . . . . . . . . 14-6

Initializing the GUI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-11

Defining the Callbacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-11

Helper Function: Plotting the Plot Types . . . . . . . . . . . . . . . . 14-15

Color Palette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-16

The Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-16

Techniques Used in the Example . . . . . . . . . . . . . . . . . . . . . . 14-19

View the Completed GUI M-File . . . . . . . . . . . . . . . . . . . . . . . 14-19

Subfunction Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-20

M-File Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-21

GUI Programming Techniques . . . . . . . . . . . . . . . . . . . . . . . . 14-22

Icon Editor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-27

The Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-27

Techniques Used in the Example . . . . . . . . . . . . . . . . . . . . . . 14-29

View the Completed GUI M-Files . . . . . . . . . . . . . . . . . . . . . . 14-29

Subfunction Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-30

M-File Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-31

GUI Programming Techniques . . . . . . . . . . . . . . . . . . . . . . . . 14-32

xi

xii

Contents

Index

Getting Started

These sections show you how to create a simple graphical user interface (GUI) using GUIDE, the

MATLAB

®

graphical user interface development environment, and how to create the same GUI programmatically.

About GUIs in MATLAB (p. 1-1)

Explains what a GUI is, how a GUI works, and how to get started creating a GUI.

Creating a GUI with GUIDE (p. 2-1) Steps you through the process of creating a simple GUI

using GUIDE.

Creating a GUI Programmatically

(p. 3-1)

Steps you through the process of creating a simple GUI programmatically.

Note This revision of Creating Graphical User Interfaces, issued May 2006, adds three new chapters that provide more information for creating GUIs programmatically. The new HTML and PDF versions of this document replace the March 2003 version on The MathWorks Web site.

1

About GUIs in MATLAB

What Is a GUI? (p. 1-2)

How Does a GUI Work? (p. 1-3)

Where Do I Start? (p. 1-4)

Explains a graphical user interface (GUI) from a GUI user’s perspective.

Explains how a GUI operates from a software point of view.

Describes different techniques for creating GUIs in

MATLAB.

1

About GUIs in MATLAB

What Is a GUI?

A graphical user interface (GUI) is a graphical display that contains devices, or components, that enable a user to perform interactive tasks. To perform these tasks, the user of the GUI does not have to create a script or type commands at the command line. Often, the user does not have to know the details of the task at hand.

The GUI components can be menus, toolbars, push buttons, radio buttons, list boxes, and sliders — just to name a few. In MATLAB, a GUI can also display data in tabular form or as plots, and can group related components.

The following figure illustrates a simple GUI.

1-2

The GUI contains

An axes component

A pop-up menu listing three data sets that correspond to MATLAB functions: peaks

, membrane

, and sinc

A static text component to label the pop-up menu

Three buttons that provide different kinds of plots: surface, mesh, and contour

When you click a push button, the axes component displays the selected data set using the specified plot.

How Does a GUI Work?

How Does a GUI Work?

Each component, and the GUI itself, is associated with one or more user-written routines known as callbacks. The execution of each callback is triggered by a particular user action such as a button push, mouse click, selection of a menu item, or the cursor passing over a component. You, as the creator of the GUI, provide these callbacks.

In the GUI described in “What Is a GUI?” on page 1-2, the user selects a data

set from the pop-up menu, then clicks one of the plot type buttons. Clicking the button triggers the execution of a callback that plots the selected data in the axes.

This kind of programming is often referred to as event-driven programming.

The event in the example is a button click. In event-driven programming, callback execution is asynchronous, controlled by events external to the software. In the case of MATLAB GUIs, these events usually take the form of user interactions with the GUI.

The writer of a callback has no control over the sequence of events that leads to its execution or, when the callback does execute, what other callbacks might be running simultaneously.

1-3

1

About GUIs in MATLAB

1-4

Where Do I Start?

First you have to design your GUI. You have to decide what you want it to do, how you want the user to interact with it, and what components you need.

“Designing a GUI” on page 6-2 list references that may be of help.

Next, you must decide what technique you want to use to create your GUI.

MATLAB enables you to create GUIs programmatically or with GUIDE, an interactive GUI builder. It also provides functions that simplify the creation of standard dialog boxes. The technique you choose depends on your experience, your preferences, and the kind of GUI you want to create. This table outlines some possibilities.

GUI

Dialog box

GUI containing just a few components

Moderately complex GUIs

Complex GUIs with many components, and GUIs that require interaction with other GUIs

Technique

MATLAB provides a selection of standard dialog boxes that you can create with a single function call. For links to these functions, see Predefined Dialog Boxes in the MATLAB documentation.

It is often simpler to create GUIs that contain only a few components programmatically.

Each component can be fully defined with a single function call.

GUIDE simplifies the creation of such GUIs.

Creating such GUIs programmatically lets you control exact placement of the components and provides reproducibility.

Once you have decided which technique you want to use, you can continue to learn about creating GUIs in MATLAB by following the examples in these topics:

Chapter 2, “Creating a GUI with GUIDE”

Chapter 3, “Creating a GUI Programmatically”

2

Creating a GUI with

GUIDE

GUIDE: A Brief Introduction (p. 2-2)

Example: Simple GUI (p. 2-3)

Laying Out a Simple GUI (p. 2-5)

Saving the GUI Layout (p. 2-18)

Programming the GUI (p. 2-20)

Running the GUI (p. 2-27)

Introduces GUIDE, the graphical user interface development environment.

Describes the example to be constructed.

Lays out the GUI’s components, including moving, aligning, and labeling components.

Saves the GUI and gives it a name.

Generates the data to plot and adds code for each component to the GUI M-file to make the GUI work.

Runs the GUI and demonstrates how the components work together.

2

Creating a GUI with GUIDE

GUIDE: A Brief Introduction

GUIDE, the MATLAB graphical user interface development environment, provides a set of tools for creating graphical user interfaces (GUIs). These tools simplify the process of laying out and programming GUIs.

Laying Out a GUI

The GUIDE Layout Editor enables you to populate a GUI by clicking and dragging GUI components — such as buttons, text fields, sliders, axes, and so on — into the layout area. It also enables you to create menus and context menus for the GUI.

Other tools, which are accessible from the Layout Editor, enable you to size the

GUI, modify component look and feel, align components, set tab order, view a hierarchical list of the component objects, and set GUI options.

The following topic, “Laying Out a Simple GUI” on page 2-5, uses some of these

tools to show you the basics of laying out a GUI. “GUIDE Tools Summary” on page 4-3 describes the tools.

Programming the GUI

When you save your GUI layout, GUIDE automatically generates an M-file that you can use to control how the GUI works. This M-file provides code to initialize the GUI and contains a framework for the GUI callbacks — the routines that execute in response to user-generated events such as a mouse click. Using the M-file editor, you can add code to the callbacks to perform the

functions you want. “Programming the GUI” on page 2-20 shows you what code

to add to the example M-file to make the GUI work.

2-2

Example: Simple GUI

Example: Simple GUI

This chapter shows you how to use GUIDE to create the graphical user interface (GUI) shown in the following figure.

push buttons static text pop-up menu axes

The GUI contains

An axes component

A pop-up menu listing three different data sets that correspond to MATLAB functions: peaks

, membrane

, and sinc

A static text component to label the pop-up menu

Three push buttons, each of which provides a different kind of plot: surface, mesh, and contour

To use the GUI, the user selects a data set from the pop-up menu, then clicks one of the plot-type buttons. Clicking the button triggers the execution of a callback that plots the selected data in the axes.

Subsequent topics, starting with “Laying Out a Simple GUI” on page 2-5, guide

you through the steps to create this GUI. We recommend that you create the

GUI for yourself, as this is the best way to learn how to use GUIDE.

2-3

2

Creating a GUI with GUIDE

View Completed Layout and Its GUI M-File

If you are reading this in the MATLAB Help browser, you can click the following links to display the GUIDE Layout Editor and the MATLAB Editor with a completed version of this example.

Note The following links execute MATLAB commands and are designed to work within the MATLAB Help browser. If you are reading this online or in

PDF, you should go to the corresponding section in the MATLAB Help

Browser to use the links.

Click here to display this GUI in the Layout Editor.

Click here to display the GUI M-file in the MATLAB Editor.

2-4

Laying Out a Simple GUI

Laying Out a Simple GUI

This topic illustrates the basic steps for laying out a GUI.

“Opening a New GUI in the Layout Editor” on page 2-5

“Setting the GUI Figure Size” on page 2-7

“Adding the Components” on page 2-8

“Aligning the Components” on page 2-10

“Adding Text to the Components” on page 2-12

“Completed Layout” on page 2-17

Opening a New GUI in the Layout Editor

1

Start GUIDE by typing guide

at the MATLAB prompt. This displays the

GUIDE

Quick Start dialog shown in the following figure.

2

In the Quick Start dialog, select the Blank GUI (Default) template. Click

OK

to display the blank GUI in the Layout Editor, as shown in the following figure.

2-5

2

Creating a GUI with GUIDE

3

Display the names of the GUI components in the component palette. Select

Preferences

from the MATLAB File menu. Then select GUIDE > Show

names in component palette

, and click OK. The Layout Editor then appears as shown in the following figure.

2-6

Laying Out a Simple GUI

Setting the GUI Figure Size

Set the size of the GUI by resizing the grid area in the Layout Editor. Click the lower-right corner and drag it until the GUI is approximately 3 inches high and

4 inches wide. If necessary, make the window larger.

2-7

2

Creating a GUI with GUIDE

Click and drag corner to resize

Adding the Components

1

Add the three push buttons to the GUI. For each push button, select the push button from the component palette at the left of the Layout Editor and drag it into the layout area. Position them approximately as shown in the following figure.

2-8

Laying Out a Simple GUI

2

Add the remaining components to the GUI.

- A static text

- A pop-up menu

- An axes

Arrange the components as shown in the following figure. Resize the axes component to approximately 2-by-2 inches.

2-9

2

Creating a GUI with GUIDE

2-10

Aligning the Components

You can use the Alignment Tool to align components with respect to one another, if they have the same parent. To align the three push buttons:

1

Select all three push buttons by pressing Ctrl and clicking them.

2

Select Align Objects from the Tools menu to display the Alignment Tool.

3

Make these settings in the Alignment Tool, as shown in the following figure:

- 20 pixels spacing between push buttons in the vertical direction.

- Left-aligned in the horizontal direction.

Laying Out a Simple GUI

4

Click OK. Your GUI now looks like this in the Layout Editor.

2-11

2

Creating a GUI with GUIDE

Adding Text to the Components

Although the push buttons, pop-up menu, and static text show some text in the

Layout Editor, the text is not appropriate to the GUI being created. This topic shows you how to modify the default text.

“Labeling the Push Buttons” on page 2-12

“Entering Pop-Up Menu Items” on page 2-14

“Modifying the Static Text” on page 2-15

After you have added the appropriate text, the GUI will look like this in the

Layout Editor.

2-12

Labeling the Push Buttons

Each of the three push buttons lets the user choose a plot type: surf, mesh, and contour. This topic shows you how to label the buttons with those choices.

1

Select Property Inspector from the View menu.

Laying Out a Simple GUI

2

In the layout area, select the top push button by clicking it.

3

In the Property Inspector, select the

String

property and then replace the existing value with the word

Surf

.

2-13

2

Creating a GUI with GUIDE

4

Click outside the

String

field. The push button label changes to Surf.

5

Select each of the remaining push buttons in turn and repeat steps 3 and 4.

Label the middle push button Mesh, and the bottom button Contour.

Entering Pop-Up Menu Items

The pop-up menu provides a choice of three data sets: peaks, membrane, and sinc. These data sets correspond to MATLAB functions of the same name. This topic shows you how to list those data sets as choices in the pop-menu.

1

In the layout area, select the pop-up menu by clicking it.

2

In the Property Inspector, click the button next to

String

. The String dialog box displays.

2-14

Laying Out a Simple GUI

3

Replace the existing text with the names of the three data sets: Peaks,

Membrane, and Sinc. Press Enter to move to the next line.

4

When you are done, click OK. The first item in your list,

Peaks

, appears in the pop-up menu in the layout area.

Modifying the Static Text

In this GUI, the static text serves as a label for the pop-up menu. The user cannot change this text. This topic shows you how to change the static text to read

Select Data

.

1

In the layout area, select the static text by clicking it.

2-15

2

Creating a GUI with GUIDE

2

In the Property Inspector, click the button next to

String

. In the String dialog box that displays, replace the existing text with the phrase

Select Data

.

3

Click OK. The phrase

Select Data appears in the static text component above the pop-up menu.

2-16

Laying Out a Simple GUI

Completed Layout

In the Layout Editor, your GUI now looks like this and the next step is to save

the layout. The next topic, “Saving the GUI Layout” on page 2-18, tells you how

to do this.

2-17

2

Creating a GUI with GUIDE

Saving the GUI Layout

When you save a GUI, GUIDE creates two files, a FIG-file and an M-file. The

FIG-file, with extension

.fig

, is a binary file that contains a description of the layout. The M-file, with extension

.m

, contains the code that controls the GUI.

1

Save and activate your GUI by selecting Run from the Tools menu.

2

GUIDE displays the following dialog box. Click Yes to continue.

3

GUIDE opens a Save As dialog box in your current directory and prompts you for a FIG-file name.

2-18

4

Browse to any directory for which you have write privileges, and then enter the filename simple_gui

for the FIG-file. GUIDE saves both the FIG-file and the M-file using this name.

5

If the directory in which you save the GUI is not on the MATLAB path,

GUIDE opens a dialog box, giving you the option of changing the current

Saving the GUI Layout working directory to the directory containing the GUI files, or adding that directory to the top or bottom of the MATLAB path.

6

GUIDE saves the files simple_gui.fig

and simple_gui.m

and activates the

GUI. It also opens the GUI M-file in your default editor.

The GUI is active. You can select a data set in the pop-up menu and click the push buttons. But nothing happens. This is because there is no code in the

M-file to service the pop-up menu and the buttons. The next step is to

program the GUI. The next topic, “Programming the GUI” on page 2-20,

shows you how to do this.

2-19

2

Creating a GUI with GUIDE

Programming the GUI

When you saved your GUI in the previous topic, “Saving the GUI Layout” on page 2-18, GUIDE created two files: a FIG-file

simple_gui.fig

that contains the GUI layout, and an M-file simple_gui.m

that contains the code that controls the GUI. But the GUI didn’t do anything because there was no code in the M-file to make it work. This topic shows you how to add code to the M-file to make it work. There are three steps:

“Generating Data to Plot” on page 2-20

“Programming the Pop-Up Menu” on page 2-22

“Programming the Push Buttons” on page 2-24

Generating Data to Plot

This topic shows you how to generate the data to be plotted when the user clicks a button. This data is generated in the opening function. The opening function is the first callback in every GUIDE-generated GUI M-file. You can use it to perform tasks that need to be done before the user has access to the

GUI.

In this example, you add code that creates three data sets to the opening function. The code uses the MATLAB functions peaks

, membran e, and sinc

.

1

Display the opening function in the M-file editor. If the GUI M-file, simple_gui.m

, is not already open in your editor, open it by selecting

M-file Editor

from the View menu. In the editor, click the function icon on the toolbar, then click simple_gui_OpeningFcn in the pop-up menu that displays.

2-20

Programming the GUI

The cursor moves to the opening function, which already contains this code:

% --- Executes just before simple_gui is made visible.

function simple_gui_OpeningFcn(hObject, eventdata, handles, varargin)

% This function has no output args, see OutputFcn.

% hObject handle to figure

% eventdata reserved - to be defined in a future version of MATLAB

% handles structure with handles and user data (see GUIDATA)

% varargin command line arguments to simple_gui (see VARARGIN)

% Choose default command line output for simple_gui handles.output = hObject;

% Update handles structure guidata(hObject, handles);

% UIWAIT makes simple_gui wait for user response (see UIRESUME)

% uiwait(handles.figure1);

2

Create data for the GUI to plot by adding the following code to the opening function immediately after the comment that begins

% varargin

...

2-21

2

Creating a GUI with GUIDE

% Create the data to plot.

handles.peaks=peaks(35); handles.membrane=membrane;

[x,y] = meshgrid(-8:.5:8); r = sqrt(x.^2+y.^2) + eps; sinc = sin(r)./r; handles.sinc = sinc;

% Set the current data value.

handles.current_data = handles.peaks; surf(handles.current_data)

The first six executable lines create the data using the MATLAB functions peaks

, membrane

, and sinc

. They store the data in the handles

structure, which is passed as an argument to all callbacks. Callbacks for the push buttons can retrieve the data from the handles

structure.

The last two lines create a current data value and set it to peaks, and then display the surf plot for peaks. The following figure shows how the GUI now looks when it first displays.

2-22

Programming the Pop-Up Menu

The pop-up menu enables users to select the data to plot. When a user selects one of the three plots, MATLAB sets the pop-up menu

Value

property to the

Programming the GUI index of the selected string. The pop-up menu callback reads the pop-up menu

Value

property to determine what item is currently displayed and sets handles.current_data

accordingly.

1

Display the pop-up menu callback in the M-file editor. Right-click the pop-up menu component in the Layout Editor to display a context menu. From that menu, select View Callbacks > Callback.

The GUI M-file opens in the editor if it is not already open, and the cursor moves to the pop-menu callback, which already contains this code:

% --- Executes on selection change in popupmenu1.

function popupmenu1_Callback(hObject, eventdata, handles)

% hObject handle to popupmenu1 (see GCBO)

% eventdata reserved - to be defined in a future version of MATLAB

% handles structure with handles and user data (see GUIDATA)

2

Add the following code to the popupmenu1_Callback

after the comment that begins

% handles

...

This code first retrieves two pop-up menu properties:

-

String

— a cell array that contains the menu contents

-

Value

— the index into the menu contents of the selected data set

2-23

2

Creating a GUI with GUIDE

It then uses a switch

statement to make the selected data set the current data. The last statement saves the changes to the handles

structure.

% Determine the selected data set.

str = get(hObject, 'String'); val = get(hObject,'Value');

% Set current data to the selected data set.

switch str{val}; case 'Peaks' % User selects peaks.

handles.current_data = handles.peaks; case 'Membrane' % User selects membrane.

handles.current_data = handles.membrane; case 'Sinc' % User selects sinc.

handles.current_data = handles.sinc; end

% Save the handles structure.

guidata(hObject,handles)

Programming the Push Buttons

Each of the push buttons creates a different type of plot using the data specified by the current selection in the pop-up menu. The push button callbacks get data from the handles

structure and then plot it.

1

Display the Surf push button callback in the M-file editor. Right-click the

Surf

push button in the Layout Editor to display a context menu. From that menu, select View Callbacks > Callback.

2-24

Programming the GUI

The GUI M-file opens in the editor if it is not already open, and the cursor moves to the Surf push button callback, which already contains this code:

% --- Executes on button press in pushbutton1.

function pushbutton1_Callback(hObject, eventdata, handles)

% hObject handle to pushbutton1 (see GCBO)

% eventdata reserved - to be defined in a future version of MATLAB

% handles structure with handles and user data (see GUIDATA)

2

Add the following code to the callback immediately after the comment that begins

% handles

...

% Display surf plot of the currently selected data.

surf(handles.current_data);

3

Repeat steps 1 and 2 to add similar code to the Mesh and Contour push button callbacks.

- Add this code to the Mesh push button callback, pushbutton2_Callback

:

% Display mesh plot of the currently selected data.

mesh(handles.current_data);

- Add this code to the Contour push button callback, pushbutton3_Callback

:

2-25

2

Creating a GUI with GUIDE

% Display contour plot of the currently selected data.

contour(handles.current_data);

4

Save the M-file by selecting Save from the File menu.

Your GUI is ready to run. The next topic, “Running the GUI” on page 2-27, tells

you how to do that.

2-26

Running the GUI

Running the GUI

In the previous topic, you programmed the pop-up menu and the push buttons.

You also created data for them to use and initialized the display. Now you can run your GUI and see how it works.

1

Run your GUI by selecting Run from the Layout Editor Tools menu. If the

GUI is on your MATLAB path or in your current directory, you can also run it by typing its name, simple_gui

, at the prompt. The GUI looks like this when it first displays:

2

In the pop-up menu, select Membrane, then click the Mesh button. The GUI displays a mesh plot of the MATLAB logo.

2-27

2

Creating a GUI with GUIDE

3

Try other combinations before closing the GUI.

2-28

3

Creating a GUI

Programmatically

Example: Simple GUI (p. 3-2)

Function Summary (p. 3-4)

Creating a GUI M-File (p. 3-6)

Laying Out a Simple GUI (p. 3-7)

Initializing the GUI (p. 3-11)

Programming the GUI (p. 3-14)

Running the Final GUI (p. 3-17)

Describes the example to be constructed.

Lists the functions that are used in the construction of the example.

Creates the file that holds the GUI script and adds help comments to the file.

Creates the figure and adds the components.

Performs various initialization chores and generates the data to plot

Adds code for each component to the GUI M-file to make the GUI work.

Runs the final GUI and demonstrates how the components work together.

3

Creating a GUI Programmatically

Example: Simple GUI

This chapter shows you how to write a script that creates the example graphical user interface (GUI) shown in the following figure.

push buttons static text pop-up menu axes

The GUI contains

An axes

A pop-up menu listing three data sets that correspond to MATLAB functions: peaks

, membrane

, and sinc

A static text component to label the pop-up menu

Three push buttons, each of which provides a different kind of plot: surface, mesh, and contour

To use the GUI, the user selects a data set from the pop-up menu, then clicks one of the plot-type push buttons. Clicking the button triggers the execution of a callback that plots the selected data in the axes.

The next topic, “Function Summary” on page 3-4, summarizes the functions

used to create this example GUI.

3-2

Example: Simple GUI

Subsequent topics guide you through the process of creating the GUI. This

process begins with “Creating a GUI M-File” on page 3-6. We recommend that

you create the GUI for yourself.

View Completed Example

If you are reading this in the MATLAB Help browser, you can click the following links to display the example GUI and its M-file.

Note The following links execute MATLAB commands and are designed to work within the MATLAB Help browser. If you are reading this online or in

PDF, you should go to the corresponding section in the MATLAB Help

Browser to use the links.

Click here to display the example GUI.

Click here to display the GUI M-file in the MATLAB Editor.

3-3

3

Creating a GUI Programmatically

Function Summary

MATLAB provides a suite of functions for creating GUIs. This topic introduces you to the functions you need to create the example GUI.

Functions Used to Create the Simple GUI

Function

align axes figure movegui uicontrol

Description

Align user interface controls and axes.

Create axes objects.

Create figure objects. A GUI is a figure object.

Move GUI figure to specified location on screen.

Create user interface control objects, such as push buttons, static text, and pop-up menus.

Function

contour eps get membrane mesh meshgrid peaks set sin

Other MATLAB Functions Used in the GUI

Description

Contour graph of a matrix

Floating point relative accuracy.

Query object properties.

Generates the MATLAB logo.

Mesh plots.

Generate X and Y arrays for 3-D plots.

Example function of two variables.

Set object properties.

Sine; result in radians.

3-4

Function

sqrt surf

Description

Square root.

3-D shaded surface plot.

Function Summary

3-5

3

Creating a GUI Programmatically

Creating a GUI M-File

Start by creating an M-file for the example GUI.

1

At the MATLAB prompt, type edit

. MATLAB opens the editor.

2

Type or copy the following statement into the editor. This function statement is the first line in the file.

function simple_gui

3

Add these comments to the M-file following the function statement. They are displayed at the command line in response to the help

command. They must be followed by a blank line.

% SIMPLE_GUI Select a data set from the pop-up menu, then

% click one of the plot-type push buttons. Clicking the button

% plots the selected data in the axes.

(Leave a blank line here)

4

Add an end

statement at the end of the file. This end

statement matches the function

statement. Your file now looks like this.

function simple_gui

% SIMPLE_GUI Select a data set from the pop-up menu, then

% click one of the plot-type push buttons. Clicking the button

% plots the selected data in the axes.

end

Note You need the end

statement because the example is written using nested functions. For information about using nested functions, see Nested

Functions in the MATLAB documentation.

5

Save the file in your current directory or at a location that is on your

MATLAB path.

The next section, “Laying Out a Simple GUI” on page 3-7, shows you how to add

components to your GUI.

3-6

Laying Out a Simple GUI

Laying Out a Simple GUI

This topic illustrates the basic steps for laying out a GUI programmatically.

“Creating the Figure” on page 3-7

“Adding the Components” on page 3-7

Creating the Figure

In MATLAB, a GUI is a figure. This first step creates the figure and positions it on the screen. It also makes the GUI invisible so that the GUI user cannot see the components being added or initialized. When the GUI has all its components and is initialized, the example makes it visible.

% Initialize and hide the GUI as it is being constructed.

f = figure('Visible','off','Position',[360,500,450,285]);

The call to the figure

function uses two property/value pairs. The

Position property is a four-element vector that specifies the location of the GUI on the screen and its size: [distance from left, distance from bottom, height, width].

Default units are pixels.

The next topic, “Adding the Components” on page 3-7, shows you how to add

the push buttons, axes, and other components to the GUI.

Adding the Components

The example GUI has six components: three push buttons, one static text, one pop-up menu, and one axes. Start by writing statements that add these components to the GUI. Create the push buttons, static text, and pop-up menu with the uicontrol

function. Use the axes

function to create the axes.

1

Add the three push buttons to your GUI by adding these statements to your

M-file following the call to figure

.

% Construct the components.

hsurf = uicontrol('Style','pushbutton',...

'String','Surf','Position',[315,220,70,25]); hmesh = uicontrol('Style','pushbutton',...

'String','Mesh','Position',[315,180,70,25]); hcontour = uicontrol('Style','pushbutton',...

'String','Countour','Position',[315,135,70,25]);

3-7

3

Creating a GUI Programmatically

These statements use the uicontrol

function to create the push buttons.

Each statement uses a series of property/value pairs to define a push button.

Property

Style

String

Position

Description

In the example, pushbutton

specifies the component as a push button.

Specifies the label that appears on each push button.

Here, there are three types of plots:

Surf, Mesh

,

Contour

.

Uses a four-element vector to specify the location of each push button within the GUI and its size: [distance from left, distance from bottom, height, width]. Default units for push buttons are pixels.

Each call returns the handle of the component that is created.

2

Add the pop-up menu and its label to your GUI by adding these statements to the M-file following the push button definitions.

hpopup = uicontrol('Style','popupmenu',...

'String',{'Peaks','Membrane','Sinc'},...

'Position',[300,50,100,25]); htext = uicontrol('Style','text','String','Select Data',...

'Position',[325,90,60,15]);

For the pop-up menu, the

String

property uses a cell array to specify the three items in the pop-up menu:

Peaks

,

Membrane

,

Sinc

. The static text component serves as a label for the pop-up menu. Its

String

property tells the GUI user to

Select Data

. Default units for these components are pixels.

3

Add the axes to the GUI by adding this statement to the M-file. Set the

Units

property to pixels so that it has the same units as the other components.

ha = axes('Units','pixels','Position',[50,60,200,185]);

4

Align all components except the axes along their centers with the following statement. Add it to the M-file following all the component definitions.

align([hsurf,hmesh,hcontour,htext,hpopup],'Center','None');

3-8

Laying Out a Simple GUI

5

Make your GUI visible by adding this command following the align command.

set(f,'Visible','on')

6

This is what your M-file should now look like: function simple_gui

% SIMPLE_GUI Select a data set from the pop-up menu, then

% click one of the plot-type push buttons. Clicking the button

% plots the selected data in the axes.

% Create and hide the GUI as it is being constructed.

f = figure('Visible','off','Position',[360,500,450,285]);

% Construct the components.

hsurf = uicontrol('Style','pushbutton','String','Surf',...

'Position',[315,220,70,25]);

hmesh = uicontrol('Style','pushbutton','String','Mesh',...

'Position',[315,180,70,25]);

hcontour = uicontrol('Style','pushbutton',...

'String','Countour',...

'Position',[315,135,70,25]);

htext = uicontrol('Style','text','String','Select Data',...

'Position',[325,90,60,15]);

hpopup = uicontrol('Style','popupmenu',...

'String',{'Peaks','Membrane','Sinc'},...

'Position',[300,50,100,25]);

ha = axes('Units','Pixels','Position',[50,60,200,185]);

align([hsurf,hmesh,hcontour,htext,hpopup],'Center','None');

%Make the GUI visible.

set(f,'Visible','on') end

7

Run your script by typing simple_gui

at the command line. This is what your GUI now looks like. Note that you can select a data set in the pop-up menu and click the push buttons. But nothing happens. This is because there is no code in the M-file to service the pop-up menu and the buttons.

3-9

3

Creating a GUI Programmatically

8

Type help simple_gui

at the command line. MATLAB displays this help text.

help simple_gui

SIMPLE_GUI Select a data set from the pop-up menu, then

click one of the plot-type push buttons. Clicking the button

plots the selected data in the axes.

The next topic, “Initializing the GUI” on page 3-11, shows you how to initialize

the GUI.

3-10

Initializing the GUI

Initializing the GUI

When you make the GUI visible, it should be initialized so that it is ready for the user. This topic shows you how to

Make the GUI behave properly when it is resized by changing the component and figure units to normalized

. This causes the components to resize when the GUI is resized. Normalized units map the lower-left corner of the figure window to

(0,0)

and the upper-right corner to (

1.0, 1.0)

.

Generate the data to plot. The example needs three sets of data: peaks_data

, membrane_data

, and sinc_data

. Each set corresponds to one of the items in the pop-up menu.

Create an initial plot in the axes

Assign the GUI a name that appears in the window title

Move the GUI to the center of the screen

Make the GUI visible

1

Replace this code in your M-file:

% Make the GUI visible.

set(f,'Visible','on') with this code:

% Initialize the GUI.

% Change units to normalized so components resize automatically.

set([f,hsurf,hmesh,hcontour,htext,hpopup],'Units','normalized');

% Generate the data to plot.

peaks_data = peaks(35); membrane_data = membrane;

[x,y] = meshgrid(-8:.5:8); r = sqrt(x.^2+y.^2) + eps; sinc_data = sin(r)./r;

% Create a plot in the axes.

current_data = peaks_data; surf(current_data);

% Assign the GUI a name to appear in the window title.

set(f,'Name','Simple GUI')

% Move the GUI to the center of the screen.

3-11

3

Creating a GUI Programmatically movegui(f,'center')

% Make the GUI visible.

set(f,'Visible','on');

2

Verify that your M-file now looks like this: function simple_gui

% SIMPLE_GUI Select a data set from the pop-up menu, then

% click one of the plot-type push buttons. Clicking the button

% plots the selected data in the axes.

% Create and hide the GUI figure as it is being constructed.

f = figure('Visible','off','Position',[360,500,450,285]);

% Construct the components

hsurf = uicontrol('Style','pushbutton','String','Surf',...

'Position',[315,220,70,25]);

hmesh = uicontrol('Style','pushbutton','String','Mesh',...

'Position',[315,180,70,25]);

hcontour = uicontrol('Style','pushbutton',...

'String','Countour',...

'Position',[315,135,70,25]);

htext = uicontrol('Style','text','String','Select Data',...

'Position',[325,90,60,15]);

hpopup = uicontrol('Style','popupmenu',...

'String',{'Peaks','Membrane','Sinc'},...

'Position',[300,50,100,25]);

ha = axes('Units','Pixels','Position',[50,60,200,185]);

align([hsurf,hmesh,hcontour,htext,hpopup],'Center','None');

% Create the data to plot

peaks_data = peaks(35);

membrane_data = membrane;

[x,y] = meshgrid(-8:.5:8);

r = sqrt(x.^2+y.^2) + eps;

sinc_data = sin(r)./r;

% Initialize the GUI.

% Change units to normalized so components resize

% automatically.

set([f,hsurf,hmesh,hcontour,htext,hpopup],...

3-12

Initializing the GUI

'Units','normalized');

%Create a plot in the axes.

current_data = peaks_data;

surf(current_data);

% Assign the GUI a name to appear in the window title.

set(f,'Name','Simple GUI')

% Move the GUI to the center of the screen.

movegui(f,'center')

% Make the GUI visible.

set(f,'Visible','on'); end

3

Run your script by typing simple_gui

at the command line. This is what your GUI should now look like:

The next topic, “Programming the GUI” on page 3-14, shows you how to

program the push buttons and pop-up menu so you can interactively generate different plots in the axes.

3-13

3

Creating a GUI Programmatically

3-14

Programming the GUI

You use callbacks to program the GUI components. Callbacks are the functions that execute in response to user-generated events such as mouse clicks.

This topic shows you how to write callbacks for the simple GUI, then shows you how to associate each callback with its component.

“Programming the Pop-Up Menu” on page 3-14

“Programming the Push Buttons” on page 3-15

“Associating Callbacks with Their Components” on page 3-15

Programming the Pop-Up Menu

The pop-up menu enables users to select the data to plot. When a GUI user selects one of the three data sets, MATLAB sets the pop-up menu

Value property to the index of the selected string. The pop-up menu callback reads the pop-up menu

Value

property to determine which item is currently displayed and sets current_data

accordingly.

Add the following callback to your file following the initialization code and before the final end

statement.

% Pop-up menu callback. Read the pop-up menu Value property

% to determine which item is currently displayed and make it

% the current data. This callback automatically has access to

% current_data because this function is nested at a lower level.

function popup_menu_Callback(source,eventdata)

% Determine the selected data set.

str = get(source, 'String');

val = get(source,'Value');

% Set current data to the selected data set.

switch str{val};

case 'Peaks' % User selects Peaks.

current_data = peaks_data;

case 'Membrane' % User selects Membrane.

current_data = membrane_data;

case 'Sinc' % User selects Sinc.

current_data = sinc_data;

end

Programming the GUI

end

The next topic, “Programming the Push Buttons” on page 3-15, shows you how

to write callbacks for the three push buttons.

Programming the Push Buttons

Each of the three push buttons creates a different type of plot using the data specified by the current selection in the pop-up menu. The push button callbacks plot the data in current_data

. They automatically have access to current_data

because they are nested at a lower level.

Add the following callbacks to your file following the pop-up menu callback and before the final end

statement.

% Push button callbacks. Each callback plots current_data in the

% specified plot type.

function surfbutton_Callback(source,eventdata)

% Display surf plot of the currently selected data.

surf(current_data); end function meshbutton_Callback(source,eventdata)

% Display mesh plot of the currently selected data.

mesh(current_data); end function contourbutton_Callback(source,eventdata)

% Display contour plot of the currently selected data.

contour(current_data); end

The next topic shows you how to associate each callback with its specific component.

Associating Callbacks with Their Components

When the GUI user selects a data set from the pop-up menu or clicks one of the push buttons, MATLAB executes the callback associated with that particular event. But how does MATLAB know which callback to execute? You must use

3-15

3

Creating a GUI Programmatically each component’s

Callback

property to specify the name of the callback with which it is associated.

1

To the uicontrol

statement that defines the Surf push button, add the property/value pair

'Callback',{@surfbutton_Callback} so that the statement looks like this: hsurf = uicontrol('Style','pushbutton','String','Surf',...

'Position',[315,220,70,25],...

'Callback',{@surfbutton_Callback});

Callback

is the name of the property. surfbutton_Callback

is the name of the callback that services the Surf push button.

2

Similarly, to the uicontrol

statement that defines the Mesh push button, add the property/value pair

'Callback',{@meshbutton_Callback}

3

To the uicontrol

statement that defines the Contour push button, add the property/value pair

'Callback',{@contourbutton_Callback}

4

To the uicontrol

statement that defines the pop-up menu, add the property/value pair

'Callback',{@popup_menu_Callback}

The next topic, “Running the Final GUI” on page 3-17, shows the final M-file

and runs the GUI.

3-16

Running the Final GUI

Running the Final GUI

You have created the simple GUI. This topic shows you the final M-file and runs the GUI.

“Final M-File” on page 3-17

“Running the GUI” on page 3-19

Final M-File

This is what your final M-file should now look like: function simple_gui

% SIMPLE_GUI Select a data set from the pop-up menu, then

% click one of the plot-type push buttons. Clicking the button

% plots the selected data in the axes.

% Create and then hide the GUI as it is being constructed.

f = figure('Visible','off','Position',[360,500,450,285]);

% Construct the components.

hsurf = uicontrol('Style','pushbutton','String','Surf',...

'Position',[315,220,70,25],...

'Callback',{@surfbutton_Callback});

hmesh = uicontrol('Style','pushbutton','String','Mesh',...

'Position',[315,180,70,25],...

'Callback',{@meshbutton_Callback});

hcontour = uicontrol('Style','pushbutton',...

'String','Countour',...

'Position',[315,135,70,25],...

'Callback',{@contourbutton_Callback});

htext = uicontrol('Style','text','String','Select Data',...

'Position',[325,90,60,15]);

hpopup = uicontrol('Style','popupmenu',...

'String',{'Peaks','Membrane','Sinc'},...

'Position',[300,50,100,25],...

'Callback',{@popup_menu_Callback});

ha = axes('Units','Pixels','Position',[50,60,200,185]);

align([hsurf,hmesh,hcontour,htext,hpopup],'Center','None');

3-17

3

Creating a GUI Programmatically

% Create the data to plot.

peaks_data = peaks(35);

membrane_data = membrane;

[x,y] = meshgrid(-8:.5:8);

r = sqrt(x.^2+y.^2) + eps;

sinc_data = sin(r)./r;

% Initialize the GUI.

% Change units to normalized so components resize

% automatically.

set([f,ha,hsurf,hmesh,hcontour,htext,hpopup],...

'Units','normalized');

%Create a plot in the axes.

current_data = peaks_data;

surf(current_data);

% Assign the GUI a name to appear in the window title.

set(f,'Name','Simple GUI')

% Move the GUI to the center of the screen.

movegui(f,'center')

% Make the GUI visible.

set(f,'Visible','on');

% Callbacks for simple_gui. These callbacks automatically

% have access to component handles and initialized data

% because they are nested at a lower level.

% Pop-up menu callback. Read the pop-up menu Value property

% to determine which item is currently displayed and make it

% the current data.

function popup_menu_Callback(source,eventdata)

% Determine the selected data set.

str = get(source, 'String');

val = get(source,'Value');

% Set current data to the selected data set.

switch str{val};

case 'Peaks' % User selects Peaks.

current_data = peaks_data;

case 'Membrane' % User selects Membrane.

current_data = membrane_data;

case 'Sinc' % User selects Sinc.

3-18

Running the Final GUI

current_data = sinc_data;

end

end

% Push button callbacks. Each callback plots current_data in

% the specified plot type.

function surfbutton_Callback(source,eventdata)

% Display surf plot of the currently selected data.

surf(current_data);

end

function meshbutton_Callback(source,eventdata)

% Display mesh plot of the currently selected data.

mesh(current_data);

end

function contourbutton_Callback(source,eventdata)

% Display contour plot of the currently selected data.

contour(current_data);

end end

Running the GUI

1

Run the simple GUI by typing the name of the M-file at the command line.

simple_gui

3-19

3

Creating a GUI Programmatically

2

In the pop-up menu, select Membrane, then click the Mesh button. The GUI displays a mesh plot of the MATLAB logo.

3-20

3

Try other combinations before closing the GUI.

Creating GUIs with GUIDE

These sections describe how to create graphical user interfaces (GUIs) using GUIDE, the

MATLAB

®

graphical user interface development environment.

What Is GUIDE? (p. 4-1)

Preferences and Options (p. 5-1)

Laying Out a GUI (p. 6-1)

Saving and Running the GUI

(p. 7-1)

Introduces GUIDE.

Describes briefly the available MATLAB preferences and GUI options.

Shows you how to start GUIDE and from there how to populate the GUI and create menus. Provides guidance in designing a GUI for cross-platform compatibility.

Describes the files used to store the GUI. Steps you through the process for saving a GUI, and lists the different ways in which you can activate a GUI.

Programming the GUI (p. 8-1)

Explains how user-written callback routines control GUI behavior. Shows you how to associate callbacks with specific components and explains callback syntax and arguments. Provides simple programming examples for each kind of component.

Managing Application-Defined Data

(p. 9-1)

Explains the mechanisms for managing application-defined data and explains how to share data among a GUIs callbacks.

Examples of GUIDE GUIs (p. 10-1)

Illustrates techniques for programming various behaviors.

Note This revision of Creating Graphical User Interfaces, issued May 2006, adds three new chapters that provide more information for creating GUIs programmatically. The new HTML and PDF versions of this document replace the March 2003 version on The MathWorks Web site.

4

What Is GUIDE?

GUIDE: An Overview (p. 4-2)

GUIDE Tools Summary (p. 4-3)

Introduces GUIDE, the MATLAB graphical user interface development environment.

Introduces the various tools that comprise GUIDE.

4

What Is GUIDE?

GUIDE: An Overview

GUIDE, the MATLAB graphical user interface development environment, provides a set of tools for creating graphical user interfaces (GUIs). These tools simplify the process of laying out and programming GUIs.

GUI Layout

Using the GUIDE Layout Editor, you can populate a GUI by clicking and dragging GUI components — such as axes, panels, buttons, text fields, sliders, and so on — into the layout area. You can also create menus and context menus for the GUI. From the Layout Editor, you can size the GUI, modify component look and feel, align components, set tab order, view a hierarchical list of the component objects, and set GUI options.

GUI Programming

GUIDE automatically generates an M-file that controls how the GUI operates.

This M-file provides code to initialize the GUI and contains a framework for the

GUI callbacks — the routines that execute when a user interacts with a GUI component. Using the M-file editor, you can add code to the callbacks to perform the functions you want.

Note MATLAB provides a selection of standard dialog boxes that you can create with a single function call. For information about these dialog boxes and the functions used to create them, see Predefined Dialog Boxes in the

MATLAB documentation.

4-2

GUIDE Tools Summary

GUIDE Tools Summary

The GUIDE tools are available from the Layout Editor shown in the figure below. The tools are called out in the figure and described briefly below.

Subsequent sections show you how to use them.

Align Objects Menu Editor Tab Order Editor M-File Editor Property Inspector Object Browser

Run

Layout Area

Component

Palette

Figure Resize Tab

4-3

4

What Is GUIDE?

Use This Tool...

Layout Editor

Figure Resize Tab

Menu Editor

Align Objects

Tab Order Editor

Property Inspector

Object Browser

To...

Select components from the component palette, at the left side of the Layout Editor, and arrange them in the layout area. See

“Adding Components to the GUI” on page 6-15 for more information.

Set the size at which the GUI is initially

displayed when you run it. See “Setting the

GUI Size” on page 6-13 for more information.

Create menus and context, i.e., pop-up,

menus. See “Creating Menus” on page 6-49

for more information.

Align and distribute groups of components.

Grids and rulers also enable you to align components on a grid with an optional

snap-to-grid capability. See “Aligning

Components” on page 6-40 for more

information.

Set the tab and stacking order of the

components in your layout. See “Setting Tab

Order” on page 6-46 for more information.

Set the properties of the components in your layout. It provides a list of all the properties you can set and displays their current values.

Display a hierarchical list of the objects in

the GUI. See “Viewing the Object Hierarchy” on page 6-63 for more information.

4-4

GUIDE Tools Summary

Use This Tool...

Run

M-File Editor

To...

Save and run the current GUI. See Chapter

7, “Saving and Running the GUI” for

information.

Display, in your default editor, the M-file

associated with the GUI. See “GUI Files: An

Overview” on page 8-6 for more information.

You can also set preferences that apply to all GUIs at creation, and options that

are GUI-specific. See Chapter 5, “Preferences and Options” for more

information.

4-5

4

What Is GUIDE?

4-6

5

Preferences and Options

GUIDE Preferences (p. 5-2)

GUI Options (p. 5-9)

MATLAB preferences for the GUIDE Layout Editor.

GUIDE options for individual GUIs.

5

Preferences and Options

GUIDE Preferences

You can set preferences for GUIDE by selecting Preferences from the File menu. These preferences apply to GUIDE and to all GUIs you create.

The preferences are in different locations within the Preferences dialog box:

“Confirmation Preferences” on page 5-2

“Backward Compatibility Preference” on page 5-4

“All Other Preferences” on page 5-5

Confirmation Preferences

GUIDE provides two confirmation preferences. You can choose whether you want to display a confirmation dialog box when you

Activate a GUI from GUIDE

Export a GUI from GUIDE

In the Preferences dialog box, click General > Confirmation Dialogs to access the GUIDE confirmation preferences. Look for the word

GUIDE

in the Tool column.

5-2

GUIDE Preferences

Prompt to Save on Activate

When you activate a GUI by clicking the Run button in the Layout Editor, a dialog box informs you of the impending save and lets you choose whether or not you want to continue.

5-3

5

Preferences and Options

Prompt to Save on Export

When you select Export from the Layout Editor File menu, a dialog box informs you of the impending save and lets you choose whether or not you want to continue.

Backward Compatibility Preference

Ensure Backward Compatibility (-v6)

GUI FIG-files created or modified with MATLAB 7.0 or a later MATLAB version are not automatically compatible with Version 6.5 and earlier versions.

GUIDE automatically generates FIG-files, which are a kind of MAT-file, to hold layout information for GUIs.

To make a FIG-file backward compatible, you must select Ensure backward

compatibility (-v6) in the Preferences dialog box under General >

MAT-Files. This is shown in the figure below.

5-4

GUIDE Preferences

All Other Preferences

GUIDE provides several other preferences for the Layout Editor interface and

M-file comments. In the Preferences dialog box, click GUIDE to access these preferences.

5-5

5

Preferences and Options

5-6

The following topics describe the preferences in this dialog:

“Show Toolbar” on page 5-7

“Show Names in Component Palette” on page 5-7

“Show File Extension in Window Title” on page 5-8

“Show File Path in Window Title” on page 5-8

“Add Comments for Newly Generated Callback Functions” on page 5-8

GUIDE Preferences

Show Toolbar

Displays the following toolbar in the Layout Editor window.

Tab Order Editor

Menu Editor

Align Objects

M-File Editor

Property Inspector

Object Browser

Run

Show Names in Component Palette

Displays both icons and names in the component palette, as shown below.

When unchecked, the icons alone are displayed in two columns.

Component palette with names

Component palette without names

5-7

5

Preferences and Options

Show File Extension in Window Title

Displays the GUI FIG-file filename with its file extension,

.fig

, in the Layout

Editor window title. If unchecked, only the filename is displayed.

Show File Path in Window Title

Displays the full file path in the Layout Editor window title. If unchecked, the file path is not displayed.

Add Comments for Newly Generated Callback Functions

When this preference is checked, GUIDE includes the comment lines shown in the following example to all callbacks that are added to the M-file.

% --- Executes during object deletion, before destroying properties.

function figure1_DeleteFcn(hObject, eventdata, handles)

% hObject handle to figure1 (see GCBO)

% eventdata reserved - to be defined in a future version of MATLAB

% handles structure with handles and user data (see GUIDATA)

Some callbacks are added automatically because their associated components are part of the original GUDE template that you chose. Other commonly used callbacks are added automatically when you add components. You can also add callbacks explicitly by selecting them from View Callbacks on the View menu or on the component’s context menu.

If this preference is unchecked, GUIDE includes comments only for callbacks that are automatically included to support the original GUIDE template. No comments are included for any other callbacks that are added to the M-file.

See “Callback Syntax and Arguments” on page 8-12 for more information about

callbacks and about the arguments described in the comments above.

5-8

GUI Options

GUI Options

You can use the GUI Options dialog box to configure various behaviors that are specific to the GUI you are creating. These options take effect when you next save the GUI.

Access the dialog box by selecting GUI Options from the Layout Editor Tools menu.

The following sections describe the options in this dialog box:

“Resize Behavior” on page 5-9

“Command-Line Accessibility” on page 5-10

“Generate FIG-File and M-File” on page 5-11

- “Generate Callback Function Prototypes” on page 5-11

- “GUI Allows Only One Instance to Run (Singleton)” on page 5-12

- “Use System Color Scheme for Background” on page 5-12

“Generate FIG-File Only” on page 5-13

Resize Behavior

You can control whether users can resize the figure window containing your

GUI and how MATLAB handles resizing. GUIDE provides three options:

5-9

5

Preferences and Options

• Non-resizable — Users cannot change the window size (default).

• Proportional — MATLAB automatically rescales the components in the

GUI in proportion to the new figure window size.

• Other (Use ResizeFcn) — Program the GUI to behave in a certain way when users resize the figure window.

The first two options set figure and component properties appropriately and require no other action. Other (Use ResizeFcn) requires you to write a callback routine that recalculates sizes and positions of the components based on the new figure size.

Command-Line Accessibility

You can restrict access to a GUI figure from the command line or from an M-file by using the GUIDE Command-line accessibility options.

Many commands, such as plot

, alter the current figure, i.e., the figure specified by the root

CurrentFigure

property and returned by the gcf

command. The current figure is usually the figure that is most recently created or clicked in.

However, a figure can also become the current figure with the statement figure(h) or by setting the

CurrentFigure

property to the figure’s handle.

The gcf

function returns the handle of the current figure.

h = gcf

For a GUI created in GUIDE, set the Command-line accessibility option to prevent users from inadvertently changing the appearance or content of a GUI by executing commands at the command line or from an M-file, such as plot

.

The following table briefly describes the four options for Command-line

accessibility

.

5-10

GUI Options

Option

Callback (GUI becomes

Current Figure within

Callbacks)

Off (GUI never becomes

Current Figure)

On (GUI may become

Current Figure from

Command Line)

Other (Use settings from

Property Inspector)

Description

The GUI can be accessed only from within a GUI callback. The GUI cannot be accessed from the command line or from an M-script. This is the default.

The GUI can not be accessed from a callback, the command line, or an

M-script, without the handle.

The GUI can be accessed from a callback, from the command line, and from an

M-script.

You control accessibility by setting the

HandleVisibility

and

IntegerHandle properties from the Property Inspector.

Generate FIG-File and M-File

Select Generate FIG-file and M-file in the GUI Options dialog box if you want

GUIDE to create both the FIG-file and the GUI M-file (this is the default). Once you have selected this option, you can select any of the following items in the frame to configure the M-file:

Generate callback function prototypes

GUI allows only one instance to run (singleton)

Use system color scheme for background

See “GUI Files: An Overview” on page 8-6 for information about these files.

Generate Callback Function Prototypes

If you select Generate callback function prototypes in the GUI Options dialog, GUIDE adds templates for the most commonly used callbacks to the

GUI M-file for most components you add to the GUI. You must then write the code for these callbacks.

5-11

5

Preferences and Options

GUIDE also adds a callback whenever you edit a callback routine from the

Layout Editor’s right-click context menu and when you add menus to the GUI using the Menu Editor.

See “Callback Syntax and Arguments” on page 8-12 for general information

about callbacks.

Note This option is available only if you first select the Generate FIG-file

and M-File

option.

GUI Allows Only One Instance to Run (Singleton)

This option allows you to select between two behaviors for the GUI figure:

Allow MATLAB to display only one instance of the GUI at a time.

Allow MATLAB to display multiple instances of the GUI.

If you allow only one instance, MATLAB reuses the existing GUI figure whenever the command to run the GUI is issued. If a GUI already exists,

MATLAB brings it to the foreground rather than creating a new figure.

If you clear this option, MATLAB creates a new GUI figure whenever you issue the command to run the GUI.

Note This option is available only if you first select the Generate FIG-file

and M-File

option.

Use System Color Scheme for Background

The default color used for GUI components is system dependent. This option enables you to make the figure background color the same as the default component background color.

If you select Use system color scheme for background (the default), GUIDE changes the figure background color to match the color of the GUI components.

The following figures illustrate the results with and without system color matching.

5-12

GUI Options

Without system color matching With system color matching

Note This option is available only if you first select the Generate FIG-file

and M-File

option.

Generate FIG-File Only

The Generate FIG-file only option enables you to open figures and GUIs to perform limited editing. These can be any figures and need not be GUIs. GUIs need not have been generated using GUIDE. This mode provides limited editing capability and may be useful for GUIs generated in MATLAB versions

5.3 and earlier. See the guide

command for more information.

GUIDE selects Generate FIG-file only as the default if you do one of the following:

Start GUIDE from the command line and provide one or more figure handles as arguments.

5-13

5

Preferences and Options guide(fh)

In this case, GUIDE selects Generate FIG-file only even though there may be a corresponding M-file in the same location.

Start GUIDE from the command line and provide the name of a FIG-file for which no M-file with the same name exists in the same location.

guide('myfig.fig')

Use the GUIDE Open Existing GUI tab to open a FIG-file for which no

M-file with the same name exists in the same location.

When you save the figure or GUI with Generate FIG-file only selected,

GUIDE saves only the FIG-file. You must update any corresponding M-files as appropriate.

If you want GUIDE to manage the GUI M-file for you, change the selection to

Generate FIG-file and M-file

before saving the GUI. If there is no corresponding M-file in the same location, GUIDE creates one. If an M-file with the same name as the original figure or GUI exists in the same location,

GUIDE overwrites it. To prevent this, save the GUI using Save As from the

File

menu and select another filename. You must update the new M-file as appropriate.

5-14

6

Laying Out a GUI

Designing a GUI (p. 6-2)

Starting GUIDE (p. 6-4)

Selecting a GUI Template (p. 6-5)

Setting the GUI Size (p. 6-13)

Things to think about when designing a GUI and references to other sources.

Shows you all the ways to start GUIDE.

Describes the templates from which you can choose when you create a new GUI.

Shows you how to set the size at which a GUI is initially displayed.

Adding Components to the GUI

(p. 6-15)

Aligning Components (p. 6-40)

Setting Tab Order (p. 6-46)

Describes the process for adding components to a GUI, labeling them, and assigning identifiers to them. It also shows you how to move, copy, paste, duplicate, and resize components.

Describes various approaches for aligning components.

Explains tab order and shows you how to set it.

Creating Menus (p. 6-49)

Creating Toolbars (p. 6-62)

Shows you how to create both menus that appear on the figure menu bar and context menus.

Provides basic direction for adding toolbars to your GUI programmatically.

Viewing the Object Hierarchy (p. 6-63)

Describes use of the Object Browser to view the hierarchy of objects, including menus, in your GUI.

Designing for Cross-Platform

Compatibility (p. 6-64)

Provides pointers for creating GUIs that behave more consistently when run on different platforms.

6

Laying Out a GUI

Designing a GUI

Before creating the actual GUI, it is important to decide what it is you want your GUI to do and how you want it to work. It is helpful to draw your GUI on paper and envision what the user sees and what actions the user takes.

Note MATLAB provides a selection of standard dialog boxes that you can create with a single function call. For information about these dialog boxes and the functions used to create them, see “Predefined Dialog Boxes” in the

MATLAB documentation.

The GUI used in this example contains an axes component that displays either a surface, mesh, or contour plot of data selected from the pop-up menu. The following picture shows a sketch that you might use as a starting point for the design.

Axes

Select Data peaks

Plot Types

Surf

Mesh

Contour

Menu for selecting data

Panel to group push buttons

Push buttons to select plot type

A panel contains three push buttons that enable you to choose the type of plot you want. The pop-up menu contains three strings — peaks

, membrane

, and sinc

, which correspond to MATLAB functions. You can select the data to plot from this menu.

6-2

Designing a GUI

Many Web sites and commercial publications such as the following provide guidelines for designing GUIs:

AskTog – Essays on good design and a list of First Principles for good user interface design. The author, Tognazzini, is a well-respected user interface designer. http://www.asktog.com/basics/firstPrinciples.html

.

Galitz, Wilbert, O., Essential Guide to User Interface Design. Wiley, New

York, NY, 2002.

GUI Design Handbook – A detailed guide to the use of GUI controls. http://www.fast-consulting.com/GUI%20Design%20Handbook/GDH_FRNTM

TR.htm

.

Johnson, J., GUI Bloopers: Don'ts and Do's for Software Developers and Web

Designers. Morgan Kaufmann, San Francisco, CA, 2000.

Usability Glossary – An extensive glossary of terms related to GUI design, usability, and related topics. http://www.usabilityfirst.com/glossary/main.cgi

.

UsabilityNet – Covers design principles, user-centered design, and other usability and design-related topics. http://www.usabilitynet.org/management/b_design.htm

.

6-3

6

Laying Out a GUI

Starting GUIDE

There are many ways to start GUIDE. You can start GUIDE from the:

Command line by typing guide

• Start menu by selecting MATLAB > GUIDE (GUI Builder)

• MATLAB File menu by selecting New > GUI

MATLAB toolbar by clicking the GUIDE button

However you start GUIDE, it displays the GUIDE Quick Start dialog box shown in the following figure.

6-4

The GUIDE Quick Start dialog box contains two tabs:

• Create New GUI – Asks you to start creating your new GUI by choosing a template for it. You can also specify the name by which the GUI is saved.

See “Selecting a GUI Template” on page 6-5 for information about the

templates.

• Open Existing GUI – Enables you to open an existing GUI in GUIDE. You can choose a GUI from your current directory or browse other directories.

Selecting a GUI Template

Selecting a GUI Template

GUIDE provides several templates that you can modify to create your own

GUIs. The templates are fully functional GUIs; they are already programmed.

This topic provides information for

“Accessing the Templates” on page 6-5

“Template Descriptions” on page 6-6

Accessing the Templates

You can access the templates in two ways:

Start GUIDE. See “Starting GUIDE” on page 6-4 for information.

If GUIDE is already open, select New from the File menu in the Layout

Editor.

In either case, GUIDE displays the GUIDE Quick Start dialog box with the

Create New GUI

tab selected as shown in the following figure. This tab contains a list of the available templates.

To use a template:

1

Select a template in the left pane. A preview displays in the right pane.

6-5

6

Laying Out a GUI

2

Optionally, name your GUI now by selecting Save on startup as and typing the name in the field to the right. GUIDE saves the GUI before opening it in the Layout Editor. If you choose not to name the GUI at this point, GUIDE prompts you to save it and give it a name the first time you run the GUI.

3

Click OK to open the GUI template in the Layout Editor.

Template Descriptions

GUIDE provides four fully functional templates. They are described in the following sections:

“Blank GUI” on page 6-7

“GUI with Uicontrols” on page 6-7

“GUI with Axes and Menu” on page 6-9

“Modal Question Dialog” on page 6-11

Note To see how the template GUIs work, you can view their M-file code and look at their callbacks. You can also modify the callbacks for your own purposes. To view the M-file for any of these templates, open the template in the Layout Editor and click the M-file Editor button on the toolbar. For

information about using callbacks, see Chapter 8, “Programming the GUI.”

6-6

Selecting a GUI Template

Blank GUI

The blank GUI template displayed in the Layout Editor is shown in the following figure.

Select the blank GUI if the other templates are not suitable starting points for the GUI you are creating, or if you prefer to start with an empty GUI.

GUI with Uicontrols

The following figure shows the template for a GUI with user interface controls

(uicontrols) displayed in the Layout Editor. User interface controls include

6-7

6

Laying Out a GUI push buttons, sliders, radio buttons, check boxes, editable and static text boxes, list boxes, and toggle buttons.

6-8

When you run the GUI by clicking the Run button , the GUI appears as shown in the following figure.

When a user enters values for the density and volume of an object, and clicks the Calculate button, the GUI calculates the mass of the object and displays the result next to Mass(D*V).

Selecting a GUI Template

GUI with Axes and Menu

The template for a GUI with axes and menu is shown in the following figure.

When you run the GUI by clicking the Run button on the toolbar, the GUI displays a plot of five lines, each of which is generated from random numbers using the MATLAB rand(5)

command. The following figure shows an example.

6-9

6

Laying Out a GUI

You can select other plots in the pop-up menu. Clicking the Update button displays the currently selected plot on the axes.

The GUI also has a File menu with three items:

Selecting Open executes the uigetfile

command, which displays a dialog box from which you can open files on your computer. You can change the input arguments to customize the dialog box.

file = uigetfile( '*.fig' );

Selecting Print executes the printdlg

command, which opens the Print dialog box: printdlg(handles.figure1)

The figure specified by handles.figure1

contains the current figure.

Clicking OK in the Print dialog box prints the figure.

Selecting Close closes the GUI.

6-10

Selecting a GUI Template

Modal Question Dialog

The modal question dialog template displayed in the Layout Editor is shown in the following figure.

Running the GUI displays the dialog box shown in the following figure:

The GUI returns the text string

Yes

or

No

, depending on which button you click.

The GUI is blocking, which means that the current M-file stops executing until the GUI restores execution. You can make a GUI blocking by adding the following command to the opening function:

6-11

6

Laying Out a GUI uiwait(handles.figure1);

To restore execution once a button is clicked, add the following command to callbacks for both the Yes and No buttons: uiresume(handles.figure1);

The GUI is also modal, which means that the user cannot interact with other

MATLAB windows until clicking one of the buttons.

Select this template if you want your GUI to return a string or to be modal.

See “Using a Modal Dialog to Confirm an Operation” on page 10-47 for an

example of using this template with another GUI. Also see the figure

WindowStyle

property for more information.

6-12

Setting the GUI Size

Setting the GUI Size

Set the size of the GUI by resizing the grid area in the Layout Editor. Click the lower-right corner and drag it until the GUI is the desired size. If necessary, make the window larger.

Click and drag corner to resize

If you want to set the position or size of the GUI to an exact value, do the following:

1

Select Property Inspector from the View menu or click the Property

Inspector button .

2

Scroll to the

Units

property and note whether the current setting is characters

or normalized

. Click the button next to

Units

and then change the setting to inches

from the pop-up menu.

6-13

6

Laying Out a GUI

6-14

3

In the Property Inspector, click the + sign next to

Position

. The elements of the component’s

Position

property are displayed.

4

Type the x

and y

coordinates of the point where you want the lower-left corner of the GUI to appear, and its width and height.

5

Reset the

Units

property to its previous setting, either characters

or normalized

.

Note Setting the

Units

property to characters

(nonresizable GUIs) or normalized

(resizable GUIs) gives the GUI a more consistent appearance

across platforms. See “Cross-Platform Compatible Units” on page 6-66 for

more information.

Adding Components to the GUI

Adding Components to the GUI

These topics explain the basic steps for adding components to the GUI and for manipulating those components in the layout area.

“Available Components” on page 6-16

“Adding Components to the Layout Area” on page 6-19

“Assigning an Identifier to Each Component” on page 6-24

“Adding Text to the Components” on page 6-25

“Working with Components in the Layout Area” on page 6-32

“Moving Components” on page 6-35

“Resizing Components” on page 6-38

Other topics that may be of interest:

“Aligning Components” on page 6-40

“Setting Tab Order” on page 6-46

6-15

6

Laying Out a GUI

Available Components

The component palette at the left side of the Layout Editor contains the components that you can add to your GUI. You can display it with or without names.

Component palette with names

Component palette without names

When you first open the Layout Editor, the component palette contains only icons. To display the names of the GUI components, select Preferences from the File menu, check the box next to Show names in component palette, and click OK.

See “Creating Menus” on page 6-49 for information about adding menus to a

GUI.

Note This section provides information about using components to lay out a

GUI. For information about programming these components see Chapter 8,

“Programming the GUI.”

6-16

Adding Components to the GUI

Component

Push Button

Toggle Button

Radio Button

Check Box

Edit Text

Icon Description

Push buttons generate an action when clicked. For example, an OK button might apply settings and close a dialog box. When you click a push button, it appears depressed; when you release the mouse button, the push button appears raised.

Toggle buttons generate an action and indicate whether they are turned on or off. When you click a toggle button, it appears depressed, showing that it is on. When you release the mouse button, the toggle button remains depressed until you click it a second time. When you do so, the button returns to the raised state, showing that it is off. Use a button group to manage mutually exclusive toggle buttons.

Radio buttons are similar to check boxes, but radio buttons are typically mutually exclusive within a group of related radio buttons. That is, when you select one button the previously seleted button is deselected. To activate a radio button, click the mouse button on the object. The display indicates the state of the button. Use a button group to manage mutually exclusive radio buttons.

Check boxes can generate an action when checked and indicate their state as checked or not checked.

Check boxes are useful when providing the user with a number of independent choices, for example, displaying a toolbar.

Edit text components are fields that enable users to enter or modify text strings. Use edit text when you want text as input. Users can enter numbers but you must convert them to their numeric equivalents.

6-17

6

Laying Out a GUI

Component

Static Text

Slider

List Box

Pop-Up Menu

Axes

Icon Description

Static text controls display lines of text. Static text is typically used to label other controls, provide directions to the user, or indicate values associated with a slider. Users cannot change static text interactively.

Sliders accept numeric input within a specified range by enabling the user to move a sliding bar, which is called a slider or thumb. Users move the slider by clicking the slider and dragging it, by clicking in the trough, or by clicking an arrow. The location of the slider indicates the relative location within the specified range.

List boxes display a list of items and enable users to select one or more items.

Pop-up menus open to display a list of choices when users click the arrow.

Axes enable your GUI to display graphics such as graphs and images. Like all graphics objects, axes have properties that you can set to control many aspects of its behavior and appearance. See “Axes

Properties” in the MATLAB documentation and commands such as the following for more information on axes objects: plot

, surf

, line

, bar

, polar

, pie

, contour

, and mesh

. See Functions —

By Category in the MATLAB documentation for a complete list.

6-18

Adding Components to the GUI

Component

Panel

Button Group

ActiveX

Component

Icon Description

Panels arrange GUI components into groups. By visually grouping related controls, panels can make the user interface easier to understand. A panel can have a title and various borders.

Panel children can be user interface controls and axes as well as button groups and other panels. The position of each component within a panel is interpreted relative to the panel. If you move the panel, its children move with it and maintain their positions on the panel.

Button groups are like panels but are used to manage exclusive selection behavior for radio buttons and toggle buttons.

ActiveX components enable you to display ActiveX controls in your GUI. They are available only on the

Microsoft Windows platform.

An ActiveX control can be the child only of a figure, i.e., of the GUI itself. It cannot be the child of a panel or button group.

See “ActiveX Control” on page 8-32in this document

for an example. See “MATLAB COM Client

Support” in the MATLAB documentation to learn more about ActiveX controls.

Adding Components to the Layout Area

This topic tells you how to place components in the layout area and give each component a unique identifier.

Note See “Creating Menus” on page 6-49 for information about adding

menus to a GUI.

6-19

6

Laying Out a GUI

1

Place components in the layout area according to your design.

- Drag a component from the palette and drop it in the layout area.

- Click a component in the palette and move the cursor over the layout area.

The cursor changes to a cross. Click again to add the component inits default size, or click then drag to size the component as you add it.

See “Grid and Rulers” on page 6-43 for information about using the grid.

2

Assign a unique identifier to each component. Do this by setting the value of their

Tag

properties. See “Assigning an Identifier to Each Component” on page 6-24 for more information.

The components listed in the following table need additional considerations.

If You Are Adding...

An axes component

A panel or button group

An ActiveX control

Then...

Allow for tick marks to be placed outside the box that appears in the Layout Editor.

See “Adding a Component to a Panel or Button

Group” on page 6-21.

See “Adding an ActiveX Control” on page 6-22.

6-20

Adding Components to the GUI

This is an example of a GUI in the Layout Editor. Components in the Layout

Editor are not active. Chapter 7, “Saving and Running the GUI” describes how

to generate a functioning GUI.

Adding a Component to a Panel or Button Group

To add a component to a panel or button group, select the component in the component palette then move the cursor over the desired panel or button group. The position of the cursor determines the component’s parent.

GUIDE highlights the potential parent as shown in the following figure. The highlight indicates that if you drop the component or click the cursor, the component will be a child of the highlighted panel, button group, or figure.

6-21

6

Laying Out a GUI

Highlight

Cursor

Note If the component is not entirely contained in the panel or button group, it appears to be clipped in the Layout Editor. When you run the GUI, the entire component is displayed and straddles the panel or button group border.

The component is nevertheless a child of the panel and behaves accordingly.

You can use the Object Browser to determine the child objects of a panel or

button group. “Viewing the Object Hierarchy” on page 6-63 tells you how.

Note Assign a unique identifier to each component in your panel or button group by setting the value of its

Tag

property. See “Assigning an Identifier to

Each Component” on page 6-24 for more information.

Adding an ActiveX Control

When you drag an ActiveX component from the component palette into the layout area, GUIDE opens a dialog box, similar to the following, that lists the registered ActiveX controls on your system.

6-22

Adding Components to the GUI

Note If MATLAB is not installed locally on your computer — for example, if you are running MATLAB over a network — you might not find the ActiveX control described in this example. To register the control, see “Registering

Controls and Servers” in the MATLAB documentation.

1

Select the desired ActiveX control. The right panel shows a preview of the selected control.

2

Click Create. The control appears as a small box in the Layout Editor.

3

Resize the control to approximately the size of the square shown in the preview pane. You can do this by clicking and dragging a corner of the control, as shown in the following figure.

6-23

6

Laying Out a GUI

6-24

Resize the control by clicking and dragging

See “ActiveX Control” on page 8-32 for information about programming a

sample ActiveX control and an example.

Assigning an Identifier to Each Component

Use the

Tag

property to assign each component a unique meaningful string identifier.

When you place a component in the layout area, GUIDE assigns a default value to the

Tag

property. Before saving the GUI, replace this value with a string that reflects the role of the component in the GUI.

The string value you assign

Tag

is used in the M-file code to identify the component and must be unique in the GUI. To set

Tag

:

1

Select Property Inspector from the View menu or click the Property

Inspector button .

2

In the layout area, select the component for which you want to set

Tag

.

3

In the Property Inspector, select

Tag

and then replace the value with the string you want to use as the identifier. In the following figure,

Tag

is set to mybutton

.

Adding Components to the GUI

Adding Text to the Components

Many components have labels, lists, or other text that distinguishes them. You can set this text with the Property Inspector by setting the value of the appropriate property. In the layout area, select the component to which you want to add text. Then open the Property Inspector from the View menu or click the Property Inspector button . Subsequent topics tell you how to add text to specific components:

“Push Button, Toggle Button, Radio Button, Check Box” on page 6-25

“Pop-Up Menu” on page 6-26

“Edit Text” on page 6-27

“Static Text” on page 6-28

“List Box” on page 6-29

“Panel, Button Group” on page 6-31

“Slider, Axes, ActiveX Control” on page 6-32

Note The words remove

, default

, and factory

(case sensitive) are reserved.

To use one of these in component text, prepend a backslash (

\

) to the string.

For example,

\remove

yields remove.

Push Button, Toggle Button, Radio Button, Check Box

These components have labels. To specify a label:

1

In the Property Inspector, select

String

and then replace the value with the text you want to use as the label.

6-25

6

Laying Out a GUI

2

Click outside the

String

field. The component label changes.

Note Push buttons, toggle buttons, radio buttons, and check boxes hold only a single line of text. If

String

is specified as a cell array of strings or padded string matrix, only the first string is displayed.

If the text is clipped to fit any of these components in the active GUI, an ellipsis (...) is appended to indicate that the text has been clipped.

Pop-Up Menu

Pop-up menus display a list of choices.

1

In the Property Inspector, click the button next to

String

. In the String dialog box that displays, replace the existing text with the list of choices in the order you want them to appear.

6-26

Adding Components to the GUI

2

Click OK. The first item in your list appears in the pop-up menu in the layout area.

Note Each item in a pop-up menu can hold only a single line of text. If the text of a selected item is clipped to fit the menu in the active GUI, an ellipsis

(...) is appended to indicate that the text has been clipped.

Edit Text

Edit text boxes enable users to enter or modify text strings, but you may want to set the initial text.

1

In the Property Inspector, click the button next to

String

. In the String dialog box that displays, replace the existing text with the text that you want to display when the edit text box first appears. Press the Enter key to add lines after the first.

6-27

6

Laying Out a GUI

6-28

2

Click OK. The text appears in the edit text box in the layout area.

Note By default, the edit text box accepts only a single line of input. If you want it to accept multiple lines of input or if your initial text requires more than one line, use the Property Inspector to set the

Max

and

Min

properties so that

Max - Min > 1

. For example,

Max = 2

,

Min = 0

.

Static Text

Static text boxes display lines of text that the user cannot change.

1

In the Property Inspector, click the button next to

String

. In the String dialog box that displays, type the text that you want to display when that edit text box appears. Press the Enter key to add lines after the first.

Adding Components to the GUI

2

Click OK. The text appears in the static text box in the layout area.

Note Unlike the edit text box and other user interface controls, the

Max

and

Min

properties do not affect the ability of a static text box to contain more than one line of text.

List Box

This component displays a list from which a user can select one or more items.

1

In the Property Inspector, click the button next to

String

. In the String dialog box that displays, type the list of choices in the order you want them to appear.

6-29

6

Laying Out a GUI

2

Click OK. The list appears in the list box in the layout area with the top-most item selected.

6-30

3

You can customize you list box by setting the

ListBoxTop

,

Value

,

Max

, and

Min

properties.

- If the list box is not large enough to display all list entries, you can specify which entry appears in the top-most position. Use the Property Inspector to set the

ListBoxTop

property to the index of the entry you want to appear at the top.

Adding Components to the GUI

- By default, the list box enables a user to select only one item. If you want to allow multiple-item selection, use the Property Inspector to set the

Max and

Min

properties so that

Max - Min > 1

. For example,

Max = 2

,

Min = 0

.

- Set the

Value

property to the index of the item you want selected when the list box is first displayed.

If you want no initial selection, (1) set the

Max

and

Min

properties to enable multiple selection and (2) set the

Value

property to an empty matrix by deleting the current value.

Panel, Button Group

The panel and button group enable you to group other components. You can specify a title for panels and button groups. You can also place the title at the top or bottom of the component, at the left, middle, or right.

1

In the Property Inspector, select

Title

and then replace the value with the text you want to use.

2

Click outside the

Title

field. The panel or button group title changes.

6-31

6

Laying Out a GUI

3

If you want to change the position of the title, select the button next to

TitlePosition

in the Property Inspector, and then select the desired position from the pop-up menu. The default is lefttop

.

Slider, Axes, ActiveX Control

GUIDE provides no capability for associating text with sliders, axes, or ActiveX controls.

• Sliders – Use a static text component to label a slider. Use an edit text box to enable a user to provide a value for the slider.

• Axes – Use the title

, xlabel

, ylabel

, zlabel

, and text

functions to add text to an axes component.

• ActiveX controls – For an ActiveX control, you can specify only those properties defined for it. To see the properties for an ActiveX control, click the control in the layout area, then open the Property Inspector from the

View

menu or by clicking the Property Inspector button .

Working with Components in the Layout Area

This topic provides basic information about selecting, copying, pasting, and deleting components in the layout area.

“Selecting Components” on page 6-32

“Copying, Cutting, and Clearing Components” on page 6-33

“Pasting and Duplicating Components” on page 6-34

“Front-to-Back Positioning” on page 6-34

Other topics that may be of interest are

“Moving Components” on page 6-35

“Resizing Components” on page 6-38

“Aligning Components” on page 6-40

“Setting Tab Order” on page 6-46

Selecting Components

You can select components in the layout area in the following ways:

Click a single component to select it.

6-32

Adding Components to the GUI

Press Ctrl+A to select all child objects of the figure. This does not select components that are child objects of panels or button groups.

Click and drag the cursor to create a rectangle that encloses the components you want to select. If the rectangle encloses a panel or button group, only the panel or button group is selected, not its children. If the rectangle encloses part of a panel or button group, only the components within the rectangle that are child objects of the panel or button group are selected.

Select multiple components using the Shift and Ctrl keys.

In some cases, a component may lie outside its parent’s boundary. Such a component is not visible in the Layout Editor but can be selected by dragging a rectangle that encloses it or by selecting it in the Object Browser. Such a component is visible in the active GUI.

See “Viewing the Object Hierarchy” on page 6-63 for information about the

Object Browser.

Note You can select multiple components only if they have the same parent.

To determine the child objects of a figure, panel, or button group, use the

Object Browser.

Copying, Cutting, and Clearing Components

Use standard menu and pop-up menu commands, toolbar icons, keyboard keys, and shortcut keys to copy, cut, and clear components.

Copying.

Copying places a copy of the selected components on the clipboard. A copy of a panel or button group includes its children.

Cutting.

Cutting places a copy of the selected components on the clipboard and deletes them from the layout area. If you cut a panel or button group, you also cut its children.

Clearing.

Clearing deletes the selected components from the layout area. It does not place a copy of the components on the clipboard. If you clear a panel or button group, you also clear its children.

6-33

6

Laying Out a GUI

Pasting and Duplicating Components

Pasting.

Use standard menu and pop-up menu commands, toolbar icons, and shortcut keys to paste components. GUIDE pastes the contents of the clipboard to the location of the last mouse click. It positions the upper-left corner of the contents at the mouse click.

Consecutive pastes place each copy to the lower right of the last one.

Duplicating.

Select one or more components that you want to duplicate, then do one of the following:

Copy and paste the selected components as described above.

Select Duplicate from the Edit menu or the pop-up menu. Duplicate places the copy to the lower right of the original.

Right-click and drag the component to the desired location. The position of the cursor when you drop the components determines the parent of all the

selected components. Look for the highlight as described in “Adding a

Component to a Panel or Button Group” on page 6-21.

Front-to-Back Positioning

MATLAB figures maintain separate stacks that control the front-to-back positioning for different kinds of components:

User interface controls such as buttons, sliders, and pop-up menus

Panels, button groups, and axes

ActiveX controls

You can control the front-to-back positioning of components that overlap only if those components are in the same stack. For overlapping components that are in different stacks:

User interface controls always appear on top of panels, button groups, axes that they overlap. ActiveX controls appear on top of everything they overlap.

Panels, button groups, and axes always appear on top of ActiveX controls.

The Layout Editor provides four operations that enable you to control front-to-back positioning. All are available from the Layout menu, which is shown in the following figure.

6-34

Adding Components to the GUI

• Bring to Front — Move the selected object(s) in front of nonselected objects

(available from the right-click context menu, the Layout menu, or the

Ctrl+F

shortcut).

• Send to Back — Move the selected object(s) behind nonselected objects

(available from the right-click context menu, the Layout menu, or the

Ctrl+B

shortcut).

• Bring Forward — Move the selected object(s) forward by one level, i.e., in front of the object directly forward of it, but not in front of all objects that overlay it (available from the Layout menu).

• Send Backward — Move the selected object(s) back by one level, i.e., behind the object directly in back of it, but not behind all objects that are behind it

(available from the Layout menu).

Note Changing front-to-back positioning of components also changes their

tab order. See “Setting Tab Order” on page 6-46 for more information.

Moving Components

You can move components in one of the following ways:

“Dragging Components” on page 6-36

“Using Arrow Keys to Move Components” on page 6-36

“Setting the Component’s Position Property” on page 6-36

Anther topic that may be of interest is

“Aligning Components” on page 6-40

6-35

6

Laying Out a GUI

Dragging Components

Select one or more components that you want to move, then drag them to the desired position and drop them. You can move components from the figure into a panel or button group. You can move components from a panel or button group into the figure or into another panel or button group.

The position of the cursor when you drop the components also determines the parent of all the selected components. Look for the highlight as described in

“Adding a Component to a Panel or Button Group” on page 6-21.

In some cases, one or more of the selected components may lie outside its parent’s boundary. Such a component is not visible in the Layout Editor but can be selected by dragging a rectangle that encloses it or by selecting it in the

Object Browser. Such a component is visible in the active GUI.

See “Viewing the Object Hierarchy” on page 6-63 for information about the

Object Browser.

Note To select multiple components, they must have the same parent. That is, they must be contained in the same figure, panel, or button group.

Using Arrow Keys to Move Components

Select one or more components that you want to move, then press and hold the arrow keys until the components have moved to the desired position. Note that the components remain children of the figure, panel, or button group from which you move them, even if they move outside its boundaries.

Setting the Component’s Position Property

Select one or more components that you want to move. Then open the Property

Inspector from the View menu or by clicking the Property Inspector button .

1

In the Property Inspector, scroll to the

Units

property and note whether the current setting is characters

or normalized

. Click the button next to

Units and then change the setting to inches

from the pop-up menu.

6-36

Adding Components to the GUI

2

Click the + sign next to

Position

. The Property Inspector displays the elements of the

Position

property.

3

If you have selected

- Only one component, type the x

and y

coordinates of the point where you want the lower-left corner of the component to appear.

- More than one component, type either the x

or the y

coordinate to align the components along that dimension.

4

Reset the

Units

property to its previous setting, either characters

or normalized

.

6-37

6

Laying Out a GUI

Note Setting the

Units

property to characters

(nonresizable GUIs) or normalized

(resizable GUIs) gives the GUI a more consistent appearance

across platforms. See “Cross-Platform Compatible Units” on page 6-66 for

more information.

Resizing Components

You can resize components in one of the following ways:

“Dragging a Corner of the Component” on page 6-38

“Setting the Component’s Position Property” on page 6-38

Dragging a Corner of the Component

Select the component you want to resize. Click one of the corner handles and drag it until the component is the desired size.

Resize the component by clicking and dragging

Setting the Component’s Position Property

Select one or more components that you want to resize. Then open the Property

Inspector from the View menu or by clicking the Property Inspector button .

1

In the Property Inspector, scroll to the

Units

property and note whether the current setting is characters

or normalized

. Click the button next to

Units and then change the setting to inches

from the pop-up menu.

6-38

Adding Components to the GUI

2

Click the + sign next to

Position

. The Property Inspector displays the elements of the

Position

property.

3

Type the width

and height

you want the components to be.

4

Reset the

Units

property to its previous setting, either characters

or normalized

.

Note To select multiple components, they must have the same parent. That is, they must be contained in the same figure, panel, or button group. See

“Selecting Components” on page 6-32 for more information.

Setting the

Units

property to characters

(nonresizable GUIs) or normalized

(resizable GUIs) gives the GUI a more consistent appearance across

platforms. See “Cross-Platform Compatible Units” on page 6-66 for more

information.

6-39

6

Laying Out a GUI

Aligning Components

The Layout Editor provides a number of features that facilitate alignment and distribution of components with respect to one another:

“Alignment Tool” on page 6-40 — Align and distribute groups of components.

“Property Inspector” on page 6-42 — Align components by modifying their

Position

properties.

“Grid and Rulers” on page 6-43 — Align components on a grid with optional

snap to grid.

“Guide Lines” on page 6-44 — Vertical and horizontal snap-to guides at

arbitrary locations.

Alignment Tool

The Alignment Tool enables you to position objects with respect to each other and to adjust the spacing between selected objects. The specified alignment operations apply to all components that are selected when you press the Apply button.

Note To select multiple components, they must have the same parent. That is, they must be contained in the same figure, panel, or button group. See

“Selecting Components” on page 6-32 for more information.

6-40

Aligning Components

The alignment tool provides two types of alignment operations:

• Align — Align all selected components to a single reference line.

• Distribute — Space all selected components uniformly with respect to each other.

Both types of alignment can be applied in the vertical and horizontal directions. In many cases, it is better to apply alignments independently to the vertical or to the horizontal using two separate steps.

Align Options

There are both vertical and horizontal align options. Each option aligns selected components to a reference line, which is determined by the bounding box that encloses the selected objects. For example, the following picture of the layout area shows the bounding box (indicated by the dashed line) formed by three selected push buttons.

6-41

6

Laying Out a GUI

6-42

Bounding box for the selected components

All of the align options (vertical top, center, bottom and horizontal left, center, right) place the selected components with respect to the corresponding edge (or center) of this bounding box.

Distribute Options

Distributing components adds equal space between all components in the selected group. The distribute options operate in two different modes:

Equally space selected components within the bounding box (default)

Space selected components to a specified value in pixels (check Set spacing and specify a pixel value)

Both modes enable you to specify how the spacing is measured, as indicated by the button labels on the alignment tool. These options include spacing measured with respect to the following edges:

Vertical — inner, top, center, and bottom

Horizontal — inner, left, center, and right

Property Inspector

The Property Inspector enables you to align components by setting their

Position

properties. A component’s

Position

property is a 4-element vector that specifies the location of the component on the GUI and its size: [distance

Aligning Components from left, distance from bottom, width, height]. The values are given in the units specified by the

Units

property of the component.

1

Select the components you want to align. See “Selecting Components” on page 6-32 for information.

2

Select Property Inspector from the View menu or click the Property

Inspector button .

3

In the Property Inspector, scroll to the

Units

property and note its current setting, then change the setting to inches

.

4

Scroll to the

Position

property. A null

value means that the element differs in value for the different components. This figure shows the

Position property for multiple components of the same size.

5

Change the value of x

to align their left sides. Change the value of y

to align their bottom edges. For example, setting x

to 2.0 aligns the left sides of the components 2 inches from the left side of the GUI.

6

When the components are aligned, change the

Units

property back to its original setting.

Grid and Rulers

The layout area displays a grid and rulers to facilitate component layout. Grid lines are spaced at 50-pixel intervals by default and you can select from a number of other values ranging from 10 to 200 pixels. You can optionally enable snap-to-grid, which causes any object that is moved close to a grid line to jump to that line. Snap-to-grid works with or without a visible grid.

6-43

6

Laying Out a GUI

Use the Grid and Rulers dialog (select Grid and Rulers from the Tools menu) to:

Control visibility of rulers, grid, and guide lines

Set the grid spacing

Enable or disable snap-to-grid

Guide Lines

The Layout Editor has both vertical and horizontal snap-to guide lines.

Components snap to the line when you move them close to the line.

Guide lines are useful when you want to establish a reference for component alignment at an arbitrary location in the Layout Editor.

Creating Guide Lines

To create a guide line, click the top or left ruler and drag the line into the layout area.

6-44

Click the top or left ruler and drag the guide to the desired position

Guide lines for horizontal alignment

Guide line for vertical alignment

Aligning Components

6-45

6

Laying Out a GUI

Setting Tab Order

A GUI’s tab order is the order in which components of the GUI acquire focus when a user presses the Tab key on the keyboard. Focus is generally denoted by a border or a dotted border.

You can set, independently, the tab order of components that have the same parent. The GUI figure and each panel and button group in it has its own tab order. For example, you can set the tab order of components that have the figure as a parent. You can also set the tab order of components that have a panel or button group as a parent.

If, in tabbing through the components at the figure level, a user tabs to a panel or button group, then subsequent tabs sequence through the components of the panel or button group before returning to the level from which the panel or button group was reached.

Note Axes cannot be tabbed. From GUIDE, you cannot include ActiveX components in the tab order.

When you create a GUI, GUIDE sets the tab order at each level to be the order in which you add components to that level in the Layout Editor. This may not be the best order for the user.

Note Tab order also affects the stacking order of components. If components overlap, those that appear lower in the tabbing order, are drawn on top of

those that appear higher in the order. See “Front-to-Back Positioning” on page 6-34 for more information.

The figure in the following GUI contains an axes component, a slider, a panel, static text, and a pop-up menu. Of these, only the slider, the panel, and the pop-up menu at the figure level can be tabbed. The panel contains three push buttons, which can all be tabbed.

6-46

Setting Tab Order

.

To examine and change the tab order of the panel components, click the panel background to select it, then select Tab Order Editor in the Tools menu of the

Layout Editor.

The Tab Order Editor displays the panel’s components in their current tab order. To change the tab order, select a component and press the up or down

6-47

6

Laying Out a GUI arrow to move the component up or down in the list. If you set the tab order for the three components in the example to be

1 Surf

push button

2 Contour

push button

3 Mesh

push button the user first tabs to the Surf push button, then to the Contour push button, and then to the Mesh push button. Subsequent tabs sequence through the remaining components at the figure level.

6-48

Creating Menus

Creating Menus

GUIDE enables you to create two kinds of menus:

“Menus for the Menu Bar” on page 6-50 — Create drop-down menus whose

titles appear on the figure menu bar.

“Context Menus” on page 6-58 — Create menus that pop up when users

right-click on graphics objects. They are also known as shortcut menus.

You can create both types of menus using the Menu Editor. Access the Menu

Editor from the Tools menu or click the Menu Editor button .

Create a new menu item

Create a new menu

Create a new context menu Move selected menu item

Delete selected item

6-49

6

Laying Out a GUI

Note In general, programming conventions described for components in

Chapter 8, “Programming the GUI” also apply to menu items. See “Menu

Item” on page 8-39 and “Updating a Menu Item Check” on page 8-40 for

information about programming and basic examples.

Menus for the Menu Bar

When you create a drop-down menu, GUIDE adds its title to the GUI menu bar.

You can then create menu items for that menu. Each menu item can have a cascading menu, also known as a submenu, and these items can have cascading menus, and so on.

Adding a Menu Bar

The figure

MenuBar

property controls whether your GUI displays the MATLAB standard menu bar. GUIDE initially sets the value of

MenuBar

to none

. If you want your GUI to display the MATLAB standard menu bar, use the Property

Inspector to set

MenuBar

to figure

.

If the value of

MenuBar

is none

, GUIDE automatically adds a menu bar that displays only the menus you create.

If the value of

MenuBar

is figure

, the GUI displays the MATLAB standard menu bar and GUIDE adds the menus you create to this menu bar.

Creating a Menu

1

Start a new menu by clicking the New Menu button in the toolbar. A menu title,

Untitled 1

, appears in the left pane of the dialog box.

6-50

Creating Menus

Note By default, GUIDE selects the Menu Bar tab when you open the Menu

Editor.

2

Click the menu title to display a selection of menu properties in the right pane.

6-51

6

Laying Out a GUI

6-52

3

Fill in the Label and Tag fields for the menu. For example, set Label to

File and set Tag to file_menu

. Click outside the field for the change to take effect.

Label

is a string that specifies the text label for the menu item. To display the & character in a label, use two

&

characters in the string. The words remove

, default

, and factory

(case sensitive) are reserved. To use one of these as labels, prepend a backslash (

\

) to the string. For example,

\remove yields remove.

Tag

is a string that is an identifier for the menu object. It is used in the code to identify the menu item and must be unique in the GUI.

Adding Items to a Menu

Use the New Menu Item tool to create menu items that are displayed in the drop-down menu.

1

Add an Open menu item under

File

, by selecting

File

then clicking the

New Menu Item button in the toolbar. A temporary numbered menu item label,

Untitled

, appears.

Creating Menus

2

Fill in the Label and Tag fields for the new menu item. For example, set

Label

to

Open

and set Tag to menu_file_open

. Click outside the field for the change to take effect.

6-53

6

Laying Out a GUI

6-54

You can also

Choose an alphabetic keyboard accelerator for the menu item with the

Accelerator

pop-up menu. In combination with Ctrl, this is the keyboard equivalent for a menu item that does not have a child menu. Note that some accelerators may be used for other purposes on your system and that other actions may result.

Display a separator above the menu item by checking Separator above this

item

.

Display a check next to the menu item when the menu is first opened by checking Check mark this item. A check indicates the current state of the

menu item. See the example in “Adding Items to the Context Menu” on page 6-59.

Enable this item when the menu is first opened by checking Enable this

item

. This allows the user to select this item when the menu is first opened.

If you uncheck this option, the menu item appears dimmed when the menu is first opened, and the user cannot select it.

Specify a string for the routine, i.e., the Callback, that performs the action associated with the menu item. If you have not yet saved the GUI, the default value is

%automatic

. When you save the GUI, and if you have not changed

Creating Menus this field, GUIDE automatically sets the value using a combination of the

Tag

field and the GUI filename. See “Menu Item” on page 8-39 for more

information about specifying this field and for programming menu items.

The View button displays the callback, if there is one, in an editor. If you have not yet saved the GUI, GUIDE prompts you to save it.

Open the Property Inspector, where you can change all menu properties, by clicking the More options button.

Note In general, programming conventions described for components in

Chapter 8, “Programming the GUI” also apply to menu items. See “Menu

Item” on page 8-39 and “Updating a Menu Item Check” on page 8-40 for

programming information and basic examples.

Additional Drop-Down Menus

To create additional drop-down menus, use the New Menu button in the same way you did to create the

File

menu. For example, the following figure also shows an

Edit

drop-down menu.

Cascading Menus

To create a cascading menu, select the menu item that will be the title for the cascading menu, then click the New Menu Item button. In the example below,

Copy

is a cascading menu.

6-55

6

Laying Out a GUI

6-56

Note See “Menu Item” on page 8-39 for information about programming

menu items.

Laying Out Three Menus

The following Menu Editor illustration shows three menus defined for the figure menu bar.

Creating Menus

When you run the GUI, the menu titles appear in the menu bar.

6-57

6

Laying Out a GUI

Context Menus

A context menu is displayed when a user right-clicks the object for which the menu is defined. The Menu Editor enables you to define context menus and associate them with objects in the layout.

See “Menus for the Menu Bar” on page 6-50 for information about defining

menus in general.

Note See “Menu Item” on page 8-39 for information about defining callback

subfunctions for your menus.

Creating the Parent Menu

All items in a context menu are children of a menu that is not displayed on the figure menu bar. To define the parent menu:

1

Select the Menu Editor’s Context Menus tab and select the New Context

Menu button from the toolbar.

6-58

2

Select the menu and specify the Tag field to identify the context menu

( axes_context_menu

in this example).

Creating Menus

Adding Items to the Context Menu

Use the New Menu Item button to create menu items that are displayed in the context menu.

1

Add a Blue background color menu item to the menu by selecting axes_context_menu

and clicking the New Menu Item tool. A temporary numbered menu item label,

Untitled

, appears.

6-59

6

Laying Out a GUI

2

Fill in the Label and Tag fields for the new menu item. For example, set

Label

to

Blue background color

and set Tag to blue_background

. Click outside the field for the change to take effect.

6-60

You can also

Display a separator above the menu item by checking Separator above this

item

.

Display a check next to the menu item when the menu is first opened by checking Check mark this item. A check indicates the current state of the

menu item. See the example in “Adding Items to the Context Menu” on

page 6-59. See “Updating a Menu Item Check” on page 8-40 for an example.

Enable this item when the menu is first opened by checking Enable this

item

. This allows the user to select this item when the menu is first opened.

If you uncheck this option, the menu item appears dimmed when the menu is first opened, and the user cannot select it.

Specify a string for the routine, i.e., the Callback, that performs the action associated with the menu item. If you have not yet saved the GUI, the default value is

%automatic

. When you save the GUI, and if you have not changed this field, GUIDE automatically sets the value using a combination of the

Creating Menus

Tag

field and the GUI filename. See “Menu Item” on page 8-39 for more

information about specifying this field and for programming menu items.

The View button displays the callback, if there is one, in an editor. If you have not yet saved the GUI, GUIDE prompts you to save it.

Open the Property Inspector, where you can change all menu properties, by clicking the More options button.

Associating the Context Menu with an Object

In the Layout Editor, select the object for which you are defining the context menu. Use the Property Inspector to set this object’s

UIContextMenu

property to the name of the desired context menu. The following figure shows the

UIContextMenu

property for the axes

object with

Tag

property axes1

.

In the GUI M-file, complete the callback subfunction for each item in the context menu. Each callback executes when a user selects the associated

context menu item. See “Menu Item” on page 8-39 for information on defining

the syntax.

Note In general, programming conventions described for components in

Chapter 8, “Programming the GUI” also apply to menu items. See “Menu

Item” on page 8-39 and “Updating a Menu Item Check” on page 8-40 for

programming information and basic examples.

6-61

6

Laying Out a GUI

Creating Toolbars

GUIDE provides no tool to enable you do add a toolbar. However, you can add a toolbar by adding code to the opening function.

See “Initialization Callbacks” on page 8-16 for information about the opening

function, and the uitoolbar

, uipushtool

, and uitoggletool

reference pages for information and examples.

This example creates a toolbar ( uitoolbar

) and places a toggle tool

( uitoggletool

) on it. Add the following code to the GUI’s opening function to produce the toolbar shown. ht = uitoolbar(hObject) a(:,:,1) = rand(20); a(:,:,2) = rand(20); a(:,:,3) = rand(20); htt = uitoggletool(ht,'CData',a,'TooltipString','Hello')

6-62

In the opening function, hObject

is an input argument that holds the figure handle. The

CData

property enables you to display a truecolor image on the toggle tool.

Viewing the Object Hierarchy

Viewing the Object Hierarchy

The Object Browser displays a hierarchical list of the objects in the figure, including both components and menus. As you lay out your GUI, check the object hierarchy periodically, especially if your GUI contains menus, panels, or button groups.

The following illustration shows a figure object and its child objects. It also shows the child objects of the panel and a menu that was created.

To determine a component’s place in the hierarchy, select it in the Layout

Editor. It is automatically selected in the Object Browser. Similarly, if you select an object in the Object Browser, it is automatically selected in the Layout

Editor.

6-63

6

Laying Out a GUI

Designing for Cross-Platform Compatibility

You can create GUIs that behave more consistently when run on different platforms by using

“Default System Font” on page 6-64

“Standard Background Color” on page 6-65

“Cross-Platform Compatible Units” on page 6-66

Default System Font

By default, user interface controls (uicontrols) use the default font for the platform on which they are running. For example, when displaying your GUI on PCs, uicontrols uses MS San Serif. When your GUI runs on a different platform, it uses that computer’s default font. This provides a consistent look with respect to your GUI and other application GUIs.

If you have set the

FontName

property to a named font and want to return to the default value, you can set the property to the string default

. This ensures that MATLAB uses the system default at run-time.

You can use the Property Inspector to set this property:

Or you can use the set

command to set the property in the GUI M-file. For example, if there is a push button in your GUI and its handle is stored in the pushbutton1

field of the handles

structure, then the statement set(handles.pushbutton1,'FontName','default') sets the

FontName

property to use the system default.

6-64

Designing for Cross-Platform Compatibility

Specifying a Fixed-Width Font

If you want to use a fixed-width font for a user interface control, set its

FontName

property to the string fixedwidth

. This special identifier ensures that your GUI uses the standard fixed-width font for the target platform.

You can find the name of the fixed-width font that is used on a given platform by querying the root

FixedWidthFontName

property.

get(0,'FixedWidthFontName')

Using a Specific Font Name

You can specify an actual font name (such as Times or Courier) for the

FontName

property. However, doing so may cause your GUI to not look as you intended when run on a different computer. If the target computer does not have the specified font, it will substitute another font that may not look good in your GUI or may not be the standard font used for GUIs on that system.

Also, different versions of the same named font may have different size requirements for a given set of characters.

Standard Background Color

The default component background color is the standard system background color on which the GUI is running. This color varies on different computer systems, e.g., the standard shade of gray on the PC differs from that on UNIX, and may not match the default GUI background color.

If you use the default component background color, you can use that same color as the background color for your GUI. This provides a consistent look with respect to your GUI and other application GUIs. To do this in GUIDE, check

Options > Use system color scheme for background

on the Layout Editor

Tools

menu.

Note This option is available only if you first select the Generate FIG-file

and M-File

option.

The following figures illustrate the results with and without system color matching.

6-65

6

Laying Out a GUI

6-66

Without system color matching With system color matching

Cross-Platform Compatible Units

Cross-platform compatible GUIs should look correct on computers having different screen sizes and resolutions. Since the size of a pixel can vary on different computer displays, using the default figure

Units

of pixels

does not produce a GUI that looks the same on all platforms.

For this reason, GUIDE defaults the

Units

property for the figure to characters

.

System-Dependent Units

Character units are defined by characters from the default system font. The width of a character unit equals the width of the letter x

in the system font. The height of a character unit is the distance between the baselines of two lines of text. Note that character units are not square.

Units and Resize Behavior

If you set your GUI’s resize behavior from the GUI Options dialog box, GUIDE automatically sets the units for the GUI’s components in a way that maintains the intended look and feel across platforms. To specify the resize behavior option, select GUI Options from the Tools menu, then specify Resize

Designing for Cross-Platform Compatibility

behavior

by selecting Non-resizable, Proportional, or Other (Use

ResizeFcn)

.

If you choose Non-resizable, GUIDE defaults the component units to characters

. If you choose Proportional, it defaults the component units to normalized

. In either case, these settings enable your GUI to automatically adjusts the size and relative spacing of components as the GUI displays on different computers.

If you choose Other (Use ResizeFcn), GUIDE defaults the component units to characters

. However, you must provide a

ResizeFcn

callback to customize the

GUI’s resize behavior.

Note GUIDE does not automatically adjust component units if you modify the figure’s

Resize

property programmatically or in the Property Inspector.

At times, it may be convenient to use a more familiar unit of measure, e.g., inches or centimeters, when you are laying out the GUI. However, to preserve the look of your GUI on different computers, remember to change the figure

Units

property back to characters

, and the components’

Units

properties to characters

(nonresizable GUIs) or normalized

(resizable GUIs) before you save the GUI.

6-67

6

Laying Out a GUI

6-68

7

Saving and Running the

GUI

Naming a GUI and Its Files (p. 7-2)

Saving a GUI (p. 7-4)

Running a GUI (p. 7-10)

Describes the GUI files and how they are named.

Describes the various ways of saving a GUI in GUIDE.

Tells you how to run a GUI from GUIDE and from the command line.

7

Saving and Running the GUI

Naming a GUI and Its Files

“The GUI Files” on page 7-2

“File and GUI Names” on page 7-2

“Renaming GUIs and GUI Files” on page 7-3

The GUI Files

By default, GUIDE stores a GUI in two files which are generated the first time you save or run the GUI:

A FIG-file, with extension

.fig

, that contains a complete description of the

GUI layout and the GUI components, such as push buttons, axes, panels, menus, and so on. The FIG-file is a binary file and you cannot modify it except by changing the layout in GUIDE. Note that a FIG-file is a kind of

MAT-file. See MAT-Files for more information.

An M-file, with extension

.m

, that contains the code that controls the GUI, including the callbacks for its components.

These two files usually reside in the same directory. They correspond to the tasks of laying out and programming the GUI. When you lay out the GUI in the

Layout Editor, your work is stored in the FIG-file. When you program the GUI, your work is stored in the corresponding M-file.

Note that if your GUI includes ActiveX components, GUIDE also generates a

file for each ActiveX component. See “ActiveX Control” on page 8-32 for more

information.

Note You can choose to save only the FIG-file for a GUI. See “” on page 7-11

For more information about these files, see “GUI Files: An Overview” on page 8-6.

File and GUI Names

The M-file and the FIG-file that define your GUI must have the same name.

This name is also the name of your GUI.

7-2

Naming a GUI and Its Files

For example, if your files are named mygui.fig

and mygui.m

, then the name of the GUI is mygui

, and you can run the GUI by typing mygui

at the command line. This assumes that the M-file and FIG-file are in the same directory and that the directory is in your path.

Names are assigned when you save the GUI the first time. See “Ways to Save a GUI” on page 7-4 for information about saving GUIs

Renaming GUIs and GUI Files

To rename a GUI, rename the GUI FIG-file using Save As from the Layout

Editor File menu. When you do this, GUIDE renames both the FIG-file and the

GUI M-file, updates any callback properties that contain the old name to use the new name, and updates all instances of the file name in the body of the

M-file.

7-3

7

Saving and Running the GUI

Saving a GUI

This section tells you how to save a GUI you have constructed in GUIDE.

“Ways to Save a GUI” on page 7-4

“Saving a New GUI” on page 7-5

“Saving an Existing GUI” on page 7-8

Note If you want to save or display only a GUI FIG-file, see “” on page 7-11.

Ways to Save a GUI

You can save a GUI in GUIDE in any of these ways:

From the GUIDE Quick Start dialog box. Before you select a template,

GUIDE lets you select a name for your GUI. When you click OK, GUIDE saves the GUI M-file and FIG-file using the name you specify.

Naming the FIG-file also names the

M-file and the GUI.

7-4

Saving a GUI

The first time you save the files by

- Clicking the Save icon

on the Layout Editor toolbar

- Selecting the Save or Save as options on the File menu

In either case, GUIDE prompts you for a name before saving the GUI.

The first time you run the GUI by

- Clicking the Run icon

on the Layout Editor toolbar

- Selecting Run from the Tools menu

In each case, GUIDE prompts you for a name and saves the GUI files before activating the GUI.

In all cases, GUIDE creates a template M-file and opens it in your default

editor. See “Naming of Callback Functions” on page 8-12 for more information

about the template M-file.

Note GUI FIG-files that are created or modified with MATLAB 7.0 or a later

MATLAB version, are not automatically compatible with Version 6.5 and earlier versions. To make a FIG-file, which is a kind of MAT-file, backward compatible, you must check General > MAT-Files > Ensure backward

compatibility (-v6)

in the MATLAB Preferences dialog box before saving the file.

Note that button groups and panels are introduced in MATLAB 7.0, and you should not use them in GUIs that you expect to run in earlier MATLAB versions.

Saving a New GUI

Follow these steps if you are saving a GUI for the first time, or if you are using

Save as

from the File menu.

7-5

7

Saving and Running the GUI

Note If you select Save as from the File menu or click the Save button

on the toolbar, GUIDE saves the GUI without activating it. However, if you select

Run

from the Tools menu or click the Run icon on the toolbar, GUIDE saves the GUI before activating it.

1

If you have made changes to the GUI and elect to activate the GUI by selecting Run from the Tools menu or by clicking the Run icon on the toolbar, GUIDE displays the following dialog box. Click Yes to continue.

2

If you clicked Yes in the previous step, if you are saving the GUI without activating it, or if you are using Save as from the File menu, GUIDE opens a Save As dialog box and prompts you for a FIG-file name.

7-6

Saving a GUI

3

Change the directory if you choose, and then enter the name you want to use for the FIG-file. Be sure to choose a writable directory. GUIDE saves both the FIG-file and the M-file using this name.

4

If you choose an existing filename, GUIDE displays a dialog box that asks you if you want to replace the existing FIG-file. Click Yes to continue.

5

If you chose Yes in the previous step, GUIDE displays a dialog that asks if you want to replace the existing M-file or append to it. The most common choice is Replace.

If you choose Append, GUIDE adds callbacks to the existing M-file for components in the current layout that are not present in the existing M-file.

Before you append the new components, ensure that their

Tag

properties do not duplicate

Tag

values that appear in callback function names in the

existing M-file. See “Assigning an Identifier to Each Component” on page 6-24 for information about specifying the

Tag

property. See “Naming of

Callback Functions” on page 8-12 for more information about callback

function names.

7-7

7

Saving and Running the GUI

6

If you chose to activate the GUI by selecting Run from the Tools menu or by clicking the Run button on the toolbar, and if the directory in which you save the GUI is not on the MATLAB path, GUIDE opens a dialog box, giving you the option of changing the current working directory to the directory containing the GUI files, or adding that directory to the top or bottom of the

MATLAB path.

7

After you save the files, GUIDE opens the GUI M-file in your default editor.

If you elected to run the GUI, it also activates the GUI.

Saving an Existing GUI

Follow these steps if you are saving an existing GUI to its current location. See

“Saving a New GUI” on page 7-5 if you are using Save as from the File menu.

If you have made changes to a GUI and choose to save and activate the GUI by selecting Run from the Tools menu or by clicking the Run button on the toolbar, GUIDE saves the GUI and then activates it. It does not automatically open the M-file, even if you added new components.

If you select Save from the File menu or click the Save button on the toolbar,

GUIDE saves the GUI without activating it.

7-8

Saving a GUI

7-9

7

Saving and Running the GUI

Running a GUI

Generally, you run your GUI by executing the M-file that GUIDE generates.

This M-file contains the commands to load the GUI and provides a framework

for the component callbacks. See “GUI Files: An Overview” on page 8-6 for

more information about the M-file.

When you execute the M-file, a fully functional copy of the GUI displays on the screen. You can run a GUI:

“From the GUIDE Layout Editor” on page 7-10

“From the Command Line” on page 7-10

“From an M-file” on page 7-11

Note You can display a copy of the GUI figure using the openfig

, open

, or hgload

command. These commands load FIG-files into the MATLAB workspace. The displayed GUI is active, and you can manipulate the components. But nothing happens. This is because no corresponding M-file has been executed.

From the GUIDE Layout Editor

Run your GUI from the GUIDE Layout Editor by:

Clicking the Run icon

on the Layout Editor toolbar

Selecting Run from the Tools menu

In either case, if the GUI has changed or has never been saved, GUIDE saves the GUI files before activating it and opens the GUI M-file in your default

editor. See “Saving a GUI” on page 7-4 for information about this process. See

“GUI Files: An Overview” on page 8-6 for more information about GUI M-files.

From the Command Line

Run your GUI from its M-file by executing the GUI M-file. For example, if your

GUI M-file is mygui.m

, type mygui

7-10

Running a GUI at the command line. The files must reside on your path or in your current directory.

If a GUI accepts arguments when it is run, they are passed to the GUI’s

opening function. See “Opening Function” on page 8-16 for more information.

Note Consider whether you want to allow more than one copy of the GUI to be active at the same time. If you want only one GUI to be active, select

Options > GUI Allows Only One Instance to Run (Singleton)

from the

Layout Editor View menu. See “GUI Options” on page 5-9 for more

information.

From an M-file

Run your GUI from an M-file by executing the GUI M-file. For example, if your

GUI M-file is mygui.m

, include the following statement in your M-file script.

mygui

The M-file must reside on the MATLAB path or in the current MATLAB directory where the GUI is run.

If a GUI accepts arguments when it is run, they are passed to the GUI’s

opening function. See “Opening Function” on page 8-16 for more information.

Note Consider whether you want to allow more than one copy of the GUI to be active at the same time. If you want only one GUI to be active, select

Options

from the Layout Editor View menu, then select GUI Allows Only

One Instance to Run (Singleton)

. See “GUI Options” on page 5-9 for more

information.

7-11

7

Saving and Running the GUI

7-12

8

Programming the GUI

Callbacks: An Overview (p. 8-2)

GUI Files: An Overview (p. 8-6)

Associating Callbacks with

Components (p. 8-9)

Callback Syntax and Arguments

(p. 8-12)

Initialization Callbacks (p. 8-16)

Examples: Programming GUI

Components (p. 8-20)

Introduces the functions, referred to as callbacks, that you use to program GUI behavior.

Describes the files that comprise a GUI and details the structure of the GUI M-file which you must program.

Outlines the mechanisms that GUIDE uses for associating a callback with a specific component.

Describes callback naming conventions and input arguments, and introduces the handles

structure as a tool for communicating among a GUI’s callbacks.

Describes the functions, provided by GUIDE, that you can use to initialize a GUI.

Provides a brief example for programming each kind of component.

8

Programming the GUI

Callbacks: An Overview

After you have layed out your GUI, you need to program its behavior. The code you write controls how the GUI responds to events such as button clicks, slider movement, menu item selection, or the creation and deletion of components.

This programming takes the form of a set of functions, called callbacks, for each component and for the GUI figure itself.

This chapter addresses the programming of GUIs created using GUIDE. In particular, this section explains:

“What Is a Callback?” on page 8-2

“Kinds of Callbacks” on page 8-2

What Is a Callback?

A callback is a function that you write and associate with a specific GUI component or with the GUI figure. It controls GUI or component behavior by performing some action in response to an event for its component. This kind of programming is often called event-driven programming.

When an event occurs for a component, MATLAB invokes the component’s callback that is triggered by that event. As an example, suppose a GUI has a button that triggers the plotting of some data. When the user clicks the button,

MATLAB calls the callback you associated with clicking that button, and the callback, which you have programmed, then gets the data and plots it.

A component can be any control device such as a push button, list box, or slider.

For purposes of programming, it can also be a menu or a container such as a

panel or button group. See “Available Components” on page 6-16 for a list and

descriptions of components.

Kinds of Callbacks

The GUI figure and each type of component has specific kinds of callbacks with which it can be associated. The callbacks that are available for each component are defined as properties of that component. For example, a push button has five callback properties:

ButtonDownFcn

,

Callback

,

CreateFcn

,

DeleteFcn

, and

KeyPressFcn

. A panel has four callback properties:

ButtonDownFcn

,

CreateFcn

,

DeleteFcn

, and

ResizeFcn

. You can, but are not required to, create a callback

8-2

Callbacks: An Overview function for each of these properties. The GUI itself, which is a figure, also has certain kinds of callbacks with which it can be associated.

Each kind of callback has a triggering mechanism or event that causes it to be called. The following table lists the callback properties that GUIDE makes available, their triggering events, and the components to which they apply.

Callback Property

ButtonDownFcn

Callback

CloseRequestFcn

CreateFcn

Triggering Event

Executes when the user presses a mouse button while the pointer is on or within five pixels of a component or figure. If the component is a user interface control, its

Enable property must be on

.

Component action.

Executes, for example, when a user clicks a push button or selects a menu item.

Executes before the figure closes.

Component creation. It can be use to initialize the component when it is created. It executes after the component or figure is created, but before it is displayed.

Components

Axes, figure, button group, panel, user interface controls

Context menu, menu, user interface controls

Figure

Axes, figure, button group, context menu, menu, panel, user interface controls

8-3

8

Programming the GUI

Callback Property

DeleteFcn

KeyPressFcn

ResizeFcn

SelectionChangeFcn

WindowButtonDownFcn

WindowButtonMotionFcn

WindowButtonUpFcn

Triggering Event

Component deletion. It can be used to perform cleanup operations just before the component or figure is destroyed.

Executes when the user presses a keyboard key and the callback’s component or figure has focus.

Executes when a user resizes a panel, button group, or figure whose figure

Resize property is set to

On

.

Executes when a user selects a different radio button or toggle button in a button group component.

Executes when you press a mouse button while the pointer is in the figure window.

Executes when you move the pointer within the figure window.

Executes when you release a mouse button.

Components

Axes, figure, button group, context menu, menu, panel, user interface controls

Figure, user interface controls

Button group, figure, panel

Button group

Figure

Figure

Figure

8-4

Callbacks: An Overview

Note User interface controls include push buttons, sliders, radio buttons, check boxes, editable text boxes, static text boxes, list boxes, and toggle buttons. They are sometimes referred to as uicontrol s.

8-5

8

Programming the GUI

GUI Files: An Overview

“M-Files and FIG-Files” on page 8-6

“GUI M-File Structure” on page 8-7

“Adding Callback Templates to an Existing GUI M-File” on page 8-8

M-Files and FIG-Files

By default, the first time you save or run a GUI, GUIDE stores the GUI in two files:

A FIG-file, with extension

.fig

, that contains a complete description of the

GUI layout and the GUI components, such as push buttons, axes, panels, menus, and so on. The FIG-file is a binary file and you cannot modify it except by changing the layout in GUIDE. Note that a FIG-file is a kind of

MAT-file. See MAT-Files for more information.

An M-file, with extension

.m,

that initially contains initialization code and templates for some callbacks that are needed to control GUI behavior. You must add the callbacks you write for your GUI components to this file.

When you save your GUI the first time, GUIDE automatically opens the

M-file in your default editor.

The FIG-file and the M-file, usually reside in the same directory. They correspond to the tasks of laying out and programming the GUI. When you lay out the GUI in the Layout Editor, your work is stored in the FIG-file. When you program the GUI, your work is stored in the corresponding M-file.

If your GUI includes ActiveX components, GUIDE also generates a file for each

ActiveX component. See “ActiveX Control” on page 8-32 for more information.

For more information about naming and saving a GUI, see Chapter 7, “Saving and Running the GUI”. If you want to change the name of your GUI and its

files, see “Renaming GUIs and GUI Files” on page 7-3.

Note You can choose to save only the FIG-file for a GUI. See “” on page 7-11

8-6

GUI Files: An Overview

GUI M-File Structure

The GUI M-file that GUIDE generates is a function file. The name of the main function is the same as the name of the M-file. For example, if the name of the

M-file is mygui.m

, then the name of the main function is mygui

. Each callback in the file is a subfunction of the main function.

When GUIDE generates an M-file, it automatically includes templates for the most commonly used callbacks for each component. The M-file also contains initialization code, as well as an opening function callback and an output function callback. You must add code to the component callbacks for your GUI to work as you want. You may also want to add code to the opening function callback and the output function callback. The major sections of the GUI M-file are ordered as shown in the following table.

Section

Comments

Initialization

Opening function

Output function

Component and figure callbacks

Description

Displayed at the command line in response to the help

command. Edit these as necessary for your

GUI.

GUIDE initialization tasks. Do not edit this code.

Performs your initialization tasks before the user has access to the GUI.

Returns outputs to the MATLAB command line after the opening function returns control and before control returns to the command line.

Control the behavior of the GUI figure and of individual components. MATLAB calls a callback in response to a particular event for a component or for the figure itself.

8-7

8

Programming the GUI

Adding Callback Templates to an Existing GUI

M-File

When you save the GUI, GUIDE automatically adds templates for some callbacks to the M-file. However, you may want to add other callbacks to the

M-file.

Within GUIDE, you can add a callback subfunction template to the GUI M-file in one of two ways. With the component selected for which you want to add the callback:

Click the right mouse button to display the Layout Editor context menu.

Select the desired callback from the View callbacks submenu. GUIDE adds the callback template to the GUI M-file and opens the M-file for editing at the callback it just added.

In the View menu, select the desired callback from the View callbacks submenu. GUIDE adds the callback template to the GUI M-file and opens the M-file for editing at the callback you just added.

Note In either case, if you select a callback that already exists in the GUI

M-file, GUIDE adds no callback, but opens the M-file for editing at the callback you select.

For more information, see “Associating Callbacks with Components” on page 8-9.

8-8

Associating Callbacks with Components

Associating Callbacks with Components

A GUI can have many components and GUIDE provides a way of specifying which callback should run in response to a particular event for a particular component. The callback that runs when the user clicks a Yes button is not the one that runs for the No button. Each menu item usually performs a different function.

GUIDE uses each component’s callback properties to associate specific callbacks with that component. This topic tells you how GUIDE can automatically set the values of callback properties.

Note “Kinds of Callbacks” on page 8-2 provides a list of callback properties

and the components to which each applies.

Setting Callback Properties Automatically

GUIDE initially sets the value of the most commonly used callback properties for each component to

%automatic

. For example, a push button has five callback properties,

ButtonDownFcn

,

Callback

,

CreateFcn

,

DeleteFcn

, and

KeyPressFcn

. GUIDE sets only the

Callback

property, the most commonly used callback, to

%automatic

. You can use the Property Inspector to set the other callback properties to

%automatic

.

When you next save the GUI, GUIDE replaces

%automatic

with a MATLAB expression that is the GUI calling sequence for the callback. Within the calling sequence, it constructs the callback name, i.e., the subfunction name, from the component’s

Tag

property and the name of the callback property. The following figure shows an example of a push button’s

Callback

and

Tag

properties in the

GUIDE Property Inspector before the GUI is saved.

Note If you change the string

%automatic

before saving the GUI, GUIDE does not automatically add a callback for that component or menu item.

8-9

8

Programming the GUI

-

8-10

When you save the GUI, GUIDE constructs the name of the callback by appending an underscore (

_

) and the name of the callback property to the value of the component’s

Tag

property. For example, the MATLAB expression for the

Callback

property for a push button in the GUI simple_gui

with

Tag

property pushbutton1

is simple_gui(pushbutton1_Callback,gcbo,[],guidata(gcbo)) simple_gui

is the name of the GUI M-file as well as the name of the main function for that GUI. The remaining arguments generate input arguments for pushbutton1_Callback

. Specifically,

gcbo

is a command that returns the handle of the callback object (i.e., pushbutton1

).

[]

is a place holder for the currently unused eventdata

argument.

guidata(gcbo)

returns the handles

structure for this GUI.

Associating Callbacks with Components

See “Input Arguments” on page 8-14 for information about the callback input

arguments.

When you save the GUI, GUIDE also opens the GUI M-file in your editor. The

M-file then contains a template for the

Callback

callback for the component whose

Tag

is pushbutton1

. If you activate the GUI, clicking the push button triggers the execution of the

Callback

callback for the component.

For information about changing the callback name after GUIDE assigns it, see

“Changing Callback Names Assigned by GUIDE” on page 8-13.

The next topic, “Callback Syntax and Arguments” on page 8-12, provides more

information about the callback template.

8-11

8

Programming the GUI

Callback Syntax and Arguments

GUIDE defines conventions for callback syntax and arguments and implements these conventions in the callback templates it adds to the M-file.

Each template is similar to this one for the

Callback

subfunction for a push button.

% --- Executes on button press in pushbutton1.

function pushbutton1_Callback(hObject, eventdata, handles)

% hObject handle to pushbutton1 (see GCBO)

% eventdata reserved - to be defined in a future version of MATLAB

% handles structure with handles and user data (see GUIDATA)

...

The first comment line describes the event that triggers execution of the callback. This is followed by the function definition line. The remaining comments describe the input arguments.

Insert your code after the last comment.

Note You can avoid automatic generation of the callback comment lines for new callbacks. In the Preferences dialog box, select GUIDE and uncheck Add

comments for newly generated callback functions

.

This topic discusses these aspects of the template:

“Naming of Callback Functions” on page 8-12

“Changing Callback Names Assigned by GUIDE” on page 8-13

“Input Arguments” on page 8-14

“handles Structure” on page 8-14

Naming of Callback Functions

The previous callback example shows the following function definition: function pushbutton1_Callback(hObject,eventdata,handles)

8-12

Callback Syntax and Arguments

When GUIDE generates the template, it creates the callback name by appending an underscore (_) and the name of the callback property to the component’s

Tag

property. In the example above, pushbutton1

is the

Tag property for the push button, and

Callback

is one of the push button’s callback properties. The

Tag

property uniquely identifies a component within the GUI.

The first time you save the GUI after adding a component, GUIDE adds callbacks for that component to the M-file and generates the callback names using the current value of the

Tag

property. If you want to change the default

Tag

value, you should do it before you save the GUI.

See “Associating Callbacks with Components” on page 8-9 for more

information.

Changing Callback Names Assigned by GUIDE

You can change callback names assigned by GUIDE in either of the following ways:

“Changing the Tag Property” on page 8-13

“Changing the Callback Property” on page 8-14

Note If possible, change callback names for a component immediately after you add the component to the layout and before you save the GUI.

Changing the Tag Property

You can change

Tag

properties to give a component’s callbacks more meaningful names, e.g., you might change the

Tag

property from pushbutton1 to closebutton

. If possible, change the

Tag

property before saving the GUI, then GUIDE automatically uses the new value when it names the callbacks.

However, if you change the

Tag

property after saving the GUI, GUIDE updates the following items according to the new

Tag

, provided that all components have distinct tags:

The component’s callback functions in the M-file

The value of the component’s callback properties, which you can view in the

Property Inspector

8-13

8

Programming the GUI

References in the M-file to the field of the handles

structure that contains

the component’s handle. See “handles Structure” on page 8-14 for more

information about the handles

structure.

Changing the Callback Property

To rename a particular callback subfunction without changing the

Tag property,

Replace the name string in the callback property with the new name. For example, if the value of the callback property for a push button in mygui

is mygui('pushbutton1_Callback',gcbo,[],guidata(gcbo)) the string pushbutton1_Callback

is the name of the callback function.

Change the name to the desired name, for example, closebutton_Callback

.

As necessary, update instances of the callback function name in the M-file.

Input Arguments

All callbacks in the GUI M-file have the following input arguments:

hObject

— Handle of the object, e.g., the component, for which the callback was triggered.

eventdata

— Reserved for later use.

handles

— Structure that contains the handles of all the objects in the

figure. It may also contain application-defined data. See “handles Structure” on page 8-14 for information about this structure.

handles Structure

GUIDE creates a handles

structure that contains the handles of all the objects in the figure. For a GUI that contains an edit text, a panel, a pop-up menu, and a push button, the handles

structure originally looks similar to this. GUIDE uses each component’s

Tag

property to name the structure element for its handle.

handles =

figure1: 160.0011

edit1: 9.0020

uipanel1: 8.0017

popupmenu1: 7.0018

8-14

Callback Syntax and Arguments

pushbutton1: 161.0011

output: 160.0011

GUIDE creates and maintains the handles

structure as GUI data. It is passed as an input argument to all callbacks and enables a GUI’s callbacks to share property values and application data.

For information about GUI data, see “Mechanisms for Managing Data” on page 9-2 and the

guidata

reference page.

For information about adding fields to the handles

structure and instructions

for correctly saving the structure, see Chapter 9, “Managing

Application-Defined Data.”

8-15

8

Programming the GUI

Initialization Callbacks

GUIDE automatically includes two callbacks, the opening function and the output function, in every GUI M-file it creates.

“Opening Function” on page 8-16

“Output Function” on page 8-18

For information about programming component callbacks, see Examples:

Programming GUI Components (p. 8-20).

Opening Function

The opening function is the first callback in every GUI M-file. It is executed just before the GUI is made visible to the user, but after all the components have been created, i.e., after the components’

CreateFcn

callbacks, if any, have been run.

You can use the opening function to perform your initialization tasks before the user has access to the GUI. For example, you can use it to create data or to read data from an external source. GUI command-line arguments are passed to the opening function.

“Function Naming and Template” on page 8-16

“Input Arguments” on page 8-17

“Initial Template Code” on page 8-17

Function Naming and Template

GUIDE names the opening function by appending

_OpeningFcn

to the name of the M-file. This is an example of an opening function template as it might appear in the mygui

M-file.

% --- Executes just before mygui is made visible.

function mygui_OpeningFcn(hObject, eventdata, handles, varargin)

% This function has no output args, see OutputFcn.

% hObject handle to figure

% eventdata reserved - to be defined in a future version of MATLAB

% handles structure with handles and user data (see GUIDATA)

% varargin command line arguments to mygui (see VARARGIN)

8-16

Initialization Callbacks

% Choose default command line output for mygui handles.output = hObject;

% Update handles structure guidata(hObject, handles);

% UIWAIT makes mygui wait for user response (see UIRESUME)

% uiwait(handles.mygui);

Input Arguments

The opening function has four input arguments hObject

, eventdata

, handles

, and varargin

. The first three are the same as described in “Input Arguments” on page 8-14. the last argument,

varargin

, enables you to pass arguments from the command line to the opening function. The opening function can make such arguments available to the callbacks by adding them to the handles structure.

For more information about varargin

, see the varargin

reference page and

“Passing Variable Numbers of Arguments” in the MATLAB documentation.

All command-line arguments are passed to the opening function via varargin

.

If you open the GUI with a property name/property value pair as arguments, the GUI opens with the property set to the specified value. For example, my_gui('Position', [71.8 44.9 74.8 19.7])

opens the GUI at the specified position, since

Position

is a valid figure property.

If the input argument is not a valid figure property, you must add code to the opening function to make use of the argument. For an example, look at the opening function for the Modal Question Dialog GUI template, available from the GUIDE Quick Start dialog box. The added code enables you to open the modal dialog with the syntax mygui('String','Do you want to exit?') which displays the text

'Do you want to exit?'

on the GUI. In this case, it is necessary to add code to the opening function because

'String'

is not a valid figure property.

Initial Template Code

Initially, the input function template contains these lines of code:

8-17

8

Programming the GUI

handles.output = hObject

adds a new element, output

, to the handles structure and assigns it the value of the input argument hObject

, which is the handle of the figure, i.e., the handle of the GUI. This handle is used later by the output function. For more information about the output function, see

“Output Function” on page 8-18.

guidata(hObject,handles)

saves the handles

structure. You must use guidata

to save any changes that you make to the handles

structure. It is not sufficient just to set the value of a handles

field. See “handles Structure”

on page 8-14 and “GUI Data” on page 9-2 for more information.

uiwait(handles.mygui)

, initially commented out, blocks GUI execution until uiresume

is called or the GUI is deleted. Note that uiwait

allows the user access to other MATLAB windows. Remove the comment symbol for this statement if you want the GUI to be blocking when it opens.

Output Function

The output function returns, to the command line, outputs that are generated during its execution. It is executed when the opening function returns control and before control returns to the command line. This means that you must generate the outputs in the opening function, or call uiwait

in the opening function to pause its execution while other callbacks generate outputs.

“Function Naming and Template” on page 8-18

“Input Arguments” on page 8-19

“Output Arguments” on page 8-19

Function Naming and Template

GUIDE names the output function by appending

_OutputFcn

to the name of the M-file. This is an example of an output function template as it might appear in the mygui

M-file.

% --- Outputs from this function are returned to the command line.

function varargout = mygui_OutputFcn(hObject, eventdata,...

handles)

% varargout cell array for returning output args (see VARARGOUT);

% hObject handle to figure

% eventdata reserved - to be defined in a future version of MATLAB

% handles structure with handles and user data (see GUIDATA)

8-18

Initialization Callbacks

% Get default command line output from handles structure varargout{1} = handles.output;

Input Arguments

The output function has three input arguments: hObject

, eventdata

, and handles

. They are the same as described in “Input Arguments” on page 8-14.

Output Arguments

The output function has one output argument, varargout

, which it returns to the command line. By default, the output function assigns handles.output

to varargout

. So the default output is the handle to the GUI, which was assigned to handles.output

in the opening function.

You can change the output by

Changing the value of handles.output

. It can be any valid MATLAB value including a structure or cell array.

Adding output arguments to varargout

.

varargout

is a cell array. It can contain any number of output arguments.

By default, GUIDE creates just one output argument, handles.output

. To create an additional output argument, create a new field in the handles structure and add it to varargout

using a command similar to varargout{2} = handles.second_output;

8-19

8

Programming the GUI

Examples: Programming GUI Components

This section provides code examples that illustrate the basic mechanics of programming the various components.

“Push Button” on page 8-20

“Toggle Button” on page 8-21

“Radio Button” on page 8-22

“Check Box” on page 8-22

“Edit Text” on page 8-23

“Slider” on page 8-24

“List Box” on page 8-24

“Pop-Up Menu” on page 8-25

“Panel” on page 8-26

“Button Group” on page 8-27

“Axes” on page 8-28

“ActiveX Control” on page 8-32

“Menu Item” on page 8-39

Push Button

This example contains only a push button. Clicking the button, closes the GUI.

This is the push button’s

Callback

callback. It displays the string

Goodbye

at the command line and then closes the GUI.

8-20

Examples: Programming GUI Components function pushbutton1_Callback(hObject, eventdata, handles) display Goodbye delete(handles.figure1);

Adding an Image to a Push Button or Toggle Button

To add an image to a push button or toggle button, assign the button’s

CData property an m-by-n-by-3 array of RGB values that defines a truecolor image.

For example, the array a

defines 16-by-64 truecolor image using random values between 0 and 1 (generated by rand

).

a(:,:,1) = rand(16,64); a(:,:,2) = rand(16,64); a(:,:,3) = rand(16,64); set(hObject,'CData',a)

To add the image when the button is created, add the code to the button’s

CreateFcn

callback. You may want to delete the value of the button’s

String property, which would usually be used as a label.

See ind2rgb

for information on converting a matrix

X

and corresponding colormap, i.e., an

(X, MAP)

image, to RGB (truecolor) format.

Toggle Button

The callback for a toggle button needs to query the toggle button to determine what state it is in. MATLAB sets the

Value

property equal to the

Max

property when the toggle button is pressed (

Max

is 1 by default) and equal to the

Min property when the toggle button is not pressed (

Min

is 0 by default).

The following code illustrates how to program the callback in the GUI M-file.

function togglebutton1_Callback(hObject, eventdata, handles) button_state = get(hObject,'Value'); if button_state == get(hObject,'Max')

% Toggle button is pressed-take approperiate action

...

8-21

8

Programming the GUI elseif button_state == get(hObject,'Min')

% Toggle button is not pressed-take appropriate action

...

end

Note You can use a button group to manage exclusive selection behavior for

toggle buttons. See “Button Group” on page 8-27 for more information.

Radio Button

You can determine the current state of a radio button from within its callback by querying the state of its

Value

property, as illustrated in the following example: if (get(hObject,'Value') == get(hObject,'Max'))

% Radio button is selected-take approriate action else

% Radio button is not selected-take approriate action end

Note You can use a button group to manage exclusive selection behavior for

radio buttons. See “Button Group” on page 8-27 for more information.

Check Box

You can determine the current state of a check box from within its callback by querying the state of its

Value

property, as illustrated in the following example: function checkbox1_Callback(hObject, eventdata, handles) if (get(hObject,'Value') == get(hObject,'Max'))

% Checkbox is checked-take approriate action else

% Checkbox is not checked-take approriate action end

8-22

Examples: Programming GUI Components

Edit Text

To obtain the string a user types in an edit box, get the

String

property in the the

Callback

callback.

function edittext1_Callback(hObject, eventdata, handles) user_string = get(hObject,'String');

% Proceed with callback

If the edit text

Max

and

Min

properties are set such that

Max - Min > 1

, the user can enter multiple lines. For example, setting

Max

to

2

, with the default value of

0

for

Min

, enables users to enter multiple lines.

Retrieving Numeric Data from an Edit Text Component

MATLAB returns the value of the edit text

String

property as a character string. If you want users to enter numeric values, you must convert the characters to numbers. You can do this using the str2double

command, which converts strings to doubles. If the user enters nonnumeric characters, str2double

returns

NaN

.

You can use the following code in the edit text callback. It gets the value of the

String

property and converts it to a double. It then checks whether the converted value is

NaN

( isnan

), indicating the user entered a nonnumeric character and displays an error dialog ( errordlg

). function edittext1_Callback(hObject, eventdata, handles) user_entry = str2double(get(hObject,'string')); if isnan(user_entry) errordlg('You must enter a numeric value','Bad Input','modal') return end

% Proceed with callback...

Triggering Callback Execution

If the contents of the edit text component have been changed, clicking inside the GUI but outside the edit text causes the edit text callback to execute. The user can also press Enter for an edit text that allows only a single line of text, or Ctrl+Enter for an edit text that allows multiple lines.

8-23

8

Programming the GUI

Available Keyboard Accelerators

GUI users can use the following keyboard accelerators to modify the content of an edit text. These accelerators are not modifiable.

Ctrl+X – Cut

Ctrl+C – Copy

Ctrl+V – Paste

Ctrl+H – Delete last character

Ctrl+A – Select all

Slider

You can determine the current value of a slider from within its callback by querying its

Value

property, as illustrated in the following example: function slider1_Callback(hObject, eventdata, handles) slider_value = get(hObject,'Value');

% Proceed with callback...

The

Max

and

Min

properties specify the slider’s maximum and minimum values.

The slider’s range is

Max - Min

.

List Box

When the list box

Callback

callback is triggered, the list box

Value

property contains the index of the selected item, where

1

corresponds to the first item in the list. The

String

property contains the list as a cell array of strings.

This example retrieves the selected string. It assumes listbox1

is the value of the

Tag

property. Note that it is necessary to convert the value returned from the

String

property from a cell array to a string.

function listbox1_Callback(hObject, eventdata, handles) index_selected = get(hObject,'Value'); list = get(hObject,'String'); item_selected = list{index_selected}; % Convert from cell array

% to string

8-24

Examples: Programming GUI Components

Triggering Callback Execution

MATLAB executes the list box’s

Callback

callback after the mouse button is released or after certain key press events:

The arrow keys change the

Value

property, trigger callback execution, and set the figure

SelectionType

property to normal

.

The Enter key and space bar do not change the

Value

property but trigger callback execution and set the figure

SelectionType

property to open

.

If the user double-clicks, the callback executes after each click. MATLAB sets the figure

SelectionType

property to normal

on the first click and to open

on the second click. The callback can query the figure

SelectionType

property to determine if it was a single or double click.

List Box Examples

See the following examples for more information on using list boxes:

“List Box Directory Reader” on page 10-9 — Shows how to creates a GUI that

displays the contents of directories in a list box and enables users to open a variety of file types by double-clicking the filename.

“Accessing Workspace Variables from a List Box” on page 10-16 — Shows

how to access variables in the MATLAB base workspace from a list box GUI.

Pop-Up Menu

When the pop-up menu

Callback

callback is triggered, the pop-up menu

Value property contains the index of the selected item, where

1

corresponds to the first item on the menu. The

String

property contains the menu items as a cell array of strings.

Using Only the Index of the Selected Menu Item

This example retrieves only the index of the item selected. It uses a switch statement to take action based on the value. If the contents of the pop-up menu are fixed, then you can use this approach. Else, you can use the index to retrieve the actual string for the selected item. function popupmenu1_Callback(hObject, eventdata, handles) val = get(hObject,'Value'); switch val case 1

8-25

8

Programming the GUI

% User selected the first item case 2

% User selected the second item

% Proceed with callback...

Using the Index to Determine the Selected String

This example retrieves the actual string selected in the pop-up menu. It uses the pop-up menu

Value

property to index into the list of strings. This approach may be useful if your program dynamically loads the contents of the pop-up menu based on user action and you need to obtain the selected string. Note that it is necessary to convert the value returned by the

String

property from a cell array to a string.

function popupmenu1_Callback(hObject, eventdata, handles) val = get(hObject,'Value'); string_list = get(hObject,'String'); selected_string = string_list{val}; % Convert from cell array

% to string

% Proceed with callback...

Panel

Panels group GUI components and can make a GUI easier to understand by visually grouping related controls. A panel can contain panels and button groups as well as axes and user interface controls such as push buttons, sliders, pop-up menus, etc. The position of each component within a panel is interpreted relative to the lower-left corner of the panel.

Generally, if the GUI is resized, the panel and its components are also resized.

However, you can control the size and position of the panel and its components.

You can do this by setting the GUI Resize behavior to Other (Use ResizeFcn) and providing a

ResizeFcn

callback for the panel.

Note To set Resize behavior for the figure to Other (Use ResizeFcn), select

GUI Options

from the Layout Editor Tools menu.

See “Cross-Platform Compatible Units” on page 6-66 for information about the

effect of units on resize behavior.

8-26

Examples: Programming GUI Components

Button Group

Button groups are like panels except that they manage exclusive selection behavior for radio buttons and toggle buttons. If a button group contains a set of radio buttons, toggle buttons, or both, the button group allows only one of them to be selected. When a user clicks a button, that button is selected and all others are deselected.

The following figure shows a button group with two radio buttons and two toggle buttons. Radio Button 1 is selected.

If a user clicks the other radio button or one of the toggle buttons, it becomes selected and Radio Button 1 is deselected. The following figure shows the result of clicking Toggle Button 2.

The button group’s

SelectionChangeFcn

callback is called whenever a selection is made. Its hObject

input argument contains the handle of the selected radio button or toggle button.

8-27

8

Programming the GUI

If you have a button group that contains a set of radio buttons and toggle buttons and you want:

An immediate action to occur when a radio button or toggle button is selected, you must include the code to control the radio and toggle buttons in the button group’s

SelectionChangeFcn

callback function, not in the individual toggle button

Callback

functions. “Color Palette” on page 14-16

provides a practical example of a

SelectionChangeFcn

callback.

Another component such as a push button to base its action on the selection, then that component’s

Callback

callback can get the handle of the selected radio button or toggle button from the button group’s

SelectedObject property.

This example of a

SelectionChangeFcn

callback uses the

Tag

property of the selected object to choose the appropriate code to execute. Unlike other callbacks, the hObject

argument of the

SelectionChangeFcn

callback contains the handle of the selected radio button or toggle button.

function uibuttongroup1_SelectionChangeFcn(hObject,...

eventdata,handles) switch get(hObject,'Tag') % Get Tag of selected object

case 'radiobutton1'

% Code for when radiobutton1 is selected.

case 'radiobutton2'

% Code for when radiobutton2 is selected.

case 'togglebutton1'

% Code for when togglebutton1 is selected.

case 'togglebutton2'

% Code for when togglebutton2 is selected.

% Continue with more cases as necessary.

otherwise

% Code for when there is no match.

end

See the uibuttongroup

reference page for another example.

Axes

Axes components enable your GUI to display graphics, such as graphs and images. This topic provides two examples:

8-28

Examples: Programming GUI Components

“Plotting to a GUI with a Single Axes” on page 8-29

“Plotting to a GUI with Multiple Axes” on page 8-30

Plotting to a GUI with a Single Axes

If a GUI contains only one axes, MATLAB automatically generates the plot in that axes.

In most cases, you create a plot in an axes from a callback that belongs to some other component in the GUI. For example, pressing a button might trigger the plotting of a graph to an axes. In this case, the button’s

Callback

callback contains the code that generates the plot.

This example plots a graph in an axes when a button is pressed. The following figure shows a push button and an axes as they might appear in the Layout

Editor.

1

Add this code to the push button’s

Callback

callback. The surf

function produces a 3-D shaded surface plot. peaks

returns a square matrix obtained by translating and scaling Gaussian distributions.

surf(peaks(35));

2

Run the GUI by selecting Run from the Tools menu.

3

Click the Plot button. The plot displays in the axes.

8-29

8

Programming the GUI

Plotting to a GUI with Multiple Axes

If a GUI has multiple axes, you should explicitly specify which axes you want to target. Most plot functions let you specify the handle of the target axes. If a function does not provide such an argument, you can make the axes you want to target the current axes by using the axes

function. In the following command, axes1

is the

Tag

property of the target axes.

axes(handles.axes1)

The following example contains two axes and two buttons. Clicking one button generates a plot in one axes and clicking the other button generates a plot in the other axes. The following figure shows these components as they might appear in the Layout Editor.

8-30

Examples: Programming GUI Components

1

Add this code to the Plot 1 push button’s

Callback

callback. The surf function produces a 3-D shaded surface plot. peaks

returns a square matrix obtained by translating and scaling Gaussian distributions.

surf(handles.axes1,peaks(35));

2

Add this code to the Plot 2 push button’s

Callback

callback. The contour function displays the contour plot of a matrix, in this case the output of peaks

.

contour(handles.axes2,peaks(35));

3

Run the GUI by selecting Run from the Tools menu.

4

Click the Plot 1 button to display the surf plot in the first axes. Click the

Plot 2

button to display the contour plot in the second axes.

8-31

8

Programming the GUI

8-32

See “GUI with Multiple Axes” on page 10-2 for a more complex example that

uses two axes.

Note See “Axes Properties” in the MATLAB documentation for information about properties that you can set to control many aspects of axes behavior and appearance.

If your GUI contains axes, you should make sure that the Command-line

accessibility

option in the GUI Options dialog box is set to Callback (the default). From the Layout Editor select Tools -> GUI Options -> Command

Line Accessibility: Callback

. See “Command-Line Accessibility” on page 5-10

for more information about how this option works.

ActiveX Control

This example programs a sample ActiveX control Mwsamp Control. It first enables a user to change the radius of a circle by clicking on the circle. It then programs a slider on the GUI to do the same thing.

“Programming an ActiveX Control” on page 8-33

Examples: Programming GUI Components

“Programming a User Interface Control to Update an ActiveX Control” on page 8-36

This topic also discusses:

“Viewing the Methods for an ActiveX Control” on page 8-37

“Saving a GUI That Contains an ActiveX Control” on page 8-38

“Compiling a GUI That Contains an ActiveX Control” on page 8-39

Note See “MATLAB COM Client Support” in the MATLAB documentation to learn more about ActiveX controls.

Programming an ActiveX Control

The sample ActiveX control Mwsamp Control contains a circle in the middle of a square. This example programs the control to change the circle radius when the user clicks the circle, and to update the label to display the new radius.

1

Add the sample ActiveX control Mwsamp to your GUI and resize it to approximately the size of the square shown in the preview pane. The following figure shows the ActiveX control as it appears in the Layout

Editor.

If you need help adding the component, see “Adding Components to the

Layout Area” on page 6-19.

8-33

8

Programming the GUI

Resize the control by clicking and dragging

2

Activate the GUI by clicking the Run button on the toolbar and save the

GUI when prompted. GUIDE displays the GUI shown in the following figure and opens the GUI M-file.

8-34

Examples: Programming GUI Components

3

View the ActiveX Properties with the Property Inspector. Select the control in the Layout Editor, and then select Property Inspector from the View menu or by clicking the Property Inspector button on the toolbar.

The following figure shows properties of the mwsamp

ActiveX control as they appear in the Property Inspector. The properties on your system may differ.

This ActiveX control mwsamp

has two properties:

-

Label

, which contains the text that appears at the top of the control

-

Radius

, the default radius of the circle, which is 20

4

Add the following code to the mswamp

control’s

Click

callback. This code programs the ActiveX control to change the circle radius when the user clicks the circle, and updates the label to display the new radius.

hObject.radius = .9*hObject.radius; hObject.label = ['Radius = ' num2str(hObject.radius)]; refresh(handles.figure1);

To locate the

Click

callback in the GUI M-file, select View Callbacks from the View menu and then select Click.

5

Add the following commands to the opening function. This code initializes the label when you first open the GUI.

handles.activex1.label = ...

['Radius = ' num2str(handles.activex1.radius)];

Save the M-file. Now, when you open the GUI and click the ActiveX control, the radius of the circle is reduced by 10 percent and the new value of the radius

8-35

8

Programming the GUI is displayed. The following figure shows the GUI after clicking the circle six times.

8-36

If you click the GUI enough times, the circle disappears.

Programming a User Interface Control to Update an ActiveX Control

This topic continues the previous example by adding a slider to the GUI and programming the slider to change the circle radius. This example must also update the slider if the user clicks the circle.

1

Add a slider to your layout and then add the following code to the slider1

Callback

callback: handles.activex1.radius = ...

get(hObject,'Value')*handles.default_radius; handles.activex1.label = ...

['Radius = ' num2str(handles.activex1.radius)]; refresh(handles.figure1);

The first command

- Gets the

Value

of the slider, which in this example is a number between 0 and 1, the default values of the slider’s

Min

and

Max

properties.

- Sets handles.activex1.radius

equal to the

Value

times the default radius.

Examples: Programming GUI Components

2

In the opening function, add the default radius to the handles

structure. The activex1_Click

callback uses the default radius to update the slider value if the user clicks the circle.

handles.default_radius = handles.activex1.radius;

3

In the activex1_Click

callback, reset the slider’s

Value

each time the user clicks the circle in the ActiveX control. The following command causes the slider to change position corresponding to the new value of the radius. set(handles.slider1,'Value',...

hObject.radius/handles.default_radius);

When you open the GUI and move the slider by clicking and dragging, the radius changes to a new value between 0 and the default radius of 20, as shown in the following figure.

Viewing the Methods for an ActiveX Control

To view the available methods for an ActiveX control, you first need to obtain the handle to the control. One way to do this is the following:

1

In the GUI M-file, add the command keyboard

on a separate line of the activex1_Click

callback. The command keyboard

puts MATLAB in debug mode and pauses at the activex1_Click

callback when you click the

ActiveX control.

2

Run the GUI and click the ActiveX control. The handle to the control is now set to hObject

.

8-37

8

Programming the GUI

3

To view the methods for the control, enter methodsview(hObject)

This displays the available methods in a new window, as shown in the following figure.

8-38

Alternatively, you can enter methods(hObject) which displays the available methods in the MATLAB Command Window.

For more information about methods for ActiveX controls, see “Invoking

Methods” in the MATLAB documentation. See the reference pages for methodsview

and methods

for more information about these functions.

Saving a GUI That Contains an ActiveX Control

When you save a GUI that contains ActiveX controls, GUIDE creates a file in the current directory for each such control. The filename consists of the name

Examples: Programming GUI Components of the GUI followed by an underscore (

_

) and activexn

, where n

is a sequence number. For example, if the GUI is named mygui

, then the filename would be mygui_activex1

. The filename does not have an extension.

Compiling a GUI That Contains an ActiveX Control

If you use the MATLAB Compiler mcc

command to compile a GUI that contains an ActiveX control, you must use the

-a

flag to add the ActiveX file, which

GUIDE saves in the current directory, to the CTF archive. Your command should be similar to mcc -m mygui -a mygui_activex1 where mygui_activex1

is the name of the ActiveX file. See the MATLAB

Compiler documentation for more information. If you have more than one such file, use a separate

-a

flag for each file. You must have installed the MATLAB

Compiler to compile a GUI.

Menu Item

The Menu Editor generates an empty callback subfunction for every menu item, including menu titles.

Programming a Menu Title

Because clicking a menu title automatically displays the menu below it, you may not need to program callbacks at the title level. However, the callback associated with a menu title can be a good place to enable or disable menu items below it.

Consider the example illustrated in the following picture.

8-39

8

Programming the GUI

8-40

When a user selects the to file option under the Edit menu’s Copy option, only the to file callback is required to perform the action.

Suppose, however, that only certain objects can be copied to a file. You can use the Copy item

Callback

callback to enable or disable the to file item, depending on the type of object selected.

Opening a Dialog Box from a Menu Callback

The

Callback

callback for the to file menu item could contain code such as the following to display the standard dialog box for saving files.

[file,path] = uiputfile('animinit.m','Save file name');

'Save file name'

is the dialog box title. In the dialog box, the filename field is set to animinit.m

, and the filter set to M-files (

*.m

). For more information, see the uiputfile

reference page.

Updating a Menu Item Check

A check is useful to indicate the current state of some menu items. If you selected Check mark this item in the Menu Editor, the item initially appears checked. Each time the user selects the menu item, the callback for that item must turn the check on or off. The following example shows you how to do this by changing the value of the menu item’s

Checked

property.

if strcmp(get(hObject, 'Checked'),'on')

set(hbject,'Checked','off');

Examples: Programming GUI Components else

set(hObject,'Checked','on'); end hObject

is the handle of the component, for which the callback was triggered.

The strcmp

function compares two strings and returns logical

1

(true) if the two are identical and logical

0

(false) otherwise.

Use of checks when the GUI is first displayed should be consistent with the display. For example, if your GUI has an axes that is visible when a user first opens it and the GUI has a Show axes menu item, be sure to set the menu item’s

Checked

property on

when you create it so that a check appears next to the Show axes menu item initially.

Note From the Menu Editor, you can view a menu item’s

Callback

callback in your editor by selecting the menu item and clicking the View button.

8-41

8

Programming the GUI

8-42

Managing

Application-Defined Data

9

Mechanisms for Managing Data

(p. 9-2)

Sharing Data Among a GUI’s

Callbacks (p. 9-7)

Describes various mechanisms for managing application-defined data. Explains how GUIDE uses one of these mechanisms, GUI data.

Shows how each mechanism for managing data can be used to share data among a GUI’s callbacks.

9

Managing Application-Defined Data

Mechanisms for Managing Data

Most GUIs generate or use data that is specific to the application. This topic describes the three mechanisms for managing application-defined data in the

GUI environment. These mechanisms provide a way for applications to save and retrieve data stored with the GUI.

“GUI Data” on page 9-2

“Application Data” on page 9-4

“UserData Property” on page 9-6

The GUI data and application data mechanisms are similar but GUI data can be simpler to use. GUIDE specifically uses GUI data to manage the handles structure, but you can use either the GUI data handles

structure or application data to manage application-defined data. The

UserData

property can also hold application-defined data.

GUI Data

GUI data is managed using the guidata

function. This function can store a single variable as GUI data. It is also used to retrieve the value of that variable.

“About GUI Data” on page 9-2

“GUI Data in GUIDE” on page 9-3

“Adding Fields to the handles Structure” on page 9-3

“Changing GUI Data in an M-File Generated by GUIDE” on page 9-4

About GUI Data

GUI data is always associated with the GUI figure. It is available to all callbacks of all components of the GUI. If you specify a component handle when you save or retrieve GUI data, MATLAB automatically associates the data with the component’s parent figure.

GUI data can contain only one variable at any time. Writing GUI data overwrites the existing GUI data. For this reason, GUI data is usually defined to be a structure to which you can add fields as you need them.

9-2

Mechanisms for Managing Data

GUI data provides application developers with a convenient interface to a figure’s application data:

You do not need to create and maintain a hard-coded name for the data throughout your source code.

You can access the data from within a callback routine using the component’s handle, without having to find the figure handle. For GUIDE users, the object handle is automatically passed to each callback as hObject

.

GUI Data in GUIDE

GUIDE uses guidata

to create and maintain the handles

structure. The handles

structure contains the handles of all components in the GUI. GUIDE automatically passes the handles

structure to every callback as an input argument.

In a GUI created using GUIDE, you cannot use guidata

to manage any variable other than the handles

structure. If you do, you may overwrite the handles

structure and your GUI will not work. If you want to use GUI data to share application-defined data among callbacks, you must save the data in fields that you add to the handles

structure.

The GUIDE templates use the handles

structure to store application-defined

data. See “Selecting a GUI Template” on page 6-5 for information about the

templates.

Note For more information, see “handles Structure” on page 8-14.

Adding Fields to the handles Structure

To add a field to the handles

structure, which is passed as an argument to every callback in GUIDE.

1

Assign a value to the new field. This adds the field to the structure. For example handles.number_errors = 0; adds the field number_errors

to the structure handles

and sets it to

0

.

9-3

9

Managing Application-Defined Data

2

Use the following command to save the data.

guidata(hObject,handles) where hObject

is the handle of the component for which the callback was triggered. It is passed automatically to every callback.

Changing GUI Data in an M-File Generated by GUIDE

In a GUIDE-generated M-file, GUI data is always represented by the handles structure. This example updates the handles

structure and then saves it.

1

Assume that the handles

structure contains an application-defined field handles.when

whose value is

'now'

.

2

In a GUI callback, make the desired change to the handles

structure. This step changes the value of handles.when

to

'later'

, but does not save the handles

structure. handles.when = 'later';

3

Save the changed version of the handles

structure with the command guidata(hObject,handles) where hObject

, which is passed automatically to every callback, is the handle of the component for which the callback was triggered. If you do not save the handles

structure with guidata

, the change you made to it in the previous step is lost.

Application Data

Application data provides a way for applications to save and retrieve data associated with a specified object. For a GUI, this is usually the GUI figure but can also be any component. The data is stored as name/value pairs. Application data enables you to create what are essentially user-defined properties for an object.

9-4

Mechanisms for Managing Data

The following table summarizes the functions that provide access to application data. For more detailed information, see the individual function reference pages.

Functions for Managing Application Data

Function Purpose

setappdata

Specify named application data for an object. The object does not have to be a figure. You can specify more than one named application data for an object. However, each name must be unique for that object and can be associated with only one value, usually a structure.

getappdata

Retrieve named application data. To retrieve named application data, you must know the name associated with the application data and the handle of the object with which it is associated.

isappdata rmappdata

True if the named application data exists.

Remove the named application data.

Creating Application Data in GUIDE

Use the setappdata

function to create application data. This example generates a 35-by-35 matrix of normally distributed random numbers in the opening function and creates application data mydata

to manage it.

function mygui_OpeningFcn(hObject, eventdata, handles, varargin) matrices.rand_35 = randn(35); setappdata(hObject,'mydata',matrices);

Because this code appears in the opening function, hObject

is the handle of the

GUI figure, and the code associates mydata

with the figure.

Adding Fields to an Application Data Structure in GUIDE

Application data is usually defined as a structure to enable you to add fields as necessary. In this example, a push button adds a field to the application data structure mydata

created in the previous topic.

9-5

9

Managing Application-Defined Data

1

Use getappdata

to retrieve the structure.

From the example in the previous topic, the name of the application data structure is mydata

. It is associated with the figure whose

Tag

is figure1

.

Since the handles

structure is passed to every callback, the code can specify the figure’s handle as handles.figure1

. function mygui_pushbutton1(hObject, eventdata, handles) matrices = getappdata(handles.figure1,'mydata');

2

Create a new field and assign it a value. For example matrices.randn_50 = randn(50); adds the field randn_50

to the matrices

structure and sets it to a 50-by-50 matrix of normally distributed random numbers.

3

Use setappdata

to save the data. This example uses setappdata

to save the matrices

structure as the application data structure mydata

.

setappdata(handles.figure1,'mydata',matrices);

UserData Property

All GUI components, including menus, and the figure have a

UserData property. You can assign any valid MATLAB value to the

UserData

property.

To retrieve the data, a callback must know the handle of the component with which the data is associated.

1

In this example, an edit text component stores the user-entered string in its

UserData

property.

function mygui_edittext1(hObject, eventdata, handles) mystring = get(hObject,'String'); set(hObject,'UserData',mystring);

2

A push button retrieves the string from the edit text component

UserData property. The callback uses the handles

structure and the edit text

Tag property, edittext1

, to specify the edit text handle.

function mygui_pushbutton1(hObject, eventdata, handles) string = get(handles.edittext1,'UserData');

9-6

Sharing Data Among a GUI’s Callbacks

Sharing Data Among a GUI’s Callbacks

You can use GUI data, application data, and the

UserData

property to share data among a GUI’s callbacks. This topic shows you how for each of these data forms:

“GUI Data” on page 9-7

“Application Data” on page 9-10

“UserData Property” on page 9-11

See “Mechanisms for Managing Data” on page 9-2 for general information

about these data forms.

GUI Data

GUI data, which you manage with the guidata

function, is accessible to all callbacks of the GUI. A callback for one component can set a value in GUI data,

which can then be read by a callback for another component. See “GUI Data” on page 9-2 for more information about GUI data.

GUI Data Example: Passing Data Between Components

This example uses a GUI that contains a slider and an edit text component as shown in the following figure. A static text component instructs the user to enter a value in the edit text or click the slider. The example uses GUI data to initialize and maintain an error counter.

9-7

9

Managing Application-Defined Data

The GUI behavior is as follows:

When a user moves the slider, the edit text component displays the slider’s current value.

When a user types a value into the edit text component, the slider updates to this value.

If a user enters a value in the edit text that is out of range for the slider — that is, a value that is not between 0 and 1 — the application returns a message in the edit text component indicating how many times the user has entered an erroneous value.

The commands given in the following steps initialize the error counter and implement the interchange between the slider and the edit text component.

1

Define the error counter in the opening function. The GUI records the number of times a user enters an erroneous value in the edit text component and stores this number in a field of the handles

structure. Start by defining this field, called number_errors

, in the opening function as follows: handles.number_errors = 0;

Type the preceding statement before the following line, which GUIDE automatically inserts into the opening function.

guidata(hObject,handles); % Save the updated handles structure.

The guidata

command saves the modified handles

structure so that it can be retrieved in the GUI’s callbacks.

2

Set the value of the edit text component

String

property from the slider

Callback

callback. The following command in the slider

Callback

updates the value displayed in the edit text component when a user moves the slider and releases the mouse button. set(handles.edittext1,'String',...

num2str(get(handles.slider1,'Value')));

The code combines three commands:

- The get

command obtains the current value of the slider.

- The num2str

command converts the value to a string.

9-8

Sharing Data Among a GUI’s Callbacks

- The set

command sets the

String

property of the edit text to the updated value.

3

Set the slider value from the edit text component’s

Callback

callback. The edit text

Callback

sets the slider’s value to the number the user types in, after checking to see if it is a single numeric value between 0 and 1. If the value is out of range, then the error count is incremented and the edit text displays a message telling the user how many times they have entered an invalid number. Because this code appears in the edit text Callback, hObject

is the handle of the edit text component.

val = str2double(get(hobject,'String'));

% Determine whether val is a number between 0 and 1.

if isnumeric(val) && length(val)==1 && ...

val >= get(handles.slider1,'Min') && ...

val <= get(handles.slider1,'Max')

set(handles.slider1,'Value',val); else

% Increment the error count, and display it.

handles.number_errors = handles.number_errors+1;

guidata(hObject,handles); % Store the changes.

set(hobject,'String',...

['You have entered an invalid entry ',...

num2str(handles.number_errors),' times.']); end

If the user types a number between 0 and 1 in the edit text component and then presses Enter or clicks outside the edit text, the

Callback

sets handles.slider1

to the new value and the slider moves to the corresponding position.

If the entry is invalid — for example,

2.5

— the GUI increments the value of handles.number_errors

and displays a message like the following in the edit text component:

9-9

9

Managing Application-Defined Data

Application Data

Application data can be associated with any object — a component, menu, or the figure itself. To access application data, a callback must know the name of the data and the handle of the component with which it is associated. Use the functions setappdata

, getappdata

, isappdata

, and rmappdata

to manage application data.

See “Application Data” on page 9-4 for more information about application

data.

Application Data Example: Passing Data Between Components

The previous topic, “GUI Data Example: Passing Data Between Components” on page 9-7, uses GUI data to initialize and maintain an error counter. This

example shows you how to do the same thing using application data. Refer to the previous topic for details of the example.

1

Define the error counter in the opening function. Add the following code to the opening function. This code first creates a structure slider_data

, then assigns it to the named application data slider

. Because this code appears in the opening function, using hObject

associates the application data with the figure.

slider_data.number_errors = 0; setappdata(hObject,'slider',slider_data);

2

Set the value of the edit text

String

property from the slider

Callback callback. Before you can do this, you must convert the slider

Value

property to a string. Add this statement to the callback.

set(handles.edittext1,'String',num2str(get(hObject,'Value')));

Because this statement appears in the slider Callback, hObject

is the handle of the slider.

3

Set the slider value from the edit text component’s

Callback

callback. Add this code to the callback. It assumes the figure’s

Tag

property is figure1

.

To update the number of errors, the code must first retrieve the named application data slider

, then increment the count. It then saves the application data and displays the new error count. val = str2double(get(hObject,'String'));

9-10

Sharing Data Among a GUI’s Callbacks

% Determine whether val is a number between 0 and 1.

if isnumeric(val) && length(val)==1 && ...

val >= get(handles.slider1,'Min') && ...

val <= get(handles.slider1,'Max')

set(handles.slider1,'Value',val); else

% Retrieve and increment the error count.

slider_data = getappdata(handles.figure1,'slider');

slider_data.number_errors = slider_data.number_errors+1;

% Save the changes.

setappdata(handles.figure1,'slider',slider_data);

% Display new total.

set(hObject,'String',...

['You have entered an invalid entry ',...

num2str(slider_data.number_errors),' times.']); end

UserData Property

Every GUI component, and the figure itself, has a

UserData

property that you can use to store application-defined data. To access

UserData

, a callback must know the handle of the component with which the property is associated.

Use the get

function to retrieve

UserData

, and the set

function to set it.

UserData Property Example: Passing Data Between Components

A previous topic, “GUI Data Example: Passing Data Between Components” on page 9-7, uses GUI data to initialize and maintain an error counter. This

example shows you how to do the same thing using the edit text component’s

UserData

property to store the error count. Refer to the GUI data example for example details.

1

Initialize the edit text component

UserData

property in the opening function by adding the following code to the opening function. This code initializes the data in a structure to allow for other data that may be needed.

data.number_errors = 0; set(handles.edittext1,'UserData',data.number_errors)

9-11

9

Managing Application-Defined Data

Note Alternatively, you could add a

CreateFcn

callback for the edit text, and initialize the error counter there.

2

Set the edit text value from the slider

Callback

callback. Add this statement to the callback.

set(handles.edittext1,'String',...

num2str(get(hObject,'Value'))); where hObject

is the handle of the slider.

3

Set the slider value from the edit text

Callback

callback. To do this, add the following code to the callback.

To update the number or errors, the code must first retrieve the value of the edit text

UserData

property, then increment the count. It then saves the updated error count in the

UserData

property and displays the new count. val = str2double(get(hObject,'String'));

% Determine whether val is a number between 0 and 1.

if isnumeric(val) && length(val)==1 && ...

val >= get(handles.slider1,'Min') && ...

val <= get(handles.slider1,'Max')

set(handles.slider1,'Value',val); else

% Retrieve and increment the error count.

data = get(hObject,'UserData');

data.number_errors = data.number_errors+1;

% Save the changes.

set(hObject,'UserData',data);

% Display new total.

set(hObject,'String',...

['You have entered an invalid entry ',...

num2str(number_errors),' times.']); end

Because this code appears in the edit text callback, hObject

is the handle of the edit text component.

9-12

10

Examples of GUIDE GUIs

GUI with Multiple Axes (p. 10-2)

List Box Directory Reader (p. 10-9)

Accessing Workspace Variables from a

List Box (p. 10-16)

A GUI to Set Simulink Model

Parameters (p. 10-20)

An Address Book Reader (p. 10-32)

Using a Modal Dialog to Confirm an

Operation (p. 10-47)

Analyze data and generate frequency and time domain plots in the GUI figure.

List the contents of a directory, navigate to other directories, and define what command to execute when users double-click on a given type of file.

List variables in the base MATLAB workspace from a

GUI and plot them. This example illustrates selecting multiple items and executing commands in a different workspace.

Set parameters in a Simulink® model, save and plot the data, and implement a help button.

Read data from MAT-files, edit and save the data, and manage GUI data using the handles

structure.

Illustrates use of a modal dialog GUI to confirm that the user wants to proceed with an operation.

10

Examples of GUIDE GUIs

GUI with Multiple Axes

This example creates a GUI that contains two axes for plotting data. For simplicity, this example obtains data by evaluating an expression using parameters entered by the user.

10-2

Techniques Used in the Example

GUI-building techniques illustrated in this example include

Controlling which axes is the target for plotting commands.

Using edit text controls to read numeric input and MATLAB expressions.

GUI with Multiple Axes

View Completed Layout and Its GUI M-File

If you are reading this in the MATLAB Help browser, you can click the following links to display the GUIDE Layout Editor and the MATLAB Editor with a completed version of this example. This enables you to see the values of all component properties and to understand how the components are assembled to create the GUI. You can also see a complete listing of the code that is discussed in the following sections.

Note The following links execute MATLAB commands and are designed to work within the MATLAB Help browser. If you are reading this online or in

PDF, you should go to the corresponding section in the MATLAB Help

Browser to use the links.

Click here to display this GUI in the Layout Editor.

Click here to display the GUI M-file in the MATLAB Editor.

Design of the GUI

This GUI requires three input values:

Frequency one ( f1

)

Frequency two ( f2

)

A time vector ( t

)

When the user clicks the Plot button, the GUI puts these values into a

MATLAB expression that is the sum of two sine function: x = sin(2*pi*f1*t) + sin(2*pi*f2*t)

The GUI then calculates the FFT of x

and creates two plots — one frequency domain and one time domain.

Specifying Default Values for the Inputs

The GUI uses default values for the three inputs. This enables users to click on the Plot button and see a result as soon as the GUI is run. It also helps to indicate what values the user might enter.

10-3

10

Examples of GUIDE GUIs

To create the default values, set the

String

property of the edit text. The following figure shows the value set for the time vector.

10-4

Identifying the Axes

Since there are two axes in this GUI, you must be able to specify which one you want to target when you issue the plotting commands. To do this, use the handles

structure, which contains the handles of all components in the GUI.

The field name in the handles

structure that contains the handle of any given component is derived from the component’s

Tag

property. To make code more readable (and to make it easier to remember) this example sets the

Tag property to descriptive names.

GUI with Multiple Axes

For example, the

Tag

of the axes used to display the FFT is set to frequency_axes

. Therefore, within a callback, you access its handle with handles.frequency_axes

Likewise, the

Tag

of the time axes is set to time_axes

.

See “handles Structure” on page 8-14 for more information on the

handles

structure. See “Plot Push Button Callback” on page 10-6 for the details of how

to use the handle to specify the target axes.

GUI Option Settings

There are two GUI option settings that are particularly important for this GUI:

Resize behavior: Proportional

Command-line accessibility: Callback

Proportional Resize Behavior.

Selecting Proportional as the resize behavior enables users to change the GUI to better view the plots. The components change size in proportion to the GUI figure size. This generally produces good results except when extremes of dimensions are used.

Callback Accessibility of Object Handles.

When GUIs include axes, handles should be visible from within callbacks. This enables you to use plotting commands

10-5

10

Examples of GUIDE GUIs like you would on the command line. Note that Callback is the default setting for command-line accessibility.

See “GUI Options” on page 5-9 for more information.

Plot Push Button Callback

This GUI uses only the Plot button callback; the edit text callbacks are not needed and have been deleted from the GUI M-file. When a user clicks the Plot button, the callback performs three basic tasks — it gets user input from the edit text components, calculates data, and creates the two plots.

Getting User Input

The three edit text boxes provide a way for the user to enter values for the two frequencies and the time vector. The first task for the callback is to read these values. This involves:

Reading the current values in the three edit text boxes using the handles structure to access the edit text handles.

Converting the two frequency values ( f1

and f2

) from string to doubles using str2double

.

Evaluating the time string using eval

to produce a vector t

, which the callback used to evaluate the mathematical expression.

The following code shows how the callback obtains the input.

% Get user input from GUI f1 = str2double(get(handles.f1_input,'String')); f2 = str2double(get(handles.f2_input,'String')); t = eval(get(handles.t_input,'String'));

Calculating Data

Once the input data has been converted to numeric form and assigned to local variables, the next step is to calculate the data needed for the plots. See the fft function for an explanation of how this is done.

Targeting Specific Axes

The final task for the callback is to actually generate the plots. This involves

10-6

GUI with Multiple Axes

Making the appropriate axes current using the axes

command and the handle of the axes. For example, axes(handles.frequency_axes)

Issuing the plot

command.

Setting any properties that are automatically reset by the plot

command.

The last step is necessary because many plotting commands (including plot

) clear the axes before creating the graph. This means you cannot use the

Property Inspector to set the

XMinorTick

and grid properties that are used in this example, since they are reset when the callback executes plot

.

When looking at the following code listing, note how the handles

structure is used to access the handle of the axes when needed.

Plot Button Code Listing

function plot_button_Callback(hObject, eventdata, handles)

% hObject handle to plot_button (see GCBO)

% eventdata reserved - to be defined in a future version of MATLAB

% handles structure with handles and user data (see GUIDATA)

% Get user input from GUI f1 = str2double(get(handles.f1_input,'String')); f2 = str2double(get(handles.f2_input,'String')); t = eval(get(handles.t_input,'String'));

% Calculate data x = sin(2*pi*f1*t) + sin(2*pi*f2*t); y = fft(x,512); m = y.*conj(y)/512; f = 1000*(0:256)/512;

% Create frequency plot axes(handles.frequency_axes) % Select the proper axes plot(f,m(1:257)) set(handles.frequency_axes,'XMinorTick','on') grid on

% Create time plot axes(handles.time_axes) % Select the proper axes

10-7

10

Examples of GUIDE GUIs plot(t,x) set(handles.time_axes,'XMinorTick','on') grid on

10-8

List Box Directory Reader

List Box Directory Reader

This example uses a list box to display the files in a directory. When the user double clicks on a list item, one of the following happens:

If the item is a file, the GUI opens the file appropriately for the file type.

If the item is a directory, the GUI reads the contents of that directory into the list box.

If the item is a single dot (.), the GUI updates the display of the current directory.

If the item is two dots (..), the GUI changes to the directory up one level and populates the list box with the contents of that directory.

The following figure illustrates the GUI.

View Layout and GUI M-File

If you are reading this in the MATLAB Help browser, you can click the following links to display the GUIDE Layout Editor and the MATLAB Editor with a completed version of this example. This enables you to see the values of all component properties and to understand how the components are assembled to create the GUI. You can also see a complete listing of the code that is discussed in the following sections.

10-9

10

Examples of GUIDE GUIs

Note The following links execute MATLAB commands and are designed to work within the MATLAB Help browser. If you are reading this online or in

PDF, you should go to the corresponding section in the MATLAB Help

Browser to use the links.

Click here to display this GUI in the Layout Editor.

Click here to display the GUI M-file in the editor.

Implementing the GUI

The following sections describe the implementation:

“Specifying the Directory to List” — shows how to pass a directory path as

input argument when the GUI is run.

“Loading the List Box” — describes the subfunction that loads the contents

of the directory into the list box. This subfunction also saves information about the contents of a directory in the handles

structure.

“The List Box Callback” — explains how the list box is programmed to

respond to user double clicks on items in the list box.

Specifying the Directory to List

You can specify the directory to list when the GUI is first opened by passing the string

'create'

and a string containing the full path to the directory as arguments. The syntax for doing this is list_box('create','dir_path')

. If you do not specify a directory (i.e., if you call the GUI M-file with no input arguments), the GUI then uses the MATLAB current directory.

The default behavior of the GUI M-file that GUIDE generates is to run the GUI when there are no input arguments or to call a subfunction when the first input argument is a character string. This example changes this behavior so that you can call the M-file with

No input arguments — run the GUI using the MATLAB current directory.

First input argument is

'dir'

and second input argument is a string that specifies a valid path to a directory — run the GUI, displaying the specified directory.

10-10

List Box Directory Reader

First input argument is not a directory, but is a character string and there is more than one argument — execute the subfunction identified by the argument (execute callback).

The following code listing show the setup section of the GUI M-file, which does one the following:

Sets the list box directory to the current directory, if no directory is specified.

Changes the current directory, if a directory is specified.

function lbox2_OpeningFcn(hObject, eventdata, handles, varargin)

% This function has no output args, see OutputFcn.

% hObject handle to figure

% eventdata reserved - to be defined in a future version of MATLAB

% handles structure with handles and user data (see GUIDATA)

% varargin command line arguments to untitled (see VARARGIN)

% Choose default command line output for lbox2 handles.output = hObject;

% Update handles structure guidata(hObject, handles); if nargin == 3,

initial_dir = pwd; elseif nargin > 4

if strcmpi(varargin{1},'dir')

if exist(varargin{2},'dir')

initial_dir = varargin{2};

else

errordlg({'Input argument must be a valid',...

'directory'},'Input Argument Error!')

return

end

else

errordlg('Unrecognized input argument',...

'Input Argument Error!');

return;

end end

10-11

10

Examples of GUIDE GUIs

% Populate the listbox load_listbox(initial_dir,handles)

Loading the List Box

This example creates a subfunction to load items into the list box. This subfunction accepts the path to a directory and the handles

structure as input arguments. It performs these steps:

Change to the specified directory so the GUI can navigate up and down the tree as required.

Use the dir

command to get a list of files in the specified directory and to determine which name is a directory and which is a file. dir

returns a structure ( dir_struct

) with two fields, name

and isdir

, which contain this information.

Sort the file and directory names ( sortrows

) and save the sorted names and other information in the handles

structure so this information can be passed to other functions.

The name

structure field is passed to sortrows

as a cell array, which is transposed to get one file name per row. The isdir

field and the sorted index values, sorted_index

, are saved as vectors in the handles

structure.

Call guidata

to save the handles

structure.

Set the list box

String

property to display the file and directory names and set the

Value

property to

1

. This is necessary to ensure

Value

never exceeds the number of items in

String

, since MATLAB updates the

Value

property only when a selection occurs and not when the contents of

String

changes.

Displays the current directory in the text box by setting its

String

property to the output of the pwd

command.

The load_listbox

function is called by the opening function of the GUI M-file as well as by the list box callback.

function load_listbox(dir_path, handles) cd (dir_path) dir_struct = dir(dir_path);

[sorted_names,sorted_index] = sortrows({dir_struct.name}'); handles.file_names = sorted_names; handles.is_dir = [dir_struct.isdir]; handles.sorted_index = sorted_index;

10-12

List Box Directory Reader guidata(handles.figure1,handles) set(handles.listbox1,'String',handles.file_names,...

'Value',1) set(handles.text1,'String',pwd)

The List Box Callback

The list box callback handles only one case: a double-click on an item. Double clicking is the standard way to open a file from a list box. If the selected item is a file, it is passed to the open

command; if it is a directory, the GUI changes to that directory and lists its contents.

Defining How to Open File Types

The callback makes use of the fact that the open

command can handle a number of different file types. However, the callback treats FIG-files differently. Instead of opening the FIG-file, it passes it to the guide

command for editing.

Determining Which Item the User Selected

Since a single click on an item also invokes the list box callback, it is necessary to query the figure

SelectionType

property to determine when the user has performed a double click. A double-click on an item sets the

SelectionType property to open

.

All the items in the list box are referenced by an index from

1

to n

, where

1 refers to the first item and n

is the index of the n th item. MATLAB saves this index in the list box

Value

property.

The callback uses this index to get the name of the selected item from the list of items contained in the

String

property.

Determining if the Selected Item is a File or Directory

The load_listbox

function uses the dir

command to obtain a list of values that indicate whether an item is a file or directory. These values (1 for directory, 0 for file) are saved in the handles

structure. The list box callback queries these values to determine if current selection is a file or directory and takes the following action:

If the selection is a directory — change to the directory ( cd

) and call load_listbox

again to populate the list box with the contents of the new directory.

10-13

10

Examples of GUIDE GUIs

If the selection is a file — get the file extension ( fileparts

) to determine if it is a FIG-file, which is opened with guide

. All other file types are passed to open

.

The open

statement is called within a try

/ catch

block to capture errors in an error dialog ( errordlg

), instead of returning to the command line.

get(handles.figure1,'SelectionType');

% If double click if strcmp(get(handles.figure1,'SelectionType'),'open')

index_selected = get(handles.listbox1,'Value');

file_list = get(handles.listbox1,'String');

% Item selected in list box

filename = file_list{index_selected};

% If directory

if handles.is_dir(handles.sorted_index(index_selected))

cd (filename)

% Load list box with new directory.

load_listbox(pwd,handles)

else

[path,name,ext,ver] = fileparts(filename);

switch ext

case '.fig'

% Open FIG-file with guide command.

guide (filename)

otherwise

try

% Use open for other file types.

open(filename)

catch

errordlg(lasterr,'File Type Error','modal')

end

end

end end

Opening Unknown File Types

You can extend the file types that the open

command recognizes to include any file having a three-character extension. You do this by creating an M-file with the name openxyz

, where xyz

is the extension. Note that the list box callback

10-14

List Box Directory Reader does not take this approach for FIG-files since openfig.m

is required by the

GUI M-file. See open

for more information.

10-15

10

Examples of GUIDE GUIs

Accessing Workspace Variables from a List Box

This GUI uses a list box to display workspace variables, which the user can then plot.

Techniques Used in This Example

This example demonstrates how to:

Populate the list box with the variable names that exist in the base workspace.

Display the list box with no items initially selected.

Enable multiple item selection in the list box.

Update the list items when the user press a button.

Evaluate the plotting commands in the base workspace.

The following figure illustrates the layout.

10-16

Note that the list box callback is not used in this program because the plotting actions are initiated by push buttons. In this situation you must do one of the following:

Leave the empty list box callback in the GUI M-file.

Delete the string assigned to the list box

Callback

property.

Accessing Workspace Variables from a List Box

View Completed Layout and Its GUI M-File

If you are reading this in the MATLAB Help browser, you can click the following links to display the GUIDE Layout Editor and the MATLAB Editor with a completed version of this example. This enables you to see the values of all component properties and to understand how the components are assembled to create the GUI. You can also see a complete listing of the code that is discussed in the following sections.

Note The following links execute MATLAB commands and are designed to work within the MATLAB Help browser. If you are reading this online or in

PDF, you should go to the corresponding section in the MATLAB Help

Browser to use the links.

Click here to display this GUI in the Layout Editor.

Click here to display the GUI M-file in the editor.

Reading Workspace Variables

When the GUI initializes, it needs to query the workspace variables and set the list box

String

property to display these variable names. Adding the following subfunction to the GUI M-file accomplishes this using evalin

to execute the who

command in the base workspace. The who

command returns a cell array of strings, which are used to populate the list box.

function update_listbox(handles) vars = evalin('base','who'); set(handles.listbox1,'String',vars)

The function’s input argument is the handles

structure generated by the GUI

M-file. This structure contains the handle of the list box, as well as the handles all other components in the GUI.

The callback for the Update Listbox push button also calls update_listbox

.

Reading the Selections from the List Box

This GUI requires the user to select two variables from the workspace and then choose one of three plot commands to create the graph: plot

, semilogx

, or semilogy

.

10-17

10

Examples of GUIDE GUIs

Enabling Multiple Selection

To enable multiple selection in a list box, you must set the

Min

and

Max properties so that

Max Min > 1

. This requires you to change the default

Min and

Max

values of

0

and

1

to meet these conditions. Use the Property Inspector to set these properties on the list box.

How Users Select Multiple Items

List box multiple selection follows the standard for most systems:

• Control-click left mouse button — noncontiguous multi-item selection

• Shift-click left mouse button — contiguous multi-item selection

Users must use one of these techniques to select the two variables required to create the plot.

Returning Variable Names for the Plotting Functions

The get_var_names

subroutine returns the two variable names that are selected when the user clicks on one of the three plotting buttons. The function

Gets the list of all items in the list box from the

String

property.

Gets the indices of the selected items from the

Value

property.

Returns two string variables, if there are two items selected. Otherwise get_var_names

displays an error dialog explaining that the user must select two variables.

Here is the code for get_var_names

: function [var1,var2] = get_var_names(handles) list_entries = get(handles.listbox1,'String'); index_selected = get(handles.listbox1,'Value'); if length(index_selected) ~= 2 errordlg('You must select two variables',...

'Incorrect Selection','modal') else var1 = list_entries{index_selected(1)}; var2 = list_entries{index_selected(2)}; end

10-18

Accessing Workspace Variables from a List Box

Callbacks for the Plotting Buttons

The callbacks for the plotting buttons call get_var_names

to get the names of the variables to plot and then call evalin

to execute the plot commands in the base workspace.

For example, here is the callback for the plot

function: function plot_button_Callback(hObject, eventdata, handles)

[x,y] = get_var_names(handles); evalin('base',['plot(' x ',' y ')'])

The command to evaluate is created by concatenating the strings and variables that result in the command: plot(x,y)

10-19

10

Examples of GUIDE GUIs

A GUI to Set Simulink Model Parameters

This example illustrates how to create a GUI that sets the parameters of a

Simulink® model. In addition, the GUI can run the simulation and plot the results. The following picture shows the GUI after running three simulations with different values for controller gains.

10-20

Techniques Used in This Example

This example illustrates a number of GUI building techniques:

Opening and setting parameters on a Simulink model from a GUI.

Implementing sliders that operate in conjunction with text boxes, which display the current value as well as accepting user input.

Enabling and disabling controls, depending on the state of the GUI.

Managing a variety of shared data using the handles

structure.

Directing graphics output to figures with hidden handles.

Adding a help button that displays

.html files in the MATLAB Help browser.

View Completed Layout and Its GUI M-File

If you are reading this in the MATLAB Help browser, you can click the following links to display the GUIDE Layout Editor and the MATLAB Editor with a completed version of this example. This enables you to see the values of

A GUI to Set Simulink Model Parameters all component properties and to understand how the components are assembled to create the GUI. You can also see a complete listing of the code that is discussed in the following sections.

Note The following links execute MATLAB commands and are designed to work within the MATLAB Help browser. If you are reading this online or in

PDF, you should go to the corresponding section in the MATLAB Help

Browser to use the links.

Click here to display this GUI in the Layout Editor.

Click here to display the GUI M-file in the editor.

How to Use the GUI (Text of GUI Help)

You can use the F14 Controller Gain Editor to analyze how changing the gains used in the Proportional-Integral Controller affect the aircraft's angle of attack and the amount of G force the pilot feels.

Note that the Simulink diagram f14.mdl

must be open to run this GUI. If you close the F14 Simulink model, the GUI reopens it whenever it requires the model to execute.

Changing the Controller Gains

You can change gains in two blocks:

The Proportional gain (Kf) in the Gain block

The Integral gain (Ki) in the Transfer Function block

You can change either of the gains in one of the two ways:

Move the slider associated with that gain.

Type a new value into the Current value edit field associated with that gain.

The block’s values are updated as soon as you enter the new value in the GUI.

10-21

10

Examples of GUIDE GUIs

Running the Simulation

Once you have set the gain values, you can run the simulation by clicking the

Simulate and store results

button. The simulation time and output vectors are stored in the Results list.

Plotting the Results

You can generate a plot of one or more simulation results by selecting the row of results (

Run1

,

Run2

, etc.) in the Results list that you want to plot and clicking the Plot button. If you select multiple rows, the graph contains a plot of each result.

The graph is displayed in a figure, which is cleared each time you click the Plot button. The figure’s handle is hidden so that only the GUI can display graphs in this window.

Removing Results

To remove a result from the Results list, select the row or rows you want to remove and click the Remove button.

Running the GUI

The GUI is nonblocking and nonmodal since it is designed to be used as an analysis tool.

GUI Options Settings

This GUI uses the following GUI option settings:

Resize behavior: Non-resizable

Command-line accessibility: Off

M-file options selected:

- Generate callback function prototypes

- GUI allows only one instance to run

Opening the Simulink Block Diagrams

This example is designed to work with the F14 Simulink model. Since the GUI sets parameters and runs the simulation, the F14 model must be open when the GUI is displayed. When the GUI M-file runs the GUI, it executes the model_open

subfunction. The purpose of the subfunction is to

10-22

A GUI to Set Simulink Model Parameters

Determine if the model is open ( find_system

).

Open the block diagram for the model and the subsystem where the parameters are being set, if not open already ( open_system

).

Change the size of the controller Gain block so it can display the gain value

( set_param

).

Bring the GUI forward so it is displayed on top of the Simulink diagrams

( figure

).

Set the block parameters to match the current settings in the GUI.

Here is the code for the model_open

subfunction.

function model_open(handles) if isempty(find_system('Name','f14')), open_system('f14'); open_system('f14/Controller') set_param('f14/Controller/Gain','Position',[275 14 340 56]) figure(handles.F14ControllerEditor) set_param('f14/Controller Gain','Gain',...

get(handles.KfCurrentValue,'String')) set_param(...

'f14/Controller/Proportional plus integral compensator',...

'Numerator',...

get(handles.KiCurrentValue,'String')) end

Programming the Slider and Edit Text Components

This GUI employs a useful combination of components in its design. Each slider is coupled to an edit text component so that:

The edit text displays the current value of the slider.

The user can enter a value into the edit text box and cause the slider to update to that value.

Both components update the appropriate model parameters when activated by the user.

Slider Callback

The GUI uses two sliders to specify block gains since these components enable the selection of continuous values within a specified range. When a user changes the slider value, the callback executes the following steps:

10-23

10

Examples of GUIDE GUIs

Calls model_open

to ensure that the Simulink model is open so that simulation parameters can be set.

Gets the new slider value.

Sets the value of the Current value edit text component to match the slider.

Sets the appropriate block parameter to the new value ( set_param

).

Here is the callback for the Proportional (Kf) slider.

function KfValueSlider_Callback(hObject, eventdata, handles)

% Ensure model is open.

model_open(handles)

% Get the new value for the Kf Gain from the slider.

NewVal = get(hObject, 'Value');

% Set the value of the KfCurrentValue to the new value

% set by slider.

set(handles.KfCurrentValue,'String',NewVal)

% Set the Gain parameter of the Kf Gain Block to the new value.

set_param('f14/Controller/Gain','Gain',num2str(NewVal))

Note that, while a slider returns a number and the edit text requires a string, uicontrols automatically convert the values to the correct type.

The callback for the Integral (Ki) slider follows a similar approach.

Current Value Edit Text Callback

The edit text box enables users to type in a value for the respective parameter.

When the user clicks on another component in the GUI after typing into the text box, the edit text callback executes the following steps:

Calls model_open

to ensure that the Simulink model is open so that it can set simulation parameters.

Converts the string returned by the edit box

String

property to a double

( str2double

).

Checks whether the value entered by the user is within the range of the slider:

If the value is out of range, the edit text

String

property is set to the value of the slider (rejecting the number typed in by the user).

If the value is in range, the slider

Value

property is updated to the new value.

Sets the appropriate block parameter to the new value ( set_param

).

10-24

A GUI to Set Simulink Model Parameters

Here is the callback for the Kf Current value text box.

function KfCurrentValue_Callback(hObject, eventdata, handles)

% Ensure model is open.

model_open(handles)

% Get the new value for the Kf Gain.

NewStrVal = get(hObject, 'String');

NewVal = str2double(NewStrVal);

% Check that the entered value falls within the allowable range.

if isempty(NewVal) || (NewVal< -5) || (NewVal>0),

% Revert to last value, as indicated by KfValueSlider.

OldVal = get(handles.KfValueSlider,'Value');

set(hObject, 'String',OldVal) else % Use new Kf value

% Set the value of the KfValueSlider to the new value.

set(handles.KfValueSlider,'Value',NewVal)

% Set the Gain parameter of the Kf Gain Block

% to the new value.

set_param('f14/Controller/Gain','Gain',NewStrVal) end

The callback for the Ki Current value follows a similar approach.

Running the Simulation from the GUI

The GUI Simulate and store results button callback runs the model simulation and stores the results in the handles

structure. Storing data in the handles

structure simplifies the process of passing data to other subfunction since this structure can be passed as an argument.

When a user clicks on the Simulate and store results button, the callback executes the following steps:

Calls sim

, which runs the simulation and returns the data that is used for plotting.

Creates a structure to save the results of the simulation, the current values of the simulation parameters set by the GUI, and the run name and number.

Stores the structure in the handles

structure.

Updates the list box

String

to list the most recent run.

10-25

10

Examples of GUIDE GUIs

Here is the Simulate and store results button callback.

function SimulateButton_Callback(hObject, eventdata, handles)

[timeVector,stateVector,outputVector] = sim('f14');

% Retrieve old results data structure if isfield(handles,'ResultsData') &

~isempty(handles.ResultsData)

ResultsData = handles.ResultsData;

% Determine the maximum run number currently used.

maxNum = ResultsData(length(ResultsData)).RunNumber;

ResultNum = maxNum+1; else % Set up the results data structure

ResultsData = struct('RunName',[],'RunNumber',[],...

'KiValue',[],'KfValue',[],'timeVector',[],...

'outputVector',[]);

ResultNum = 1; end if isequal(ResultNum,1),

% Enable the Plot and Remove buttons set([handles.RemoveButton,handles.PlotButton],'Enable','on') end

% Get Ki and Kf values to store with the data and put in the results list.

Ki = get(handles.KiValueSlider,'Value');

Kf = get(handles.KfValueSlider,'Value');

ResultsData(ResultNum).RunName = ['Run',num2str(ResultNum)];

ResultsData(ResultNum).RunNumber = ResultNum;

ResultsData(ResultNum).KiValue = Ki;

ResultsData(ResultNum).KfValue = Kf;

ResultsData(ResultNum).timeVector = timeVector;

ResultsData(ResultNum).outputVector = outputVector;

% Build the new results list string for the listbox

ResultsStr = get(handles.ResultsList,'String'); if isequal(ResultNum,1)

ResultsStr = {['Run1',num2str(Kf),' ',num2str(Ki)]}; else

ResultsStr = [ResultsStr;...

{['Run',num2str(ResultNum),' ',num2str(Kf),' ', ...

num2str(Ki)]}]; end

10-26

A GUI to Set Simulink Model Parameters set(handles.ResultsList,'String',ResultsStr);

% Store the new ResultsData handles.ResultsData = ResultsData; guidata(hObject, handles)

Removing Results from the List Box

The GUI Remove button callback deletes any selected item from the

Results list

list box. It also deletes the corresponding run data from the handles

structure. When a user clicks on the Remove button, the callback executes the following steps:

Determines which list box items are selected when a user clicks on the

Remove

button and removes these items from the list box

String

property by setting each item to the empty matrix

[]

.

Removes the deleted data from the handles

structure.

Displays the string

<empty>

and disables the Remove and Plot buttons

(using the

Enable

property), if all the items in the list box are removed.

Save the changes to the handles

structure ( guidata

).

Here is the Remove button callback.

function RemoveButton_Callback(hObject, eventdata, handles) currentVal = get(handles.ResultsList,'Value'); resultsStr = get(handles.ResultsList,'String'); numResults = size(resultsStr,1);

% Remove the data and list entry for the selected value resultsStr(currentVal) =[]; handles.ResultsData(currentVal)=[];

% If there are no other entries, disable the Remove and Plot button

% and change the list string to <empty> if isequal(numResults,length(currentVal)), resultsStr = {'<empty>'}; currentVal = 1; set([handles.RemoveButton,handles.PlotButton],'Enable','off') end

% Ensure that list box Value is valid, then reset Value and String currentVal = min(currentVal,size(resultsStr,1)); set(handles.ResultsList,'Value',currentVal,'String',resultsStr)

10-27

10

Examples of GUIDE GUIs

% Store the new ResultsData guidata(hObject, handles)

Plotting the Results Data

The GUI Plot button callback creates a plot of the run data and adds a legend.

The data to plot is passed to the callback in the handles

structure, which also contains the gain settings used when the simulation ran. When a user clicks on the Plot button, the callback executes the following steps:

Collects the data for each run selected in the Results list, including two variables (time vector and output vector) and a color for each result run to plot.

Generates a string for the legend from the stored data.

Creates the figure and axes for plotting and saves the handles for use by the

Close

button callback.

Plots the data, adds a legend, and makes the figure visible.

Plotting Into the Hidden Figure

The figure that contains the plot is created invisible and then made visible after adding the plot and legend. To prevent this figure from becoming the target for plotting commands issued at the command line or by other GUIs, its

HandleVisibility

and

IntegerHandle

properties are set to off

. However, this means the figure is also hidden from the plot

and legend

commands.

Use the following steps to plot into a hidden figure:

Save the handle of the figure when you create it.

Create an axes, set its

Parent

property to the figure handle, and save the axes handle.

Create the plot (which is one or more line objects), save these line handles, and set their

Parent

properties to the handle of the axes.

Make the figure visible.

Plot Button Callback Listing

Here is the Plot button callback.

function PlotButton_Callback(hObject, eventdata, handles) currentVal = get(handles.ResultsList,'Value');

10-28

A GUI to Set Simulink Model Parameters

% Get data to plot and generate command string with color

% specified legendStr = cell(length(currentVal),1); plotColor = {'b','g','r','c','m','y','k'}; for ctVal = 1:length(currentVal);

PlotData{(ctVal*3)-2} = handles.ResultsData(currentVal(ctVal)).timeVector;

PlotData{(ctVal*3)-1} = handles.ResultsData(currentVal(ctVal)).outputVector; numColor = ctVal - 7*( floor((ctVal-1)/7) );

PlotData{ctVal*3} = plotColor{numColor}; legendStr{ctVal} = ...

[handles.ResultsData(currentVal(ctVal)).RunName,'; Kf=',...

num2str(handles.ResultsData(currentVal(ctVal)).KfValue),...

'; Ki=', ...

num2str(handles.ResultsData(currentVal(ctVal)).KiValue)]; end

% If necessary, create the plot figure and store in handles

% structure if ~isfield(handles,'PlotFigure') ||...

~ishandle(handles.PlotFigure), handles.PlotFigure = ...

figure('Name','F14 Simulation Output',...

'Visible','off','NumberTitle','off',...

'HandleVisibility','off','IntegerHandle','off'); handles.PlotAxes = axes('Parent',handles.PlotFigure); guidata(hObject, handles) end

% Plot data pHandles = plot(PlotData{:},'Parent',handles.PlotAxes);

% Add a legend, and bring figure to the front legend(pHandles(1:2:end),legendStr{:})

% Make the figure visible and bring it forward figure(handles.PlotFigure)

The GUI Help Button

The GUI Help button callback displays an HTML file in the MATLAB Help browser. It uses two commands:

10-29

10

Examples of GUIDE GUIs

The which

command returns the full path to the file when it is on the

MATLAB path

The web

command displays the file in the Help browser.

This is the Help button callback.

function HelpButton_Callback(hObject, eventdata, handles)

HelpPath = which('f14ex_help.html'); web(HelpPath);

You can also display the help document in a Web browser or load an external

URL. See the Web documentation for a description of these options.

Closing the GUI

The GUI Close button callback closes the plot figure, if one exists and then closes the GUI. The handle of the plot figure and the GUI figure are available from the handles

structure. The callback executes two steps:

Checks to see if there is a

PlotFigure

field in the handles

structure and if it contains a valid figure handle (the user could have closed the figure manually).

Closes the GUI figure

This is the Close button callback.

function CloseButton_Callback(hObject, eventdata, handles)

% Close the GUI and any plot window that is open if isfield(handles,'PlotFigure') && ...

ishandle(handles.PlotFigure),

close(handles.PlotFigure); end close(handles.F14ControllerEditor);

The List Box Callback and Create Function

This GUI does not use the list box callback since the actions performed on list box items are carried out by push buttons (Simulate and store results,

Remove

, and Plot). However, GUIDE automatically inserts a callback stub when you add the list box and automatically sets the

Callback

property to execute this subfunction whenever the callback is triggered (which happens when users select an item in the list box).

10-30

A GUI to Set Simulink Model Parameters

In this case, there is no need for the list box callback to execute, so you should delete it from the GUI M-file. It is important to remember to also delete the

Callback

property string so MATLAB does not attempt to execute the callback.

You can do this using the property inspector:

See the description of list boxes for more information on how to trigger the list box callback.

Setting the Background to White

The list box create function enables you to determine the background color of the list box. The following code shows the create function for the list box that is tagged

ResultsList

.

function ResultsList_CreateFcn(hObject, eventdata, handles)

% Hint: listbox controls usually have a white background, change

% 'usewhitebg' to 0 to use default. See ISPC and COMPUTER.

usewhitebg = 1; if usewhitebg

set(hObject,'BackgroundColor','white'); else set(hObject,'BackgroundColor',...

get(0,'defaultUicontrolBackgroundColor')); end

10-31

10

Examples of GUIDE GUIs

An Address Book Reader

This example shows how to implement a GUI that displays names and phone numbers, which it reads from a MAT-file.

10-32

Techniques Used in This Example

This example demonstrates the following GUI programming techniques:

Uses open and save dialogs to provide a means for users to locate and open the address book MAT-files and to save revised or new address book

MAT-files.

Defines callbacks written for GUI menus.

Uses the GUI’s handles

structure to save and recall shared data.

Uses a GUI figure resize function.

Managing Shared Data

One of the key techniques illustrated in this example is how to keep track of information and make it available to the various subfunctions. This information includes

The name of the current MAT-file

The names and phone numbers stored in the MAT-file

An Address Book Reader

An index pointer that indicates the current name and phone number, which must be updated as the user pages through the address book

The figure position and size

The handles of all GUI components

The descriptions of the subfunctions that follow illustrate how to save and retrieve information from the handles

structure. See “handles Structure” on page 8-14 for background information on this structure.

View Completed Layout and Its GUI M-File

If you are reading this in the MATLAB Help browser, you can click the following links to display the GUIDE Layout Editor and the MATLAB Editor with a completed version of this example. This enables you to see the values of all component properties and to understand how the components are assembled to create the GUI. You can also see a complete listing of the code that is discussed in the following sections.

Note The following links execute MATLAB commands and are designed to work within the MATLAB Help browser. If you are reading this online or in

PDF, you should go to the corresponding section in the MATLAB Help

Browser to use the links.

Click here to display this GUI in the Layout Editor.

Click here to display the GUI M-file in the MATLAB Editor.

Running the GUI

The GUI is nonblocking and nonmodal since it is designed to be displayed while you perform other MATLAB tasks.

GUI Option Settings

This GUI uses the following GUI option settings:

Resize behavior: User-specified

Command-line accessibility: Off

10-33

10

Examples of GUIDE GUIs

GUI M-file options selected:

- Generate callback function prototypes

- Application allows only one instance to run

Calling the GUI

You can call the GUI M-file with no arguments, in which case the GUI uses the default address book MAT-file, or you can specify an alternate MAT-file from which the GUI reads information. In this example, the user calls the GUI with a pair of arguments, address_book('book', 'my_list.mat')

. The first argument,

'book'

, is a key word that the M-file looks for in the opening function. If the M-file finds the key word, it knows to use the second argument as the MAT-file for the address book. Calling the GUI with this syntax is analogous to calling it with a valid property-value pair, such as

('color',

'red')

. However, since

'book'

is not a valid figure property, in this example the opening function in the M-file includes code to recognize the pair

('book',

'my_list.mat')

.

Note that it is not necessary to use the key word

'book'

. You could program the M-file to accept just the MAT-file as an argument, using the syntax address_book('my_list.mat')

. The advantage of calling the GUI with the pair

('book', 'my_list.mat')

is that you can program the GUI to accept other user arguments, as well as valid figure properties, using the property-value pair syntax. The GUI can then identify which property the user wants to specify from the property name.

The following code shows how to program the opening function to look for the key word

'book'

, and if it finds the key word, to use the MAT-file specified by the second argument as the list of contacts. function address_book_OpeningFcn(hObject, eventdata,...

handles, varargin)

% Choose default command line output for address_book handles.output = hObject;

% Update handles structure guidata(hObject, handles);

% User added code follows if nargin < 4

% Load the default address book

Check_And_Load([],handles);

% If the first element in varargin is 'book' and

10-34

An Address Book Reader

& the second element is a MATLAB file, then load that file elseif (length(varargin) == 2 && ...

strcmpi(varargin{1},'book') && ...

(2 == exist(varargin{2},'file')))

Check_And_Load(varargin{2},handles); else

errordlg('File Not Found','File Load Error')

set(handles.Contact_Name,'String','')

set(handles.Contact_Phone,'String','') end

Loading an Address Book Into the Reader

There are two ways in which an address book (i.e., a MAT-file) is loaded into the GUI:

When running the GUI, you can specify a MAT-file as an argument. If you do not specify an argument, the GUI loads the default address book

( addrbook.mat

).

The user can select Open under the File menu to browse for other MAT-files.

Validating the MAT-file

To be a valid address book, the MAT-file must contain a structure called

Addresses

that has two fields called

Name

and

Phone

. The

Check_And_Load subfunction validates and loads the data with the following steps:

Loads ( load

) the specified file or the default if none is specified.

Determines if the MAT-file is a valid address book.

Displays the data if it is valid. If it is not valid, displays an error dialog

( errordlg

).

Returns

1

for valid MAT-files and

0

if invalid (used by the Open menu callback)

Saves the following items in the handles

structure:

- The name of the MAT-file

- The

Addresses

structure

- An index pointer indicating which name and phone number are currently displayed

10-35

10

Examples of GUIDE GUIs

Check_And_Load Code Listing

This is the

Check_And_Load

function.

function pass = Check_And_Load(file,handles)

% Initialize the variable "pass" to determine if this is a valid

% file.

pass = 0;

% If called without any file then set file to the default

% filename.

% Otherwise, if the file exists then load it.

if isempty(file) file = 'addrbook.mat'; handles.LastFile = file; guidata(handles.Address_Book,handles) end if exist(file) == 2 data = load(file); end

% Validate the MAT-file

% The file is valid if the variable is called "Addresses" and

% it has fields called "Name" and "Phone" flds = fieldnames(data); if (length(flds) == 1) && (strcmp(flds{1},'Addresses')) fields = fieldnames(data.Addresses); if (length(fields) == 2) && ...

(strcmp(fields{1},'Name')) && ...

(strcmp(fields{2},'Phone'))

pass = 1; end end

% If the file is valid, display it if pass

% Add Addresses to the handles structure handles.Addresses = data.Addresses; guidata(handles.Address_Book,handles)

% Display the first entry set(handles.Contact_Name,'String',data.Addresses(1).Name) set(handles.Contact_Phone,'String',data.Addresses(1).Phone)

% Set the index pointer to 1 and save handles handles.Index = 1;

10-36

An Address Book Reader guidata(handles.Address_Book,handles) else errordlg('Not a valid Address Book','Address Book Error') end

The Open Menu Callback

The address book GUI contains a File menu that has an Open submenu for loading address book MAT-files. When selected, Open displays a dialog

( uigetfile

) that enables the user to browse for files. The dialog displays only

MAT-files, but users can change the filter to display all files.

The dialog returns both the filename and the path to the file, which is then passed to fullfile

to ensure the path is properly constructed for any platform.

Check_And_Load

validates and load the new address book.

Open_Callback Code Listing

function Open_Callback(hObject, eventdata, handles)

[filename, pathname] = uigetfile( ...

{'*.mat', 'All MAT-Files (*.mat)'; ...

'*.*','All Files (*.*)'}, ...

'Select Address Book');

% If "Cancel" is selected then return if isequal([filename,pathname],[0,0]) return

% Otherwise construct the fullfilename and Check and load the file else

File = fullfile(pathname,filename);

% if the MAT-file is not valid, do not save the name if Check_And_Load(File,handles) handles.LastFIle = File; guidata(hObject, handles) end end

See the “Creating Menus” on page 6-49 section for information on creating the

menu.

10-37

10

Examples of GUIDE GUIs

The Contact Name Callback

The Contact Name text box displays the name of the address book entry. If you type in a new name and press enter, the callback performs these steps:

If the name exists in the current address book, the corresponding phone number is displayed.

If the name does not exist, a question dialog ( questdlg

) asks you if you want to create a new entry or cancel and return to the name previously displayed.

If you create a new entry, you must save the MAT-file with the File -> Save menu.

Storing and Retrieving Data

This callback makes use of the handles

structure to access the contents of the address book and to maintain an index pointer ( handles.Index

) that enables the callback to determine what name was displayed before it was changed by the user. The index pointer indicates what name is currently displayed. The address book and index pointer fields are added by the

Check_And_Load function when the GUI is run.

If the user adds a new entry, the callback adds the new name to the address book and updates the index pointer to reflect the new value displayed. The updated address book and index pointer are again saved ( guidata

) in the handles

structure.

Contact Name Callback

function Contact_Name_Callback(hObject, eventdata, handles)

% Get the strings in the Contact Name and Phone text box

Current_Name = get(handles.Contact_Name,'string');

Current_Phone = get(handles.Contact_Phone,'string');

% If empty then return if isempty(Current_Name) return end

% Get the current list of addresses from the handles structure

Addresses = handles.Addresses;

% Go through the list of contacts

% Determine if the current name matches an existing name for i = 1:length(Addresses) if strcmp(Addresses(i).Name,Current_Name)

10-38

An Address Book Reader set(handles.Contact_Name,'string',Addresses(i).Name) set(handles.Contact_Phone,'string',Addresses(i).Phone) handles.Index = i; guidata(hObject, handles) return end end

% If it's a new name, ask to create a new entry

Answer=questdlg('Do you want to create a new entry?', ...

'Create New Entry', ...

'Yes','Cancel','Yes'); switch Answer case 'Yes'

Addresses(end+1).Name = Current_Name; % Grow array by 1

Addresses(end).Phone = Current_Phone; index = length(Addresses); handles.Addresses = Addresses; handles.Index = index; guidata(hObject, handles) return case 'Cancel'

% Revert back to the original number set(handles.Contact_Name,'String',Addresses(handles.Index).Name) set(handles.Contact_Phone,'String',Addresses(handles.Index).Phon

e) return end

The Contact Phone Number Callback

The Contact Phone # text box displays the phone number of the entry listed in the Contact Name text box. If you type in a new number click one of the push buttons, the callback opens a question dialog that asks you if you want to change the existing number or cancel your change.

Like the Contact Name text box, this callback uses the index pointer

( handles.Index

) to update the new number in the address book and to revert to the previously displayed number if the user selects Cancel from the question

10-39

10

Examples of GUIDE GUIs dialog. Both the current address book and the index pointer are saved in the handles

structure so that this data is available to other callbacks.

If you create a new entry, you must save the MAT-file with the File –> Save menu.

Code Listing

function Contact_Phone_Callback(hObject, eventdata, handles)

Current_Phone = get(handles.Contact_Phone,'string');

% If either one is empty then return if isempty(Current_Phone) return end

% Get the current list of addresses from the handles structure

Addresses = handles.Addresses;

Answer=questdlg('Do you want to change the phone number?', ...

'Change Phone Number', ...

'Yes','Cancel','Yes'); switch Answer case 'Yes'

% If no name match was found create a new contact

Addresses(handles.Index).Phone = Current_Phone; handles.Addresses = Addresses; guidata(hObject, handles) return case 'Cancel'

% Revert back to the original number set(handles.Contact_Phone,...

'String',Addresses(handles.Index).Phone) return end

Paging Through the Address Book — Prev/Next

The Prev and Next buttons page back and forth through the entries in the address book. Both push buttons use the same callback,

Prev_Next_Callback

.

You must set the

Callback

property of both push buttons to call this subfunction, as the following illustration of the Prev push button

Callback property setting shows.

10-40

An Address Book Reader

Determining Which Button Is Clicked

The callback defines an additional argument, str

, that indicates which button,

Prev

or Next, was clicked. For the Prev button

Callback

property (illustrated above), the

Callback

string includes

'Prev'

as the last argument. The Next button

Callback

string includes

'Next'

as the last argument. The value of str is used in case

statements to implement each button’s functionality (see the code listing below).

Paging Forward or Backward

Prev_Next_Callback

gets the current index pointer and the addresses from the handles

structure and, depending on which button the user presses, the index pointer is decremented or incremented and the corresponding address and phone number are displayed. The final step stores the new value for the index pointer in the handles

structure and saves the updated structure using guidata

.

Code Listing

function Prev_Next_Callback(hObject, eventdata,handles,str)

% Get the index pointer and the addresses index = handles.Index;

Addresses = handles.Addresses;

% Depending on whether Prev or Next was clicked,

% change the display switch str case 'Prev'

% Decrease the index by one i = index - 1;

10-41

10

Examples of GUIDE GUIs

% If the index is less than one then set it equal to the index

% of the last element in the Addresses array if i < 1 i = length(Addresses); end case 'Next'

% Increase the index by one i = index + 1;

% If the index is greater than the size of the array then

% point to the first item in the Addresses array if i > length(Addresses) i = 1; end end

% Get the appropriate data for the index in selected

Current_Name = Addresses(i).Name;

Current_Phone = Addresses(i).Phone; set(handles.Contact_Name,'string',Current_Name) set(handles.Contact_Phone,'string',Current_Phone)

% Update the index pointer to reflect the new index handles.Index = i; guidata(hObject, handles)

Saving Changes to the Address Book from the Menu

When you make changes to an address book, you need to save the current

MAT-file, or save it as a new MAT-file. The File submenus Save and Save As enable you to do this. These menus, created with the Menu Editor, use the same callback,

Save_Callback

.

The callback uses the menu

Tag

property to identify whether Save or Save As is the callback object (i.e., the object whose handle is passed in as the first argument to the callback function). You specify the menu’s

Tag

property with the Menu Editor.

Saving the Addresses Structure

The handles

structure contains the

Addresses

structure, which you must save

( handles.Addresses

) as well as the name of the currently loaded MAT-file

( handles.LastFile

). When the user makes changes to the name or number,

10-42

An Address Book Reader the

Contact_Name_Callback

or the

Contact_Phone_Callback

updates handles.Addresses

.

Saving the MAT-File

If the user selects Save, the save

command is called to save the current

MAT-file with the new names and phone numbers.

If the user selects Save As, a dialog is displayed ( uiputfile

) that enables the user to select the name of an existing MAT-file or specify a new file. The dialog returns the selected filename and path. The final steps include

Using fullfile

to create a platform-independent pathname.

Calling save

to save the new data in the MAT-file.

Updating the handles

structure to contain the new MAT-file name.

Calling guidata

to save the handles

structure.

Save_Callback Code Listing

function Save_Callback(hObject, eventdata, handles)

% Get the Tag of the menu selected

Tag = get(hObject, 'Tag');

% Get the address array

Addresses = handles.Addresses;

% Based on the item selected, take the appropriate action switch Tag case 'Save'

% Save to the default addrbook file

File = handles.LastFile; save(File,'Addresses') case 'Save_As'

% Allow the user to select the file name to save to

[filename, pathname] = uiputfile( ...

{'*.mat';'*.*'}, ...

'Save as');

% If 'Cancel' was selected then return if isequal([filename,pathname],[0,0]) else return

% Construct the full path and save

File = fullfile(pathname,filename);

10-43

10

Examples of GUIDE GUIs end end save(File,'Addresses') handles.LastFile = File; guidata(hObject, handles)

The Create New Menu

The Create New menu simply clears the Contact Name and Contact Phone # text fields to facilitate adding a new name and number. After making the new entries, the user must then save the address book with the Save or Save As menus. This callback sets the text

String

properties to empty strings: function New_Callback(hObject, eventdata, handles) set(handles.Contact_Name,'String','') set(handles.Contact_Phone,'String','')

The Address Book Resize Function

The address book defines its own resize function. To use this resize function, you must set the Application Options dialog Resize behavior to

User-specified

, which in turn sets the figure’s

ResizeFcn

property to: address_book('ResizeFcn',gcbo,[],guidata(gcbo))

Whenever the user resizes the figure, MATLAB calls the

ResizeFcn subfunction in the address book M-file ( address_book.m

)

Behavior of the Resize Function

The resize

function allows users to make the figure wider, to accommodate long names and numbers, but does not allow the figure to be made narrower than its original width. Also, users cannot change the height. These restrictions do not limit the usefulness of the GUI and simplify the resize function, which must maintain the proper proportions between the figure size and the components in the GUI.

When the user resizes the figure and releases the mouse, the resize function executes. At that point, the resized figure’s dimensions are saved. The following sections describe how the resize

function handles the various possibilities.

10-44

An Address Book Reader

Changing the Width

If the new width is greater than the original width, set the figure to the new width.

The size of the Contact Name text box changes in proportion to the new figure width. This is accomplished by:

Changing the

Units

of the text box to normalized

.

Resetting the width of the text box to be 78.9% of the figure’s width.

Returning the

Units

to characters

.

If the new width is less than the original width, use the original width.

Changing the Height

If the user attempts to change the height, use the original height. However, because the resize function is triggered when the user releases the mouse button after changing the size, the resize function cannot always determine the original position of the GUI on screen. Therefore, the resize function applies a compensation to the vertical position (second element in the figure

Position vector) as follows: vertical position when mouse released

+

height when mouse released minus the original height

When the figure is resized from the bottom, it stays in the same position. When resized from the top, the figure moves to the location where the mouse button is released.

Ensuring the Resized Figure Is On Screen

The resize

function calls movegui

to ensure that the resized figure is on screen regardless of where the user releases the mouse.

When the GUI is first run, it is displayed at the size and location specified by the figure

Position

property. You can set this property with the Property

Inspector when you create the GUI.

Code Listing

function ResizeFcn(hObject, eventdata, handles)

% Get the figure size and position

Figure_Size = get(hObject, 'Position');

% Set the figure's original size in character units

10-45

10

Examples of GUIDE GUIs

Original_Size = [ 0 0 94 19.230769230769234];

% If the resized figure is smaller than the

% original figure size then compensate.

if (Figure_Size(3)<Original_Size(3)) | ...

(Figure_Size(4) ~= Original_Size(4))

if Figure_Size(3) < Original_Size(3)

% If the width is too small then reset to origianl width.

set(hObject, 'Position',...

[Figure_Size(1), Figure_Size(2), ...

Original_Size(3), Original_Size(4)])

Figure_Size = get(hObject, 'Position');

end

if Figure_Size(4) ~= Original_Size(4)

% Do not allow the height to change.

set(hObject, 'Position',...

[Figure_Size(1),...

Figure_Size(2)+Figure_Size(4)-Original_Size(4),...

Figure_Size(3), Original_Size(4)])

end end

% Adjust the size of the Contact Name text box.

% Set the units of the Contact Name field to 'Normalized'.

set(handles.Contact_Name,'units','normalized')

% Get its Position.

C_N_pos = get(handles.Contact_Name,'Position');

% Reset it so that it's width remains normalized.

% relative to figure.

set(handles.Contact_Name,'Position',...

[C_N_pos(1) C_N_pos(2) 0.789 C_N_pos(4)])

% Return the units to 'Characters'.

set(handles.Contact_Name,'units','characters')

% Reposition GUI on screen.

movegui(hObject, 'onscreen')

10-46

Using a Modal Dialog to Confirm an Operation

Using a Modal Dialog to Confirm an Operation

This example illustrates how to use the modal dialog GUI together with another GUI that has a Close button. Clicking the Close button displays the modal dialog, which asks users to confirm that they really want to proceed with the close operation.

The following figure illustrates the dialog positioned over the GUI application, awaiting the user’s response.

The example is presented in the following sections:

“View Completed Layouts and Their GUI M-Files” on page 10-47

“Setting Up the Close Confirmation Dialog” on page 10-48

“Setting Up the GUI with the Close Button” on page 10-49

“Running the GUI with the Close Button” on page 10-50

“How the GUI and Dialog Work” on page 10-51

View Completed Layouts and Their GUI M-Files

If you are reading this in the MATLAB Help Browser, you can click the following links to display the GUIDE Layout Editor and the MATLAB Editor with a completed version of this example. This enables you to see the values of all component properties and to understand how the components are assembled to create the GUI. You can also see a complete listing of the code that is discussed in the following sections.

10-47

10

Examples of GUIDE GUIs

Note The following links execute MATLAB commands and are designed to work within the MATLAB Help browser. If you are reading this online or in

PDF, you should go to the corresponding section in the MATLAB Help

Browser to use the links.

Click here to display the GUIs in the Layout Editor.

Click here to display the GUI M-files in the editor.

Setting Up the Close Confirmation Dialog

To set up the dialog, do the following:

1

Select New from the File menu in the GUIDE Layout Editor.

2

In the GUIDE Quick Start dialog, select the Modal Question Dialog template and click OK.

3

Right-click the static text,

Do you want to create a question dialog?

, in the Layout Editor and select Property Inspector from the pop-up menu.

4

Scroll down to

String

in the Property Inspector and change the

String property to

Are you sure you want to close

?

5

Select Save from the File menu and type modaldlg.fig

in the File name field.

The GUI should now appear as in the following figure.

10-48

Using a Modal Dialog to Confirm an Operation

Setting Up the GUI with the Close Button

To set up the second GUI with a Close button, do the following:

1

Select New from the File menu in the GUIDE Layout Editor.

2

In the GUIDE Quick Start dialog, select Blank GUI (Default) and click OK.

This opens the blank GUI in a new Layout Editor window.

3

Drag a push button from the Component palette of the Layout Editor into the layout area.

4

Right-click the push button and select Property Inspector from the pop-up menu.

5

Change the

String

property to

Close

.

6

Change the

Tag

property to close_pushbutton

.

7

Click the M-file editor icon on the toolbar of the Layout Editor.

8

Click the callback icon on the toolbar of the M-file editor and select close_pushbutton_Callback

from the menu.

The following generated code for the close button callback should appear in the M-file editor:

% --- Executes on button press in close_pushbutton.

function close_pushbutton_Callback(hObject, eventdata, handles)

% hObject handle to close_pushbutton (see GCBO)

10-49

10

Examples of GUIDE GUIs

% eventdata reserved - to be defined in a future version of MATLAB

% handles structure with handles and user data (see GUIDATA)

9

After these comments, add the following code:

% Get the current position of the GUI from the handles structure

% to pass to the modal dialog.

pos_size = get(handles.figure1,'Position');

% Call modaldlg with the argument 'Position'.

user_response = modaldlg('Title','Confirm Close'); switch user_response case {'No'}

% take no action case 'Yes'

% Prepare to close GUI application window

% .

% .

% .

delete(handles.figure1) end

Running the GUI with the Close Button

Run the GUI with the Close button by clicking the Run button on the Layout

Editor toolbar. The GUI appears as in the following figure:

10-50

When you click the Close button on the GUI, the modal dialog appears as shown in the following figure:

Using a Modal Dialog to Confirm an Operation

Clicking the Yes button closes both the close dialog and the GUI that calls it.

Clicking the No button closes just the dialog.

How the GUI and Dialog Work

This section describes what occurs when you click the Close button on the GUI:

1

User clicks the Close button. Its callback then

- Gets the current position of the GUI from the handles

structure with the command pos_size = get(handles.figure1,'Position')

- Calls the modal dialog with the command user_response = modaldlg('Title','Confirm Close');

This is an example of calling a GUI with a property value pair. In this case, the figure property is

'Title'

, and its value is the string

'Confirm

Close'

. Opening modaldlg

with this syntax displays the text “Confirm

Close” at the top of the dialog.

2

The modal dialog opens with the

'Position'

obtained from the GUI that calls it.

3

The opening function in the modal dialog M-file:

- Makes the dialog modal.

- Executes the uiwait

command, which causes the dialog to wait for the user to click the Yes button or the No button, or click the close box (

X

) on the window border.

4

When a user clicks one of the two push buttons, the callback for the push button

10-51

10

Examples of GUIDE GUIs

- Updates the output field in the handles

structure

- Executes uiresume

to return control to the opening function where uiwait is called.

5

The output function is called, which returns the string

Yes

or

No

as an output argument, and deletes the dialog with the command delete(handles.figure1)

6

When the GUI with the Close button regains control, it receives the string

Yes

or

No

. If the answer is

'No'

, it does nothing. If the answer is

'Yes'

, the close button callback closes the GUI with the command delete(handles.figure1)

10-52

Creating GUIs

Programmatically

This section provides examples of graphical user interfaces (GUIs) created programmatically.

Laying Out a GUI (p. 11-1)

Programming the GUI

(p. 12-1)

Managing

Application-Defined Data

(p. 13-1)

Examples of GUIs Created

Programmatically (p. 14-1)

Shows you how to create and organize the GUI M-file and from there how to populate the GUI and construct menus and toolbars. Provides guidance in designing a

GUI for cross-platform compatibility.

Explains how user-written callback routines control

GUI behavior. Shows you how to associate callbacks with specific components and explains callback syntax and arguments. Provides simple programming examples for each kind of component.

Explains the mechanisms for managing application-defined data and explains how to share data among a GUIs callbacks.

Provides three examples that illustrate the application of some programming techniques used to create GUIs.

Note This revision of Creating Graphical User Interfaces, issued May 2006, adds three new chapters that provide more information for creating GUIs programmatically. The new HTML and PDF versions of this document replace the March 2003 version on The MathWorks Web site.

11

Laying Out a GUI

Designing a GUI (p. 11-2)

Creating and Running the GUI M-File

(p. 11-4)

Provides information about typical GUI M-file organization and tells you how to run the GUI.

Creating the GUI Figure (p. 11-7)

Things to think about when designing a GUI and references to other sources.

Adding Components to the GUI

(p. 11-10)

Tells you how to create the GUI figure and introduces some commonly used figure properties.

Describes the code needed for adding components to a

GUI, labeling components, and introduces some of the commonly used properties.

Aligning Components (p. 11-35)

Setting Tab Order (p. 11-38)

Creating Menus (p. 11-42)

Creating Toolbars (p. 11-52)

Designing for Cross-Platform

Compatibility (p. 11-58)

Tells you how to align components.

Explains tab order and shows you how to set it.

Shows you how to create menus that appear on the figure menu bar and context menus.

Shows you how to add toolbars and tools to your GUI.

Provides pointers for creating GUIs that behave more consistently when run on different platforms.

11

Laying Out a GUI

Designing a GUI

Before creating the actual GUI, it is important to decide what it is you want your GUI to do and how you want it to work. It is helpful to draw your GUI on paper and envision what the user sees and what actions the user takes.

Note MATLAB provides a selection of standard dialog boxes that you can create with a single function call. For information about these dialog boxes and the functions used to create them, see “Predefined Dialog Boxes” in the

MATLAB documentation.

The GUI used in this example contains an axes component that displays either a surface, mesh, or contour plot of data selected from the pop-up menu. The following picture shows a sketch that you might use as a starting point for the design.

Axes

Select Data peaks

Plot Types

Surf

Mesh

Contour

Menu for selecting data

Panel to group push buttons

Push buttons to select plot type

A panel contains three push buttons that enable you to choose the type of plot you want. The pop-up menu contains three strings — peaks

, membrane

, and sinc

, which correspond to MATLAB functions. You can select the data to plot from this menu.

11-2

Designing a GUI

Many Web sites and commercial publications such as the following provide guidelines for designing GUIs:

AskTog – Essays on good design and a list of First Principles for good user interface design. The author, Tognazzini, is a well-respected user interface designer. http://www.asktog.com/basics/firstPrinciples.html

.

Galitz, Wilbert, O., Essential Guide to User Interface Design. Wiley, New

York, NY, 2002.

GUI Design Handbook – A detailed guide to the use of GUI controls. http://www.fast-consulting.com/GUI%20Design%20Handbook/GDH_FRNTM

TR.htm

.

Johnson, J., GUI Bloopers: Don'ts and Do's for Software Developers and Web

Designers. Morgan Kaufmann, San Francisco, CA, 2000.

Usability Glossary – An extensive glossary of terms related to GUI design, usability, and related topics. http://www.usabilityfirst.com/glossary/main.cgi

.

UsabilityNet – Covers design principles, user-centered design, and other usability and design-related topics. http://www.usabilitynet.org/management/b_design.htm

.

11-3

11

Laying Out a GUI

Creating and Running the GUI M-File

GUIs you create programmatically reside in one or more M-files. These topics provide information about creating a suitable M-file.

“File Organization” on page 11-4

“File Template” on page 11-5

“Running the GUI” on page 11-5

Note For an example of creating an M-file, see Chapter 3, “Creating a GUI

Programmatically” in the “Getting Started” part of this document.

File Organization

Typically, a GUI M-file is ordered in the following sections. You can help to maintain the organization by adding comments that name the sections when you first create it.

1

Comments displayed in response to the MATLAB help

command.

2

Initialization tasks such as data creation and command line input

processing. See “Initializing the GUI” on page 12-4 for more information.

3

Construction of figure and components. This chapter tells you how to create

the figure and add components to it. See “Creating the GUI Figure” on

page 11-7 and “Adding Components to the GUI” on page 11-10 for more

information.

4

GUI initialization and output return. See “Initializing the GUI” on page 12-4 for more information.

5

Callbacks for the components. Callbacks are the routines that execute in response to user-generated events such as mouse clicks and key strokes. See

Chapter 12, “Programming the GUI” for more information.

6

Utility functions.

11-4

Creating and Running the GUI M-File

File Template

This is a template for a GUI M-file. function varargout = mygui(varargin)

% MYGUI Brief description of GUI.

% Comments displayed at the command line in response

% to the help command.

% (Leave a blank line following the help.)

% Initialization tasks.

% Construct the components.

% Initialization tasks

% Callbacks for MYGUI.

% Utility functions for MYGUI.

end

The end

statement that matches the function

statement is necessary because

this document treats GUI creation using nested functions. Chapter 12,

“Programming the GUI” addresses this topic.

Save the file in your current directory or at a location that is on your MATLAB path.

Running the GUI

You can display your GUI at any time by executing its M-file. For example, if your GUI M-file is mygui.m

, type mygui at the command line. Provide run-time arguments as appropriate. The files must reside on your path or in your current directory.

When you execute the GUI M-file, a fully functional copy of the GUI displays on the screen. You can manipulate components that it contains but nothing happens unless the M-file includes code to initialize the GUI and callbacks to

11-5

11

Laying Out a GUI

service the components. Chapter 12, “Programming the GUI” tells you how to

do this.

11-6

Creating the GUI Figure

Creating the GUI Figure

In MATLAB, a GUI is a figure. Before you add components to it, create the figure explicitly and obtain a handle for it. In the initialization section of your file, use a statement such as the following to create the figure. fh = figure; where fh

is the figure handle.

Note If you create a component when there is no figure, MATLAB creates a figure automatically but you do not know the figure handle.

When you create the figure, you can also specify properties for the figure. The most commonly used figure properties are shown in the following table.

Property

MenuBar

Name

Values

none

, figure

.

Default is figure

.

String

NumberTitle on

Position is

, off

. Default on

.

Description

Display or hide the menu bar that

MATLAB places at the top of a figure window.

Title displayed in the figure window. If

NumberTitle

is on

, this string is appended to the figure number.

Determines whether the string Figure

No. n

(where n

is the figure number) is prefixed to the figure window title specified by

Name

.

4-element vector:

[distance from left, distance from bottom, width, height].

Default is [20, 20,

60, 20].

Size of the GUI figure and its location relative to the lower-left corner of the screen.

11-7

11

Laying Out a GUI

Property

Resize

Toolbar

Units

Visible

Values

on

, off

. Default is on.

none

, auto

, figure

. Default is auto

.

Description

Determines if the user can resize the figure window with the mouse.

Display or hide the default figure toolbar.

none

– do not display the figure toolbar

auto

– display the figure toolbar, but remove it if a user interface control

(uicontrol) is added to the figure.

figure

– display the figure toolbar

Units of measurement used to interpret position vector centimeters

, characters

. inches

, normalized

, pixels

, points

,

Default is pixels

.

on

, off

. Default is on

.

determines whether an object is displayed on the screen.

For a complete list of properties and for more information about the properties listed in the table, see Figure Properties in the MATLAB documentation.

The following statement names the figure My GUI, positions the figure on the screen and makes the GUI invisible so that the user cannot see the components as they are added or initialized. All other properties assume their defaults.

f = figure('Visible','off','Name','My GUI',...

'Position',[360,500,450,285]);

The

Position

property is a four-element vector that specifies the location of the

GUI on the screen and its size: [distance from left, distance from bottom, width, height]. Default units are pixels.

If the figure were visible, it would look like this.

11-8

Creating the GUI Figure

The next topic, “Adding Components to the GUI” on page 11-10, shows you how

to add push buttons, axes, and other components to the GUI. “Creating Menus”

on page 11-42 shows you how to create toolbar and context menus. “Creating

Toolbars” on page 11-52 shows you how to add your own toolbar to a GUI.

11-9

11

Laying Out a GUI

Adding Components to the GUI

Components include user interface controls such as push buttons and sliders, containers such as panels and button groups, axes, and ActiveX controls. This topic tells you how to populate your GUI with these components.

“Available Components” on page 11-10

“Adding User Interface Controls” on page 11-13

“Adding Panels and Button Groups” on page 11-26

“Adding Axes” on page 11-31

“Adding ActiveX Controls” on page 11-34

Note MATLAB provides a selection of standard dialog boxes that you can create with a single function call. For information about these dialog boxes and the functions used to create them, see “Predefined Dialog Boxes” in the

MATLAB documentation.

Available Components

The following table describes the available components and the function used to create each. Subsequent topics provide specific information about adding the components.

Component

ActiveX

Component

Axes

Function

actxcontrol axes

Description

ActiveX components enable you to display

ActiveX controls in your GUI. They are available only on the Microsoft Windows platform.

Axes enable your GUI to display graphics such as graphs and images.

11-10

Adding Components to the GUI

Component Function Description

Button Group

uibuttongroup

Button groups are like panels but are used to manage exclusive selection behavior for radio buttons and toggle buttons.

Check Box

uicontrol

Edit Text

List Box

uicontrol uicontrol

Check boxes can generate an action when checked and indicate their state as checked or not checked. Check boxes are useful when providing the user with a number of independent choices, for example, displaying a toolbar.

Edit text components are fields that enable users to enter or modify text strings. Use an edit text when you want text as input. Users can enter numbers but you must convert them to their numeric equivalents.

List boxes display a list of items and enable users to select one or more items.

Panel

uipanel Panels arrange GUI components into groups. By visually grouping related controls, panels can make the user interface easier to understand. A panel can have a title and various borders.

Pop-Up Menu

uicontrol

Panel children can be user interface controls and axes as well as button groups and other panels. The position of each component within a panel is interpreted relative to the panel. If you move the panel, its children move with it and maintain their positions on the panel.

Pop-up menus open to display a list of choices when users click the arrow.

11-11

11

Laying Out a GUI

Component

Push Button

Radio Button

uicontrol

Slider

Static Text

Function

uicontrol uicontrol uicontrol

Description

Push buttons generate an action when clicked. For example, an OK button might apply settings and close a dialog box.

When you click a push button, it appears depressed; when you release the mouse button, the push button appears raised.

Radio buttons are similar to check boxes, but radio buttons are typically mutually exclusive within a group of related radio buttons. That is, when you select one button the previously selected button is deselected. To activate a radio button, click the mouse button on the object. The display indicates the state of the button.

Use a button group to manage mutually exclusive radio buttons.

Sliders accept numeric input within a specified range by enabling the user to move a sliding bar, which is called a slider or thumb. Users move the slider by clicking the slider and dragging it, by clicking in the trough, or by clicking an arrow. The location of the slider indicates the relative location within the specified range.

Static text controls display lines of text.

Static text is typically used to label other controls, provide directions to the user, or indicate values associated with a slider.

Users cannot change static text interactively.

11-12

Adding Components to the GUI

Component Function

Toggle Button

uicontrol

Description

Toggle buttons generate an action and indicate whether they are turned on or off. When you click a toggle button, it appears depressed, showing that it is on.

When you release the mouse button, the toggle button remains depressed until you click it a second time. When you do so, the button returns to the raised state, showing that it is off. Use a button group to manage mutually exclusive radio buttons.

Components are sometimes referred to by the name of the function used to create them. For example, a push button is created using the uicontrol function, and it is sometimes referred to as a uicontrol. A panel is created using the uipanel

function and may be referred to as a uipanel.

Adding User Interface Controls

Use the uicontrol

function to create user interface controls. These include push buttons, toggle buttons, sliders, radio buttons, edit text controls, static text controls, pop-up menus, check boxes, and list boxes.

Note See “Available Components” on page 11-10 for descriptions of these

components. See “Programming User Interface Controls” on page 12-14 for

basic examples of programming these components.

The most general syntax for the uicontrol

function is handle = uicontrol(parent,'PropertyName',PropertyValue,...)

If you do not specify parent

, the component parent is the current figure as specified by the root

CurrentFigure

property. See the uicontrol

reference page for other valid syntaxes.

Subsequent topics describe commonly used properties of user interface controls and offer a simple example for each kind of control.

11-13

11

Laying Out a GUI

“Commonly Used Properties” on page 11-14

“Check Box” on page 11-15

“Edit Text” on page 11-16

“List Box” on page 11-18

“Pop-Up Menu” on page 11-19

“Push Button” on page 11-20

“Radio Button” on page 11-22

“Slider” on page 11-23

“Static Text” on page 11-24

“Toggle Button” on page 11-25

Commonly Used Properties

The most commonly used properties needed to describe a user interface control are shown in the following table.

Property Values

Max

Min

Position

Scalar. Default is 1.

Description

Maximum value. Interpretation depends on the

Style

property.

Scalar. Default is 0.

Minimum value. Interpretation depends on the

Style

property.

4-element vector: [distance from left, distance from bottom, width, height].

Default is [20, 20, 60, 20].

Size of the component and its location relative to its parent.

11-14

Adding Components to the GUI

Property Values

String

Style

Units

Value

String

Description

Component label. For list boxes and pop-up menus it is a list of the items. To display the & character in a label, use two

&

characters in the string. The words remove

, default

, and factory

(case sensitive) are reserved. To use one of these as a label, prepend a backslash (

\

) to the string. For example,

\remove

yields

remove.

pushbutton

, togglebutton

, radiobutton

, checkbox

, edit

, text

, slider

, listbox

, popupmenu

.

Default is pushbutton

.

Type of user interface control object.

pixels inches

, normalized

,

, centimeters

, points

, characters

.

Default is pixels

.

Scalar or vector

Units of measurement used to interpret position vector

Value of the component.

Interpretation depends on the

Style

property.

For a complete list of properties and for more information about the properties listed in the table, see Uicontrol Properties in the MATLAB documentation.

Properties needed to control GUI behavior are discussed in Chapter 12,

“Programming the GUI.”

Check Box

The following statement creates a check box with handle cbh.

cbh = uicontrol(fh,'Style','checkbox',...

'String','Display file extension',...

'Value',1,'Position',[30 20 130 20]);

11-15

11

Laying Out a GUI

The first argument, fh

, specifies the handle of the parent figure. You can also

specify the parent as a panel or button group. See “Panel” on page 11-28 and

“Button Group” on page 11-30 for more information.

The

Style

property, checkbox

, specifies the user interface control as a check box.

The

String

property labels the check box as Display file extension. The check box accommodates only a single line of text. If you specify a component width that is too small to accommodate the specified

String

, MATLAB truncates the string with an ellipsis.

The

Value

property specifies whether the box is checked when the component is created. Set

Value

to the value of the

Max

property (default is

1

) to create the component with the box checked. Set

Value

to

Min

(default is

0

) to leave the box unchecked. Correspondingly, when the user clicks the check box, MATLAB sets

Value

to

Max

when the box is checked and to

Min

when it is unchecked.

The

Position

property specifies the location and size of the list box. In this example, the list box is 130 pixels wide and 20 high. It is positioned 30 pixels from the left of the figure and 20 pixels from the bottom. The statement assumes the default value of the

Units

property, which is pixels

.

Edit Text

The following statement creates an edit text component with handle eth

. eth = uicontrol(fh,'Style','edit',...

'String','Enter your name here.',...

'Position',[30 50 130 20]);

11-16

Adding Components to the GUI

The first argument, fh

, specifies the handle of the parent figure. You can also

specify the parent as a panel or button group. See “Panel” on page 11-28 and

“Button Group” on page 11-30 for more information.

The

Style

property, edit

, specifies the user interface control as an edit text component.

The

String

property defines the text that appears in the component.

To enable multiple-line input,

Max - Min

must be greater than 1, as in the following statement. MATLAB wraps the string if necessary.

eth = uicontrol(fh,'Style','edit',...

'String','Enter your name and address here.',...

'Max',2,'Min',0,...

'Position',[30 20 130 80]);

If

Max - Min

is less than or equal to 1, the edit text component admits only a single line of input. If you specify a component width that is too small to accommodate the specified string, MATLAB displays only part of the string.

The user can use the arrow keys to move the cursor over the entire string.

The

Position

property specifies the location and size of the edit text component. In this example, the edit text is 130 pixels wide and 20 high. It is positioned 30 pixels from the left of the figure and 50 pixels from the bottom.

11-17

11

Laying Out a GUI

The statement assumes the default value of the

Units

property, which is pixels

.

List Box

The following statement creates a list box with handle lbh

. lbh = uicontrol(fh,'Style','listbox',...

'String',{'one','two','three','four'},...

'Value',1,'Position',[30 80 130 20]);

The first argument, fh

, specifies the handle of the parent figure. You can also

specify the parent as a panel or button group. See “Panel” on page 11-28 and

“Button Group” on page 11-30 for more information.

The

Style

property, listbox

, specifies the user interface control as a list box.

The

String

property defines the list items. You can specify the items as a cell array of strings, a padded string matrix, or within a string vector separated by vertical slash ('|') characters. If you specify a component width that is too small to accommodate one or more of the specified strings, MATLAB truncates those strings with an ellipsis.

The

Value

property specifies the item or items that are selected when the component is created. To select a single item, set

Value

to a scalar that indicates the index of the selected list item, where 1 corresponds to the first item in the list.

To select more than one item, set

Value

to a vector of indices of the selected items. To enable selection of more than one item,

Max - Min

must be greater than 1, as in the following statement.

lbh = uicontrol(fh,'Style','listbox',...

'String',{'one','two','three','four'},...

11-18

Adding Components to the GUI

'Max',2,'Min',0,'Value',[1 3],,...

'Position',[30 20 130 80]);

If you want no initial selection, (1) set the

Max

and

Min

properties to enable multiple selection and (2) set the

Value

property to an empty matrix

[]

.

If the list box is not large enough to display all list entries, you can set the

ListBoxTop

property to the index of the item you want to appear at the top when the component is created.

The

Position

property specifies the location and size of the list box. In this example, the list box is 130 pixels wide and 80 high. It is positioned 30 pixels from the left of the figure and 20 pixels from the bottom. The statement assumes the default value of the

Units

property, which is pixels

.

The list box does not provide for a label. Use a static text component to label the list box.

Pop-Up Menu

The following statement creates a pop-up menu with handle pmh

. pmh = uicontrol(fh,'Style','popupmenu',...

'String',{'one','two','three','four'},...

'Value',1,'Position',[30 80 130 20]);

11-19

11

Laying Out a GUI

The first argument, fh

, specifies the handle of the parent figure. You can also

specify the parent as a panel or button group. See “Panel” on page 11-28 and

“Button Group” on page 11-30 for more information.

The

Style

property, popupmenu

, specifies the user interface control as a pop-up menu.

The

String

property defines the menu items. You can specify the items as a cell array of strings, a padded string matrix, or within a string vector separated by vertical slash ('|') characters. If you specify a component width that is too small to accommodate one or more of the specified strings, MATLAB truncates those strings with an ellipsis.

The

Value

property specifies the index of the item that is selected when the component is created. Set

Value

to a scalar that indicates the index of the selected menu item, where 1 corresponds to the first item in the list. In the statement, if

Value

is

2

, the menu looks like this when it is created.

The

Position

property specifies the location and size of the pop-up menu. In this example, the pop-up menu is 130 pixels wide and 20 high. It is positioned

30 pixels from the left of the figure and 80 pixels from the bottom. The statement assumes the default value of the

Units

property, which is pixels

.

The pop up menu does not provide for a label. Use a static text component to label the pop-up menu.

Push Button

The following statement creates a push button with handle pbh

.

pbh = uicontrol(fh,'Style','pushbutton','String','Button 1',...

'Position',[50 20 60 40]);

11-20

Adding Components to the GUI

The first argument, fh

, specifies the handle of the parent figure. You can also

specify the parent as a panel or button group. See “Panel” on page 11-28 and

“Button Group” on page 11-30 for more information.

The

Style

property, pushbutton

, specifies the user interface control as a push button. Because pushbutton

is the default style, you can omit the

'Style' property from the statement.

The

String

property labels the push button as Button 1. The push button allows only a single line of text. If you specify a component width that is too small to accommodate the specified

String

, MATLAB truncates the string with an ellipsis.

The

Position

property specifies the location and size of the push button. In this example, the push button is 60 pixels wide and 40 high. It is positioned 50 pixels from the left of the figure and 20 pixels from the bottom. This statement assumes the default value of the

Units

property, which is pixels

.

Adding an Image to a Push Button.

To add an image to a push button, assign the button’s

CData

property an m-by-n-by-3 array of RGB values that defines a truecolor image. For example, the array img

defines 16-by-64 truecolor image using random values between 0 and 1 (generated by rand

).

img(:,:,1) = rand(16,64); img(:,:,2) = rand(16,64); img(:,:,3) = rand(16,64); pbh = uicontrol(fh,'Style','pushbutton',...

'Position',[50 20 100 45],...

11-21

11

Laying Out a GUI

'CData',img);

Note Create your own icon with the icon editor described in “Icon Editor” on page 14-27. See

ind2rgb

for information on converting a matrix

X

and corresponding colormap, i.e., an

(X, MAP)

image, to RGB (truecolor) format.

Radio Button

The following statement creates a radio button with handle rbh

.

rbh = uicontrol(fh,'Style','radiobutton',...

'String','Indent nested functions.',...

'Value',1,'Position',[30 20 150 20]);

The first argument, fh

, specifies the handle of the parent figure. You can also specify the parent as a panel or button group. Use a button group to manage

exclusive selection of radio buttons and toggle buttons. See “Panel” on

page 11-28 and “Button Group” on page 11-30 for more information.

The

Style

property, radiobutton

, specifies the user interface control as a radio button.

The

String

property labels the radio button as Indent nested functions. The radio button allows only a single line of text. If you specify a component width that is too small to accommodate the specified

String

, MATLAB truncates the string with an ellipsis.

11-22

Adding Components to the GUI

The

Value

property specifies whether the radio button is selected when the component is created. Set

Value

to the value of the

Max

property (default is

1

) to create the component with the radio button selected. Set

Value

to

Min

(default is

0

) to leave the radio button unselected.

The

Position

property specifies the location and size of the radio button. In this example, the radio button is 150 pixels wide and 20 high. It is positioned

30 pixels from the left of the figure and 20 pixels from the bottom. The statement assumes the default value of the

Units

property, which is pixels

.

Slider

The following statement creates a slider with handle sh

.

sh = uicontrol(fh,'Style','slider',...

'Max',100,'Min',0,'Value',25,...

'SliderStep',[0.05 0.2],...

'Position',[30 20 150 30]);

The first argument, fh

, specifies the handle of the parent figure. You can also

specify the parent as a panel or button group. See “Panel” on page 11-28 and

“Button Group” on page 11-30 for more information.

The

Style

property, slider

, specifies the user interface control as a slider.

The

Max

property is the maximum value of the slider. The

Min

property is the minimum value of the slider and must be less than

Max

.

The

Value

property specifies the value indicated by the slider when it is created. Set

Value

to a number that is less than or equal to

Max

and greater than or equal to

Min

. If you specify

Value

outside the specified range, the slider is not rendered.

11-23

11

Laying Out a GUI

The

SliderStep

property controls the amount the slider

Value

changes when a user clicks the arrow button to produce a minimum step or the slider trough to produce a maximum step. Specify

SliderStep

as a two-element vector,

[min_step,max_step]

, where each value is in the range [0, 1].

Arrow button

(min_step)

Trough

(max_step)

The example provides a 5 percent minimum step and a 20 percent maximum step. The default,

[0.01 0.10]

, provides a 1 percent minimum step and a 10 percent maximum step.

The

Position

property specifies the location and size of the slider. In this example, the slider is 150 pixels wide and 30 high. It is positioned 30 pixels from the left of the figure and 20 pixels from the bottom. The statement assumes the default value of the

Units

property, which is pixels

.

The slider component provides no text description. Use static text components to label the slider.

Static Text

he following statement creates a static text component with handle sth

. sth = uicontrol(fh,'Style','text',...

'String','Select a data set.',...

'Position',[30 50 130 20]);

The first argument, fh

, specifies the handle of the parent figure. You can also

specify the parent as a panel or button group. See “Panel” on page 11-28 and

“Button Group” on page 11-30 for more information.

11-24

Adding Components to the GUI

The

Style

property, text

, specifies the user interface control as a static text component.

The

String

property defines the text that appears in the component. If you specify a component width that is too small to accommodate the specified

String

, MATLAB wraps the string.

The

Position

property specifies the location and size of the static text component. In this example, the static text is 130 pixels wide and 20 high. It is positioned 30 pixels from the left of the figure and 50 pixels from the bottom.

The statement assumes the default value of the

Units

property, which is pixels

.

Toggle Button

The following statement creates a toggle button with handle tbh

.

tbh = uicontrol(fh,'Style','togglebutton',...

'String','Left/Right Tile',...

'Value',0,'Position',[30 20 100 30]);

The first argument, fh

, specifies the handle of the parent figure. You can also specify the parent as a panel or button group. Use a button group to manage

exclusive selection of radio buttons and toggle buttons. See “Panel” on

page 11-28 and “Button Group” on page 11-30 for more information.

The

Style

property, togglebutton

, specifies the user interface control as a toggle button.

The

String

property labels the toggle button as Left/Right Tile. The toggle button allows only a single line of text. If you specify a component width that

11-25

11

Laying Out a GUI is too small to accommodate the specified

String

, MATLAB truncates the string with an ellipsis.

The

Value

property specifies whether the toggle button is selected when the component is created. Set

Value

to the value of the

Max

property (default is

1

) to create the component with the toggle button selected (down). Set

Value

to

Min

(default is

0

) to leave the toggle button unselected (up). The following figure shows the toggle button in the down position.

The

Position

property specifies the location and size of the toggle button. In this example, the toggle button is 100 pixels wide and 30 high. It is positioned

30 pixels from the left of the figure and 20 pixels from the bottom. The statement assumes the default value of the

Units

property, which is pixels

.

Adding Panels and Button Groups

Panels and button groups are containers that arrange GUI components into groups. If you move the panel or button group, its children move with it and maintain their positions relative to the panel or button group.

Note See “Available Components” on page 11-10 for descriptions of these

components.

Use the uipanel

and uibuttongroup

functions to create these components. The most general syntaxes for these functions are handle = uipanel('PropertyName',PropertyValue,...) handle = uibuttongroup('PropertyName',PropertyValue,...)

You must use the

Parent

property to specify the component parent. If you do not specify

Parent

, the parent is the current figure as specified by the root

11-26

Adding Components to the GUI

CurrentFigure

property. See the uipanel

and uibuttongroup

reference pages for other valid syntaxes.

Subsequent topics describe commonly used properties of panels and button groups and offer a simple example for each component.

“Commonly Used Properties” on page 11-27

“Panel” on page 11-28

“Button Group” on page 11-30

Commonly Used Properties

The most commonly used properties needed to describe a panel or button group are shown in the following table.

Property

Parent

Position

Title

Values

Handle

Description

Handle of the component’s parent figure, panel, or button group.

4-element vector:

[distance from left, distance from bottom, width, height]. Default is [20, 20, 60, 20].

Size of the component and its location relative to its parent.

String Component label. To display the & character in a label, use two

& characters in the string. The words remove

, default

, and factory

(case sensitive) are reserved. To use one of these as a label, prepend a backslash (

\

) to the string. For example,

\remove yields remove.

11-27

11

Laying Out a GUI

Property Values Description

TitlePosition lefttop

, centertop

, righttop

, leftbottom

, centerbottom

, rightbottom

. Default is lefttop

.

Location of title string in relation to the panel or button group.

Units pixels

, normalized

, inches

, centimeters

, points

, characters

.

Default is normalized

.

Units of measurement used to interpret position vector

For a complete list of properties and for more information about the properties listed in the table, see Uipanel Properties and Uibuttongroup Properties in the

MATLAB documentation. Properties needed to control GUI behavior are

discussed in Chapter 12, “Programming the GUI.”

Panel

The following statement creates a panel with handle ph

. Use a panel to group components in the GUI. ph = uipanel('Parent',fh,'Title','My Panel',...

'Position',[.25 .1 .5 .8]);

11-28

Adding Components to the GUI

The

Parent

property specifies the handle fh

of the parent figure. You can also specify the parent as a panel or button group.

The

Title

property labels the panel as My Panel.

The statement assumes the default

TitlePosition

property, which is lefttop

.

The

Units

property is used to interpret the

Position

property. This panel assumes the default

Units

property, normalized

. This enables the panel to resize automatically if the figure is resized.

The

Position

property specifies the location and size of the panel. In this example, the panel is 50 percent of the width of the figure and 80 percent of its height. It is positioned 25 percent of the figure width from the left of the figure and 10 percent of the figure height from the bottom. As the figure is resized the panel retains these proportions.

The following statements add two push buttons to the panel. ph

is the handle of the parent panel. The

Position

property of each component within a panel is interpreted relative to the panel. pbh1 = uicontrol(ph,'Style','pushbutton','String','Button 1',...

'Units','normalized',...

'Position',[.1 .55 .8 .3]); pbh2 = uicontrol(ph,'Style','pushbutton','String','Button 2',...

'Units','normalized',...

'Position',[.1 .15 .8 .3]);

See “Push Button” on page 11-20 for more information about adding push

buttons.

11-29

11

Laying Out a GUI

Button Group

The following statement creates a button group with handle bgh

. Use a button group to exclusively manage radio buttons and toggle buttons. bgh = uibuttongroup('Parent',fh,'Title','My Button Group',...

'Position',[.1 .2 .8 .6]);

11-30

The

Parent

property specifies the handle fh

of the parent figure. You can also specify the parent as a panel or button group.

The

Title

property labels the button group as My Button Group.

The statement assumes the default

TitlePosition

property, which is lefttop

.

The

Units

property is used to interpret the

Position

property. This button group assumes the default

Units

property, normalized

. This enables the button group to resize automatically if the figure is resized.

The

Position

property specifies the location and size of the button group. In this example, the button group is 80 percent of the width of the figure and 60 percent of its height. It is positioned 10 percent of the figure width from the left of the figure and 20 percent of the figure height from the bottom. As the figure is resized the button group retains these proportions.

The following statements add two radio buttons to the button group. bgh

is the handle of the parent button group.

rbh1 = uicontrol(bgh,'Style','radiobutton','String','Red',...

'Units','normalized',...

'Position',[.1 .6 .3 .2]);

Adding Components to the GUI rbh2 = uicontrol(bgh,'Style','radiobutton','String','Blue',...

'Units','normalized',...

'Position',[.1 .2 .3 .2]);

By default, MATLAB automatically selects the first radio button added to a button group. You can use the radio button

Value

property to explicitly specify

the initial selection. See “Radio Button” on page 11-22 for information.

Adding Axes

Axes enable your GUI to display graphics such as graphs and images using commands such as the following: plot

, surf

, line

, bar

, polar

, pie

, contour and mesh

.

Note See “Available Components” on page 11-10 for a description of this

component.

Use the axes

function to create an axes. The most general syntax for this function is handle = axes('PropertyName',PropertyValue,...)

You must use the

Parent

property to specify the axes parent. If you do not specify

Parent

, the parent is the current figure as specified by the root

CurrentFigure

property. See the axes

reference page for other valid syntaxes.

Subsequent topics describe commonly used properties of axes and offer a simple example.

“Commonly Used Properties” on page 11-32

“Axes” on page 11-33

11-31

11

Laying Out a GUI

Commonly Used Properties

The most commonly used properties needed to describe an axes are shown in the following table.

Property

Parent

Position

Units

Values

HandleVisibility on

, callback

, off

.

Default is on

.

Description

Determines if an object's handle is visible in its parent's list of children. For axes, set

HandleVisibility to callback

to protect them from command line operations.

Handle Handle of the component’s parent figure, panel, or button group.

4-element vector:

[distance from left, distance from bottom, width, height]. Default is [20, 20, 60, 20].

Size of the component and its location relative to its parent.

pixels

, normalized

, inches

, centimeters

, points

, characters

.

Default is normalized

.

Units of measurement used to interpret position vector

For a complete list of properties and for more information about the properties listed in the table, see Axes Properties in the MATLAB documentation.

Properties needed to control GUI behavior are discussed in Chapter 12,

“Programming the GUI.”

See commands such as the following for more information on axes objects: plot

, surf

, line

, bar

, polar

, pie

, contour

and mesh

. See Functions — By Category in the MATLAB documentation for a complete list.

11-32

Adding Components to the GUI

Axes

The following statement creates an axes with handle ah

. ah = axes('Parent',fh,'Position',[.15 .15 .7 .7]);

The

Parent

property specifies the handle fh

of the parent figure. You can also specify the parent as a panel or button group.

The

Units

property is used to interpret the

Position

property. This axes assumes the default

Units

property, normalized

. This enables the axes to resize automatically if the figure is resized.

The

Position

property specifies the location and size of the axes. In this example, the axes is 70 percent of the width of the figure and 70 percent of its height. It is positioned 15 percent of the figure width from the left of the figure and 15 percent of the figure height from the bottom. As the figure is resized the axes retains these proportions.

11-33

11

Laying Out a GUI

MATLAB automatically adds the tick marks. Most functions that draw in the axes update the tick marks appropriately.

Adding ActiveX Controls

ActiveX components enable you to display ActiveX controls in your GUI. They are available only on the Microsoft Windows platform.

An ActiveX control can be the child only of a figure, i.e., of the GUI itself. It cannot be the child of a panel or button group.

See “Creating an ActiveX Control” in the MATLAB documentation for information about adding an ActiveX control to a figure. See “MATLAB COM

Client Support” in the MATLAB documentation for general information about

ActiveX controls.

See “ActiveX Control” on page 8-32 in this document for an example of

programming the Mwsamp Control.

11-34

Aligning Components

Aligning Components

Use the align

function to align user interface controls and axes. This function enables you to align the components vertically and horizontally. You can also distribute the components evenly, or specify a fixed distance between them.

The most general syntax for the align

function is align(HandleList,'HorizontalAlignment',...

'VerticalAlignment') where

HorizontalAlignment

can be

None

,

Left

,

Center

,

Right

,

Distribute

, or

Fixed

and

VerticalAlignment

can be

None

,

Top

,

Middle

,

Bottom

,

Distribute

, or

Fixed

. All handles in

HandleList

must have the same parent. See the align reference age for information about other syntaxes.

The following code creates three push buttons that are somewhat randomly placed. Each subsequent example starts with these same three push buttons and aligns them in different ways. Components are aligned with reference to their bounding box, shown as a blue dashed line in the figures.

b1 = uicontrol(fh,'Posit',[30 10 60 30],'String','Button 1'); b2 = uicontrol(fh,'Posit',[50 50 60 30],'String','Button 2'); b3 = uicontrol(fh,'Posit',[10 80 60 30],'String','Button 3');

Bounding box

Example 1 – Aligning components horizontally.

The following statement moves the push buttons horizontally to the right of their bounding box. It does not alter their vertical positions. The figure shows the original bounding box.

align([b1 b2 b3],'Right','None');

11-35

11

Laying Out a GUI

11-36

Example 2 – Aligning components horizontally while distributing them vertically.

The following statement moves the push buttons horizontally to the center of their bounding box and adjusts their vertical placement to create a fixed distance of 7 points between the boxes. The push buttons appear in the center of the original bounding box. The bottom push button remains at the bottom of the original bounding box.

align([b1 b2 b3],'Center','Fixed',7);

Example 3 – Aligning components horizontally while distributing them vertically.

The following statement moves the push buttons horizontally to the left of their bounding box and adjusts their vertical placement by distributing them evenly within their bounding box. The push buttons appear at the left of the original bounding box. The bottom and top push button remain at the bottom and top, respectively, of the original bounding box.

align([b1 b2 b3],'Left','Distribute');

Aligning Components

Example 4 – Aligning components vertically while distributing them horizontally.

The following statement moves the push buttons vertically to the bottom of their bounding box and adjusts their horizontal placement to create a fixed distance of 5 points between the boxes. The push buttons appear at the bottom of the original bounding box. align([b1 b2 b3],'Fixed',5,'Bottom');

11-37

11

Laying Out a GUI

11-38

Setting Tab Order

A GUI’s tab order is the order in which components of the GUI acquire focus when a user presses the Tab key on the keyboard. Focus is generally denoted by a border or a dotted border.

This topic discusses;

“How Tabbing Works” on page 11-38

“Default Tab Order” on page 11-38

“Changing the Tab Order” on page 11-40

How Tabbing Works

Tab order is determined separately for the children of each parent. For example, child components of the GUI figure have their own tab order. Child components of each panel or button group also have their own tab order.

If, in tabbing through the components at one level, a user tabs to a panel or button group, then tabbing sequences through the components of the panel or button group before returning to the level from which the panel or button group was reached. For example, if a GUI figure contains a panel that contains three push buttons and the user tabs to the panel, then tabbing sequences through the three push buttons before returning to the figure.

Note Axes and static text components cannot be tabbed.

You cannot determine programmatically which component has focus. However, if the user presses Enter, the space bar, or uses an appropriate keyboard shortcut, then MATLAB executes the associated callback for the component that has focus.

Default Tab Order

The default tab order for each level is the order in which you create the components at that level.

The following code creates a GUI that contains a pop-up menu with a static text label, a panel with three push buttons, and an axes.

Setting Tab Order fh = figure('Position',[200 200 450 270]); pmh = uicontrol(fh,'Style','popupmenu',...

'String',{'peaks','membrane','sinc'},...

'Position',[290 200 130 20]); sth = uicontrol(fh,'Style','text','String','Select Data',...

'Position',[290 230 60 20]); ph = uipanel('Parent',fh,'Units','pixels',...

'Position',[290 30 130 150]); bh1 = uicontrol(ph,'Style','pushbutton',...

'String','Contour','Position',[20 20 80 30]); bh2 = uicontrol(ph,'Style','pushbutton',...

'String','Mesh','Position',[20 60 80 30]); bh3 = uicontrol(ph,'Style','pushbutton',...

'String','Surf','Position',[20 100 80 30]); ah = axes('Parent',fh,'Units','pixels',...

'Position',[40 30 220 220]);

You can obtain the default tab order for a figure, panel, or button group by retrieving its

Children

property. For the example, the statement is ch = get(ph,'Children')

11-39

11

Laying Out a GUI where p h

is the handle of the panel. This statement returns the handles of the children, the three push buttons, annotated here for clarity.

ch =

4.0076

( bh3

, Surf)

3.0076

( bh2

, Mesh)

2.0076

( bh1

, Contour)

The default tab order of the push buttons is the reverse of this order:

Contour

> Mesh > Surf.

In the example GUI figure, the default order is pop-up menu followed by the panel’s Contour, Mesh, and Surf push buttons (in that order) then back to the pop-up menu. You cannot tab to the axes component or the static text component.

Try modifying the code to create the pop-up menu following the creation of the

Contour

push button and before the Mesh push button. Now execute the code to create the GUI and tab through the components. This code change does not alter the default tab order. This is because the pop-up menu does not have the same parent as the push buttons. The figure is the parent of the panel and the pop-up menu.

Changing the Tab Order

Use the uistack

function to change the tab order of components that have the same parent. The most general syntax is uistack(h,stackopt,step) where h

is a vector of handles of the components whose tab order is to be changed. stackopt

represents the direction of the move. It must be one of the strings: up

, down

, top

, or bottom

, and is interpreted relative to the column vector returned by the statement: ch = get(ph,'Children') ch =

4.0076

( bh3

, Surf)

3.0076

( bh2

, Mesh)

2.0076

( bh1

, Contour)

11-40

Setting Tab Order

If the tab order is currently Contour > Mesh > Surf, the statement uistack(bh2,up,1) moves bh2

(Surf) up one place in the vector of children and changes the tab order to Contour > Surf > Mesh. ch = get(ph,'Children') now returns ch =

4.0076

( bh3

, Mesh)

3.0076

( bh2

, Surf)

2.0076

( bh1

, Contour) step

is the number of levels changed. The default is 1.

Note Tab order also affects the stacking order of components. If components overlap, those that appear lower in the child order, are drawn on top of those that appear higher in the order. If the push buttons in the example overlapped, the Contour push button would be on top.

11-41

11

Laying Out a GUI

Creating Menus

This section explains how to add menus to your GUI.

“Adding Menu Bar Menus” on page 11-42

“Adding Context Menus” on page 11-46

Adding Menu Bar Menus

Use the uimenu

function to add a menu bar menu to your GUI. The most general syntax is handle = uimenu(parent,'PropertyName',PropertyValue,...)

See the uimenu

reference page for other valid syntaxes.

These topics discuss use of the MATLAB standard menu bar and describe commonly used menu properties of menus and offer some simple examples.

“Displaying the Standard Menu Bar” on page 11-42

“Commonly Used Properties” on page 11-43

“Menu Bar Menu” on page 11-44

Displaying the Standard Menu Bar

You can choose whether or not to display the MATLAB standard menu bar on your GUI. If you use the standard menu bar, menus you create are added to it.

If you choose not to display the standard menu bar, MATLAB creates a menu bar that contains only the menus that you create.

Standard menu bar

Use the figure

MenuBar

property to display or hide the MATLAB standard menu bar shown in the following figure. Set

MenuBar

to figure

(the default) to display the standard menu bar. Set

MenuBar

to none

to hide it.

set(fh,'MenuBar','figure'); % Display the standard menu bar

11-42

Creating Menus set(fh,'MenuBar','none'); % Hide the standard menu bar

In these statements, fh

is the handle of the figure.

Commonly Used Properties

The most commonly used properties needed to describe a menu bar menu are shown in the following table.

Property

Accelerator

Checked

Enable

Values

Alphabetic character on

, off

.

Default is off

.

Menu check indicator on

, off

.

Default is on

.

Controls whether a menu item can be selected. When set to off

, the menu label appears dimmed.

HandleVisibility on

, off

.

Default is on

.

Description

Keyboard equivalent. Available for menu items that do not have submenus.

Label String

Determines if an object's handle is visible in its parent's list of children.

For menus, set

HandleVisibility

to off

to protect menus from operations not intended for them.

Menu label.

Position Scalar.

Default is

1

.

To display the

&

character in a label, use two

&

characters in the string.

The words remove

, default

, and factory

(case sensitive) are reserved.

To use one of these as a label, prepend a backslash (

\

) to the string. For example,

\remove

yields remove.

Relative menu position

11-43

11

Laying Out a GUI

Property

Separator

Values Description

on

, off

.

Default is off

.

Separator line mode

For a complete list of properties and for more information about the properties listed in the table, see Uimenu Properties in the MATLAB documentation.

Properties needed to control GUI behavior are discussed in Chapter 12,

“Programming the GUI.”

Menu Bar Menu

The following statements create a menu bar menu with two menu items.

mh = uimenu(fh,'Label','My menu'); eh1 = uimenu(mh,'Label','Item 1'); eh2 = uimenu(mh,'Label','Item 2','Checked','on'); fh

is the handle of the parent figure.

mh

is the handle of the parent menu.

The

Label

property specifies the text that appears in the menu.

The

Checked

property specifies that this item is displayed with a check next to it when the menu is created.

If your GUI displays the standard menu bar, the new menu is added to it.

If your GUI does not display the standard menu bar, MATLAB creates a menu bar if none exists and then adds the menu to it.

11-44

Creating Menus

The following statement adds a separator line between the two menu items.

sh = uimenu(mh,'Position',2,'Separator','on');

The

Position

property specifies that the separator line is the second item in the menu, i.e., it appears after Item 1.

The following statements add two menu subitems to Item 1, assigns each subitem a keyboard accelerator, and disables the first subitem.

seh1 = uimenu(eh1,'Label','Choice 1','Accelerator','C',...

'Enable','off'); seh2 = uimenu(eh1,'Label','Choice 2','Accelerator','H');

The

Accelerator

property adds keyboard accelerators to the menu items.

Some accelerators may be used for other purposes on your system and that other actions may result.

11-45

11

Laying Out a GUI

The

Enable

property disables the first subitem Choice 1 so a user cannot select it when the menu is first created. The item appears dimmed.

Note After you have created all menu items, set their

HandleVisibility properties off

by executing the following statements:

menuhandles = findall(figurehandle,'type','uimenu');

set(menuhandles,'HandleVisibility','off')

Adding Context Menus

Context menus appear when the user right-clicks on a figure or a GUI component. Follow these steps to add a context menu to your GUI:

1

Create the context menu object using the uicontextmenu

function.

2

Add menu items to the context menu using the uimenu

function.

3

Associate the context menu with a graphics object using the object’s

UIContextMenu

property.

Subsequent topics describe commonly used context menu properties and explain each of these steps:

“Commonly Used Properties” on page 11-46

“Creating the Context Menu Object” on page 11-47

“Adding Menu Items to the Context Menu” on page 11-48

“Associating the Context Menu with Graphics Objects” on page 11-49

“Forcing Display of the Context Menu” on page 11-51

Commonly Used Properties

The most commonly used properties needed to describe a context menu object are shown in the following table. These properties apply only to the menu object and not to the individual menu items.

11-46

Creating Menus

Property

Parent

Position

Visible

Values

HandleVisibility on

, off

. Default is on

.

Figure handle

Description

Determines if an object's handle is visible in its parent's list of children.

For menus, set

HandleVisibility

to off

to protect menus from operations not intended for them.

Handle of the context menu’s parent figure.

2-element vector:

[distance from left, distance from bottom].

Default is

[0 0]

.

Distances from the bottom left corner of the parent figure to the top left corner of the context menu. This property is used only when the context menu

Visible

property is set on

programmatically.

on is

, off

. Default off

Indicates whether the context menu is currently displayed.

While the context menu is displayed, the property value is on

; when the context menu is not displayed, its value is off

.

Setting to on

forces the posting of the context menu. Setting to off forces the context menu to be removed. The

Position

property determines the location at which the context menu is displayed.

For a complete list of properties and for more information about the properties listed in the table, see Uicontextmenu Properties in the MATLAB documentation. Properties needed to control GUI behavior are discussed in

Chapter 12, “Programming the GUI.”

Creating the Context Menu Object

Use the uicontextmenu

function to create a context menu object. The syntax is

11-47

11

Laying Out a GUI handle = uicontextmenu('PropertyName',PropertyValue,...)

The parent of a context menu must always be a figure. Use the context menu

Parent

property to specify its parent. If you do not specify

Parent

, the parent is the current figure as specified by the root

CurrentFigure

property.

The following code creates a figure and a context menu whose parent is the figure.

fh = figure('Position',[300 300 400 225]); cmenu = uicontextmenu('Parent',fh,'Position',[10 215]);

At this point, the figure is visible, but not the menu.

11-48

Note “Forcing Display of the Context Menu” on page 11-51 explains the use

of the

Position

property.

Adding Menu Items to the Context Menu

Use the uimenu

function to add items to the context menu. The items appear on the menu in the order in which they are added. The following code adds three items to the context menu created above.

mh1 = uimenu(cmenu,'Label','Item 1'); mh2 = uimenu(cmenu,'Label','Item 2');

Creating Menus mh3 = uimenu(cmenu,'Label','Item 3');

If you could see the context menu, it would look like this:

You can use any applicable Uimenu Properties such as

Checked

,

Separator

, and

Accelerator

when you define context menu items. See the uimenu

reference page and “Adding Menu Bar Menus” on page 11-42 for information

about using uimenu

to create menu items.

Note After you have created the context menu and all its items, set their

HandleVisibility

properties off

by executing the following statements:

cmenuhandles = findall(figurehandle,'type','uicontextmenu');

set(cmenuhandles,'HandleVisibility','off')

menuitemhandles = findall(cmenuhandles,'type','uimenu');

set(menuitemhandles,'HandleVisibility','off')

Associating the Context Menu with Graphics Objects

You can associate a context menu with the figure itself and with all components that have a

UIContextMenu

property. This includes axes, panel, button group, all user interface controls (uicontrols).

The following code adds a panel and an axes to the figure. The panel contains a single push button.

ph = uipanel('Parent',fh,'Units','pixels',...

'Position',[20 40 150 150]); bh1 = uicontrol(ph,'String','Button 1',...

'Position',[20 20 60 40]); ah = axes('Parent',fh,'Units','pixels',...

'Position',[220 40 150 150]);

11-49

11

Laying Out a GUI

This code associates the context menu with the figure and with the axes by setting the

UIContextMenu

property of the figure and the axes to the handle cmenu

of the context menu.

set(fh,'UIContextMenu',cmenu); % Figure set(ah,'UIContextMenu',cmenu); % Axes

Right-click on the figure or on the axes. The context menu appears with its upper-left corner at the location you clicked. Right-click on the panel or its push button. The context menu does not appear.

11-50

Creating Menus

Forcing Display of the Context Menu

If you set the context menu

Visible

property on

, the context menu is displayed at the location specified by the

Position

property, without the user taking any action. In this example, the context menu

Position

property is

[10 215]

. set(cmenu,'Visible','on');

The context menu is displayed 10 pixels from the left of the figure and 215 pixels from the bottom.

If you set the context menu

Visible

property off

, or if the user clicks the GUI outside the context menu, the context menu is removed.

11-51

11

Laying Out a GUI

Creating Toolbars

Use the uitoolbar

function to add a custom toolbar to your GUI. Use the uipushtool

and uitoggletool

functions to add push tools and toggle tools to a toolbar. A push tool functions as a push button. A toggle tool functions as a toggle button. You can add push tools and toggle tools to the standard toolbar or to a custom toolbar.

The most general syntaxes for the uitoolbar

, uipushtool

, and uitoggletool functions are handle = uitoolbar(h,'PropertyName',PropertyValue,...) handle = uipushtool(h,'PropertyName',PropertyValue,...) handle = uitoggletool(h,'PropertyName',PropertyValue,...)

See the uitoolbar

, uipushtool

, and uitoggletool

reference pages for other valid syntaxes.

Subsequent topics describe commonly used properties of toolbars and toolbar tools, offer a simple example, and discuss use of the MATLAB standard toolbar,.

“Commonly Used Properties” on page 11-52

“Toolbars” on page 11-53

“Displaying and Modifying the Standard Toolbar” on page 11-55

Commonly Used Properties

The most commonly used properties needed to describe a toolbar and its tools are shown in the following table.

Property

CData

Values

3-D array of values between

0.0 and 1.0

Description

n-by-m-by-3 array of RGB values that defines a truecolor image displayed on either a push button or toggle button.

11-52

Creating Toolbars

Property Values Description

HandleVisibility on

, off

. Default is on

.

Determines if an object's handle is visible in its parent's list of children.

For toolbars and their tools, set

HandleVisibility

to off

to protect them from operations not intended for them.

Separator

State

TooltipString on

, off

. Default is off

.

Draws a dividing line to left of the push tool or toggle tool on

, off

. Default is off

.

Toggle tool state. on

is the down, or pressed, position. off

is the up position.

String Text of the tooltip associated with the push tool or toggle tool.

For a complete list of properties and for more information about the properties listed in the table, see Uitoolbar Properties, Uipushtool Properties, and

Uitoggletool Properties in the MATLAB documentation. Properties needed to

control GUI behavior are discussed in Chapter 12, “Programming the GUI.”

Toolbars

The following statements add a toolbar to a figure, and then adds a push tool and a toggle tool to the toolbar. By default, the tools are added to the toolbar, from left to right, in the order they are created.

% Create the toolbar th = uitoolbar(fh);

% Add a push tool to the toolbar a = [.05:.05:0.95]; img1(:,:,1) = repmat(a,19,1)'; img1(:,:,2) = repmat(a,19,1); img1(:,:,3) = repmat(flipdim(a,2),19,1); pth = uipushtool(th,'CData',img1,...

'TooltipString','My push tool')

11-53

11

Laying Out a GUI

% Add a toggle tool to the toolbar img2 = rand(20,20,3); tth = uitoggletool(th,'CData',img2,'Separator','on',...

'TooltipString','Your toggle tool') fh

is the handle of the parent figure. th

is the handle of the parent toolbar.

CData

is a 20-by-20-by-3 array of values between 0 and 1. It defines the truecolor image that is displayed on the tool. 20-by-20 pixels is the maximum size of an image that can fit on a toolbar tool.

Note Create your own icon with the icon editor described in “Icon Editor” on page 14-27. See

ind2rgb

for information on converting a matrix

X

and corresponding colormap, i.e., an

(X, MAP)

image, to RGB (truecolor) format.

TooltipString

specifies the tooltips for the push tool and the toggle tool as

My push tool

and

Your toggle tool

, respectively.

For the toggle tool, setting

Separator

to on

creates a dividing line to the left of the toggle tool.

You can change the order of the tools by modifying the child vector of the parent toolbar. For this example, execute the following code to reverse the order of the tools.

oldOrder = get(th,'Children'); newOrder = flipud(oldOrder); set(th,'Children',newOrder);

11-54

Creating Toolbars

This code uses flipud

because the

Children

property is a column vector.

Use the delete

function to remove a tool from the toolbar. The following statement removes the toggle tool from the toolbar. The toggle tool handle is tth

.

delete(tth)

If necessary, you can use the findall

function to determine the handles of the tools on a particular toolbar.

Note After you have created a toolbar and its tools, set their

HandleVisibility

properties off

by executing statements similar to the following:

set(toolbarhandle,'HandleVisibility','off')

toolhandles = get(toolbarhandle,'Children');

set(toolhandles,'HandleVisibility','off')

Displaying and Modifying the Standard Toolbar

You can choose whether or not to display the MATLAB standard toolbar on your GUI. You can also add or delete tools from the standard toolbar.

11-55

11

Laying Out a GUI

Standard tool bar

Displaying the Standard Toolbar.

Use the figure

Toolbar

property to display or hide the MATLAB standard toolbar. Set

Toolbar

to figure

to display the standard toolbar. Set

Toolbar

to none

to hide it.

set(fh,'Toolbar','figure'); % Display the standard toolbar set(fh,'Toolbar','none'); % Hide the standard toolbar

In these statements, fh

is the handle of the figure.

The default figure

Toolbar

setting is auto

. This setting displays the figure toolbar, but removes it if you add a user interface control (uicontrol) to the figure.

Modifying the Standard Toolbar.

Once you have the handle of the standard toolbar, you can add tools, delete tools, and change the order of the tools.

Add a tool the same way you would add it to a custom toolbar. The following code retrieves the handle of the MATLAB standard toolbar and adds to the

toolbar a toggle tool similar to the one defined in “Toolbars” on page 11-53.

fh is the handle of the figure.

tbh = findall(fh,'Type','uitoolbar'); tth = uitoggletool(tbh,'CData',rand(20,20,3),...

'Separator','on',...

'HandleVisibility','off');

11-56

Creating Toolbars

New toggle tool

To remove a tool from the standard toolbar, determine the handle of the tool to be removed and then use the delete

function to remove it. The following code deletes the toggle tool that was added to the standard toolbar above.

delete(tth)

If necessary, you can use the findall

function to determine the handles of the tools on the standard toolbar.

11-57

11

Laying Out a GUI

11-58

Designing for Cross-Platform Compatibility

You can create GUIs that behave more consistently when run on different platforms by using

“Default System Font” on page 11-58

“Standard Background Color” on page 11-59

“Cross-Platform Compatible Units” on page 11-60

Default System Font

By default, user interface controls (uicontrols) use the default font for the platform on which they are running. For example, when displaying your GUI on PCs, uicontrols uses MS San Serif. When your GUI runs on a different platform, it uses that computer’s default font. This provides a consistent look with respect to your GUI and other application GUIs on the same platform.

If you have set the

FontName

property to a named font and want to return to the default value, you can set the property to the string default

. This ensures that MATLAB uses the system default at run-time.

You can use the set

command to set this property. For example, if there is a push button with handle pbh1

in your GUI, then the statement set(pbh1,'FontName','default') sets the

FontName

property to use the system default.

Specifying a Fixed-Width Font

If you want to use a fixed-width font for a user interface control, set its

FontName

property to the string fixedwidth

. This special identifier ensures that your GUI uses the standard fixed-width font for the target platform.

You can find the name of the fixed-width font that is used on a given platform by querying the root

FixedWidthFontName

property.

get(0,'FixedWidthFontName')

Using a Specific Font Name

You can specify an actual font name (such as Times or Courier) for the

FontName

property. However, doing so may cause your GUI to not look as you intended when run on a different computer. If the target computer does not

Designing for Cross-Platform Compatibility have the specified font, it substitutes another font that may not look good in your GUI or may not be the standard font used for GUIs on that system. Also, different versions of the same named font may have different size requirements for a given set of characters.

Standard Background Color

MATLAB uses the standard system background color of the system on which the GUI is running as the default component background color. This color varies on different computer systems, e.g., the standard shade of gray on the

PC differs from that on UNIX, and may not match the default GUI background color.

You can make the GUI background color match the default component background color. The following statements retrieve the default component background color and assign it to the figure. defaultBackground = get(0,'defaultUicontrolBackgroundColor'); set(figurehandle,'Color',defaultBackground)

The figure

Color

property specifies the figure’s background color.

The following figures illustrate the results with and without system color matching.

11-59

11

Laying Out a GUI

11-60

Without system color matching With system color matching

Cross-Platform Compatible Units

Cross-platform compatible GUIs should look correct on computers having different screen sizes and resolutions. Since the size of a pixel can vary on different computer displays, using the default figure

Units

of pixels

does not produce a GUI that looks the same on all platforms. Setting the figure and components

Units

properties appropriately can help to determine how well the

GUI can be transported to different platforms.

Units and Resize Behavior

The choice of units is also tied to the GUI’s resize behavior. The figure

Resize and

ResizeFcn

properties control the resize behavior of your GUI.

Resize

determines if you can resize the figure window with the mouse. The on setting means you can resize the window, off

means you cannot. When

Resize is off

, the figure window does not display any resizing controls to indicate that it cannot be resized.

ResizeFcn

enables you to customize the GUI’s resize behavior and is valid only if

Resize

is on

.

ResizeFcn

is the handle of a user-written callback that is executed when a user resizes the GUI. It controls the resizing of all components in the GUI.

Designing for Cross-Platform Compatibility

The following table shows appropriate

Units

settings based on the resize behavior of your GUI. These settings enable your GUI to automatically adjust the size and relative spacing of components as the GUI displays on different computers and when the GUI is resized.

Component

Figure

User interface controls

(uicontrol) such as push buttons, sliders, and edit text components

Axes

Panel

Button group

Default

Units

pixels pixels

Resize = on

ResizeFcn = []

characters normalized

Resize = off

characters characters normalized normalized normalized normalized normalized normalized characters characters characters

Note The default settings shown in the table above are not the same as the

GUIDE default settings. GUIDE default settings depend on the GUIDE

Resize behavior

option and are the same as those shown in the last two columns of the table.

About Some Units Settings

Characters.

Character units are defined by characters from the default system font. The width of a character unit equals the width of the letter x

in the system font. The height of a character unit is the distance between the baselines of two lines of text. Note that character units are not square.

Normalized.

Normalized units represent a percentage of the size of the parent.

The value of normalized units lies between 0 and 1. For example, if a panel contains a push button and the button units setting is normalized

, then the push button

Position

setting [.2 .2 .6 .25] means that the left side of the push

11-61

11

Laying Out a GUI button is 20 percent of the panel width from the left side of the panel; the bottom of the button is 20 percent of the panel height from the bottom of the panel; the button itself is 60 percent of the width of the panel and 25 percent of its height.

Using Familiar Units of Measure.

At times, it may be convenient to use a more familiar unit of measure, e.g., inches or centimeters, when you are laying out the GUI. However, to preserve the look of your GUI on different computers, remember to change the figure

Units

property back to characters

, and the components’

Units

properties to characters

(nonresizable GUIs) or normalized

(resizable GUIs) before you save the M-file.

11-62

12

Programming the GUI

Introduction (p. 12-2)

Initializing the GUI (p. 12-4)

Callbacks: An Overview (p. 12-8)

Examples: Programming GUI

Components (p. 12-14)

Reviews file organization for a typical GUI M-file and provides links to related functions and to information about nested functions.

Explains different tasks that you might perform to initialize the GUI.

Introduces the functions, referred to as callbacks, that you use to program GUI behavior, and tells you how to associate callbacks with components.

Provides a brief example for programming each kind of component.

12

Programming the GUI

Introduction

After you have laid out your GUI, you need to program its behavior. This chapter addresses the programming of GUIs created programmatically.

Specifically, it discusses data creation, GUI initialization, and the use of callbacks to control GUI behavior.

The following ordered list shows these topics within the organization of the typical GUI M-file.

1

Comments displayed in response to the MATLAB help

command.

2

Initialization tasks such as data creation and any processing that is needed

to construct the components. See “Initializing the GUI” on page 12-4 for

information .

3

Construction of figure and components. See Chapter 11, “Laying Out a GUI”

for information.

4

Initialization tasks that require the components to exist, and output return.

See “Initializing the GUI” on page 12-4 for information

.

5

Callbacks for the components. Callbacks are the routines that execute in response to user-generated events such as mouse clicks and key strokes. See

“Callbacks: An Overview” on page 12-8 and “Examples: Programming GUI

Components” on page 12-14 for information.

6

Utility functions.

Discussions in this chapter assume the use of nested functions. For information about using nested functions, see Nested Functions in the MATLAB documentation.

See Functions By Category in the MATLAB documentation for a list of functions that are provided for GUI creation.

12-2

Introduction

Note MATLAB provides a selection of standard dialog boxes that you can create with a single function call. For information about these dialog boxes and the functions used to create them, see “Predefined Dialog Boxes” in the

MATLAB documentation.

12-3

12

Programming the GUI

Initializing the GUI

Many kinds of tasks can be thought of as initialization tasks. This is a sampling of some of them:

Define variables for supporting input and output arguments. See “Declaring

Variables for Input and Output Arguments” on page 12-5.

Define default values for input and output arguments.

Define custom property values used for constructing the components. See

“Defining Custom Property/Value Pairs” on page 12-5.

Process command line input arguments.

Create variables and data to be used by functions that are nested below the initialization section of the M-file. See Nested Functions in the MATLAB documentation.

Define variables for data to be shared between GUIs.

Return user output if it is requested.

Update or initialize components.

Make changes needed to refine the look and feel of the GUI.

Make changes needed for cross-platform compatibility. See “Designing for

Cross-Platform Compatibility” on page 11-58.

Make the GUI invisible while the components are being created and

initialized. See “Making the Figure Invisible” on page 12-6.

Make the GUI visible when you are ready for the user to see it.

Group these tasks together rather than scattering them throughout the code.

If an initialization task is long or complex, consider creating a utility function to do the work.

Typically, some initialization tasks appear in the M-file before the components are constructed. Others appear after the components are constructed.

Initialization tasks that require the components must appear following their construction.

12-4

Initializing the GUI

Examples

These are some initialization examples taken from the examples discussed in

Chapter 14, “Examples of GUIs Created Programmatically.” If MATLAB is

running on your system, you can use these links to see the complete M-files:

Color Palette

Icon Editor

Declaring Variables for Input and Output Arguments

These are typical declarations for input and output arguments. They are taken

from example “Icon Editor” on page 14-27.

mInputArgs = varargin; % Command line arguments when invoking

% the GUI mOutputArgs = {}; % Variable for storing output when GUI

% returns

See the varargin

reference page and the Icon Editor M-file for more information.

Defining Custom Property/Value Pairs

The example “Icon Editor” on page 14-27 defines property value pairs to be

used as input arguments.

The example defines the properties in a cell array, mPropertyDefs

, and then initializes the properties.

mPropertyDefs = {...

'iconwidth', @localValidateInput, 'mIconWidth';

'iconheight', @localValidateInput, 'mIconHeight';

'iconfile', @localValidateInput, 'mIconFile'}; mIconWidth = 16; % Use input property 'iconwidth' to initialize mIconHeight = 16; % Use input property 'iconheight' to initialize mIconFile = fullfile(matlabroot,'toolbox/matlab/icons/');

% Use input property 'iconfile' to initialize

Each row of the cell array defines one property. It specifies, in order, the name of the property, the routine that is called to validate the input, and the name of the variable that holds the property value.

The fullfile

function builds a full filename from parts.

12-5

12

Programming the GUI

The following statements start the Icon Editor. The first one could be used to create a new icon. The second one could be used to edit an existing icon file.

cdata = iconEditor('iconwidth',16,'iconheight',25) cdata = iconEditor('iconfile','eraser.gif'); iconEditor

calls a routine, processUserIputs

, during the initialization to

Identify each property by matching it to the first column of the cell array

Call the routine named in the second column to validate the input

Assign the value to the variable named in the third column

See the complete Icon Editor M-file for more information.

Making the Figure Invisible

When you create the GUI figure, make it invisible so that you can display it for the user only when it is complete. Making it invisible during creation also enhances performance.

To make the GUI invisible, set the figure

Visible

property to off

. This makes the entire figure window invisible. The statement that creates the figure might look like this: hMainFigure = figure(...

'Units','characters',...

'MenuBar','none',...

'Toolbar','none',...

'Position',[71.8 34.7 106 36.15],...

'Visible','off');

Just before returning to the caller, you can make the figure visible with a statement like the following: set(hMainFigure,'Visible','on')

Most components have

Visible

properties. You can also use these properties to make individual components invisible.

Returning Output to the User

If your GUI function provides for an argument to the left of the equal sign, and the user specifies such an argument, then you want to return the expected

12-6

Initializing the GUI output. The code that provides this output usually appears just before the GUI returns.

In the example shown here, taken from the Icon Editor example M-file,

1

A call to uiwait

blocks execution until uiresume

is called or the current figure is deleted.

2

While execution is blocked, the GUI user creates the desired icon.

3

When the user signals completion of the icon by clicking OK, the routine that services the OK push button calls uiresume

and control returns to the statement following the call to uiwait

.

4

The GUI then returns the completed icon to the user as output of the GUI.

% Make the GUI blocking.

uiwait(hMainFigure);

% Return the edited icon CData if it is requested.

mOutputArgs{1} = mIconCData; if nargout>0

[varargout{1:nargout}] = mOutputArgs{:}; end mIconData

contains the icon that the user created or edited. mOutputArgs

is a cell array defined to hold the output arguments. nargout

indicates how many output arguments the user has supplied. varargout

contains the optional output arguments returned by the GUI.

See the complete Icon Editor M-file for more information.

12-7

12

Programming the GUI

12-8

Callbacks: An Overview

The callback functions you provide control how the GUI responds to events such as button clicks, slider movement, menu item selection, or the creation and deletion of components. There is a set of callbacks for each component and for the GUI figure itself.

The callback routines usually appear in the M-file following the initialization

code and the creation of the components. See “File Organization” on page 11-4

for more information.

This topic explains:

“What Is a Callback?” on page 12-8

“Kinds of Callbacks” on page 12-8

“Associating Callbacks with Components” on page 12-11

What Is a Callback?

A callback is a function that you write and associate with a specific component in the GUI or with the GUI figure itself. The callbacks controls GUI or component behavior by performing some action in response to an event for its component. The event can be a mouse click on a push button, menu selection, key press, etc. This kind of programming is often called event-driven programming.

When an event occurs for a component, MATLAB invokes the component’s callback that is associated with that event. As an example, suppose a GUI has a push button that triggers the plotting of some data. When the user clicks the button, MATLAB calls the callback you associated with clicking that button, and then the callback, which you have programmed, gets the data and plots it.

A component can be any control device such as an axes, push button, list box, or slider. For purposes of programming, it can also be a menu, toolbar tool, or

a container such as a panel or button group. See “Available Components” on page 11-10 for a list and descriptions of components.

Kinds of Callbacks

The GUI figure and each type of component has specific kinds of callbacks with which you can associate it. The callbacks that are available for each component are defined as properties of that component. For example, a push button has

Callbacks: An Overview five callback properties:

ButtonDownFcn

,

Callback

,

CreateFcn

,

DeleteFcn

, and

KeyPressFcn

. A panel has four callback properties:

ButtonDownFcn

,

CreateFcn

,

DeleteFcn

, and

ResizeFcn

. You can, but are not required to, create a callback function for each of these properties. The GUI itself, which is a figure, also has certain kinds of callbacks with which it can be associated.

Each kind of callback has a triggering mechanism or event that causes it to be called. The following table lists the callback properties that are available, their triggering events, and the components to which they apply.

Callback Property

ButtonDownFcn

Callback

ClickedCallback

CloseRequestFcn

Triggering Event

Executes when the user presses a mouse button while the pointer is on or within five pixels of a component or figure.

Control action. Executes, for example, when a user clicks a push button or selects a menu item.

Control action. Executes when the push tool or toggle tool is clicked. For the toggle tool, this is independent of its state.

Executes when the figure closes.

Figure

Components

Axes, figure, button group, panel, user interface controls

Context menu, menu user interface controls

Push tool, toggle tool

12-9

12

Programming the GUI

Callback Property

CreateFcn

DeleteFcn

KeyPressFcn

OffCallback

OnCallback

Triggering Event

Initializes the component when it is created. It executes after the component or figure is created, but before it is displayed.

Performs cleanup operations just before the component or figure is destroyed.

Components

Axes, button group, context menu, figure, menu, panel, push tool, toggle tool, toolbar, user interface controls

Axes, button group, context menu, figure, menu, panel, push tool, toggle tool, toolbar, user interface controls

Figure, user interface controls

Executes when the user presses a keyboard key and the callback’s component or figure has focus.

Control action. Executes when the state of a toggle tool is changed to off.

Control action. Executes when the state of a toggle tool is changed to on.

Toggle tool

Toggle tool

12-10

Callbacks: An Overview

Callback Property

ResizeFcn

SelectionChangeFcn

WindowButtonDownFcn

WindowButtonMotionFcn

WindowButtonUpFcn

Triggering Event

Executes when a user resizes a panel, button group, or figure whose figure

Resize property is set to

On

.

Executes when a user selects a different radio button or toggle button in a button group component.

Executes when you press a mouse button while the pointer is in the figure window.

Executes when you move the pointer within the figure window.

Executes when you release a mouse button.

Components

Figure, button group, panel

Button group

Figure

Figure

Figure

Note Check the properties reference page for your component to get specific information for a given kind of callback.

Associating Callbacks with Components

A GUI can have many components and each component’s properties provide a way of specifying which callback should run in response to a particular event for that component. The callback that runs when the user clicks a Yes button is not the one that runs for the No button. Each menu item also performs a different function and needs its own callback.

You associate a callback with a specific component by setting the value of the appropriate component callback property to the callback. This is usually done in the component definition.

12-11

12

Programming the GUI

You can specify a component callback property value as a

• String that is a valid MATLAB expression or the name of an M-file.

• Cell array of strings. This example uses a cell array of strings to specify pushbutton_callback

as the callback routine to be executed when a user clicks Button 1.

pbh = uicontrol(fh,'Style','pushbutton','String','Button 1',...

'Position',[50 20 60 40],...

'Callback',{'pushbutton_callback',width,...});

Callback

is the name of the callback property. The first element of the cell array is the name of the callback routine, subsequent elements are input arguments to the callback. At the time MATLAB executes the callback, the arguments must exist in the workspace from which the GUI is running.

The corresponding function definition would look like this: function pushbutton_callback(width,...)

See Defining Callbacks as a Cell Array of Strings in the MATLAB documentation for more information.

• Function handle or cell array containing a function handle and additional arguments. This example uses a function handle to specify pushbutton_callback

as the callback routine to be executed when a user clicks Button 1.

pbh = uicontrol(fh,'Style','pushbutton','String','Button 1',...

'Position',[50 20 60 40],...

'Callback',{@pushbutton_callback,width,...});

Callback

is the name of the callback property. The first element of the cell array is the handle of the callback routine, subsequent elements are input arguments to the callback. At the time MATLAB executes the callback, the arguments must exist in the workspace from which the GUI is running.

Because the callback is specified as a handle, MATLAB automatically passes two additional arguments, the handle of the component for which the event was triggered and eventdata

, as the first two arguments of the callback. The second element of the cell array, width

in the example above, becomes the third argument of the callback.

The corresponding function definition would contain these two additional arguments:

12-12

Callbacks: An Overview function pushbutton_callback(hObject,eventdata,width,...)

See Function Handle Syntax in the MATLAB documentation for more information.

When an appropriate event occurs, it triggers execution of the MATLAB expression, the script or function contained in the M-file, the specified function, or the function associated with the function handle. The same is true for menus, toolbar tools, and for the figure itself.

See “Kinds of Callbacks” on page 12-8 for a list of the available callbacks for

each component. See the component property pages for information about specific callback properties.

12-13

12

Programming the GUI

Examples: Programming GUI Components

This section provides code examples that illustrate the basic mechanics of programming the various components.

The examples assume the use of nested functions. For information about using nested functions, see Nested Functions in the MATLAB documentation.

“Programming User Interface Controls” on page 12-14

“Programming Panels and Button Groups” on page 12-20

“Programming Axes” on page 12-23

“Programming ActiveX Controls” on page 12-27

“Programming Menu Items” on page 12-27

“Programming Toolbar Tools” on page 12-30

Programming User Interface Controls

These topics provide basic code examples for user interface controls.

The examples assume that callback properties are specified using function handles, enabling MATLAB to pass arguments hObject

, which is the handle of the component for which the event was triggered, and eventdata

. See

“Associating Callbacks with Components” on page 12-11 for more information.

“Check Box” on page 12-15

“Edit Text” on page 12-15

“List Box” on page 12-16

“Pop-Up Menu” on page 12-17

“Push Button” on page 12-18

“Radio Button” on page 12-19

“Slider” on page 12-19

“Toggle Button” on page 12-20

12-14

Examples: Programming GUI Components

Note See “Available Components” on page 11-10 for descriptions of these

components. See “Adding User Interface Controls” on page 11-13 for

information about adding these components to your GUI.

Check Box

You can determine the current state of a check box from within its callback by querying the state of its

Value

property, as illustrated in the following example: function checkbox1_Callback(hObject,eventdata) if (get(hObject,'Value') == get(hObject,'Max'))

% Checkbox is checked-take approriate action else

% Checkbox is not checked-take approriate action end hObject

is the handle of the component for which the event was triggered.

Edit Text

To obtain the string a user types in an edit box, use the

Callback

callback to get the value of the

String

property.

function edittext1_Callback(hObject,eventdata) user_string = get(hObject,'String');

% Proceed with callback

If the edit text

Max

and

Min

properties are set such that

Max - Min > 1

, the user can enter multiple lines. For example, setting

Max

to

2

, with the default value of

0

for

Min

, enables users to enter multiple lines. If you originally specify

String

as a character string, multiline user input is returned as a 2-D character array with each row containing a line. If you originally specify

String

as a cell array, multiline user input is returned as a 2-D cell array of strings.

hObject

is the handle of the component for which the event was triggered.

Retrieving Numeric Data from an Edit Text Component.

MATLAB returns the value of the edit text

String

property as a character string. If you want users to enter

12-15

12

Programming the GUI numeric values, you must convert the characters to numbers. You can do this using the str2double

command, which converts strings to doubles. If the user enters nonnumeric characters, str2double

returns

NaN

.

You can use code similar to the following in the edit text callback. It gets the value of the

String

property and converts it to a double. It then checks whether the converted value is

NaN

( isnan

), indicating the user entered a nonnumeric character and displays an error dialog box ( errordlg

). function edittext1_Callback(hObject,eventdata) user_entry = str2double(get(hObject,'string')); if isnan(user_entry) errordlg('You must enter a numeric value','Bad Input','modal') return end

% Proceed with callback...

Triggering Callback Execution.

If the contents of the edit text component have been changed, clicking inside the GUI but outside the edit text causes the edit text callback to execute. The user can also press Enter for an edit text that allows only a single line of text, or Ctrl+Enter for an edit text that allows multiple lines.

Available Keyboard Accelerators.

GUI users can use the following keyboard accelerators to modify the content of an edit text. These accelerators are not modifiable.

Ctrl+X – Cut

Ctrl+C – Copy

Ctrl+V – Paste

Ctrl+H – Delete last character

Ctrl+A – Select all

List Box

When the list box

Callback

callback is triggered, the list box

Value

property contains the index of the selected item, where

1

corresponds to the first item in the list. The

String

property contains the list as a cell array of strings.

This example retrieves the selected string. Note that it is necessary to convert the value of the

String

property from a cell array to a string.

12-16

Examples: Programming GUI Components function listbox1_Callback(hObject,eventdata) index_selected = get(hObject,'Value'); list = get(hObject,'String'); item_selected = list{index_selected}; % Convert from cell array

% to string hObject

is the handle of the component for which the event was triggered.

Triggering Callback Execution.

MATLAB executes the list box

Callback

callback after the mouse button is released or after certain key press events:

The arrow keys change the

Value

property, trigger callback execution, and set the figure

SelectionType

property to normal

.

The Enter key and space bar do not change the

Value

property but trigger callback execution and set the figure

SelectionType

property to open

.

If the user double-clicks, the callback executes after each click. MATLAB sets the figure

SelectionType

property to normal

on the first click and to open

on the second click. The callback can query the figure

SelectionType

property to determine if it was a single or double click.

List Box Examples.

boxes:

See the following examples for more information on using list

“List Box Directory Reader” on page 10-9 — Shows how to creates a GUI that

displays the contents of directories in a list box and enables users to open a variety of file types by double-clicking the filename.

“Accessing Workspace Variables from a List Box” on page 10-16 — Shows

how to access variables in the MATLAB base workspace from a list box GUI.

Pop-Up Menu

When the pop-up menu

Callback

callback is triggered, the pop-up menu

Value property contains the index of the selected item, where

1

corresponds to the first item on the menu. The

String

property contains the menu items as a cell array of strings.

Using Only the Index of the Selected Menu Item.

This example retrieves only the index of the item selected. It uses a switch statement to take action based on the value. If the contents of the pop-up menu are fixed, then you can use this

12-17

12

Programming the GUI approach. Else, you can use the index to retrieve the actual string for the selected item. function popupmenu1_Callback(hObject,eventdata) val = get(hObject,'Value'); switch val case 1

% User selected the first item case 2

% User selected the second item

% Proceed with callback...

hObject

is the handle of the component for which the event was triggered.

Using the Index to Determine the Selected String.

This example retrieves the actual string selected in the pop-up menu. It uses the pop-up menu

Value

property to index into the list of strings. This approach may be useful if your program dynamically loads the contents of the pop-up menu based on user action and you need to obtain the selected string. Note that it is necessary to convert the value returned by the

String

property from a cell array to a string.

function popupmenu1_Callback(hObject,eventdata) val = get(hObject,'Value'); string_list = get(hObject,'String'); selected_string = string_list{val}; % Convert from cell array

% to string

% Proceed with callback...

hObject

is the handle of the component for which the event was triggered.

Push Button

This example contains only a push button. Clicking the button, closes the GUI.

12-18

Examples: Programming GUI Components

This is the push button’s

Callback

callback. It displays the string

Goodbye

at the command line and then closes the GUI.

function pushbutton1_Callback(hObject,eventdata) display Goodbye delete(figurehandle) hObject

is the handle of the component for which the event was triggered.

Radio Button

You can determine the current state of a radio button from within its

Callback callback by querying the state of its

Value

property, as illustrated in the following example: function radiobutton_Callback(hObject,eventdata) if (get(hObject,'Value') == get(hObject,'Max'))

% Radio button is selected-take approriate action else

% Radio button is not selected-take approriate action end

Radio buttons set

Value

to

Max

when they are on (when selected) and

Min

when off (not selected). hObject

is the handle of the component for which the event was triggered.

Note You can use a button group to manage exclusive selection behavior for

radio buttons. See “Button Group” on page 12-21 for more information.

Slider

You can determine the current value of a slider from within its

Callback callback by querying its

Value

property, as illustrated in the following example: function slider1_Callback(hObject,eventdata) slider_value = get(hObject,'Value');

% Proceed with callback...

12-19

12

Programming the GUI

The

Max

and

Min

properties specify the slider’s maximum and minimum values.

The slider’s range is

Max - Min

. hObject

is the handle of the component for which the event was triggered.

Toggle Button

The callback for a toggle button needs to query the toggle button to determine what state it is in. MATLAB sets the

Value

property equal to the

Max

property when the toggle button is pressed (

Max

is 1 by default) and equal to the

Min property when the toggle button is not pressed (

Min

is 0 by default).

The following code illustrates how to program the callback in the GUI M-file.

function togglebutton1_Callback(hObject,eventdata) button_state = get(hObject,'Value'); if button_state == get(hObject,'Max')

% Toggle button is pressed-take approperiate action

...

elseif button_state == get(hObject,'Min')

% Toggle button is not pressed-take appropriate action

...

end hObject

is the handle of the component for which the event was triggered.

Note You can use a button group to manage exclusive selection behavior for

toggle buttons. See “Button Group” on page 12-21 for more information.

Programming Panels and Button Groups

These topics provide basic code examples for panels and button group callbacks.

The examples assume that callback properties are specified using function handles, enabling MATLAB to pass arguments hObject

, which is the handle of the component for which the event was triggered, and eventdata

. See

“Associating Callbacks with Components” on page 12-11 for more information.

“Panel” on page 12-21

“Button Group” on page 12-21

12-20

Examples: Programming GUI Components

Panel

Panels group GUI components and can make a GUI easier to understand by visually grouping related controls. A panel can contain panels and button groups as well as axes and user interface controls such as push buttons, sliders, pop-up menus, etc. The position of each component within a panel is interpreted relative to the lower-left corner of the panel.

Generally, if the GUI is resized, the panel and its components are also resized.

However, you can control the size and position of the panel and its components.

You can do this by setting the GUI

Resize

property to on

and providing a

ResizeFcn

callback for the panel.

Note See “Cross-Platform Compatible Units” on page 11-60 for information

about the effect of units on resize behavior.

Button Group

Button groups are like panels except that they manage exclusive selection behavior for radio buttons and toggle buttons. If a button group contains a set of radio buttons, toggle buttons, or both, the button group allows only one of them to be selected. When a user clicks a button, that button is selected and all other buttons are deselected.

The following figure shows a button group with two radio buttons and two toggle buttons. Radio Button 1 is selected.

12-21

12

Programming the GUI

If a user clicks the other radio button or one of the toggle buttons, it becomes selected and Radio Button 1 is deselected. The following figure shows the result of clicking Toggle Button 2.

12-22

The button group’s

SelectionChangeFcn

callback is called whenever a selection is made. Its hObject

input argument contains the handle of the selected radio button or toggle button.

If you have a button group that contains a set of radio buttons and toggle buttons and you want:

An immediate action to occur when a radio button or toggle button is selected, you must include the code to control the radio and toggle buttons in the button group’s

SelectionChangeFcn

callback function, not in the individual toggle button

Callback

functions. “Color Palette” on page 14-16

provides a practical example of a

SelectionChangeFcn

callback.

Another component such as a push button to base its action on the selection, then that component’s

Callback

callback can get the handle of the selected radio button or toggle button from the button group’s

SelectedObject property.

This example of a

SelectionChangeFcn

callback uses the

Tag

property of the selected object to choose the appropriate code to execute. The

Tag

property of each components is a string that identifies that component and must be unique in the GUI.

Unlike other callbacks, the hObject

argument of the

SelectionChangeFcn callback contains the handle of the selected radio button or toggle button.

function uibuttongroup1_SelectionChangeFcn(hObject,...

Examples: Programming GUI Components

eventdata,handles) switch get(hObject,'Tag') % Get Tag of selected object

case 'radiobutton1'

% Code for when radiobutton1 is selected.

case 'radiobutton2'

% Code for when radiobutton2 is selected.

case 'togglebutton1'

% Code for when togglebutton1 is selected.

case 'togglebutton2'

% Code for when togglebutton2 is selected.

% Continue with more cases as necessary.

otherwise

% Code for when there is no match.

end

See the uibuttongroup

reference page and “Color Palette” on page 14-16 for

other examples.

Programming Axes

Axes components enable your GUI to display graphics, such as graphs and images. This topic provides two examples:

“Plotting to a GUI with a Single Axes” on page 12-23

“Plotting to a GUI with Multiple Axes” on page 12-24

Plotting to a GUI with a Single Axes

If a GUI contains only one axes, MATLAB automatically generates the plot in that axes.

In most cases, you create a plot in an axes from a callback that belongs to some other component in the GUI. For example, pressing a button might trigger the plotting of a graph to an axes. In this case, the button’s

Callback

callback contains the code that generates the plot.

This example plots a graph in an axes when a button is pressed. The following code generates a push button and an axes. The figure shows them before a plot is displayed in the axes.

fh = figure; bh = uicontrol(fh,'posit',[20 100 60 30],'String','Plot',...

12-23

12

Programming the GUI

'Callback','button_callback'); ah = axes('Parent',fh,'units','pixels','Posit',[120 30 170 170]);

1

Use the surf

function in the push button’s

Callback

callback to produce a

3-D shaded surface plot. peaks

returns a square matrix obtained by translating and scaling Gaussian distributions.

function button_callback(hObject,eventdata) surf(peaks(35)); end

2

Click the Plot button. The plot displays in the axes.

12-24

Plotting to a GUI with Multiple Axes

If a GUI has multiple axes, you should explicitly specify which axes you want to target. Most plot functions let you specify the handle of the target axes. If a function does not provide such an argument, you can make the axes you want to target the current axes by using the axes

function.

Examples: Programming GUI Components

The following example contains two axes and two push buttons. Clicking the first button generates a contour

plot in one axes and clicking the other button generates a surf

plot in the other axes. The example generates data for the plots using the peaks

function, which returns a square matrix obtained by translating and scaling Gaussian distributions.

1

Save this code in an M-file named two_axes.m

.

function two_axes fh = figure; bh1 = uicontrol(fh,'Position',[20 290 60 30],...

'String','Plot 1',...

'Callback',@button1_plot); bh2 = uicontrol(fh,'Position',[20 100 60 30],...

'String','Plot 2',...

'Callback',@button2_plot); ah1 = axes('Parent',fh,'units','pixels',...

'Position',[120 220 170 170]); ah2 = axes('Parent',fh,'units','pixels',...

'Position',[120 30 170 170]);

%------------------------------------------------

function button1_plot(hObject,eventdata)

contour(ah1,peaks(35));

end

%------------------------------------------------

function button2_plot(hObject,eventdata)

surf(ah2,peaks(35));

end end

2

Run the GUI by typing two_axes

at the command line. This is what the example looks like before you click the push buttons.

12-25

12

Programming the GUI

3

Click the Plot 1 button to display the contour plot in the first axes. Click the

Plot 2

button to display the surf plot in the second axes.

12-26

Examples: Programming GUI Components

See “GUI with Multiple Axes” on page 10-2 for a more complex example that

uses two axes.

If your GUI contains axes, you should ensure that their

HandleVisibility properties are set to callback

. This allows callbacks to change the contents of the axes and prevents command line operations from doing so. The default is on

.

Note See “Axes Properties” in the MATLAB documentation for information about properties that you can set to control many aspects of axes behavior and appearance.

Programming ActiveX Controls

For information about programming ActiveX controls, see the following topics in the MATLAB documentation.

“Control and Server Events”

“Writing Event Handlers”

See “MATLAB COM Client Support” in the MATLAB documentation for general information.

Compiling a GUI That Contains an ActiveX Control

If you use the MATLAB Compiler mcc

command to compile a GUI that contains an ActiveX control, you must use the

-a

flag to add the ActiveX file, which

GUIDE saves in the current directory, to the CTF archive. Your command should be similar to mcc -m mygui -a mygui_activex1 where mygui_activex1

is the name of the ActiveX file. See the MATLAB

Compiler documentation for more information. If you have more than one such file, use a separate

-a

flag for each file. You must have installed the MATLAB

Compiler to compile a GUI.

Programming Menu Items

“Programming a Menu Title” on page 12-28

12-27

12

Programming the GUI

“Opening a Dialog Box from a Menu Callback” on page 12-29

“Updating a Menu Item Check” on page 12-29

Programming a Menu Title

Because clicking a menu title automatically displays the menu below it, you may not need to program callbacks at the title level. However, the callback associated with a menu title can be a good place to enable or disable menu items below it.

Consider the example illustrated in the following picture.

12-28

When a user selects the to file option under the Edit menu’s Copy option, no

Copy

callback is needed to perform the action. Only the

Callback

associated with the to file item is required.

Suppose, however, that only certain objects can be copied to a file. You can use the Copy item

Callback

callback to enable or disable the to file item, depending on the type of object selected.

The following code disables the to file item by setting its

Enable

property off

.

The menu item would then appear dimmed.

set(tofilehandle,'Enable','off')

Setting

Enable

to on

, would then enable the menu item.

Examples: Programming GUI Components

Opening a Dialog Box from a Menu Callback

The

Callback

callback for the to file menu item could contain code such as the following to display the standard dialog box for saving files.

[file,path] = uiputfile('animinit.m','Save file name');

'Save file name'

is the dialog box title. In the dialog box, the filename field is set to animinit.m

, and the filter set to M-files (

*.m

). For more information, see the uiputfile

reference page.

Note MATLAB provides a selection of standard dialog boxes that you can create with a single function call. For information about these dialog boxes and the functions used to create them, see “Predefined Dialog Boxes” in the

MATLAB documentation.

Updating a Menu Item Check

A check is useful to indicate the current state of some menu items. If you set the

Checked

property to on

when you created the menu item, the item initially appears checked. Each time the user selects the menu item, the callback for that item must turn the check on or off. The following example shows you how to do this by changing the value of the menu item’s

Checked

property.

function menu_copyfile(hObject,eventdata) if strcmp(get(hObject,'Checked'),'on')

set(hObject,'Checked','off'); else

set(hObject,'Checked','on'); end hObject

is the handle of the component for which the event was triggered. Its use here assumes the menu item’s

Callback

property specifies the callback as

a function handle. See “Associating Callbacks with Components” on page 12-11

for more information.

The strcmp

function compares two strings and returns logical

1

(true) if the two are identical and logical

0

(false) otherwise.

Use of checks when the GUI is first displayed should be consistent with the display. For example, if your GUI has an axes that is visible when a user first

12-29

12

Programming the GUI opens it and the GUI has a Show axes menu item, be sure to set the menu item’s

Checked

property on

when you create it so that a check appears next to the Show axes menu item initially.

Programming Toolbar Tools

“Push Tool” on page 12-30

“Toggle Tool” on page 12-32

Push Tool

The push tool

ClickedCallback

property specifies the push tool control action.

The following example creates a push tool and programs it to open a standard color selection dialog box. You can use the dialog box to set the background color of the GUI.

1

Copy the following code into an M-file and save it in your current directory or on your path as color_gui.m

. Run the script by typing color_gui

at the command line.

function color_gui fh = figure('Position',[250 250 250 150],'Toolbar','none'); th = uitoolbar('Parent',fh); pth = uipushtool('Parent',th,'Cdata',rand(20,20,3),...

'ClickedCallback',@color_callback);

%-------------------------------------------------------

function color_callback(hObject,eventdata)

color = uisetcolor(fh,'Pick a color');

end end

2

Click the push tool to display the color selection dialog box.

12-30

Examples: Programming GUI Components

3

Click OK on the color selection dialog box. The GUI background color changes to the color you selected – in this case, green.

Note Create your own icon with the icon editor described in “Icon Editor” on page 14-27. See

ind2rgb

for information on converting a matrix

X

and corresponding colormap, i.e., an

(X, MAP)

image, to RGB (truecolor) format.

12-31

12

Programming the GUI

Toggle Tool

The toggle tool

OnCallback

and

OffCallback

properties specify the toggle tool control actions that occur when the toggle tool is clicked and its

State

property changes to on

or off

. The toggle tool

ClickedCallback

property specifies a control action that takes place whenever the toggle tool is clicked, regardless of state.

The following example uses a toggle tool to toggle a plot between surface and mesh views of the peaks

data. The example also counts the number of times you have clicked the toggle tool.

The surf

function produces a 3-D shaded surface plot. The mesh

function creates a wireframe parametric surface. peaks

returns a square matrix obtained by translating and scaling Gaussian distributions

1

Copy the following code into an M-file and save it in your current directory or on your path as toggle_plots.m

. Run the script by typing toggle_plots at the command line.

function toggle_plots counter = 0; fh = figure(

'Position',[250 250 300 340],'Toolbar','none'); ah = axes('Parent',fh,'Units','pixels',...

'Position',[35 85 230 230]); th = uitoolbar('Parent',fh); tth = uitoggletool('Parent',th,'Cdata',rand(20,20,3),...

'OnCallback',@surf_callback,...

'OffCallback',@mesh_callback,...

'ClickedCallback',@counter_callback); sth = uicontrol('Style','text','String','Counter: ',...

'Position',[35 20 45 20]); cth = uicontrol('Style','text','String',num2str(counter),...

'Position',[85 20 30 20]);

%-------------------------------------------------------

function counter_callback(hObject,eventdata)

counter = counter + 1;

set(cth,'String',num2str(counter))

end

%-------------------------------------------------------

function surf_callback(hObject,eventdata)

surf(ah,peaks(35));

12-32

Examples: Programming GUI Components

end

%-------------------------------------------------------

function mesh_callback(hObject,eventdata)

mesh(ah,peaks(35));

end end

2

Click the toggle tool to display the initial plot. The counter increments to 1.

12-33

12

Programming the GUI

3

Continue clicking the toggle tool to toggle between surf and mesh plots of the peaks

data.

12-34

Managing

Application-Defined Data

13

Mechanisms for Managing Data

(p. 13-2)

Sharing Data Among a GUI’s

Callbacks (p. 13-8)

Describes various mechanisms for managing application-defined data. Explains how GUIDE uses one of these mechanisms, GUI data.

Shows how each mechanism for managing data can be used to share data among a GUI’s callbacks.

13

Managing Application-Defined Data

13-2

Mechanisms for Managing Data

Most GUIs generate or use data that is specific to the application. This topic describes mechanisms for managing application-defined data in the GUI environment. These mechanisms provide a way for applications to save and retrieve data stored with the GUI.

“Nested Functions” on page 13-2

“GUI Data” on page 13-2

“Application Data” on page 13-4

“UserData Property” on page 13-6

The GUI data and application data mechanisms are similar but GUI data can be simpler to use. The figure and component

UserData

properties can also hold application-defined data.

Nested Functions

Use nested function to create your GUI M-files.

1

Construct components, define variables, and generate data in the initialization segment of your code.

2

Nest the GUI callbacks and utility functions at a level below the initialization.

The callbacks and utility functions automatically have access to the data and the component handles because they are defined at a higher level.

Note For information about using nested functions, see Nested Functions in the MATLAB documentation.

GUI Data

GUI data is managed using the guidata

function. This function can store a single variable as GUI data. It is also used to retrieve the value of that variable.

“About GUI Data” on page 13-3

Mechanisms for Managing Data

“Creating and Updating GUI Data” on page 13-3

“Adding Fields to a GUI Data Structure” on page 13-4

Note If your M-file was originally created by GUIDE, see “Changing GUI

Data in an M-File Generated by GUIDE” on page 9-4

About GUI Data

GUI data is always associated with the GUI figure. It is available to all callbacks of all components of the GUI. If you specify a component handle when you save or retrieve GUI data, MATLAB automatically associates the data with the component’s parent figure.

GUI data can contain only one variable at any time. Writing GUI data with a different variable overwrites the existing GUI data. For this reason, GUI data is usually defined to be a structure to which you can add fields as you need them.

You can access the data from within a callback routine using the component’s handle, without having to find the figure handle. If you specify a component callback properties as function handles, the component handle is automatically passed to each callback as hObject

. See “Associating Callbacks with

Components” on page 12-11 for more information.

Because there can be only one GUI data variable and it is associated with the figure, you do not need to create and maintain a hard-coded name for the data throughout your source code.

Creating and Updating GUI Data

1

Create a structure and add to it the fields you want. For example, mydata.iteration_counter = 0; mydata.number_errors = 0;

2

Save the structure as GUI data. MATLAB associates GUI data with the figure, but you can use the handle of any component in the figure to retrieve or save it.

guidata(figurehandle,mydata);

13-3

13

Managing Application-Defined Data

3

To change GUI data from a callback, get a copy of the structure, update the desired field, then save the GUI data.

mydata = guidata(hObject); % Get the GUI data.

mydata.iteration_counter = mydata.iteration_counter +1; guidata(hObject,mydata); % Save the GUI data.

Note To use hObject

, you must specify a component’s callback properties as function handles. When you do, the component handle is automatically passed to each callback as hObject

. See “Associating Callbacks with Components” on page 12-11 for more information.

Adding Fields to a GUI Data Structure

To add a field to a GUI data structure:

1

Get a copy of the structure with a command similar to the following where hObject

is the handle of the component for which the callback was triggered.

mydata = guidata(hObject)

2

Assign a value to the new field. This adds the field to the structure. For example, mydata.iteration_state = 0; adds the field iteration_state

to the structure mydata

and sets it to

0

.

3

Use the following command to save the data.

guidata(hObject,mydata) where hObject

is the handle of the component for which the callback was triggered. MATLAB associates a new copy of the mydata

structure with the component’s parent figure.

Application Data

Application data provides a way for applications to save and retrieve data associated with a specified object. For a GUI, this is usually the GUI figure but can also be any component. The data is stored as name/value pairs. Application

13-4

Mechanisms for Managing Data data enables you to create what are essentially user-defined properties for an object.

The following table summarizes the functions that provide access to application data. For more detailed information, see the individual function reference pages.

Functions for Managing Application Data

Function Purpose

setappdata Specify named application data for an object. The object does not have to be a figure. You can specify more than one named application data for an object. However, each name must be unique for that object and can be associated with only one value, usually a structure.

getappdata Retrieve named application data. To retrieve named application data, you must know the name associated with the application data and the handle of the object with which it is associated.

isappdata rmappdata

True if the named application data exists.

Remove the named application data.

Creating Application Data

Use the setappdata

function to create application data. This example generates a 35-by-35 matrix of normally distributed random numbers and creates application data mydata

, associated with the figure, to manage it. matrices.rand_35 = randn(35); setappdata(figurehandle,'mydata',matrices);

By using nested functions and creating the figure at the top level, the figure handle is accessible to all callbacks and utility functions nested at lower levels.

For information about using nested functions, see Nested Functions in the

MATLAB documentation.

13-5

13

Managing Application-Defined Data

Adding Fields to an Application Data Structure

Application data is usually defined as a structure to enable you to add fields as necessary. This example adds a field to the application data structure mydata created in the previous topic.

1

Use getappdata

to retrieve the structure.

From the example in the previous topic, the name of the application data structure is mydata

. It is associated with the figure. matrices = getappdata(figurehandle,'mydata');

2

Create a new field and assign it a value. For example matrices.randn_50 = randn(50); adds the field randn_50

to the matrices

structure and sets it to a 50-by-50 matrix of normally distributed random numbers.

3

Use setappdata

to save the data. This example uses setappdata

to save the matrices

structure as the application data structure mydata

.

setappdata(figurehandle,'mydata',matrices);

UserData Property

Each GUI component and the figure itself has a

UserData

property. You can assign any valid MATLAB value to a

UserData

property. To retrieve the data, a callback must know the handle of the component with which the data is associated.

1

In this example, an edit text component stores the user-entered string in its

UserData

property.

function edittext1_callback(hObject,eventdata) mystring = get(hObject,'String'); set(hObject,'UserData',mystring);

2

A push button retrieves the string from the edit text component

UserData property. The callback uses the handles

structure and the edit text

Tag property, edittext1

, to specify the edit text handle.

function pushbutton1_callback(hObject,eventdata) string = get(edittexthandle,'UserData');

13-6

Mechanisms for Managing Data

Specify

UserData

as a structure if you want to store multiple fields.

Note By using nested functions and creating the figure and the components at the top level, their handles are accessible to all callbacks and utility functions nested at lower levels. For information about using nested functions, see Nested Functions in the MATLAB documentation.

To use hObject

, you must specify a component’s callback properties as function handles. When you do, the component handle is automatically passed to each callback as hObject

. See “Associating Callbacks with Components” on page 12-11 for more information.

13-7

13

Managing Application-Defined Data

Sharing Data Among a GUI’s Callbacks

You can use GUI data, application data, and the

UserData

property to share data among a GUI’s callbacks. In many cases nested functions enables you to share data among callbacks without using the other data forms. This topic uses the same example for each approach to show you how:

“Nested Functions” on page 13-8

“GUI Data” on page 13-11

“Application Data” on page 13-14

“UserData Property” on page 13-16

See “Mechanisms for Managing Data” on page 13-2 for general information

about these methods.

Nested Functions

Nested Functions Example: Passing Data Between Components

This example uses a GUI that contains a slider and an edit text component as shown in the following figure. A static text component instructs the user to enter a value in the edit text or click the slider. The example initializes and maintains an error counter in a nested functions environment.

13-8

The GUI behavior is as follows:

Sharing Data Among a GUI’s Callbacks

When a user moves the slider, the edit text component displays the slider’s current value.

When a user types a value into the edit text component and then presses

Enter

or clicks outside the component, the slider updates to this value.

If a user enters a value in the edit text component that is out of range for the slider — that is, a value that is not between the slider’s

Min

and

Max properties — the application returns a message in the edit text indicating how many times the user has entered an erroneous value.

The following code constructs the components, initializes the error counter, and uses two callbacks to implement the interchange between the slider and the edit text component. Copy this code into an M-file and save it in your current directory or on your path as slider_gui.m

. Run the script by typing slider_gui

at the command line.

function slider_gui fh = figure('Position',[250 250 350 350]); sh = uicontrol(fh,'Style','slider',...

'Max',100,'Min',0,'Value',25,...

'SliderStep',[0.05 0.2],...

'Position',[300 25 20 300],...

'Callback',@slider_callback); eth = uicontrol(fh,'Style','edit',...

'String',num2str(get(sh,'Value')),...

'Position',[30 175 240 20],...

'Callback',@edittext_callback); sth = uicontrol(fh,'Style','text',...

'String','Enter a value or click the slider.',...

'Position',[30 215 240 20]); number_errors = 0;

% ----------------------------------------------------

% Set the value of the edit text component String property

% to the value of the slider.

function slider_callback(hObject,eventdata)

13-9

13

Managing Application-Defined Data

set(eth,'String',...

num2str(get(hObject,'Value')));

end

% ----------------------------------------------------

% Set the slider value to the number the user types in

% the edit text or display an error message.

function edittext_callback(hObject,eventdata)

val = str2double(get(hObject,'String'));

% Determine whether val is a number between the

% slider's Min and Max. If it is, set the slider Value.

if isnumeric(val) && length(val) == 1 && ...

val >= get(sh,'Min') && ...

val <= get(sh,'Max')

set(sh,'Value',val);

else

% Increment the error count, and display it.

number_errors = number_errors+1;

set(hObject,'String',...

['You have entered an invalid entry ',...

num2str(number_errors),' times.']);

end

end end

Because the components are constructed at the top level, their handles are immediately available to the callbacks that are nested at a lower level of the routine. The same is true of the error counter, number_errors

. There is no need to pass these variables as arguments.

Both callbacks use the input argument hObject

to get and set properties of the component that triggered execution of the callback. This argument is available to the callbacks because the components’

Callback

properties are specified as

function handles. See “Associating Callbacks with Components” on page 12-11

for more information.

Slider Callback.

The slider callback, slider_callback

, uses the edit text component handle, eth

, to set the edit text

'String'

property to the value the user typed.

13-10

Sharing Data Among a GUI’s Callbacks

The following statement in the slider

Callback

updates the value displayed in the edit text component when a user moves the slider and releases the mouse button. set(eth,'String',num2str(get(hObject,'Value')));

The code combines three commands:

The get

command obtains the current value of the slider.

The num2str

command converts the value to a string.

The set

command sets the

String

property of the edit text component to the updated value.

Edit Text Callback.

The edit text callback, edittext_callback

, uses the slider handle, sh

, to determine the slider’s

Max

and

Min

properties and to set the slider

Value

property, which determine’s the position of the slider thumb.

The edit text

Callback

uses the following code to set the slider’s value to the number the user types in, after checking to see if it is a single numeric value between the slider. if isnumeric(val) && length(val) == 1 && ...

val >= get(sh,'Min') && ...

val <= get(sh,'Max')

set(sh,'Value',val);

If the value is out of range, the if

statement continues by incrementing the error counter, number_errors

, and displaying a message telling the user how many times they have entered an invalid number. else

number_errors = number_errors+1;

set(hObject,'String',...

['You have entered an invalid entry ',...

num2str(number_errors),' times.']); end

GUI Data

GUI data, which you manage with the guidata

function, is accessible to all callbacks of the GUI. A callback for one component can set a value in GUI data,

13-11

13

Managing Application-Defined Data

which can then be read by a callback for another component. See “GUI Data” on page 13-2 for more information about GUI data.

GUI Data Example: Passing Data Between Components

The previous topic, “Nested Functions Example: Passing Data Between

Components” on page 13-8, uses nested function capabilities to initialize and

maintain an error counter. This example shows you how to do the same thing using GUI data. Refer to the previous topic for details of the example.

The following code is the same as in the previous topic but uses GUI data to initialize and increment the error counter. function slider_gui fh = figure('Position',[250 250 350 350]); sh = uicontrol(fh,'Style','slider',...

'Max',100,'Min',0,'Value',25,...

'SliderStep',[0.05 0.2],...

'Position',[300 25 20 300],...

'Callback',@slider_callback); eth = uicontrol(fh,'Style','edit',...

'String',num2str(get(sh,'Value')),...

'Position',[30 175 240 20],...

'Callback',@edittext_callback); sth = uicontrol(fh,'Style','text',...

'String','Enter a value or click the slider.',...

'Position',[30 215 240 20]); data.number_errors = 0; guidata(fh,data);

% ----------------------------------------------------

% Set the value of the edit text component String property

% to the value of the slider.

function slider_callback(hObject,eventdata)

set(eth,'String',...

num2str(get(hObject,'Value')));

end

% ----------------------------------------------------

% Set the slider value to the number the user types in

% the edit text or display an error message.

function edittext_callback(hObject,eventdata)

val = str2double(get(hObject,'String'));

13-12

Sharing Data Among a GUI’s Callbacks

% Determine whether val is a number between the

% slider's Min and Max. If it is, set the slider Value.

if isnumeric(val) && length(val) == 1 && ...

val >= get(sh,'Min') && ...

val <= get(sh,'Max')

set(sh,'Value',val);

else

% Increment the error count, and display it.

data.number_errors = data.number_errors+1;

guidata(fh,data); % Save the changes as GUI data.

set(hObject,'String',...

['You have entered an invalid entry ',...

num2str(data.number_errors),' times.']);

end

end end

Error Counter.

In this example, the following code creates the error counter as a field in a structure, data

. It then uses the guidata

function to store this structure as GUI data. data.number_errors = 0; guidata(fh,data);

GUI data is always associated with the figure. However, you can use any component handle to access the data.

Edit Text Callback.

The edit text callback, edittext_callback

, uses the slider handle, sh

, to determine the slider’s

Max

and

Min

properties and to set the slider

Value

property, which determine’s the position of the slider thumb. If the value is out of range, the if

statement increments the error counter, data.number_errors

, and displays a message telling the user how many times they have entered an invalid number. It must use the guidata

function to save the structure with the updated error counter.

data.number_errors = data.number_errors+1; guidata(fh,data); % Save the changes.

set(hObject,'String',...

['You have entered an invalid entry ',...

num2str(data.number_errors),' times.']);

13-13

13

Managing Application-Defined Data

Application Data

Application data can be associated with any object — a component, menu, or the figure itself. To access application data, a callback must know the name of the data and the handle of the component with which it is associated. Use the functions setappdata

, getappdata

, isappdata

, and rmappdata

to manage application data.

See “Application Data” on page 13-4 for more information about application

data.

Application Data Example: Passing Data Between Components

The earlier topic, “Nested Functions Example: Passing Data Between

Components” on page 13-8, uses nested function capabilities to initialize and

maintain an error counter. This example shows you how to do the same thing using application data. Refer to the earlier topic for details of the example.

The following code is the same as in the earlier topic but uses application data to initialize and increment the error counter. function slider_gui fh = figure('Position',[250 250 350 350]); sh = uicontrol(fh,'Style','slider',...

'Max',100,'Min',0,'Value',25,...

'SliderStep',[0.05 0.2],...

'Position',[300 25 20 300],...

'Callback',@slider_callback); eth = uicontrol(fh,'Style','edit',...

'String',num2str(get(sh,'Value')),...

'Position',[30 175 240 20],...

'Callback',@edittext_callback); sth = uicontrol(fh,'Style','text',...

'String','Enter a value or click the slider.',...

'Position',[30 215 240 20]); slider_data.number_errors = 0; setappdata(fh,'slider',slider_data);

% ----------------------------------------------------

% Set the value of the edit text component String property

% to the value of the slider.

function slider_callback(hObject,eventdata)

set(eth,'String',...

13-14

Sharing Data Among a GUI’s Callbacks

num2str(get(hObject,'Value')));

end

% ----------------------------------------------------

% Set the slider value to the number the user types in

% the edit text or display an error message.

function edittext_callback(hObject,eventdata)

val = str2double(get(hObject,'String'));

% Determine whether val is a number between the

% slider's Min and Max. If it is, set the slider Value.

if isnumeric(val) && length(val) == 1 && ...

val >= get(sh,'Min') && ...

val <= get(sh,'Max')

set(sh,'Value',val);

else

% Increment the error count, and display it.

slider_data = getappdata(fh,'slider');

slider_data.number_errors = slider_data.number_errors+1;

% Save the changes.

setappdata(fh,'slider',slider_data);

set(hObject,'String',...

['You have entered an invalid entry ',...

num2str(number_errors),' times.']);

end

end end

Error Counter.

In this example, the following code creates the error counter as a field in a structure, slider_data

. It then uses the setappdata

function to store this structure as named application data slider

. slider_data.number_errors = 0; setappdata(hObject,'slider',slider_data);

Application data can be associated with the figure or with any component. You must know the object with which it is associated to access it.

Edit Text Callback.

The edit text callback, edittext_callback

, uses the slider handle, sh

, to determine the slider’s

Max

and

Min

properties and to set the slider

Value

property, which determine’s the position of the slider thumb. If the value is out of range, the if

statement increments the error counter, slider_data.number_errors

, and displays a message telling the user how

13-15

13

Managing Application-Defined Data many times they have entered an invalid number. It must use the getappdata function to retrieve the data and the setappdata

function to store the structure with the updated error counter.

% Get the application data.

slider_data = getappdata(fh,'slider'); slider_data.number_errors = slider_data.number_errors+1;

% Save the changes.

setappdata(fh,'slider',slider_data); set(hObject,'String',...

['You have entered an invalid entry ',...

num2str(number_errors),' times.']);

Because the application data slider

is associated with the figure when it is created, this code must use the figure handle, fh

, to access it.

UserData Property

Every GUI component, and the figure itself, has a

UserData

property that you can use to store application-defined data. To access

UserData

, a callback must know the handle of the component with which a specific

UserData

property is associated.

Use the get

function to retrieve

UserData

, and the set

function to set it.

UserData Property Example: Passing Data Between Components

The previous topic, “Nested Functions Example: Passing Data Between

Components” on page 13-8, uses nested function capabilities to initialize and

maintain an error counter. This example shows you how to do the same thing using the edit text component’s

UserData

property to store the error count.

Refer to the earlier example for example details.

The following code is the same as in the earlier topic but uses the

UserData property to initialize and increment the error counter. function slider_gui fh = figure('Position',[250 250 350 350]); sh = uicontrol(fh,'Style','slider',...

'Max',100,'Min',0,'Value',25,...

'SliderStep',[0.05 0.2],...

'Position',[300 25 20 300],...

'Callback',@slider_callback);

13-16

Sharing Data Among a GUI’s Callbacks eth = uicontrol(fh,'Style','edit',...

'String',num2str(get(sh,'Value')),...

'Position',[30 175 240 20],...

'Callback',@edittext_callback); sth = uicontrol(fh,'Style','text',...

'String','Enter a value or click the slider.',...

'Position',[30 215 240 20]); data.number_errors = 0; set(eth,'UserData',data)

% ----------------------------------------------------

% Set the value of the edit text component String property

% to the value of the slider.

function slider_callback(hObject,eventdata)

set(eth,'String',...

num2str(get(hObject,'Value')));

end

% ----------------------------------------------------

% Set the slider value to the number the user types in

% the edit text or display an error message.

function edittext_callback(hObject,eventdata)

val = str2double(get(hObject,'String'));

% Determine whether val is a number between the

% slider's Min and Max. If it is, set the slider Value.

if isnumeric(val) && length(val) == 1 && ...

val >= get(sh,'Min') && ...

val <= get(sh,'Max')

set(sh,'Value',val);

else

% Increment the error count, and display it.

data = get(hObject,'UserData');

data.number_errors = data.number_errors+1;

set(hObject,'UserData',data); % Save the changes.

set(hObject,'String',...

['You have entered an invalid entry ',...

num2str(number_errors),' times.']);

end

end end

13-17

13

Managing Application-Defined Data

Error Counter.

In this example, the following code creates the error counter as a field in a structure, data

. It then stores the structure in the edit text component’s

UserData

. data.number_errors = 0; set(eth,'UserData',data);

To access

UserData

, a callback must know the handle of the object with which it is associated. This code initializes the data in a structure to allow for other data that may be needed.

Edit Text Callback.

The edit text callback, edittext_callback

, uses the slider handle, sh

, to determine the slider’s

Max

and

Min

properties and to set the slider

Value

property, which determine’s the position of the slider thumb. If the value is out of range, the if

statement increments the error counter, data.number_errors

, and displays a message telling the user how many times they have entered an invalid number.

To update the number or errors, the code must first retrieve the value of the edit text

UserData

property, then increment the count. It then saves the updated data in the

UserData

property.

data = get(hObject,'UserData'); % Get UserData.

data.number_errors = data.number_errors+1; set(hObject,'UserData',data); % Save the changes.

set(hObject,'String',...

['You have entered an invalid entry ',...

num2str(number_errors),' times.']);

Because, in this example,

UserData

is associated with the edit text component, the edittext_callback

, which is also associated with the edit text component, can use hObject

as the handle to access it. hObject

is the handle of the edit text

component. See “Associating Callbacks with Components” on page 12-11 for

more information about hObject

.

13-18

Examples of GUIs Created

Programmatically

14

Introduction (p. 14-2)

GUI with Axes, Menu, and Toolbar

(p. 14-3)

Creates a GUI that displays a user-selected plot in an axes.

Color Palette (p. 14-16)

Introduces the examples and lists the programming techniques they illustrate.

Icon Editor (p. 14-27)

Creates a color palette that can be embedded in a host GUI.

The color palette enables a user to select colors.

Creates an icon editor that enables a user to create and edit icons. It embeds the color palette from the previous example.

14

Examples of GUIs Created Programmatically

Introduction

This chapter provides three examples that illustrate the application of certain techniques in programmatically created GUIs.

“GUI with Axes, Menu, and Toolbar” on page 14-3

“Color Palette” on page 14-16

“Icon Editor” on page 14-27

Each example lists the techniques it illustrates. These techniques include:

Creation of a dialog that does not return until the user makes a choice

Passing input arguments to the GUI when it is opened

Obtaining output from the GUI when it returns

Shielding the GUI from accidental changes

Running the GUI across multiple platforms

Making a GUI modal

Sharing data among multiple GUIs

Creating menus and context menus

Creating toolbars

Using an external utility function

Achieving proper resize behavior

The examples all use nested functions. For information about using nested functions, see Nested Functions in the MATLAB documentation.

14-2

GUI with Axes, Menu, and Toolbar

GUI with Axes, Menu, and Toolbar

The initial topics introduce the example and the techniques it illustrates:

“The Example” on page 14-3

“Techniques Used in the Example” on page 14-5

“View the Completed GUI M-Files” on page 14-5

The remaining topics describe the example in the sequence in which the main

M-file is organized:

1

“Creating the Data” on page 14-5

2

“Creating the GUI and Its Components” on page 14-6

3

“Initializing the GUI” on page 14-11

4

“Defining the Callbacks” on page 14-11

5

“Helper Function: Plotting the Plot Types” on page 14-15

The Example

This example creates a GUI that displays a user-selected plot in an axes. The

GUI contains the following components:

Axes

Pop-up menu with a list of five plots

Push button for updating the contents of the axes

Menu bar File menu with three items: Open, Print, and Close

Toolbar with two buttons that enable a user to open files and print the plot.

When you run the GUI, it initially displays a plot of five random numbers generated by the MATLAB rand(5)

command, as shown in the following figure.

14-3

14

Examples of GUIs Created Programmatically

14-4

You can select other plots in the pop-up menu. Clicking the Update button displays the currently selected plot on the axes.

The GUI File menu has three items:

• Open displays a dialog from which you can open files on your computer.

• Print opens the Print dialog. Clicking Yes in the Print dialog prints the plot.

• Close closes the GUI.

The GUI toolbar has two buttons:

The Open button

performs the same function as the Open menu item. It displays a dialog from which you can open files on your computer.

The Print button

performs the same function as the Print menu item. It opens the Print dialog. Clicking Yes in the Print dialog prints the plot.

GUI with Axes, Menu, and Toolbar

Techniques Used in the Example

This example illustrates the following techniques:

Passing input arguments to the GUI when it is opened

Obtaining output from the GUI when it returns

Shielding the GUI from accidental changes

Running the GUI across multiple platforms

Creating menus

Creating toolbars

Achieving proper resize behavior

Note This example uses nested functions. For information about using nested functions, see Nested Functions in the MATLAB documentation.

View the Completed GUI M-Files

If you are reading this in the MATLAB Help browser, you can click the following links to display the MATLAB Editor with complete listings of the code used in this example.

Note The following links execute MATLAB commands and are designed to work within the MATLAB Help browser. If you are reading this online or in

PDF, you should go to the corresponding section in the MATLAB Help

Browser to use the links.

Click here to display the main GUI M-file in the MATLAB Editor.

Click here to display the utility iconRead

M-file in the MATLAB Editor.

Creating the Data

The example defines two variables mOutputArgs

and mPlotTypes

.

mOutputArgs

is a cell array that holds output values should the user request them. It later assigns a default value to this argument.

14-5

14

Examples of GUIs Created Programmatically mOutputArgs = {}; % Variable for storing output when GUI returns mPlotTypes

is a 5-by-2 cell array that holds the data to be plotted in the axes.

The first column contains the strings that are used to populate the pop-up menu. The second column contains the functions, as anonymous function handles, that create the plots.

mPlotTypes = {... % Example plot types shown by this GUI

'plot(rand(5))', @(a)plot(a,rand(5));

'plot(sin(1:0.01:25))', @(a)plot(a,sin(1:0.01:25));

'bar(1:.5:10)', @(a)bar(a,1:.5:10);

'plot(membrane)', @(a)plot(a,membrane);

'surf(peaks)', @(a)surf(a,peaks)};

Because the data is created at the top level of the GUI function, it is available to all callbacks and other functions in the GUI.

See Anonymous Functions in the MATLAB documentation for information about using anonymous functions.

Creating the GUI and Its Components

Like the data, the components are created at the top level so that their handles are available to all callbacks and other functions in the GUI.

“The Main Figure” on page 14-6

“The Axes” on page 14-7

“The Pop-Up Menu” on page 14-8

“The Update Push Button” on page 14-8

“The File Menu and Its Menu Items” on page 14-9

“The Toolbar and Its Tools” on page 14-10

The Main Figure

The following statement creates the figure for GUI. hMainFigure = figure(... % The main GUI figure

'MenuBar','none', ...

'Toolbar','none', ...

'HandleVisibility','callback', ...

'Color', get(0,...

'defaultuicontrolbackgroundcolor'));

14-6

GUI with Axes, Menu, and Toolbar

The figure

function creates the GUI figure.

Setting the

MenuBar

and

Toolbar

properties to none

, prevents the standard menu bar and toolbar from displaying.

Setting the

HandleVisibility

property to callback

ensures that the figure can be accessed only from within a GUI callback, and cannot be drawn into or deleted from the command line.

The

Color

property defines the background color of the figure. In this case, it is set to be the same as the default background color of uicontrol

objects, such as the Update push button. The factory default background color of uicontrol

objects is the system default and can vary from system to system.

This statement ensures that the figure’s background color matches the background color of the components.

See the Figure Properties reference page for information about figure properties and their default values.

The Axes

The following statement creates the axes. hPlotAxes = axes(... % Axes for plotting the selected plot

'Parent', hMainFigure, ...

'Units', 'normalized', ...

'HandleVisibility','callback', ...

'Position',[0.11 0.13 0.80 0.67]);

The axes

function creates the axes. Setting the axes

Parent

property to hMainFigure

makes it a child of the main figure.

Setting the

Units

property to normalized

ensures that the axes resizes proportionately when the GUI is resized.

The

Position

property is a 4-element vector that specifies the location of the axes within the figure and its size: [distance from left, distance from bottom, height, width]. Because the units are normalized, all values are between 0 and 1.

14-7

14

Examples of GUIs Created Programmatically

Note If you specify the

Units

property, then the

Position

property, and any other properties that depend on the value of the

Units

property, should follow the

Units

property specification.

See the Axes Properties reference page for information about axes properties and their default values.

The Pop-Up Menu

The following statement creates the pop-up menu.

hPlotsPopupmenu = uicontrol(... % List of available types of plot

'Parent', hMainFigure, ...

'Units','normalized',...

'Position',[0.11 0.85 0.45 0.1],...

'HandleVisibility','callback', ...

'String',mPlotTypes(:,1),...

'Style','popupmenu');

The uicontrol

function creates various user interface controls based on the value of the

Style

property. Here the

Style

property is set to popupmenu

.

For a pop-up menu, the

String

property defines the list of items in the menu.

Here it is defined as a 5-by-1 cell array of strings derived from the cell array mPlotTypes

.

See the Uicontrol Properties reference page for information about properties of uicontrol

objects and their default values.

The Update Push Button

This statement creates the Update push button as a uicontrol object.

hUpdateButton = uicontrol(... % Button for updating selected plot

'Parent', hMainFigure, ...

'Units','normalized',...

'HandleVisibility','callback', ...

'Position',[0.6 0.85 0.3 0.1],...

'String','Update',...

'Callback', @hUpdateButtonCallback);

14-8

GUI with Axes, Menu, and Toolbar

The uicontrol

function creates various user interface controls based on the value of the

Style

property. This statement does not set the

Style

property because its default is pushbutton

.

For a push button, the

String

property defines the label on the button. Here it is defined as the string

Update

.

Setting the

Callback

property to

@hUpdateButtonCallback

defines the name of the callback function that services the push button. That is, clicking the push button triggers the execution of the named callback. This callback function is defined later in the script.

See the Uicontrol Properties reference page for information about properties of uicontrol

objects and their default values.

The File Menu and Its Menu Items

These statements define the File menu and the three items it contains.

hFileMenu = uimenu(... % File menu

'Parent',hMainFigure,...

'HandleVisibility','callback', ...

'Label','File'); hOpenMenuitem = uimenu(... % Open menu item

'Parent',hFileMenu,...

'Label','Open',...

'HandleVisibility','callback', ...

'Callback', @hOpenMenuitemCallback); hPrintMenuitem = uimenu(... % Print menu item

'Parent',hFileMenu,...

'Label','Print',...

'HandleVisibility','callback', ...

'Callback', @hPrintMenuitemCallback); hCloseMenuitem = uimenu(... % Close menu item

'Parent',hFileMenu,...

'Label','Close',...

'Separator','on',...

'HandleVisibility','callback', ...

'Callback', @hCloseMenuitemCallback');

The uimenu

function creates both the main menu, File, and the items it contains. For the main menu and each of its items, set the

Parent

property to the handle of the desired parent to create the menu hierarchy you want.

14-9

14

Examples of GUIs Created Programmatically

Here, setting the

Parent

property of the File menu to hMainFigure

makes it the child of the main figure. This statement creates a menu bar in the figure and puts the File menu on it.

For each of the menu items, setting its

Parent

property to the handle of the parent menu, hFileMenu

, causes it to appear on the File menu.

For the main menu and each item on it, the

Label

property defines the strings that appear in the menu.

Setting the

Separator

property to on

for the Close menu item causes a separator line to be drawn above this item.

For each of the menu items, the

Callback

property specifies the callback that services that item. In this example, no callback services the File menu itself.

These callbacks are defined later in the script.

See the Uicontrol Properties reference page for information about properties of uicontrol

objects and their default values.

The Toolbar and Its Tools

These statements define the toolbar and the two buttons it contains.

hToolbar = uitoolbar(... % Toolbar for Open and Print buttons

'Parent',hMainFigure, ...

'HandleVisibility','callback'); hOpenPushtool = uipushtool(... % Open toolbar button

'Parent',hToolbar,...

'TooltipString','Open File',...

'CData',iconRead(fullfile(matlabroot,...

'toolbox\matlab\icons\opendoc.mat')),...

'HandleVisibility','callback', ...

'ClickedCallback', @hOpenMenuitemCallback); hPrintPushtool = uipushtool(... % Print toolbar button

'Parent',hToolbar,...

'TooltipString','Print Figure',...

'CData',iconRead(fullfile(matlabroot,...

'toolbox\matlab\icons\printdoc.mat')),...

'HandleVisibility','callback', ...

'ClickedCallback', @hPrintMenuitemCallback);

The uitoolbar

function creates the toolbar on the main figure.

The uipushtool

function creates the two push buttons on the toolbar.

14-10

GUI with Axes, Menu, and Toolbar

The uipushtool

TooltipString

property assigns a tool tip that displays when the GUI user moves the mouse pointer over the button and leaves it there.

The

CData

property specifies a truecolor image that displays on the button.

For these two buttons, the utility iconRead function supplies the image. If you are reading this in the MATLAB Help browser, click here to display this utility M-file in the MATLAB Editor.

For each of the uipushtools, the

ClickedCallback

property specifies the callback that executes when the GUI user clicks the button. Note that the

Open push button and the Print push button use the same callbacks as their counterpart menu items.

See “Creating Toolbars” on page 11-52 for more information.

Initializing the GUI

These statements create the plot that appears in the GUI when it first displays, and, if the user provides an output argument when running the GUI, define the output that is returned to the user .

% Update the plot with the initial plot type localUpdatePlot();

% Define default output and return it if it is requested by users mOutputArgs{1} = hMainFigure; if nargout>0

[varargout{1:nargout}] = mOutputArgs{:}; end

The localUpdatePlot

function plots the selected plot type in the axes. For a pop-up menu, the uicontrol

Value

property specifies the index of the selected menu item in the

String

property. Since the default value is 1, the initial selection is

'plot(rand(5))'.

The localUpdatePlot

function is a helper function that is defined later in the script, at the same level as the callbacks.

The default output is the handle of the main figure.

Defining the Callbacks

This topic defines the callbacks that service the components of the GUI.

Because the callback definitions are at a lower level than the component

14-11

14

Examples of GUIs Created Programmatically definitions and the data created for the GUI, they have access to all data and component handles.

Although the GUI has six components that are serviced by callbacks, there are only four callback functions. This is because the Open menu item and the Open toolbar button share the same callbacks. Similarly, the Print menu item and the Print toolbar button share the same callbacks.

“Update Button Callback” on page 14-12

“Open Menu Item Callback” on page 14-13

“Print Menu Item Callback” on page 14-13

“Close Menu Item Callback” on page 14-14

Note These are the callbacks that were specified in the component

definitions, “Creating the GUI and Its Components” on page 14-6.

Update Button Callback

The hUpdateButtonCallback

function services the Update push button.

Clicking the Update button triggers the execution of this callback function.

function hUpdateButtonCallback(hObject, eventdata)

% Callback function run when the Update button is pressed

localUpdatePlot();

end

The localUpdatePlot

function is a helper function that plots the selected plot

type in the axes. It is defined later in the script, “Helper Function: Plotting the

Plot Types” on page 14-15.

Note MATLAB automatically passes hUpdateButtonCallback

two arguments, hObject

and eventdata

, because the Update push button component

Callback

property,

@hUpdateButtonCallback

, is defined as a function handle. hObject

contains the handle of the component that triggered execution of the callback. eventdata

is reserved for future use. The function definition line for your callback must account for these two arguments.

14-12

GUI with Axes, Menu, and Toolbar

Open Menu Item Callback

The hOpenMenuitemCallback

function services the Open menu item and the

Open toolbar button . Selecting the menu item or clicking the toolbar button triggers the execution of this callback function. function hOpenMenuitemCallback(hObject, eventdata)

% Callback function run when the Open menu item is selected

file = uigetfile('*.m');

if ~isequal(file, 0)

open(file);

end end

The hOpenMenuitemCallback

function first calls the uigetfile

function to open the standard dialog box for retrieving files. This dialog box lists all

M-files. If uigetfile

returns a filename, the function then calls the open function to open it.

Print Menu Item Callback

The hPrintMenuitemCallback

function services the Print menu item and the

Print toolbar button . Selecting the menu item or clicking the toolbar button triggers the execution of this callback function. function hPrintMenuitemCallback(hObject, eventdata)

% Callback function run when the Print menu item is selected

printdlg(hMainFigure); end

14-13

14

Examples of GUIs Created Programmatically

The hPrintMenuitemCallback

function calls the printdlg

function. This function opens the standard dialog box for printing the current figure.

14-14

Close Menu Item Callback

The hCloseMenuitemCallback

function services the Close menu item. It executes when the GUI user selects Close from the File menu.

function hCloseMenuitemCallback(hObject, eventdata)

% Callback function run when the Close menu item is selected

selection = ...

questdlg(['Close ' get(hMainFigure,'Name') '?'],...

['Close ' get(hMainFigure,'Name') '...'],...

'Yes','No','Yes');

if strcmp(selection,'No')

return;

end

delete(hMainFigure); end

The hCloseMenuitemCallback

function calls the questdlg

function to create and open the question dialog box shown in the following figure.

GUI with Axes, Menu, and Toolbar

If the user clicks the No button, the callback returns. If the user clicks the Yes button, the callback deletes the GUI.

See “Helper Function: Plotting the Plot Types” on page 14-15 for a description

of the localUpdatePlot

function.

Helper Function: Plotting the Plot Types

The example defines the localUpdatePlot

function at the same level as the callback functions. Because of this, localUpdatePlot

has access to the same data and component handles.

function localUpdatePlot

% Helper function for plotting the selected plot type

mPlotTypes{get(hPlotsPopupmenu, 'Value'), 2}(hPlotAxes); end

The localUpdatePlot

function uses the pop-up menu

Value

property to identify the selected menu item from the first column of the mPlotTypes

5-by-2 cell array, then calls the corresponding anonymous function from column two of the cell array to create the plot in the axes.

14-15

14

Examples of GUIs Created Programmatically

Color Palette

The color palette example includes these topics:

“The Example” on page 14-16

“Techniques Used in the Example” on page 14-19

“View the Completed GUI M-File” on page 14-19

“Subfunction Summary” on page 14-20

“M-File Structure” on page 14-21

“GUI Programming Techniques” on page 14-22

The Example

This example creates a GUI, colorPalette, that enables a user to select a color from a color palette or display the standard color selection dialog box. Another

example, “Icon Editor” on page 14-27, embeds the colorPalette, as the child of

a panel, in a GUI you can use to design an icon.

The colorPalette

function populates a GUI figure or panel with a color palette. The figure below shows the palette as the child of a figure.

14-16

Color Palette

The Components

The colorPalette includes the following components:

An array of color cells defined as toggle buttons

An Eraser toggle button

A button group that contains the array of color cells and the eraser button.

The button group provides exclusive management of these toggle buttons.

A More Colors push button

A preview of the selected color, below the color cells, defined as a text component

Text components to specify the red, blue, and green color values

Using the Color Palette

These are the basic steps for using the color palette.

1

Clicking a color cell:

14-17

14

Examples of GUIs Created Programmatically

- Displays the selected color in the preview area.

- The red, green, and blue values for the newly selected color are displayed in the R, G, and B fields to the right of the preview area.

- Causes colorPalette

to return a function handle that the host GUI can use to get the currently selected color.

2

Clicking the Eraser button, causes colorPalette to return a value,

NaN

, that the host GUI can use to remove color from a data point.

3

Clicking the More Colors button displays the standard dialog box for setting a color.

14-18

Calling the colorPalette Function

You can call the colorPalette

function with a statement such as mGetColorFcn = colorPalette('Parent',hPaletteContainer)

Color Palette

The colorPalette

function accepts property value pairs as input arguments.

Only the custom property

Parent

is supported. This property specifies the handle of the parent figure or panel that contains the color palette. If the call to colorPalette

does not specify a parent, it uses the current figure, gcf

.

Unrecognized property names or invalid values are ignored.

colorPalette

returns a function handle that the host GUI can call to get the currently selected color. The host GUI can use the returned function handle at any time before the color palette is destroyed. For more information, see

“Sharing Data Between Two GUIs” on page 14-24 for implementation details.

“Icon Editor” on page 14-27 is an example of a host GUI that uses the

colorPalette.

Techniques Used in the Example

This example illustrates the following techniques:

Retrieving output from the GUI when it returns.

Supporting custom input property/value pairs with data validation.

Sharing data between two GUIs

See “Icon Editor” on page 14-27 for examples of these and other programming

techniques.

Note This example uses nested functions. For information about using nested functions, see Nested Functions in the MATLAB documentation.

View the Completed GUI M-File

If you are reading this in the MATLAB Help browser, you can click the following link to display the MATLAB Editor with a complete listing of the code that is discussed in the following sections.

14-19

14

Examples of GUIs Created Programmatically

Note The following link executes MATLAB commands and is designed to work within the MATLAB Help browser. If you are reading this online or in

PDF, you should go to the corresponding section in the MATLAB Help

Browser to use the links.

Click here to display the main GUI M-file in the MATLAB Editor.

Subfunction Summary

The color palette example includes the callbacks listed in the following table.

Function

colorCellCallback eraserToolCallback hMoreColorButtonCallback

Description

Called by hPalettePanelSelectionChanged

when any color cell is clicked.

Called by hPalettePanelSelectionChanged

when the Eraser button is clicked.

Executes when the More Colors button is clicked. It calls uisetcolor

to open the standard color-selection dialog box, and calls localUpdateColor

to update the preview.

hPalettePanelSelectionChanged Executes when the GUI user clicks on a new color. This is the

SectionChangeFcn callback of the uibuttongroup

that exclusively manages the tools and color cells that it contains. It calls the appropriate callback to service each of the tools and color cells.

14-20

Color Palette

Note Three eventdata

fields are defined for use with button groups

( uibuttongroup

). These fields enable you to determine the previous and current radio or toggle button selections maintained by the button group. See

SelectionChangeFcn

in the Uibuttongroup Properties for more information.

The example also includes the helper functions listed in the following table.

Function

layoutComponent localUpdateColor getSelectedColor localDefineLayout localDefineTools localDefineColors processUserInputs localValidateInput

Description

Dynamically creates the Eraser tool and the color cells in the palette. It calls localDefineLayout

.

Updates the preview of the selected color.

Returns the currently selected color which is then returned to the colorPalette

caller.

Calculates the preferred color cell and tool sizes for the GUI. It calls localDefineColors

and localDefineTools

Defines the tools shown in the palette. In this example, the only tool is the Eraser button.

Defines the colors that are shown in the array of color cells.

Determines if the property in a property/value pair is supported. It calls localValidateInput

.

Validates the value in a property/value pair.

M-File Structure

The colorPalette is programmed using nested functions. Its M-file is organized in the following sequence:

1

Comments displayed in response to the help

command.

14-21

14

Examples of GUIs Created Programmatically

2

Data creation. Because the example uses nested functions, defining this data at the top level makes the data accessible to all functions without having to pass them as arguments.

3

Command line input processing.

4

GUI figure and component creation.

5

GUI initialization.

6

Return output if it is requested.

7

Callback definitions. These callbacks, which service the GUI components, are subfunctions of the colorPalette

function and so have access to the data and component handles created at the top level, without their having to be passed as arguments.

8

Helper function definitions. These helper functions are subfunctions of the colorPalette

function and so have access to the data and component handles created at the top level, without their having to be passed as arguments.

Note For information about using nested functions, see Nested Functions in the MATLAB documentation.

GUI Programming Techniques

This topic explains the following GUI programming techniques as they are used in the creation of the colorPalette.

“Passing Input Arguments to a GUI” on page 14-23

“Passing Output to a Caller on Returning” on page 14-24

“Sharing Data Between Two GUIs” on page 14-24

See “Icon Editor” on page 14-27 for additional examples of these and other

programming techniques.

14-22

Color Palette

Passing Input Arguments to a GUI

Inputs to the GUI are custom property/value pairs. colorPalette

allows one such property:

Parent

. The names are caseinsensitive. The colorPalette syntax is mGetColorFcn = colorPalette('Parent',hPaletteContainer)

Definition and Initialization of the Properties.

The colorPalette

function first defines a variable mInputArgs

as varargin

to accept the user input arguments.

mInputArgs = varargin; % Command line arguments when invoking

% the GUI

The colorPalette

function then defines the valid custom properties in a 3-by-3 cell array. mPropertyDefs = {... % The supported custom property/value

% pairs of this GUI

'parent', @localValidateInput, 'mPaletteParent';

The first column contains the property name.

The second column contains a function handle for the function, localValidateInput

, that validates the input property values.

The third column is the local variable that holds the value of the property.

colorPalette

then initializes the properties with default values. mPaletteParent = []; % Use input property 'parent' to initialize

Processing the Input Arguments.

The processUserInputs

helper function processes the input property/value pairs. colorPalette

calls processUserInputs

before it creates the components, to determine the parent of the components.

% Process the command line input arguments supplied when

% the GUI is invoked processUserInputs();

1

processUserInputs

sequences through the inputs, if any, and tries to match each property name to a string in the first column of the mPropertyDefs

cell array.

14-23

14

Examples of GUIs Created Programmatically

2

If it finds a match, processUserInputs

assigns the value that was input for the property to its variable in the third column of the mPropertyDefs

cell array.

3

processUserInputs

then calls the helper function specified in the second column of the mPropertyDefs

cell array to validate the value that was passed in for the property.

Passing Output to a Caller on Returning

If a host GUI calls the colorPalette

function with an output argument, it returns a function handle that the host GUI can call to get the currently selected color.

The host GUI calls colorPalette

only once. The call creates the color palette in the specified parent and then returns the function handle. The host GUI can call the returned function at any time before the color palette is destroyed.

The data definition section of the colorPalette

M-file creates a cell array to hold the output: mOutputArgs = {}; % Variable for storing output when GUI returns

Just before returning, colorPalette

assigns the function handle, mgetSelectedColor

, to the cell array mOutputArgs

and then assigns mOutputArgs

to varargout

to return the arguments.

mOutputArgs{} = @getSelectedColor; if nargout>0

[varargout{1:nargout}] = mOutputArgs{:}; end

Sharing Data Between Two GUIs

The iconEditor embeds a GUI, the colorPalette, to enable the user to select colors for the icon cells. The colorPalette returns a function handle the iconEditor. The iconEditor can then call the returned function at any time to get the selected color.

The colorPalette GUI.

The colorPalette

function defines a cell array, mOutputArgs

, to hold its output arguments. mOutputArgs = {}; % Variable for storing output when GUI returns

14-24

Color Palette

Just before returning, colorPalette

assigns mOutputArgs

the function handle for its getSelectedColor

helper function and then assigns mOutputArgs

to varargout

to return the arguments.

% Return user defined output if it is requested mOutputArgs{1} [email protected]; if nargout>0

[varargout{1:nargout}] = mOutputArgs{:}; end

The iconEditor executes the colorPalette’s getSeclectedColor

function whenever it invokes the function that colorPalette returns to it. function color = getSelectedColor

% function returns the currently selected color in this

% colorPlatte

color = mSelectedColor;

The iconEditor GUI.

The iconEditor

function calls colorPalette specifies its parent to be a panel in the iconEditor.

only once and

% Host the ColorPalette in the PaletteContainer and keep the

% function handle for getting its selected color for editing

% icon.

mGetColorFcn = colorPalette('parent', hPaletteContainer);

This call creates the colorPalette as a component of the iconEditor and then returns a function handle that iconEditor

can call to get the currently selected color.

The iconEditor’s localEditColor

helper function calls mGetColorFcn

, the function returned by colorPalette

, to execute the colorPalette’s getSelectedColor

function.

function localEditColor

% helper function that changes the color of an icon data

% point to that of the currently selected color in

% colorPalette

if mIsEditingIcon

pt = get(hIconEditAxes,'currentpoint');

x = ceil(pt(1,1));

y = ceil(pt(1,2));

color = mGetColorFcn();

14-25

14

Examples of GUIs Created Programmatically

% update color of the selected block

mIconCData(y, x,:) = color;

localUpdateIconPlot();

end end

14-26

Icon Editor

Icon Editor

The icon editor example includes these topics:

“The Example” on page 14-27

“Techniques Used in the Example” on page 14-29

“View the Completed GUI M-Files” on page 14-29

“Subfunction Summary” on page 14-30

“M-File Structure” on page 14-31

“GUI Programming Techniques” on page 14-32

The Example

This example creates a GUI that enables the user to create or edit an icon. The figure below shows the editor.

14-27

14

Examples of GUIs Created Programmatically

The Components

The GUI includes the following components:

A edit text that instructs the user or contains the name of the file to be edited. The edit text is labeled using a static text.

A push button to the right of the edit text enables the user to select an existing icon file for editing.

A panel containing an axes. The axes displays a 16-by-16 grid for drawing an icon.

A panel containing a button that shows a preview of the icon as it is being created.

A color palette that is created in a separate script and embedded in this GUI.

See “Color Palette” on page 14-16.

A panel, configured as a line, that separates the icon editor from the OK and

Cancel

buttons.

An OK push button that causes the GUI to return the icon as an m-by-n-by-3 array and closes the GUI.

A Cancel push button that closes the GUI without returning the icon.

Using the Icon Editor

These are the basic steps to create an icon:

1

Start the icon editor with a command such as myicon = iconEditor('iconwidth',32,'iconheight',56); where the iconwidth

and iconheight

properties specify the icon size in pixels.

2

Color the squares in the grid.

- Click a color cell in the palette. That color is then displayed in the palette preview.

- Click in specific squares of the grid to transfer the selected color to those squares.

- Hold down the left mouse button and drag the mouse over the grid to transfer the selected color to the squares that you touch.

- Change a color by writing over it with another color.

14-28

Icon Editor

3

Erase the color in some squares.

- Click the Eraser button on the palette

- Click in specific squares to erase those squares

- Click and drag the mouse to erase the squares that you touch.

- Click a color cell to disable the Eraser.

4

Click OK to close the GUI and return, in myicon

, the icon you created – as a

32-by-65-by-3 array. Click Cancel to close the GUI and return an empty array

[]

in myicon

.

Techniques Used in the Example

This example illustrates the following GUI programming techniques:

Creating a GUI that does not return a value until the user makes a choice.

Retrieving output from the GUI when it returns.

Supporting custom input property/value pairs with data validation.

Protecting a GUI from being changed from the command line.

Creating a GUI that runs on multiple platforms

Sharing data between two GUIs

Achieving the proper resize behavior

Note This example uses nested functions. For information about using nested functions, see Nested Functions in the MATLAB documentation.

View the Completed GUI M-Files

If you are reading this in the MATLAB Help browser, you can click the following links to display the MATLAB Editor with a complete listing of the code that is discussed in the following sections.

14-29

14

Examples of GUIs Created Programmatically

Note The following links execute MATLAB commands and are designed to work within the MATLAB Help browser. If you are reading this online or in

PDF, you should go to the corresponding section in the MATLAB Help

Browser to use the links.

Click here to display the main GUI M-file in the MATLAB Editor.

Click here to display the utility iconRead

M-file in the MATLAB Editor.

Subfunction Summary

The icon editor example includes the callbacks listed in the following table.

Function

hMainFigureWindowButtonDownFcn

Description

Executes when the user clicks a mouse button anywhere in the GUI figure. It calls localEditColor

.

hMainFigureWindowButtonUpFcn hMainFigureWindowButtonMotionFcn Executes when the user drags the mouse anywhere in the figure with a button pressed. It calls localEditColor

.

hIconFileEditCallback

Executes when the user releases the mouse button.

hIconFileEditButtondownFcn

Executes after the user manually changes the filename of the icon to be edited. It calls localUpdateIconPlot

.

Executes the first time the user clicks the Icon file edit box.

hOKButtonCallback Executes when the user clicks the Ok push button.

14-30

Icon Editor

Function

hCancelButtonCallback hIconFileButtonCallback

Description

Executes when the user clicks the

Cancel

push button.

Executes when the user clicks the

Icon file

push button . It calls localUpdateIconPlot

.

The example also includes the helper functions listed in the following table.

Function

localEditColor

Description

Changes the color of an icon data point to the currently selected color. Call the function mGetColorFcn

returned by the colorPalette function. It also calls localUpdateIconPlot

.

localUpdateIconPlot Updates the icon preview. It also updates the axes when an icon is read from a file.

processUserInputs localValidateInput prepareLayout

Determines if the property in a property/value pair is supported. It calls localValidateInput

.

Validates the value in a property/value pair.

Makes changes needed for look and feel and for running on multiple platforms.

M-File Structure

The iconEditor is programmed using nested functions. Its M-file is organized in the following sequence:

1

Comments displayed in response to the help

command.

2

Data creation. Because the example uses nested functions, defining this data at the top level makes the data accessible to all functions without having to pass them as arguments.

14-31

14

Examples of GUIs Created Programmatically

3

GUI figure and component creation.

4

Command line input processing.

5

GUI initialization.

6

Block execution of the program until the GUI user clicks OK or Cancel.

7

Return output if requested.

8

Callback definitions. These callbacks, which service the GUI components, are subfunctions of the iconEditor

function and so have access to the data and component handles created at the top level, without their having to be passed as arguments.

9

Helper function definitions. These helper functions are subfunctions of the iconEditor

function and so have access to the data and component handles created at the top level, without their having to be passed as arguments.

Note For information about using nested functions, see Nested Functions in the MATLAB documentation.

GUI Programming Techniques

This topic explains the following GUI programming techniques as they are used in the creation of the iconEditor.

“Returning Only After the User Makes a Choice” on page 14-33

“Passing Input Arguments to a GUI” on page 14-34

“Retrieving Output on Return from a GUI” on page 14-35

“Protecting a GUI from Inadvertent Access” on page 14-35

“Running a GUI on Multiple Platforms” on page 14-36

“Making a GUI Modal” on page 14-38

“Sharing Data Between Two GUIs” on page 14-38

“Achieving Proper Resize Behavior” on page 14-39

14-32

Icon Editor

Returning Only After the User Makes a Choice

At the end of the initialization code, and just before returning, iconEditor calls uiwait

with the handle of the main figure to make the GUI blocking.

% Make the GUI blocking uiwait(hMainFigure);

% Return the edited icon CData if it is requested mOutputArgs{1} =hMainFigure; mOutputArgs{2} =mIconCData; if nargout>0

[varargout{1:nargout}] = mOutputArgs{:}; end

Placement of the call to uiwait

is important. Calling uiwait

stops the sequential execution of the iconEdit

M-file after the GUI is initialized and just before the file would return the edited icon data.

When the user clicks the OK button, its callback, hOKButtonCallback

, calls uiresume

which enables the M-file to resume execution where it stopped and return the edited icon data.

function hOKButtonCallback(hObject, eventdata)

% Callback called when the OK button is pressed

uiresume;

delete(hMainFigure); end

When the user clicks the Cancel button, its callback, hOCancelButtonCallback

, effectively deletes the icon data then calls uiresume

. This enables the M-file to resume execution where it stopped but it returns a null matrix.

function hCancelButtonCallback(hObject, eventdata)

% Callback called when the Cancel button is pressed

mIconCData =[];

uiresume;

delete(hMainFigure); end

14-33

14

Examples of GUIs Created Programmatically

Passing Input Arguments to a GUI

Inputs to the GUI are custom property/value pairs. iconEdit

allows three such properties:

IconWidth

,

IconHeight

, and

IconFile

. The names are caseinsensitive.

Definition and Initialization of the Properties.

The iconEdit

first defines a variable mInputArgs

as varargin

to accept the user input arguments.

mInputArgs = varargin; % Command line arguments when invoking

% the GUI

The

iconEdit

function then defines the valid custom properties in a 3-by-3 cell array. mPropertyDefs = {... % Supported custom property/value

% pairs of this GUI

'iconwidth', @localValidateInput, 'mIconWidth';

'iconheight', @localValidateInput, 'mIconHeight';

'iconfile', @localValidateInput, 'mIconFile'};

The first column contains the property name.

The second column contains a function handle for the function, localValidateInput

, that validates the input property values.

The third column is the local variable that holds the value of the property.

iconEdit

then initializes the properties with default values. mIconWidth = 16; % Use input property 'iconwidth' to initialize mIconHeight = 16; % Use input property 'iconheight' to initialize mIconFile = fullfile(matlabroot,'/toolbox/matlab/icons/');

The values of mIconWidth

and mIconHeight

are interpreted as pixels. The fullfile

function builds a full filename from parts.

Processing the Input Arguments.

The processUserInputs

helper function processes the input property/value pairs. iconEdit

calls processUserInputs

after the layout is complete and just before it needs the inputs to initialize the GUI.

% Process the command line input arguments supplied when

% the GUI is invoked processUserInputs();

14-34

Icon Editor

1

processUserInputs

sequences through the inputs, if any, and tries to match each property name to a string in the first column of the mPropertyDefs

cell array.

2

If it finds a match, processUserInputs

assigns the value that was input for the property to its variable in the third column of the mPropertyDefs

cell array.

3

processUserInputs

then calls the helper function specified in the second column of the mPropertyDefs

cell array to validate the value that was passed in for the property.

Retrieving Output on Return from a GUI

If you call iconEditor

with an output argument, it returns a truecolor image as an n-by-m-by-3 array.

The data definition section of the M-file creates a cell array to hold the output: mOutputArgs = {}; % Variable for storing output when GUI returns

Following the call to uiwait

, which stops the sequential execution of the M-file, iconEdit assigns the constructed icon array, mIconEdit

, to the cell array mOutputArgs

and then assigns mOutputArgs

to varargout

to return the arguments.

mOutputArgs{} =mIconCData; if nargout>0

[varargout{1:nargout}] = mOutputArgs{:}; end

This code is the last that iconEditor executes before returning. It executes only after clicking the OK or Cancel button triggers execution of hOKButtonCallback

or hCancelButtonCallback

, which call uiresume

to resume execution.

Protecting a GUI from Inadvertent Access

The prepareLayout

utility function protects the iconEditor from inadvertently being altered from the command line by setting the

HandleVisibility properties of all the components. The iconEditor calls prepareLayout

with the handle of the main figure, in the initialization section of the M-file.

% Make changes needed for proper look and feel and running on

14-35

14

Examples of GUIs Created Programmatically

% different platforms prepareLayout(hMainFigure); prepareLayout

first uses findall

to retrieve the handles of all objects contained in the figure. The list of retrieved handles includes the colorPalette

, which is embedded in the iconEditor

, and its children. The figure’s handle is passed to prepareLayout

as the input argument topContainer

.

allObjects = findall(topContainer); prepareLayout

then sets the

HandleVisibility

properties of all those objects that have one to

Callback

.

% Make GUI objects available to callbacks so that they cannot

% be changed accidentally by other MATLAB commands set(allObjects(isprop(allObjects,'HandleVisibility')),...

'HandleVisibility','Callback');

Setting

HandleVisibility

to

Callback

causes the GUI handles to be visible from within callback routines or functions invoked by callback routines, but not from within functions invoked from the command line. This ensures that command-line users cannot inadvertently alter the GUI when it is the current figure.

Running a GUI on Multiple Platforms

The prepareLayout

utility function sets various properties of all the GUI components to enable the GUI to retain the correct look and feel on multiple platforms. The iconEditor calls prepareLayout

with the handle of the main figure, in the initialization section of the M-file.

% Make changes needed for proper look and feel and running on

% different platforms prepareLayout(hMainFigure);

First, prepareLayout

uses findall

to retrieve the handles of all objects contained in the figure. The list of retrieved handles also includes the colorPalette

, which is embedded in the iconEditor

, and its children. The figure’s handle is passed to findall

as the input argument topContainer

.

function prepareLayout(topContainer)

...

allObjects = findall(topContainer);

14-36

Icon Editor

Background Color.

The default component background color is the standard system background color on which the GUI is running. This color varies on different computer systems, e.g., the standard shade of gray on the PC differs from that on UNIX, and may not match the default GUI background color.

The prepareLayout

function sets the background color of the GUI to be the same as the default component background color. This provides a consistent look within the GUI, as well as with other application GUIs.

It first retrieves the default component background color from the root object.

Then sets the GUI background color using the figure’s

Color

property. defaultColor = get(0,'defaultuicontrolbackgroundcolor'); if isa(handle(topContainer),'figure')

...

% Make figure color match that of GUI objects

set(topContainer, 'Color',defaultColor); end

Selecting Units.

The prepareLayout

function decides what units to use based on the GUI’s resizability. It uses strcmpi

to determine the value of the GUI’s

Resize property. Depending on the outcome, it sets the

Units

properties of all the objects to either

Normalized

or

Characters

.

% Make the GUI run properly across multiple platforms by using

% the proper units if strcmpi(get(topContainer, 'Resize'),'on')

set(allObjects(isprop(allObjects,'Units')),...

'Units','Normalized'); else

set(allObjects(isprop(allObjects,'Units')),...

'Units','Characters'); end

For a resizable figure, normalized units map the lower-left corner of the figure and of each component to (0,0) and the upper-right corner to (1.0,1.0). Because of this, component size is automatically adjusted to its parent’s size when the

GUI is displayed.

For a nonresizable figure, character units automatically adjusts the size and relative spacing of components as the GUI displays on different computers.

14-37

14

Examples of GUIs Created Programmatically

Character units are defined by characters from the default system font. The width of a character unit equals the width of the letter x

in the system font. The height of a character unit is the distance between the baselines of two lines of text. Note that character units are not square.

Making a GUI Modal

iconEditor is a modal figure. Modal figures remain stacked above all normal figures and the MATLAB command window. This forces the user to respond without being able to interact with other windows. iconEditor makes the main figure modal by setting its

WindowStyle

property to modal

.

hMainFigure = figure(...

...

'WindowStyle', 'modal',...

See the Figure Properties in the MATLAB documentation for more information about using the

WindowStyle

property.

Sharing Data Between Two GUIs

The iconEditor embeds a GUI, the colorPalette, to enable the user to select colors for the icon cells. The colorPalette returns the selected color to the iconEditor via a function handle.

The colorPalette GUI.

Like the iconEditor, the colorPalette defines a cell array, mOutputArgs

, to hold its output arguments. mOutputArgs = {}; % Variable for storing output when GUI returns

Just before returning, colorPalette

assigns mOutputArgs

the function handle for its getSelectedColor

helper function and then assigns mOutputArgs

to varargout

to return the arguments.

% Return user defined output if it is requested mOutputArgs{1} [email protected]; if nargout>0

[varargout{1:nargout}] = mOutputArgs{:}; end

The iconEditor executes the colorPalette’s getSeclectedColor

function whenever it invokes the function that colorPalette returns to it.

14-38

Icon Editor function color = getSelectedColor

% function returns the currently selected color in this

% colorPlatte

color = mSelectedColor;

The iconEditor GUI.

The iconEditor

function calls colorPalette

only once and specifies its parent to be a panel in the iconEditor.

% Host the ColorPalette in the PaletteContainer and keep the

% function handle for getting its selected color for editing

% icon.

mGetColorFcn = colorPalette('parent', hPaletteContainer);

This call creates the colorPalette as a component of the iconEditor and then returns a function handle that iconEditor

can call to get the currently selected color.

The iconEditor’s localEditColor

helper function calls mGetColorFcn

, the function returned by colorPalette

, to execute the colorPalette’s getSelectedColor

function.

function localEditColor

% helper function that changes the color of an icon data

% point to that of the currently selected color in

% colorPalette

if mIsEditingIcon

pt = get(hIconEditAxes,'currentpoint');

x = ceil(pt(1,1));

y = ceil(pt(1,2));

color = mGetColorFcn();

% update color of the selected block

mIconCData(y, x,:) = color;

localUpdateIconPlot();

end end

Achieving Proper Resize Behavior

The prepareLayout

utility function sets the

Units

properties of all the GUI components to enable the GUI to resize correctly on multiple platforms. The

14-39

14

Examples of GUIs Created Programmatically iconEditor calls prepareLayout

with the handle of the main figure, in the initialization section of the M-file.

prepareLayout(hMainFigure);

First, prepareLayout

uses findall

to retrieve the handles of all objects contained in the figure. The list of retrieved handles includes the colorPalette

, which is embedded in the iconEditor

, and its children. The figure’s handle is passed to findall

as the input argument topContainer

.

function prepareLayout(topContainer)

...

allObjects = findall(topContainer);

Then, prepareLayout

uses strcmpi

to determine if the GUI is resizable.

Depending on the outcome, it sets the

Units

properties of all the objects to either

Normalized

or

Characters

.

if strcmpi(get(topContainer, 'Resize'),'on')

set(allObjects(isprop(allObjects,'Units')),...

'Units','Normalized'); else

set(allObjects(isprop(allObjects,'Units')),...

'Units','Characters'); end

Note The iconEditor is resizable because it accepts the default value, on

, of the figure

Resize

property.

Resizable Figure.

Normalized units map the lower-left corner of the figure and of each component to (0,0) and the upper-right corner to (1.0,1.0). Because of this, when the GUI is resized, component size is automatically changed relative its parent’s size.

Nonresizable Figure.

Character units automatically adjusts the size and relative spacing of components as the GUI displays on different computers.

Character units are defined by characters from the default system font. The width of a character unit equals the width of the letter x

in the system font. The

14-40

Icon Editor height of a character unit is the distance between the baselines of two lines of text. Note that character units are not square.

14-41

14

Examples of GUIs Created Programmatically

14-42

Index

A

ActiveX controls

adding to layout 6-22

programming 8-32, 12-27

aligning components

in GUIDE 6-40

Alignment Tool

GUIDE 6-40

application data appdata

functions 9-4, 13-4

application-defined data

application data 9-4, 13-4

GUI data 9-2, 13-2

in GUIDE GUIs 9-1

UserData

property 9-6, 13-6

axes

multiple in GUI 10-2

axes, plotting when hidden 10-28

B

background color

system standard for GUIs 6-65, 11-59

backward compatibility

GUIs to Version 6 5-4

button groups 6-19, 11-11

adding components 6-21

C

callback

arguments 8-10

callback templates (GUIDE)

add comments 5-8

callbacks

sharing data 9-7

check boxes 8-22, 12-15

color of GUI background 5-12

command-line accessibility of GUIs 5-10

compatibility across platforms

GUI design 6-64

component identifier

assigning in GUIDE 6-24

component palette

show names 5-7

component text

adding in GUIDE 6-25

components for GUIs

GUIDE 6-16

components in GUIDE

aligning 6-40

copying 6-33 cutting and clearing 6-33

front-to-back positioning 6-34

moving 6-35

pasting and duplicating 6-34

resizing 6-38

selecting 6-32

tab order 6-46

confirmation

exporting a GUI 5-2

GUI activation 5-2

context menus

associating with an object 6-61

creating in GUIDE 6-49

creating with GUIDE 6-58

menu items 6-59

parent menu 6-58

Index-1

Index cross-platform compatibility

GUI background color 6-65, 11-59

GUI design 6-64

GUI fonts 6-64, 11-58

GUI units 6-66, 11-60

D

data

sharing among GUI callbacks 9-7

default system font

in GUIs 6-64, 11-58

E

edit text 8-23, 12-15

exporting a GUI

confirmation 5-2

F

FIG-file

generate in GUIDE 5-13

generated by GUIDE 5-11

files

GUIDE GUI 7-2

fixed-width font

in GUIs 6-65, 11-58

fonts

using specific in GUIs 6-65, 11-58

function prototypes

GUIDE option 5-11

G

GUI

adding components with GUIDE 6-15

Index-2

application-defined data (GUIDE) 9-1

command-line arguments 8-16

compatibility with Version 6 5-4

designing 6-2

GUIDE options 5-9

help button 10-29

laying out in GUIDE 6-1

naming in GUIDE 7-2

opening function 8-16

renaming in GUIDE 7-3

resize function 10-44

resizing 5-9

running 7-10

saving in GUIDE 7-4

standard system background color 6-65, 11-59

using default system font 6-64, 11-58

with multiple axes 10-2

GUI component text

adding in GUIDE 6-25

GUI components

GUIDE 6-16

how to add in GUIDE 6-19

moving in GUIDE 6-35

tab order in GUIDE 6-46

GUI data

application-defined data 9-2, 13-2

GUI export

confirmation 5-2

GUI files

in GUIDE 7-2

GUI layout in GUIDE

copying components 6-33 cutting and clearing components 6-33

moving components 6-35

pasting and duplicating components 6-34

selecting components 6-32

GUI object hierarchy

Index

viewing in GUIDE 6-63

GUI options (GUIDE)

function prototypes 5-11 singleton 5-11 system color background 5-11

GUI size

setting with GUIDE 6-13

GUI template

selecting in GUIDE 6-5

GUI units

cross-platform compatible 6-66, 11-60

GUIDE

adding components to GUI 6-15

application examples 10-1

application-defined data 9-1

command-line accessibility of GUIs 5-10

creating menus 6-49

generate FIG-file only 5-13

generated M-file 5-11

grids and rulers 6-43

GUI background color 5-12

GUI files 7-2

how to add components 6-19

Object Browser 6-63

preferences 5-2

renaming files 7-3

resizing GUIs 5-9

saving a GUI 7-4

selecting template 6-5

starting 6-4

tool summary 4-3

what is 4-2

GUIDE callback templates

add comments 5-8

H

handles

structure

adding fields 9-3, 13-4

help button for GUIs 10-29

hidden figure, accessing 10-28

I

identifier

assigning to GUI component 6-24

L

labels

adding to GUI components in GUIDE 6-25

Layout Editor

show component names 5-7

Layout Editor window

show file extension 5-8 show file path 5-8

list boxes 8-24, 12-16

example 10-9

M

menu item

check 8-40, 12-29

menus

callbacks 8-39, 12-27

context menus in GUIDE 6-58

creating in GUIDE 6-49

drop-down menus 6-50 menu bar menus 6-50

menu items 6-52, 6-59

parent of context menu 6-58

pop-up 8-25, 12-17

specifying properties 6-51

Index-3

Index

M-file

generated by GUIDE 5-11

moving components

in GUIDE 6-35

N

naming a GUI

in GUIDE 7-2

O

Object Browser (GUIDE) 6-63

opening .fig files 10-14

options

GUIDE GUIs 5-9

P

panels 6-19, 11-11

adding components 6-21

pop-up menus 8-25, 12-17

preferences

GUIDE 5-2

R

radio buttons 8-22, 12-19

renaming GUIDE GUIs 7-3

resize function for GUI 10-44

resizing components

in GUIDE 6-38

resizing GUIs 5-9

running a GUI 7-10

S

saving GUI

Index-4

in GUIDE 7-4

shortcut menus

creating in GUIDE 6-58

single instance 5-12

singleton GUI

GUIDE option 5-11

size of GUI

setting with GUIDE 6-13

sliders 6-18, 11-12

system color background

GUIDE option 5-11

T

tab order

components in GUIDE 6-46

Tab Order Editor 6-46

Tag

property

assigning in GUIDE 6-24

template for GUI

selecting in GUIDE 6-5

toggle buttons 8-21, 12-20

toolbar

show in GUIDE Layout Editor 5-7

toolbar menus

creating with GUIDE 6-50

toolbars

creating 6-62

U

units for GUIs

cross-platform compatible 6-66, 11-60

UserData

property

application-defined data 9-6, 13-6
