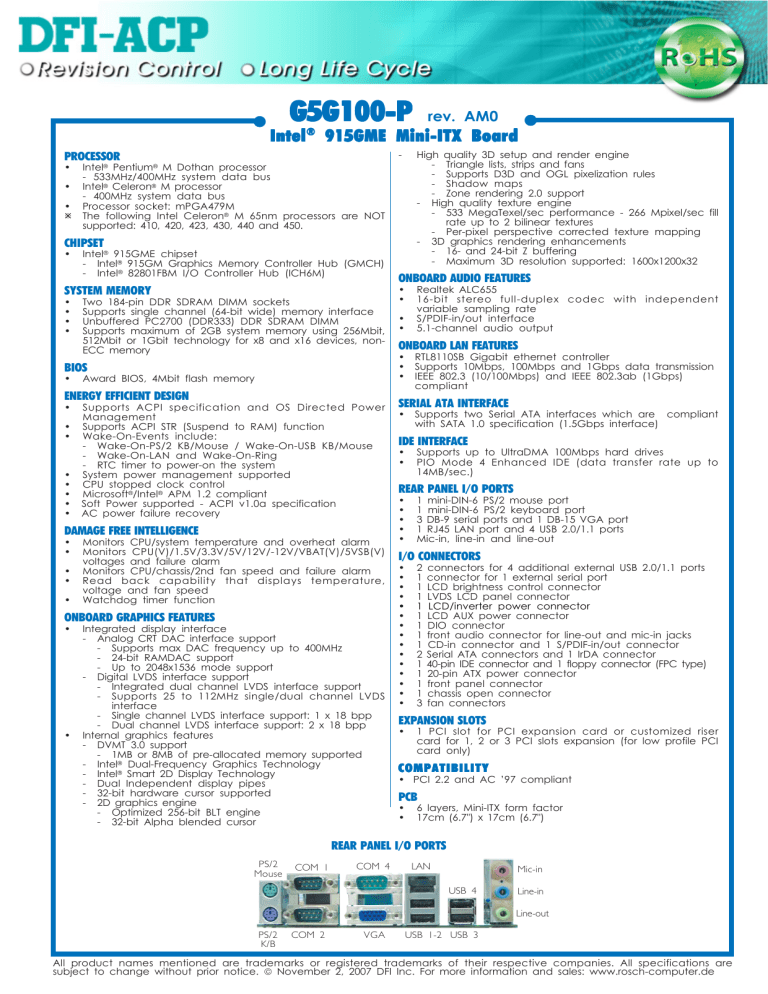

G5G100-P - Rosch Computer
G5G100-P
Intel
®
915GME Mini-ITX Board
-
PROCESSOR
•
•
•
Ú
Intel® Pentium® M Dothan processor
- 533MHz/400MHz system data bus
Intel® Celeron® M processor
- 400MHz system data bus
Processor socket: mPGA479M
The following Intel Celeron® M 65nm processors are NOT
supported: 410, 420, 423, 430, 440 and 450.
CHIPSET
•
Intel® 915GME chipset
- Intel® 915GM Graphics Memory Controller Hub (GMCH)
- Intel® 82801FBM I/O Controller Hub (ICH6M)
SYSTEM MEMORY
•
•
•
•
Two 184-pin DDR SDRAM DIMM sockets
Supports single channel (64-bit wide) memory interface
Unbuffered PC2700 (DDR333) DDR SDRAM DIMM
Supports maximum of 2GB system memory using 256Mbit,
512Mbit or 1Gbit technology for x8 and x16 devices, nonECC memory
BIOS
•
Award BIOS, 4Mbit flash memory
ENERGY EFFICIENT DESIGN
•
•
•
•
•
•
•
•
Supports ACPI specification and OS Directed Power
Management
Supports ACPI STR (Suspend to RAM) function
Wake-On-Events include:
- Wake-On-PS/2 KB/Mouse / Wake-On-USB KB/Mouse
- Wake-On-LAN and Wake-On-Ring
- RTC timer to power-on the system
System power management supported
CPU stopped clock control
Microsoft®/Intel® APM 1.2 compliant
Soft Power supported - ACPI v1.0a specification
AC power failure recovery
DAMAGE FREE INTELLIGENCE
•
•
•
•
•
Monitors CPU/system temperature and overheat alarm
Monitors CPU(V)/1.5V/3.3V/5V/12V/-12V/VBAT(V)/5VSB(V)
voltages and failure alarm
Monitors CPU/chassis/2nd fan speed and failure alarm
Read back capability that displays temperature,
voltage and fan speed
Watchdog timer function
ONBOARD GRAPHICS FEATURES
•
•
rev. AM0
Integrated display interface
- Analog CRT DAC interface support
- Supports max DAC frequency up to 400MHz
- 24-bit RAMDAC support
- Up to 2048x1536 mode support
- Digital LVDS interface support
- Integrated dual channel LVDS interface support
- Supports 25 to 112MHz single/dual channel LVDS
interface
- Single channel LVDS interface support: 1 x 18 bpp
- Dual channel LVDS interface support: 2 x 18 bpp
Internal graphics features
- DVMT 3.0 support
- 1MB or 8MB of pre-allocated memory supported
- Intel® Dual-Frequency Graphics Technology
- Intel® Smart 2D Display Technology
- Dual Independent display pipes
- 32-bit hardware cursor supported
- 2D graphics engine
- Optimized 256-bit BLT engine
- 32-bit Alpha blended cursor
High quality 3D setup and render engine
- Triangle lists, strips and fans
- Supports D3D and OGL pixelization rules
- Shadow maps
- Zone rendering 2.0 support
- High quality texture engine
- 533 MegaTexel/sec performance - 266 Mpixel/sec fill
rate up to 2 bilinear textures
- Per-pixel perspective corrected texture mapping
- 3D graphics rendering enhancements
- 16- and 24-bit Z buffering
- Maximum 3D resolution supported: 1600x1200x32
ONBOARD AUDIO FEATURES
•
•
•
•
Realtek ALC655
16-bit stereo full-duplex codec with independent
variable sampling rate
S/PDIF-in/out interface
5.1-channel audio output
ONBOARD LAN FEATURES
• RTL8110SB Gigabit ethernet controller
• Supports 10Mbps, 100Mbps and 1Gbps data transmission
• IEEE 802.3 (10/100Mbps) and IEEE 802.3ab (1Gbps)
compliant
SERIAL ATA INTERFACE
• Supports two Serial ATA interfaces which are compliant
with SATA 1.0 specification (1.5Gbps interface)
IDE INTERFACE
•
•
Supports up to UltraDMA 100Mbps hard drives
PIO Mode 4 Enhanced IDE (data transfer rate up to
14MB/sec.)
REAR PANEL I/O PORTS
•
•
•
•
•
1 mini-DIN-6 PS/2 mouse port
1 mini-DIN-6 PS/2 keyboard port
3 DB-9 serial ports and 1 DB-15 VGA port
1 RJ45 LAN port and 4 USB 2.0/1.1 ports
Mic-in, line-in and line-out
I/O CONNECTORS
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
2
1
1
1
1
1
1
1
1
2
1
1
1
1
3
connectors for 4 additional external USB 2.0/1.1 ports
connector for 1 external serial port
LCD brightness control connector
LVDS LCD panel connector
LCD/inverter power connector
LCD AUX power connector
DIO connector
front audio connector for line-out and mic-in jacks
CD-in connector and 1 S/PDIF-in/out connector
Serial ATA connectors and 1 IrDA connector
40-pin IDE connector and 1 floppy connector (FPC type)
20-pin ATX power connector
front panel connector
chassis open connector
fan connectors
EXPANSION SLOTS
•
1 PCI slot for PCI expansion card or customized riser
card for 1, 2 or 3 PCI slots expansion (for low profile PCI
card only)
COMPATIBILITY
• PCI 2.2 and AC ’97 compliant
PCB
•
•
6 layers, Mini-ITX form factor
17cm (6.7") x 17cm (6.7")
REAR PANEL I/O PORTS
PS/2
Mouse
COM 1
COM 4
LAN
Mic-in
USB 4
Line-in
Line-out
PS/2
K/B
COM 2
VGA
USB 1-2 USB 3
All product names mentioned are trademarks or registered trademarks of their respective companies. All specifications are
subject to change without prior notice. © November 2, 2007 DFI Inc. For more information and sales: www.rosch-computer.de
