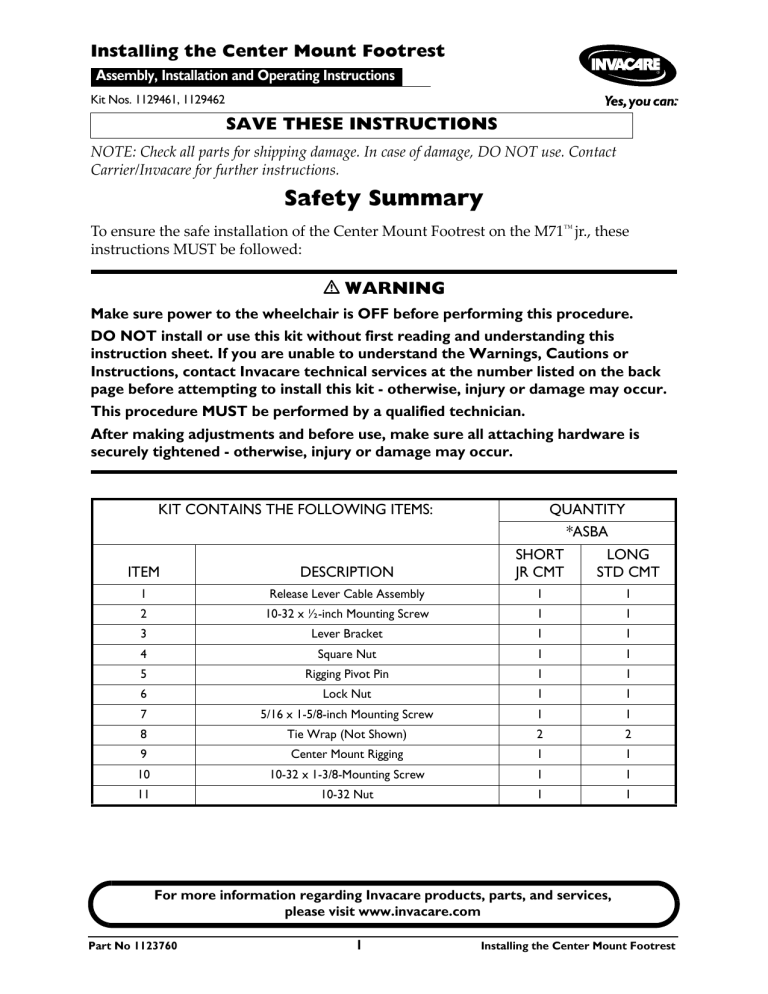

Safety Summary
Installing the Center Mount Footrest
Assembly, Installation and Operating Instructions
Kit Nos. 1129461, 1129462
SAVE THESE INSTRUCTIONS
NOTE: Check all parts for shipping damage. In case of damage, DO NOT use. Contact
Carrier/Invacare for further instructions.
Safety Summary
To ensure the safe installation of the Center Mount Footrest on the M71™ jr., these
instructions MUST be followed:
WARNING
Make sure power to the wheelchair is OFF before performing this procedure.
DO NOT install or use this kit without first reading and understanding this
instruction sheet. If you are unable to understand the Warnings, Cautions or
Instructions, contact Invacare technical services at the number listed on the back
page before attempting to install this kit - otherwise, injury or damage may occur.
This procedure MUST be performed by a qualified technician.
After making adjustments and before use, make sure all attaching hardware is
securely tightened - otherwise, injury or damage may occur.
KIT CONTAINS THE FOLLOWING ITEMS:
QUANTITY
*ASBA
SHORT
LONG
JR CMT
STD CMT
ITEM
DESCRIPTION
1
Release Lever Cable Assembly
1
1
2
10-32 x ½-inch Mounting Screw
1
1
3
Lever Bracket
1
1
4
Square Nut
1
1
5
Rigging Pivot Pin
1
1
6
Lock Nut
1
1
7
5/16 x 1-5/8-inch Mounting Screw
1
1
8
Tie Wrap (Not Shown)
2
2
9
Center Mount Rigging
1
1
10
10-32 x 1-3/8-Mounting Screw
1
1
11
10-32 Nut
1
1
For more information regarding Invacare products, parts, and services,
please visit www.invacare.com
Part No 1123760
1
Installing the Center Mount Footrest
8
7 8
6
2
10
11 3
5
4
9
1
FIGURE 1 Parts List
Mounting Release Lever Assembly to Seat Frame
for M71 Jr Seat
NOTE: For this procedure, refer to FIGURE 2.
1. Secure the ratchet housing to the mounting bracket on the seat frame with the
5/16 x 1-5/8-inch mounting screw and locknut provided. Securely tighten.
2. Secure the release handle to the seat frame with the 10-32 x ½-inch mounting
screw and square nut provided. Securely tighten.
3. Tie-wrap cable as shown below in Detail “A”.
Installing the Center Mount Footrest
2
Part No 1123760
Seat Frame
Detail “A”
Tie-Wrap the
cable HERE
Mounting
Bracket
Locknut
10-32 x ½-inch
Mounting Screw
Ratchet
Housing
5/16 x 1-5/8-inch
Mounting Screw
Release
Handle
Square Nut
FIGURE 2 Mounting Release Lever Assembly to Seat Frame for M71 Jr Seat
Installing/Removing/Adjusting Center Mount
Footrest
Installing
NOTE: For this procedure, refer to FIGURE 3, Detail “A”.
1. Engage the release lever with the one hand and hold the center mount footrest
with the other hand.
2. Insert the center mount footrest into the mounting bracket of the seat frame.
3. Reinstall the rigging pivot pin to secure the center mount footrest to the
mounting bracket of the seat frame.
Removing
NOTE: For this procedure, refer to FIGURE 3, Detail “A”.
1. Remove the rigging pivot pin that secures the footrest to the mounting bracket
of the seat frame.
2. Hold the center mount footrest with one hand and engage the release lever
with the other hand.
3. Pull the center mount footrest out of the mounting bracket of the seat frame.
Part No 1123760
3
Installing the Center Mount Footrest
Adjusting Height
NOTE: For this procedure, refer to FIGURE 3, Detail “B”.
WARNING
After adjusting the Center Mount Adjustable Footrest, minimum ground
clearance for the footrest in the driving position is 2-inches. If the Center
Mount Footrest is in the retracted position and the chair is not moving, the
footrest MUST maintain a minimum of 1-inch ground clearance - otherwise
personal injury and damage may result.
1. Remove the two mounting screws that secure the footrest extension tube to the
extension tube housing.
2. Adjust the footrest extension tube to the desired height and align the
corresponding holes to the mounting holes on the extension tube housing.
3. Reinstall the two mounting screws to secure the footrest extension tube to the
extension tube housing.
4. Repeat STEPS 1-3 for the other extension tube.
Detail “A” - Removing/Installing
Seat Frame
Mounting
Bracket on
Seat Frame
Detail “B” - Adjusting Height
Center
Mount
Footrest
Rigging
Pivot Pin
Seat
Frame
Release
Lever
Release
Lever
Extension Tube
Mounting Holes
Mounting Screws
Height Adjustment
Holes
Extension
Tube
Extension
Tube Housing
FIGURE 3 Installing/Removing/Adjusting Center Mount Footrest
Installing the Center Mount Footrest
4
Part No 1123760
Adjusting the Angle of the Center Mount Footrest
NOTE: For this procedure, refer to FIGURE 4.
WARNING
After adjusting the Center Mount Footrest, minimum ground clearance for
the footrest in the driving position is 2-inches. If the Center Mount Footrest is
in the retracted position and the chair is not moving, the footrest MUST
maintain a minimum of 1-inch ground clearance - otherwise personal injury
and damage may result.
1. Engage the release lever with one
hand (not shown) and move the
center mount footrest to the desired
angle with the other hand.
Footplate
NOTE: Refer to FIGURE 3 for the location
of the release lever.
Center Mount
Footrest
2. Disengage the release lever (not
shown) to lock the center mount
footrest in the new position.
FIGURE 4 Adjusting the Angle of the
Center Mount Footrest
Adjusting the Footplate Angle
NOTE: For this procedure, refer to FIGURE 5.
1. Loosen the footplate mounting screw and move the footplate to the desired
angle.
NOTE: DO NOT remove the footplate mounting screw.
2. Tighten the footplate mounting screw to secure the footplate in the desired
position.
3. Repeat STEPS 1 and 2 for the other footplate.
Center Mount
Footrest
Footplate
Footplate
Mounting
Screw
FIGURE 5 Adjusting the Footplate Angle
Part No 1123760
5
Installing the Center Mount Footrest
Adjusting the Tension of the Flip up Footplate
NOTE: For this procedure, refer to FIGURE 6.
NOTE: The tension can be adjusted to increase or decrease the rotation effort of the flip up
footplates.
1. Loosen the mounting screw on the footrest angle hinge to decrease the rotation
effort.
NOTE: DO NOT remove the footplate mounting screw.
2. Tighten the footrest angle hinge mounting screw to increase the rotation effort.
3. Repeat STEPS 1 and 2 for the other footplate.
Center Mount
Footrest
Footplate
Footrest
Angle Hinge
Footrest Angle Hinge
Mounting Screw
FIGURE 6 Adjusting the Tension of the Flip up Footplate
Installing the Center Mount Footrest
6
Part No 1123760
NOTES
Part No 1123760
7
Installing the Center Mount Footrest
Invacare Corporation
www.invacare.com
USA
One Invacare Way
Elyria, Ohio USA
44036-2125
800-333-6900
Canada
570 Matheson Blvd E Unit 8
Mississauga Ontario
L4Z 4G4 Canada
800-668-5324
Invacare is registered trademarks of
Invacare Corporation.
M71 and Yes, you can. are trademarks of
Invacare Corporation
© 2004 Invacare Corporation
Part No 1123760
Rev A - 09/04
