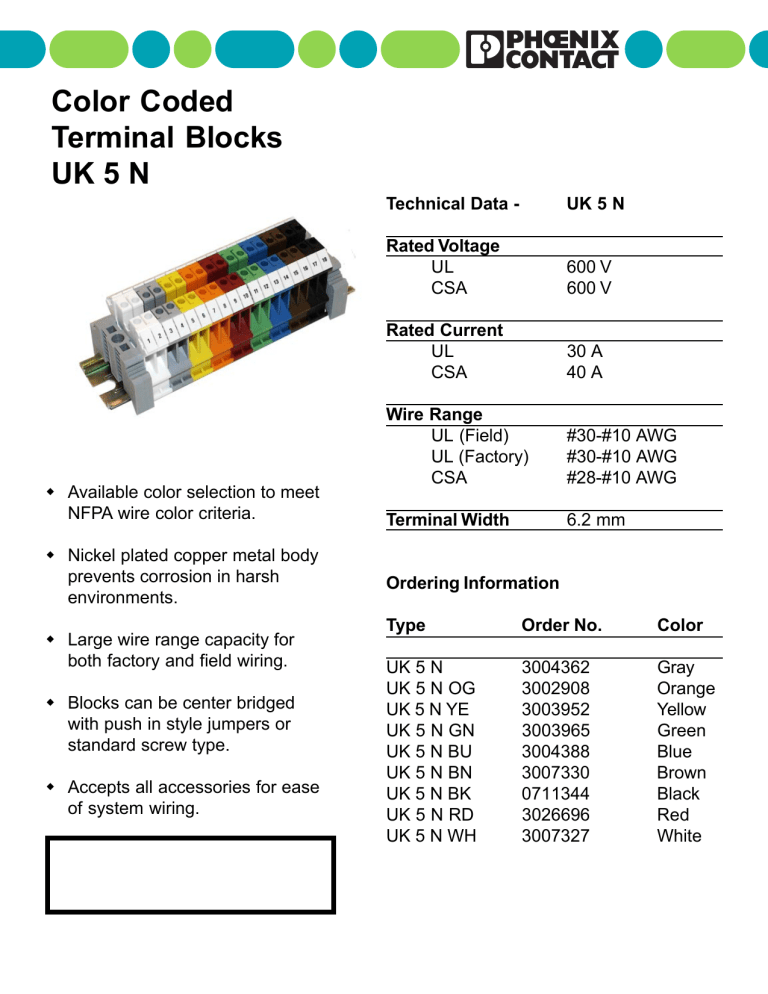

Color Coded Terminal Blocks UK 5 N
Color Coded
Terminal Blocks
UK 5 N
w Available color selection to meet
NFPA wire color criteria.
w Nickel plated copper metal body
prevents corrosion in harsh
environments.
w Large wire range capacity for
both factory and field wiring.
w Blocks can be center bridged
with push in style jumpers or
standard screw type.
w Accepts all accessories for ease
of system wiring.
Technical Data -
UK 5 N
Rated Voltage
UL
CSA
600 V
600 V
Rated Current
UL
CSA
30 A
40 A
Wire Range
UL (Field)
UL (Factory)
CSA
#30-#10 AWG
#30-#10 AWG
#28-#10 AWG
Terminal Width
6.2 mm
Ordering Information
Type
Order No.
Color
UK 5 N
UK 5 N OG
UK 5 N YE
UK 5 N GN
UK 5 N BU
UK 5 N BN
UK 5 N BK
UK 5 N RD
UK 5 N WH
3004362
3002908
3003952
3003965
3004388
3007330
0711344
3026696
3007327
Gray
Orange
Yellow
Green
Blue
Brown
Black
Red
White
NFPA WIRE COLOR IDENTIFICATION
GREEN/YELLOW . . . . . . . . . . . . . . Earth Ground
BLACK . . . . . . . . . . . . . . . . . . . . . . . . AC or DC Power Circuits
BLUE w/BLACK SLEEVE OR . . . . Neutral Conductors
BLACK w/BLUE SLEEVE . . . . . . . . of Power Circuits
RED . . . . . . . . . . . . . . . . . . . . . . . . . . AC Control Circuits
BLUE . . . . . . . . . . . . . . . . . . . . . . . . . DC Control Circuits
YELLOW . . . . . . . . . . . . . . . . . . . . . . External Fed Control
Circuits (Interlocks)
ORANGE . . . . . . . . . . . . . . . . . . . . . Data Collection Circuits
47 mm
UK 5 N
42.5mm
