Genuine Miller® Accessories

Genuine Miller® Accessories

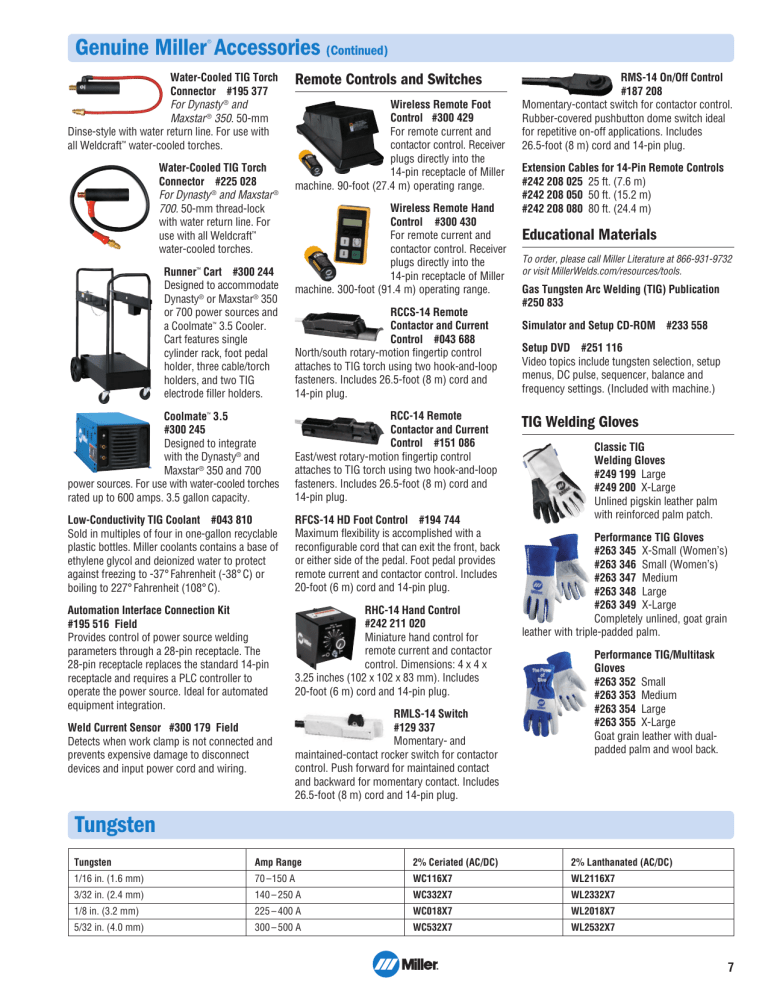

Genuine Miller Accessories (Continued)
®
Water-Cooled TIG Torch
Connector #195 377
For Dynasty ® and
Maxstar ® 350. 50-mm
Dinse-style with water return line. For use with
all Weldcraft™ water-cooled torches.
Water-Cooled TIG Torch
Connector #225 028
For Dynasty ® and Maxstar ®
700. 50-mm thread-lock
with water return line. For
use with all Weldcraft™
water-cooled torches.
Runner™ Cart #300 244
Designed to accommodate
Dynasty® or Maxstar® 350
or 700 power sources and
a Coolmate™ 3.5 Cooler.
Cart features single
cylinder rack, foot pedal
holder, three cable/torch
holders, and two TIG
electrode filler holders.
Remote Controls and Switches
Wireless Remote Foot
Control #300 429
For remote current and
contactor control. Receiver
plugs directly into the
14-pin receptacle of Miller
machine. 90-foot (27.4 m) operating range.
Wireless Remote Hand
Control #300 430
For remote current and
contactor control. Receiver
plugs directly into the
14-pin receptacle of Miller
machine. 300-foot (91.4 m) operating range.
RCCS-14 Remote
Contactor and Current
Control #043 688
North/south rotary-motion fingertip control
attaches to TIG torch using two hook-and-loop
fasteners. Includes 26.5-foot (8 m) cord and
14-pin plug.
Coolmate™ 3.5
#300 245
Designed to integrate
with the Dynasty® and
Maxstar® 350 and 700
power sources. For use with water-cooled torches
rated up to 600 amps. 3.5 gallon capacity.
RCC-14 Remote
Contactor and Current
Control #151 086
East/west rotary-motion fingertip control
attaches to TIG torch using two hook-and-loop
fasteners. Includes 26.5-foot (8 m) cord and
14-pin plug.
Low-Conductivity TIG Coolant #043 810
Sold in multiples of four in one-gallon recyclable
plastic bottles. Miller coolants contains a base of
ethylene glycol and deionized water to protect
against freezing to -37° Fahrenheit (-38° C) or
boiling to 227° Fahrenheit (108° C).
RFCS-14 HD Foot Control #194 744
Maximum flexibility is accomplished with a
reconfigurable cord that can exit the front, back
or either side of the pedal. Foot pedal provides
remote current and contactor control. Includes
20-foot (6 m) cord and 14-pin plug.
Automation Interface Connection Kit
#195 516 Field
Provides control of power source welding
parameters through a 28-pin receptacle. The
28-pin receptacle replaces the standard 14-pin
receptacle and requires a PLC controller to
operate the power source. Ideal for automated
equipment integration.
RHC-14 Hand Control
#242 211 020
Miniature hand control for
remote current and contactor
control. Dimensions: 4 x 4 x
3.25 inches (102 x 102 x 83 mm). Includes
20-foot (6 m) cord and 14-pin plug.
Weld Current Sensor #300 179 Field
Detects when work clamp is not connected and
prevents expensive damage to disconnect
devices and input power cord and wiring.
RMLS-14 Switch
#129 337
Momentary- and
maintained-contact rocker switch for contactor
control. Push forward for maintained contact
and backward for momentary contact. Includes
26.5-foot (8 m) cord and 14-pin plug.
RMS-14 On/Off Control
#187 208
Momentary-contact switch for contactor control.
Rubber-covered pushbutton dome switch ideal
for repetitive on-off applications. Includes
26.5-foot (8 m) cord and 14-pin plug.
Extension Cables for 14-Pin Remote Controls
#242 208 025 25 ft. (7.6 m)
#242 208 050 50 ft. (15.2 m)
#242 208 080 80 ft. (24.4 m)
Educational Materials
To order, please call Miller Literature at 866-931-9732
or visit MillerWelds.com/resources/tools.
Gas Tungsten Arc Welding (TIG) Publication
#250 833
Simulator and Setup CD-ROM #233 558
Setup DVD #251 116
Video topics include tungsten selection, setup
menus, DC pulse, sequencer, balance and
frequency settings. (Included with machine.)
TIG Welding Gloves
Classic TIG
Welding Gloves
#249 199 Large
#249 200 X-Large
Unlined pigskin leather palm
with reinforced palm patch.
Performance TIG Gloves
#263 345 X-Small (Women’s)
#263 346 Small (Women’s)
#263 347 Medium
#263 348 Large
#263 349 X-Large
Completely unlined, goat grain
leather with triple-padded palm.
Performance TIG/Multitask
Gloves
#263 352 Small
#263 353 Medium
#263 354 Large
#263 355 X-Large
Goat grain leather with dualpadded palm and wool back.
Tungsten
Tungsten
Amp Range
2% Ceriated (AC/DC)
2% Lanthanated (AC/DC)
1/16 in. (1.6 mm)
70 –150 A
WC116X7
WL2116X7
3/32 in. (2.4 mm)
140 – 250 A
WC332X7
WL2332X7
1/8 in. (3.2 mm)
225 – 400 A
WC018X7
WL2018X7
5/32 in. (4.0 mm)
300 – 500 A
WC532X7
WL2532X7
7
