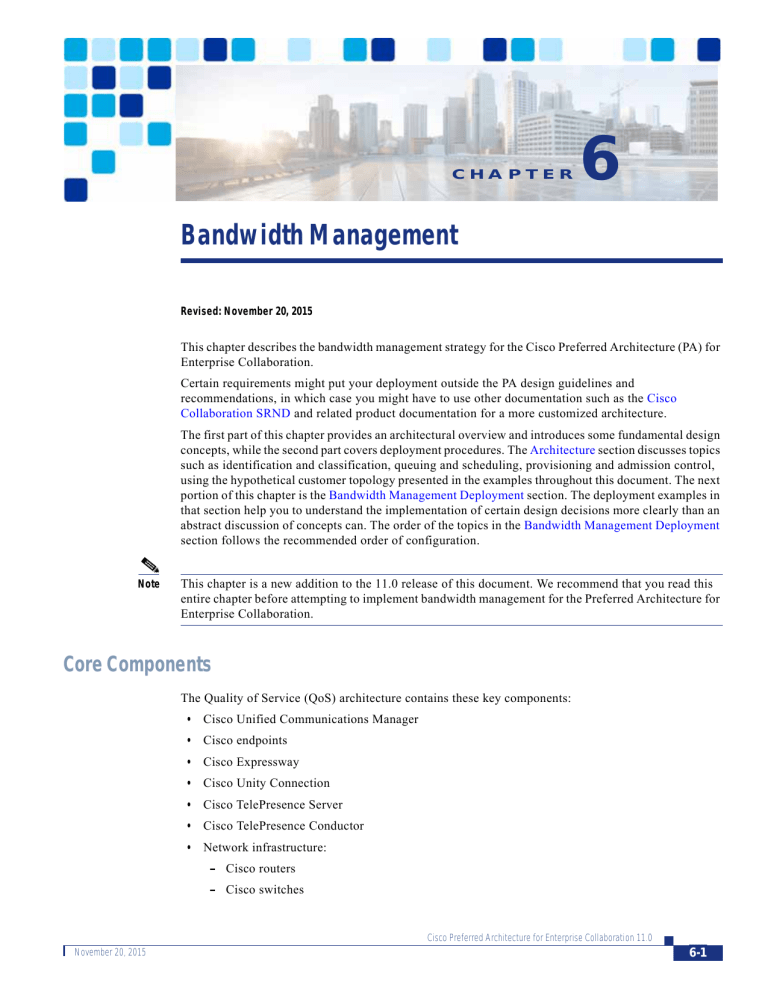

Bandwidth Management

Bandwidth Management
CH A P T E R
6
Bandwidth Management
Revised: November 20, 2015
This chapter describes the bandwidth management strategy for the Cisco Preferred Architecture (PA) for
Enterprise Collaboration.
Certain requirements might put your deployment outside the PA design guidelines and
recommendations, in which case you might have to use other documentation such as the Cisco
Collaboration SRND and related product documentation for a more customized architecture.
The first part of this chapter provides an architectural overview and introduces some fundamental design
concepts, while the second part covers deployment procedures. The Architecture section discusses topics
such as identification and classification, queuing and scheduling, provisioning and admission control,
using the hypothetical customer topology presented in the examples throughout this document. The next
portion of this chapter is the Bandwidth Management Deployment section. The deployment examples in
that section help you to understand the implementation of certain design decisions more clearly than an
abstract discussion of concepts can. The order of the topics in the Bandwidth Management Deployment
section follows the recommended order of configuration.
Note
This chapter is a new addition to the 11.0 release of this document. We recommend that you read this
entire chapter before attempting to implement bandwidth management for the Preferred Architecture for
Enterprise Collaboration.
Core Components
The Quality of Service (QoS) architecture contains these key components:
•
Cisco Unified Communications Manager
•
Cisco endpoints
•
Cisco Expressway
•
Cisco Unity Connection
•
Cisco TelePresence Server
•
Cisco TelePresence Conductor
•
Network infrastructure:
– Cisco routers
– Cisco switches
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-1
Chapter 6
Bandwidth Management
Figure 6-1 illustrates the design approach to QoS used in the Cisco PA for Enterprise Collaboration. This
approach consists of the following phases:
Figure 6-1
•
Identification and classification — Refers to concepts of trust and techniques for identifying
media and call signaling for endpoints and applications. It also includes the process of mapping the
identified traffic to the correct DSCP to provide the media and signaling with the correct per-hop
behavior end-to-end across the network.
•
Queuing and scheduling — Consists of general WAN queuing and scheduling, the various types of
queues, and recommendations for ensuring that collaboration media and signaling are correctly
queued on egress to the WAN.
•
Provisioning and admission control — Refers to provisioning the bandwidth in the network and
determining the maximum bit rate that groups of endpoints will utilize. This is also where call
admission control can be implemented in areas of the network where it is required.
•
Monitoring, troubleshooting, and optimization — Ensures the proper operation and management
of voice and video across the network. Cisco Prime Collaboration offers a suite of tools to perform
these functions. Monitoring, troubleshooting and optimization are not covered in the Preferred
Architectures but are part of the overall approach.
Architecture for Bandwidth Management
Management
WAN
EF
AF41
1
Identification
Classification
Queuing and
Scheduling
Provisioning
and
Admission
Control
Monitor
Troubleshoot
Optimize
349564
CS3
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-2
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Recommended Deployment
•
Identify media and SIP signaling traffic from the endpoints.
•
Classify and mark traffic at the access switch edge.
– Mark all audio with Expedited Forwarding class EF (includes all audio of voice-only and video
calls).
– Mark all critical desktop and room system video with an Assured Forwarding class of AF41.
– Mark all Jabber, mobile and remote access (MRA), and edge video with an Assured Forwarding
class of AF42.
– Mark all call signaling with CS3.
– Configure QoS on all media originating and terminating applications and MCUs across the
solution.
•
Apply simplified WAN edge policies for identifying, classifying, marking, and queuing
collaboration traffic:
– WAN edge ingress re-marking policy
– WAN edge egress queuing and scheduling policy
•
Group video endpoints into classes according to maximum video bit rate, to limit bandwidth
consumption based on endpoint type and usage within the solution.
•
Deploy Enhanced Locations Call Admission Control and limit video calling only in areas of the
network where bandwidth resources are restricted.
Key Benefits
This deployment of bandwidth management provides the following benefits:
•
Provides prescriptive recommendations to simplify deployment with a simplified QoS architecture
•
Makes more efficient use of network resources
•
Supports mobile and multi-media Collaboration devices
•
Takes into account "unmanaged" network segments (Internet)
•
Is "future-proof" because it facilitates introduction of new services, features, and endpoints
Architecture
Bandwidth management is about ensuring the best possible user experience end-to-end for all voice and
video endpoints, clients, and applications in the Collaboration solution. This chapter provides a holistic
approach to bandwidth management, incorporating an end-to-end Quality of Service (QoS) architecture
with call admission control and video rate adaptation and resiliency mechanisms to ensure the best
possible user experience for deploying pervasive video over managed and unmanaged networks.
This section starts with a discussion of collaboration media, the differences between audio and video,
and the impact this has on the network. Next this section outlines an end-to-end QoS architecture for
collaboration that includes: identification and classification of collaboration media and SIP signaling for
endpoints, clients, and applications; WAN queuing and scheduling; and bandwidth provisioning and
admission control. The next section on Bandwidth Management Deployment explains the steps involved
in implementing this architecture in both the collaboration and network architecture.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-3
Chapter 6
Bandwidth Management
Architecture
The Network Infrastructure chapter of the Collaboration SRND lays the foundation for QoS in the LAN
and WAN. If you are unfamiliar with the concepts of QoS, it is important to read that chapter to fully
understand the concepts discussed therein. This chapter assumes an understanding of QoS.
Note
Introduction
In this Preferred Architecture, usage of the Internet and cloud-based services such as WebEx are an
important aspect of the solution, which means that some of the Collaboration infrastructure is located
outside of the managed enterprise network and located in the cloud. The enterprise office connectivity
options also range from remote sites and mobile users connected over managed leased lines directly
connected to MPLS or other technologies, to being connected over the Internet through technologies
such as Dynamic Multipoint VPN (DMVPN), for example. Figure 6-2 illustrates the convergence of a
traditional on-premises Collaboration solution in a managed (capable of QoS) network with cloud
services and sites located over an unmanaged (not capable of QoS) network such as the Internet.
On-premises remote sites are connected over this managed network, where administrators can prioritize
collaboration media and signaling with QoS, while other remote sites and branches connect into the
enterprise over the Internet, where collaboration media and signaling cannot be prioritized or prioritized
only outbound from the site. Many different types of mobile users and teleworkers also connect over the
Internet into the on-premises solution. So the incorporation of the Internet as a source for connecting the
enterprise with remote sites, home and mobile users, as well as other businesses and consumers, has an
important impact on bandwidth management and user experience.
Figure 6-2
Managed versus Unmanaged Network
Call Control
On-premises
UC Services
Central
Site
Cloud Services
QoScapable
B2B
B2C
Managed
WAN
Internet
DMVPN
DM
MVP
Remote Sites
Rem
Home/Mobile Users
349565
MP
MPLS
PLS
VP
PN
N
VPN
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-4
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
This section presents a strategy for leveraging smart media techniques in Cisco video endpoints, building
an end-to-end QoS architecture, and using the latest design and deployment recommendations and best
practices for managing bandwidth to achieve the best user experience possible based on the network
resources available and the various types of networks that collaboration media traverse.
Collaboration Media
This section covers the characteristics of audio and video streams in real-time media as well as the smart
media techniques that Cisco video endpoints employ to ensure high fidelity video in the event of packet
loss, delay, and jitter.
Audio versus Video
Voice and video are often thought of as quite similar, and although they are both real-time protocol (RTP)
applications, the similarities stop there. Voice is generally considered well behaved because each packet
is a fixed size and fixed rate. Video frames are spread over multiple packets that travel as a group.
Because one lost packet can ruin a P-frame, and one bad P-frame can cause a persistent artifact, video
generally has a tighter loss requirement than audio. Video is asymmetrical. Voice can also be
asymmetrical but typically is not. Even on mute, an IP phone will send and receive the same size flow.
Video increases the average real-time packet size and has the capacity to quickly alter the traffic profile
of networks. Without planning, this could be detrimental to network performance. Figure 6-3 shows the
difference between a series of audio packets and video packets sent during a specific time interval.
Figure 6-3
Audio versus Video
Video Packets
Audio Packets
1400
1400
1000
1000
600
600
P-Frame
I-Frame
P-Frame
Audio
Samples
200
20 ms
Time
33 msec
349566
200
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-5
Chapter 6
Bandwidth Management
Architecture
As illustrated in Figure 6-3, the audio packets are the same size, sent at exactly the same time intervals,
and represent a very smooth stream. Video, on the other hand, sends a larger group of packets over fixed
intervals and can vary greatly from frame to frame. Figure 6-3 shows the difference in the number of
packets and packet sizes for an I-Frame compared to P-frames. This translates to a stream of media that
is very bursty in nature when compared to audio. This burstiness is illustrated in Figure 6-4, which shows
the bandwidth profile over time of an HD video stream. Note the large bursts when I-Frames are sent.
Figure 6-4
Bandwidth Usage: High-Definition Video Call
3500
I-Frames
3000
2000
1500
1000
500
0
Time (s)
349567
Bandwidth (kbps)
2500
Figure 6-4 shows an HD video call at 720p at 30 fps and 1920 kbps (1792 kbps video + 128 kbps audio).
The red line indicates the average bit rate for the duration of the call.
While audio and video are both transported over UDP and are sensitive to loss and delay, they are quite
different in their network requirements and profile. As shown in Figure 6-5, audio is a constant bit rate,
has a smaller footprint compared to video, and has a narrower operational range of 1:6 ratio when
comparing the lowest bit rate audio codec to one of the highest bit rate codecs. Video, on the other hand,
has a variable bit rate (is bursty), has a medium to large footprint when compared to audio, and has a
wide operational range of 1:40 (250p at 15 fps up to 1080p at 60 fps).
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-6
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Figure 6-5
Video Traffic Requirements and Profiles
AUDIO
Bandwidth:
Bandwidth
– Constant bitrate (smooth)
– Small footprint
– Narrow operational range (1:6)
Time
G.729 (24 kbps)
AAC-LD
A C LD (160 kbps)
AA
Delay-sensitive
Operational bandwidth
VIDEO
Loss-sensitive
Bandwidth:
Bandwidth
– Variable bitrate (bursty)
– Medium/large footprint
– Wide operational range (1:40)
240p15 (150 kbps)
1080p60 (6 Mbps)
Loss-sensitive
Delay-sensitive
Operational bandwidth
349568
Time
The main point here is that audio and video, while similar in transport and sensitivity to loss and delay,
are quite different in the methods employed to manage their bandwidth requirements in the network.
Also, while video is pertinent to a full collaboration experience, audio is critical. For example, during a
video call, if video is lost or distorted due to a network outage or some other network related event,
communication can continue provided that audio is not lost during that outage. This is a critical concept
in bandwidth management in the PA.
"Smart" Media Techniques (Media Resilience and Rate Adaptation)
When deploying video pervasively across an organization, administrators will inevitably encounter
insufficient bandwidth to handle the load of video required during the busy hour in some bottleneck areas
of the Wide Area Network (WAN). In light of this it is important to prioritize video correctly, to ensure
that audio is not affected by any video packet loss that may occur, and to ensure that certain types of
video can leverage video rate adaptation to manage the amount of bandwidth used during times of
congestion. The media resilience and rate adaptation techniques allow for an optimized video experience
in the face of congestion and packet loss over managed and unmanaged networks, but that is not all.
These techniques, when used as a strategy coupled with QoS, can offer the ability for an organization to
deploy video pervasively by allowing the endpoints to reduce their bit rate and thus their bandwidth
utilization during congestion and packet loss, while also allowing the endpoints to increase their bit rate
and thus bandwidth utilization during more idle times of the day outside of the busy hour, thereby
maximizing video quality.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-7
Chapter 6
Bandwidth Management
Architecture
Every Cisco video endpoint employs a number of smart media techniques to avoid network congestion,
recover from packet loss, and optimize network resources. The following smart media techniques are
some of the techniques employed by Cisco video endpoints:
•
Media resilience techniques
– Encoder pacing
– Gradual Decoder Refresh (GDR)
– Long-Term Reference Frame (LTRF) with Repair
– Forward Error Correction (FEC)
•
Rate adaptation
Media Resilience Techniques
Table 6-1 summarizes the media resilience techniques supported on various Cisco video endpoints.
Table 6-1
Media Resilience Support in Cisco Collaboration Video Endpoints
Video Endpoint or Bridge
Encoder
Pacing
Rate
Adaptation
FEC
LTRF Repair
Cisco IP Phone 8800 Series
Yes
No
No
No
Cisco Jabber
Yes
Yes
Yes
Yes
Cisco DX Series
Yes
Yes
No
No
Cisco TelePresence MX Series
Yes
Yes
Yes
Yes
Cisco TelePresence SX Series
Yes
Yes
Yes
Yes
Cisco TelePresence IX Series
No
No
No
No
Cisco TelePresence Server
Yes
Yes
Yes
Yes
Encoder Pacing
Encoder pacing is a simple technique used to spread the packets as evenly as possible in order to smooth
out the peaks of the bursts of bandwidth.
Gradual Decoder Refresh (GDR)
GDR is a method of gradually refreshing the picture over a number of frames, giving a smoother, less
bursty bit stream.
Long Term Reference Frame (LTRF)
A Long Term Reference Frame (LTRF) is a reference frame stored in the encoder and decoder, which
allows the video endpoints to recover more efficiently from packet loss with less bandwidth utilization
over the network path in order to resend lost frames.
Forward Error Correction (FEC)
Forward error correction (FEC) provides redundancy to the transmitted information by using a
predetermined algorithm. The redundancy allows the receiver to detect and correct a limited number of
errors occurring anywhere in the message, without the need to ask the sender for additional data. FEC
gives the receiver an ability to correct errors without needing a reverse channel (such as RTCP) to request
retransmission of data, but this advantage is at the cost of a fixed higher forward channel bandwidth
(more packets sent). FEC protects the most important data (typically the repair P-frames) to make sure
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-8
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
the receiver is receiving those frames. The endpoints do not use FEC on bandwidths lower than 768 kbps,
and there must also be at least 1.5% packet loss before FEC is introduced. Endpoints typically monitor
the effectiveness of FEC; and if FEC is not efficient, they make a decision not to do FEC.
Rate Adaptation
Rate adaptation or dynamic bit rate adjustments adapt the call rate to the variable bandwidth available,
down-speeding or up-speeding the video bit rate based on the packet loss condition. An endpoint will
reduce bit rate when it receives messages from the receiver indicating there is packet loss; and once the
packet loss has decreased, up-speeding of the bit rate will occur.
Opportunistic Video and Prioritized Audio
Opportunistic Video and Prioritized Audio is a concept and a QoS strategy combined. It consists of
defining a number of video endpoints that opportunistically utilize available video bandwidth. During
the busy hour these endpoints rate adapt or throttle down their bit rate to accommodate limited
bandwidth availability, all the while not impacting prioritized video. During the idle hour they utilize
available bandwidth to optimize video quality by increasing the video bit rate. Prioritized audio for both
audio-only and audio of video calls ensures that all audio is prioritized in the network and is thus not
impacted by any loss that can occur in the video queues. Prioritizing voice from all types of collaboration
media ensures that even during times of extreme congestion when video is experiencing packet loss and
adjusting to that loss, the audio streams are not experiencing packet loss and are allowing the user to
carry on an uninterrupted audio experience. Prioritizing audio from both voice-only and video calls is a
paradigm shift from the previous historic model where audio and video of video calls were always
marked with the same QoS. Opportunistic video with prioritized audio maintains an acceptable video
experience while simultaneously ensuring that voice media for voice-only and video calls is not
compromised. This of course applies to the managed network, since an unmanaged network such as the
Internet is not QoS enabled and thus provides no guarantees with regard to packet loss. Nevertheless, the
media resiliency and rate adaptation mechanisms also attempt to ensure that media over unmanaged
networks has the best possible quality in the face of packet loss, delay, and jitter.
QoS Architecture for Collaboration
Quality of Service (QoS) ensures reliable, high-quality voice and video by reducing delay, packet loss,
and jitter for media endpoints and applications. QoS provides a foundational network infrastructure
technology, which is required to support the transparent convergence of voice, video, and data networks.
With the increasing amount of interactive applications (particularly voice, video, and immersive
applications), real-time services are often required from the network. Because these resources are finite,
they must be managed efficiently and effectively. If the number of flows contending for such priority
resources were not limited, then as these resources become oversubscribed, the quality of all real-time
traffic flows would degrade, eventually to the point of futility. "Smart" media techniques, QoS, and
admission control ensure that real-time applications and their related media do not oversubscribe the
network and the bandwidth provisioned for those applications. These smart media techniques coupled
with QoS and, where needed, admission control, are a powerful set of tools used to protect real-time
media from non-real-time network traffic and to protect the network from over-subscription and the
potential loss of quality of experience for end users of voice and video applications.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-9
Chapter 6
Bandwidth Management
Architecture
Identification and Classification
QoS Trust and Enforcement
The enforcement of QoS is crucial to any real-time audio, video, or immersive video experience. Without
the proper QoS treatment (classification, prioritization, and queuing) through the network, real-time
media can potentially incur excessive delay or packet loss, which compromises the quality of the
real-time media flow. In the QoS enforcement paradigm, the issue of trust and the trust boundary is
equally important. Trust is the permitting or the "trusting" of QoS marking (Layer 2 CoS or Layer 3 IP
DSCP) of the traffic by the endpoint or device, to allow the traffic to continue through the network. The
trust boundary is the place in the network where the trust occurs. It can occur at any place in the network;
however, we recommend enforcing trust at the network edge such as the LAN access ingress or the WAN
edge, or both, as is feasible and applicable.
There are three main categories of trust:
•
Untrusted — These devices include unsecure PCs, Macs, or hand-held mobile devices running
Jabber clients, IP phones, and smart desktop endpoints.
•
Trusted — These devices can include secure PCs and servers, video conferencing endpoints, analog
and video conferencing gateways, PSTN gateways, Cisco Unified Border Element, trusted
application servers, and other similar devices.
•
Conditionally trusted — These devices typically include endpoints that support Cisco Discovery
Protocol (CDP). Although Cisco TelePresence, IP Phone and Smart Desktop phones support CDP,
they are not conditionally trusted in the PA.
In the PA, trusted and untrusted switch ports are used but conditionally trusted ports are not used.
Conditional trust is not recommended in the PA for the following reasons:
•
Complexity across a variety of switches — Enabling conditional trust across a variety of switch
types can become complex. Some of the older switch types do not trust by default, while newer
switches do trust by default. Furthermore, the commands for enabling trust and the process of trust
enforcement are different across platforms.
•
Even more important is the lack of Layer 3 DSCP re-marking on PC ports of IP phones and smart
desktop endpoints. The endpoints re-mark only Layer 2 CoS. Because of this and the inability to
correctly re-mark PC traffic at the DSCP level, using access lists to re-mark IP phones and smart
desktop endpoints is a preferred method in the PA.
•
A single ACL that maps directly to all switch ports is easier to manage than specifying only a limited
number of ports for trust.
Figure 6-6 illustrates the types of trust used in the PA, and which devices are trusted and untrusted.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-10
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Figure 6-6
Trust Boundaries in the Preferred Architecture
Trust Boundary
Jabber
Untrusted
Desktop Devices
(Jabber)
Untrusted IP
Phones and
Smart Desktop
Endpoints
Untrusted
Untrusted
TelePresence
Endpoints
Trust Boundary
Trusted
349569
Trusted
Servers and
Applications
Classification and Marking
This section discusses classification and marking for endpoints.
All Cisco endpoints derive their DSCP marking from Unified CM. Unified CM houses the QoS
configuration for endpoints in two places, in the Service Parameters for the CallManager service
(Clusterwide Parameters (System - QoS)) and in the SIP Profile (applicable only to SIP devices). The
SIP Profile configuration of QoS settings overrides the Service Parameter configuration. This allows
Unified CM administrators to set different QoS policies for groups of endpoints. Unified CM passes this
QoS configuration to the endpoints in a configuration file over TFTP during endpoint registration. This
configuration file contains the QoS parameters as well as a number of other endpoint specific
parameters. For QoS purposes there are two categories of video endpoints: TelePresence endpoints (any
endpoint with TelePresence in the phone type name) and all other non-TelePresence video endpoints
(referred to as "UC Video endpoints").
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-11
Chapter 6
Bandwidth Management
Architecture
Table 6-2 shows the Preferred Architecture endpoints and their classification.
Table 6-2
PA Video Endpoints
Endpoint
TelePresence Endpoint
UC Video Endpoint
Cisco IP Phone 8800 Series
X
Cisco Jabber
X
Cisco DX Series
X
Cisco TelePresence MX Series
X
Cisco TelePresence SX Series
X
Cisco TelePresence IX Series
X
Figure 6-7 illustrates how the two categories of Cisco video endpoints derive DSCP. These categories
apply only to QoS and call admission control (CAC).
Figure 6-7
How Cisco Endpoints Derive DSCP
Clusterwide Parameters (System – QoS)
DSCP for Audio Calls
DSCP for Video Calls
DSCP for Audio Portion of Video Calls
DSCP for TelePresence Calls
DSCP for Audio Portion of TelePresence Calls
…
SIP
Profile
Device
Registration
Config File
Unified CM
TelePresence
Endpoints
TelePresence Applicable
TelePresence
T
Applicab DSCP settings:
DSCP for Audio Calls
DSCP for TelePresence Calls
DSCP for Audio Portion of TelePresence Calls
UC Video
Endpoints
UC Video Applicable DSCP settings:
DSCP for Audio Calls
DSCP for Video Calls
DSCP for Audio Portion of Video Calls
349570
QoS
Service
Parameter
s
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-12
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
The configuration file is populated with the QoS parameters from the CallManager service parameters
or the SIP Profile, when configured, and sent to the endpoint upon registration. The endpoint then uses
the correct DSCP parameters for each type of media stream, depending on which category of endpoint
it is. Table 6-3 lists the DSCP parameters, the type of endpoint, and the type of call flow determining the
DSCP marking of the stream.
Table 6-3
DSCP for Basic Call Flows
DSCP Parameter
TelePresence Endpoint
UC Video Endpoint
Call Flow
DSCP for Audio Calls
X
X
Voice-only
DSCP for Video Calls
X
Video – Audio and video stream of a video
call, unless the endpoint supports the DSCP
for Audio Portion of Video Calls parameter
(see Table 6-4)
DSCP for Audio Portion of
Video Calls
X
Audio stream of a video call – Applicable only
to endpoints that support the parameter
DSCP for TelePresence
Calls
X
Immersive video – Audio and video stream of
an immersive video call, unless the endpoint
supports the DSCP for Audio Portion of
TelePresence Calls parameter (see Table 6-4)
DSCP for Audio Portion of
TelePresence Calls
X
Audio stream of a video call – Applicable only
to endpoints that support the parameter
Table 6-4
Endpoint Support for DSCP for Audio Portion of Video and TelePresence Calls
Video Endpoint
DSCP for Audio Portion of
Video Call
DSCP for Audio Portion of
TelePresence Call
IP Phone 8845 and 8865 Series
Yes
No
DX Series
Yes
No
TelePresence IX Series
No
Yes
TelePresence SX and MX Series
(CE 8.0 or later firmware)
No
Yes
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-13
Chapter 6
Bandwidth Management
Architecture
Trusted Core Devices and Applications
Like endpoints, devices and applications in the collaboration portfolio source and terminate media and
signaling streams. These trusted applications require the appropriate configuration on the application
itself as well as the switch to which the application is connected in order to transparently pass the QoS
marking of the media and signaling.
Core trusted devices and applications:
•
Cisco Unified Communications Manager and IM and Presence Service
•
Cisco Expressway
•
Cisco Unity Connection
•
Cisco TelePresence Server
•
Cisco TelePresence Conductor
•
Cisco IOS SIP Gateway and Cisco Unified Border Element
It is important to ensure that DSCP Trust is enabled on the switch ports to which these endpoints and
application servers are connected. QoS DSCP trust is typically enabled by default on all newer Cisco
switches; however, it is important to verify each switch platform to determine if this QoS trust is enabled,
since some platforms do not trust DSCP by default.
Endpoints and Clients
For the endpoints, the DSCP marking of packets on ingress into the switch needs to be re-marked using
network access control lists (ACLs) to ensure that collaboration media and SIP signaling are marked
appropriately and that other PC data traffic is marked to DSCP of Best Effort (DSCP 0) or as is
appropriate based on the QoS data policies set forth by the enterprise.
The method used here consists of mapping identifiable media and signaling streams based on specific
protocol ports, such as UDP and TCP ports, then making use of network access lists to remark QoS of
the signaling and media streams based on those protocol port ranges. This method applies to all Cisco
Jabber clients (Cisco Jabber for Windows, Cisco Jabber for Mac OS, Cisco Jabber for iPhone, Cisco
Jabber for iPad, and Cisco Jabber for Android) because they all behave similarly when allocating media
and signaling port ranges. Unlike Cisco Jabber clients, endpoints such as IP phones, 8800 Series IP and
video phones, and DX Series with PC ports require an additional measure of matching on DSCP as well
as UDP ports. The reason for this is that the IP phones and video endpoints use the same UDP port range
for both audio and video, and thus in order to differentiate audio and video, matching on both UDP port
range and DSCP allow for the proper identification of media traffic.
The concept is simple. An access list is used in the network access layer equipment (switch) to identify
the media and signaling streams based on UDP port ranges and DSCP matching, and then it is set to
re-mark them to the appropriate DSCP values. Although this technique is easy to implement and can be
widely deployed, it is however not a 100% secure method and this point should be noted. This PA
assumes that other security measures will be implemented to ensure the correct access to the network as
well as any securing of the operating systems (OS) on the PCs and Macs used for Jabber to impede user
tampering of OS related QoS settings.
Figure 6-8 illustrates the use of network access control lists (ACLs) to map identifiable media and
signaling streams to DSCP for Jabber clients.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-14
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Figure 6-8
Endpoint Marking
SINGLE
ACL
UDP Ports
Re-mark
DSCP
3xxx
EF
5xxx
AF42
5060
5061
CS3
S3
Jabber
IP
P Phone / S
Smartt D
Des
Desktop
DSCP
TelePresence
lePresence Endpoin
Endpoints
Example 6-1
•
SWITCH
UDP Ports
EF
17xxx
AF41
17xxx
CS3
5060
5061
EF
AF41
CS3
349571
Match
Switch ACL-Based QoS Policy for Untrusted Endpoints in Figure 6-8:
Jabber clients
– Match UDP Port Range 3xxx –> Re-mark to DSCP EF
– Match UDP Port Range 5xxx –> Re-mark to DSCP AF42
– Match TCP Port 5060 or 5061 –> Re-mark to DSCP CS3
•
IP phones and video endpoints
– Match UDP Port Range 17xxx with DSCP EF –> Re-mark to DSCP EF
– Match UDP Port Range 17xxx with DSCP AF41 –> Re-mark to DSCP AF41
– Match TCP Port 5060 or 5061 –> Re-mark to DSCP CS3
•
Generic matching
– Matches the rest of the traffic and sets DSCP to 0 (Best Effort or BE) using a default class-map
Endpoints send and receive other data and signaling such as ICMP, DHCP, TFTP, BFCP, LDAP, XMPP,
FECC, CTI, and so forth. The QoS values for this traffic should follow the enterprise best practices for
each type of traffic. Without doing this step, all other traffic apart from media and SIP signaling will be
set to a DSCP of BE (DSCP 0) by the class-default in this configuration. We recommend either passing
through the traffic marking by matching on DSCP and then re-marking the DSCP to the same value, or
else using the TCP and UDP ports for each protocol that the endpoints use for communications.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-15
Chapter 6
Bandwidth Management
Architecture
QoS for Cisco Jabber Clients
As discussed, this method involves classifying media and signaling by identifying the various streams
from the Jabber client based on IP address, protocol, and/or protocol port range. Once identified, the
signaling and media streams can be classified and re-marked with a corresponding DSCP. The protocol
port ranges are configured in Unified CM and are passed to the endpoint to use during device
registration. The network can then be configured via access control lists (ACLs) to classify traffic based
on IP address, protocol, and protocol port range, and then to re-mark the classified traffic with the
appropriate DSCP as discussed in the preceding section.
Cisco Jabber provides identifiable media streams based on UDP protocol port ranges and identifiable
signaling streams based on TCP protocol port ranges. In Unified CM, the signaling port for endpoints is
configured in the SIP Security Profile, while the media port range is configured in the SIP Profile of the
Unified CM administration pages.
For the media port range, all endpoints and clients use the SIP profile parameter Media Port Ranges to
derive the UDP ports used for media. By default, media port ranges are configured with Common Port
Range for Audio and Video. When Jabber clients receive this port range in their configuration file, they
split the port range in half and use the lower half for the audio streams of both voice and video calls and
the upper half for the video streams of video calls. This is illustrated in Figure 6-9.
Media and Signaling Port Range – Common
1
2
4000-4999
Registration
Lower Half
for Audio
Config File
Unified CM
SEP[MAC_addr].cnf.xml
Media Port Range UDP
3000-4999
SIP Signaling Port TCP
5060
Upper Half
for Video
JJabber
bb Cli
Clients
Jabber splits
media range
in half
3000-3999
SIP
Signaling
TCP 5060
349572
Figure 6-9
Jabber can also use the Media Port Ranges > Separate Port Range for Audio and Video configuration.
In this configuration the Unified CM administrator can specify a non-contiguous audio and video port
range, as illustrated in Figure 6-10.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-16
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Figure 6-10
Media and Signaling Port Range – Separate
1
2
Registration
Audio
Config File
Unified CM
SEP[MAC_addr].cnf.xml
Media Port Range UDP
3000-3999
Video
5000-5999
JJabber
bb Cli
Clients
Jabber uses
separate media
ranges from
UCM
3000-3999
SIP
Signaling
TCP 5060
Video Port Range UDP
349573
5000-5999
SIP Signaling Port TCP
5060
Caution
Security Alert: If you use identifiable media streams for QoS classification at the network level, the
trust model does not extend to the application itself. Apart from prioritizing streams from the intended
application, other applications could potentially be configured to use the same identification criteria
(media port range) and marking, and therefore achieve network prioritization. Because this unintended
traffic would not be accounted for in call admission control or in the provisioning of the network, severe
overall impact to real-time conversations could occur. It is for this reason that it is a good practice to
define restricted port ranges whenever possible to identify the media streams.
When utilizing this technique, it is important to ensure that the audio portion of these video calls that
will be re-marked to the audio traffic class (EF), and the video portions that will be re-marked to the
video traffic class (AF4), are provisioned in the network accordingly. Figure 6-11 is an example of
placing audio traffic into a Priority Queue (PQ) and video traffic into a Class Based Weighted Fair Queue
(CBWFQ). The combination of PQ and CBWFQ is often referred to as low latency queuing (LLQ). Note
that, because it is not possible to use port ranges in Cisco Jabber endpoints to differentiate the audio
portion of voice-only calls from the audio portion of video calls, all audio using this technique will be
re-marked to EF. It is important to provision the PQ adequately to support voice-only calls and the audio
portion of video calls. An example of such provisioning is illustrated in Figure 6-11. For more
information on the design and deployment recommendations for provisioning queuing and scheduling
in the network, see the WAN Queuing and Scheduling section.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-17
Chapter 6
Bandwidth Management
Architecture
Provisioning Jabber QoS in the Network
Audio of Voice Only Call 1
Audio of Voice Only Call 2
Audio of Video Call 2
Video of Video Call 1
Video of Video Call 2
EF
EF
AF42
AF42
PQ
CBWFQ
other queues
BW Assigned to LLQ Classes
Audio of Video Call 1
EF
EF
349574
Figure 6-11
According to RFC 3551, when RTCP is enabled on the endpoints, it uses the next higher odd port. For
example, a device that establishes an RTP stream on port 3500 would send RTCP for that same stream
on port 3501. This function of RTCP is also true with all Jabber clients. RTCP is common in most call
flows and is typically used for statistical information about the streams and to synchronize audio and
video in video calls to ensure proper lip-sync. In most cases, video and RTCP can be enabled or disabled
on the endpoint itself or in the common phone profile settings.
Utilizing the Network for Classification and Marking
Based on the identifiable media and signaling streams created by the endpoints, common network QoS
tools can be used to create traffic classes and to re-mark packets according to those classes.
These QoS mechanisms can be applied at different layers, such as the access layer (access switch), which
is closest to the endpoint and the router level in the distribution, core, or services WAN edge. Regardless
of where classification and re-marking occurs, we recommend using DSCP to ensure end-to-end per-hop
behaviors.
As previously mentioned, Cisco Unified CM allows the port range utilized by SIP endpoints to be
configured in the SIP Profile. As a general rule, a port range of a minimum of 100 ports (for example,
3000 to 3099) is sufficient for most scenarios. A smaller range could be configured as long as there are
enough ports for the various audio, video, and associated RTCP ports (RTCP runs over the odd ports in
the range), as well as ensuring against port conflict with other applications on the operating system of
the device that may be using these ports since this could cause port collisions.
Access Layer (Layer 2 Definitions)
When utilizing the access layer to classify traffic, the classification occurs at the ingress of traffic into
the network, thus allowing the flows to be identified as they enter. In environments where QoS policies
are applied not only in the WAN but also within the LAN, all upstream components can rely on traffic
markings when processing. Classification at the ingress allows different methods to be utilized based on
different types of endpoints.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-18
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Configuring QoS policies in the access layer of the network could result in a significant amount of
devices that require configuration, which can create additional operational overhead. The QoS policy
configurations should be standardized across the various switches of the access layer through templates.
You can use configuration deployment tools to relieve the burden of manual configuration. The PA
simplifies this process by using a single group of ACLs that can be used across the various switching
platforms.
Distribution/Core/Services WAN Edge (Layer 3 Definitions)
Another location where QoS marking can take place is at the Layer 3 routed boundary. In a campus
network Layer 3 could be in the access, distribution, core, or services WAN edge layers. The
recommendation is to classify and re-mark at the access layer, then trust through the distribution and core
of the network, and finally re-classify and re-mark at the WAN edge if and when needed. For smaller
networks such as branch offices where there are no Layer 3 switching components deployed, QoS
marking can be applied at the WAN edge router. At Layer 3, QoS policies are applied to the Layer 3
routing interfaces. In most campus networks these would be VLAN interfaces, but they could also be
Fast Ethernet or Gigabit Ethernet interfaces. Figure 6-12 illustrates the areas of the network where the
various types of trust are applied in relation to the places in the network – access, distribution, core, or
WAN edge.
Figure 6-12
Trust and Enforcement – Places in the Network
SX, MX, and IX Series Endpoints
Access
Distribution
Core
Immersive and Room
System endpoints
WAN Edge
Cisco IOS SIP
Gateway
SRST Gateway
IP Phones, Jabber,, and DX Serie
Series
Endpoints
Unified BE
IP Phones
Jabber
Trusted Devices
Smart Desktop
Mac/PC
Unified CM
M
IInstant Messaging
And Presence
Unity
Connection
Expressway
TelePresence
Servers
349575
Fully Trusted
Untrusted
Cisco IOS Router Re-marking
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-19
Chapter 6
Bandwidth Management
Architecture
Endpoint Identification and Classification Considerations and Recommendations
Summary of design and deployment considerations and recommendations:
•
Use DSCP markings whenever possible because these are IP layer end-to-end, more granular, and
more extensible than Layer 2 markings.
•
Mark as close to the endpoint as possible, preferably at the LAN switch level.
•
When trying to minimize the number of media ports used by the Cisco Jabber client, a minimum
range of 100 ports is recommended. This is to ensure that there are enough ports for all of the
streams, such as RTCP, RTP for audio and video, BFCP, and RTP for secondary video for desktop
sharing sessions, as well as to avoid any overlap with other applications on the same computer.
•
Ensure a QoS policy includes other pertinent collaboration traffic to be re-marked, otherwise a value
of 0 (Best Effort, or BE) will be placed on all remaining traffic.
WAN Queuing and Scheduling
As discussed in the Identification and Classification section, Unified CM has the ability to differentiate
the video endpoint types as well as the their media streams. This provides the network administrator the
ability to treat the video from different endpoints differently in the network. The recommended approach
in the PA is to use AF42 DSCP markings for Jabber clients and AF41 for all smart desktop, room system,
and immersive video endpoints. These values are in line with RFC 4594.
PA Queuing and Scheduling Approach (Single Video Queue)
A single rate-based queue with multiple DSCPs with differing drop probabilities is used in the PA for
managing multiple types of video across an integrated collaboration media and data network. In this
approach to scheduling video traffic in the WAN, the single video queue is configured with two AF4 drop
probabilities using AF41 and AF42, where AF42 has a higher drop precedence or probability than AF41.
The premise behind a single video queue with this service class with hierarchical drop precedence is that,
when one class of video is not using the bandwidth within the queue, the rest of the queue bandwidth is
available for the other class of video. This approach dedicates bandwidth reserved for video to be
available only to the video queue during times of congestion. Other approaches such as dual rate-based
video queues sub-optimally allocate excess video bandwidth from one queue to all queues on the
interface equally.
Although different strategies for optimized video bandwidth utilization can be designed based on this
single video queue with hierarchical DSCP drop probabilities, the PA approach is illustrated in
Figure 6-13.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-20
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Figure 6-13
Single Video Queue Approach
AF41 WRED thresholds
(i.e., drop AF41 last)
EF
EF
Audio of Jabber Call
EF
Video of Video Call
AF41
Video of Jabber Call
AF42
Video
CBWFQ
BW Assigned to LLQ Classes
EF
other queues
Audio of Video Call
PQ
AF42 WRED thresholds
(i.e., drop AF42 first)
349576
Audio of IP Phone
In Figure 6-13 the audio of a voice call is marked as EF and placed into a Priority Queue (PQ) with a
strict policer on how much bandwidth the PQ can allocate to this traffic. Video calls are separated into
two classes, AF41 for prioritized video and AF42 for opportunistic or Jabber video. Using a CBWFQ
with Weighted Random Early Detection (WRED), the administrator can adjust the drop precedence of
AF42 over AF41, thus ensuring that during times of congestion when the queue is filling up, AF42
packets are dropped from the queue at a higher probability than AF41. See the WAN Quality of Service
section in the Network Infrastructure chapter of the Collaboration SRND for more details on the function
of WRED.
The above example illustrates how an administrator using a single CBWFQ with DSCP-based WRED
for all video can protect one type of video (TelePresence video) from packet loss during periods of
congestion over another type of video (desktop). With this "single video queue approach," unlike the
"dual video queue approach," when one type of video is not using bandwidth in the queue, the other type
of video gains full access to the entire queue bandwidth if and when needed. This is a significant
improvement when deploying pervasive video.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-21
Chapter 6
Bandwidth Management
Architecture
Achieving this holistically across the entire solution depends on a number of conditions. Below is a list
of conditions required to achieve marking all audio to a DSCP of EF:
•
The customer equipment (CE) or service provider (SP) owned WAN equipment must support AF4
QoS containing both AF41 and AF42 QoS markings as well as Weighted Random Early Detection
(WRED).
•
Enhanced Locations Call Admission Control (ELCAC) can be implemented in conjunction with
marking all audio as EF. ELCAC relies on the correct DSCP setting in order to ensure the protection
of the queues that voice and video CAC pools represent. Changing the DSCP of audio streams of
the video calls requires updating how ELCAC deducts bandwidth for video calls. This can be done
by setting the service parameter Deduct Audio Bandwidth from Audio Pool for Video Call, under
the Call Admission Control section of the CallManager service, to True. This parameter can be set
to true or false:
– True (recommended) — Cisco Unified CM splits the audio and video bandwidth allocations for
video calls into separate pools. The bandwidth allocation for the audio portion of a video call is
deducted from the audio pool, while the video portion of a video call is deducted from the video
pool.
– False (default)— Cisco Unified CM applies the legacy behavior, which is to deduct the audio
and video bandwidth allocations of video call from the video pool. This is the default setting.
Opportunistic Video
When video is deployed pervasively across the organization, bandwidth constraints typically determine
the video resolution that can be achieved during the busiest hour of the day based on the bandwidth
available and the number of video calls during that busy hour. To address this challenge, the PA has
targeted a group of endpoints whose video is treated opportunistically by the network by using a single
video queue with DSCP-based WRED coupled with a strategy for identification and classification of the
Jabber clients’ collaboration media.
Opportunistic video is achieving the best video quality based on the WAN bandwidth resources available
at any given time. To achieve this, a number of requirements must be met:
•
Select a group of video endpoints to be opportunistic. In the case of the PA, Jabber clients are used
as the opportunistic video endpoints.
•
Ensure the WAN is configured with a single video queue using DSCP-based WRED with AF4 DSCP
class servicing with drop precedence of AF41 and AF42. (While AF43 could be used, only two
DSCP values are necessary in the PA.)
•
Identify and classify the video of opportunistic endpoints with AF42.
•
Identify and classify all other video endpoints with AF41.
Provisioning and Admission Control
Provisioning bandwidth and ensuring the correct bit rate is negotiated between various groups of
endpoints are important aspects of bandwidth management. In a Unified CM environment, bit rate is
negotiated through Unified CM, which uses a concept of regions to set maximum audio and maximum
video bit rates for any given call flow. This section focuses on the maximum bit rate for video and
TelePresence calls.
Unified CM locations (see Enhanced Locations Call Admission Control) work in conjunction with
regions to define the characteristics of a call flow. Regions define the type of compression or bit rate
(8 kbps or G.729, 64 kbps or G.722/G.711, and so forth) that is used between any two devices. Location
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-22
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
links define the amount of available bandwidth for the path between devices. Each device and trunk in
the system is assigned to both a region (by means of a device pool) and a location (by means of a device
pool or by direct configuration on the device itself):
•
Regions allow the bandwidth of video calls to be set. The audio limit on the region can result in
filtering out codecs with higher bit rates. However, for video calls, the video limit constrains the
quality (resolution and transmission rate) of the video.
•
Locations define the amount of total bandwidth available for all calls on that link. When a call is
made on a link, the regional value for that call must be subtracted from the total bandwidth allowed
for that link.
Building a region matrix to manage maximum video bit rate (video resolution) for groups of devices can
assist in ensuring that certain groups of devices do not over-saturate the network bandwidth. The
following guidelines apply to creating a region matrix:
•
Group devices into maximum video bit rate categories.
•
The smaller the number of groups, the easier it is to calculate bandwidth requirements.
•
Consider the default region settings to simplify the matrix and provide intra-region and inter-region
defaults.
•
Use a single audio codec across the entire organization, both LAN and WAN, to simplify the region
matrices.
For more information about region settings, see the section on Enhanced Locations Call Admission
Control.
Table 6-5 lists an example of a maximum video session bit rate region matrix for three groups of devices.
Note
Table 6-5 is only an example of how to group devices and what maximum bit rate might be suggested
for a general resolution between the groups of devices.
Table 6-5
Example Group Region Matrix for Three Groups of Devices
Endpoint Groupings
Video_1.5MB
Video_2.5MB
Video_20MB
Video_1.5MB
1,500 kbps
1,500 kbps
1,500 kbps
Video_2.5MB
1,500 kbps
2,500 kbps
2,500 kbps
Video_20MB
1,500 kbps
2,500 kbps
20,000 kbps
For the example in Table 6-5, the three groups are:
•
Video_1.5MB
These devices would typically be the largest group of deployed video capable endpoints and thus
would benefit from the opportunistic video approach. Classified as opportunistic video, they can go
up to a maximum of 1,500 kbps (720p @ 30 fps) and will rate-adapt downward based on packet loss.
•
Video_2.5MB
These devices would be room systems such as the Cisco TelePresence MX or SX Series as well as
smart desktop endpoints such as the Cisco DX Series. At 2,500 kbps maximum video bit rate, these
endpoints would typically be capable of 720p @ 30 fps.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-23
Chapter 6
Bandwidth Management
Architecture
•
Video_20MB
This class is for the larger Cisco TelePresence IX Series endpoints as well as TelePresence Servers
and MCUs (Cisco Conductor SIP trunk) set to a maximum of 20 Mbps to allow for endpoints
capable of it to run at 1080p @ 60 fps. (The IX Series, for example, requires 18 MB to do 1080p @
60 fps on three screens). Single-screen systems use much less bandwidth, but this group would be
for devices utilizing their maximum bit rate capacity.
To simplify the configuration of the regions, it is important to standardize on one audio codec to be used
throughout the entire organization. The first consideration is to decide whether to have a lower bit rate
codec for audio calls between sites. Historically as part of managing bandwidth, enterprises have used a
lower bit rate codec such as G.729 over the WAN while using a higher bit rate, wider band codec such
as G.722 for calls within the LAN or MAN. Typically when deploying video at 1 to 2.5 MB per call,
audio (even at 80 kbps per call) consumes so much less bandwidth that many enterprises have moved to
using a higher bit rate, better quality codec such as G.722 across the entire organization (LAN and
WAN). This decision has an impact on the region matrix and whether per-site regions are required or not.
The concept here is that if inter-region audio or video bit rates are to be different, then per-site regions
will be required. This augments the configuration of regions to the number of sites (N) multiplied by the
number of video groups (X):
Number of regions required on average = N∗X
If audio bit rates will be the same across the WAN and LAN, then only the regions for the video groups
are required (X).
Enhanced Locations Call Admission Control
The call admission control function is an important component of a Collaboration system, especially
when multiple sites are connected through an IP WAN and limited bandwidth resources are available for
audio and video calls.
Call Admission Control Architecture
Unified CM Enhanced Locations Call Admission Control
Cisco Unified CM provides Enhanced Locations Call Admission Control (ELCAC) to support complex
WAN topologies as well as distributed deployments of Unified CM for call admission control where
multiple clusters manage devices in the same physical sites using the same WAN up-links.
To support more complex WAN topologies, Unified CM implements a location-based network modeling
functionality. This provides Unified CM with the ability to support multi-hop WAN connections between
calling and called parties. This network modeling functionality has also been incrementally enhanced to
support multi-cluster distributed Unified CM deployments. This allows each cluster to "share" locations
by enabling the clusters to communicate with one another to reserve, release, and adjust allocated
bandwidth for the same locations across clusters.
Network Modeling with Locations, Links, and Weights
Enhanced Locations CAC is a model-based static CAC mechanism. ELCAC involves using the
administration interface in Unified CM to configure locations and links to model the "routed WAN
network" in an attempt to represent how the WAN network topology routes media between groups of
endpoints for end-to-end audio and video calls. Although Unified CM provides configuration and
serviceability interfaces in order to model the network, it is still a "static" CAC mechanism that does not
take into account network failures and network protocol rerouting. Therefore, the model needs to be
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-24
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
updated when the WAN network topology changes or bandwidth allocations across the WAN are
increased or decreased. Enhanced Locations CAC is also call oriented, and bandwidth deductions are
per-call not per-stream, so asymmetric media flows where the bit-rate is higher in one direction than in
the other will always deduct for the highest bit rate bi-directionally. In addition, unidirectional media
flows will be deducted as if they were bidirectional media flows.
Enhanced Locations CAC incorporates the following configuration components to allow the
administrator to build the network model using locations and links:
•
Locations — A location represents a LAN. It could contain endpoints or simply serve as a transit
location between links for WAN network modeling. For example, an MPLS provider could be
represented by a location.
•
Links — Links interconnect locations and are used to define bandwidth available between locations.
Links logically represent the WAN link and are configured in the Location user interface (UI).
•
Weights — A weight provides the relative priority of a link in forming the effective path between
any pair of locations. The effective path is the path used by Unified CM for the bandwidth
calculations, and it has the least cumulative weight of all possible paths. Weights are used on links
to provide a "cost" for the "effective path" and are pertinent only when there is more than one path
between any two locations.
•
Path — A path is a sequence of links and intermediate locations connecting a pair of locations.
Unified CM calculates least-cost paths (lowest cumulative weight) from each location to all other
locations and builds a map of the various paths. Only one "effective path" is used between any pair
of locations.
•
Effective Path — The effective path is the path with the least cumulative weight and is the bandwidth
accounting path that is always used between any two locations.
•
Bandwidth Allocation — Is the amount of bandwidth allocated in the model for each type of traffic:
audio, video, and immersive video (TelePresence).
•
Location Bandwidth Manager (LBM) — Is the active service in Unified CM that assembles a
network model from configured location and link data in one or more clusters. It determines the
effective paths between pairs of locations, determines whether to admit calls between a pair of
locations based on the availability of bandwidth for each type of call, and deducts (reserves)
bandwidth for the duration of each call that is admitted.
•
Location Bandwidth Manager Hub — Is a Location Bandwidth Manager (LBM) service that has
been designated to participate directly in intercluster replication of fixed locations, links data, and
dynamic bandwidth allocation data. LBMs assigned to an LBM hub group discover each other
through their common connections and form a fully-meshed intercluster replication network. Other
LBM services in a cluster with an LBM hub participate indirectly in intercluster replication through
the LBM hubs in their cluster.
Locations, Links, and Weight
Unified CM uses the concept of locations to represent a physical site and to create an association with
media devices such as endpoints, voice messaging ports, trunks, gateways, and so forth, through direct
configuration on the device itself, through a device pool, or even through device mobility. Locations
logically represent the Local Area Network (LAN). Unified CM also uses a configuration parameter
called links to interconnect locations and to define bandwidth available between locations. Links
logically represent the Wide Area Network (WAN). This section describes locations and links and how
they are used (see Figure 6-14).
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-25
Chapter 6
Bandwidth Management
Architecture
The location configuration itself consists of three main parts: links, intra-location bandwidth parameters,
and RSVP locations settings. The intra-location bandwidth parameters are set to unlimited by default
and should remain that way because there is little or no reason to limit bandwidth within a location
(LAN). The RSVP locations settings are not considered here for Enhanced Location CAC because they
apply only to RSVP implementations.
The link bandwidth parameters allow the administrator to characterize the provisioned bandwidth for
audio, video, and immersive calls between "adjacent locations" (that is, locations that have a link
configured between them). This feature offers the administrator the ability to create a string of location
pairings in order to model a multi-hop WAN network.
Figure 6-14
Locations and Links
BETWEEN
Location A
Location B
Link A < > B
BW
Audio
Allocated
1500k
Video
3000k
Immersive
5000k
Links Provide
Bandwidth Accounting
Between Locations
And Interconnect
Locations
LocA
LocB
LocC
LocD
349577
Linking Locations
Weight is configurable on the link and provides the ability to force a specific path choice when multiple
paths between two locations are available. When multiple paths are configured, only one will be selected
based on the cumulative weight, and this path is referred to as the effective path. This weight is static
and the effective path does not change dynamically. When two paths have equal weight, one path is
randomly chosen; therefore it is important to ensure that only one path exists or has the least cumulative
weight to ensure that it is the effective path for the Location Bandwidth Manager (LBM). This is
especially important in multi-cluster environments.
When you configure a device in Unified CM, the device can be assigned to a location. A location can be
configured with links to other locations in order to build a topology. The locations configured in
Unified CM are virtual locations and not real, physical locations. As mentioned, Unified CM has no
knowledge of the actual physical topology of the network. Therefore, any changes to the physical
network must be made manually in Unified CM to map the real underlying network topology with the
Unified CM locations model. If a device is moved from one physical location to another, the system
administrator must either perform a manual update on its location configuration or implement the device
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-26
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
mobility feature so that Unified CM can correctly calculate bandwidth allocations for calls to and from
that device. Each device is in location Hub_None by default. Location Hub_None is an example location
that typically serves as a hub linking two or more locations, and it is configured by default with unlimited
intra-location bandwidth allocations for audio, video, and immersive bandwidth.
Unified CM allows the administrator to define separate voice, video, and immersive video bandwidth
pools for each link between locations. In the PA, only voice and video bandwidth pools are used.
Typically the link between locations is set to a finite number of kilobits per second (kbps) to match the
provisioned amount of bandwidth available for audio and video in the WAN links between physical sites.
Some WANs do not require any limitations because they are over-provisioned for the expected amount
of traffic. If the bandwidth values are set to a finite number of kilobits per second (kbps), Unified CM
will track all calls within the location and all calls that use the location as a transit location (a location
that is in the calculation path but is not the originating or terminating location in the path).
The following devices must be configured in a location:
•
Endpoints
•
Conference bridges
•
Gateways
•
SIP trunks
•
Music on hold (MoH) servers
•
Annunciator (via device pool)
Table 6-6 lists the amount of bandwidth requested for various call speeds. For all audio (both audio-only
calls as well as audio of a video call), Unified CM counts the media bit rates plus the IP and UDP
overhead. For example, a G.711 or G.722 audio call consumes 80 kbps (64 kbps bit rate + 16 kbps for
IP/UDP headers) deducted from the audio bandwidth allocation of the location and link. For a video call,
Unified CM counts only the payload (no IP/UDP header overhead) for video streams, but the audio
portion is calculated with IP and UDP overhead. For example, for a video call at a bit rate of 384 kbps
where audio is set to use a 64 kbps bit rate, Unified CM will allocate 320 kbps from the video bandwidth
allocation and take 64 kbps for the audio and add the 16 kbps for IP/UDP headers to derive 80 kbps for
the audio pool deduction. For the same call where the audio is set to use a 8 kbps bit rate, Unified CM
will allocate 376 kbps from the video bandwidth allocation and take 8 kbps for the audio and add the
16 kbps for IP/UDP headers to derive 24 kbps for the audio pool deduction.
Table 6-6
Amount of Bandwidth Requested by the Locations and Links Bandwidth Deduction Algorithm in the PA
Configuration1
Call Speed (Session Bit Rate)
Audio Pool Bandwidth
Video Pool Bandwidth
G.711 or G.722 audio call (64 kbps)
80 kbps
N/A
G.729 audio call (8 kbps)
24 kbps
N/A
512 kbps video call with G.729 audio (8 kbps)
24 kbps
504 kbps
512 kbps video call with G.711 or G.722 audio (64 kbps)
80 kbps
448 kbps
768 kbps video call with G.729 audio (8 kbps)
24 kbps
760 kbps
768 kbps video call with G.711 or G.722 audio (64 kbps)
80 kbps
704 kbps
1,024 kbps video call with G.729 audio (8 kbps)
24 kbps
1,016 kbps
1,024 kbps video call with G.711 or G.722 audio (64 kbps)
80 kbps
960 kbps
1. Only 8 kbps and 64 kbps are used in these examples, but the same principle also applies to other audio bit rate codecs. The audio bit rate (payload only)
is subtracted the video bit rate to get the adjusted video bit rate value.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-27
Chapter 6
Bandwidth Management
Architecture
For example, assume that the link configuration for the location Branch 1 to Hub_None allocates
256 kbps of available audio bandwidth and 1,024 kbps of available video bandwidth. In this case the path
from Branch 1 to Hub_None can support up to three G.711 audio calls (at 80 kbps per call) or ten G.729
audio calls (at 24 kbps per call), or any combination of both that does not exceed 256 kbps. The link
between locations can also support different numbers of video calls, depending on the video and audio
codecs being used (for example, one video call requesting 1,024 kbps of bandwidth or two video calls
with each requesting 512 kbps of bandwidth).
When a call is placed from one location to the other, Unified CM deducts the appropriate amount of
bandwidth from the effective path of locations and links from one location to another. When the call has
completed, Unified CM returns the bandwidth to those same links over the effective path. If there is not
enough bandwidth at any one of the links over the path, the call is denied by Unified CM and the caller
receives the network busy tone. If the calling device is an IP phone with a display, that device also
displays the message "Not Enough Bandwidth."
When an inter-location call is denied by call admission control, Unified CM can automatically reroute
the call to the destination through the PSTN connection by means of the Automated Alternate Routing
(AAR) feature (see Automated Alternate Routing, page 2-49).
Note
AAR is invoked only when Enhanced Locations Call Admission Control denies the call due to a lack of
network bandwidth along the effective path. In such cases, the calls are redirected to the target specified
in the Call Forward No Answer field of the called device. AAR is not invoked when the IP WAN is
unavailable or other connectivity issues cause the called device to become unregistered with
Unified CM.
Also, AAR is applicable only to intra-cluster endpoint-to-endpoint calls. For all inter-cluster calls that
fail CAC, the route groups are used to try different SIP routing paths.
Video devices can be enabled to Retry Video Call as Audio if a video call between devices fails CAC.
This option is configured on the video endpoint or SIP trunk configuration page in Unified CM and is
applicable to video endpoints or trunks placing calls. For some video endpoints, Retry Video Call as
Audio is enabled by default and not configurable on the endpoint.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-28
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Locations, Links, and Region Settings
Location links work in conjunction with regions to define the characteristics of a call over the effective
path of locations and links. Regions define the type of compression or bit rate (8 kbps or G.729, 64 kbps
for G.722 or G.711, and so forth) that is used between devices, and location links define the amount of
available bandwidth for the effective path between devices. You assign each device in the system to both
a region (by means of a device pool) and a location (by means of a device pool or by direct configuration
on the device itself).
You can configure locations in Unified CM to define:
•
Physical sites (for example, a branch office) or transit sites (for example, an MPLS cloud) — A
location represents a LAN. It could contain endpoints or simply serve as a transit location between
links for WAN network modeling.
•
Link bandwidth between adjacent locations — Links interconnect locations and are used to define
bandwidth available between locations. Links logically represent the WAN link between physical
sites.
– Audio Bandwidth — The amount of bandwidth that is available in the WAN link for voice and
fax calls being made from devices in the location to the configured adjacent location.
Unified CM uses this bandwidth value for Enhanced Locations Call Admission Control.
– Video Bandwidth — The amount of video bandwidth that is available in the WAN link for video
calls being made from devices in the location to the configured adjacent location. Unified CM
uses this bandwidth value for Enhanced Locations Call Admission Control.
– Immersive Video Bandwidth — Not used in the PA configuration.
You can configure regions in Unified CM to define:
•
The maximum audio bit rate
•
The maximum session bit rate for video calls (includes audio)
•
The maximum session bit rate for immersive video calls (includes audio) — Not used in the PA
configuration.
•
Audio codec preference lists
Location Bandwidth Manager
The Location Bandwidth Manager (LBM) is a Unified CM Feature Service managed from the
serviceability web pages and is responsible for all of the Enhanced Locations CAC bandwidth functions.
The LBM should be configured to run on each subscriber node in the cluster that is also running the
Cisco CallManager service.
The LBM performs the following functions:
•
Assembles topology of locations and links
•
Calculates the effective paths across the topology
•
Services bandwidth requests from the Cisco CallManager service (Unified CM call control)
•
Replicates the bandwidth information to other LBMs (see Figure 6-15)
•
Provides configured and dynamic information to serviceability
•
Updates Location Real-Time Monitoring Tool (RTMT) counters
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-29
Chapter 6
Bandwidth Management
Architecture
Figure 6-15
LBM Local Replication Network
UCM
Bandwidth
Req/Res
LBM
UCM
UCM
Bandwidth
Req/Res
Bandwidth
Req/Res
LBM
LBM
LBM
Full Mesh
Replication
LBM
UCM
349578
Bandwidth
Req/Res
By default the CallManager service communicates with the local LBM service.
Deducting All Audio from the Voice Pool
This PA utilizes a new Unified CM 11.x feature that allows the administrator to deduct the audio
bandwidth of video calls from the voice pool. Because ELCAC relies on the correct DSCP setting in
order to ensure the protection of the queues that voice and video CAC pools represent, changing how
Unified CM deducts bandwidth from the video pool requires the DSCP of audio streams of the video
calls to be marked the same as the audio streams of audio-only calls.
In Unified CM this feature is enabled by setting the service parameter Deduct Audio Bandwidth from
Audio Pool for Video Call to True under the Call Admission Control section of the CallManager
service. False is the default setting, and by default Unified CM deducts both audio and video streams of
video calls from the video pool.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-30
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Multi-Cluster Considerations
This section covers the following topics:
•
Intercluster ELCAC
•
LBM Hub Replication Network
•
Common Locations (Shared Locations) and Links
•
Shadow Location
•
Location and Link Management Cluster
Intercluster ELCAC
Intercluster Enhanced Locations CAC extends the concept of network modeling across multiple clusters.
In intercluster Enhanced Locations CAC, each cluster manages its locally configured topology of
locations and links and then propagates this local topology to other remote clusters that are part of the
LBM intercluster replication network. Upon receiving a remote cluster's topology, the LBM assembles
this into its own local topology and creates a global topology. Through this process the global topology
is then identical across all clusters, providing each cluster a global view of enterprise network topology
for end-to-end CAC. Figure 6-16 illustrates the concept of a global topology with a simplistic
hub-and-spoke network topology as an example.
Figure 6-16
Example of a Global Topology for a Simple Hub-and-Spoke Network
Global Topology
Locations
Hub_none
Links
Loc_11 Loc_12
12
Loc_22
L
2 L
Loc_23
2
Loc_21
2
LBM intercluster
replication
Loc_11 Loc_12
Cluster 1
Local Topology
Cluster 2
Hub_none
L
2 L
Loc_23
2
21 Loc_22
Loc_21
Cluster 2
Local Topology
349579
Cluster 1
Hub_none
_none
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-31
Chapter 6
Bandwidth Management
Architecture
Figure 6-16 shows two clusters, Cluster 1 and Cluster 2, each with a locally configured hub-and-spoke
network topology. Cluster 1 has configured Hub_None with links to Loc_11 and Loc_12, while Cluster 2
has configured Hub_None with links to Loc_21, Loc_22, and Loc_23. When intercluster Enhanced
Locations CAC is enabled, Cluster 1 sends its local topology to Cluster 2, as does Cluster 2 to Cluster 1.
After each cluster obtains a copy of the remote cluster's topology, each cluster overlays the remote
cluster's topology over its own. The overlay is accomplished through common locations, which are
locations that are configured with the same name. Because both Cluster 1 and Cluster 2 have the
common location Hub_None with the same name, each cluster will overlay the other's network topology
with Hub_None as a common location, thus creating a global topology where Hub_None is the hub and
Loc_11, Loc_12, Loc_21, Loc_22 and Loc_23 are all spoke locations. This is an example of a simple
network topology, but more complex topologies would be processed in the same way.
LBM Hub Replication Network
The intercluster LBM replication network is a separate replication network of designated LBMs called
LBM hubs. LBM hubs create a separate full mesh with one another and replicate their local cluster's
topology to other remote clusters. Each cluster effectively receives the topologies from every other
remote cluster in order to create a global topology. The designated LBMs for the intercluster replication
network are called LBM hubs. The LBMs that replicate only within a cluster are called LBM spokes. The
LBM hubs are designated in configuration through the LBM intercluster replication group. The LBM
role assignment for any LBM in a cluster can also be changed to a hub or spoke role in the intercluster
replication group configuration. (For further information on the LBM hub group configuration, refer to
the Cisco Unified Communications Manager product documentation available at
http://www.cisco.com/en/US/products/sw/voicesw/ps556/tsd_products_support_series_home.html.)
In the LBM intercluster replication group, there is also a concept of bootstrap LBM. Bootstrap LBMs
are LBM hubs that provide all other LBM hubs with the connectivity details required to create the
full-mesh hub replication network. Bootstrap LBM is a role that any LBM hub can have. If all LBM hubs
point to a single LBM hub, that single LBM hub will tell all other LBM hubs how to connect to one
another. Each replication group can reference up to three bootstrap LBMs.
Once the LBM hub group is configured on each cluster, the designated LBM hubs will create the
full-mesh intercluster replication network. Figure 6-17 illustrates an intercluster replication network
configuration with LBM hub groups set up between three clusters (Cluster 1, Cluster 2, and Cluster 3)
to form the intercluster replication network.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-32
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Figure 6-17
Example Intercluster Replication Network for Three Clusters
Cluster 1
Intercluster Replication Group
LBM Hub
Servers
UCM_11
UCM_12
LBM Hub
HUB
LBM Bootstrap
Servers
UCM_11
LBM Spoke
UCM_21
LBM
UCM_31
HUB
Cluster 2
HUB
Cluster 3
Intercluster Replication Group
Intercluster Replication Group
UCM_23
LBM Bootstrap
Servers
UCM_11
UCM_12
LBM Hub
Servers
LBM Hub
Servers
UCM_21
UCM_31
LBM Bootstrap
Servers
UCM_11
UCM_12
UCM_33
UCM_21
UCM_31
LBM
HUB
HUB
LBM
LBM
HUB
HUB
LBM
UCM_22
Cluster 2 LBM
Replication Network
UCM_32
Intercluster LBM
Replication Network
UCM_34
Cluster 3 LBM
Replication Network
349580
UCM_24
In Figure 6-17, two LBMs from each cluster have been designated as the LBM hubs for their cluster.
This provides redundancy for the LBM hub role. These LBM hubs form the intercluster LBM replication
network. The bootstrap LBMs configured in each LBM intercluster replication group are designated as
UCM_11 and UCM_12. These two LBM hubs from Cluster 1 serve as points of contact or bootstrap
LBMs for the entire intercluster LBM replication network. UCM_21 and UCM_31 in Cluster 2 and
Cluster 3, respectively, serve as backup bootstrap LBM hubs when the primaries are not available (that
is, when Cluster 1 is not available). Establishing the intercluster LBM replication network means that
each LBM hub in each cluster connects to UCM_11, replicates its local topology, and gets the remote
topology. They also get the connectivity information for the other clusters from UCM_11, connect to the
other remote clusters, and replicate their topologies. This creates the full-mesh replication network. If
UCM_11 is unavailable, the LBM hubs will connect to UCM_12. If Cluster 2 LBM hubs are unavailable,
Cluster 2 and Cluster 3 LBM hubs will connect to UCM_31, and Cluster 3 LBM hubs will connect to
UCM_21.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-33
Chapter 6
Bandwidth Management
Architecture
The LBM has the following roles with respect to the LBM intercluster replication network:
•
LBM hubs (local LBMs)
– Communicate directly to other remote hubs as part of the intercluster LBM replication network
•
LBM spokes (local LBMs)
– Communicate directly to local LBM hubs in the cluster and indirectly to the remote LBM hubs
through the local LBM hubs
•
Bootstrap LBMs
– LBM hubs responsible for interconnecting all clusters' LBM hubs in the replication network
– Can be any LBM hub(s) in the network
– Can indicate up to three bootstrap LBM hubs per LBM intercluster replication group
•
LBM hub replication network — Bandwidth deduction and adjustment messages
– LBM optimizes the LBM messages by choosing a sender and receiver from each cluster
LBM hubs can also be configured to encrypt their communications. This allows intercluster ELCAC to
be deployed in environments where it is critical to encrypt traffic between clusters because the links
between clusters might reside over unprotected networks. For further information on configuring
encrypted signaling between LBM hubs, refer to the Cisco Unified Communications Manager product
documentation available at
http://www.cisco.com/en/US/products/sw/voicesw/ps556/tsd_products_support_series_home.html
Common Locations (Shared Locations) and Links
Common locations are locations that are named the same across clusters. Common locations play a key
role in how the LBM creates the global topology and how it associates a single location across multiple
clusters. A location with the same name between two or more clusters is considered the same location
and thus is a shared location across those clusters. If a location is meant to be shared between multiple
clusters, it must have exactly the same name. After replication, the LBM will check for configuration
discrepancies across locations and links. Any discrepancy in bandwidth value or weight between
common locations and links can be seen in serviceability, and the LBM calculates the locations and link
paths with the most restrictive values for bandwidth and the lowest value (least cost) for weight.
Common locations and links can be configured across clusters for a number of different reasons. You
might have a number of clusters that manage devices in the same physical site and use the same WAN
up-links, and therefore the same location needs to be configured on each cluster in order to associate that
location to the local devices on each cluster. You might also have clusters that manage their own
topology, yet those topologies interconnect at specific locations and you will have to configure those
locations as common locations across each cluster so that, when the global topology is being created, the
clusters have the common interconnecting locations and links on each cluster to link each remote
topology together effectively. Figure 6-18 illustrates linking topologies together and shows the common
topology that each cluster shares.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-34
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Figure 6-18
Using Common Locations and Links to Create a Global Topology
Cluster 1 Locations
Cluster 1
Topology
Cluster 2 Locations
DC
Cluster 3 Locations
Loc_11
Common Locations
Local Configuration
Cluster 1
Links
Global Topology
DC
Loc_11
Cluster 2
Regional 1
Cluster 2
Topology
Cluster 3
Regional 2
DC
DC
Regional 1
Loc_21 L
22
Loc_22
Loc_31
L
31 Loc_32
L
3
Cluster 3
Topology
Loc_33
L
33
Regional 2
Replicated Locations
Topology
Loc_21 Loc_22
L
22
Local Configuration
Loc_33
L
33
Local Configuration
349581
Loc_31
L
31 Loc_32
L
3
In Figure 6-18, Cluster 2 has devices in locations Regional 1, Loc_21, and Loc_22, but it requires
configuring DC and a link from Regional 1 to DC in order to link to the rest of the global topology.
Cluster 3 is similar, with devices in Regional 2 and Loc_31, Loc_32, and Loc_33, and it requires
configuring DC and a link from DC to Regional 2 to map into the global topology. Cluster 1 has devices
in Loc_11 only, and it requires configuring DC and a link to DC from Loc_11 to map into Cluster 2 and
Cluster 3 topologies.
The key to topology mapping from cluster to cluster is to ensure that at least one cluster has a common
location with another cluster so that the topologies interconnect accordingly.
Shadow Location
The shadow location is used to enable a SIP trunk to pass Enhanced Locations CAC information such as
location name, among other things, required for Enhanced Locations CAC to function between clusters.
In order to pass this location information across clusters, the SIP intercluster trunk (ICT) must be
assigned to the shadow location. The shadow location cannot have a link to other locations, and therefore
no bandwidth can be reserved between the shadow location and other locations. Any device other than
a SIP ICT that is assigned to the shadow location will be treated as if it was associated to Hub_None.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-35
Chapter 6
Bandwidth Management
Architecture
Location and Link Management Cluster
In order to avoid configuration overhead and duplicated configuration across clusters that share a large
number of locations, a Location and Link Management Cluster can be configured to manage all locations
and links in the global topology. All other clusters uniquely configure the locations that they require for
location-to-device association and do not configure links or any bandwidth values other than unlimited.
The Location and Link Management Cluster is a design concept and is simply any cluster that is
configured with the entire global topology of locations and links, while all other clusters in the LBM
replication network are configured only with locations set to unlimited bandwidth values and without
configured links. When intercluster Enhanced Locations CAC is enabled and the LBM replication
network is configured, all clusters replicate their view of the network. The designated Location and Link
Management Cluster has the entire global topology with locations, links, and bandwidth values; and
once those values are replicated, all clusters use those values because they are the most restrictive. This
design alleviates configuration overhead in deployments where a large number of common locations are
required across multiple clusters.
Recommendations
Location and Link Management Cluster:
•
One cluster should be chosen as the management cluster (the cluster chosen to manage
administratively locations and links).
•
The management cluster should be configured with the following:
– All locations within the enterprise will be configured in this cluster.
– All bandwidth values and weights for all locations and links will be managed in this cluster.
All other clusters in the enterprise:
•
All other clusters in the enterprise should configure only the locations required for association to
devices but should not configure the links between locations. This link information will come from
the management cluster when intercluster Enhanced Locations CAC is enabled. By default there is
always a link configured between a newly added location and hub_none. This link should be
removed if hub_none is either not used or is not correct in the topology being built.
•
When intercluster Enhanced Locations CAC is enabled, all of the locations and links will be
replicated from the management cluster.
LBM will always use the lowest, most restrictive bandwidth and lowest weight value after replication.
Benefits
•
Manages enterprise CAC topology from a single cluster.
•
Alleviates location and link configuration overhead when clusters share a large number of common
locations.
•
Alleviates configuration mistakes in locations and links across clusters.
•
Other clusters in the enterprise require the configuration only of locations needed for
location-to-device and endpoint association.
•
Provides a single cluster for monitoring of the global locations topology.
Figure 6-19 illustrates a Location and Link Management Cluster for three clusters.
Note
As mentioned, any cluster can act as the Location and Link Management Cluster. In Figure 6-19,
Cluster 1 is the Location and Link Management Cluster.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-36
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Figure 6-19
Example of Cluster 1 as a Location and Link Management Cluster
Cluster 1 Topology
DC
Loc_11
Regional 1
Cluster 1 Locations
Regional 2
Cluster 2 Locations
Cluster 3 Locations
Loc_21 L
Loc_22
22
Loc_31
L
31 Loc_32
L
3
Loc_33
L
33
Common Locations
Cluster 1
Local Configuration
Links
Global Topology
DC
Loc_11
Cluster 2
Regional 1
Cluster 2
Topology
Cluster 3
Regional 2
DC
DC
Regional 1
Loc_21 Loc_22
L
22
Loc_31
L
31 L
Loc_32
3
Cluster 3
Topology
Loc_33
L
33
Regional 2
Replicated Locations
Topology
Loc_21 L
Loc_22
22
Local Configuration
Loc_33
L
33
Local Configuration
349582
Loc_31
L
31 Loc_32
L
3
In Figure 6-19 there are three clusters, each with devices in only a regional and remote locations.
Cluster 1 has the entire global topology configured with locations and links, and intercluster LBM
replication is enabled among all three clusters. None of the clusters in this example share locations,
although all of the locations are common locations because Cluster 1 has configured the entire location
and link topology. Note that Cluster 2 and Cluster 3 configure only the locations that they require to
associate to devices and endpoints, while Cluster 1 has the entire global topology configured. After
intercluster replication, all clusters will have the global topology with locations and links.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-37
Chapter 6
Bandwidth Management
Architecture
Design Considerations for Call Admission Control
This section describes how to apply the call admission control mechanisms to various IP WAN
topologies. Unified CM Enhanced Locations CAC network modeling support, together with intercluster
enhanced locations, can support most of the network topologies in any Unified CM deployment model.
Enhanced Locations CAC is still a statically defined mechanism that does not query the network, and
therefore the administrator still has to provision Unified CM accordingly whenever network changes
affect admission control. This is where a network-aware mechanism such as RSVP can fill that gap and
provide support for dynamic changes in the network, such as when network failures occur and media
streams take different paths in the network. This is often the case in designs with load-balanced dual or
multi-homed WAN up-links or unequally sized primary and backup WAN up-links.
To learn how Enhanced Locations CAC functions, and for more design and deployment details of
Enhanced Locations CAC, see the Enhanced Locations Call Admission Control information in the
Bandwidth Management chapter of the Cisco Collaboration SRND.
This section explores a few typical topologies and explains how Enhanced Locations CAC can be
designed to manage them.
Dual Data Center Design
Figure 6-20 illustrates a simple dual data center WAN network design where each remote site has a
single WAN up-link to each data center. The data centers are interconnected by a high-speed WAN
connection that is over-provisioned for data traffic.
Figure 6-20
Dual Data Center WAN Network
Dual Data Center
Routed WAN Network
L1
DC2
L2
L3
L4
349583
DC1
Typically these WAN up-links from the remote sites to the data centers are load-balanced or in a
primary/backup configuration, and there are limited ways for a static CAC mechanism to handle these
scenarios. Although you could configure this multi-path topology in Enhanced Locations CAC, only one
path would be calculated as the effective path and would remain statically so until the weight metric was
changed. A better way to support this type of network topology is to configure the two data centers as
one data center or hub location in Enhanced Locations CAC and configure a single link to each remote
site location. Figure 6-21 illustrates an Enhanced Locations CAC locations and links overlay.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-38
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Figure 6-21
Enhanced Locations CAC Topology Model for Dual Data Centers
Dual Data Center
ELCAC Topology Model
Hub_None
DC1
DC2
L1
L2
L3
L4
Location 1
Location 2
Location 3
Location 4
349584
Single link per
location to
hub_none
protecting the
lowest
capacity link
Design Recommendations
The following design recommendations for dual data centers with remote dual or more links to remote
locations, apply to both load-balanced and primary/backup WAN designs:
•
A single location (Hub_None) represents both data centers.
•
A single link between the remote locations and Hub_None protects the remote site up-links from
over-subscription during normal conditions or failure of the highest bandwidth capacity links.
•
The capacity of link bandwidth allocation between the remote site and Hub_None should be equal
to the lowest bandwidth capacity for the applicable Unified Communications media for a single link.
For example, if each WAN up-link can support 2 Mbps of audio traffic marked EF, then the link
audio bandwidth value should be no more than 2 Mbps to support a failure condition or equal-cost
path routing.
MPLS Clouds
When designing for Multiprotocol Label Switching (MPLS) any-to-any connectivity type clouds in the
Enhanced Locations CAC network model, a single location can serve as the MPLS cloud. This location
will not have any devices associated to it, but all of the locations that have up-links to this cloud will
have links configured to the location representing the cloud. In this way the MPLS cloud serves as a
transit location for interconnecting multiple variable-sized bandwidth WAN up-links to other remote
locations.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-39
Chapter 6
Bandwidth Management
Architecture
Design Recommendations
•
The MPLS cloud should be configured as a location that does not contain any endpoints but is used
as a hub to interconnect locations.
•
The MPLS cloud serves as a transit location for interconnecting multiple variable-sized bandwidth
WAN up-links to other remote locations.
•
Remote sites with connectivity to dual MPLS clouds should treat those connections as a single link
and size to the lowest capacity of the links in order to avoid over-subscription during network failure
conditions.
Call Admission Control Design Recommendations for Video Deployments
Admission control and QoS are complementary and in most cases co-dependent. Current Cisco product
offerings such as audio and video endpoints, voice and video gateways, voice messaging, and
conferencing all support native QoS packet marking based on IP Differentiated Services Code Point (IP
DSCP). Note, however, that Jabber for Windows clients specifically do not follow the same native
marking ability that other clients do, because the Windows operating system requires the use of Group
Policy Objects (GPO) using application, IP addresses, and UDP/TCP port ranges to mark traffic with
DSCP from the operating system itself. Group Policy Objects are very similar in function to network
access lists in their ability to mark traffic.
QoS is critical to admission control because without it the network has no way of prioritizing the media
to ensure that admitted traffic gets the network resources it requires above that of non-admitted or other
traffic classifications. Unified CM's CallManager service parameters for QoS as well as the SIP Profile
settings provide five main QoS settings that are applicable to endpoint media classification. Table 6-7
shows the five main DSCP parameters along with their default and recommended values and Per Hop
Behavior (PHB) equivalents.
Table 6-7
QoS Settings for Endpoint Media Classification
Cisco CallManager Service Parameters
Clusterwide Parameters (System - QoS)
Default Values
Recommended Values
DSCP
PHB
DSCP
PHB
DSCP for Audio Calls
46
EF
46
EF
DSCP for Video Calls
34
AF41
34
AF41
DSCP for Audio Portion of Video Calls
34
AF41
46
EF
DSCP for TelePresence Calls
32
CS4
34
AF41
DSCP for Audio Portion of TelePresence Calls
32
CS4
46
EF
The DSCP for Audio Calls setting is used for any device that makes an audio-only call. The DSCP for
Video Calls setting is used for the audio and video traffic of any device that is classified as "desktop."
DSCP for TelePresence Calls is used for the audio and video traffic of any device that is classified as
"immersive." The DSCP for Audio Portion of Video Calls and DSCP for Audio Portion of
TelePresence Calls differentiate only the audio portion of video calls, dependent on the classified video
call.
Enhanced Locations CAC Design Considerations and Recommendations
The following design recommendation applies to video solutions that employ Enhanced Locations CAC:
•
Intercluster SIP trunks should be associated with the shadow location.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-40
November 20, 2015
Chapter 6
Bandwidth Management
Architecture
Design Recommendations for Cisco Expressway Deployments with Enhanced Locations CAC
In the Cisco Expressway mobile and remote access (MRA) solution, endpoints supporting the feature
can register to Unified CM through a Cisco Expressway deployment without the use of a VPN. Cisco
Expressway-C and Expressway-E servers are deployed, each with redundancy for high availability.
Expressway-E is placed in the DMZ between the firewall to the Internet (outside) and the firewall to the
enterprise (inside), while Expressway-C is placed inside the enterprise. Figure 6-22 illustrates this
deployment. It also illustrates the following media flows:
Figure 6-22
•
For Internet-based endpoints calling one another, the media is routed through Cisco Expressway E
and Expressway C back out to the Internet, as is illustrated between endpoints B and C in
Figure 6-22.
•
For Internet-based endpoints calling internal endpoints, the media flows through Expressway-E and
Expressway-C, as is illustrated between endpoints A and C in Figure 6-22.
Deployment of Cisco Expressway Mobile and Remote Access (MRA)
B
Inside firewall
wall
anet)
(Intranet)
2
DMZ
Outside firew
firewall
wall
(Internet))
1
Collaboration
Servicess
IInternet
ntternett
C
Unifi
Unified
CM
Expressway-C
E
xpressway-C
CE
Expressway-E
xpressway-E
E
SIGNALING
Cisco WebEx
A
349585
MEDIA
A
Enhanced Locations CAC for Cisco Expressway deployments requires the use of a feature in
Unified CM called Device Mobility. Enabling Device Mobility on the endpoints allows Unified CM to
know when the device is registered through Cisco Expressway or when it is registered from within the
enterprise. Device Mobility also enables Unified CM to provide admission control for the device as it
roams between the enterprise and the Internet. Device Mobility is able to do this by knowing that, when
the endpoints register to Unified CM with the IP address of Expressway-C, Unified CM will associate
the applicable Internet location. However, when the endpoint is registered with any other IP address,
Unified CM will use the enterprise location that is configured directly on the device (or from the device
pool directly configured on the device). It is important to note that Device Mobility does not have to be
deployed across the entire enterprise for this function to work. Configuration of Device Mobility in
Unified CM is required only for the Expressway IP addresses, and the feature is enabled only on the
devices that require the function (that is to say, those devices registering through the Internet).
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-41
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Bandwidth Management Deployment
This section describes how to deploy bandwidth management for the PA. It explores all aspects discussed
previously in this chapter, including identification and classification, WAN queuing and scheduling,
provisioning, resource control, and bandwidth allocation guidelines for each site type.
Deployment Overview
The Preferred Architecture example in this section is a large enterprise with users across a large
geographic area and with a headquarters site where the data center sits as well as multiple large, small,
and micro sized branches with roughly 500, 50, 15, and 5 users in each branch type, respectively. To
simplify the illustration of the network, these categories of sites (headquarters, large, small, and micro)
are used as a template to size bandwidth considerations for each site that has a similar size user base and
endpoint density. Figure 6-23 illustrates this with numbers of users and endpoints at each type of site.
The enterprise in this example has deployed Jabber with video to ensure that users have access to a video
terminal for conferencing. The TelePresence video conferencing resources are located in the data center
at the Headquarters Site. IP phones are for voice-only communications. Video endpoints are Jabber
clients, collaboration desktop endpoints (DX Series), and room-based endpoints (MX Series and
SX Series). The Headquarters Site has an immersive TelePresence unit such as the IX Series.
The IT department is tasked with determining the bandwidth requirements for the WAN edge for each
type of site. Each section below lists the requirements and illustrates a methodology for applying QoS,
determining bandwidth and queuing requirements, and determining admission control requirements.
Figure 6-23
Preferred Architecture for Enterprise Collaboration
Unified CM
Multipoint
Video (TS)
Central
Site
500 users:
500 Jabber clients
300 IP phones
30 video endpoints
(room + desktop)
1 Immersive TelePresence
(IX Series)
2 TelePresence Servers
Expressway
B2B
Cloud
Services
Serv
r ices
s
Mobile
Users
Internet
Int
MPLS VPN
50 users:
15 users:
5 users:
15 Jabber clients
10 IP phones
2 video endpoints
(room)
5 Jabber clients
3 IP phones
1 video endpoint
Large Branch
S
Small Branch
Micro Branch
349586
50 Jabber clients
30 IP phones
1 Immersive
TelePresence
(IX Series)
6 video endpoints
(room + desktop)
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-42
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Deployment of bandwidth management for the Enterprise Collaboration Preferred Architecture involves
the following major tasks:
•
Identification and Classification
– Access Layer Endpoint Identification and Classification
– Application Server QoS
– WAN Edge Identification and Classification
– WAN Edge Queuing and Scheduling
•
Provisioning and Admission Control
– Enhanced Locations CAC
– Deploy Device Mobility for Mobile and Remote Access (MRA)
– Bandwidth Allocation Guidelines
Identification and Classification
In this phase the QoS requirements are established across the enterprise. The topics covered in this
section include:
•
Access Layer Endpoint Identification and Classification
– Endpoints: Jabber
– Endpoints: Desktop and TelePresence
•
Application Server QoS
•
WAN Edge Identification and Classification
•
WAN Edge Queuing and Scheduling
This phase of the deployment involves the following high-level steps:
1.
Configure endpoints in Unified CM with QoS for Jabber clients and desktop and telepresence
endpoints.
2.
Deploy an access layer policy for endpoint identification and classification for untrusted endpoints.
3.
Configure application server QoS for media and SIP signaling.
4.
Deploy a WAN Edge ingress marking policy for collaboration media and SIP signaling.
5.
Deploy a WAN Edge egress queuing policy for collaboration media and SIP signaling.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-43
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Access Layer Endpoint Identification and Classification
In this section endpoint QoS and media port ranges are configured in the network and in Unified CM.
Endpoints: Jabber
Jabber endpoints are untrusted and typically sit in the data VLAN. Specific UDP port ranges are used to
re-mark signaling and media at the access layer switch. In this case Unified CM is configured with a SIP
Profile specifically for all Jabber clients to use the Separate Media and Signaling Port Range value of
3000 to 3999 for audio and 5000 to 5999 for video. The SIP signaling port of 5060 is used for SIP
signaling and 5061 for secure SIP signaling. The SIP signaling port is configured in the SIP Security
Profile in Unified CM. This is illustrated in Figure 6-24.
Figure 6-24
Jabber Endpoint QoS
Match
DSCP
UDP Ports
3xxx
ACL
EF
5xxx
AF42
5060
5061
CS3
349587
Jabber clients
and desktop):
((mobile
ob e a
The administrator creates an ACL for the access switches for the data VLAN to re-mark UDP ports to
the following DSCP values:
•
Audio: UDP ports 3000 to 3999 marked as EF
•
Video: UDP ports 5000 to 5999 marked as AF42
•
Signaling: TCP ports 5060 to 5061 marked as CS3
Jabber classification summary:
•
Audio streams of all Jabber calls (voice-only and video) are marked as EF
•
Video streams of Jabber video calls are marked as AF42
For the Jabber endpoints, we also recommend changing the default QoS values in the Jabber SIP Profile.
This is to ensure that, if for any reason the QoS is "trusted" via a wireless router or any other network
component, then the correct "trusted" values are the same as they would be for the re-marked value.
Therefore, the QoS parameters in the SIP Profile should be set as listed in Table 6-8, and the UDP port
ranges should be set as listed in Table 6-9.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-44
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Table 6-8
QoS Parameter Settings in SIP Profile for Jabber Endpoints
QoS Service Parameter Name (SIP Profile)
Default Value
Changed Value
DSCP for Audio Calls
EF
No change
DSCP for Video Calls
AF41
AF42
DSCP for Audio Portion of Video Calls
AF41
EF
DSCP for TelePresence Calls
CS4
AF41
DSCP for Audio Portion of TelePresence Calls
CS4
EF
Table 6-9
UDP Port Settings for Jabber Endpoints
Media Port Ranges > Separate Port Range for Audio and Video
Value
Audio start port
3000
Audio stop port
3999
Video start port
5000
Video stop port
5999
The settings in Table 6-8 ensure that audio of Jabber clients is set to EF, and the video will be set to AF42
if for any reason the traffic goes through a trusted path and is not re-marked via UDP port range at the
access switch. This is simply to ensure a consistent configuration across Jabber endpoints.
For Jabber on mobile devices, we recommend copying the Standard SIP Profile for Mobile Device
when building a new SIP profile for these devices, because the default standard SIP profile for mobile
devices includes recommended timer values for maintaining Jabber registration on Android and
Apple iOS devices. These timers are required for any SIP profile assigned to dual-mode and tablet Jabber
client devices.
Note
Jabber for Mac, iPad, iPhone, and Android all natively mark DSCP by the OS. Jabber for Windows,
however, requires Group Policy Objects to re-mark DSCP by the OS. Without Group Policy Objects,
Jabber for Windows will mark all traffic with a DSCP of 0. This is why specific port ranges are used for
Jabber and without matching on DSCP.
Endpoints: Desktop and TelePresence
IP phones, smart desktop, and TelePresence endpoints also rely on an access layer switch ACL to
re-mark traffic. Specific UDP port ranges and DSCP are used to re-mark signaling and media at the
access layer switch. In this case Unified CM is configured with a SIP Profile specifically for all IP
phones, smart desktop, and TelePresence endpoints to use the common Media and Signaling Port Range
value of 17000 to 17999 for audio and video. The SIP signaling port of 5060 is used for SIP signaling
and 5061 for secure SIP signaling. The SIP signaling port is configured in the SIP Security Profile in
Unified CM. This is illustrated in Figure 6-25.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-45
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Figure 6-25
Desktop and TelePresence Endpoint QoS
Match
Remark
UDP Ports
DSCP
EF
17xxx
EF
AF41
17xxx
AF41
CS3
5060
5061
DSCP
ACL
CS3
SWITCH
TelePresence
T
Te
lePresence Endpoints
349588
IP Phone / Smart Desktop
The administrator creates an ACL for the access switch ports to re-mark UDP ports to the following
DSCP values:
•
Audio: UDP ports 17000 to 17999 with DSCP of EF to be re-marked as EF
•
Video: UDP ports 17000 to 17999 with DSCP of AF41 to be re-marked as AF41
•
Signaling: TCP ports 5060 to 5061 marked as CS3
Desktop and TelePresence endpoint classification summary:
•
Audio streams of all desktop and TelePresence endpoint calls (voice-only and video) are marked EF.
•
Video streams of desktop and TelePresence endpoint video calls are marked AF41.
For the desktop and TelePresence endpoints, the default QoS values must be changed in the SIP Profile
and set as shown in Table 6-10, and the UDP port ranges should be set as listed in Table 6-11.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-46
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Table 6-10
QoS Parameters in SIP Profile for Desktop and TelePresence Endpoints
QoS Service Parameter Name (SIP Profile)
Default Value
Changed Value
DSCP for Audio Calls
EF
No change
DSCP for Video Calls
AF41
No change
DSCP for Audio Portion of Video Calls
AF41
EF
DSCP for TelePresence Calls
CS4
AF41
DSCP for Audio Portion of TelePresence Calls
CS4
EF
Table 6-11
UDP Port Settings for Desktop and TelePresence Endpoints
Media Port Ranges > Common Port Range for Audio and Video
Value
Media start port
17000
Media stop port
17999
Example Switch ACL-Based QoS Policy for Endpoint Switch Ports
Desktop and TelePresence endpoints:
•
Match UDP port range 17xxx with DSCP EF –> Re-mark to DSCP EF
•
Match UDP port range 17xxx with DSCP AF41 –> Re-mark to DSCP AF41
•
Match TCP ports 5060 to 5061 –> Re-mark to DSCP CS3
Jabber clients
•
Match UDP port range 3xxx –> Re-mark to DSCP EF
•
Match UDP port range 5xxx –> Re-mark to DSCP AF42
•
Match TCP ports 5060 to 5061 –> Re-mark to DSCP CS3
Generic matching
•
Note
Matches the rest of the traffic and sets DSCP to 0 (Best Effort or BE) using a default class-map
The following is an example access control list based on the Cisco Common Classification Policy
Language (C3PL).
! This section configures the ACLs to match the UDP port ranges and DSCP.
ip access-list extended QOS_VOICE
permit udp any range 17000 17999 any dscp ef
permit udp any range 3000 3999 any
ip access-list extended QOS_PRIORITIZED_VIDEO
permit udp any range 17000 17999 any dscp af41
ip access-list extended QOS_JABBER_VIDEO
permit udp any range 5000 5999 any
ip access-list extended QOS_SIGNALING
permit tcp any any range 5060 5061
permit tcp any range 5060 5061 any
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-47
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
! This section configures the classes that match on the ACLs above.
class-map match-any VOICE
match access-group name QOS_VOICE
class-map match-any PRIORITIZED_VIDEO
match access-group name QOS_PRIORITIZED_VIDEO
class-map match-any JABBER_VIDEO
match access-group name QOS_JABBER_VIDEO
class-map match-any SIGNALING
match access-group name QOS_SIGNALING
! This section configures the policy-map matching the classes configured above and sets
DSCP for voice, video, and SIP signaling on ingress. Note that the class-default sets
everything that does not match the above to a DSCP of 0 (BE).
policy-map INGRESS_MARKING
class VOICE
set dscp ef
class PRIORITIZED_VIDEO
set dscp af41
class JABBER_VIDEO
set dscp af42
class SIGNALING
set dscp cs3
class class-default
set dscp 0
! This section applies the policy-map to the interface.
Switch (config-if)# service-policy input INGRESS-MARKING
As mentioned, endpoints send and receive other data and signaling such as ICMP, DHCP, TFTP, BFCP,
LDAP, XMPP, FECC, CTI, and so forth. The QoS values for this traffic should follow the enterprise’s
best practices for each type of traffic. Without doing this step, all other traffic apart from media and SIP
signaling will be set to a DSCP of BE (DSCP 0) by the class-default in this configuration. We
recommend either passing through the traffic marking by matching on DSCP and then re-marking the
DSCP to the same value, or else using the TCP and UDP ports for each protocol that the endpoints use
for communications.
The following example illustrates this. A class-map is created to match on a DSCP of AF21 which is
transactional data, and the policy sets that data to AF21, effectively re-marking the DSCP to the same
value. This is simply an example of matching on a DSCP to re-mark to the same DSCP:
class-map match-any TRANSACTIONAL-DATA
match dscp af21
policy-map INGRESS_MARKING
….
class TRANSACTIONAL-DATA
set dscp af21
TCP and UDP port ranges can also be used. For more information on the TCP and UDP ports used for
communication between the endpoints and Unified CM, see the Cisco Unified Communications
Manager TCP and UDP Port Usage information in the System Configuration Guide for Cisco Unified
Communications Manager, available at
http://www.cisco.com/c/en/us/support/unified-communications/unified-communications-managercallmanager/products-installation-and-configuration-guides-list.html
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-48
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Also see the endpoints administration guides or the Jabber planning guide to determine the various
protocols and ports used for other endpoint traffic. Some examples of these documents include:
•
Cisco DX Series Administration Guide, available at
http://www.cisco.com/c/en/us/support/collaboration-endpoints/desktop-collaboration-experience-d
x600-series/products-maintenance-guides-list.html
•
Cisco Jabber Planning Guide, available at
http://www.cisco.com/c/en/us/support/unified-communications/jabber-android/products-installatio
n-guides-list.html
Application Server QoS
Configure QoS on all media originating and terminating applications and MCUs across the solution. This
section covers non-default configuration on all application servers in the PA. It is also equally important
to ensure that the switch ports to which the application servers are connected trust the QoS set by the
servers. Some switches such as the Cisco Catalyst 3850 Series trust the QoS by default, so verify the
switch configuration to ensure that the switch port is trusted by default or enable QoS trust.
QoS settings for the various application servers:
•
Cisco Unified CM (endpoint)
System > Service Parameters > Select Publisher > Select Cisco CallManager Service >
Clusterwide Parameters (System - QOS) > Change the QoS values from their defaults and set
them as indicated in Table 6-12.
Table 6-12
QoS Parameter Settings for Unified CM Endpoints
QoS Service Parameter Name (SIP Profile)
Default Value
Changed Value
DSCP for Audio Calls
EF
No change
DSCP for Video Calls
AF41
No change
DSCP for Audio Portion of Video Calls
AF41
EF
DSCP for TelePresence Calls
CS4
AF41
DSCP for Audio Portion of TelePresence Calls
CS4
EF
•
Cisco Unity Connection
System settings > Advanced > Telephony
– Default = Audio (46 / EF), Video (46 / EF), Signaling (24 / CS3)
– Change Video to 34 / AF41
•
Cisco TelePresence Conductor and TelePresence Server
– Leave defaults
•
Cisco Expressway
System > Quality of Service
– Sets QoS for all media and signaling to a single DSCP
– Default = 0
– Change to: 36 / AF42
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-49
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
WAN Edge Identification and Classification
At the WAN edge on ingress from the enterprise to the service provider, it is expected that the packets
that arrive with a specific DSCP value because the collaboration traffic have been re-marked at the access
layer switch. On ingress it is important to re-mark any traffic at the WAN edge that could not be
re-marked at the access layer, as a failsafe in case any traffic from the access switches was trusted
through the LAN. While QoS is important in the LAN, it is paramount in the WAN; and as routers
assume a trust on ingress traffic, it is important to configure the correct QoS policy that aligns with the
business requirements and user experience. The WAN edge re-marking is always done on the ingress
interface into the router, while the queuing and scheduling is done on the egress interface. The following
example walks through the WAN ingress QoS policy as well as the egress queuing policy. Figure 6-26
through Figure 6-31 illustrate the configuration and the re-marking process.
In Figure 6-26 the packets from endpoints are identified and classified with the appropriate DSCP
marking via a trusted port or via an ACL. Because there are typically areas of the switched access
network that either cannot be configured with the correct QoS policies or re-mark collaboration traffic
to Best Effort DSCP (BE), the WAN ingress policy is a good place for a catch-all policy to readdress
what the access layer might have missed before the traffic heads into the WAN.
Figure 6-26
Example Router Ingress QoS Policy Process – 1
Jabber clients
DSCP
IP Phone / Smart
S
Desktop
EF
Ingress
Policy
1
AF42
TelePresence
T
Te
lePresence Endpoints
SWITCH
CS3
349589
AF41
Figure 6-27 through Figure 6-29 illustrate the policy matching criteria and DSCP re-marking. The
illustrations show the following steps:
1.
In step 1, packets arrive at the router ingress interface, which is configured with an input service
policy.
2.
In step 2, the policy-map is configured with four classes of traffic to set the appropriate DSCP (voice
= EF; prioritized-video = AF41; Jabber-video = AF42; signaling = CS3).
3.
In step 3, each one of these classes matches a class-map of the same name configured with
match-any criterion. This match-any criterion means that the process will start top-down, and the
first matching criterion will be executed to set the DSCP according to each class in the policy-map
statements.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-50
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Figure 6-27
Example Router Ingress QoS Policy Process – 2
! This section applies the policy-map to the Interface
Ingress
Policy
1
Router (config-if)# service-policy input INGRESS-MARKING
! Attaches service policy to interface
! This section configures the ACL’s
ip access-list extended QOS_VOICE
permit udp any range 17000 17999 any dscp ef
permit udp any range 3000 3999 any
2
ip access-list extended QOS_PRIORITIZED_VIDEO
permit udp any range 17000 17999 any dscp af41
ip access-list extended QOS_JABBER_VIDEO
permit udp any range 4000 4999 any
ip access-list extended QOS_SIGNALING
permit tcp any any range 5060 5061 dscp cs3
permit tcp any range 5060 5061 any dscp cs3
! This section configures the policy-map to set DSCP for
Trusted and Untrusted Voice, Video, and SIP Signaling
on ingress
policy-map INGRESS-MARKING
class VOICE
set dscp ef
class PRIORITIZED-VIDEO
set dscp af41
class JABBER-VIDEO
set dscp af42
class SIGNALING-SIP
set dscp cs3
3
class class-default
349590
! This section configures the classes
class-map match-any VOICE
match dscp ef
match access-group QOS_VOICE
class-map match-any PRIORITIZED-VIDEO
match dscp af41
match access-group QOS_PRIORITIZED_VIDEO
class-map match-any JABBER-VIDEO
match dscp af42
match access-group QOS_JABBER_VIDEO
class-map match-any SIGNALING-SIP
match dscp cs3
match access-group QOS_SIGNALING
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-51
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
4.
Figure 6-28
In step 4, the first match statement in the class-map is match dscp. If the traffic matches the DSCP,
then DSCP is set again to the same value that was matched and as is configured in the policy-map
statements. In this case the router is simply matching on DSCP and resetting the DSCP to the same
value.
Example Router Ingress QoS Policy Process – 3
! This section applies the policy-map to the Interface
Ingress
Policy
1
Router (config-if)# service-policy input INGRESS-MARKING
! Attaches service policy to interface
! This section configures the ACL’s
ip access-list extended QOS_VOICE
permit udp any range 17000 17999 any dscp ef
permit udp any range 3000 3999 any
2
ip access-list extended QOS_PRIORITIZED_VIDEO
permit udp any range 17000 17999 any dscp af41
ip access-list extended QOS_JABBER_VIDEO
permit udp any range 4000 4999 any
ip access-list extended QOS_SIGNALING
permit tcp any any range 5060 5061 dscp cs3
permit tcp any range 5060 5061 any dscp cs3
4
policy-map INGRESS-MARKING
class VOICE
set dscp ef
class PRIORITIZED-VIDEO
set dscp af41
class JABBER-VIDEO
set dscp af42
class SIGNALING-SIP
set dscp cs3
3
class class-default
349591
! This section configures the classes
class-map match-any VOICE
match dscp ef
match access-group QOS_VOICE
class-map match-any PRIORITIZED-VIDEO
match dscp af41
match access-group QOS_PRIORITIZED_VIDEO
class-map match-any JABBER-VIDEO
match dscp af42
match access-group QOS_JABBER_VIDEO
class-map match-any SIGNALING-SIP
match dscp cs3
match access-group QOS_SIGNALING
! This section configures the policy-map to set DSCP for
Trusted and Untrusted Voice, Video and SIP Signaling on
ingress
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-52
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
5.
Figure 6-29
In step 5, if DSCP was not matched, then the next line in the class-map statement is parsed, which
is the ACL that matches the UDP ports set in Unified CM for the Jabber clients in the Identification
and Classification section. When the ACL criteria are met (protocol, port range, and/or DSCP), then
the traffic is set as is configured in the corresponding policy-map statements.
Example Router Ingress QoS Policy Process – 4
! This section applies the policy-map to the Interface
Ingress
Policy
1
Router (config-if)# service-policy input INGRESS-MARKING
! Attaches service policy to interface
! This section configures the ACL’s
ip access-list extended QOS_VOICE
permit udp any range 17000 17999 any dscp ef
permit udp any range 3000 3999 any
2
ip access-list extended QOS_PRIORITIZED_VIDEO
permit udp any range 17000 17999 any dscp af41
ip access-list extended QOS_JABBER_VIDEO
permit udp any range 4000 4999 any
ip access-list extended QOS_SIGNALING
permit tcp any any range 5060 5061 dscp cs3
permit tcp any range 5060 5061 any dscp cs3
5
Note
4
policy-map INGRESS-MARKING
class VOICE
set dscp ef
class PRIORITIZED-VIDEO
set dscp af41
Egress
Policy
6
class JABBER-VIDEO
set dscp af42
class SIGNALING-SIP
set dscp cs3
3
class class-default
349592
! This section configures the classes
class-map match-any VOICE
match dscp ef
match access-group QOS_VOICE
class-map match-any PRIORITIZED-VIDEO
match dscp af41
match access-group QOS_PRIORITIZED_VIDEO
class-map match-any JABBER-VIDEO
match dscp af42
match access-group QOS_JABBER_VIDEO
class-map match-any SIGNALING-SIP
match dscp cs3
match access-group QOS_SIGNALING
! This section configures the policy-map to set DSCP for
Trusted and Untrusted Voice, Video and SIP Signaling on
ingress
This is an example QoS ingress marking policy based on the Cisco Common Classification Policy
Language (C3PL). Refer to your specific router configuration guide for any updated C3PL commands
and for information on how to configure a similar policy on a Cisco router supporting C3PL.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-53
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
6.
In step 6, the traffic goes to an outbound interface to be queued and scheduled by an output service
policy that has three queues created: a Priority Queue called VOICE, a CBWFQ called VIDEO, and
another CBWFQ called SIGNALING. This is illustrated in Figure 6-30 through Figure 6-31. This
highlights the fact that the egress queuing policy is based only on DSCP as network marking
occurring at the access switch and/or on ingress into the WAN router ingress interface. This is an
example simply to illustrate the matching criteria and queues, and it does not contain the WRED
functionality. For information on WRED, see the WAN Edge Queuing and Scheduling section.
Figure 6-30
Example Router Egress Queuing Policy Process – 1
DSCP
Egress
Policy
7
EF
6
WAN
AF42
AF41
7.
Figure 6-31
349593
CS3
In step 7, the traffic is matched against the class-map match statements. All traffic marked EF goes
to the VOICE PQ, AF41 and AF42 traffic goes to the VIDEO CBWFQ, and CS3 traffic goes to the
SIGNALING CBWFQ.
Example Router Egress Queuing Policy Process – 2
! This section applies the policy-map to the Interface
Egress
Policy
6
Router (config-if)# service-policy output EGRESS-QUEUING
! Attaches service policy to interface
! This section configures the bandwidth for
collab media and SIP signaling traffic
class VOICE
priority percent 10
! Provisions 10% LLQ to VOICE class
class VIDEO
bandwidth percent 30
! Provisions 30% CBWFQ to VIDEO class
class SIGNALING
bandwidth percent 2
! Provisions 2% CBWFQ to SIGNALING class
…
7
! This section applies the policy-map
class-map match-all VOICE
match dscp ef
class-map match-any VIDEO
match dscp af41
match dscp af42
class-map match-all SIGNALING
match dscp cs3
349594
policy-map EGRESS-QUEUING
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-54
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Note
This is an example egress queuing policy based on the Cisco Common Classification Policy Language
(C3PL). Refer to your specific router configuration guide for any updated C3PL commands and for
information on how to configure a similar policy on a Cisco router supporting C3PL.
Example Configuration of Egress Queuing
! This section applies the policy-map classes to match media and signaling QoS.
class-map match-any VIDEO
match dscp af41
match dscp af42
class-map match-any VOICE
match dscp ef
class-map match-any SIGNALING
match dscp cs3
! This section configures the bandwidth for Collaboration media and SIP signaling traffic.
policy-map EGRESS-QUEUING
class VOICE
priority percent 10
class VIDEO
bandwidth percent 30
fair-queue
class SIGNALING
bandwidth percent 2
…
! This section applies the policy-map to the interface.
Router (config-if)# service-policy output EGRESS-QUEUING
! Attaches service policy to interface
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-55
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
WAN Edge Queuing and Scheduling
This section covers the interface queuing. Figure 6-32 illustrates the voice PQ, video CBWFQ, and
WRED thresholds used for the CBWFQ.
Figure 6-32
Queuing and Scheduling Collaboration Media
AF41 WRED thresholds
(i.e., drop AF41 last)
EF
EF
Audio of Jabber Call
EF
Video of Video Call
AF41
Video of Jabber Call
AF42
AF42 WRED thresholds
(i.e., drop AF42 first)
•
All audio from all endpoints marked EF is mapped to the PQ.
•
Video calls and Jabber share the same CBWFQ.
Video
CBWFQ
BW Assigned to LLQ Classes
EF
other queues
Audio of Video Call
PQ
349576
Audio of IP Phone
– EF for audio streams of video calls from endpoints
– AF41 for video streams of video calls from endpoints
– EF for audio streams of all calls from Jabber clients
– AF42 for video streams of video calls from Jabber clients
•
WRED is configured on the video queue.
– Minimum to maximum thresholds for AF42: approximately 10% to 30% of queue limit
– Minimum to maximum thresholds for AF41: approximately 45% to 100% of queue limit
Weighted Random Early Detection (WRED) threshold minimum and maximum values are configured in
the Video CBWFQ. To illustrate how the WRED thresholds are configured, assume that the interface had
been configured with a queue depth of 256 packets. Then following the guidelines above, the WRED
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-56
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
minimum and maximum thresholds for AF42 and AF41 would be configured as illustrated in
Figure 6-33.
Figure 6-33
Threshold Example for Video CBWFQ with WRED
Drop Probability
100%
~
~
policy-map WAN-EDGE
class VIDEO
bandwidth percent 40
random-detect dscp-based
random-detect dscp 34 120 256 50
random-detect dscp 36 20 90 20
~
mark-probability-denominator
5%
AF42
WRED
mark
probability
2%
AF41
(100/denom)
20
90
120
Queue Occupancy (packets)
WRED
max threshold
256
349595
WRED
min threshold
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-57
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Recommended WRED Thresholds
Figure 6-34 lists the WRED thresholds for each traffic class (AF41 and AF42) and the recommended
mark probability denominators that have been tested for various link speeds. These are just examples,
and testing and customization are expected based on the amount of traffic in each traffic class and the
aggressiveness required in the WRED drop probability during the busy hour.
Recommended WRED Thresholds by Link Speed
WAN Link Speed
622 Mbps
(OC12)
155 Mbps
(OC3)
34-44 Mbps
(E3/DS3)
10 Mbps
5 Mbps
min-threshold
240
180
120
60
60
max-threshold
512
384
256
128
128
mark-probabilitydenominator
50
50
50
50
50
min-threshold
40
30
20
15
15
max-threshold
180
135
90
40
40
mark-probabilitydenominator
20
20
20
20
20
Video queue bandwidth %
43
53
55
40
30
WRED Values
AF41
AF42
349596
Figure 6-34
The following example configuration is for WRED in the video Class-Based Weighted Fair Queue
(CBWFQ) of a DS3 link (44 Mbps).
policy-map EGRESS-QUEUING
class VOICE
priority percent 10
class VIDEO
bandwidth percent 30
random-detect dscp-based
random-detect dscp 34 120 256 50
random-detect dscp 36 20 90 20
fair-queue
class SIGNALING
bandwidth percent 2
Note
The WRED values might have o be customized for the specific environment. For example, if there is a
much larger amount of AF42 traffic than AF41 traffic, then it makes sense to adjust the WRED threshold
variables to suit those cases. Tweaking the variables and monitoring levels of drop is always the best way
to achieve the desired results.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-58
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Provisioning and Admission Control
This section addresses admission control and provisioning bandwidth to the queues for each site type. It
covers the following topics:
•
Enhanced Locations CAC
– Region Configuration
– Deploy Enhanced Locations Call Admission Control
•
Deploy Device Mobility for Mobile and Remote Access (MRA)
•
Bandwidth Allocation Guidelines
This phase of the deployment involves the following high-level steps:
1.
Configure Enhanced Locations CAC.
2.
Configure a region matrix for maximum video bit rate groups.
3.
Deploy Device Mobility for mobile and remote access (MRA) endpoints.
4.
Follow bandwidth allocation guidelines.
Enhanced Locations CAC
Admission control is not used in this case to manage the video bandwidth but instead to manage the
audio traffic to ensure that the Priority Queue (PQ) is not over-subscribed. In this specific example the
Voice pool in Enhanced Locations CAC admits the audio for both the voice-only calls and the video
calls.
In Unified CM this feature is enabled by setting the service parameter Deduct Audio Bandwidth from
Audio Pool for Video Call to True under the Call Admission Control section of the CallManager
service. False is the default setting, and by default Unified CM deducts both audio and video streams of
video calls from the video pool. This parameter changes that behavior and is key to the QoS alterations
in the Preferred Architecture.
Figure 6-35 illustrates the various call flows, their corresponding audio and video streams, and queues
to which queue they are directed.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-59
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Figure 6-35
Provisioning and Admission Control
Admission Control
Voice
Voi
Vo
ice
Queue
Q
u eu e
Video
Queue
WAN
Link
other
queues
voice-only call
EF
AF42
349597
AF41
The following conditions apply to the example in Figure 6-35:
•
The Priority Queue is provisioned for all calls from endpoints and is protected by admission control
(E-LCAC voice BW pool).
•
The Video queue is over-provisioned for room-based video systems:
– Ratios are applied to desktop video endpoint usage.
– Jabber video calls can use any bandwidth unused by video room systems.
– During congestion, video streams of Jabber calls are subject to WRED drops and dynamically
reduce video bit rate.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-60
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Region Configuration
Group video endpoints into classes of maximum video bit rate to limit bandwidth consumption based on
endpoint type and usage within the solution. Three regions are required in total (see Table 6-13), and
three device pools are required per site. This applies to a configuration where a single audio codec of
G.722 is used across the entire organization, both LAN and WAN. Otherwise three regions per site are
also required. See the considerations for regions in the Architecture section.
Table 6-13
Example Region Matrix for Three Groups
Endpoint Groupings
Video_1.5MB
Video_2.5MB
Video_20MB
Video_1.5MB
1,500 kbps
1,500 kbps
1,500 kbps
Video_2.5MB
1,500 kbps
2,500 kbps
2,500 kbps
Video_20MB
1,500 kbps
2,500 kbps
20,000 kbps
Deploy Enhanced Locations Call Admission Control
Limit video calling based only in areas of the network where bandwidth resources are restricted beyond
AF41 marked traffic; otherwise, video bandwidth in the Location links should be unlimited.
•
Enable LBM services on every node where the Cisco CallManager service is enabled.
•
Configure locations.
– On the locations and links management cluster, configure all locations and links in the
organization.
– On all other clusters (subordinate to a locations and links management cluster), configure only
locations and remove any links to/from the locations.
•
Add locations to each device pool. The devices that must be configured in a location either directly
or via a device pool include:
– IP phones (via device pool)
– Conference bridges (via device pool)
– Gateways (via device pool)
– SIP trunks (via device pool)
– Music on hold (MoH) servers (directly)
– Annunciator (via device pool)
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-61
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Intercluster Configuration
•
Configure the LBM hub group
– Used to assign LBMs to the hub role
– Used to define three remote hub members that replicate hub contact information for all of the
hubs in the LBM hub replication network
An LBM is a hub when it is assigned to an LBM hub group.
An LBM is a spoke when it is not assigned to an LBM hub group.
– Name: Cluster1_LBM_Hub_1
– Bootstrap Servers: <names or IP addresses of bootstrap servers> (see the LBM Hub Replication
Network section)
– Select up to two LBMs in the cluster to serve as hubs.
•
Recommendations for location configuration when intercluster ELCAC is implemented:
– A cluster requires the location to be configured locally for location-to-device pool association.
– Each cluster should have locations configured with the immediately neighboring locations of
other clusters, so that each cluster's topology can inter-connect and create a single global
topology. This does not apply to Location and Link Management Cluster deployments.
– Discrepancies of bandwidth limits and weights on common locations and links are resolved by
using the lowest bandwidth and weight values.
– Naming locations consistently across clusters is critical. Follow the practice: "Same location,
same name; different location, different name."
– The Hub_none location should be renamed to be unique in each cluster. If Hub_none is left as
default on all clusters, then it will be treated as the same location, which may or may not be
desired, depending on the locations design being configured (see the Enhanced Locations Call
Admission Control section).
– Cluster-ID should be configured and must be unique on each cluster for serviceability reports
to be usable.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-62
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Deploy Device Mobility for Mobile and Remote Access (MRA)
Configure Device Mobility
Figure 6-36 illustrates an overview of the device mobility configuration. Although this is a minimum
configuration requirement for Device Mobility for ELCAC to function for Internet-based devices,
Device Mobility can be configured to support mobility for these same endpoints within the enterprise.
See the Cisco Collaboration SRND for more information on Device Mobility for devices within the
enterprise.
Figure 6-36
Device Mobility Configuration and Location Association
Device
Mobility Info
Device Pool
Location
RTP_EXP_DP
RTP
RCD_EXP_DP
RCD
SJC_EXP_DP
SJC
RTP_EXP1_DMI
10.10.20.50/32
RTP_EXP2_DMI
10.10.20.51/32
RCD_EXP1_DMI
10.10.30.50/32
RCD_EXP2_DMI
10.10.30.51/32
SJC_EXP1_DMI
10.10.40.50/32
349598
SJC_EXP2_DMI
10.10.40.51/32
Figure 6-36 shows a simplified version of device mobility for the example deployment of ELCAC. The
IP addresses of the Expressway-C servers are configured in the device mobility information. In this
example there is a redundant pair of Expressway-C servers for each of the three sites: RTP, BLD, and
SJC. RTP_EXP1_DMI and RTP_EXP2_DMI are configured respectively with the server IP addresses of
the RTP Expressway-C servers. These two are associated to a new device pool called RTP_EXP_DP,
which has the location RTP configured on it. Each site is configured similarly. With this configuration,
when any device enabled for device mobility registers to Unified CM with the IP address that
corresponds to the device mobility information in RTP_EXP1_DMI or RTP_EXP2_DMI, it will be
associated with the RTP_EXP_DP device pool and thus with the RTP location.
With the above configuration, when an Internet-based device registers through the Expressway to
Unified CM, it will register with the IP address of Expressway-C. Unified CM then uses the IP address
configured in the device mobility information and associates the device pool and thus the Internet
location associated to this device pool. This process is illustrated in Figure 6-37.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-63
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Figure 6-37
Association of Device Pool and Location Based on Expressway IP Address
1. Register me with
10.10.20.50
3. Here is your
configuration
IP Subnet
Device Mobility
Info
Device Pool
Location
10.10.20.50
RTP_EXP1_DMI
RTP_EXP_DP
RTP
10.10.30.50
RCD_EXP1_DMI
RCD_EXP_DP
RCD
10.10.40.50
SJC_EXP1_DMI
SJC_EXP_DP
SJC
349599
2. Device in RTP
In Figure 6-37. the client registers with Unified CM through the Expressway in RTP. Because the
signaling is translated at the Expressway-C in RTP, the device registers with the IP address of that
Expressway-C. The device pool RTP_EXP_DP is associated to the device based on this IP address. The
RTP_EXP_DP pool is configured with the RTP location, and therefore that location is associated to the
device. Thus, when devices register to the Expressway, they get the correct location association through
device mobility. When the endpoint relocates to the enterprise, it will return to its static location
configuration. Also, if the endpoint relocates to another Expressway in SJC, for example, it will get the
correct location association through device mobility.
Configure Device Mobility Information (DMI) for Expressway-Cs:
•
Create two DMIs per Expressway-C group (two Expressway-C nodes in a pair).
•
Add the IP address of the Expressway-C node in a subnet with a mask of 32 bits (this matches the
IP address exactly).
•
Add the site device pool to respective DMIs. This is the device pool of the site where the Expressway
pairs are located, which should contain the correct region and location.
Example for one DMI:
Name: SJC_EXP1_DMI
Subnet: 10.10.40.50
Mask: 32
Selected Device Pool: SJC_Video_1.5MB
Enable devices for device mobility. The bulk administration tool (BAT) can and should be used to
facilitate this step.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-64
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Bandwidth Allocation Guidelines
The bandwidth allocations in Figure 6-38 are unique guidelines based on this example enterprise. They
provide some guidance on percentages of available bandwidth for different common classes of
Collaboration traffic.
Figure 6-38
Bandwidth Allocation Guidelines
WAN Link Speed
622 Mbps
(OC12)
155 Mbps
(OC3)
34-44 Mbps
(E3/DS3)
10 Mbps
5 Mbps
<2 Mbps
(T1/E1)
Control (%)
1
1
1
1
2
10
Voice (%)
10
10
10
20
25
30
Video (%)
43
53
55
40
30
--
Signalling (%)
2
2
2
2
2
5
Scavenger (%)
1
1
1
1
1
1
Default (%)
43
33
31
36
40
54
349600
Class
Figure 6-39 through Figure 6-42 illustrate each site (Central, Large Branch, Small Branch, Micro
Branch) and the link bandwidth provisioned for each class based on the number of users and available
bandwidth for each class. Keep in mind that these values are based on bandwidth calculated for Layer 3
and above. Therefore, the values do not include the Layer 2 overhead, which is dependent on the link
type (Ethernet, Frame-relay, MPLS, and so forth). See the Network Infrastructure chapter of the
Collaboration SRND for more information on L2 overhead. Also note that the audio portion of
bandwidth for the video calls is deducted from the voice pool, so the voice queue is provisioned to
include the audio bandwidth of both voice-only and video calls.
Note
The calculations in the following examples use the maximum bandwidth for the number of endpoints
and then multiply that value by a percentage to account for active calls. For example, for 30 video
endpoints (30 calls possible) at 20% active video call rate, the calculation would be:
1.2 Mbps * 30 calls * 0.2 = 7.2 Mbps.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-65
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Figure 6-39
Central Site
500 users:
500 Jabber clients
300 IP phones
30 video endpoints
(room + desktop)
1 Immersive TelePresence
Endpoint (IX Series)
2 Telepresence Servers
Voice
10 Mbps
Video
55 Mbps
100
Mbps
voice
10%
Default
31 Mbps
349601
video
55%
WAN
Link
Central Site Link (100 Mbps) Bandwidth Calculation
As illustrated in Figure 6-39, the Central Site has the following bandwidth requirements:
•
Voice queue (PQ): 10 Mbps (L3 bandwidth)
125 calls @ G.711 or G.722
•
Unified CM Location link bandwidth for the voice pool:
125 ∗ 80 kbps = 10 Mbps
•
Video queue: 55 Mbps (L3 bandwidth)
– Immersive video endpoint (IX Series): 3 Mbps ∗ 1 call = 3 Mbps
– Video endpoints: 1.2 Mbps ∗ 30 calls ∗ 0.2 = 7.2 Mbps
– TelePresence Servers: 1.5 Mbps ∗ 40 calls ∗ 0.5 = 30 Mbps
– 55 Mbps – (3 Mbps + 7.2 Mbps + 30 Mbps) = 14.8 Mbps for Jabber media
11 Jabber video calls @ 720p, or 18 @ 576p, or 50 @ 288p
(Plus any leftover bandwidth)
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-66
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Figure 6-40
Large Branch
50 users:
50 Jabber clients
30 IP phones
1 Immersive TelePresence
Endpoint (IX Series)
6 video endpoints
(room + desktop)
Voice
3.4 Mbps
Video
18.7 Mbps
34
Mbps
voice
10%
Default
10.5 Mbps
349602
video
55%
WAN
Link
Large Branch Link (34 Mbps) Bandwidth Calculation
As illustrated in Figure 6-40, the Large Branch site has the following bandwidth requirements:
•
Voice queue (PQ): 3.4 Mbps (L3 bandwidth)
42 calls @ G.711 or G.722
•
Unified CM Location link bandwidth for the voice pool:
42 ∗ 80 kbps = 3.360 Mbps
•
Video queue: 18.7 Mbps (L3 bandwidth)
– Immersive video endpoint (IX Series): 3 Mbps ∗ 1 call = 3 Mbps
– Video endpoints: 1.2 Mbps ∗ 6 calls = 7.2 Mbps
– 18.7 Mbps – (3 Mbps + 7.2 Mbps) = 8.5 Mbps for Jabber media
6 Jabber video calls @ 720p, or 10 @ 576p, or 36 @ 288p
(Plus any leftover bandwidth)
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-67
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Figure 6-41
Small Branch
15 users:
Voice
2 Mbps
15 Jabber clients
10 IP phones
2 video endpoints
(room)
Video
4 Mbps
WAN
Link
10
Mbps
Default
3.6 Mbps
video
40%
349603
voice
20%
Small Branch Link (10 Mbps) Bandwidth Calculation
As illustrated in Figure 6-41, the Small Branch site has the following bandwidth requirements:
•
Voice queue (PQ): 2 Mbps (L3 bandwidth)
25 calls @ G.711 or G.722
•
Unified CM Location link bandwidth for the voice pool:
25 ∗ 80 kbps = 2 Mbps
•
Video queue: 4 Mbps (L3 bandwidth)
– Video endpoints: 1.2 Mbps * 2 calls = 2.4 Mbps
– 4 Mbps – 2.4 Mbps = 1.6 Mbps for Jabber media
1 Jabber video call @ 720p, or 2 @ 576p, or 5 @ 288p
(Plus any leftover bandwidth)
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-68
November 20, 2015
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Micro Branch
5 users:
5 Jabber clients
3 IP phones
1 video endpoint
Inte
Internet
e
DMVPN
Tunnel
QoS-enabled
Router
Voice
1.25 Mbps
Video
1.5 Mbps
WAN
Link
5
Mbps
Default
2 Mbps
Broadband
Modem/Router
voice
25%
video
30%
349604
Figure 6-42
Micro Branch Broadband Internet Connectivity (5 Mbps) Bandwidth Calculation
As illustrated in Figure 6-42, the Micro Branch site has the following bandwidth requirements:
•
Broadband Internet connectivity + DMVPN to central site
•
Configure interface of VPN router to match broadband up-link speed
•
Enable QoS on VPN router to prevent bufferbloat from TCP flows
•
Asymmetric download/upload broadband: consider limiting transmit bit rate on video endpoint
•
Bandwidth calculation will ultimately depend on the broadband bandwidth available and should
follow the same recommendations as in the Small Branch site link for provisioning.
Cisco Preferred Architecture for Enterprise Collaboration 11.0
November 20, 2015
6-69
Chapter 6
Bandwidth Management
Bandwidth Management Deployment
Large Branch with Constrained WAN Link (Enhanced Locations CAC Enabled for Video)
In specific branch sites with lower-speed WAN links, over-provisioning the video queue is not feasible.
ELCAC can be applied to these location links for video to ensure that video calls do not over-subscribe
the link bandwidth. This template requires using site-specific region configuration to limit maximum
bandwidth used by video endpoints and Jabber clients. Also keep in mind that device mobility is required
if Jabber users roam across sites.
Figure 6-43
Large Branch with Constrained WAN Link (Enhanced Locations CAC Enabled for
Video)
50 users:
Voice
2 Mbps
50 Jabber clients
30 IP phones
4 video endpoints
(room + desktop)
Video
4 Mbps
WAN
Link
10
Mbps
Default
3.6 Mbps
video
40%
349605
voice
20%
As illustrated in Figure 6-43, a Large Branch site with a constrained WAN link (10 Mbps) has the
following bandwidth requirements:
•
Voice queue (PQ): 2 Mbps (L3 bandwidth)
25 calls @ G.711 or G.722
•
Unified CM Location link bandwidth for the voice pool:
25 ∗ 80 kbps = 2 Mbps
•
Video queue: 4 Mbps (L3 bandwidth)
– Possible usage:
1 call @ 720p (1,220 kbps) + 3 calls @ 576p (810 kbps) = 3,650 kbps
Or 2 calls @ 576p (768 kbps) + 5 calls @ 288p (320 kbps) = 3136 kbps
– Unified CM Location link bandwidth for video calls: 3.7 Mbps (L3 bandwidth)
– Leaves room for L2 overhead
Cisco Preferred Architecture for Enterprise Collaboration 11.0
6-70
November 20, 2015
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
