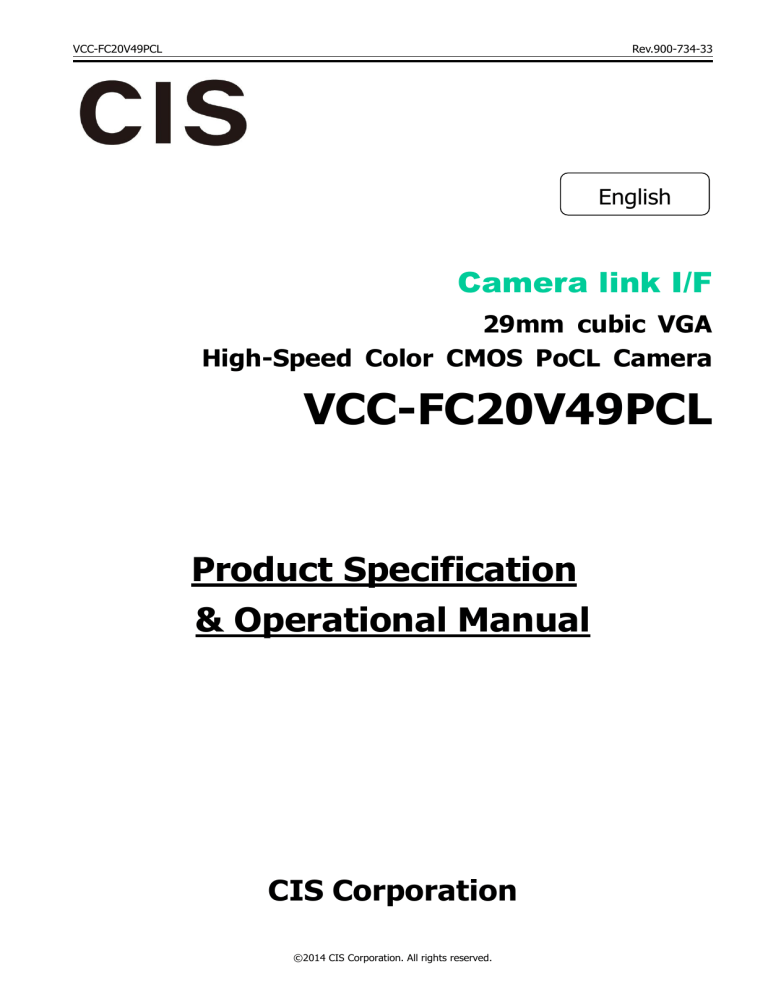

VCC-FC20V49PCL
VCC-FC20V49PCL
Rev.900-734-33
English
Camera link I/F
29mm cubic VGA
High-Speed Color CMOS PoCL Camera
VCC-FC20V49PCL
Product Specification
& Operational Manual
CIS Corporation
©2014 CIS Corporation. All rights reserved.
VCC-FC20V49PCL
Rev.900-734-33
Table of Contents
PAGE
1.
Scope of Application .................................................................................................................................................. 3
2.
Handling Precautions ................................................................................................................................................. 3
3.
Notes on Partial Scan Mode Operation ........................................................................................................................ 5
4.
Product Outline ......................................................................................................................................................... 5
5.
Specification ............................................................................................................................................................. 6
5.1.
General Specification ..................................................................................................................................... 6
5.2.
Camera Output Signal Specification ................................................................................................................ 8
5.3.
CMOS Spectral Response (Representative value) ............................................................................................. 9
5.4.
Video Output Format ..................................................................................................................................... 9
5.5.
Camera Link Port Data Bit Assignment (Base Configuration) ........................................................................... 10
6.
Function Settings .................................................................................................................................................... 11
7.
External Connector Pin Assignment ........................................................................................................................... 13
7.1.
8.
9.
26pins Mini Camera Link Connector 12226-1100-00 PL (SUMITOMO 3M) ..................................................... 13
Timing Chart ........................................................................................................................................................... 14
8.1.
Horizontal Synchronous Signal Timing ........................................................................................................... 14
8.2.
Vertical Synchronous Signal Timing ............................................................................................................... 14
8.2.1
Full Frame Scan Mode .................................................................................................................................. 14
8.2.2
Fixed Trigger Shutter Mode .......................................................................................................................... 15
8.2.3
Pulse Width Trigger Shutter Mode ................................................................................................................. 16
Partial Scan Mode.................................................................................................................................................... 17
10.
Remote Interface Function ................................................................................................................................... 18
11.
Initial Settings ..................................................................................................................................................... 19
12.
CMOS
13.
Dimensions ......................................................................................................................................................... 21
14.
Cases for Indemnity (Limited Warranty) ................................................................................................................ 22
15.
Sensor Pixel Defect .............................................................................................................................................. 22
16.
Product Support .................................................................................................................................................. 22
Optical Axis Accuracy .............................................................................................................................. 20
©2014 CIS Corporation. All rights reserved.
2
VCC-FC20V49PCL
1.
Rev.900-734-33
Scope of Application
This is to describe VCC-FC20V49PCL, high-speed Color CMOS Camera. All specifications contained
herein are subject to change without prior notice. Reproduction in whole or in part is prohibited.
2.
Handling Precautions
The camera must not be used for any nuclear equipments or aerospace equipments with which
mechanical failure or malfunction could result in serious bodily injury or loss of human life.
Our
warranty does not apply to damages or defects caused by irregular and/or abnormal use of the product.
Please observe all warnings and cautions stated below.
Our warranty does not apply to damages or malfunctions caused by neglecting these precautions.

Do not use or store the camera in the following extreme conditions:
 Extremely dusty or humid places.
 Extremely hot or cold places (operating temperature –5℃ to +45℃)
 Close to generators of powerful electromagnetic radiation such as radio or TV transmitters.
 Places subject to fluorescent light reflections.
 Places subject to unstable (flickering, etc.) lighting conditions.
 Places subject to strong vibration.

Remove dust or dirt on the surface of the lens with a blower.

Do not apply excessive force or static electricity that could damage the camera.

Do not shoot direct images that are extremely bright (e.g., light source, sun, etc.), and when camera
is not in use, put the lens cap on.

Follow the instructions typeapter 7, “External connector pin assignment” for connecting the camera.
Improper connection may cause damages not only to the camera but also to the connected devices.

Confirm the mutual ground potential carefully and then connect the camera to monitors or
computers. AC leaks from the connected devices may cause damages or destroy the camera.

Do not apply excessive voltage. (Use only the specified voltage.) Unstable or improper power supply
voltage may cause damages or malfunction of the camera.
©2014 CIS Corporation. All rights reserved.
3
VCC-FC20V49PCL

Rev.900-734-33
The voltage ripple of camera power DC +12V±10% shall be within ±50mV.
Improper power
supply voltage may cause noises on the video signals.

The rising time of camera power supply voltage shall be less than +10V, Max 60ms.
Please avoid noises like chattering when rising.
12
Power Supply Voltage [V]
11
10
9
8
7
10
20
30
40
50
60
70
Voltage Rising Time [ ms ]
In case of abnormal operation, contact the distributor from whom you purchased the product.
©2014 CIS Corporation. All rights reserved.
4
VCC-FC20V49PCL
3.
Rev.900-734-33
Notes on Partial Scan Mode Operation
At vertical partial scan mode, the smaller the set reading out lines, the faster the camera exposure and
output operation will be. And, at the same time, power consumption will be increased.
Power consumption when the minimum partial scan line number is set will be approx. 2.4W, while it will be
approx. 1.6W at full frame scan. That is about 1.5 times higher. With higher power consumption, heat
will be increased as well.
We recommend promoting heat dissipation when installing our camera to your system, especially when
reading out line is set between the ranges of 50lines to 1line.
For instance, installing the camera to the place under 40 degrees C ambient temperature, or installing the
camera to a metalic part, would be effective.
4.
Product Outline
VCC-FC20V49PCL is an industrial Color high-speed digital video camera module utilizing a global shutter
type, CMOS sensor. Interface of VCC-FC20V49PCL complies with power over camera link (Base
Configuration) with its resolution 300K pixels. Clipping part of the image for VGA 1/4 type size, entire
pixels can be read out within approx. 1/500s.
Key Features
□ High frame rate, 502.29 fps, at full frame scan mode with Camera Link Base Configuration.
Frame rate = (pixel clock) / (((horizontal output pixels/output tap number)
+ Horizontal Blanking) × (Vertical Output Lines + Vertical Blanking))
= (79.99MHz) / (((640/2) +5)×(480+10))
= 502.29fps
□ 29mm cubic in size (excluding projection).
□ PoCL 2Tap output (Base Configuration)
□ RAW data output 8bit / 10bit selectable
□ External Trigger
□ Shutter Speed: 1/500s ~1/50,000s
□ Fixed Trigger Shutter Mode
□ Pulse Width Trigger Shutter Mode
□ Partial Scan Mode (Vertical)
□ Free sample control software for evaluation purpose only is downloadable via our web.
©2014 CIS Corporation. All rights reserved.
5
VCC-FC20V49PCL
5.
Rev.900-734-33
Specification
5.1. General Specification
Item
(1)
Pickup Device
Specification
Device Type
Color CMOS
Effective Pixel Number
640(H) × 480(V)
Unit Cell Size
5.50μ m(H) × 5.50μ m(V)
Chip Size
3.52mm(H) × 2.64mm(V) (640×5.5μ m(H) × 480×5.5μ m(V)
Image Circle
φ 4.4mm
4.4
0
3.52
(2)
Video output frequency
2.64
(Unit: mm)
Pixel Clock
79.99 MHz
Horizontal Frequency
246.12kHz
Vertical Frequency
Full Frame Scan Mode:
502.29Hz
Scanning Lines: 490H
Partial Scan Mode
984.49Hz
Scanning Lines: 250H
Pixel Clock:
325CLK
(Vertical 1/2):
(3)
Sync. system
Internal Sync. System
(4)
Video output standard
PoCL 2Tap Output (Base Configuration)
(5)
Resolution
480 TV lines equivalent (VGA size)
(6)
Output Format
RAW data output 8bit/10bit selectable
(7)
Sensitivity
F2.0
2000lx (Shutter Speed: 1/500s, Gain 0dB)
(8)
Minimum illumination
F1.4
150lx (Shutter Speed: 1/500s, Gain +12dB)
(9)
Dust or stains in
No dust or stain shall be detected on the testing screen with setting the camera aperture at F16.
optical system
(10) Power requirements
DC+12V±10% (Max voltage shall not be exceeded +15V.)
(11) Power consumption
Approx. 1.6W at ful frame scan (DC+12V IN).
Approx. 2.4W at partial scan with minimum line number setting (DC DC+12V IN).
(12) Dimension
Refer to overall dimension drawing (Clause 12)
H:29mm W:29mm D:29mm (excluding projection)
(13) Mass
Approx. 50g
(14) Lens mount
C mount
(15) Optical axis accuracy
Refer to drawing for CMOS Optical Axis Accuracy (Clause 11)
(16) Gain variable range
0~+12dB (Digital Gain:+0.1dB/step)
(17) White balance
2800K~9000K(Manual White Balance )(Guaranteed range)
(Refer to overall dimension drawing)
adjustment range
(18) Gamma
1(Fixed)
(19) Shutter speed
OFF(1/500),1/750s,1/1000s,1/1500s,1/2000s,1/2500s,1/4000s,1/5000s,1/10000s,1/15000s,
variable range
(20) Trigger shutter mode
1/20000s,1/25000s,1/30000s,1/40000s,1/50000s
・Fixed Trigger Shutter Mode
・Pulse Width Trigger Shutter Mode
(Exposure time is set with the pulse width of trigger signal.)
©2014 CIS Corporation. All rights reserved.
6
VCC-FC20V49PCL
Rev.900-734-33
Item
Specification
UL:
Conform to UL Standard including materials and others.
CE:
Conform to EN55022: 2006 (Class B) for Emmission
Conform to EN61000-6-2: 2005 for Immunity
RoHS:
(21) Safety/Quality standards
Conform to RoHS
To be applied for FCC Class A Digital Device
This device complies with Part 15 of FCC Rules. Operation is subject to the
FCC:
followiong two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Vibration
(22) Durability
Shock
(23) Operation environment
(24) Storage environment
Temperature
Acceleration
: 98m/s2 (10G)
Frequency
: 20~200 Hz
Direction
: X,Y,Z 3 directions
Testing time
: 120 min for each direction
No malfunction shall be occurred with 980m/s2(100G) for ±X, ±Y, and ±Z, 6
directions. (without package)
Operation guaranteed: -5℃~+45℃
Performance guaranteed: 0℃~+40℃
Humidity
RH 20~80% with no condensation
Temperature
-25℃ ~ +60℃
Humidity
RH 20~80% with no condensation
©2014 CIS Corporation. All rights reserved.
7
VCC-FC20V49PCL
Rev.900-734-33
5.2. Camera Output Signal Specification
Item
(1) Video output data
(2) Sync. Signal I/O
(3) Trigger input
(4) Serial
Communication
Video Output
640 (H) × 480(V)
LVAL output
LVDS
FVAL output
LVDS
DVAL output
LVDS
SP(Exposure)
LVDS
Polarity
POSI/NEGA Selectable
Min width of trigger pulse
10μ s
Camera Link input
LVDS : CC1 input
SerTC (Serial to Camera)
At Full Frame Scan Mode
Camera Link connector
Camera Link connector
Camera Link input (LVDS)
SerTFG (Serial to Frame Grabber) Camera Link output (LVDS)
White Clip Level
(5) Video output signal
Specification
Setup Level
Dark Shading
Digital 8bit
:FFh
Digital 8bit
:00h
Digital 8bit
:under ±04h for both vertical and horizontal.
(condition: gain 0dB)
5 seconds shall be waited after turning on power to get proper camera operation.
©2014 CIS Corporation. All rights reserved.
8
VCC-FC20V49PCL
Rev.900-734-33
5.3. CMOS Spectral Response (Representative value)
※Lens characteristics and illuminant characteristics are not considered.
Video Output Format
5.4.
VGA 500fps Mode: 2Tap Interleaved
Bayer Pattern: GBRG (At full frame scan)
Pixels
1
2
3
4
0
DA0
DB0
DA1
DB1
DA2
2047
(G)
(B)
(G)
(B)
(G)
(B)
1
DA0
DB0
DA1
DB1
DA2
DB2
(R)
(G)
(R)
(G)
(R)
(G)
DB2
~
~
0
2
DA1
DA0
DB2
DB1
DB0
~
~
DA2
From Camera
(2 Tap Output)
1087
Lines
* At manual partial scan mode, Bayer Pattern changes per 1 line according to the set vertical starting position
value.
©2014 CIS Corporation. All rights reserved.
9
VCC-FC20V49PCL
Rev.900-734-33
5.5. Camera Link Port Data Bit Assignment (Base Configuration)
Port/bit
At 8bit output setting
At 10bit output setting
Port A0
DA:bit0[LSB]
DA:bit0[LSB]
Port A1
DA:bit1
DA:bit1
Port A2
DA:bit2
DA:bit2
Port A3
DA:bit3
DA:bit3
Port A4
DA:bit4
DA:bit4
Port A5
DA:bit5
DA:bit5
Port A6
DA:bit6
DA:bit6
Port A7
DA:bit7[MSB]
DA:bit7
Port B0
DB: bit0[LSB]
DA:bit8
Port B1
DB: bit1
DA:bit9[MSB]
Port B2
DB:bit2
Not in use
Port B3
DB:bit3
Not in use
Port B4
DB:bit4
DB:bit8
Port B5
DB:bit5
DB:bit9[MSB]
Port B6
DB:bit6
Not in use
Port B7
DB:bit7[MSB]
Not in use
Port C0
Not in use
DB:bit0[LSB]
Port C1
Not in use
DB:bit1
Port C2
Not in use
DB:bit2
Port C3
Not in use
DB:bit3
Port C4
Not in use
DB:bit4
Port C5
Not in use
DB:bit5
Port C6
Not in use
DB:bit6
Port C7
Not in use
DB:bit7
©2014 CIS Corporation. All rights reserved.
10
VCC-FC20V49PCL
6.
Rev.900-734-33
Function Settings
Camera functions can be set with serial data communications.
Function
Gain
Address
001
Data
0:
0
dB
1:
+6
dB
2:
+ 12 dB
3:
Manual Gain (Refer to address 008.)
4~255:
0dB
0:
1/500s
1:
1/500s
2:
1/750s
3:
1/1000s
4:
1/1500s
5:
1/2000s
Shutter
6:
1/2500s
(at full frame scan mode)
7:
1/4000s
8:
1/5000s
9:
1/10000s
※For partial scan mode,
002
please refer to Section 9.
10: 1/15000s
11: 1/20000s
12: 1/25000s
13: 1/30000s
14: 1/40000s
15: 1/50000s
16: Manual Shutter (Refer to address 009&010.)
17~255: 1/500s
White Balance
Trigger Shutter Mode
003
004
0:
Through
1:
3200K
2:
Spare
3:
Spare
4:
Manual White Balance (Refer to the Address 006&007.)
5~255:
Through
0:
Normal Shutter Mode (Trigger Shutter Mode OFF)
1:
Fixed Trigger Shutter Mode
(Shutter speed can be set with address 002.)
2:
Pulse Width Trigger Shutter Mode
(Shutter speed can be set with trigger pulse width.)
3~255:
Scan Mode
005
0:
Full Frame Scan Mode
1:
Partial Scan Mode (Vertical 1/2)
2:
Manual Partial Scan Mode (Refer to address 016/017 & 019/020.)
3~255:
Manual White Balance
R Gain Control
Manual White Balance
B Gain Control
Manual Gain Control
006
007
008
Normal Shutter Mode (Trigger Shutter Mode OFF)
0~120:
Full Frame Scan Mode
0~+12dB 0.1dB/step ※Make the data of Address 003 to 004.
121~255: +12dB
0~120:
0~+12dB 0.1dB/step ※Make the data of Address 003 to 004.
121~255: +12dB
0~120:
0~+12dB 0.1dB/step ※Set the data of address 001 to 003.
121~255: +12dB
©2014 CIS Corporation. All rights reserved.
11
VCC-FC20V49PCL
Function
Rev.900-734-33
Address
Data
0~480:
1/50000s~1/500s
481~2047:
480
※ The setting will be 1 line when 0 is set.
Exposure Time = The set value × 1line Time [s]
Manual Shutter Control
009&010 1line Time [s] = ((output pixels/2tap)+5)×1/79.99MHz
At full frame scan, output pixels = 480
1line Time ≒ 4.06μ s
※Address 002 data shall be 016.
Address 009 MSB and Address 010 LSB make 11bit in total.
Trigger Polarity
011
No Function
012
Output Data Selection
013
0:
Positive Input
1:
Negative Input
2~255:
Positive Input
0:
Fixed. Do not change.
0:
8bit output data (RAW)
1:
10bit output data (RAW)
2~255: 8bit output data
Trigger Input Signals
Camera Internal H Sync ON/OFF
014
2: OFF
3: ON
0~Max. Value ※ 1line/step
Vertical Partial Scan
Start Position
※Max. value shall be limited according to the formula below.
016&017 480 (Vertical Partial Scan output max. lines – Vertical Partial Scan output lines)
※Address 005 data shalla be 002.
Address 016 MSB and Address 017 LSB make 11bit in total.
Vertical Partial Scan
Output Lines
0~480:
1line/step
481~2047:
480
Min.:1line/Max :480 lines
019&020 ※ 1 line shall be set when 0 is set.
Address 019 MSB and Address 020 LSB make 11bit in total.
※Address 005 data shalla be 002.
Remote Communication
Baud Rate Setting
030
0:
9600bps
1:
19200bps
2:
38400bps
3:
57600bps
4:
115200bps
5~255:
Data Save
032
9600bps
Input 083 to save address 000 ~ 031 to EEP-ROM.
©2014 CIS Corporation. All rights reserved.
12
VCC-FC20V49PCL
7.
Rev.900-734-33
External Connector Pin Assignment
7.1. 26pins Mini Camera Link Connector 12226-1100-00 PL (SUMITOMO 3M)
Pin No.
Pin No.
1
DC +12V
14
GND
2
X0-
15
X0+
3
X1-
16
X1+
4
X2-
17
X2+
5
Xclk-
18
Xclk+
6
X3-
19
X3+
7
SerTC+
20
SerTC-
8
SerTFG-
21
SerTFG+
9
CC1-
22
CC1+
10
CC2+
23
CC2-
11
CC3-
24
CC3+
12
CC4+
25
CC4-
13
GND
26
DC +12V
(Trigger IN-)
(Trigger IN+)
©2014 CIS Corporation. All rights reserved.
13
13
1
26
14
VCC-FC20V49PCL
Rev.900-734-33
Timing Chart
8.1. Horizontal Synchronous Signal Timing
8.
1H = 325 CLK
Video Output
1
3
5
7
2
4
6
8
・ ・ ・ ・ ・ ・ ・ ・ ・
5CLK
320 CLK
5CLK
320 CLK
633 635 637 639
634 636 638 640
LVAL Output
DVAL Output
CLK 79.99MHz
Vertical Synchronous Signal Timing
8.2.1 Full Frame Scan Mode
8.2.
490 H
· · · · · · ·
Video Output
Min. 1H ~ Max. 480 H
1H
Exposure Time
· · · · · · ·
2H
487 488 489 490
LVAL Output
2H
1
2
9
10
2H
11
12
· · ·
· · · · · · ·
1
DVAL Output
487 488 489 490
2
477 478 479 480
· · · · · · ·
FVAL Output
10 H
480 H
※Video output signal delays by 2H from Exposure Time.
©2014 CIS Corporation. All rights reserved.
14
VCC-FC20V49PCL
Rev.900-734-33
8.2.2 Fixed Trigger Shutter Mode
□ This is the mode to start exposure with external input trigger signals, and set the exposure time with
serial commands.
□ Trigger operation is CLK Sync. HV-Sync Reset.
The delay time (Exposure Time Delay) from detecting
trigger edge in the camera to starting exposure is approx. 330ns.
□ Triggers can be accepted even when outputting video signals.
However, trigger signals for exposure
to start the next video output prior to the completion of video transmission for the prior video output
signals cannot be accepted.
If the edge part of trigger signals is overlapped with video outputting period, 1 line noise may be
detected on the video output screen. To input trigger signals during video output period, set the data
003 to the address 014 (Trigger input signal, camera internal H sync ON).
External trigger signals are
synchronized with camera internal H signals so that max. 1HD jitter to Exposure Time delay would
occur.
□ When changing the camera to fixed trigger shutter mode, the first output image can be unstable.
Please input the first trigger as a dummy to ignore and take the second and after as the actual triggers.
Trigger Input
480 H
Video Output
・ ・ ・ ・ ・
Exposure Time
2H
1
2
3
4
11
12
11
12
LVAL Output
491 492
・ ・ ・ ・ ・
1
2
DVAL Output
479 480
・ ・ ・ ・ ・
FVAL Output
10 H
Trigger Input
Exposure Time
Delay(Fixed)
330ns
Exposure Time
(nHD ×4.06μ s )
※Video output signal delays by 2H from Exposure Time.
©2014 CIS Corporation. All rights reserved.
15
480 H
VCC-FC20V49PCL
Rev.900-734-33
8.2.3 Pulse Width Trigger Shutter Mode
□ This is the mode to start exposure with external input trigger signals, and set the exposure time with
pulse width of the trigger signals.
□ Trigger operation is CLK Sync. HV-Sync Reset.
The delay time (Exposure Time Delay) from detecting
trigger edge in the camera to starting exposure is approx. 330ns. And, the delay time from detecting
trigger end edge to completing exposure is approx. 270ns.
□ Pulse width is min. 1HD to approx. 2 frames.
Functionally, there is no upper limitation, but noises
such as dark noises and shadings may be noticeable at long time exposure.
□ Triggers can be accepted even when outputting video signals.
However, trigger signals for exposure
to start the next video output prior to the completion of video transmission for the prior video output
signals cannot be accepted.
If the edge part of trigger signals is overlapped with video outputting period, 1 line noise may be
detected on the video output screen. To input trigger signals during video output period, set the data
003 to the address 014 (Trigger input signal, camera internal H sync ON). External trigger signals are
synchronized with camera internal H signals so that max. 1HD jitter to Exposure Time delay would
occur.
□ When changing the camera to pulse width trigger shutter mode, the first output image can be unstable.
Please input the first trigger as a dummy to ignore and take the second and after as the actual triggers.
Trigger Input
480 H
Video Output
・ ・ ・ ・ ・
Exposure Time
2H
1
2
3
4
11
12
13
14
LVAL Output
481 482
・ ・ ・ ・ ・
1
DVAL Output
2
479 480
・ ・ ・ ・ ・
FVAL Output
480 H
10 H
Trigger Input
Delay(Fixed)
330ns
Delay(Fixed)
270ns
Exposure Time
Exposure Time
※Video output signal delays by 2H from Exposure Time.
©2014 CIS Corporation. All rights reserved.
16
VCC-FC20V49PCL
9.
Rev.900-734-33
Partial Scan Mode
・Vertical Partial Scan
480
· At full frame scan
0
1
2
119 120
359 360
· · ·
Video Output
· · ·
478 479
· · ·
FVAL Output
Partial scan (vertical 1/2) n: 240H
Manual partial scan
n: any
Partial scan (vertical 1/2) s: 120H
Manual partial scan
s: any
· At vertical partial scan
s+n s+n
s+n
-2 -1
s s+1
· · · · · · ·
Video Output
s+n s+n s+n
s+n
-3 -2 -1
Exposure Time
2H
2H
· · ·
LVAL Output
2H
n H (Max.)
· · · · · · ·
· · · · · · ·
DVAL Output
FVAL Output
10 H
nH
s:
Vertical partial scan starting position (address 016&017)
n:
Vertical partial scan output lines (address 019&020)
Scan Mode (address:005)
s
n
Vertical Sync. Frequency (Hz)
0:Full frame scan mode
0
480
502.29
1:Partial scan mode (Vertical 1/2)
120
240
984.49
2:Manual partial scan mode
Any
any
79.99MHz /((Vertical partial scan output lines +10)×(325))
・The max value of vertical partial scan starting position is limited with the formula below since vertical partial scan output
line has priority.
The max value of vertical partial scan starting position
=480(The max value of vertical partial scan output line) – Vertical partial scan output lines
(Ex.) When 400 is set as vertical partial scan output lines, the max value of vertical partial scan starting position will be
480-400 = 80.
If vertical partial scan starting position is set to 90 with this time, vertical partial scan output line has priority so that vertical
partial scan starting position shall be limited to 80.
0 ~ 80
Vertical partial scan
Starting position
Setting range
0
s = 80 (with limitation)
vertical partial scan
starting position
80
480
(The max vertical partial
scan output lines)
90
n = 400
The set vertical partial scan
output lines
479
s = 90 (invalid)
vertical partial scan
starting position
Set value
※ At manual partial scan mode, manual shutter value to be set shall meet the following conditions.
The set manual shutter lines ≦ Vertical partial scan output lines
If the condition above is not met, shutter lines to be set will be the same number as vertical partial scan output lines.
©2014 CIS Corporation. All rights reserved.
17
VCC-FC20V49PCL
Rev.900-734-33
10. Remote Interface Function
Camera can be controlled by external computers and others via camera link interface.
(1)The settings for RS-232C are as follows.
Baud Rate
: 9600bps,19200bps,38400bps,57600bps,115200bps
Data
: 8bit
Stop bit
: 1bit
Parity
: None
XON/XOFF
: not controlled
(2) Control code
・ The total control code is 14 bits, which conforms to ASCII code.
・ The control code consists of camera No. process code, remote controller address, remote
controller data, and CR. Execute Read/Write through PC, and the camera will reply the data.
1
2
3
4
5
Camera No.
000000: Common No.
Dedicated Camera No.
6
7byte目
8
9
10
Remote
controller
address
“R” Read mode Please refer to
“W” Write mode the address
table of 6.
“C”Camera
Function
mode
setting.
11
Process code
12
13
14
Remote controller
data
CR
000~255
0Dh
Camera No
Please send the common code, “000000”, consist of 6 bytes of characters/numeric strings.
The returned data from the camera shall be the dedicated camera No assinged for that specific
camera.
Process code
Input any one of R, W, or C to the process code.
R (read mode) is to read the data of remote controller address.
Please be noted to set any dummy data (000~255) to 11th ~13th, since a command shall consists of
14 bytes.
W (write mode) is to write the data to the remote controller address.
Please be noted that the data cannot be saved into EEPROM of the camera.
(Reboot the camera, and the data is reset to the initial setting.)
To save the data into EEPROM, please refer to Clause 5.Function Setting.
Note: Once the data was saved into EEPROM, it may not be reset to t he initial settings.
C is the code to send the data back from the camera.
Note: Do not set code C when sending the data from PC side.
©2014 CIS Corporation. All rights reserved.
18
VCC-FC20V49PCL
Rev.900-734-33
Remote controller address
Note: Do not save the data into the address other than specified, since it may cause the
damages or malfunction of the camera.
Remote controller data
Set the decimal number (000~255) for the remote controller data. Please be noted to set any
dummy data at read mode.
CR
Be sure to input “CR” to confirm the end of the command.
11. Initial Settings
Function
Address
Data
Gain
001
0: 0dB
Shutter
002
0: 1/500s
White Balance
003
0: Through
Trigger Mode
004
0: Normal Shutter Mode (Trigger Shutter Mode OFF)
Scan Mode
005
0: Full Frame Scan Mode
Manual White Balance
006
0: 0dB
007
0: 0dB
008
0: 0dB
R Gain Control
Manual White Balance
B Gain Control
Manual Gain Control
Manual Shutter Control
009&010
480: 1/500s
Trigger Polarity
011
0: Positive Input
Output Data Selection
013
0: 8bit Output Data (RAW)
Trigger Input Signals
014
2: OFF
030
0:9600bps
Camera Internal H Sync
ON/OFF
Baud Rate
©2014 CIS Corporation. All rights reserved.
19
VCC-FC20V49PCL
12. CMOS
Rev.900-734-33
Optical Axis Accuracy
29
6±0.3
Inclination of optical axis to datum plane
6±0.3
12
29
29
±0.2°
14.5±0.3(*)
M2
6±0.3
6±0.3
10±0.3
10±0.3
M2
M3
Datum
Plane
Datum
Plane
Product Label Position ( ? )
±0.5°
Inclination of effective pixels, Theta,?, to datum plane shall be
?? ±0.5°
The center of effective pixels shall be within f 0.6
to the center of C lens mount
(*) Dimensions from datum plane to the center of the lens mount
910-006-01-01
(Unit:mm)
©2014 CIS Corporation. All rights reserved.
20
VCC-FC20V49PCL
Rev.900-734-33
13. Dimensions
©2014 CIS Corporation. All rights reserved.
21
VCC-FC20V49PCL
Rev.900-734-33
14. Cases for Indemnity (Limited Warranty)
We shall be exempted from taking responsibility and held harmless for damage or losses incurred by
the user in the following cases.

In case damage or losses are caused by fire, earthquake, or other acts of God, acts by third
party, deliberate or accidental misuse by the user, or use under extreme operating conditions.

In case indirect, additional, consequential damages (loss of business interests, suspension of
business activities) are incurred as result of malfunction or non-function of the equipment, we
shall be exempted from responsibility for such damages.

In case damage or losses are caused by failure to observe the information contained in the
instructions in this product specification & operation manual.

In case damage or losses are caused by use contrary to the instructions in this product
specification & operation manual.

In case damage or losses are caused by malfunction or other problems resulting from use of
equipment or software that is not specified.

In case damage or losses are caused by repair or modification conducted by the customer or
any unauthorized third party (such as an unauthorized service representative).

Expenses we bear on this product shall be limited to the individual price of the product.
15. Sensor Pixel Defect
Sensor pixel defects might be noted with time of usage of the products.
Cause of the Sensor pixel defects is the characteristic phenomenon of CMOS itself and CIS is exempted
from taking any responsibilities for them.
16. Product Support
When defects or malfunction of our products occur, and if you would like us to investigate on the cause
and repair, please contact your distributors you purchased from to consult and coordinate.
Camera control sample software (RS232C) is downloadable from our web but we shall be exempted
from taking responsibility and held harmless for damage or malfunction of your hardware and
software caused by using this control software. The purpose of the control software prepared
is for you to check operation and evaluate our products. Please be noted that CIS does not
customize the program nor provide source code.
©2014 CIS Corporation. All rights reserved.
22
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
