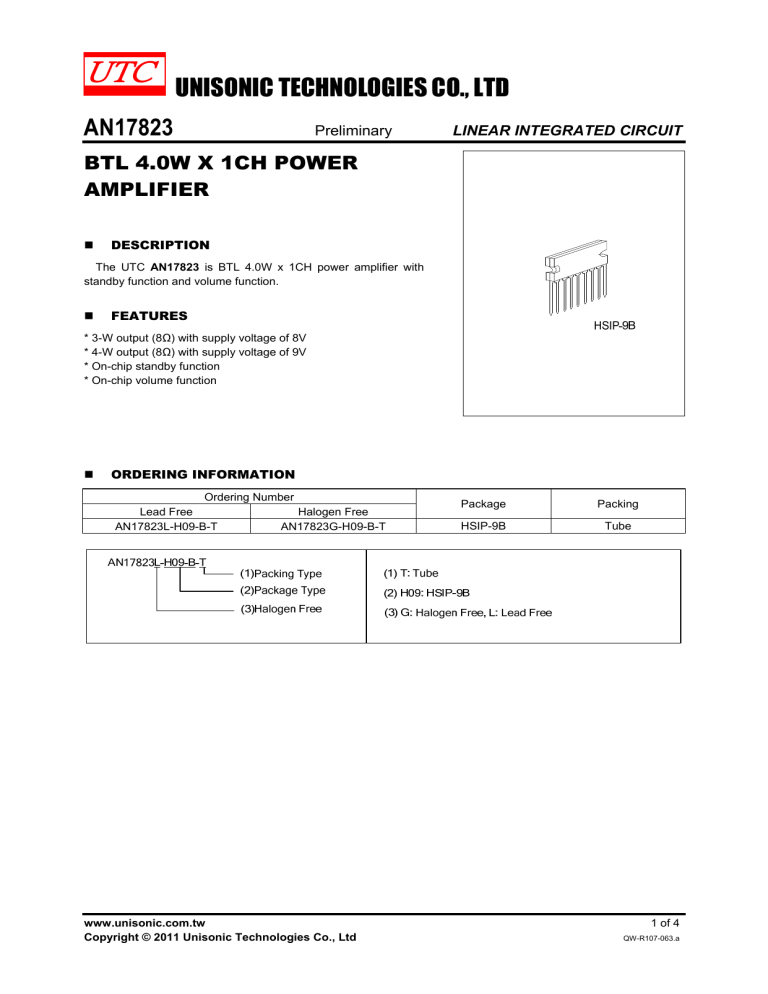

UNISONIC TECHNOLOGIES CO., LTD
AN17823
Preliminary
LINEAR INTEGRATED CIRCUIT
BTL 4.0W X 1CH POWER
AMPLIFIER
„
DESCRIPTION
The UTC AN17823 is BTL 4.0W x 1CH power amplifier with
standby function and volume function.
„
FEATURES
* 3-W output (8Ω) with supply voltage of 8V
* 4-W output (8Ω) with supply voltage of 9V
* On-chip standby function
* On-chip volume function
„
ORDERING INFORMATION
Ordering Number
Lead Free
Halogen Free
AN17823L-H09-B-T
AN17823G-H09-B-T
www.unisonic.com.tw
Copyright © 2011 Unisonic Technologies Co., Ltd
Package
Packing
HSIP-9B
Tube
1 of 4
QW-R107-063.a
AN17823
„
Preliminary
LINEAR INTEGRATED CIRCUIT
BLOCK DIAGRAM AND PIN CONFIGURATION
-
+
-
Low
Gain
+
-
„
Ch Input
7
8
9
Volume
6
N.C
5
GND (Input)
4
Standby
Ch Output (+)
3
Ch Output (-)
2
GND (Output)
1
VCC
+
PIN DESCRIPTION
PIN NO.
1
2
3
4
5
6
PIN NAME
VCC
Ch Output (+)
GND (Output)
Ch Output (-)
Standby
Ch Input
Supply Voltage
Output+
Power Ground
OutputStandby
Signal Input
DESCRIPTION
7
GND (Input)
Signal Ground
8
9
N.C
Volume
No Connect (Do not apply voltage or current from outside.)
Volume
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 4
QW-R107-063.a
AN17823
„
Preliminary
LINEAR INTEGRATED CIRCUIT
ABSOLUTE MAXIMUM RATING(TA= 25°C, Unless otherwise specified.)
PARAMETER
SYMBOL
RATINGS
UNIT
Supply Voltage (DC)
VCC
14.4
V
Output Current
Iout
1.0
A
Power Dissipation (TA = 70°C)
PD
1.22
W
Storage Temperature (Note )
TSTG
-55 ~ +150
°C
Operating Temperature (Note )
TOPR
-25 ~ +70
°C
Notes:
Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
„
RECOMMENDED OPERATING RATINGS
PARAMETER
SYMBOL
VCC
Supply Voltage
„
RATINGS
3.5 ~ 13.5
UNIT
V
ELECTRICAL CHARACTERISTICS
(TA= 25°C, VCC=8.0V, frequency=1kHz and RL=8Ω, Unless otherwise specified.)
PARAMETER
Quiescent Circuit Current
Standby Current
Output Offset Voltage
Total Harmonic Distortion
Maximum Power Output 1
Maximum Power Output 2
SYMBOL
ICQ
ISTB
VOFF
THD
PO1
PO2
TEST CONDITIONS
VIN=0V, Vol=0V
VIN=0V, Vol=0V
RG=10kΩ, Vol=0V
PO=0.5W, Vol=1.25V
THD=10%, Vol=1.25V
VCC=9V, THD=10%, Vol=1.25V
RG=10kΩ, Vol=0V
Ripple Rejection Ratio (Note )
RR
VR=0.5Vrms, fr=120Hz
Output Noise Voltage (Note )
VNO
RG=10kΩ, Vol=0V
Volume Attenuation Ratio (Note )
Att
PO=0.5W, Vol=0V
Voltage Gain
GV
PO=0.5W, Vol=1.25V
Middle Voltage Gain
GVM
PO=0.5W, Vol=0.6V
Standby Pin Current
ISTB2
VIN=0V, VSTB=3V
Volume Pin Current
IVOL
VIN=0V, VOl=0V
Input Impedance
Zi
VIN=±0.3VDC
Note: In measuring, the filter for the range of 15 Hz ~ 30 kHz (12 dB/OCT) is used.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
MIN
2.4
3.2
TYP
20
1
0
0.10
3.0
4.0
30
50
70
31
20.5
0.10
85
33
23.5
-12
24
30
-250
MAX
60
10
250
0.5
UNIT
mA
µA
mV
%
W
W
dB
0.4
mVrms
dB
35
dB
26.5
dB
25
µA
µA
36
kΩ
3 of 4
QW-R107-063.a
AN17823
„
Preliminary
LINEAR INTEGRATED CIRCUIT
TYPICAL APPLICATION CIRCUIT
UTC AN17823
1
470µ
2
3
4
5
6
+
+
10µ
+
8
9
1.0µ
270k
10k
OUT1
8Ω
68k
VCC
5V
0V
„
7
1.25V
VIN
0V
Stand-by
Volume
APPLICATION INFORMATION
1. Make sure that the IC is free of any pin short-circuiting, ground short, and load short-circuiting.
2. Ground the radiation fin so that there will be no difference in electric potential between the radiation fin and
ground.
3. The thermal protection circuit operates at a Tj of approximately 150°C. The thermal protection circuit is reset
automatically when the temperature drops.
4. Make sure that the heat radiation design is effective enough if the Vcc is comparatively high or the IC operates
high output power.
5. Connect only ground pin for signal sources to the signal GND pin of the amplifier on the previous stage.
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
