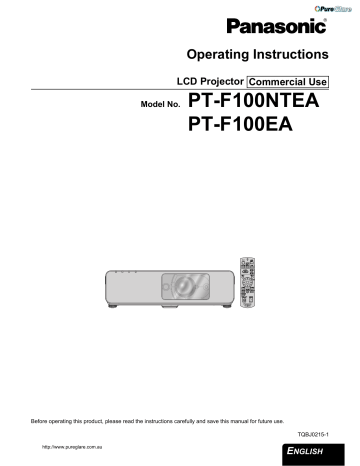

ENGLISH - Index of

Operating Instructions

Model No.

LCD Projector

Commercial Use

PT-F100NTEA

PT-F100EA

Before operating this product, please read the instructions carefully and save this manual for future use.

http://www.pureglare.com.au

TQBJ0215-1

E

NGLISH

Important Safety Notice

Dear Panasonic Customer:

This instruction booklet provides all the necessary operating information that you might require. We hope it will help you to get the most out of your new product, and that you will be pleased with your Panasonic LCD projector. The serial number of your product may be found on its bottom. You should note it in the space provided below and retain this booklet in case service is required.

Model number:

PT-F100NTEA / PT-F100EA

Serial number:

WARNING:

THIS APPARATUS MUST BE EARTHED.

WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture.

Machine Noise Information Ordinance 3. GSGV, January 18, 1991: The sound pressure level at the operator position is equal or less than 70 dB (A) according to ISO 7779.

WARNING:

1.

Remove the plug from the mains socket when this unit is not in use for a prolonged period of time.

2.

To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

3.

Do not remove the earthing pin on the mains plug. This apparatus is equipped with a three prong earthingtype mains plug. This plug will only fit an earthing-type mains socket. This is a safety feature. If you are unable to insert the plug into the mains socket, contact an electrician. Do not defeat the purpose of the earthing plug.

CAUTION:

To assure continued compliance, follow the attached installation instructions, which includes using the provided power cord and shielded interface cables when connecting to computer or peripheral device. If you use serial port to connect PC for external control of projector, you must use optional

RS-232C serial interface cable with ferrite core. Any unauthorized changes or modifications to this equipment will void the user’s authority to operate.

Pursuant to at the directive 2004/108/EC, article 9(2)

Panasonic Testing Centre

Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, F.R. Germany

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

http://www.pureglare.com.au

E

NGLISH - 2

Important Safety Notice

IMPORTANT: THE MOULDED PLUG (U.K. only)

FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 13 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of13 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark a or the BSI mark ` on the body of the fuse.

If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover, the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from an Authorised Service Centre.

If the fitted moulded plug is unsuitable for the mains socket in your home, then the fuse should be removed and the plug cut off and disposed of safely. There is a danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket.

If a new plug is to be fitted, please observe the wiring code as shown below.

If in any doubt, please consult a qualified electrician.

WARNING:

THIS APPLIANCE MUST BE EARTHED.

IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:

Green - and - Yellow: Earth

Blue: Neutral

Brown: Live

As the colours of the wire in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows.

The wire which is coloured GREEN - AND - YELLOW must be connected to the terminal in the plug which is marked with the letter E or by the Earth symbol W or coloured GREEN or GREEN - AND - YELLOW.

The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.

How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse.

BS1363/A

13A250V

L

ASA

HE-8

N

Important Information

http://www.pureglare.com.au

E

NGLISH - 3

Important Safety Information

Declaration of Conformity

Declaration of Conformity (DoC)

This equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Customers can download a copy of the original DoC for this product from our DoC server: http://www.doc.panasonic.de

Contact in the EU: Panasonic Services Europe, a Division of Panasonic Marketing Europe GmbH, Panasonic Testing Centre,

Winsbergring 15, 22525 Hamburg, F.R.Germany

This product is intended to be used in the following countries.

Austria, Belgium, Bulgaria, Czech, Cyprus, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia,

Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovenia, Slovak, Spain, Sweden, Switzerland & UK

Konformitätserklärung (KE)

Dieses Gerät entspricht den grundlegenden Anforderungen und den weiteren entsprechenden Vorgaben der Richtlinie 1999/5/EU.

Kunden können eine Kopie der Original-KE für dieses Produkt von unserem KE-Server herunterladen: http://www.doc.panasonic.de

Kontaktadresse in der EG: Panasonic Services Europe, a Division of Panasonic Marketing Europe GmbH, Panasonic Testing Centre,

Winsbergring 15, 22525 Hamburg, F.R.Germany

Dieses Produkt ist für den Einsatz in den folgenden Ländern vorgesehen.

Österreich, Belgien, Bulgarien, Tschechische Republik, Zypern, Dänemark, Estland, Finnland, Frankreich, Deutschland, Griechenland,

Ungarn, Island, Irland, Italien, Lettland, Litauen, Luxemburg, Malta, Niederlande, Norwegen, Polen, Portugal, Rumänien, Slowenien,

Slowakei, Spanien, Schweden, Schweiz und Großbritannien

Déclaration de Conformité (DC)

Cet appareil est conforme aux exigences essentielles et aux autres dispositions pertinentes de la Directive 1999/5/EC.

Les clients peuvent télécharger une copie de la DC originale pour ce produit à partir de notre serveur DC: http://www.doc.panasonic.de

Coordonnées dans l’UE : Panasonic Services Europe, a Division of Panasonic Marketing Europe GmbH, Panasonic Testing Centre,

Winsbergring 15, 22525 Hamburg, F.R.Germany

Ce produit est conçu pour l’utilisation dans les pays suivants.

Autriche, Belgique, Bulgarie, République Tchéquie, Chypre, Danemark, Estonie, Finlande, France, Allemagne, Grèce, Hongrie, Islande,

Irlande, Italie, Lettonie, Lituanie, Luxembourg, Malte, Pays-Bas, Norvège, Pologne, Portugal, Roumanie, Slovénie, Slovaquie, Espagne,

Suède, Suisse et Royaume-Uni

Declaración de conformidad (DC)

Este equipo cumple con los requisitos esenciales asi como con otras disposiciones de la Directiva 1999/5/CE.

El cliente puede descargar una copia de la DC original de este producto desde nuestro servidor DC: http://www.doc.panasonic.de

Contacto en la U.E.: Panasonic Services Europe, a Division of Panasonic Marketing Europe GmbH, Panasonic Testing Centre,

Winsbergring 15, 22525 Hamburg, F.R.Germany

Este producto ha sido desarrollado para el uso en los siguientes países.

Austria, Bélgica, Bulgaria, República Checa, Chipre, Dinamarca, Estonia, Finlandia, Francia, Alemania, Grecia, Hungría, Islandia, Irlanda,

Italia, Letonia, Lituania, Luxemburgo, Malta, Holanda, Noruega, Polonia, Portugal, Rumania, Eslovenia, Eslovaquia, España, Suecia,

Suiza y el Reino Unido

Dichiarazione di conformità (DoC)

Questo apparato é conforme ai requisiti essenziali ed agli altri principi sanciti dalla Direttiva 1999/5/CE.

I clienti possono scaricare la copia del DoC originale per questo prodotto dal nostro server DoC: http://www.doc.panasonic.de

Contatto nella EU: Panasonic Services Europe, a Division of Panasonic Marketing Europe GmbH, Panasonic Testing Centre,

Winsbergring 15, 22525 Hamburg, F.R.Germany

I prodotti sono stati prodotti per l’uso nei seguenti paesi.

Austria, Belgio, Bulgaria, Repubblica Ceca, Cipro, Danimarca, Estonia, Finlandia, Francia, Germania, Grecia, Irlanda, Islanda, Italia,

Lettonia, Lituania, Lussembugo, Malta, Olanda, Norvegia, Polonia, Portogallo, Romania, Regno Unito, Slovenia, Slovacchia, Spagna,

Svezia, Svizzera, Ungheria http://www.pureglare.com.au

E

NGLISH - 4

Important Safety Information

Important Infomation

http://www.pureglare.com.au

E

NGLISH - 5

Contents

J

Quick steps

1. Set up your projector

See “Setting up” on page 16.

2. Connect with other devices

See “Connections” on page 20.

3. Prepare the Remote control

See “Remote control” on page 13.

4. Start projecting

See “Switching the projector on/off” on page 22.

5. Adjust the image

See “Menu Navigation” on page 29.

B When you start the projection for the first

time, the minimum required setting screen for projection will be displayed.

See “Minimum required setting screen” on page 12.

Important Information

Important Safety Notice ............................................. 2

Declaration of Conformity..................................................4

Precautions with regard to safety............................. 8

WARNINGS ......................................................................8

CAUTIONS........................................................................9

Cautions when transporting ............................................10

Cautions when installing .................................................10

Cautions on use ..............................................................11

Accessories.....................................................................11

Preparation

Read this first ........................................................... 12

Minimum required setting screen ....................................12

About Your Projector ............................................... 13

Remote control................................................................13

Projector body .................................................................14

Getting Started

Setting up.................................................................. 16

Screen size and throw distance ......................................16

Projection method ...........................................................17

Front leg adjusters and throwing angle ...........................17

Lens shift and positioning................................................18

Connections.............................................................. 20

Before connection to the projector ..................................20

Connecting with computers.............................................20

Connecting with AV equipment .......................................21

Basic Operation

Switching the projector on/off ................................ 22

Mains lead.......................................................................22

POWER indicator ............................................................22

Switching on the projector...............................................23

Switching off the projector...............................................23

Projecting an image ................................................. 24

Selecting the input signal ................................................24

Positioning the image......................................................24

Remote control operation........................................ 25

Operating range ..............................................................25

Setting up the image position automatically....................25

Switching the input signal................................................26

Using the laser pointer ....................................................26

Capturing an image.........................................................27

Stopping the projection temporary ..................................27

Resetting to the factory default settings ..........................27

Projecting an image in INDEX-WINDOW mode..............27

Enlarging the centred area..............................................28

Controlling the volume of the speaker.............................28

http://www.pureglare.com.au

E

NGLISH - 6

Contents

Settings

Menu Navigation .......................................................29

Navigating through the MENU ........................................ 29

Main menu and Sub-menu.............................................. 30

PICTURE menu..........................................................32

PICTURE MODE ............................................................ 32

CONTRAST .................................................................... 32

BRIGHTNESS................................................................. 32

COLOR ........................................................................... 32

TINT ................................................................................ 32

SHARPNESS.................................................................. 32

COLOR TEMPERATURE ............................................... 32

DAYLIGHT VIEW............................................................ 32

DETAILED SETUP ......................................................... 33

POSITION menu ........................................................34

KEYSTONE .................................................................... 34

POSITION....................................................................... 34

DOT CLOCK ................................................................... 34

CLOCK PHASE .............................................................. 34

ASPECT.......................................................................... 34

RESIZING ....................................................................... 35

FRAME LOCK................................................................. 35

OPTION menu............................................................36

INPUT GUIDE................................................................. 36

STARTUP LOGO............................................................ 36

COMPUTER2 SELECT .................................................. 36

FILTER SETUP............................................................... 36

FILTER REMAINING ...................................................... 36

LAMP RUNTIME............................................................. 37

POWER OFF TIMER ...................................................... 37

DIRECT POWER ON...................................................... 37

CONTROL PANEL.......................................................... 37

AUTO SETUP ................................................................. 37

SIGNAL SEARCH........................................................... 37

INSTALLATION .............................................................. 37

HIGHLAND ..................................................................... 38

TEST PATTERN ............................................................. 38

DETAILED SETUP ......................................................... 38

SECURITY menu .......................................................39

INPUT PASSWORD ....................................................... 39

PASSWORD CHANGE................................................... 39

TEXT DISPLAY............................................................... 39

TEXT CHANGE .............................................................. 39

NETWORK menu .......................................................40

Items in NETWORK menu .............................................. 40

Maintenance

TEMP, LAMP and FILTER Indicators.......................41

Managing the indicated problems ................................... 41

Care and Replacement .............................................42

Cleaning the projector..................................................... 42

Replacing the ARF (Auto Rolling Filter) .......................... 42

Replacing the Lamp unit ................................................. 43

Ceiling mount bracket safeguards .................................. 44

Troubleshooting........................................................45

Appendix

Technical Information .............................................. 46

List of compatible signals ............................................... 46

Serial terminal................................................................. 47

Computer connection guidance...................................... 48

REMOTE terminal .......................................................... 49

Specifications ................................................................. 50

Screen size and throw distance for 16:9 aspect ratio..... 52

Dimensions..................................................................... 53

Trademark acknowledgements ...................................... 53

Index .......................................................................... 54

Important Infomation

http://www.pureglare.com.au

E

NGLISH - 7

Precautions with regard to safety

WARNINGS

If you notice smoke, strange smells or noise coming from the projector, disconnect the mains plug from the mains socket.

Do not continue to use the projector in such cases, otherwise fire or electric shocks could result.

Check that no more smoke is coming out, and then contact an Authorised Service Centre for repairs.

Do not attempt to repair the projector yourself, as this can be dangerous.

Do not install this projector in a place which is not strong enough to take the full weight of the projector.

If the installation location is not strong enough, it may fall down or tip over, and severe injury or damage could result.

Installation work (such as ceiling suspension) should only be carried out by a qualified technician.

If installation is not carried out correctly, there is the danger that injury or electric shocks may occur.

Do not use other than an authorised ceiling mount bracket.

If foreign objects or water get inside the projector, or if the projector is dropped or the cabinet is broken, disconnect the mains plug from the mains socket.

Continued use of the projector in this condition may result in fire or electric shocks.

Contact an Authorised Service Centre for repairs.

Do not overload the mains socket.

If the power supply is overloaded (for example, by using too many adapters), overheating may occur and fire may result.

Never attempt to modify or disassemble the projector.

High voltages can cause fire or electric shocks.

For any inspection, adjustment and repair work, please contact an Authorised Service Centre.

Clean the mains plug regularly to prevent it from becoming covered in dust.

If dust builds up on the mains plug, the resulting humidity can damage the insulation, which could result in fire. Pull the mains plug out from the mains socket and wipe it with a dry cloth.

If not using the projector for an extended period of time, pull the mains plug out from the mains socket.

Do not handle the mains plug with wet hands.

Failure to observe this may result in electric shocks.

Insert the mains plug securely into the mains socket.

If the plug is not inserted correctly, electric shocks or overheating could result.

Do not use plugs which are damaged or mains sockets which are coming loose from the wall.

http://www.pureglare.com.au

E

NGLISH - 8

Do not place the projector on top of surfaces which are unstable.

If the projector is placed on top of a surface which is sloped or unstable, it may fall down or tip over, and injury or damage could result.

Do not place the projector into water or let it become wet.

Failure to observe this may result in fire or electric shocks.

Do not do anything that might damage the mains lead or the mains plug.

Do not damage the mains lead, make any modifications to it, place it near any hot objects, bend it excessively, twist it, pull it, place heavy objects on top of it or wrap it into a bundle.

If the mains lead is used while damaged, electric shocks, short-circuits or fire may result.

Ask an Authorised Service Centre to carry out any repairs to the mains lead that might be necessary.

Do not place the projector on soft materials such as carpets or sponge mats.

Doing so may cause the projector to overheat, which can cause burns, fire or damage to the projector.

Do not place liquid containers on top of the projector.

If water spills onto the projector or gets inside it, fire or electric shocks could result.

If any water gets inside the projector, contact an

Authorised Service Centre.

Do not insert any foreign objects into the projector.

Do not insert any metal objects or flammable objects into the projector or drop them onto the projector, as doing so can result in fire or electric shocks.

Do not allow the + and - terminals of the batteries to come into contact with metallic objects such as necklaces or hairpins.

Failure to observe this may cause the batteries to leak, overheat, explode or catch fire.

Store the batteries in a plastic bag and keep them away from metallic objects.

Do not touch the leaked liquid from the batteries.

If you touch the leaked liquid, it may hurt your skin.

Immediately wash away the liquid with water and seek medical advice.

If you get the leaked liquid in your eye, it may cause blindness or damage. Never rub your eye, and immediately wash away the liquid with water and seek medical advice.

During a thunderstorm, do not touch the projector or the cable.

Electric shocks can result.

Do not use the projector in a bath or shower.

Fire or electric shocks can result.

Do not place your skin into the light beam while the projector is being used.

Strong light is emitted from the projector’s lens. If you place directly into this light, it can hurt or damage your skin.

Do not look into the lens while the projector is being used.

Strong light is emitted from the projector’s lens. If you look directly into this light, it can hurt and damage your eyes.

Be especially careful not to let young children look into the lens. In addition, turn off the power and disconnect the mains plug when you are away from the projector.

Do not place your hands or other objects close to the air outlet port.

Heated air comes out of the air outlet port. Do not place your hands or face, or objects which cannot withstand heat close to this port [allow at least

50 cm (20") of space], otherwise burns or damage could result.

Precautions with regard to safety

Replacement of the lamp is recommended to be carried out by a qualified technician.

The lamp has high internal pressure. If improperly handled, explosion might result.

The lamp can easily become damaged if struck against hard objects or dropped, and injury or malfunctions may result.

When replacing the lamp, allow it to cool for at least one hour before handling it.

The lamp cover gets very hot, and touching it can cause burns.

Before replacing the lamp, be sure to disconnect the mains plug from the mains socket.

Electric shocks or explosions can result if this is not done.

Do not allow infants or pets to touch the remote control unit.

Keep the remote control unit out of the reach of infants and pets after using it.

CAUTIONS

Do not cover the air inlet port or the air outlet port.

Doing so may cause the projector to overheat, which can cause fire or damage to the projector.

Do not place the projector in narrow, badly ventilated places such as closets or bookshelves.

Do not place the projector on cloth or papers, as these materials could be drawn into the air inlet port.

Do not set up the projector in humid or dusty places or in places where the projector may come into contact with oily smoke or steam.

Using the projector under such conditions may result in fire, electric shocks or plastic deterioration. The plastic deterioration may cause the falling down of the projector which is mounted in the ceiling.

Do not set up the projector in a high temperature environment, such as near a heater or in direct sunlight.

Failure to observe this may result in fire, malfunction or plastic deterioration.

Do not set up the projector outdoors.

The projector is designed for indoor use only.

When disconnecting the mains lead, hold the plug, not the lead.

If the mains lead itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks may result.

Always disconnect all cables before moving the projector.

Moving the projector with cables still attached can damage the cables, which could cause fire or electric shocks to occur.

Do not place any heavy objects on top of the projector.

Failure to observe this may cause the projector to become unbalanced and fall, which could result in damage or injury.

Do not short-circuit, heat or disassemble the batteries or place them into water or fire.

Failure to observe this may cause the batteries to overheat, leak, explode or catch fire, and burns or other injury may result.

When inserting the batteries, make sure the polarities (+ and -) are correct.

If the batteries are inserted incorrectly, they may explode or leak, and fire, injury or contamination of the battery compartment and surrounding area may result.

Use only the specified batteries.

If incorrect or different kind of batteries are used, they may explode or leak, and fire, injury or contamination of the battery compartment and surrounding area may result.

Important Information

http://www.pureglare.com.au

E

NGLISH - 9

Precautions with regard to safety

Do not mix old and new batteries.

If the batteries are inserted incorrectly, they may explode or leak, and fire, injury or contamination of the battery compartment and surrounding area may result.

Remove the used batteries from the remote control promptly.

If you leave used batteries in the remote control for an extended period of time, it may cause liquid leaking, abnormal internal temperature rising or explosion.

If not using the projector for an extended period of time, disconnect the mains plug from the mains socket and remove the batteries from the remote control.

If dust builds up on the mains plug, the resulting humidity may damage the insulation, which could result in fire.

Keeping or leaving the remote control with batteries inside may cause insulation deterioration, electrical leakage or explosion which could result in fire.

Do not put your weight on this projector.

You could fall or the projector could break, and injury may result.

Be especially careful not to let young children stand or sit on the projector.

Disconnect the mains plug from the mains socket as a safety precaution before carrying out any cleaning.

Electric shocks can result if this is not done.

If the lamp has broken, ventilate the room immediately. Do not touch or bring your face close to the broken pieces.

Failure to observe this may cause the user to absorb the gas which was released when the lamp broke and which contains nearly the same amount of mercury as fluorescent lamps, and the broken pieces may cause injury.

If you believe that you have absorbed the gas or that the gas has got into your eyes or mouth, seek medical advice immediately.

Ask your dealer about the replacement of the lamp unit and check the inside of the projector.

Ask an Authorised Service Centre to clean inside the projector at least once a year.

If dust is left to build up inside the projector without being cleaned out, it can result in fire or problems with operation.

It is a good idea to clean the inside of the projector before the season for humid weather arrives. Ask your nearest Authorised Service Centre to clean the projector when required. Please discuss with the

Authorised Service Centre regarding cleaning costs.

We are constantly making efforts to preserve and maintain a clean environment. Please take non repairable units back to your dealer or a recycling company.

Cautions when transporting

Do not subject the projector to excessive vibration or shocks.

The projector lens need to be handled with care.

Cover the lens with the lens cover when transporting the projector.

When transporting the projector, hold the body at the bottom securely.

Do not hold the adjuster legs or the top cover to move the projector, as this may damage the projector.

Cautions when installing

Avoid setting up in places which are subject to vibration or shocks.

The internal parts can be damaged, which may cause malfunctions or accidents.

Avoid setting up in places which are subject to sudden temperature changes, such as near an air conditioner or lighting equipment.

The life of the lamp may be shortened or the projector may be turned off. See “TEMP indicator” on page 41.

Do not set up the projector near high-voltage power lines or near motors.

The projector may be subject to electromagnetic interference.

If installing the projector to the ceiling, ask a qualified technician to carry out all installation work.

You will need to purchase the separate installation kit

(Model No. ET-PKF100H, ET-PKF100S).

Furthermore, all installation work is should only be carried out by a qualified technician.

See “Ceiling mount bracket safeguards” on page 44 for the Safety cable installation.

If using this projector at high elevations

(above 1 400 m), set the HIGHLAND to ON. See

“HIGHLAND” on page 38.

Failure to observe this may result in malfunctions or the life of the lamp or the other components may be shortened.

http://www.pureglare.com.au

E

NGLISH - 10

Remote control for

PT-F100NTEA

*1

(x1)

N2QAYB000152

Remote control for

PT-F100EA

*2

(x1)

N2QAYB000154

Precautions with regard to safety

Cautions on use

In order to get the best picture quality

Draw curtains or blinds over any windows and turn off any lights near the screen to prevent outside light or light from indoor lamps from shining onto the screen.

Do not touch the surfaces of the lens or the front glass with your bare hands.

If the surface of the lens becomes dirty from fingerprints or anything else, this will be magnified and projected onto the screen. Moreover, when not using the projector, close the Front panel cover.

Liquid crystal panel

Do not project the same image for long periods of time, as this may remain as an afterimage on the liquid crystal panel.

The liquid crystal panel of the projector is built with very high precision technology to provide fine picture details. Occasionally, a few stuck pixels may appear on the screen as fixed points of blue, green or red. It is recommended to switch off the projector once and try after 1 hour later again. Please note that this does not affect the performance of your LCD.

The projector has a high pressure mercury lamp and that is characterised as follows.

The brightness of the lamp depends on the duration of use.

The lamp may explode or shorten the lamp life by shocks or chipping damage.

The lamp may explode only occasionally after using the projector.

The lamp may explode if using the projector after the instructed lamp replacement timing.

The lamp life is depends on individual lamp characteristics, usage condition and the installation environment. Especially the consecutive use of the projector for more than 10 hours, or the frequent switching on or off may greatly affect on the lamp life.

Screen

Do not apply any volatile substances which may cause discolouration to the screen, and do not let it become dirty or damaged.

Optical components

If you use the projector consecutively 6 hours every day, the optical components may need to be replaced in less than 1 year.

Accessories

Make sure the following accessories are provided with your projector.

Mains lead (x1)

K2CM3DH00015

Safety cable (x1)

TTRA0141

Attachment screw (x1)

Safety cable (x1)

Important Information

Mains lead for UK(x1)

K2CT3DH0029

AA batteries for Remote

control (x2)

CD-ROM

*3

(x1)

TQBH9009

*1. PT-F100NTEA only

*2. PT-F100EA only

*3. PT-F100NTEA only

* The protectors for enclosed products, such as plug covers or foam cartons, must be treated properly.

http://www.pureglare.com.au

E

NGLISH - 11

Read this first

Minimum required setting screen

When you start the projection for the first time, the minimum required setting screen for projection will be displayed.

J

LANGUAGE

Select the required language setting.

LANGUAGE

INSTALLATION

Press I H buttons of the Remote control or

Control panel on the projector to select the required installation method. Press G to proceed to the HIGHLAND setting.

SELECT

ENTER

Press F G I H buttons of the Remote control or

Control panel on the projector to highlight the required language, and press ENTER to proceed to the next setting.

J

OPTION

Select the current projection method and fan speed setting. If you need return to the previous setting, press the RETURTN button.

OPTION

INSTALLATION

HIGHLAND

FRONT/DESK

OFF

RETURN

SELECT

ENTER

FRONT/DESK

FRONT/CEILING

REAR/DESK

REAR/CEILING

Setting on a desk/floor and projecting from front

Mounting in the ceiling and projecting from front

Setting on a desk/floor and projecting from rear

Mounting in the ceiling and projecting from rear

HIGHLAND

If you use the projector at high elevation, the

HIGHLAND setting need to be ON to set the fan speed high. Press I H to select the required option. If you need to return to the INSTALLATION, press F.

OFF

ON

The fan speed is low.

The fan speed is high.

NOTE:

• At 1 400 m (4 593 ft) above sea level, the setting must be ON.

• The loudness of fan noise depends on the HIGHLAND setting.

Press the ENTER button to start the projection.

Once you finish the minimum requirement setting, it will not be displayed again unless the projector is initialised. See “INITIALIZE ALL” on page 38.

You can change the settings from the MAIN MENU. See “Menu Navigation” on page 29.

http://www.pureglare.com.au

E

NGLISH - 12

About Your Projector

Remote control

POWER button

While the MAIN POWER is on, switch between stand-by mode and projection mode.

(page 22)

Project a laser pointer.

(page 26)

Display the MAIN MENU.

(page 29)

Navigate through the menus with FGIH, and activate the menu item with

ENTER. (page 29)

Capture the projected image as a frozen picture. (page 27)

Reset some of the settings to the factory default settings.

(page 27)

MULTI-LIVE is only for PT-F100NTEA.

See CD-ROM contents.

Control to change the scale by means of digital zoom. (page 28)

Battery compartment

1. Press the tab and lift up the cover.

2. Insert the batteries according to the polarity diagram indicated inside.

Automatically adjust the setting of DOT CLOCK,

CLOCK PHASE and SIGNAL

SEARCH for the projected image of COMPUTER signal.

(page 25)

INPUT SELECT buttons

Switch the required input signal button to select.

NETWORK button is only for PT-F100NTEA.

See CD-ROM contents.

PAGE buttons are only for PT-F100NTEA.

See CD-ROM contents.

Return to the previous menu.

(page 29)

Turn off the projection temporarily.

Display the frozen image while the display of subsequent images continues. (page 27)

COMPUTER SEARCH button is only for

PT-F100NTEA.

See CD-ROM contents.

Control to adjust the volume of the speakers.

(page 28)

Attaching a hand strap

You can attach a favourite strap on to the Remote control.

Top view

Remote control signal and Laser pointer beam emitters. (page 25)

Remote control indicator

If you press any button except the

LASER button, the Remote control

indicator will flash. If you press the

LASER button, it will lit.

Remote control indicator

NOTE:

• Do not drop the Remote control.

• Avoid contact with liquids or moisture.

• Use manganese batteries or alkaline batteries with the Remote control.

• Do not attempt to modify or disassemble the Remote control. Contact an Authorised Service Centre for repairs.

• Do not keep pressing the Remote control buttons as this may shorten battery life.

• Do not point the laser in other people’s eyes or stare into beam.

• See “Remote control operation” on page 25.

http://www.pureglare.com.au

E

NGLISH - 13

About Your Projector

Projector body

J

Top and front view

Indicators

POWER indicator (page 22)

LAMP indicator (page 41)

TEMP indicator (page 41)

FILTER indicator (page 41)

Remote control signal receptor (page 25)

ALS (Ambient Luminance Sensor)

(page 32)

Lens shift lever (page 18)

Air intake port

Projection lens

Levers

Focus lever (page 24)

Zoom lever (page 24)

Speaker

Front panel cover

Hold both side of the top corner of the Front panel cover to open or close.

While not operating the controls panel, keep the Front

panel cover closed.

POWER button

While the MAIN POWER is on, switch between stand-by mode and projection mode. (page 22)

Navigation buttons

Navigate through the menus with FGIH, and activate the menu item with ENTER.

(page 29)

Control panel

INPUT SELECT button

Switch to cycle through the input method. (page 24)

MENU button

Display the MAIN MENU.

(page 29)

RETURN button

Return to the previous menu.

(page 29)

NOTE:

• Do not cover the ventilation openings or place anything within 50 cm (20") of them as this may cause damage or injury.

• While the projector is not in use, keep the FRONT PANEL COVER closed to protect the lens.

http://www.pureglare.com.au

E

NGLISH - 14

About Your Projector

J

Back and bottom view

Security lock

Attache the commercial shackle lock, manufactured by Kensington, to protect your projector.

Compatible with the Kensington

MicroSaver Security System.

ARF (Auto Rolling Filter) compartment

(page 42)

Font leg adjusters

Screw up/down to adjust the projection angle. (page 17)

Lamp unit compartment

(page 43)

Air exhaust port

Heated air comes out of this opening.

MAIN POWER

Switch the projector on/off.

(page 23)

Burglar hook port

Attach a commercial burglar prevention cable.

AC IN

Connect the Mains lead to supply electronic power to the projector.

(page 22)

LAN

Connect a LAN cable for network connection. This terminal is

PT-F100NTEA only

COMPUTER1 IN

Connect an RGB signal cable from a computer.

COMPUTER2 IN/1 OUT

Connect an RGB signal cable from a computer.

Selectable for input and output by menu operation.

S-VIDEO IN

Connect a S-VIDEO signal cable.

VIDEO IN

Connect an RCA composite video cable.

AUDIO IN

Connect audio cables for inputting audio signal corresponding to

VIDEO IN, S-VIDEO IN and

COMPONENT IN.

COMPONENT IN

Connect a YP

B

P

R

signal cable.

SERIAL

See “Serial terminal” on page 47.

REMOTE

See “REMOTE terminal” on page 49.

COMPUTER AUDIO IN

Connect audio cables for inputting audio signals corresponding to

COMPUTER1 IN and/or

COMPUTER2 IN/1 OUT.

VARIABLE AUDIO OUT

Connect an audio cables for outputting audio signals to the connected equipment.

NOTE:

• Do not cover the ventilation openings or place anything within 50 cm (20") of them as this may cause damage or injury.

• When a cable is connected to the VARIABLE AUDIO OUT, the built-in speaker will be disabled.

http://www.pureglare.com.au

E

NGLISH - 15

Setting up

Screen size and throw distance

You can adjust the projection size with 2.0x zoom lens. Calculate and define the throw distance as follows.

Projected image

SD

SW

Screen

Projection size (4 : 3) Throw distance (L)

Screen diagonal

(SD)

Screen height (SH) Screen width (SW)

Minimum distance

(LW)

Maximum distance

(LT)

33" (0.84 m)

40" (1.02 m)

50" (1.27 m)

60" (1.52 m)

70" (1.78 m)

80" (2.03 m)

90" (2.29 m)

100" (2.54 m)

120" (3.05 m)

150" (3.81 m)

200" (5.08 m)

250" (6.35 m)

0.50 m

0.61 m

0.76 m

(1'7")

(2')

(2'5")

0.91 m (2'11")

1.07 m (3'06")

1.22 m

1.37 m

(4')

(4'5")

1.52 m (4'11")

1.83 m

2.29 m

(6')

(7'6")

3.05 m (10')

3.81 m (12'6")

0.67 m

0.81 m

1.02 m

1.22 m

1.42 m

1.63 m

1.83 m

2.03 m

2.44 m

3.05 m

(2'2")

(2'7")

(3'4")

(4')

(4'7")

(5'4")

(6')

(6'7")

(8')

(10')

4.06 m (13'3")

5.08 m (16'8")

1.2 m (3'11")

1.5 m (4'11")

1.8 m (5'10")

2.1 m (6'10")

2.4 m

3.6 m

4.5 m

6.0 m

(7'10")

2.7 m (8'10")

3.0 m (9'10")

(11'9")

(14'9")

(19'8")

7.6 m (24'11")

1.9 m

4.2 m

4.8 m

(6'2")

2.4 m (7'10")

3.0 m (9'10")

3.6 m (11'9")

(13'9")

5.4 m (17'8")

6.0 m (19'8")

7.2 m

9.0 m

12.1 m

15.1 m

(15'8")

(23'7")

(29'6")

(39'8")

(49'6")

300" (7.62 m) 4.57 m (14'11") 6.10 m (20') 9.1 m (29'10") 18.1 m

* All measurements above are approximate and may differ slightly from the actual measurements.

(59'4")

J

Calculation methods for screen dimensions

You can calculate more detailed screen dimension from the screen diagonal.

SW (m) = SD (") x 0.0203

LW (m) = 0.0304 x SD (") - 0.048

SH (m) = SD (") x 0.0152

LT (m) = 0.0606 x SD (") - 0.057

* The results above are approximate and may differ slightly from the actual measurements.

NOTE:

• See “Screen size and throw distance for 16:9 aspect ratio” on page 52.

• Do not use the projector at a raised or a horizontally tilted position as it may cause malfunction of the projector.

• Make sure the projector lens surface is parallel with the screen. You can tilt the projector body approximately ± 30° vertically. Overtilting may result in shortening the component’s life.

• For the best quality of the projection image, install a screen where sun light or room light does not shine directly onto the screen. Close window shades or curtains to block the lights.

http://www.pureglare.com.au

E

NGLISH - 16

Setting up

Projection method

You can use the projector with any of the following 4 projection methods. To set the desired method in the projector,

See “INSTALLATION” on page 37.

J

Setting on a desk/floor and projecting from front

J

Setting on a desk/floor and projecting from rear

INSTALLATION: FRONT/DESK

J

Mounting in the ceiling and projecting from front

INSTALLATION: REAR/DESK

J

Mounting in the ceiling and projecting from rear

INSTALLATION: FRONT/CEILING INSTALLATION: REAR/CEILING

NOTE:

• A translucent screen is required for rear projection.

• When mounting the projector in the ceiling, the optional ceiling mount bracket (ET-PKF100, ET-PKF100S) is required.

• See “Ceiling mount bracket safeguards” on page 44.

Front leg adjusters and throwing angle

You can screw up/down the front leg adjusters to control the angle of the projector for adjusting the throwing angle.

See “Positioning the image” on page 24.

NOTE:

• Heated air comes out of the Air exhaust port. Do not touch the Air exhaust port directly.

• If keystone distortion occurs, see “KEYSTONE” on page 34.

http://www.pureglare.com.au

E

NGLISH - 17

Setting up

Lens shift and positioning

If the projector is not positioned right in front of the centre of the screen, you can adjust the projected image position by moving the Lens shift lever within the shift range of the lens.

J

Adjusting the Lens shift lever

1. Open the Front panel cover.

2. Screw the Lens shift lever counterclockwise to unlock.

3. Move the Lens shift lever to adjust the projected image position.

4. Screw the Lens shift lever clockwise to lock.

Q

Horizontal shift

You can place the projector where the projector lens is up to 32% horizontally off-centre from the screen and then adjust the image position with the Lens shift lever.

Up to about 32 % of the projection

Up to about 32 % of the projection

Shifting the lever right:

Moving to screen’s right.

Shifting the lever left:

Moving to screen’s left.

Q

Vertical shift

You can place the projector where the projector lens is up to 50% vertically off-centre from the screen and the adjust the image position with the Lens shift lever.

Up to about 50 % of the projection

Up to about 50 % of the projection

Shifting the lever down:

Moving to screen’s bottom.

Shifting the lever up:

Moving to screen’s top.

http://www.pureglare.com.au

E

NGLISH - 18

Setting up

J

Projector location range

You can determine where to locate the screen and the projector by considering the lens shift possibilities. See

“Positioning the image” on page 24.

Q

When the screen position is fixed

H

Projector

Placement

V

Vertical centre of screen

SH

Screen

SW

Q

When the projector position is fixed

Centre of lens

Shift range

Projector

NOTE:

• When the projector is located right in front of the screen and the Lens shift lever is centred, you will get the best quality of the projection image.

• When the Lens shift lever is at the vertical limit of the shift range, you cannot move the lever to the horizontal limit, likewise when the Lens shift lever is at the horizontal limit of the shift range, you cannot move the lever to the horizontal limit.

• When the projector is tilted and you adjust KEYSTONE, the centre of the screen and the lens need to be realigned.

• Do not attempt to pull the Lens shift lever hard while adjusting.

http://www.pureglare.com.au

E

NGLISH - 19

Connections

Before connection to the projector

Read and follow the operating and connecting instructions of each peripheral device.

The peripheral devices must be turned off.

Use cables that match each peripheral device to be connected.

If the input signal is affected by signal jitter, the projected image may have poor image quality and timebase correction is effective.

Confirm the type of video signals. See “List of compatible signals” on page 46.

Connecting with computers

Computers Monitor

LAN cable

(Commercial)

RGB signal cable

(Commercial)

Computer for controlling

Audio system

NOTE:

• When COMPUTER2 SELECT in the OPTION menu is set to OUTPUT, do not connect any input signals.

• See CD-ROM contents for the LAN network connection.

J

LAN terminal

ACT lamp (Green)

Flashes when transmit data.

LINK lamp (Yellow)

Illuminates when a LAN cable is connected.

NOTE:

• Do not touch the metal parts of the LAN terminal. Failure to observe this may cause malfunction by static electricity.

http://www.pureglare.com.au

E

NGLISH - 20

Connections

Connecting with AV equipment

J

Connecting with VIDEO IN/S-VIDEO IN

To S-VIDEO output

DVD player

To video output or audio output

Audio system

Video player

NOTE:

• When you connect more than one AV equipment, switch the audio connection manually.

J

Connecting with COMPONENT IN

DVD player

To audio output

Audio system

Video player

NOTE:

• If you connect the BNC cables, use with a commercial BNC-RCA adaptor.

http://www.pureglare.com.au

E

NGLISH - 21

Switching the projector on/off

Mains lead

J

Connecting

1. Make sure the shape of the mains plug and the AC IN connector on the back of the projector match, then push the plug all the way in.

2. Connect the Mains lead to a mains socket.

J

Disconnecting

1. Make sure the MAIN POWER is switched off and unplug the Mains lead from the mains socket.

2. Hold the plug and unplug the Mains lead from the

AC IN connector on the back of the projector.

J

Direct power off function

You can disconnect the Mains lead from the projector or switch off the MAIN POWER button while projecting or soon after projecting. The internal lamp cooling fan will keep operating by the internal power supply.

NOTE:

• If the projector is switched on again while the internal cooling fan is still operating by the internal power supply, it may take a while to start the projection.

J

Direct power on function

If you activate the DIRECT POWER ON, you can start the projection only with connecting the Mains

lead or switching on the MAIN POWER. See

“DIRECT POWER ON” on page 37.

NOTE:

• Do not use other than a provided Mains lead.

• Ensure all the input devices are connected and turned off before connecting the Mains lead.

• Do not force the connector as this may damage the projector and/or the mains lead.

• Dirt or dust build-up around plugs may cause fire or electrical hazards.

• Switch off the power to the projector when not in use.

POWER indicator

POWER indicator

Indicator status

No illumination or flashing

RED

GREEN

ORANGE

Lit

Flashing

Flashing

Lit

Lit

Flashing

Status

The MAIN POWER is switched off.

The MAIN POWER is switched on and the projector is in standby.

When the LAMP or TEMP indicator is flashing, the POWER indicator will not be lit.

Network connection is ready while the POWER is turned off.

The POWER is switched on and the projector is getting ready to project.

The projector is ready to project.

The POWER is switched off and the projector is cooling the lamp.

The POWER is switched on again when cooling the lamp and recovering to projection mode. Recovery may take a while.

NOTE:

• If the projector is switched on again while the internal cooling fan is still operating by the internal power supply, it may take a while to start the projection.

• The electric consumption in standby mode is 3 W.

http://www.pureglare.com.au

E

NGLISH - 22

Switching on the projector

Switching the projector on/off

1. Switch the MAIN POWER on.

The power indicator lights up in RED.

2. Open the Front panel cover.

This is not necessary in Remote control operation.

3. Press the POWER button.

The power indicator lights up in GREEN after flashing for a while.

The STARTUP LOGO is displayed on the screen.

See “STARTUP LOGO” on page 36.

NOTE:

• Some small rattling or tinkling sound may be heard when starting up, but this is normal and does not affect the performance of the projector.

• If you disconnected the Mains lead or switched off the MAIN POWER while on projecting mode, the projection will start with connecting the Mains lead or switching on the MAIN POWER. See “DIRECT POWER ON” on page 37.

Switching off the projector

1. Open the Front panel cover.

This is not necessary in Remote control operation.

2. Press the POWER button.

The confirmation screen is displayed. It will disappear and return to the projection after

10 seconds without any operation.

To return to the projection, press any button except the POWER button.

3. Press the POWER button.

The power indicator lights up in ORANGE while cooling the lamp, then illuminates RED when is ready to switch off the MAIN POWER.

4. Switch off the MAIN POWER on the back of the projector.

NOTE:

• Press the POWER twice or for a long duration to switch the power off.

• You can disconnect the Mains lead or switch off the MAIN POWER instead of following this procedure. See “DIRECT

POWER ON” on page 37.

• You can turn off the projector by pressing the POWER button longer than 0.5 seconds.

http://www.pureglare.com.au

E

NGLISH - 23

Projecting an image

Selecting the input signal

1. Switch on the connected devices.

Press the play button of the required device.

2. Press the INPUT SELECT buttons to select the required input method if needed. See “Switching the input signal” on page 26.

The image will be projected on the screen.

Positioning the image

1. Open the Front panel cover.

2. Adjust the projected image with the Lens shift

lever. See “Lens shift and positioning” on page 18.

NOTE:

SIGNAL SEARCH is ON as default and the signal from the connected devices is detected automatically. See

“SIGNAL SEARCH” on page 37.

4. Adjust the focus and the projected image size.

Turn the Focus lever and Zoom lever to adjust the image.

You can confirm the adjusted effect with the TEST

PATTERN in OPTION menu. See “TEST PATTERN” on page 38.

Focus lever

Zoom lever

3. Adjust the angle of the projector.

Screw down the Front leg adjusters and adjust the angle vertically.

See “Front leg adjusters and throwing angle” on page 17.

NOTE:

• Do not touch the Air Exhaust port as this may cause burns or injury.

• If keystone distortion occurs, see “KEYSTONE” on page 34.

• If you adjust the focus, you may need to adjust the size of the image by moving the Zoom lever again.

http://www.pureglare.com.au

E

NGLISH - 24

Remote control operation

Operating range

You can operate the projector with the Remote control within the remote range 15 m (49'2"), approximately

± 30° vertically and horizontally.

Q

Facing to the projector

Ensure the Remote control emitter is facing to the Remote control signal receptor on front/back of the projector and press the required buttons to operate.

Q

Facing to the screen

Ensure the Remote control emitter is facing to the screen and press the required buttons to operate the projector. The signal will be reflected off the screen. The operating range may differ due to the screen material. This function may not be effective with a translucent screen.

NOTE:

• Do not let strong light shine onto the signal receptor.

The Remote control may malfunction under strong light such as fluorescent.

• If there are any obstacles between the Remote control and the Remote control signal receptor, the Remote

control may not operate correctly.

Setting up the image position automatically

You can adjust the setting of POSITION, DOT

CLOCK and CLOCK PHASE in POSITION menu automatically for the projected

COMPUTER signal image.

NOTE:

• If the dot clock frequency is 108 MHz or higher, AUTO

SETUP is not effective.

• If the projected image is dark or blurred around the edge, AUTO SETUP may stop the processing before complete. Project a much clearer or lighter image and press the AUTO SETUP button again.

Screen Projected image http://www.pureglare.com.au

E

NGLISH - 25

Remote control operation

Switching the input signal

You can switch the input method manually by pressing the COMPUTER, NETWORK

(PT-F100NTEA only) and VIDEO buttons.

Press the required button several times or I

H to cycle through the input methods as follows. The actual projected image will be changed in a while.

The graphical guidance will be displayed on the upper right of the projected image and you can confirm the selected input method which is highlighted in yellow. See

“INPUT GUIDE” on page 36.

J

Pressing the COMPUTER button

COMPUTER1

COMPUTER2

J

Pressing the NETWORK button

The NETWORK button is only for PT-F100NTEA.

See CD-ROM contents for more detailed information.

J

Pressing the VIDEO button

VIDEO

S-VIDEO

COMPONENT

J

Pressing the INPUT SELECT button on the projector

COMPUTER1 COMPUTER2

NOTE:

• Only when the COMPUTER2 SELECT is set to INPUT, you can switch between COMPUTER1 and

COMPUTER2.

NETWORK S-VIDEO

COMPONENT VIDEO

NETWORK is only for PT-F100NTEA.

NOTE:

• If you select an unplugged input method, the guidance will blink on and off several times.

• See “List of compatible signals” on page 46.

• See “Connections” on page 20.

Using the laser pointer

You can highlight items on the screen with the red laser pointer while projecting the image in presentations or visual demonstrations as an eye-catching pointing device.

Hold down the LASER button to goes on the laser pointer and release to goes off.

Top view

Laser pointer beam emitter

Deactivating switch

On

Off

Cautions

NOTE:

• The laser pointer should never be projected directly into the eyes of a person or animal.

• Do not aim the laser at reflective surfaces.

• Do not allow children to use laser pointer.

• Never look directly into the laser beam.

• The laser pointer is not effective with translucent screens.

• Please read the cautions on the Remote control.

• This is a Class 2 laser product.

J

Deactivating the LASER button

You can deactivate the LASER button for an accidental operation.

1. Open the battery compartment cover of the

Remote control.

2. Slide the switch tab.

3. Close the battery compartment cover of the

Remote control.

See “Battery compartment” on page 13.

http://www.pureglare.com.au

E

NGLISH - 26

CAUTION: Use of controls of adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Remote control operation

Capturing an image

When projecting an image, press FREEZE to capture the projected image and display it on the screen as a still picture. While the image is frozen, the sound will be stopped.

Press the FREEZE button to return to the projection.

Stopping the projection temporary

You can turn off the lamp and stop the projection temporary for electrical power save.

Press the SHUTTER button to return to the projection.

Resetting to the factory default settings

You can reset most of the customised settings to the factory defaults by pressing the

DEFAULT button of the Remote control.

Display the required sub menu or the menu items and press the DEFAULT button again.

See “Main menu and Sub-menu” on page 30.

NOTE:

• Some menu items are not available to reset by pressing the DEFAULT button. Adjust each menu items manually.

• To reset all the settings to the factory defaults, see

“INITIALIZE ALL” on page 38.

Projecting an image in INDEX-WINDOW mode

You can project an image in split 2 windows as an INDEX-WINDOW, one is frozen, stored in memory and displayed on the screen’s left side, while the display of subsequent images continues on the right.

To escape from the INDEX-WINDOW, press the MENU or RETURN button.

Q

Changing the image size

Press F G to switch and cycle through in 3 size.

Frozen image

Projected image

Frozen image

Continuing image

Continuing image

Q

Switching the position

In default, the frozen image is displayed on the left and the subsequent image is displayed on the right. Press I H to switch the position.

Frozen image Continuing image

NOTE:

• If you change the window size, the aspect ratio of the image is changed and becomes vertically elongated.

Q

Capturing a new image

While in INDEX-WINDOW mode, press ENTER to capture a new image and the frozen image window will be updated in a while.

Continuing image Frozen image

http://www.pureglare.com.au

E

NGLISH - 27

Remote control operation

Enlarging the centred area

You can enlarge the projected image down to a centred area for emphasizing within the range of 1x to 2x.

Q

Shifting the centre point

Press F G I H to shift the centre point.

Q

Enlarging the image

1. Press DIGITAL ZOOM +/- once.

The centred area of the image will then be enlarged to 1.5x.

2. Adjust the image size by pressing DIGITAL ZOOM

+/-.

The image size will be changed in steps of 0.1.

NOTE:

• When the COMPUTER signal is projected, the enlargement range will be changed to 1x to 3x. When the FRAME LOCK in POSITION menu is set to ON, the enlargement range is 1x to 2x. See “FRAME LOCK” on page 35.

• When the input signal is changed while the DIGITAL ZOOM is activated, the DIGITAL ZOOM will be cancelled.

• While the DIGITAL ZOOM is activated, FREEZE is not available.

Controlling the volume of the speaker

You can control the volume of the built-in speakers and output sound. Press +/- to control the volume.

NOTE:

• Power consumption can be reduced if the volume level is lowered.

http://www.pureglare.com.au

E

NGLISH - 28

Menu Navigation

The menu system allows you to access functions which do not have their own dedicated buttons on the Remote

control. The menu options are structured and categorised. You can navigate through the menu with F G H I buttons.

Navigating through the MENU

J

Displaying the Main menu

Press the MENU button to display the Main

menu and the operating guidance.

Main menu Sub-menu

Current settings

J

Operating procedure

1. Press F G to scroll to the required Main menu item and press ENTER to select.

The selected item is highlighted in orange and the

Sub-menu is displayed on the right.

See “Main menu and Sub-menu” on page 30.


POSITION

LANGUAGE

OPTION

SECURITY

NETWORK

SELECT

RETURN

ENTER

PICTURE MODE

CONTRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

COLOR TEMPERATURE

DAYLIGHT VIEW

DETAILED SETUP

STANDARD

STANDARD

AUTO

Operating guidance

Contains the required buttons to adjust the settings.

J

Adjusting with the bar scale items

The triangle mark under the bar indicates factory default setting and the square indicates the current setting.

Current setting


POSITION

LANGUAGE

OPTION

SECURITY

NETWORK

SELECT

RETURN

ENTER

KEYSTONE

POSITION

DOT CLOCK

CLOCK PHASE

ASPECT

RESIZING

FRAME LOCK

2. Press F G to scroll to the required Sub-menu item and press I H or ENTER to adjust.

The selected item is called up and the other menu items disappear from the screen. Called up item will be disappear after 5 seconds and return to the menu mode.

If there is a lower level, the next level will be displayed.


POSITION

LANGUAGE

OPTION

SECURITY

NETWORK

KEYSTONE

POSITION

DOT CLOCK

CLOCK PHASE

ASPECT

RESIZING

FRAME LOCK

4:3

ON

OFF

4:3

ON

OFF

Default

J

Returning to the previous menu

Press the MENU or RETURN button to return to the previous menu. Press repeatedly to escape from the menu mode and return to the projection.

RETURN

SELECT

ENTER

DEFAULT

3. Press I H to adjust or set the selected item.

For items using a bar scale, the current settings are displayed on the left of the bar scale.

You can cycle through the options of an item by pressing I H.

4. Press MENU or RETURN to return to the previous menu.

NOTE:

• See “Resetting to the factory default settings” on page 27 to reset each menu items.

• See “INITIALIZE ALL” on page 38 to reset all the settings.

http://www.pureglare.com.au

E

NGLISH - 29

Menu Navigation

Main menu and Sub-menu

The Main menu has 6 options. Select the required menu item and press ENTER to display the Sub-menu.

NOTE:

• Some default settings vary by the selected input signal.

Sub-menu items vary according to the selected input signal.

• Some settings are adjustable without any signals.

Main menu


POSITION

Sub-menu

PICTURE MODE

CONTRAST

BRIGHTNESS

COLOR

*2

TINT

*2

SHARPNESS

COLOR TEMPERATURE

DAYLIGHT VIEW

DETAILED SETUP

*3

KEYSTONE

*5

POSITION

DOT CLOCK

*4

CLOCK PHASE

*6

ASPECT

RESIZING

FRAME LOCK

*2

NATURAL

STANDARD*

• Default: 0

• Default: 0

• Default: 0

Options ( * is default setting)

DYNAMIC

*1

BLACKBOARD

• Default: 0

• Default: 0

LOW

HIGH

AUTO*

OFF

WHITE BALANCE

*4

STANDARD*

ON

WHITE BALANCE RED

• Default: 0

TV-SYSTEM

(S-VIDEO/VIDEO signals only)

WHITE BALANCE GREEN

WHITE BALANCE BLUE

AUTO*

NTSC

NTSC 4.43

PAL-M

SECAM

PAL

PAL-N

STILL MODE

(S-VIDEO/VIDEO)

OFF*

ON

NOISE REDUCTION ON*

(S-VIDEO/VIDEO)

OFF

• Default: 0

H

V

• Default: 0

• Default: 0

• Default: 0

• Default: 0

4:3*

16:9

OFF*

OFF*

S4:3

AUTO

ON

ON

Page

page 32 page 32 page 32 page 32 page 32 page 32 page 32 page 32 page 33 page 34 page 34 page 34 page 34 page 34 page 35 page 35

LANGUAGE

*1. Default setting for COMPUTER/NETWORK signals

*2. Not available with COMPUTER/NETWORK signals

*3. VIDEO/S-VIDEO/COMPUTER signals only

*4. COMPUTER signals only

*5. Only KEYSTONE is available with NETWORK signals

*6. COMPUTER/COMPONENT signals only http://www.pureglare.com.au

E

NGLISH - 30

Main menu

OPTION

Sub-menu

INPUT GUIDE

STARTUP LOGO

COMPUTER2 SELECT

FILTER SETUP

FILTER REMAINING

LAMP RUNTIME

POWER OFF TIMER

DIRECT POWER ON

CONTROL PANEL

AUTO SETUP

SIGNAL SEARCH

INSTALLATION

HIGHLAND

TEST PATTERN

DETAILED SETUP

SECURITY

NETWORK

(PT-F100NTEA only. See CD-

ROM contents)

INPUT PASSWORD

PASSWORD CHANGE

TEXT DISPLAY

TEXT CHANGE

WIRED LAN

WIRELESS LAN

NAME CHANGE

INPUT PASSWORD

PASSWORD CHANGE

NETWORK STANDBY

WEB CONTROL

LIVE MODE CUT IN

STATUS

INITIALIZE

DETAILED*

OFF

ON*

USER

INPUT*

1

2

Options ( * is default setting)

SIMPLE

OFF

OUTPUT

3

Menu Navigation

Page

page 36 page 36 page 36 page 36 page 36 page 37 page 37 OFF*

15 MIN.

20 MIN.

25 MIN.

30 MIN.

35 MIN.

OFF*

VALID*

AUTO*

ON*

FRONT/DESK*

FRONT/CEILING

OFF*

OSD DESIGN

SXGA MODE

XGA MODE

BLACKBOARD

40 MIN.

45 MIN.

50 MIN.

55 MIN.

60 MIN.

ON

INVALID

BUTTON

OFF

REAR/DESK

REAR/CEILING

ON

TYPE1

TYPE3

SXGA

BACK COLOR

VOLUME

BLUE*

AUDIO BALANCE

• Default: 0

INITIALIZE ALL

OFF*

OFF*

XGA

ON*

ON

ON

TYPE2

SXGA+

WXGA

OFF

BLACK

page 37 page 37 page 37 page 37 page 37 page 38 page 38 page 38 page 39 page 39 page 39 page 39 page 40 http://www.pureglare.com.au

E

NGLISH - 31

PICTURE menu

Remote control Control panel

COLOR

You can adjust the colour saturation of the projected image. (Available with signals from VIDEO/S-VIDEO/

COMPONENT only)

See “Navigating through the MENU” on page 29.

See “Main menu and Sub-menu” on page 30.

Lighter Darker

PICTURE MODE

Depending on the projection environment, you can use these preset parameter settings to optimise image projection. Press I H to cycle through the options.

NATURAL

Reproduces the original colour of the image

STANDARD

DYNAMIC

Setting for a general image

Bright and sharp setting

BLACKBOARD

Setting for when projecting on a blackboard

See “BLACKBOARD” on page 38.

TINT

You can adjust the skin tone in the projected image.

(Available with signals from VIDEO/S-VIDEO/

COMPONENT only)

More reddish

More greenish

NOTE:

• It may take for a while until the selected mode is stabilised.

CONTRAST

You can adjust the contrast of the projected image.

Adjust the BRIGHTNESS in advance if necessary.

SHARPNESS

You can adjust the sharpness of the projected image.

Less sharp

More sharp

Lower

BRIGHTNESS

You can adjust the brightness of the projected image.

Darker

Higher

Brighter

COLOR TEMPERATURE

You can adjust the white balance of the projected image.

LOW

More bluish

STANDARD

Balanced white

HIGH

More reddish

DAYLIGHT VIEW

You can keep the projected image bright and vivid even in well-lit rooms where the ambient light sources cannot be controlled, such as when a door opens or when window coverings fail to block out sunlight.

AUTO:

ON:

OFF:

Automatic adjustment

Active

Deactive

NOTE:

• Do not cover the ALS (Ambient Luminance Sensor) of the projector. See “ALS (Ambient Luminance Sensor)” on page 14.

AUTO is not available when INSTALLATION setting in

OPTION menu is set to REAR/DESK or REAR/

CEILING.

http://www.pureglare.com.au

E

NGLISH - 32

DETAILED SETUP

You can perform more detailed image adjustment manually.

J

For S-VIDEO/VIDEO signals

Q

TV-SYSTEM

When the video signal is changed, the setting switches automatically. You can switch the setting manually to match the video data. Press I H to cycle through the options.

AUTO

NTSC

NTSC 4.43

PAL

SECAM

PAL-N

PAL-M

NOTE:

AUTO setting will select from NTSC/NTSC 4.43/PAL/

PAL60/PAL-M/PAL-N/SECAM.

PICTURE menu

Q

STILL MODE

You can reduce the vertical flicker when projecting a still image.

OFF:

ON:

Deactive

Active

NOTE:

• Set to OFF when projecting a moving image.

Q

NOISE REDUCTION

You can switch the automatic noise reduction system on/off. Press I H to select the required setting.

ON:

OFF:

Automatic noise reduction

No noise reduction

NOTE:

• Applying noise reduction may affect image quality.

J

For RGB signals

Q

WHITE BALANCE

You can adjust the white balance more properly in

3 colours temperature by pressing I H.

WHITE BALANCE RED

WHITE BALANCE GREEN

WHITE BALANCE BLUE

http://www.pureglare.com.au

E

NGLISH - 33

POSITION menu

Remote control Control panel

DOT CLOCK

If you have interference patterns of the projected image, which is sometimes referred to as moire or noise, you can minimize it by pressing I H to adjust the clock frequency. (Available with signals from COMPUTER only)

See “Navigating through the MENU” on page 29.

See “Main menu and Sub-menu” on page 30.

KEYSTONE

If the projector is aligned non-perpendicularly to the screen, or if the projection screen has an angled surface, you can correct keystone.

Image Operation

NOTE:

• If the projecting signal’s dot clock frequency is higher than 108 MHz, the adjustment may not make a difference.

DOT CLOCK needs to be adjusted before adjusting the

CLOCK PHASE.

CLOCK PHASE

If you require further adjustment for the same reason as the DOT CLOCK adjustment, you can fine adjust the timing of the clock. Press I H to adjust. (Available with signals from COMPUTER/COMPONENT only)

NOTE:

• You can correct the distortion ± 30 degrees from the plane. For a better quality image, installing the projector with a minimum of distortion is recommended.

• Some distortion may be retained for lens shift adjustment.

• The distortion of the Main menu screen is not correctable.

• The result of the keystone correction will affect the aspect ratio and the size of the image.

POSITION

You can move the projected image for fine adjustment.

Press I H to move horizontally and F G vertically.

(Available with signals from VIDEO/S-VIDEO/

COMPUTER/COMPONENT only)

NOTE:

• If the projecting signal’s dot clock frequency is higher than 108 MHz, the adjustment may not make a difference.

ASPECT

You can switch the aspect ratio manually when needed.

Press I H to cycle through the options.

4:3 AUTO

16:9 S4:3

Q

4:3

The input signal will be projected without any change.

POSITION H

V http://www.pureglare.com.au

E

NGLISH - 34

POSITION menu

Q

16:9

The squeezed signal will be projected in 16:9 ratio.

RESIZING

When the input signal resolution is lower than the projector resolution, it will be projected at the projector resolution. You can deactivate the RESIZING and project the lower resolution input signal at its original resolution. Press I H to select the required setting.

ON

OFF

Active

Deactive

Q

S4:3

The input signal will be sized down 75 % and projected. S4:3 mode is effective when projecting

4:3 image on to a 16:9 screen.

NOTE:

• Usually the recommended setting is ON.

• When the RESIZING is set to ON, the lower resolution input signal may be projected in less quality.

When the RESIZING is set to OFF;

• The size of the image will be projected smaller and you may need to adjust ZOOM and FOCUS, or the projector position backwards and forwards.

DIGITAL ZOOM, KEYSTONE and INDEX-WINDOW are not available.

FRAME LOCK

If the projected image is degraded, you can activate

FRAME LOCK for synchronisation. Press I H to select the required option.

OFF

ON

Deactive

Active

Q

AUTO

The S1 signal which contains an identifying signal will be detected and automatically project the image in proper ratio.

NOTE:

• If you project an image with an unmatched aspect ratio, the image may distort or some portions may be cropped. Select an aspect ratio which preserves the intention of the image creator.

• The order of ASPECT types is defined not only by the input method but also by the input signals. See “List of compatible signals” on page 46.

• If you project a copyrighted image enlarged or distorted by using ASPECT function in commercial use in a public place, such as a restaurant or hotel, you might infringe on the copyright of the creator which is protected by copyright law.

NOTE:

• This function is available with COMPUTER signals only.

http://www.pureglare.com.au

E

NGLISH - 35

OPTION menu

Remote control Control panel

See “Navigating through the MENU” on page 29.

See “Main menu and Sub-menu” on page 30.

INPUT GUIDE

When you change the input method, the guidance appears in the upper right corner of the screen. The following display methods are available. Press I H to cycle through the options.

Options

OFF

SIMPLE

DETAILED

Function

Turn off the guidance.

Display the input method by text.

The INPUT GUIDE will go out after

5 seconds without any operation.

Display the input method by graphic.

The INPUT GUIDE will go out after

10 seconds without any operation.

If you select any COMPUTER terminal which has no signal, the computer connection guidance will be displayed. See “Computer connection guidance” on page 48.

STARTUP LOGO

You can switch the logo on/off that is displayed when starting up the projector. Press I H to select the required option. STARTUP LOGO will be displayed for

30 seconds.

ON

OFF

USER

Active

Deactive

Display the original text

Q

Editing the original text

If you select USER, you can display the 2 lines of original text up to 40 characters in 1 line instead of the logo.

TEXT CHANGE

DELETE

1. Select USER and press ENTER.

2. Select the required line to enter or edit the original text, and press ENTER.

3. Use F G I H to specify the location of the required character and press ENTER.

The selected character will be displayed in the box.

Select DELETE to delete the last entered character and press ENTER.

4. Repeat the step 3 until you finish the text to display in a line.

5. Select OK and press ENTER to set the entered text in a box.

Press G and edit the TEXT2 if you need to, and repeat the step 3 - 5.

COMPUTER2 SELECT

You can switch the function of the COMPUTER2 IN/

1 OUT terminal.

INPUT COMPUTER2 IN

OUTPUT COMPUTER1 OUT

FILTER SETUP

You can change the pace of the ARF (Auto Rolling Filter) performance for the use environment. Press I H to select the required option.

1

Ventilated with indoor air (e.g. small

2

3

office room)

Ventilated with outdoor air (e.g. large office room, class room)

Public indoor space (e.g. restaurant, building lobby)

NOTE:

• The ARF is a nonreusable product.

• Select the most suitable option for the use environment.

• If you select an unsuitable option, it may greatly affect on the duration of the projector life.

FILTER REMAINING

You can check the remaining amount of the ARF (Auto

Rolling Filter). The colour of the bar scale is indicating the condition of the ARF.

Yellow The filter remaining amount is getting

Red low.

No more remaining.

NOTE:

• See “Replacing the ARF (Auto Rolling Filter)” on page 42.

• After you replace the ARF, FILTER REMAINING should be reset to “0” by pressing the ENTER button for

3 seconds.

OK CANCEL http://www.pureglare.com.au

E

NGLISH - 36

LAMP RUNTIME

You can check how long the lamp has been used.

NOTE:

LAMP RUNTIME is a relevant matter for lamp replacement timing. See “Replacing the Lamp unit” on page 43.

• When the lamp unit is replaced with the new one

(ET-LAF100), the setting will be reset to “0”.

POWER OFF TIMER

You can set the off timer to switch off the POWER of the projector after a certain period of time automatically when no signal is detected. Press I H to select the required period from 15 to 60 minutes at intervals of

5 minutes.

DISABLE

15 MIN.

20 MIN.

25 MIN.

30 MIN.

35 MIN.

60 MIN.

55 MIN.

50 MIN.

45 MIN.

40 MIN.

DIRECT POWER ON

You can switch the projector start up status for when the

Mains lead is connected while the MAIN POWER is on, or for when the MAIN POWER is switched on while the

Mains lead is connected. Press I H to select the required option.

OFF

The projector will start from the standby mode or the projecting mode.

ON

The projector will start from the projecting mode.

NOTE:

• When the projector is started from the projecting mode, pressing the POWER button procedure is skippable.

OPTION menu

CONTROL PANEL

You can turn off the function of the control panel buttons on the projector body. Press I H to select the required option.

INVALID

Invalidate the control panel buttons

Confirmation screen will be

VALID

displayed.

Validate the control panel buttons

AUTO SETUP

You can turn off the AUTO SETUP function for when the

COMPUTER signal is detected.

AUTO

When the projector detect a

BUTTON

COMPUTER signal, adjust the projected image position automatically for SIGNAL SEARCH,

DOT CLOCK and CLOCK PHASE.

Only when the AUTO SETUP button is pressed, the projected image position will be adjusted for DOT

CLOCK and CLOCK PHASE. See

“Remote control” on page 13.

NOTE:

• Usually the recommended setting is AUTO.

SIGNAL SEARCH

You can turn off the auto signal detecting system.

ON

Detect the input signal from the terminals and project the image.

OFF

Deactive

NOTE:

SIGNAL SEARCH is not available when any input signal is projecting.

• Usually the recommended setting is ON.

INSTALLATION

When installing the projector, select the projection method according to the projector position. Press I H to cycle through the options. See “Projection method” on page 17.

FRONT/DESK

FRONT/CEILING

REAR/DESK

REAR/CEILING

Setting on a desk/floor and projecting from front

Mounting in the ceiling and projecting from front

Setting on a desk/floor and projecting from rear

Mounting in the ceiling and projecting from rear http://www.pureglare.com.au

E

NGLISH - 37

OPTION menu

HIGHLAND

If you use the projector at high elevation, the HIGHLAND setting need to be ON to set the fan speed high. Press

I H to select the required option.

OFF

ON

The fan speed is low.

The fan speed is high.

NOTE:

• At 1 400 m (4 593 ft) above sea level, the setting must be ON.

• The loudness of fan noise depends on the HIGHLAND setting.

TEST PATTERN

You can use the 7 different test patterns to adjust the focus of the image. See “Lens shift and positioning” on page 18.

1. Press ENTER to display the test pattern 1.

2. Press I H to select the required test pattern.

3. Adjust the focus with the Focus lever.

4. Press MENU or RETURN to return to the previous menu, oar press repeatedly to escape the menu mode.

NOTE:

• When the projector and/or the screen is tilted, adjust the focus at the centre of the image. The upper and lower edge might be out of focus.

• When the image is distorted in keystone, adjust the

KEYSTONE in POSITION menu.

DETAILED SETUP

You can perform more detailed setting in various items.

J

OSD DESIGN

You can change the background colour of the menu. Press I H to select the required option.

TYPE1

TYPE2

TYPE3

Semi transparent black

Solid blue

Semi transparent dark blue

J

SXGA MODE

You can switch the setting between SXGA and the larger setting, SXGA+. Press I H to select the required option.

J

XGA MODE

You can switch the setting between XGA and the wider setting, WXGA. Press I H to select the required option.

J

BLACKBOARD

You can exclude the BLACKBOARD in menu items of PICTURE MODE in PICTURE menu.

Press I H to select the required option.

ON

OFF

Include the BLACKBOARD in menu items.

Exclude the BLACKBOARD in menu items.

J

BACK COLOR

You can choose a BLUE or BLACK screen for when the projector is idle. Press I H to select the required option.

J

VOLUME

You can adjust the volume of the built-in monaural speaker and VARIABLE AUDIO OUT terminal.

I

Decrease

H

Increase

J

AUDIO BALANCE

You can adjust to hear the sound played equally through both right and left external stereo speakers, or shift the balance so more sound plays through the left or right side.

I

More sound plays through the left side

H

More sound plays through the right side

J

INITIALIZE ALL

You can reset all of the customised settings to the factory defaults except NETWORK, LAMP

RUNTIME and FILTER REMAINING menu settings.

You can reset all of the customised settings to the factory defaults except LAMP RUNTIME and

FILTER REMAINING menu settings.

1. Press the ENTER button

2. Turn off the projector by pressing the POWER button.

3. Switch off the MAIN POWER button to reset the projector.

4. The minimum required setting screen will be displayed.

See “Minimum required setting screen” on page 12.

http://www.pureglare.com.au

E

NGLISH - 38

SECURITY menu

Remote control

See “Navigating through the MENU” on page 29.

See “Main menu and Sub-menu” on page 30.

J

Entering the SECURITY menu

Every time when you apply to the SECURITY menu, you will be asked to perform the password operation.


POSITION

LANGUAGE

OPTION

SECURITY

NETWORK

INPUT PASSWORD

PASSWORD CHANGE

TEXT DISPLAY

TEXT CHANGE

OFF

OFF

SELECT

RETURN

ENTER

PASSWORD

Control panel

When you apply to the SECURITY menu before you change the password to your original, perform to input the following factory default password operation.

Press F H G I F H G I and ENTER.

Q

After you change the password

When you apply to the SECURITY menu after you change the password to your original in the

PASSWORD CHANGE menu, input the original password operation.

NOTE:

• The factory default password is valid until you change the password in PASSWORD CHANGE menu.

• The entered password operations will appear as asterisks in the box.

INPUT PASSWORD

You can activate the security system and the password operation will be asked to perform when the projecting mode started. Unless you perform the correct password operation, all of the button controls will be disabled except the POWER button.

OFF

ON

Deactive

Active

NOTE:

• When you activated the security system, make sure to change the password to your original for safety.

• The factory default password is valid until you change the password in PASSWORD CHANGE menu.

PASSWORD CHANGE

You can change the password operation to your original.

1. Press a series of button operation up to 8 as a password by using F G I and H buttons.

2. Press ENTER.

3. Press the exact same series of button operation you entered in the NEW password box for confirmation.

If a series of button operation is incorrect, you will be asked to perform again.

4. Press ENTER.

NOTE:

• The entered password operations will appear as asterisks in the box.

TEXT DISPLAY

You can set your original text, such as company name or

URL information, to display regularly at the bottom of the projected image while projecting.

OFF

ON

Deactive

Active

TEXT CHANGE

You can enter your original text up to 22 characters for

TEXT DISPLAY.

TEXT CHANGE

DELETE

OK CANCEL

1. Use F G I H to specify the location of the required character.

2. Press ENTER.

The selected character will be displayed in the TEXT

CHANGE box.

3. Repeat until finish your original text.

Select DELETE to delete the last entered character and press ENTER.

4. Select OK and press ENTER to set the entered text.

Select CANCEL or press MENU/RETURN buttons to return to the previous menu.

http://www.pureglare.com.au

E

NGLISH - 39

NETWORK menu

Remote control Control panel

See “Navigating through the MENU” on page 29.

See “Main menu and Sub-menu” on page 30.

NOTE:

• The NETWORK menu is available only with

PT-F100NTEA.

• See more detailed instructions in the contents of the

CD-ROM which is provided with the projector.

Items in NETWORK menu

In NETWORK menu, the following items are available.

WIRED LAN

WIRELESS LAN

NAME CHANGE

INPUT PASSWORD

PASSWORD CHANGE

NETWORK STANDBY

WEB CONTROL

LIVE MODE CUT IN

STATUS

INITIALIZE

http://www.pureglare.com.au

E

NGLISH - 40

TEMP, LAMP and FILTER Indicators

Managing the indicated problems

If a problem should occur with the projector, the TEMP, LAMP and/or

FILTER indicators will inform you. Manage the indicated problems as follow.

1. Confirm the status of all indicators and projector, and switch off the projector in proper way.

2. Find out the cause of the problem by status of the TEMP, LAMP and/or FILTER indicators.

3. Follow the instruction for each indication below and solve the problem.

4. Turn on the projector in the correct way and confirm the indicator is not indicating a problem any longer.

POWER LAMP

TEMP FILTER

NOTE:

• If no problem is found or the problem remains, do not turn on the projector. Instead contact an Authorised Service Centre.

J

LAMP indicator

Flashing RED

Indicator

Illuminating RED

Problem

LAMP RUNTIME has reached 2 800 hours.

LAMP circuit failure, abnormal function or Lamp unit is damaged.

Cause

Remedy

Lamp unit will run out soon and needs to be replaced.

See “Replacing the

Lamp unit” on page 43.

The MAIN POWER is switched on again before the Lamp unit is cooled enough.

Let the Lamp unit cool down and turn on the

MAIN POWER.

LAMP circuit failure, abnormal function.

Contact an Authorised

Service Centre.

Lamp unit is damaged.

See “Replacing the

Lamp unit” on page 43.

J

TEMP indicator

Indicator

Illuminating RED and still projecting

Flashing RED and POWER is turned off

Problem

The temperature inside and/or outside the projector is abnormally high.

Cause

Remedy

The ventilation openings are covered.

Remove the object(s) from the ventilation openings or clear around the projector.

The room temperature is too high.

Reinstall the projector in temperature controlled place. See page 50.

The ARF is excessively dirty and the ventilation is poor.

Replace the ARF in the proper method. See page 42.

The projector is located at high elevations

(above 1 400 m).

Turn on the projector

*1 and set the

HIGHLAND to ON.

See page 38.

*1. The projector will perform only 2 minutes with OFF setting at high elevation.

J

FILTER indicator

When the FILTER indicator is flashing GREEN, the ARF is normally rolling up.

Indicator

Illuminating RED Flashing RED Illuminating ORANGE Flashing ORANGE

Problem

FILTER REMAINING has turned red. See page 36.

The projector cannot detect the ARF.

The ARF cannot operate properly.

FILTER REMAINING has turned yellow. See page 36.

Cause

Remedy

ARF has been run out. ARF is not attached.

See “Replacing the

ARF (Auto Rolling

Filter)” on page 42.

Attach the ARF.

Foreign object is blocking the ARF operation.

Remove the foreign object or contact an

Authorised Service

Centre.

ARF is running out.

Prepare the ARF for replacement.

http://www.pureglare.com.au

E

NGLISH - 41

Care and Replacement

Cleaning the projector

J

Before cleaning the projector

Switch off the MAIN POWER and disconnect the mains plug from the mains socket.

Unplug all the cables from the projector.

J

Cleaning the outer surface of the projector

Wipe off dirt and dust gently with a soft cloth.

If it is difficult to remove the dirt, soak a cloth in a neutral detergent diluted with water, wring the cloth well and then wipe the projector. Dry off the projector with dry cloth.

If you use a chemical treated wipe, follow the instructions supplied with it.

J

Cleaning the lens and front glass surface

Wipe off dirt and dust gently with a lint-free cloth.

Make sure no dirt or dust remains on the surface of the lens. It will be enlarged and projected onto a screen.

Replacing the ARF (Auto Rolling Filter)

J

Before replacing the ARF

Press the POWER button for at least 0.5 seconds or press twice to turn off the projector.

Wit until the cooling fan stops and the POWER indicator turn to RED.

Disconnect the Mains lead from the main socket.

Prepare a Phillips-head screw driver.

Contact an Authorised Service Centre to purchase a replacement ARF (ET-RFF100).

J

When to replace the ARF

ARF is consumable product and effects on ventilation. FILTER indicator will inform you of the replacement timing. You can check the remaining amount of the ARF in FILTER REMAINING menu.

NOTE:

• See “FILTER REMAINING” on page 36.

• See “FILTER indicator” on page 41.

J

Replacement procedure

1. Turn the projector upside down and place it gently on a soft cloth.

2. Use a Phillips-head screwdriver to loosen 3 ARF

cover fixing screws until the screws turn freely and remove the ARF cover.

5. Attach the ARF cover and tighten the ARF cover fixing screws securely with a Phillips-head screwdriver.

ARF fixing screw

ARF

ARF cover fixing screw

Clamp

Soft cloth

ARF cover

3. Use a Phillips-head screwdriver to loosen an ARF fixing screws and release the clamp, then slightly slide up the used ARF to remove.

4. Insert the new ARF into the compartment in correct direction and slightly push down until it clicks. Tighten the ARF fixing screws securely with a Phillips-head screwdriver.

NOTE:

• If the ARF and/or ARF cover are attached incorrectly, the projector may not be turned on.

• Do not switch the power on while the ARF cover removed.

• When you replace the ARF unit, clean the compartment and/or the Air Exhaust port if you need to.

http://www.pureglare.com.au

E

NGLISH - 42

Care and Replacement

J

Resetting the FILTER

REMAINING

1. Turn on the projector and display the FILTER

REMAINING in OPTION menu. Press the ENTER button for 3 seconds and the confirmation screen will be displayed.

2. Press I to select OK and press the ENTER button to reset FILTER REMAINING to “0”.

See

“FILTER REMAINING” on page 36.

FILTER REMAINING

RESET A REMAIN OF A FILETER.

OK

SELECT

CANCEL

RETURN

ENTER

Replacing the Lamp unit

J

Before replacing the Lamp unit

Switch off the MAIN POWER and disconnect the mains plug from the mains socket.

Make sure the Lamp unit and the surroundings are cooled enough.

Prepare a Phillips-head screwdriver.

Contact an Authorised Service Centre to purchase a replacement Lamp unit (ET-LAF100).

When the projector is mounted in the ceiling, do not work directly under the projector or put your face closer to the projector.

NOTE:

• Prior to replacing the lamp unit, allow it to cool down to prevent the risk of burns, damage and other hazards.

• Do not attempt replacement with an unauthorised lamp unit.

J

When to replace the Lamp unit

The Lamp unit is consumable and the brightness decreases by duration of usage. The LAMP indicator will inform you of the replacement timing at 2 800 hours, and at 3 000 hours, the projector will be turned off. Those figures are rough guidance and might be shortened by the usage conditions, characteristics of the Lamp unit, environmental conditions, and so on. You can check the duration of usage time using LAMP RUNTIME in the

OPTION menu.

On screen

REPLACE LAMP

LAMP indicator

Indication

Over 2 800 hours

Over 3 000 hours

REPLACE LAMP” is displayed on the upper left of the screen for 30 seconds.

REPLACE LAMP” is displayed on the upper left of the screen, and it will stay until you respond.

To clear the screen, press any button.

Illuminates RED.

NOTE:

• The guide times, 2 800 and 3 000 hours, are rough estimates based on certain conditions and is not a guaranteed time.

• For more information about the Lamp unit, such as guaranteed time, see the instructions which is provided with the

Lamp unit.

http://www.pureglare.com.au

E

NGLISH - 43

Care and Replacement

J

Replacement procedure

Q

Removing and replacing the lamp unit

1. Use a Phillips-head screwdriver to loosen the 2

Lamp unit cover fixing screws on the back of the projector until the screws turn freely, and remove the Lamp unit cover.

Lamp unit cover

5. Replace the new Lamp unit in correct direction.

Lamp unit cover fixing screws

2. Use a Phillips-head screwdriver to loosen the 2

Lamp unit fixing screws.

3. Hold the handles of the Lamp unit and release the lamp unit lock.

4. Pull the used Lamp unit gently from the projector.

6. Press in the Lamp unit until it clicks and make sure the unit is installed securely.

7. Tighten the 2 Lamp unit fixing screws securely with a Phillips-head screwdriver.

Press here

Lamp unit fixing screws

Lamp unit fixing screws

Handles

8. Attach the Lamp unit cover and tighten the 2

Lamp unit cover fixing screws securely with a

Phillips-head screwdriver.

LAMP RUNTIME will be reset to “0” automatically.

Ceiling mount bracket safeguards

The projector and the ceiling mount bracket are designed sufficiently safety though, make sure the safety cable provided with the projector is installed and attached to the bottom of the projector when mounting in the ceiling for safety and security.

NOTE:

• Even if it is guarantee period, the manufacturer is not responsible for any hazard or damage caused by using a ceiling mount bracket which is not purchased from an authorised distributors, or environmental conditions.

• Make sure to use a torque driver and do not use an electrical screwdriver or an impact screwdriver.

• Installation work of the ceiling mount bracket should only be carried by a qualified technician.

• Remove an unused ceiling mount bracket promptly.

J

Installing the safety cable

1. Install the ceiling mount bracket according to the installation instructions.

2. Loop the security cable around the ceiling mount bracket with less slack.

Lace the cable of the end with a latch through the loop on the other end of the cable.

3. Attach the latch on to the bottom of the projector with a provided screw.

Torque: 1.25±0.2 N·m

* Indicated above is ET-PKF100S.

http://www.pureglare.com.au

E

NGLISH - 44

Troubleshooting

Should any problem persist, contact your dealer.

Problem

Power does not turn on.

No picture appears.

The picture is fuzzy.

The colour is pale or greyish.

No sound can be heard from the internal speaker.

The control buttons of the projector do not operate.

The Remote control does not operate.

The picture does not display correctly.

Picture from a computer does not appear.

Cause

The mains lead may not be connected.

The MAIN POWER switch is turned off.

No electric supply is at the mains socket.

TEMP indicator is lit or flashes.

LAMP indicator is lit or flashes.

The lamp unit cover has not been securely installed.

The circuit breakers have tripped.

The video signal input source may not be connected to a terminal properly.

The input selection setting may not be correct.

The BRIGHTNESS adjustment setting may be at the minimum setting.

The signal input source may not be operating properly.

The SHUTTER function may be in use.

The ARF is removed or installed incorrectly.

The lens focus may not have been set correctly.

The projector may not be at the correct distance from the screen.

The lens may be dirty.

The projector may be tilted too much.

COLOR or TINT adjustment may be incorrect.

The input source which is connected to the projector may not be adjusted correctly.

The audio signal source may not be connected properly.

A cable may be connected to the VARIABLE AUDIO OUT terminal.

The volume adjustment may be at the lowest possible setting.

CONTROL PANEL in OPTION menu is invalidated. If you have a loss of the Remote control while the CONTROL PANEL is invalidated, press and hold the MENU button for 2 seconds with pressing the

ENTER button.

The batteries may be weak.

The batteries may not have been inserted correctly.

The remote control signal receptor on the projector may be obstructed.

The remote control unit may be out of the operation range.

The Remote control is under the strong light such as fluorescent.

The LASER button is deactivated.

The signal format (TV-SYSTEM) may not have been set correctly.

There may be a problem with the VCR or other signal source.

A signal which is not compatible with the projector is being input.

The cable may be longer than the optional cable.

The external video output from a laptop computer may not be correct.

(You may be able to change the external output settings by pressing the [Fn] + [F3] or [Fn] + [F10] keys simultaneously. The actual method varies depending on the type of computer; refer to the documentation provided with your computer for further details.)

COMPUTER2 SELECT setting in OPTION menu is not correct.

Reference page

22

23

22

41

41

44

-

21

24

16

11

18

32

30

26

32

-

27

42

20

15

28

37

36

-

13

25

25

25

26

33

-

46

-

48 http://www.pureglare.com.au

E

NGLISH - 45

Technical Information

List of compatible signals

Mode

Display resolution

(dots)

*1

Scanning frequency

H (kHz) V (Hz)

Dot clock frequency

(MHz)

Picture quality

*2

Terminals

NTSC/NTSC 4.43/

PAL-M/PAL60

PAL/PAL-N/SECAM

480i

576i

480p

576p

1 080/60i

1 080/50i

720/60p

720/50p

VESA

VGA480

SVGA

MAC

XGA

MXGA

MSXGA

SXGA

SXGA60+

UXGA

WXGA

720 x 480i

1 024 x 768

1 024 x 768

1 024 x 768

1 152 x 864

1 152 x 864

1 152 x 864

1 280 x 960

1 280 x 1 024

1 280 x 1 024

1 280 x 1 024

1 400 x 1 050

1 400 x 1 050

1 600 x 1 200

1 280 x 768

1 280 x 800

1 280 x 800

1 440 x 900

720 x 576i

720 x 480i

720 x 576i

720 x 483

720 x 576

1 920 x 1 080i

1 920 x 1 080i

1 280 x 720

1 280 x 720

640 x 400

640 x 400

640 x 480

640 x 480

640 x 480

640 x 480

640 x 480

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

832 x 624

1 152 x 870

1 024 x 768

15.7

60.0

64.0

80.0

91.1

64.0

65.1

56.5

60.0

68.7

64.0

67.5

76.7

75.0

47.8

49.1

49.7

55.9

48.1

46.9

53.7

49.7

68.7

48.4

35.0

37.9

37.5

43.3

35.2

37.9

28.1

45.0

37.5

31.5

37.9

31.5

15.6

15.7

15.6

31.5

31.3

33.8

59.9

60.0

60.0

75.0

85.0

60.0

59.9

70.1

75.0

85.0

71.2

74.9

85.0

60.0

59.9

60.2

59.8

59.9

72.2

75.0

85.1

74.6

75.1

60.0

66.7

72.8

75.0

85.0

56.3

60.3

50.0

60.0

50.0

70.1

85.1

59.9

50.0

59.9

50.0

59.9

50.0

60.0

75.0

78.8

94.5

94.2

108.0

121.5

108.0

108.0

135.0

157.5

108

122.4

162.0

79.5

69.1

83.5

106.5

50.0

49.5

56.3

57.3

100.0

65.0

30.2

31.5

31.5

36.0

36.0

40.0

13.5

13.5

27.0

27.0

74.3

74.3

74.3

74.3

25.2

31.5

25.2

A

B

A

B

A

A

B

A

A

B

AA

AA

AA

B

A

A

A

A

A

A

AA

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

VIDEO/S-VIDEO

COMPONENT/

COMPUTER

*3

COMPUTER

WXGA+

*1. The “i” appearing after the resolution indicates an interlaced signal.

*2. The following symbols are used to indicate picture quality.

AA Maximum picture quality can be obtained.

A

B

Signals are converted by the image processing circuit before picture is projected.

Some loss of data occurs to make projection easier.

*3. YP

B

P

R

signals are available with COMPONENT terminal, and RGBHV signals are available with COMPUTER terminal.

http://www.pureglare.com.au

E

NGLISH - 46

Technical Information

Serial terminal

The serial connector which is on the connector panel of the projector conforms to the RS-232C interface specification, so that the projector can be controlled by a personal computer which is connected to this connecter.

J

Connection

D-sub 9 pin (male)

Computer

J

Pin assignments and signal names

Serial terminal (female)

Signal name Pin No.

A

B

C

D

E

F

G

H

J

Communication settings

I

Signal level

Sync. method

Baud rate

Parity

J

Basic format

RS-232C

Asynchronous

9 600 bps

None

TXD

RXD

GND

RTS

CTS

Character length

Stop bit

X parameter

S parameter

8 bits

1 bit

None

None

Contents

NC

Transmitted data

Received data

NC

Earth

NC

Connected internally

NC

STX

Start byte

(02h)

Command

3 bytes

:

1 byte

Parameter

1 byte -

4 bytes

ETX

End

(03h)

The data streaming from the computer will start with STX, and proceed to Command,

Parameter and end with ETX. You can add the required parameter.

The projector can not receive any command for 10 seconds after the lamp is switched on. Wait 10 seconds before sending the command.

If sending multiple commands, check that a response has been received from the projector for one command before sending the next command.

When a command which does not require parameters to be sent, the colon (:) is not required.

If an incorrect command is sent from the personal computer, the ER401 command will be sent from the projector to the personal computer.

http://www.pureglare.com.au

E

NGLISH - 47

Technical Information

J

Cable specifications

(When connected to a personal computer)

NC NC

Projector

NC

NC

NC

PC (DTE)

NC

NC NC

J

Control commands

Command

PON

POF

AVL

IIS

Q$S

OSH

Control contents

Power ON

Power OFF

Volume

INPUT

Lamp condition query

SHUTTER

Remarks

In standby mode, all commands other than the PON command are ignored.

The PON command is ignored during lamp ON control.

If a PON command is received while the cooling fan is operating after the lamp has switched off, the lamp is not turned back on again straight away in order to protect the lamp.

Parameter

000 - 063 (Adjustment value 0 - 63)

Parameter:

VID = VIDEO

RG1 = COMPUTER1

YUV = COMPONENT

SVD = S-VIDEO

RG2 = COMPUTER2

NWP = NETWORK

(PT-F100NTEA only)

Call back

0 = Standby

1 = Lamp ON control active

2 = Lamp ON

3 = Lamp OFF control active

Turning off the projection temporarily.

Send the command to switch between ON and OFF.

Do not send the command consecutively.

Computer connection guidance

You can switch the signals which to output from the COMPUTER1 OUT terminal by pressing the computer key command. The key commands are depend on the manufactures. If you select the computer terminals which has no signals while the INPUT GUIDE is set to DETAILED, the computer connection guidance will be displayed.

Manufacturer Key command Manufacturer Key command Key command

Panasonic

NEC

+

TOSHIBA

SHARP

HP

+

Manufacturer

IBM

SONY

Apple

+

FUJITSU

+

EPSON

DELL

+

Other

+

NOTE:

• The computer connection guidance will disappear after 5 minutes.

• Please refer the instructions which provided with the computers for more detailed information.

http://www.pureglare.com.au

E

NGLISH - 48

Technical Information

REMOTE terminal

You can remotely operate the projector from the outside the Remote control range by connecting to the REMOTE terminal.

J

Pin assignments and signal names

Pin No.

E

F

G

H

I

A

B

C

D

Signal name

GND

POWER

INPUT SEL3

INPUT SEL1

INPUT SEL2

ENABLE

Contents

Ground

POWER ON

Select input signal 3

NC

Select input signal 1

Select input signal 2

Connect internally

Control by external contact

J

LAMP switching

Pin No.

B

- A

Operation

J

Switching input signals

Short

On

Settings

Pin No.

Settings

C

- A

E

- A

Open

Open

Open

Short

Short

Open

F

- A

Open Open Short

Input signal

COMPUTER1 COMPUTER2 COMPONENT

Short

Open

Open

VIDEO

Open

Off

Short

Short

Open

S-VIDEO

Open

Short

Short

NETWORK

NOTE:

• When pin A and pin I are short-circuited, the buttons on the projector’s control panel, POWER and INPUT SELECT buttons on the Remote control cannot be used. In addition, the RS-232C commands and network functions that correspond to these functions cannot be used either.

• While pin I is “Open”, do not short-circuit pin A, B, C, E and F. The projector would reject all the signals from the

Remote control.

http://www.pureglare.com.au

E

NGLISH - 49

Technical Information

Specifications

Power supply

Power consumption

Amps

AC 100 - 240 V 50 Hz/60 Hz

330 W

During standby (when fan is stopped): 3 W

3.9 A - 1.4 A

Panel size (diagonal)

0.7 type (17.78 mm)

LCD panel

Aspect ratio

Display method

4 : 3

3 transparent LCD panels (RGB)

Lens

Lamp

Luminosity

Drive method

Pixels

Active matrix method

786 432 (1 024 x 768) x 3 panels

Manual zoom (2x)/Manual focus

F 1.7 - 2.6, f 21.6 mm - 43.0 mm

UHM lamp (250 W)

3 200 lm

Operating environment

Temperature

Humidity

0 °C - 40 °C (32 °F - 104 °F)

When the HIGHLAND (page 38) is set to ON: 0 °C - 35 °C (32 °F -

95 °F)

20% - 80% (no condensation)

Scanning frequency

*1

(for RGB signal)

Horizontal scanning frequency

Vertical scanning frequency

15 kHz - 91 kHz

50 Hz - 85 Hz

Dot clock frequency

Less than 110 MHz

COMPONENT (YP

B

P

R

) signals

480i, 480p, 576i, 576p, 720/50p, 720/60p, 1 080/50i, 1 080/60i,

Colour system

Projection size

7 (NTSC/NTSC 4.43/PAL/PAL-M/PAL-N/PAL60/SECAM)

33" - 300" (838.2 mm - 7 620 mm)

Throw distance

Screen aspect ratio

Installation

Speaker

Max. useable volume output

1.2 m - 18.1 m (3'11" - 59'4")

4 : 3

FRONT/DESK, FRONT/CEILING, REAR/DESK, REAR/CEILING

(Menu selection method)

1 piece 4 cm (1 - 9/16")

3.0 W

*1. See “List of compatible signals” on page 46 for available signals.

http://www.pureglare.com.au

E

NGLISH - 50

Technical Information

Terminals

Wireless LAN

Cabinet

Dimensions

Weight

Certifications

Remote control

Options

S-VIDEO IN

VIDEO IN

COMPONENT1 IN

COMPUTER2 IN/

1 OUT

COMPONENT IN

Single - line, Mini DIN 4p

Y: 1.0 V [p-p], C: 0.286 V [p-p], 75

Single - line, RCA pin jack

1.0 V [p-p], 75

Single - line, D - sub HD 15-pin (female)

R.G.B.

0.7 V [p-p], 75

HD, VD/SYNC

TTL high impedance, automatic positive/negative polarity compatible

Single - line, D - sub HD 15-pin (female)

Selectable for input and output by menu operation.

R.G.B.

HD, VD/SYNC

0.7 V [p-p], 75

TTL high impedance, automatic positive/negative polarity compatible

Y, P

B

/C

B

, P

R

/C

R

Y:

P

B

/C

B

, (P

R

/C

R

)

Single - line, RCA pin jack x 3

1.0 V [p-p] (including sync), 75

0.7 V [p-p], 75

Single - line, 0.5V [rms], RCA pin jack x 2 (L - R)

AUDIO IN

COMPUTER AUDIO IN Dual - line, 0.5V [rms], M3 jack (Stereo MINI)

VARIABLE AUDIO

OUT

SERIAL

Single - line, 0.5V [rms], M3 jack (Stereo MINI)

Monitor output/stereo compatible

0 V [rms] - 2.0 V [rms] (variable)

D-sub 9-pin RS-232C compatible

REMOTE

LAN (RJ-45)

(PT-F100NTEA only)

Compatible

Wireless channel

Distance

Power supply

Operating range

Weight

Dimensions

Ceiling bracket

D-sub 9-pin For external control

Single - line, For network connection

10 Base-T/100Base-TX/1000Base-T

IEEE802.11b/IEEE802.11g (Wireless LAN standard protocol)

IEEE802.11b/IEEE802.11g: 1 - 13 channels

30 m (98'5") Depends on the usage environment

Moulded plastic (PC+ABS)

Width

Height

Length

6.2 kg (13.7 lbs.)

432 mm (17")

124.5 mm (4 - 7/8")

319 mm (12 - 17/32")

EN60950-1, EN55022, EN61000-3-2, EN61000-3-3, EN55024

3 V DC (AA battery x 2)

Approx. 15 m (49'2") (when operated directly in front of signal receptor)

117 g (4.2 ozs.) (including batteries)

Width

Length

Height

48 mm (1 - 7/8")

163 mm (6 - 13/32")

24.5 mm (-15/16") (not including surface projection parts)

ET-PKF100H/ET-PKF100S http://www.pureglare.com.au

E

NGLISH - 51

Technical Information

Screen size and throw distance for 16:9 aspect ratio

Projection size (16 : 9) Throw distance (L)

Screen Diagonal

(SD)

Screen height (SH) Screen width (SW)

Minimum distance

(LW)

Maximum distance

(LT)

(0.84 m)

(1.02 m)

(1.27 m)

(1.52 m)

(1.78 m)

(2.03 m)

(2.29 m)

33"

40"

50"

60"

70"

80"

90"

0.41 m (1'4")

0.50 m (1'7")

0.62 m (2')

0.75 m (2'5")

0.87 m (2'10")

1.00 m (3'3")

1.12 m (3'8")

0.73 m (2'4")

0.89 m (2'11")

1.11 m (3'7")

1.33 m (4'4")

1.55 m (5'1")

1.77 m (5'9")

1.99 m (6'6")

1.3 m (4'3")

1.6 m (5'2")

1.9 m (6'2")

2.3 m (7'6")

2.6 m (8'6")

2.9 m (9'6")

2.1 m (6'10")

2.6 m (8'6")

3.2 m (10'5")

3.9 m (12'9")

4.6 m (15'1")

5.2 m (17')

5.9 m (19'4")

(2.54 m) 100"

(3.05 m) 120"

(3.81 m) 150"

(5.08 m) 200"

1.25 m

1.87 m

2.49 m

(4'1")

1.49 m (4'10")

(6'1")

(8'2")

2.21 m

2.66 m

(7'3")

(8'8")

3.32 m (10'10")

4.43 m (14'6")

3.3 m (10'9")

3.9 m (12'9")

4.9 m (16')

6.6 m (21'7")

6.5 m (21'3")

7.9 m (25'11")

9.8 m (32'1")

13.1 m (42'11")

(6.35 m) 250"

(7.62 m) 300"

3.11 m (10'2")

3.74 m (12'3")

5.53 m (18'1")

6.64 m (21'9")

8.3 m (27'2")

9.9 m (32'5")

16.4 m (53'9")

19.7 m (64'7")

* All measurements above are approximate and may differ slightly from the actual measurements.

J

Calculation methods for screen dimensions

You can calculate more detailed screen dimension from the screen diagonal.

SW (m) = SD (") x 0.0221

LW (m) = 0.0332 x SD (") - 0.049

SH (m) = SD (") x 0.0125

LT (m) = 0.066 x SD (") - 0.055

* The results above are approximate and may differ slightly from the actual measurements.

http://www.pureglare.com.au

E

NGLISH - 52

Dimensions

Technical Information

Unit: mm

53

(2 - 1/16")

432 (17")

85.4

(3 - 11/32")

Trademark acknowledgements

VGA and XGA are trademarks of International Business Machines Corporation.

S-VGA is a registered trademark of the Video Electronics Standards Association.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of

HDMI Licensing LLC.

The font used in the on-screen displays is a Ricoh bitmap font, which is manufactured and sold by Ricoh

Company, Ltd.

All other trademarks are the property of the various trademark owners.

http://www.pureglare.com.au

These Operating Instructions are printed on recycled paper.

E

NGLISH - 53

Index

A

AC IN

......................................................... 15

Accessories

................................................ 11

Air exhaust port

............................................ 15

Air intake port

.............................................. 14

ALS (Ambient Luminance Sensor)

................... 14

ARF (Auto Rolling Filter)

Compartment

........................................... 15

FILTER indicator

....................................... 14

FILTER indicator status

............................... 41

FILTER REMAINING

.................................. 36

Replacing

................................................ 42

ASPECT

..................................................... 34

AUDIO BALANCE

........................................ 38

AUDIO IN

................................................... 15

AUTO SETUP

Menu

..................................................... 37

Remote control

......................................... 25

Remote control button

................................. 13

B

BACK COLOR

BLACKBOARD

............................................. 38

Battery compartment

..................................... 13

............................................ 38

BRIGHTNESS

............................................. 32

C

Calculation methods

16:9

...................................................... 52

4:3

........................................................ 16

CD-ROM

Accessories

............................................. 11

Cleaning

..................................................... 42

CLOCK PHASE

........................................... 34

COLOR

...................................................... 32

COLOR TEMPERATURE

............................... 32

COMPONENT IN

......................................... 15

COMPUTER

Connection guidance

.................................. 48

Remote control

......................................... 26

Remote control button

................................. 13

COMPUTER AUDIO IN

COMPUTER SEARCH

................................. 15

.................................. 13

COMPUTER1 IN

CONTRAST

.......................................... 15

COMPUTER2 IN/1 OUT

COMPUTER2 SELECT

................................ 15

................................. 36

Connections

................................................ 20

................................................ 32

CONTROL PANEL

....................................... 37

D

DAYLIGHT VIEW

......................................... 32

DEFAULT

Remote control

......................................... 27

Remote control button

................................. 13

DETAILED SETUP

OPTION menu

.......................................... 38

PICTURE menu

........................................ 33

DIGITAL ZOOM

Remote control

......................................... 28

Remote control button

................................. 13

Dimensions

................................................. 53

Direct power off

............................................ 22 http://www.pureglare.com.au

E

NGLISH - 54

DIRECT POWER ON

Function

................................................. 22

Menu

..................................................... 37

DOT CLOCK

............................................... 34

E

ENTER

Control panel button

................................... 14

Remote control button

................................. 13

F

FILTER REMAINING

.................................... 36

FILTER SETUP

Focus lever

FRAME LOCK

........................................... 36

........................................... 14, 24

............................................. 35

FREEZE

Remote control

......................................... 27

Remote control button

................................. 13

Front leg adjusters

............................ 15, 17, 24

Front panel cover

......................................... 14

I

H

Hand strap

.................................................. 13

HIGHLAND

................................................. 38

INDEX-WINDOW

Remote control

......................................... 27

Remote control button

................................. 13

INITIALIZE ALL

........................................... 38

INPUT GUIDE

............................................. 36

INPUT PASSWORD

..................................... 39

INPUT SELECT

Control panel button

................................... 14

Remote control button

................................. 13

Selecting

.......................................... 24, 26

INSTALLATION

Menu

..................................................... 37

Projection method

...................................... 17

K

KEYSTONE

................................................ 34

L

LAMP

Indicator

................................................. 14

Indicator status

......................................... 41

LAMP RUNTIME

....................................... 37

Lamp unit compartment

............................... 15

Replacing

............................................... 43

LAN

........................................................... 15

LANGUAGE

................................................ 30

LASER

Remote control

......................................... 26

Remote control button

................................. 13

Lens shift lever

................................ 14, 18, 24

Lever

Focus lever

............................................. 14

Lens shift lever

......................................... 14

Zoom lever

.............................................. 14

M

Mains lead

Accessories

............................................. 11

Connecting

............................................. 22

MENU

Control panel button

................................... 14

Main menu

.............................................. 30

Navigation

.............................................. 29

Remote control button

................................. 13

N

Navigation buttons

Control panel button

................................... 14

Remote control button

................................. 13

NETWORK

Remote control

......................................... 26

Remote control button

................................. 13

NOISE REDUCTION

.................................... 33

O

OPTION menu

............................................ 36

OSD DESIGN

............................................. 38

P

PAGE

........................................................ 13

PASSWORD CHANGE

................................. 39

PICTURE menu

........................................... 32

PICTURE MODE

......................................... 32

POSITION

.................................................. 34

POSITION menu

.......................................... 34

POWER

Control panel

........................................... 14

Indicator

................................................. 14

Indicator status

......................................... 22

Remote control button

................................. 13

POWER OFF TIMER

.................................... 37

Projection lens

............................................. 14

R

REMOTE

................................................... 15

LAMP switching

........................................ 49

Pin assignments

....................................... 49

Switching input signals

................................ 49

Remote control

Accessories

............................................. 11

Indicator

................................................. 13

Signal emitter

........................................... 13

Signal receptor

RESIZING

......................................... 14

.................................................. 35

RETURN

Control panel button

................................... 14

Remote control button

................................. 13

S

Safety cable

Accessories

............................................. 11

Safeguards

............................................. 44

Screen size

16:9

...................................................... 52

4:3

....................................................... 16

Security lock

............................................... 15

SECURITY menu

......................................... 39

Index

SERIAL

......................................................15

Basic format

Connection

.............................................47

Cable specifications

....................................48

Communication settings

...............................47

..............................................47

Control commands

.....................................48

Pin assignments

........................................47

SHARPNESS

..............................................32

SHUTTER

Remote control

..........................................27

Remote control button

.................................13

SIGNAL SEARCH

.........................................37

Speaker

......................................................14

Specifications
