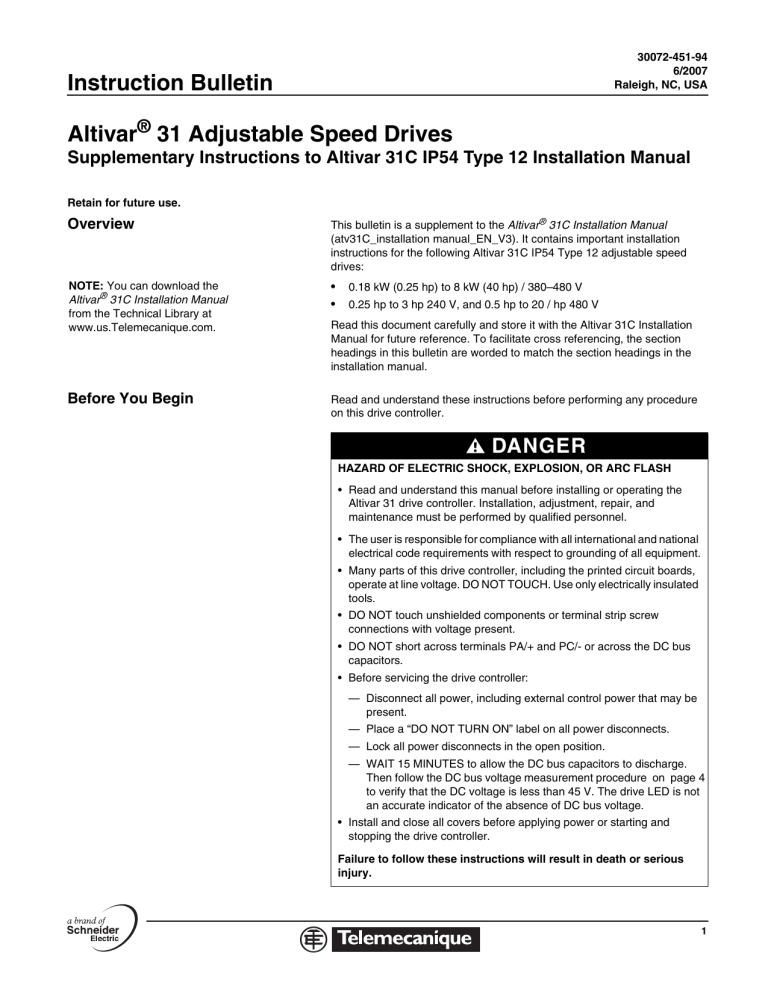

Instruction Bulletin
Altivar® 31 Adjustable Speed Drives
Supplementary Instructions to Altivar 31C IP54 Type 12 Installation Manual
Retain for future use.
Overview
This bulletin is a supplement to the Altivar® 31C Installation Manual
(atv31C_installation manual_EN_V3). It contains important installation
instructions for the following Altivar 31C IP54 Type 12 adjustable speed
drives:
NOTE: You can download the
Altivar® 31C Installation Manual
from the Technical Library at
www.us.Telemecanique.com.
•
•
Before You Begin
Read and understand these instructions before performing any procedure
on this drive controller.
0.18 kW (0.25 hp) to 8 kW (40 hp) / 380–480 V
0.25 hp to 3 hp 240 V, and 0.5 hp to 20 / hp 480 V
Read this document carefully and store it with the Altivar 31C Installation
Manual for future reference. To facilitate cross referencing, the section
headings in this bulletin are worded to match the section headings in the
installation manual.
.
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Read and understand this manual before installing or operating the
Altivar 31 drive controller. Installation, adjustment, repair, and
maintenance must be performed by qualified personnel.
• The user is responsible for compliance with all international and national
electrical code requirements with respect to grounding of all equipment.
• Many parts of this drive controller, including the printed circuit boards,
operate at line voltage. DO NOT TOUCH. Use only electrically insulated
tools.
• DO NOT touch unshielded components or terminal strip screw
connections with voltage present.
• DO NOT short across terminals PA/+ and PC/- or across the DC bus
capacitors.
• Before servicing the drive controller:
— Disconnect all power, including external control power that may be
present.
— Place a “DO NOT TURN ON” label on all power disconnects.
— Lock all power disconnects in the open position.
— WAIT 15 MINUTES to allow the DC bus capacitors to discharge.
Then follow the DC bus voltage measurement procedure on page 4
to verify that the DC voltage is less than 45 V. The drive LED is not
an accurate indicator of the absence of DC bus voltage.
• Install and close all covers before applying power or starting and
stopping the drive controller.
Failure to follow these instructions will result in death or serious
injury.
1
Altivar® 31 Adjustable Speed Drives
Before You Begin
30072-451-94
6/2007
DANGER
UNINTENDED EQUIPMENT OPERATION
Before turning on the drive controller or upon exiting the configuration
menus, ensure that the inputs assigned to the Run command are in a state
that will not cause the drive controller to run. Otherwise, the motor can
start immediately.
Failure to follow this instruction will result in death, serious injury or
equipment damage.
WARNING
LOSS OF CONTROL
• The designer of any control scheme must consider the potential failure
modes of control paths and, for certain critical control functions, provide
a means to achieve a safe state during and after a path failure.
Examples of critical control functions are emergency stop and
overtravel stop.
• Separate or redundant control paths must be provided for critical control
functions.
• System control paths may include communication links. Consideration
must be given to the implications of unanticipated transmission delays
or failures of the link.1
• Each implementation of an Altivar 31C drive controller must be
individually and thoroughly tested for proper operation before being
placed into service.
Failure to follow these instructions can result in death, serious
injury, or equipment damage.
1
CAUTION
CAUTION
INCOMPATIBLE LINE VOLTAGE
IMPROPER DRIVE CONTROLLER OPERATION
Before turning on and configuring the drive
controller, ensure that the line voltage is
compatible with the line voltage range specified
on the drive controller nameplate. The drive
controller can be damaged if the line voltage is
not compatible.
• If the drive controller is de-energized for a prolonged period, the
performance of the electrolytic capacitors will be reduced.
Failure to follow this instruction can result
in injury or equipment damage.
2
For additional information refer to NEMA ICS 1.1 (latest edition), “Safety Guidelines for the
Application, Installation, and Maintenance of Solid State Control” and to NEMA ICS 7.1 (latest
edition), “Safety Standards for Construction and Guide for Selection, Installation and Operation
of Adjustable-Speed Drive Systems.”
• If the drive controller is stopped for a prolonged period, turn it on every
two years for at least 5 hours to restore the performance of the
capacitors, then check its operation.
• Do not connect the drive controller to the line voltage. Gradually
increase the voltage using an adjustable AC source.
Failure to follow these instructions can result in injury and
equipment damage.
© 2007 Schneider Electric All Rights Reserved
Altivar® 31 Adjustable Speed Drives
Receiving and Preliminary Inspection
30072-451-94
6/2007
Receiving and Preliminary
Inspection
WARNING
DAMAGED PACKAGING
If the packaging appears damaged, it can be dangerous to open it or
handle it. Handle with care.
Failure to follow this instruction can result in death, serious injury,
or equipment damage.
WARNING
DAMAGED EQUIPMENT
Do not operate or install any drive controller that appears damaged.
Failure to follow this instruction can result in death, serious injury,
or equipment damage.
Before installing the ATV31C drive controller, read Altivar® 31C Installation
Manual (atv31C_installation manual_EN_V3), this bulletin, and follow all
precautions.
Before removing the drive controller from its packaging, verify that the
carton was not damaged in shipping. Carton damage usually indicates
improper handling and the potential for device damage. If any damage is
found, notify the carrier and your Schneider Electric representative.
Storing and Shipping
If the drive controller is not immediately installed, store it in a clean, dry area
where the ambient temperature is between –25 and +70 °C
(–13 to +158 °F). If the drive controller must be shipped to another location,
use the original shipping material and carton to protect the drive controller.
Lifting and Handling
WARNING
HANDLING AND LIFTING HAZARD
Keep the area below any equipment being lifted clear of all personnel and
property.
Failure to follow this instruction can result in death, serious injury,
or equipment damage.
© 2007 Schneider Electric All Rights Reserved
•
Altivar 31C drive controllers can be removed from their packaging and
installed without a handling device.
•
After removing the drive controller from its packaging, inspect it for
damage. If any damage is found, notify the carrier and your sales
representative.
•
Verify that the drive controller nameplate and label conform to the
packing slip and corresponding purchase order.
3
Altivar® 31 Adjustable Speed Drives
Bus Voltage Measurement Procedure
30072-451-94
6/2007
Bus Voltage Measurement
Procedure
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
Read and understand the precautions in “Before You Begin” on page 1 of
this bulletin before performing this procedure.
Failure to follow this instruction will result in death or serious injury.
Before working on the drive controller, remove all power and wait 15
minutes to allow the DC bus to discharge. Then measure the DC bus
voltage between the PA/+ and PC/– terminals.
The DC bus voltage can exceed 1,000 Vdc. Use a properly rated
voltage-sensing device when performing this procedure. To measure the
DC bus voltage:
1. Disconnect all power.
2. Wait 15 minutes to allow the DC bus to discharge.
3. Measure the voltage of the DC bus between the PA/+ and PC/–
terminals to ensure that the voltage is less than 45 Vdc.
4. If the DC bus capacitors do not discharge completely, contact your local
Schneider Electric representative. Do not repair or operate the drive
controller.
Mounting
Dimensions and Weights
Refer to Table 1 and Table 2 on page 5 for dimensions and weights of the
ATV31C drive controllers.
b
H
4
c
G
a
Table 1:
Size 1–3 Dimensions and Weights
a
mm (in.)
ATV 31C•••••
b
mm (in.)
c
mm (in.)
G
mm (in.)
H
mm (in.)
Ø
mm (in.)
For
Weight
screws kg (lb.)
5.5 (0.217)
018M2, 037M2, 055M2, 075M2
Size 1
210 (8.268) 240 (9.449)
M5
6.300 (13.889)
U11M2, U15M2, 037N4, 055N4,
075N4, U11N4, U15N4
Size 2
215 (8.465) 297 (11.693) 192 (7.559) 197 (7.756) 277 (10.905) (5.5 (0.217) M5
8.800 (19.401)
U22M2, U22N4, U30N4, U40N4
Size 3
230 (9.055) 340 (13.386) 222 (8.740) 212 (8.346) 318 (12.520) 5.5 (0.217)
10.700 (23.589)
4
163 (6.417) 192 (7.559) 218 (8.583)
M5
© 2007 Schneider Electric All Rights Reserved
Altivar® 31 Adjustable Speed Drives
Wiring Recommendations
30072-451-94
6/2007
a
c
b
H
4
G
Table 2:
Size 4-5 Dimensions and Weights
a
mm (in.)
ATV 31C•••••
b
mm (in.)
c
mm (in.)
G
mm (in.)
H
mm (in.)
Ø
For
Weight
mm (in.) screws kg (lb.)
U55N4, U75N4
Size 4
320 (12.598) 512 (20.157) 276.5 (10.886) 279 (10.989) 480 (18.898) 8 (0.315)
M6
23.600 (52.029)
D11N4, D15N4
Size 5
440 (17.323) 625 (24.606) 276.5 (10.886) 399 (15.710) 594 (23.386) 8 (0.315)
M6
32.500 (71.650)
Wiring
Wiring Recommendations
Good wiring practice requires the separation of control circuit wiring from all
power (line) wiring. In addition, power wiring to the motor must have the
maximum possible separation from all other power wiring, whether from the
same drive controller or other drive controllers. Do not run power and
control wiring, or multiple power wiring, in the same conduit. This separation
reduces the possibility of coupling electrical transients from power circuits
into control circuits or from motor power wiring into other power circuits.
WARNING
IMPROPER WIRING PRACTICES
• Follow the wiring practices described in this document in addition to
those already required by the National Electrical Code and local
electrical codes.
• Do not apply input line voltage to the output terminals (U/T1, V/T2,
W/T3).
• Check the power connections before energizing the drive controller.
• If replacing another drive controller, verify that all wiring connections to
the ATV31C drive controller comply with all wiring instructions in this
manual.
Failure to follow these instructions can result in death, serious
injury, or equipment damage.
© 2007 Schneider Electric All Rights Reserved
5
Altivar® 31 Adjustable Speed Drives
Branch Circuit Protection
30072-451-94
6/2007
Follow the practices below when wiring ATV31C drive controllers:
Branch Circuit Protection
•
Verify that the voltage and frequency of the input supply line and the
voltage, frequency, and current of the motor match the rating on the
drive controller nameplate.
•
Use metallic conduit for all drive controller wiring. Do not run control and
power wiring in the same conduit.
•
Separate the metallic conduits carrying power wiring from those carrying
control wiring by at least 76 mm (3 in.).
•
Separate the non-metallic conduits or cable trays carrying power wiring
from the metallic conduit carrying control wiring by at least 305 mm
(12 in.).
•
Whenever power and control wiring cross, the metallic conduits and
non-metallic conduits or trays must cross at right angles.
•
Equip all inductive circuits near the drive controller (such as relays,
contactors, and solenoid valves) with noise suppressors.
Refer to NEC Article 430 for sizing of branch circuit conductors. Ensure that
all branch circuit components and equipment (such as transformers, feeder
cables, disconnect devices, and protective devices) are rated for the input
current of the ATV31C drive controller, or for the rated output current,
whichever value is larger. The input current of the controller depends on the
impedance of the power distribution system and the available short-circuit
current at the drive input terminals.
The tables in the Drive Reference section of the Altivar® 31C Installation
Manual provide input current information to optimally size branch circuit
conductors. Do not exceed the short-circuit current rating shown in the
tables. The short-circuit current rating is the available short-circuit current
capability on the line side of the fuses or circuit breakers.
A line reactor can be used to add impedance and reduce the available
short-circuit current capability to the level allowed by the drive controller.
NOTE: Ensure that the branch circuit feeder protection rating is not less
than the rated output current of the drive controller.
When more than two drive controllers are installed in parallel on a common
power line voltage, regardless of voltage rating, an individual line reactor per
drive controller is recommended. This provides filtering between controllers
and reduces harmonic distortion when the system is partially loaded.
WARNING
INADEQUATE OVERCURRENT PROTECTION
• Overcurrent protective devices must be properly coordinated.
• The National Electrical Code and the Canadian Electricity Code require
branch circuit protection. Use the fuses listed on the drive controller’s
nameplate to achieve published short-circuit current ratings.
• Do not connect the drive controller to a power feeder whose short-circuit
capacity exceeds the drive controller short-circuit current rating listed on
the drive controller nameplate.
Failure to follow these instructions can result in death, serious
injury, or equipment damage.
6
© 2007 Schneider Electric All Rights Reserved
Altivar® 31 Adjustable Speed Drives
Output Wiring
30072-451-94
6/2007
If starting the drive controller from line power, limit operations of the line
contactor to less than once per minute to avoid premature failure of the filter
capacitors and precharge resistor. Use the logic inputs to command the
drive controller.
Output Wiring
The drive controller is sensitive to the amount of capacitance (either phaseto-phase or phase-to-ground) present on the output power conductors.
Excessive capacitance can cause an overcurrent trip. Follow these
guidelines when selecting output cable:
•
Cable type: The cable selected must have a low capacitance
phase-to-phase and phase-to-ground. Do not use mineral-impregnated
cable because it has a very high capacitance. Immersion of cables in
water increases capacitance.
•
Cable length: The longer the cable, the greater the capacitance. Cable
lengths greater than 30.5 m (100 ft.) can affect the drive controller and
motor performance.
•
When the output cable is in close proximity to other output cables, the
drive controller may fault under some conditions because of high
frequency switching and increased capacitance.
•
Do not use lightning arrestors and/or power factor correction
capacitors on the output of the drive controller.
For proper drive controller short circuit protection, certain values of
inductance may be required in the output power wiring. Inductance can be
supplied by the power wiring or auxiliary inductors.
CAUTION
INSUFFICIENT OUTPUT INDUCTANCE
Provide at least 500 mm (20 in.) of cable at the drive controller output
(U/T1, V/T2,W/T3) to help protect the drive controller output when short
circuits occur.
Failure to follow this instruction can result in injury or equipment
damage.
© 2007 Schneider Electric All Rights Reserved
7
Altivar® 31 Adjustable Speed Drives
Instruction Bulletin
Logic Input Switch
30072-451-94
6/2007
NOTE: All terminals are located at the bottom of the drive controller. Install
interference suppressors on all inductive circuits—such as relays,
contactors, solenoid valves, and fluorescent lighting—that are near the drive
controller or connected on the same circuit.
DANGER
UNINTENDED EQUIPMENT OPERATION
• Prevent accidental grounding of logic inputs configured for Sink Logic.
Accidental grounding can result in unintended activation of drive
controller functions.
• Protect the signal conductors against damage that could result in
unintentional conductor grounding.
• Follow NFPA 79 and EN 60204 guidelines for proper control circuit
grounding practices.
Failure to follow these instructions will result in death or serious
injury.
Product Support
For support and assistance, contact the Product Support Group. The
Product Support Group is staffed from 8:00 am until 6:00 pm Eastern time to
assist with product selection, start-up, and diagnosis of product or
application problems. Emergency phone support is available 24 hours a
day, 365 days a year.
Toll free: 888-SquareD (888-778-2733)
E-Mail: [email protected]
Fax: 919-217-6508
Schneider Electric USA
8001 Knightdale Boulevard
Knightdale, NC 27545
1-888-SquareD (1-888-778-2733)
www.us.telemecanique.com
Electrical equipment should be installed, operated, serviced, and maintained only by
qualified personnel. No responsibility is assumed by Schneider Electric for any
consequences arising out of the use of this material.
© 2007 Schneider Electric All Rights Reserved

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
