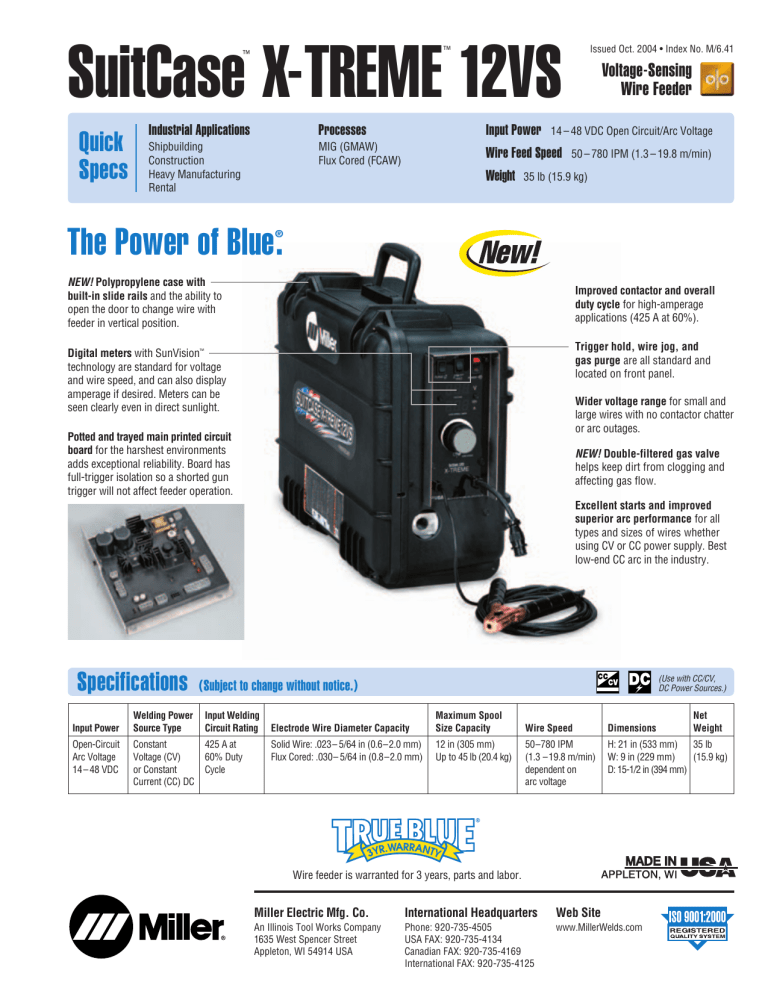

SuitCase X-TREME 12VS
Quick
Specs
Issued Oct. 2004 • Index No. M/6.41
™
™
Industrial Applications
Processes
Input Power
Shipbuilding
Construction
Heavy Manufacturing
Rental
MIG (GMAW)
Flux Cored (FCAW)
Wire Feed Speed
Weight
Voltage-Sensing
Wire Feeder
14 – 48 VDC Open Circuit/Arc Voltage
50 – 780 IPM (1.3 – 19.8 m/min)
35 lb (15.9 kg)
The Power of Blue .
®
NEW! Polypropylene case with
built-in slide rails and the ability to
open the door to change wire with
feeder in vertical position.
Improved contactor and overall
duty cycle for high-amperage
applications (425 A at 60%).
Trigger hold, wire jog, and
gas purge are all standard and
located on front panel.
Digital meters with SunVision™
technology are standard for voltage
and wire speed, and can also display
amperage if desired. Meters can be
seen clearly even in direct sunlight.
Wider voltage range for small and
large wires with no contactor chatter
or arc outages.
Potted and trayed main printed circuit
board for the harshest environments
adds exceptional reliability. Board has
full-trigger isolation so a shorted gun
trigger will not affect feeder operation.
NEW! Double-filtered gas valve
helps keep dirt from clogging and
affecting gas flow.
Excellent starts and improved
superior arc performance for all
types and sizes of wires whether
using CV or CC power supply. Best
low-end CC arc in the industry.
Specifications
Input Power
Open-Circuit
Arc Voltage
14 – 48 VDC
(Use with CC/CV,
DC Power Sources.)
(Subject to change without notice.)
Welding Power
Source Type
Input Welding
Circuit Rating
Constant
Voltage (CV)
or Constant
Current (CC) DC
425 A at
60% Duty
Cycle
Electrode Wire Diameter Capacity
Maximum Spool
Size Capacity
Solid Wire: .023– 5/64 in (0.6–2.0 mm)
Flux Cored: .030– 5/64 in (0.8–2.0 mm)
12 in (305 mm)
Up to 45 lb (20.4 kg)
Net
Weight
Wire Speed
Dimensions
50–780 IPM
(1.3 –19.8 m/min)
dependent on
arc voltage
H: 21 in (533 mm)
35 lb
W: 9 in (229 mm)
(15.9 kg)
D: 15-1/2 in (394 mm)
Wire feeder is warranted for 3 years, parts and labor.
Miller Electric Mfg. Co.
International Headquarters
Web Site
An Illinois Tool Works Company
1635 West Spencer Street
Appleton, WI 54914 USA
Phone: 920-735-4505
USA FAX: 920-735-4134
Canadian FAX: 920-735-4169
International FAX: 920-735-4125
www.MillerWelds.com
Control Panels
Drive Roll Kits
5
(Order from Miller Service Parts.)
Select drive roll kits from chart below according to type and wire size being used. Drive roll kits
include 2 drive rolls, the necessary guides and feature an anti-wear inlet guide.
OFF
1
6
Wire size
“V” groove
for hard wire
“U” groove for
soft wire or
soft-shelled
cored wires
“V” knurled
for hard-shelled
cored wires
“U” cogged for
extremely soft wire
or soft- shelled cored
wires (i.e., hard
facing types)
.023 / .025 in (0.6 mm)
#087 131
—
—
—
.030 in (0.8 mm)
#079 594
—
—
—
.035 in (0.9 mm)
#079 595
#044 749
#079 606
—
.040 in (1.0 mm)
#161 189
—
—
—
.045 in (1.1/1.2 mm)
#079 596
#079 599
#079 607
#083 318
.052 in (1.3/1.4 mm)
#079 597
#079 600
#079 608
#083 317
1/16 in (1.6 mm)
#079 598
#079 601
#079 609
#079 614
.068/.072 in (1.8 mm)
—
—
#089 984
—
5/64 in (2.0 mm)
—
#079 602
#079 610
#079 615
2
3
4
Front Panel
1.
2.
3.
4.
5.
6.
Jog/Purge Switch
Voltmeter
Wire Speed/Amperage Meter
Wire Speed Control
Trigger Hold Switch
Power Control Switch
Ordering Information
Power Source and Options
Stock No.
Description
SuitCase™ X-TREME™ 12VS
Flowmeter Kit
Inline Filter
Lincoln® Spool Adapter
#195 500
#195 217
#195 189
#047 141
For 14 lb spools
Qty.
Guns
Ironmate™ 1260 (FCAW)
Roughneck® C-Series (GMAW)
See Lit. Index No. AY/16.0
See Lit. Index No. AY/17.0
Power Sources
XMT® Series
Dimension™
Gold Star®
Mark VI™
Big Blue® Turbo
Big Blue® 400 & 500
Big Blue® Air Pak™
Bobcat™
Trailblazer®
See Lit. Index No. DC/18.8
See Lit. Index No. DC/19.2
See Lit. Index No. DC/8.1
See Lit. Index No. DC/9.8
See Lit. Index No. ED/10.3
See Lit. Index No. ED/10.8
See Lit. Index No. ED/10.5
See Lit. Index No. ED/4.4
See Lit. Index No. ED/4.77
Consumables
Drive Rolls
Wire
