Continental Engineering Services
Use Automotive
Know-How
On account of the
efficient use of existing
automotive-solutions
the development of
embedded applications
becomes easier.
Save Time
The use of
SystemOnModules and
Board Support Packages
will allow a shorter
development time.
Reduce Costs
Development costs
will be reduced by
using standardised
SystemOnModules and
Board Support Packages.

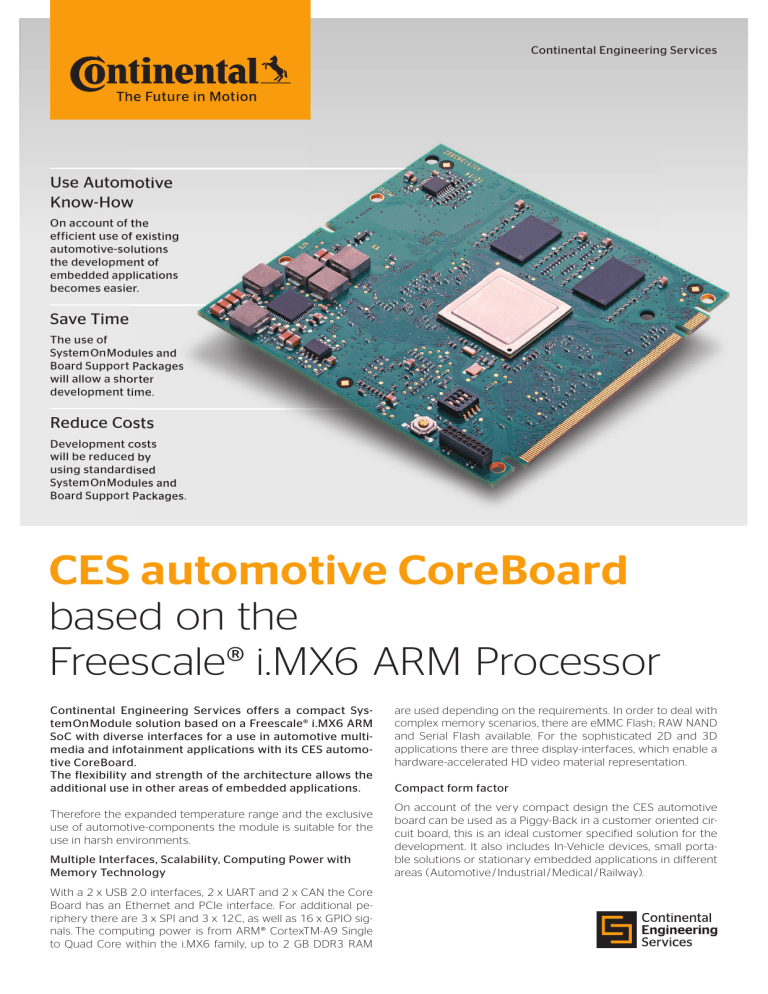

CES automotive CoreBoard
based on the
Freescale® i.MX6 ARM Processor
Continental Engineering Services offers a compact SystemOnModule solution based on a Freescale® i.MX6 ARM
SoC with diverse interfaces for a use in automotive multimedia and infotainment applications with its CES automotive CoreBoard.
The flexibility and strength of the architecture allows the
additional use in other areas of embedded applications.
Therefore the expanded temperature range and the exclusive
use of automotive-components the module is suitable for the
use in harsh environments.
Multiple Interfaces, Scalability, Computing Power with
Memory Technology
With a 2 x USB 2.0 interfaces, 2 x UART and 2 x CAN the Core
Board has an Ethernet and PCIe interface. For additional periphery there are 3 x SPI and 3 x 12C, as well as 16 x GPIO signals. The computing power is from ARM® CortexTM-A9 Single
to Quad Core within the i.MX6 family, up to 2 GB DDR3 RAM
are used depending on the requirements. In order to deal with
complex memory scenarios, there are eMMC Flash; RAW NAND
and Serial Flash available. For the sophisticated 2D and 3D
applications there are three display-interfaces, which enable a
hardware-accelerated HD video material representation.
Compact form factor
On account of the very compact design the CES automotive
board can be used as a Piggy-Back in a customer oriented circuit board, this is an ideal customer specified solution for the
development. It also includes In-Vehicle devices, small portable solutions or stationary embedded applications in different
areas (Automotive / Industrial / Medical / Railway).
CAN x 2
4-pair LVDS x 2
DDR3 4 Gbit
top left
DDR3 4 Gbit
bottom left
DDR3 4 Gbit
bottom right
DDR3 4 Gbit
top right
HDMI
Freescale i.MX6 Cortex A9
Ethernet – RGMII
CPU Platform
SATA
USB x 2
256 KB – 1 MB L2-Cache
ESAI / I2S
SPDIF
Reference CLK
PCIe (1 lane)
Multimedia
Hardware Graphics
Accelerators
Video
Codecs
Audio
Processing Unit
SPI x 2
IIC x 3
Display and Camera
Interface
Internal
Memory
10-pin Power Connector
SDIO (4 bit) x 2
PMIC
Integrated Power Supply IC
230-pin Board Edge Connector
Video in (8 bit)
3V8
3V3 Out
GND
Power ON
VRTC
Security
GPIO x 16
Powergood, Reset Out
PWM Output
8-bit Managed NAND
4 GByte – 32 GByte
Processor / Performance
Freescale® i.MX6 Quad ARM Cortex A9
up to 1.0 GHz, 1 MB L2 cache
Graphics
Video, 2D Graphics and 3D Graphics, 3D graphics with
4 shaders up to 200 MT/ s, dual stream 1080 p / 720 p
decoder/encoder, OpenGL, OpenCL and OpenVG 1.1
RAM
DDR3 RAM, 1066 MT/s
Flash
RAW NAND
eMMC Flash
Serial NOR Flash
Display
LVDS 18 /24 bit dual channel up to WUXGA 1920 x 1200
HDMI v1.4
Technical Data
Dimensions
Net weight
Input voltage
Current consumption typ.
Power consumption typ.
Environmental Conditions
Operating temperature ( ambient )
Storage temperature
Are you looking for a suitable embedded platform for
your application?
Combine the CES automotive CoreBoard with our KnowHow of hardware, software and mechanical design, such
as the full service of our experts:
Raw NAND
1 GByte
Serial Flash
1 Mbit – 16 Mbit
•
•
up to 2 GB
1 GB
4 GB up to 32 GB
1 Mb up to 16 Mb
2
1
85 x 80 x 10 mm
50 g
3,8 V +/–10 %
1000 mA
3,8 W
– 40 up to + 85°C
– 40 up to + 85°C
AD
Converter
UART x 2
Communciation Interfaces
SATA II
1
USB 2.0 (OTG)
1
USB 2.0 (Host)
1
Ethernet up to 1 Gbit via RGMII
1
RS232 (UART )
2
CAN Bus (Rx-Tx)
2
PCIe
1
ESAI
1
SDHC
2
I2C bus
3
Camera Interface MIPI CSI-2
1
SPI
2
PWM
1
SPDIF (OUT )
1
Features
Real Time Clock
Watchdog Timer
Intelligent power management
Temperature supervisor
GPIOs
16
Operating Systems
Linux
Android
Windows Embedded Compact 7
uBOOT and BSP s with
OS drivers and tools
•
•
•
•
•
•
•
•
› Customer-specified software board support packages and
development of applications
› Development of hardware for customer-specified design
› Mechanical integration of solution in a system or case
› Verification and validation of the whole system
› Industrialisation and production of your products
Continental Engineering Services GmbH
Graf-Vollrath-Weg 6 · 60489 Frankfurt /Germany
Phone + 49 69 678696 - 0 · Fax + 49 69 678696 - 070
www.conti-engineering.com
