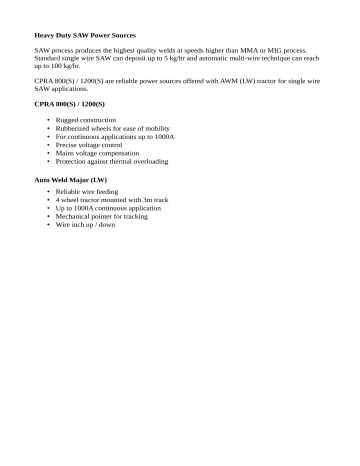

Heavy Duty SAW Power Sources
SAW process produces the highest quality welds at speeds higher than MMA or MIG process.
Standard single wire SAW can deposit up to 5 kg/hr and automatic multi-wire technique can reach
up to 100 kg/hr.
CPRA 800(S) / 1200(S) are reliable power sources offered with AWM (LW) tractor for single wire
SAW applications.
CPRA 800(S) / 1200(S)
•
•
•
•
•
•
Rugged construction
Rubberized wheels for ease of mobility
For continuous applications up to 1000A
Precise voltage control
Mains voltage compensation
Protection against thermal overloading
Auto Weld Major (LW)
•
•
•
•
•
Reliable wire feeding
4 wheel tractor mounted with 3m track
Up to 1000A continuous application
Mechanical pointer for tracking
Wire inch up / down
Technical Data
Power Source
Mains supply, Ph x V, Hz
Input current at 415V, A (Max)
Input power at 60% duty cycle,
kVA(Max)
Open circuit voltage, V DC
Welding current at 60% duty
cycle, A
Welding current at 100% duty
cycle, A
Insulation class
Type of cooling
Dimensions, l x w x h, mm
Weight, Kg
CPRA 800(S)
CPRA 1200(S)
3 x 415, 50
65
3 x 415, 50
107
47
22 - 55
77
30 - 60
-
1200
800
F
Forced Air
960 x 760 x 880
325
1000
F
Forced Air
1000 x 800 x 900
375
Welding Head
Auto Weld Major (LW)
Wire (single) diameter range, mm
Wire feed speed, cm/min
Welding current, A (continuous)
Vertical adjustment, mm
Horizontal adjustment, mm
Swivel arrangement, Deg
Torch tilt, Deg
Speed range of tractor, cm/min
Hopper capacity, Kg
Wheel center of tractor, cm
Dimension, l x w x h, mm
Ordering Information
CPRA 800(S)
CPRA 1200(S)
Auto Weld Major (LW)
2.4 – 5.0 (Standard), 6.3 (Optional)
50 – 450
1000
150
150
360°
± 45°
0 – 150
10
350
1368 x 410 x 1145
1620652100
1621649303
4621649225
Track for Auto Weld Major (LW) 4621649351
SAW TRACTOR LW IS supplied with 1 set of control cable, 1 No. of Cu 70 sq mm welding cable
(each 15m in length) and 1 No. 5m long Cu 70 sq mm welding cable with Earth Clamp.
