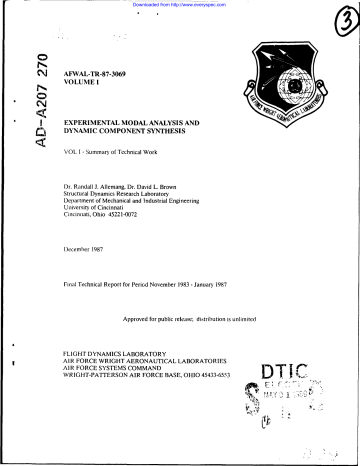

EXPERIMENTAL MODAL ANALYSIS AND
DYNAMIC COMPONENT SYNTHESIS
VOL I - Summary of Technical Work
Dr. Randall J. Allemang, Dr. David L. Brown
Structural Dynamics Research Laboratory
Department of Mechanical and Industrial Engineering
University of Cincinnati
Cincinnati, Ohio 45221-0072
December 1987
Final Technical Report for Period November 1983 - January 1987
Approved for public release; distribution is unlimited
FLIGHT DYNAMICS LABORATORY
AIR FORCE WRIGHT AERONAUTICAL LABORATORIES
AIR FORCE SYSTEMS COMMAND
WRIGHT-PATITERSON AIR FORCE BASE, OHIO 45433-6553
D,T I
,. ,,
'
Downloaded from http://www.everyspec.com
NOTICE
When Government drawings, specifications, or other data are used for any purpose other than
in connection with a definitely Government-related procurement, the United States Government
incurs no responsibility or any obligation whatsoever. The fact that the Government may have
formulated or in any way supplied the said drawings, specifications, or other data, is not to be
regarded by implication, or any other person or corporation; or as conveying any rights or permission
to manufacture, use, or sell any patented invention that may in any way be related thereto.
This report has been reviewed by the Office of Public Affairs (ASD/PA) and is releasable to
the National Technical Information Service (NTIS). At NTIS, it will be available to the general
public , including foreign nations.
This technical report has been reviewed and is approved for publication.
0T= F. ,ATLRER, Principal Engineer
Strnctural Dynairics Branch
Structures Division
FOR '14E COMMANDER
-•EROME P1FARSON, Chief
Structural Dynamics Branch
Structures Division
If your address has changed, if you wish to be removed from our mailing list, or if the
addressee is no longer employed by your organization please notify AFWAL/FIBG, WrightPatterson AFB, OH 45433-6553 to help us maintain a current mailing list.
Copies of this report should not be returned unless return is required by security
considerations, contractual obligations, or notice on a specific document.
-ii-
Downloaded from http://www.everyspec.com
LCLSSIFIED
SECURITY CLASSiFICATION OF THIS PAGE
REPORT DOCUMENTATION PAGE
1b. RESTRICTIVE MARKINGS
REPORT SECURITY CLASSIFICATION
1
UNCLASSI FIED
3. DISTRISUTION/AVAILASILITY
2.L SECURITY CLASSIFICATION AUTHORITY
OF REPORT
APPROVED FOR PUBLIC RELEASE;
DISTRIBUTION IS UNLIMITED
2b. OECLASSIFICATION/OOWNGRAOING SCHEDULE
5. MONITORING ORGANIZATION REPORT NUMBER(S)
4 PERFORMING ORGANIZATION REPORT NUMSER(S)
AFWAL-TR-87-3069 VOL. I
b. OFFICE SYMBOL
6& NAME OF PERFORMING ORGANIZATION
7a; NAME OF MONITORING ORGANIZATION
AIR FORCE WRIGHT AERONAUTICAL
(itapplicable)
UNIVERSITY OF CINCINNATI
LABORATORIES,
7b. ADDRESS (City. State and ZIP Code)
6c. ADDRESS (City. State and ZIP Code)
CINCINNATI OH 45221-0072
AFWAL/FIBG
Wright-Patterson AFB OH 45433-6553
Sb.
f.. NAME OF FUNDING/SPONSORING
ORGANIZATION
Armament Test Laboratory
OFFICE SYMBOL
(if applicableJ
9. PROCUREMENT INSTRUMENT IDENTIFICATION NUMBER
AFATL
F33615-83-C-3218
BC ADDRESS (City. Stage and ZIP Code#
10. SOURCE OF FUNDING NOS.
Egl in AFB FL 32542
PROGRAM
PROJECT
TASK
ELEMENT NO.
NO.
NO.
NO.
04
16
62201F
ai -T-1..
•
...eu
Security Clai,,cadon,
_
Vl
T -
-
FLIGHT DYNAMICS LABORATORY
2401
1OAjK
0
JN'T
EXPERIMENTAL MODAL ANALYSIS AND DYNAMIC COMPONENT SYNTHESIS
simafrg nf TgIrhbpjjj
Work
12. PERSONAL AUTHORIS)
DR. RANDALL J. ALLEMANG
DR.
FINAL
16. SUPPLEMENTARY NOTATION
DAVID L. BROWN
1l4. DATE OF REPORT (Yr.. Mo.. Day)
13b. TIME COVERED
13a. TYPE OF REPORT
FROM NOV 1983ToJAN 198
/
15. PAGE COUNT
DECEMBER 1987
138
The computer software contained herein/re theoretical and/or references that in no way
reflect Air Force-owned or developed, eomputer software.
17
COSATI CODES
FIELO
GAOUP
IS. SUBA
T TERMS (Continue on reuerse ifnercesary and identtfy by block number)
SUB. GR.
ul
MODAL TESTING
VIBRATION TESTING
DYNAMICS,
19. ABSTRACT (Continue on re•erse itf neceuary and identify by block number)
This report is one of six reports that represent the final technical report on thework.k
involved with United States Air Force Contract F33615-83-C-3218,9.Experimental Modal
Analysis and Dynamic Component Synthesis.
The reports that are part of the documented
work include the following:,
"AFWAL-TR-87-3069'-*Vol.
I
Summary of Technical Work
Vol. II
Measurement Techniques for Experimental Modal Analysis ,
Vol. III Modal Parameter Estimation I
Vol. IV
System Modeling Techniques
Vol. V
Universal File Formats
Vol. VI
Software User's Guide
For a complete understanding of the research conducted under this contract, all of the
Technical Reports should be referenced.
20. DISTRIBUTION/AVAILABILITY OF ABSTRACT
UNCLASSIFIED/UNLIMITED
t
SAME AS RPT. 0
22.. NAME OF RESPONSIBLE INDIVIDUAL
OTTO F. MAURER
DD FORM 1473, 83 APR
21, ABSTRACT SECURITY CLASSIFICATION
OTIC USERS
c
UNCLASSIFIED
22b. TELEPHONE NUMBER
(include Area Code)
(513)255-5236
22c. OFFICE SYMBOL
AFWAL/FIBG
EDITION OF I JAN 73 ISOBSOLETE.
(
SECURITY CLASSIFICATION OF THIS PAGE
Downloaded from http://www.everyspec.com
SUMMARY
Volume I introduces the work contained in Volume II through Volume VI of this Technical Report.
This includes a state-of-the-art review in several areas connected with experimental modal analysis
and dynamic component synthesis. It comprehends frequency response measurement techniques,
experimental modal analysis methods, modal parameter estimation, modal modeling, sensitivity
analysis, and component mode synthesis. All discussion and development of this material is
documented using a consistent set of nomenclature. Several new modal parameter estimation
algorithms and a new superelement component dynamic synthesis method were developed as part of
this effort.
With respect to the material contained in Volume II, this report reviews the area of measurement
techniques applicable to experimental modal analysis. Primarily, this is concerned with the accurate
measurement of frequency response functions on linear, time invariant, observable structural systems.
When attempting to experimentally determine the dynamic properties (natural frequency, damping,
and mode shapes) of a structure, one of the most important aspects is to collect and process data that
represent the structure as accurately as possible. These data can then be used as input to a number of
parameter estimation algorithms and could also be used in modal modeling algorithms. Volume I1of
this Technical Report describes in detail the procedures used to collect the data. Many of the
potential errors are discussed as well as techniques to eliminate or reduce the effects of these errors
on the quality of the results. If the steps described in this Technical Report are followed, data can be
collected, as input to modal parameter estimation algorithms, that will yield accurate dynamic
properties of the test structure. With care and attention to theoretical limitations, these dynamic
properties can be used to construct a modal model.
Regarding the material contained in Volume III, this report documents the area of modal parameter
estimation in terms of a review of efforts - over the past twenty-five years - in developing several new
multiple reference methods, and in attempting to provide a common basis and understanding for all
of the modal parameter estimation procedures developed to date. The summary of modal parameter
estimation includes a substantial literature examination and the presentation of earlier methods, such
as the Least Squares Complex Exponential, as special cases of general techniques, such as the
Polyreference Time Domain method. Several new modal parameter estimation methods are
developed and presented using consistent theory and nomenclature. The methods that are described
in this manner include: Polyreference Time Domain, Polyreference Frequency Domain, Multiple
Reference Ibrahim Time Domain, Multiple Reference Orthogonal Polynomial, and Multi MAC.
These techniques, in terms of general characteristics, are also compared to others such as the Least
Squares Complex Exponential, Ibrahim Time Domain, Eigensystem Realization Algorithm, and
Direct Parameter Estimation methods. These methods are all similar in that they involve the
decomposition of impulse response functions (time domain), frequency response functions
(frequency domain), or forced response patterns (spatial domain) into characteristic functions in the
appropriate domain. These characteristic functions are the single degree of freedom information in
the respective domain.
Concerning the material contained in Volume IV, this report lines out the theoretical basis for the
current methods used to predict the system dynamics of a modified structure or of combined
structures based upon a previously determined, modal or impedance, model of the structure(s). The
methods reviewed were: Modal modeling technique, local eigenvalue modification, coupling of
structures using eigenvalue modification, complex mode eigenvalue modification, sensitivity analysis,
impedance modeling technique, building block approach, dynamic stiffness method, and the
frequency response method. The effects of measurement errors, modal parameter estimation error,
and trnicated modes in the application of modal modeling technique are evaluated. Some of the
experimental modal model validation methods are also presented. Several methods to normalize the
measured complex modes were reviewed including both time domain and frequency domain
techniques. A new component mode synthesis method (Superelement Component Dynamic
Synthesis) developed by the University of Dayton Research Institute is presented.

-iii-
Downloaded from http://www.everyspec.com
PREFACE
This volume is one of six Technical Reports that represent the final report on the work involved with
United States Air Force Contract F33615-83-C-3218, Experimental Modal Analysis and Dynamic
Component Synthesis. The reports that are part of the documented work include the following:
AFWAL-TR-87-3069
VOLUME
VOLUME
VOLUME
VOLUME
VOLUME
VOLUME
I
II
III
IV
V
VI
Summary of Technical Work
Measurement Techniques for Experimental Modal Analysis
Modal Parameter Estimation
System Modeling Techniques
Universal File Formats
Software User's Guide
For a complete understanding of the research conducted under this contract, all of the Technical
Reports should be referenced.
Accession For
GA&I
NTIS
DTIC TAP
~
U t
"ll
E
/
Downloaded from http://www.everyspec.com
ACKNOWLEDGEMENTS
The University of Cincinnati Structural Dynamics Research Laboratory (UC-SDRL) and the
University of Dayton Research Institute (UDRI) would like to acknowledge the numerous people
who have contributed to the work performed under this contract. In particular, we want to
acknowledge the contract monitor, Otto Maurer, for guidance and assistance during the course of the
contract. Also, we want to recognize the technical input of Dr. Havard Vold of SDRC who
participated in an unofficial capacity during the period of the contract. Of the following individuals,
all were members of the UC-SDRL staff during the period of this contract and participated in some
way in the work of the contract. Many of the individuals, such as Jan Leuridan of LMS, continued to
participate after leaving UC-SDRL for positions in their current companies.
Randall Allemang
Mohan Soni
Filip Deblauwe
Greg Hopton
Kenjiro Fukuzono
Mehzad Javidinejad
Max L. Wei
David Brown
Y.G Tsuei
Tony Severyn
Hiroshi Kanda
Lingmi Zhang
Kelley Allen
Alex W. Wang
-VI "
Robert Rost
Jan Leuridan
Stu Shelley
Frans Lembregts
Chih Y. Shih
Vivian Walls
Downloaded from http://www.everyspec.com
TABLE OF CONTENTS
Page
Section
. . . . . . . . .
1. OVERVIEW
1.1 Introduction ......................
1.2 Program Objective ....................
1.3 Program Team .....................
1.4 Program Team Experience ..................
1.5 Program Considerations .................
.
.
.
.
. . . . . . .
.......................
.....................
......................
...................
...................
.
2. MEASUREMENT TECHNIQUES - EXPERIMENTAL MODAL
.........................
ANALYSIS ........................
.......................
2.1 Introduction ......................
....................
2.2 Modal Test Objectives ..................
.......................
2.3 Terminology ......................
.......................
2.4 Modal Testing ......................
...................
2.4.1 Test Structure Set-up ...............
....................
2.4.2 Hardware Set-up ..................
...................
2.4.3 Initial Measurements ................
....................
2.4.4 Non-linear Check ..................
......................
2.4.5 Modal Test ....................
...................
2.5 Modal Data Acquisition .................
2.5.1 Digital Signal Processing . . ...................
.................
2.5.2 Transducer Considerations ..............
.................
2.5.3 Error Reduction Methods ..........
....................
2.6 Excitation Techniques .............
..................
2.6.1 Excitation Constraints ...........
....................
2.6.2 Excitation Signals ............
..............
2.7 Frequency Response Function Estimation ......
.......................
2.7.1 Theory ................
..................
2.7.2 Mathematical Models ...........
..................
...........
H
Technique
2.7.2.1 1
..................
2.7.2.2 H 2 Technique ...........
...................
............
Technique
2.7.2.3 H,
...................
............
Technique
H,
2.7.2.4
................
2.7.3 Comparison of H 1 , H 2 , and H, .......
..................
2.8 Multiple Input Considerations .........
................
2.8.1 Optimum Number Of Inputs .........
...................
2.9 Non-linear Considerations ............
2.9.1 Objectives ...........................................
..............
2.9.2 Modal Analysis and Nonlinearities .......
..................
2.9.3 Basic Nonlinear Systems .........
..................
2.9.4 Excitation Techniques ...........
................
2.9.5 Detection of Non-linearities .........
2.10 Summary - Measurement Techniques for Experimental Modal Analysis .....
........................
REFERENCES ..................
................
3. MODAL PARAMETER ESTIMATION ........
.......................
3.1 Introduction .................
.....................
3.2 Historical Overview ..............
.................
3.3 Multiple-Reference Terminology ..........
..................
3.3.1 Mathematical Models ...........
.....................
3.3.2 Sampled Data ..............
....................
3.3.3 Consistent Data .............
......................
3.3.4 Residuals .................
-vii-
.
.
.
..
..
..
..
..
....
..
..
1
1
1
2
2
2
4
4
4
5
5
6
6
8
8
8
9
9
9
10
13
13
14
19
19
21
21
24
26
27
27
28
29
30
31
31
31
33
34
35
36
41
41
41
43
43
45
45
46
Downloaded from http://www.everyspec.com
3.3.5 Global Modal Parameters ...........
3.3.6 Modal Participation Factors .........
3.3.7 Order of the Model ............
3.3.8 Solution Procedure .............
Characteristic Polynomial ............
3.4.1 Differential Theory .............
3.4.2 Difference Theory .............
3.5 Characteristic Space Concepts ..........
3.6 Summary - Modal Parameter Estimation .......
REFERENCES.. . ..........................................
3.4
.................
................
...................
...................
...................
...................
....................
..................
..............
.....................
4. SYSTEM MODELING ...............
........................
4.1 Introduction
......................
4.2 System Modeling ..............
....................
4.3 Boundary Conditions .............
......................
4.4 Modal Modeling ................
...............
4.4.1 Limitations of Modal Modeling .........
............
4.4.2 Validation of Experimental Modal Models ....
..........
4.4.2.1 Frequency Response Function Synthesis ...
..............
4.4.2.2 Modal Assurance Criterion .......
............
4.4.2.3 Detection of Mode Overcomplexity ....
............
4.4.2.4 Mass Additive/Removal Technique ....
..........
4.4.2.5 Improvement of Norms of Modal Vectors ....
.................
4.43 Modal Modeling Summary ..........
.....................
4.5 Sensitivity Analysis ..............
...............
4.5.1 Limitations of Sensitivity Analysis .......
....................
4.6 Impedance Modeling ...............
..............
4.6.1 Limitations of Impedance Modeling ......
.................
4.7 Component Dynamic Synthesis ...........
................
4.7.1 Dynamic Synthesis Methods .........
................
4.7.2 Damping Synthesis Methods ........
............
4.7.3 A Comparison of the Synthesis Methods .....
..................
4.7.4 Superelement Method ...........
...............
4.7.5 Summary - Superelement Method .......
..................
4.8 Summary - System Modeling ..........
REFERENCES ..............................................
..
..
..
..
..
..
..
..
..
..
..
47
47
49
49
50
50
52
54
56
59
64
64
64
65
66
67
68
68
68
69
69
70
70
71
71
72
73
74
74
77
77
78
78
79
80
.................
5. UNIVERSAL FILE STRUCTURE ...........
.......................
5.1 Introduction ................
....................
5.2 Format Development .............
....................
5.3 Universal File Concept ............
....................
5.4 Future Considerations ..............
........................
REFERENCES ..................
84
84
84
85
85
87
.................
6. SOFTWARE DOCUMENTATION ...........
.......................
6.1 Introduction ................
....................
6.2 Software Compatibility ............
..............
6.3 Data Acquisition Hardware Environment ......
...............
6.4 Modal Analysis Hardware Environment .......
..................
6.4.1 Memory Requirements ..........
...................
6.4.2 Disc Requirements .............
...............
6.4.3 Graphics Display Requirements .........
..................
6.4.4 Plotter Requirements ...........
.........
6.5 Modal Analysis Software - Operating System Environment ...
..................
6.5.1 RTE-4-B (Non-session) ..........
...................
6.5.2 RTE-4-B (Session) .............
88
88
88
89
89
90
90
90
90
91
91
91
-viii -
..
..
..
Downloaded from http://www.everyspec.com
6.5.3 RTE-6-VM . . .
. .
. .
. .
. .
. .
. .
.
.......................
6.5.4 RTE-A ................
...............
6.5.5 Operating System Requirements ........
6.6 Modal Analysis Software Overview ........
................
...................
6.6.1 Monitor Structure .............
...................
6.6.2 RTE File Structure .............
6.6.2.1 Project Files ............
...................
...................
6.6.2.2 Modal Files .............
................
6.6.2.3 Universal Files .............
....................
..............
6.6.3 Data Acquisition
....................
6.6.4 Graphics Displays ..............
.................
..........
Estimation
Damping
6.7 Frequency
..................
6.7.1 Error and Rank Chart ...........
...............
6.7.2 Measurement Selection Option .........
...................
............
Estimation
6.8 Modal Vector
BIBLIOGRAPHY - Measurement Techniques ........
NOMENCLATURE ................
. .
..
..
..
.......................
91
91
91
92
92
92
93
93
93
93
94
94
95
96
97
98
108
..............
..................
"ix-
. .
...............
BIBLIOGRAPHY - Modal Parameter Estimation ........
BIBLIOGRAPHY - System Modeling ..........
. .
..
116
123
Downloaded from http://www.everyspec.com
LIST OF FIGURES
Figure 1. Typical Test Configuration: Shaker ..........
................
Figure 2. Typical Test Configuration: Impact Hammer ......
.............
Figure 3. Multiple Input System Model ............
..................
Figure 4. System Model for H 2 Technique ..........
.................
Figure 5. Evaluation of Linear and Nonlinear Systems ........
Figure 6. Linear Network ................
.............
......................
Figure 7. Frequency Range of Interest ............
..................
.-
o
16
..
17
20
..
25
30
32
46
Downloaded from http://www.everyspec.com
LIST OF TABLES
TABLE 1. Transducer Mounting Methods
...............
TABLE 2. Calibration Methods ..............
................
11
....................
TABLE 3. Summary of Excitation Signals ..........
.................
TABLE 4. Comparison of HI,H 2 , and H. .........
.................
TABLE 5. Frequency Response Measurements ........
TABLE 6. Excitation Signal Summary ............
12
18
..
...............
32
..................
TABLE 7. Summary of Modal Parameter Estimation Methods .....
"-xl"
28
34
..........
58
Downloaded from http://www.everyspec.com
1. OVERVIEW
1.1 Introduction
Experimental modal analysis is utilized in a variety of applications in the development of aircraft and
aerospace systems. Initially, only a qualitative comparison of the experimentally derived parameters
with the analytically derived parameters was considered sufficient for verification of the analytical
model. Currently, it is desirable to be able to correct, refine, or even define the analytical model
from the experimental data. Experimentally derived structural dynamic models are frequently desired
for the calculation of the vibrational responses or the dynamic stability resulting from known input
forces to the structure or the determination of the input forces or loads, once the operational
displacements, velocities, or accelerations are available. Other applications of experimental modal
analysis involve the prediction of modal parameters of the complete structure when only the modal
parameters of the individual structural components are known from test. This may include structural
and component modifications to obtain desired dynamic properties of the total structure and may
involve active vibration control systems.
Experimentally derived information concerning structural and generalized mass and stiffness for each
degree of freedom is also required for the purpose of verification of the analytical model. These
requirements dictate a compatibility of the experimental modal analysis theory, test configuration,
and modal parameter estimation algorithms with the analytical modeling approach. This concept
necessitates coordination between the test and the analysis. However, the overriding consideration,
in terms of utilizing experimental results in the evaluation of the analytical model is the accuracy of
the experimental modal analysis approach. This requires that the experimental modal analysis
approach be of primary concern and that the analytical modeling approach must conform to the
experimental procedures that result in the best possible accuracy.
This document (Volume I) serves to overview the technical material presented in Volume II through
Volume VI of this Technical Report. Section 2 though Section 6 of this Volume provide an overview
of Volume II through Volume VI, respectively, Complete technical details are provided only in the
individual Volumes.
1.2 Program Objective
The objective of this effort is a refinement of the experimental modal analysis approach with the
particular constraint of applicability to structural modeling approaches including direct dynamic
modeling, model verification, model perturbation, and component synthesis. This refinement of
experimental modal analysis can be based upon experimental parameters with minimized errors and
predictable error bounds. This broad objective has been attempted in relation to four major tasks
and several subtasks as defined originally by the U.S. Air Force.
* Modal Parameter Identification
"*State-of-the-Art Review
"*Experimental Procedure
"*Modal Parameter Estimation
-1-
Downloaded from http://www.everyspec.com
a Generalized Parameter Estimation
9 Structural Parameter Estimation
9 Implicit Force Methods
e Experimental-Analytical Coordination
* Dynamic Component Synthesis
"*Modal Synthesis
"*Modal Sensitivity Analysis
"*Structural Modification
"*Modal Truncation
* Software Development
Two specific goals included an updated state-of-the-art bibliography review in each of the technical
areas included in this effort and a development of a consistent nomenclature that would be used to
present and review technical material in all the areas covered by this effort. The results of both of
these goals are summarized at the end of this document.
1.3 Program Team
The University of Cincinnati, in order to perform effectively and respond to all technical
requirements identified under this research effort, decided to approach this effort on a team basis
with another research facility. The program team consists of the University of Cincinnati Structural
Dynamics Research Laboratory (UC-SDRL) and the University of Dayton Research Institute
(UDRI).
1.4 Program Team Experience
The University of Cincinnati Structural Dynamics Research Laboratory (UC-SDRL) has been
involved in numerous investigations involving experimental modal analysis. The previous studies
include involvement as a subcontractor to The Boeing Company on the investigation entitled
Improved Ground Vibration Test Method and involvement as contractor on the investigation entitled
Simultaneous Multiple Random Input Study. The particular interest in almost every study has been
the sensitivity of each portion of the experimental modal analysis approach to refinement and the
evaluation of the sources of error that contribute to invalid estimates of modal parameters.
Particular examples of this approach has led to the development of the modal assurance criterion,
global least squares modal parameter estimation, and the use of multiple inputs in the estimation of
frequency response functions.
1.5 Program Considerations
This research program encompassed investigations of experimental modal analysis and structural
modeling approaches which are optimized in terms of data base organization, error minimization, and
".2-
Downloaded from http://www.everyspec.com
accuracy assessment concerned with estimated structural and dynamic parameters. The research
program involved software development as a necessary element of this evaluation. The approaches
that have been investigated will be applicable to full scale aircraft and aerospace structures,
dynamically scaled models, structural sections removed from the total structure with different
boundary conditions, and the modification of the dynamic properties of substructures or components
of the total structure.
The experimental modal analysis approaches investigated will begin to permit the identification ot the
sources of error. Thc aources of error will include all forms of measurement and data processing
error as well as deviations from the theory involved as a basis for the experimental and analytical
methods. One obvious example of this is the identification of nonlinearities which cause significant
inaccuracy due to deviation from the linear models used in almost every experimental or analytical
approach. Particular experimental procedures were reviewed and a new procedure has been
developed to detect the presence of nonlinearities, identify the general characteristic of the
nonlinearities, and to minimize the effects of the nonlinearities in the presence of a linear model.
The amount of time permitted for the experimental test is frequently a limiting factor of the accuracy
of the modal parameters that are estimated with any experimental modal analysis approach. While
this time constraint is often a function of particular experimental test instrumentation and analysis
equipment, methods that allow for shortened or minimal experimental test requirements have been
considered favorably.
Test instrumentation and analysis equipment, while not of primary concern in this study, has been
considered in terms of general criteria that affect the quality of the resulting experimental data. Some
of the criteria that will be considered are as follows: computer word size, analog-to-digital conversion
word size, autoranging transducer amplification, transducer calibration, actual versus effective
dynamic range, system noise, error generation, error reduction, error accumulation, parallel or
multiplexed signal acquisition, input-output flexibility, data processing, analysis and storage
capabilities, software generation, and etc.
The research has been primarily based upon the frequency response fsnction approach to experimental
modal analysis. This approach will include the estimation of frequency response functions from single
or multiple inputs. Other experimental modal analysis approaches that are not based upon frequency
response functions will be investigated, particularly damped complex exponential approaches that can
conveniently be modified to handle impulse response function data.
Applicable software required for evaluation of experimental modal analysis methods, error
determination, accuracy evaluation, and dynamic modeling method will be developed in the
appropriate computer system during the research phases of the proposed work. Software that
contributes to the goals of this research proposal will be made available in the IHP-5451-C Fourier
System, either under Basic Control System (BCS) or Real Time Executive IV (RTE-IV)
environments. Only software that must be available during the actual acquisition of the data will be
d-veloped in the BCS environment. Analysis oriented software will be made available under the
RTE-IV environment compatible with the RTE Modal Program currently in use by UC-SDRL and
by Eglin AFB. While most structural modeling software can also be made available in the RTE-IV
environment, including modal modification and sensitivity software, the structural modeling software
such as component mode synthesis using modal or impedance models may only be operational on
larger computer systems. If this situation occurs, magnetic tape formats for required data bases will
be developed and supplied.
-3-
Downloaded from http://www.everyspec.com
2. MEASUREMENT TECHNIQUES - EXPERIMENTAL MODAL ANALYSIS
2.1 Introduction
The most fundamental phase of any experimental analysis is to acquire data that are relevant to
defining, understanding, and solving the problem. When attempting to define a structure
dynamically (usually in terms of impedance functions or in terms of natural frequencies, damping
ratios, and modal vectors), this normally involves measuring a force input to the structure and the
system response to that input as either displacement, velocity or acceleration (all of which are related
through differentiation and/or integration).
These data are sometimes observed, measured and analyzed in the time domain using equipment as
simple as a volt meter and an oscilloscope and forcing functions that are well defined such as single
frequency sine waves. The natural frequencies are estimated by observing peaks in the response
amplitude. Damping can be estimated by a log decrement equation and mode vectors are estimated
by measuring the response at various points of interest on the structure. Phase resonance testing, or
forced normal mode testing, used extensively in the aircraft industry, is a refined version of this
approach.
Advances in hardware and software allowed for the computation of the fast Fourier transform (FFT),
the single input, single output frequency response function and the ability to use these measured and
stored frequency response functions as inputs to parameter estimation algorithms which could
"automatically" estimate natural frequency, damping, and mode shapes and even display "animated"
mode shapes on display terminals. The digital computer, mass storage medium, and the FFT allowed
band limited random noise to be used as the forcing function so that the structure could be tested
faster and the data analyzed or re-analyzed at a later time. But these new techniques also caused
many potential errors, particularly signal processing errors.
In recent years, more advances in the speed, size and cost of mini-computers and other test related
S.irdware have made multi-input, multi-output frequency response function testing a desirable testing
technique.
Volume II of this Technical Report is concerned with the measurement techniques that are widely
used in experimental modal analysis. Although some history is presented, a more complete history
can be found by reviewing the literature identified in the Bibliography that is offered as part of this
report. Also, some present research in the areas of frequency response function estimation, multiple
input considerations, and non-linear vibration considerations is cited.
2.2 Modal Test Objectives
The objectives of a modal test are to make measurements that, as accurately as possible represent the
true force input and system response so that accurate frequency response functions are computed.
These frequency response functions are the input to parameter estimation algorithms. If the data
used as input to these algorithms are not accurate, the parameters estimated by the algorithms are
also not accurate.
"-4-
Downloaded from http://www.everyspec.com
2.3 Terminology
Throughout this report, the nomenclature will follow, as close as possible, the nomenclature found at
the end of this report. Any exceptions will be noted at the time they are introduced.
One potential point of confusion is the concept of system degree of freedom versus a measurement
degree of freedom.
A system degree of freedom is the more classical definition of the number of independent
coordinates needed to describe the position of the structure at any time with respect to an absolute
coordinate frame. Therefore, every potential physical point has six (three linear and three rotational)
degrees of freedom. Therefore, the structure has an infinite number of system degrees of freedom.
While the theoretical number of system degrees of freedom is infinite, the number of system degrees
of freedom can be considered to be finite since a limited frequency range will be considered. This
number of system degrees of freedom in the frequency range of interest is referred to in the following
sections as N.
A measurement degree of freedom is a physical measurement location (both in terms of structure
coordinates as well as measurement direction) where data will be collected. Therefore, for a typical
modal test, the number of measurement degrees of freedom will not necessarily be related to the
number of system degrees of freedom. It is apparent that the number of measurement degrees of
freedom must be at least as large as the number of system degrees of freedom. In general, since three
translational motions are measured at every physical measurement location and since these physical
locations are distributed somewhat uniformly over the system being tested, the number of
measurement degrees of freedom will be much larger than the number of system degrees of freedom
expected in the frequency range of interest. This, though, does not guarantee that all modal
information in the frequency range of interest will be found.
The number of measurement degrees of freedom (the number of physical measurement locations
multiplied times the number of transducer orientations at each physical measurement location) is
referred to in the following sections as m. Note that the number of measurement degrees of freedom
can be used to describe input or output characteristics.
2.4 Modal Testing
The basic goal of any modal test is to determine the damped natural frequency, damping, and in most
cases mode shapes, of a test structure. These are known as the modalproperties or dynamic properties
of a system and are unique to the system and the boundary conditions under which it was tested. In
some cases it is also necessary to compute generalized or modal mass and modal stiffness. Therefore,
by measuring these dynamic properties, the system is defined The results from the modal test are
historically used for one of several purposes. Some of these are:
"*Troubleshooting
"*Finite element model verification
"*Finite element model correction
"•Experimental modal modeling
"•Experimental impedance modeling
-5-
Downloaded from http://www.everyspec.com
* One of the most fundamental aspects of a modal test is tc decide what the purpose of the modal test
is to be before the test. Too often, the purpose of the test is not stated or is stated too broadly so
that the modal test will be compromised from the start.
In all cases, the modal tests start with acquiring data (usually input and output) from the structure.
B&cause of ;he one to one relationship between the time domain and the frequency domain, the data,
which is always measured in the time domain, may be converted to the frequency domain.
In the time domain, free decay data or impulse response functions, h (t), are used in the estimation
the dynamic properties.
In the frequency domain, frequency response functions, H(w), are estimated. The frequency response
function is then the input to a parameter estimation algorithm used to estimate the dynamic
properties.
There are also modal parameter estimation methods that do not require that intermediate functions
be computed; these methods utilize long time records. Due to practical limitations concerning
archival and retrieval of data in this format, these methods are not addressed in this report.
2.4.1 Test Structure Set-up
The first decision that must be made before any data is collected is the test configuration. Since the
modal parameters that are estimated are for the test structure in the configuration in which it is
tested, the test structure should be in a configuration that, as close as possible, represents the desired
data This means that the boundary conditions are an important consideration when setting up the
test. If the structure is in a free-free configuration, then the modal parameters estimated are for the
free-free case. This is especially important when attempting to verify a finite element model. If the
structure is tested in a configuration that is different from the configuration that was modeled, there
is no chance of correlation. Since the modal parameters that are estimated are for that configuration,
a structure may need to be tested more than once to completely define the structure in its various
operating configurations.
Also in this initial phase of the test, the points to be tested are identified, marked, and measured in
physical coordinates. In most cases, the physical points and associated directions where acceleration
(displacement) is to be measured are selected to give physical significance to the animation. But it is
important that any critical points that need to be measured are also identified.
Another factor that may need to be considered at this time is the ability to access the measurement
degrees of freedom that need to be tested. This may require some ingenuity so that the test
configuration is changed as little as possible during the data collection.
2.4.2 Hardware Set-up
In all cases, it is only possible to estimate the dynamic properties of the system. This is directly a
result of only being able to estimate "true" inputs and responses of the system. It is therefore
imperative that the "best" possible data is collected.
For single input, single output frequency response function testing, a force input to the system must
be measured as well as the system response to that input.
-6-
Downloaded from http://www.everyspec.com
One of the f irst decisions to be made is the frequency range (fj. tof..,) for the test. The frequency
range must, of course, include all important modes that are to be identified. But. becaus of the
constraints of the parameter estimation algorithms, the number of modes (modal density) should be
kept to a minimum. This may mean that more than one test, using different frequency ranges, needs
to be conducted. Many times, the test frequency range cannot be determined until initial
measurements have been made. An important consideration is that, when uŽing modal modeling
techniques, it is important to identify modes that are higher or lower in frequency than the test
frequency. This will yield more accurate modal models.
Next, the type of excitation and the form of the forcing function must be selected. Sometimes, the
structure may determine the type of excitation. Other times, the use of the data may determine the
excitation. If the purpose of the test is troubleshooting, an impact test may be the best form of
excitation. If a modal model is to be built, more precise input must be used.
If an impact test is to be conducted, the size of hammer and hardness of the impact surface muý; he
selected. This will determine the frequency range of the usable frequency response.
If a shaker is to be used to excite the structure, a forcing signal needs to be selected. This could
include sine, pure random, periodic random, or burst random as well as others that may more cosely
match operating conditions. Section 4 of Volume II of this Technical Report presents mans common
excitation signals and their strong and weak points.
The force input location(s) must be selected to excite all the important modes in the frequency range
to be tested. For multi-input testing, there are other constraints that must be satisfied. Section o of
Volume 11 of this technical report has a complete review of these constraints.
In a typical test, load cells are used to measure the force input and accelerometers to measure
acceleration values which can be related to displacement.
The transducers generally have their own power supply and signal conditioning hardware.
Accelerometers need to be selected such that they have sufficient sensitivity but also low mass to
make measurements of acceleration that accurately define the acceleration of the structure at that
point.
These signals, force and acceleration, are then passed through low-pass anti-aliasing filters, analogto-digital converters, and into the analysis computer.
The computer calculates fast Fourier transforms and all necessary auto and cross spectra needed to
compute a single frequency response function. This is normally stored to disc and another output
selected.
In the case of multiple inputs, many of the potential errors arise from the additional hardware needed
to collect the data required to compute frequency response functions. The potential "bookkeeping"
to be certain that the correct auto and cross spectra are being used in the computations can in itself
be bothersome. A two input, 6 response test necessitates the calculation of 8 auto spectra and 13
cross spectra, each with a real and imaginary part, in addition to the 12 frequency response functions
that are estimated in one acquisition session. There are also 2 load cells, 6 accelerometers, 16 cables,
8 transducer power supplies, 2 exciter systems, 2 signal generators, 8 anti- aliasing filters, and 8 ADC
channels that all have the possibility of failure during the test. It is therefore important to have a
technique to check various components used in the test at selected intervals. Most of these errors can
be eliminated by good measurement practice.
-7-
Downloaded from http://www.everyspec.com
2.4.3 Initial Measure nents
Once the structure is defined and an input point(s) selected, it is necessary to take initial
measurements to be certain that the input point excites the structure reasonably well over the analysis
range and to be certain that all hardware is operating properly.
Usually, the "driving point" is measured first. This is because the form of the driving point
measurement is well known and defined and also because this should be a "clean" measurement. In
a driving point frequency response function, all peaks in the imaginary part should be of the same
sign (positive or negative), each resonance should be followed by an anti-resonance, and all circles in
the Argand plot lie on the same half of the plane. Many potential problems can be averted based on
this one measurement.
Once the driving point measurement is satisfactory, measurements at remote points are made. This
will ensure that the structure is satisfactorily excited at all points for that force level. In a typical test,
the level of excitation is not changed over the duration of the test. In fact, if the structure is highly
non-linear, this would make the analysis overly complicated.
2.4.4 Non-linear Check
Another important step in a successful modal test is to check for linearity. The basic theory of modal
analysis requires a linear structure. Seldom is the structure under test linear over all but a limited
force range. Linearity is easily checked by exciting the structure at various force levels. If a shift in
natural frequency occurs for different force levels, the structure exhibits some form of non-linear
stiffness. If the amplitude of the frequency response function changes, the structure exhibits nonlinear damping. Section 7 of Volume II of this technical report is an extensive review of non-linear
considerations and of non-linear detection methods.
2.4.5 Modal Test
Once the initial set up is complete, the actual testing phase is simply a process of collecting,
processing, and storing the relevant information. This data will then be used in parameter estimation
algorithms and potentially modal modeling algorithms. For an in-depth review of these areas, other
technical reports, found in the preface, should be consulted.
"-8-
Downloaded from http://www.everyspec.com
2.5 Modal Data Acquisition
Acquisition of data that will be used in the formulation of frequency response functions or in a modal
model involves many important technical concerns. One primary concern is the digital signal
processing or the converting of analog signals into a corresponding sequence of digital values that
accurately describe the time varying characteristics of the inputs to and responses from a system.
Once the data is available in digital form, the most common approach is to transform the data from
the time domain to the frequency domain by use of a discrete Fourier transform algorithm. Since
this algorithm involves discrete data over a limited time period, there are large potential problems
with this approach that must be well understood.
2.5.1 Digital Signal Processing
The process of representing an analog signal as a series of digital values is a basic requirement of
modern digital signal processing analyzers. In practice, the goal of the analog to digital conversion
(ADC) process is to obtain the conversion while maintaining sufficient accuracy in terms of
frequency, magnitude, and phase. When dealing strictly with analog devices, this concern was
satisfied by the performance characteristics of each individual analog device. With the advent of
digital signal processing, the performance characteristics of the analog device is only the first criteria
of consideration. The characteristics of the analog to digital conversion now become of prime
importance.
This process of analog to digital conversion involves two separate concepts, each of which are related
to the dynamic performance of a digital signal processing analyzer. Sampling is the part of the process
related to the timing between individual digital pieces of the time history. Quantization is the part of
the process related to describing an analog amplitude as a digital value. Primarily, sampling
considerations alone affect the frequency accuracy while both sampling and quantization
considerations affect magnitude and phase accuracy.
2.5.2 Transducer Considerations
The transducer considerations are often the most overlooked aspect of the experimental modal
analysis process. Considerations involving the actual type and specifications of the transducers,
mounting of the transducers, and calibration of the transducers will often be some of the largest
sources of error.
Transducer specifications are concerned with the magnitude and frequency limitations that
transducer is designed to meet. This involves the measured calibration at the time that
transducer was manufactured, the frequency range over which this calibration is valid, and
magnitude and phase distortion of the transducer, compared to the calibration constant over
range of interest. The specifications of any transducer signal conditioning must be included in
evaluation.
the
the
the
the
this
Transducer mounting involves evaluation of the mounting system to ascertain whether the mounting
system has compromised any of the transducers specifications. This normally involves the possibility
of relative motion between the structure under test and the transducer. Very often, the mounting
systems which are convenient to use and allow ease of alignment with orthogonal reference axes are
".9-
Downloaded from http://www.everyspec.com
subject to mounting resonance,. which -eSUlt -n substantial relative rnoiotn hertseen the iransdricer
and the structure under test in the frequency range of interest. T'herefore, the rnou1!)!!1g system
which should bie used depends hcavily upon the frcquzencv range of j!chcr:.si ainsýi upon theý test
conditions. Test conditions are factors such as, temperature, roving oi fixeeý triuvduccts, .no surface
h'w in Table 1.
irregularity. A brief review ofrmarty ccmirn on tr'ansducer mounting rrethods
Transducer calibration rejeirs co the actual engineeting) unui per voltO
it(
h
irsuc
n
signal conditioning :;ysttrm. Calibration of tie. compiete rtleasurernent _swin 1em
nccl(ed( lo verify that
the performance of the transducer and signial conditioning system is proper. 0hvin1u,,y, if the
measured calibration (differs widely from the manufacturers specification~s, the us" of "iat pa-ticular
transducer and signal conditioning path should be cliestioned. Also, certain ,1hi1i1;ica!oc-, such as
10>Ihc- Lip of an
impact testing, involve s~ight changes; in the-- transducer sysztrn (suich as addilret
instrumented hammr)uc
that aftfu~t the ausscw;ared t-aiibration ot th.-
'
f-'
ek1rne boh(, !0eiore anrd ah
Ideally, on-sire cuib rauiz shio' I
transdiucer and signal *:;nditioniiig svstemn is; operating as expected. Theal "i
using the same signal processing and data anilysis ,,quipment, ihat vwill be 1, Cci if-,~
'!
that the
pt-rformed
.
'qitor.
cnad :
signal
There are a number of .calibration r.aethods whit h can he used !o calibrat .11
3S, a
'~'naise,
p
condirionineu Some of these miethoCds yiuld a calibration curve. with
urn
M,''ýt uh
function of frequenc%';while otoi inelhods -,inplv esinuwi a calibration
~i,sie
!c 1for field
calibration methods ate reviewvd in labic 2. Nott tlia, some of the merohod
;nclcitrto
nermaneýnt
Vc
are
more
suited
ios.
while
other
methods
calibration
laboratories [4-91.
2.5.3 Eiiror Reduiction Mvethods
There are several factors that contribute to the quality of ;Actuatl mneatured i2e-q'acy tespornse
function estimates. Some of the most comnmon sources of erro; ;4re 'jue to nicasufrement mistakes.
With a proper measurement approach, most of fllin type ot eiror ,uch as oivrloa3diKng the input,
Iivls nec:rbv, etc., can be
extraneous signal pick-up Via gru()llnd loops o! stroog electri! oý ma~grc!,cN
avoided. Violation of test assumptions are ot'ttn the source of anot~her: inaccuracy. an,' can be viewed
as a measurement mistake. For example, freqiuency respor-se u'.d colicrencc itincc'ens have been
defined as parameters of a linear system. Nonlinearities will gencrally shift energy from one
frequency to many new frequencies, in a way which -nay be difficult to recognize. The result will be a
distortion in the estimates of the systemri parameters, which may not be apparent unless the excitation
is changed. One way to reduce the effect of nonlincaiities is,to randomize thesc contributions by
choosing a randomly different input signal for each of the n measurement.. Subsequent averaging will
reduce these contributions in the same manner that random noise is reduced. Another example
involves control of the system input. One of the most obvious requirements is to excite the system
with energy at all frequencies for which measurements are expected. It is important to be sure that
the input signal spectrum does not have "holes" where little energy exisýt. Otherwise, coherence will
be very low, and the variance on the frequency response function wi li be large.
Assuming that the system is linear, the excitation is proper, and obvious measurement mistakes are
avoided, some amount of noise will be present in the measurement process. Noise is a general
designation describing the difference between the true value and the estimated value. A more exact
designation is to view this as the total error comprised of two terms, variance and bias. Each of these
classifications are merely a convenient grouping of many individual errors which causc it specific kind
of inaccuracy in the function estimate. The variance p~ortionl of the errnr essenioally is Gaussian
distributed and can be reduced by any form of synch ro nization in-the meselctor
analysis
process. The bias or distortion portion of the error causes the expected value ot the estimated
function to be different from the true value. Normally, bias errors are remnoved :possible but, if the
Downloaded from http://www.everyspec.com
Method
Hand-held
Frequency
range (Hz)
20-1000
Main advantage
"Quick look"
Putty
0-200
Alignment, ease of mounting
Wax
0-2000
Ease of application
Hot glue
0-2000
Magnet
0-2000
Qutck setting time. good
alignment
Quick setup
Adhesive
film
Epoxycement
Stud
mount
0-2000
Quick setup
0-5000
Mounts on irregular surface.
alignment
Accurate alignment if
carefully machined
Approximate freq ranges.
depends on transducer
mass. and contact
conditions
0-10,000
Main disadvantage
Poor measunng quality for long
sample periods
Low-frequency range. creep problem
during measurement
Temperature limitations, frequency
range limited by wax thickness.
alignment
Temperature-sensitive transducers
Requires magnetic matenal,
alignment, bounce a problem during
impact, surface preparation
important
Alignment, flat surface
Long curing time
Difficult setup
TABLE 1. Transducer Mounting Methods
-11-
Downloaded from http://www.everyspec.com
Remarks
Method
Inversion
-
Constant
Can only be used with
Frequency
response
transducer that has stable
dc output: calibration
against local earth's
gravity
Calibration against reference
transducer
Constant
Calibration against
j•
.
test
Transducer
2
Comparison
method
t
Reference
transducer
Transduce'
Rectprctty
Reciprocity
method
Mass
T-.--
and/or
:
mass-loaded shaker
frequency
Exciter
response
6P
Constant
Drop
Calibration against local
earth and gravity: used
for ac-couplcd
transducers
method
-[
Ratio
method
]
Frequencyresponse
ratio
"
F
F
-
- (Rigid
m
mass)
TABLE 2. Calibration Methods
-12-
Calibration against knovn
a/F for a ngid mass
Downloaded from http://www.everyspec.com
form and the source of a specific bias error is known, many techniques may be used to reduce the
magnitude of the specific bias error.
Four different approaches can be used to reduce the error involved in frequency response function
measurements in current fast Fourier transform (FTT) analyzers. The use of averaging can
significantly reduce errors of both variance and bias and is probably the most general technique in the
reduction of errors in frequency response function measurement. Selective excitation is often used to
verify nonlinearities or randomize characteristics. In this way, bias errors due to system sources can
be reduced or controlled. The increase of frequency resolution through the zoom fast Fourier
transform can improve the frequency response function estimate primarily by reduction of the
leakage bias error due to the use of a longer time sample. The zoom fast Fourier transform by itself
is a linear process and does not involve any specific error reduction characteristics compared to a
baseband fast Fourier transform(FFT). Finally, the use of weighting functions(windows) is
widespread and much has been written about their value [1-3,10,1Ill Primarily, weighting functions
compensate for the bias error(leakage) caused by the analysis procedure.
2.6 Excitation Techniques
When exciting a structure to determine its modal properties, it is important to remember that the
form of the excitation will have an effect on the validity of the estimates of the modal properties. If
the frequency response estimates contain errors, then the estimates of the modal properties will also
contain errors. There are many signals that can be used to excite structures for modal testing. Some
have many advantages over others. The accuracy of the estimates of the frequency response functions
and the time to acquire the data are only some of the differences between the signals.
2.6.1 Excitation Constraints
While there is no well developed theory involving the excitation of structures for the purpose of
estimating the frequency response functions, there are a number of constraints that must be
considered in order to yield an estimate of the frequency response function that is unbiased 12-31
The first constraint that is important to the estimation of the frequency response function is
concerned with digital signal processing. Since most modern data acquisition equipment is based
upon digital data acquisition and Discrete Fourier Transforms, unique requirements are placed on
the excitation signal characteristics. This digital approach to processing the input and response
signals, with respect to the frequency domain, assumes that starting at a minimum frequency and
ending at a maximum frequency the analysis is going to proceed only at integer multiples of the
frequency resolution, therefore matching the limits of the Discrete Fourier Transform. Therefore.
this constraint first indicates that any excitation signal should only contain frequency information
between the minimum and maximum frequency. It also implies that, ideally, either the frequency
content should be discrete and located only at integer multiples of the frequency resolution or that
the excitation should be a totally observed transient.
Both of these methods match the Discrete Fourier Transform equally well, but there are advantages
and disadvantages to both. If the data contains information only at multiples of the frequency
resolution, it is impossible to use a zoom Fourier Transform to achieve a smaller frequency resolution
on the same excitation function. If a new excitation function is created that contains information
only at integer multiples in the zoom band, it is possible to zoom. If the data are a transient, the
signal-to-noise ratio may become a problem.
-13-
Downloaded from http://www.everyspec.com
The second constraint that is important to the estimation of the frequency response function is
concerned with the requirements of the modal parameter estimation algorithms. A fundamental
assumption in modal analysis is that the structure under evaluation is a linear system or at least
behaves linearly for some force level. While this is never absolutely true, parameter estimation
algorithms are written as though this assumption is valid. With the increasing complexity of the
modal parameter estimation algorithms, violation of this characteristic within the frequency response
function data base renders these algorithms impotent. Therefore, the modal parameter estimation
constraint requires that the excitation signal yield the best linear estimate of the frequency response
function even in the presense of small nonlinear characteristics or a significant nonlinear
characteristic being evaluated around an operating point.
An additional restriction that is important when using multiple inputs is the requirement that the
inputs be uncorrelated. This can be achieved by using deterministic signals, such as sinusoids, with
different magnitude, phases, and frequencies for each input during each average involved with the
estimation of the frequency response function. Normally, uncorrelated inputs are achieved by using a
different random excitation signal for each input. Assuming that a significant number of averages is
involved, the use of uncorrelated random signals, is a simple solution to the requirement that the
excitation signals be uncorrelated.
2.6.2 Excitation Signals
Inputs which can be used to excite a system in order to determine frequency response functions
belong to one of two classifications. The first classification is that of a random signal. Signals of this
form can only be defined by their statistical properties over some time period. Any subset of the total
time period is unique and no explicit mathematical relationship can be formulated to describe the
signal. Random signals can be further classified as stationary or non-stationary. Stationary random
signals are a special case where the statistical properties of the random signals do not vary with
respect to translations with time. Finally, stationary random signals can be classified as ergodic or
non-ergodic. A stationary random signal is ergodic when a time average on any particular subset of
the signal is the same for any arbitrary subset of the random signal. All random signals which are
commonly used as input signals fall into the category of ergodic, stationary random signals.
The second classification of inputs which can be used to excite a system in order to determine
frequency response functions is that of a deterministic signal. Signals of this form can be represented
in an explicit mathematical relationship. Deterministic signals are further divided into periodic and
non-periodic classifications. The most common inputs in the periodic deterministic signal designation
are sinusoidal in nature while the most common inputs in the non-periodic deterministic designation
are transient in form.
The choice of input to be used to excite a system in order to determine frequency response functions
depends upon the characteristics of the system, upon the characteristics of the parameter estimation,
and upon the expected utilization of the data. The characterization of the system is primarily
concerned with the linearity of the system. As long as the system is linear, all input forms should give
the same expected value. Naturally, though, all real systems have some degree of nonlinearity.
Deterministic input signals result in frequency response functions that are dependent upon the signal
level and type. A set of frequency response functions for different signal levels can be used to
document the nonlinear characteristics of the system. Random input signals, in the presence of
nonlinearities, result in a frequency response function that represents the best linear representation
of the nonlinear characteristics for a given level of random signal input. For small nonlinearities, use
of a random input will not differ greatly from the use of a deterministic input.
The characterization of the parameter estimation is primarily concerned with the type of
-14-
Downloaded from http://www.everyspec.com
mathematical model being used to represent the frequency response function. Generally, the model
is a linear summation based upon the modal parameters of the system. Unless the mathematical
representation of all nonlinearities is known, the parameter estimation process cannot properly
weight the frequency response function data to include nonlinear effects. For this reason, random
input signals are prevalently used to obtain the best linear estimate of the frequency response
function when a parameter estimation process using a linear model is to be utilized.
The expected utilization of the data is concerned with the degree of detailed information required by
any post-processing task. For experimental modal analysis, this can range from implicit modal
vectors, needed for trouble-shooting, to explicit modal vectors used in an orthogonality check. As
more detail is required, input signals, both random and deterministic, will need to match the system
characteristics and parameter estimation characteristics more closely. In all possible uses of
frequency response function data, the conflicting requirements of the need for accuracy, equipment
av3ilability, testing time, and testing cost will normally reduce the possible choices of input signal.
With respect to the reduction of the variance and bias errors of the frequency response function,
random or deterministic signals can be utilized most effectively if the signals are periodic with respect
to the sample period or totally observable with respect to the sample period. If either of these criteria
are satisfied, regardless of signal type, the predominant bias error, leakage, will be eliminated. If
these criteria are not satisfied, the leakage error may become significant. In either case, the variance
error will be a function of the signal-to-noise ratio and the amount of averaging.
Many signals are appropriate for use in experimental modal analysis. Some of the most commonly
used signals are described in Volume II of this Technical Report. For those excitation signals that
require the use of a shaker, Figure 1 shows a typical test configuration; Figure 2 shows a typical test
configuration when an impact form of excitation is to be used. The advantages and disadvantages of
each excitation signal are summarized in Table 3.
-15-
Downloaded from http://www.everyspec.com
FOURIER
ANALYZER
SUGNAL
CHARGE
ANTI.ALIASING
3ENERATOR
AMPUiFIERS
FILTER
DI
\%xa\*TEST SPECIMEN
SHAKER
Figure 1. Typical Test Configuration: Shaker
-16-
Downloaded from http://www.everyspec.com
FOURIER
ANALYZER
CHARGE
AMPUFIERS
ANTI-ALIASING
FILTERS
ACEEROMETER
TEST SPECIMEN
Figure 2. Typical Test Configuration: Impact Hammer
.17-
Downloaded from http://www.everyspec.com
Minimize Leakage
Signal-to-Noise Ratio
Steady
Slate
Sine
No
Very
Type of Excitation
Pure *
Psuedo
Random
Random
Random
I
No
Yes
Yes
Fair
Fair
Fair
RMS-to-Peak Ratio
Test Measurement Time
High
Very
Fair
Good
High
Fast
Sine
Impact
Burst
Sine
Burst
Random
Yes
High
Yes
Low
Yes
High
Yes
Fair
High'
Very
Good
Yes
Fair
Very
Good
Yes
Controlled Frequency Content
Yes
Yes
Fair
Very
Short
Yes
Controlled Amplitude Content
Yes
No
Yes
No
Yes
No
Yes
No
Removes Distortion
Characterize Nonlinearity
No
Yes
Yes
No
No
No
Yes
No
No
Yes
No
No
No
Yes
Yes
No
Long
Fair
Fair
High
Fair
Yes
Yes
Low
Very
Good
No
Requires special hardware
TABLE 3. Summary of Excitation Signals
-18-
Downloaded from http://www.everyspec.com
2.7 Frequency Response Function Estimation
The theoretical foundation for the estimation of modal parameters has been well documented.
Historically, modal testing was first done using the phase resonance, or forced normal mode testing
method. Using this method, the structure was forced into a normal mode by a number of single
frequency force inputs. The frequency, damping, and modal vector could then be estimated.
With advances in computer technology (both hardware and software), and especially the
development of the Fast Fourier Transform, it became practical to estimate frequency response
functions for random data. The theoretical foundation for the cor utation of frequency response
functions for any number of inputs has be well documented (1-3,22. A single input, single output
frequency response function was estimated for all test points. This greatly reduced test time. But, in
order to insure that no modes had been missed, more than one input location should be used.
Starting in about 1979, the estimation of frequency response functions for multiple inputs has been
investigated [27,.-] The multiple input approach has proven to have advantages over the single
input approach. When large numbers of responses are measured simultaneously, the estimated
frequency response functions are consistent with each other.
2.7.1 Theory
Consider the case of N, inputs and N, outputs measured during a modal test on a dynamic system as
shown in Figure 3. Equation I is the governing equation.
(1)
X(w) = H(w) * F(w)
For simplicity, the w will be dropped from the equations. Since the actual measured values for input
and output may contain noise, the measured values are:
F
v
and
-19-
Downloaded from http://www.everyspec.com
Therefore, a more general model for the computation of frequency response functions for Nj inputs
and N, outputs could be at response location p:
Xp -
nE H, *
- v.)
(2)
q=1
Where:
F
X
=
=
,YP
= Spectrum of the p-th output, measured
F,
= Spectrum of the q-th input, measured
Hpq
= Frequency response function of output p with respect to input q
i
rip
v- Actual input
1- Actual output
=Spectrum of the noise part of the input
ý-Spectrum of the noise part of the output
=
tVN2
F, +
F2 +
+
FN
H
X,
X2
+h
+
x1
N
+
k2
fix.
XNj
Figure 3. Multiple Input System Model
If N, - N. = 1, Equation 2 reduces to the classic single input, single output case. With N, not equal 1.
the equation is for the multiple input case.
For the multiple input case, the concept of coherence must be expanded to include ordinary, partial,
and multiple coherence functions [3o,35]. Each of the coherence functions is useful in determining the
validity of the model used to describe the system under test or, as discussed in Section 6 of Volume II
of this Technical Report, to evaluate how well the inputs conform to the theory.
Ordinary coherence is defined as the correlation coefficient describing the possible causal
-20-
Downloaded from http://www.everyspec.com
rehid
hilj
e
\ t,.,,o ",igiis. Ordinary coherence can be calculated between any two forces
or belý,,_n A lý ib ,, i;i! .miri; c:•.ponse In this calculation, the contribution of ail other signais is
ignored f heiý-tie. tt! niwciretation of the ordinary coherence functions must be made with gieat
care. Uhe use and interprctation of the ordinary coherence function between forces will be discussed
in Sectior tot \Voilme 1Iof this Technical Report. The ordinary coherence function between an
input and an ouirpo is of little use in determining the validity of the model This is because the
output in the- maitipie input case is due to a number of inputs so that the ordinaiy coherence will nor
have the same useful interpretation as in the single input case.
&.='•."•,
Parti.a coherence is defined as the ordinary coherence between any two conditioned signals. The
signals are conditr;nmd by removing, in a systematic manner, the contribution(s) cr other .,igr.,ls.
fhe order of cnditioning has an effect on the degree of correlation. A partial c,,hicence function
can he calculated between conditioned inputs, a conditioned output and a conditiorcd input, oi A;tJi
multiple outrput.., {'.'.en conditioned outputs. Typically, the input and ourn-•ut ar-e w.Onditioned I1v
removing the p,.ten.i l contributions to the output and input from other input(s) Thf-sreremoval of
,- c t:• r ,. ...... ..
,• , ,. frnilulited on a linear least -quares b,_t'
Ih .. ..
,
coherence fuinction tor every input/output combination for all permutations of w.onditioning. The
usefulness of partial coherence with respect to frequency response function c.-.timat~on :s to
determine the degree of correlation between inputs. The use and interpretation of the partial
coherence will be discua-,ed In Section 6.
Multiple coherence Is defined as the correlation coefficient describing the possible ,.:usal relationlhip
between an output aid all known inputs. There will be one multiple coherence luncmion tor eewr
output. Multiple coherence is used similarly to the ordinary coherence in the single input case. The
multiple coherence function should be close to unity throughout the entire frequency, range ol the
estimated freouency response function. A low value of multiple coherence at resonance indi,..ates
possible measurement error, unknown inputs, unmeasured inputs, or signal processing errors such as
leakage. However, a low value of multiple coherence is not expected at an antiresonance since there
should be sufficient signal-to-noise ratio at these frequencies (antiresonance is not a global property
of the system).
2.7.2 Mathemalical Models
l)epcnding oin tile Abere the noise is assumed to enter the measurement proce,,s, there are at least
three diffe!ent mathematical models that can be used to estimate the frequency response fi,,tions.
It is important to remember that the system determines its own frequent:" i24)onse tunction for a
given input/output pair and the boundary conditions for the test. In the limit, if all noise were
removed, any estimation technique must give the same result.
2.7.2.1 H, Technique
Assuming that there are no measurement errors on the input forces, let the measurement errors on
the response signal be represented by {(Y}. The H, least squares technique aims at finding the
solution [H] of Equation 3 that minimizes the Euclidean length of {,i}, the "squared error". This
solution is also called the least squares estimate. Writing Equation 2, using all measured values (the
ha.s been dropped for simplicity) in a form more readily recognized yields -"1:
-21-
Downloaded from http://www.everyspec.com
[HIN.x
{F}IN, 1 = {X}N0o ,X" {i7}No x1
(3)
The subscripts refer to the size of the matrix. It is well known that the solution HI] can be found as
the solution of the set of "normal equations" formed by post multiplying by {F}HI339].
{ 7 )}{FIH
[H I{F} {F}H ={X} {F}1-
(4)
I I,I I isminimum
Where:
H: complex conjugate transpose (Hermitian)
SII. 112 : Euclidean norm
Equation 4 can be reduced to Equation 5 by assuming that the noise on the outputs are uncorrelated
with the inputs and that with sufficient averages, the normalized noise spectra are close to zero.
[H
.,I, {F,,,.x1{F} 9xN = {X},N. XI{F}xN
xIN.
1
(5)
The elements of the coefficient matrix and right hand matrix in Equation 5 are readily identified,
when expanded, with the auto and cross power spectra of input forces and response signals [3o-35].
When the matrix multiplications of Equation 5 are expanded to form Equations 6 or 7, the form is
more readily recognized as a frequency response function estimation.
[H I[GFF]=[GXF]
(6)
[H ]=[GXF I[GFFI1-
(7)
or
Where:
[H]
=
Frequency response function matrix
[H 11
H
H1 2
H. N
.
21
[H;
.
.
HN.JN
-22-
Downloaded from http://www.everyspec.com
[GXF ]= Input/output cross spectra matrix
{X}{F}'
li1
=
X2"
complex conjugate
*
[GFF]= Input cross spectra matrix
=
=
{F{F}F
{
l[F
F
...
1 .F
GFFNvI ..
.;
F,]
GFF~v
1
GFFN.Nvj
GFFak= GFFL (Hermitian matrix)
The ordinary coherence function can be formulated in terms of the elements of the matrices defined
previously. The ordinary coherence function between the p-th output and the q-th input can be
computed from Equation 8.
I GXFpq,12
(8)
COHPI = GFFqq GXXp(
Where:
GXXp, = Auto power spectrum of the output
The magnitude of the error vector that corresponds to the least squares solution is a measure of how
-23-
Downloaded from http://www.everyspec.com
well the response signal is predicted by the input forces. When compared with the magnitude of the
response signal a normalized measure, known as the multiple coherence function, can be defined by
Equation 9-[34'35).
N, N,
MCOHp
E
Hp, GFF, H;
GXXJ,
(9)
-I t=.1
Where:
H,.
H,,
For more
10. Note
functions
equations
= Frequency Response Function for output p and input s
= Frequency Response Function for output p and input t
than 2 inputs, Equation 6 can be expanded, as an example, for six inputs to yield Equation
that Equation 10 has been put in transposed form in which the frequency response
appear as a column instead of a row. Equation 10 is recognized as a set of simultaneous
with ';'requency response functions as the unknowns.
GFF11
GFF12
GFF16.
GFF6 1
HPI .
.
Hp,2
GXFpI
GXFp 2
Hp6
GXFý'
GFFee
(10)
6
Equation 10 could be solved for the frequency response functions by inversion of the [GFFJ matrix
but the computational time and possible dynamic range errors may make the inversion technique
undesirable P14,4o. Computational techniques for solution of the equation are discussed in Volume 11
of this Technical Report.
As before, ordinary coherence functions can be defined between any two forces or any force with the
response giving a total of 21 possible ordinary coherence functions. In a systematic way, 4 partial
coherence functions between forces can also be defined and one multiple coherence function can be
defined by Equation 9. The partial coherence functions are defined and discussed in Section 6 of
Volume II of this Technical Report.
2.7.2.2 H
2
Technique
If all measurement errors are assumed to be confined to the inputs, let the errors associated with the
inputs be represented by {v}. The H 2 least squares technique aims at finding the solution [HI of
Equation 11 that minimizes the length of {(}. The basic model for the H 2 technique is shown in
Figure 4 [41,42]
-24-
Downloaded from http://www.everyspec.com
[HI•o.N,
(11)
{ {F}N, xr +{v}NlxI} ={X}Nox
F,
t2
F2
V+
F1
F2
H
Figure 4. System Model for H 2 Technique
To find the solution of Equation 11 in a similar manner as in the H, case, postmultiply by {X}li.
[HI{ {F} + {v}
{X}I
(12)
={X} {X}R
If the noise on the input {v} is assumed not correlated with the output and if sufficient averages are
taken so that the noise matrix approachs zero, Equation 12 can be written as:
[H]•No x×N, {F},vN
{X}•to × = {X}
(13)
x {X}•×xNo
The elements of the matrices are now identified as the cross power spectra between inputs and
outputs and the output auto power spectra.
To investigate the potential uses of the H 2 technique for multiple inputs, it will be helpful to expand
the equations for two cases. One is when the number of inputs and the number of outputs are equal
and another when the number of outputs is greater than the number of inputs.
For the case of two inputs and two responses, Nk = Ni = 2, Equation 13 can be solved for the
frequency response functions by inverting the input/output cross spectra matrix at every frequency in
the analysis range and solving the set of simultaneous equations. For the case of two inputs and
three responses, N. - 3 and Ni = 2, Equation 13 suggests that a 3 x 3 matrix must be multiplied by a
2 x 3 matrix. For the equation to be valid, a generalized inverse must be used. Therefore, unique
frequency response functions cannot be estimated from this set of data. Therefore, an added
constraint on the H 2 technique is that the number of outputs must equal the number of inputs [42,43]
For the single input, single output case, this constraint is not a disadvantage. But, for the multiple
input technique, this constraint makes the H 2 technique impractical for many testing situations (for
example a 2 triaxial response test with 2 inputs). Also, the major advantage of the H 2 technique is to
reduce the effects of noise on the input. This can also be accomplished by selective excitation that is
-25-
Downloaded from http://www.everyspec.com
investigated in Section 4 of Volume II of this Technical Report or by formulating the H, frequency
response estimate which is better suited for multiple inputs. Therefore, the H2 technique was not
heavily investigated for the multiple input case.
2.7.2.3 Hv Technique
Assume now that measurement errors are present on both the input and the response signals,
represented by {v,} for the noise on the input and {r)} for the noise on the output. The H, least
squares technique aims at finding the solution [H] in Equation 2 that minimizes the sum of the
Euclidean lengths of {i,} and {v}, or the "total squared error" [42,44-46]. This solution is referred to as
the Total Least Squared estimate. It is proved in the literature that it can be identified with the
elements of the matrix [GFFX] defined by Equation 14. Again the elements of this matrix are readily
identified with the auto and cross power spectra of input forces and response signals.
[HI { {F}. -{v} } ={x - {,n}
(13)
[GFFX] = [{F} {X}] 0 [{F} {X}]
(14)
[[I
= [GFF]
[GFX
(14)
[GFFX] [[GFXIH GXX(
The matrix [GFFX] is Hermitian; its eigenvalue decomposition is therefore defined by Equation 15.
The Total Least Squared estimate for [H] is then defined by Equation 16.
(15)
[GFFX] = [V] r A j [VIE
Where:
I Aj = diag (A,X,
A2.. ,,)
[VP [VI =I
(.Vlp1
{H}
.
VP+1 i?+1,
=
(16)
-P+1vp+1 +
Notice that the Total Least Squares solution does not exist if Vp,,p
1 l equals 0. This however can only
happen if the submatrix [GFF]of [GFFX] is singular 144): that is, if the input forces are correlated.
Verifying that the input forces are not correlated is therefore sufficient to warrant the existence of
the Total Least Squares solution.
Corresponding to the Total Least Squares estimate, there will be errors on both input forces and
-26-
Downloaded from http://www.everyspec.com
response signals. The magnitude of the errors on the response signal can be expressed by Equation
17. If this error is substituted into Equation 18, one calculates a measure of how well the response
signal is predicted by the input forces, considering now however also errors on the input forces.
GYM
=
A÷1"+p+1.V+l
p+1
(17)
MCOH = 1-_ 9 G
GXX
(18)
2.7.2.4 H, Technique
In a similar fashion, a "scaled" frequency response function has been proposed by Wicks and Void
[471
Starting with Equation 2 for a single input (the equations can be readily expanded to the multiple
input case):
X - Y= H*(F - v)
(19)
Expanding for the single input case and collecting error terms yields:
Y '7 + (HH*) (uv*) = (HPF
) (HFP -k)
(20)
If the error terms of Equation 22 are equal in magnitude, a least squares minimization can be applied
to Equation 22. To insure that the magnitudes are equal, either the input or the output can be
scaled. Assuming that the input is scaled by S, Equation 21 can be written as:
xk
-,7
= HS(F - v)
If the scaling constant is carried throughout the development, an equation can be written for a
"scaled" frequency response function.
CX•
Hs= -(21)
'" s2
P
) +,(s
2.7.3 Comparison of H,
.-k,)+4s2k"
"k
2SX F
H 2 , and H,
The assumption that measurement errors are confined totally to the input forces or totally to the
-27-
Downloaded from http://www.everyspec.com
response signals is sometimes unrealistic. But, it is important to understand why H1 ,H2 , and H,
yield different estimates of the same input/output frequency response function for a given system. It
is important also to remember that a linear system has only one theoretical frequency response for
any given input/output pair. Table 4 compares the different assumptions and solution techniques.
TABLE 4. Comparison of H1 .H 2 , and H,
Technique
Solution
Method
H,
H2
LS
LS
TLZ
Assumed location of noise
Force Inputs
Response
no noise
noise
noise
noise
no noise
noise
It is also important to realize that if the noise on the inputs {(7} and the noise on the responses {v}
are eliminated, H, equals H 2 and they are approximately equal to H,. Therefore, it is important to
spend time to acquire data that is noise free and that fits the assumptions of the Discrete Fourier
Transform rather than accept the errors and try to minimize their effect by the solution technique.
From the standpoint of frequency response function estimation, the H1 technique, at resonances,
underestimates the height of the peak amplitude and therefore overestimates the damping. In the
Argand plane, the circles look "flat". The H2 technique, at resonances, overestimates the amplitude
and therefore underestimates damping. The circles look oblong in the H 2 technique. The H.
technique gives, at resonance, an estimate of the frequency response function that is between the H,
and H2 estimates. At antiresonances, the reverse is true, H1 gives the lowest estimate and H 2 gives
the highest estimate with H, in the middle. Away from resonance, all three give the same estimate. It
is important to remember that in all three cases, the value computed is only an estimate of the
theoretical frequency response function. If other measurement errors or violation of system
assumptions are present, all three estimators will give erroneous results. It is therefore important to
spend as much time as possible to reduce known errors before data acquisition begins.
2.8 Multiple Input Considerations
From the theory of multiple input frequency response function estimation, the equations for the
computation of the fre uency response functions all require that the input cross spectra matrix
[GFF] not be singular [T-"2' -1. Unfortunately, there are a number of situations where the input
cross spectra matrix [GFFI may be singular at specific frequencies or frequency intervals. When this
happens, the equations for the frequency response functions cannot be used to solve for unique
frequency response functions at those frequencies or in those frequency intervals even though the
equations are still valid.
One potential reason for the input cross spectra matrix [GFF] to be singular is when one or more of
the input force auto power spectrum is zero at some frequency or some frequency interval. If an input
has a zero in the auto power spectrum, the associated cross spectrums calculated with that force will
also have zeros at the same frequency or frequency interval. The primary reason for this to occur
would be because of an impedance mismatch between the exciter system and the system under test.
Unfortunately, this situation occurs at system poles that have a low value of damping where a good
-28-
Downloaded from http://www.everyspec.com
estimate of the frequency response is desired. Therefore, it is imperative to check the input cross
spectra matrix for zeros. For the two input case where the determinant is calculated, a good check is
to be sure that the determinant does not have zeros in it.
Another way that the input cross spectra matrix may be singular is if two or more of the inputs are
totally coherent at some frequency or over some frequency interval. A good method to check for
coherent forces is to compute the ordinary and conditioned partial coherence functions among the
inputs [t53o]. A technique is also presented in Section 6.2.2 of Volume II of this Technical Report
that computes the principal auto power spectra of the input forces t481. This technique uses an
eigenvalue decompnsition to determine the dimensionality of the input cross spectra matrix [GFFI. If
two of the inputs are fully coherent, then there are no unique frequency response functions
associated with those inputs at those frequencies even though the Equation 7 is still valid. This is
because the frequency response is now estimated using a singular matrix that will yield infinite
solutions that are combinations of each other. Although the signals used as inputs to the exciter
system are uncorrelated random signals, the response of the structure at resonance, combined with
the inability to completely isolate the exciter systems from this response will result in the ordinary or
conditioned partial coherence functions to have values other than zero, particularly, at the system
poles. As long as the coherence functions are not unity at any frequency, the equations will give a
correct estimate of the frequency response function. It is therefore necessary to have a method to
evaluate the inputs to assure that there are neither holes in the auto power spectrum nor perfectly
coherent inputs.
2.8.1 Optimum Number Of Inputs
When considering the estimation of frequency response functions in the presence of multiple inputs,
more time must be spent to determine the number of inputs, the input directions, and the input
locations.
An advantage of the multiple input technology is that, for most structures, all important modes can
be excited in one test cycle. For example, in a typical test of an aircraft structure, if existing single
input technology is used, at least two complete tests must be conducted in order to get sufficient
energy into both the vertical and lateral fuselage modes. If two symmetric, correlated inputs with zero
or 180 degree phase difference are used, even though the number of degrees of freedom that the
parameter estimation algorithm must deal with is reduced, at least two complete tests must also be
conducted to define all the modes of the structure. With uncorrelated random multiple inputs, since
there is no constraint on the input directions, one input could be vertical and the other horizontal. In
this way, both the vertical and lateral modes will be excited in the same test cycle. By exciting at
symmetric locations, the frequency response estimates can be added or subtracted to enhance in
phase and out of phase modes. Since the original frequency response estimates are not destroyed,
effectively, four pieces of useful information have been estimated for the structure under test in one
test cycle.
But, as the number of inputs is increased, so too is the potential for problems with the excitation
forces. One such problem is that, due to the structural response, the inputs may be correlated by one
or more exciters driving the other exciters. This happens most often if the exciters are placed at
locations that have a high amplitude of motion particularly at resonance. Also, depending on the size
of the structure, there is a diminishing return on more inputs. The advantage of two inputs to one
input has been apparent in almost every test case. For more than two inputs, particularly on smaller
structures, the added inputs mean that more averages must be taken to compute "clean" frequency
response functions. In practice, fighter aircraft have been tested with as many as six inputs with no
adverse effects. For automobiles, three inputs appears to be a practical limit.
-29-
Downloaded from http://www.everyspec.com
2.9 Non-linear Considerations
The vibration of structures is a very natural phenomenon and although much work has been
dedicated to the analysis and understanding of it, there exist an infinite number of vibrational
problemb which cannot be predicted. Because of this, experimental testing is needed to describe the
vibrational characteristics of many structures. In this research, a linear system will be defined as a
system in which the responses are linearly proportional to the input forces. A nonlinear system will
be defined as having responses that are not linearly proportional to the input forces. In the analysis
of linear systems, the responses can be predicted and an explicit mathematical model can be
generated to represent the physical characteristics of the system. In the analysis of nonlinear systems,
the responses can not adequately predict the measured dynamic characteristics.
It is accepted that most real structures exhibit nonlinear characteristics. Practical experience suggest
that in many cases, this nonlinear term is negligible and a linear system can be assumed. However, as
structures become more complicated and more accurate results are required, the nonlinear
component is no longer negligible.
In modal analysis, frequency response functions are calculated based on a linear model of the
structure. Thus, it is important to first accurately determine the contribution of the nonlinear
components to the system. As described in Figure 5, the contribution of nonlinear components varies
from system to system.
Linear System
Application of
Nonlinear Models
Negligible
Errors
'Weak'
Nonlnearities
'Strong'
Nonlinearities
Application of
Linear Models
Application of Perturbed
Linear Modal
A
B
C
Figure 5. Evaluation of Linear and Nonlinear Systems
At position "A", there exists a totally linear system having no contamination of nonlinear
components. Between positions "A" and "B" the system is composed of linear and nonlinear terms;
however, the nonlinear component in this case is small enough to be negligible. Between positions
"B" and "C", the nonlinear term can no longer be negligible - the system should not be assumed to
-30-
Downloaded from http://www.everyspec.com
be linear. Finally, past position "C" the system is considered to highly nonlinear [49]
2.9.1 Objectives
One of the primary objectives of this research is to investigate previous studies dealing with
nonlinearities as related to the modal analysis field. A review of current studies which deal with
nonlinearities was made in terms of a literature search. Because of the difficulty involved in creating
a physical structure with a known nonlinearity, most of the past research has only dealt with basic
mathematical nonlinear structures having only one or two degrees of freedom.
Because of the increasing utilization of the multiple input estimation technique, it is the ultimate goal
of this research to investigate a method for detecting nonlinearities in a system when using the
multiple input estimation technique combined with random excitation signals. What is eventually
desired is a detection method which could be programmed into the modal acquisition software and
accessed to evaluate the degree of nonlinearity within a test structure.
2.9.2 Modal Analysis and Nonlinearities
In the field of experimental modal analysis there are three basic assumptions that are made about a
structure. First, the structure is assumed to be time invariant. This means that the modal parameters
that are to be determined will be constants of the structure. In general, a structure will have
components whose mass, stiffness, or damping depend on factors which are not measured or included
in the model. For example, in some structures, the components could be temperature dependent. In
this case, temperature could be described as a time varying parameter; therefore, each of the
temperature dependent components would be considered to be time varying. Thus, for a time
varying structure, the same measurements made at different times would be inconsistent.
The second basic assumption is that the structure is observable. By observable, it is meant that the
input/output measurements that are made contain enough information to generate an adequate
behavioral model of the structure. For example, if a structure has several degrees of freedom of
motion that are not measured, then the structure is considered to be not observable. Such a case
would be that of a partially filled tank of liquid when sloshing of the fluid occurs
Finally, the third basic assumption is that the structure is either linear or can be approximated as
linear over a certain frequency range. This essentially means that the response of the structure due to
the simultaneous application of two or more excitation forces is a linear combination of the responses
from each of the input forces acting separately. This relationship is shown in Figure 6. If a particular
input signal, a (t), causes an output signal, A (t), and a second input signal, b (t), causes a different
output signal, B (t); then, if both input signals, a (t) and b (t), are applied to a linear system, the
output signal will be the summation of the individual signals, A (t)+B (t) [5I]
2.9.3 Basic Nonlinear Systems
* A linear system with several degrees of freedom can be modeled completely by a frequency response
function which can be defined as the Fourier transform of the output signal divided by the Fourier
transform of the input signal. In mechanical systems, the input signal is a type of force while the
-31-
Downloaded from http://www.everyspec.com
a(t)
> Network
b(t)
Network
a(t) + b(t)
-
;A(t)
.B(t)
Network --------
A(t) + B(t)
Figure 6. Linear Network
output signal is a quantity such as displacement, velocity, or acceleration. The frequency response
function of these different output quantities are referred to as receptance, mobility, or compliance
respectively, see Table 5.
TABLE 5. Frequency Response Measurements
Acceleration
Force
Receptance
Force
Acce
Effective Mass
Acceleration
Mobility
Velocity
Force
Force
Voci
Impedance
Velocity
Displacement
Force
Force
Dslce
Displacement
Dynamic Compliance
Dynamic Stiffness
-32-
Downloaded from http://www.everyspec.com
As kaJ pry u,>IV stated, a linear structure can be characterized by its frequency response function
and, ;i, long as the structure does not physically change, this function will remain constant. This is not
the c;i.se tor a nonlinear structure; the system is no longer characterized by a single response function.
In this c,.-c, the structure is very dependent to the time varying variables in the inputs of the system.
Altha1.1n,, there exist very linear systems, most real structures have nonlinear components. Practical
eXpCr.nLe Ihows that the degree of nonlinearity of a structure varies according to the characteristics
of the oystemn. ihat is, welded structures will usually exhibit a linear response; where a riveted or spot
welded sti ucwure exhibits a very nonlinear response
f-owevci. thi-s inear characteristic property is not found in many systems. In a simple coil spring, a
nnlinear behavior will occur when the spring is overly compressed or extended. In either case, the
e!asti, 'ýprm1 will exhibit a nonlinear cha.,•,aeristic such that the spring force incrca.ses more rapidly
than th•e spiing deformation; this is referred to as a hardening spring. On the ether hand, certain
systems -uch as the -imple pendulum exhibit a softening characteristic.
Nonlinear behavior in structures can be related to such characteristics as backlash, nonlinear stiffness,
nonlinear damping, nonlinear material properties, or friction. These nonlinearities can be classified as
"limited" or "nonlimited" nonlinearities. In the "limited" case, the nonlinearity is limited within a
partic•ar force level range. Nonlinearities due to backlash could be classified as a "limited"
norlinci•,i. "Nonlirnited" nonlinearities refer to those nonlinearities which are independent of force
level. N,;nlirear damping is an example of a "nonlimited" nonlinearity [54].
2.9.4 Excitation Techniques
When a structure is to be tested to determine the modal parameters, one of the most important
consideiations is the excitation method to be used. For a linear structure, the frequency response
function is independent of the amplitude and type of the excitation signal. This is not the case for a
iionlincai structuie: the selection is crucial since the method of excitation can either minimize or
enhanice the nonlinear behavior of the structure. The different excitation signals can be divided into
two classifications; the determinististic excitation signals and the random excitation signals.
The deterministic signal is one which can be described by an explicit mathematical relationship. These
signals are then divided into two other classifications, periodic or non-periodic. A signal is periodic if
it repeats itself at equal time intervals. Frequency response functions that result from deterministic
signals are dependent upon the signal level and type. Therefore, these signals are very useful in
detecting nonlinearities in structures. Table 6 gives a summary of the different excitation signals and
their classification.
The use of a sine wave, which is a deterministic signal, to excite a structure is very common [55). The
main advantage of a swept sine test is that the input force can be precisely controlled. It is this
characteristic that makes this method particularly useful when trying to identify nonlinear systems. If
a particular system is nonlinear, by varying the input force levels, one can compare several frequency
response functions and identify inconsistencies. A major disadvantage with this method is that it
gives a very poor linear approximation of a nonlinear system. This causes a serious problem if the
data is to be used to estimate modal parameters. Therefore, this method is adversely affected by
nonlinearities.
Another deterministic excitation signal is an impact signal. The impact testing technique is very useful
for trouble-shooting and preliminary modal surveys. However, this technique should not be utilized
with nonlinear structures because of the difficulties in controlling the impact force and insufficient
energy to properly excite the structure [561
-33-
Downloaded from http://www.everyspec.com
TABLE 6. Excitation Signal Summary
Deterministic Excitation
Random Excitation
Slow Sinusoidal Sweep
Fast Sinusoidal Sweep
Periodic Chirp
Impulse (Impact)
Step Relaxation
True (Pure) Random
Pseudo Random
Periodic Random
Burst Random (Random Transient)
The random signal is one which can only be described by its statistical properties over a given time
period; no explicit mathematical relationship exists. For structures with small nonlinearities, the
frequency response functions from a random signal will not differ greatly from that of a deterministic
signal. However, as the nonlinearity in the structure increases, the random excitation gives a better
linear approximation of the system, since the nonlinearities tend to be averaged out. The random
excitation signal has been increasingly useful since it enables the structure to be investigated over a
wide frequency range, unlike the sine wave [9]
2.9.5 Detection of Non-linearities
It is apparent that in physical mechanical systems, there exists a linear and nonlinear response due to
some force input. In many cases, this nonlinear behavior can be neglected. However, in other cases,
the nonlinear response cannot be ignored. It is and has been essential to perform some type of
linearity check in order to make this evaluation. As the use of dynamic models based on experimental
data becomes more extensive, the detection and eventually the characterization of nonlinearities
becomes even more important.
The work reviewed in Volume TI of this Technical Report provides several nonlinearity detection
methods which are currently being implemented. Each of these different techniques has certain
limitations which effect the accuracy of the detection method. As an alternative detection method,
this work researched the possibility of detecting nonlinearities by utilizing higher order terms in
conjunction with the multiple input/output estimation theory. By using higher order terms of a
measured input force, the nonlinear behavior of a system can be detected. This alternative technique
was researched as a fast and valid method to give an indication of the linearity of a system when
implementing a random type of excitation signal.
This research demonstrated that for a theoretical single degree-of-freedom system, as the amount of
nonlinearity increases, the nonlinear detection functions become more predominant. This preliminary
study indicates that this nonlinear detection technique is sensitive to different types of nonlinearities
if the correct number of higher order nonlinear terms are utilized. Further research is needed to
determine the actual number of higher order terms necessary to accurately model a particular
nonlinear system. To further validate this detection technique, the frequency response functions
which are estimated utilizing the multiple input theory should be compared to the frequency response
functions estimated by a single input/output algorithm. Although initial investigations demonstrated
"-34-
Downloaded from http://www.everyspec.com
that the utilized forces were uncorrelated in the frequency domain, additional research is needed to
study the relationship between these forces. As in most cases, this detection method is only valid for
the measured response and input force points; it is still necessary to check several critical points of
the structure for linearity and then assume the entire system behaves accordingly. The higher order
detection technique does however eliminate having to perform a linearity check at different force
levels for comparison purposes. The technique will give an indication of the amount of nonlinearity
present in the structure at a particular force level. Further research is needed to evaluate an
acceptable level at which linearity within the system can be assumed.
2.10 Summary - Measurement Techniques for Experimental Modal Analysis
In the material contained in Volume II of this Technical Report, the area of measurement techniques
applicable to experimental modal analysis is discussed in some detail. This review is primarily
concerned with the accurate measurement of frequency response functions on linear, time invariant.
observable structural systems. Much effort was spent on the understanding of the many diffcrent
algorithms used to estimate frequency response functions. It is most important to understand that if
the noise in the measurement problem is reduced to zero (variance and bias errors) all of the
frequency response functions reduce to the same form. When attempting to experimentally
determine the dynamic properties (natural frequency, damping, and mode shapes) of a structure, one
of the most important aspects is to collect and process data that represent the structure as accurately
as possible. These data can then be used as input to an number of parameter estimation algorithms
and could also be used in modal modeling algorithms. Volume II of this Technical Report describes
in detail the procedure used to collect these data. Many of the potential errors are discussed as well
as techniques to eliminate or reduce the effects of these errors on the quality of the results. If the
procedures described in this Technical Report are followed, data can be collected, as input to modal
parameter estimation algorithms, that will yield accurate dynamic properties of the test structure.
With care and attention to theoretical limitations, these dynamic properties can be used to construct
a modal model.
-35-
Downloaded from http://www.everyspec.com
REFERENCES
[1]
Bendat, J.S.; Piersol, A.G., Random Data: Analysis and Measurement Procedures, John Wiley
and Sons, Inc., 1971, 407 pp.
[2]
Otnes, R.K., Enochson, L., Digital Time Series Analysis, John Wiley and Sons, Inc., 1972, 467
pp.
Bendat, J. S., Piersol, A. G., EngineeringApplications of Correlation and Spectral Analysis, John
Wiley, New York, 302 pp., 1980
[3]
[4]
Lecture Notes, Experimental Modal Analysis Short Course, Structural Dynamics Research
Laboratory, Department of Mechanical and Industrial Engineering, University of Cincinnati,
Cincinnati, OH., 1977-1984.
[51
"Measuring Vibration," Bruel and Kjaer Pamphlet Number BR0094, Bruel and Kjaer
Instruments, Inc., 1980.
[6]
Lally, R. W., "Transduction," PCB Piezotronics, Inc., Depew, New York
[7]
Zimmerman, R. D., "7110 Hammer Calibration Standard, User's Manual," Document 57110,
QUIXOTE Measurement Dynamics, Inc., Cincinnati, OH.
[8]
"Petro Wax for Accelerometer Mounting," Data Sheet 08024284, PCB Piezotronics, Inc.,
Depew, New York
[91 Daily, J.W.; Riley, W.F.; McConnell, K.G., Instrumentationfor EngineeringMeasurements, John
Wiley & Sons, Inc., New York, 1984.
[101
Durrani, T.S.; Nightingale, J.M., "Data Windows for Digital Spectral Analysis," Institution of
Electrical Engineers Proceedings, Volume 119, 1972, pp. 343-352.
[111
Potter, R.W., "Compilation of Time Windows and Line Shapes for Fourier Analysis,"
Hewlett-Packard Company, 1972, 26 pp.
[12]
Cole, H.A., Jr., "On-the-Line Analysis of Random Vibrations," AIAA Paper Number 68-288,
April, 1968
[13]
Cole, HA., Jr., "Failure Detection of a Space Shuttle Wing Flutter Model by Random
Decrement," NASA TM X-62, 041, May, 1971
[14] Cole, H.A., Jr., "On-Line Failure Detection and Damping Measurement of Aerospace
Structures by Random Decrement Signatures," NASA CR-2205, March, 1973
[151
Hammond, C.E., Doggett, R.V., Jr., "Determination of Subcritical Damping by Moving-Block/
Randomdec Applications," Flutter Testing Techniques, NASASP-415, October, 1975, pp.
59-76
116]
Reed, R.E., "Analytical Aspects of Randomdec Analysis," AIAA Paper Number 79-0828,
1979, pp. 404-409
[17]
Brown, D.L., Carbon, G.D., Ramsey, K., "Survey of Excitation Techniques Applicable to the
Testing of Automotive Structures," SAE Paper Number 770029, 1977
[18]
Allemang, Ri., Rost, R.W., Brown, D.L., "Multiple Input Estimation of Frequency Response
Functions: Excitation Considerations," ASME Paper Number 83-DET-73, 1983, 11 pp.
[19J
Allemang, Ri., Brown, D.L., Zimmerman, R.D., "Determining Structural Characteristics from
Response Measurements," University of Cincinnati, College of Engineering, Research Annals,
Volume 82, Number MIE-110, 39 pp., 1982.
-36-
Downloaded from http://www.everyspec.com
(201
Allemang, RJ., Brown, D.L.. Zimmerman, R.D.. "Techniques for Reducing Noise in
Frequency Response Function Measurements," University of Cincinnati, College of
Engineering, Research Annals. Volume 82, Number MIE-112, 56 pp., 1982.
[21]
Halvorsen, W.G., Brown, l).I., "Impulse Technique for Structural Frequency Response
Testing," Sound and Vibration. November, 1977, pp. 8-21
[22]
Stenger, G., "Step Relaxation Method for Structural Dynamic Excitation," Master of Science
Thesis, Department of Mechanical Engineering, University of Cincinnati, 1979, 54 pp.
[231
Olsen,N., "A Comparison of Excitation Techniques for Modal Analysis," Proceedings,
International Modal Analysis Conference, 1982, pp. 200-210.
[241
Moriwaki, T., Iwata, K., Veno, S., "Optimizing Dynamic Force in Shock Excitation Testing,"
Annals of the CIRP. Volume 26, 1977, pp. 427-434
[25]
Potter, R. W., "Matrix Formulation of Multiple and Partial Coherence," Journal of the
Acoustic Society of America, Volume 66, Number 3, March 1977, pp. 776-781
[26]
Dodds, CJ., Robson, J.D., "Partial Coherence in Multivariate Random Processing," Journal of
Sound and Vibration, Volume 42, Number 2. 1975, pp. 243-249
[27]
Bendat, J.S., "Solutions for the Multiple Input/Output Problem," Journal of Sound and
Vibration, Volume 44, Number 3, 1976, pp.311-325
[281
Piersol, A.G., "Physical Applications of Correlation and Coherence Analysis," Journal of
Acoustical Society of America, Volume 55, Number 2, 1975, 29 pp.
Akaike, H., "On the Statistic Estimation of the Frequency Response Function of a System
Having Multiple Inputs," Annals of the Institute of Statistical Mathmatics, Volume 17,
Number 2, 1965
[291
1301 Allemang, R. J., "Investigation of Some Multiple Input/Output Frequency Response Function
Experimental Modal Analysis Techniques," Doctor of Philosophy Dissertation, University of
Cincinnati, Mechanical Engineering Department, 1980, 358 pp.
[311
Allemang, R.J., Rost, R.W., Brown, D.L., "Dual Input Estimation of Frequency Response
Functions for Experimental Modal Analysis of Aircraft Structures," Proceedings,
International Modal Analysis Conference, pp.333-340, 1982.
[32]
Carbon, G.D., Brown, D.L., Allemang, RJ., "Application of Dual Input Excitation Techniques
to the Modal Testing of Commercial Aircraft," Proceedings, International Modal Analysis
Conference, pp.559-565, 1982.
[33]
Allemang, R.J., Brown, D.L., Rost, R.W., "Dual Input Estimation of Frequency Response
Functions for Experimental Modal Analysis of Automotive Structures," SAE Paper Number
820193.
[34]
Allemang, RJ., Brown, D.L., Rost, R.R., "Multiple Input Estimation of Frequency Response
Functions for Experimental Modal Analysis," U.S. Air Force Report Number AFATL-TR84-15, 1984, 185 pp.
[35]
Rost, R.W. "Investigation of Multiple Input Frequency Response Function Estimation
Techniques for Modal Analysis," Doctor of Philosophy Dissertation University of Cincinnati
Mechanical Engineering Department 1985, 219 pp.
[36]
Hunt, D., Peterson, E., "Multishaker Broadband
Analysis," SAE Paper Number 831435, 1983, 10 pp.
[37]
Robinson, E., Least Squares Regression Analysis in Tcrms of LinearAlgebra, Goose Pond Press,
1981, 508 pp.
[38]
Jennings, A., Matrix Computation for Engineers and Scientists, John Wiley & Sons, 1977, 330
Pp.
-37-
Excitation for Experimental Modal
Downloaded from http://www.everyspec.com
[39]
Noble, B., Daniel, J.W., Applied LinearAlgebra, Prentice-Hall, Inc., 1977, 476 pp.
[40]
Allemang, RJ., Rost, R.W., Brown, D.L., "Multiple Input Estimation of Frequency Response
Functions," Proceedings, International Modal Analysis Conference, 1982, pp. 710-719.
[41]
Mitchell, L. "Improved Methods for Fast Fourier Transform (FFT) Calculation of Frequency
Response Functions," ASME Journal of Mechanical Design, Vol. 104/2, pp.277-279.
[421
Void, H., Crowley, J., Rocklin, G. "A Comparison of H1 ,H2 ,H,, Frequency Response
Functions," Proceedings of the 3rd International Modal Analysis, 1985, pp.272-278. 1977, pp.
427-434
143] Rost, R.W., Leuridan, J., "A Comparison of Least Squares and Total Least Squares for
Multiple Input Estimation of Frequency Response Functions," ASME Paper Number 85DET-105, 1985.
[44]
[45]
Golub, G., Van Loan, C., "An Analysis of the Total Least Squares Problem," SIAM Journal
of Numerical Analysis, Volume 17/6, 1985, pp. 883-893.
Van Huffel, S., et al, "The Total least Squares Problem: Properties, Application, and
Generalization," SIAM Journal of Numerical Analysis, 1984, 33 pp.
[46]
Lawson, C., Hanson, R., Solving Least Squares Problems Prentice-Hall, Inc., 1974, 340 pp.
[47]
Wicks, A., Void, H., "The H, Frequency Response Estimator," Proceedings, International
Modal Analysis Conference, 1986, pp. xxx-yyy.
[48]
Rost, R.W.; Leuridan, J.M., "Multiple Input Estimation of Frequency Response Functions:
Diagnostic Techniques for the Excitation," The American Society of Mechanical Engineers,
ASME paper no. 85-DET-107, 5 pp.
[49]
Leuridan, J.M., Lecture notes from The Advance Modal Analysis Course, Structural
Dynamics Research Lab, University of Cincinnati, August 1984.
[50]
Goyder, H.G.D., "On the Measurement of Frequency Response Functions in the Presence of
Nonlinearities and Noise," United Kingdom Atomic Energy Authority, Harwell, OXll ORA,
England, 26 pp.
[51]
Hewlett Packard, "The Fundamentals of Signal Analysis," Application Note 243, November
1981, p. 6.
[52]
Kirshenboim, J.; Ewins, DJ., "A Method for Recognizing Structural Nonlinearities in SteadyState Harmonic Testing," Journal of Vibration, Acoustics, Stress, and Reliability in Design,
Volume 106, January 1984, pp. 49 - 52.
[531 Harris, C.M.; Crede, C.E., Shock and Vibrational Handbook, McGraw-Hill Book Company,
Second Edition, 1976, pp. 4-1 - 4-8.
[54]
Mertens, M.; Van Der Auweraer, H.; Vanherck, P.; Snoeys, R., "Detection of Nonlinear
Dynamic Behavior of Mechanical Structures," Proceedings of the Fourth International Modal
Analysis Conference, 1986, pp. 712-719.
[55] Ewins, D.J., "Measurement and Application of Mechanical Impedance Data," Journal of the
Society of Environmental Engineers, Part 1, Dec. 75, pp. 3 - 13, Part 2, Mar. 76, pp. 23 - 33,
Part 3, Jun. 76, pp. 7 -17.
(56]
Ramsey, K.A., "Effective Measurements for Structural Dynamics Testing," Part II, Sound and
Vibration, October 1976, pp. 18-31.
[57] Tomlinson, G.R.; Ahmed, I., "Frequency and Damping Estimates from a Non-linear Structure
- Causalisation and Random Excitation," Proceedings of the Tenth International Seminar on
Modal Analysis, K.U. Leuven, Belgium, Part IV, 1985.
-38-
Downloaded from http://www.everyspec.com
1581
Kennedy, C.C.; Pancu. C.D.P., "Use of Vectors in Vibration Measurement and Analysis,"
Journal of Aeronautical Sciences, Volume 14, Number 11, 1947, pp. 603-625.
[59] Tomlinson, G.R.; Hilbert, J.H., "Identification of the Dynamic Characteristics of a Structure
with Coulomb Friction," Journal of Sound and Vibration, 64 (2), 1979, pp. 233-242.
[60]
Rades. M., "Identification of the Dynamic Characteristics of a Simple System with Quadratic
Damping," Serie de Mecanique Appliquee. 28 (4), 1983, pp. 439-446.
[611
Tomlinson, G.R, "Detection, Identification, and Quantification of Nonlinearity in Modal
Analysis - A Review," Proceedings of the Fourth International Modal Analysis Conference,
1986, pp. 837-843
[62]
Ewins, DJ., "MeaLwrement and Application of Mechanical Impedance Data," Journal of the
Society of Environmental Engineers, June 1976, pp. 7-17.
1631
Ewins, D.J.; He, J, "Critical Assessment of the Accuracy of Modal Parameter Extraction,"
Imperial College of Science and Technology, London Dynamics Group Mechanical
Engineering, Report Number 85003, October 1985.
[641
Hans, E.L., "No Reciprocal Theorem For Dynamic Displacements," Journal of Sound and
Vibration, 64 (2), 1979, pp. 275-276.
[651
Mertens, M.; Van Der Auweraer, HI.; Vanherck, P.; Snoeys, R., "Basic Rules of a Reliable
Detection Method for Nonlinear Dynamic Behavior," Proceedings of the Tenth International
Seminar on Modal Analysis, K.U. Leuven, Belgium, Part IV, 1985.
[66]
Vinh, T.; Haoui, A.; Chevalier, Y., "Modal Analysis of Structures with Applications to the
Mechanics of Materials," University,of Manchester, Euromech 168, 1983.
[67]
Vinh, T.; Haoui, A.; Chevalier, Y., "Extension of Modal Analysis to Nonlinear Structures by
Using the Hilbert Transform," Proceedings of the Second International Modal Analysis
Conference, 1984, pp. 852-857.
[681
Simon, M.; Tomlinson, G.R., "Modal Analysis of Linear and Nonlinear Structures Employing
the Hilbert Transform," Proceeding of the Second International Conference on Recent
Advances in Structural Dynamics, Volume 11, pp. 495-510.
[691
Tomlinson, G.R.; Kirk, N.E., "On the Identification of Nonlinearities in Modal TestmiiG
Employing the Hilbert Transform," Simon Engineering Laboratories, University of
Manchester - Manchester, England, 32 pp.
[701
Tomlinson, G.R.; Kirk, N.E., "Modal Analysis and Identification of Structural Nonlinerity,"
Simon Engineering Laboratories, University of Manchester - Manchester, England, 21 pp.
[71]
Billings, S.A., "Identification of Nonlinear Systems - A Survey," lEE Proceedings, Volume
127, Part D, Number 6, November 1980, pp. 272-288.
[721
Marmarelis, V.Z., "Practicable Identification of Nonstationary Nonlinear Systems," IEE
Proceedings, Volume 128, Part D. Number 5, September 1981, pp. 211-214.
[731
Schetzen, M., "A Theory of Nonlinear System Identification," Int. J. Control, Volume 20,
Number 4, 1974, pp. 577-592.
[74]
Barrett, J.F., "Formula for Output Autocorrelation and Spectrum of a Volterra System with
Stationary Gaussian Input," lEE Proceedings, Volume 127, Part D, Number 6, November
1980, pp. 286-288.
[751
Lawerence, PJ., "Estimation of the Volterra Functional Series of a Nonlinear System Using
Frequency Respcise Data," IEE Proceedings, Volume 128, Part D, Number 5, September
1981, pp. 206-210.
[761
Schetzen, M., "Nonlinear System Modeling Based on the Wiener Theory," IEEE Proceedings,
Volume 69, Number 12, December 1981, pp. 1557-1573.
-39-
Downloaded from http://www.everyspec.com
177]
Kim, Y.C.; Powers, E.J., "Digital Bispectral Analysis and its Applications Nonlinear Wave
Interactions," IELE Transactions on Plasma Science, Volume PS-7, Number 2, June 1979, pp.
120-131.
(78]
Choi, D.; Chang, J.; Stearman, R.O.; Powers, E.J., "B3ispectral Identification of Nonlinear
Mode Interactions," University of Texas at Austin, College of Engineering.
[791
Choi, D.; Chang, J.; Stearman, R.O.; Powers, E-J., "Bispectral Analysis of Parametric and
Nonlinear Systems," University of Texas at Austin, College of Engineering.
[801
Choi, D.; Miksad, R.W.; Powers, E.J.; Fischer, F.J., "Application of Digital Cross bispectral
Analysis Tcchliques to Model the Nonlinear Response of a Moored Vessel System in
Random Seas," Journal of Sound and Vibration, 99 (3), 1985, pp. 309-326.
[811
Comstock, T.R.; Nicolas, V.T., "Introduction to BOSS," BOSS User Manual.
-40-
Downloaded from http://www.everyspec.com
3. MODAL PARAMETER ESTIMATION
3.1 Introduction
Modal parameter estimation is the determination of frequency, damping, and modal coefficients from
the measured data which may be in: (1) relatively raw form in terms of force and response data in the
time or frequency domain, or (2) in a processed form such as frequency response or impulse response
functions. Most modal parameter estimation is based upon the measured data being the frequency
response function; or the equivalent impulse response function, typically found by inverse Fourier
transforming the frequency response function. Regardless of the form of the measured data, the
modal parameter estimation techniques have traditionally been divided into two categories: (1)
single degree-of-freedom (SDOF) approximations, and (2) multiple degree-of-freedom (MDOF)
approximations. Since the single degree-of-freedom equations are simply special cases of the multiple
degree-of-freedom equations, all theoretical discussion is made only in terms of the multiple degreeof-freedom case.
The current effort in the modal parameter estimation area is concerned with a unified theory that
explains any previously conceived modal parameter estimation method as a subset of a general
theory. This unified theory concept would eliminate the confusing nomenclature that currently exists
and simplify the understanding of the strengths and weaknesses of each method. The modal
parameter estimation methods that have been developed over the past several years involve multiple
measurement, multiple reference concepts that can be viewed as an interaction between the temporal
domains (time, frequency, etc.) and the spatial domains (physical coordinates, modal coordinates,
etc.) in order to achieve the "best" estimate of the modal parameters. Volume III of this Technical
Report presents this background and provides a complete development, using a consistent set of
nomenclature, of most multiple reference modal parameter estimation algorithms in use at the
present time.
3.2 Historical Overview
While engineers have tried to estimate the vibration characteristics of structures since the turn of the
century, the actual history of experimental modal parameter estimation is normally linked to the work
by Kennedy and Pancu[1 ] in 1947. Until this time, the instrumentation that had been available was
not sufficiently refined to allow for detailed study of experimental modes of vibration. As the
instrumentation and analysis equipment has improved over the last forty years, major improvements
in modal parameter estimation techniques have followed. Specifically, the development of accurate
force and response transducers, the development of test equipment based upon digital computers and
the development of the fast Fourier transform (FFT) have been the key advances that have initiated
bursts of development in the area of modal parameter estimation.
During this time period, efforts in modal parameter estimation have involved two concepts. The first
concept involved techniques oriented toward the forced normal mode approach to modal parameter
estimation. This approach to the estimation of modal parameters involves exciting the system into a
single mode of vibration by using a specific sinusoidal forcing vector. Since the success of this
method is determined by the evaluation of the phase characteristics with respect to the characteristics
occurring at resonance, this approach can be broadly classified as the phase resonance method. In
order to refine the phase resonance method, particularly the force appropriation aspect of the
method, efforts began to estimate the modal information on a mode by mode basis, using measured
impedance, or frequency response functions. Much of the early work on this concept centered on
using the phase information as a means of identifying the effects of separate modes of vibration in the
measurement. For this reason, this concept has become known as the phase separation method.
Most methods that are in use today can be classified as phase separation methods since no effort is
made to excite only one mode of vibration at a time.
-41-
Downloaded from http://www.everyspec.com
With respect to the phase resonance methods, the basic theory was first documented by Lewis and
Wrisley[2] in 1950. This theory was refined and presented in a more complete manner by F. de
Veubeke[ 3] in 1956. Significant advances in the approach to force appropriation were documented by
Trail-Nash[ 4 1 and Asher[ 5] in 1958. Significant improvements and refinements in the phase
resonance methods have taken place in the last thirty years, particularly in the automation of the
force appropriation and the use of digital computers, but the basic theoretical concept has not
changed since 1950.
With respect to the phase separation methods, much effort has occurred over the last forty years and
continues to the present day. Kennedy and Pancu[1] in 1947 documented that the presence of two
modes of vibration could be detected by observing the rate of change of the phase in the area of
resonance. Since this method was developed based upon a plot of the real part of the impedance
function versus the imaginary part of the impedance function, this method is referred to as a circle-fit
method based upon these characteristics in the Argand plane. Broadbent[ 6] applied this concept to
flight flutter data in 1958. Sin-e the data acquisition process was largely analog until 1970, most of
the work until that time was oriented towards trying to fit a single degree of freedom model to
portions of the analog data. The significant contributors during this time period began with Stahle [7]
in 1958, and continued with Bishop and Gladwell [8] and PenGcred and Bishop [9-1] in 1963, and
Mahalingham [12] in 1967. Once data began to be collected and stored in a digital fashion, the phase
separation methods migrated to multiple degrees of freedom approaches. The initial work involving
multiple degree of freedom models was documented by Klosterman [13] in 1971 Richardson and
Potter [141 in 1974 and Van Loon [15] in 1974. While the work during this period evolved the basic
polynomial and partial fraction models that are the basis of modem experimental modal parameter
estimation methods, the algorithms were basically unstable, iterative approaches to the solution for
the unknown parameters. Also, these methods used only one measurement at a time in the
estimation of the modal parameters. In 1978, Brown [16] documented work on the Least Squares
Complex Exponential method that was a two stage approach to the estimation of modal parameters
using all of the available data. In the first stage, the frequency and damping values are estimated; in
the second stage, the modal coefficients are estimated. Ibrahim (17], also in 1977, documented the
initial version of the Ibrahim Time Domain Method, which formulated the solution for the modal
parameters into an eigenvalue-eigenvector solution approach. These last approaches represent
conceptual approaches that have been extended today into similar methods involving multiple
references. The significant advances in the multiple reference, or polyreference, methods used and
being developed at the present time were first documented by Void [181 in 1982 with the
Polyreference Time Domain method. Since that time, several other polyreference methods have
been developed. Detailed documentation of the multiple reference methods is contained in later
sections.
In summary, over the last forty years, many experimental modal parameter estimation methods have
been developed that can be classified as either phase resonance or phase separation methods. Often,
it seems that these methods are very different and unique. In reality, the methods all are derived
from the same equation and are concerned with the decomposition of a composite function into its
constituent parts. This decomposition may occur in the time domain in terms of damped complex
exponentials, in the frequency domain in terms of single degree-of-freedom functions, or in the
modal domain in terms of modal vectors. This decomposition may occur during the test, as in the
phase resonance methods, or occur during analysis, as in the phase separation methods. The various
modal parameter estimation methods are enumerated in the following list:
"*Forced Normal Mode Method
"*Quadrature Amplitude [7,8,111
* Kennedy-Pancu Circle Fit
[2-5,19,20]
[1,13,21-23]
"*Single Degree-of-Freedom Polynomial
[14,21,22,24,25]
-42-
Downloaded from http://www.everyspec.com
"*Nonlinear Frequency Domain
[13,14,21,221
* Complex Exponential [26,27]
"*Least-Squares Complex Exponential (LSCE)
[16]
"*Ibrahim Time Domain (ITD) [17,28-32]
"*Eigensystem Realization Algorithm [33-35]
"*Orthogonal Polynomial
[36,37]
"*Global Orthogonal Polynomial [381
"*Polyreference Time Domain [18,39,40]
"*Polyreference Frequency Domain [40- ]
"*Direct Parameter Identification: Time Domain [40]
"*Autoregressive Moving Average (ARMA) [44-48]
"•Direct Parameter Identification: Frequency Domain
[40,49]
3.3 Multiple-Reference Terminology
3.3.1 Mathematical Models
The most general model that can be used is one in which the elements of the mass, damping, and
stiffness matrices are estimated, based upon measured forces and responses. Thus, the model that is
used is based upon a matrix differential equation transformed into the domain of interest.
Time domain:
[MI {ji(t)} + [C] {i(t)} + [K] {x(t)} = {F(t)}
(24)
Frequency domain:
-'?[M] {X(w)} +jw[C] {X(w)} + [K] {X(w)} = {F(w)}
(25)
Laplace domain:
s 2 [M! {X(s)} + s[C] {X(s)} + [K] {X(s)} = {F(s)}
(26)
If Eq. (24), (25), or (26) is used as the model for parameter estimation, the elements of the unknown
matrices must first be estimated from the known force and response data measured in the time,
frequency or Laplace domain. Once the matrices have been estimated, the modal parameters can be
found by the solution of the classic eigenvalue-eigenvector problem [ ,42,49]. Due to truncation of the
data in terms of frequency content, limited numbers of degrees-of-freedom, and measurement errors,
the matrices found by Eq. (24), (25), or (26) are, in general, not directly comparable to matrices
determined from a finite element approach. Instead, the matrices that are estimated simply yield
valid input-output relationships and valid modal parameters. This is because there is an infinite
number of sets of mass, damping, and stiffness matrices that yield the same modal parameters over a
reduced frequency range limited to the dynamic range of the measurements. For this reason, Eqs.
(24), (25), and (26) are often pre-multipled by the inverse of the mass matrix so that the elements of
the two matrices, the dynamic damping matrix [D] and dynamic stiffness matrix [EJ are estimated:
-43-
Downloaded from http://www.everyspec.com
Time domain:
[I] {x(t)} + [D] {x(t)} + [E] {x(t)} ={F'(t)}
(27)
Frequency domain:
-- ,2[I] {X(w)}
+jw[D] {X(w)} + [E] {X(w)} ={F'(w)}
(28)
Laplace domain:
s2[1] {X(s)} + s[D] {X(s)} + [E] {X(s)} = {F (s)}
(29)
Existing modal parameter estimation methods used in commercial modal analysis systems most often
employ a model based upon measured impulse response (time domain) or frequency response
(frequency domain) functions. While the exact model used as the basis for modal parameter
estimation varies, almost all models used in conjunction with frequency response function data can be
described by a general model in the time domain, frequency domain, or Laplace domain. The general
model in the time domain is a damped complex exponential model (often the impulse response
function) while the general model in the frequency domain is the frequency response function. The
general model in the Laplace domain is the transfer function. For general viscous damping, the
mathematical models for each domain for a multiple degree degree-of-freedom mechanical system
can be stated as:
Time Domain:
h
= NAp. e 't +A,
-,t)
e
t
(30)
M.I
FrequencyDomain:
N A_.._ + A W
H,(w) = E j-(31)
1w-A,
'=.1 1wp-A,
Laplace Domain:
Hp.(s) =
NA
A
s-, + s(32)
SA
ML~ s-A,
where:
s
=
s
=
ar
W
p
q
r
N
AM,
=
=
=
=
=
=
=
AW =
AW,
=
Q,
=
Laplace variable
a +jw
angular damping variable (rad/sec)
angular frequency variable (rad/sec)
measured degree-of-freedom (response)
measured degree-of-freedom (input)
modal vector number
number of modal frequencies
residue
Q44vrq.
,OVLV
complex modal scaling coefficient for mode r
-44-
Downloaded from http://www.everyspec.com
L
A,
A,
=
modal coefficient for measured
degree-of-freedom p and mode r
=
modal participation factor for reference
degree-of-freedom q and mode r
system pole
a, +j4
=
=
The models described in Eqs. (30) through (32) have many other equivalent forms based upon
expansion of the terms under the summation. Also, the models take on slightly different forms under
assumptions concerning specific physical damping mechanisms (hysteretic, etc.) [ 3,I4,4] Other
forms of these models are also used where certain assumptions or mathematical relationships are
utilized. For example, an equivalent model can be found when the common denominator of Eq. (31)
is formed yielding a polynomial numerator and polynomial denominator of maximum order "2N"
.13,14,22]
The denominator polynomial is then a function of the system poles. Often, an assumption is
made concerning the modal vectors being normal (real) rather than complex. This reduces the
number of unknowns that must be estimated from "2N" to "N".
3.3.2 Sampled Data
The mathematical models described in the previous section are all developed based upon the concept
that the temporal variable (time or frequency) is continuous. In reality the temporal variable must be
thought of as sampled in each domain. This restriction requires special consideration when applying
the models developed in Eqs. (24) through (32). Differential equations must now be thought of as
finite difference equations; continuous integral transforms are replaced by discrete transforms such
as the Fast Fourier Transform (FFT) and the Z Transform. The concepts affecting the numerical
processing of sampled data with respect to the continuous models represented in Eqs. (24) through
(32) are exactly the same as the concepts that are the basis of the area of digital signal analysis with
respect to the measurement of the data. The limitation of the frequency information creates special
processing problems that are related to Shannon's Sampling Theorem; the limitations of the dynamic
range of the measured data and of the computer precision yield special numerical problems with
respect to the solution algorithm.
In general, the numerical considerations often determine which mathematical model will be most
effective in the estimation of modal parameters. Time domain models tend to provide the best
results when a large frequency range or large numbers of modes exist in the data. Frequency domain
models tend to provide the best results when the frequency range of interest is limited and when the
number of modes is small. While these are general considerations, the actual numerical
implementation determines the ability of the algorithm to estimate modal parameters accurately and
efficiently.
3.3.3 Consistent Data
Modal parameter estimation methods all assume that the system that is being investigated is linear
and time invariant. While this is often nearly true, these assumptions are never exactly true.
Consistent data refers to the situation where the data is acquired so as to best satisfy these two
assumptions. Problems associated with nonlinearity can be minimized by maintaining a prescribed
force level and/or using excitation methods that give the best linear approximation to the nonlinear
characteristic (random excitation). Problems associated with the time invariance constraint can be
minimized by acquiring all of the data simultaneously using multiple excitations [5o-54]. This reduces
mass loading and boundary condition variations that can be caused by moving a transducer around
the structure or by changing the location of the excitation.
-45-
Downloaded from http://www.everyspec.com
3.3.4 Residuals
With respect to spatial geometry, continuous systems have an infinite number of degrees-of-freedom
but, in general, only a finite number of modes can be used to describe the dynamic behavior of a
system. The theoretical number of degrees-of-freedom can be reduced by using a finite frequency
range (f.,fb). Therefore, for example, the frequency response function can be broken up into three
partial sums, each covering the modal contribution corresponding to modes located in the frequency
ranges (O,f.), (fafb), and (fb,oo) as shown in Figure 7.
I0I.
ios
Frequency Range
of Intrest
0~
I
'
101'
1Ot
0.0
1000.0
2000.0
FREQTMNCY, HZ
Figure 7. Frequency Range of Interest
In the frequency range of interest, the modal parameters can be estimated to be consistent with Eq.
(33). In the lower and higher frequency ranges, residual terms can be included to handle modes in
these ranges. In this case, the general frequency response function model can be stated:
-46-
Downloaded from http://www.everyspec.com
N
H()
A
A;,
Rip,+
()+
+RJ.,
(33)
where:
RIP, (w)
Rrp
=
=
residual effect of lower frequency modes
residual effect of higher frequency modes (constant with W)
In many cases the lower residual is called the inertia restraint, or residual inertia, and the upper
residual is called the residualflexibility [13]. In this common formulation of residuals, both terms are
real-valued quantities. The lower residual is a term reflecting the inertia or mass of the lower modes
and is an inverse function of the frequency squared. The upper residual is a term reflecting the
flexibility of the upper modes and is constant with frequency. Therefore, the form of the residual is
based upon a physical concept of how the combined system poles below and above the frequency
range of interest affect the data in the range of interest. As the system poles below and above the
range of interest are located in the proximity of the boundaries of the frequency range of interest,
these effects are not the simple real-valued quantities noted in Eq. (33). In these cases, residual or
computational modes may be included in the model to partially account for these effects. When this
is done, the modal parameters that are associated with these computational poles have no physical
significance because the poles are not structural modes of the system, but may be required in order to
compensate for strong dynamic influences from outside the frequency range of interest. Using the
same argument, the lower and upper residuals can take on any mathematical form that is convenient
as long as the lack of physical significance is understood. Power functions of frequency (zero, first,
and second order) are commonly used within such a limitation. In general, the use of residuals is
confined to frequency response function models. This is primarily due to the difficulty of formulating
a reasonable mathematical model and solution procedure in the time domain for the general case
that includes residuals.
3.3.5 Global Modal Parameters
Theoretically, modal parameters are considered to be unique based upon the assumption that the
system is linear and time invariant. Therefore, the modal frequencies can be determined from any
measurement and the modal vectors can be determined from any reference condition. If multiple
measurements or reference conditions are utilized, the possibility of several, slightly different, answers
for each modal parameter exists. The concept of global modal parameters, as it applies to modal
parameter estimation, means that there is only one answer for each modal parameter and that the
modal parameter estimation solution procedure enforces this constraint. Every frequency response
or impulse response function measurement theoretically contains the information that is represented
by the characteristic equation (modal frequencies and damping). If individual measurements are
treated in the solution procedure independent of one another, there is no guarantee that a single set
of modal frequencies and damping are generated. In a like manner, if more than one reference is
measured in the data set, redundant estimates of the modal vectors can be estimated unless the
solution procedure utilizes all references in the estimation process simultaneously. Most modal
parameter estimation algorithms estimate the modal frequencies and damping in a global sense but
few estimate the modal vectors in a global sense.
3.3.6 Modal Participation Factors
A modal participationfactor is a complex-valued scale factor that is the ratio of the modal coefficient
at one reference degree-of-freedom to the modal coefficient at another reference degree-of-freedom.
A more general view of the modal participation factor is that it represents the relationship between
-47-
Downloaded from http://www.everyspec.com
the residue and the cigenvector coefficient as in the following equations:
=- Qr010q9,
A,
S=
AW,
(34)
Q",Ob
(35)
OWLqr
(36)
=
where:
p
q
measured degree-of-freedom (response)
measured degree-of-freedom (reference)
r
A_
-
modal vector number
residue
-
complex modal scaling coefficient for mode r
=
Q,
ipr,
modal coefficient for measured
degree-of-freedom p and mode r
modal coefficient for reference
degree-of-freedom q and mode r
L,
modal participation factor for reference
=
degree-of-freedom q and mode r
From a mathematical standpoint, the modal participation matrix is equal to the left eigenvectors of
the transfer matrix [H] as shown in Eq. (37):
[H]= [11 fA IL[L](37)
where:
[H]
[
=
I] =
[A]
=
transfer function matrix
complex modal vector matrix
diagonal matrix with poles
Note that for Eq. (35) the modal participation factor represents the product of a modal scaling
coefficient and another term from the right eigenvector for reference degree-of-freedom q. This will
always be true for reciprocal systems since the left and right eigenvectors for a given mode are equal.
For non-reciprocal systems, the modal participation factor is the appropriate term from the left
eigenvector. Note also that the modal participation factor, since it is related to the eigenvector, has
no absolute value but is relative to the magnitudes of the other elements in the eigenvector.
Modal participation factors reflect the interaction of the spatial domain with the temporal domain
(time or frequency). Modal participation factors can be computed any time that multiple reference
data are measured and such factors are used in multiple reference modal parameter estimation
algorithms. Modal participation factors relate how well each modal vector is excited from each of the
reference locations. This information is often used in a weighted least squares error solution
procedure to estimate the modal vectors in the presence of multiple references. Theoretically, these
modal participation factors should be in proportion to the modal coefficients of the reference degrees
of freedom for each modal vector. Modal participation factors in a solution procedure enforce the
constraint concerned with Maxwell's reciprocity between the reference degrees of freedom. Most
"-48-
Downloaded from http://www.everyspec.com
multiple reference, modal parameter estimation methods estimate modal participation factors as part
of the first stage estimation of global modal frequencies and damping.
3.3.7 Order of the Model
The order of the model equals the number of unknowns that must be estimated in the model. In the
modal parameter estimation case, this refers to the frequency, damping, and complex modal
coefficient for each mode of vibration at every measurement degree-of-freedom plus any residual
terms that must be estimated. Therefore, the order of the model is directly dependent on the number
of modal frequencies, "N", that are to be estimated. For example, for a system with "N" modes of
vibration, assuming that no residuals were required, "4N" unknowns must be estimated. For cases
involving measured data, the order of the model is extremely important. Estimates of modal
parameters are affected by the order of the model. A problem arises from the inability to be certain
that the correct order of the model has been chosen during the initial estimation phase. If the
number of modes of vibration is more or less than "N", modes of vibration will be found that do not
exist physically or modes of vibration will be missed that actually do occur. In addition, the values of
frequency, damping, and complex modal coefficient for the actual modes of vibration will be affected.
The number of modes of vibration is normally chosen between one and an upper limit, dependent on
the memory limitations of the computational hardware. The true number of system poles is a
function of the frequency range of the measurements used to estimate the modal parameters. By
observing the number of peaks in the frequency response function, the minimum number of system
poles can be estimated. This estimate is normally low, based upon poles occurring at nearly the same
frequency (pseudo-repeated roots), limits on dynamic range, and poorly excited modes. For these
reasons, the estimate of the correct order of the model is often in error. When the order of the model
is other than optimum, the estimate of the modal parameters will be in error.
Many of the parameter estimation techniques that are used assume that only one mode exists in a
limited range of interest and all of the other modes appear as residual terms. For this case Eq. (33)
can be rewritten as:
Hp,
p
)w-.-A,
M(+
w-
(38)
+RFr,
3.3.8 Solution Procedure
Equations (30) through (32) are nonlinear in terms of the unknown modal parameters. This can be
noted from the unknowns in the numerator and denominator of Eq. (31) and the unknowns as the
argument of the transcendental functions of Eq. (30). The nonlinear aspect of the model must be
treated in one of two ways: (1) by the use of an iterative solution procedure to solve the nonlinear
estimation problem, allowing all modal parameters to vary according to a constraint relationship until
an error criterion reaches an acceptably low value, or (2) by separating the nonlinear estimation
problem into two linear estimation problems. For the case of structural dynamics, the common
technique is to estimate "2N" frequencies and damping values in a first stage and then to estimate the
"4N" modal coefficients plus any residuals in a second stage.
In the iterative technique in the solution of the nonlinear estimation approach, a set of starting values
must be chosen to initiate the sequence. The number and value of these starting values affect the final
result. Poor initial estimates can lead to problems of convergence, as a result of which, close operator
supervision usually is required for a successful use of this technique.
An alternative method is to reformulate the nonlinear problem into a number of linear stages so that
-49-
Downloaded from http://www.everyspec.com
each stage is stable. The actual data that are used in the estimate of the modal parameters also affect
the results. Based on the choice of the order of the model, "N", there are "4N" modal parameters to
be estimated. If residuals, in one form or another, are also included, the number of modal
parameters to be estimated will be slightly higher. The common method of solving for these
unknown modal parameters is to find an equation involving known information for every unknown to
be found. In this case, the measured frequency response function or impulse response function
provides the known information and Eq. (30) or Eq. (31) can be repeated for different frequencies or
time values in order to obtain a sufficient number of equations. These equations, for the linear case,
can then be solved simultaneously for the unknown modal parameters. As an illustration of this
relationship, consider a common modal parameter situation in which the number of modes in the
frequency range of interest is between I and 30. Assuming the highest ordered model means that
slightly more than 120 modal parameters must be estimated. From a single frequency response
measurement, 1024 known values of the function will be available (512 complex values at successive
values of frequency). Many more equations, based on the known values of frequency response, can
be formed than are needed to find the unknown modal parameters. An obvious solution is to choose
enough equations to solve for the modal parameters. The problem arises in determining what part of
the known information is to be involved in the solution. As different portions of the known data
(data near a resonance compared to an anti-resonance, for example) are used in the solution, the
estimates of modal parameters vary. As the quality of the data becomes marginal, this variance can
be quite large. When the modal parameters that are estimated appear to be non-physical, this is
often the reason.
To solve this problem, all or a large portion of the data can be used if a pseudo-inverse type of
solution procedure is used. One procedure that is used is to formulate the problem so as to minimize
the squared error between the data and the estimated model. This least-squares error method to the
solution is the most commonly used technique in the area of modal parameter estimation. If there
are many more known pieces of information than unknowns that must be estimated, many more
equations can be formed than are needed to solve for the unknowns. The least-squares error method
to the solution allows for all of these redundant data to be used to estimate the modal parameters in
a computationally efficient manner. The least-squares error method usually can be derived directly
from the linear equations using a normal equations approach. In general, this procedure does not
significantly increase the memory or computational requirements of the computational hardware.
Any solution procedure that can be used is only estimating a "best" solution based upon the choice of
the model, the order of the model, and the known, measured data used in the model.
3.4 Characteristic Polynomial
The impetus of this section is to show that for discrete data, a difference characteristic equation can
be formulated in order to solve for the poles of the system. Further, it will be shown that the
difference equation can be formulated directly from the impulse response function data. By solving
for the polynomial coefficients and the roots of the polynomial equation, the modal parameters,
frequency and damping, are determined. The characteristic polynomial will be formulated for the
continuous case, as a differential function, and then extended to the discrete case, as a difference
function.
3.4.1 Differential Theory
The homogeneous differential equation for a single degree of freedom system is:
m i(t) +c .i(t) + k x (t) = 0
(39)
In order to solve the differential equation assume a solution of the of the form x (t) = X c' ', where X
-50-
Downloaded from http://www.everyspec.com
is a scalar value. Substituting the appropriate derivatives of the assumed solution into Eq.(39):
(m s2 + c s + k ) X e
=0
(40)
Thus, the differential equation is transformed into an algebraic polynomial equation, called the
characteristic equation.
m s 2 +c s + k = 0
(41)
The complex valued roots of the characteristic equation will yield the characteristic solutions, A, and
A 2 . The real part is the damping and the imaginary part is the eigenfrequency, or damped natural
frequency. Thus, the solution to the governing differential equation is:
2
X(t) = E X, ex
(42)
r--.
The scalar magnitudes, X, and X 2 , are determined from the system initial conditions. Note that any
exponential function will satisfy the differential equation. One such function of particular interest, is
the impulse response function.
2
h(t)-=
A, e"'
(43)
r=1
A system with N degrees-of-freedom can be described by a set of N, coupled, second order
differential equations. The characteristic equation for this system is represented by the following
polynomial:
'I + a 2M-2 S2N-2
a2N s•
2N+ a2m1 s
•••÷
+ a, s + a0 = 0
(44)
Solving this polynomial equation will yield 2N complex valued roots, or, characteristic solutions A,.
Then the solutions to the differential equations will be complex exponentials of the form:
x•j(t) = 2N, X, e•'
(45)
r=1
where:
"*p = response location degree-of-freedom
"*q = reference location degree-of-freedom
Thus, impulse response functions,
2N
h,(t) = , A,
e"rt
(46)
will also satisfy the differential equations. Consider a few impulse response functions for various
reference and response points.
hil(t) = EAII, e*"t
(47)
r=1
2N
h12(0)=
rA
12,
e 't
(48)
r-i
-51-
Downloaded from http://www.everyspec.com
h13(1) =
2N
E'A13, ex''
(49)
r-=1
2N
(50)
hQ(t) = F, A,,, eA't
r=:1
The common characteristic in each of the above equations is that every impulse response function is a
linear superposition of identical damped complex exponentials, eArt for r = 1 -. 2N. That is, the roots
of the characteristic polynomial are common to all reference and response locations. Thus, the
characteristic solutions are global system parameters, since they are independent of reference or,
response location. The important result is that since each eArt is a characteristic solution to the
homogeneous linear differential equation,
+a 2 m. 2 D'2N-2(AP, eAr )
+
e
+art)•.1
a2ND2N(AP,e-%rt)
+...
x, +ao =0
+aD(A ert
where,
D"[f (t)] = dm[f (t)] (differential operator)
dtf
that a linear superposition of characteristic solutions will also be a solution. That is, hM(t) will also
satisfy the differential equation. Actually, a set of N second order linear differential equations must
be satisfied, but, a differential equation of order 2N can be found that will have the same roots as the
set of N second order equations.
Substituting a few impulse response functions for various reference and response points, a number of
differential equations are obtained.
a2NDa(hii(t) +a2. 1 DO2N'h110(t)) +aN-2 D
a22.1 DWN h 12 (t)
+
a~v- D 2" 1
a2N D2hNs(t)) + a2N-1 D2'N
(h 1 2(tW)
+
'2N-hi(t)2
+. ..
a ZV-2 D2M2(h 1 2 (0))
h1 3 (t)0 + a 2•.• 2 D
+
+...
'2-2(hi(t)
(t)) + a2 x-. D2N-1 hf(t)) +aa
aD' D2N hMt
2 •. 2 D2N-2 h(t))
+a, D hii(t)) +ao = 0
a, D h 12 (t) +.ao= 0
+a 1
D hh13 (t))+ ao
=
O
+... + a1 D( hl,(t)) + ao = 0
Note that the coefficients a0 to a 2 do not vary with reference or response location and thus, can be
estimated from a combination of various number of reference and response points.
3.4.2 Difference Theory
From an experimental standpoint, the data are sampled, which means instead of continuous
knowledge of the system, the values obtained are for distinct discrete temporal points. The impulse
response functions are generally obtained by inverse Fourier transforming the frequency response
functions. Thus, from the discrete impulse response functions the pole information, frequency and
damping, is determined. The model for the discrete impulse response function is:
2N
h,,(t,)= EA,
r--•
2M
(51)
e""tk = EApz,,.
r--1
where,
-52-
Downloaded from http://www.everyspec.com
"•tý
=kAt
"•A t is the sample interval
"*k = I -. blocksize
It should be noted, for discrete data, that the sample interval, At, limits the frequency for which valid
information can be determined, whereas, in the analysis of continuous data, there are no frequency
constraints. In other words, theoretically, characteristics can be determined to infinite frequency for
continuous functions, but, the process of digitally sampling continuous data causes a maximum
frequency for which characteristics can be determined. The frequencies above this maximum will
alias back into the sampled bandwidth, and thus bias the results. For this reason, low-pass filters are
used to exclude information above the maximum frequency.
Recall the characteristic equation for an N degree-of-freedom system:
a 0 s 0 + a I 1s + a 2 s 2 +... + a2N
ss'
2-i
+ aN gasy
(52)
=o
will have 2N characteristic solutions, A, for r = 1 -- 2N. The characteristic polynomial is not unique
in that, many polynomials can be constructed that will yield the same characteristic solutions, even
though the coefficients will be different. For this reason, another polynomial can be formulated that
will have characteristic solutions that are related to the characteristic solutions of Eq.(52). The
polynomial has the form:
a' zo+a, z' +a; z 2 +... +a' -1z 2N' +a* z2
--
(53)
.
The relationship between z and s is z = e'61. Analogous to Eq.(52), there are also 2N characteristic
solutions of Eq.(53), z, for r = 1 -- 2N. The roots of the two equations are related by z, = e'At
where, z, are precisely the values of z for which the characteristic equation, Eq.(53), is zero. Note that
z, is simply the sampled form of the continuous exponential solution in the differential case. Thus, by
knowing the system characteristics, z2, the desired parameters, A,, can be determined. If the
coefficients are known, Eq.(53) could be solved, but, from an experimental aspect, both the
coefficients and the system characteristics are unknown. Thus, in order to determine the system
characteristics, the a' coefficients must be determined first. This is accomplished by substituting a
characteristic solution of the system, z,, into Eq.(53).
•=0(4
mz"2N-1
•A" 2N~~
a0 AP, z° +a; Amr zi +a; AP, z2
(54)
APa II+ a* A,,q,4=O0
aoAN.j Ar 4
Substituting z, = e)'•,A into the above equation,
aoAm'(eA'A)° +a Ap. (e'%6t)' +aý Ap.(eA'A% )2+...+aa
A"A('(e-rA£')2-=O
(55)
or,
a' AM"e +a1 Am, e %at + aý AP, e,.2, t +...+a' AM" eAr•NAt-
.
(56)
The important result is that since each ek' At is a characteristic solution to the homogeneous linear
difference equation, that a linear superposition of characteristic solutions will also be a solution of
Eq.(56), which means that, in general, Eq.(51) can be substituted into Eq.(56). Once again, a set of N
second order linear difference equations must be satisfied, but, a difference equation of order 2N can
be found that will have the same roots as the set of N second order equations.
Consider a number of equations for various reference and response locations:
-53-
Downloaded from http://www.everyspec.com
ao h ,(to) + a, hQ(tI) + a' h11 (t 2 ) +...
+
ao h 12 (10 ) + a h 12(t) +a7 h1 2 (t 2 )
+ a'
0 h1
...
+ a I h1 3 (t 1 ) + a h1 3 (t 2 ) +.
+
a
a
ao hN(to) + a, hp(tl) + aý h,(t2 ) +... + a'.-
h 1 I (t 2,- 1 ) + a2 h 1I(t2N) = 0
(57)
-, h 12 0(t
2 NV.) +a• h 1 2(t2) = 0
(58)
0
(59)
hls(t2Nl) +
+(tO)
a' h13 (t•)
hN(t,-.) + ad2 hp,(t2N)
=
=
0
(60)
Note that the coefficients ao to ad2 do not vary with reference or response location and thus, can be
estimated from a combination of various number of reference and response points. Once the a'
coefficients are estimated from a set of equations similar to the ones above, the poles, z,, and hence
A,, can be estimated from the 2N solutions of the characteristic equation,
a' z° +a' zi +aýz 2 +... + a' .1 z 2K•' +a'u. z2 = 0
(61)
where:
s z, = e
In summary, a series of 2N linear difference equations with constant coefficients are formed from the
sampled impulse response function data in order to solve for the common constant coefficients.
These coefficients are then used in the characteristic equation to solve for the system characteristics,
z,, which contain the desired parameters, A,.
Note that the characteristic polynomial for the continuous, or discrete case, is of order 2N, that is,
twice the number of modes. This results in a time domain differential, or difference equation of
order 2N. For this reason, from a numerical analysis concept, for large numbers of modes, N, or
large differences in modal frequency (A, compared to AN), time domain methods are numerically
better conditioned.
3.5 Characteristic Space Concepts
A new way of conceptualizing the area of parameter identification was developed during the course
of the work under this contract. One of the objectives of the contract was to summarize existing
modal parameter estimation methods and develop new ones. In the process of performing this task,
it became obvious that most of the current algorithms could be described conceptually in terms of a
three-dimensional complex space of the system's characteristics. Modal parameter estimation is the
process of deconvolving measurements defined by this space into the system's characteristics.
The frequency and/or unit impulse response function matrix which describes a system, can be
expressed in terms of the convolution of three fundamental characteristic functions; two complex
spatial, and one complex temporal. The spatial characteristics are a function of geometry and the
temporal corresponds to either time or frequency. Mathematically the frequency response matrix and
the impulse response matrix can be expressed as follows:
IH(wk)] =F I rAkJ IL]
[h(th)]=
I[eAtk] [L]
where:
"*[H (wk)]No
"*[h (t k)]N
xN, =
frequency response matrix (element HM(wk))
xN, = unit impulse response matrix (element h,(t h))
-54-
(62)
Downloaded from http://www.everyspec.com
I'k IN. 2N = modal vector matrix (function of spatial variable p, element 0,,)
IIL ]2 xN, = modal participation factor (function of spatial variable q, element L.)
1
[*k]rNli2 = diagonal matrix of characteristic
roots (element j
*[
e"t2Jzv
W
=
rt =
1,,
-,
= diagonal matrix of characteristic roots (element eArth)
frequency temporal variable (k = 1 - blocksize/2, may be unequally spaced)
time temporal variable (tk
=k
A t)
* p = response degree-of-freedom spatial variable
* q = reference degree-of-freedom spatial variable
* r = temporal degree-of-freedom variable
"*N
"*N,
"*N,
=
number of modes (system poles, indexed by r)
=
number of responses (indexed byp)
=
number of references (indexed by q)
The frequency response function matrix consists of a three-dimensional complex space, which for a
real system is a continuous function of the three characteristic variables (p,q,w). However, in terms
of measurements the functions consist of sampled data where, p,q and WAkare sampled characteristic
variables. In other words, the frequency response function is measured at discrete input, or reference
points (q), output response points (p), and discrete frequency (W/k), or time points (t k).
A summary of the characteristic vectors are:
"*The response characteristic functions consist of a set of vectors which are proportional to the
eigenvectors of the system. The eigenvectors are indexed by r and the elements of the vectors are
indexed byp.
"*The reference characteristic functions consist of a set of vectors which are proportional to the
modal participation factors, which are in turn proportional to the system eigenvectors at the
reference degrees-of-freedom. The modal participation vectors are indexed by r and the elements
of the vectors are indexed by q.
"•The temporal characteristic functions consist of vectors which are equivalent to sampled single
degree-of-freedom frequency response functions, or unit impulse response functions. The index
on the vector is r and the index on the sampled element of each vector is Wk, or tk.
The variable r is the index on the characteristic. For a given r there is a discrete characteristic space.
The summation, or superposition with respect to r defines; the measured, or sampled frequency
response, or impulse response matrix, or, in other words, the three-dimensional complex space.
This concept is difficult to visualize, since the matrix is represented by three-dimensional complex
characteristic space. The easiest method is to describe the variation along lines parallel to axes of the
space. Lines parallel to the temporal axis correspond to individual frequency response functions, or
unit impulse response functions. These frequency response functions consist of a summation of the
temporal characteristics, weighted by the two spatial characteristics, which define the other two axis
of the characteristic space.
Lines parallel to the response axis correspond to forced modes of vibration. These forced modes
consist of a summation of the system eigenvectors weighted by the input characteristic and the
-55-
Downloaded from http://www.everyspec.com
temporal characteristic.
Likewise, lines parallel to the input, or reference axis consist of a summation of the system
eigenvectors weighted by the response characteristic and the temporal characteristic. The variation
along these lines are referred to in the literature as the m )dal participation factors.
Modal parameter estimation is the process of deconvolving this sampled space into the basic
characteristic functions which describe the space. In practice, there are many more measured, or
sampled points in the space than there are elements in the three characteristic vectors, therefore, the
parameter estimation process is over determined. As a result, one of the important steps in the
process has been the reduction of the data to match the number of unknowns in the parameter
identification process. This data reduction has historically been done by using a pseudo inverse, or a
principal component method, with least squares being the most common pseudo inverse method.
The early single degree-of-freedom (SDOF) and multiple degree-of-freedom (MDOF) modal
parameter estimation methods used subsets of the sampled data and extracted one of the
characteristic functions at a time, normally the temporal characteristic. For example, the very early
methods like the complex exponential were used to fit individual frequency response, or unit impulse
response functions for the temporal characteristics (eigenvalue) and the residues (convolution of the
response and input characteristics). For these cases, each frequency response measurement gave a
different estimation of the system eigenvalues, or temporal characteristics. Since the measurements
were taken one function at a time some of this variation was due to inconsistencies in the data base
and the rest of the variation due to noise and distortion errors.
Later methods started to use either, least square, or principal component methods to condense the
data over a number of sampled frequency response functions, into small subsets parallel to the
temporal axis (for example the Least Square Complex Exponential and/or the Polyreference Time
Domain methods). These methods then give global estimates of the eigenvalues, or temporal
characteristic functions. The Least Squares Complex Exponential parameter estimation algorithm
reduced the information to a single function parallel to the temporal axis and as a result, only
estimated the temporal characteristic in a global sense. The Polyreference Time Domain algorithm
estimates several functions parallel to the temporal axis at the input, or reference points. As a result
this method also gives global estimates of the input characteristic functions, or modal participation
factors.
The more recent methods use larger subsets of the sampled data and utilize simultaneous data from
all three axis resulting in global estimates of all three characteristics. In order to use these global
methods, it is important that a consistent data base be measured.
3.6 Summary - Modal Parameter Estimation
One of the conclusions reached in a previous Air Force Contract (F33615-77-C3059) was that the
area of modal parameter estimation will, in the future, advance rapidly due to technology transfer
from other fields involved in parameter estimation. This certainly has occurred as indicated by the
drastic increase in the number of parameter estimation algorithms which have been described in the
literature in the last five years. This effort has been international in scope, with many of the newer
techniques being variations of each other. Volume III of this Technical Report reviews multiple
reference modal parameter estimation in detail.
These methods range from single reference single degree-of-freedom (SDOF) methods to
sophisticated multi-reference, multi-response, multiple degree-of-freedom (MDOF) methods. The
algorithm of choice depends upon a number of conditions:
-56-
Downloaded from http://www.everyspec.com
"*Modal Application
* Trouble Shooting--For many of the problem solving, or trouble shooting applications, the
simplier SDOF, or single reference MDOF methods are used, since simple test procedures
and a quick look are desirable.
• Model Verification--There has been increased emphasis on finite element verification. These
applications require a higher level test and parameter identification procedures.
. Model Generation, or Correction--There is also increased emphasis on; the generation of
modal models based upon experimental data, and/or the correction of existing models. These
applications require the highest level of test and parameter identification procedures.
"*Equipment Considerations
The parameter identification methods reviewed in this report depend heavily upon the testing
methods (single input, or multiple input) and testing equipment. These new algorithms place a
severe requirement upon the testing methods to obtain consistent data bases, particularly for the
more advanced multi-input multi-output methods.
"*Wideband vs Narrowband
Wideband verses narrowband refers to the frequency bandwidth of the frequency response
measurements. In general, for very broad frequency range measurements, time domain
algorithms work well, while frequency domain algorithms seem to perform well for the narrow, or
zoom bands. Recently, there has been increased emphasis in sine testing. Sine testing, not in the
classical sense, but in terms of multi-input multi-output test and parameter estimation methods.
This emphasis will provide the impetus to refine the frequency domain algorithms to efficiently
use the increased spatial information that multi-input multi- output sine testing yields.
"*Modal Density
The choice of the parameter estimation method depends heavily upon the modal density. For
cases with low modal density, single input SDOF or MDOF methods work well. For the high
modal density cases the multi-input methods, especially ones which use spatial information, are
the methods of choice. It should be noted that the advanced methods require consistent data and
place additional constraints on the testing methods.
A summary of the characteristics of the modal parameter identification methods is shown in Table 7.
All of the methods which were discussed in detail in Volume II of this Technical Report are briefly
summarized in this Table.
It should be again noted that all of the methods covered in this report can be described in terms of a
characteristic space, where a particular parameter identification algorithm uses as input, measured
values in this characteristic space, to deconvolve the systems characteristics. The more advanced
methods use information from all three axes of the characteristic space simultaneously. From the
measurement standpoint, it is increasingly more important that the measured data be consistent.
-57-
Downloaded from http://www.everyspec.com
TABLE 7. Summary of Modal Parameter Estimation Methods
Modal Parameter Estimation Characteristics
Quadrature Amplitude
Kennedy-Pancu Circle Fit
SUOF Polynomial
Non-Linear Frequency Domain
Complex Exponential
Least Squares Complex Exponential (LSCE)
Ibrahim Time Domain (lID)
Multi-relerence Ibrahim Tune Domain (MITID)
Eigensystem Realization Algorithm (ERA)
Orthogonal Polynomial
Mulll-rf•rience O)rthogonal Polynomial
I'olyreteFence lIime Domain
Polyreference Frequency Domain
Time Domain Direct Parameter Identification
Frequency Domain Direct Parameter Identification
Multi-MAC
Multi-MAC / CMIF I Enhanced FRF
Time.
Frequency.
or Spatial
Domain
Frequency
Frequency
Frequency
Frequency
Time
Time
Time
Time
Time
Frequency
Frequency
Time
Frequency
Time
Frequency
Spatial
Spatial
Single or
Multiple
Degrees-ofFreedom
SDOF
SDOF
SDOF
MDOF
MDOF
MDOF
MDOF
MDOF
MDOF
MDOF
MI)OF
MDOF
MDOF
MDOF
MDOF
SDOF
MDOF
-58-
Global Modal
Frequencies
and Damping
Factors
No
No
Yes/No
No
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
Yes
Repeated Modal
Frequencies
and Damping
Factors
No
No
No
No
No
No
No
Yes
Yes
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Global
Modal
Vectors
No
No
No
No
No
No
Yes
Yes/No
Yes
No
Yes
No
Yes
Yes
Yes
Yes
Yes
Global
Modal
Participation
Factors
No
No
No
No
No
No
No
No/Yes
Yes
No
Yes
Yes
Yes
Yes
Yes
No
Yes
Residuals
No
Yes
No
Yes
No
No
No
No
No
Yes
Yes
No
Yes
No
Yea
No
No
Downloaded from http://www.everyspec.com
