Electric Front Load Dryers

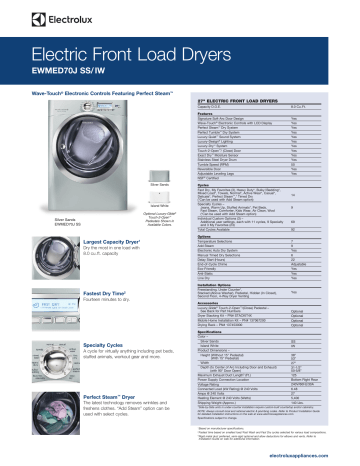

Electric Front Load Dryers EWMED70J SS/ IW Wave-Touch® Electronic Controls Featuring Perfect Steam™ 27" ELECTRIC FRONT LOAD DRYERS Silver Sands Island White Optional Luxury-Glide® Touch-2-Open™ Pedestals Shown in Available Colors. Silver Sands EWMED70J SS Largest Capacity Dryer1 Dry the most in one load with 8.0 cu. ft. capacity Fastest Dry Time 2 Fourteen minutes to dry. Specialty Cycles A cycle for virtually anything including pet beds, stuffed animals, workout gear and more. Perfect Steam™ Dryer The latest technology removes wrinkles and freshens clothes. “Add Steam” option can be used with select cycles. Capacity D.O.E. 8.0 Cu. Ft. Features Signature Soft-Arc Door Design Wave-Touch® Electronic Controls with LCD Display Perfect Steam™ Dry System Perfect Tumble™ Dry System Luxury-Quiet™ Sound System Luxury-Design® Lighting Luxury-Dry™ System Touch-2-Open™/ (Close) Door Exact Dry™ Moisture Sensor Stainless Steel Dryer Drum Tumble Speed (RPM) Reversible Door Adjustable Leveling Legs NSF® Certified Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes 50 Yes Yes Cycles Fast Dry, My Favorites (3), Heavy Duty*, Bulky / Bedding*, Mixed Load*, Towels, Normal*, Active Wear*, Casual*, Delicate*, Perfect Steam™,* Timed Dry (*Can be used with Add Steam option) Specialty Cycles – Jeans, Warm Up, Stuffed Animals*, Pet Beds, Fast Steam, Comforter, Kids Wear, Air Clean, Wool (*Can be used with Add Steam option) Individual Custom Options (3) – Additional user settings, each with 11 cycles, 9 Specialty and 3 My Favorites (23) Total Cycles Available Options Temperature Selections Add Steam Electronic Auto Dry System Manual Timed Dry Selections Delay Start (Hours) End-of-Cycle Chime Eco-Friendly Anti-Static Line Dry 14 9 69 92 7 9 Yes 6 22 Adjustable Yes Yes Yes Installation Options Freestanding, Under Counter*, Stacked (Above Washer), Pedestal, Hidden (In Closet), Second Floor, 4-Way Dryer Venting Accessories Luxury-Glide® Touch-2-Open™/(Close) Pedestal – See Back for Part Numbers Dryer Stacking Kit – PN# STACKIT4X Mobile Home Installation Kit – PN# 137067200 Drying Rack – PN# 137453000 Yes Optional Optional Optional Optional Specifications Color – Silver Sands Island White Product Dimensions – Height (Without 15" Pedestal) (With 15" Pedestal) Width Depth (to Center of Arc Including Door and Exhaust) (with 90° Door Open) Maximum Exhaust Duct Length3 (Ft.) Power Supply Connection Location Voltage Rating Connected Load (kW Rating) @ 240 Volts Amps @ 240 Volts Heating Element @ 240 Volts (Watts) Shipping Weight (Approx.) SS IW 38" 53" 27" 31-1/2" 50-5/8" 125 Bottom Right Rear 240V/60Hz/30A 6.48 27 5,400 140 Lbs. * Side-by-Side units in under-counter installation require custom-built countertop and/or cabinetry. NOTE: Always consult local and national electric & plumbing codes. Refer to Product Installation Guide for detailed installation instructions on the web at www.electroluxappliances.com. Specifications subject to change. 1 2 3 Based on manufacturer specifications. Fastest time based on smallest load / Fast Wash and Fast Dry cycles selected for various load compositions. Rigid metal duct preferred, semi-rigid optional and allow deductions for elbows and vents. Refer to Installation Guide on web for additional information. electroluxappliances.com EWMED70J (Steam) Electric Front Load Dryers EWMED70J SS/ IW Electric Dryer Specifications •Product •Do Weight – 130 Lbs. •Voltage Rating – 240V / 60 Hz / 30 Amps •Single phase 3- or 4-wire cable, 240 Volt, 60 Hertz AC only electrical supply with ground required on separate circuit fused on both sides of line. (Do not use same circuit as washer.) •Connected Load (kW Rating) @ 240 Volts = 6.48 kW •Amps @ 240 Volts = 27 Amps •Dryer MUST employ a 3-conductor NEMA 10-30 type SRDT or 4-conductor NEMA 14-30 type SRDT or ST (as required), rated at 240 volt AC minimum, 30 amp power supply cord marked for use with clothes dryers (not supplied). •Grounding through neutral link prohibited in specific applications and certain locales, requiring use of 4-wire system. (For detailed electrical requirements, refer to Product Installation Guide on web.) •Always consult local and national electric & plumbing codes. •Can be installed alone, with or without optional 15" pedestal drawer, or stacked above matching Electrolux Washer, which requires installation of optional dryer stacking kit. (For installation details, refer to instructions included with optional pedestal or stacking kit or on web.) •Can be built in with matching Electrolux Washer in under-counter, recessed or closet installation. Installations requiring countertop and / or cabinetry will require custom building. (Refer to Built-In Installations on this page for cutout dimensions. For additional installation details, refer to Product Installation Guide on web.) •Closet installation requires vented door with 2 unobstructed louvered openings, minimum 60 sq. in. each, located 3" from top and bottom of door. Full-length 120 sq. in. opening also acceptable. Allow 1" clearance between door and fronts of units. Electrolux Major Appliances, N.A. NOT install in area exposed to dripping water or outdoor weather conditions, or where gasoline or other flammables, including automobiles, are kept or stored. •Floor MUST be solid with 1" maximum slope. To ensure vibration or movement does not occur, reinforcement of floor may be necessary. Do NOT install on carpeted surface. •Dryer MUST exhaust to outside of building, NOT into any concealed space. •Dryer equipped for 4-way venting and approved for up to 125-footequivalent of duct length, determined by length of run and number of elbows needed. •Exhaust installation requires minimum 4"-diameter rigid or semi-rigid metal duct with approved, unobstructed vent hood having swing-out damper(s). If installing rigid metal duct (preferred), do not exceed MAXIMUM venting run length of 125 ft., allow deductions for elbows and vents. If installing semi-rigid metal duct, do not exceed MAXIMUM venting run length of 8 ft., always allow deductions for elbows and vents (Refer to Product Installation Guide on web for additional information). Do NOT use flexible plastic or metal foil duct and use shortest run possible. •Leveling legs supplied to level dryer properly and reduce excessive noise and vibration. •Water inlet hose for steam setting connects to cold water supply with “Y” connector and requires 3/4" clearance between back of unit and wall. Note: For planning purposes only. Refer to Product Installation Guide on the web at electroluxappliances.com for detailed instructions. Optional Accessories •Pedestal Drawers – Silver Sands (PN# EPWD15SS), Island White (PN# EPWD15IW). •Dryer Stacking Kit – (PN# STACKIT4X). •Mobile Home Installation Kit – (PN# 137067200). •Drying Rack – (PN# 137453000). USA • 10200 David Taylor Drive • Charlotte, NC 28262• 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca EWMED70J 03/16 © 2016 Electrolux Home Products, Inc. High standards of quality at Electrolux Home Products, Inc. mean we are constantly working to improve our products. We reserve the right to change specifications or discontinue models without notice.
