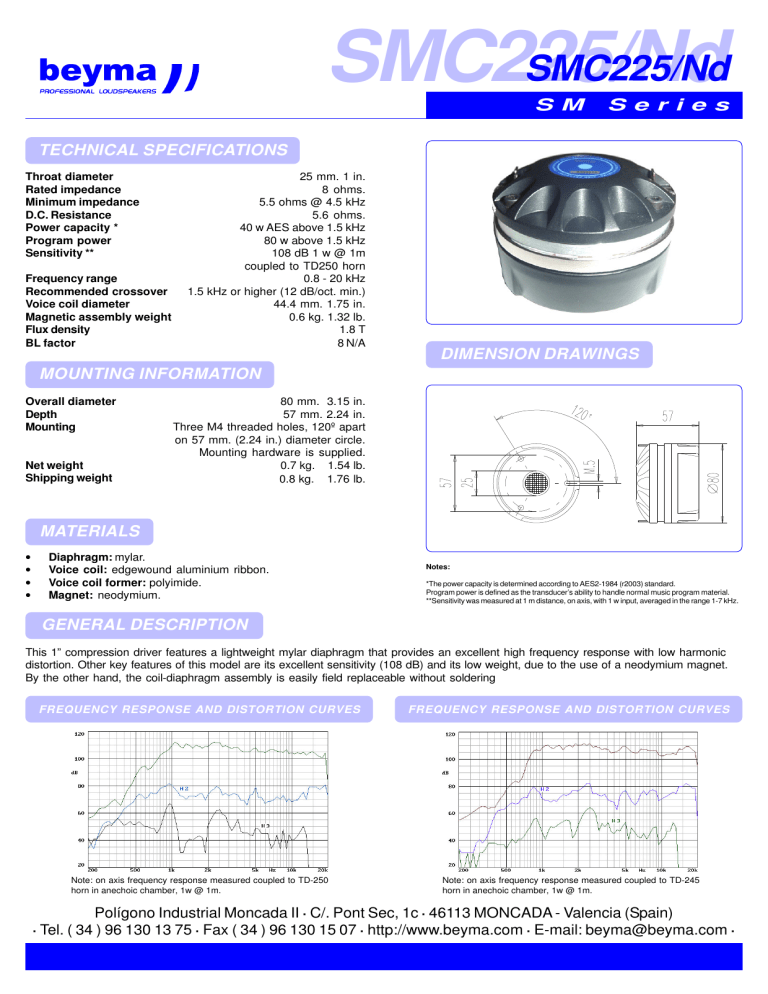

SMC225/Nd - CAD AUDIO DK
SMC225/Nd
SMC225/Nd
S M
S e r i e s
TECHNICAL SPECIFICATIONS
Throat diameter
Rated impedance
Minimum impedance
D.C. Resistance
Power capacity *
Program power
Sensitivity **
Frequency range
Recommended crossover
Voice coil diameter
Magnetic assembly weight
Flux density
BL factor
25 mm. 1 in.
8 ohms.
5.5 ohms @ 4.5 kHz
5.6 ohms.
40 w AES above 1.5 kHz
80 w above 1.5 kHz
108 dB 1 w @ 1m
coupled to TD250 horn
0.8 - 20 kHz
1.5 kHz or higher (12 dB/oct. min.)
44.4 mm. 1.75 in.
0.6 kg. 1.32 lb.
1.8 T
8 N/A
DIMENSION DRAWINGS
MOUNTING INFORMATION
Overall diameter
Depth
Mounting
Net weight
Shipping weight
80 mm. 3.15 in.
57 mm. 2.24 in.
Three M4 threaded holes, 120º apart
on 57 mm. (2.24 in.) diameter circle.
Mounting hardware is supplied.
0.7 kg. 1.54 lb.
0.8 kg. 1.76 lb.
MATERIALS
•
•
•
•
Diaphragm: mylar.
Voice coil: edgewound aluminium ribbon.
Voice coil former: polyimide.
Magnet: neodymium.
Notes:
*The power capacity is determined according to AES2-1984 (r2003) standard.
Program power is defined as the transducer’s ability to handle normal music program material.
**Sensitivity was measured at 1 m distance, on axis, with 1 w input, averaged in the range 1-7 kHz.
GENERAL DESCRIPTION
This 1” compression driver features a lightweight mylar diaphragm that provides an excellent high frequency response with low harmonic
distortion. Other key features of this model are its excellent sensitivity (108 dB) and its low weight, due to the use of a neodymium magnet.
By the other hand, the coil-diaphragm assembly is easily field replaceable without soldering
FREQUENCY RESPONSE AND DISTORTION CURVES
FREQUENCY RESPONSE AND DISTORTION CURVES
Note: on axis frequency response measured coupled to TD-250
horn in anechoic chamber, 1w @ 1m.
Note: on axis frequency response measured coupled to TD-245
horn in anechoic chamber, 1w @ 1m.
Polígono Industrial Moncada II · C/. Pont Sec, 1c · 46113 MONCADA - Valencia (Spain)
· Tel. ( 34 ) 96 130 13 75 · Fax ( 34 ) 96 130 15 07 · http://www.beyma.com · E-mail: [email protected] ·
