ISL91127IRN-EVZ, ISL91127IRA-EVZ User Guide
User Guide 080
ISL91127IRN-EVZ, ISL91127IRA-EVZ Evaluation Board
User Guide
Description
Key Board Features
The ISL91127IR is a high-current buck-boost switching regulator
for systems using new battery chemistries. It uses Intersil’s
proprietary buck-boost algorithm to maintain voltage regulation,
while providing excellent efficiency and very low output voltage
ripple when the input voltage is close to the output voltage. The
ISL91127IRN-EVZ and ISL91127IRA-EVZ platforms allow quick
evaluation of the high performance features of the ISL91127IR
buck-boost regulator series.
• Small, compact design
• Jumper selectable EN (enabled/disabled)
• Jumper selectable MODE (auto-PFM/forced-PWM)
• Connectors, test points and jumpers for easy probing
References
• ISL91127IR datasheet
Specifications
Ordering Information
The boards are designed to operate at the following operating
conditions:
PART NUMBER
DESCRIPTION
• Input voltage rating from 1.8V to 5.5V
ISL91127IRN-EVZ
Evaluation Board for ISL91127IRNZ
• Resistor programmable output voltage on the
ISL91127IRA-EVZ
ISL91127IRA-EVZ
Evaluation Board for ISL91127IRAZ
• Fixed 3.3V output voltage on the ISL91127IRN-EVZ
• Up to 2A output current (PVIN = 2.5V, VOUT = 3.3V)
• 2.5MHz switching frequency
• Operating temperature range: -40°C to +85°C
ISL91127IRAZ
VIN
PVIN
GND
LX1
VIN
LX2
VOUT
VOUT
MODE
FB
GND
EN
SGND PGND

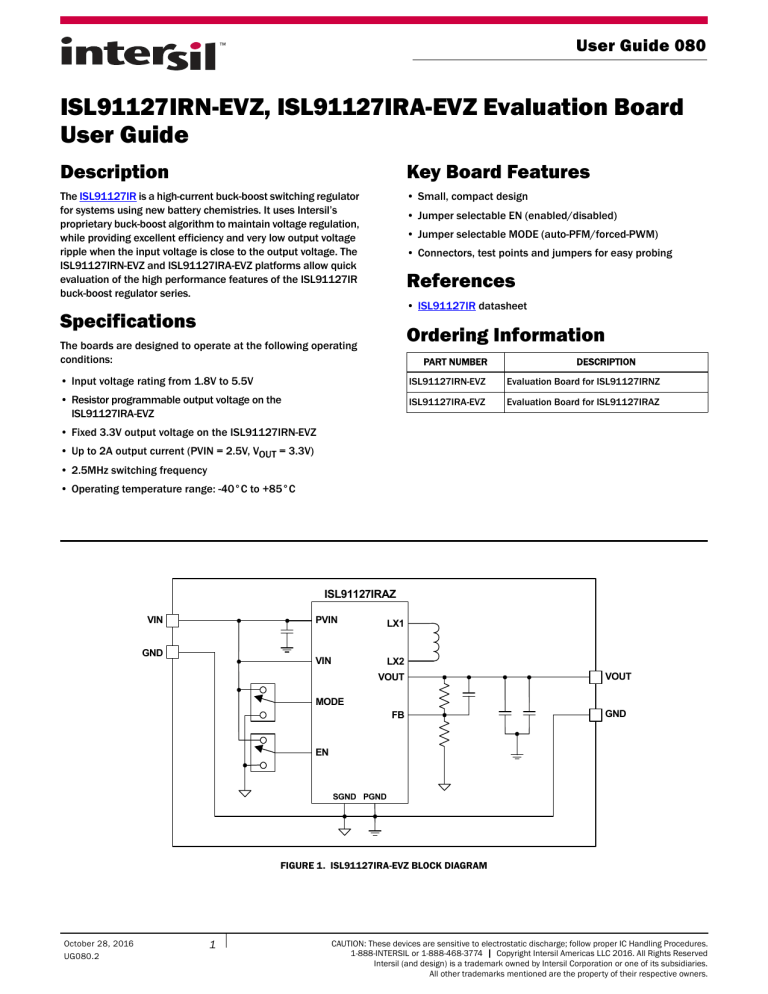

FIGURE 1. ISL91127IRA-EVZ BLOCK DIAGRAM
October 28, 2016
UG080.2
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 1-888-468-3774 | Copyright Intersil Americas LLC 2016. All Rights Reserved
Intersil (and design) is a trademark owned by Intersil Corporation or one of its subsidiaries.
All other trademarks mentioned are the property of their respective owners.
User Guide 080
Functional Description
The ISL91127IRN-EVZ and ISL91127IRA-EVZ provide simple
platforms to demonstrate the features of the ISL91127IR
buck-boost regulator. The ISL91127IRN-EVZ is for the fixed 3.3V
output IC ISL91127IRNZ. The ISL91127IRA-EVZ is for the
adjustable output IC ISL91127IRAZ. The evaluation boards have
been functionally optimized for best performance of the
ISL91127IR IC series. The input power and load connections are
provided through multi-pin connectors for high current operation.
10. To determine efficiency, measure input and output voltages
at J1 and J2 headers. The bench power supply can be
connected to the PVIN and GND headers on J2. The electronic
load can be connected to the VOUT and GND headers on J1.
Measure the input and output currents. Calculate efficiency
based on these measurements.
TABLE 1. OUTPUT VOLTAGE PROGRAMMING FOR ISL91127IRA-EVZ
DESIRED OUTPUT VOLTAGE
(V)
R2 RESISTOR VALUE
(kΩ)
The ISL91127IRA-EVZ and ISL91127IRN-EVZ evaluation boards
are shown in Figures 4 and 5. The board’s enable function is
controlled by the on-board jumper header J3. Similarly, the Mode
function is controlled by the on-board jumper header J4.
2.0
124
2.5
88.7
3.0
68.1
The schematic of the ISL91127IRA-EVZ evaluation board is
shown in Figure 6 and the schematic of the ISL91127IRN-EVZ is
shown in Figure 7. The PCB layout images for all layers are shown
in Figures 8 and 9. The bill of materials of ISL91127IRA-EVZ is
shown in Table 2 and the bill of materials of ISL91127IRN-EVZ is
shown in Table 3.
3.3
60.4
3.4
57.6
4.0
46.4
4.5
40.2
5.0
35.7
5.1
34.8
Operating Range
The VIN range of the boards is 1.8V to 5.5V. The VOUT range for
the ISL91127IRA-EVZ is 2V to 5V. The IOUT range of the boards is
0A to 2A. The operating ambient temperature range is -40°C to
+85°C.
Quick Start Guide
For the ISL91127IRA-EVZ board, the default output voltage is set
at 3.3V. If other output voltages are desired, resistor R2 can be
set to a desired voltage as shown in Table 1 (use a resistor with
1% accuracy).
Refer to the following Quick Setup Guide to configure and
power-up the board for proper operation. During the power-on
process, the expected waveforms are shown in Figures 2 and 3.
LX1
2V/DIV
LX2
2V/DIV
VOUT
2V/DIV
EN
2V/DIV
IOUT = 200mA
400µs/DIV
FIGURE 2. ISL91127IR START-UP WITH VIN = 2V AND VOUT = 3.3V
Quick Setup Guide
1. Install jumper on J3, shorting EN to VIN.
2. Install jumper on J4, shorting MODE to VIN.
3. Connect power supply to J2, with voltage setting between
1.8V and 5.5V.
LX1
2V/DIV
4. Connect electronic load to J1.
5. Place scope probes on the VOUT test point and other test
points of interest.
LX2
2V/DIV
6. Turn on the power supply.
VOUT
2V/DIV
7. Monitor the output voltage start-up sequence on the scope. The
waveforms will look similar to that shown in Figures 2 and 3.
8. Turn on the electronic load.
9. Measure the output voltage with the voltmeter. The voltage
should regulate within datasheet specification limits.
EN
2V/DIV
IOUT = 200mA
400µs/DIV
FIGURE 3. ISL91127IR START-UP WITH VIN = 4V AND VOUT = 3.3V
Submit Document Feedback
2
UG080.2
October 28, 2016
User Guide 080
Evaluation Board Images
FIGURE 4. ISL91127IRA-EVZ TOP VIEW
FIGURE 5. ISL91127IRN-EVZ TOP VIEW
Submit Document Feedback
3
UG080.2
October 28, 2016
User Guide 080
TABLE 2. ISL91127IRA-EVZ EVALUATION BOARD BILL OF MATERIALS
ITEM#
QTY
DESIGNATORS
PART TYPE
FOOTPRINT
DESCRIPTION
VENDORS
1
1
U1
ISL91127IRAZ
4mmx4mm QFN
Intersil ISL91127IR Buck-Boost
Regulator with Adjustable Output
Voltage
INTERSIL
2
1
L1
1µH
3.2mmx2.5mmx1.2mm
Power Inductor Toko DFE322512C
series, 4.6A (typ), 34mΩ (typ)
TOKO
3
1
C1
150µF
7343
Capacitor, Tantalum
ANY
4
2
C2, C3
10µF/16V/X5R
0603
Capacitor, Generic
ANY
5
2
C4, C5
22µF/10V/X5R
0603
Capacitor, Generic
ANY
6
1
C6
22pF
0402
Capacitor, 56pF 50V 5% NP0 0402
ANY
7
1
C7
DNP
0402
8
1
R1
187kΩ, 1%
0402
Resistor, Generic
ANY
9
1
R2
60.4kΩ, 1%
0402
Resistor, Generic
ANY
10
2
R3, R4
1MΩ, 5%
0603
Resistor, Generic
ANY
11
2
J1, J2
HDR-6
HDR-6
Vert. Pin Header, 6-Pin, 0.1” Spacing,
Generic
ANY
12
2
J3, J4
HDR-3
HDR-3
Vert. Pin Header, 3-Pin, 0.1” Spacing,
Generic
ANY
13
6
TP1 to TP6
Power Post
Connectors
ANY
ANY
TABLE 3. ISL91127IRN-EVZ EVALUATION BOARD BILL OF MATERIALS
ITEM#
QTY
DESIGNATORS
PART TYPE
FOOTPRINT
1
1
U1
ISL91127IRNZ
4mmx4mm QFN
2
1
L1
1µH
3
1
C1
150µF
7343
Capacitor, Tantalum
ANY
4
2
C2, C3
10µF/16V/X5R
0603
Capacitor, Generic
ANY
5
2
C4, C5
22µF/10V/X5R
0603
Capacitor, Generic
ANY
6
1
C6
DNP
0402
ANY
7
1
C7
DNP
0402
ANY
8
1
R1
0Ω
0402
9
1
R2
DNP
0402
10
2
R3, R4
1MΩ, 5%
0603
Resistor, Generic
ANY
11
2
J1, J2
HDR-6
HDR-6
Vert. Pin Header, 6-Pin, 0.1” Spacing,
Generic
ANY
12
2
J3, J4
HDR-3
HDR-3
Vert. Pin Header, 3-Pin, 0.1” Spacing,
Generic
ANY
13
6
TP1 to TP6
Power Post
Connectors
ANY
Submit Document Feedback
4
DESCRIPTION
Intersil ISL91127IR Buck-Boost
Regulator with Fixed Output Voltage
3.2mmx2.5mmx1.2mm Power Inductor Toko DFE322512C
series, 4.6A (typ), 34mΩ (typ)
Resistor, Generic
VENDORS
INTERSIL
TOKO
ANY
ANY
UG080.2
October 28, 2016
User Guide 080
ISL91127IRA-EVZ, ISL91127IRN-EVZ Schematics
73
/;
73
/;
/
/;
/;
8+
8
,6/,5$
73
9,1
/;D
/;E
/;D
/;E
73
9287
-
-
39,1
&
X)
&
&
X)
X)
3*1'
02'(
9287D
9287E
9287F
9287G
5
.
02'(
&
&
&
8)
8)
'13
&
S)
9,1
(1
)%
1&
9287
3*1'
5
.
(1
39,1D
39,1E
39,1F
39,1G
3*1'
6*1'D
6*1'E
JQG
73
*1'
-
73
*1'
-
39,1
02'(
5
.
39,1
(1
5
.
FIGURE 6. ISL91127IRA-EVZ EVALUATION BOARD SCHEMATIC
73
/;
73
/;
/
/;
/;
8+
8
,6/,51
73
9,1
/;D
/;E
/;D
/;E
73
9287
-
-
39,1
&
X)
&
&
X)
X)
3*1'
02'(
9287D
9287E
9287F
9287G
9287
5
&
&
8)
8)
'13
&
'13
9,1
(1
02'(
&
)%
1&
3*1'
5
'13
(1
39,1D
39,1E
39,1F
39,1G
3*1'
6*1'D
6*1'E
JQG
73
*1'
-
73
*1'
-
39,1
02'(
5
.
39,1
(1
5
.
FIGURE 7. ISL91127IRN-EVZ EVALUATION BOARD SCHEMATIC
Submit Document Feedback
5
UG080.2
October 28, 2016
User Guide 080
PCB Layout
FIGURE 8. TOP LAYER
FIGURE 9. BOTTOM LAYER
