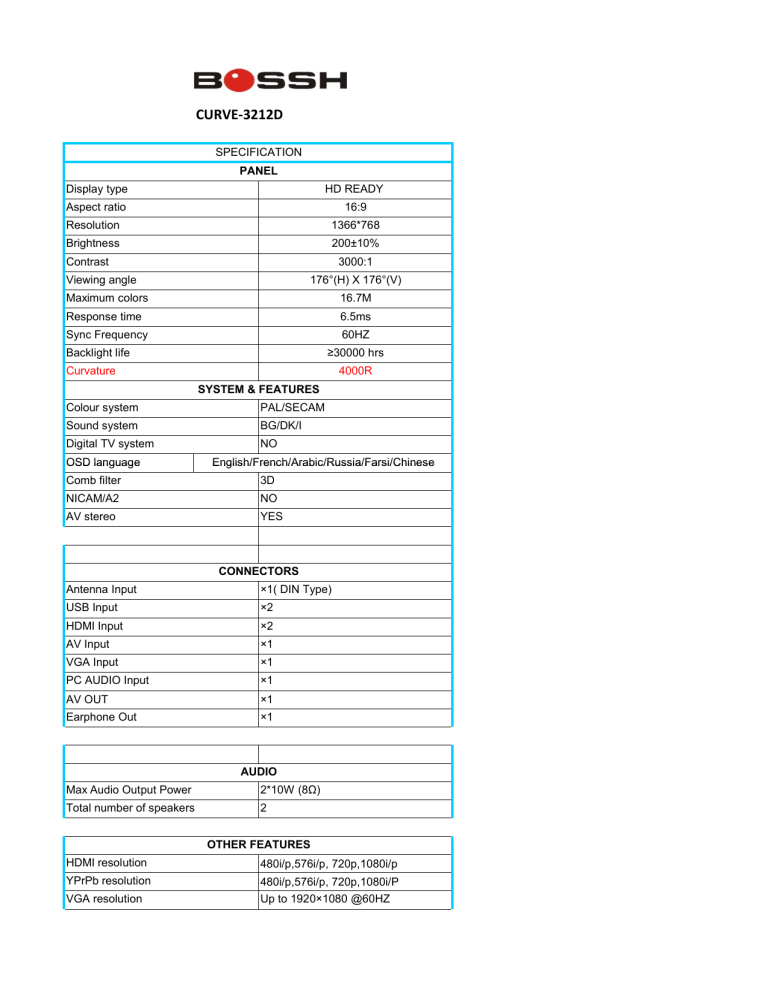

CURVE-3212D
SPECIFICATION
PANEL
Display type
HD READY
Aspect ratio
16:9
Resolution
1366*768
Brightness
200±10%
Contrast
3000:1
Viewing angle
176°(H) X 176°(V)
Maximum colors
16.7M
Response time
6.5ms
Sync Frequency
60HZ
Backlight life
≥30000 hrs
Curvature
4000R
SYSTEM & FEATURES
Colour system
PAL/SECAM
Sound system
BG/DK/I
Digital TV system
OSD language
NO
English/French/Arabic/Russia/Farsi/Chinese
Comb filter
3D
NICAM/A2
NO
AV stereo
YES
CONNECTORS
Antenna Input
×1( DIN Type)
USB Input
×2
HDMI Input
×2
AV Input
×1
VGA Input
×1
PC AUDIO Input
×1
AV OUT
×1
Earphone Out
×1
AUDIO
Max Audio Output Power
2*10W (8Ω)
Total number of speakers
2
OTHER FEATURES
HDMI resolution
480i/p,576i/p, 720p,1080i/p
YPrPb resolution
480i/p,576i/p, 720p,1080i/P
VGA resolution
Up to 1920×1080 @60HZ
Stand base
plastic
Wall mount
YES
MAIN board
3 in 1 board
LAD.MV56U.A48
POWER REQUIREMENTS
Power Source
90-260VAC 50/60HZ
Power ON consumption
≤60W
Standby consumption
≤0.5W
Power Plug
VDE
USB 2.0 SLOT
USB Type
2
Video Support
MPEG1/2/4,H.264
Audio Support
MP3/AC-3(optional,add more $)
Photo Support
JPG
Other Support
TXT
Hard Disk Support
1TB
ACCESSORIES IN THE BOX
Remote control
1
User Manual
1
