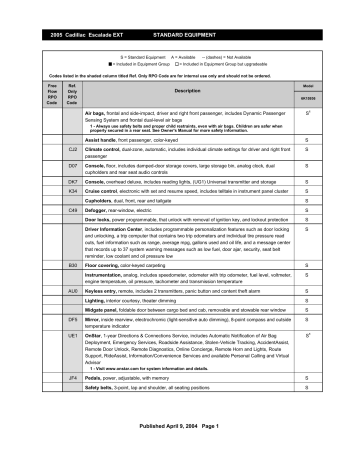

2005 Cadillac Escalade EXT STANDARD

2005 Cadillac Escalade EXT STANDARD
2005 Cadillac Escalade EXT
STANDARD EQUIPMENT
S = Standard Equipment
A = Available
= Included in Equipment Group
-- (dashes) = Not Available
= Included in Equipment Group but upgradeable
Codes listed in the shaded column titled Ref. Only RPO Code are for internal use only and should not be ordered.
Free
Flow
RPO
Code
Ref.
Only
RPO
Code
Model
Description
6K15936
Air bags, frontal and side-impact, driver and right front passenger, includes Dynamic Passenger
Sensing System and frontal dual-level air bags
S1
1 - Always use safety belts and proper child restraints, even with air bags. Children are safer when
properly secured in a rear seat. See Owner's Manual for more safety information.
Assist handle, front passenger, color-keyed
S
CJ2
Climate control, dual-zone, automatic, includes individual climate settings for driver and right front
passenger
S
D07
Console, floor, includes damped-door storage covers, large storage bin, analog clock, dual
cupholders and rear seat audio controls
S
DK7
Console, overhead deluxe, includes reading lights, (UG1) Universal transmitter and storage
S
K34
Cruise control, electronic with set and resume speed, includes telltale in instrument panel cluster
S
Cupholders, dual, front, rear and tailgate
S
Defogger, rear-window, electric
S
Door locks, power programmable, that unlock with removal of ignition key, and lockout protection
S
Driver Information Center, includes programmable personalization features such as door locking
and unlocking, a trip computer that contains two trip odometers and individual tire pressure read
outs, fuel information such as range, average mpg, gallons used and oil life, and a message center
that records up to 37 system warning messages such as low fuel, door ajar, security, seat belt
reminder, low coolant and oil pressure low
S
Floor covering, color-keyed carpeting
S
Instrumentation, analog, includes speedometer, odometer with trip odometer, fuel level, voltmeter,
engine temperature, oil pressure, tachometer and transmission temperature
S
Keyless entry, remote, includes 2 transmitters, panic button and content theft alarm
S
Lighting, interior courtesy, theater dimming
S
Midgate panel, foldable door between cargo bed and cab, removable and stowable rear window
S
DF5
Mirror, inside rearview, electrochromic (light-sensitive auto dimming), 8-point compass and outside
temperature indicator
S
UE1
OnStar, 1-year Directions & Connections Service, includes Automatic Notification of Air Bag
Deployment, Emergency Services, Roadside Assistance, Stolen-Vehicle Tracking, AccidentAssist,
Remote Door Unlock, Remote Diagnostics, Online Concierge, Remote Horn and Lights, Route
Support, RideAssist, Information/Convenience Services and available Personal Calling and Virtual
Advisor
S1
C49
B30
AU0
1 - Visit www.onstar.com for system information and details.
JF4
Pedals, power, adjustable, with memory
S
Safety belts, 3-point, lap and shoulder, all seating positions
S
Published April 9, 2004 Page 1
2005 Cadillac Escalade EXT
Free
Flow
RPO
Code
STANDARD EQUIPMENT
Ref.
Only
RPO
Code
AN3
Model
Description
6K15936
Seats, front leather seating surfaces, power reclining full-feature buckets, articulating head
restraints, driver and front passenger 14-position power adjusters, fold-down inboard armrests,
independent heated seat cushion and seatback for driver and passenger (3 settings), power lumbar
and side bolsters and 2-position memory driver seat
S
Seats, rear 60/40 split-bench, folding, leather seating surfaces, 3-passenger with folding center
armrest with storage
S
U1S
Sound system, 6-disc CD changer, in-dash
S
UB1
Sound system, ETR AM/FM stereo with CD and cassette player, includes AudioPilot noise
compensation technology, seek-and-scan, digital clock, and Radio Data System (RDS)
S
UQ7
Sound system feature, Bose luxury speaker system, enhanced performance amplification, Audio
Pilot noise reduction feature, 7 speakers including sub woofer
S
UK6
Sound system feature, rear audio controls, includes dual headphone jacks (headphones not
included), power outlet and controls for volume, station selection and media
S
U2K
Sound system feature, XM Satellite Radio. 100% commercial-free music. Over 120 channels.
In-depth local traffic and weather in major metro markets. Digital quality sound with coast to coast
signal coverage. 3-month trial - no charge and no obligation.
S1
1 - Subscription fees apply. Available only in the 48 contiguous U.S.
Sound system feature, steering wheel mounted radio controls and rear mounted rear seat audio
controls
S
Steering wheel, color-keyed, wood and leather-wrapped rim
S
Theft-deterrent system, PASSlock
S
Tire pressure monitor
S
Tow/haul mode selector, button located at end of shift lever
S
UG1
Universal Transmitter, Homelink, includes garage door opener, 3-channel programmable
S
A31
Windows, power, includes driver express-down and lockout features
S
Assist handle, cargo bed ingress
S
Assist steps, color-keyed, with chrome accents, mounted between front and rear wheels at bottom
of rocker panel
S
VT4
Bumper, front, body-color
S
VT5
Bumper, rear, body-color step, includes pad
S
EN4
Cargo cover, rear, rigid, 3-piece composite, stowable onboard
S
Cladding, doors only, body-color protective
S
Daytime running lamps, includes automatic exterior lamp control
S
Door handles, chrome
S
Fog lamps, front, rectangular, halogen, incorporated into the front fascia
S
Glass, Solar-Ray light tinted, except rear passenger doors which are deep tinted
S
Headlamps, High-Intensity Discharge, includes flash-to-pass feature and Twilight Sentinel
automatic lamp control
S
Luggage rack, roof-mounted, chrome accent
S
N30
UJ6
T96
V54
Published April 9, 2004 Page 2
2005 Cadillac Escalade EXT
Free
Flow
RPO
Code
STANDARD EQUIPMENT
Ref.
Only
RPO
Code
Model
Description
6K15936
DL3
Mirrors, outside rearview, power folding, power, heated, color-keyed, driver side electrochromic
(light-sensitive auto dimming), turn signal in glass, with ground illumination, programmable to
provide curb view when in reverse
S
UD7
Rear Park Assist, Ultrasonic (URPA), includes instrument panel-mounted shutoff switch, rearview
LED light bar and audible chime warning
S
Recovery hooks, 2 front, frame-mounted, recessed in front fascia
S
Tire, spare, full-size, 16" (40.6 cm)
S
SAF
Tire carrier, outside spare, lockable
S
QAN
Tires, P265/70R17, all-season, blackwall
S
Utility Enhancement System (UES), includes Midgate panel, removable/stowable rear window,
removable/stowable 3-piece rigid cargo cover, integrated top box storage, lockable, lit storage areas
and black rubber cargo bed mat
S
Wheels, 4 - 17" x 7" (43.2 cm x 17.8 cm) 7-spoke aluminum, includes 16" (40.6 cm) spare
S
Wipers, intermittent, front wet-arm with pulse washers
S
Alternator, 145 amps
S
Battery, heavy-duty, 600 cold-cranking amps, includes rundown protection and retained accessory
power
S
JH2
Brakes, 4-wheel antilock, 4-wheel disc, Hydroboost
S
KNP
Cooling, external transmission oil cooler, auxiliary, heavy-duty air-to-oil
S
LQ9
Engine, Vortec high-output 6000 V8 SFI (345 HP [257.0 kW] @ 5200 rpm, 380 lb.-ft. [513.0 N-m] @
4000 rpm)
S
C5W
GVWR, 7000 lbs. (3175 kg)
S
GT4
Rear axle, 3.73 ratio
S
JL4
StabiliTrak, vehicle stability enhancement system, includes disable switch
S
Steering, power
S
Suspension Package, Road-Sensing, electrically controlled shock absorbers
S
Suspension, front, SLA, independent torsion bar and stabilizer bar
S
Suspension, rear, 5-link coil springs
S
Traction control system, electronic, all-speed
S
Z82
Trailering equipment, heavy-duty, includes trailering hitch platform, 7-wire harness with
independent fused trailering circuits, 7-way sealed connector, (K47) Air cleaner, high capacity and
(KNP) Cooling, external transmission oil cooler, auxiliary, heavy-duty air-to-oil
S
NR3
Transfer case, AWD, electronic automatic system, full-time, "always-on" all-wheel drive
S
M32
Transmission, 4-speed automatic, heavy-duty, electronically controlled with overdrive and tow/haul
mode
S
N93
KG3
Published April 9, 2004 Page 3
2005 Cadillac Escalade EXT
EQUIPMENT GROUPS
S = Standard Equipment
A = Available
= Included in Equipment Group
-- (dashes) = Not Available
= Included in Equipment Group but upgradeable
No deletions allowed to Equipment Groups. Additional options may be added; check ordering information section for compatibility.
Codes listed in the shaded column titled Ref. Only RPO Code are for internal use only and should not be ordered.
Free
Flow
RPO
Code
Ref.
Only
RPO
Code
Model
Description
6K15936
Standard Equipment
ADDITIONAL OPTIONS
Free
Flow
RPO
Code
U42
Ref.
Only
RPO
Code
Model
Description
6K15936
Entertainment system, rear seat, includes DVD player with remote control, overhead display, 2
sets of wireless infrared headphones, auxiliary audio/video jacks, remote game plug-in and mute
button in overhead console
A1
1 - Available with (CF5) Sunroof, power.
UM8
Sound system, ETR AM/FM stereo with CD player and DVD integrated Navigation, includes
full-feature autonomous navigation, touch screen, 1 DVD disc, Points of interest, seek-and-scan,
auto-tone control and Radio Data System (RDS)
A1
1 - Not available in Alaska, Puerto Rico or Virgin Islands.
CF5
Sunroof, power, tilt-sliding, electric with express-open and wind deflector
A1
1 - Available with (U42) Entertainment system, rear seat.
N94
Wheels, 4 - 17" x 7" (43.2 cm x 17.8 cm) 7-spoke chrome aluminum, includes 16" (40.6 cm) spare
A
FE9
Emissions, Federal requirements
A
NB8
Emissions override, California, Massachusetts, New York or Vermont (for vehicles ordered by
dealers in states of California, Massachusetts, New York or Vermont with Federal emissions)
A1
1 - Requires (FE9) Emissions, Federal requirements.
NC7
Emissions override, Federal (for vehicles ordered by dealers in Federal emission states with
California, New York, Vermont, Massachusetts or Maine emissions; may also be used by dealers in
states of California, New York, Vermont, Massachusetts or Maine to order different state-specific
emissions)
A1
1 - Requires (YF5) Emissions, California state requirements or (NE1) Emissions, New York, Vermont,
Massachusetts or Maine state requirements.
NE1
Emissions, Maine, Massachusetts, New York or Vermont state requirements
A
YF5
Emissions, California state requirements
A
ZR3
Livery Package, NOTE: requires one of the following Fleet order types: FDR, FLS, FNR, FRC or
FRV
A
Published April 9, 2004 Page 1
