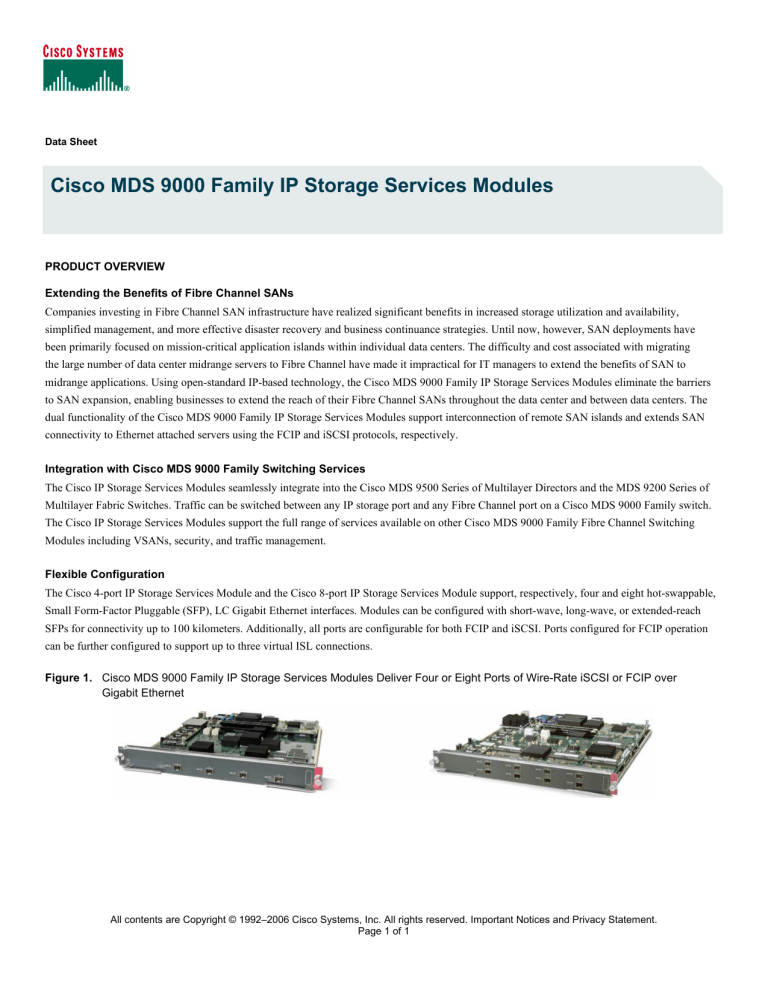

Cisco MDS 9000 IP Storage Services Modules

Data Sheet

Cisco MDS 9000 Family IP Storage Services Modules

PRODUCT OVERVIEW

Extending the Benefits of Fibre Channel SANs

Companies investing in Fibre Channel SAN infrastructure have realized significant benefits in increased storage utilization and availability, simplified management, and more effective disaster recovery and business continuance strategies. Until now, however, SAN deployments have been primarily focused on mission-critical application islands within individual data centers. The difficulty and cost associated with migrating the large number of data center midrange servers to Fibre Channel have made it impractical for IT managers to extend the benefits of SAN to midrange applications. Using open-standard IP-based technology, the Cisco MDS 9000 Family IP Storage Services Modules eliminate the barriers to SAN expansion, enabling businesses to extend the reach of their Fibre Channel SANs throughout the data center and between data centers. The dual functionality of the Cisco MDS 9000 Family IP Storage Services Modules support interconnection of remote SAN islands and extends SAN connectivity to Ethernet attached servers using the FCIP and iSCSI protocols, respectively.

Integration with Cisco MDS 9000 Family Switching Services

The Cisco IP Storage Services Modules seamlessly integrate into the Cisco MDS 9500 Series of Multilayer Directors and the MDS 9200 Series of

Multilayer Fabric Switches. Traffic can be switched between any IP storage port and any Fibre Channel port on a Cisco MDS 9000 Family switch.

The Cisco IP Storage Services Modules support the full range of services available on other Cisco MDS 9000 Family Fibre Channel Switching

Modules including VSANs, security, and traffic management.

Flexible Configuration

The Cisco 4-port IP Storage Services Module and the Cisco 8-port IP Storage Services Module support, respectively, four and eight hot-swappable,

Small Form-Factor Pluggable (SFP), LC Gigabit Ethernet interfaces. Modules can be configured with short-wave, long-wave, or extended-reach

SFPs for connectivity up to 100 kilometers. Additionally, all ports are configurable for both FCIP and iSCSI. Ports configured for FCIP operation can be further configured to support up to three virtual ISL connections.

Figure 1. Cisco MDS 9000 Family IP Storage Services Modules Deliver Four or Eight Ports of Wire-Rate iSCSI or FCIP over

Gigabit Ethernet

Page 1 of 1

KEY FEATURES AND BENEFITS

Cisco

MDS 9000 Family IP Storage Services Modules offer the following features:

•

Flexible IP Storage Services—4-port and 8-port configurations deliver both Fibre Channel over IP (FCIP) and Small Computer System Interface over IP (iSCSI) storage services.

•

Simplified business continuance and storage consolidation—Use widely known IP to cost-effectively connect to more servers and more locations over greater distances than previously possible.

•

Simplified management—Provide unified management environment independent of whether servers use Fibre Channel or IP to connect to the storage network.

•

Comprehensive security—Combine ubiquitous IP security infrastructure with Cisco Virtual SANs (VSANs), hardware-based zoning, and hardware-based access control lists (ACLs) to provide robust security.

•

FCIP for remote SAN extension:

– Simplifies data protection and business continuance strategies by enabling backup, remote replication, and other disaster recovery services over WAN distances using open-standard FCIP tunneling.

– Optimizes utilization of WAN resources for backup and replication by tunneling up to three virtual Inter Switch Links (ISLs) on a single

Gigabit Ethernet port, and enabling compression, FCIP Write Acceleration and FCIP Tape Acceleration.

– Reduces SAN complexity by eliminating the need to deploy and manage a separate remote connectivity platform.

– Preserves Cisco MDS 9000 Family enhanced capabilities including VSANs, advanced traffic management, and security across remote connections.

•

iSCSI for extension of SAN to Ethernet attached servers:

– Extends the benefits of Fibre Channel SAN-based storage to Ethernet attached servers at a lower cost than possible using Fibre Channel interconnect alone.

– Increases storage utilization and availability through consolidation of IP and Fibre Channel block storage.

– Transparent operation preserves the functionality of existing management storage applications.

FCIP for Remote SAN Extension

Data distribution, data protection, and business continuance services are significant components of today’s information-centric businesses.

The ability to efficiently replicate critical data on a global scale not only ensures a higher level of data protection for valuable corporate information, but also increases utilization of backup resources and lowers total cost of storage ownership. The Cisco MDS 9000 Family IP Storage Services

Modules use the open-standard FCIP protocol to break the distance barrier of current Fibre Channel solutions and enable interconnection of SAN islands over extended distances.

Advanced SAN Extension Features

The Cisco MDS 9000 Family IP Storage Services Modules support FCIP compression to maximize the effective WAN bandwidth of SAN Extension solutions. The Cisco IP Storage Services Modules achieve up to a 30:1 compression ratio, with typical ratios of 2:1 over a wide variety of data sources. The Cisco IP Storage Services Modules are able to provide optimal levels of compressed throughput for implementations across low to intermediate-bandwidth links.

The Cisco IP Storage Services Modules also support FCIP Write Acceleration a feature that can significantly improve application performance when storage traffic is extended across distance. When FCIP Write Acceleration is enabled, WAN throughput is optimized by reducing the latency of command acknowledgements. Similarly, the Cisco IP Storage Services Modules support FCIP Tape Acceleration, which significantly improves throughput over WAN links for remote tape backup operations.

Together, FCIP Compression, FCIP Write Acceleration, and FCIP Tape Acceleration enable optimal performance of business continuance services.

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com.

Page 2 of 10

VSANs and IVR Enhance SAN Security and Stability

VSANs allow more efficient storage network utilization by creating hardware-based isolated environments within a single physical SAN fabric or switch. Each VSAN can be zoned as a typical SAN and maintains its own fabric services for added scalability and resilience. VSANs allow the cost of SAN infrastructure to be shared among more users, while ensuring absolute segregation of traffic and retaining independent control of configuration on a VSAN-by-VSAN basis. With their integrated FCIP capability, the Cisco MDS 9000 Family IP Storage Services Modules enable the extension of VSANs over IP infrastructure.

iSCSI for Cost-Effective Extension of SAN Storage to Ethernet Attached Servers

Many IT managers have been hesitant to extend SAN access beyond their mission-critical applications to midrange data center applications because of the complexity and cost involved in upgrading large numbers of midrange servers to Fibre Channel. The Cisco MDS 9000 Family IP Storage

Services Modules address these limitations by enabling IT organizations to extend their storage networks using cost-effective Ethernet infrastructure.

All the benefits of SAN, including increased storage utilization, centralized backups, easier addition of incremental storage capacity, management simplification, and reduced overall total cost of ownership (TCO), can be extended to a new range of servers and applications. Because the Cisco IP

Storage Services Modules are an integral component of the Cisco MDS 9000 Family, Ethernet attached servers will enjoy the same SAN scalability, availability, manageability, and intelligent services as those servers connected using Fibre Channel, while maintaining the cost and ease-of-use benefits of Ethernet and IP.

Transparent and Proxy Initiator Operation

Services Modules address these limitations by enabling IT organizations to extend their storage networks using cost-effective Ethernet infrastructure.

Integrated Mainframe Support

The Cisco MDS 9000 Family IP Storage Services Modules are mainframe-ready with full support for IBM zSeries FICON and Linux environments.

Qualified by IBM for attachment to all FICON-enabled devices in an IBM zSeries operating environment, the modules support transport of the FICON protocol in both cascaded and non-cascaded fabrics, as well as an intermix of FICON and open systems Fibre Channel Protocol traffic on the same switch. Virtual SANs simplify intermix of SAN resources between z/OS, mainframe Linux, and open systems environments, allowing for increased SAN utilization and simplified SAN management. VSAN-based intermix mode eliminates the uncertainty and instability often associated with zoning-based intermix techniques. VSANs also eliminate the possibility of a misconfiguration or a component failure in one VSAN affecting operation in other VSANs. VSAN-based management access control simplifies partitioning of SAN management responsibilities between mainframe and open systems environments, enhancing security. FICON VSANs can be managed using the integrated Cisco Fabric Manager, Cisco CLI, or IBM

CUP-enabled management tools including SA/390 Resource Measurement Facility (RMF), or Dynamic Channel Path Management (DCM).

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com.

Page 3 of 10

PRODUCT SPECIFICATIONS

Table 1 lists the product specifications for the Cisco MDS 9000 Family IP Storage Services Modules.

Table 1.

Product Specifications

Feature

Product Compatibility

Software Compatibility

Protocols

Cards/Ports/Slots

Features and Functions

IP Storage Services

Description

• Cisco MDS 9000 Family

• 8-port IP Storage Services Module: Cisco MDS SAN-OS Release 1.1(1) or later

•

4-port IP Storage Services Module: Cisco MDS SAN-OS Release 1.3(4) or later

•

IP Standards

–

RFC 791 IPv4

– RFC 793, 1323 TCP

– RFC 894 IP/Ethernet

–

RFC 1041 IP/802

– RFC 792, 950, 1256 ICMP

–

RFC 1323 TCP performance enhancements

– RFC 2338 VRRP

– RFC 2460, 4291 IPv6

–

RFC 2463 ICMPv6

– RFC 2461, 2462 IPv6 neighbor discovery and stateless auto-configuration

–

RFC 2464 IPv6/Ethernet

– RFC 3270 iSCSI

– RFC 3643, 3821 FCIPd

• Ethernet Standards

– IEEE 802.3z Gigabit Ethernet

–

IEEE 802.1Q VLAN

• Four or eight fixed 1-Gbps Ethernet ports

Advanced Functionality

• FCIP

• iSCSI

•

Internet Storage Name Server (iSNS)

• iSCSI Network Boot Protocol (iNBP)

•

VSAN

•

Inter-VSAN Routing

• EtherChannel

with Multipath Load Balancing

•

FCIP compression

• FCIP Write Acceleration

•

FCIP Tape Acceleration

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com.

Page 4 of 10

Feature

Diagnostics and

Troubleshooting Tools

Network Security

FICON

Serviceability

Description

• Power-on-self-test (POST) diagnostics

•

Online diagnostics

•

Internal port loopbacks

• SPAN and Remote SPAN

•

Cisco Fabric Analyzer

• Syslog

•

Online system health

•

Port-level statistics

• Real Time Protocol Debug

•

VSANs

•

Access Control Lists

• Per-VSAN role-based access control

• iSCSI zoning

–

iSCSI name

– IP address

•

Management access

–

SSH v2 implementing AES

– SNMPv3 implementing AES

–

SFTP

• FC-SB-3 Compliant

•

Cascaded FICON fabrics

•

Intermix of FICON and Fibre Channel FCP traffic

• CUP management interface

•

Configuration file management

•

Call Home

• Power-management LEDs

•

Port beaconing

• System LED

•

SNMP traps for alerts

•

Network boot

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com.

Page 5 of 10

Feature

Performance

Description

• Port speed: 1-Gbps Ethernet

•

IP storage services ports per chassis: 4 to 48 ports per chassis

•

IP storage services ports per rack: Up to 144 ports per 42U rack

• FCIP tunnels: up to 3 per ports

•

EtherChannel: Up to 2 1-Gbps ports

• Supported Optics, Media, and Transmission Distances

Optics Media

1-Gbps-SX, LC SFP

1-Gbps-LX/LH, LC SFP

50/125 micron multimode

62.5/125 micron multimode

9/125 or 10/125 micron single-mode

Distance

550 m

275 m

10 km

Reliability and Availability

Network Management

1-Gbps-CWDM, LC SFP

•

Hot-swappable module

• Hot-swappable SFP optics

•

Online diagnostics

9/125 micron single-mode

• Stateful Process Restart

•

Non-disruptive Supervisor Failover

Up to 100 km

•

Fabric-based multipathing

• Per-VSAN fabric services

•

Virtual Routing Redundancy Protocol (VRRP) for management and FCIP or iSCSI connections

•

Access methods through Cisco MDS 9500 Series Supervisor module

–

Out-of-band 10/100 Ethernet port

– RS-232 serial console port

– In-band IP-over-Fibre Channel

–

DB-9 COM port

•

Access protocols

–

CLI-via console and Ethernet ports

– SNMPv3-via Ethernet port and in-band IP-over-Fibre Channel access

– Storage Networking Industry Association (SNIA) Storage Management Initiative Specification (SMI-S)

• Distributed Device Alias service

•

Network Security

–

Per-VSAN role-based access control using RADIUS and TACACS+ based authentication, authorization, and accounting (AAA) functions

– SFTP

–

SSH v2 implementing AES

– SNMPv3 implementing AES

• Management applications

– Cisco MDS 9000 Family CLI

– Cisco Fabric Manager

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com.

Page 6 of 10

Feature

Programming Interfaces

Environmental

Physical Dimensions

Approvals and Compliance

Description

–

Cisco Device Manager

– CiscoWorks 2000 Resource Manager Essentials

•

Scriptable CLI

• Fabric Manager GUI

•

Device Manager GUI

•

Temperature, ambient operating: –32° to 104°F (0° t o 40°C)

•

Temperature, ambient non-operating and storage: –40°F to 167°F (–40°C to 75°C)

• Relative humidity, ambient (non-condensing) operating: 10 to 90 percent

•

Relative humidity, ambient (non-condensing) non-operating and storage: 10 to 95 percent

• Altitude, operating: –197 to 6500 feet (–60 to 2000 meter)

• Dimensions (H x W x D): 1.75 x 14.4 x 16 inches (3.0 x 35.6 x 40.6 centimeter)

– Occupies one slot in a Cisco MDS 9200 Series or MDS 9500 Series chassis

• Weight

– IP Storage Services Module only: 10 pound (4.5 kilogram)

•

Safety Compliance

– CE Marking

–

CAN/CSA-C22.2 No. 60950

– IEC 60950

–

AS/NZS 3260

– EN60825

– UL 60950

–

EN 60950

– TS 001

–

IEC60825

– 21 CFR 1040

•

EMC Compliance

–

FCC Part 15 (CFR 47) Class A

– EN 55022 Class A

–

AS/NZS 3548 Class A

– EN 55024

– EN 61000-6-1

–

EN 61000-3-3

– ICES-003 Class A

–

CISPR 22 Class A

– VCCI Class A

– EN 50082-1

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com.

Page 7 of 10

ORDERING INFORMATION

Table 2 provides ordering information for the Cisco MDS 9000 Family IP Storage Services Modules.

Table 2.

Ordering Information

Part Number

DS-X9304-SMIP

DS-X9308-SMIP

DS-SFP-FCGE-SW

Product Description

Cisco MDS 9000 Family 4-port IP Storage Services Module

Cisco MDS 9000 Family 8-port IP Storage Services Module

Cisco MDS 9000 Family 1-Gbps Ethernet, 1/2-Gbps Fibre Channel-SW, SFP, LC

DS-SFP-FCGE-LW Cisco MDS 9000 Family 1-Gbps Ethernet, 1/2-Gbps Fibre Channel-LW, SFP, LC

Advanced Software Packages

M9200EXT14K9 Cisco MDS 9200 SAN Extension over IP Package for the Cisco MDS 9000 Family 4-port IP Storage Services Module

M9200EXT1K9

M9200ENT1K9

M9200FMS1K9

M9200FIC1K9

M9500EXT14K9

M9500EXT1K9

M9500ENT1K9

M9500FMS1K9

M9500FIC1K9

Spare Components

DS-X9304-SMIP=

Cisco MDS 9200 SAN Extension over IP Package for the Cisco MDS 9000 Family 8-port IP Storage Services Module

Cisco MDS 9200 Enterprise Package

Cisco MDS 9200 Mainframe Package

Cisco MDS 9500 Enterprise Package

Cisco MDS 9500 Mainframe Package

Cisco MDS 9200 Fabric Manager Server Package

Cisco MDS 9500 SAN Extension over IP Package for the Cisco MDS 9000 Family 4-port IP Storage Services Module

Cisco MDS 9500 SAN Extension over IP Package for the Cisco MDS 9000 Family 8-port IP Storage Services Module

Cisco MDS 9500 Fabric Manager Server Package

Cisco MDS 9000 Family 4-port IP Storage Services Module, Spare

DS-X9308-SMIP=

DS-SFP-FCGE-SW=

DS-SFP-FCGE-LW=

CWDM-SFP-1470=

CWDM-SFP-1490=

CWDM-SFP-1510=

CWDM-SFP-1530=

CWDM-SFP-1550=

Cisco MDS 9000 Family 8-port IP Storage Services Module, Spare

Cisco MDS 9000 Family 1-Gbps Ethernet, 1/2-Gbps Fibre Channel—Shortwave, SFP, LC, Spare

Cisco MDS 9000 Family 1-Gbps Ethernet, 1/2-Gbps Fibre Channel—Longwave, SFP, LC, Spare

Cisco 1470 NM CWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, Spare

Cisco 1490 NM CWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, Spare

Cisco 1510 NM CWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, Spare

Cisco 1530 NM CWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, Spare

Cisco 1550 NM CWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, Spare

CWDM-SFP-1570=

CWDM-SFP-1590=

CWDM-SFP-1610=

M9200EXT14K9=

M9200EXT1K9=

M9200ENT1K9=

M9200FMS1K9=

M9200FIC1K9=

Cisco 1570 NM CWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, Spare

Cisco 1590 NM CWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, Spare

Cisco 1610 NM CWDM Gigabit Ethernet and 1/2-Gbps Fibre Channel SFP, Spare

Cisco MDS 9200 SAN Extension over IP Package for MDS 9000 Family 4-port IP Storage Services Module, Spare

Cisco MDS 9200 SAN Extension over IP Package for MDS 9000 Family 8-port IP Storage Services Module, Spare

Cisco MDS 9200 Enterprise Package, Spare

Cisco MDS 9200 Fabric Manager Server Package, Spare

Cisco MDS 9200 Mainframe Package, Spare

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com.

Page 8 of 10

Part Number

M9500EXT14K9=

M9500EXT1K9=

M9500ENT1K9=

M9500FMS1K9=

M9500FIC1K9=

Product Description

Cisco MDS 9500 SAN Extension over IP Package for MDS 9000 Family 4-port IP Storage Services Module, Spare

Cisco MDS 9500 SAN Extension over IP Package for MDS 9000 Family 8-port IP Storage Services Module, Spare

Cisco MDS 9500 Enterprise Package, Spare

Cisco MDS 9500 Fabric Manager Server Package, Spare

Cisco MDS 9500 Mainframe Package, Spare

Corporate Headquarters

Cisco Systems, Inc.

European Headquarters

Cisco Systems International BV

Americas Headquarters

Cisco Systems, Inc.

Asia Pacific Headquarters

Cisco Systems, Inc.

170 West Tasman Drive

San Jose, CA 95134-1706

USA www.cisco.com

Tel: 408 526-4000

800 553-NETS (6387)

Fax: 408 526-4100

Haarlerbergpark

Haarlerbergweg 13-19

1101 CH Amsterdam

The Netherlands www-europe.cisco.com

Tel: 31 0 20 357 1000

Fax: 31 0 20 357 1100

170 West Tasman Drive

San Jose, CA 95134-1706

USA www.cisco.com

Tel: 408 526-7660

Fax: 408 527-0883

168 Robinson Road

#28-01 Capital Tower

Singapore 068912 www.cisco.com

Tel: +65 6317 7777

Fax: +65 6317 7799

Cisco Systems has more than 200 offices in the following countries and regions. Addresses, phone numbers, and fax numbers are listed on

the Cisco Website at www.cisco.com/go/offices .

Argentina • Australia • Austria • Belgium • Brazil • Bulgaria • Canada • Chile • China PRC • Colombia • Costa Rica • Croatia • Cyprus

Czech Republic • Denmark • Dubai, UAE • Finland • France • Germany • Greece • Hong Kong SAR • Hungary • India • Indonesia • Ireland • Israel

Italy • Japan • Korea • Luxembourg • Malaysia • Mexico • The Netherlands • New Zealand • Norway • Peru • Philippines • Poland • Portugal

Puerto Rico • Romania • Russia • Saudi Arabia • Scotland • Singapore • Slovakia • Slovenia • South Africa • Spain • Sweden • Switzerland • Taiwan

Thailand • Turkey • Ukraine • United Kingdom • United States • Venezuela • Vietnam • Zimbabwe

Changing the Way We Work, Live, Play, and Learn, and iQuick Study are service marks of Cisco Systems, Inc.; and Access Registrar, Aironet, BPX, Catalyst, CCDA, CCDP, CCIE,

CCIP, CCNA, CCNP, Cisco, the Cisco Certified Internetwork Expert logo, Cisco IOS, Cisco Press, Cisco Systems, Cisco Systems Capital, the Cisco Systems logo, Cisco Unity,

Enterprise/Solver, EtherChannel, EtherFast, EtherSwitch, Fast Step, FormShare, GigaDrive, GigaStack, HomeLink, Internet Quotient, IOS, IP/TV, iQ Expertise, the iQ logo, iQ Net

Readiness Scorecard, LightStream, Linksys, MeetingPlace, MGX, the Networkers logo, Networking Academy, Network Registrar, Packet, PIX, Post-Routing, Pre-Routing, ProConnect,

RateMUX, ScriptShare, SlideCast, SMARTnet, The Fastest Way to Increase Your Internet Quotient, and TransPath are registered trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.

Printed in the USA

Page 9 of 10

C78-32164-00 03/06

Important notices, privacy statements, and trademarks of Cisco Systems, Inc. can be found on cisco.com.

Page 10 of 10

Thank you for your participation!

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project

Cisco MDS 9000 Family Release Notes for Cisco MDS NX

Cisco DS-X9530-SF1-K9 - Supervisor-1 Module - Control Processor Troubleshooting guide

Cisco DS-X9224-96K9= - Switching Module - Switch Installation guide

Cisco DS-X9530-SF1-K9 - Supervisor-1 Module - Control Processor Installation guide

Cisco MDS 9000 Family Release Notes for Cisco MDS NX
