HP ProLiant DL370 Generation 6 (G6) HP ProLiant ML370

HP ProLiant DL370 Generation 6 (G6) HP ProLiant ML370
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Overview

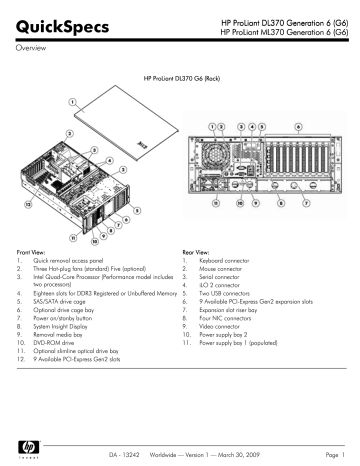

HP ProLiant DL370 G6 (Rack)
Front View:
1.
Quick removal access panel
2.
Three Hot-plug fans (standard) Five (optional)
3.
Intel Quad-Core Processor (Performance model includes
two processors)
4.
Eighteen slots for DDR3 Registered or Unbuffered Memory
5.
SAS/SATA drive cage
6.
Optional drive cage bay
7.
Power on/stanby button
8.
System Insight Display
9.
Removal media bay
10. DVD-ROM drive
11. Optional slimline optical drive bay
12. 9 Available PCI-Express Gen2 slots
DA - 13242
Rear View:
1.
Keyboard connector
2.
Mouse connector
3.
Serial connector
4.
iLO 2 connector
5.
Two USB connectors
6.
9 Available PCI-Express Gen2 expansion slots
7.
Expansion slot riser bay
8.
Four NIC connectors
9.
Video connector
10. Power supply bay 2
11. Power supply bay 1 (populated)
Worldwide — Version 1 — March 30, 2009
Page 1
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Overview
HP ProLiant ML370 G6 (Tower)
Front View:
1.
Quick removal access panel
2.
Three Hot-plug fans (standard) Five (optional)
3.
Intel Quad-Core Processor (Performance model includes
two processors)
4.
Eighteen slots for DDR3 Registered or Unbuffered Memory
5.
SAS/SATA drive cage
6.
Optional drive cage bay
7.
Power on/stanby button
8.
System Insight Display
9.
Removal media bay
10. DVD-ROM drive
11. Optional slimline optical drive bay
12. 9 Available PCI-Express Gen2 slots
Rear View:
1.
PCI-X expansion slot riser bay
2.
Four NIC connectors
3.
Serial connector
4.
Power supply bay 2
5.
Power supply bay 1 (populated)
6.
Keyboard connector
7.
Mouse connector
8.
Video connector
9.
Two USB connectors
10. iLO 2 connector
11. 9 Available PCI-Express Gen2 expansion slots
At A Glance
The next generation of the HP ProLiant ML370 (expandable tower chassis) and the new HP ProLiant DL370 (4U rack optimized
chassis) deliver Industry-leading management tools, leading performance, expandability, flexibility and the latest energy efficient
technologies. These servers are well-suited for deployment in growing businesses, remote office sites, or datacenters and have been
designed to bring you (our customer) the utmost confidence to run your business.
Features included in both the HP ProLiant ML370 G6 and the HP ProLiant DL370 G6:
Processors:
Up to two Intel® Xeon® 5500 Series processors
Intel® 5520 chipset
Memory:
18 DIMM slots
Up to 144GB, using PC3-8500R DDR3 Registered (RDIMM) memory, operating at 800MHz when fully populated at 3
DIMMs per Channel in 18 slots.
Up to 24GB, using PC3-10600E DDR3 Unbuffered (UDIMM) memory, operating at 1066MHz when fully populated at
2 DIMMs per Channel in 12 slots.
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 2
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Overview
Storage Controller:
Entry Models: HP Smart Array P410i/256 MB Controller (RAID 0/1/1+0/5/5+0)
NOTE: Entry Models available for ML370 G6 models only.
Base Models: HP Smart Array P410i/256 MB Controller (RAID 0/1/1+0/5/5+0)
Performance Models: HP Smart Array P410i/512 MB BBWC Controller (RAID 0/1/1+0/5/5+0
Available upgrades: 256MB, 512MB with BBWC, Battery kit upgrade (for BBWC), and Smart Array Advanced Pack
(SAAP)
Internal Drive Support:
Up to 24 small form factor (SFF) or 14 large form factor (LFF) hot-plug drive bays to support Serial-attached SCSI (SAS)
and Serial ATA (SATA) drives
Standard half-height DVD-ROM (all models)
Two open half-height media bays available for tape drives, optical media, optional SAS HDD cage
Network Controller:
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
Expansion Slots:
Nine PCIe2 slots available (see "Standard Features -Expansion Slots" section below for more details)
Graphic Cards:
Cards
Supports up to 3 x 300W Graphic Cards via Graphic Card Power Adapter kit
NOTE: 2 PCIe Gen2 x16 (mechanical/electrical); 1 PCIe Gen2 x16 (mechanical) x8 (electrical)
Integrated Hypervisors (Optional):
VMware 3i virtualization technology
Citrix XenServer virtualization technology
Ports:
USB 2.0 support
5 total ports: (2) ports up front; (2) ports in back; (1) port internal
1 internal Secure Digital (SD) slot
Redundancy:
Multiple layers of fault tolerance through critical component redundancy (power supply and fan redundancy), mirrored
memory, embedded RAID capability, and full-featured remote Lights-Out management
Power Sources:
Dual Common Slot Bay for Right Sized, Hot plug and Redundant Power options
HP 1200W CS HE Silver Power Supply (optional)
HP 750W CS HE Gold Power Supply (standard on some models)
HP 460W CS HE Gold Power Supply (standard on some models)
Management:
HP Insight Control suite server management software
HP ProLiant Onboard Administrator (powered by the HP Integrated Lights-Out 2 management processor) for simplified
server setup, health monitoring and recovery, power and thermal control, and lights-out remote administration.
Integrated Lights-Out 2 Advanced unlocks the full capabilities of the ProLiant Onboard Administrator with high
performance Integrated Remote Console, multi-user console sharing, video record and replay, and virtual media,
including virtual folders for rapid server updates.
Convenient slide-out Systems Insight Display for quick and easy front view server diagnostics
ProLiant Essential Foundation Pack standard, including HP Systems Insight Manager, SmartStart, SmartStart Scripting
Toolkit, Subscriber's Choice and ROM Based Setup Utility (RBSU)
Automatic Server Recovery (ASR), ROM Based Setup Utility (RBSU), HP System Insight Manager, Status LEDs including
system health, UID, and SmartStart
Form Factor:
4U Tower Chassis and 4U Rack Optimized Chassis
Redesigned 4U Tower Chassis and the new 4U Rack Optimized Chassis to better meet our customer's density
requirements
Operating Systems:
Supports Windows, RHEL, SLES, OEL, Solaris, VMware, and HP Citrix Essentials for XenServer
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 3
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Overview
Deployment/Serviceability:
Quick Deploy Rail System includes sliding universal rails, an ambidextrous cable management arm and quick release
levers for fast and easy serviceability
Tool-less access to all system components for easy in rack serviceability
Customer Self Repair (CSR): HP products are designed with many CSR parts to minimize repair time and allow for
greater flexibility in performing defective parts replacement
Warranty:
This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP
Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of
purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to
warranty services are available through HP Care Pack services or customized service agreements. SATA hard drives
have a one-year warranty. SAS Enterprise drives have a three-year warranty.
NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response.
Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two
categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when
customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but
may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional
information regarding worldwide limited warranty and technical support is available at:
http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 4
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory
Integrated Models" section.
Processor
Quad-Core Processors
One of the following
Intel® Xeon® Processor X5570 (2.93 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3)
depending on Model
Intel® Xeon® Processor X5560 (2.80 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3)
Intel® Xeon® Processor X5550 (2.66 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT, Turbo 2/2/3/3)
Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor E5530 (2.40 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT, Turbo 1/1/2/2)
Intel® Xeon® Processor E5506 (2.13 GHz, 4MB L3 Cache, 80W, DDR3-800)
Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800)
Intel® Xeon® Processor L5520 (2.26 GHz, 8MB L3 Cache, 60W, DDR3-1066, HT, Turbo 1/1/2/2)
Dual-Core Processors
Intel® Xeon® Processor E5502 (1.86 GHz, 4MB L3 Cache, 80W, DDR3-800)
NOTE: Up to 2 processors supported. Performance configurations include two processors. Mixing
different processor models is not supported.
NOTE: HT indicates that the processor model supports Intel® Hyper-Threading Technology.
NOTE: Turbo indicates the maximum potential frequency increment when using Intel® Turbo Boost
Technology, with 4, 3, 2, and 1 cores active.
NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory speed may
depend on the quantity and type of DIMMs installed.
NOTE: For the Intel 5500 Series, the letter preceding the model number indicates the
performance/wattage of the processor. "X" denotes High Performance/Wattage; "E" denotes Enterprise
Performance/Wattage (Mainstream); and "L" denotes Lower Wattage.
Cache Memory
One of the following
depending on Model
8MB (1 x 8MB) Level 3 cache
NOTE: All processor models except for those identified below.
4MB (1 x 4MB) Level 3 cache
NOTE: For processors E5506/E5504/E5502.
Chipset
Intel® 5520 chipset
NOTE: For more information regarding Intel chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/.
Upgradeability
Upgradeable to 2 processors
Memory Protection
Advanced ECC
Mirroring mode
Lock-step mode
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 5
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
Memory
Type
DDR3 Registered (RDIMM) or Unbuffered (UDIMM)
Standard (Performance
12 GB (6 x 2 GB) RDIMM
Models)
Standard (Base Models)
6 GB (3 x 2 GB) RDIMM
Standard (Entry Model)
4 GB (2 x 2 GB) UDIMM
Maximum (RDIMM)
144 GB (18 x 8 GB) for Registered Memory configurations
Maximum (UDIMM)
24 GB (12 x 2 GB) for Unbuffered Memory configurations
NOTE: Depending on the memory configuration and processor model, the memory speed may run at
1333MHz, 1066MHz, or 800MHz. Please see the Online Memory Configuration Tool at:
www.hp.com/go/ddr3memory-configurator.
DDR3 memory options part number decoder
Network Controller
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
Expansion Slots
Expansion Slots
#
1
Technology
Width
PCIe2
x4
Connector
Width*
Width
x8
2
PCIe2
x4
x8
3
PCIe2
x16
x16
4
PCIe2
x4
x8
5
PCIe2
x4
x8
6
PCIe2
x8
x16
7
PCIe2
x4
x8
DA - 13242
Worldwide — Version 1 — March 30, 2009
Form Factor
Notes
Full length, full
height slot
Full length, full
height slot
Full length, full
height slot
Full length, full
height slot
Full length, full
height slot
Full length, full
height slot
Full length, full
height slot
Page 6
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
8
PCIe2
x16
x16
Full length, full
height slot
9
PCIe2
x4
x8
Full length, full
height slot
10
PCIe2
X8
X8
Half length, full Utilized by NIC
height slot
controller "Use
the correct
model number
for the NIC"
* Default bus assignment. Inserting cards with PCI bridges may alter the actual bus assignment number.
Storage Controller
One of the following
depending on Model
Entry Models
HP Smart Array P410i/256 MB Controller (RAID 0/1/1+0/5/5+0)
Base Models
HP Smart Array P410i/256 MB Controller (RAID 0/1/1+0/5/5+0)
Performance Models
HP Smart Array P410i/512 MB BBWC Controller (RAID 0/1/1+0/5/5+0/6)
Available upgrades: 256MB, 512MB with BBWC, Battery kit upgrade (for BBWC), and Smart Array
Advanced Pack (SAAP).
Storage
Diskette Drive
Optical Drive
Hard Drives
None Standard
SATA DVD ROM (standard in all models)
None Standard
Maximum Internal
Storage Type
Hot Plug SFF SAS
Hot Plug LFF SAS
7.20TB
14 TB
Interfaces
Serial
Pointing Device (Mouse)
VGA
Keyboard
Network RJ-45
ILO 2.0 remote
management port
SD slot
USB 2.0 Ports
1 (rear)
1
1 (+1 front VGA on rack models)
1
4 (rear)
1
Dedicated USB 2.0 Port
DA - 13242
24 x 300GB
14 x 1TB
1
5 (2 on the rear, 2 on the front, 1 internal)
NOTE: Please see the following URL for additional information regarding
USB support:
http://h18004.www1.hp.com/products/servers/platforms/usb-support.html
1 (available for DAT USB tape connectivity)
NOTE: Internal USB ports are optimal for the attachment of HP DAT USB
Internal Tape Drives
Worldwide — Version 1 — March 30, 2009
Page 7
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
Graphics
Integrated ATI RN50, 64 MB video standard
16 bit color: maximum resolution of 1600 x 1200
32 bit color: maximum resolution of 1280 x 1024
NOTE: Maximum resolution available via iLO 2 remote console is 1280 x 1024.
Form Factor
4U Rack and Tower form factor (7 in, 17.8 cm)
HP Insight Control suite
HP Insight Control suite delivers essential management, including proactive health management, lights
out remote control, optimization of power usage, rapid server deployment, performance analysis,
vulnerability scanning and patch management and virtual machine management.
HP Insight Control suite installs and licenses the following components by default using a wizard-based
integrated installer:
HP Systems Insight Manager
HP iLO Advanced Pack
HP Insight Rapid Deployment software
HP Insight Power Manager software
HP Insight Performance Manager module
HP Insight Vulnerability and Patch Manager module
HP Insight Virtual Machine Manager software for ProLiant
Additional Insight Software standalone products and management tools included on the Insight Software
media kit can be installed manually:
HP Insight Server Migration software for ProLiant
NOTE: HP Insight Server Migration software for ProLiant is licensed separately from Insight
Control suite.
HP Insight Remote Support Standard
HP Insight Remote Support Advanced (previously Service Essentials Remote Support Pack)
NOTE: HP Insight Server Migration software for ProLiant can be installed from the SMP CD included in
the Insight Software media kit.
NOTE: For additional product and licensing information about HP Insight Control suite, visit:
http://www.hp.com/go/ice.
NOTE: As of Feb. 1, 2009, HP iLO Power Management Pack is being discontinued. Customer can
either purchase HP Insight Control suite which contains all the components of IPMP or the standalone
components which include iLO Advanced, Insight Power Manager software and System Insight Manager.
HP Insight Control Environment for Linux (ICE-Linux) provides comprehensive discovery, imaging &
deployment, monitoring, and management for Linux-based ProLiant server platforms. Built on the
industry-leading HP Systems Insight Manager framework, this solution integrates open source technology
with experience leveraged from HP's Linux products in HP ICLE and HP XC Clusters, while providing
paths to the future with developing management technologies.
HP Insight Control suite and most HP Insight Software products include a one year of 24 x 7 HP Software
Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery
of software updates. For more information about this service, please visit:
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 8
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
http://www.hp.com/services/insight.
HP ProLiant Onboard
Administrator
HP ProLiant Onboard Administrator (powered by the Integrated Lights-Out 2 management processor)
simplifies server setup, health monitoring, power and thermal control, and lights-out remote
administration of ProLiant ML, DL, and BL servers. HP ProLiant Onboard Administrator functions without
additional software, and can be accessed from any location via a web browser. It works hand-in-hand
with HP Systems Insight Manager, Insight Control, and Insight Dynamics - VSE suite helping customers
unlock the value of the ProLiant platform and deliver the highest possible quality of IT service to the
business.
Capabilities of the HP ProLiant Onboard Administrator embedded in ProLiant ML/DL servers include, but
are not limited to the following:
Rom-based Setup Utility (RBSU) and Option Rom Configuration for Arrays (ORCA)
IML and iLO event logging
Automatic Server Recovery (ASR)
OS independent hardware health status
Present server power consumption
Virtual Unit ID control
Remote serial console
Virtual power button control
Dynamic Sector Repairing (with Smart Array controller)
Drive Parameter Tracking (with Smart Array controller)
Hot Spare Boot
NOTE: Upon the event of a failed processor in a multi-processing environment, the system will
automatically reboot and attempt to use the remaining good processor.
Unlock the full remote administration capabilities of HP ProLiant Onboard Administrator with Integrated
Lights-Out 2 Advanced.
Server Management
Stand Alone Software
Product - ProLiant
Essentials
HP Systems Insight
Manager
HP Systems Insight Manager (HP SIM) provides a unified, secure and
extensible standards-based environment to centrally manage servers, storage
and other infrastructure devices, (both HP and non-HP) across multiple
operating system platforms.
For additional information, please see: www.hp.com/go/insight
HP Insight Rapid Deployment Software (RDP) extends HP Systems Insight
Manager with a complete deployment solution for HP ProLiant servers. RDP
provides a central location to configure server hardware, deploy Windows,
Linux and VMware ESX operating environments and install HP ProLiant
Support Pack drivers using images and scripted profiles. For more
information, visit: http://www.hp.com/go/rdp.
HP Server Migration Pack Upgrading, replacing, or virtualizing your existing server? Effortlessly
- Universal Edition
transition to new virtual or physical HP ProLiant servers or BladeSystem with
automated, accurate and affordable migration of OS, application and data.
SMP Universal automates the manual processes required for migrating
servers between physical or virtual platforms, whether migrating to VMware
or Microsoft virtual machines. SMP Universal allows all of the following
migrations:
HP Insight Rapid
Deployment software
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 9
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
physical to ProLiant
physical to virtual
virtual to virtual
virtual to ProLiant
NOTE: For more information, visit: http://www.hp.com/go/migrate.
HP Insight Dynamics - VSE The HP Insight Dynamics - VSE suite for ProLiant is advanced infrastructure
suite for ProLiant
management software that allows you to analyze and optimize your adaptive
infrastructure to manage physical and virtual resources in the same way. HP
Insight Dynamics - VSE gives you a powerful toolkit to accelerate complex
technology projects and simplify daily operations. It enables you to plan
capacity and power continuously, balance across physical and virtual
resources, ensure cost-effective high availability and provision infrastructure
consistently.
HP Insight Orchestration, an optional extension to Insight Dynamics - VSE,
enables IT organizations to provision infrastructure consistently and
automatically from pools of shared resources using a self-service portal.
Resources provisioned can range from a single virtual machine to complex
multi-tier environments and their associated physical and virtual resource
requirements. HP Insight Recovery, also an optional extension for Insight
Dynamics - VSE, enables cost-effective disaster recovery for physical and
virtual environments. Application environments can be reactivated in minutes
with the touch of a button to a remote location
NOTE: For more information, visit: http://www.hp.com/go/insightdynamics,
http://www.hp.com/go/insightorchestration, www.hp.com/go/insightrecovery
HP Integrated Lights-Out Unlocks the full capabilities of the ProLiant Onboard Administrator with
(iLO) Advanced Pack
comprehensive remote control including Virtual KVM remote graphical
console, power management capabilities such as power measurement,
regulation, and capping, new iLO Text Console, automatic and on-demand
video recording of server events, global team collaboration for up to four
remote users, virtual media (floppy, CD/DVD, USB key), virtual folders, and
enterprise security (directory services and two-factor authentication). For
additional information, please see: www.hp.com/go/iLO
HP iLO Power
Energy-efficient management software that delivers centralized control,
Management Pack
reliable security, and energy savings for your BladeSystem infrastructure.
iPMP combines the total control of iLO 2 Advanced in the area of remote
management with the energy monitoring and control of the Insight Power
Manager to deliver a robust solution capable of full remote control and
power management of ProLiant servers through a unified interface within HP
Systems Insight Manager. For additional information, please see:
www.hp.com/go/iLO
HP Accelerated iSCSI Pack Enables the embedded Multifunction network controller to serve as both a
NIC and an iSCSI HBA providing access to SAN storage over the same
connection used for networking. Processing of the protocol stack is offloaded
to the NIC reducing CPU utilization and greatly improving the speed with
which the requests are processed and sent to the network. For additional
information, please see: www.hp.com/go/iscsi
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 10
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Standard Features
HP Insight Power Manager Upgrades the single-server remote management capabilities of iLO
(IPM)
Select/Advanced to include centralized reporting and policy-based
management of power consumption and thermal output provided by the
Insight Power Manager. IPM unifies all of this functionality within a single
user interface - HP Systems Insight Manager. For additional information,
please see: www.hp.com/go/ipm
NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer
to: http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product
QuickSpecs for more information.
Core Infrastructure
Management
HP Foundation Pack
Managing the growing number of servers can be complex and expensive for
your organization. IT managers need to address changing business needs
with tools that meet the challenges of managing today's complex
Datacenters.
HP provides management solutions that are designed to simplify a server's
installation, configuration and maintenance throughout the entire server
lifecyle. This provides the customer with higher levels of operational efficiency
and highly reliable systems: www.hp.com/go/foundation.
The foundation pack includes:
HP SmartStart
HP Management
HP ProLiant Firmware Maintenance
SmartStart version supported (minimum): SmartStart 8.20
http://www.hp.com/servers/smartstart
Insight Management
Providers (WBEM)
NOTE: In an effort to support reducing our environmental impact, the HP
ProLiant Essentials Foundation Pack media will be available as a selectable
option for this server at time of order of a CTO SKU. This will allow
customers to order the number of media kits that best meet their needs and
eliminate receiving unnecessary duplicate media.
The HP Insight Management WBEM Providers leverage the rich set of baselevel instrumentation provided by the system management controllers and
drivers, I/O controllers and drivers, and system firmware interfaces delivering
in-depth hardware management, including hardware inventory data, system
state, and event notifications.
Key Benefits Include:
Heightened Security
Single integrated Security Model
Built using industry standard secure protocols and encryption
algorithms (SSL, SSH)
Reduce the number of entry points into internal network
Reduced complexity of setup and configuration
Delivers standards-based management across vendor platforms
Robust in-depth and usable data that is provided to the HP System
Management Homepage and Central Management Console
Guaranteed event delivery
Reduces overall load on the server by smaller agent footprint and
maintenance burden
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 11
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Standard Features
Provides in-depth hardware management, inventory data, system state,
and event notifications
Insight Management
Agents (SNMP)
The Insight Management Providers are included on ProLiant Support Packs.
For additional information about the Management Providers please visit
http://www.hp.com/go/HPwbem
The Insight Management Agents should be installed on all HP servers to
present system instrumentation, health and configuration information into HP
Systems Insight Manager and the HP System Management Homepage. The
HP System Management Homepage aggregates systems data from Insight
Management Agents and other HP management tools, providing a
consolidated browser-based interface for managing individual servers.
Insight Management Agents and The HP System Management Homepage
are included on ProLiant Support Packs, and can also be installed using the
server profiles provided with the Rapid Deployment Pack.
Subscriber's Choice
ProLiant Support Packs
and ROMPaq, software
For additional information about the Management Agents and the HP System
Management Homepage please visit the management Web site at:
http://www.hp.com/servers/manage.
Subscriber's Choice Driver and Support Alerts/Notifications is a web-based
email subscription service that provides software and driver change
notifications for ProLiant products. Sign up at:
http://www.hp.com/go/subscriberschoice
and customize your profile to receive various new alerts as they become
available, on a weekly or monthly basis.
The latest software, drivers, and firmware fully optimized and tested for your
ProLiant server and options, available through ProLiant Support Packs the HP
Insight Rapid Deployment Software, SmartStart or downloaded from software
and drivers download pages website at: http://www.hp.com/go/support.
HP Serviceguard for Linux HP Serviceguard for Linux provides high availability clustering for Linux applications running on HP
(SGLX)
Integrity, HP ProLiant and other supported industry-standard servers. Serviceguard for Linux reduces
planned and unplanned downtime and delivers efficient, continuous access to business-critical
applications - with all of the enterprise features you expect from HP.
This high availability clustering solution is designed to protect applications and services from a wide
variety of software and hardware failures, monitoring the health of each server (node) and quickly
responding to failures such as those that affect system processes, system memory, LAN media and
adapters, and application processes.
For the most recent list of Linux distributions & kernels, servers and storage supported with Serviceguard
for Linux, please see:
ftp://ftp.compaq.com/pub/products/servers/ha/linux/SGLX_Certification_Matrix.pdf
The following is a quick summary of HP Serviceguard for Linux features and support:
Supported Virtual Machines
SG/LX in HP Integrity Virtual Machines guests
SG/LX in VMware ESX guests
SG/LX in Red Hat and SUSE Xen hosts (DOM0)
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 12
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
Application Integration Toolkits
HP Serviceguard for Linux Oracle Database Toolkit
HP Serviceguard Extension for SAP on Linux (SGeSAP/LX)
Free Application Integration Toolkits:
Apache
MySQL
NFS
PostgreSQL
Samba
Tomcat
Sendmail
Disaster Tolerant Solutions
HP Serviceguard for Linux Extended Distance Cluster (XDC) extends cluster distances up to
100 km, utilizes software RAID mirroring for data replication and is storage array
independent
HP StorageWorks XP/EVA Cluster Extension Software for Linux (CLX) works seamlessly with
HP Serviceguard for Linux, HP StorageWorks Continuous Access, and HP Disk Arrays to
automate failover and failback between sites
Software updates are distributed by HP Services to customers with support contracts
NOTE: For additional information including software and server support on HP Serviceguard for Linux,
visit: http://www.hp.com/go/sglx or see the HP Serviceguard for Linux QuickSpecs.
NOTE: HP Serviceguard for Linux products for HP ProLiant and select 3rd party x86 class servers include
one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP
support staff and proactive delivery of software updates. For more information about this service, please
visit: http://www.hp.com/services/swsupport.
Industry Standard
Compliance
ACPI V2.0 Compliant
PCI-Express Gen2
PXE Support
WOL Support
Microsoft® Logo certifications
USB 2.0
SMBIOS 2.6.1
Security
Power-on password
Keyboard password
Diskette drive control
Diskette boot control
QuickLock, Network Server Mode
Parallel and serial interface control
Administrator's password
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 13
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Standard Features
Security Trusted Platform The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to
Module
authenticate the server platform. These artifacts can include passwords, certificates and encryption keys.
Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows
Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module
(TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server
running Windows Server 2008 has not been tampered with while the system was offline.
For more information about TPM, including a white paper, go to www.hp.com/go/TPM
NOTE: ProLiant OS pre-installed units will come with the partition required for TPM deployment.
NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing
the key could result in data loss.
Server Power Cords
High voltage power cord ships standard with all part numbers. Localized cables included with
geographic specific models in other world regions.
NOTE: ProLiant DL servers no longer ship standard with NEMA power cords (187335-001) that allow
connection to 110V US wall outlets in a home or office. ProLiant DL servers are primarily connected to
PDU's in data center racks so they now ship standard with only a PDU power cord (416151-B21). If a
user wishes to power a ProLiant DL server using a 110V receptacle (NEMA-15), the above NEMA power
cord must be ordered separately.
UPS Power Cord Matrix
Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications
for UPS and PDU units:
http://h18004.www1.hp.com/products/servers/proliantstorage/power-protection/index.html
Power Supply
HP has a new design for ProLiant power. The new Common Slot Power Supply bay. This design provides
the customer with commonality in power supplies across multiple platforms to save on the cost of spares
and allows HP to offer multiple power solutions to fit the customers' needs. Many HP ProLiant Servers
come with Common Slot, High Efficiency and Right-Size Power Supplies. Common Slot (CS) designates
commonality of the power supply across multiple ProLiant servers. HP's new Common Slot power
supplies are designed for highest efficiency to provide power efficiency without degrading performance
of the ProLiant. Power Supplies will have efficiency ratings up to 92%. There are three Right Size power
options available, depending on the configuration of your server. To make sure you select the correct
power supply to meet your configuration, we suggest that you use the HP Power Advisor to decide the
"Right-Size" for your configuration. All HP Common Slot power sources are UL, CE Mark Compliant, Hot
Plug and Redundant.
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 14
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
Common Slot ProLiant
It is highly recommended that you use the HP Power Advisor in defining the "Right-Size" power supply for
your needs. HP offers three Power Supply Options:
460Watts, Common Slot,92% Efficiency
750Watts, Common Slot, 92% Efficiency
1200Watts, Common Slot, 90% Efficiency
HP's ProLiant Common Slot Power supplies (460W & 750W) meet multiple Energy Efficiency Initiatives.
Climate Savers Computing Initiative GOLD, ECOS Consulting 80PLUS GOLD and plans on offering
models that meet the Energy Star for Server requirements when they are published.
HP's ProLiant Common Slot Power supplies (1200W) meet multiple Energy Efficiency Initiatives. Climate
Savers Computing Initiative Bronze, ECOS Consulting 80PLUS Bronze Power Supply requirements.
Redundant Power: Optional (1+ 1 or n+n redundant) power supplies can be purchased through power
supply option kits (see Redundant Options for part numbers).
System Fans
(3) Hot Plug fans ship standard (for full redundancy you can purchase the HP ML and DL 370G6
Redundant Fan Kit; PN: 508107-B231)
Required Cabling
For external storage cabling information, refer to the Web site at: www.hp.com/servers/dl370 or
www.hp.com/servers/ml370.
OS Support
Microsoft Windows Server
Microsoft Windows Server Hyper V
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Oracle Enterprise Linux 5 (OEL)
Solaris 10 for x86/x64 based Systems
VMware
HP Citrix Essentials for XenServer
NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization
Software and latest listing of software drivers available for your server, please visit our Support Matrix at:
http://www.hp.com/go/ossupport and our driver download page
http://www.hp.com/support/ML370G6.
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 15
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Standard Features
Rack Airflow
Requirements
Rack 10000 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling
efficiency for rack-mounted servers. The 10000 Series Racks provide enhanced airflow for maximum
cooling, allowing these racks to be fully loaded with servers using the latest processors.
CAUTION: If a third-party rack is used, observe the following additional requirements to ensure
adequate airflow and to prevent damage to the equipment:
Front and rear doors: If your 42U server rack includes closing front and rear doors, you must
allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit
adequate airflow (equivalent to the required 64 percent open area for ventilation).
Side: The clearance between the installed rack component and the side panels of the rack must be
a minimum of 2.75 inches (7 cm).
CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This
arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling
that can lead to thermal damage.
NOTE: For additional information, refer to the Setup and Installation Guide or the Documentation CD
provided with the server, or to the server documentation located in the Support section at the following
URL: www.hp.com/servers/dl370 or www.hp.com/servers/ml370.
Telco Rack Support
ProLiant rack mount servers and tower-to-rack kits include snap-on quick deploy side rails designed to
accommodate both round and square hole rack rails. Telco rack solutions for ProLiant servers are
available through the following URL: http://www.racksolutions.com/hp.
Factory Express Portfolio
for Servers and Storage
HP Factory Express offers configuration, customization, integration and deployment services for HP
servers and storage products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading, asset
tagging, and custom packaging. HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000
servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network
switches.
For more information on Factory Express services for your specific server model please contact your sales
representative or go to: http://www.hp.com/go/factory-express.
HP Enterprise
Configurator
The HP eConfigure-Enterprise Configurator now provides factory default racking for our HP hardware
portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our
valued customers. If you require "custom" rack configuration, please contact HP's Customer Business
Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 16
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Standard Features
Service and Support
HP Care Pack services provide total care and support expertise with committed response designed to
meet your IT and business needs.
HP Care Pack services include coverage for the HP branded hardware options qualified for the server
and purchased at the same time or afterward that are internal to the enclosure. This also includes the
22" and smaller external monitors and tower UPS options up to 3kVA. These items will be covered at the
same service level and for the same coverage period as the server. Coverage of UPS Battery is not
included, and standard warranty terms & conditions apply. For servers or storage systems installed within
a rack, service also covers all HP qualified rack options installed within the same rack.
To fully capitalizing on your HP ProLiant servers' capabilities requires a service partner who thoroughly
understands your server technology and systems environment. HP Services, an industry leader in
provision of multi vender support solutions, provides a range of support services designed to meet the
varying needs of your business. Whether an SMB, or large global corporation, HP has a ProLiant server
support offer to help you speedily deploy and maximize system uptime.
Recommended Service - simplify ProLiant solution implementation, maintenance, and management.
Support - 3-Year 4-Hour response 24x7 Same Business Day Coverage only
Deployment Service - Installation and Start up only
Enhanced Service - optimize service level to increase IT performance and availability.
Support - 3-Year Support Plus 24 only
Refer to the information on "Installation & Start-Up" for service on ProLiant server and Microsoft or Linux
O/S per the Customer Description and/or Data Sheet; to be delivered on a scheduled basis 8am-5pm,
M-F, excluding HP holidays.
NOTE: For a complete listing of service offerings and information visit:
http://www.hp.com/services/proliantservices
http://www.hp.com/go/proliant/carepack
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 17
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Models
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory
Integrated Models" section.
Tower Models
HP ML370 G6 Base
Model
ML370 E5540 6GB
487791-xx1
Processor(s)
Cache Memory
Memory
Network Controller
Storage Controller
Hard Drive
Internal Storage
Optical Drive
PCI-Express Slots
Power Supply
Fans
Form Factor
HP ML370 G6 Entry
Model
ML370 E5520 4GB
487795-xx1
Processor(s)
Cache Memory
Memory
Network Controller
Storage Controller
Hard Drive
Internal Storage
Optical Drive
PCI-Express Slots
Power Supply
Fans
Form Factor
DA - 13242
(1) Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 Cache, 80W,
DDR3-1066, HT, Turbo 1/1/2/2)
8MB (1 x 8MB) Level 3 cache
6 GB (3 x 2 GB) PC3-10600 (DDR3-1333) Registered DIMMs
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
HP Smart Array P410i/256MB Controller
None ship standard
(8) SFF SAS/SATA HD Bays (Standard); Up to (24) SFF SAS/SATA with
optional drive cage (up to three 8 SFF drive cage can be installed)
SATA DVD ROM
10 slots - (9) available PCI-e Gen2 slots (NOTE:
NOTE: 10 slots available, one is
taken by the NIC riser card)
(1) 750W Hot Plug Power Supply
(3) Hot Plug Fans
4U Tower
(1) Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80W,
DDR3-1066, HT, Turbo 1/1/2/2)
8MB (1 x 8MB) Level 3 cache
4 GB (2 x 2 GB) PC3-10600E (DDR3-1333) Unbuffered DIMMs
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
HP Smart Array P410i/256MB Controller
None ship standard
(8) SFF SAS/SATA HD Bays (Standard); Up to (24) SFF SAS/SATA with
optional drive cage (up to three 8 SFF drive cage can be installed)
SATA DVD ROM
10 slots - (9) available PCI-e Gen2 slots (NOTE:
NOTE: 10 slots available, one is
taken by the NIC riser card)
(1) 460W Hot Plug Power Supply
(3) Hot Plug Fans
4U Tower
Worldwide — Version 1 — March 30, 2009
Page 18
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Models
Rack Models
HP DL370 G6 Base
Model
DL370 E5530 6GB
487794-xx1
Processor(s)
Cache Memory
Memory
Network Controller
Storage Controller
Hard Drive
Internal Storage
Optical Drive
PCI-Express Slots
Power Supply
Fans
Form Factor
HP DL370 G6
Performance Model
DL370 E5550 12GB
487790-xx1
Processor(s)
Cache Memory
Memory
Network Controller
Storage Controller
Hard Drive
Internal Storage
Optical Drive
PCI-Express Slots
Power Supply
Fans
Form Factor
DA - 13242
(1) Intel® Xeon® Processor E5530 (2.40 GHz, 8MB L3 Cache, 80W,
DDR3-1066, HT, Turbo 1/1/2/2)
8MB (1 x 8MB) Level 3 cache
6 GB (3 x 2 GB) PC3-10600 (DDR3-1333) Registered DIMMs
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
HP Smart Array P410i/256MB Controller
None ship standard
(8) SFF SAS/SATA HD Bays (Standard); Up to (24) SFF SAS/SATA with
optional drive cage (up to three 8 SFF drive cage can be installed)
SATA DVD ROM
10 slots - (9) available PCI-e Gen2 slots (NOTE:
NOTE: 10 slots available, one is
taken by the NIC riser card)
(1) 750W Redundant Hot Plug Power Supply
(3) Hot Plug Fans
4U Rack
(2) Intel® Xeon® Processor X5550 (2.66 GHz, 8MB L3 Cache, 95W,
DDR3-1333, HT, Turbo 2/2/3/3)
8MB (1 x 8MB) Level 3 cache
12 GB (6 x 2 GB) PC3-10600 (DDR3-1333) Registered DIMMs
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
HP Smart Array P410i/512MB with BBWC
None ship standard
(8) SFF SAS/SATA HD Bays (Standard); Up to (24) SFF SAS/SATA with
optional drive cage (up to three 8 SFF drive cage can be installed)
SATA DVD ROM
10 slots - (9) available PCI-e Gen2 slots (NOTE:
NOTE: 10 slots available, one is
taken by the NIC riser card)
(2) 750W Redundant Hot Plug Power Supplies
(5) Fully Redundant Hot Plug Fans
4U Rack
Worldwide — Version 1 — March 30, 2009
Page 19
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Models
Country Code Key
XX=00
XX=01
XX=03
XX=04
XX=05
XX=20
XX=29
XX=37
XX=42
Tower Code Key
U.S. English
Australia
UK
Germany
France
Brazil
Japan
APD
Europe
Rack Code Key
U.S. English
N/A
N/A
N/A
N/A
Brazil
Japan
APD
Europe
XX=AA
PRC
PRC
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 20
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Configuration Information - Factory Integrated Models
NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are
ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO
product offerings and requirements.
NOTE: HP does not allow factory integration of options into standard models listed above. Configure-to-order servers must start
with a CTO Chassis.
NOTE: FIO indicates that this option only available as a Factory Installable Option.
Step 1: Base Configuration (choose one of the following configurable models)
Models
HP ProLiant ML370 G6 Tower Models
HP ProLiant ML370 G6 Tower CTO Chassis
Small Form Factor (SFF) - 2.5" Drives
Factory Integrated Model ships with:
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
Integrated Lights-Out embedded
HP Smart Array P410i/Zero Memory Controller
(8) Hot-Plug (SFF) SAS/SATA Drive Bays
(9) available PCI-e Gen2 slots
(5) USB ports
(3) Hot Plug Fans
Tower Form Factor
HP ProLiant ML370 G6 Tower CTO Chassis
Large Form Factor (LFF) - 3.5" Drives
Factory Integrated Model ships with:
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
Integrated Lights-Out embedded
HP Smart Array P410i/Zero Memory Controller
(6) Hot-Plug (LFF) SAS/SATA Drive Bays
(9) available PCI-e Gen2 slots
(5) USB ports
(3) Hot Plug Fans
Tower Form Factor
HP ProLiant DL370 G6 Rack Models
HP ProLiant DL370 G6 Rack CTO Chassis
Small Form Factor (SFF) - 2.5" Drives
Factory Integrated Model ships with:
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
Integrated Lights-Out embedded
HP Smart Array P410i/Zero Memory Controller
(8) Hot-Plug (SFF) SAS/SATA Drive Bays
(9) available PCI-e Gen2 slots
(5) USB ports
(3) Hot Plug Fans
4U Rack Form Factor
HP ProLiant DL370 G6 Rack CTO Chassis
Large Form Factor (LFF) - 3.5" Drives
Factory Integrated Model ships with:
HP NC375i Integrated Quad Port Multifunction Gigabit Server Adapter
DA - 13242
Worldwide — Version 1 — March 30, 2009
483880-B21
483879-B21
483874-B21
483873-B21
Page 21
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Configuration Information - Factory Integrated Models
Integrated Lights-Out embedded
HP Smart Array P410i/Zero Memory Controller
(6) Hot-Plug (LFF) SAS/SATA Drive Bays
(9) available PCI-e Gen2 slots
(5) USB ports
(3) Hot Plug Fans
4U Rack Form Factor
Step 2: Choose Required Options (only one of the following from each list)
Processors
Base Memory
Power Supply
NOTE: If High Performance Model features are desired, 2nd processor is included in
the Performance Pack part numbers in Step 3 below.
Quad-Core Processors
Intel® Xeon® Processor X5570 (2.93 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT,
Turbo 2/2/3/3), FIO
Intel® Xeon® Processor X5560 (2.80 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT,
Turbo 2/2/3/3), FIO
Intel® Xeon® Processor X5550 (2.66 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT,
Turbo 2/2/3/3), FIO
Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT,
Turbo 1/1/2/2), FIO
Intel® Xeon® Processor E5530 (2.40 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT,
Turbo 1/1/2/2), FIO
Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT,
Turbo 1/1/2/2), FIO
Intel® Xeon® Processor E5506 (2.13 GHz, 4MB L3 Cache, 80W, DDR3-800), FIO
Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800), FIO
Intel® Xeon® Processor L5520 (2.26 GHz, 8MB L3 Cache, 60W, DDR3-1066, HT,
Turbo 1/1/2/2), FIO
Dual-Core Processors
Intel® Xeon® Processor E5502 (1.86 GHz, 4MB L3 Cache, 80W, DDR3-800), FIO
Registered DIMMs (RDIMMs)
HP 2GB 2Rx8 PC3-10600R-9 Kit
HP 4GB 2Rx4 PC3-10600R-9 Kit
HP 4GB 4Rx8 PC3-8500R-7 LP Kit
HP 8GB 2Rx4 PC3-8500R-7 Kit
Unbuffered with ECC DIMMs (UDIMMs)
HP 1GB 1Rx8 PC3-10600E-9 Kit
HP 2GB 2Rx8 PC3-10600E-9 Kit
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed
memory configuration rules and guidelines, please use the Online DDR3 Memory
Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as LP include Low Power DIMMs. For more information on
ProLiant Energy Efficient Features, see:
http://h18004.www1.hp.com/products/servers/platforms/energyefficient/
NOTE: Refer to HP Power Advisor when selecting a power supply for your
DA - 13242
Worldwide — Version 1 — March 30, 2009
495930-L21
495932-L21
495934-L21
495936-L21
495938-L21
495940-L21
495942-L21
495944-L21
505511-L21
495946-L21
500656-B21
500658-B21
500660-B21
516423-B21
500668-B21
500670-B21
Page 22
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Configuration Information - Factory Integrated Models
configuration, www.hp.co/go/hppoweradvisor. Many HP ProLiant Servers now offer
new power options, including Common Slot Power Supplies. These power supplies
come in multiple power ratings and higher efficiency levels to offer the Right Size
solution to fit your configuration. This provides improved power delivery and the
advantage of reclaiming lost power. Prior to making a power supply selection it is
"highly recommended" that the "HP Power Advisor" is run to determine the right size
power supply for your server configuration. The HP Power Advisor is located at
"www.hp.com/go/proliant-energy-efficient" or www.hp.com/go/hppoweradvisor
HP 460W CS HE Power Supply Kit
HP 750W CS HE Power Supply Kit
HP 1200W CS HE Power Supply Kit
NOTE: Option Kits contain optional power supply, an IEC power cable and PDU IEC
cables.
503296-B21
512327-B21
500172-B21
Step 3: Choose Additional Factory Integratable Options
Controllers
Integrated hypervisor
(iHV)
Performance Packs
NOTE: If Additional Memory Cache Module or Controller is Required please pick one
of the following:
HP 256 MB P-series cache module FIO
NOTE: Available for P410i only.
512MB BBWC
HP Smart Array P212/256 MB w/ Battery FIO
HP Smart Array P410/256 MB w/ Battery FIO
HP Smart Array P411/256 MB w/ Battery FIO
NOTE: HP VMware ESXi free download from www.software.hp.com - select
Virtualization
HP VMware 3i Enterprise 2p Lic SW
NOTE: For additional information and options kits, please see the QuickSpecs at:
www.hp.com/go/vmware.
NOTE: HP XenServer Select Edition free download from:
http://h20392.www2.hp.com/portal/swdepot/displayProductInfo.do?
productNumber=HPXS
HP Essentials -XenServer Platinum Nm Lic
HP ProLiant Virtual Console Full License
XenServer HP Ent Upg iSW Lic
HP Citrix Essentials for XenServer Enterprise Edition
NOTE: For additional information and options kits, please see the HP Citrix Essentials
for XenServer QuickSpecs at www.hp.com/go/citrix
Performance Packs are necessary to configure a HP ProLiant DL370 G6 or a HP
ProLiant ML370 G6 to a High Performance Model which includes the latest
performance technologies and enterprise class availability features pre-installed for
convenience and value. The Performance Pack includes a 2nd processor, redundant
fans, power supply, and memory expansion board.
NOTE: Must also select 516727-B21 to achieve parity to DL370 G6 or ML370 G6
High Performance Models.
HP DL370 G6 and ML370 G6 X5550 HPM FIO Perf Kit
DA - 13242
Worldwide — Version 1 — March 30, 2009
534108-B21
462967-B21
491191-B21
491195-B21
491193-B21
430341-B21
530753-B21
508293-B21
464676-B21
508294-B21
516727-B21
Page 23
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Configuration Information - Factory Integrated Models
Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Core Options" and "Additional Options" section below.
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 24
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Core Options
NOTE: Some options may not be factory configurable. Please contact your local sales representative for additional information.
507803-B21
HP ProLiant ML370 and (8) Small Form Factor (SFF) 2nd Drive Cage Kit
DL370 G6 Unique
(6) Large Form Factor (LFF) Backplane Kit
507810-B21
Options
(2) Large Form Factor (LFF) Drive Cage Kit
487936-B21
HP ML370 G6 Tower to Rack Conversion Kit
515031-B21
HP ML and DL 370G6 Redundant Fan Kit
508107-B21
Processors
Memory
Quad-Core Processors
Intel® Xeon® Processor X5570 (2.93 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT,
Turbo 2/2/3/3)
Intel® Xeon® Processor X5560 (2.80 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT,
Turbo 2/2/3/3)
Intel® Xeon® Processor X5550 (2.66 GHz, 8MB L3 Cache, 95W, DDR3-1333, HT,
Turbo 2/2/3/3)
Intel® Xeon® Processor E5540 (2.53 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT,
Turbo 1/1/2/2)
Intel® Xeon® Processor E5530 (2.40 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT,
Turbo 1/1/2/2)
Intel® Xeon® Processor E5520 (2.26 GHz, 8MB L3 Cache, 80W, DDR3-1066, HT,
Turbo 1/1/2/2)
Intel® Xeon® Processor E5506 (2.13 GHz, 4MB L3 Cache, 80W, DDR3-800)
Intel® Xeon® Processor E5504 (2.00 GHz, 4MB L3 Cache, 80W, DDR3-800)
Intel® Xeon® Processor L5520 (2.26 GHz, 8MB L3 Cache, 60W, DDR3-1066, HT,
Turbo 1/1/2/2)
Dual-Core Processors
Intel® Xeon® Processor E5502 (1.86 GHz, 4MB L3 Cache, 80W, DDR3-800)
Registered DIMMs (RDIMMs)
HP 2GB 2Rx8 PC3-10600R-9 Kit
HP 4GB 2Rx4 PC3-10600R-9 Kit
HP 4GB 4Rx8 PC3-8500R-7 LP Kit
HP 8GB 2Rx4 PC3-8500R-7 Kit
Unbuffered with ECC DIMMs (UDIMMs)
HP 1GB 1Rx8 PC3-10600E-9 Kit
HP 2GB 2Rx8 PC3-10600E-9 Kit
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed
memory configuration rules and guidelines, please use the Online DDR3 Memory
Configuration Tool: www.hp.com/go/ddr3memory-configurator
NOTE: Kits described as LP include Low Power DIMMs. For more information on
ProLiant Energy Efficient Features, see:
http://h18004.www1.hp.com/products/servers/platforms/energyefficient/
DA - 13242
Worldwide — Version 1 — March 30, 2009
495930-B21
495932-B21
495934-B21
495936-B21
495938-B21
495940-B21
495942-B21
495944-B21
505511-B21
495946-B21
500656-B21
500658-B21
500660-B21
516423-B21
500668-B21
500670-B21
Page 25
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Core Options
Optical Drives
HP Half-Height SATA DVD-ROM Optical Drive
HP Half-Height SATA DVD RW Optical Drive
HP Slim SATA DVD RW Optical Drive
HP Slim SATA DVD-ROM Optical Drive
Hard Drives
NOTE: Transfer rates of drives are dependent on the maximum transfer rate
supported by the HBA or Controller. Refer to the HBA or Controller technical
specifications for details.
SAS Hot Plug SFF Enterprise (ENT) Drives
NOTE: Please note that SFF 2.5" (small form factor) drives can only be installed on
tower or rack models with SFF chassis (models).
HP 300GB 6G SAS 10K SFF DP ENT HDD
HP 300GB 3G SAS 10K SFF DP ENT HDD
HP 146GB 6G SAS 10K SFF DP ENT HDD
HP 146GB 3G SAS 10K SFF DP ENT HDD
HP 146GB 3G SAS 15K SFF DP ENT HDD
HP 72GB 3G SAS 15K SFF DP ENT HDD
HP 72GB 3G SAS 10K SFF DP ENT HDD
HP 36GB 3G SAS 15K SFF DP ENT HDD
NOTE: SAS Enterprise drives have a 3 year warranty. Please see the QuickSpecs for
Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html
(Worldwide)
SAS Hot Plug 3.5" Enterprise (ENT) Drives
HP 450GB 3G SAS 15K 3.5" DP ENT HDD
HP 400GB 3G SAS 10K 3.5" DP ENT HDD
HP 146GB 3G SAS 15K 3.5" DP ENT HDD
HP 72GB 3G SAS 15K 3.5" DP ENT HDD
SAS Hot Plug 3.5" Midline (MDL) Drives
NOTE: Please note that LFF 3.5" (large form factor) drives can only be installed on
tower or rack models with LFF chassis (models).
HP 1TB 3G SAS 7.2K DP MDL HDD
HP 750GB 3G SAS 7.2K DP MDL HDD
SATA Hot Plug SFF Entry (ETY) Drives
NOTE: Please note that SFF 2.5" (small form factor) drives can only be installed on
tower or rack models with SFF chassis (models).
HP 250GB 3G SATA 5.4K SFF ETY HDD
HP 120GB 1.5G SATA 5.4K SFF ETY HDD
NOTE: SATA hard drives have a 1-year warranty. Please see the QuickSpecs for
Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html
(Worldwide)
SATA Hot Plug 3.5" Midline (MDL) Drives
HP 1TB 3G SATA 7.2K 3.5" MDL HDD
DA - 13242
Worldwide — Version 1 — March 30, 2009
447326-B21
447328-B21
481043-B21
481041-B21
507127-B21
492620-B21
507125-B21
418367-B21
504062-B21
418371-B21
384842-B21
418369-B21
454232-B21
459508-B21
384854-B21
384852-B21
461137-B21
461135-B21
460355-B21
458924-B21
454146-B21
Page 26
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Core Options
Communications
Redundant Options
HP 750GB 3G SATA 7.2K 3.5" MDL HDD
HP 500GB 3G SATA 7.2K 3.5" MDL HDD
HP 250GB 3G SATA 7.2K 3.5" MDL HDD
NOTE: SATA hard drives have a 1-year warranty. Please see the QuickSpecs for
Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html
(Worldwide)
458930-B21
458928-B21
458926-B21
HP NC112T PCIe Gigabit Server Adapter
HP NC360T PCI Express Dual Port Gigabit Server Adapter
HP NC364T PCI Express Quad Port Gigabit Server Adapter
NOTE: There is a maximum of five NC364T PCI Express Quad Port Gigabit Server
Adapters allowed in this server.
HP NC373F PCI Express Multifunction Gigabit Server Adapter
HP NC373T PCI Express Multifunction Gigabit Server Adapter
HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter
HP NC522SFP Dual Port 10GbE Server Adapter
NOTE: A minimum of two gigabyte (2 GB) of server memory is required per each
NC522SFP adapter.
HP NC524SFP Dual Port 10GbE Module
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information: www.hp.com/go/ProLiantNICs.
503746-B21
412648-B21
435508-B21
CAUTION: Many HP ProLiant Servers now offer new power options, including
Common Slot Power Supplies. These power supplies come in multiple power ratings
and higher efficiency levels to offer the Right Size solution to fit your configuration.
This provides improved power delivery and the advantage of reclaiming lost power.
Prior to making a power supply selection it is "highly recommended" that the "HP
Power Advisor" is run to determine the right size power supply for your server
configuration. The HP Power Advisor is located at www.hp.com/go/proliant-energyefficient. In ProLiant Servers that have more than one power slot (bay), only same size
power supplies are recommended. If non-matched power supplies are inserted you
will get errors and operation will fail.
HP 460W CS HE Power Supply Kit
HP 750W CS HE Power Supply Kit
HP 1200W CS HE Power Supply Kit
NOTE: Option Kits contain optional power supply, an IEC power cable and PDU IEC
cables.
HP ML and DL 370G6 Redundant Fan Kit
DA - 13242
Worldwide — Version 1 — March 30, 2009
394793-B21
394791-B21
458492-B21
468332-B21
489892-B21
503296-B21
512327-B21
500172-B21
508107-B21
Page 27
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Additional Options
HP Insight Control Suite
Server Management
Stand Alone Software
NOTE: Electronic licensing options are available for Insight Control suites software
products. Please see the appropriate Insight Control QuickSpecs for additional
information. www.hp.com/go/ice
HP Insight Control suite
HP Insight Control suite, No Media 1-Server License including 1 year of 24x7
Technical Support and Updates
NOTE: This part number can be purchased as a single license or as multiple licenses
with a single activation key. Customer will receive a license entitlement certificate via
e-mail. The license entitlement certificate must be redeemed online or via fax in order
to obtain the license activation key(s). Includes one year of 24 x 7 HP Software
Technical Support and Update Service. Only available directly from HP and select
resellers in the Americas region.
HP Insight Software Media Kit
NOTE: Insight Software DVD media without licenses. Contains Insight Manager and
Insight Software products and components licensed by Insight Control suite. Uses an
integrated installer to perform quick and accurate software installation and updates.
NOTE: For additional License Kits, please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html
HP Insight Control Linux Edition
HP Insight Control Environment for Linux, Media pack (DVD) - No licenses included
NOTE: This optional Media pack DVD contains the ISO image for HP Insight Control
Environment for Linux, HP System Insight Manager, HP Insight Power Manager, HP
Virtual Machine Management Pack, and an integrated installer. Servers must be
acquired separately.
NOTE: This Media pack is optional because the latest ISO image and latest updates
may be downloaded at no cost from: http://www.hp.com/go/ice-linux (click on
Download button).
HP Insight Control Environment for Linux, No Media, 1-Server license, including one
year of 24x7 Technical Support and Updates
NOTE: This part number can be used to purchase one (1) license with a single
activation key. Customer will receive a printed license entitlement certificate via
physical shipment. The license entitlement certificate must be redeemed online or via
fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP
Software Technical Support and Update Service.
NOTE: One certificate is shipped for each license.
NOTE: For additional License Kits, please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/13019_div/13019_div.html
NOTE: Electronic licensing options are available for select software products. Please
see the appropriate Insight Software standalone product QuickSpecs for additional
information.
Deploy
HP Insight Rapid Deployment software
HP Insight Rapid Deployment software No Media 1-Server License including 1 year of
24x7 Technical Support and Updates
NOTE: This license allows 1 server to be deployed and managed via RDP. Customer
will receive a printed license entitlement certificate via physical shipment. The license
DA - 13242
Worldwide — Version 1 — March 30, 2009
452148-B22
436222-B21
464422-B22
464423-B22
452151-B21
Page 28
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Additional Options
entitlement certificate must be redeemed online or via fax in order to obtain the
license activation key(s). Includes one year of 24 x 7 HP Software Technical Support
Service
NOTE: For additional License Kits, please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11053_div/11053_div.html
HP Insight Server Migration software for ProLiant
HP Insight Server Migration software for ProLiant, No Media, Physical / Virtual to
ProLiant Single Migration License, including 1 year of 24x7 Technical Support and
Updates
NOTE: This license allows 1 physical to ProLiant or virtual to ProLiant migration.
Customer will receive a printed license entitlement certificate and documentation via
physical shipment. The license entitlement certificate must be redeemed online or via
fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP
Software Technical Support and Update Service.
HP Insight Server Migration software for ProLiant, No Media, Physical / Virtual to
Virtual Single Migration License, including 1 year of 24x7 Technical Support and
Updates
NOTE: This license allows 1 physical to virtual or virtual to virtual migration.
Customer will receive a printed license entitlement certificate and documentation via
physical shipment. The license entitlement certificate must be redeemed online or via
fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP
Software Technical Support and Update Service.
HP Insight Server Migration software for ProLiant, No Media, 1-Year Unlimited
Migration License, including 1 year of 24x7 Technical Support
NOTE: This license allows unlimited migrations (physical to ProLiant, physical to
virtual, virtual to virtual, and virtual to ProLiant) for one year. Customer will receive a
printed license entitlement certificate and documentation via physical shipment. The
license entitlement certificate must be redeemed online or via fax in order to obtain
the license activation key(s). Includes one year of 24 x 7 HP Software Technical
Support Service.
NOTE: For additional License Kits, please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12855_div/12855_div.html
Monitor
HP Insight Dynamics-VSE suite for ProLiant
HP Insight Dynamics-VSE with Insight Control Environment, 1-server license including
1 year of 24x7 Technical Support and Updates
NOTE: This license supports HP ProLiant ML/DL and c-Class Blade servers. Customer
will receive a printed license entitlement certificate via physical shipment.
HP Insight Dynamics-VSE without Insight Control Environment, 1-server license
including 1 year of 24x7 Technical Support and Updates
NOTE: This license supports HP ProLiant ML/DL and c-Class Blade servers. Customer
will receive via email a receipt and link to a license entitlement certificate.
NOTE: For additional License Kits, please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/13050_div/13050_div.html
Control
HP Integrated Lights-Out Select Pack
HP Integrated Lights-Out Select Pack, No Media, 1-Server License
NOTE: For additional License Kits, please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12362_div/12362_div.html
DA - 13242
Worldwide — Version 1 — March 30, 2009
460750-B21
460753-B21
460756-B21
483527-B21
483531-B21
452158-B21
Page 29
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Additional Options
HP Integrated Lights-Out Advanced Pack
HP Integrated Lights-Out Advanced Pack, No Media, 1-Server License, including 1
year of 24x7 Technical Support and Updates
NOTE: For additional License Kits, please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12362_div/12362_div.html
Optimize
HP Accelerated iSCSI Pack
HP Accelerated iSCSI Pack, No Media, Single License
NOTE: For use with a single NIC port. Contains one license with a unique license
activation key and documentation.
NOTE: For additional License Kits, please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12466_div/12466_div.html
HP Insight Power Manager (IPM)
HP Insight Power Manager software, No Media, 1-Server License, including 1 year of
24x7 Technical Support and Updates
NOTE: Customers purchasing this upgrade must already have an iLO Advanced or
Select license on each managed server. Customer will receive a printed license
entitlement certificate via physical shipment. The license entitlement certificate must be
redeemed online or via fax in order to obtain the license activation key(s). Includes
one year of 24 x 7 HP Software Technical Support and Update Service.
NOTE: For additional License Kits, please see the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12623_div/12623_div.html
NOTE: Flexible and volume quantity license kits are available for Value Packs. Refer
to http://www.hp.com/servers/proliantessentials or the various QuickSpecs for more
information.
512485-B21
452679-B21
452677-B21
Drive Cage Options
(8) Small Form Factor (SFF) 2nd Drive Cage Kit
(6) Large Form Factor (LFF) Backplane Kit
(2) Large Form Factor (LFF) Drive Cage Kit
507803-B21
507810-B21
487936-B21
Security
HP Trusted Platform Module Option Kit
488069-B21
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 30
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Additional Options
Storage Controllers
SAS Controllers
Smart Array P800 Controller
HP Smart Array P800/512 BBWC Controller
Smart Array P212 Controller
HP Smart Array P212/ZM Controller
HP Smart Array P212/256 MB Controller
256 MB Cache
Smart Array P410 Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB with BBWC Controller
512MB BBWC
Smart Array P411 Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB with BBWC Controller
512MB BBWC
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12616_div/12616_div.html
(Smart Array P800 Controller)
http://h18000.www1.hp.com/products/quickspecs/13203_div/13203_div.html
(Smart Array P212 Controller)
http://h18000.www1.hp.com/products/quickspecs/13201_div/13201_div.html
(Smart Array P410 Controller)
http://h18000.www1.hp.com/products/quickspecs/13202_div/13202_div.html
(Smart Array P411 Controller)
SAS Controller Options
HP SAS Expander Card
NOTE: For use with the additional 8 SFF drive cage (507803-B21).
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18004.www1.hp.com/products/quickspecs/13232_div/13232_div.html
(SAS Expander Card)
SAS HBA
HP SC08Ge Host Bus Adapter
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18004.www1.hp.com/products/quickspecs/13082_div/13082_div.html
(SC08Ge HBA)
DA - 13242
Worldwide — Version 1 — March 30, 2009
381513-B21
462828-B21
462834-B21
462968-B21
462862-B21
462864-B21
462967-B21
462830-B21
462832-B21
462967-B21
468406-B21
488765-B21
Page 31
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Additional Options
Power Cords
Tape Drives
NOTE: HP ProLiant servers ships with an IEC-IEC power cord used for rack mounting
with Power Distribution Units (PDUs).
Nema 5-15P to IEC320-C13, North America low voltage (6 ft/2 m)
Power Cord, Euro, 10A 250 V Straight (6 ft/1.83 m)
Power Cord, UK, 10A 250 V Straight (6 ft/1.83 m)
Power Cord, Danish, 10A 250 V Straight (6 ft/1.83 m)
Power Cord, Swiss, 10A 250 V Straight (6 ft/1.83 m)
Power Cord, Italian, 10A 250 V Straight (6 ft/1.83 m)
Power Cord, South Africa, 10A 250 V Straight (8.2 ft/2.5 m)
NOTE: For the complete listing of Tape Drive offerings, please see:
http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html
For recommended tape drive offerings for this ProLiant server see the following:
USB Tape Drives
HP StorageWorks DAT 160 USB Internal Tape Drive
SAS Tape Drives
NOTE: For the ML370 G6, HP recommends purchasing the HP Smart Array P212
Controller (462828-B21) for a dedicated SAS HBA for tape.
HP StorageWorks LTO-2 Ultrium 448 SAS Internal Tape Drive
HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive
HP StorageWorks LTO-4 Ultrium 1760 SAS Internal Tape Drive
NOTE: Please refer to the "Tape Drives, Tape Autoloaders & Tape Libraries" table in
the Storage section of this document for a list of SAS controllers with tape support.
Disk-Based Backup
AF556A
AF568A
AF570A
AF566A
AF565A
AF571A
AF567A
RDX Removable Disk Backup
HP StorageWorks RDX500 Internal Removable Disk Backup System
NOTE: 500GB of Disk Storage.
D2D Backup
HP StorageWorks D2D120 Backup System with Data Protector Express Software Kit
NOTE: 2TB of Disk Storage
HP StorageWorks D2D130 Backup System with LTO-3 Ultrium 920 SAS Tape Drive
NOTE: 3TB of Disk Storage.
HP StorageWorks D2D2503i Backup System
NOTE: 3TB of Disk Storage.
HP StorageWorks D2D4004i Backup System
NOTE: 4.5TB of Disk Storage.
NOTE: Please see the HP D2D Backup Systems QuickSpecs for additional
information: http://www.hp.com/go/d2d
DA - 13242
Worldwide — Version 1 — March 30, 2009
Q1580A
DW085A
EH847A
EH919A
AJ934A
EH924A
EH952A
EH945A
EH938A
Page 32
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Additional Options
Tape Autoloaders
Tape Libraries
High Availability Cluster
Options
HP StorageWorks 1/8 G2 Tape Autoloader
HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader
HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Autoloader
HP StorageWorks 1/8 G2 Tape Autoloader Rack Kit
NOTE: Required to install the 1/8 G2 Autoloaders in a standard 19-inch rack;
includes rails and rackmount instructions.
NOTE: Please reference the Tape Autoloader QuickSpecs at:
http://www.hp.com/go/automation for additional information needed to create a
complete solution; reference current compatibility information at:
http://www.hp.com/go/ebs
HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library
HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library
HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Drive Library
HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SAS Drive Library
NOTE: Please reference the MSL Tape Library QuickSpecs at:
http://www.hp.com/go/automation for additional information needed to create a
complete solution; reference current compatibility information at:
http://www.hp.com/go/ebs.
HP Serviceguard for Linux
HP Serviceguard Linux for HP ProLiant/x86 Servers
Licensed per physical server
Includes media and One Year 24x7 Software Support & Updates
HP Serviceguard Linux Oracle Database Toolkit for HP ProLiant/x86 Servers
Licensed per cluster
Includes media and One Year 24x7 Software Support & Updates
HP Serviceguard Extension for SAP on Linux for HP ProLiant/x86 Servers
Licensed per physical server
Includes media and One Year 24x7 Software Support & Updates
HP Serviceguard Linux Extended Distance Cluster (XDC) for HP ProLiant/x86 Servers
Licensed per physical server
Includes media and One Year 24x7 Software Support & Updates
NOTE: The above is not a complete list of all HP Serviceguard for Linux product
numbers For a detailed list of supported configuration/certification options for HP
Serviceguard for Linux please refer to the HP Serviceguard for Linux Configuration &
Ordering Guide available at: http://www.hp.com/go/sglx/info.
NOTE: HP Serviceguard for Linux products running on x86 platforms now include one
year of 24 x 7 Software Technical Support and Updates. Please see the Support
Information section of the HP Serviceguard for Linux QuickSpecs for details.
NOTE: For additional information including a complete list of Product Numbers for
HP Serviceguard for Linux, please see the following QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11518_div/11518_div.html
(Worldwide)
DA - 13242
Worldwide — Version 1 — March 30, 2009
AK377A
AH558A
AH166A
AK378A
AH559A
AK380A
AH560A
463831-B21
463833-B21
463834-B21
463835-B21
Page 33
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Additional Options
StorageWorks Options
StorageWorks Fibre Channel HBA
NOTE: The following is a list of all Fibre Channel Host Bus Adapters for Windows and
Linux. For detailed compatibility information please see:
http://h18006.www1.hp.com/storage/saninfrastructure/hba.html
HP StorageWorks FC2142SR 4Gb PCI-e HBA
HP StorageWorks FC2242SR Dual Channel 4Gb PCI-e HBA
HP StorageWorks FC1142SR 4Gb PCI-e HBA
HP StorageWorks FC1242SR Dual Channel 4Gb PCI-e HBA
HP StorageWorks 81Q PCI-e FC HBA
HP StorageWorks 81E 8Gb PCI-e FC HBA
HP StorageWorks 82E 8Gb Dual-port PCI-e FC HBA
HP StorageWorks 82Q 8Gb Dual Port PCI-e FC HBA
StorageWorks SCSI HBA
HP U320e SCSI Host Bus Adapter
NOTE: Recommended Dual Channel Ultra320 SCSI Controller for connecting multidrive MSL tape libraries to ProLiant servers.
A8002A
A8003A
AE311A
AE312A
AK344A
AJ762A
AJ763A
AJ764A
AH627A
HP StorageWorks 50
Modular Smart Array
HP StorageWorks 50 Modular Smart Array
NOTE: Please see the QuickSpecs for additional options and configuration
information at:
http://h18000.www1.hp.com/products/quickspecs/12245_div/12245_div.html
(Worldwide)
364430-B21
HP StorageWorks 60
Modular Smart Array
HP StorageWorks 60 Modular Smart Array
NOTE: Please see the QuickSpecs for additional options and configuration
information at:
http://h18000.www1.hp.com/products/quickspecs/12627_div/12627_div.html
(Worldwide)
418408-B21
HP StorageWorks 70
Modular Smart Array
HP StorageWorks 70 Modular Smart Array
NOTE: Please see the QuickSpecs for additional options and configuration
information at:
http://h18000.www1.hp.com/products/quickspecs/12652_div/12652_div.html
(Worldwide)
418800-B21
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 34
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Additional Options
Uninterruptible Power
Systems - Tower
Uninterruptible Power
Systems - Rack
HP T1000v Uninterruptible Power System
HP T1000v UPS
NOTE: The T1000v is available in China and India only.
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13130_div/13130_div.html
(Worldwide)
HP T1500 G3 UPS Models
HP T1500 G3 UPS, NA
HP T1500 G3 UPS, INTL
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13160_div/13160_div.html
(Worldwide)
HP R1500 G2 UPS
HP, R1.5kVA UPS, 1U, NA
HP, R1.5kVA UPS, 1U, INTL
HP, R1.5kVA UPS, 1U, JPN/TW
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12507_div/12507_div.html
(Worldwide)
HP R3000 UPS
HP R3000 VA UPS, 2U, DTC, INTL
HP R3000 VA UPS, 2U, L5-30, NA
HP R3000 VA UPS, 2U, L6-20, NA
HP R3000 VA UPS, 2U, L6-20, JPN
HP R3000 VA UPS, 2U, L5-30, JPN
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/10671_div/10671_div.html
(Worldwide)
HP R3000v Uninterruptible Power System
HP R3000v UPS
NOTE: The R3000v is available in China and India only.
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13129_div/13129_div.html
(Worldwide)
HP Rack-Mountable R5500 UPS
HP R5500 VA UPS, INTL
HP R5500 VA UPS, NA/JPN
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/11871_div/11871_div.html
(Worldwide)
DA - 13242
Worldwide — Version 1 — March 30, 2009
AF443A
AF450A
AF451A
AF419A
AF418A
AF421A
AF414A
AF422A
AF423A
AF424A
AF425A
AF444A
AF416A
AF426A
Page 35
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Additional Options
HP Monitored Power
Distribution Unit (PDU)
HP Monitored Power Distribution Unit: Full Rack Version
HP 17.3 kVA S2324 Monitored PDU- dual input, 3Ø24A (NA/JPN)
HP 8.6 kVA S1324 Monitored PDU- single input, 3Ø, 24A (NA/JPN)
HP 16.6 kVA S2140 Monitored PDU- dual input, 1Ø, 40A (NA/JPN)
HP 8.3 S1140 Monitored PDU- single input, 1Ø, 40A (NA/JPN)
HP 22.1 kVA S2316 Monitored PDU- dual input, 3Ø, 16A (INTL)
HP 11 kVA S1316 Monitored PDU- single input, 3Ø, 16A (INTL)
HP 14.7 kVA S2132 Monitored PDU- dual input, 1Ø, 32A (INTL)
HP 7.3 kVA S1132 Monitored PDU- single input, 1Ø, 32A (INTL)
HP Monitored Power Distribution Unit: Half Rack Version
HP 4.9 kVA S124 Monitored PDU- single input, 1Ø, 24A (NA/JPN)
HP 7.3 kVA S132 Monitored PDU- single input, 1Ø, 32A (INTL)
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12118_div/12118_div.html
(Worldwide)
Modular PDUs 1U/0U
(Up to 32 outlets)
NOTE: 1U/0U mounting
brackets shipped with
the unit (optimized for
10000 and 9000 series
racks).
Fixed Cord Extension Bars
NOTE: Two extension bar sticks; each with (7) C13 plugs.
3.6kVA Model - mPDU, 16A, High (WW)
2.8 kVA Model - mPDU, 24A, Low (NA/JPN)
4.9kVA Model - mPDU, 24A, High (NA/JPN)
7.3kVA Model - mPDU, 32A, High (INT'L)
8.3kVA Model - mPDU, 40A, High (WW)
8.3kVA Model - mPDU, 40A, High (power cord attached) (NA/JPN)
9.2kVA Model - mPDU, 40A, High (power cord attached) (INTL)
NOTE: For additional information on HP Power Distribution Units including
accessories please go to: www.hp.com/go/pdu (Worldwide)
USB Options
HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver)
USB 1.44-MB External Diskette Drive (Carbonite)
HP USB 04 Standard Keyboard
Rack Kit
HP ML370 G6 Tower to Rack Conversion Kit
DA - 13242
Worldwide — Version 1 — March 30, 2009
AF503A
AF504A
AF505A
AF506A
AF507A
AF508A
AF509A
AF510A
AF914A
AF915A
351655-B21
252663-B24
252663-D71
252663-D72
252663-B31
252663-B21
252663-D73
252663-B32
DC172B
DC141B
DT528A#ABA
515031-B21
Page 36
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Additional Options
HP Rack 5000 Series
(Graphite Metallic)
HP 5642 Rack Unassembled
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12074_div/12074_div.html
(Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following
URL: http://www.hp.com/go/rackandpower.
HP Rack 10000 G2
Series
(Carbon/Graphite
Metallic)
10642 G2 (42U) Rack Cabinet - Pallet
10642 G2 (42U) Rack Cabinet - Shock Pallet
10642 G2 (42U) Rack Cabinet - Crated
10642 G2 (42U) Rack Cabinet, with Extension - Shock Pallet
10636 G2 (36U) Rack Cabinet - Pallet
10636 G2 (36U) Rack Cabinet - Shock Pallet
10636 G2 (36U) Rack Cabinet - Crated
10636 G2 (36U) Rack Cabinet, with Extension - Shock Pallet
10622 G2 (22U) Rack Cabinet - Pallet
10622 G2 (22U) Rack Cabinet - Shock Pallet
10642 G2 (42U) Rack Cabinet 1200mm Deep - Shock Pallet
10642 G2 (42U) Rack Cabinet 1200mm Deep - Pallet
10842 G2 (42U) 800mm Wide Rack Cabinet - Pallet
10842 G2 (42U) 800mm Wide Rack Cabinet - Shock Pallet
10647 G2 (47U) Rack Cabinet - Pallet
HP Rack S10614 (14U) Rack Cabinet - Shock Pallet
10647 G2 (47U) Rack Cabinet 1200mm Deep - Shock Pallet
NOTE: Due to handling and shipping requirements, AF044A is only orderable
through HP Factory Express. It is not for direct sales. Customer site surveys are
required before an order is approved. CTO orders may require additional lead time.
10647 G2 (47U) Rack Cabinet 1200mm Deep - Pallet
NOTE: It is mandatory to use a shock pallet when shipping racks with equipment
installed.
NOTE: xxxxxx-B22 (shock pallet) used to ship racks with equipment installed (by
custom systems, VARs and Channels).
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html
(Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following
URL: http://www.hp.com/go/rackandpower.
DA - 13242
Worldwide — Version 1 — March 30, 2009
358254-B21
AF001A
AF002A
AF003A
AF004A
AF011A
AF012A
AF013A
AF014A
AF021A
AF022A
AF034A
AF038A
AF041A
AF042A
AF031A
292302-B22
AF044A
AF045A
Page 37
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Additional Options
Keyboards and Monitors TFT7600 Rackmount Keyboard Monitor US
TFT7600 Rackmount Keyboard Monitor UK
TFT7600 Rackmount Keyboard Monitor GR
TFT7600 Rackmount Keyboard Monitor FR
TFT7600 Rackmount Keyboard Monitor IT
TFT7600 Rackmount Keyboard Monitor SP
TFT7600 Rackmount Keyboard Monitor DEN
TFT7600 Rackmount Keyboard Monitor NOR
TFT7600 Rackmount Keyboard Monitor SE/FI
TFT7600 Rackmount Keyboard Monitor SWI
TFT7600 Rackmount Keyboard Monitor PORT
TFT7600 Rackmount Keyboard Monitor BEL
TFT7600 Rackmount Keyboard Monitor JPN2
TFT7600 Rackmount Keyboard Monitor RUS
TFT7600 Rackmount Keyboard Monitor INTL
1U Rackmount Keyboard with USB, US
1U Rackmount Keyboard with USB, UK
1U Rackmount Keyboard with USB, GR
1U Rackmount Keyboard with USB, FR
1U Rackmount Keyboard with USB, ITL
1U Rackmount Keyboard with USB, SP
1U Rackmount Keyboard with USB, DEN
1U Rackmount Keyboard with USB, NOR
1U Rackmount Keyboard with USB, SE/FI
1U Rackmount Keyboard with USB, SWI
1U Rackmount Keyboard with USB, PORT
1U Rackmount Keyboard with USB, BEL
1U Rackmount Keyboard with USB, JPN2
1U Rackmount Keyboard with USB, RUS
1U Rackmount Keyboard with USB, INTL
NOTE: For additional information regarding Rack Cabinets, please see the following
URL: http://www.hp.com/go/rackandpower.
DA - 13242
Worldwide — Version 1 — March 30, 2009
AG052A
AG053A
AG054A
AG055A
AG056A
AG057A
AG058A
AG059A
AG060A
AG061A
AG062A
AG063A
AG064A
AG065A
AG066A
AG072A
AG073A
AG074A
AG075A
AG076A
AG077A
AG078A
AG079A
AG080A
AG081A
AG082A
AG083A
AG084A
AG085A
AG086A
Page 38
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Additional Options
HP KVM Switch Options
2x1x16 IP Console Switch with Virtual Media
4x1x16 IP Console Switch with Virtual Media
2x16 Server Console Switch with Virtual Media
PS/2 Virtual Media Interface Adapter, 1 pack
NOTE: Requires PS/2 and one USB port on server.
Server Console Switch (KVM), 0 x 1 x 8 port
Server Console Switch (KVM), 0 x 2 x 16 port
PS/2 Interface Adapter, 1 pack
PS/2 Interface Adapter, 8 pack
NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches.
Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
AF601A
AF602A
AF600A
AF604A
336044-B21
336045-B21
262588-B21
262587-B21
HP 1x4 Console Switch (ALL)
PS2 Server Console Cable, 6 ft, 2 pack
USB Server Console Cable, 6 ft, 2 pack
NOTE: For additional information regarding KVM switches, Serial Console servers,
rack mount monitors, keyboards and all related options please see the following URL:
http://www.hp.com/go/kvm.
AF611A
AF612A
AF613A
HP Serial Console Server HP 16 Port Serial Console Server (worldwide)
Options
HP 48 Port Serial Console Server (worldwide)
Serial Adapter, RJ45-DB9 DCE Female, 1 Pack
Serial Adapter, RJ45-DB9 DCE Female, 8 Pack
NOTE: Cat5e cables are required to connect Serial Adapters to Serial Console
Servers. Additional Serial Adapters and Cat5e cables can be found at the following
URL: http://www.hp.com/go/kvm.
NOTE: For additional information regarding KVM switches, Serial Console servers,
rack mount monitors, keyboards and all related options please see the following URL:
http://www.hp.com/go/kvm.
AF101A
AF102A
AF103A
AF110A
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 39
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Additional Options
Service and Support
Offerings
(HP Care Pack Services)
Hardware Services On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
Hardware Services 6-Hour Call to Repair On-site Service
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic
Installation & Start-up Services
Hardware Installation, Electronic
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the
Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am5pm, M-F, excl. HP holidays, Electronic
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech
support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP
holidays, Electronic
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite,
onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite,
onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
Onsite HW support 24x7, 4hr response and Red Hat ES Linux SW Tech support
offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
NOTE: For more information, customer/resellers can contact:
http://www.hp.com/services/carepack.
DA - 13242
Worldwide — Version 1 — March 30, 2009
U4528E
U4529E
U4530E
U4538E
U4539E
U4540E
U4541E
U6311E
U8333E
Page 40
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Memory
NOTE: Memory configurations listed do not apply to "Factory Integrated Models".
HP ProLiant DL370 G6 Models
HP ProLiant ML370 G6 Models
DDR3 memory population guidelines
For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator
Some DIMM installation guidelines are summarized below:
For servers with eighteen (18) memory slots:
There are three (3) channels per processor; six (6) channels per server
There are three (3) DIMM slots for each memory channel; eighteen (18) total slots
Memory channel 1 consists of the three (3) DIMMs that are closest to the processor
Memory channel 3 consists of the three (3) DIMMs that are furthest from the processor
DIMM slots that are white should be populated first
Do not mix Unbuffered memory (UDIMMs) with Registered memory (RDIMMs)
Do not install DIMMs if the corresponding processor is not installed
If only one processor is installed in a 2CPU system, only half of the DIMM slots are available
To maximize performance, balance the total memory capacity between all installed processors
It is not required, but it is recommended to load the channels similarly if possible
You can only have up to eight (8) ranks installed per channel
You can only install two quad-rank DIMMs per channel
You can only install two UDIMMs per channel; if available, the third slot in the channel must remain empty
Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank) within a channel
Heaviest load (DIMM with most ranks) within a channel goes furthest from the chipset
For memory mirroring mode, channel 3 must be unpopulated. Channels 1 and 2 are populated identically
For lock-step mode, channel 3 must be unpopulated. DIMMs in channels 1 and 2 will be installed in pairs. The paired slots
will be 1,4; 2,5; 3;6 on a 3DPC system or 1,4; 2,5; on a 2DPC system
No mixing DIMM voltage; all DIMMs must be the same voltage
DIMM Type ->
DIMM Rank ->
DIMM Capacity ->
DIMM Native Speed
(MHz) ->
Registered Dimms (RDIMMs)
Dual Rank (2R)
Quad Rank (4R)
2GB
4GB
8GB
2GB
4GB
Unbuffered with ECC DIMMs (UDIMMs)
Dual Rank (2R)
Single Rank (1R)
1GB
2GB
1GB
2GB
1333
1333
1066
*
1066
1333
*
*
1333
SLOTS THAT CAN BE POPULATED
18 slot servers
18
18
18
*
12
12
*
*
12
MAXIMUM CAPACITY (GB)
18 slot servers
36
72
144
*
48
12
*
*
24
1333
1066
800
1066
1066
800
*
*
*
1066
800
*
1333
1066
*
*
*
*
*
*
*
1333
1066
*
POPULATED DIMM SPEED (MHz)
1 DIMM Per Channel
1333
2 DIMM Per Channel
1066
3 DIMM Per Channel
800
* not supported by HP at this time.
NOTES:
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 41
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Memory
Mixing DIMM speeds is allowed, but the system processor speed rules always override the DIMM capabilities
If you do mix DIMM speeds, the memory bus will default to the minimum clock rate of all DIMMs in the system - even if the
slower DIMM is on the other processor
If you install 1x 1066MHz DIMM in channel 1 and 1x 1333MHz DIMM in channel 2, you still run at 1066MHz
If you install 1x 1066MHz DIMM in channel 1 and 5x 1333MHz DIMMs with 1 DIMM Per Channel (DPC) in each of the other
channels, you run at 1066MHz
If you install 3DPC in one channel (if applicable) and 1DPC in all other channels, you run at 800MHz
95 Watt CPU's are required for 1333MHz DIMM speeds. All other CPU's are capable of up to 1066MHz
References to the above MHz speeds are for the various speeds of DDR3 DIMMs; 1333 refers to DDR3-1333, etc.
DIMM slot and configuration diagrams
Basic memory slot & population diagram
Population order; start with "A" first, "B" second, "C" third, etc.
Chnl 1
slot #
1
2
3
18 DIMM SLOTS (9 per CPU node)
CPU1
CPU2
population order
slot #
population order
G
1
G
D
2
D
A
3
A
Chnl 1
Chnl 2
4
5
6
H
E
B
4
5
6
H
E
B
Chnl 2
Chnl 3
7
8
9
I
F
C
7
8
9
I
F
C
Chnl 3
Standard memory configuration (1 CPU model)
6GB, consisting of three (3) 2GB dual-rank PC3-10600 RDIMMs
Chnl 1
slot #
1
2
3
CPU1
population order
G; empty
D; empty
A; 2GB DIMM
slot #
1
2
3
CPU2
population order
G; empty
D; empty
A; empty
Chnl 1
Chnl 2
4
5
6
H; empty
E; empty
B; 2GB DIMM
4
5
6
H; empty
E; empty
B; empty
Chnl 2
Chnl 3
7
8
9
I; empty
F; empty
C; 2GB DIMM
7
8
9
I; empty
F; empty
C; empty
Chnl 3
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 42
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Memory
Standard memory plus optional memory (1 CPU model)
54GB, consisting of three (3) 2GB RDIMMs plus six (6) 8GB RDIMMs
3x 2GB dual-rank PC3-10600 RDIMMs
6x 8GB dual-rank PC3-8500 RDIMMs
Chnl 1
slot #
1
2
3
CPU1
population order
G; 8GB DIMM
D; 8GB DIMM
A; 2GB DIMM
slot #
1
2
3
CPU2
population order
G; empty
D; empty
A; empty
Chnl 1
Chnl 2
4
5
6
H; 8GB DIMM
E; 8GB DIMM
B; 2GB DIMM
4
5
6
H; empty
E; empty
B; empty
Chnl 2
Chnl 3
7
8
9
I; 8GB DIMM
F; 8GB DIMM
C; 2GB DIMM
7
8
9
I; empty
F; empty
C; empty
Chnl 3
Standard memory replaced with optional memory (1 CPU model)
RDIMM maximum configuration
72GB, consisting of nine (9) 8GB dual-rank PC3-8500 RDIMMs
Chnl 1
slot #
1
2
3
CPU1
population order
G; 8GB DIMM
D; 8GB DIMM
A; 8GB DIMM
slot #
1
2
3
CPU2
population order
G; empty
D; empty
A; empty
Chnl 1
Chnl 2
4
5
6
H; 8GB DIMM
E; 8GB DIMM
B; 8GB DIMM
4
5
6
H; empty
E; empty
B; empty
Chnl 2
Chnl 3
7
8
I; 8GB DIMM
F; 8GB DIMM
7
8
I; empty
F; empty
Chnl 3
UDIMM maximum configuration (1 CPU model)
12GB, consisting of six (6) 2GB dual-rank PC3-10600 UDIMMs
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 43
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Memory
Chnl 1
slot #
1
2
3
CPU1
population order
G; empty
D; 2GB DIMM
A; 2GB DIMM
slot #
1
2
3
CPU2
population order
G; empty
D; empty
A; empty
Chnl 1
Chnl 2
4
5
6
H; empty
E; 2GB DIMM
B; 2GB DIMM
4
5
6
H; empty
E; empty
B; empty
Chnl 2
Chnl 3
7
8
9
I; empty
F; 2GB DIMM
C; 2GB DIMM
7
8
9
I; empty
F; empty
C; empty
Chnl 3
Standard memory replaced with optional memory (2 CPU model)
RDIMM maximum configuration
144GB, consisting of eighteen (18) 8GB PC3-8500 RDIMMs
Chnl 1
slot #
1
2
3
CPU1
population order
G; 8GB DIMM
D; 8GB DIMM
A; 8GB DIMM
slot #
1
2
3
CPU2
population order
G; 8GB DIMM
D; 8GB DIMM
A; 8GB DIMM
Chnl 1
Chnl 2
4
5
6
H; 8GB DIMM
E; 8GB DIMM
B; 8GB DIMM
4
5
6
H; 8GB DIMM
E; 8GB DIMM
B; 8GB DIMM
Chnl 2
Chnl 3
7
8
9
I; 8GB DIMM
F; 8GB DIMM
C; 8GB DIMM
7
8
9
I; 8GB DIMM
F; 8GB DIMM
C; 8GB DIMM
Chnl 3
UDIMM maximum configuration (2 CPU model)
24GB, consisting of twelve (12) 2GB dual-rank PC3-10600 UDIMMs
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 44
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Memory
Chnl 1
slot #
1
2
3
CPU1
population order
G; empty
D; 2GB DIMM
A; 2GB DIMM
slot #
1
2
3
CPU2
population order
G; empty
D; 2GB DIMM
A; 2GB DIMM
Chnl 1
Chnl 2
4
5
6
H; empty
E; 2GB DIMM
B; 2GB DIMM
4
5
6
H; empty
E; 2GB DIMM
B; 2GB DIMM
Chnl 2
Chnl 3
7
8
9
I; empty
F; 2GB DIMM
C; 2GB DIMM
7
8
9
I; empty
F; 2GB DIMM
C; 2GB DIMM
Chnl 3
NOTE: Capacity references are rounded to the common Gigabyte values.
1GB = 1024MB
2GB = 2048MB
4GB = 4096MB
8GB = 8192MB
Following are memory options available from HP:
Registered DIMMs (RDIMMs)
Memory
HP 2GB 2Rx8 PC3-10600R-9 Kit
HP 4GB 2Rx4 PC3-10600R-9 Kit
HP 4GB 4Rx8 PC3-8500R-7 LP Kit
HP 8GB 2Rx4 PC3-8500R-7 Kit
Unbuffered with ECC DIMMs (UDIMMs)
HP 1GB 1Rx8 PC3-10600E-9 Kit
HP 2GB 2Rx8 PC3-10600E-9 Kit
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed
memory configuration rules and guidelines, please use the Online DDR3 Memory
Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as LP include Low Power DIMMs. For more information on
ProLiant Energy Efficient Features, see:
http://h18004.www1.hp.com/products/servers/platforms/energyefficient/
DA - 13242
Worldwide — Version 1 — March 30, 2009
500656-B21
500658-B21
500660-B21
516423-B21
500668-B21
500670-B21
Page 45
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Storage
A
Removable media bay
B
(B) SATA DVD-ROM Drive (Standard in all BTO
Models)
C
Optical Drive (blank)
1-8
Eight SFF SAS/SATA HD Bays (Standard in all BTO
Models)
A
Removable media bay
B
SATA DVD-ROM Drive (Standard in all BTO Models)
C
Optical Drive (blank)
1-8
Eight SFF SAS/SATA HD Bays (Standard in all BTO
Models)
1-24 Twenty-four small form factor (SFF) hot-plug drive bays
to support Serial-attached SCSI (SAS) and Serial ATA
(SATA) drives with optional drive cages (up to three 8
SFF drive cage can be installed)
1-14 Fourteen large form factor (LFF) hot-plug drive bays to
support Serial-attached SCSI (SAS) and Serial ATA
(SATA) drives with optional drive cages
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 46
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Storage
Drive Support
Removable Media
Half-Height SATA DVDROM Optical Drive
Half-Height SATA DVD
RW Optical Drive
HP Slim SATA DVD-ROM
Optical Drive
HP Slim SATA DVD RW
Optical Drive
Quantity
Supported
Position
Supported
Up to 2
A, B
Integrated IDE
Up to 2
A, B
Integrated IDE
Up to 2
NOTE: Also
please use if the
3 drive cage is
populated
Up to 2
NOTE: Also
please use if the
3 drive cage is
populated
C
Integrated IDE
C
Integrated IDE
Controller
Hard Drives
NOTE: Transfer rates of drives are dependent on the maximum transfer rate supported by the HBA or Controller. Refer to the HBA
or Controller technical specifications for details.
SAS Hot Plug SFF Enterprise (ENT) Drives
Quantity
Position
Supported
Supported
Controller
300GB 6G SAS 10K DP
Up to 24
1-8
HP Smart Array P800/512 BBWC Controller
300GB 3G SAS 10K DP
1-24
HP Smart Array P212/Zero Memory Controller
146GB 6G SAS 10K DP
HP Smart Array P212/ 256 MB Controller
146GB 3G SAS 10K DP
HP Smart Array P410/256 MB Controller
146GB 3G SAS 15K DP
HP Smart Array P410/512 MB BBWC Controller
72GB 3G SAS 10K DP
HP Smart Array P411/256 MB Controller
72GB 3G SAS 15K DP
HP Smart Array P411/512 MB BBWC Controller
36GB 3G SAS 15K DP
SAS Hot Plug 3.5" Enterprise (ENT) Drives
Quantity
Supported
450GB 3G SAS 15K DP
Up to 14
400GB 3G SAS 10K DP
146GB 3G SAS 15K DP
72GB 3G SAS 15K DP
DA - 13242
Position
Supported
1-14
Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
Worldwide — Version 1 — March 30, 2009
Page 47
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Storage
SAS Hot Plug 3.5" Midline (MDL) Drives
Quantity
Supported
1TB 3G SAS 7.2K DP
Up to 14
750GB 3G SAS 7.2K DP
SATA Hot Plug SFF Entry (ETY) Drives
Quantity
Supported
250GB 3G SATA 5.4K
Up to 24
120GB 1.5G SATA 5.4K
SATA Hot Plug 3.5" Midline (MDL) Drives
Quantity
Supported
1TB 3G SATA 7.2K
Up to 14
750GB 3G SATA 7.2K
500GB 3G SATA 7.2K
250GB 3G SATA 7.2K
DA - 13242
Position
Supported
1-14
Position
Supported
1-8
1-24
Position
Supported
1-14
Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P410/256 MB Controller
HP Smart Array P410/512 MB BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
Worldwide — Version 1 — March 30, 2009
Page 48
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Storage
External Storage
50 Modular Smart Array
60 Modular Smart Array
Quantity
Supported
Up to 4
Up to 4
Position
Supported
External
External
Up to 8
70 Modular Smart Array
Up to 2
External
Up to 4
Host Controller or Adapter
HP Smart Array P800/512 BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
HP Smart Array P212/Zero Memory Controller
HP Smart Array P212/ 256 MB Controller
HP Smart Array P800/512 BBWC Controller
HP Smart Array P411/256 MB Controller
HP Smart Array P411/512 MB BBWC Controller
Tape and Disk-Based Backup
NOTE: For a complete listing of compatible tape and disk-based backup offerings, please visit: www.hp.com/go/connect.
Internal USB Tape Drives
DAT 40 USB
DAT 72 USB
DAT 160 USB
Position
Supported
B,C
Controller
Part Number
USB 2.0 Port
N/A
USB 2.0 Port
N/A
USB Tape Drives, External
DAT 40 USB
DAT 72 USB
DAT 160 USB
1U Rack-Mount Kit
External
SAS Tape Drives, Internal
DAT 160 SAS
LTO-2 Ultrium 448 SAS
LTO-3 Ultrium 920 SAS
LTO-4 Ultrium 1760 SAS
B,C
HP Smart Array P212/Zero Memory Controller
462828-B21
SAS Tape Drives, Internal
LTO-4 Ultrium 1840 SAS
B+C
HP Smart Array P212/Zero Memory Controller
462828-B21
SAS Tape Drives, External
DAT 160 SAS
LTO-2 Ultrium 448 SAS
LTO-3 Ultrium 920 SAS
LTO-4 Ultrium 1760 SAS
LTO-4 Ultrium 1840 SAS
1U Rack-Mount
3U Rack-Mount
External
HP Smart Array P212/Zero Memory Controller
462828-B21
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 49
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Storage
SAS Tape Automation,
External
1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
External
HP Smart Array P212/Zero Memory Controller
Fibre Tape Automation,
External
MSL2024
MSL4048
MSL8096
MSL6000
External
Please consult the EBS connectivity matrix at:
http://www.hp.com/go/ebs for detailed connectivity information.
N/A
HP StorageWorks RDX
Removable Disk Backup
System, Internal
RDX160
RDX320
RDX500
B,C
USB 2.0 Port
N/A
HP StorageWorks RDX
Removable Disk Backup
System, External
RDX160
RDX320
RDX500
External
USB 2.0 Port
N/A
HP StorageWorks D2D
Backup Systems
D2D120
D2D130
D2D2503i
D2D4004i
External
Embedded Network Controller
N/A
DA - 13242
Worldwide — Version 1 — March 30, 2009
462828-B21
Page 50
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Power Specifications
HP 460W Power Supply
Part Number - AC 460W PSU
503296-B21
Input Voltage Range (Vrms)
100 to 240
Frequency Range (Nominal) (Hz) 50/60
Nominal Input Voltage (Vrms)
100
Maximum Rated Output Wattage
460
Nominal Input Current (A rms)
5.5
Max Rated Input Wattage Rating
526
(Watts)
Max. Rated VA (Volt-Amp)
548
Efficiency (%) at Max. Rated Output
87.5
Wattage
Power Factor
0.97
Leakage Current (mA)
0.42
Max. Inrush Current (A peak)
30
Max. Inrush Current duration (mS)
20
Maximum British Thermal Unit
1794
Rating (BTU-Hr)
HP 750W Power Supply
Part Number - AC 750W PSU
512327-B21
Input Voltage Range (Vrms)
100 to 240
Frequency Range (Nominal) (Hz) 50/60
Nominal Input Voltage (Vrms)
100
Maximum Rated Output Wattage
750
Nominal Input Current (A rms)
8.9
Max Rated Input Wattage Rating
857
(Watts)
Max. Rated VA (Volt-Amp)
894
Efficiency (%) at Max. Rated Output
87.5
Wattage
Power Factor
0.97
Leakage Current (mA)
0.42
Max. Inrush Current (A peak)
30
Max. Inrush Current duration (mS)
20
Maximum British Thermal Unit
2925
Rating (BTU-Hr)
DA - 13242
120
460
4.5
520
208
460
2.6
505
200
460
2.5
505
220
460
2.4
503
230
460
2.3
503
240
460
2.2
503
542
88.5
527
91
527
91
524
91.5
524
91.5
524
91.5
0.97
0.50
30
20
1773
0.97
0.83
30
20
1725
0.97
0.87
30
20
1725
0.97
0.92
30
20
1715
0.97
0.96
30
20
1715
0.97
1.00
30
20
1715
120
750
7.4
847
208
750
4.3
824
200
750
4.1
825
220
750
3.9
820
230
750
3.7
820
240
750
3.6
820
884
88.5
859
91
859
91
854
91.5
854
91.5
854
91.5
0.97
0.50
30
20
2892
0.97
0.83
30
20
2812
0.97
0.87
30
20
2812
0.97
0.92
30
20
2797
0.97
0.96
30
20
2797
0.97
1.00
30
20
2797
Worldwide — Version 1 — March 30, 2009
Page 51
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Power Specifications
HP 1200W Power Supply
Part Number - AC
500172-B21
Operational Input Voltage Range 100 to 240
(Vrms)
Frequency Range (Nominal) (Hz) 50/60
Nominal Input Voltage (Vrms)
100
Maximum Rated Output Wattage
800
Nominal Input Current (A rms)
9.7
Max Rated Input Wattage Rating
930
(Watts)
Max. Rated VA (Volt-Amp)
970
Efficiency (%) at Max. Rated Output
86
Wattage
Power Factor
0.97
Leakage Current (mA)
0.42
Max. Inrush Current (A peak)
30
Max. Inrush Current duration (mS)
20
Maximum British Thermal Unit
3174
Rating (BTU-Hr)
120
900
9.0
1034
208
1200
7.0
1348
200
1200
6.8
1348
220
1200
6.4
1348
230
1200
9.1
1348
240
1200
5.9
1348
1079
87
1406
89
1406
89
1406
89
1406
89
1406
89
0.97
0.50
30
20
3530
0.97
0.83
30
20
4600
0.97
0.87
30
20
4600
0.97
0.92
30
20
4600
0.97
0.96
30
20
4600
0.97
1.00
30
20
4600
To review typical system power ratings use the Active Answers HP Power Advisor which is available via the online tool located at
URL: www.hp.com/go/proliant-energy-efficient or www.hp.com/go/hppoweradvisor
To drill down to calculators:
- Click on: "ProLiant Servers"
- Click on the Server of interest. Example: DL360 G6
- Click on: "Power Calculator" link. (You may need to scroll down to see it)
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 52
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Technical Specifications
System Unit
Tower Dimensions
(H x W x D) (with bezel)
Rack Dimensions
(H x W x D) (with bezel)
Tower Weight
(approximate)
Rack Weight
(approximate)
Input Requirements
(per power supply)
BTU Rating
Power Specifications
18.52 x 9.75 x 29.12 in (47.04 x 24.77 x 73..96 cm)
6.88 x 19.03 x 27.53 in (17.48 x 48.34 x 69.93 cm)
Maximum
(two hard drives, power
supply, and processor
installed)
Minimum
(one hard drive, power
supply, and processor
installed)
Maximum
(two hard drives, power
supply, and processor
installed)
Minimum
(one hard drive, power
supply, and processor
installed)
Rated Line Voltage
103.06 lbs (46.75 kg)
66,14 lbs (30.00 kg)
103.06 lbs (46,75 kg)
55.12 lbs (25.00 kg)
90 - 132 VAC,
180 - 264 VAC
Rated Input Current
7.5A (at 100 VAC),
3.8A (at 200 VAC)
Rated Input Frequency
47 to 63 Hz
Rated Input Power
980W (at 100 VAC)
1035W (at 120 VAC)
1170W (at 240 VAC)
Maximum
460W - 1773 BTU / hr (at 120 VAC), 1715 (at
240 VAC)
750W - 2892 BTU / hr (at 120 VAC), 2797 (at
240 VAC)
1200W - 3530 BTU / hr (at 120 VAC), 4600 (at
240 VAC)
To review typical system power ratings use the HP Power Advisor which is
available via the online tool located at URL: www.hp.com/go/proliantenergy-efficient
- Click on the system of interest. Example: DL370 G6 or ML370 G6
- Follow the instructions of the next screens.
Power Supply Output
Rated Steady-State Power 460 W (at 100 VAC)
(per power supply)
Maximum Peak Power
460 W (at 200 VAC)
460 W (at 100 VAC)
460 W (at 200 VAC)
NOTE: See Power Supply Specifications tables
for complete details on 460W PSU and optional
750W and 1200W Power Supply Options.
System Inlet Temperature Operating
10° to 35°C (50° to 95°F) at sea level with an
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 53
QuickSpecs
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
Technical Specifications
Relative Humidity
(non-condensing)
Altitude
Acoustic Noise
Emissions Classification
(EMC)
DA - 13242
altitude derating of 1.0°C per every 305 m
(1.8°F per every 1000 ft) above sea level to a
maximum of 3050 m (10,000 ft), no direct
sustained sunlight. Maximum rate of change is
10°C/hr (18°F/hr). The upper limit may be
limited by the type and number of options
installed.
System performance may be reduced if operating
with a fan fault or above 30°C (86°F).
Non-operating
-30° to 60°C (-22° to 140°F). Maximum rate of
change is 20°C/hr (36°F/hr).
Operating
10 to 90% relative humidity (Rh), 28°C (82.4°F)
maximum wet bulb temperature, noncondensing.
Non-operating
5 to 95% relative humidity (Rh), 38.7°C
(101.7°F) maximum wet bulb temperature, noncondensing.
Operating
3048 m (10,000 ft). This value may be limited by
the type and number of options installed.
Maximum allowable altitude change rate is 457
m/min (1500 ft/min).
Non-operating
9144 m (30,000 ft). Maximum allowable
altitude change rate is 457 m/min (1500 ft/min).
Listed are the declared A-Weighted sound power levels (LWAd) and declared
average bystander position A-Weighted sound pressure levels (LpAm) when
the product is operating in a 23°C ambient environment. Noise emissions
were measured in accordance with ISO 7779 (ECMA 74) and declared in
accordance with ISO 9296 (ECMA 109).
Idle
L WAd
5.6 B for 1P Non-Redundant; 5.5 B for 2P
Redundant
L pAm
39 dB for 1P Non-Redundant; 39 dB for 2P
Redundant
Operating
L WAd
5.6 B for 1P Non-Redundant; 5.5 B for 2P
Redundant
L pAm
39 dB for 1P Non-Redundant; 39 dB for 2P
Redundant
NOTE: The Listed sound levels apply to standard shipping configurations.
Additional options may result in increased sound levels.
FCC Rating
Class B
Normative Standards
CISPR 22; EN55022; EN55024; FCC CFR 47,
Pt 15; ICES-003; CNS13438; GB9254;
K22;K24; EN 61000-3-2; EN 61000-3-3; EN
60950-1; IEC 60950-1
Worldwide — Version 1 — March 30, 2009
Page 54
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Technical Specifications
NOTE: Product conformance to cited product specifications is based on
sample (type) testing, evaluation, or assessment. This product or family of
products is eligible to bear the appropriate compliance logos and
statements.
Smart Array P410i
Controller
Dimensions
(not including bracket)
Disk Drive and Enclosure
Interface - Transfer rate
Low Profile PCIe Form Factor
7.5 in x 9.5 in x 2.25 in (19.05 cm x 24.13 cm x 5.72 cm)
3G SAS (Serial Attached SCSI)/6G SAS Capable
1.5G SATA (Serial ATA)/3G SATA Capable
SAS Connectors
2 internal (Mini-SAS) x8 wide port connectors
Cache Memory Speed
DDR2-800MHz with 40 or 72-bit wide bus provides up to 4.2 GB/s
maximum bandwidth.
Server Interface
x8 5G PCIe 2.0 provides 4GB/s maximum bandwidth
SAS Speed
x8 3G SAS provides 2.4GB/s maximum bandwidth
Cache Memory
40-bit 256MB ECC protected cache (72-bit 512MB BBWC module
upgrades available); transportable with battery-backed upgrade
Logical Drives Supported Up to 12 logical drives
Maximum Logical Drive Greater than 2TB
Capacity
Host Memory Addressing 64-bit, supporting greater than 4GB server memory space
RAID 6, 6+0 (Advanced Data Guarding)
RAID Support
NOTE: The minimum of 256 MB cache, battery kit, and Smart Array
Advanced Pack License Key upgrade is required to enable RAID 6, 6+0
RAID 5, 5+0 (Distributed Data Guarding)
NOTE: The 256 MB & Battery Kit upgrade is required to enable RAID 5,
5+0 support of the Smart Array P410i
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping)
Upgradeable Firmware with recovery ROM feature
Upgradeable Firmware
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 55
HP ProLiant DL370 Generation 6 (G6)
HP ProLiant ML370 Generation 6 (G6)
QuickSpecs
Technical Specifications
NC375i Integrated Quad Network Interface
Port Multifunction Gigabit Compatibility
Server Adapter
Data Transfer Method
Network Transfer Rate
Connector
Cable Support
Environment-friendly
Products and Approach
End-of-life Management
and Recycling
10Base-T/100Base-TX/1000Base-TX
IEEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
IEEE 802.3ad 1000Base-TX
IEEE 802.1p 100Base-TX
IEEE 802.1q 100Base-TX
PCI Express, four lanes (x4)
10Base-T (Half-Duplex)
10 Mb/s
10Base-T (Full-Duplex)
20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex)
1000Base-TX (Half and
Full-Duplex)
RJ-45
10Base-T
100Base-TX
1000Base-TX
200 Mb/s
2000 Mb/s
Categories 3, 4 or 5 UTP up to 328 ft (100 m)
Category 5 or higher UTP; up to 328 ft (100 m)
Category 5 or higher UTP; up to 328 ft (100 m)
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:
http://www.hp.com/go/green. To recycle your product, please go to:
http://www.hp.com/go/green or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green. These instructions may
be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
© Copyright 2009 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel
Corporation.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.
DA - 13242
Worldwide — Version 1 — March 30, 2009
Page 56
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
