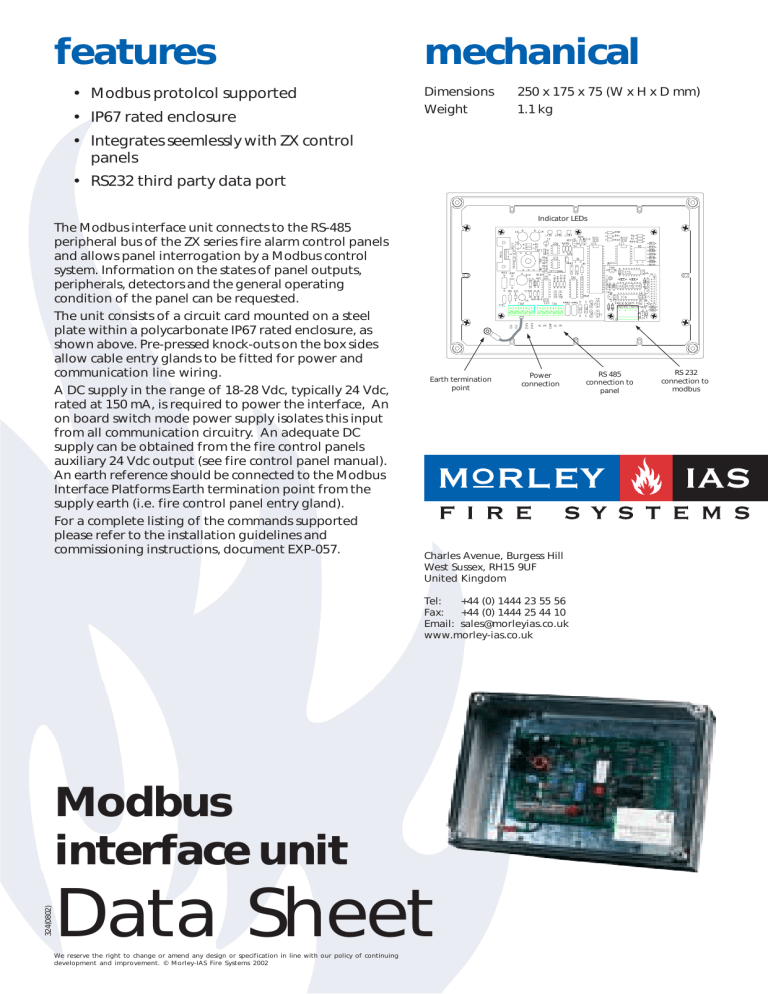

Modbus interface unit - Honeywell Partner Connect

Modbus interface unit - Honeywell Partner Connect
features
• Modbus protolcol supported
• IP67 rated enclosure
mechanical
Dimensions
Weight
250 x 175 x 75 (W x H x D mm)
1.1 kg
• Integrates seemlessly with ZX control
panels
• RS232 third party data port
Indicator LEDs
The Modbus interface unit connects to the RS-485
peripheral bus of the ZX series fire alarm control panels
and allows panel interrogation by a Modbus control
system. Information on the states of panel outputs,
peripherals, detectors and the general operating
condition of the panel can be requested.
The unit consists of a circuit card mounted on a steel
plate within a polycarbonate IP67 rated enclosure, as
shown above. Pre-pressed knock-outs on the box sides
allow cable entry glands to be fitted for power and
communication line wiring.
A DC supply in the range of 18-28 Vdc, typically 24 Vdc,
rated at 150 mA, is required to power the interface, An
on board switch mode power supply isolates this input
from all communication circuitry. An adequate DC
supply can be obtained from the fire control panels
auxiliary 24 Vdc output (see fire control panel manual).
An earth reference should be connected to the Modbus
Interface Platforms Earth termination point from the
supply earth (i.e. fire control panel entry gland).
For a complete listing of the commands supported
please refer to the installation guidelines and
commissioning instructions, document EXP-057.
Earth termination
point
Power
connection
Charles Avenue, Burgess Hill
West Sussex, RH15 9UF
United Kingdom
Tel:
+44 (0) 1444 23 55 56
Fax:
+44 (0) 1444 25 44 10
Email: [email protected]
www.morley-ias.co.uk
324(0802)
Modbus
interface unit
Data Sheet
We reserve the right to change or amend any design or specification in line with our policy of continuing
development and improvement. © Morley-IAS Fire Systems 2002
RS 485
connection to
panel
RS 232
connection to
modbus
electrical
part numbers
Power consumption
120 mA @ 24 Vdc
Power Supply
18 V to 28 Vdc
LED indicators
LED1 Blinks at 1Hz when unit is powered.
LED2 Indicates Modbus data is currently being
received on the RS-232 port which is
addressed to the unit.
LED3 Indicates Panel data is currently being
received on the RS-485 port which is
addressed to the unit.
795-057
Modbus Interface Unit
accessories
795-004-001
RS4885 communication card.
Modbus Communication Settings
Parameter
Mode
Baud rate
Data bit
Framing
Parity
Interface
Setting
RTU
9600 baud
8
1 start bit, 1 stop bit
None
RS232
Note
The fire control panel must be running software version
560 or higher to support a Modbus interface unit.
B A B A
RS485
CARD
MODBUS
INTERFACE
PLATFORM
0v 0v E 24v 24v
A B E A B
RS-232
CARD
GND RX TX RTS
PORT ‘D’
FIRE
CONTROL PANEL
(Data Direction)
Your Local Distributor
MODBUS
MASTER
CONTROLLER
