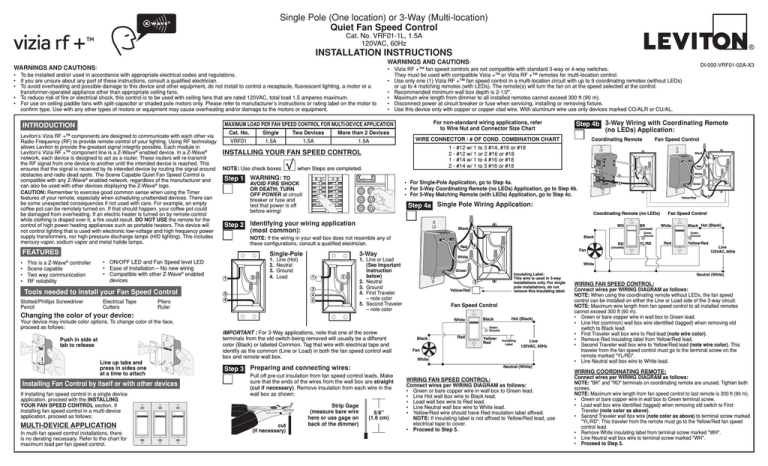

Single Pole (One location) or 3-Way (Multi-location)
Quiet Fan Speed Control
Cat. No. VRFØ1-1L, 1.5A
120VAC, 60Hz
Installation Instructions
WARNINGS AND CAUTIONS:
WARNINGS AND CAUTIONS:
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult a qualified electrician.
• To avoid overheating and possible damage to this device and other equipment, do not install to control a receptacle, fluorescent lighting, a motor or a
transformer-operated appliance other than appropriate ceiling fans.
• To reduce risk of fire or electrical shock, this control is to be used with ceiling fans that are rated 120VAC, total load 1.5 amperes maximum.
• For use on ceiling paddle fans with split-capacitor or shaded pole motors only. Please refer to manufacturer’s instructions or rating label on the motor to
confirm type. Use with any other types of motors or equipment may cause overheating and/or damage to the motors or equipment.
INTRODUCTION
Leviton’s Vizia RF + components are designed to communicate with each other via
Radio Frequency (RF) to provide remote control of your lighting. Using RF technology
allows Leviton to provide the greatest signal integrity possible. Each module in
Leviton’s Vizia RF +TM component line is a Z-Wave® enabled device. In a Z-Wave®
network, each device is designed to act as a router. These routers will re-transmit
the RF signal from one device to another until the intended device is reached. This
ensures that the signal is received by its intended device by routing the signal around
obstacles and radio dead spots. The Scene Capable Quiet Fan Speed Control is
compatible with any Z-Wave® enabled network, regardless of the manufacturer and
can also be used with other devices displaying the Z-Wave® logo.
CAUTION: Remember to exercise good common sense when using the Timer
features of your remote, especially when scheduling unattended devices. There can
be some unexpected consequences if not used with care. For example, an empty
coffee pot can be remotely turned on. If that should happen, your coffee pot could
be damaged from overheating. If an electric heater is turned on by remote control
while clothing is draped over it, a fire could result. DO NOT USE the remote for the
control of high power heating appliances such as portable heaters. This device will
not control lighting that is used with electronic low-voltage and high frequency power
supply transformers, nor high pressure discharge lamps (HID lighting). This includes
mercury-vapor, sodium vapor and metal halide lamps.
Cat. No.
Single
Two Devices
More than 2 Devices
VRFØ1
1.5A
1.5A
1.5A
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
/&&
/.
• For Single-Pole Application, go to Step 4a.
• For 3-Way Coordinating Remote (no LEDs) Application, go to Step 4b.
• For 3-Way Matching Remote (with LEDs) Application, go to Step 4c.
• ON/OFF LED and Fan Speed level LED
• Ease of installation – No new wiring
• Compatible with other Z-Wave® enabled
devices
Tools needed to install your Fan Speed Control
Slotted/Phillips Screwdriver
Pencil
Electrical Tape
Cutters
Pliers
Ruler
2
1
2
3
4
5
3
4
Push in side at
tab to release
Line up tabs and
press in sides one
at a time to attach
Installing Fan Control by itself or with other devices
If installing fan speed control in a single device
application, proceed with the INSTALLING
YOUR FAN SPEED CONTROL section. If
installing fan speed control in a multi-device
application, proceed as follows:
MULTI-DEVICE APPLICATION
In multi-fan speed control installations, there
is no derating necessary. Refer to the chart for
maximum load per fan speed control.
red
4
2
4
5
Green
3
5
Yellow/Red
1. Line or Load
(See important instruction below)
2. Neutral
3. Ground
4. First Traveler – note color
5. Second Traveler – note color
IMPORTANT : For 3-Way applications, note that one of the screw
terminals from the old switch being removed will usually be a different
color (Black) or labeled Common. Tag that wire with electrical tape and
identify as the common (Line or Load) in both the fan speed control wall
box and remote wall box.
WH
1
2
InsulatingLabel:
Thiswireisusedin3-way
installationsonly. For single
pole installations, do not
removethisinsulatinglabel.
3
Yellow/red
Fan Speed Control
Black
Hot (Black)
Green
Ground
Black
Red
Yellow/
Red
Fan
Insulating
Label
Line
120VAC, 60Hz
White
Neutral (White)
Pull off pre-cut insulation from fan speed control leads. Make
sure that the ends of the wires from the wall box are straight
(cut if necessary). Remove insulation from each wire in the
wall box as shown:
5/8”
(1.6 cm)
White
(unused)
YL/RD
Black Hot (Black)
Green
Ground
Red
Yellow/Red
Line
120VAC, 60Hz
White
Green
Step 3 Preparing and connecting wires:
Strip Gage
(measure bare wire
here or use gage on
back of the dimmer)
Fan
(unused)
Green
Ground
RD
4
BK
Fan Speed Control
White
White
cut
(if necessary)
RD
Black
3-Way
Changing the color of your device:
Your device may include color options. To change color of the face,
proceed as follows:
Black
NOTE: If the wiring in your wall box does not resemble any of
these configurations, consult a qualified electrician.
1
YL/RD
Coordinating Remote (no LEDs)
Step 2 Identifying your wiring application
(most common):
1. Line (Hot)
2. Neutral
3. Ground
4. Load
Red
White
Step 4a Single Pole Wiring Application:
Single-Pole
This is a Z-Wave® controller
Scene capable
Two way communication
RF reliability
1
2
3
/&&
Black
BK
1
Step 1 WARNING: TO
Fan Speed Control
Coordinating Remote
1 - #12 w/ 1 to 3 #14, #16 or #18
2 - #12 w/ 1 or 2 #16 or #18
1 - #14 w/ 1 to 4 #16 or #18
2 - #14 w/ 1 to 3 #16 or #18
NOTE: Use check boxes when Steps are completed.
AVOID FIRE SHOCK
OR DEATH; TURN
OFF POWER at circuit
breaker or fuse and
test that power is off
before wiring!
Step 4b 3-Way Wiring with Coordinating Remote
(no LEDs) Application:
WIRE CONNECTOR / # OF COND. COMBINATION CHART
INSTALLING YOUR FAN SPEED CONTROL
FEATURES
•
•
•
•
For non-standard wiring applications, refer
to Wire Nut and Connector Size Chart
MAXIMUM LOAD PER FAN SPEED CONTROL FOR MULTI-DEVICE APPLICATION
TM
DI-000-VRF01-02A-X3
• Vizia RF +™ fan speed controls are not compatible with standard 3-way or 4-way switches.
They must be used with compatible Vizia +TM or Vizia RF +™ remotes for multi-location control.
• Use only one (1) Vizia RF +™ fan speed control in a multi-location circuit with up to 9 coordinating remotes (without LEDs)
or up to 4 matching remotes (with LEDs). The remote(s) will turn the fan on at the speed selected at the control.
• Recommended minimum wall box depth is 2-1/2".
• Maximum wire length from dimmer to all installed remotes cannot exceed 300 ft (90 m).
• Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture.
• Use this device only with copper or copper clad wire. With aluminum wire use only devices marked CO/ALR or CU/AL.
WIRING FAN SPEED CONTROL:
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green lead.
• Line Hot wall box wire to Black lead.
• Load wall box wire to Red lead.
• Line Neutral wall box wire to White lead.
• Yellow/Red wire should have Red insulation label affixed.
NOTE: If insulating label is not affixed to Yellow/Red lead, use
electrical tape to cover.
• Proceed to Step 5.
Neutral (White)
WIRING FAN SPEED CONTROL:
Connect wires per WIRING DIAGRAM as follows:
NOTE: When using the coordinating remote without LEDs, the fan speed
control can be installed on either the Line or Load side of the 3-way circuit.
NOTE: Maximum wire length from fan speed control to all installed remotes
cannot exceed 300 ft (90 m).
• Green or bare copper wire in wall box to Green lead.
• Line Hot (common) wall box wire identified (tagged) when removing old
switch to Black lead.
• First Traveler wall box wire to Red lead (note wire color).
• Remove Red insulating label from Yellow/Red lead.
• Second Traveler wall box wire to Yellow/Red lead (note wire color). This
traveler from the fan speed control must go to the terminal screw on the
remote marked "YL/RD".
• Line Neutral wall box wire to White lead.
WIRING coordinating remote:
Connect wires per WIRING DIAGRAM as follows:
NOTE: "BK" and "RD" terminals on coordinating remote are unused. Tighten both
screws.
NOTE: Maximum wire length from fan speed control to last remote is 300 ft (90 m).
• Green or bare copper wire in wall box to Green terminal screw.
• Load wall box wire identified (tagged) when removing old switch to First
Traveler (note color as above).
• Second Traveler wall box wire (note color as above) to terminal screw marked
"YL/RD". This traveler from the remote must go to the Yellow/Red fan speed
control lead.
• Remove White insulating label from terminal screw marked "WH".
• Line Neutral wall box wire to terminal screw marked "WH".
• Proceed to Step 5.
MatchingRemote
TURN OFF POWER AT CIRCUIT
BREAKER OR FUSE.
Installation may now be completed
by tightening mounting screws into
wall box. Attach wallplate.
Fan Speed Control
red
1
BK
Black
1
2
4
rD
5
Green
Matching Remote (with LEDs)
Fan Speed
Step 8 Including Scene Capable
Control into Z-Wave® Network:
Fan Speed control
White
WH
Black
BK
Green
Ground
Line
120VAC, 60Hz
Restore power at circuit breaker or fuse. Installation is
complete.
3
5
Yellow/red
Hot (Black)
Step 7 Restore Power:
2
White
3
Yl/rD
4
Green
Ground
Red
YL/RD
Yellow/Red
Black
Fan
White
Neutral (White)
NOTE: The fan speed control must be installed in a wall box that has a Load
connection. The matching remote must be installed in a wall box with a Line Hot
connection and a Neutral connection. A Neutral wire to the matching remote needs
to be added as shown.
If you are unsure about any part of these instructions, consult a qualified electrician.
NOTE: Maximum wire length from fan speed control to all installed remotes cannot
exceed 300 ft (90 m).
Wiring Matching Remote
(wall box with Line Hot connection):
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green terminal screw.
• Line Hot (common) wall box wire identified (tagged) when removing old
switch and First Traveler to remote terminal screw marked "BK".
• Second Traveler wall box wire from fan speed control to remote terminal
screw marked "YL/RD" (note wire color). This traveler from the remote
must go to the fan control Yellow/Red lead.
• Line Neutral wall box to remote terminal screw marked "WH".
Wiring Fan speed control
(wall box with Load connection):
Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wall box to Green lead.
• Load wall box wire identified (tagged) when removing old switch to Red lead.
• First Traveler Line Hot to Black lead.
• Remove Red insulating label from Yellow/Red lead.
• Second Traveler wall box wire (note color as above) to Yellow/Red lead. This traveler
from the fan control must go to the terminal screw on the remote marked "YL/RD".
• Line neutral wall box wire to White lead.
• Proceed to Step 5.
Step 5 Testing your Fan Speed Control prior to
mounting in wall box:
• Position all wires to provide room in outlet wall box
for device.
• Ensure that the word “TOP” is facing up on device
strap.
• Partially screw in mounting screws in wall box
mounting holes.
• Restore power at circuit breaker or fuse.
• Press Push Pad and fan should turn ON. If fan does
not turn ON, press the right half of the Fan Speed
Bar until the fan turns ON.
If fan still does not turn ON, refer to the
TROUBLESHOOTING section.
NOTE: Dress wires with a bend as shown in diagram
in order to relieve stress when mounting device.
Programmer/Controller
Cat. No. VRCPG
NOTES:
• If using a non-Leviton Programmer/Controller,
refer to the Programmer/Controller instruction
sheet for Including a device.
• If using the VRCPG's Install Checklist feature,
Menu
Button
go directly to Step B.
®
A)If using a Leviton Z-Wave Programmer/
Controller, Cat. No. VRCPG, press the Menu
button and scroll down to System Setup.
Center
1
Choose Advanced Settings. Press the center
Button
button to select System Setup Menu. Press the 2
3
center button to select Network.
B)While standing close to the module (approx.
4
2-5 ft), press the center button to <Include>
device in the network.
NOTE: Only one device may be included at a time. DO NOT put
multiple devices into the Inclusion mode at any time.
C)While the Programmer/Controller is in the Inclusion mode and
the Locator LED is ON on the fan speed control, push the push
pad to turn ON the fan. The Programmer/Controller will verify
inclusion and the locator LED will turn OFF on the fan speed
control. If the fan speed control is flashing Amber while in the
Inclusion mode, the Programmer/Controller is still trying to
communicate with the fan speed control. Wait until the device
stops flashing,then press the push pad.
NOTE: If the locator LED on the fan speed control turns solid
Red while including, there has been a communication error.
Refer to Troubleshooting section.
D)The Primary Programmer/Controller will assign a node ID
number (Name) for this module.
NOTE: This ID number (Name) will be stored in the controller
library to be used for future reference.
NOTE: You may edit the name
of this device at this time.
E)The fan speed control is now
VRCPG
installed in the network.
Programmer/
NOTE: If a fan speed control
Controller
has been successfully Included
in the network and the user tries
to Include it again without first
excluding it from the network, the
module will retain the first node
NOTE: Remote must be in close
ID it had received and ignore the
proximity to fan speed control when
second.
including in network.
ON
OFF
ON
OFF
ON
OFF
ON
OFF
Step 9 Excluding Fan Speed
Control from Network:
NOTE: It is very important to accurately Exclude devices from the network
when moving or removing a device from a Z-Wave® network. This ensures
that all information has been removed from your Primary Programmer/
Controller’s information table and is not counted on to be a part of the mesh
network.
A)If using a Leviton Z-Wave® Programmer/Controller, Cat. No. VRCPG, press the
Menu button and scroll down to System Setup. Choose Advanced Settings.
Press the center button to select System Setup Menu. Press the center button
to select Network.
B)While standing close to the fan speed control, press the center button to
<Exclude> device from the network. While the Programmer/Controller is in the
Exclusion mode and the locator LED is ON on the fan speed control, press
the push pad on the fan speed control. The Programmer/Controller will verify
Exclusion and the locator LED will turn OFF on the fan speed control.
If the fan speed control is flashing Amber while in the Exlusion mode, the
Programmer/Controller is still trying to communicate with the fan speed control.
Wait until the device stops flashing, then press the push pad.
Factory Default:
If your fan speed control is not responding, or you are unable to control it after
you have tried to Include/Exclude it multiple times, it may be necessary to
reset the fan speed control to its original factory settings. To accomplish this,
proceed as follows:
• On the fan speed control, engage the air-gap switch (refer to Operation
section) and wait 5 seconds. Press push pad back into frame and hold
push pad until the locator LED turns Amber and then flashes Red. The fan
speed control is now reset. Once the fan speed control is reset, it will be
necessary to Re-Include it to a network before it can be used.
CAUTION: SETTING A DEVICE TO A FACTORY DEFAULT DOES
NOT EXCLUDE THAT DEVICE FROM A NETWORK. THE EXCLUSION
PROCEDURE MUST STILL BE FOLLOWED TO REMOVE THE DEVICE
FROM THE PRIMARY CONTROLLER’S INFORMATION TABLE. FAILURE
TO DO SO MAY RESULT IN A SYSTEM THAT IS SLOW TO RESPOND, OR
MAY FAIL TO RESPOND TO SOME DEVICES.
OPERATION
NOTE: The locator light will illuminate when the load is in the OFF position to
facilitate access in the dark.
NOTE: If using the fan speed control in a 3-way application, the fan will turn
ON at speed set on fan’s Fan Speed bar. The fan speed can be controlled
from either the fan speed control or the remote location.
LED Fan
Speed
Display
Push
Pad
Push Pad (Default settings)
Turn ON from OFF position:
Tap – Fan turns ON to preset speed.
Turn OFF from ON position:
Tap – Fan turns OFF.
Fan Speed Bar
Press Fan Speed Bar right or left to increase or
decrease fan speed respectively.
There are 3 speeds - High, Medium or Low.
INCREASE:
Press the right half of the Fan Speed Bar to
increase fan speed.
DECREASE:
Press the left half of the Fan Speed Bar to
decrease fan speed.
If you continue to hold, the fan will reduce speed to
minimum level and then turn OFF.
NOTE: The fan speed can be changed when the
fan is off using the Fan Speed Bar. In the event of
Locator power outage or interruption the fan will reset to
Light the last fan speed when power is restored.
Fan
Speed
Bar
Gently press top
Air-Gap Switch:
of Push Pad
On the Fan Speed Control only, engage the
air-gap switch by gently pressing the top of the
Push Pad until the bottom lifts completely out of
the frame and a click is heard (refer to Figure).
This will cut power to the fixture. After servicing is
complete, press the Push Pad back into place for
normal operation.
Cleaning: Clean with a damp cloth.
DO NOT use chemical cleaners.
ADVANCED PROGRAMMING FEATURES
Definition of A Modes
A) Preset ON Speed: Sets the turn on fan speed regardless of the previous
speed set (Formerly Speed Lock).
Definition of B Modes
B) LED Options: Sets the time period in seconds the Locator LED and
Brightness display will stay on before extinguishing.
NOTES:
• The device will exit programming mode after 3 minutes of inactivity
• Pressing the Push Pad at any time during programming will advance the
device to the next programming mode.
Program Mode A
To enter Program Mode A:
1
4
7
Press and hold the Push Pad and then the right half
of the FAN SPEED Bar (^) for 5 seconds until the
Locator LED and leftmost LED (LED 1) begins to blink.
LED Fan Speed
• The Locator LED will blink once per second to
indicate Program Mode A, Preset ON Speed. To
Display
change the current Preset ON Speed from HIGH
(LED 7), MEDIUM (LED 4), LOW (LED 1), use the
FAN SPEED Bar. If this feature is not desired, press and hold the left half
of the FAN SPEED Bar (v) until no LED is lit (default setting). By tapping
the Push Pad this setting will automatically be saved and the device will
exit Programming Mode A.
Program Mode B
To enter Program Mode B:
Press and hold the Push Pad and then the left half of the FAN SPEED Bar (v)
for 5 seconds until the Locator LED and rightmost LED (LED 7) begins to blink.
• The Locator LED will blink once per second to indicate Program Mode B,
LED Options Mode. To change the LED Options settings, use the FAN
SPEED Bar to move the LED to the desired preset setting according to
the chart below. By tapping the Push Pad this setting will automatically be
saved and the device will exit Programming Mode B.
LED
LED 1 (Default)
LED 4
LED 7
LED LOCATOR TIMEOUT
Active
Active
Turns off 5 seconds after use
LED BRIGHTNESS DISPLAY TIMEOUT
Active
Turns off 5 seconds after use
Turns off 5 seconds after use
TROUBLESHOOTING
•
Fan does not turn ON and ON/OFF LED does not turn ON
- Circuit breaker or fuse has tripped.
- Fan has burned out.
- Fan Neutral connection is not wired.
- Confirm that the device is being supplied from a 120V, 60Hz AC source ONLY.
- Confirm that unit is programmed properly. Repeat “TO INSTALL” section to
verify that it has been included in the Z-Wave™ network.
• Remote does not operate fan
- Ensure that total wire length does not exceed 300 ft.
FCC COMPLIANCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B Digital Device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment OFF and ON, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving Antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/tv technician for help.
For additional information, contact Leviton’s Techline at
1-800-824-3005 or visit Leviton’s website at www.ViziaRFplus.com
Protected under U.S. Patent Number 6,388,399 and patents pending
and licensed under U.S. Patents Numbers 5,905,442, and 5,982,103
2008 © Leviton Mfg. Co., Inc.
DI-000-VRF01-02A-X3
Step 6 Fan Speed Control Mounting:
Step 4c 3-Way Wiring with Matching Remote
(w/LEDs) Application:
LIMITED 5 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for five years from the purchase date. Leviton’s only obligation is to correct such defects by repair or replacement, at its option, if within such five year period the product is returned prepaid, with proof
of purchase date, and a description of the problem to Leviton Manufacturing Co., Inc., Att: Quality Assurance Department, 59-25 Little Neck Parkway, Little Neck, New York 11362-2591. This warranty excludes and there is disclaimed liability for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused,
opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or implied warranties of any kind, including merchantability and fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness
for a particular purpose, is limited to five years. Leviton is not liable for incidental, indirect, special, or consequential damages, including without limitation, damage to, or loss of use of, any equipment, lost sales or profits or delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
