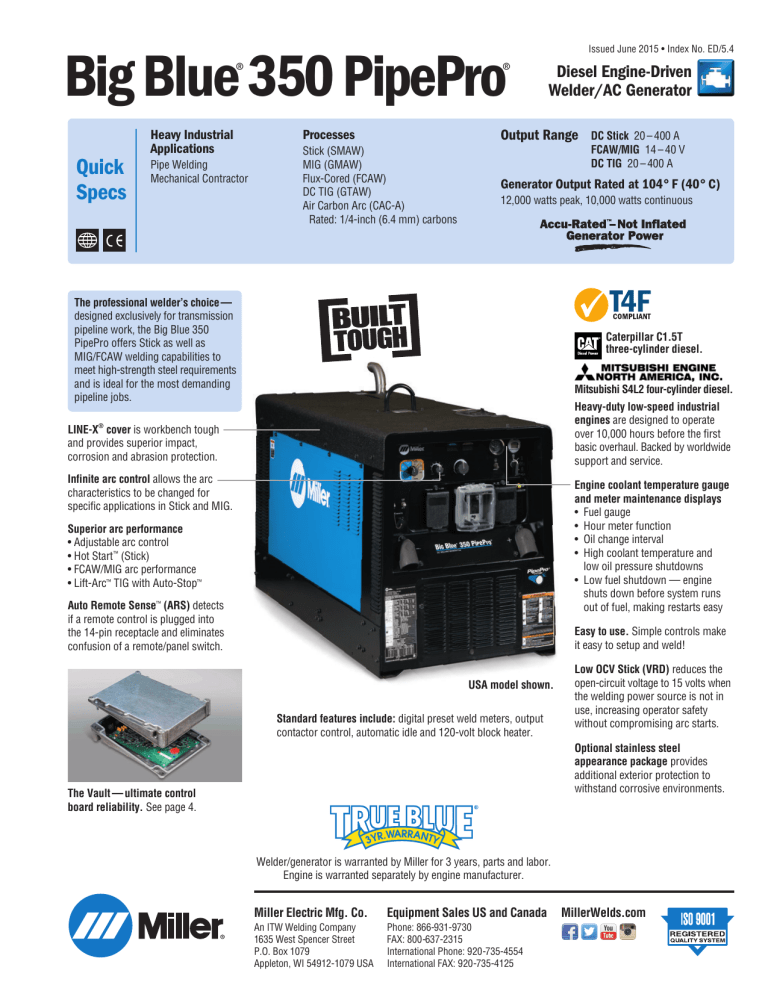

Big Blue® 350PipePro®

Big Blue® 350PipePro®
Issued June 2015 • Index No. ED/5.4
Big Blue 350 PipePro
®
Heavy Industrial
Applications
Quick
Specs
Pipe Welding
Mechanical Contractor
®
Diesel Engine-Driven
Welder/AC Generator
Processes
Output Range
Stick (SMAW)
MIG (GMAW)
Flux-Cored (FCAW)
DC TIG (GTAW)
Air Carbon Arc (CAC-A)
Rated: 1/4-inch (6.4 mm) carbons
Generator Output Rated at 104° F (40° C)
DC Stick 20 – 400 A
FCAW/MIG 14 – 40 V
DC TIG 20 – 400 A
12,000 watts peak, 10,000 watts continuous
The professional welder’s choice —
designed exclusively for transmission
pipeline work, the Big Blue 350
PipePro offers Stick as well as
MIG/FCAW welding capabilities to
meet high-strength steel requirements
and is ideal for the most demanding
pipeline jobs.
Caterpillar C1.5T
three-cylinder diesel.
Mitsubishi S4L2 four-cylinder diesel.
Heavy-duty low-speed industrial
engines are designed to operate
over 10,000 hours before the first
basic overhaul. Backed by worldwide
support and service.
LINE-X® cover is workbench tough
and provides superior impact,
corrosion and abrasion protection.
Infinite arc control allows the arc
characteristics to be changed for
specific applications in Stick and MIG.
Engine coolant temperature gauge
and meter maintenance displays
• Fuel gauge
• Hour meter function
• Oil change interval
• High coolant temperature and
low oil pressure shutdowns
• Low fuel shutdown — engine
shuts down before system runs
out of fuel, making restarts easy
Superior arc performance
• Adjustable arc control
• Hot Start ™ (Stick)
• FCAW/MIG arc performance
• Lift-Arc™ TIG with Auto-Stop™
Auto Remote Sense™ (ARS) detects
if a remote control is plugged into
the 14-pin receptacle and eliminates
confusion of a remote/panel switch.
Easy to use. Simple controls make
it easy to setup and weld!
USA model shown.
Standard features include: digital preset weld meters, output
contactor control, automatic idle and 120-volt block heater.
Low OCV Stick (VRD) reduces the
open-circuit voltage to 15 volts when
the welding power source is not in
use, increasing operator safety
without compromising arc starts.
Optional stainless steel
appearance package provides
additional exterior protection to
withstand corrosive environments.
The Vault — ultimate control
board reliability. See page 4.
Welder/generator is warranted by Miller for 3 years, parts and labor.
Engine is warranted separately by engine manufacturer.
Miller Electric Mfg. Co.
Equipment Sales US and Canada
An ITW Welding Company
1635 West Spencer Street
P.O. Box 1079
Appleton, WI 54912-1079 USA
Phone: 866-931-9730
FAX: 800-637-2315
International Phone: 920-735-4554
International FAX: 920-735-4125
MillerWelds.com
Specifications (Subject to change without notice.)
Weld
Output
Range
Weld Output Rated
at 100% Duty Cycle
at 104˚ F (40˚ C)
Max. OpenCircuit
Voltage
Generator Power Output
Rated at 104˚ F (40˚ C)
CC/DC
(TIG)
20 – 400 A
85 VDC
15 VDC*
12,000 watts peak,
10,000 watts continuous
CC/DC
(Stick)
20 – 400 A
300 A at 32 VDC
350 A at 27 VDC
400 A at 24 VDC
CV/DC
(FCAW/MIG)
14 – 40 V
Weld Mode/
Process
1-phase, 84/42 A,
120/240 VAC, 60 Hz
Sound Levels
at Rated Output,
23 ft. (7 m)
Dimensions
Weight
(without fuel)**
CAT
Idle: 65 dB (90 Lwa)
Weld: 71.2 dB (96 Lwa)
Mitsubishi
Idle: 68.7 dB (93 Lwa)
Weld: 72.1 dB (97 Lwa)
H: 32 in.
(813 mm)
W: 26.25 in.
(667 mm)
D: 56 in.
(1422 mm)
CAT
Net: 1063 lb. (482 kg)
Ship: 1113 lb. (505 kg)
Mitsubishi
Net: 1018 lb. (462 kg)
Ship: 1068 lb. (484 kg)
*Sense voltage for Stick and Lift-Arc™ TIG. **Additional 82 lb. (37 kg) when fuel tank is full.
Certified by Canadian Standards Association to both the Canadian and U.S. Standards. Meets NEMA and IEC output ratings.
CAT powered International model is
approved.
Engine Specifications (Engines warranted separately by the engine manufacturer.)
Engine Brand
Features
HP
Type
Engine Speeds
Capacities
Automatic Engine Shutdown
Caterpillar C1.5T
EPA Tier 4 Final compliant
24.7
Three-cylinder,
liquid-cooled
industrial diesel
Weld: 1800 RPM
Idle: 1500 RPM
Fuel: 11.5 gal. (43.5 L)
Oil: 5.9 qt. (5.6 L)
Coolant: 7.2 qt. (6.8 L)
Low oil pressure,
high coolant temperature,
low fuel level
Mitsubishi S4L2
EPA Tier 4 Final compliant
24.7
Four-cylinder,
liquid-cooled
industrial diesel
Weld: 1850 RPM
Idle: 1500 RPM
Fuel: 11.5 gal. (43.5 L)
Oil: 5.8 qt. (5.5 L)
Coolant: 10 qt. (9.5 L)
Performance Data
SIMULTANEOUS WELDING AND POWER
1.50
4.73
1.25
Weld
Amperes
Total Aux. Power
Available (Watts)
120 V
240 V
1.00
25A
10,000
83.3
41.6
0.75
75 A
10,000
83.3
41.6
125 A
10,000
83.3
41.6
175 A
9,000
75
37.5
225 A
7,500
62.5
31.3
300 A
4,500
37.5
18.8
350 A
1,000
8.3
4.2
3.79
2.84
1.89
0.95
0.00
US GAL./HR.
LITERS/HR.
FUEL CONSUMPTION CURVE
5.68
0.50
Idle
0.25
0.00
0
50
100
150
200
250
300
350
DC WELD AMPERES AT 100% DUTY CYCLE
2
400
Function Guide
1. Weatherproof Lexan® Nameplate is super
durable and resists cracking and fading.
Color coding is for ease of operation.
8
1
9
2
2. Self-Calibrating Digital Weld Meters with
Fault Code Indication display preset or
actual weld parameters.
™
3. Hot Start provides positive Stick electrode
starts making it easy to start all types
of electrodes and it also works great for
bead tie-ins.
4. Great FCAW/MIG Performance and
Arc Starts make the Big Blue® 350
PipePro’s arc best in its class. Easy to run
all wires from .023-inch solid wires to
large-diameter 5/64-inch flux-cored wires.
10
3
4
11
5
6
12
7
120 VAC, 20 A
GFCI Receptacles
120/240 VAC, 50 A
Receptacle
Circuit
Breakers
5. Lift-Arc™ TIG with Auto-Stop™
6. Adjustable Arc Control adjusts DIG when
process control is in Stick mode and adjusts
inductance when process control is in
FCAW or MIG mode. The amount of DIG
determines how much amperage (heat)
varies with Stick arc length. Inductance
determines the “wetness” of the weld puddle.
13
USA Model
7. Standard 14-Pin Receptacle for simple
connection of remote controls and wire
feeders. It features Auto Remote Sense™
which automatically switches from panel to
remote amperage/voltage (A/V) control with
remote connected. Eliminates confusion of
the Panel/Remote A/V switch.
240 V, 16 A
AC Receptacle
Earth Leakage
Circuit Breaker
8. Engine Coolant Temperature Gauge
displays coolant temperature. Engine stops
if temperature exceeds 230˚ F (110˚ C).
9. Meter Maintenance Display shows fuel
level, engine hours, oil change interval and
hi temp/low pressure/low fuel shutdown
information.
11. Engine Control Switch is used to start the
engine and then select between Auto Idle
and High Speed Lock.
120 V, 16 A
AC Receptacle
International Model Receptacles
ARC START with Lift-Arc
™
Touch or scratch
Low Fuel Shutdown shuts engine off prior
to running out of fuel to prevent loss of fuel
in the system, and make restarts easy.
Display will read noFUEL. Turn the machine
off, add fuel, and restart.
10. Glow Plugs assist in cold weather starting.
120 V, 20 A
AC Receptacle with
Ground Fault
Lift at any angle
• Reduces or eliminates sticking
• Reduces or eliminates electrode/
work contamination
• Low open-circuit voltage
Shielding
gas
Arc
Shielding
gas
Workpiece
ARC END with Auto-Stop
™
For Auto-Stop, lift up to terminate arc
While welding
12. Amperage/Voltage Adjust Control
13. Weld Output Terminals
Shielding
gas
Arc
Workpiece
Lift up
until arc
ends
Arc ends
without
flare
Move back
down to
maintain gas
coverage
• Eliminates need for
a remote control
• Maintains shielding
gas coverage
• Eliminates tungsten
and workpiece
contamination
• Eliminates
unwanted arc
strikes outside the
weld area
3
What Makes Miller Industrial Engine Drives So
®
Superior Circuit Board Design
Our critical circuit boards are engineered to carry low power and low
heat to reduce thermal stress and minimize expansion and contraction.
In contrast, our competitor’s boards carry high power and high heat,
making them more vulnerable to failure.
?
Rigorous Testing for
Tough, Real-World
Conditions
To prove our machines go to the
limit, Miller industrial engine drives
are put to the test in very extreme
environmental conditions.
• Airborne dust and sand. Critical
components are exposed to
abusive airborne particles in a
special testing chamber for weeks,
helping make sure they’ll operate
while facing extreme levels of dirt,
dust or sand on the jobsite.
“The Vault” Makes Upgrading to Miller CC/CV
Units Worry-Free
Concerns with circuit board reliability have resulted in some operators
steering clear of CC/CV welder/generators — even though they offer
a superior arc and multiple welding processes. Miller circuit board
reliability isn’t a concern since all Big Blue multiprocess industrial
engine drives feature the Vault.
Created out of two aluminum halves sealed with silicone, as well as
watertight harness connections, the Vault provides a clean circuit
board environment, protecting the electronics — and controlling
output — in heavy industrial applications. No other competitor
protects their electronics with a sealed vault, leaving critical circuit
boards exposed to harsh elements that can disrupt the machine’s
electronics, and therefore, its operation.
• Humidity and corrosion. Inside
our Houston testing room, critical
components are subjected to
extended moisture and corrosive
salt exposure to ensure they’ll run
even when exposed to humid
climates, corrosive coastal
environments, and driving rain.
• Temperature extremes. Miller industrial engine drives are tested
to ensure performance in scorching heat. All Miller engine-driven
machines are weld rated at 104 degrees Fahrenheit, but actual tests are
conducted up to 122 degrees Fahrenheit to assure peak performance.
• Jobsite/over-the-road abuse. Miller industrial engine drives are
shaken for hours on transportation bed simulators, subjected to severe
vibration, and test-dropped and jerked to ensure they’ll withstand the
stresses that can shut down competitive machines.
• Continuous operation. Miller industrial engine drives run day and
night, in all weather conditions, to assure they’ll perform without
interruption in the field.
Why Industrial Engine
Drive Customers
Choose Miller
The ultimate test of Miller reliability
is how it performs in the field. The
quote on the left provide a glimpse
of how Miller industrial engine
drives perform for customers.
Read the full stories, and many
others demonstrating our superior
reliability, at MillerWelds.com.
“The Miller 350 PipePro makes my job easier every day. It runs a
3/16 electrode downhill smoother and keeps it lit better than any
machine I’ve used.”
Jerry Morley, Gas Field Specialists Inc,
Plumbers and Steamfitters #267
4
Genuine Miller Accessories
®
Female
Receptacle
Adapter Cord, Full KVA #300 517 Field
NEMA 14-50P to NEMA 6-50R. Adapts engine
drive 120/240 V plug to common Millermatic®
and Spectrum® 240 V plug.
Full KVA Plug Kit
#119 172 Field
120/240 VAC, 50 A plug
(NEMA 14-50P) to fit full
KVA receptacle.
Stick (SMAW) Welding
Weld Leads
2/0 Stick Cable Set, 50 ft. (15 m) #173 851
Consists of 50-foot (15 m) 2/0 electrode cable
with holder, and 50-foot (15 m) work cable with
clamp. 350 A, 100% duty cycle.
2/0 Stick Cable Set, 100/50 ft. (30.5/15 m)
#043 952
Consists of 100-foot (30.5 m) 2/0 electrode
cable with holder, and 50-foot (15 m) work
cable with clamp. 300 A, 100% duty cycle.
MIG (GMAW) or Flux-Cored (FCAW)
International Plugs Field
#255 419 1-Phase,
120 VAC, 16 A plug
#255 416 1-Phase,
240 VAC, 16 A plug
Engine Filter Kits
#246 987 Field. For CAT
#253 901 Field. For Kubota
#252 782 Field. For Mitsubishi
Includes all filters required for proper engine
maintenance. Oil filter, primary and secondary
fuel filter, and primary air filter.
Spark Arrestor (Muffler) Kit #300 585 Field
Prevents particles from leaving the muffler that
could potentially start a fire. Mandatory when
operating on California grasslands, brush, or
forest-covered land, and all national forests. For
other areas, check your state and local laws.
Meets U.S. Forest Service Standard 5100-1B.
FA-1D Lockable Flame
Arrestor Fuel Cap
#043 947 Field
Fuel cap can be padlocked to
prevent vandalism. A built-in
flame arrestor prevents flames
or sparks from entering the
fuel tank.
Chalwyn Safety Valve
#300 576 Field. For Mitsubishi
Shuts off air flow to the engine to prevent overspeed condition. Required on many petroleum
jobsites, this valve provides both manual and
automatic operation giving you two methods of
operation to meet jobsite compliance standards.
Protective Cover
#195 301 Field
Blue water-resistant
cover with Miller logo
resists stains and
mildew, and protects
the finish of your
welder.
TIG (GTAW) Welding
Dynasty® 200 Series #907 099, #907 099 011
For premium portable AC/DC TIG arc quality.
See Lit. Index No. AD/4.8.
HF-251 Series #042 388
HF-251D-1, 115 VAC
High-frequency arc starter
and stabilizer. See Accessory
Lit. Index No. AY/5.0.
Multiple Operator Welding
The XMT 350, CST 280 and Dynasty 200 power
sources can be run off the machine’s generator
to provide two arcs with only one engine. There
is no arc interaction under 180 amps.
SuitCase® X-TREME™ 8VS Wire Feeder
#951 583 With Bernard™ Q300 MIG gun
SuitCase® X-TREME™ 12VS Wire Feeder
#951 544 With Bernard™ Dura-Flux™ gun
Lightweight, voltage-sensing wire feeders
include secondary contactor, gas valve, drive roll
kit and gun. See Lit. Index No. M/6.42.
SuitCase® 12RC Wire
Feeder #951 580
Lightweight and flexible
enough to run a variety of
wires up to .062-inch
diameter. Includes remote
voltage control, drive roll kit
and Bernard™ Q300 MIG gun.
See Lit. Index No. M/6.5.
XMT® 350 Series
#907 161, #907 224,
#907 366
See Lit. Index No. DC/18.83
and DC/18.84.
CST™ 280
#907 244, #907 244 011
#907 251, #907 251 011
See Lit. Index No. DC/29.55.
Plasma Cutting
MIG (GMAW)/Flux-Cored (FCAW) Guns
See Bernard™ Lit. Index No. SPEC DFP-1.2 for
Dura-Flux™ PipePro gun. See Lit. Index Nos.
AY/15.0, 16.0 and 17.0 for Miller guns.
Spectrum 375 X-TREME and 625 X-TREME shown.
Spoolmatic® 30A Spool Gun #130 831
Air-cooled, 200-amp, one-pound spool gun for
aluminum MIG. See Lit. Index No. M/1.73.
Requires WC-24 Control (#137 549).
Spectrum® 375 X-TREME™ #907 529
See Lit. Index No. PC/9.2.
Spectrum® 625 X-TREME™ #907 579
See Lit. Index No. PC/9.6.
Spectrum® 875 #907 583
See Lit. Index No. PC/9.8.
The Spectrum 375 X-TREME and 625 X-TREME
come complete with protective X-CASE™
(not shown).
XR™ Wire Feeders and Guns
Push-pull system designed to handle difficult-tofeed soft alloy wires such as aluminum. See Lit.
Index No. M/1.7– M/1.74.
5
Genuine Miller Accessories (Continued)
®
Remote Controls
Wireless Remote Hand
Control #300 430
For remote current, voltage
and contactor control.
Receiver plugs directly into
the 14-pin receptacle of Miller
machine. 300-foot (91.4 m) operating range.
Requires Wireless Antenna Kit #300 749.
PRHC-14 Hand Control
#195 511
Complete current or
voltage control brings
120 V GFCI power to work
area in a single cord.
Housed in durable
aluminum case and
includes 125-foot (38 m) cord with plugs.
Extension Cables for 14-Pin Remote Controls
or 24 VAC Wire Feeders
#242 208 025 25 ft. (7.6 m)
#242 208 050 50 ft. (15.2 m)
#242 208 080 80 ft. (24.4 m)
Wireless Antenna Kit #300 749
Required for Pro Series engine drives. Optional
on other compatible Miller products where
improved reception is desired.
Trailers and Hitches (Note: Trailers are shipped unassembled.)
Mounting Specifications
Cable Tree #043 826
Provides an area to conveniently wrap weld
cables and extension cords.
F
A
HWY-224 Trailer #043 805
A 2650-pound (1202 kg) capacity trailer for
highway use. Welded steel tubing frame,
heavy-duty axle with roller bearing hubs and
leaf-spring suspension. Includes jack stand,
2-inch (50 mm) ball hitch, fenders and lights.
B
4 holes
Front Panel
C
D
E
Dual Hitch #300 831
2-inch (50 mm) ball hitch and 3-inch (76 mm)
lunette eye in one reversible assembly.
A. 27.75 in. (705 mm)
B. 26.25 in. (667 mm)
C. 52 in. (1321 mm)
D. 2 in. (51 mm)
E. 56 in. (1422 mm)
F. .562 in. (14 mm) diameter
Height: 32 in. (813 mm)
Width: 26.25 in. (667 mm)
Depth: 56 in. (1422 mm)
Trailer Specifications (Subject to change without notice.)
Model
HWY-224
Gross Axle
Weight Rating
Gross Vehicle
Weight Rating
Net
Payload
Height
of Bed
Road
Clearance
Track (Center
to center of
tires)
Standard Tires
(Standard rating
or P-size rating)
3500 lb.
(1588 kg)
2960 lb.
(1343 kg)
2650 lb.
(1202 kg)
18.5 in.
(470 mm)
7.25 in.
(184 mm)
52 in.
(1321 mm)
B78-13
*Width at outside of fenders.
6
Dimensions
Net
Weight
Length: 105 in. (2667 mm)
Width: 59.5 in. (1511 mm)*
320 lb.
(145 kg)
Typical Installations
Electrode Hot
Remote Control
Stick (SMAW) Basic Equipment
PRHC-14
Wireless Remote Hand Control
Wireless Antenna Kit
#195 511
#300 430
#300 749
Stick Electrode
14-Pin PRHC-14 OR Wireless
Remote
Hand Control
Work
Flux-Cored/MIG (FCAW/GMAW)
Basic Equipment
SuitCase® X-TREME™ 8VS
SuitCase® X-TREME™ 12VS
Voltage-Sensing Feeder
SuitCase
X-TREME
8VS/12VS
#951 583
#951 544
Flux-Cored or MIG Gun
Work
TIG Torch
with Valve
Lift-Arc™ TIG (GTAW) Basic Equipment
Lift-Arc TIG
Work
Remote On/Off Required
Stick (SMAW) Basic Equipment
RHC-14
Wireless Remote Hand Control
Wireless Antenna Kit
#242 211 020
#300 430
#300 749
Remote Control
14-Pin
RHC-14
Stick Electrode
Wireless
OR
Remote
Hand Control
Work
Flux-Cored/MIG (FCAW/GMAW)
Basic Equipment
SuitCase® 12RC
14-Pin
Flux-Cored or MIG Gun
SuitCase
12RC
#951 580
Work
Spoolmatic 30A Gun
Aluminum MIG (GMAW) Basic Equipment
Spoolmatic® 30A
WC-24
14-Pin
#130 831
#137 549
WC-24
Work
TIG (GTAW) Basic Equipment
HF-251D-1
Dynasty® 200 SD
Dynasty® 200 DX
#042 388*
#907 099
#907 099 011
*TIG power cable adapter required
TIG
Torch
14-Pin
HF-251D-1
Or Other
High-Frequency Starting Aid
Work
7
Ordering Information
Equipment and Options
Stock No.
Description
Big Blue 350 PipePro
#907 478
#907 478 001
#907 428
#907 428 001
CAT Turbo. USA model
CAT Turbo. USA model with Stainless Steel Package
Mitsubishi. USA model
Mitsubishi. USA model with Stainless Steel Package
Big Blue® 350X PipePro®
#907 530
#907 527
CAT Turbo (CE). International model
Mitsubishi. International model
®
®
Qty.
Field Accessories
USA Model Adapter Cord, Full KVA
#300 517
USA Model Full KVA Plug Kit
#119 172
1-phase, 120/240 VAC, 50 A
International Plugs
#255 419
#255 416
1-phase, 120 V, 16 A
1-phase, 240 V, 16 A
Engine Filter Kits
#246 987
#252 782
For CAT. Includes air, oil and fuel filters
For Mitsubishi. Includes air, oil and fuel filters
Spark Arrestor (Muffler) Kit
#300 585
FA-1D Lockable Flame Arrestor Fuel Cap
#043 947
Chalwyn Safety Valve
#300 576
Protective Cover
#195 301
Stick Welding Leads
For Mitsubishi
See page 5
MIG/Flux-Cored Welding
SuitCase® X-TREME™ 8VS
#951 583
SuitCase® X-TREME™ 12VS
#951 544
With Bernard Dura-Flux gun. See Lit. Index No. M/6.42
SuitCase® 12RC
#951 188
With Bernard Q300 MIG gun. See Lit. Index No. M/6.5
Bernard™ PipePro Dura-Flux™ Gun (FCAW)
#301 011
MIG (GMAW) and Flux-Cored (FCAW) Guns
With Bernard Q300 MIG gun. See Lit. Index No. M/6.42
Has built-in dual schedule switch. See Bernard Lit. No. SPEC DFP-1.2
See Lit. Index Nos. AY/15.0, AY/16.0 and AY/17.0 for Miller guns
Spoolmatic® 30A Spool Gun
#130 831
Requires WC-24 Control. See Lit. Index No. M/1.73
WC-24 Control
#137 549
See Lit. Index No. M/1.5
XR™ Wire Feeder Control and Guns
See Lit. Index No. M/1.7 – M/1.74
TIG Welding
Dynasty® 200 SD
#907 099
Basic controls for AC/DC TIG/Stick, 120 – 460 VAC. See Lit. Index No. AD/4.8
Dynasty® 200 DX
#907 099 011
Full feature controls for AC/DC TIG/Stick, 120–460 VAC. See Lit. Index No. AD/4.8
HF-251D-1
#042 388
115 VAC. See Lit. Index No. AY/5.0
XMT® 350 Series
#907 161
#907 224
#907 366
CC/CV model w/Dinse-style connectors. See Lit. Index No. DC/18.83
VS model w/Tweco®-style connectors. See Lit. Index No. DC/18.83
MPa model w/Dinse-style connectors. See Lit. Index No. DC/18.84
CST ™ 280 CC/DC
#907 244
#907 244 011
#907 251
#907 251 011
220-230/460 – 575 VAC w/Dinse-style connectors. See Lit. Index No. DC/29.55
220-230/460–575 VAC w/Tweco®-style connectors. See Lit. Index No. DC/29.55
208-230/400 – 460 VAC w/Dinse-style connectors. See Lit. Index No. DC/29.55
208-230/400–460 VAC w/Tweco®-style connectors. See Lit. Index No. DC/29.55
Spectrum® 375 X-TREME™
#907 529
Includes X-CASE™. See Lit. Index No. PC/9.2
™
#907 579
Includes X-CASE™. See Lit. Index No. PC/9.6
#907 583
See Lit. Index No. PC/9.8
Multiple Operator Welding
Plasma Cutting
Spectrum 625 X-TREME
®
Spectrum 875
®
Remote Controls
See page 6
Trailers and Hitches
HWY-224 Trailer
#043 805
Trailer with lights, fenders and 2-inch (50 mm) ball hitch. For highway use
Cable Tree
#043 826
Trailer-mounted cable holder for HWY-224
Dual Hitch
#300 831
Combination 2-inch (50 mm) ball hitch and 3-inch (76 mm) lunette eye in one
reversible assembly for HWY-224
Date:
Distributed by:
© 2015 Miller Electric Mfg. Co.
Total Quoted Price:
Price
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
