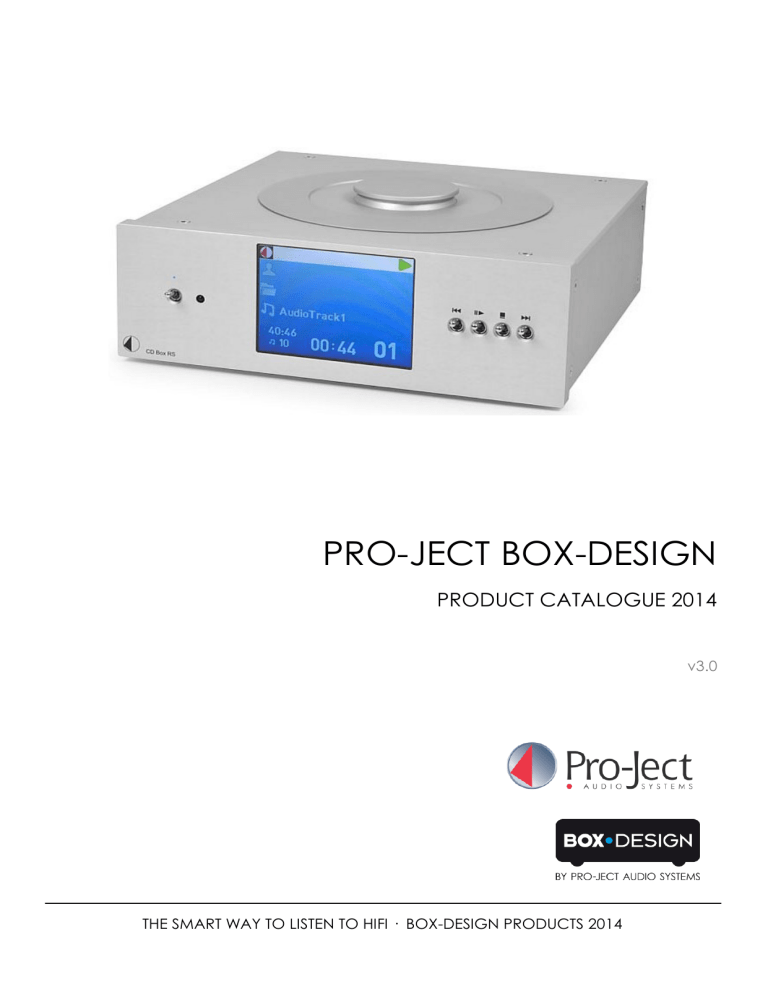

PRO-JECT BOX-DESIGN

PRODUCT CATALOGUE 2014

v3.0

THE SMART WAY TO LISTEN TO HIFI · BOX-DESIGN PRODUCTS 2014

 Elemental Line

 Classic Line

 S Line

 DS Line

 RS Line

 Headphones

PRODUCT CATALOGUE 2014

CONTENTS

page

3

4

5 - 8

9 - 12

13 - 14

15

 Loudspeakers

 Multimedia control

 Accessories page

15

16

16

 Combinations 17

 Design Boxes & Power 18

 Cables 19

ABOUT PRO-JECT AUDIO SYSTEMS AND BOX DESIGN

Pro-Ject Audio Systems was founded by Heinz Lichtenegger 1990 in

Vienna, with the idea that analogue playback is the most costeffective way to listen to music of audiophile quality.

Inspired by the concept of supporting analogue in the face of the digital onslaught, Pro-Ject Audio Systems became one of the most powerful driving forces in reinventing analogue turntables for the hi-fi market. Today, Pro-Ject Audio Systems is the world leader in the manufacture of quality hi-fi turntables, as turntables are once again accepted as a must-have for every concerned music lover. Pro-Ject

Audio Systems ' products are exported to almost 80 countries worldwide and is the recipient of nearly every award in the audio industry.

Since 2006, Pro-Ject Audio Systems has been bringing its idea “less is more” mission to the digital world. Inspired by the new possibilities of the iPod and high-quality music reproduction from a PC or laptop, Pro-Ject Audio Systems has designed a complete new and revolutionary range of micro high-end Hi-fi components under the family name BOX DESIGN. Starting with the smallest audiophile amp in the world, with open and euphonic sound, Pro-Ject Audio Systems now produces all of the components of traditional hi-fi systems including CD players, tuners, phono amps, headphone amps and switching modules, as well as digital products such as docking stations, D/A converters and streamers to connect with the PC wired or wireless.

BOX DESIGN regards itself as the ‘next generation of hi-fi’ – the link between the micro-sized hardware of the

IT world and the big boxes of the audiophile world. All products, except for speakers and headphones, are designed and produced in Europe.

Pro-Ject: Simple-to-use, high quality sound, astonishing value, long-term stability and good service.

2

CATALOGUE 2014 · BOX DESIGN Electronics

SRPs are only for orientation, prices can differ depending on local taxes

Prices, technical data & release date without engagement

Elemental Line

ELEMENTAL

OM 5e SRP € 199,00

Audiophile „Best Buy“ turntable

• Connection to phono preamp or amplifier with phono preamp required • Pre-mounted interconnect cable with gold-plated RCA plugs

ELEMENTAL PHONO USB

OM 5e SRP € 249,00

Turntable for Hifi & audio transfer to PC/Mac

• Integrated Phono-MM preamplifier • Connections: line-level RCA to amp & USB to PC/Mac

(simultaneously)

Both models: • Ultra rigid simplified design • Central Gravity point minimizing motor and chassis resonances • Unique OM5 optimized tonearm • Super easy plug and play without any need of counterweight and antiskating adjustment • Colour options: White/Black, Red/Black, Silver/Black

DAC BOX E

SRP € 99,00

NEW Digital to analogue converter

• Audio-upgrade for TV, Sat, Computer, etc • 24bit/192kHz Cirrus Logic DAC chip • Supports 24bit audio data • Up to 192kHz sampling rates • Automatic signal sensing technology • Low clock jitter sensitivity • RCA connectors gold plated (in & out) • Stylish & robust synthetic casing • Colour options: white or black

RECORD BOX E

(available Q2/2014) estimated SRP € 99,00

NEW

MM Phono preamplifier with A/D converter and USB output.

• Optimal channel separation through dual-mono circuitry • Special low-noise ICs used • Gold plated

RCA connection sockets • Outboard power supply included • Digitalisation of analogue signals for recording direct to disk via USB with suitable recording programs • Automatic recognition, without additional driver, by standard PC • Runs on Windows® and Mac OS® operating systems • Small size allows installation close to record player • Stylish & robust synthetic casing • Colour options: white or black

PHONO BOX E

SRP € 69,00

NEW

MM Phono preamplifier

• Optimal channel separation through dual-mono circuitry • Special low-noise ICs used • Gold plated

RCA connection sockets • Outboard power supply included • Amplification and RIAA equalisation for

MM cartridges • Small size allows installation close to record player • Stylish & robust synthetic casing • Colour options: white or black

BLUETOOTH BOX E

(available Q2/2014) SRP € 79,00

NEW High fidelity aptX Bluetooth audio receiver

• Wireless music streaming with almost CD-quality • Compatible with all smartphones and tablet PCs, that support aptX & SBC Bluetooth codecs • Easy to install and use • Fast auto pairing (3 to 5 seconds) • Up to 8 different Bluetooth sources are memorized • Works within a range of approximately

10 meters • 3,5mm stereo analogue and Toslink digital outputs • Colour options: white or black

PRELIMINARY

STEREO BOX E

(available Q3/2014) SRP € 199,00

NEW High fidelity integrated audio amplifier with analogue & USB

• Audiophile quality amplifier for desktop audio usage • selection between analogue & USB input •

Easy to install and use • Analogue volume control avoids sound degradation • 3,5mm stereo analogue and USB „B“ digital inputs • Stylish & robust synthetic casing • Colour options: white or black

PRELIMINARY

HEAD BOX E

(available Q2/2014) estimated SRP € 99,00

NEW High fidelity headphone amplifier

• Audiophile quality headphone amplifier • 6,3mm jack output on front • Suitable for headphones with low or high impedance • RCA stereo input • Sound upgrade compared to standard headphone outputs from integrated amplifiers • Stylish & robust synthetic casing • Colour options: white or black

SRPs are only for orientation, prices can differ depending on local taxes

Prices, technical data & release date without engagement

BOX DESIGN Electronics · CATALOGUE 2014

3

Classic Line

PHONO BOX

SRP € 99,00

MM/MC Phono preamp with line output

• Preamplifier for MM or MC with switch on rear panel • Optimal channel separation through dualmono circuitry • „Green“ DC power supply (< 1 watt standby power) • Precise RIAA equalisation •

Low noise ICs • Output stage with ultra-low impedance • Gold-plated RCA sockets • Small size for installation near record player • Metal casing protects against vibration and interference • Colour options: silver or black

PHONO BOX USB

SRP € 139,00

MM/MC Phono preamp with line & USB outputs

• Preamplifier for MM or MC with switch on rear panel • Optimal channel separation through dualmono circuitry • „Green“ DC power supply (< 1 watt standby power) • Precise RIAA equalisation •

High quality A/D conversion with USB out to PC/Mac • Compatible with Windows®, Mac OS® • SMD technology for shortest signal paths • Gold-plated RCA sockets • Output stage with ultra-low impedance • Metal casing protects against vibration and inter-ference • Colour options: silver or black

PHONO BOX USB V

SRP € 159,00

MM/MC Phono/line preamp with line & USB outputs

• Preamplifier for MM or MC with switch on rear panel • Optimal channel separation through dualmono circuitry • „Green“ DC power supply (< 1 watt standby power) • Precise RIAA equalisation •

Phono/line selector on front • Record level adjustment • High quality A/D conversion with USB out to

PC/Mac • Compatible with Windows®, Mac OS® • SMD technology for shortest signal paths • Output stage with ultra-low impedance • Metal casing protects against vibration and interference • Colour options: silver or black

USB BOX

SRP € 99,00

D/A converter with USB input for PC audio

• High quality D/A conversion with USB • Compatible with Windows®, Mac OS® • Automatic detection without the need of additional software, when used with conventional computer systems • Powered via USB • SMD technology for shortest signal paths • Gold-plated RCA sockets • Output stage with ultra-low impedance • Metal casing protects against vibration and interference • Colour options: silver or black

CD BOX

SRP € 249,00

Ultra-compact audio CD player

• 16bit/44.1kHz CD Audio playback • CD, CD-R, CD-RW, Hybrid SACD playback • Robust and reliable all-metal CD transport • Slot-in mechanism • Servo board optimised for 1:1 playback of CDs • Direct

I²S digital-interface to DAC • DAC from Texas Instruments (BurrBrown) • Remote control with volume level adjustment of Pro-Ject Audio Systems' amplifiers • Metal casing protects against vibration and inter-ference • Colour options: silver or black

4

CATALOGUE 2014 · BOX DESIGN Electronics

SRPs are only for orientation, prices can differ depending on local taxes

Prices, technical data & release date without engagement

S Line

PRE BOX S

SRP € 249,00

Stereo Line preamplifier

• Advanced circuitry with premium components • Neutral sound with superior low noise floor • 2

Stereo Line-in & Pre-out • Motorised volume control • SMD for short signal paths • Low output impedance for low loss with long cables • Gold-plated connections • Remote control for on/off, input select and volume • Trigger outputs for Amp Box and Switch Box • Metal casing protects against vibration and interference • Colour options: silver or black

AMP BOX S

SRP € 249,00

Stereo power amplifier

• Ultra compact & audiophile • Advanced amplifier module • More power and further improved performance • Stereo input (RCA) • Gold plated speaker sockets • Suitable for Banana/Spade/Pin/bare wire • Trigger input • Trigger output for further Amp Box S • Metal casing protects against vibration and interference • Colour options: silver or black

AMP BOX S MONO

SRP € 249,00

Mono power amplifier

• Ultra compact & audiophile • Advanced amplifier modules • 2 ohms drive capability • More power and further improved performance • Mono input with loop-out (RCA) • Gold-plated speaker sockets •

Suitable for Banana/Spade/Pin/bare wire • Trigger input with output for further Amp Box S Mono •

Metal casing protects against vibration and interference • Colour options: silver or black

HEAD BOX S

SRP € 119,00

Headphone amplifier

• Audiophile headphone amplifier • 6,3mm jack output on front • Suitable for headphones with low or high impedance • RCA stereo input • RCA stereo loop-out • Sound upgrade compared to standard headphone outputs from integrated amplifiers • Best-buy award winner • Metal casing protects against vibration and interference • Colour options: Silver or Black

HEAD BOX S USB

SRP € 169,00

Headphone amplifier with D/A converter with USB input for PC audio

• Audiophile headphone amplifier • High quality D/A conversion with USB • 6,3mm jack output on front • Suitable for headphones with low or high impedance • RCA stereo input • RCA stereo loopout • Significantly better sound than standard headphone outputs from integrated amplifiers • Metal casing protects against vibration and interference • Colour options: silver or black

RECEIVER BOX S

SRP € 349,00

Ultra compact integrated stereo amp including FM tuner

• 2x 30W @ 4 ohms / 2x 25W @ 8 ohms • 2 stereo line inputs • Improved FM tuner with higher sensitivity • 99 presets • Auto store & search function • High-resolution dot-matrix display (blue) • Indication of signal strenght, precise center of station, stereo/mono reception • Easy control via IR remote or 3 buttons on faceplate • Metal casing protects against vibration and interference • Colour options: silver or black

STEREO BOX S

SRP € 259,00

Stereo integrated amplifier

• High End integrated amplifier with 2 line inputs • 2x 30 watts @ 4 ohms • Gold plated connectors for line (RCA) & speakers • IR remote control for volume, input & power • Record out with fixed level, can be used for Head Box etc • Metal casing protects against vibration and interference • Colour options: silver or black

SRPs are only for orientation, prices can differ depending on local taxes

Prices, technical data & release date without engagement

BOX DESIGN Electronics · CATALOGUE 2014

5

PRELIMINARY

STEREO BOX S Phono

SRP € 359,00

NEW

Stereo integrated amplifier with analogue & phono inputs

• High End integrated amplifier with 3 line & 1 phono input (MM) • 2x 30 watts @ 4 ohms • Gold plated connectors for line (RCA) & speakers • IR remote control for volume, input & power • Record out with fixed level, can be used for Head Box etc • Metal casing protects against vibration and interference • Colour options: silver or black

MAIA

(My audio integrated amplifier)

(available Q2/2014) estimated SRP € 499,00

NEW

Stereo integrated amplifier with analogue, digital, Bluetooth inputs & headphone out

• High End integrated amplifier with 3 line, 1 phono (MM), 2 digital coax, 2 digital optic & 1 wireless high definition aptX Bluetooth input • 2x 30 watts @ 4 ohms • XMOS asynchronous USB (24bit /

192kHz) • 24bit / 192kHz D/A converter • Headphone output • Gold plated connectors for line (RCA)

& speakers • IR remote control for volume, input & power • Record out with fixed level • Metal casing protects against vibration and interference • Colour options: silver or black

STREAM BOX S

(available Q3/2014) estimated SRP € 399,00 - € 450,00

NEW

Highend audio via Wi-Fi, LAN, USB with free Box Control App for iOS & Android

• Audiophile grade 24bit/192 kHz highend audio streaming client • Ethernet & WLAN • Meets the

Standards UPnP & DLNA 1.0/1.5 • USB input for flash memory and hard disk drives • Internetradio platform: vTuner with automatic detection of local stations • “Gapless“ playback for all formats •

Control via dedicated Box Control (free of charge) for Apple and Android smartphones & tablet PC's •

Fast forward and backward search • Internetradio platform: vTuner built-in • Using streaming services, like Spotify, Deezer, Grooveshark, Simfy via direct streaming from portable devices using Flipps

(iMediaShare) etc. • Supports following audio codecs/formats: MP3, WMA-9, AAC, FLAC, ALAC, WAV,

AIFF • Gold plated RCA connectors • Metal casing protects against vibration and interference • Colour options: silver or black

BLUETOOTH BOX S

(available Q2/2014) SRP € 159,00

NEW High fidelity aptX Bluetooth audio receiver

• Wireless music streaming with almost CD-quality • 3rd generation Bluetooth • Pro-Ject Audio

Systems' own conversion technology • Compatible with all smartphones and tablets, that support aptX & SBC Bluetooth codecs • Easy to install and use • Fast auto pairing (3 to 5 seconds) • Up to 8 different Bluetooth sources are memorized • Works within a range of approximately 10 meters •

3,5mm stereo analogue and Toslink digital outputs • Metal casing protects against vibration and interference • Colour options: silver or black

CD BOX S

SRP € 349,00

Ultra compact CD player

• Smallest Hifi CD player on the market • 24bit/96kHz DAC for precise playback of Audio-CDs • Coaxial S/PDIF digital output • Robust and reliable all-metal CD transport • Slot-in mechanism • Servo board optimized for 1:1 playback of CDs • Direct I²S digital-interface to DAC • Remote control with volume level adjustment of Pro-Ject amplifiers • Metal casing protects against vibration and interference • Colour options: silver or black

MEDIA BOX S

SRP € 259,00

Digital audio player

• Easy to use high quality audio reproduction from SD cards, USB sticks and USB hard drives • “Plug and Play” without PC or Mac • New wall plug power supply also gives power to USB hard drives •

High contrast 1,0” LCD display • Album/Title/Playlist read-out from display • Random/Shuffle Play •

IR remote • Excellent sound quality from digitally stored media • High quality DA-conversion on board • Digital coax out (RCA) for usage with even better DACs • Perfect to be combined with other

Box Design components • Metal casing protects against vibration and interference • Colour options: silver or black

6

CATALOGUE 2014 · BOX DESIGN Electronics

SRPs are only for orientation, prices can differ depending on local taxes

Prices, technical data & release date without engagement

DAC BOX S USB

SRP € 159,00

Digital to analogue converter with line & USB outputs

• Audiophile 24bit/96kHz D/A-conversion • Precision D/A chip from Texas Instruments • 8 times oversampling • 3 Inputs: 1x USB, 1x optical (Toslink), 1 x coax (S/PDIF) • Gold-plated RCA line level output sockets • To take full advantage of the DAC Box S USB features, please install software package (see manual, website) • Input selector on front • Metal casing protects against vibration and interference • Colour options: silver or black

DAC BOX S FL

SRP € 199,00

Filterless non-oversampling digital to analogue converter

• Audiophile 16bit linear D/A-conversion • Non-Oversampling • Without digital filter • 4 x TDA1543 parallel operation mode • "Analogue" full bodied sound • Input selector on front • Metal casing protects against vibration and interference • Colour options: silver or black

USB BOX S

SRP € 99,00

D/A converter with USB input for PC audio

• High quality D/A conversion with USB • Compatible with Windows®, Mac OS® • Automatic detection without the need of additional software, when used with conventional computer systems • Powered via USB • SMD technology for shortest signal paths • Gold-plated RCA sockets • Output stage with ultra-low impedance • Metal casing protects against vibration and interference • Colour options: silver or black

USB BOX S+

SRP € 199,00

High-End USB streamer & D/A converter

• Asynchronous data transfer from USB with 32bits/384kHz BurrBrown DAC chip • Based on XMOS technology • USB Receiver and converter are 32 bit ready • Class:A output stage • Analogue output

RCA connectors gold plated • Metal casing protects against vibration and interference • Colour options: silver or black

DOCK BOX S DIGITAL

SRP € 199,00

Highend Apple-Dock with internal D/A conversion

• Pure digital audio transmission • 24bit/192kHz D/A converter • Additional S/PDIF output (RCA) •

APPLE certified • Audio playback from iPod, iPhone, iPad • iPod/iPhone/iPad charging capability • S-

Video output • Power button on remote (= standby with charging) • Remote control included •

Colour options: silver or black

DOCK BOX S FI

SRP € 149,00

Audiophile dockingstation

• Compatble with all current models: iPod, iPhone, iPad • Fi version with constant volume level - ideal when combined with existing hifi audio system • Perfect signal transfer from 30-pin analogue-out •

RCA stereo output • S-video output for on-screen monitoring • USB port for data transfer from PC/

Mac • Remote control included • Metal casing protects against vibration and interference • Colour options: silver or black

TUNER BOX S

SRP € 159,00

Micro-sized FM-Tuner

• 99 presets • Manual or automatic tuning • Adaptive noise reduction • High-contrast dot-matrix display • Display of frequency, preset number, centre of station, stereo or mono reception, signal strength, etc • Trigger switching (on/off) • Full function IR remote control • Metal casing protects against vibration and interference • Colour options: silver or black

SRPs are only for orientation, prices can differ depending on local taxes

Prices, technical data & release date without engagement

BOX DESIGN Electronics · CATALOGUE 2014

7

A/D PHONO BOX S

(available Q2/2014) SRP € 199,00

NEW

Analogue to digital converter with digital optic out (Toslink) & USB out

• Analogue to digital conversion with built-in high quality phono preamp • Dual mono configuration •

Converts vinyl phono and line signals into digital audio • Analogue & digital outputs • Can be used as analogue and digital input extension • Suitable for MM and MC phono cartridges • Gain control to avoid overload distortion • Metal case protects electronics from vibration and electromagnetic interference • Small size allows installation close to record player • Colour options: silver or black

PHONO BOX S

SRP € 149,00

„Best Buy“ MM/MC phono preamplifier

• Audiophile performance • Dual mono configuration • Audiophile-grade amplification modules •

Audiophile-grade polypropylene WIMA capacitors • Precise RIAA equalisation • Switchable Subsonic filter –12dB @ 20Hz • Switchable input impedance/capacitance • 4 adjustable gain levels • Outstanding sound quality • Metal casing protects against vibration and interference • Colour options: silver or black

TUBE BOX S

SRP € 349,00

MM/MC phono preamplifier with tube output stage

• Audiophile Performance • Audiophile-grade ECC83 (12AX7) • Dual mono configuration • Audiophile

-grade polypropylene WIMA capacitors • Precise RIAA equalisation • Switchable input impedance/ capacitance • 3 adjustable gain levels • Subsonic filter • Metal casing protects against vibration and interference • Colour options: silver or black

SPEED BOX S

SRP € 129,00

Electronic motor control and speed change

• Quartz-generated high precision electronic speed regulation with microprocessor control • Sound improvement through motor running smoothness • Clean power decoupled from mains interference • Allows electronic speed change 33 & 45 rpm • 78 rpm possible with optional accessory pulley • Suitable for all turntables with 16 volt AC motor, up to 3 watt max. power consumption • Small size allows installation close to record player • Outboard power supply included • Metal casing protects against vibration and interference • Colour options: silver or black

SWITCH BOX S

SRP € 119,00

Input expansion for amplifiers/preamplifiers

• 4 inputs • 2 line outputs for separate usage • Suitable for amplifiers (Pro-Ject Audio Systems or other brands) • 3-input expansion for Pre Box S • Ultra-low crosstalk • Automatic synchronisation with trigger cable of Pre Box S • Metal casing protects against vibration and interference • Colour options: silver or black

PRELIMINARY

POWER BOX S 4 WAY

(available Q2/2014) estimated SRP € 129,00

One power cable solution

• Improves sonic performance of S-Line products by delivering of clean energy for powering with very good filtration and voltage regulation • Fitting in rear side of Design Box 2 • Gives a neat finish of the

Design Box • Suits: Stereo Box S, Amp Box S, Pre Box S, Receiver Box S, DAC Box S FL, DAC Box S USB,

Dock Box S Fi, Dock Box Digital S, Head Box S, Phono Box S, Media Box S, etc. • Outputs: 1x 20V / 3A,

2x 9V / up to 3A, 3x 18V / 500mA up to 1A • Colour options: silver or black shown with Design Box Acryl 2

(not included)

PRELIMINARY

8

POWER BOX S 6 WAY

(available Q2/2014) estimated SRP € 149,00

One power cable solution

• Improves sonic performance of S-Line products by delivering of clean energy for powering with very good filtration and voltage regulation • Fitting in rear side of Design Box 4 • Gives a neat finish of the

Design Box • Suits: Stereo Box S, Amp Box S, Pre Box S, Receiver Box S, DAC Box S FL, DAC Box S USB,

Dock Box S Fi, Dock Box Digital S, Head Box S, Phono Box S, Media Box S, CD Box S, etc. • Outputs: 1x

20V / 3A, 2x 9V / up to 3A, 3x 18V / 500mA up to 1A • Colour options: silver or black shown with Design Box Acryl 4

(not included)

CATALOGUE 2014 · BOX DESIGN Electronics

SRPs are only for orientation, prices can differ depending on local taxes

Prices, technical data & release date without engagement

DS Line

PRE BOX DS

SRP € 359,00

Stereo Line preamplifier

• Improved circuitry with even less noise • Volume control through relais (64 steps, 1 dB) • 4 line level inputs • Relais switching of inputs • 1x Pre-Out, 1x Subwoofer-Out, 1x Record-Out • Extremely low output impedance for low loss with long cables • IR remote control • Trigger switching of power amplifiers • Big elegant control display • Metal casing protects against vibration and interference •

Colour options: silver or black

AMP BOX DS

SRP € 399,00

Stereo power amplifier

• Improved PWM-circuitry (Pulse Wave Modulation) • 2x 125 / 80 watts @ 4 / 8 ohms • Improved signal spectrum and lower distortion • 2 ohms drive capability • High efficiency from mains to audio power (92%) • Low heat emission • Stereo line level input (RCA) • Gold-plated 5-way speaker binding posts • Suitable for banana/spade/pin/bare wire • Trigger input & loop out • Metal casing protects against vibration and interference • Colour options: silver or black

Optional Upgrade: Linear power supply Power Box RS Amp for almost double power output and further improved sound quality, supports connection for 1 stereo amp

AMP BOX DS MONO

SRP € 379,00

Mono power amplifier

• Improved PWM-circuitry (Pulse Wave Modulation) • 1x 190 / 110 watts @ 4 / 8 ohms • Improved signal spectrum and lower distortion • 2 ohms drive capability • High efficiency from mains to audio power (92%) • SMD design for shortest signal path • Low heat emission • Line level input & loop-out

(RCA) • Gold-plated 5-way speaker binding posts • Suitable for banana/spade/pin/bare wire • Trigger input & loop out • Metal casing protects against vibration and interference • Colour options: silver or black

Optional Upgrade: Linear power supply Power Box RS Amp for further improved sound quality, supports connection for 1 or 2 Mono amplifiers

STEREO BOX DS

SRP € 399,00

Stereo integrated amplifier

• Dual mono design • 2 power modules for each channel • 2x 70 / 50 watts @ 4 / 8 ohms • 2 ohms drive capability • 4 stereo line inputs (RCA) • Digital input: USB • Big elegant control display • Familiar sound with Stereo Box S with higher power output • Metal casing protects against vibration and interference • Colour options: silver or black

SRPs are only for orientation, prices can differ depending on local taxes

Prices, technical data & release date without engagement

BOX DESIGN Electronics · CATALOGUE 2014

9

PHONO BOX DS

SRP € 249,00

Phono preamplifier

• MM & MC capable • Linear RIAA equalisation • Ultimate circuit technology from Dr. Sykora, simplified version of Phono Box DS+ without display & relais switching • Ultra low noise & low distortion levels • SMD circuitry • Subsonic filter (switchable on rear panel) • Substantial setup options • Comfortable switching via buttons on front • Metal casing protects against vibration and interference •

Colour options: silver or black

PHONO BOX DS +

SRP € 399,00

Phono preamplifier

• MM & MC capable • Linear RIAA equalisation • Ultimate circuit technology from Dr. Sykora • Ultra low noise & low distortion levels • Double mono SMD circuitry • Low loss polypropylen capacitors •

Substantial setup options • Classy & elegant display shows setup parameters • Relay switching • Metal casing protects against vibration and interference • Colour options: silver or black

TUBE BOX DS

SRP € 499,00

MM/MC tube phono preamplifier

• MM & MC support • Precise RIAA equalisation • Ultra low noise circuitry • 12AX7 tube output stage with pre-mounted cool dampers • Input impedance adjustment for low output MC on front • Input capacitance adjustment in 4 steps (MM & Hi-output MC) • Switchable subsonic filter • Gold plated

RCA sockets • Metal casing protects against vibration and interference • Front-sided On/Off switch •

Colour options: silver or black

SPEED BOX DS

SRP € 399,00

Quartz controlled speed control for turntable for assuring ultimate speed consistency

• Speed change between 33 and 45rpm • Speed can be altered in graduated steps on either setting •

Voltage regulation function • Generated sinus wave voltage decoupled from mains interference •

Outputs: 16V AV and 230V AV (available also in 120V / 60 Hz version) • Only for AC turntables •

Colour options: silver or black

CD BOX DS

SRP € 499,00

High-End Audio CD player

• 24bit/192kHz BurrBrown DAC (PCM1796) • 4-layer suspended CD drive • 4-point suchassis • „Blue tiger“ servo board for 1:1 CD playback • Digital output 1x coaxial (S/PDIF) for usage as excellent CDonly drive • Luxurious slot-in mechanism • High contrast dot-matrix display • IR remote control with volume level adjustment of Pro-Ject Audio Systems amplifiers • Metal casing protects against vibration and interference • Colour options: silver or black

10

CATALOGUE 2014 · BOX DESIGN Electronics

SRPs are only for orientation, prices can differ depending on local taxes

Prices, technical data & release date without engagement

DAC BOX DS

SRP € 399,00

High-End Digital/Analogue Converter with USB 2.0 & DSD capability

• Top grade PCM-1792 D/A chip from Texas Instruments • 3 Inputs: 1x USB, 1x optical (Toslink), 1 x coax (S/PDIF) • 24bit/192kHz asynchronous USB streaming • 8 times oversampling • 2 selectable filter settings • Ultra linear circuitry • Extremely low impedance output stage • Gold-plated RCA line level output sockets • Metal casing protects against vibration and interference • Colour options: silver or black

HEAD BOX DS

SRP € 349,00

D/A converter & headphone amplifier

• Audiophile grade headphone amp & 24bit D/A conversion • 3 digital inputs: Asynchronous USB 2.0,

S/PDIF, Toslink • Special USB-2.0 driver für 24/192 (24/96 with USB1.1) • Ultra low-noise semiconductors from BurrBrown • SMD technology for short signal paths • Analogue output (RCA) for use as D/A converter • Analogue input (RCA) • Headphone socket (6,3mm jack plug) • Metal casing protects against vibration and interference • Colour options: silver or black

PRELIMINARY

POWER BOX DS 4 WAY

(available Q3/2014) estimated SRP € 249,00

NEW

Linear power supply and mains conditioner

• Improves sonic performance of DS-Line products by delivering of clean energy for powering with very good filtration and voltage regulation • Suits source equipment: Pre Box DS, DAC Box DS,, Head

Box DS, Phono Box DS, Phono Box DS+, Tube Box DS, Stream Box DS, Stream Box DSnet, Stream Box

DS+, CD Box DS • Outputs: 2x 9V / up to 2A, 2x 18V / 500mA up to 1A • Metal casing protects against vibration and interference • Colour options: silver or black

PRELIMINARY

POWER BOX DS+ 6 WAY

(available Q3/2014) estimated SRP € 299,00

NEW

Linear power supply and mains conditioner

• Improves sonic performance of DS-Line products by delivering of clean energy for powering with very good filtration and voltage regulation • Increases amplifier power • Suits: Amp Box DS, Amp Box

DS Mono, Pre Box DS, DAC Box DS, Head Box DS, Phono Box DS, Phono Box DS+, Tube Box DS, Stream

Box DS, Stream Box DSnet, Stream Box DS+, CD Box DS • Outputs: 1x 48V / 2,5A, 2x 9V / up to 2A, 3x

18V / 500mA up to 1A • Metal casing protects against vibration and interference • Colour options: silver or black

BOX DESIGN Electronics · CATALOGUE 2014

11

STREAM BOX DS

SRP € 699,00

Highend audio with Wi-Fi, LAN, USB sources

• Award winning audiophile grade 24bit/192kHz highend audio streaming client • Ethernet & WLAN •

Meets the Standards UPnP & DLNA 1.0/1.5 • USB input for flash memory and hard disk drives • USB input for Apple devices using digital out • Internetradio with automatic detection of local stations •

“Gapless“ playback for all formats • Supports following audio codecs/formats: MP3, WMA-9, AAC,

FLAC, WAV, AIFF • Luxury 3,5” TFT colour display that shows album cover art • Control via IR remote

(included) or Plug-Player, SongBook, Chorus DS, etc • Internetradio platform: vTuner built-in • Using streaming services, like Spotify, Deezer, Grooveshark, Simfy, etc with Jamcast software • For direct streaming from portable devices we recommend Flipps (iMediaShare) • Gold plated RCA connectors •

Metal casing protects against vibration and interference • Colour options: silver or black

(Upgrade Stream Box DS to Stream Box DS net for full NetAPI compatibility, total retail cost is only €

100,00. For further information, please contact your local retailer or distribution)

STREAM BOX DS NET

SRP € 799,00

24bit/192kHz Highend audio via Wi-Fi, LAN, USB with free Box Control App for iOS & Android

• Award winning audiophile grade 24bit/192kHz highend audio streaming client • Ethernet & WLAN •

Meets the Standards UPnP & DLNA 1.0/1.5 • USB input for flash memory and hard disk drives •

NetAPI platform implemented, which supports Free Box Control App • Internetradio with automatic detection of local stations • “Gapless“ playback for all formats • Supports following audio codecs/ formats: MP3, WMA-9, AAC, ALAC (including cover art), FLAC, WAV, AIFF • Luxury 3,5” TFT colour display that shows album cover art • Control via IR remote (included) or Plug-Player, SongBook, Chorus DS, etc • Internetradio platform: vTuner built-in • Using streaming services, like Spotify, Deezer,

Grooveshark, Simfy, etc with Jamcast software • For direct streaming from portable devices, we recommend Flipps (iMediaShare) • Gold plated RCA connectors • Metal casing protects against vibration and interference • Colour options: silver or black

STREAM BOX DS+

SRP € 1.099,00

24bit/192kHz Highend audio with Wi-Fi, LAN, USB sources

Same features as audiophile Highend streamer Stream Box DS net but additionally:

+ Fixed & variable analogue audio outputs (RCA) + volume control using IR remote or- front buttons

+ 2x analogue inputs (RCA)

+ 2x digital inputs (coax & optical Toslink input)

+ Top-grade Highend PCM 1796 DAC + ALAC & AIFF support

+ Search functionality fast forward and back

+ Alphanumeric search

+ Wifi 802.11/b/g/n allowing real 24bits/192kHz with Wi-fi

STREAM BOX DSA

All-in-one 24bit/192kHz Highend solution

Same features as audiophile Highend streamer Stream Box DS+ but additionally:

+ Built-in audiophile amplifier 2x 60 watts (4 ohms)

SRP € 1.299,00

12

CATALOGUE 2014 · BOX DESIGN Electronics SRPs are only for orientation, prices can differ depending on local taxes

Prices, technical data & release date without engagement

RS Line

PRE BOX RS

SRP € 799,00

High-end stereo line tube-preamplifier

• Fully balanced double mono design • Ultra-linear & ultra low noise • Pure Class-A circuitry • Input switching via relais • Low ESR capacitors • Blue Alps volume control • 3 XLR & 3 RCA inputs • 1 Pre– out XLR & 1 Record-out RCA • Standby power consumption < 1W • IR remote control included • Metal casing protects against vibration and interference • Colour options: silver or black

Optional Upgrade: Linear power supply Power Box RS Uni 1 (or 4) for further improved sound quality

AMP BOX RS

SRP € 899,00

Highend Stereo power amplifier

• Fully balanced double mono design (Pulse Wave Modulation) • 2x 120 / 90 watts @ 4 / 8 ohms •

Highly efficient conversion from mains to output power (92%) • 2 ohms drive capability • Tube buffer stage with reference quality • SMD construction for shortest signal paths • Low heat emission • Line level preamp inputs (RCA & XLR) • Top-quality speaker terminals • Metal casing protects against vibration and interference • Colour options: silver or black

Optional Upgrade: Linear power supply Power Box RS Amp for almost double power output and

further improved sound quality, connection for 1 stereo amp provided

AMP BOX RS Mono

SRP € 799,00

Highend power amplifier

• Fully balanced design (Pulse Wave Modulation) • 1x 195 / 125 watts @ 4 / 8 ohms • Highly efficient conversion from mains to output power (92%) • 2 ohms drive capability • Tube buffer stage with reference quality • SMD construction for shortest signal paths • Low heat emission • Line level preamp inputs (RCA & XLR) • Top-quality speaker terminal • Metal casing protects against vibration and interference • Colour options: silver or black

Optional Upgrade: Linear power supply Power Box RS Amp for further improved sound quality, connection for 1 or 2 mono amps provided

STEREO BOX RS

SRP € 999,00

NEW

Integrated stereo amplifier

• Fully balanced double mono design based on Amp Box RS circuitry • Power output 2x 120W / 4 ohms • Pulse Wave Modulation output stage • Ultra-linear & ultra low noise tube preamplifier •

Inputs: 1x XLR, 5x RCA • Outputs: Fixed Pre-Out for headphone amplifier, variable output, subwoofer out • Remote control • Metal casing protects against vibration and interference • Colour options: silver or black

Optional Upgrade: Linear power supply Power Box RS Amp for almost double power output and

further improved sound quality, connection for 1 stereo amp provided

PRE BOX RS DIGITAL

SRP € 1.199,00

NEW

Class-A preamplifier with headphone output & built-in D/A converter (DSD capable)

• Double 24bit/192kHz BurrBrown DAC chip (1792) for highest performance from one DAC • Additional second switchable 32bit/384kHz BurrBrown DAC chip for true 32/384 conversion • Pre Output

XLR & RCA • Headphone amplifier can switch impedance and damping factor from front panel • Unique feature allows it to continuously change sonic character between Push-Pull (PP) to Single Ended

(SE) • Dynamic range 132 dB • Asynchronous data transfer from USB 32bits/384kHz • Based on XMOS technology • Precision masterclock • Inputs: Asynchronous USB (max. 32bits/384kHz), 3x optical

S/PDIF, 2x coaxial S/PDIF, AES/EBU digital, RJ45 I

2

S discrete differential digital input for CD BOX RS,

RCA analogue, XLR analogue • Outputs: Headphone (6,3mm), Pre-Out, RCA, XLR, variable and fixed •

Metal casing protects against vibration and interference • Colour options: silver or black

Optional Upgrade: Linear power supply Power Box RS Uni 1 (or 4) for further improved sound quality

DAC BOX RS

NEW

Ultimate Class-A tube balanced output D/A converter (DSD capable)

SRP € 899,00

• Double output stage allows selection between tube and solid state • Possibility to disconnect heating and anode voltage including their power supplies in order to expand tube lifespan and save energy • Double 24bit/192kHz5 BurrBrown DAC chip (1792) for highest performance • Precision masterclock • Inputs: Asynchronous USB, 4x optical S/PDIF, 2x coaxial S/PDIF, AES/EBU digital input, RJ45 I

2

S discrete differential digital input for CD BOX RS • Outputs: RCA and XLR • Metal casing protects against vibration and interference • Colour options: silver or black

Optional Upgrade: Linear power supply Power Box RS Uni 1 (or 4) for further improved sound quality

SRPs are only for orientation, prices can differ depending on local taxes

Prices, technical data & release date without engagement

BOX DESIGN Electronics · CATALOGUE 2014

13

CD BOX RS

SRP € 999,00

NEW

Ultimate CD drive for CD/MP3/WMA/FLAC

• Top loader CD transport • CD mechanism with magnetic clamp • Blue Tiger CD-100 servo system supporting 24bit/96kHz FLAC playback • Gravity design with metal block on bottom of player in order to increase the weight of the case by energy sink system • Special suspension system • External masterclock module • Data buffer for reduced jitter • Outputs: S/PDIF coax + opt., AES/EBU, RJ45 I

2

S discrete differential digital output • Metal casing protects against vibration and interference • Colour options: silver or black

STREAM BOX RS

SRP € 1.499,00

24bit/192kHz highend audio with Wi-Fi, LAN, USB with free Boxcontrol Apps for iOS & Android

devices

Same features as audiophile Highend streamer Stream Box DS net but additionally:

+ XLR output

+ Volume control via analogue Alps potentiometer

+ Fully balanced double mono triode tube Output stage (ECC 6922)

+ 1x digital coaxial input

+ 1x digital optical input

+ Top of the notch highend PCM 1792A DAC

+ ALAC & AIFF support

+ Wifi 802.11/b/g/n allows real 24bit/192kHz with Wifi

+ Superlative rigid luxury alu cabinet

HEAD BOX RS

(available Q2/2014) SRP € 799,00

NEW

Highend headphone amplifier

• Fully balanced double mono design • Tube input stage • Class-A output stage • Adaptive impedance circuitry for ultimate performance • Superior low distortion • Low noise components for ultimate sound performance • Output: 6,3mm socket • Metal casing protects against vibration and interference • Colour options: silver or black

Optional Upgrade: Linear power supply Power Box RS Uni 1 (or 4) for further improved sound quality

PHONO BOX RS

SRP € 799,00

Highend phono preamplifier

• MM & MC capable • Fully balanced double mono design • Fully passive RIAA & DECCA equalisation • Unique continuously variable input impedance loading, matches every cartridge (adjustment even while playing) • RCA & XLR In & Out • Superior low noise / low distortion • Classy & elegant dip switches • Metal casing protects against vibration and interference • Colour options: silver or black •

Optional Upgrade: Linear power supply Power Box RS Phono for further improved sound quality

14

POWER BOX RS PHONO

(available Q2/2014) SRP € 399,00

NEW

Linear power supply for Phono Box RS with battery power output

• High filtration capacity • Precise voltage regulation • Surge protection • Low noise components for ultimate sound performance • Power Box RS Phono offers virtual battery power to Phono RS • Metal casing protects against vibration and interference • Colour options: silver or black

POWER BOX RS AMP

(available Q2/2014) SRP € 499,00

NEW

Linear power supply for Amp Box RS

• Useable for 1 Amp Box RS (Stereo) or 2 Amp Box RS Monoa, but also for 1 Amp Box DS (Stereo) or 2

Amp Box DS Mono • High filtration capacity • Precise voltage regulation • Surge protection • Low noise components for ultimate sound performance • Power Box RS Amp almost doubles power of

Amp Box RS or DS amplifiers • Colour options: silver or black

POWER BOX RS UNI 1-WAY

(available Q2/2014) SRP € 399,00

NEW

Universal linear power supply for 1 component of RS-Line

• High filtration capacity • Precise voltage regulation • Surge protection • Low noise components for ultimate sound performance • Output: 1x 20V / 3A • Colour options: silver or black

POWER BOX RS UNI 4-WAY

(available Q2/2014) SRP € 599,00

NEW

Universal linear power supply for 4 components of RS-Line

• High filtration capacity • Precise voltage regulation • Surge protection • Low noise components for ultimate sound performance • Output: 4x 20V / 3A • Colour options: silver or black

CATALOGUE 2014 · BOX DESIGN Electronics SRPs are only for orientation, prices can differ depending on local taxes

Prices, technical data & release date without engagement

Headphones

HEAR IT ONE

SRP € 99,90

Audiophile stereo headphone

• Smart, audiophile & comfortable • Classic design • Adjustable leather-coated headband • Soft leather ear cushions (memory foam) • Textile coated cable made from oxygen-free copper (HP-OFC) •

Gold plated 3,5mm jack plug • High gloss & metal finish

HEAR IT TWO

SRP € 59,90

Trendy headphone for iPod & Co

• Super loud – super light – super cool • More SPL with iPod & Co (107dB) • Lightweight design 77 g •

Adjustable ear-cushion position • Flat transport possible • High wear comfort • 3,5mm jack plug • 3 colour options: red, white, black

Loudspeakers

SPEAKER BOX 4

SRP € 199,00

2-way monitor speaker

• 2-way sealed box, for clear bass • 100mm bass/midrange (aluminium die-cast) • 25mm silk-dome weeter • High-quality crossover (second order) • Anti-vibration sealant • Magnetic screening • Goldplated 5-way binding posts • Impedance: 4 ohms > suitable for amplifiers from 4 – 8 ohms • Recommended amplifier power 10 to 100 watts • Magnetically attached speaker-grille • Wall-mount included • Ideal for combination with Box-Design components • Dimensions 140 x 228 x 150mm without grille (WxHxD) 140 x 228 x 160mm with grille • Weight 2,55 kg each • High-gloss piano-lacquer finish: white, red, black

SPEAKER BOX 5

SRP € 249,00

Compact 2-way monitor speaker

• Audiophile bass-reflex design • Recommended amplifier power 10 to 150 watts • Magnetically shielded • Front cover with magnetic attachment • Frequency response 55Hz - 20kHz • Gold-plated speaker terminal (single-wired) • Wall-mount included • Speaker-Box Wall Bracket optionally available • High-gloss piano-lacquer finish: white, red, black

SPEAKER BOX 10

SRP € 599,00

NEW

Audiophile floorstand speaker

• 2,5-way design for clean and defined bass • Perfect in combination with Box-Design components •

Front grilles with magnetic fittings included • Gold plated speaker binding posts, also suitable for banana plugs • 3x 100mm bass/mid speaker - aluminium die-cast • 25mm tweeter - coated silk dome • Special anti-vibration sealing and damping compound • Small & slim • Elegant tower design •

No subwoofer needed • Internal bracing to reduce vibration • Steel baseplate works as resonance gravitation point • High-gloss piano-lacquer finish: white, red, black

SRPs are only for orientation, prices can differ depending on local taxes

Prices, technical data & release date without engagement

BOX DESIGN Electronics · CATALOGUE 2014

15

Multimedia control

REMOTE BOX S

SRP € 359,00

Lifestyle solution for audio control

• Works with Box Control App • Controls all Box-Design units (pre-programmed) + 6 IR controlled units • Receives Wifi commands from the Box Control App • Converts Wifi commands to IR and transfers to Standard Hifi Components (IR Receiver) • IR commands of Box-Design components are stored in the Box Control App • Perfect solution for complete remote control • Colour options: silver or black

BOX CONTROL

FREE FOR IOS & ANDROID

Software for Remote Box S and Stream Boxes

Box Control is a special development for Pro-Ject Audio Systems, that will revolutionise the way of controlling your highend audio equipment. This App offers full control of Stream Box DSnet and onwards plus additionally the ability to operate all other IR controllable Box-Design components

CONTROL IT

SRP € 29,90

All-in-one IR remote for Box Design

• Manage all components with a single remote: preamplifiers, Integrated amplifiers, Receiver, FM-

Tuner, Dockingstations, CD-Players, Stream Box DS, Media Box S • Pre-programmed - no setup necessary • Simple and easy to use • Widespread IR emission up to 135° • Rugged design

16

Accessories

SPEAKER BOX Stand 70

SRP € 229,00

Audiophile speaker stand

• Ideal for Speaker Box 4 and 5 • Low resonance design • Metal/wood composite material • Cable break-through within pillar • Heavy construction with 6mm steel base • Adjustable spikes, mountable in base • Upper platform 140 x 150mm (WxD) • Overall height 725mm • High gloss piano lacquer black or white • Packed in pairs

SPEAKER BOX DESKTOPSTAND

SRP € 99,00

NEW Bookshelf speaker platform

• Perfect placement for near-field speakers • Damping feet prevent unwanted vibration • Perfectly suits Speaker Box 4 or 5 • Each stand also provides additional space for 1 Box Design S component •

Crystal clear acrylic • Stereo set includes 2 stands and 8 vibration dampers

DAMP IT

1 pc SRP € 7,99

NEW Highend damping feet

4 pcs SRP € 29,90

• Special absorber feet made from hightech TPE • Prevents transmission of unwanted mechanical vibration • Especially for CD and other disc players, tube amplifiers, speakers & turntables • Single or set of 4

ABSORB IT

4 pcs SRP € 129,00

NEW Highend damping feet

• Special absorber feet made from hightech synthetic material enclosed by metal ring • Prevents transmission of unwanted mechanical vibration • Especially designed for CD players and turntables

GRILLES SB-5

SRP € 29,90

• Acoustic transparent loudspeaker front cover • Fabric front with wood-frame and magnet holder •

Exclusive Colour-Design for more Lifestyle • Suitable for Speaker Box 5

WB-SB-4/5

SRP € 39,00

Speaker wall mount

• Available in black and white • Suitable for Speaker Box 4 and Speaker Box 5 • Packed in pairs

SPIN-CLEAN® OPTICAL DISC CLEANER

SPIN-CLEAN DISCMIST OPTICAL DISC CLEANER 2 OZ (59 ML)

SPIN-CLEAN DISCMIST OPTICAL DISC CLEANER 4 OZ (118 ML)

SPIN-CLEAN DISCMIST OPTICAL DISC CLEANER 8 OZ (237 ML)

SRP € 20,00

SRP € 25,00

SRP € 30,00

CATALOGUE 2014 · BOX DESIGN Electronics

SRPs are only for orientation, prices can differ depending on local taxes

Prices, technical data & release date without engagement

Combinations

Set "Stereo-Hifi-System"

SRP € 1.499,00

NEW

• Micro-sized stereo Hifi-system with turntable • Audiophile receiver with built-in FM-tuner •

Slim-line CD player • Turntable with built-in phono stage and pre-mounted cartridge • IR remote control • Audiophile grade compact speakers • High quality interconnects and speaker cables included • Faceplates of components available in silver or black • Speakers available in red, white or black • Instead of Design Box 2iP: Alternative rack "the butler 2.2" is also available (upcharge)

Set "Micro-Hifi-System"

SRP € 1.099,00

• Micro-sized stereo Hifi-system with Apple docking station • Audiophile Dock Box S Fi with fixed audio output level • 30-pin connection for iPod, iPhone, iPad • Audiophile receiver with built-in FMtuner • Slim-line CD player • IR remote control • Audiophile grade compact speakers • High quality interconnects and speaker cables included • Faceplates of components in silver or black • Speakers available in red, white or black • System remote control included • Instead of Design Box 4iP: Alternative rack "the butler 2.2" is also available (upcharge)

Set „Micro-Hifi-System“ with original rack Design Box 4iP

Set "iPod® goes Hifi"

SRP € 599,00

• Micro-sized stereo Hifi-system with Apple docking station • Audiophile Dock Box S Fi with fixed audio output level • 30-pin connection for iPod, iPhone, iPad • Audiophile Integrated Stereo amplifier with additional analogue input (use with FM-tuner, CD, etc.) • IR control for both components • Audiophile grade compact speakers • High quality interconnects and speaker cables included • Faceplates of components available in silver or black • Speakers available in red, white or black • Instead of Design Box 2iP: Alternative rack "the butler 2.1" is also available (upcharge)

Set „iPod® goes Hifi“ with original rack Design Box 2iP

Set „iPod® goes digital“ with original rack Design Box 2iP

Set "iPod® goes digital"

SRP € 699,00

• Micro-sized stereo Hifi-system with Apple docking station • Audiophile Dock Box S digital provides 2 analogue outputs (RCA) & S/PDIF (use with external D/A converters) • Pure digital output from iPod, iPhone, iPad • Audiophile Integrated Stereo amplifier with additional analogue input (use with FMtuner, CD, etc.) • Audiophile grade compact speakers • Highend interconnects and speaker cables included • Faceplates of components available in silver or black • Speakers available in red, white or black • Instead of Design Box 2iP: Alternative rack "the butler 2.1" is also available (upcharge)

Set "Mediaplayer"

SRP € 750,00

• Micro-sized stereo Hifi-system for digital music playback • MP3, WMA, AAC music with no need for

PC, Mac • 2 digital inputs on Media Box S - USB 2.0 Hi-speed (hard disk drive or stick) - SD (Secure

Digital up to 32Gb) • 1 additional analogue input (use with FM-tuner, CD, etc.) • Audiophile grade amplification • Audiophile grade compact speakers • Faceplates of components in silver or black •

Speakers available in red, white or black • Instead of Design Box 2: alternative rack "the butler 2.1" is also available (upcharge)

Set „Mediaplayer“ with optional rack the butler 2.1

Set "Hifi-Airplay"

SRP € 850,00

• Micro-sized stereo Hifi-system with "Airplay"-ability • Wireless playback of digital music from PC,

Mac, iPhone • 2 additional digital inputs on DAC Box S USB - USB (PC or Mac connection) - S/PDIF RCA

-coax (use with satellite radio, etc) • 1 additional analogue input (use with FM-tuner, CD, etc) • Audiophile grade amplification and speakers • Faceplates of components in silver or black • Speakers available in red, white or black • Instead of Design Box 2iP: Alternative rack "the butler 2.1" is also available (upcharge)

Set „Hifi-Airplay“ with optional rack the butler 2.1

SRPs are only for orientation, prices can differ depending on local taxes

Prices, technical data & release date without engagement

BOX DESIGN Electronics · CATALOGUE 2014

17

Design Boxes

Design Box Acryl 2

SRP € 69,00

Stylish frame system for Box-Design components

• New Clicking System • PET clips position and secure components • High gloss finish • Classy - suits all living room styles and furniture • Design frame fits 2 Box-Design S components or 1 Box-Design DS component

Design Box Acryl 2 iP

SRP € 75,00

Stylish frame system for Box-Design components

• New Clicking System • PET clips position and secure components • High gloss finish • Classy - suits all living room styles and furniture • Design frame fits 2 Box-Design S components or 1 Box-Design DS component • System frame with cutout for iPod®, iPhone® etc • Holds 1 Dock Box S + 1 additional

Box-Design S component

Design Box Acryl 4

SRP € 79,00

Stylish frame system for Box-Design components

• New Clicking System • PET clips position and secure components • High gloss finish • Classy - suits all living room styles and furniture • Design frame fits a) 4 Box-Design S components b) CD Box DS c)

Stream Box DS and onward d) CD Box + 2 Box-Design S components e) 2 Box-Design DS components f)

1 Box-Design DS component + 2 Box-Design S components

Design Box Acryl 4 iP

SRP € 85,00

Stylish frame system for Box-Design components

• New Clicking System • PET clips position and secure components • High gloss finish • Classy - suits all living room styles and furniture • Design frame with cutout for iPod®, iPhone® etc. • Holds a) 1

Dock Box S + 3 additional Box-Design S components b) 1 Dock Box S + 1 additional Box-Design S component + 1 Box-Design DS component c) 1 Dock Box S + 1 Box-Design S CD Box + 1 additional Box-

Design S component

Micro Racks

starting from SRP € 69,00

„the butler“ series

„the professional“ series

The beautiful Design Box Acryl Micro Racks are made of satin acrylic & easily to use in combinations.

Three different types are offered in a variety of colours and three different heights (2, 3, 4 units stacked) with standard or double widths. LED lights can be added on demand.

18

Power Distribution

Connect it Power

4WAY (10A) SRP € 99,00

6WAY (10A) SRP € 149,00

4WAY (16A) SRP € 149,00

6WAY (16A) SRP € 199,00

Audiophile power strip

• Especially for use with audio equipment • No sound degradation through filters or overload protection • Magnetically shielding • Available with 4 or 6 mains outlets (EU, France-CZ, UK, US) • Maximum continuous current 10 or 16 ampere • High quality inner cabling (alternatively with Furutech or Van den Hul inner cabling) • Improved resistance against overheating and fire • 1,5m power cord included • Handmade in EC

CATALOGUE 2014 · BOX DESIGN Electronics SRPs are only for orientation, prices can differ depending on local taxes

Prices, technical data & release date without engagement

Cables

Connect it Power Cable

1,0 m (10A) SRP € 79,00

1,5 m (10A) SRP € 89,00

2,0 m (10A) SRP € 99,00

1,0 m 16A) SRP € 149,00

1,5 m (16A) SRP € 169,00

2,0 m (16A) SRP € 189,00

3,0 m (10A) SRP € 109,00

Audiophile power cord

3,0 m (16A) SRP € 209,00

• Especially for use with audio equipment • Magnetic shielding • IEC C13 connector • Superior connectivity • 10 or 16 ampere maximum continuous power surge • Perfect in combination with

Connect-it Power strips 10A or 16A • Handmade in EC

Connect it

Length

0,205 m

RCA C

SRP € 49,00

RCA CC / XLR CC

SRP € 69,00

RCA SI / XLR SI

SRP € 139,00

0,41 m

0,82 m

1,23 m

1,85 m

SRP € 55,00

SRP € 59,00

SRP € 69,00

SRP € 89,00

SRP € 79,00

SRP € 89,00

SRP € 99,00

SRP € 129,00

SRP € 199,00

SRP € 299,00

SRP € 399,00

SRP € 599,00

2,46 m

4,92 m

SRP € 99,00

SRP € 159,00

SRP € 149,00

SRP € 259,00

SRP € 799,00

SRP € 1.299,00

RCA C - Electrically shielded with conductors made of OFC (oxygen free copper)

Interconnect cable, 2x RCA phono plugs > 2x RCA phono plugs.

RCA CC / XLR CC - Electrically shielded with conductors made of OFC (oxygen free copper) and an additional layer of carbon fibre

Interconnect cable, 2x XLR or RCA phono plugs > 2x XLR or RCA phono plugs.

RCA SI / XLR SI - Electrically shielded with conductors made of pure silver and RCA phono plugs with locking function

Interconnect cable, 2x XLR or RCA phono plugs > 2x XLR or RCA phono plugs.

Connect it Y-Cable

Length Y-Cable RCA C RCA-3,5-C

0,205 m

0,41 m

SRP € 69,00

SRP € 79,00

SRP € 49,00

SRP € 59,00

0,82 m SRP € 89,00 SRP € 69,00

Y-Cable RCA C - Electrically shielded with conductors made of OFC (oxygen free copper)

Y-Interconnect cable, 1x RCA phono plug > 2x RCA phono plugs.

RCA-3,5-C - Electrically shielded with conductors made of OFC (oxygen free copper)

Interconnect cable, 1x 3 pole mini-jack (3,5mm Ø) > 2x RCA phono plugs.

Connect it D

Length

0,41 m

BNC-BNC

SRP € 49,00

RCA-RCA

SRP € 49,00

0,82 m SRP € 69,00 SRP € 69,00

Digital interconnect cable - Electrically shielded with conductors made of OFC (oxygen free copper)

1x BNC plug > 1x BNC plug or 1x RCA plug > 1x RCA plug

Connect it LS

1 m Stereo set (

2x banana plugs > 2x banana plugs)

2 m Stereo set (

2x banana plugs > 2x banana plugs)

3 m Stereo set (

2x banana plugs > 2x banana plugs)

4 m Stereo set (

2x banana plugs > 2x banana plugs)

SRP € 34,90

SRP € 39,90

SRP € 49,90

SRP € 59,90

Bulk SRP € 5,90/m

Audiophile „best-buy“ speaker wire

• 4 core speaker cable • Solid core technology • High purity oxygen free copper (HP-OFC) • Circular array geometry • Low distortion level, neutral sound • Suitable for Fullrange and Bi-wiring • Ideal in combination with Box-Design components • Made in Austria

SRPs are only for orientation, prices can differ depending on local taxes

Prices, technical data & release date without engagement

BOX DESIGN Electronics · CATALOGUE 2014

19

THE NEXT GENERATION OF HIFI

PRO-JECT AUDIO SYSTEMS a division of Audio Tuning Vertriebs GmbH · Margaretenstraße 98 · A-1050 Wien, AUSTRIA

Phone: +43 1 5448580 · Fax: +43 1 5448580-33 · e-mail: [email protected] · www.project-audio.com

© Pro-Ject Audio Systems 2014, English version

Technical data without engagement

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
