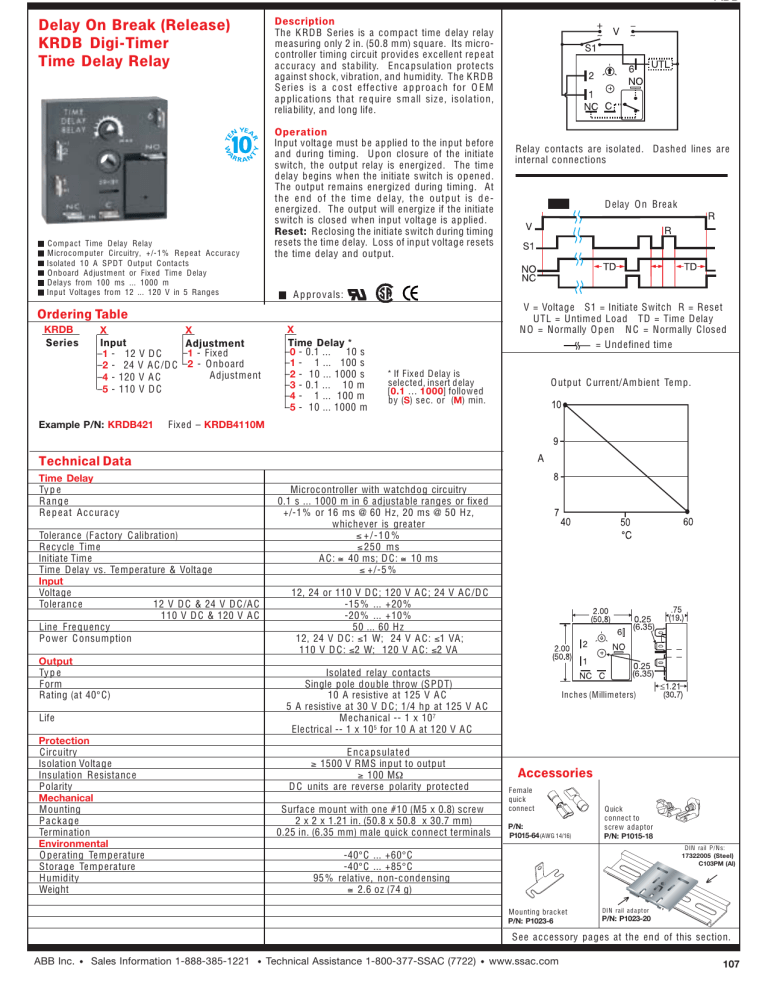

Delay On Break (Release)
KRDB Digi-Timer
Time Delay Relay
C ompact Time Delay Relay
Microcomputer Circuitry, +/-1 % Re peat Accuracy
Isolated 10 A SPDT O utput C ontacts
O nboard Adjustment or Fixed Time Delay
Delays from 100 ms ... 1000 m
Input Voltages from 12 ... 120 V in 5 Ranges
Description
The KRD B Series is a compact time delay relay
measuring only 2 in. (50.8 mm) square. Its microcontroller timing circuit provides excellent repeat
a c cura cy and sta bility. Enc a psulation prote cts
against shock, vibration, and humidity. The KRD B
S erie s is a c o st e ff e c tiv e a p pro a c h for O E M
a p plic ations that re quire sm all siz e , isolation,
reliability, and long life.
Operation
Input voltage must be applied to the input before
and during timing. U pon closure of the initiate
switch, the output relay is energized. The time
delay begins when the initiate switch is opened.
The output remains energized during timing. At
th e e n d of th e tim e d ela y, th e o ut p ut is d e energized. The output will energize if the initiate
switch is closed when input voltage is applied.
Reset: Reclosing the initiate switch during timing
resets the time delay. Loss of input voltage resets
the time delay and output.
X
Input
–1 - 12 V D C
–2 - 24 V A C /D C
–4 - 120 V A C
–5 - 110 V D C
Example P/N: KRDB421
X
Adjustment
–1 - Fixed
–2 - O nboard
A djustment
Delay O n Break
A p prov als:
V = Voltage S1 = Initiate Switch R = Reset
UTL = Untimed Load TD = Time Delay
N O = Normally O pen N C = Normally Closed
= Undefined time
Ordering Table
KRDB
Series
Relay contacts are isolated. Dashed lines are
internal connections
X
Time Delay *
–0 - 0.1 ...
10 s
–1 - 1 ... 100 s
–2 - 10 ... 1000 s
–3 - 0.1 ... 10 m
–4 - 1 ... 100 m
–5 - 10 ... 1000 m
* If Fixed Delay is
selected, insert delay
[0.1 … 1000] followed
by (S) sec. or (M) min.
O utput C urrent/Ambient Temp.
Fixed – KRDB4110M
Technical Data
Time Delay
Ty p e
R a ng e
R e p e at A c cura cy
Tolerance (F actory C alibration)
Recycle Time
Initiate Time
Time Delay vs. Temperature & Voltage
Input
Voltage
Toleranc e
12 V D C & 24 V D C /A C
110 V D C & 120 V A C
Line Fre quency
Power C onsumption
Output
Ty p e
F orm
Rating (at 40°C)
Life
Protection
Circuitry
Isolation Voltage
Insulation Resistance
Polarity
Mechanical
Mounting
Package
Termination
Environmental
O p erating Temp erature
Storage Temp erature
Humidity
Weight
Microcontroller with watchdog circuitry
0.1 s ... 1000 m in 6 adjustable ranges or fixed
+/-1 % or 16 ms @ 60 H z, 20 ms @ 50 H z,
whichever is greater
≤ +/-10 %
≤ 250 ms
A C: ≅ 40 ms; D C: ≅ 10 ms
≤ + /-5 %
12, 24 or 110 V D C; 120 V A C; 24 V A C /D C
-15 % ... +20 %
-20 % ... +10 %
50 ... 60 H z
12, 24 V D C: ≤1 W; 24 V A C: ≤1 VA;
110 V D C: ≤2 W; 120 V A C: ≤2 VA
Isolated relay contacts
Single pole double throw (SPDT)
10 A resistive at 125 V A C
5 A resistive at 30 V D C; 1/4 hp at 125 V A C
Mechanical -- 1 x 10 7
Electrical -- 1 x 10 5 for 10 A at 120 V A C
E nc a p sulate d
≥ 1500 V RMS input to output
≥ 100 MΩ
D C units are reverse polarity protected
Surface mount with one #10 (M5 x 0.8) screw
2 x 2 x 1.21 in. (50.8 x 50.8 x 30.7 mm)
0.25 in. (6.35 mm) male quick connect terminals
Inches (Millimeters)
Accessories
F emale
quick
connect
P/N:
P1015-64 (AWG 14/16)
Quick
connect to
screw adaptor
P/N: P1015-18
DIN rail P/Ns:
17322005 (Steel)
C103PM (Al)
-40°C ... +60°C
-40°C ... +85°C
95 % relative, non-condensing
≅ 2.6 oz (74 g)
←
Mounting bracket
P/N: P1023-6
→
DIN rail a d a ptor
P/N: P1023-20
See accessory pages at the end of this section.
