START-UP GUIDE
IM216R02

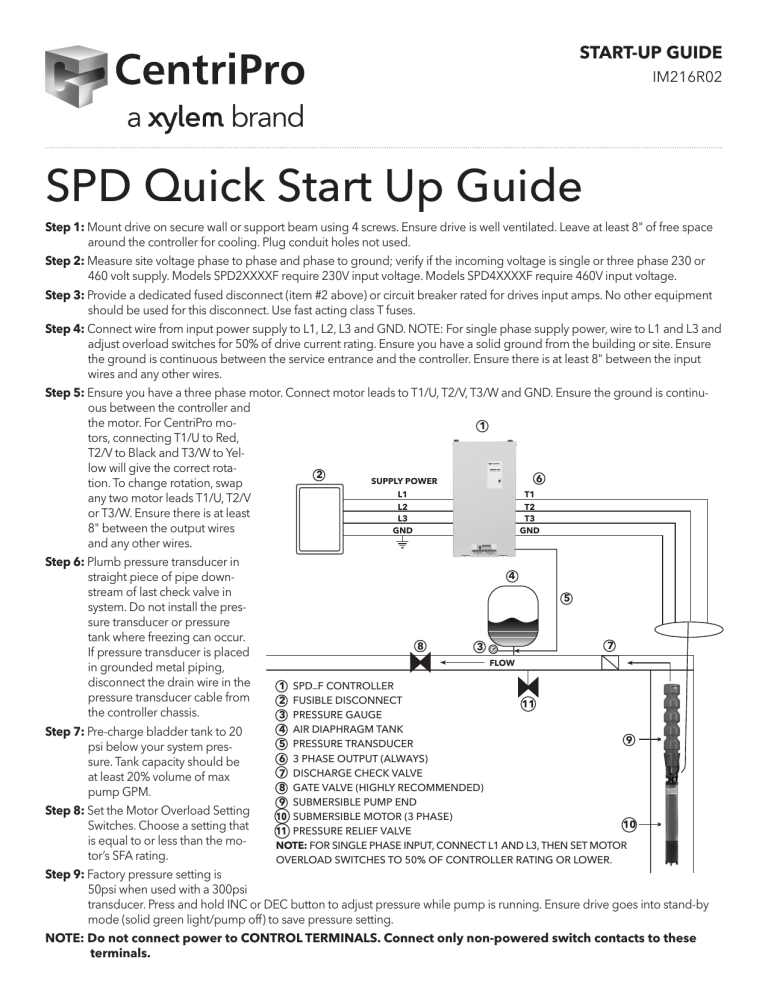

SPD Quick Start Up Guide
Step 1: Mount drive on secure wall or support beam using 4 screws. Ensure drive is well ventilated. Leave at least 8" of free space
around the controller for cooling. Plug conduit holes not used.
Step 2: Measure site voltage phase to phase and phase to ground; verify if the incoming voltage is single or three phase 230 or
460 volt supply. Models SPD2XXXXF require 230V input voltage. Models SPD4XXXXF require 460V input voltage.
Step 3: Provide a dedicated fused disconnect (item #2 above) or circuit breaker rated for drives input amps. No other equipment
should be used for this disconnect. Use fast acting class T fuses.
Step 4: Connect wire from input power supply to L1, L2, L3 and GND. NOTE: For single phase supply power, wire to L1 and L3 and
adjust overload switches for 50% of drive current rating. Ensure you have a solid ground from the building or site. Ensure
the ground is continuous between the service entrance and the controller. Ensure there is at least 8" between the input
wires and any other wires.
Step 5: Ensure you have a three phase motor. Connect motor leads to T1/U, T2/V, T3/W and GND. Ensure the ground is continuous between the controller and
the motor. For CentriPro mo1
tors, connecting T1/U to Red,
T2/V to Black and T3/W to Yellow will give the correct rota2
6
SUPPLY POWER
tion. To change rotation, swap
L1
T1
any two motor leads T1/U, T2/V
L2
T2
or T3/W. Ensure there is at least
L3
T3
8" between the output wires
GND
GND
and any other wires.
Step 6: Plumb pressure transducer in
4
straight piece of pipe downstream of last check valve in
5
system. Do not install the pressure transducer or pressure
tank where freezing can occur.
7
8
3
If pressure transducer is placed
FLOW
in grounded metal piping,
disconnect the drain wire in the
1 SPD_F CONTROLLER
pressure transducer cable from
2 FUSIBLE DISCONNECT
11
the controller chassis.
3 PRESSURE GAUGE
4 AIR DIAPHRAGM TANK
Step 7: Pre-charge bladder tank to 20
9
5 PRESSURE TRANSDUCER
psi below your system pres6
3
PHASE
OUTPUT
(ALWAYS)
sure. Tank capacity should be
7 DISCHARGE CHECK VALVE
at least 20% volume of max
8 GATE VALVE (HIGHLY RECOMMENDED)
pump GPM.
9 SUBMERSIBLE PUMP END
Step 8: Set the Motor Overload Setting
10 SUBMERSIBLE MOTOR (3 PHASE)
10
Switches. Choose a setting that
11 PRESSURE RELIEF VALVE
is equal to or less than the moNOTE: FOR SINGLE PHASE INPUT, CONNECT L1 AND L3, THEN SET MOTOR
tor’s SFA rating.
OVERLOAD SWITCHES TO 50% OF CONTROLLER RATING OR LOWER.
Step 9: Factory pressure setting is
50psi when used with a 300psi
transducer. Press and hold INC or DEC button to adjust pressure while pump is running. Ensure drive goes into stand-by
mode (solid green light/pump off) to save pressure setting.
NOTE: Do not connect power to CONTROL TERMINALS. Connect only non-powered switch contacts to these
terminals.
Aquavar SPD Quick Start Up Guide
Step 1: Mount drive on secure wall or support beam using 4 screws. Ensure drive is well ventilated. Leave at least 8" of free space
around the controller for cooling. Plug conduit holes not used.
Step 2: Measure site voltage phase to phase and phase to ground; verify if the incoming voltage is single or three phase 230 or
460 volt supply. Models SPD2XXXX require 230V input voltage. Models SPD4XXXX require 460V input voltage.
Step 3: Provide a dedicated fused disconnect (item #2 above) or circuit breaker rated for drives input amps. No other equipment
should be used for this disconnect. Use fast acting class T fuses.
Step 4: Connect wire from input power supply to L1, L2, L3 and GND. NOTE: For single phase supply power, wire to L1 and L3 and
adjust overload switches for 50% of drive current rating. Ensure you have a solid ground from the building or site. Ensure
the ground is continuous between the service entrance and the controller. Ensure there is at least 8" between the input
wires and any other wires.
Step 5: Ensure you have a three phase motor. Connect motor leads to T1/U, T2/V, T3/W and GND. Ensure the ground is
continuous between the controller and the motor. To change rotation, swap any two motor leads T1/U, T2/V or T3/W.
Ensure there is at least 8" between the output wires and any other wires.
Step 6: Plumb pressure transducer in straight piece of pipe downstream of last check valve in system. Do not install the pressure
transducer or pressure tank where freezing can occur. If pressure transducer is placed in grounded metal piping,
disconnect the drain wire in the pressure transducer cable from the controller chassis.
Step 7: Pre-charge bladder tank to 20 psi below your system pressure. Tank capacity should be at least 20% volume of max pump
GPM.
1
Step 8: Set the Motor
Overload Setting
Switches. Choose a
setting that is equal
2
SUPPLY POWER
to or less than the
motor’s SFA rating.
L1
L2
Step 9: Factory pressure
L3
5
setting is 50psi
GND
when used with a
AIR
300psi transducer.
6
Press and hold INC
T1
T2
or DEC button to
7
T3
3 PHASE OUTPUT
adjust pressure while
GND
TO MOTOR
9
pump is running.
10
Ensure drive goes
9
into stand-by mode
SUCTION
FLOW
(solid green light/
4
8
8
pump off) to save
pressure setting.
NOTE: Do not connect
3
power to
1 SPD CONTROLLER
6 AIR DIAPHRAGM TANK
CONTROL
2 FUSIBLE DISCONNECT
7 3 PHASE MOTOR
TERMINALS.
3 CENTRIFUGAL PUMP
8 GATE VALVE (BALL VALVE)
Connect only non4 CHECK VALVE
9 PRESSURE GAUGE
powered switch
5 PRESSURE TRANSDUCER (CABLE ASSEMBLY)
10 PRESSURE RELIEF VALVE
contacts to these
NOTES: For single phase input power, use L1 and L3 terminals and adjust motor overload switches
terminals.
to 50% of controller rating or lower.
Xylem Inc.
2881 East Bayard Street Ext., Suite A, Seneca Falls, NY 13148
Phone: (866) 325-4210 Fax: (888) 322-5877
www.centripro.com
Goulds is a registered trademark of Goulds Pumps, Inc. and is used under license.
© 2012 Xylem Inc.
IM216 Revision Number 2
February 2013
