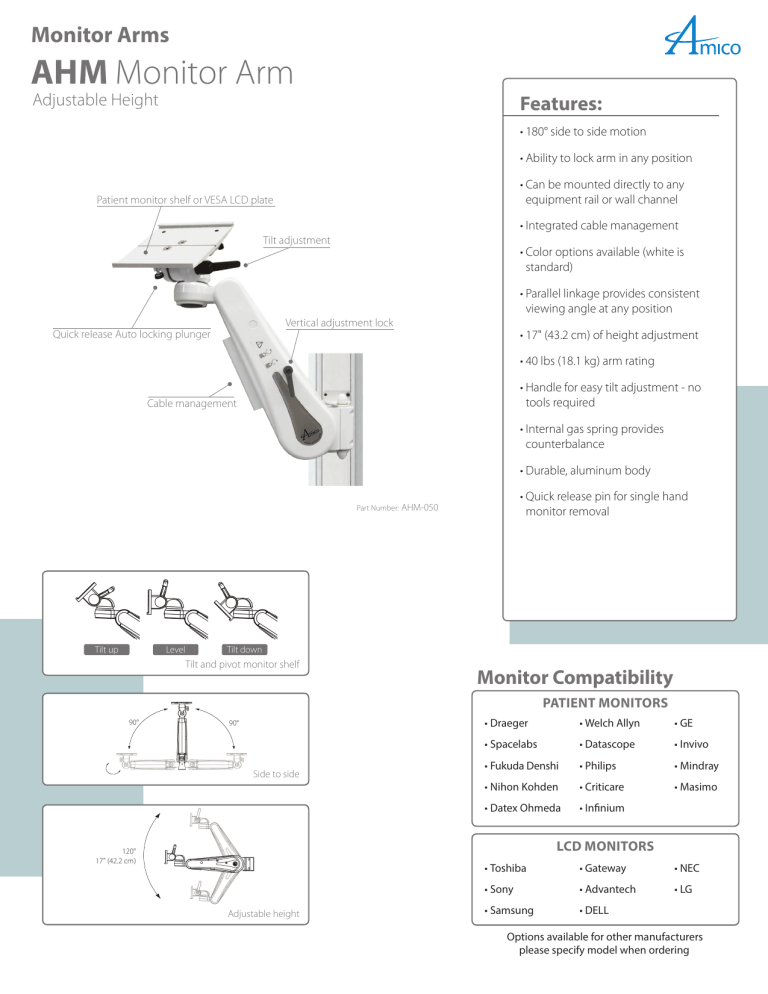

AHM Monitor Arm
Monitor Arms
AHM Monitor Arm
Adjustable Height
Features:
•180° side to side motion
•Ability to lock arm in any position
•Can be mounted directly to any
equipment rail or wall channel
Patient monitor shelf or VESA LCD plate
•Integrated cable management
Tilt adjustment
•Color options available (white is
standard)
•Parallel linkage provides consistent
viewing angle at any position
Vertical adjustment lock
Quick release Auto locking plunger
•17" (43.2 cm) of height adjustment
•40 lbs (18.1 kg) arm rating
•Handle for easy tilt adjustment - no
tools required
Cable management
•Internal gas spring provides
counterbalance
•Durable, aluminum body
•Quick release pin for single hand
monitor removal
Part Number: AHM-050
Tilt up
Level
Tilt down
Tilt and pivot monitor shelf
Monitor Compatibility
PATIENT MONITORS
90°
90°
Side to side
•Draeger
•Welch Allyn
•GE
•Spacelabs
•Datascope
•Invivo
•Fukuda Denshi
•Philips
•Mindray
•Nihon Kohden
•Criticare
•Masimo
•Datex Ohmeda
•Infinium
LCD MONITORS
120°
17" (42.2 cm)
Adjustable height
•Toshiba
•Gateway
•NEC
•Sony
•Advantech
•LG
•Samsung
•DELL
Options available for other manufacturers
please specify model when ordering
Mounting Options for AHM Models
Channel Mount Options
Channel to Wall
•Channel mounts directly to
the wall
Part Number: AHM-050
Direct Rail Mount Options
Benefits of Direct Rail Mounting
•Eliminates the need for a monitor channel
•Cleaner, more aesthetically pleasing look
•Increases flexibility for location of monitor
•40 lbs (18 kg) maximum weight rating (less for some models)
•Compatible with various headwall, flatwall, equipment
booms and rail systems
Channel to Power Column
Direct to Power Column
•AHM mounts directly to
existing monitor channel
on power column or
flatwall
•Mounts directly to existing
vertical rail, on power
column or flatwall
Part Number: AHM-050
Part Number:
AHM-LCD-05-V
Channel to Headwall
•Channel mounts directly to
existing rail on headwall
•Channel can be mounted
anywhere along length of
headwall
Part Number: AHM-050
Direct to Headwall
•Mounts directly to existing
horizontal rail on headwall
Part Number:
AHM-LCD-05-AT
MRS Channel to Equipment Rail
•Channel mounts directly to
equipment rails
•Channel can be mounted
anywhere along length of
rail
Direct to Boom
•Mounts directly to Boom
Part Number: AHM-050
Mounting options are available for both AHM and SSM Arm Models
Part Number: AHM-LCD-05-V
AHM Models (Adjustable Height and Side-to-Side Motion)
AHM Monitor Arm
LCD AHM Monitor Arm
•18" (45.7 cm) reach
•30 lbs (13.6 kg) arm rating*
•±30° degrees tilt
•Quick release auto locking plunger
•18" (45.7 cm) reach
•30 lbs (13.6 kg) arm rating*
•VESA 75/100 plates included
•Portrait and landscape viewing
Part Number: AHM-050
Part Number: AHM-LCD-05
*Heavy duty rating available
6" Arm Extension
9" Arm Extension
24" (61 cm) reach
27" (68.6 cm) reach
Part Numbers:
AHM-LCD-75
AHM-75X
Part Numbers:
AHM-LCD-35
AHM-35X
12" Arm Extension
16" Arm Extension
30" (76.2 cm) reach
Part Numbers:
AHM-LCD-15
AHM-15X
34" (86.4 cm) reach
Part Numbers:
AHM-LCD-55
AHM-55X
*Extensions may be limited depending on configuration and monitor
AHM Monitor Arm Part Matrix
AHM -XXX-(Z)
AHM -LCD -XX-(Z)
05
No Extension
75
05
No Extension
MON
Standard
Channel Adapter
0
5" Shelf w/30° tilt limit
6" (15.24 cm)
Extension Arm
35
9" (22.86 cm)
Extension Arm
MON
Standard
Channel Adapter
75
6" (15.24 cm)
Extension Arm
2
6" Drop on shelf
15
12" (30.48 cm)
Extension Arm
3
Philips IntelliVue Shelf
55
4
Accessory add on top
16" (40.64 cm)
Extension Arm
LCD AHM Monitor Arm Part Matrix
AB
*Amico Horizontal
Direct Mount - Bottom
AT
*Amico Horizontal
Direct Mount - Top
15
12" (30.48 cm)
Extension Arm
AB
*Amico Horizontal
Direct Mount - Bottom
AT
*Amico Horizontal
Direct Mount - Top
55
16" (40.64 cm)
Extension Arm
V
*Amico Vertical
Rail Adapter
6
5" Shelf for back mounts
G
*Hill-Rom Vertical
Rail Adapter
7
5" Shelf w/slide-in VESA 75/100 Plate
8
3" Shelf w/30° tilt limit
35
9" (22.86 cm)
Extension Arm
D
Dovetail/Ohmeda
* Direct mount options not available
with extensions.
Standard Plates Provided:
VESA 75
V
*Amico Vertical
Rail Adapter
Side View
G
*Hill-Rom Vertical
Rail Adapter
Side View
D
Dovetail/Ohmeda
VESA 100
* Direct mount options not available
with extensions.
Monitor Arm Accessories
Monitor Specific Peripheral Mounts Available
Power Holder
Power Bar
Cord Hook
•Hospital grade,
4 power outlets
•120 VAC, 60 Hz
•Holds most power
adapters for PCs,
patient monitors and
LCDs
•Manage cables, cords and
other hanging wires
•Attach to the bottom of
any monitor arm
Part Number: PWRBAR4-MON
Part Number: PWRHLD-MON
Part Number (4 hooks): CRDHLDR2
Part Number (2 hooks): CRDHLDR
Bar Code Scanner Holder
•Universal bar code
scanner holder
Call for part number.
LCD Handle
Cord Wrap
•Ergonomic handles can be added to any
Amico LCD mount
•Knuckle guard protects walls and user’s hands
•Ideal for managing
wires and cords
Part Number: MON-LCD-HANDLE
Monitor Channel
Part Number: CORDWRAP
Channel Covers
Monitor Handle
•Easy way to hide wires
•Available in patterns
and colors to match
any decor
•Standard wall channel
34" (48.3 cm)
•Meets seismic requirements
•Custom lengths are welcome
Part Number: MRS-S034
•Easy grab
handle
Call for part number.
Part Number: AHM-HAND-00
Wire Baskets
10" W x 10" D x 4" H
10" W x 06" D x 09" H
13" W x 09" D x 07" H
13" W x 09" D x 07" H
(25.4 cm x 25.4 cm x 10.16 cm)
(25.4 cm x 15.24 cm x 22.86 cm)
(33.02 cm x 22.86 cm x 17.78 cm)
(33.02 cm x 22.86 cm x 17.78 cm)
White wire basket
White wire basket
White wire basket
BP cuff basket
Part No: 101004-MON-BB
Part No: 100609-MON-BB
Part No: 130907-MON-BB
Part No: CUFBASK-MON
All baskets can be sterilized
CPU Mounts
•Available Sizes:
1.5" - 3" (3.81 cm - 7.62 cm)
Part No: CPUMNT1-MON
1.5" - 7" (3.81 cm - 17.78 cm)
Part No: CPUMNTA-MON
7" - 9.5"(17.78 cm - 24.13 cm)
Part No: CPUMNT4-MON
Please visit www.amico.com for all technical
•Thin client mount
behind LCD
10" x 10" x 1.75"
(25.4 cm x 25.4 cm x 4.45 cm)
•Enclosed
CPU Mount
•Tangent Rugged
Mini mount
10" x 10" x 3"
(25.4 cm x 25.4 cm x 7.62 cm)
Distributed By:
specifications, installation instructions, detailed
AutoCAD drawings and more
Mounting Solutions.
AA-SP-AHM 07.18.2017
Amico Accessories Inc. 85 Fulton Way, Richmond Hill, ON L4B 2N4, Canada
Toll Free Tel: 1.877.264.2697 | Tel: 905.763.7778 | Fax: 905.763.8587
www.amico.com
