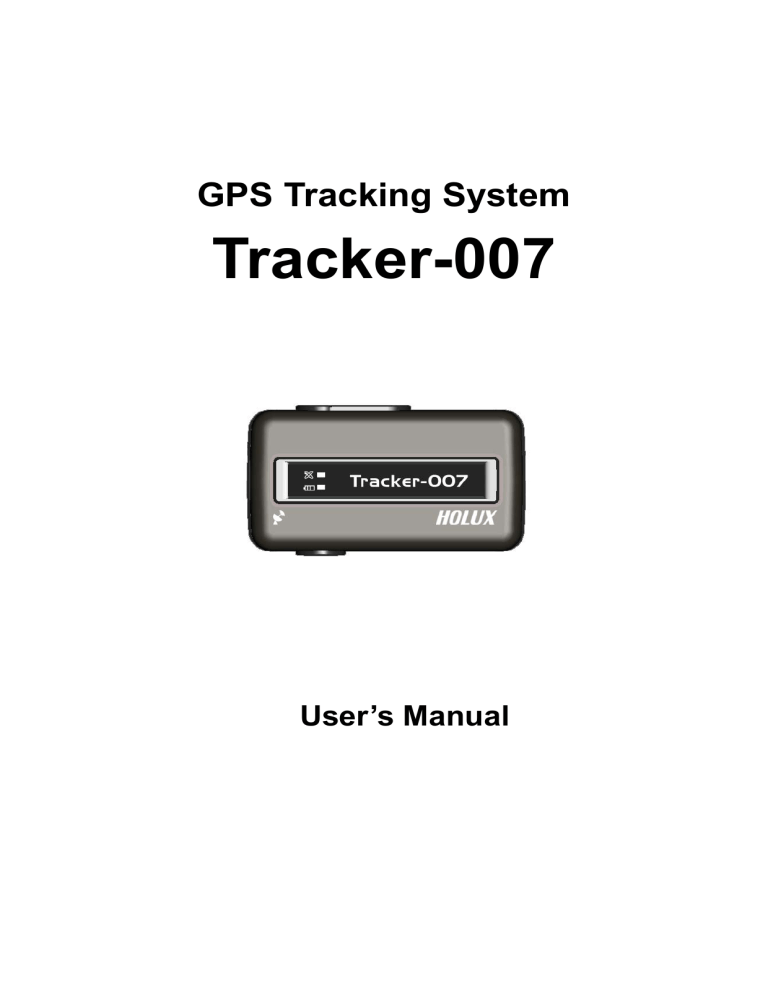

Tracker-007
GPS Tracking System
Tracker-007
User’s Manual
Table of Contents
Introduction........................................................................................................................1
Application .........................................................................................................................1
Parts names and Functions........................................................................................................................... 2
LED Indication ............................................................................................................................................... 3
Package Contents ......................................................................................................................................... 4
Before You Getting Started ...............................................................................................5
Possible Additional Fee................................................................................................................................. 5
About GPS .................................................................................................................................................... 5
About Power.................................................................................................................................................. 5
For XP SP3 Users ......................................................................................................................................... 5
About SIM PIN Code & GPRS ...................................................................................................................... 6
Notice:.................................................................................................................................6
Installing SIM Card and Battery ........................................................................................7
ezSpot Service ...................................................................................................................9
User Utility (TrackerConfig) ............................................................................................10
Installing Device Driver for Virtual Comm Port.............................................................................................11
Parameter Setting and Retrieval ................................................................................................................. 13
Read Device information ............................................................................................................................. 14
Change Password and Reset Password..................................................................................................... 14
Report Phone Number Setting .................................................................................................................... 15
Message Type Setting................................................................................................................................. 16
APN Setting ................................................................................................................................................. 16
Phone Number Setting ................................................................................................................................ 17
Continuous Tracking ................................................................................................................................... 17
SIM PIN ....................................................................................................................................................... 18
EPO Setting................................................................................................................................................. 19
Basic Operation ...............................................................................................................20
Turn on Tracker ........................................................................................................................................... 20
Turn off Tracker ........................................................................................................................................... 20
Position Request ......................................................................................................................................... 20
Position Lock (Park) .................................................................................................................................... 21
Emergency Report (SOS) ........................................................................................................................... 21
Terminology .....................................................................................................................23
Appendix A. Specifications.............................................................................................24
Physical Characteristics .............................................................................................................................. 24
System......................................................................................................................................................... 24
GPRS Protocol ............................................................................................................................................ 24
GSM Antenna .............................................................................................................................................. 24
Certification ................................................................................................................................................. 24
GSM module ............................................................................................................................................... 24
GPS ............................................................................................................................................................. 24
Power Consumption .................................................................................................................................... 25
Holux Tracker-007
Introduction
Tracker-007 is a multi-functional tracker. Combining with GPRS and high performance
GPS, the device can be used to track and report device’s position and status to mobile
phone through SMS or Main Data Server (MDS) through HTTP. The operation modes
include continuous tracking and position lock (park). SOS buttons can be used to send
emergency call. All configurations can be set through SMS or USB interface. The wireless
communication includes UDP, TCP/IP, HTTP and SMS. With MTK EPO, it can get shorter
TTFF at distressed environment.
Application
-1-
Holux Tracker-007
Parts names and Functions
Park Key
GPS Status (Blue LED)
SOS, Press two
keys together.
USB Connector
Power Signal (Amber) & Status
Signal (Green)
-2-
Holux Tracker-007
LED Indication
Item
1
LED
LED icon /color
Power
Status
Indication
Blinks every 4
seconds
Battery is low
Glows steadily
Battery is recharging
Glows steadily
Battery is full
Green
Blinks every 4
seconds
Device is functioning
normally
Green
Blink every 0.5
second
Device is powering off
when battery is normal
Amber
Blink every 0.5
second
Device is powering off
when battery is low
Green
Blink 2 times every 2
seconds
GPRS connection fails
or SIM card is invalid
when power is normal.
Amber
Blink 2 times every 2
seconds
GPRS connection fails
or SIM card is invalid
when power is low.
Acquisition in process
Blue
Blinks every 2
seconds
Acquisition fails
Blue
Blinks every 4
seconds
Turns off
Acquisition succeed and
position is fixed
SOS mode is activated
Amber
Blinks 6 times in 3
seconds. All LED
turn off.
Blinks every 2
seconds
Park mode is activated
Green
Amber
Blinks every 2
seconds
Park mode and battery
is low
Amber
2
Amber
3
Green
4
5
6
7
8
9
GPS
10
11
Blue
12
Status
13
14
-3-
Holux Tracker-007
Package Contents
Thank you for purchasing the Tracker-007 wireless GPS logger. Before you start, make
sure that the following items are included in your package. If any of these items are missing,
please contact your original local HOLUX dealer or distributor.
Tracker-007 Device
Power adapter
Car Charger
USB Cable
Tool CD
Quick Guide
Warranty Card
Battery
Screw and cap
1 set
1 set
1 set
1 set
1 pcs
1 pcs
1 pcs
1 pcs
4 pcs
-4-
Holux Tracker-007
Before You Getting Started
Possible Additional Fee
•
•
Position request and position response sent by SMS will be charged.
Each zoom operation will be charged also according to data quantity transferred.
About GPS
•
GPS signals are incapable of penetrating solid objects that are non-transparent.
The signals will be also be affected by surface cover such as tall buildings, tunnels,
elevated expressways, forests etc., or weather conditions such as overcast and
rain. If the vehicle is poorly insulated against heat and contains metal parts, GPS
signals will not be able to penetrate.
•
All wireless communication devices such as cell phones, or traffic police speed
detectors can interfere with the reception of GPS signals and results in unstable
signals.
•
To get position fix successfully, please hold the GPS logo or function key up for
better signal orientation.
•
There is no guaranty that SOS message will be successfully sent at distressed
environment where GPS or GSM signals are weak.
About Power
•
Though this device is USB compliant and can be bus powered, it is NOT
recommended to charge the device though your computer via USB connection.
The manufacturer disclaims any liabilities for damage to the handset or personal
PC caused by any improper use.
•
It takes 5 ~ 120 seconds for the device to be completely powered off. If the device
is in the process of acquiring position fix or position report, the power-offing will not
be performed until the previous process is complete.
•
Tracker-007 cannot be powered on if battery voltage is below 3.5 volts.
For XP SP3 Users
•
Due to the incompatibility problem between Windows XP SP3 and the virtual
Comm port of Windows driver, usbser.sys for XP SP2 is required for XP SP3
users to install the utility. For more information, please refer to FAQ at
http://www.holux.com
-5-
Holux Tracker-007
About SIM PIN Code & GPRS
Notice: SIM PIN should be unlocked before being inserted into the device. SIM PIN can be
disabled through ordinary mobile phone.
•
•
SIM card GPRS function enabled is required for normal operation.
The default PIN code in device is 0000. If SIM lock is enabled and password is
incorrect, power on/off device three times will make the SIM card locked
permanently. Only PUK code can unlock the SIM in such case. If SIM PIN is
enabled, make sure the PIN code is set to device by TrackerConfig. The PIN code
set will be saved in non-volatile memory.
•
If the SIM card is not inserted or SIM card is invalid, position fix function will be
disabled.
•
Google map installed in your cell phone will be downloaded by GPRS
automatically when ezSpot is well installed.
Download documents, Driver and Utility
All related documents, driver and utility programs can be downloaded from the ezSpot
server at http://ezspot.holux.com/Holux.
-6-
Holux Tracker-007
Installing SIM Card and Battery
Tracker-007 without SIM card, battery and bottom cover
z
Slide the SIM card into SIM socket and lock the SIM socket.
z
Install the included battery into Tracker-007 as the arrow sign shown; see below.
-7-
Holux Tracker-007
z
Restore the bottom cover.
z
The final assembly of Tracker-007. Secure the case by fasting the screws and
inserting cap for water proof.
z
Make sure that battery is fully charged before using this device.
-8-
Holux Tracker-007
ezSpot Service
z
ezSpot Service is a multi-functional Holux tracker system which includes ezSpot in
mobile phone and ezSpot server at internet. ezSpot can work with Tracker-005 and
Tracker-007 from Holux. The compatibility will be guaranteed for Holux products in
the future. There are three position report operation modes in tracker: ezSpot,
ezSpot server or both. In ezSpot mode, user can change settings in and request
real-time position from Tracker through mobile phone. For ezSpot server mode,
tracker will report position to server through HTTP. For third operation mode, tracker
will report position to both ezSpot and ezSpot server. The operation mode can be set
by PC utility program TrackerConfig through USB connection.
z
ezSpot server provides log history for user to view through web browser. Please
access more service from http://ezspot.holux.com/Holux/. Updated driver and utility
programs can be downloaded from ezSpot server also. Please register with email
and IMEI to get access of the server and its services.
For more information please refer to “Holux_ezSpot_User_Manual”
z
-9-
Holux Tracker-007
User Utility (TrackerConfig)
Note: Power on Tracker-007 before plugging in USB cable and connecting with
TrackerConfig. Configurations can be set or read correctly only after system initialization
being complete.
The Tracker-007 enable users the communication with mobile phone through SMS as
default. Through this utility program, Tracker-007 can be configured to communicate with
ezSpot server through HTTP. Continuous tracking mode can be enabled to make device
getting position fix and report to server at preset interval. The APN and server domain
name can be set for internet connection. The SIM PIN can be enabled or disabled. SIM PIN
code can be changed by the utility also. The program can run only for Windows OS. No
support for Linux or Mac OS.
USB Serial Device Driver Problem in Windows XP SP3
The program cannot be executed in Windows XP SP3 due to USB serial device driver
problem. The following steps can be used to solve the problem.
z
Go to ”C:\WINDOWS\Driver Cache\i386” in XP SP3
- 10 -
Holux Tracker-007
z
z
Unzip sp2.cab to get usbser.sys
Move usbser.sys in SP2.cab to C:\WINDOWS\system32\drivers,
C:\WINDOWS\Driver Cache\i386 and C:\WINDOWS\system32\dllcache.
Overwrite the original file.
Installing Device Driver for Virtual Comm Port
Plug in 5-pin mini-USB cable. When connecting the device first time, OS will request to
install the virtual COMM port driver.
Please choose Win2XMcom.inf for Windows XP (SP2 and earlier version) and
Win2XMcom_Vista.inf for Windows Vista.
- 11 -
Holux Tracker-007
A new MODEM device in device manager will appear after installation. Check Comm port
number from Modem page.
- 12 -
Holux Tracker-007
Parameter Setting and Retrieval
Press “Connect” button. After program connecting to the device, it will show a “Next”
message in new Diagnostic page and the button name will be changed to “Close”.
- 13 -
Holux Tracker-007
If SIM card is not detected or is locked, “Ready” will not be shown on message frame.
Read Device information
Check “Read” button will get all information in device.
Change Password and Reset Password
Press “Set” button in password group to change password.
Execute “Reset Password” button will reset password to default “12345”. This function can
- 14 -
Holux Tracker-007
be used when password is forgotten.
Report Phone Number Setting
There are 4 phone numbers that can be set. Device will respond position request if caller
phone number is in the list.
- 15 -
Holux Tracker-007
Message Type Setting
The function can be used to set parameter for report target. Tracker-007 can report position
to ezSpot in mobile phone or ezSpot server
[ezSpot]: Tracker-007 will send position to ezSpot through SMS.
[ezSpot Server]: Tracker-007 will send position to ezSpot server (or MDS) through HTTP.
[both]: Tracker-007 will send position to ezSpot through SMS and ezSpot server through
HTTP.
1
2
3.
APN Setting
This item is to get and set MDS server setting.
[APN]: This indicates Access Point Name
[APN User Name]: This indicates the user name for APN.
[APN Password]: This indicates the user password for APN.
[APN DNS]: This indicates the APN domain name server.
[MDS Server IP]: MDS (or ezSpot server) IP or domain name. Default is
“ezspot.holux.com”. The parameters will be set automatically by selecting Country and
Telecom. Default will be “internet”. Manual input changes are allowable if necessary.
- 16 -
Holux Tracker-007
1
2.
Phone Number Setting
[Number]: Number (MSISDN) is the phone number of SIM card in Tracker-007.
1
2
Continuous Tracking
[Continuous tracking setting]
In continuous tracking mode, Tracker-007 will report position to ezSpot server at the preset
interval.
- 17 -
Holux Tracker-007
[Interval (min)]: This is the duration, in seconds, for which continuous tracking needs to be
done. If 0 is passed to the continuous tracking.
1
2
SIM PIN
SIM PIN can be locked or unlocked through “SIM Card” function. SIM PIN code can also be
changed. It is recommended to set SIM PIN in unlock mode to prevent SIM card from
entering locked state.
- 18 -
Holux Tracker-007
EPO Setting
EPO data can speed up TTFF at weak GPS environment. User can enable or disable this
function. Device will update EPO data every three days.
- 19 -
Holux Tracker-007
Basic Operation
Turn on Tracker
Press the power key for more than 2 seconds to turn on the device. Green LED will flash
every 4 seconds during the process. The device will try to attach during power on stage. It
will take about 60 seconds to complete.
Turn off Tracker
Press the power key for 2 seconds to turn off the device.
Position Request
Press “Find Now” in menu using ezSpot
Enter the correct “Password” and “Tracker Tel. No” for tracker. Press “Find Now”.
z
z
z
z
Java phone
Mobile phone
Mobile phone will call Tracker-007.
Tracker-007 will start to acquire position if caller phone number is one of the 4 phone
numbers pre-configured in the setting.
Once the position is acquired and fixed, Tracker-007 will report the current position.
Tracker-007 will report the latest position if position fix fails.
- 20 -
Holux Tracker-007
Java phone
Mobile phone
Position Lock (Park)
z
z
z
z
z
z
z
Pressing park key for more than 2 seconds will activate the park mode. Green LED will
blink every 2 seconds in park mode.
Blue LED blinks every 2 seconds when device is getting a position fix.
Tracker will continue to get a position fix every 5 minutes to check if it is within park
range. Only when park state is violated will device sent out the message.
Tracker will use the first successful position fix as park center.
Depending on the message type setting, Tracker will report position when park is
violated to ezSpot with phone number 1, ezSpot server or both.
Pressing park key again will release the park mode and Tracker will be back to the
previous operation mode.
Pressing two keys simultaneously in park mode will change device into SOS mode.
Park mode will be stopped.
Emergency Report (SOS)
z
z
z
z
z
Pressing two keys simultaneously for more than 2 seconds will activate SOS mode.
Tracker will try to get a fix immediately and send SOS signal.
When SOS is activated, all LED’s will flash 6 times within 3 seconds. Then all LED’s
will be OFF.
Depending on the message type setting, Tracker will report position to ezSpot with
phone number 1, ezSpot server or both.
SOS mode will keep running until out of battery and can only be unlocked by mobile
phone “SOS unlock” message.
If position fix fails, device will send the latest position.
- 21 -
Holux Tracker-007
z
z
Pressing two keys again will restart SOS process and LED’s will flash 6 times again.
SOS mode has the highest priority. Power off function is non-functional during SOS
mode.
Java phone
Mobile phone
Java phone
z
z
z
Mobile phone
When ezSpot in mobile phone receives Tracker-007 SOS message, it will display SOS
location of Tracker-007 for 10 sec, then the Unlock SOS screen appears.
Click Unlock to unlock SOS.
Click Cancel/Exit if you don’t want to unlock, the SMS screen re-appears.
- 22 -
Holux Tracker-007
Terminology
EPO
Extended Prediction Orbit, predicted ephemeris data specific for MTK
chip solution..
MDS
Main Data Server, device will send position information to server
through HTTP message
MTK
Mediatek Inc.
SMS
Short Message Service
TTFF
Time to First Fix
ezSpot
Service
ezSpot Service is a multi-functional Holux tracker system which
includes ezSpot in mobile phone and ezSpot server at internet.
ezSpot
ezSpot is the tracking service program running in Java and Windows
Mobiles phones.
ezSpot
server
ezSpot server is demo tracking service web site at Holux. Domain
name http://ezspot.holux.com/Holux
- 23 -
Holux Tracker-007
Appendix A. Specifications
Physical Characteristics
5-pin Mini-USB connector with USB virtual COM port
Dimensions: 76 x 42.5 x 20 mm
Weight: 69 g
Keys: power and park key
Operation temperature: -10 °C ~ 55 °C
Storage temperature: -20 °C ~ 70 °C
Operatiing humidity 5 ~ 90 %
Waterproof: IPX6
System
Renesas 32-bit RISC CPU
Memory: 8 Mbytes NOR and 4 Mbytes SRAM
Location log: 24,000 records.
GPRS Protocol
GPRS multi-slot class 8 (optional)
GPRS multi-slot class 10 (default)
GPRS mobile station class B
GSM Antenna
PIFA Tri band antenna: GSM850, DCS1800 and PCS1900 MHz
PIFA Tri band antenna: GSM900, DCS1800 and PCS1900 MHz
Certification
FCC
CE
NCC
GSM module
SIMCOM SIM340DZ GSM module
SIM socket: 1.8, 3.0 V
GPS
Chipset: MTK MT3318
- 24 -
Holux Tracker-007
15 x 15 x 4 mm patch antenna
Power Consumption
Battery: Li-Ion Battery, 890 mAh
Standby time 110 hours.
Park mode with position fix at 5 minutes interval: 50 hours; Continuous tracking with
position fix at 15 minutes interval: 70 hours.
- 25 -
Holux Tracker-007
FCC Regulations
y
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
y
This device has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiated radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
y
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC radio frequency
exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches)
during normal operation. This device is a multi-functional tracker by putting on the
moving object. For RF exposure safety, the user is not allowed to put this device in
the pocket.
- 26 -
Holux Tracker-007
- 27 -
HOLUX Technology, Inc.
E-Mail: [email protected]
Web:
www.holux.com
Copy right reserved by Holux Technology, Inc
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
