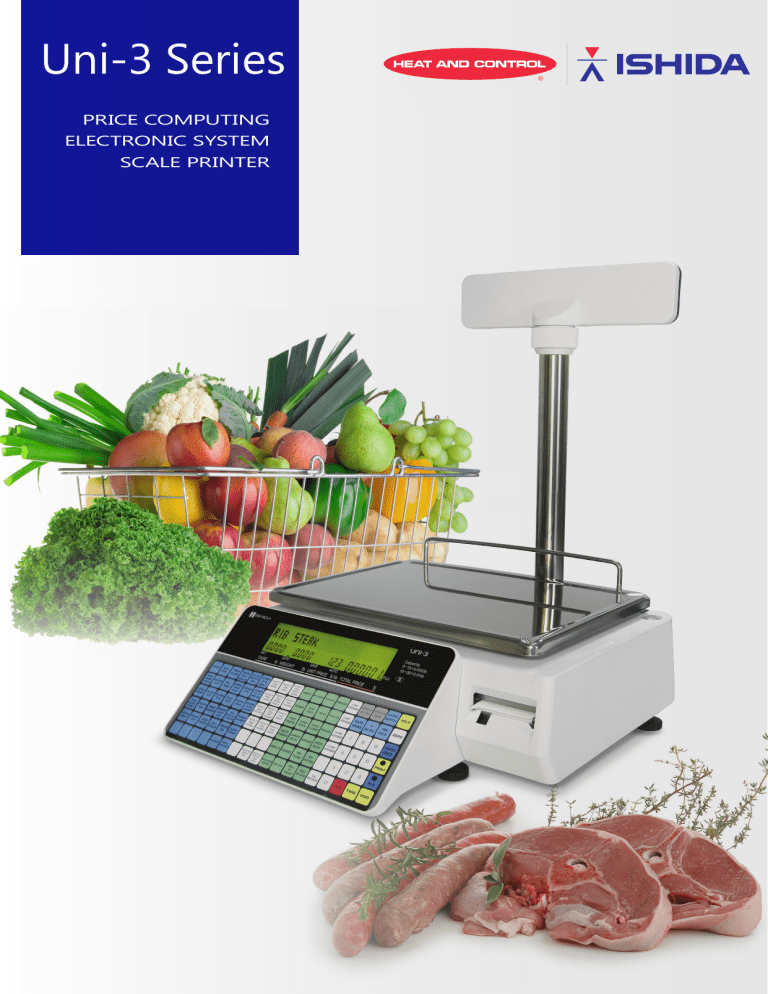

Uni-3 Series
PRICE COMPUTING
ELECTRONIC SYSTEM
SCALE PRINTER
Extraordinary power
and exceptional value
With premium-class presets, fast print speed, and more
labeling functions, you are getting more flexibility and more
features – all for less cost than comparable price computing
scales with printers.
With three models and two display types, you can easily find a
Uni-3 to fit your specific application needs.
The power of the Uni-3 is at your fingertips with flexible preset
buttons to represent PLUs, container tare values, label formats,
images, and logos.
With two display types, the Uni-3 L1 model features a vibrant
blue alphanumeric display with a sharp white 16-segment
capability. The Uni-3 L2 model features a clear alphanumeric
LCD display with one line alphanumeric and one line numeric
only.
The UNI-3 model variants are available with two display
types: The UNI-3 L1 models have a blue backlite display
with sharp white 16-segment dispay capable of showing
momentarily the PLU name and swap to numeric data;
The UNI-3 L2 models, come with a two-line green/
orange backlite liquid crystal display, one line dot
matrix alphanumeric and one line numeric only.
Standard Features
•
NMI approved for trade use in Australia and is C-Tick /
RoHS compliant
•
Powerful receipt printing (POS mode) to operate with
barcode scanner and cash draw
•
Supplied with free easy to use scale management
software, SLP-5 Lite
•
Ingredient, Nutritional, Storage and Country of Origin
labelling
•
Back-up and restore the scale data using USB memory
stick
•
Graphics printing on labels and receipts
•
Powerful batch printing feature
•
Flash ROM for remote updating of application software
•
Choice of large bright blue or, backlit LCD display
Options and Accessories
•
SLP-5 scale management software, includes label design,
data backup, remote diagnostics
•
Link to barcode scanner and/or cash draw
•
Link to many popular back office POS management
systems
Specifications
Capacity: 6kg/2g, 15kg/5g (dual range)
Display: LCD blue alphanumeric : L1 (23 digits 16 segment) LCD backlit alphanumeric : L2 (192 x 16 dot matrix + 23 digits 7 seg)
Print Speed: MAX 100mm/sec (direct thermal paper)
Label Size: 38 - 64mm, Length 30 - 175mm, Print area Uni-3 L1 B Model
W 56mm
Label Roll Size: Outer diameter 100mm or less, Inner diameter 40mm +/- 1mm
Barcodes: EAN/UPC, GS1, ITF
Input/Output: LAN x 1, USB x 1, Draw x 1
Operating Environment: -5 to 40 degrees C, 20 to 85% humidity. No condensation
Power Supply: AC100-240v, 50/60Hz
Power Consumption: Stand-by 50W, In Operation 100W
Warranty: One-year limited warranty
Uni-3 L2-Pole Model
Heat and Control Pty Ltd
407 Creek Road • Mount Gravatt, Qld 4122 • AUSTRALIA
Tel: +61 7 3877 6333 • Fax: +61 7 3343 8371
[email protected] • www.heatandcontrol.com
