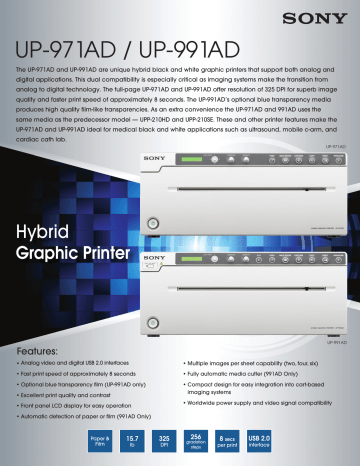

UP-971AD / UP-991AD
UP-971AD / UP-991AD
The UP-971AD and UP-991AD are unique hybrid black and white graphic printers that support both analog and
digital applications. This dual compatibility is especially critical as imaging systems make the transition from
analog to digital technology. The full-page UP-971AD and UP-991AD offer resolution of 325 DPI for superb image
quality and faster print speed of approximately 8 seconds. The UP-991AD’s optional blue transparency media
produces high quality film-like transparencies. As an extra convenience the UP-971AD and 991AD uses the
same media as the predecessor model — UPP-210HD and UPP-210SE. These and other printer features make the
UP-971AD and UP-991AD ideal for medical black and white applications such as ultrasound, mobile c-arm, and
cardiac cath lab.
UP-971AD
Hybrid
Graphic Printer
UP-991AD
Features:
• Analog video and digital USB 2.0 interfaces
• Multiple images per sheet capability (two, four, six)
• F ast print speed of approximately 8 seconds
• F ully automatic media cutter (991AD Only)
• Optional blue transparency film (UP-991AD only)
•C
ompact design for easy integration into cart-based
imaging systems
• Excellent print quality and contrast
• Worldwide power supply and video signal compatibility
• Front panel LCD display for easy operation
• Automatic detection of paper or film (991AD Only)
Paper &
Film
15.7
lb
325
DPI
256
gradation
steps
8 secs
per print
USB 2.0
interface
UP-971AD / UP-991AD Specifications
UP-991AD Rear Panel
Dimensions (W x H x D)
Weight
12 1/2in x 5 1/4in x 10 1/2in (316mm x 132.5mm x 265mm)
15lb 7oz (7kg)
Print information
Digital Connection
Print technology
Resolution
Gradations
Picture elements
Picture area
Direct Thermal Printing
325 DPI
8 bits (256 levels)
7680 x 2560 dots
720 x 504 (NTSC), 720 x 604 (PAL)
23 5/8 x 7 7/8in
STD: 182
x 144mm (NTSC), 188 x 140mm (PAL)
600 x 200mm
SIDE: 244 x 184mm (NTSC), 244 x 183mm (PAL)
8 seconds
8 seconds
approximately
approximately
2816 x 7680 x 8 bit
6 frames (720 x 608 x 8 bit for one frame)
Windows XP 32/64 bit
N/A
Vista 32/64 bit
Windows 7 32/64 bit
Windows 8 32/64 bit
Print time
Memory
Printer driver
Analog Connection
Interface
Interface
Built-in image capture
Input connector: VIDEO IN (BNC type) NTSC or
PAL composite video signals
1.0 Vp-p, 75 ohms/high-impedance
(NTSC/PAL automatically discriminated)
Output connector: VIDEO OUT (BNC type)
NTSC or PAL composite video signals
1.0 Vp-p, 75 ohm loop-through
Remote connector: stereo mini jack
*USB (type A) port to store pictures to a plugged in USB flash drive (Only UP-991AD)
Input: High speed
USB (USB 2.0)*
Print Media
UPP-210HD
High Density Black & White Media
UPP-210SE
Standard Black & White Media
UPT-210BL
Blue Thermal Transparency Film
Power information
Power requirements
100 to 240V AC, 50/60Hz
Input current
(Stand by)
2.9A to 1.2A
(0.04A to 0.08A)
Operating conditions
Temperature
Humidity
41°F to 95°F / 5°C to 35°C
20% to 80% (noncondensing)
Storage and Transport
Temperature
Humidity
-4°F to +140°F / -20°C to +60°C
20% ~ 80%
Standards
Safety
EMC
(US) UL 60950-1, 60601-1, ANSI/AAMI ES60601-1
CSA C22.2 No.60950-1, No.601.1, No. 60601-1
FCC Part 15 Subpart-B Digital Device Class A
Accessories
Supplied
Optional
(1) Thermal Head Cleaning sheet, (1) CD-ROM (Operating instructions,
Printer driver), (1) “Before using this printer”, (1) Service contact list,
(1) Starter pack UPP-210HD, (1) AC cord
RM-91 Remote Thumb button
www.sony.com/medical
