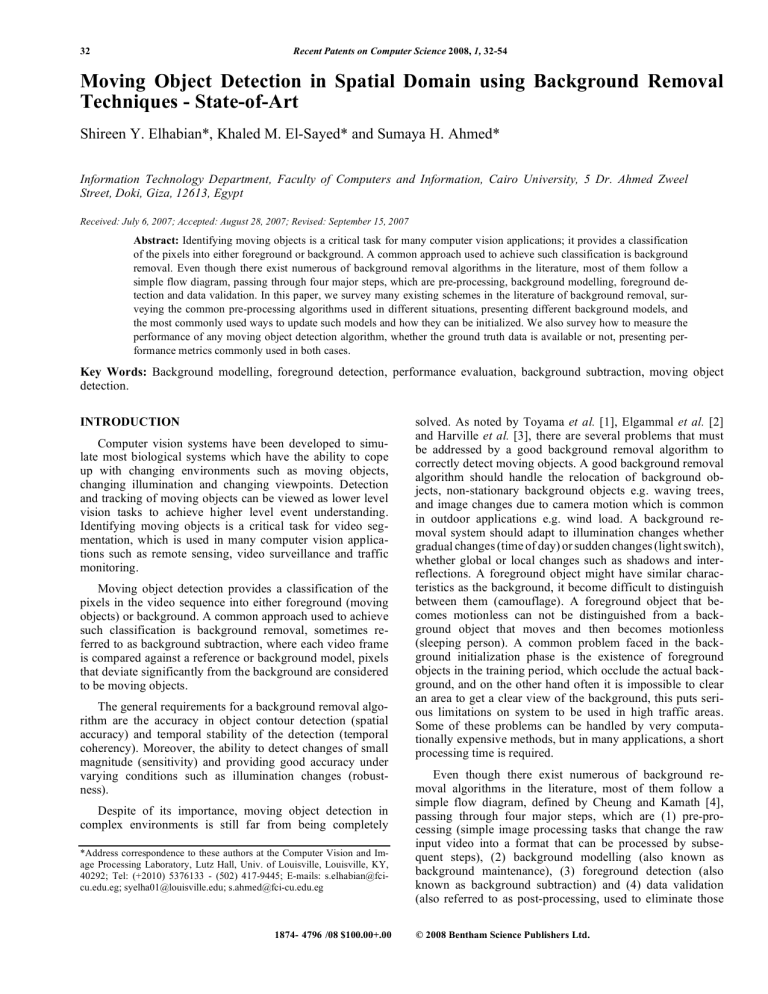

Recent Patents on Computer Science 2008, 1, 32-54
Moving Object Detection in Spatial Domain using Background Removal
Techniques - State-of-Art
Shireen Y. Elhabian*, Khaled M. El-Sayed* and Sumaya H. Ahmed*
Information Technology Department, Faculty of Computers and Information, Cairo University, 5 Dr. Ahmed Zweel
Street, Doki, Giza, 12613, Egypt
Received: July 6, 2007; Accepted: August 28, 2007; Revised: September 15, 2007
Abstract: Identifying moving objects is a critical task for many computer vision applications; it provides a classification
of the pixels into either foreground or background. A common approach used to achieve such classification is background
removal. Even though there exist numerous of background removal algorithms in the literature, most of them follow a
simple flow diagram, passing through four major steps, which are pre-processing, background modelling, foreground detection and data validation. In this paper, we survey many existing schemes in the literature of background removal, surveying the common pre-processing algorithms used in different situations, presenting different background models, and
the most commonly used ways to update such models and how they can be initialized. We also survey how to measure the
performance of any moving object detection algorithm, whether the ground truth data is available or not, presenting performance metrics commonly used in both cases.
Key Words: Background modelling, foreground detection, performance evaluation, background subtraction, moving object
Computer vision systems have been developed to simulate most biological systems which have the ability to cope
up with changing environments such as moving objects,
changing illumination and changing viewpoints. Detection
and tracking of moving objects can be viewed as lower level
vision tasks to achieve higher level event understanding.
Identifying moving objects is a critical task for video segmentation, which is used in many computer vision applications such as remote sensing, video surveillance and traffic
Moving object detection provides a classification of the
pixels in the video sequence into either foreground (moving
objects) or background. A common approach used to achieve
such classification is background removal, sometimes referred to as background subtraction, where each video frame
is compared against a reference or background model, pixels
that deviate significantly from the background are considered
to be moving objects.
The general requirements for a background removal algorithm are the accuracy in object contour detection (spatial
accuracy) and temporal stability of the detection (temporal
coherency). Moreover, the ability to detect changes of small
magnitude (sensitivity) and providing good accuracy under
varying conditions such as illumination changes (robustness).
Despite of its importance, moving object detection in
complex environments is still far from being completely
*Address correspondence to these authors at the Computer Vision and Image Processing Laboratory, Lutz Hall, Univ. of Louisville, Louisville, KY,
40292; Tel: (+2010) 5376133 - (502) 417-9445; E-mails: [email protected]; [email protected]; [email protected]
1874- 4796 /08 $100.00+.00
solved. As noted by Toyama et al. [1], Elgammal et al. [2]
and Harville et al. [3], there are several problems that must
be addressed by a good background removal algorithm to
correctly detect moving objects. A good background removal
algorithm should handle the relocation of background objects, non-stationary background objects e.g. waving trees,
and image changes due to camera motion which is common
in outdoor applications e.g. wind load. A background removal system should adapt to illumination changes whether
gradual changes (time of day) or sudden changes (light switch),
whether global or local changes such as shadows and interreflections. A foreground object might have similar characteristics as the background, it become difficult to distinguish
between them (camouflage). A foreground object that becomes motionless can not be distinguished from a background object that moves and then becomes motionless
(sleeping person). A common problem faced in the background initialization phase is the existence of foreground
objects in the training period, which occlude the actual background, and on the other hand often it is impossible to clear
an area to get a clear view of the background, this puts serious limitations on system to be used in high traffic areas.
Some of these problems can be handled by very computationally expensive methods, but in many applications, a short
processing time is required.
Even though there exist numerous of background removal algorithms in the literature, most of them follow a
simple flow diagram, defined by Cheung and Kamath [4],
passing through four major steps, which are (1) pre-processing (simple image processing tasks that change the raw
input video into a format that can be processed by subsequent steps), (2) background modelling (also known as
background maintenance), (3) foreground detection (also
known as background subtraction) and (4) data validation
(also referred to as post-processing, used to eliminate those
© 2008 Bentham Science Publishers Ltd.
Moving Object Detection in Spatial Domain
pixels that do not correspond to actual moving objects). Although the terms background subtraction and background
modelling are often used interchangeably, they are separate
and distinct processes. Background modelling refers to the
process of creating, and subsequently maintaining, a model
of the appearance of the background in the field of view of a
camera. Background subtraction refers to the process in
which an image frame is compared to the background model
in order to determine whether individual pixels are part of
the background or the foreground. So it is also referred to as
foreground detection.
In this paper, we focus on the problem of moving object
detection using background removal techniques. We survey
many existing schemes in the literature from the viewpoint
of the generic flow diagram introduced by Cheung and Kamath [4]. Section 2 discusses the pre-processing phase, surveying the common algorithms used in different situations.
Section 3 discusses the background modelling phase, presenting different background models used to represent the
background, the most commonly used ways to update such
models and how those models can be initialized. Foreground
detection and data validation are presented in section 4 and 5
respectively. While section 6 is dedicated to how to measure
the performance of any moving object detection algorithm,
whether the ground truth data is available or not, presenting
performance metrics commonly used in both cases.
The goal of a moving object detection algorithm is to
detect significant changes occurring throughout the video
sequence while rejecting unimportant ones. The following
describes pre-processing steps used to filter out common
types of unimportant changes before making the object detection decision. These steps generally involve geometric
and radiometric (i.e. intensity) adjustments [5]. Others involve using image derivatives or depth information as an
information source to the moving object detection algorithm.
For real-time systems, frame-size and frame-rate reduction
are commonly used to reduce the data processing rate. Simple temporal and/or spatial smoothing is often used in the
early stage of pre-processing to reduce camera noise and to
remove transient environmental noise such as rain and snow
captured in outdoor applications.
2.1. Geometric Adjustments
Apparent intensity changes at a pixel resulting from camera motion alone are virtually never desired to be detected as
real changes. A method of processing video images includes
capturing a first image with a camera having a first field of
view. The capturing occurs at a first point in time. Commands are transmitted to the camera to make pan, tilt and
zoom movements. A second image is captured with the camera at a second point in time. The second point in time is
after the movements have commenced. A second field of
view of the camera is calculated at the second point in time.
The calculating is based upon the pan, tilt and zoom commands. The second image is processed based upon the first
field of view and the calculated second field of view. The
field of view of the camera may be calculated as a function
of time. The calculated field of view may be output with a
qualification based upon a point in time associated with the
Recent Patents on Computer Science, 2008, Vol. 1, No. 1
calculated field of view. The processing may comprise determining a mask location or tracking an object of interest
[6] [p1]. Hence, frame registration is used to align several
frames into the same coordinate frame. When the scenes of
interest are mostly rigid in nature and the camera motion is
small, registration can often be performed using lowdimensional spatial transformations such as similarity, affine, or projective transformations. Excellent surveys [7-10],
and software implementations (e.g., the Insight toolkit [11])
are available. Stewart et al. [12] switch automatically to
higher-order transformations after being initialized with a
low-order similarity transformation. In some scenarios a
non-global transformation may need to be estimated to determine corresponding points between two frames, e.g. via
optical flow [13], active contour tracking [14], object recognition and pose estimation [15, 16], or structure-from-motion
[17, 18] algorithms.
2.2. Radiometric/Intensity Adjustments
There are several techniques that attempt to pre-compensate for illumination variations between frames caused by
changes in the strength or position of light sources in the
scene. Some of the earliest attempts to deal with illumination
changes used intensity normalization [19-21], i.e. normalizing the pixel intensity values to have the same mean and
variance as those in the estimated background. Alternatively,
both, the current frame and the background can be normalized to have zero mean and unit variance. This allows the use
of decision thresholds that are independent of the original
intensity values [5]. Instead of using global statistics, the
frames can be divided into corresponding disjoint blocks,
and the normalization independently performed using the
local statistics of each block. This can achieve better local
performance at the expense of introducing blocking artifacts
[5]. However, algorithms which generally employ normalized colours typically work poorly in dark areas of the image
[22]. For scenes containing Lambertian surfaces, it is possible to extract the reflectance component (albedo image
which contains mainly physical object information) by applying homomorphic filter [23] to the input intensities. The
reflectance component can be provided as input to the decision rule step of a moving object detection process (see, e.g.
[24, 25]). Modelling and compensating for local radiometric
variation that deviates from the Lambertian assumption is
necessary in several applications (e.g. underwater imagery
[26]). Can and Singh [27] modelled the illumination component as a piecewise polynomial function. Hager and Belhumeur [28] used principal component analysis (PCA) to
extract a set of basis images that represent the views of a
scene under all possible lighting conditions. According to
Radke et al. [5], these sophisticated models of illumination
compensation are not commonly used in the context of foreground detection.
Pre-processing may include feature extraction, i.e. transforming the input frame into the most appropriate feature
space derived from the current frame only, i.e. it doesn’t
contain motion information. The feature space may represent
the data format used by a particular background removal
algorithm. Most of the algorithms handle luminance intensity, which is one scalar value per each pixel [29-35]. However, colour image is becoming more popular in the back-
34 Recent Patents on Computer Science, 2008, Vol. 1, No. 1
ground removal literature [17, 36-44]. These papers argue
that colour is better than luminance at identifying objects in
low-contrast areas and suppressing shadow cast by moving
objects [4]. The colour space used is generally the RGB
space, since RGB values are readily provided by most frame
grabbers. However, it is not well behaved with respect to
colour perception, as a distance computed between two colours in RGB space does not reflect their perceptual similarity. Pfinder [17] uses the YUV colour space, which separates
intensity (Y) and chromaticity (U,V) in the pixel measurement. Similarly, the HSV model separates the intensity (V)
from the chromatic components (H,S). However, the UV
subspace representation of chromaticity, based on linear
combinations of R, G and B channels, is not as intuitive as
the radial HS subspace representation [45]. Elgammal et al.
[37] use the chromaticity coordinates as r = R/s, g = G/s and
b = B/s where s = (R+G+B) and r+g+b=1. This has the
advantage of being more insensitive to small changes in illumination that arise due to shadows. However, they have
the disadvantage of losing lightness information which is
related to the differences in whiteness, blackness, and greyness between different objects [46]. To address this problem,
Elgammal et al. [2] use s a measure of lightness at each
2.3. Image Derivatives
Pixel-based image features such as spatial and temporal
derivatives are sometimes used to incorporate edges and motion information, to have a representation of the scene background that is invariant to illumination changes. For example, intensity values and spatial derivatives can be combined
to form a single state space for background tracking with the
Kalman filter [47]. Pless et al. [48] combine both spatial and
temporal derivatives to form a constant velocity background
model for detecting speeding vehicles. Level lines can also
be employed [49] exploiting the fact that a global illumination variations changes the number, but not the geometry of
the level lines which are the boundary of the level sets extracted from each frame in the sequence in hand. The use of
edges provides good spatial accuracy [50]. In addition, since
edge maps are bi-level (binary) images, they are convenient
from computation and storage viewpoints. However, the
main drawback of adding colour or derived features in background modelling is the extra complexity for model parameter estimation. The increase in complexity is often significant
as most background modelling techniques maintain an independent model for each pixel (pixel-based modelling).
2.4. Depth Information
Using depth information presents fewer problems for
segmentation, since depth information from stereo video is
relatively unaffected by lighting conditions or extraneous
motion. However, depth data does not produce valid results
in scene locations with little visual texture, low contrast regions or that is not visible to all cameras, and tends to be
noisy even where it is available. Hence, background removal
methods based on depth alone [51,52] produce unreliable
answers in substantial portions of the scene, and often fail to
find foreground objects in close proximity to the background, such as hands placed on walls or feet on a floor. A
method using both depth and colour has been proposed via
Elhabian et al.
Gordon et al. [53], but it lacks time adaptivity and uses a
relatively simple statistical model of the background. A significant advantage of the use of colour and depth space in the
background estimation process is that, at pixels for which
depth is usually valid, we can correctly estimate depth and
colour of the background when the background is represented in only a minority of the frames. For pixels which
have significant invalid range, we fall back to the same majority requirement as colour-only methods [53]. In the general case where depth measurements at the pixel are largely
valid, the background is simply represented by the mode
which is farthest in depth and covers at least T% of the data
temporally. Eveland et al. [51] work with disparities rather
than depth because the error statistics are constant over the
range of disparities. A disparity image can be extracted from
each stereo pair, using the area correlation method described
in [54].
Background modelling, also referred to as background
maintenance, is at the heart of any background removal algorithm. Toyama et al. [1] propose a set of principles to which
background modelling modules should adhere. The module
performing background modelling should not attempt to extract the semantics of foreground objects on its own, since it
is not an end by itself, larger systems use it as a component.
One can evaluate background modelling by how closely it
comes to finding all foreground pixels (as defined by the end
task) when a foreground object first appears in the scene,
while simultaneously ignoring all others. Backgrounds are
not necessarily defined by absence of motion, e.g. waving
trees. No unimodal distribution of pixel values can adequately capture such a background, because these models
implicitly assume that the background is static. An appropriate pixel-level stationarity criterion should be defined. Pixels
that satisfy this criterion are declared background and ignored. The background model must adapt to both sudden and
gradual changes in the background. Toyama [1] suggests that
fast adaptation works quite well if the foreground consists of
moving people. Some parts of a scene may remain in the
foreground unnecessarily long if adaptation is slow, but other
parts will disappear too rapidly into the background if adaptation is fast. Neither approach is inherently better than the
other - a point that emphasizes the inadequacy of background
modelling for all but the initialization of tracking. Most
background modelling techniques operate at the pixel-level.
Background models should take into account changes at differing spatial scales which are necessary to solve many of
background modelling problems. Toyama et al. [1] and
Javed et al. [55] process images at the pixel, region, and
frame levels, where the global illumination changes can be
handled in the frame level.
According to Cristani et al. [56], the issues characterizing
a background modelling process are usually three; model
representation, model initialization, and model adaptation.
The first describes the kind of model used to represent the
background; the second one regards the initialization of this
model, and the third one relies to the mechanism used for
adapting the model to the background changes (e.g. illumination changes).
Moving Object Detection in Spatial Domain
3.1. Background Representation
The simplest background model is a known background.
This occurs often in the entertainment or broadcast television
industry in which the environment can be engineered to simplify background removal algorithms. This includes the use
of “blue screens”, backdrops with a constant colour which
are designed to be easy to segment. The measurement used is
the colour of a given pixel. If the camera is fixed and the
background can be expected to stay relatively constant, we
can model the background as a single static image that may
be easily identified and ignored. The required measurement
in this case is the intensity in case of gray level images and
the colour components in case of colour images. If the background is not actually constant, then modelling both the
mean intensity at a pixel and its variance gives an adaptive
tolerance for some variation in the background. If a scene
contains motion that should be considered part of the background, more tolerant models are required. One solution is to
model measurements with a single multivariate Gaussian
distribution. The parameters of this model are the mean and
covariance matrix. When a single Gaussian is insufficient to
model the distribution of pixel values, a finite mixture of
Gaussians (MOG) may be used instead. Having a mixture
model containing k Gaussians for some k N. The parameters of this model are then k mean values, k covariance matrices, and k scaling factors to weight the relevance importance of each Gaussian.
Elgammal et al. [37] estimate the density function of
pixel’s distribution at any moment of time given only very
recent history information hoping to obtain sensitive detection. The measurement of this model is a recent sample of
intensity values for a pixel. Using this sample, the probability density function that this pixel will have a certain intensity value at time t can be non-parametrically estimated [57]
using the kernel estimator.
A particular distribution of spatio-temporal image derivatives arises at points which always follow a constant optic
flow. In this case, the image derivatives should fit the optic
flow constraint equation: Ixu + Iyv + It = 0, for an optic flow
vector (u, v) which remains constant through time for background pixels. Although motion-based approaches allows
predicting the motion pattern of each pixel, this approach
might fail when there is no obvious difference between the
motion fields of the foreground and background [58].
The fundamental background model used by Toyama et
al. [1] is a one step Wiener filter which is linear predictor of
the intensity at a pixel based upon the time history of intensity at that particular pixel. This can account for periodic
variations of pixel intensity. The measurement includes two
parts, the intensity at the current frame, and the recent time
history of intensity values at a given pixel.
Hidden Markov Models can also be used to represent the
pixel process where its states can represent different states
that might occur in the pixel process, such as background,
foreground, shadows, day and night illumination. It can also
be used to handle the sudden changes in illumination where
the change from a status to another, such as the change from
dark to light, day to night, indoor to outdoor, can be repre-
Recent Patents on Computer Science, 2008, Vol. 1, No. 1
sented as the transition from state to state in the HMM.
Wang et al. [59] represent pixel process with HMM, where
they use three-states HMM to represent background, shadows and foreground. They modelled both background and
shadows as single Gaussian distribution.
The background can also be represented by a group of
clusters which are ordered according to the likelihood that
they model the background and are adapted to deal with
background and lighting variations. Incoming pixels are
matched against the corresponding cluster group and are
classified according to whether the matching cluster is considered part of the background. Butler et al. [60] model each
pixel by a group of K clusters where each cluster consists of
a weight wk and an average pixel value or centroid ck. Kim et
al. [61, 62] quantize sample background values at each pixel
into codebooks which represent a compressed form of background model for a long image sequence. They adopt a quantization/clustering technique, inspired by Kohonen [63, 64].
Their method can handle scenes containing moving backgrounds or illumination variations, and it achieves robust
detection for different types of videos. Mixed backgrounds
can be modelled by multiple codewords. Unlike MOG, Kim
et al. do not assume that backgrounds are multimode Gaussians. Also, in contrast to Kernel, Kim does not store raw
samples to maintain the background model.
3.2. Background Adaptation
According to Mittal and Paragios [65], existing methods
for background adaptation may be classified as either predictive or non-predictive. Predictive methods model the scene
as a time series and develop a dynamical model to recover
the current input based on past observations. The magnitude
of the deviation between the predicted and actual observation
can then be used as a measure of change, while non-predictive
methods neglect the order of the input observations and build
a probabilistic representation (pdf) of the observations at a
particular pixel.
Cheung and Kamath [4] suggest another way of classification; they classify background adaptation techniques into
two broad categories - non-recursive and recursive. A nonrecursive technique uses a sliding-window approach for
background estimation. It stores a buffer of the previous L
video frames, and estimates the background image based on
the temporal variation of each pixel within the buffer. Nonrecursive techniques are highly adaptive as they do not depend on the history beyond those frames stored in the buffer.
On the other hand, the storage requirement can be significant
if a large buffer is needed to cope with slow-moving objects.
Given a fixed-size buffer, this problem can be partially alleviated by storing the video frames at a lower frame-rate. Recursive techniques do not maintain a buffer for background
estimation. Instead, they recursively update either a single or
multiple background model(s) based on each input frame. As
a result, input frames from distant past could have an effect
on the current background model. Compared with non-recursive techniques, recursive techniques require less storage, but
any error in the background model can linger for a much
longer period of time. Most schemes include exponential
weighting to discount the past, and incorporate positive decision feedback to use only background pixels for updating.
36 Recent Patents on Computer Science, 2008, Vol. 1, No. 1
3.2.1. Non-recursive Techniques
Frame differencing, also known as temporal difference,
uses the video frame at time t-1 as the background model for
the frame at time t. This technique is sensitive to noise and
variations in illumination, and does not consider local consistency properties of the change mask [5]. This method also
fails to segment the non-background objects if they stop
moving [45, 66]. Since it uses only a single previous frame,
frame differencing may not be able to identify the interior
pixels of a large, uniformly-colored moving object. This is
commonly known as the aperture problem.
Average filter averages the images over time, creating a
background approximation which is similar to the current
static scene except where motion occurs. However, this is
not robust to scenes with many moving objects particularly if
they move slowly. It also cannot handle bimodal backgrounds, recovers slowly when the background is uncovered,
and has a single, predetermined threshold for the entire scene
[67]. Koller et al. [68] handle the change of lighting condition using a moving-window average method, where exponential forgetting is used. An obvious problem with this
technique is that all information coming from both background and foreground is used to update the background
model. If some objects move slowly, these algorithms will
fail. The solution to this problem is that only those pixels not
identified as moving objects are used to update background
Median filtering defines the background to be the median at each pixel location of all the frames in the buffer [36,
42, 69-71]. It assumes that the pixel stays in the background
for more than half of the frames in the buffer. Median filtering has been extended to colour by replacing the median
with the medoid [42]. The complexity of computing the median is O(L log L) for each pixel.
Minimum-Maximum filter, three values are estimated
for each pixel using the training sequence without foreground objects: minimum intensity (Min), maximum intensity (Max), and the maximum intensity difference between
consecutive frames (D) [39]. These values are estimated over
several frames and are periodically updated for background
regions. Boult et al. [72]uses two gray level background images B1, B2 to cope with intensity variations due to noise or
fluttering objects, moving in the scene.
Linear predictive filter, Toyama et al. [1] compute the
current background estimate by applying a linear predictive
filter on the pixels in the buffer using a Wiener filter to predict a pixel's current value from a linear combination of its k
previous values. Pixels whose prediction error is several
times worse than the expected error are classified as foreground pixels. The filter coefficients are estimated at each
frame time based on the sample covariance, making this
technique difficult to apply in real-time. Linear prediction
using the Kalman filter was also used in [68, 73, 74]. Monnet
et al. [75] present an autoregressive form to predict the frame
to be observed. Two different techniques are studied to
maintain the model, one that update the states in an incremental manner and one that replaces the modes of variation
using the latest observation map. Other techniques can be
considered to determine such prediction model. Principal
Elhabian et al.
component analysis [76, 77] refers to a linear transformation
of variables that retains - for a given number n of operators the largest amount of variation within the training data. Estimation of the basis vectors from the observed data set can
be performed through singular value decomposition. Computing the basis components for large vectors is a time consuming operation. Optimal algorithms for singular value
decomposition of an m x n matrix take O(m2n+n3) time
[78]A simple way to deal with such complexity is by considering the process at a block level. To this end, Monnet et al.
[75] divide the image into blocks and run the algorithm independently on each block.
Non-parametric modelling models the pixel as a random variable in a feature space with an associated probability density function (pdf). Nonparametric approaches estimate the density function directly from the data without any
assumptions about the underlying distribution, avoiding having to choose a model and estimating its distribution parameters. Kernel density estimators asymptotically converge to
any density function [79, 80]. In fact, all other nonparametric
density estimation methods, e.g., histograms, can be shown
to be asymptotically kernel methods [79]. However, the major drawback with colour histograms is the lack of convergence to the right density function if the data set is small;
also they are not suitable for higher dimensional features
[80]. Unlike histograms, even with a small number of samples, kernel density estimation leads to a smooth, continuous
and differentiable density estimate. Kernel density estimation
does not assume any specific underlying distribution and,
theoretically, the estimate can converge to any density shape
with enough samples [57]. Therefore, this approach is suitable to model the colour distribution of regions with patterns
and mixture of colours. Unlike parametric fitting of a mixture of Gaussians, kernel density estimation is a more general approach that does not require the selection of the number of Gaussians to be fitted; also the adaptation of the model
is trivial and can be achieved by adding new samples. The
advantage of using the full density function over a single
estimate is the ability to handle multi-modal background
distribution, i.e. pixels from a swinging tree or near highcontrast edges where they flicker under small camera movement.
One major issue that needs to be addressed when using
kernel density estimation technique is the choice of suitable
kernel bandwidth (scale). Theoretically, as the number of
samples reaches infinity, the choice of the bandwidth is insignificant and the estimate will approach the actual density.
Practically, since only a finite number of samples are used
and the computation must be performed in real time, the
choice of suitable bandwidth is essential. Too small a bandwidth will lead to a ragged density estimate, while too wide a
bandwidth will lead to an over-smoothed density estimate
[79]. Since the expected variations in pixel intensity over
time are different from one location to another in the image,
a different kernel bandwidth is used for each pixel. Also, a
different kernel bandwidth is used for each colour channel.
Elgammal et al. [37] use the median of the absolute differences between successive frames as the width of the kernel.
Thus, the complexity of building the model is the same as
median filtering.
Moving Object Detection in Spatial Domain
A variety of kernel functions with different properties
have been used in the literature. Typically the Gaussian kernel is used for its continuity, differentiability, and locality
properties. Note that choosing the Gaussian as a kernel function is different from fitting the distribution to a Gaussian
model. Here, the Gaussian is only used as a function to
weight the data points. A good discussion of kernel estimation techniques can be found in [79].
The major drawback of using the nonparametric kernel
density estimator is its computational cost. This becomes less
of a problem as the available computational power increases
and as efficient computational methods have become available recently [80, 81]. However, several pre-calculated
lookup tables for the kernel function values can be used to
reduce the burden of computation of this approach. Also, this
method can not resist the influence of foreground objects in
the training stage (background initialization) [82]. In general,
given N original data samples and M target points at which
the density need to be evaluated, the complexity is O(NM)
evaluations of the kernel function, multiplications and additions [80, 83]. Elgammal et al. [80, 83] present a computational framework for efficient density estimation, introducing
the use of Fast Gauss Transform (FGT) for efficient computation of colour densities, allowing the summation of a mixture of M Gaussians at N evaluation points in O(M+N) time
as opposed to O(MN) time for a naive evaluation, and can be
used to considerably speed up kernel density estimation.
Given a new pixel sample, according to Elgammal et al.
[37], there are two alternative mechanisms to update the
background; selective update: add the new sample to the
model only if it is classified as a background sample and
blind update: just add the new sample to the model. There
are tradeoffs to these two approaches. The first enhance detection of the targets, since target pixels are not added to the
model, however, any incorrect detection decision will result
in persistent incorrect detection later, which is a deadlock
situation. The second approach does not suffer from this
deadlock situation since it does not involve any update decisions allowing intensity values that do not belong to the
background to be added to the model. This leads to bad detection of the targets (more false negatives) as they erroneously become part of the model. This effect is reduced as we
increase the time window over which the sample are taken
[37], as a smaller proportion of target pixels will be included
in the sample. But as we increase the time window more
false positives will occur because the adaptation to changes
is slower and rare events are not as well represented in the
sample. Elgammal [37] presents a way to combine the results
of two background models (a long term and a short term) in
such a way to achieve better update decisions and avoid the
tradeoffs discussed above. Short-term model is a very recent
model of the scene. It adapts to changes quickly to allow
very sensitive detection. The sample is updated using a selective-update mechanism, where the update decision is
based on the final result of combining the two models. Longterm model captures a more stable representation of the
scene background and adapts to changes slowly. The sample
is updated using a blind-update mechanism. Computing the
intersection of the two detection results will eliminate the
persistence false positives from the short term model and
Recent Patents on Computer Science, 2008, Vol. 1, No. 1
will eliminate as well extra false positives that occur in the
long term model results. The only false positives that will
remain will be rare events not represented in either model. If
this rare event persists over time in the scene then the long
term model will adapt to it, and it will be suppressed from
the result later. Taking the intersection will, unfortunately,
suppress true positives in the first model result that are false
negatives in the second, because the long term model adapts
to targets as well if they are stationary or moving slowly. To
address this problem, all pixels detected by the short term
model that are adjacent to pixels detected by the combination
are included in the final result.
3.2.2. Recursive Techniques
Approximated Median Filter
Due to the success of non-recursive median filtering,
McFarlane and Schofield [84] propose a simple recursive
filter to estimate the median. This technique has also been
used in background modelling for urban traffic monitoring
[85] where the running estimate of the median is incremented by one if the input pixel is larger than the estimate,
and decreased by one if smaller. This estimate eventually
converges to a value for which half of the input pixels are
larger than and half are smaller than this value, that is, the
median. The only drawback of the approximated median
filter, as seen by Cheung and Kamath [4], is that it adapts
slowly toward a large change in background. It needs many
frames to learn the new background region revealed by an
object that moves away after being stationary for a long time.
Single Gaussian
One of the simplest background removal techniques is to
calculate an average image of the scene, subtract each new
frame from this image, and threshold the result. This basic
Gaussian model can adapt to slow changes in the scene (for
example, gradual illumination changes) by recursively updating the model using a simple adaptive filter. This basic adaptive model is used in [17]; also, Kalman filtering for adaptation is used in [68, 73, 74]. The main feature of modelling
the probability distribution of the pixel intensity that differentiate it from other ways such as predictive filters is that it
ignores the order in which observations are made and focuses on the distribution of the pixel intensities [86].
Gordon et al. [53] model each pixel as an independent
statistical process, recoding the (R, G, B, Z) observations at
each pixel over a sequence of frames in a multidimensional
histogram (depth and colour information). Then they use a
clustering method to fit the data with an approximation of a
mixture of Gaussians. At each pixel, one of the clusters
(Gaussians) is selected as the background process, the others
are considered to be caused by foreground processes. They
are working on extensions which will allow dynamic background estimation based on the previous N frames (allowing
modelling slow changes in the background), they are also
working on the estimation of multiple background processes
at each pixel, similar to [67] but using higher dimensional
Jabri et al. [87] model the background in two distinct
parts, the colour model and the edge model. For each colour
38 Recent Patents on Computer Science, 2008, Vol. 1, No. 1
channel, each pixel is represented by its mean and standard
deviation throughout time. The edge model is built by applying the Sobel edge operator to each colour channel yielding a
horizontal difference image and a vertical difference image.
Weighted means and standard deviations are computed as in
the colour model. This model is used to locate changes in the
structure of the scene as edges appear, disappear, or change
direction. However, their method can not deal with sudden
changes in illumination. Moreover, this algorithm doesn’t
present a solution to the relocation of background object
problem [55].
Kalman filter is a widely-used recursive technique for
tracking linear dynamical systems under Gaussian noise. It
can be viewed as the simplest background model assuming
that the intensity values of a pixel can be modelled by a
Gaussian distribution N(,2), where the mean and variance
of the background are updated using simple adaptive filters
to accommodate changes in lighting or objects that become
part of the background. This basic model is used in [17, 88].
Ridder et al. [89] modelled each pixel with a Kalman Filter
which made their system more robust to lighting changes in
the scene. While this method does have a pixel-wise automatic threshold, it still recovers slowly and does not handle
bimodal backgrounds well. Koller et al. [90] have successfully integrated this method in an automatic traffic monitoring application. Many different versions of Kalman filter
have been proposed for background modelling, differing
mainly in the state spaces used for tracking. The simplest
version uses only the luminance intensity [17, 91-93]. Karmann and von Brandt use both the intensity and its temporal
derivative [73], while Koller, Weber, and Malik use the intensity and its spatial derivatives [47].
Zhong and Sclaroff [58] propose an algorithm that explicitly models the dynamic, textured background via an
Autoregressive Moving Average (ARMA) model [94]. Although ARMA is a first-order linear model many dynamic
textures can be well captured by it [94]. A robust Kalman
filter algorithm is used in estimating the intrinsic appearance
of the dynamic texture [95]. The foreground object regions
are then obtained by thresholding the weighting function
used in the robust Kalman filter. In their current implementation, the Kalman filter model is only trained using the empty
scenes; however, they could use the Robust PCA method in
[77] to train the ARMA model on non-empty scenes in the
After visual analysis of Kalman filter results, Cheung and
Kamath [4] conclude that Kalman filter produces the worst
foreground masks when compares with other schemes. Even
with a large foreground threshold and slow adapting rates,
the background model in Kalman filter is easily affected by
the foreground pixels. As a result, it typically leaves a long
trail after a moving object.
Mixture of Gaussians (MoG)
The background of the scene contains many non-static
objects such as tree branches and bushes whose movement
depends on the wind in the scene. This kind of background
motion causes the pixel intensity values to vary significantly
with time. So a single Gaussian assumption for the pdf of the
Elhabian et al.
pixel intensity will not hold. Instead, a generalization based
on a mixture of Gaussians has been used in [67, 96, 97] to
model such variations. In [97] and [67], the pixel intensity
was modelled by a mixture of K Gaussian distributions (K is
a small number from 3 to 5). In [97], a mixture of three
Gaussian distributions was used to model the pixel value for
traffic surveillance applications, corresponding to road,
shadow, and vehicle distribution. Adaptation of the Gaussian
mixture models can be achieved using an incremental version of the EM algorithm. Although, in this case, the pixel
intensity is modelled with three distributions, still unimodal
distribution assumption is used for the scene background, i.e.
the road distribution. Unlike Kalman filter which tracks the
evolution of a single Gaussian, the MoG method tracks multiple Gaussian distributions simultaneously. MoG has enjoyed tremendous popularity since it was first proposed for
background modelling in [97]. The generalized mixture of
Gaussians (MoG) has been used to model complex, nonstatic backgrounds [40, 67].
Stauffer and Grimson [38] allow the background model
to be a mixture of several Gaussians. Every pixel value is
compared against the existing set of models at that location
to find a match. The parameters for the matched model are
updated based on a learning factor. If there is no match, the
least-likely model is discarded and replaced by a new Gaussian with statistics initialized by the current pixel value. The
models that account for some predefined fraction of the recent data are deemed “background” and the rest “foreground”.
There are additional steps to cluster and classify foreground
pixels into semantic objects and track the objects over time.
Javed et al. [55] use a mixture of Gaussians method, slightly
modified from the version presented by Stauffer and Grimson [38] to perform background subtraction in the colour
domain, where the covariance matrix is assumed to be diagonal to reduce the computational cost. A K-means approximation of the EM algorithm is used to update the mixture model.Harville et al. [3] propose a method for modelling
the background that uses per-pixel, time-adaptive, Gaussian
mixtures in the combined input space of depth and luminance-invariant colour. They improve such combination by
introducing the ideas of 1) modulating the background model
learning rate based on scene activity, and 2) making colourbased segmentation criteria dependent on depth observations.
The input to the algorithm is a time series of spatially registered, time-synchronized pairs of colour (YUV space) and
depth images obtained by static cameras.
“Background subtraction” is an old technique for finding
moving objects in a video sequence---for example, cars driving on a freeway. The idea is that subtracting the current
image from a time-averaged background image will leave
only non-stationary objects. It is, however, a crude approximation to the task of classifying each pixel of the current
image; it fails with slow-moving objects and does not distinguish shadows from moving objects. The basic idea of [98]
is that they can classify each pixel using a model of how that
pixel looks when it is part of different classes. They learn a
mixture-of-Gaussians classification model for each pixel
using an unsupervised technique---an efficient, incremental
version of EM. Unlike the standard image-averaging approach, this automatically updates the mixture component
Moving Object Detection in Spatial Domain
for each class according to likelihood of membership; hence
slow-moving objects are handled perfectly. Their approach
also identifies and eliminates shadows much more effectively than other techniques such as thresholding. Application of this method as part of the Roadwatch traffic surveillance project is expected to result in significant improvements in vehicle identification and tracking.
Eveland et al. [51] uses background statistics to model
disparity images derived from stereo video using a bimodal
distribution, with a Gaussian representing good correlations
between left and right images. Eveland proposes an algorithm for updating background statistics on-the-fly called
gated background adaptation, starting by assuming that the
background will appear at some point during the video sequence. Eveland’s idea of the gate is to filter acceptable values for the update equations, where any value larger than G
= t + 3*0.9 above the current mean is rejected in subsequent
applications of the update. The gate has the effect of excluding the outlying foreground readings, gradually reducing the
estimated background statistics to their true value. To deal
with changing background over time, i.e. background object
start to move, or some objects come and remain, the gate is
relaxed to consider foreground objects to be background if
they stay for a certain length of time.
Francois and Medioni [44] model the background pixel
values as multi-dimensional Gaussian distributions in HSV
colour space. The distribution for each background pixel is
updated using the latest observation, in order to take into
account changes in the scene background. They initialize the
means using the values of the first frame, and set the standard deviations to zero. The actual distributions are learned
as the incoming frames are processed. Lee et al. [99] present
a Bayesian formulation of the background segmentation
problem at the pixel level based on Gaussian mixture modelling since its analytical form fits well into a statistical
However, the MoG has its own drawbacks. First, it is
computationally intensive and its parameters require careful
tuning. Second, it is very sensitive to sudden changes in
global illumination. If a scene remains stationary for a long
period of time, the variances of the background components
may become very small. A sudden change in global illumination can then turn the entire frame into foreground. Backgrounds having fast variations cannot be modelled with just a
few Gaussians accurately, so it fails to provide sensitive detection [82, 99]. However, when foreground objects are included in the training frames, MOG will misclassify [1]. In
addition, depending on the learning rate to adapt to background changes, MoG faces trade-off problems. For a low
learning rate, it produces then a very wide and inaccurate
model that will have low detection sensitivity, not able to
detect a sudden change to the background. On the other
hand, if the model adapts too quickly, slowly moving foregrounds will be absorbed into the background model, resulting in a high false negative rate. This is the foreground aperture problem described in [1]. However, MoG maintains a
density function for each pixel. Thus, it is capable of handling multimodal background distributions. On the other
hand, since MoG is parametric, the model parameters can be
Recent Patents on Computer Science, 2008, Vol. 1, No. 1
adaptively updated without keeping a large buffer of video
Butler et al. [60] propose a moving object segmentation
algorithm with a similar premise to that of Stauffer and
Grimson [67] but having the capability of processing 320 x
240 video in real-time on modest hardware. The premise of
their algorithm is the more often a pixel takes a particular
colour, the more likely that it belongs to the background.
Therefore, this requires a technique for maintaining information regarding the history of pixel values. They model each
pixel by a group of K clusters where each cluster consists of
a weight and an average pixel value or centroid ck. additionally; the algorithm assumes that the background region is
stationary. Incoming pixels are compared against the corresponding cluster group. The matching cluster with the highest weight is sought and so the clusters are compared in order
of decreasing weight. A matching cluster is defined to have a
Manhattan distance (i.e. sum of absolute differences) between its centroid and the incoming pixel below a user prescribed threshold T. If no matching cluster is found, the cluster with the minimum weight is replaced by a new cluster
having the incoming pixel as its centroid and a low initial
weight. If a matching cluster is found, then the weights of all
clusters in the group are adjusted. The centroid of the matching cluster must also be adjusted according to the incoming
pixel. Previous approaches adjust the centroid based on a
fraction of the difference between the centroid and the incoming pixel. However, doing so results in fractional centroids and inefficient implementations. Butler chooses instead to accumulate the error between the incoming pixel and
the centroid. After adaptation, the weights of all clusters in
the group are normalised so that they sum up to one. The
normalised clusters are next sorted in order of decreasing
weight to aid both the initial cluster comparisons and the
final classification step.
Kim et al. [61, 62] quantize the background values of
each pixel into group of code words constituting a codebook
for each pixel, where each pixel might have a different codebook size than the other, according to the pixel variation
throughout the time. In order to make their technique more
practically useful in a visual surveillance system, they improve their basic algorithm by layered modelling/detection
multiple background layers and adaptive codebook updating,
to handle changing backgrounds.
Hidden Markov Models (HMM)
All of the previously mentioned models can adapt to
gradual changes in illumination. On the other hand, a sudden
change in illumination presents a challenge to such models.
Another approach to model a wide range of variations in the
pixel intensity is to represent these variations as discrete
states corresponding to modes of the environment, e.g.,
lights on/off or cloudy/sunny skies. Hidden Markov models
(HMMs) have been used for this purpose in [100,101]. In
[100], a three-state HMM has been used to model the intensity of a pixel for a traffic-monitoring application where the
three states correspond to the background, shadow, and foreground. In [102], the topology of the HMM representing
40 Recent Patents on Computer Science, 2008, Vol. 1, No. 1
global image intensity is learned while learning the background. At each global intensity state, the pixel intensity is
modelled using a single Gaussian. It was shown that the
model is able to learn simple scenarios like switching the
lights on and off.
Major issues in the use of HMMs in real world applications involve two points: real-time computation, and topology modification to address non-stationarity due to dynamically varying conditions. Automatic selection of HMM topology during batch-learning phase has been addressed in
the literature. These methods use state-splitting [102, 103],
or merging, [104], criteria to iteratively estimate the optimal
number of states. More recently, a maximum a posteriori
estimation scheme utilizing an entropic prior is presented
wherein a redundant number of states is initially assumed
and weak states satisfying a given probability threshold are
eliminated iteratively [105]. However, dynamic update of the
model topology is not addressed in the work. Besides, statemerging schemes are computationally intensive and online
updates are not practical [101]. Another interesting piece of
work for real time background modelling based on Hidden
Markov Models with fixed topology is recently introduced in
Unlike the other methods where the model is fixed and
its parameters are updated, Stenger et al. [101] present a dynamic framework (e.g. it can change naturally the topology
over time) and can deal with sudden as well as gradual illumination changes. They describe a solution to the batch and
online estimation of HMM topology. For computer vision
problems where the online estimation is critical, they believe
that state-splitting is the most reasonable approach since it is
computationally efficient. Stenger compares several state
splitting criterions such as the chi-squared goodness-of-fit
test, the cross-validation criterion and the MDL and AIC
criterions. It is seen that the MDL criterion performed the
best in terms of minimal variance on the number of states
estimated. The topologies were compact and provided the
right trade-off between approximation error and model simplicity. An online version of the HMM topology estimation
algorithm is also presented. Both the online versions and
offline versions are tested on real data. A system and method
for coding text data wherein a first group of text data is
coded using a Viterbi algorithm using a Hidden Markov
model. The Hidden Markov Model computes a probable
coding responsive to the first group of text data. A second
group of text data is coded using the Viterbi algorithm using
a corrected Hidden Markov Model. The Hidden Markov
Model is based upon the coding of the first group of text
data. Coding the first group of text data includes assigning
word concepts to groups of at least one word in the first
group of text data and assigning propositions to groups of the
assigned word concepts [p2] [106].
Wang et al. [59] use an offline Baum-Welch algorithm to
learn the parameters of HMM, and use an online algorithm to
adapt the parameters, assuming that no obvious sudden
change of illumination takes place, the background is assumed to be approximately stationary (to avoid adding a
module of recognition of background motion), and the speed
of the moving objects doesn’t vary greatly. These assumptions are the nature property of video sequence on freeway,
Elhabian et al.
obtaining such video sequence is very easy. Details about
offline Baum-Welch algorithm can be found in [107]. Theoretical detail of online learning algorithm can be found in
[98, 108, 109] as incremental version of the EM algorithm.
Wang et al. [59] use an exponential forgetting where each
pixel value’s contribution is weighted so as to decrease exponentially as it recedes into the past.
3.3. Background Initialization
Recently, there has been a large amount of work addressing the issues of background model representation and adaptation (maintenance) [1, 17, 37, 39, 67, 73, 110, 111]. However, a third problem which has received little attention is
model initialization (also called bootstrapping in [1]). Actually, most of the background models are built on a set of
initial parameters that comes out from a short sequence, in
which no foregrounds objects are present [112]. This is a too
strong assumption, because in some situations it is difficult
or impossible to control the area being monitored (e.g., public zones), which are characterized by a continuous presence
of moving objects, or other disturbing effects. In such cases
it may be necessary to train the model using a sequence
which contains foreground objects.
According to Gutchess [113], several assumptions are
necessary to make the task feasible. Each pixel in the image
will reveal the background for at least a short interval of the
sequence during the training phase to avoid randomly choosing background appearance. The background is approximately stationary; only small background motion may occur.
A short processing delay is allowed subsequent to acquiring
the training sequence. Wang and Suter [82] add other assumptions to the above mentioned ones; a foreground object
can remain stationary for a short interval in the training sequence. However, the interval should be no longer than the
interval from the revealed static background. The background scene remains relatively stable.
Median Filtration
Background initialization using the median intensity
value for each pixel is used in a traffic monitoring system
[112], relying on the assumption that the background at
every pixel will be visible more than fifty percent of the time
during the training sequence [113]. However, this may not be
always satisfied. A method of creating an image difference
overlay comprises identifying a loop of reference images of a
subject and identifying a loop of data images of the subject.
The loop of image data can be identified after an event, such
as the administration of contrast agent to the subject. A reference loop image frame is compared to one or more data
loop image frames and the reference loop frame is associated
with a data loop image frame which closely resembles the
data loop image frame. Each of the associated frames can
then be processed and used to create an image difference
overlay frame [114]. The advantage of using the median
rather than the mean is that it avoids blending pixel values.
The mean of a pixel’s intensity over time may not correspond to any of the pixel’s actual values during that time, in
which case it is likely to be in error. Dawson-Howe proposed
a similar technique called dynamic background subtraction
Moving Object Detection in Spatial Domain
(DBS) [115] using a fixed window of three frames to recursively update the background, avoiding the rather expensive
cost of computing the median.
Stable Intensity Extraction
Long and Yang [111] propose an algorithm, called the
adaptive smoothness method which also avoids the problem
of blending, it finds intervals of stable intensity, and uses a
heuristic which chooses the longest, most stable interval as
the one most likely to represent the background. Their
method performs well when all foreground objects are in
motion throughout the sequence [113]. However, for sequences in which foreground objects were stationary for a
long period of time (sleeping person), many pixels are incorrectly classified. Like most other algorithms, adaptive
smoothness makes the decision for each pixel independently,
and does not utilize other information from the sequence.
Wang et al. [82] find one problem of this method is that
when the data include multi-modal distributions (i.e., some
modes from foreground objects and some modes from background), and when the modes from foreground objects tend
to be relatively stable, this method can not differentiate these
modes from those from the background. Kurita et al. [116]
find the value which stays unchanged for a long period of
time from the mixture of the stationary signal (the background) and the non-stationary signal caused by the moving
objects such as cars, they use a technique from robust statistic [117, 118] by considering the non-stationary signal as
outliers. The method works well if the background appears
in the sequence more than 50% of the training period.
Relative Constant Intensity Extraction
Gutchess et al. [113], motivated by Long and Yang’s
adaptive smoothness detector [111], add background motion
to his algorithm. Their algorithm, called the Local Image
Flow algorithm, is similar to adaptive smoothness in that
they generate hypotheses by locating intervals of relatively
constant intensity. To overcome the sleeping person problem, he considers the optical flow in the neighbourhood surrounding each pixel. If the direction of optical flow in the
neighbourhood is toward the pixel, then there is likely to be a
moving object approaching the pixel. However, if the majority of optical flow is directed away from the pixel, it is likely
that the moving object is leaving the area. Since Gutchess
uses only low-level motion information to construct the
background. Like the median filter and adaptive smoothness
methods, it avoids the problem of blending pixel values present in many current methods. However, the heuristics used
in his technique, based on local image flow, are stronger than
those used by the median filter and adaptive smoothness.
The main strength of the algorithm is that while the decision
at each pixel is independent of its neighbours, it is not only
based on past values observed at that pixel, but also local
motion information. While using optical flow information
potentially adds valuable information, most optical flow
computation methods themselves are computationally complex and very sensitive to noise [82].
Background with A Mixture of Gaussian Distributions
There are several methods available for building such a
mixture model. A widely used algorithm is expectation
Recent Patents on Computer Science, 2008, Vol. 1, No. 1
maximization, which uses an iterative process to find the
best-fitting mixture of Gaussians for a particular dataset
[119]. However, the parameters must be updated and calculated offline; therefore, expectation maximization cannot be
used when online methods are required. One possible solution is to use the adaptive mixture method proposed in [120],
which uses a data-driven approach to estimate the parameters
of an underlying mixture model. In Pless’s simulations this
method has proven to be almost as effective as expectation
maximization while operating online [48].
Background Model Based on Kernel Density Estimation
Elgammal et al. [37] estimate the density function of this
distribution at any moment of time given only very recent
history information hoping to obtain sensitive detection, the
probability density function that a pixel will have intensity
value xt at time t can be non-parametrically estimated [55]
using a kernel estimator. At the first glance, Elgammal
chooses his kernel estimator function, K, to be a Normal
function N(0,), where represents the kernel function
bandwidth. Normal kernel function is a generalization of the
Gaussian mixture model, where each single sample of the N
samples is considered to be a Gaussian distribution N(0,)
by itself, enabling the model to quickly “forget” about the
past and concentrate more on recent observation.
Hidden Markov Models (HMMs)
Numerous methods for estimation of the HMM model
parameters exist in the literature. These methods can be classified into two major categories: batch [107] and incremental
[121, 122]. Some examples of the batch methods include: the
EM algorithm (i.e. Baum-Welch) and segmental K-means
algorithm. Offline methods guarantee that the parameter estimates correspond to local maxima, but are computationally
expensive. The online methods cited attempt to incrementally update HMM parameters (without topology modifications) with initial starting points determined by batch estimation. These methods can deal with slowly varying drifts in
model parameters with the risk of not being able to track the
real parameters under sudden changes. Cristani et al. [56]
propose an initialization algorithm, able to bootstrap an integrated pixel-and region-based background modelling algorithm, where moving objects are present; the output is a
pixel- and region-level statistical background model describing the static information of a scene. At the pixel level, multiple hypotheses of the background values are generated by
modelling the intensity of each pixel with a Hidden Markov
Model (HMM), also capturing the sequentiality of the different colour (or gray-level) intensities. At the region level, the
resulting HMMs are clustered with a novel similarity measure, able to remove moving objects from a sequence, and
obtaining a segmented image of the observed scene, in which
each region is characterized by a similar spatio-temporal
evolution. The main drawback of this method is the strong
computational effort, but an on-line computation for an initialization algorithm is indeed allowed. Nevertheless, a parallel computational architecture may solve this problem, permitting a very quickly and useful batch mode scheme. Wang
et al. [59] use an easier method with the help of modified
version of the algorithm from Horprasert et al. [110]. The
42 Recent Patents on Computer Science, 2008, Vol. 1, No. 1
algorithm is based on a heuristic colour model, which separates the brightness from the chromaticity component. The
pixel is labelled as background, shadow or foregrounds by a
decision procedure whose threshold values are used to determine the similarities of chromaticity and brightness between background image and the current observed image
[110]. If chromaticity difference is large, pixel is labelled as
foreground, and then if brightness difference is large, pixel is
labelled as shadow. The result is then used to initialize their
HMM model. An image processing system useful for facial
recognition and security identification obtains an array of
observation vectors from a facial image to be identified. A
Viterbi algorithm is applied to the observation vectors given
the parameters of a hierarchical statistical model for each
object, and a face is identified by finding a highest matching
score between an observation sequence and the hierarchical
statistical model [123].
Kim et al. [61, 62] quantize the background values of
each pixel into group of codewords constituting a codebook
for each pixel. At the very beginning the codebook of a pixel
is empty with no codewords, when a new sample for the
pixel encountered (in the training period), if no codewords
exist in the codebook, it is assumed to be a codeword, and its
brightness value is used to estimate the measures used to
represent the codeword, if there are codewords in the codebook, this new pixel sample is compared with each codeword in the codebook using colour distortion measure and
brightness bound, if it is matched with a codeword, its
brightness value is used to update the measures of this codeword, if there is no match, it is assumed to be a new codeword, and so on till the end of the training period. One way
to improve the speed of the algorithm is to relocate the most
recently updated codewords to the front of the codebook list.
Since most of the time, the matched codeword was the first
codeword thus relocated, making the matching step efficient.
In the temporal filtering step, he refines the fat codebook by
separating the codewords that might contain moving foreground objects from the true background codewords, thus
allowing moving foreground objects during the initial training period.
Statistical Approach
Initializing a background model might be approached
statistically as the task should be robust against random occurrences of foreground objects, as well as against general
image noise. The major advantage of this approach is that it
can tolerate over 50% of noise in the data (including foreground pixels), in contrast with methods using the Median
statistic which will break down totally when background
constitutes less than 50% of the training data [82]. Wang and
Suter [82, 124] introduce a consensus-based robust method
of background initialization to overcome the problems inherent in methods based on the median filtration, by employing
a two-step framework; first all non-overlapping stable subsequences of pixel values are located; using a sliding window with a minimum length, if candidate subsequence with
the predefined minimum length can not be found, another
minimum length is used, noting that even after this step, the
chosen subsequences can contain pixels from foreground,
Elhabian et al.
background, shadows, highlights, etc. The second step is
considered a crucial step where the most reliable subsequence is chosen, where the reliability definition is motivated by RANSAC [125], and use the mean value of either
the grey-level intensities or the colour intensities over that
subsequence as the model background value.
Foreground detection compares the input video frame
with the background model, and identifies candidate foreground pixels from the input frame. To obtain this classification, the difference map is usually binarized by thresholding.
The correct value of the threshold depends on the scene, on
the camera noise, and on the illumination conditions. In the
following subsections we will discuss first how to generate
the difference map given the background model and the current frame, and then we will discuss the thresholding techniques to obtain foreground-background classification.
4.1. Foreground Detection Techniques
4.1.1. Difference-Based
The most trivial method to perform foreground detection
is by taking the difference between two images. Locations of
changes correspond to large values in the difference map
which can be computed as the absolute values of the difference between corresponding pixels in the two images, relative or normalized difference also can be used [39, 126].
Another approach to introduce spatial variability is to use
two thresholds with hysteresis [42, 93]. The basic idea is to
first identify “strong" foreground pixels whose absolute differences with the background estimates exceeded a large
threshold. Then, foreground regions are grown from strong
foreground pixels by including neighbouring pixels with
absolute differences larger than a smaller threshold. The region growing can be performed by using a two-pass, connected-component grouping algorithm [127]. Boult et al.
[74] keep track with the minimum and maximum values for
each pixel throughout the past N frames, such algorithm uses
two thresholds, TL and TH. The difference between each pixel
and the closest background image is computed. If the difference exceeds a low threshold TL, the pixel is considered as
foreground. A target is a set of connected foreground pixels
such that a subset of them exceeds the high threshold. The
low and high thresholds as well as the background images
are recursively updated in a fully automatic way (see [74] for
details). Jabri et al. [85] perform foreground detection by
subtracting the colour channels and the edge channels separately from their corresponding model (mean and standard
deviation images) and then combining their results.
Absolute Difference Edge-Based
Getting away from thresholds dilemma, Cavallaro and
Ebrahimi [43] apply Sobel edge detector over the absolute
difference image between the current frame and the reference frame, a Sobel edge extractor provides thick edges
which are useful for application in foreground detection by
allowing lightening the post-processing for filling the contours. In a monochrome image, an edge is defined as an intensity discontinuity. In case of colour images, the additional
variation in colour may be considered in order to obtain
Moving Object Detection in Spatial Domain
more complete edge information. Monochrome edge detection, in fact, may not be sufficient for certain scenes. For
instance, an object with different hue value from the background but equal intensity can be detected only by taking
into account colour information. There are different possibilities to use colour for edge detection purposes. The most
straightforward approaches to colour edge detection represent extensions from monochrome edge detection. These
techniques are applied to three colour channels independently and then the results (an edge map for each colour channel) are combined by using a certain logical operator. Cavallaro adopts this approach which has the advantage of speeding up the computations if the different channels are processed in parallel. The edge information of the three channels
is then fused by means of an or logical operator.
Recent Patents on Computer Science, 2008, Vol. 1, No. 1
small likelihood is computed, the pixel is classified as foreground. Otherwise, it is classified as background.
Ideally, the threshold should be a function of the spatial
location (x, y). For example, the threshold should be smaller
for regions with low contrast. One possible modification is
proposed by Fuentes and Velastin [128]. They use the relative difference rather than absolute difference to emphasize
the contrast in dark areas such as shadow. Nevertheless, this
technique cannot be used to enhance contrast in bright images such as an outdoor scene under heavy fog.
Francois and Medioni [45] model the background pixel
values as multi-dimensional Gaussian distributions in HSV
colour space. When a new frame is processed, the value observed for each pixel is compared to the current corresponding distribution in order to decide whether the value is a
measurement of the background or of an occluding element.
Lee et al. [99] present a Bayesian formulation of the background segmentation problem at the pixel level based on
Gaussian mixture modelling. From a Bayesian perspective,
the foreground decision should be based on the posterior
probability of the pixel being background P(B|x) where x
denotes the pixel observed in the frame at time t and B denotes the background class. Without giving a precise definition of foreground and background, which is most likely
application dependent and requires higher level semantics,
Lee proceeds by considering them as two mutually exclusive
classes as defined by some oracle. Considering the value
observed at a pixel over time is usually resulted from different real world processes, a Gaussian mixture is appropriate
to model the distribution, with each Gaussian representing an
underlying process.
Normalized Difference
Kernel Density Estimation-Based
Another popular foreground detection scheme is to
threshold based on the normalized statistics.
Using the probability estimate of the pixel, the pixel is
considered a foreground pixel if Pr(xt) < th where the threshold th is a global threshold over all the image that can be
adjusted to achieve a desired percentage of false positives.
Relative Difference
In case of predictive-based background modelling, differences in the state space between the prediction and the
observation quantify the amount of change and are considered to perform detection [75]. So a simple mechanism to
perform detection is by comparing the prediction with the
actual observation. Under the assumption that the autoregressive model is built using background samples, such
technique will provide poor prediction for objects while being able to capture the background. Two types of changes in
the signal may be considered for detection: (1) “structural”
change in the appearance of pixel intensities in a given region, and (2) change in the motion characteristics of the signal. Measures are developed in order to detect each of these
types of changes.
4.1.2. Statistical-Based
To calculate an adaptive and local threshold, a regionbased statistical analysis can be used if the probability density function of the camera noise is known [50]. The statistical analysis is based on modelling the intensity distribution
of noise [29, 31, 32, 34, 35]. Instead of thresholding the difference image, this approach compares the statistical behaviour of a small neighbourhood at each pixel position in the
difference image to a model of the noise that could affect the
difference image. The comparison is based on a significant
Single Gaussian-Based
Pixels in the current frame are compared with the background by measuring the log likelihood in colour space. If a
Migdal and Grimson [129] have developed an approach
to the process of foreground detection that exploits the spatial and temporal dependencies objects in motion impose on
their images. This is achieved through the development and
use of MRFs during the subtraction process. In total, three
MRFs (M1, M2 and M3) are used, each with different properties. M1, being the simplest of the three, only encodes spatial
relationships. M2, an extension of M1, takes advantage of
temporal constraints by looking at past segmentations. M3 ,
the only field to use a batch computation model, fully exploits the temporal constraint. Segmentations at each time t,
St, are obtained by estimating the maximum aposteriori
(MAP) configuration of the MRF. The MAP estimate is
computed using the Gibbs sampler algorithm [130] with a
modified (linear) annealing schedule and vastly reduced
numbers of iterations. This approach is not tied to any particular background model. In fact, this approach will work
with any background model in which a cost function (ds)
can be defined for every pixel ds. This implies (but does not
necessitate) that the background models must be per-pixel
based. This is not such a heavy constraint, however. In [48],
it is concluded that per-pixel models are sufficient to handle
the complex motions present in real world environments.
4.1.3. Clustering-Based
Kim et al. [61, 62] quantize background values at each
pixel into codebooks; they test the difference of the current
image from the background model with respect to colour and
44 Recent Patents on Computer Science, 2008, Vol. 1, No. 1
brightness differences. If an incoming pixel meets two conditions, it is classified as background (1) the colour distortion
to some codeword is less than the detection threshold, and
(2) its brightness lies within the brightness range of that
codeword. Otherwise, it is classified as foreground. The
codebook method does not evaluate probabilities, which is
very computationally expensive. Kim just calculates the distance from the cluster means. That makes the operations fast.
Butler et al. [60] classify pixels by summing the weights
of all clusters used to model each pixel that are weighted
higher than the matched cluster. The result, P is the total
proportion of the background accounted for by the higher
weighted clusters and is an estimate of the probability of the
incoming pixel belonging to the foreground. Larger values of
P are evidence the pixel belongs to the foreground and
smaller values are evidence that it belongs to the background. This value can be thresholded to obtain a binary
decision or can be scaled to produce a gray scale alpha map.
4.2. Thresholding Algorithms
Thresholding is a fundamental method to convert a gray
scale image into a binary mask, so that the objects of interest
are separated from the background [131]. In the difference
image, the gray levels of pixels belonging to the foreground
object should be different from the pixels belonging to the
background. Thus, finding an appropriate threshold will
solve the localization of the moving object problem. The
output of the thresholding operation will be a binary image
whose gray level of 0 (black) will indicate a pixel belonging
to the background and a gray level of 1 (white) will indicate
the object.
Elhabian et al.
of maximum information transfer [140, 141]. Histogram
shape based methods analyze the peaks, valleys and curvatures of the image histogram and set the threshold according
to these morphological parameters. Image attribute methods
select the threshold by comparing the original image with its
binarized version. The method looks for similarities like
edges, curves, number of objects or more complex fuzzy
similarities. Iteratively searching for a threshold value that
maximizes the matching between the edge map of the gray
level and the boundaries of binarized images and penalizing
the excess original edges can be a typical example of this
approach. Clustering based algorithms initially divide the
gray level data into two segments and apply the analysis afterwards. For example, the gray level distribution is initially
modelled as a mixture of two Gaussian distributions representing the background and the foreground and the threshold
is refined iteratively such that it maximizes the existence
probability of these two Gaussian distributions. Locally
adaptive methods simply determine thresholds for each pixel
or a group of pixel, instead of finding a global threshold. The
local characteristics of the pixels or pixel groups, such as
local mean, variance, surface fitting parameters etc. is used
to identify these thresholds. The spatial methods utilizes the
spatial information of the foreground and background pixels,
such as context probabilities, correlation functions, cooccurrence probabilities, local linear dependence models of
pixels etc. All these methods are tested on difference images
of thermal camera sequences [139]. Experiments showed
that, the entropy-based approaches [141] give best results for
the tested dataset.
The efficiency of the foreground detection partially depends on the threshold selection, as clearly observed in the
previous schemes. The threshold can be set empirically [30,
132, 133] or computed adaptively [23, 29, 31, 32, 34, 35, 44,
134]. In the former case, the threshold is fixed for all pixels
in the frame and all the frames in the sequence. The value is
usually determined experimentally based on a large database.
In the latter case, the threshold is adapted according to some
The output of a foreground detection algorithm where
decisions are made independently at each pixel will generally be noisy, with isolated foreground pixels, holes in the
middle of connected foreground components, and jagged
boundaries. Cheung and Kamath [4] define data validation as
the process of improving the candidate foreground mask
based on information obtained from outside the background
model. Data validation phase is sometimes referred to as the
post-processing phase of the foreground mask (pixels).
Rosin [135, 136] surveyed and reported experiments on
many different criteria for choosing the threshold. Smits and
Annoni [137] discussed how the threshold can be chosen to
achieve application-specific requirements for false alarms
and misses (i.e. the choice of point on a receiver-operatingcharacteristics curve [138]). According to Sirtkaya [139],
thresholding algorithms can be divided into 6 major groups
[140]. These algorithms can be distinguished based on the
exploitation of (1) histogram entropy information, (2) histogram shape information, (3) image attribution information,
(4) clustering gray level information, (5) local characteristics
and (6) spatial information.
There are two kinds of misclassifications that may occur
in segmentation results. False positives occur when background regions are incorrectly labelled as foreground. Conversely, false negatives occur when foreground regions are
classified as background. Data validation aims to reduce the
number of such misclassifications without an appreciable
degradation in classification speed.
The entropy based methods result in different algorithms
which use the entropy of the foreground-background regions
or the cross-entropy between the original and binarized image, etc. Assuming that the histogram of an image gives
some indication about this probabilistic behaviour, the entropy is tried to be maximized, since the maximization of the
entropy of the thresholded image is interpreted as indicative
The simplest techniques simply post-process the foreground mask with standard binary image processing operations, such as median filters to remove small groups of pixels
that differ from their neighbours’ labels (salt and pepper
noise) [87] or morphological operations to smooth object
boundaries. Post-processing can be applied either to the binary image representing the foreground map Ft(x, y) resulted
from the foreground detection phase only, or to both the binary image and the original frame. The former case has the
advantage of reducing the false alarm probability at low
computational cost. However, the a priori topological assumptions (compactness and regular contours) on which they
Moving Object Detection in Spatial Domain
are based may not always be valid. For this reason, these
techniques often result in blocky contours. To solve this
problem, the original sequence may be used along with the
detection result in the post-processing phase. Motion, colour
and edge information are typical examples of features that
are analyzed to improve the spatial accuracy of the detection
All the background models discussed earlier have three
main limitations: first, they ignore any correlation between
neighbouring pixels; second, the rate of adaptation may not
match the moving speed of the foreground objects; and third,
non-stationary pixels from moving leaves or shadow cast by
moving objects are easily mistaken as true foreground objects. The first problem typically results in small false-positive or false-negative regions distributed randomly across the
candidate mask. False positives resemble pepper noise and
are typically attributed to camera noise [60]. That is, they are
small (1-2 pixel), incorrectly classified regions surrounded
by correctly classified background pixels. False negatives
arise because of the existence of similarities between the
colours of foreground objects and the background. They
form holes in correctly classified foreground regions and can
be quite large. Consequently, they are more difficult to remove than false positives. The most common approach is to
combine morphological filtering and connected component
grouping to eliminate these regions [1, 38, 87, 91], whilst
preserving the contours of correctly classified regions. Applying morphological filtering on foreground masks eliminates isolated foreground pixels and merges nearby disconnected foreground regions. Many applications assume that
all moving objects of interest must be larger than a certain
size. Connected-component grouping can then be used to
identify all connected foreground regions, and eliminates
those that are too small to correspond to real moving objects
Many algorithms have been proposed for moving object
detection in many applications, as a primary step towards
video segmentation. However, the segmentation quality performance evaluation of those algorithms is often ad-hoc, and
a well-established solution is not available [142]. In fact, the
field of objective evaluation is still maturing. Performance
evaluation allows the appropriate selection of segmentation
algorithms as well as adjusts their parameters for optimal
performance [143]. The current practice for evaluation involves a representative group of human viewers which is
subjective, time consuming and expensive process [142].
Subjectivity can be minimized by following strict evaluation
conditions, with the video quality evaluation recommendations developed by ITU providing valuable guidelines [144,
145]. Alternatively, objective evaluation methodologies can
be used, to mimic, using an automatic procedure, the results
that a formal subjective evaluation would produce. Depending on the availability, or not, of reference segmentation (the
so-called ground truth), two alternatives can be considered
for the evaluation of video segmentation quality; standalone
evaluation when the reference segmentation is not available
and relative evaluation when the reference segmentation is
available for comparison.
Recent Patents on Computer Science, 2008, Vol. 1, No. 1
According to Corriea and Pereira [142, 143], two types of
measurements can be targeted when performing video segmentation evaluation; individual object segmentation evaluation when one of the objects identified by the segmentation
algorithm is independently evaluated in terms of its segmentation quality, which is valuable when objects are independently manipulated, e.g. for reusing in different contexts, and
overall segmentation evaluation when the complete set of
objects identified by the segmentation algorithm is globally
evaluated in terms of its segmentation quality. This requires
the estimation of individual object evaluation, and the
weighting of those values according to each object’s relevancy in the scene, since segmentation errors in the more
important objects are more noticeable to a human viewer. It
may determine whether the segmentation algorithm is adequate for the application addressed.
6.1. Evaluation Methodology
Correia and Pereira [143] propose the methodology for
performing individual object segmentation evaluation, which
consists of three major steps: (1) Segmentation; the segmentation algorithm is applied to the test sequences selected as
representative of the application domain in question. (2) Object selection; the object whose segmentation quality should
be evaluated is selected. (3) Segmentation evaluation; the
objective segmentation evaluation metric, as surveyed later,
is computed. This metric differs for standalone and relative
The methodology for objective overall segmentation
evaluation follows a five-step approach as proposed by Correia and Pereiro [145], both for the standalone and the relative evaluation cases. These steps are: (1) Segmentation; the
segmentation algorithm is applied to the test sequences selected as representative of the application domain in question. (2) Individual object segmentation evaluation; for each
object, the corresponding individual object segmentation
quality, either standalone or relative, is evaluated. (3) Object
relevance evaluation; the relevance of an object must be
evaluated taking into account the context where it is found.
This relevance metric reflects the importance of an object in
terms of the human vision system and can be computed by
the combination of a set of metrics expressing the features
able to capture the viewers’ attention. It can also be seen as a
measure of the likeliness that one object will be further processed, manipulated and used, since users tend to reuse and
manipulate more the objects which capture more their attention (see [146] for metric evaluation). (4) Similarity of objects evaluation; the correctness of the match between the
objects identified by the segmentation algorithm and those
relevant for the targeted application is evaluated (see [139]
for details). This step is different depending on whether
standalone or relative evaluation is being performed. (5)
Overall segmentation evaluation; by weighting the individual segmentation evaluation for the various objects in the
scene with their relevance values (see [139] for details).
6.2. Relative Performance Evaluation
Relative evaluation is expected to provide more reliable
evaluation results as it has access to ground truth information. Three approaches have been recently considered [126]:
pixel-based, template-based and object-based methods. Pixel
46 Recent Patents on Computer Science, 2008, Vol. 1, No. 1
based methods assume that we wish to detect all the active
pixels in a given image. Moving object detection is therefore
formulated as a set of independent pixel detection problems.
This is a classic binary detection problem provided that we
know the ground truth. The algorithms can therefore be
evaluated by standard measures used in Communication theory e.g., misdetection rate, false alarm rate and receiver operating characteristic (ROC) [147]. Several proposals have
been made to improve the computation of the ROC in video
segmentation problems e.g., using a perturbation detection
rate analysis [148] or an equilibrium analysis [149]. However we are not interested in the detection of point targets but
object regions instead. The computation of the ROC can also
be performed using rectangular regions selected by the user,
with and without moving objects [150] which improve the
evaluation strategy since the statistics are based on templates
instead of isolated pixels. A third class of methods is based
on an object evaluation. Most of the works aim to characterize colour, shape and path fidelity by proposing figures of
merit for each of these issues [151-153] or area based performance evaluation as in [154].
These approaches have three major drawbacks. First object detection is not a classic binary detection problem [126].
Several types of errors should be considered (not just misdetection and false alarms). For example, what should we do if
a moving object is split into several active regions? or if two
objects are merged into a single region? Second some methods are based on the selection of isolated pixels or rectangular regions with and without persons. This is an unrealistic
assumption since practical algorithms have to segment the
image into background and foreground and do not have to
classify rectangular regions selected by the user. Third, it is
not possible to define a unique ground truth. Many images
admit several valid segmentations. If the image analysis algorithm produces a valid segmentation its output should be
considered as correct.
6.2.1. Ground Truth Generation
Ground truth (or gold standard) generation can be viewed
as the process of establishing the “correct answer” for what
exactly the algorithm is expected to produce, which is generally application-specific [5]. For example, in video surveillance, it is generally undesirable to detect the “background”
revealed as a consequence of camera and object motion as
change, whereas in remote sensing, this change might be
considered significant (e.g. different terrain is revealed as a
forest recedes). Video motion detection apparatus in which
successive output images of an output video signal are generated with respect to images of an input video signal comprises means for applying a motion test to detect inter-image
motion between two or more images of the input video signal. The motion test provides 2 sets of one or more motion
vectors for use in the generation of a respective output image
and test output images using the respective sets of motion
vectors are generated. Image areas in the test output images
pointed to by the motion vectors in one or both sets, are
compared and if a motion vector has less than a predetermined degree of similarity between the image areas, the image areas are divided into two or more smaller image areas
and the comparison is applied again in respect of each of the
two or more smaller areas. The use of motion vectors for
Elhabian et al.
which the corresponding image areas in the test output images have less than a predetermined degree of similarity at
the image area sizes tested is inhibited. The invention has
application in standards conversion and polyphase interpolation [155]. It is an image analysis problem that is known to
be difficult and time consuming [156]. Levine and Nazif
[157] suggested assessing the quality of image segmentation
without reference to a ground truth image, but by measuring
for each region its internal homogeneity and its contrast
along its boundaries. In a similar vein, Kitchen and Rosenfeld [158] assessed the quality of thresholded edge maps
using edge continuity and thinness. However, the problem is
that these criteria do not always reflect good results
(Venkatesh and Rosin [159]).
In most cases, ground truth is essential for performing a
quantitative analysis of an algorithm’s results. There are
three main approaches to generating ground truth [136]. The
first uses synthetic data; example applications are ellipse
fitting (Fitzgibbon et al.. [160]), edge detection (Venkatesh
and Kitchen [161]), corner detection (Zheng et al. [162]),
and optic flow (Barron et al. [163]). This method enables
ground truth to be easily provided; the problem is that the
synthetic data will probably not faithfully represent the full
range of real data. Alternatively, real image data can be
manually annotated, e.g. to mark edge and no-edge pixels.
Usually, this is done by an expert human observer. As noted
by Tan et al.. [164], multiple expert human observers can
differ considerably even when they are provided with a
common set of guidelines. The same human observer can
even generate different segmentations for the same data at
two different times. So the algorithm designer may be faced
with the need to establish ground truth from multiple conflicting observers. A third approach avoids explicitly determining a ground truth dataset, and relies instead on evaluating the algorithms’ outputs by a human panel. A conservative method is to compare the algorithm against the set intersection of all human observers’ segmentations. In other
words, a foreground detected by the algorithm would be considered valid if every human observer considers it a foreground. A method that is less susceptible to a single overly
conservative observer is to use a majority rule. The least
conservative approach is to compare the algorithm against
the set union of all human observers’ results. Finally, it is
often possible to bring the observers together after an initial
blind markup to develop a consensus markup. Two disadvantages are the time consuming nature of the exercise (more
images need to be viewed), and the difficulty in incorporating additional algorithms into the evaluation results at a later
date (unless the same panel is reconvened).
6.2.2. Pixel-based Performance Metrics
Once a ground truth has been established, there are several standard methods for comparing the ground truth to a
candidate binary foreground map. The following quantities
are generally involved:
• True positives (TP): the number of foreground pixels
correctly detected;
• False positives (FP): the number of background pixels
incorrectly detected as foreground (also known as false
Moving Object Detection in Spatial Domain
Recent Patents on Computer Science, 2008, Vol. 1, No. 1
• True negatives (TN): the number of background pixels
correctly detected; and
• False negatives (FN): the number of foreground pixels
incorrectly detected as background (also known as
Based on the above mentioned quantities, Rosin [136]
described three methods for quantifying a classifier’s performance:
• The Yule Coefficient YC =
TP + FP + FN
6.2.3. Object-based Performance Metrics
Object-based metrics usually involve both spatial and
temporal accuracy metrics [143]. Additionally, some metrics
like the criticality can be considered as spatio-temporal,
since they simultaneously cover spatial and temporal aspects
of the complexity of a sequence [166]. The results obtained
with each metric are normalized to the range [0,1] (see [143]
for details).
Spatial Accuracy Metrics
• The Percentage Correct Classification
TP + FP + TN + FN
• The Jaccard Coefficient JC =
Combining all four values to form the PCC is the most
widespread method in computer vision for assessing a classifier’s performance. However, it tends to give misleading
estimates when the amount of change is small compared to
the overall image [136]. The Yule and Jaccard coefficients
overcome this problem to some degree by minimizing or
eliminating the effect of the expected large volume of true
negatives. Note that the Yule coefficient cannot be applied
when the algorithm correctly detected no change in the image (since one denominator becomes zero). Within the sequences there might be frames in which no change occurs
which can be analyzed separately to monitor the effects of
noise and compression artifacts when no real activity exists
in the sequence.
Cheung and Kamath [4] compare the performance of a
number of popular background removal techniques using
two information retrieval measurements, recall and precision, to quantify how well each algorithm matches the
ground-truth [165]. They are defined in their context as; Recall is the ratio of the number of foreground pixels correctly
identified by the algorithm to the number of foreground pixels in ground truth, while Precision is defined as the ratio of
the number of foreground pixels correctly identified by the
algorithm to the number of foreground pixels detected by the
algorithm. Recall and precision values are both within the
range of 0 and 1. Typically, there is a trade-off between recall and precision - recall usually increases with the number
of foreground pixels detected, which in turn may lead to a
decrease in precision. A good background algorithm should
attain as high a recall value as possible without sacrificing
precision [4].
Given the ground truth, Nascimento and Marques [126]
detect several types of errors i) splits of foreground regions,
ii) merges of foreground regions, iii) simultaneously split
and merge of foreground regions, iv) false alarms (detection
of false objects) and v) the detection failures (missing active
regions). They then compute statistics for each type of error.
A good segmentation must have contours very similar to
those of the reference segmentation. When a perfect shape
match is not achieved, object features can be compared so
that spatial segmentation errors contribute to lower the segmentation quality values. An image processing apparatus in
which output pixels of an output image are generated from
one or more input images using motion vectors having a subpixel accuracy. It comprises a motion vector allocator for
allocating motion vectors to pixels of the output image, the
motion vector allocator being arranged to compare a current
output pixel with test image areas pointed to by motion vectors to detect a most suitable motion vector for the current
output pixel. The motion vector allocator comprises a spatial
filter for comparing the current output pixel and a test image
area to sub-pixel accuracy and a pixel generator for generating the output pixels. The pixel generator comprising a spatial filter for generating an output pixel value at a required
pixel position to a sub-pixel accuracy, in which the spatial
filter of the motion vector allocator has fewer filter taps than
the spatial filter of the pixel generator [p6] [167]. The spatial
accuracy features selected for relative object-based evaluation include the following [143].
Shape fidelity; the number of misclassified shapes and
their distances to the reference object’s border are taken to
compute the fidelity of the object shape. It can viewed also
as the percentage of misclassified edge pixels, eventually
weighting the edge pixels in error with a function of their
distance to the reference edge, is used by several authors for
the evaluation of edge detectors [168, 169]. Alternatively,
the correlation between estimated and reference edge pixels
has also been considered [170]. More recently, similar metrics were proposed for the evaluation of segmentation partitions composed of two objects (foreground and background),
notably counting the misclassified shape pixels (shapels)
[171] and weighting the erred shapels according to their distance to the reference [172].
Geometrical similarity; those features are based on the
size, position and a combination of the elongation and compactness of the objects [139].
Edge content similarity; the similarity in terms of object
edge content is evaluated using two metrics: the output of a
Sobel edge detection filter and the instantaneous value of the
spatial perceptual information (SI).
Statistical data similarity; since the human observer is
especially sensitive to the brightness information and to image areas with red colour, a metric for evaluating the statistical similarity of brightness and redness of objects is used.
48 Recent Patents on Computer Science, 2008, Vol. 1, No. 1
Number of objects comparison; the comparison of the
number of objects identified in the estimated and reference
segmentations also gives an indication about the correctness
of the segmentation results. One such metric, called fragmentation has been proposed in [173].
Temporal and Spatio-Temporal Accuracy Metrics
When the estimated object shapes are not perfect, also the
temporal dimension of video can be used to identify the
more objectionable segmentation errors. As congestion increases in the X and Ku frequency bands an increasing number of communication systems are being designed using Ka
and V frequency bands. However, at these higher frequencies the propagation impairments caused by meteorological
phenomena (such as cloud, rain etc) become significant. The
high levels of attenuation mean that a static fade margin is
not practical and dynamic fade mitigation techniques must
be used. Described herein is a method for the generation of
radiowave propagation time series using estimates of the
meteorological environment from Numerical Weather Prediction (NWP) systems. The resulting time series are shown
to exhibit the correct first and second order characteristics, as
well as the correct spatial correlation. The long term statistics are shown to compare well to the long term cumulative
distribution functions produced using ITU-R recommendation P618-8 [174]. Temporal accuracy has received less attention in the literature than spatial accuracy. After a set of
tests, two metrics have been selected for temporal accuracy
evaluation [143].
Temporal perceptual information; the fidelity between
the motion in the reference and the estimated objects is
measured by the instantaneous value of the temporal perceptual information (TI) metric.
Criticality; simultaneously considers spatial and temporal
characteristics of the objects and is used for evaluation of the
temporal accuracy.
Temporal stability; a metric computing the difference in
the number of object shapels, i.e., the object size, for consecutive time instants has been used for evaluating the temporal stability in comparison to a reference [171].
Composite Evaluation Metric
The metric for the relative evaluation of individual objects consists in a combination of the elementary metrics
described before, capturing the effects of the various types of
errors that may affect the segmentation quality. In this case,
a single composite metric is used [143]. The weights for the
various classes of features included in the composite metric
have been selected taking into account both their strength in
capturing the human visual attention and their ability to
match subjective evaluation results.
According to Correia and Pereira [143], shape fidelity is
given the largest weight, as it is the main indication of a
mismatch with the reference. Recognizing the importance of
the temporal information in terms of the HVS, the temporal
fidelity metric receives the second highest weight. The remaining metrics account for a little over one third of the total
weights, as they allow distinguishing the different types of
spatial and temporal dissimilarities. The subjective tests per-
Elhabian et al.
formed by Correia allowed the selection of weights for the
different classes of features, as well as for the elementary
metrics within each class of features. For the geometrical
similarity class of metrics, it was observed that differences in
size should have the largest contribution, followed by the
differences in position and in elongation and compactness.
The two metrics of the edge content similarity class were
considered equally important, as none of them has clear advantages over the other.
6.2.4. Evaluation Methodology
In order to compare the output of the moving object detection algorithm with the ground truth segmentation, a region matching procedure is usually adopted [175] which
allows establishing a correspondence between the detected
objects and the ground truth, which is performed by computing a binary correspondence matrix defining the correspondence between the foreground regions in a pair of images.
When associating ground truth regions with detected regions
six cases can occur [175]: zero-to-one, one-to-zero, one-toone, many-to-one, one-to-many, and many-to-many associations. According to Nascimento and Marques [175], these
correspond to false alarm (the detected region has no correspondence), misdetection (the ground truth region has no
correspondence), correct detection (the detected region
matches one and only one region), merge (the detected region is associated to several ground truth regions), split (the
ground truth region is associated to several detected regions)
and split-merge.
The region based measures mentioned so far depends on
an overlap requirement between the region of the ground
truth and the detected region. Without this requirement, a
single pixel overlap is enough for establishing a match between a detected region and a region in the ground truth
segmentation, which does not make sense. A match is determined to occur if the overlap is at least as big as that overlap
requirement. The bigger the overlap requirement, the more
the pixels are required to overlap hence performance usually
declines as the requirement reaches 100%. Nascimento [175]
uses an overlap requirement of 10%. The match between
pairs of the two regions is also considered to measure the
performance of the algorithms. The higher is the percentage
of the match size, the better are the active regions produced
by the algorithm. This is done for all the correctly detected
Sometimes the segmentation procedure is subjective,
since each foreground region may contain several objects
and it is not always easy to determine if it is a single connected region or several disjoint regions. Since we do not
know how the algorithm behaves in terms of merging or
splitting, every possible combination within elements, belonging to a group, must be taken into account. This suggests
the use of multiple interpretations for the segmentation
[175]. To accomplish this, the evaluation setup takes into
account all possible merges of single regions belonging to
the same group whenever multiple interpretations should be
considered in a group, i.e., when there is a small overlap
among the group members. The number of merges depends
on the relative position of single regions. Instead of asking
the user to identify all the possible merges in an ambiguous
Moving Object Detection in Spatial Domain
situation, an algorithm is used to generate all the valid interpretations in two steps [126]. First we assign all the possible
labels sequences to the group regions. If the same label is
assigned to two different regions, these regions are considered as merged. The second step checks if the merged regions are close to each other and if there is another region in
the middle. The invalid labelling configurations are removed.
Nascimento and Marques [126] present a detailed description
of the labelling method in appendix VII-A.
6.2.5. Receiver-Operating Characteristics (ROC) as Measures of Quality
The receiver-operating-characteristics (ROC) curve plots
the detection probability versus the false alarm probability to
determine a desired level of performance. However, since an
ROC curve gives little understanding of the qualitative behaviour of a particular algorithm in different regions of an
image sequence, visual inspection of the foreground maps is
still recommended [62]. When comparing background removal algorithms [149] or evaluating computer vision systems [176, 177], ROC analysis is often employed when there
are known background and foreground (target) distributions,
i.e. ground truth data. ROC curves display the detection sensitivity for detecting a particular foreground against a particular background. These plots attempt to show the general
performance of a classifier over the range of its possible
threshold values. The quality of a particular algorithm can be
inferred from its ROC plot in several ways. A common approach is to measure the area under the ROC curve. Another
popular quality measure is the “distance” between the curve
and the perfect classifier point. Gao et al. [149] use ROC
curves to graph the probability of false alarm versus the
probability of miss detection to set the system parameters;
they combine multiple ROC plots for different values of
some of the system’s fixed parameters.
The ROC curve approach has several weaknesses. One
significant problem is that once an ROC plot is generated, it
is impossible to infer the amount or nature of the data considered when creating the plot-information that is clearly
important for ascertaining the relevance of the curve. Another problem concerns threshold selection. Many different
thresholds are used to generate an ROC plot. From these
plots, one can infer to some extent the general behaviour of
the algorithm in hand and can perhaps gain basic insight into
which values may be good thresholds. These plots can vary
widely from one application to another, though, and the optimal threshold may drastically change with the situation.
ROC also has some disadvantages when used to evaluate
background removal algorithms in particular. There are as
many ROC curves as there are possible different foreground
targets [149]. In addition, it requires considerable experimentation and ground-truth evaluation to obtain accurate false
alarm rates (FA) and the miss detection rates (MD).
6.2.6. Perturbation Detection Rate (PDR) Analysis
Horprasert et al. [148] present the perturbation method,
called perturbation detection rate (PDR) analysis, which
measures the sensitivity of a background removal algorithm
without assuming knowledge of the actual foreground distribution. Rather, it measures the detection of a variable, small
Recent Patents on Computer Science, 2008, Vol. 1, No. 1
(“just-noticeable”) difference from the background, obtaining a foreground distribution by assuming that the foreground might have a distribution locally similar in form to
the background, but shifted or perturbed. The detection is
measured as a function of contrast, the magnitude of the shift
or perturbation in uniform random directions in RGB. The
basic idea is to measure how far apart the two distributions
must be in order to achieve a certain detection rate, or stated
otherwise, given a false alarm rate (FA-rates), to determine
detection rate as a function of the difference of the foreground from the background. It is similar to the Just Noticeable Difference (JND) typically used in comparing psychological magnitudes [148].
PDR analysis has two advantages over the commonly
used ROC analysis [148]: (1) It does not depend on knowing
foreground distributions; (2) It does not need the presence of
foreground targets in the video in order to perform the analysis, while this is required in the ROC analysis. Because of
these considerations, PDR analysis provides practical general
information about the sensitivity of algorithms applied to a
given video scene over a range of parameters and FA-rates.
In ROC curves, we obtain one detection rate for a particular
FA-rate for a particular foreground and contrast.
However, according to Kim [62], there are limitations.
The method doesn’t model motion blur of moving foreground objects. Also in the case of mixed (moving) backgrounds, the simulated foreground distributions will be
mixed (as plants or flags moving in the foreground); usually,
though, foreground targets are from unimodal distributions.
It should be noted, however, that the overall detection rates
will be nearly the same if the clusters of the mixed distributions are well separated (compared to the usual small contrast delta). An important limitation is that foreground objects often will have shading and reflection effects on backgrounds and these are ignored although they are important
for choosing a proper, practical false alarm rate for real video
analysis. PDR does not predict the overall performance of a
background removal algorithm, but shows detection rates for
possible foreground targets given the background scene.
ROC analysis is also very useful if a specific real target is
known and crucial to the application. Kim [62] would not
generally claim that one algorithm is better than another just
from PDR analysis. There are other important performance
criteria which are not compared, such as processing speed,
memory capacity, online model update, etc.
The PDR method would seem to be useful for qualitative
comparison of sensitivity of different algorithms, as well as
comparison of choice of parameters for a particular algorithm with respect to sensitivity. In the future, the present
method could be extended to measure local detection rates
throughout the frame of the scene or varying over time [148,
62]. This might have application to localized parameter estimation, e.g. of detection/adaptation parameters in different
parts of the frame of the scene. In the parameter space, every
combination of parameters determines its FA-rate. One could
select those combinations that produce the target FA-rate,
and then plot a family of PDR graphs for them. One could
then choose the algorithm parameters that provide best detection sensitivity with respect to the PDR analysis.
50 Recent Patents on Computer Science, 2008, Vol. 1, No. 1
6.3. Standalone Performance Evaluation
Standalone evaluation is performed when no reference
segmentation is available. It is not expected to provide as
reliable results as the evaluation relative to reference segmentation; these results mainly provide qualitative information for the ranking of segmentation partitions and algorithms. Standalone objective evaluation algorithms work
mainly with the a priori information available about the expected properties of objects and of their disparity to neighbours, in the context of the application addressed.
Metrics for individual object standalone evaluation can
be established based on the expected feature values computed for each object (intra-object metrics), as well as on the
observed disparity of some key features relative to the
neighbours (inter-object metrics). These metrics are normalized to produce results in the interval [0, 1], with the highest
values associated to the best segmentation results [143].
6.3.1. Intra-Object Homogeneity Metrics
Intra-object homogeneity can be evaluated by means of
spatial and temporal object features. The spatial features
selected for individual object evaluation and corresponding
metrics, are: Shape regularity; the regularity of the object
shapes can be evaluated by geometrical features such as the
compactness, or a combination of circularity and elongation
and thickness being defined as the number of morphological
erosion steps [98] that can be applied to the object until it
disappears. Spatial uniformity; it can be evaluated by such
metrics as the spatial perceptual information (SI) and the
texture variance [157].
The temporal features selected for individual object
evaluation and the corresponding metrics, are: Temporal
stability; a smooth temporal evolution of selected object features may be checked for the evaluation of temporal stability.
Those features include size, position, TI, criticality, texture
variance, circularity, elongation and compactness). Motion
uniformity; may be evaluated by features such as the variance of the object’s motion vector values, or the criticality.
6.3.2. Inter-Object Disparity Metrics
Inter-object disparity features give an indication if the
objects were correctly identified as separate entities, i.e. the
various objects are really different according to some criteria. These features can be computed either locally along the
object boundaries, or for the complete object area. The selected inter-object disparity metrics are: Local contrast to
neighbours; a local contrast metric may be used for evaluating if a significant contrast between the inside and outside of
an object, along the object border, exists. Neighbouring objects feature difference; several features computed for the
object area, can be compared between neighbours. Examples
are the shape regularity, spatial uniformity, temporal stability
and motion uniformity, whenever each of them is relevant
for the targeted application.
6.3.3. Composite Metrics
Since the usefulness of the various standalone evaluation
elementary metrics has a strong dependency on the characteristics of the content considered and thus on the application
Elhabian et al.
addressed, it is not possible to establish a single generalpurpose composite metric for standalone evaluation. Instead,
the approach taken by Correia [143] is to select two major
classes of content, differing in terms of their spatial and temporal characteristics and proposing different composite
evaluation metrics for each of them. The two selected classes
of content are: Stable content; which is temporally stable
(scene background) and includes objects with reasonably
regular shapes; additionally, neighbouring objects are expected to be contrasted. Moving content; for this type of content (foreground objects), the motion of objects can be strong
and thus temporal stability is less relevant. Often, the motion
of objects is uniform and neighbouring objects may be spatially less contrasted, while motion differences between
neighbours are expected to be larger. Regular shapes are still
expected, even if assuming a lower importance.
The stable content composite metric does not include the
spatial and motion uniformity related elementary metrics, as
arbitrary spatial patterns may be found in the expected objects (e.g., the clothing of people might produce misleading
results) and the amount of expected motion in this case is
very small leading to non significant values for motion related metrics. Correia and Pereira [143] propose composite
metric for stable content including; Shape regularity, the two
elementary metrics compact and elongation are combined
with equal weights. Temporal stability; it is evaluated by
combining the stabilities related to the size, elongation and
criticality, all with equal weights. Local contrast to neighbours; the local contrast metric is selected for the evaluation
of the contrast between neighbouring objects.
For moving content, the composite metric includes again
only the relevant classes of elementary metrics. In this case,
the content is not expected to be temporally stable, but the
objects should have reasonably uniform motion and the
neighbouring objects motion differences should be pronounced. Thus, the classes of metrics adopted for the standalone evaluation of moving content are [143]: Shape regularity; the two elementary metrics compactness and elongation
are again combined with equal weights, as they complement
each other without a clear advantage for any of them. Motion
uniformity; the criticality metric is used to represent this
class of features. Local contrast to neighbours; even if the
local contrast is not so important in terms of segmentation
evaluation as for stable content, the contrast metric is yet
considered useful. Neighbouring object features difference;
since neighbouring objects are expected to exhibit different
motion characteristics, the motion uniformity difference metric is used.
We believe that “No perfect system exists. Background
modelling and subtraction in itself is applications oriented”.
Background modelling and subtraction in itself is only a preprocessing, absolutely not the ultimate task. A perfect system
should solve many problems, such as “bootstrapping”,
“moved objects”, shadows, gradually and suddenly change
of illumination, “tree waving”, “camouflage” and so on. But
some of these can’t be solved very well simultaneously because differentiating of them needs semantic understanding
of motion of foreground and of background, and it is impos-
Moving Object Detection in Spatial Domain
sible if you have no information from the ultimate purpose.
Further more, in a particular application, not all the problems
will be encountered. A good system should use the knowledge derived from its purpose as possible as enough to solve
the problems encountered. No perfect system exists, but a
good framework will give background modelling and subtraction much help. When there is an expected semantic interpretation of the foreground pixels in a given application
(e.g. an intruder in surveillance imagery), the algorithm designer should incorporate higher-level constraints that reflect
the ability of a given algorithm to detect the “most important” changes, instead of treating every pixel equally.
Recent Patents on Computer Science, 2008, Vol. 1, No. 1
Kentaro T, John K, Barry B, Brian M. Wallflower: Principles and
Practice of Background Maintenance, ICCV, Seventh Int. Conf. on
Com Vision (ICCV'99) - 1999; 1: 255-261.
Elgammal A, Duraiswami R, Harwood D, Davis LS. Background
and foreground modeling using nonparametric kernel density estimation for visual surveillance. Proc. IEEE Jul. 2002; 90(7): 11511163.
Harville M., Gordon G., Woodfill J. Foreground Segmentation
Using Adaptive Mixture Models in Color and Depth. event, IEEE
Workshop on Detection and Recog of Events in Video (EVENT'01),
2001; 3-12
Cheung S-C, Kamath C. Robust techniques for background subtraction in urban traffic video. In S. Panchanathan and B. Vasudev,
editors, Proc Elect Imaging: Visual Comm Image Proce 2004 (Part
One) SPIE, 2004; 5308: 881-892.
Radke RJ, Andra S, Al-Kofahi O, Roysam B. Image Change Detection Algorithms: A systematic survey, image processing, IEEE
Trans on March 2005, 14(3): 294-307.
Henninger, P.E., Bell, M. S., Magrid, B.: GB2433173 (2007).
Brown LG. A survey of image registration techniques. ACM Computer Surv 1992; 24(4): 325 - 376.
Lavallee S. Registration for computer-integrated surgery: methodology, state of the art. MIT Press, 1995.
Maintz JBA, Viergever MA. A survey of medical image registration. Med Image Anal 1998; 2(10): 1-36.
Zitov´a B, Flusser J. Image registration methods. a survey. Image
Vision Comput 2003; 21: 977-1000.
Ibanez L, Schroeder W, Ng L, Cates J. The ITK Software Guide:
The Insight Segmentation and Registration Toolkit (version 1.4).
Kitware Inc., 2003.
Stewart CV, Tsai C-L, Roysam BA. Dual bootstrap iterative closest
point (ICP) algorithm: Application to retinal image registration.
IEEE Trans Med Imaging - Special Issue on Medical Image Registration November 2003; 22: 11.
Barron J, Fleet D, Beauchemin S. Performance of optical flow
Techniques. Int J Comp Vision 1994; 12(1): 43-77.
Blake A, Isard M. Active Contours. Springer Verlag, 1999.
Lowe DG. Distinctive image features from scale-invariant key
points. Int J Comp Vision November 2004; 60(2): 91-110(20).
Wells W. Statistical approaches to feature-based object Recog. Int J
Comp Vision 1997; 21(1/2): 63-98.
Wren CR, Azarbayejani A, Darrell T, Pentland A, Pfinder: Realtime tracking of the human body. IEEE Trans Pat Anal Mach Intel
1997; 19(7): 780-785.
Hartley R., Zisserman A. Multiple view geometry in computer
vision. Cambridge University Press, 2000.
Lillestrand R. Techniques for change detection. IEEE Trans. On
Computers 1972; 21(7): 654-659.
Ulstad MS. An algorithm for estimating small scale differences
between two digital images. Pat Recog 1973; l(5): 323-333.
Dai X, Khorram S. The effects of image misregistration on the
accuracy of remotely sensed change detection. IEEE Trans. Geoscience Remote Sensing September 1998; 36(5): 1566-1577.
Greiffenhagen M., Ramesh V., Comaniciu D., Niemann H., Statistical modelling and performance characterization of a real-time
dual camera surveillance system. Proc. Int. Conf. Comp Vision Pat
Recog, 2000; 2; 335-342.
Toth D., Aach T., Metzler V., Bayesian spatio-temporal motion
detection under varying illumination illumination-invariant change
detection. In Proc. of X EUSIPCO, Tampere, Finland, 2000; 3-7.
Toth TAD, Metzler V. Illumination-invariant change detection. In
The 4th IEEE Southwest Symposium on Image Analysis and Interpretation, April 2000; 3.
Aach T., D¨umbgen L., Mester R., Toth D. Bayesian illuminationinvariant motion detection. In Proc. IEEE Int Conf Image Proces,
October 2001; 640-643.
Pizarro O, Singh H. Toward large-area mosaicing for underwater
scientific applications. IEEE J Oceanic Eng October 2003; 28(4):
Can A, Singh H. Methods for correcting lighting Patt and attenuation in underwater imagery. IEEE J Oceanic Eng 2004, in review.
Hager GD., Belhumeur PN. Efficient region tracking with parametric models of geometry and illumination. IEEE Trans. Patt Anal.
Machine Intell 1998; 20(10): 1025-1039.
Neri A, Colonnese S, Russo G, Talone P. Automatic moving object
and background separation. Signal Processing 1998; 66(2): 219232.
Skifstad K, Jain R. Illumination independent change detection for
real world image sequences. Comp Vision, Graphics Image Process
june 1989; 46: 387-399.
Hotter M, Mester R, Muller F. Detection and description of moving
objects by stochastic modelling and analysis of complex scenes.
Signal Proces: Image Comm 1996; 8: 281-293.
Aach T, Kaup A, Mester R. Statistical model-based change detection in moving video. Signal Process 1993; 31: 165-180.
Liu SC, Fu CW, Chang S. Statistical change detection with moments under time-varying illumination. IEEE Transactions on Image Processing 1993; 7(9): 1258-1268.
Mech R, Wollborn M. A noise robust method for 2D shape estimation of moving objects in video sequences considering a moving
camera. Signal Process 1998; 66(2): 203-217.
Cavallaro A, Ebrahimi T. Video object extraction based on adaptive background and statistical change detection. In Proc. of SPIE
Visual Comm Image Process (VCIP) 2001; 465-475.
Cutler R, Davis L. View-based detection and analysis of periodic
motion in: Int Conf Patt Recog Brisbane, Australia (Aug.) 1998; 1:
Elgammal A., Harwood D., Davis L. Non-parametric Model for
Background Subtraction. Proceedings of the 6th European Conf. on
CompVision-Part II 2000; 2: 751-767.
Stauffer C, Grimson W. Learning Patts of activity using realtime
Tracking. In IEEE Trans. on Patt Anal Mach Intel Aug 2000; 22:
Haritaoglu I., Harwood D., Davis LS. W4: Who? when? where?
what? a real time system for detecting and tracking people in. Third
Face and Gesture Recog Conf. (Apr.) 1998; 222-227.
Harville M. A framework for high-level feedback to adaptive,
perpixel, mixture-of-gaussian background models. European Conf.
Comp Vision 2002; 3: 543-560.
Magee DR. Tracking multiple vehicles using foreground, background, and motion models. In Proceedings of the Statistical Methods in Video Processing Workshop, (Copenhagen, Denmark), June
2002; 7-12.
Cucchiara R, Grana C, Piccardi M, Prati A. Detecting moving
objects, ghosts and shadows in video streams. IEEE Trans. Patt
Anal Mach Intell, PAMI 2003; 25(10): 1337-1342.
Cavallaro A, Ebrahimi T. Change detection based on color edges,
circuits and systems. The 2001 IEEE Int Symposium, May 2001; 2:
Costantini R., Ramponi G., Bracamonte J., et al. Countering
illumination variations in a video urveillance environment. In Proc.
of SPIE, Electronic Imaging Conf., San Jose, USA, 2001; 4304: 8597.
Francois AR, Medioni GG. Adaptive color background modeling
for real-time segmentation of video streams. In Proceedings of the
Wireless Sensor Networks Recent Patents on CompScience, 2008.
Int Imag Sci Syst Technol, Las Vegas, NV, USA, (June) 1999;
1(121): 227-232.
Hall E L. CompImage Processing and Recog. New York: Academic, 1979.
Boult T., Ali Erkin A., Lewis P, et al. Frame-rate omnidirectional
surveillance and tracking of camuaged and occluded targets. In
52 Recent Patents on Computer Science, 2008, Vol. 1, No. 1
Proceedings Second IEEE Workshop on Visual Surveillance June
1999; 48-55. (Fort Collins, CO).
Pless R., Larson J., Siebers S., Westover B. Evaluation of local
models of dynamic background. In Proceedings IEEE Conf Comp
Vision Patt Recog, 2003; 2: 73-78, (Madison,WI).
Aubert D. Passengers queue measurement. In Proc. of 10th Int.
Conf. on Image Anal Process, Venice, Italy, 1999; 1132-1135.
Cavallaro A, Ebrahimi T. Classification of change detection algorithms for object-based applications. Proc. of Workshop on Image
Analysis For Multimedia Interactive Services (WIAMIS-2003)
April 2003; London (UK): 2003; 9-11.
Eveland C, Konolige K, Bolles RC. Background Modeling for
Segmentation of Video-Rate Stereo Sequences. CVPR, 1998 IEEE
Comp Society Conf. on Comp Vision and Patt Recog (CVPR'98)
1998; 266-271.
Ivanov Y, Bobick A, Liu J. Fast lighting independent background
subtraction. Int. J Comp Vision 2000; 37(2): 199-207.
Gordon G., Darrell T., Harville M., Woodfill J. Background Estimation and Removal Based on Range and Color. CVPR, 1999
IEEE Comp Society Conf. on Comp Vision and Patt Recog
(CVPR'99) 1999; 2: 2459.
Konolige K. Small vision systems: hardware and implementation.
Proc. ISRR, Hayama, 1997.
Javed O., Shafique K., Shah M. A hierarchical approach to robust
background subtraction using color and gradient information. motion. Workshop on Motion and Video Computing (MOTION' 02)
2002; 22-27.
Cristani M., Bicego M., Murino V. Multi-level background initialization using Hidden Markov Models. In First ACM SIGMM Int.
workshop on Video surveillance 2003; 11-20.
Scott DW. Multivariate Density Estimation. Theory, Practice and
Visualization. John Wiley & Sons, Inc., 1992.
Zhong J., Sclaroff S. Segmenting Foreground Objects from a Dynamic Textured Background via a Robust Kalman Filter. ICCV,
Ninth IEEE Int. Conf. on Comp Vision (ICCV'03) 2003; 1: 44-50.
Wang D., Feng T., Shum H., Ma S. A novel probability model for
background maintenance and subtraction. The 15th Int. Conf. on
Vision Interface 2002; 109-117.
Butler D., Sridharan S., Bove VMJr. Real-time Adaptive Background Segmentation. Acoustics, Speech, and Signal Processing.
2003. Proceedings. (ICASSP '03). 2003 IEEE Int. Conf. on April
2003: 3: 349-52.
Kim K, Chalidabhongse TH, Harwood D, Davis LS. Real-time
foreground-background segmentation using codebook model. RealTime Imaging 2005; 11(3): 172-185.
Kim K. Algorithms and evaluation for object detection and tracking
in comp vision, PhD Thesis, University of Maryland, College Park,
Kohonen T. Learning vector quantization, Neural Networks. Edition 1, 1988; 3-16.
Ripley BD. Patt Recog and neural networks. Cambridge: Cambridge University Press; 1996.
Mittal A., Paragios N. Motion-based background subtraction using
adaptive kernel density estimation. In Proceedings of the Int. Conf.
Comp Vision and Patt Recog (CVPR) 2004; 302-309.
Huwer S., Niemann H. Adaptive Change Detection for Real-Time
Surveillance Applications. vs, Third IEEE Int. Workshop on Visual
Surveillance (VS'2000), 2000; 37-45.
Stauffer C., Grimson WEL. Adaptive Background Mixture Models
for Real-Time Tracking. CVPR, 1999 IEEE Comput Society Conf.
on CompVision and Patt Recog (CVPR'99) 1999; 2: 246-252.
Koller D., Weber J., Huang T., Malik J., Ogasawara G., Rao B.
Russell S. Toward robust automatic traffic scene analysis in realtime. in Proc. Int. Conf. Patt Recog, 1994; 126-131.
Gloyer B, Aghajan H, Siu K-Y, Kailath T. Video-based freeway
monitoring system using recursive vehicle tracking. In Proceedings
of SPIE Feb 1995; 2421:173-180.
Lo B., Velastin S. Automatic congestion detection system for underground platforms. In Proceedings of 2001 Int. Symposium on Intelligent Multimedia, Video, and Speech Processing, (Hong Kong)
May 2001; 158-161.
Zhou Q., Aggarwal J. Tracking and classifying moving objects
from videos. In Proceedings of IEEE Workshop on Performance
Evaluation of Tracking and Surveillance 2001.
Elhabian et al.
Boult T, Micheals R, Gao X, Eckmann M. Into the woods: Visual
surveillance of non-cooperative camouflaged targets in complex
outdoor settings. In Proceedings of the IEEE, October 2001; 13821402.
Karmann K-P, Brandt A. Moving object Recog using and adaptive
background memory. In Time-Varying Image Processing and Moving Object Recog. V. Cappellini, Ed. 2, Elsevier Science Publishers
B.V. 1990; 289-307.
Karmann K-P, Brandt AV, Gerl R. Moving object segmentation
based on adaptive reference images. In Signal Processing V: Theories and Application. Amsterdam. The Netherlands: Elsevier, 1990.
Monnet A., Mittal A., Paragios N., Ramesh V. Background modeling and subtraction of dynamic scenes. Proc Int. Conf. Comput. Vision, Nice, France, 2003; 2:1305-1312.
Jolliffe IT. Principal Component Analysis. Springler-Verlag, 1986.
de la Torre F., Black MJ. Robust principal component analysis for
Compvision. In ICCV, Vancouver, Canada, July 2001; I: 362-369.
Golub GH, Van Loan CF. Matrix Computations. John Hopkins
University Press, 1996.
Scott DW. Mulivariate Density Estimation. New York: WileyInterscience, 1992.
Duda RO, Stork DG, Hart PE. Patt Classification. New York:
Wiley, 2000.
Elgammal A, Duraiswami R, Davis LS. Efficient Non-Parametric
Adaptive Color Modeling Using Fast Gauss Transform. CVPR,
IEEE Comp ociety Conf. on CompVision and Patt Recog
(CVPR'01) 2001; 2: 563-570.
Lambert C, Harrington S, Harvey C, Glodjo A. Efficient on-line
nonparametric kernel density estimation. Aorithmica 1999; 25: 3757.
Wang H., Suter D. Background Initialization with A New Robust
Statistical Approach. IEEE Int. Workshop on Visual Surveillance
and Performance Evaluation of Tracking and Surveillance. 2005;
Elgammal A, Duraiswami R, Davis LS. Efficient Kernel Density
Estimation Using the Fast Gauss Transform with Applications to
Color Modeling and Tracking. Patt Analysis and Machine Intelligence. IEEE Transactions 2003; 25(11): 1499- 1504.
McFarlane N, Schofield C. Segmentation and tracking of piglets in
images, Machine Vision Appl 1995; 8(3): 187-193.
Remagnino P., Baumberg A. Grove T, et al. An Ingrated traffic and
pedestrian modelbased vision system.Proceedings of the Eighth
British Machine ATED traffic and pedestrian Vision Conf. 1997;
Tuzel O, Porikli F, Meer P. A Bayesian Approach to Background
Modeling. IEEE Workshop on Machine Vision for Intelligent Vehicles (MVIV) 2005; 3: 58.
Jabri S., Duric Z., Wechsler H., Rosenfeld A. Detection and Location of People in Video Images Using Adaptive Fusion of Color
and Edge Information. ICPR, 15th Int. Conf. on Patt Recog
(ICPR'00) 2000; 4: 4627-4630.
Horprasert T., Harwood D., Davis LS. A statistical approach for
realtime robust background subtraction and shadow detection.
IEEE Frame-Rate Applications Workshop, Kerkyra, Greece, 1999.
Ridder C., Munkelt O., Kirchner H. Adaptive Background Estimation and Foreground Detection using Kalman-Filtering. Proces of
Int. Conf. on recent Advances in Mechatronics. ICRAM'95,
UNESCO Chair on Mechatronics 1995; 193-199.
Koller D., Weber J., Huang T., Malik J., Ogasawara G., Rao B.,
Russel S. Towards robust automatic traffic scene analysis in realtime. In Proc. of the Int. Conf. on Patt Recog, Israel, November
Heikkila J., Silven O. A real-time system for monitoring of cyclists
and pedestrians in: Second IEEE Workshop on Visual Surveillance
Fort Collins, Colorado Jun. 1999; 74-81.
Halevy G, Weinshall D. Motion of disturbances: detection and
tracking of multibody non-rigid motion. Mach Vision Applications
1999; 11: 122-137.
Koller D, Weber J, Malik J. Robust multiple car tracking with
occlusion reasoning. Tech. Rep. UCB/CSD- 93-780, EECS Department, University of California, Berkeley, Oct 1993.
Soatto S, Doretto G, Wu YN. Dynamic textures. In ICCV, Vancouver, Canada July 2001; II: 439-446
Doretto G, Chiuso A, Wu YN, Soatto S. Dynamic textures. IJCV
February 2003; 51(2): 91-109.
Moving Object Detection in Spatial Domain
Grimson WEL, Stauffer C, Romano R, Lee L. Using adaptive
tracking to classify and monitor activities in a site in: Comp Vision
and Patt Recog Santa Barbara, California, Jun. 1998; 1-8.
Friedman N., Russell S. Image segmentation in video sequences: A
probabilistic approach. In Proceedings of the Thirteenth Annual
Conf. on (UAI-1997), San Francisco, CA, Morgan Kaufmann Publishers. 1997; 175-181.
Lee D-S., Hull J., Erol B. A Bayesian framework for Gaussian
mixture background modeling. In Proceedings of IEEE Int. Conf.
on Image Processing, (Barcelona, Spain), Sept 2003; 3: 973-976.
Rittscher J., Kato J., Joga S., Blake A. A probabilistic background
model for tracking. In Proc. 6th Eur. Conf. CompVision, 2000; 2:
Stenger B., Ramesh V., Paragios N., Coetzee F., Buhmann J. M.
Topology Free Hidden Markov Models: Application to Background Modeling. ICCV, Eighth Int. Conf. on Computer Vision
(ICCV'01) 2001; 1: 294-301.
Montacie C, Caraty M-J, Barras C. Mixture Splitting Technic and
Temporal Control in a HMM-Based Recog System. Proc. Intl.
Conf. on Spoken Language Processing (ICSLP) 1996; 2: 977-980.
Ostendorf M, Singer H. HMM topology design using maximum
likelihood successive state splitting. Comp Speech Lang
1997;11(1): 17-41.
Brand M, Kettnaker V. Discovery and segmentation of activities I
video. IEEE Transactions on Patt Anal Mach Intel 22: 844-851.
Brand M. An Entropic Estimator for Structure Discovery,”l mitsibushi electric research labs. Technical report TR-98-19, August
Golden, R.M., Michale, A., Earwood, J.W.: US20077188064
Rabiner LR. A Tutorial on hidden markov models and selected
applications in speech recog. Proceedings of the IEEE 1989; 77(2):
Neal RM, Hinton GE. A view of the em algorithm that justifies
incremental, sparse, and other variants. In M.I. Jordan (Ed.), In
Leaning in Graphical Models,. Kluwer Academic Publishers 1998;
Nowlan SJ. Soft competitive adaptation: neural network learning
algorithms based on fitting statistical mixtures, Ph. D. thesis.
School of Comp Sience. Carnegie Mellon University, Pittsburgh,
Horprasert T, Harwood D., Davis LS. A statistical approach for
real-time robust background subtraction and shadow detection.
Proc. IEEE Int'l Conf. CompVision, Frame Rate Workshop 1999;
Long W, Yang YH. Stationary background generation: An alternative to the difference of two images, Patt Recog 1990; 23(12):
Gloyer B., Aghajan HK, Siu KY, Kailath T. Video-based freeway
monitoring system using recursive vehicle tracking. In Proc. of
IS&T-SPIE Symposium on Electronic Imaging: Image and Video
Processing 1995.
Gutchess D, Trajkovic M, Cohen-Solal E, Lyons D, Jain AK. A
background model initialization algorithm for video surveillance.
ICCV, Eighth Int. Conf. on CompVision (ICCV'01) 2001; 1: 733740.
White, C.A., Hirson, D., Poon, S., Mehi, J.: WO07058895 (2007).
Dawson-Howe K. Active surveillance using dynamic background
subtraction. Tech. Rep. TCD-CS-, Trinity College, 1996; 96-06.
Kurita T, Shimai H, Umeyama S, Shigehara T. Estimation of
Background from Image Sequence with Moving Objects, citeseer.
Huber PJ. Robust Statistics, John Wiley & Sons, 1981.
Rousseeuw RJ, Leroy AM. Robust Regression and Outlier Detection, John Wiley & Sons, 1986.
Redner AR, Walker HF. Mixture densities, maximum likelihood
and the EM algorithm. SIAM Review 26:195-239.
Priebe CE. Adaptive mixture density estimation. J Amran Stat
Asso1989 :796-806.
Digalakis VV, Neumeyer LG. Speaker Adaptation using combined
transformation and Bayesian methods, IEEE Trans. Speech Audio
Proces 1995; 3: 357-366.
Recent Patents on Computer Science, 2008, Vol. 1, No. 1
Huo Q, Lee CH. Online adaptive learning of the correlated continuous density hidden markov models for speech recog. IEEE
Trans. Speech Audio Processing 1998; 6: 386-397.
Nefian, A. V.: US20077171043 (2007).
Wang H., Suter DA. Novel robust statistical method for background initialization and visual surveillance. Asian Conf. on
CompVision 2006.
Fischler MA, Rolles RC. Random sample consensus: a paradigm
for model fitting with applications to image analysis and automated
cartography. Commun. ACM 1981; 24 (6): 381-395.
Nascimento J., Marques JS. Performance evaluation of object detection algorithms for video surveillance. IEEE Transactions on
Multimedia 2005.
Horn B. Robot V. The MIT Press 1986.
Fuentes L., Velastin S. From tracking to advanced surveillance. In
Proceedings of IEEE Int. Conf on Image Processing, (Barcelona,
Spain), Sept 2003.
Migdal J., Eric W., Grimson L. Background Subtraction Using
Markov Thresholds, wacv-motion. IEEE Workshop on Motion and
Video Computing (WACV/MOTION'05) 2005; 2: 58-65.
Geman S, Geman D. Stochastic relaxation, Gibbs distributions and
the bayesian restoration of images. IEEE Transactions on Patt
Analysis and Machine Intelligence, 1984; 6(6): 721-741.
Jain R., Kasturi R., Schunk GB. Machine Vision. McGRAWHILL
Int. Editions, 1995.
Durucan E, Ebrahimi T. Robust and illumination invariant change
detection based on linear dependence for surveillance applications.
In Proc. of X EUSIPCO, Tampere, Finland, 2000; 1041-1044.
Jain R, Nagel H. On the analysis of accumulative difference pictures from image sequences of real world scenes, IEEE Transactions on Patt Analysis and Machine Intelligence 1979; 1: 206-214.
Aach T, Kaup A. Bayesian algorithms for change detection in
image sequences using Markov random fields. Signal Processing:
Image Comm 1995; 7(2): 147-160.
Rosin P. Thresholding for change detection. CompVision and Image Understanding May 2002; 86(2): 79-95.
Rosin P, Ioannidis E. Evaluation of global image thresholding for
change detection. Patt Recog Letters October 2003; 24(14): 23452356.
Smits P, Annoni A. Toward specification-driven change detection.
IEEE Trans. Geoscience and Remote Sensing May 2000; 38(3):
Poor H. V. An introduction to signal detection and estimation. 2nd
ed. Springer-Verlag, 1994.
Sirtkaya S. Moving object detection in 2d and 3d scenes, Master
Thesis, Electrical and electronic engineering, Graduate school of
natural and applied science, Middle east technical university, Balgat, Ankara, Turkey, September 2004.
Sankur B, Sezgin M. A survey over Image Thresholding Techniques and Quantitative Performance Evaluation. J Elect Imag
2004; 13: 146-165.
Kapur JN, Sahoo PK, Wong AKC. A new method for gray-level
picture thresholding using the entropy of the histogram. Computer
vision. Graphics Image Proc1985; 29: 273-285.
Correia P., Pereira F. Standalone objective evaluation of segmentation quality. WIAMIS 2001 - Workshop on Image Analysis for Multimedia Interactive Services, Tampere, Finland 2001.
Correia PL, Pereira F. Objective evaluation of video segmentation
Quality. IEEE Trans Image Proc 2003; 12(2): 186-200.
ITU-R. Methodology for the subjective assessment of the quality of
television pictures. Recommendation BT.500-7, 1995.
ITU-T. Recommendation - Subjective video quality assessment
methods for multimedia applications August 1996; 910.
Correia P., Pereira F. Estimation of video object’s relevance. In
EUSIPCO’2000-X European Signal Processing Conf., Tampere,
Finland 2000.
Trees HV. Detection, estimation, and modulation theory. John
Wiley and Sons, 2001.
Chalidabhongse TH., Kim K., Harwood D., Davis LS. A perturbation method for evaluating background subtraction algorithms. Proceedings of the Joint IEEE Int. Workshop on Visual Surveillance
and Performance Evaluation of Tracking and Surveillance (VSPETS 2003) Nice, France, 2003.
54 Recent Patents on Computer Science, 2008, Vol. 1, No. 1
Gao X., Boult TE., Coetzee F., Ramesh V. Error analysis of background adaptation. Comp Vision and Patt Recog. 2000. Proceedings. IEEE Conf 2000; 1: 503-510.
Oberti F., Teschioni A., Regazzoni CS. Roc curves for performance
evaluation of video sequences processing systems for surveillance
applications. In IEEE Int. Conf. on Image Processing 1999; 2: 949953.
Black J, Ellis T. Rosin P. A novel method for video tracking performance evaluation. In Joint IEEE Int. Workshop on Visual Surveillance and Performance Evaluation of Tracking and Surveillance (VS-PETS), Nice, France, 2003; 125-132.
Correia P., Pereira F. Objective evaluation of relative segmentation
quality.In Int. Conf. on Image Processing 2000; 308-311.
Erdem CE, Sankur B, Tekalp AM. Performance measures for video
object segmentation and tracking. IEEE Trans. Image Processing
2004; 13(7): 937-951.
Toth D., Aach T., Metzler V. Illumination-invariant change detection, ssiai. 4th IEEE Southwest Symposium on Image Analysis and
Interpretation 2000; 3-7.
Living, J.: GB2431805 (2007).
Hu J., Kahsi R., Lopresti D., Nagy G. and Wilfong G. Why table
ground-truthing is hard. In Proc. Sixth Int. Conf. Document Analysis and Recog 2001; 129-133.
Levine M, Nazif A. Dynamic measurement of compgenerated
image segmentations. IEEE Trans. Patt Anal. Machine Intell. 1985;
7: 155-164.
Kitchen L, Rosenfeld A. Edge evaluation using local edge coherence. IEEE Trans. Systems Man Cybernet 1981; 11, 597-605.
Venkatesh S, Rosin P. Dynamic threshold determination by local
and global edge evaluation. Comput. Vision Graphics Image Process 1995; 57(2): 146-160.
Fitzgibbon A, Pilu M, Fisher R. Direct least square fitting of ellipses. IEEE Trans 1999; .21(5): 476-480.
Venkatesh S, Kitchen L. Edge evaluation using necessary components. CVGIP 1992; 54(1): 23-30.
Zheng Z, Wang H, Teoh E. Analysis of gray level corner detection.
Patt Recog Lett 1999; 20(2): 149-162.
Elhabian et al.
Barron J, Fleet D, Beauchemin S. Performance of optical flow
techniques. Int J CompVision 1994; 12(1): 43-77.
Tan IL, van Schijndel R, Fazekas F, et al. Image registration and
subtraction to detect active T2 lesions in MS: An interobserver
study. J. Neurol 2002; 249: 767-773.
van Rijsbergen CJ. Information retrieval. Butterworth & Co (Publishers) Ltd, Second Ed. 1979.
Wolf S, Webster A. Subjective and objective measures of scene
criticality. In ITU Experts Meeting on Subjective and Objective
Audiovisual Quality Assessment Methods, Turin, Italy, Oct. 1997.
Living, J.: GB2431799 (2007).
Abdou I, Pratt W. Quantitative design and evaluation of enhancement/thresholding edge detectors. Proc. IEEE May 1979; 67: 753763.
Fram J, Deutsch E. On the quantitative evaluation of edge detection
schemes and their comparison with human performance. IEEE
Trans. Comput. June 1975; 24(6): 616-628.
Bryant D., Bouldin D. Evaluation of edge operators using relative
and absolute grading. In Proc. IEEE Conf. Patt Recog Image, Chicago, IL 1979; 138-145.
Wollborn M., Mech R., Refined procedure for objective evaluation
of video object generation algorithms Doc. ISO/IEC
JTC1/SC29/WG11 M3448, March 1998.
Villegas P, Marichal X, Salcedo A. Objective evaluation of segmentation masks in video sequences. WIAMIS’99, Germany 1999;
Strasters K, Gebrands J. Three-dimensional image segmentation
using a split, merge and group approach. Patt Recognit Lett 1991;
12: 307-325.
John, W.R., David, H.D.: EP1763154 (2007).
Nascimento JC, Marques JS. Performance evaluation of object
detection algorithms for video surveillance. IEEE Transactions on
multimedia August 2006; 8:4.
Jain AK, Duin RPW, Mao J. Statistical patt recog: A review. IEEE
Trans Patt Anal Mach Intel Jan 2000; 22: 1.
Bowyer K, Kranenburg C, Dougherty S. Edge detector evaluation
using empirical ROC curves. In IEEE CompSociety Conf. on
CompVision and Patt Recog 1999; 1.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals

Download PDF
