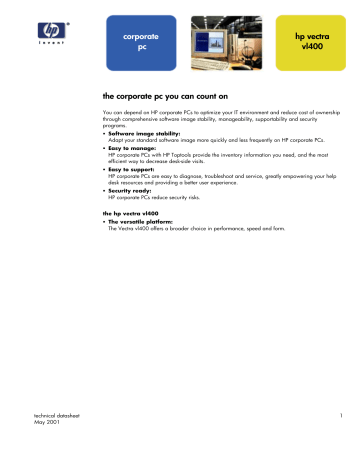

hp vectra vl400 the corporate pc you can count on

You can depend on HP corporate PCs to optimize your IT environment and reduce cost of ownership through comprehensive software image stability, manageability, supportability and security programs.

ΠSoftware image stability:

Adapt your standard software image more quickly and less frequently on HP corporate PCs.

ΠEasy to manage:

HP corporate PCs with HP Toptools provide the inventory information you need, and the most efficient way to decrease desk-side visits.

ΠEasy to support:

HP corporate PCs are easy to diagnose, troubleshoot and service, greatly empowering your help desk resources and providing a better user experience.

ΠSecurity ready:

HP corporate PCs reduce security risks.

the hp vectra vl400

ΠThe versatile platform:

The Vectra vl400 offers a broader choice in performance, speed and form. technical datasheet

May 2001

1

at a glance

new technology highlights

ΠChoice of processing power:

Intel

®

Pentium

®

III 733 MHz, 800EB MHz, 866 MHz, 933 MHz, or 1 GHz processor and

256 KB level-2 integrated cache and 133 MHz front side bus

Intel ® Celeron™ 633 MHz, 667 MHz, 700 MHz, 733 MHz, or 766 MHz processor with

128 KB level-2 integrated cache and 66 MHz front side bus

Intel

®

Celeron™ 800 MHz or 850 MHz processor with 128 KB level-2 integrated cache and 100 MHz front side bus

Π64, 128 or 256 MB SDRAM memory at 133 MHz, expandable to 512 MB maximum

ΠChoice of 10 GB or 20 GB (5400 rpm), 20 GB, 30 GB or 40 GB (7200 rpm) Ultra ATA/66

SMART II hard disk storage, or 18 GB (7200 rpm) Ultra 160/m SCSI hard disk drive

ΠChoice of graphics solutions for outstanding 2D and 3D performance and visual quality:

NVIDIA GeForce2 MX graphics card with 32 MB video memory

Matrox Millennium G450 AGP 4X graphics card with 16 MB video memory and DualHead display

Intel 815 integrated graphics Direct AGP

ΠWide range of optical storage devices:

Choice of 48X Max-speed CD-ROM drive or 12X Max-speed DVD-ROM or 8X Max-speed

CD-Writer Plus drive in desktop and minitower models

Choice of 24X Max-speed slim CD-ROM or 8X Max-speed slim DVD-ROM in small form factor models

Π16-bit stereo full duplex integrated sound with internal speaker option

ΠChoice of operating systems:

Windows

®

98 Second Edition

Windows NT ® Workstation 4.0

Windows

®

2000 Professional

ΠLinux Enabled:

Certified by Linuxcare (TurboLinux, RedHat, SuSE, Caldera)

ΠChoice of three different packages:

Desktop (DT)

Minitower (MT)

Small form factor (SFF)

2

pc system features

package processor chipset cache memory hard disk drive hard disk controller floppy disk drive optical storage mass storage shelves

ΠChoice of three packages using the same system board, same BIOS, same software image and same main components:

Small form factor (3 shelves, 3 slots)

Desktop (5 shelves, 4 slots)

Minitower (6 shelves, 4 slots)

ΠEasy access for quick upgrade or service: instant opening, screw-less I/O release, easy extraction of drive trays

ΠChoice of processors:

Intel

®

Pentium

®

III 733 MHz, 800EB MHz, 866 MHz, 933 MHz, or 1 GHz processor with 133 MHz bus speed

Intel

®

Celeron™ 633 MHz, 667 MHz, 700 MHz, 733 MHz, or 766 MHz processor with 66 MHz bus speed

Intel

®

Celeron™ 800 MHz or 850 MHz processor with 128 KB level-2 integrated cache and 100 MHz front side bus

ΠIntel 815 chipset with 66, 100 or 133 MHz system bus, includes Advanced Configuration and Power

Management (ACPI)

ΠIntel

®

Pentium

®

III processor models:

256 KB level-2 integrated

ΠIntel

®

Celeron™ processor models:

128 KB level-2 integrated

Π64, 128 or 256 MB 133 MHz Synchronous DRAM (non-ECC) standard (PC 133 specification):

Expandable to 512 MB through two DIMM sockets

Auto-detection of memory modules via serial presence detect (SPD)

ΠChoice of hard disk drive technologies:

10.0 GB or 20.0 GB (5400 rpm), 20.0 GB, 30.0 GB or 40.0 GB (7200 rpm) Ultra ATA/66 hard disk drive

½ SMART II (self-monitoring analysis and reporting technology)

½ 66 MB/s transfer rate

Π18 GB (7200 rpm) Ultra 160/m SCSI hard disk drive (SCSI interface card required)

ΠPCI Bus Master Ultra ATA controller:

Support for Ultra ATA/66, PIO (up to Mode 4), DMA Mode 2, and Ultra DMA Mode

Up to four Fast-IDE devices supported on desktop and minitower models, including two hard disk drives and two ATAPI devices (CD-ROM drive, DVD-ROM drive or CD-RW drive or any ATAPI device)

For small form factor package, support of one hard disk drive and one slim ATAPI device

ΠThird-height, 3.5-inch, 1.44 MB floppy disk drive preinstalled

ΠChoice of CD-ROM, DVD-ROM and CD-RW solutions:

HP 48X Max-speed IDE CD-ROM drive for desktop and minitower models, or HP 24X Max-speed Slim IDE

CD-ROM drive for small form factor models

HP12X Max-speed IDE DVD-ROM drive or HP 8X Max-speed Slim IDE DVD-ROM for small form factor models (MPEG2 decoding software from Mediamatics included)

HP 8X Max-speed IDE CD-Writer Plus drive for desktop and minitower models (Adaptec Easy CD Creator and Direct CD software included)

Œ Small form factor—three shelves, desktop—five shelves, minitower—six shelves:

One front-accessible shelf for standard, third-height, 3.5-inch floppy disk drive preinstalled

Front-accessible shelves for standard, half-height, 5.25-inch devices (CD-ROM drive preinstalled in one shelf on selected models): two on desktop models or three on minitower models

One front-accessible shelf for slim height device on small form factor (CD-ROM drive preinstalled)

Two internal for standard, third-height, 3.5-inch hard disk drive (one preinstalled) on desktop and minitower models. Only one for small form factor models

3

pc system features

(continued…)

total expansion slots

* audio subsystem built-in i/o upgradeability hp e-diagtools

ΠFour slots on desktop and minitower models:

Three free PCI slots

One AGP, can be used to install a graphics card, or to add an AIMM (Add In Memory Module) to increase performance of the internal video

ΠFour slots on small form factor models:

Three free PCI slots

One AGP, can be used to add an AIMM to increase performance of the internal video. A video card cannot be used in the AGP slot on small form factor models

* Note: An optional two-ISA slot extension board, sold as an accessory, can be added on desktop and minitower models giving a total of six slots. On small form factor models, also sold as an accessory, there is a one PCI, one combo (ISA or PCI) board solution .

Π20-bit stereo audio recording and playback

ΠFull-duplex audio

Œ AC ’97 architecture

ΠHeadset included with optical drive models

Œ Audio drivers, including Windows ®

2000 Professional, Windows NT

®

Workstation 4.0, Windows

®

98

Second Edition are available from the HP desktop PC support web site at: http://www.hp.com/go/vectrasupport

ΠOne 25-pin parallel port (ECP/EPP bi-directional Centronics supporting IEEE 1284)

ΠTwo 9-pin serial ports (16550 UART)

ΠTwo PS/2 connectors for keyboard and mouse (Mini-DIN)

ΠTwo stacked Universal Serial Bus (USB) ports for easy reconfiguration, attachment, and hot swapping of external peripherals

ΠOne 15-pin VGA connector on system board. Other connectors available when a graphics card is installed.

ΠAudio ports (stereo-in, stereo-out, microphone-in)

ΠOne RJ-45 Ethernet port (10/100Base-T)

ΠBIOS in flash EEPROM for convenient BIOS upgrades

ΠMemory upgradeable using SDRAM-133 MHz non-ECC DIMMs

ΠHard disk storage upgradeable to 2 x 30.0 GB on desktop or minitower models

ΠAvailable by pressing F10 after system boot

ΠPre-boot diagnostic

ΠFull system diagnostics

ΠPro-active BIOS upgrades

4

Matrox Millennium G450 graphics

video graphics graphics memory available graphics drivers

Matrox Millennium G450 AGP 4X graphics card with video accelerator on AGP bus:

ΠOutstanding 2D and 3D performance, speed and visual quality

ΠTrue DirectX6 Hardware Bump Mapping and 3D Rendering Array Process

Π256-bit dual bus architecture

ΠSingle driver across the entire Matrox graphics family for easy qualification and management (available from HP desktop PC support web site: http://www.hp.com/go/vectrasupport

ΠDualHead display capability with two VGA outputs to drive two independent monitors

Π360 MHz Ultra sharp RAMDAC for flicker-free displays, 200 MHz on secondary one

Note: only available on Windows ® 2000 Professional , Windows NT ® Workstation 4.0 and Windows ® 98 Second Edition

(desktop or minitower models). Cannot be used on small form factor models

Π16 MB double data rate SDRAM (not upgradeable)

Œ Windows ®

2000 Professional, Windows NT

®

Workstation 4.0, Windows

®

98 Second Edition

ΠDrivers may be preloaded or available from HP desktop PC support web site: http://www.hp.com/go/vectrasupport

maximum resolutions

HP ergonomic modes support these non-interlaced resolutions for Windows

®

2000 Professional,

Windows NT

®

Workstation 4.0, and Windows

®

98 Second Edition.

resolution on primary head

640 x 480

256 colors

(8-bit)

60–85 Hz

800 x 600

1024 x 768

1152 x 864

*

1280 x 1024

60–85 Hz

60–85 Hz

60–85 Hz

60–85 Hz

1600 x 1200

2048 x 1536

60–75 Hz

60–85 Hz

* Note: Windows NT

®

Workstation only

64K colors

(16-bit)

60–85 Hz

60–85 Hz

60–85 Hz

60–85 Hz

60–85 Hz

60–75 Hz

60–85 Hz

16.7M colors

(24-bit)

60–85 Hz

60–85 Hz

60–85 Hz

60–85 Hz

60–85 Hz

60–75 Hz

60–85 Hz

16.7M colors

(32-bit)

60–85 Hz

60–85 Hz

60–85 Hz

60–85 Hz

60–85 Hz

60–75 Hz

60–70 Hz

5

Intel 815 integrated graphics

video graphics graphics memory available graphics drivers

Intel

®

815 integrated graphics chipset:

*

ΠOptimized 2D and 3D performance and visual quality

ΠDirect AGP

ΠDynamic Video Memory technology

Π230 MHz RAMDAC

* Note: This integrated graphics solution is automatically deselected when an AGP graphics card is installed in the system.

ΠUses part of system memory (up to 11 MB) ; allocates 4 MB display cache with dynamic video memory technology

ΠEnhanced performance module known as graphics performance accelerator card available (fits in the AGP slot, 4 MB in size)

ΠWindows

®

2000 Professional, Windows NT

®

Workstation 4.0, Windows

®

98 Second Edition

ΠDrivers may be preloaded or available from HP desktop PC support web site: http://www.hp.com/go/vectrasupport

maximum resolutions

HP ergonomic modes support these non-interlaced resolutions for Windows

®

2000 Professional,

Windows NT

®

Workstation 4.0, and Windows

®

98 Second Edition:

resolutions

640 x 480

800 x 600

1024 x 768

1152 x 864

1280 x 1024

1600 x 1200

256 colors

(8-bit)

60–85 Hz

60–85 Hz

60–85 Hz

60–85 Hz

60–85 Hz

60–75 Hz

64K colors

(16-bit)

60–85 Hz

60–85 Hz

60–85 Hz

60–85 Hz

60–85 Hz

16.7M colors

(24-bit)

60–85 Hz

60–85 Hz

60–85 Hz

60–85 Hz

60–85 Hz

6

software

operating system provided software software available from the web

ΠHP supported operating systems:

Microsoft Windows

®

2000 Professional, Windows NT

®

Workstation 4.0, Windows

®

98 Second Edition

ΠOther certified operating systems:

Novell Client certification for Microsoft Windows

®

2000 Professional, Windows NT

®

Workstation 4.0 and

Windows

®

98, Linux distributions: RedHat, TurboLinux, SuSE, and Caldera

More information about the Linux operating system is available on the HP desktop PC web site: http://www.hp.com/desktops/linux

ΠOperating system:

Microsoft Windows ® 2000 Professional or Windows NT ® Workstation 4.0, or Microsoft Windows ® 98

Second Edition, depending on model.*

ΠHP Toptools agent

ΠHP e-Diagtools hardware diagnostic solution

ΠHP safe off (not available with Microsoft Windows

Π3Com LAN driver

®

2000 Professional)

ΠHP soft power down, HP lock, HP energy saver for Windows NT

®

ΠEvery unit includes in the box:

Workstation 4.0

HP image creation and recovery CD-ROM (OS installation and hard disk preparation)

HP image library and diagnostics CD-ROM (drivers and utilities installation and diagnostics)

* Note: For Windows

®

98 models (when applicable), Windows NT

®

Workstation 4.0 and Windows

®

2000 models (when applicable): end user must make one-time selection between Windows

®

98, Windows

®

2000 and Windows NT

®

Workstation 4.0. If end user desires rejected product(s) after selection is made, end user must acquire and pay for rejected product(s) separately

ΠHP Toptools device manager http://www.hp.com/toptools

ΠHP LAN card ready drivers available from HP desktop PC support web site: http://www.hp.com/go/pcsupport

communication features

Ethernet lan interface preconfigured networking remote booting internet ready available lan drivers lan card ready program

Π3Com Fast Etherlink 10/100Base-TX

ΠWake on LAN support

ΠLow CPU usage releases resources for local user tasks (DMA)

ΠUltra-fast installation

ΠRemote Boot protocols in system BIOS (3Com): RPL, NetWare, BootP, PXE/DHCP

Π3Com Managed PC Boot agent multiprotocol firmware to enable pre-boot capabilities in a networked environment:

3Com Managed PC Boot agent is included in the BIOS.

Enables remote automated installation and pre-OS desktop management

Supports multiple protocols (DHCP, BootP, PXE, NCP/IPX, and RPL)

Compliant with today’s industry standards: Wired for Management (WfM) 2.0 and PC 99

ΠMicrosoft Internet Explorer

Œ Novell NetWare 3.x/4.x clients; Windows ®

2000 Professional, Windows NT

®

Workstation 4.0, Windows

®

98 Second Edition

ΠLatest LAN information and drivers available from HP desktop PC support web site http://www.hp.com/go/vectrasupport

ΠTested with leading Ethernet and Token Ring adapters

ΠWake on LAN for selected third-party LAN cards in some operating system environments

ΠDetailed setup instructions and HP-tested drivers for a wide range of LAN cards from 3Com, IBM, Madge,

D-Link, and Olicom available on web at: http://www.hp.com/go/vectrasupport (select LAN card ready)

7

ergonomics

ergonomic and environmental design

Œ Video modes supporting non-interlaced resolutions up to 1600 × 1200 at ergonomic refresh rates up to 85Hz

ΠEPA ENERGY STAR

ΠTUV-GS Mark

® and Blue Angel certified*

ΠEnergy-saving variable-speed fan for temperature control

Œ Large selection of MPRII—and EPA ENERGY STAR

® —certified displays

ΠCFC-free manufacturing process; single plastic for easy recycling

ΠHP energy saver, HP safe off, HP soft power down

ΠOptimized desk-space-saving desktop package

ΠControl panel keeps user aware of PC status:

On/Off switch integrated in the surface to avoid accidental power-off

On/Off green LED (blinks in sleep mode)

Hard disk drive activity LED

Lock LED

*

Note: As an ENERGY STAR partner, HP has determined that this product meets the ENERGY STAR guidelines for energy efficiency (on appropriate models)

regulatory compliance and approvals

safety approvals

ΠcUL 1950 listed (USA)

ΠNOM-019-SCFI-1994 (Mexico)

ΠTUV-GS Mark (Germany)

ΠIEC 60950: 1991 +A1 +A2 +A3 +A4

Π(International)

ΠEN 60950: 1992 +A1 +A2 +A3+A11

Π(European Countries)

ΠLow Voltage Directive 73/23/EEC amended by Directive

93/68/EEC

ΠPSB (Singapore)

ΠGB 4943-1995 (China)

ΠEASTERN Countries compliance

electromagnetic compatibility

ΠFCC Part 15 Class B (USA)

ΠICES-003 Class B (Canada)

ΠEMC Directive 89/336/EEC amended by Directive 93/68/EEC

(European Economic Area)

ΠGB 9254-1988 (China)

ΠVCCI Class B (Japan)

ΠRRL Class B (Korea)

ΠAS/NZS3548 class B

Π(Australia-New Zealand)

ΠBSMI CNS 13438 Class B (Taiwan)

ΠEASTERN countries compliance

ΠCISPR 22: 1993 (International)

8

pc specifications physical characteristics

system

dimensions (without keyboard)

metric

desktop 43.5 cm x 43 cm x 13.5 cm small form factor 36.6 cm x 40.7 cm x 10.1 cm minitower 20.6 cm x 45.5 cm x 46.9 cm weight (without keyboard) desktop 10 kg small form factor 8 kg

keyboard

dimensions (standard) dimensions (multimedia) minitower 13.4kg

46.4 cm x 17.8 cm x 3.3 cm (5.1 cm standing)

47.5 cm x 18.5 cm x 5.0 cm (7.3 cm standing)

metric

environmental conditions

temperature

operating 10° to 35° C

humidity

non-operating operating non-operating

-40° to 70° C

15% to 80% RH

8% to 85% RH (noncondensing) at

40°C

non-metric

17.1 in. wide x 16.9 in. deep x 5.3 in. high

14.4 in. wide x 16.1 in. deep x 3.9 in. high

8.1 in. wide x 17.9 in. deep x 18.5 in. high

22 lb.

17.6 lb

29.5 lb

18.3 in. wide x 7.0 in. deep x 1.3 in. high (2.0 in. standing)

19.0 in. wide x 7.4 in. deep x 2.0 in. high (2.9 in. standing)

non-metric

50° to 95° F

-40° to 158° F

15% to 80% RH

8% to 85% RH (noncondensing) at

104°F

electrical characteristics

input voltage

power supply: manually switchselectable worldwide input voltage frequency

acoustic emission

sound level

(LwA)

typical

100-127 VAC

200-240 VAC

50 Hz/60 Hz

<= 3.5BA (35 dB )

9

service and support

warranty* support

ΠA three-year next-business day on-site international hardware warranty and a full range of flexible warranty options and support packs

*

Note: Europe and North America only

24 hours a day, 7 days a week, there is always a way to reach HP support:

ΠWeb technical support including BIOS and driver updates, white papers and additional product information

ΠHP 3-year free hardware diagnostic phone support (24 hours a day, 7 days a week in U.S. Standard business hours in other regions)

For more information, go to http://www.hp.com/go/pcsupport and click on Assistance to find the telephone number of the HP customer care center near you

monitors

HP has the right monitor for you at the right price. Detailed information is available at: http://www.hp.com/go/monitors

commercial name screen type crt size /vis* dot/pixel pitch resolution: recommended/maxi

(@ xxHz) horizontal frequency

hp 55

hp 72 hp 91 hp p700 hp p920 hp p1120 hp l1510

Flat square 15.0-inch

13.8-inch viewable area

Flat square

Flat square

17.0-inch

15.9-inch

19.0-inch

18.0-inch viewable area

Flat face 17.0-inch

16.0-inch

Flat face / aperture grille 19.0-inch

18.0-inch

Flat face / aperture grille 21.0-inch

19.8-inch

LCD 15.0-inch

15.0-inch

0.28 mm

0.27 mm

0.26 mm

0.24 mm

0.24 mm

0.24 mm

N/A

800 x 600 @ 85 Hz

1024 x 768 @ 60 Hz

1024 x 768 @ 85 Hz

1280 x 1024 @ 60 Hz

1280 x 1024 @ 85 Hz

1600 x 1200 @ 75 Hz

1024 x 768 @ 85 Hz

1280 x 1024 @ 75 Hz

1280 x 1024 @ 85 Hz

1920 x 1440 @ 70Hz

1600 x 1200 @ 85 Hz

1920 x 1440 @ 75Hz

1024 x 768 @ 60 Hz

1280 x 1024 @ 75 Hz

30 - 54 kHz

30 - 70 kHz

30 - 95 kHz

30- 86 kHz

29 - 107 kHz

30 - 121 kHz

N/A

hp l1810

LCD 18.0-inch

18.1-inch

N/A 1280 x 1024 @ 60 Hz

1280 x 1024 @ 85 Hz

N/A

*

Note: VIS is viewable size image

Go to the HP monitor advisor tool at: http://www.hp.com/go/monitors and select "Help me choose my HP monitor", for assistance in choosing the appropriate HP monitor. When selecting a monitor you should take into consideration the main application running on your PC, or any other criteria such as cost or space requirements.

10

software image stability

Adapt your standard software image more quickly and less frequently on HP corporate PCs.

image creation and recovery cd-rom image library and diagnostics cd-rom

ΠHP Vectra PCs come with an image creation and recovery CD-ROM in the box. This CD-ROM allows you to:

Reload the operating system

Configure the hard disk drive (FAT 16, FAT 32, or NTFS)

Create HP utility partition for HP e-Diagtools

ΠThe image library and diagnostics CD-ROM contains HP drivers and system software pre-packaged for unattended install. These packages can be used locally or distributed with Microsoft scripting tools. An administrator version of image library CD-ROM is available from the HP web with pre-packed drivers for distribution with Microsoft SMS

To order free the standard HP image library CD-ROM for HP Vectra vl400, go to: http://www.hp.com/go/vectrasupport

To order free the standard HP image library CD-ROM administrator version for HP Vectra vl400, go to: http://www.hp.com/go/pcstability and check the section “simplify your software image”

image transition cd-rom image stability proactive notification

Œ The image transition CD-ROM helps migrate customer’s existing software image to HP Vectra vl400.

Available for selected customers, please contact your HP representative

ΠProgram tightly controls PC revisions, enabling you to create a single software image for easy deployment across all your new HP Vectra PCs

ΠInforms you of the changes by e-mail, letting you decide whether to upgrade your PCs

More details on HP software stability can be obtained at: http://www.hp.com/go/pcstability

11

easy to manage

HP corporate PCs with HP Toptools provide the inventory information you need, and the most efficient way to decrease desk-side visits.

inventory management configuration management compliance with industry standards

Remote and central inventory

ΠAuto-discovery of devices

ΠAutomated collection of inventory

ΠPC search and selection

ΠStandard reports (including asset location, configuration)

ΠReport of Microsoft Windows

® 2000 Professional-ready PCs (this report includes PCs that match the minimum hardware requirements and are certified)

ΠAccess to detailed configuration information

ΠCustomizable asset string

Performance Management

ΠResources bottleneck analysis (requires HP Toptools Value Pack D7160A)

Remote boot control

ΠScheduled system reboot

ΠScheduled system power-off

ΠScheduled system power-on

Remote and central system software updates

Œ HP Toptools agents deployment and update (agent deployment is only available with Windows NT ®

Workstation 4.0 or Windows

®

2000 Professional, within the same Windows NT

®

domain)

ΠBIOS update

ΠDrivers update (video, hard disk drive, and LAN card)

ΠSelected HP Laserjet printers installation

ΠHardware diagnostics deployment and update (HP e-Diagtools)

Desktop Management Interface (DMI)

ΠProvided with Toptools agent for Windows

® 9x and Windows NT ® Workstation 4.0 models. HP PCs have the most comprehensive DMI implementation in the industry:

DMI 2.0s compliant.

HP DMI instrumentation for PC system information, monitor, LAN cards, security, devices, drivers, bios, end-user information and more ...

Support for all DMI management applications including Intel LANDesk, McAfee ZAC and more ...

ΠHP Toptools can uniquely:-

Power on DMI on HP and non-HP PCs

Read DMI information from HP and non-HP PCs

Report DMI alerts from HP and non-HP PCs

Control DMI hardware monitoring from HP and non-HP PCs

Windows

®

Management Interface (WMI)

ΠProvided with Toptools agent for Windows

®

2000 models. HP PCs have the industry leading WMI implementation:

Full WMI instrumentation (equivalent to DMI).

Common Toptools agent and WMI instrumentation across Vectra, Kayak, Omnibook and e-PC.

ΠFirst to implement WMI instrumentation for Intel

® IPSEC LAN card adaptors, HP Toptools can uniquely:-

Power on WMI on HP and non-HP PCs

Read WMI information from HP and non-HP PCs

Control WMI hardware monitoring from HP and non-HP PCs

Wired for Management (WfM)

ΠHP PCs are WfM 2.0 ready:

Provide easy remote power-on (RPO/WOL), remote power-off, and remote reboot.

ΠHP PCs are PXE 2.0 ready:

Provide easy Windows 2000 Workstation software deployment with Windows

®

2000 remote installation service.

12

easy to manage

(continued…)

complementary products hp toptools value pack

ΠThe HP Toptools value pack expands the functionality of the free version of HP Toptools by including:

System Performance Advisor

CPU, memory, and disk I/O performance monitoring and trend analysis for Windows NT

®

Workstation 4.0, Windows

®

95, and Windows

®

98 Second Edition systems

PC remote control (Symantec pcANYWHERE)

Custom reports and tables

Enhanced notification actions and action triggers

Most frequent alerts report

Third-party trap import/configuration

IP/MAC address file importing

Enhanced HP Toptools user password administration

Enhanced action-on-alerts (e-mail and paging)

Support for larger environments (up to 5,000 nodes per device manager server)

hp toptools bridges

ΠThe HP Toptools bridges enable full integration with complementary applications. Bridges are available with the following applications:

HP Openview NNM (Windows NT

®

Workstation 4.0)

HP Openview NNM (HP-UX)

HP Openview NNM (Solaris)

Microsoft SMS 2.0/2.01

IBM Tivoli NetView (Windows NT ® Workstation 4.0)

Computer Associates Unicenter TNG (Windows NT

®

Workstation 4.0)

For more information about HP Toptools value pack and HP Toptools bridges, go to: http://www.hp.com/go/toptools

More details on HP PCs manageability and HP Toptools can be obtained at

: http://www.hp.com/go/pcmanageability

13

easy to support

HP corporate PCs are easy to diagnose, troubleshoot and service, greatly empowering your help desk resources and providing a better user experience.

fault management e-diagtools ease of setup and servicing

Fault diagnostics

ΠHP e-Diagtools (local and remote)

ΠSmart card and smart card reader diagnostics

ΠOn-line video and LAN cards (3Com, Intel, Matrox)

Remote and local alert reporting

ΠPower-On Self-Test (POST)

ΠChassis intrusion detection

ΠIDE hard disk drive SMART failure warning

Resources monitoring

ΠCPU

ΠMemory

ΠHard disk drives

ΠNetworking card (requires SNMP services to be installed)

HP e-Diagtools hardware diagnostics solution

ΠProvides preboot diagnostics, system configuration diagnostics and a complete test suite of the system hardware components

ΠAny error found by e-Diagtools can be transformed into a sound signal emitted by the PC buzzer or speaker and sent over a phone line to your HP support provider for immediate troubleshooting

ΠImmediate troubleshooting of e-Diagtools error codes can also manually or automatically (through HP virtual call assistant) be accessed from http://www.hp.com/desktops/diagtools

ΠTest results and system configuration are stored in a support ticket file for further access from your HP support provider if necessary

Πe-Diagtools can be remotely launched by HP Toptools device management software (requires HP Toptools agent on your system) or HP instant support web portal or on HP support specialist request

Highly serviceable packages—easy to open, repair, and expand, with built-in

intuitiveness

ΠFeatures include:

Cover—tool-free, intuitive removal

System board—direct access to upgradeable parts (memory, microprocessor, I/O cards)

Hard disk drive—easy removal, direct access, tool-free removal of hard disk drive cage

Front-accessible drives—direct access, easy removal of tray

Embedded repair instruction labels

Easy upgrade of I/O cards—tool-free single I/O locker

No mounting accessories needed when installing accessory devices

Color-coded connectors for simplified PC assembly

Œ Hassle-free security with HP master pass key system—chassis lock with configurable master setting

(optional)

ΠBIOS stored in flash EEPROM for fast and easy upgrades

ΠSetup program in flash ROM

ΠAutomatic detection of major components at power-on

ΠPower-On Self-Test (POST) displays start up errors, suggests solutions

ΠAll models are local area network (LAN) ready for easy integration into the network

ΠHP e-Diagtools: fast, easy-to-use hardware diagnostics for quick system troubleshooting

ΠLAN hardware diagnostics

instant support

HP instant support automates and speeds the resolution of computing problems, freeing you from timeconsuming diagnostic chores and allowing you to focus on more important business activities. Featuring web-based diagnosis and resolution capabilities, HP instant support can be personalized to meet your business needs and deliver the support experience that works for youFor more information, go to: http://www.hp.com/go/instantsupport

More details on HP PCs supportability can be obtained at: http://www.hp.com/go/pcsupportability

14

security ready

HP corporate PCs reduce security risks.

physical security

ΠBoot Block BIOS Flash hardware protected

ΠHP physical security to protect PCs from theft:

Optional HP master pass key lock (lock must be purchased separately)

Kensington lock provision

Two BIOS-level passwords

Chassis Intrusion detection

reliability

Œ To safeguard user files, protect against data losses, shut down the PC cleanly and securely, and to back up the power supply during short power failure, taking advantage of the hibernate mode of Windows ®

2000 Professional:

HP power protection device

Compact device, fits into a 5.25" PC free expansion shelf

smart cards secure network communication

ΠTo secure desktop access, ensure secure storage and allow mobility, the HP Protecttools 2000 smart card provides:

Secure Logon by replacing Microsoft operating system logon with a PIN entry

Folder encryption

Digital certificate storage onto Smart Card (CAPI, PKCS#11)

ΠTo secure your links without losing performance and maintaining throughput:

Optional Intel Pro/100S Management Adapter, 10BaseT, 100 Base TX LAN interface

With network encryption co-processor to off-load security encryption from the PC to the adapter, reducing processor utilization and maximizing network performance

security management

Remote and central system boot configuration

ΠEnable/Disable start from hard disk

ΠEnable/Disable start from floppy disk

ΠEnable/Disable start from CD-ROM drive

ΠEnable/Disable start from network drive

ΠEnable/Disable Remote Power On and Wake on LAN

Remote and central security configuration

ΠEnable/Disable floppy disk drive

ΠEnable/Disable writing on floppy disk drive

Œ Enable/Disable CD-ROM, DVD-ROM, CD-RW drives (requires Windows ®

2000 Professional or

Windows NT

®

Workstation 4.0)

ΠEnable/Disable serial and parallel ports

ΠEnable/Disable USB ports

Remote and central security control

ΠComplete system lock

ΠSystem protection (power-on and reset buttons)

Remote and central security management

ΠEnable/Disable start with keyboard locked

ΠSystem administrator and user password change

ΠEnable/Disable user password on power-on

ΠSystem SNMP community password change

ΠReport of PCs not password protected

Security management

Inventory of smart card readers, power protection device and IP-Sec LAN card

Local diagnostic of smart card and reader

More details on HP PCs security can be obtained at

: http://www.hp.com/go/pcsecurity

15

Whatever your business need, HP has the monitor for you. Optimized for your HP desktop PCs,

HP monitors deliver the performance you need, the quality you expect, at the right price http://www.hp.com/go/monitors

For the latest information on HP Vectra PCs, visit HP’s World Wide Web site at: http://www.hp.com/go/desktops

HP recommends Windows

®

2000 Professional for business.

ENERGY STAR is a U.S. registered service mark of the United States

Environmental Protection Agency.

Intel, the Intel Inside logo, and Pentium are U.S. registered trademarks and Celeron and MMX are U.S. trademarks of Intel Corporation.

Microsoft, Windows, and Windows NT are U.S. registered trademarks of Microsoft Corporation.

OpenGL is a registered trademark of Silicon Graphics, Inc.

Rambus and RDRAM are registered trademarks of Rambus Inc.

RIMM is a trademark of Rambus Inc.

All certifications may not be completed at product introduction. Please check with your HP reseller for certification status.

In a continuing effort to improve the quality of our products, technical and environmental information in this document is subject to change without notice.

© Copyright Hewlett-Packard Company 1994-2001.

All Rights Reserved. Reproduction, adaptation, or translation without prior written permission is prohibited except as allowed under the copyright laws.

16

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
