Racks & Cable Management

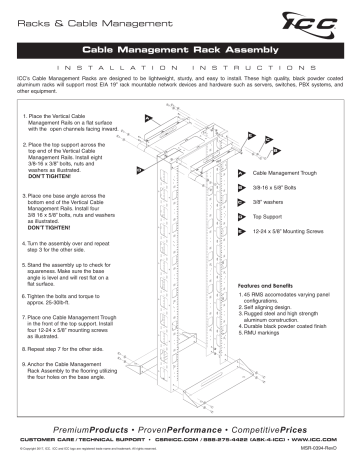

Cable Management Rack Assembly
I
N
S
T
A
L
L
A
T
I
O
N
I
N
S
T
R
U
C
T
I
O
N
S
ICC’s Cable Management Racks are designed to be lightweight, sturdy, and easy to install. These high quality, black powder coated
aluminum racks will support most EIA 19” rack mountable network devices and hardware such as servers, switches, PBX systems, and
other equipment.
1. Place the Vertical Cable
Management Rails on a flat surface
with the open channels facing inward.
A
E
2. Place the top support across the
top end of the Vertical Cable
Management Rails. Install eight
3/8-16 x 3/8” bolts, nuts and
washers as illustrated.
DON’T TIGHTEN!
C
B
D
3. Place one base angle across the
bottom end of the Vertical Cable
Management Rails. Install four
3/8 16 x 5/8” bolts, nuts and washers
as illustrated.
DON’T TIGHTEN!
A
Cable Management Trough
B
3/8-16 x 5/8” Bolts
C
3/8” washers
D
Top Support
E
12-24 x 5/8” Mounting Screws
4. Turn the assembly over and repeat
step 3 for the other side.
5. Stand the assembly up to check for
squareness. Make sure the base
angle is level and will rest flat on a
flat surface.
Features and Benefits
1. 45 RMS accomodates varying panel
configurations.
2. Self aligning design.
3. Rugged steel and high strength
aluminum construction.
4. Durable black powder coated finish
5. RMU markings
6. Tighten the bolts and torque to
approx. 25-30lb-ft.
7. Place one Cable Management Trough
in the front of the top support. Install
four 12-24 x 5/8” mounting screws
as illustrated.
8. Repeat step 7 for the other side.
9. Anchor the Cable Management
Rack Assembly to the flooring utilizing
the four holes on the base angle.
PremiumProducts • ProvenPerformance • CompetitivePrices
CUSTOMER CARE / TECHNICAL SUPPORT •
[email protected] / 888-275-4422 (ASK-4-ICC) • WWW.ICC.COM
© Copyright 2017, ICC. ICC and ICC logo are registered trade name and trademark. All rights reserved.
MSR-0394-RevD
RELATED PRODUCTS
Horizontal Finger
ICCMSCMA41
ICCMSCMA42
ICCMSCMA61
ICCMSCMA62
Duct Panel
Single-Sided Front Ducts, 1 Rack Mount Space
Single-Sided Front Ducts, 2 Rack Mount Spaces
Double-Sided Dual Ducts, 1 Rack Mount Space
Double-Sided Dual Ducts, 2 Rack Mount Spaces
Vertical Finger Duct Panel
ICCMSCMA84
78” ht., 4”x5” Slotted, Single-Sided Finger Ducts
Horizontal Cable
ICCMSCMA31
ICCMSCMA32
ICCMSCMA51
ICCMSCMA52
ICCMSCMC01
ICCMSCMC02
Management Panel
3 Horizontal Rings with 2 Side Vertical Rings, 1 Rack Mount Space
3 Horizontal Rings with 2 Side Vertical Rings, 2 Rack Mount Spaces
5 horizontal Rings, 1 Rack Mount Space
5 horizontal rings, 2 Rack Mount Spaces
Panel cover, 1 Rack Mount Space
Panel cover, 2 Rack Mount Spaces
Horizontal Metal
ICCMSCMP31
ICCMSCMP32
ICCMSCMP51
ICCMSCMP52
Cable Management Panel
4 Horizontal Rings with 2 Side Vertical Rings, 1 Rack Mount Space
4 Horizontal Rings with 2 Side Vertical Rings, 2 Rack Mount Spaces
5 Horizontal Rings, 1 Rack Mount Space
5 Horizontal Rings, 2 Rack Mount Spaces
Rack Floor Wall Mount Kit, Concrete
ICCMSRFLKT
Rack Hardware, Installation For Concrete Floors and Walls
10” Deep Single Rack Shelf
ICCMSRSF10
2 rack mount spaces
Note: For use with 19” distribution and cable management racks
15” Deep Vented Rack Shelf
ICCMSRSV15
3 rack mount spaces
Note: For use with 19” distribution and cable management racks
15” Deep Single Rack Shelf
ICCMSRSF15
3 rack mount spaces
Note: For use with 19” distribution and cable management racks
1.70” Metal Cable Mgmt. Ring
ICCMSCMPR1
Single, vertical
Note: For use on all racks
Sliding Keyboard Shelf
ICCMSRKLST
3 rack mount spaces
10” Deep Vented Rack Shelf
ICCMSRSV10
2 rack mount spaces
Note: For use with 19” distribution and cable management racks
Note: For use with 19” distribution and cable management racks
3” Metal Cable Mgmt. Ring
ICCMSCMPR2
Single, vertical
Rack Screws #12-24 x 5x8
ICACSS01BK
25 pcs. /bag
Note: For use on all racks
