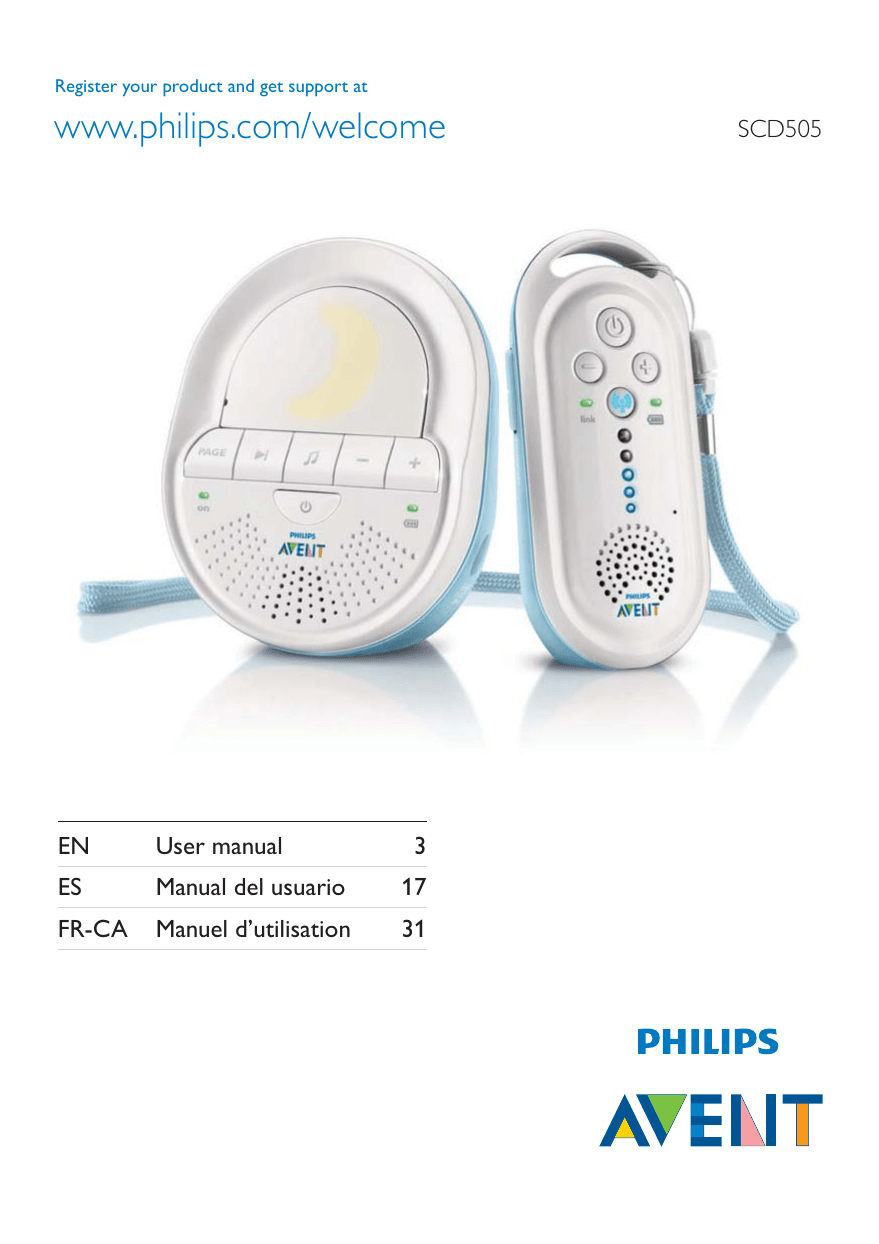

Avent SCD505/01 User manual

Register your product and get support at
www.philips.com/welcome
EN
User manual
3
ES
Manual del usuario
17
FR-CA
Manuel d’utilisation
31
SCD505
1 Important safety instructions
Compliance information
English
Contents
4
6
2 Introduction
7
3 Overview
8
8
9
Parent unit
Baby unit
4 Get started
Connect the baby unit to power
Charge the parent unit
5 Use your baby monitor
Operating range
Change the microphone sensitivity
ECO mode
Reset the baby monitor
Optimize the battery life of the
parent unit
10
10
10
11
12
12
12
12
13
6 Warranty
13
7 Frequently asked questions
13
EN
3
1 Important safety
instructions
Know these
j Use this apparatus only for its intended
use as described in this manual.
CAUTION
k Do not overload wall outlets and
extension cords as this can result in the
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This “bolt of lightning” indicates uninsulated material within your unit may
cause an electrical shock. For the safety of
everyone in your household, please do not
remove product covering.
The “exclamation point” calls attention to features for which you should
read the enclosed literature closely to prevent operating and maintenance problems.
WARNING: To reduce the risk of fire or
electric shock, this apparatus should not be
exposed to rain or moisture and objects
filled with liquids, such as vases, should not
be placed on this apparatus.
CAUTION: To prevent electric shock,
match wide blade of plug to wide slot, fully
insert.
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Do not install near any heat sources such
as radiators, heat registers, stoves or
produce heat.
g Where the power plug is used as the
disconnect device, the disconnect device
shall remain readily operable.
EN
i Only use attachments/accessories
safetysymbols
RISK OF ELECTRIC SHOCK
DO NOT OPEN
4
h Protect the adapter cord from being
walked on or pinched particularly at
plugs, convenience receptacles, and the
point where they exit from the apparatus.
l Never push objects of any kind into this
apparatus through casing slots as they
may touch dangerous voltage points or
short out parts that could result in a risk
m The apparatus shall not be exposed to
with liquids, such as vases, shall be placed
on the apparatus.
n Do not place any sources of danger on
o !
!
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus,
the apparatus has been exposed to rain
or moisture, does not operate normally,
or has been dropped. For assistance, visit
our website www.philips.com/AVENT or
"#$$%&'()*+"#$$%&0#89#
p This product may contain lead and
mercury. Disposal of these materials
may be regulated due to environmental
considerations. For disposal or recycling
information, please contact your local
authorities or the Electronic Industries
Alliance: www.eiae.org.
Adult supervision
This baby monitor is intended as an aid.
It is not a substitute for responsible and
proper adult supervision and should not
be used as such.
Never place the baby unit inside the baby
bed or playpen.
When your baby monitor uses a power
outlet, make sure that you can easily access
the power outlet.
For their safety, do not allow children to
play with the baby monitor.
Cleaning and Maintenance
Do not immerse the parent unit or baby
unit in water, and do not clean them under
the tap.
Do not use cleaning spray or liquid
cleaners.
Unplug the parent unit and baby unit if
they are connected to a power outlet.
When you unplug the parent unit or baby
unit, do not pull the cord. Pull the adapter
head.
Clean the parent unit and baby unit with a
damp cloth.
Clean the adapters with a dry cloth.
This baby monitor has no other userserviceable parts.
Storage precautions
Use and store the baby monitor between
50°F (10°C) and 95°F (35°C). Keep the
baby monitor out of direct sunlight.
If you store batteries in a fridge or freezer,
protect them from condensation during
storage and defrosting. Before you use
the batteries, let them return to room
temperature.
Disposal
Dispose of batteries properly. Do not
incinerate. Batteries may explode if
overheated. Do not wrap in metal or
aluminum foil. Wrap in newspaper before
discarding.
It is suggested that you contact your local
town or city to determine proper battery
redemption site(s) in your area.
EN
5
English
WARNING! To prevent strangulation with the
power cord, always keep the baby unit and the
power cord out of baby’s reach, at least 3.5
feet/1 meter away. Do not use extension cords.
Risk of explosion, electric shock, short circuit,
or leakage
user manual.
For the baby unit, use the non
manual.
For the parent unit, use only the
rechargeable battery pack supplied with
the baby monitor. Charge the rechargeable
battery pack as described in this user
manual.
To prevent battery explosion or leakage,
which can damage the baby monitor and
cause burns and skin or eye irritation:
do not mix batteries (old and new or
carbon and alkaline, etc.),
do not recharge non-rechargeable
batteries,
insert batteries in the right direction
(+/-),
remove batteries if you are not going
to use the product for more than 30
days,
keep batteries (battery pack or
batteries installed) away from excessive
remove batteries as soon as they run
out of power.
To prevent batteries from heating up or
releasing toxic materials, hydrogen, or
oxygen, do not:
overcharge,
short circuit,
reverse charge, or
mutilate batteries.
When you are handling batteries, take care
not to create a short circuit with the metal
on your rings, bracelets, or keys.
To handle damaged or leaked batteries,
wear protective gloves to protect your skin.
Please visit www.recycle.philips.com for
additional information on a recycling center
in your area.
Replacement
If you replace the adapters, use the type of
If you replace the batteries, use the type
Replace all the batteries in the unit at the
same time.
Assistance
For assistance, visit our website
www.philips.com/AVENT or call
1-800-54-AVENT (1-800-542-8368).
Compliance information
Compliance information
!
"
means that the equipment meets certain
radio communications and operational
requirements. This device complies with
Part 15 of the FCC Rules and RSS-213 of
Industry Canada. Operation is subject to the
following two conditions: (1) this device may
not cause harmful interference, and (2) this
device must accept any interference received,
including interference that may cause undesired
operation.
Radio interference
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules
and ICES-003 of Industry Canada. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses
and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
6
EN
television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference
by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the
equipment and receiver.
-- Connect the equipment to an outlet on a
circuit different from that to which the receiver
is connected.
-- Consult the dealer or an experienced radio/
TV technician for help.
RF Radiation Exposure Statement
This equipment complies with FCC RF radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be installed
and operated with a minimum distance of 7 3/4
inches / 20 centimeters between the radiator
and your body. For handheld operation, this
equipment has been tested and meets the
FCC RF exposure guidelines. For body-worn
operation, this product has been tested and
meets the FCC RF exposure guideline when
used with the accessories supplied with this
product. This transmitter must not be colocated or operating in conjunction with any
other antenna or transmitter. Use of other
accessories may not ensure compliance with
FCC RF exposure guidelines. This equipment
also complies with Industry Canada RSS-102
with respect to Canada’s Health Code 6 for
Exposure of Humans to RF Fields.
Do not attempt to repair or modify this
equipment
Any repairs or alterations made by the user
to the equipment may void the warranty
and compliance of the equipment. Changes
#
not expressly approved by Philips AVENT
may void the FCC authorization to operate
this equipment. For assistance visit our
website www.philips.com/AVENT or call
1-800-54-AVENT (1-800-542-8368).
English
2 Introduction
Congratulations on your purchase and welcome
$
%&'*;
support that Philips offers, register your product
at www.philips.com/AVENT.
Philips AVENT is dedicated to producing caring
and reliable products that give parents the
reassurance that they need. This Philips AVENT
baby monitor provides round-the-clock support
by ensuring you can always hear your baby
clearly without any distracting noise. The DECT
technology guarantees zero interference and a
crystal clear signal between the baby unit and
the parent unit.
EN
7
a
3 Overview
Press and hold to turn the parent unit
on or off
b
Parent unit
/
Press to change the volume
c
Flashes red: The battery pack is low in
power.
Flashes green: The battery pack is in
charging mode.
talk
a
b
j
c
d
sensitivity
i
e
h
f
g
k
d
Press and hold to activate ECO mode
In blue: ECO mode is enabled.
e Sound level lights
Indicate the level of volume or
microphone sensitivity
Indicate the sound level that the baby
unit senses
f Microphone
g Speaker
o
l
h link
In green: The parent unit is linked to
the baby unit.
In red: The parent unit is searching for
the baby unit.
i sensitivity
Press to change the microphone
sensitivity of the baby unit
n
m
j talk
Press and hold to enable the talk function
k Neck strap loop
l Lid of battery compartment
p
q
m NiMH 850mAh rechargeable battery pack
n Connector for the adapter
o Compartment for the battery pack
p AC/DC adapter, with the same type as
the one for the baby unit
q Neck strap
8
EN
a
Baby unit
English
Press and hold to turn the baby unit
on or off
b on
In green: The baby unit is turned on.
e
f
g
d
h
c PAGE
Press to locate the parent unit
Press to stop paging alerts
d Microphone
c
b
a
i
e Nightlight
f
Press to play the next lullaby
j
g
Press to play or stop a lullaby
k
h
/
Press to change the volume
i
In green: The baby unit is running on
batteries.
Flashes red: The batteries are low in
power.
l
o
j Speaker
k
Press to turn the nightlight on or off
l Lid of battery compartment
m Four 1.5 V R6 AA non-rechargeable
n
n Connector for the adapter
m
o Battery compartment
p
p AC/DC adapter
Input: 100-240V AC
Output: 6.0V DC, 500 mA
Model number: SSW-1920US-2
EN
9
4 Get started
Charge the parent unit
Note
Connect the baby unit to
power
You can connect the baby unit to a power
supply or insert non-rechargeable batteries to
operate it. Insert non-rechargeable batteries
to guarantee an automatic backup in case of
power supply failure.
1
Before you connect the baby unit to a
power supply, remove the lid of the battery
compartment.
2
Insert four non-rechargeable 1.5V R6 AA
batteries with the correct polarity (+/-) as
indicated.
3
4
Reattach the lid.
Connect a supplied adapter to the baby
unit and to a power supply.
Make sure that the parent unit is disconnected from the
power supply and turned off.
1
Remove the lid of the battery
compartment.
2
Insert the supplied rechargeable battery
pack with the correct polarity (+/-) as
indicated.
3
4
Reattach the lid.
Connect a supplied adapter to the parent
unit and to a power supply to start
charging.
Tip
The battery pack only reaches the full capacity after
you charge it for four times.
<=>?
the operating time is less than 24 hours.
The normal charging time is 8 hours, and the normal
operating time is 24 hours.
@
G?
minutes before the battery pack runs out of power.
10
EN
English
» If no link is established, the link
@
beeps from time to time.
5 Use your baby
monitor
Tip
Link the parent unit to the baby unit:
1
Press and hold on the baby unit for two
seconds.
» The baby unit turns on, and all
indicators on the baby unit light up
@
It takes about 15 seconds to establish the link between
the parent unit and the baby unit.
Position the baby monitor:
Note
For the optimal monitoring performance, keep the baby
unit 1 to 2 metres (3.5 to 7 feet) away from the baby.
Place the baby unit away from window or noisy
sources, like a fan, TV, or radio.
The baby unit should always face towards the baby.
1
2
Press and hold on the parent unit for
two seconds.
» The parent unit turns on, and all
indicators on the parent unit light up
@
Keep the baby unit and the power cord at
least 3.5 feet/1 meter away from your baby.
> 3.5ft/1m
2
Keep the parent unit at least 5 feet/1.5
meter away from the baby unit to prevent
acoustic feedback.
» The link@
parent unit starts to search for the
baby unit.
» When the link is established, the link
indicator lights up green.
> 5ft/1.5m
3
Use the parent unit in the operating range
of the baby unit. Place the parent unit close
by for better sound performance.
Tip
When the parent unit is out of range of the baby
unit, the parent unit beeps from time to time. The link
@
EN
11
Operating range
ECO mode
When you monitor your baby from a small
distance, you can enable ECO mode. In ECO
mode, the baby monitor consumes less energy,
but still ensures that you can hear your baby
clearly without any distracting noise. For the
operating range in ECO mode, see Section
"Operating range".
In normal mode:
Outdoors: up to 1000 feet/330 meters
Indoors: up to 150 feet/50 meters
In ECO mode:
Outdoors: up to 850 feet/260 meters
The operating range varies depending on
the surroundings and other factors that
cause interference. For interference from
wet and moist materials, the range loss
is up to 100%. For interference from dry
materials, see the following table:
Dry materials
Wood, plaster, cardboard, glass (without
metal, wires, or lead)
Brick, plywood
Reinforced concrete
Metal grilles or bars
Metal or aluminium
sheets
Material
Loss of
thickness
range
< 12 in/30 cm 0-10%
< 12 in/30 cm
< 12 in/30 cm
< 0.4 in/1 cm
< 0.4 in/1 cm
You can change the microphone sensitivity of the
QQ%Q>X=
baby unit can go to sleep mode if the surrounding
sound is continuously low and only a louder sound
can wake it. At level 5, the baby unit is in constant
monitoring mode and will not go to sleep mode.
12
Press sensitivity repeatedly on the parent
unit, to adjust the sensitivity according to
the environmental noise of the room.
» Q@
and indicate the current sensitivity
settings on the baby unit. If only one
light is on, the minimum sensitivity
Q
maximum sensitivity is selected.
EN
Make sure that the parent unit is linked to the baby unit.
1
To enable ECO mode, press and hold
on the parent unit for two seconds.
» The ECO mode indicator lights up
blue and the parent unit reboots.
2
To disable ECO mode, press and hold
for two seconds.
» The ECO mode indicator goes out
and the parent unit reboots.
5-35%
30-100%
90-100%
100%
Change the microphone
sensitivity
1
Note
Reset the baby monitor
To reset the parent unit:
1
2
3
Press and hold
to turn off the parent unit.
Press and hold
on the parent unit.
When you hold , turn on the parent unit.
» The parent unit is reset.
To reset the baby unit:
1
Follow the same procedure as you reset
the parent unit.
Recharge the parent unit when you see
the low battery icon or hear the low
battery alert tone. Fully recharge the
parent unit before you use it again, as
completely draining the rechargeable
batteries may reduce their life.
Remove the rechargeable batteries from
the parent unit if you are not going to use
it for a week or longer.
Always fully recharge the parent unit after
a long period of disuse.
Remove the parent unit from the charging
dock after it is fully charged.
If you experience any issue with the
rechargeable batteries of your parent unit,
you may contact your dealer or a Philips
service centre.
6 Warranty
English
Optimize the battery life of
the parent unit
Full two-year warranty
Philips Electronics North America Corporation
(USA) and Philips Electronics Ltd (Canada)
warrant each new Philips AVENT product,
model SCD505/00, against defects in materials
or workmanship for a period of two years from
the date of purchase, and agree to repair or
replace any defective product without charge.
Important: This warranty does not cover
damage resulting from accident, misuse or
\
any attachment not provided with the product.
No responsibility is assumed for any special,
incidental or consequential damages. In order
to obtain warranty service, simply call toll-free
1-800-54-AVENT.
EN
13
7 Frequently
asked questions
Why doesn't the link indicator on the parent
unit light up when I press on the parent unit?
Connect the parent unit to a power supply.
Reset the parent unit to the default
settings.
Why doesn't the on indicator on the baby unit
light up when I press on the baby unit?
Replace the batteries in the baby unit or
connect the baby unit to a power supply.
Reset the baby unit to the default settings.
Why doesn't the
indicator on the parent
unit light up when I start recharging the
parent unit?
It takes a few minutes before the battery
indicator lights up especially when the
not in use for a long period of time.
Is my baby monitor secure from
eavesdropping and interference?
J
The DECT technology of this baby
monitor guarantees no interference from
other equipment and no eavesdropping.
Why does the parent unit beep?
If the parent unit beeps while the link
@Q
unit closer to the baby unit to re-establish
connection between the parent unit and
the baby unit.
If the parent unit beeps and the battery
@
unit.
If the baby unit is turned off, turn on the
baby unit.
14
EN
Why does the parent unit generate a
high-pitched noise?
Position the parent unit and the baby
unit with a minimum distance of
5 feet/1.5 meters. It takes a few seconds
for the acoustic suppression to activate.
Decrease the volume of the parent unit.
Why don't I hear a sound? Why can't I hear
my baby cry?
Increase the volume of the parent unit.
Increase the microphone sensitivity.
Reduce the distance between the baby
and the baby unit.
Why does the parent unit react too quickly to
other sounds?
Remove the sound sources away from the
baby unit.
Decrease the microphone sensitivity of the
baby unit.
Why does the parent unit react slowly to the
baby's crying?
Make sure that the microphone of the
baby unit faces the baby.
Move the baby unit closer to your baby
with an optimal distance of 3.5 to 7 feet
(1 to 2 meters).
Increase the microphone sensitivity.
Why do the non-rechargeable batteries of
the baby unit run low quickly? How can I save
battery power?
Decrease the speaker volume or the
microphone sensitivity.
When the baby unit is not in use, turn off
the nightlight and the baby unit.
Enable ECO mode.
+
monitor is 1000 feet/330 meters. Why does
my baby monitor manage a much smaller
distance than that?
Q
in open air. Indoors, the operating range is
up to 150 feet/50 meters.
English
Why is the operating time of my parent unit
shorter than 24 hours?
When the parent unit is charged for the
=
than 24 hours. The rechargeable battery
pack only reaches its full capacity after you
charge and discharge it at least 4 times.
Decrease the volume and the microphone
sensitivity.
Why does the charging time of the parent unit
exceed 8 hours?
J
<
non-use, the charging time is 10 hours.
J
Switch off the parent unit during charging.
What happens during a power failure?
J
there are batteries in the baby unit, the
baby monitor continues to operate during
a power failure.
Why does my parent unit switch off by itself?
Why is my parent unit unable to turn on?
J
Solution 1: Remove the batteries from the
parent unit, reinsert them in the parent
unit, and the parent unit will turn on
automatically.
J
Solution 2: Plug the power adapter into the
parent unit, and the parent unit will turn on
automatically.
EN
15
In US manufactured for Philips Consumer Lifestyle,
A division of Philips Electronics North America Corporation,
P.O. Box 10313, Stamford, CT 06904
In Canada imported for Philips Electronics Ltd,
281 Hillmount Road, Markham, ON L6C 2S3
Call TOLL-FREE 1.800.54.AVENT
En EE.UU. faricado para Philips Consumer Lifestyle,
Una división de Philips Electronics North America Corporation,
P.O. Box 10313, Stamford, CT 06904
En Canadá importado para Philips Electronics Ltd,
281 Hillmount Road, Markham, ON L6C 2S3
Llame gratuítamente: 1.800.54.AVENT
Aux États-Unis fabriqué pour: Mode de Vie/ Consommateurs Philips,
une division de Philips Electronics North America Corporation,
P.O. Box 10313, Stamford, CT 06904
Au Canada importé pour Philips Électronique Ltée,
281 Hillmount Road, Markham, ON L6C 2S3
Appelez SANS FRAIS: 1.800.54.AVENT
©2011 Koninklijke Philips Electronics N.V.
All rights reserved.
SCD505_US_UM_V3.0
3140 035 25183

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
