Legato Networker Administrator`s Guide

Legato Networker Administrator`s Guide

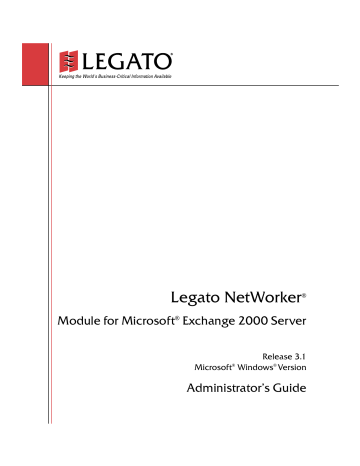

Legato NetWorker
Legato NetWorker
®
®
Module for EMC CLARiiON for Oracle
Module for Microsoft® Exchange 2000 Server
®
®
Administrator’sRelease
Guide
3.1
Microsoft® Windows® Version
Release 1.0
Administrator’s Guide
© 2002, Legato Systems, Inc. All rights reserved. This product may be covered by one or more of the following patents: U.S. 5,359,713;
5,519,853; 5,649,152; 5,799,141; 5,812,748; 5,835,953; 5,978,565; 6,073,222; 6,085,298; 6,145,089; 6,308,283; 6,324,654; 6,338,126. Other U.S.
and international patents pending.
Legato NetWorker Module for Microsoft Exchange 2000 Server, Release 3.1, Microsoft Windows Version, Administrator’s Guide
August 2002
01-8562-3.1
Legato and the Legato logo are registered trademarks, and Legato NetWorker, NetWorker, LM:, Celestra, GEMS, SmartMedia,
Co-StandbyServer, RepliStor, SnapShotServer, QuikStartz, SAN Academy, AlphaStor, ClientPak, Xtender, XtenderSolutions,
DiskXtender, ApplicationXtender, ArchiveXtender, and EmailXtender are trademarks or registered trademarks of Legato Systems, Inc.
This is a nonexhaustive list of Legato trademarks, and other trademarks may be the property of their respective owners.
The following may be trademarks or registered trademarks of the companies identified next to them, and may be used in this
document for identification purposes only.
Acrobat, Adobe / Adobe Systems, Inc.
Apple, Macintosh / Apple Computer, Inc.
AIX, DB2, DB2 Universal Database, DYNIX, DYNIXptx, IBM, Informix, Lotus, Lotus Notes, OS/2, PTX, ptx/ADMIN, Raid Plus,
ServeRAID, Sequent, Symmetry, Tivoli, / IBM Corporation
InstallShield / InstallShield Software Corporation
UNIX / X/Open Company Ltda
Access Logix, Celerra, CLARiiON, EMC, EMC2, MirrorView, MOSAIC:2000, Navisphere, SnapView, SRDF, Symmetrix,
TimeFinder / EMC Corporation
Date ONTAP, NetApp, NetCache, Network Appliance, SnapMirror, SnapRestore / Network Appliance, Inc.
DLTtape / Quantum Corporation
Fujitsu / Fujitsu, Ltd.
Hewlett-Packard, HP, HP-UX, HP Tru64, HP TruCluster / Hewlett-Packard Company
IntraNetWare, NetWare, Novell / Novell, Inc.
Microsoft, MS-DOS, SQL Server, Windows, Windows NT / Microsoft Corporation
Intel / Intel Corporation
Linux / Linus Torvalds
Netscape, Netscape Navigator / Netscape Communications Corporation
IRIX, OpenVault, SGI / Silicon Graphics, Inc.
Oracle, Oracle8i, Oracle9i / Oracle Corporation
Red Hat / Red Hat, Inc.
R/3, SAP / SAP AG
Caldera Systems, SCO, SCO OpenServer, UnixWare / Caldera, Inc.
SPARC / SPARC International, Inc.b
Solaris, Solstice Backup, Sun, SunOS, Sun StorEdge / Sun Microsystems, Inc.
REELbackup, StorageTek / Storage Technology Corporation
Sybase / Sybase, Inc.
VERITAS / VERITAS Software Corporation
Unicenter / Computer Associates International, Inc.
Turbolinux / Turbolinux, Inc.
SuSE / SuSE, Inc.
Check Point, FireWall-1 / Check Point Software Technologies, Ltd.
Notes:
a. UNIX is a registered trademark in the United States and other countries, licensed exclusively through X/Open Company, Ltd.
b. Products bearing SPARC trademarks are based on an architecture developed by Sun Microsystems, Inc.
All other brand or product names may be trademarks or registered trademarks of their respective owners.
Legato Systems, Inc. End-User License Agreement
THIS PRODUCT CONTAINS CERTAIN COMPUTER PROGRAMS AND OTHER PROPRIETARY MATERIAL, THE USE OF WHICH IS SUBJECT TO
THIS END-USER LICENSE AGREEMENT (THE “AGREEMENT”). DO NOT PROCEED WITH THE INSTALLATION OF THIS PRODUCT UNTIL YOU
(LATER DEFINED AS LICENSEE) HAVE READ THIS AGREEMENT AND AGREE TO BE BOUND BY AND BECOME A PARTY TO THIS
AGREEMENT. BY PROCEEDING WITH THE INSTALLATION OF THIS PRODUCT (OR AUTHORIZING ANY OTHER PERSON TO DO SO), YOU
AND YOUR COMPANY ACCEPT THIS AGREEMENT AND YOU REPRESENT THAT YOU ARE AUTHORIZED TO DO SO. IF YOU ARE ACCESSING
THE PRODUCT ELECTRONICALLY INDICATE YOUR ACCEPTANCE OF THESE TERMS BY SELECTING THE “ACCEPT” BUTTON AT THE END
OF THE AGREEMENT. IF YOU DO NOT AGREE TO THE TERMS OF THIS AGREEMENT, YOU MAY RETURN THIS PRODUCT, ALL MEDIA AND
DOCUMENTATION, AND PROOF OF PAYMENT, TO THE PLACE YOU OBTAINED THEM FOR A FULL REFUND WITHIN THIRTY (30) DAYS OF
FIRST ACQUIRING THIS PRODUCT OR, IF THE PRODUCT IS ACCESSED ELECTRONICALLY, SELECT THE “DECLINE” BUTTON AT THE END
OF THIS AGREEMENT AND RETURN PROOF OF PAYMENT IN ACCORDANCE WITH THE ABOVE REFERENCED RETURN/REFUND PROCESS.
WRITTEN APPROVAL IS NOT A PREREQUISITE TO THE VALIDITY OR ENFORCEABILITY OF THIS AGREEMENT AND NO SOLICITATION OF
ANY SUCH WRITTEN APPROVAL BY OR ON BEHALF OF LEGATO SHALL BE CONSTRUED AS AN INFERENCE TO THE CONTRARY. IF YOU
HAVE ORDERED THIS PRODUCT, LEGATO’S ACCEPTANCE IS EXPRESSLY CONDITIONAL ON YOUR ASSENT TO THESE TERMS TO THE
EXCLUSION OF ALL OTHER TERMS; IF THESE TERMS ARE CONSIDERED AN OFFER BY LEGATO, ACCEPTANCE IS EXPRESSLY LIMITED TO
THESE TERMS.
1. DEFINITIONS
1.1 Authorization Code: means the code provided to Licensee by Legato
for permanent authorization to use the Software. The Authorization Code
is provided to Licensee once the Enabler Code is registered with Legato.
1.2 Documentation: means any user reference materials on any media,
provided by Legato for use with the Software.
1.3 Enabler Code: means the code provided by Legato for activation of the
Software.
1.4 Licensee: means the person or entity acquiring this License or for
whom this License was acquired.
1.5 Software: means the object code copy of the software program
provided to You in association with this Agreement, together with the
associated original electronic media and all accompanying manuals and
other documentation, and together with all enhancements, upgrades, and
extensions thereto that may be provided by Legato to You from time to
time.
2. OWNERSHIP AND ADMINISTRATION OF SOFTWARE
2.1 Ownership and Title. As between the parties, Legato, and its licensors,
own and shall retain all right, title, and interest in and to: (i) the Software
including all intellectual property rights embodied therein; (ii) all of the
service marks, trademarks, trade names, or any other designations
associated with the Software; and (iii) all copyrights, patent rights, trade
secret rights, and other proprietary rights relating to the Software.
2.2 Software Activation. Legato employs Enabler Codes and
Authorization Codes that enable the use of the Software. The Software is
shipped in a "Media Kit" which consists of object code software on
CD-ROM and an Enabler Code for initial activation of the Software or the
Software and Enabler Code may be delivered electronically. Once Legato
receives confirmation from Licensee that the Enabler Code is installed and
is provided with the host ID information, Legato will provide the
Authorization Code to Licensee. Legato administers the generation and
distribution of Enabler and Authorization Codes, which administration
may be modified by Legato from time to time.
2.3 Administration of Software. Legato may include on the media with
the Software additional computer programs which are not currently
licensed for use by Licensee and to which the Enabler Code or
Authorization code will not permit access. Inclusion of such additional
computer programs in no way implies a license from Legato and access or
use of such programs is strictly prohibited unless Licensee procures the
right to use any such program and the applicable Enabler Code is
provided thereto.
3. LICENSE GRANT
3.1 Grant. Legato grants to Licensee a nonexclusive, nontransferable,
nonsublicensable, perpetual, unless terminated in accordance with the
provisions of this Agreement, license (the “License”) to (i) use the Software
installed in accordance with the Documentation and only on the licensed
computer solely for its own internal operations; and (ii) move the Software
temporarily in case of computer system malfunction. The License granted
under this Agreement does not constitute a sale of the Software or any
portion or copy of it. Licensee may not use the Software on more than one
computer system unless otherwise specifically authorized by an explicit
Software product, or additional licenses for additional computers are
purchased. Rights not expressly granted are reserved by Legato. Where
the Software is provided to Licensee at no charge for evaluation purposes
only, the License granted is limited to a continuous thirty (30) day period,
commencing with the acceptance of this Agreement (the "Evaluation
Period"). At the conclusion of the Evaluation Period, Licensee agrees to
destroy the Software and certify its destruction to Legato, in writing,
within ten (10) days, or shall return the Software to Legato or purchase a
perpetual license.
3.2 Copies. Licensee may make copies of the Software provided that any
such copy is: (i) created as an essential step in utilization of the Software
on the licensed computer and is used in no other manner; or (ii) used for
archival purposes to back up the licensed computers. All trademark and
copyright notices must be reproduced and included on such copies.
Licensee may not make any other copies of the Software.
3.3 Restrictions on use. Licensee shall not, and shall not aid, abet, or
permit any third party to: (i) decompile, disassemble, or otherwise reverse
engineer or attempt to reconstruct or discover any source code or
underlying ideas or algorithms of the Software by any means whatsoever;
(ii) remove any identification, copyright, or other notices from the
Software; (iii) provide, lease, lend, use for timesharing or service bureau
purposes; (iv) create a derivative work of any part of the Software; or (v)
develop methods to enable unauthorized parties to use the Software. If EC
law is applicable, the restrictions in Section 3.3 (i) are limited so that they
prohibit such activity only to the maximum extent such activity may be
prohibited without violating the EC Directive on the legal protection of
computer programs. Notwithstanding the foregoing, prior to
decompiling, disassembling, or otherwise reverse engineering any of the
Software, Licensee shall request Legato in writing, to provide Licensee
with such information or assistance and Licensee shall refrain from
decompiling, disassembling, or otherwise reverse engineering any of the
Software unless Legato cannot or has not complied with such request in a
commercially reasonable amount of time.
3.4 Purchase Orders. Nothing contained in any purchase order,
acknowledgment, or invoice shall in any way modify the terms or add any
additional terms or conditions to this Agreement.
3.5 Updates. This section applies if the Software acquired is an update to
the original Software (the “Update”). An Update does not constitute a
legally licensed copy of the Software unless purchased as an Update to a
previous version of the same Software. The Update may only be used in
accordance with the provisions of this Agreement. The Update, together
with the original Software, constitutes one (1) legally licensed copy of the
Software.
3.6 Evaluation License. This Section applies if the Software is being used
for an initial thirty (30) day evaluation period. The license is valid only for
a period of thirty (30) days from the delivery of the Software, and is
designed to allow Licensee the right to evaluate the Software during such
period. In the event that Licensee desires to enter into a longer-term license
agreement with Legato, Licensee shall obtain an appropriate Enabler and
Authorization Code in accordance with Section 2.2 above, upon payment
of applicable fees, which authorizes use of the Software after such
evaluation period, but only subject to all of the terms and conditions of this
Agreement. In the event Licensee determines not to enter into a licensing
transaction with Legato at the end of such thirty (30) day evaluation
period, then Licensee’s rights under this Agreement shall terminate
automatically and Licensee shall promptly return to Legato or destroy all
copies of the Software and so certify to Legato.
4. MAINTENANCE AND SUPPORT
4.1 Legato has no obligation to provide support, maintenance, upgrades,
modifications, or new releases under this Agreement. Legato may provide
such services under separate agreement.
5. LIMITED WARRANTY
9. MISCELLANEOUS
5.1 Media and Documentation. Legato warrants that if the media or
documentation are damaged or physically defective at the time of delivery
of the first copy of the Software to Licensee and if defective or damaged
product is returned to Legato (postage prepaid) within thirty (30) days
thereafter, then Legato will provide Licensee with replacements at no cost.
9.1 Governing Law. This Agreement shall be governed by the laws of the
State of California, as applied to agreements entered into and to be
performed entirely within California between California residents,
without regard to the
5.2 Limited Software Warranty. Subject to the conditions and limitations
of liability stated herein, Legato warrants for a period of thirty (30) days
from the delivery of the first copy of the Software to Licensee that the
Software, as delivered, will materially conform to Legato’s then current
published Documentation for the Software. This warranty covers only
problems reported to Legato during the warranty period. For customers
outside of the United States, this Limited Software Warranty shall be
construed to limit the warranty to the minimum warranty required by law.
5.3 Remedies. The remedies available to Licensee hereunder for any such
Software which does not perform as set out herein shall be either repair or
replacement, or, if such remedy is not practicable in Legato’s opinion,
refund of the license fees paid by Licensee upon a return of all copies of the
Software to Legato. In the event of a refund this Agreement shall
terminate immediately without notice
6. TERM AND TERMINATION
6.1 Term. The term of this Agreement is perpetual unless terminated in
accordance with its provisions.
6.2 Termination. Legato may terminate this Agreement, without notice,
upon Licensee’s breach of any of the provisions hereof.
6.3 Effect of Termination. Upon termination of this Agreement, Licensee
agrees to cease all use of the Software and to return to Legato or destroy
the Software and all Documentation and related materials in Licensee’s
possession, and so certify to Legato. Except for the License granted herein
and as expressly provided herein, the terms of this Agreement shall
survive termination.
7. DISCLAIMER AND LIMITATIONS
7.1 Warranty Disclaimer. EXCEPT FOR THE LIMITED WARRANTY
PROVIDED IN SECTION 5 ABOVE, LEGATO AND ITS LICENSORS
MAKE NO WARRANTIES WITH RESPECT TO ANY SOFTWARE AND
DISCLAIMS ALL STATUTORY OR IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR
ARISING FROM A COURSE OF DEALING OR USAGE OF TRADE AND
ANY WARRANTIES OF NONINFRINGEMENT. ALL SOFTWARE IS
PROVIDED “AS IS” AND LEGATO DOES NOT WARRANT THAT THE
SOFTWARE WILL MEET ANY REQUIREMENTS OR THAT THE
OPERATION OF SOFTWARE WILL BE UNINTERRUPTED OR ERROR
FREE. ANY LIABILITY OF LEGATO WITH RESPECT TO THE
SOFTWARE OR THE PERFORMANCE THEREOF UNDER ANY
WARRANTY, NEGLIGENCE, STRICT LIABILITY OR OTHER THEORY
WILL BE LIMITED EXCLUSIVELY TO THE REMEDIES SPECIFIED IN
SECTION 5.3 ABOVE. Some jurisdictions do not allow the exclusion of
implied warranties or limitations on how long an implied warranty may
last, so the above limitations may not be applicable.
8. LIMITATION OF LIABILITY
8.1 Limitation of Liability. EXCEPT FOR BODILY INJURY, LEGATO
(AND ITS LICENSORS) WILL NOT BE LIABLE OR RESPONSIBLE WITH
RESPECT TO THE SUBJECT MATTER OF THIS AGREEMENT UNDER
ANY CONTRACT, NEGLIGENCE, STRICT LIABILITY, OR OTHER
LEGAL OR EQUITABLE THEORY FOR: (I) ANY INDIRECT, SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES, HOWEVER CAUSED
AND WHETHER OR NOT ADVISED IN ADVANCE OF THE
POSSIBILITY OF SUCH DAMAGES; OR (II) DAMAGES FOR LOST
PROFITS OR LOST DATA; OR (III) COST OF PROCUREMENT OF
SUBSTITUTE GOODS, TECHNOLOGY, SERVICES, OR RIGHTS; OR FOR
AMOUNTS IN EXCESS OF THOSE RECEIVED BY LEGATO FOR THE
PARTICULAR LEGATO SOFTWARE THAT CAUSED THE LIABILITY.
Because some jurisdictions do not allow the exclusion or limitation of
incidental or consequential damages, Legato's liability in such
jurisdictions shall be limited to the extent permitted by law.
principles of conflict of laws or the United Nations Convention on
Contracts for the International Sale of Goods.
9.2 Government Restricted Rights. This provision applies to Software
acquired directly or indirectly by or on behalf of any government. The
Software is a commercial software product, licensed on the open market at
market prices, and was developed entirely at private expense and without
the use of any government funds. All Software and accompanying
Documentation provided in connection with this Agreement are
“commercial items,” “commercial computer software,” and/or
“commercial computer software documentation.” Any use, modification,
reproduction, release, performance, display, or disclosure of the Software
by any government shall be governed solely by the terms of this
Agreement and shall be prohibited except to the extent expressly
permitted by the terms of this Agreement, and no license to the Software
is granted to any government requiring different terms. Licensee shall
ensure that each copy used or possessed by or for any government is
labeled to reflect the foregoing.
9.3 Export and Import Controls. Regardless of any disclosure made by
Licensee to Legato of an ultimate destination of the Products, Licensee will
not directly or indirectly export or transfer any portion of the Software, or
any system containing a portion of the Software, to anyone outside the
United States (including further export if Licensee took delivery outside
the U.S.) without first complying with any export or import controls that
may be imposed on the Software by the U.S. Government or any country
or organization of nations within whose jurisdiction Licensee operates or
does business. Licensee shall at all times strictly comply with all such laws,
regulations, and orders, and agrees to commit no act which, directly or
indirectly, would violate any such law, regulation or order.
9.4 Assignment. This Agreement may not be assigned or transferred by
Licensee without the prior written consent of Legato, which shall not be
unreasonably withheld. Legato may assign or otherwise transfer any or all
of its rights and obligations under this Agreement upon notice to Licensee.
9.5 Sole Remedy and Allocation of Risk. Licensee's sole and exclusive
remedies are set forth in this Agreement. This Agreement defines a
mutually agreed-upon allocation of risk, and the License price reflects
such allocation of risk.
9.6 Equitable Relief. The parties agree that a breach of this Agreement
adversely affecting Legato’s intellectual property rights in the Software
may cause irreparable injury to Legato for which monetary damages may
not be an adequate remedy and Legato shall be entitled to equitable relief
in addition to any remedies it may have hereunder or at law.
9.7 No Waiver. Failure by either party to enforce any provision of this
Agreement will not be deemed a waiver of future enforcement of that or
any other provision, nor will any single or partial exercise of any right or
power hereunder preclude further exercise of any other right hereunder.
9.8 Severability. If for any reason a court of competent jurisdiction finds
any provision of this Agreement, or portion thereof, to be unenforceable,
that provision of the Agreement will be enforced to the maximum extent
permissible so as to effect the intent of the parties, and the remainder of
this Agreement will continue in full force and effect.
10. ENTIRE AGREEMENT
10.1 This Agreement sets forth the entire understanding and agreement
between the parties and may be amended only in a writing signed by
authorized representatives of both parties. No vendor, distributor, dealer,
retailer, sales person, or other person is authorized by Legato to modify
this Agreement or to make any warranty, representation, or promise
which is different than, or in addition to, the warranties, representations,
or promises made in this Agreement. No preprinted purchase order terms
shall in any way modify, replace, or supersede the terms of this
Agreement.
Contents
Preface ......................................................................................................... 11.
Audience.......................................................................................................................... 11.
Product Documentation ................................................................................................... 11.
Document Conventions ................................................................................................... 12.
Typographic Conventions ......................................................................................... 12.
Information and Services................................................................................................. 13.
Technical Support ..................................................................................................... 13.
Licensing and Registration........................................................................................ 14.
Customer Feedback ........................................................................................................ 14.
Chapter 1: NetWorker Module Overview................................................... 15.
About the NetWorker Module .......................................................................................... 15.
NetWorker Module Features ........................................................................................... 16.
What the NetWorker Module Backs Up and Restores .............................................. 16.
Using the NetWorker Module with NetWorker Software.................................................. 17.
About Exchange Database Backups ............................................................................... 19.
Exchange Transaction Log Files and Truncation...................................................... 20.
Circular Logging ........................................................................................................ 20.
Backup Operations .......................................................................................................... 21.
Manual Backups........................................................................................................ 21.
Scheduled Backups .................................................................................................. 21.
How Backups Work................................................................................................... 21.
Running Backups in Parallel............................................................................... 22.
Backup Recommendations ....................................................................................... 23.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
5
Contents
Restore Operations .......................................................................................................... 24.
Restore and Recover Phases.................................................................................... 24.
How Restores Work................................................................................................... 25.
Recovering Component Objects from a Backup ....................................................... 26.
Chapter 2: Manual Backups........................................................................29.
About Manual Backups .................................................................................................... 29.
Performing a Manual Backup........................................................................................... 30.
Task 1: Open the NetWorker User for Exchange Server Program............................ 30.
Task 2: Configure the Backup ................................................................................... 31.
Task 3: Set the Backup Options ................................................................................ 34.
Task 4: Start and Monitor the Backup ....................................................................... 37.
Task 5: Complete the Backup Process ..................................................................... 38.
Chapter 3: Scheduled Backups ..................................................................39.
About Scheduled Backups ............................................................................................... 39.
Windows and Exchange Permissions for Mailbox Backups............................................. 40.
Configuring a Scheduled Backup..................................................................................... 40.
Task 1: Create a Group Resource............................................................................. 40.
Task 2: Create a Client Resource ............................................................................. 42.
Task 3: Create a Schedule and Set the Backup Level .............................................. 46.
Task 4: Test the Configuration .................................................................................. 49.
Checking Backup Results ................................................................................................ 50.
Excluding the Exchange Installable File System from Backups....................................... 51.
Creating Custom Directives ............................................................................................. 51.
How to Create a Custom Directive ............................................................................ 52.
Improving Performance.................................................................................................... 53.
Chapter 4: Restoring Data from a Backup.................................................55.
Interfaces for Restore Operations .................................................................................... 55.
Performing the Restore Operation ................................................................................... 55.
6
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Contents
Task 1: Set Exchange Database Properties to Allow a Recovery ............................ 56.
Task 2: Select a Backup Version (Optional) ............................................................. 57.
Task 3: Check or Specify the Backup Time (Optional) ............................................. 58.
Example: How Browse Time Affects Files Used for Recovery ........................... 58.
Task 4: View the Required Media Volumes (Optional) ............................................. 60.
Task 5: Set the Recover Options (Optional) ............................................................. 61.
Task 6: Start the Recover Operation......................................................................... 63.
Task 7: Verify the Recovery ...................................................................................... 64.
Recovering the Key Management Server........................................................................ 64.
How to Recover the KMS Database ......................................................................... 64.
Directed Recoveries ........................................................................................................ 65.
How to Configure the NetWorker Administrator Program ......................................... 65.
How to Start a Directed Recover............................................................................... 66.
Replaying Transaction Logs ............................................................................................ 66.
Chapter 5: Mailbox and Public Folder Operations ................................... 69.
Mailbox and Public Folder Backup and Restore Requirements ...................................... 69.
Backing Up Mailboxes and Public Folders ...................................................................... 70.
Using an Input File to Specify Multiple Items for Backup ................................................ 70.
Task 1: Create the Input File..................................................................................... 70.
Task 2: Specify the Input File in the Client Resource ............................................... 72.
Recovering Mailboxes and Public Folders ...................................................................... 73.
Deleted Item Retention ............................................................................................. 73.
Restoring Mailboxes and Public Folders................................................................... 73.
Directed Recovery of a Mailbox or Public Folder from a Database Backup.................... 74.
Software and Hardware Requirements ..................................................................... 74.
How to Prepare the NetWorker Server for the Recover Operation ........................... 74.
How to Set Permissions for Public Folder Recovers................................................. 75.
How to Recover a Mailbox ........................................................................................ 76.
How to Recover a Public Folder................................................................................ 77.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
7
Contents
Chapter 6: Backup and Recovery of an
Exchange Server in a Microsoft Cluster ....................................................79.
Using the NetWorker Module in a Microsoft Cluster ........................................................ 79.
Scheduled Backups in a Microsoft Cluster....................................................................... 80.
How to Configure Scheduled Backups within a Microsoft Cluster ............................. 80.
How to Schedule a Backup within a Microsoft Cluster .............................................. 80.
Manual Backups in a Microsoft Cluster............................................................................ 82.
How to Start a Manual Backup in a Microsoft Cluster ............................................... 82.
How to Change the Virtual Server ............................................................................. 83.
How to Start a Manual Backup from a Command Prompt in a Cluster ..................... 83.
Using an Input File for an Operation in a Microsoft Cluster ....................................... 84.
Example: ............................................................................................................ 84.
Recovering an Exchange Server Database in a Cluster.................................................. 85.
How to Start a Recovery in a Microsoft Cluster ......................................................... 85.
Recovery Recommendations .................................................................................... 86.
Chapter 7: Disaster Recovery.....................................................................87.
Disaster Recovery Scenarios........................................................................................... 87.
Recovery Requirements................................................................................................... 88.
Performing the Recovery ................................................................................................. 89.
Task 1: Install the Operating System on the Exchange Server Host......................... 89.
Task 2: Configure the Exchange Server Host for the Recovery ................................ 91.
Task 3: Recover the Filesystem to the Exchange Server Host ................................. 91.
Task 4: Recover the Exchange Server Data ............................................................. 92.
Chapter 8: Troubleshooting........................................................................95.
Backup or Restore Operation Does Not Start .................................................................. 95.
NetWorker Module Log Files............................................................................................ 96.
Specifying the Level of Diagnostic Output ....................................................................... 96.
Problems with Scheduled Mailbox Backups .................................................................... 97.
8
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Contents
Displaying Client File Index Contents.............................................................................. 98.
Using the Windows 2000 Event Log................................................................................ 98.
Using Windows 2000 Support Tools ............................................................................... 99.
Active Directory Connection Problems ............................................................................ 99.
Monitoring Backups and Recoveries ............................................................................. 100.
Using the Performance Monitor .............................................................................. 100.
Appendix A: Save Set Notation and Command Syntax......................... 103.
Using Save Sets ............................................................................................................ 103.
Save Set Notation ................................................................................................... 104.
Specifying Multiple Save Sets Using an Input File.................................................. 106.
NetWorker Module Backup Commands ........................................................................ 106.
Backup Command Syntax....................................................................................... 106.
NetWorker Module Restore Commands........................................................................ 108.
Appendix B: Messages ............................................................................. 111.
Microsoft Exchange Server Messages .......................................................................... 111.
NetWorker Administrator Messages.............................................................................. 112.
NetWorker Module Messages ....................................................................................... 112.
Glossary ..................................................................................................... 119.
Index ........................................................................................................... 129.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
9
Contents
10
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Preface
This guide provides information on configuring and using the Legato
NetWorker® Module for Microsoft® Exchange 2000 Server.
Audience
The information in this guide is intended for administrators and others
responsible for data storage management for Microsoft Exchange 2000 Server.
This guide assumes that you have a working knowledge of Microsoft
Exchange 2000 Server and the Legato NetWorker client and server software.
To apply the information in this guide, you must first install the NetWorker
Module software on the Microsoft Exchange 2000 Server host computer.
Product Documentation
Legato offers an extensive archive of product documentation at its web site
www.legato.com. Most of the documents are in Adobe Acrobat Portable
Document Format (PDF), and can be viewed by downloading and installing
the Adobe Acrobat Reader. The Reader is available in the /viewers/acroread
directory on the Legato Documentation Suite CD-ROM, or directly from
Adobe at www.adobe.com. To install and use the Reader on the preferred
platform, refer to the instructions in the CD-ROM’s /viewers/acroread/readme.txt
file or at the Adobe web site.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
11
Document Conventions
Document Conventions
This document follows certain conventions for readability and clarity.
•
•
"Typographic Conventions" on page 12 discusses conventions for
shortened product names.
"Typographic Conventions" on page 12 discusses font-related
conventions.
Typographic Conventions
This document uses the following typographic conventions and symbols to
make information easier to access and understand.
Convention
Indicates
Example
boldface
Names of line commands,
daemons, options,
programs, or scripts
The nsradmin command starts the
command line version of the administration
program.
italic in text
Displayed messages are also written to
Pathnames, filenames,
computer names, new terms /nsr/logs/daemon.log.
defined in the Glossary or
within the chapter, or
emphasized words
italic in command A variable that must be
line
provided in the command
line
fixed-width
Examples and information
displayed on the screen
nwadmin -s server-name
media waiting: recover waiting for
8mm 5GB tape volume name
fixed-width, Commands and options that nsr_shutdown -a
boldface
must be typed exactly as
shown
Menu_Name>
Command
A path or an order to follow Volume>Change Mode>Appendable
for making selections in the
GUI
Important:
Information that must be
read and followed to ensure
successful backup and
Important: Use the no_verify option with
recovery of data
extreme caution.
12
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Preface
Information and Services
Legato offers a variety of methods, including electronic, telephone, and fax
support to obtain company, product, and technical information. The Legato
web site provides most of the information that customers might need.
Technical bulletins and binary patches are also accessible on the Legato FTP
site. For specific sales or training needs, e-mail or call Legato.
Legato Service or
Resource
Company &
Technical Binary Product
Training
Bulletins Patches Information Programs
www.legato.com
Yes
Yes
ftp.legato.com
(log in as anonymous)
Yes
Yes
Legato Sales
(650) 210-7000 (option 1)
[email protected]
Legato Education Services
(650) 842-9357
[email protected]
Yes
Yes
Yes
Yes
Technical Support
The Support section of the Legato web site provides contact information,
software patches, technical documentation, and information about available
support programs.
•
•
Customers with an active support agreement have access to TechDialog,
Legato’s integrated product knowledge base. Help with Legato software
issues is also available through Legato Technical Support.
Customers without an active support agreement can contact Support
Sales and Renewal to purchase annual Software Update Subscriptions, or
Legato Technical Support services for per-update/per-incident support.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
13
Licensing and Registration
Licensing and Registration
To license and register Legato products, go to the Legato licensing web site.
For information about licensing and registering this NetWorker Module, refer
to the Legato NetWorker Module for Microsoft Exchange Server Installation Guide,
Release 3.1. To change your contact information, transfer licenses, or inquire
about licensing, contact Legato using one of the following methods.
Licensing and Registration
Contact
Legato licensing web site
http://license.legato.com
Telephone number
(650) 812 6000 (option 3, option 2)a
+31 23 554 8881b
Fax number
(650) 745-1477a
+31 23 554 8808b
E-mail
[email protected]
[email protected]
a. Contact information for Americas, Asia, and Pacific.
b. Contact information for Europe, Middle East, and Africa.
Customer Feedback
Legato welcomes comments and suggestions about software features, the
installation procedure, and documentation. Please send any suggestions and
comments to [email protected] Legato confirms receipt of all e-mail
correspondence. Although Legato cannot respond personally to every request,
all comments and suggestions are considered during product design.
You can help us improve our documentation by completing a brief survey.
Visit the Legato web site at www.legato.com, go to the documentation page, and
click the link to the documentation survey.
14
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 1: NetWorker Module Overview
This chapter gives an overview of how the NetWorker Module backs up and
restores Microsoft Exchange 2000 Server data. It includes the following
sections:
•
•
•
•
•
•
"About the NetWorker Module" on page 15
"NetWorker Module Features" on page 16
"Using the NetWorker Module with NetWorker Software" on page 17
"About Exchange Database Backups" on page 19
"Backup Operations" on page 21
"Restore Operations" on page 24
About the NetWorker Module
The NetWorker Module for Microsoft Exchange Server provides services that
enable the NetWorker software to back up and restore Microsoft Exchange
2000 Server data. Backup and restore operations can be performed while the
Exchange Server is online. The NetWorker Module software integrates this
capability into the centralized data management solution that NetWorker
software provides for distributed, heterogeneous enterprise networks.
Without regular system backups, you risk losing data. Like other computer
data, Microsoft Exchange Server data can be lost due to hardware failures,
software problems, procedural flaws, or operator errors. If the Exchange
Server transaction logs are lost, data can be recovered only to the time of the
last full backup. Without a full backup and logs of the subsequent transactions,
the data cannot be recovered at all. A well-considered backup strategy and
disaster recovery plan can prepare you for restoring Exchange data in the
event that it becomes lost or unavailable.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
15
NetWorker Module Features
NetWorker Module Features
The NetWorker Module provides the following functionality:
1
•
•
•
•
•
•
Disaster recovery for all Exchange Server data
Automatic mount and dismount of information store databases
Interoperability with Microsoft Cluster Server (MSCS)
Graphical user interface (the NetWorker User for Exchange Server
program) and command line interface
Windows Performance Monitor support, including performance counters
of concurrent backup and restore operations
Concurrent, automated installation of the NetWorker Module software
on a large number of client hosts using Microsoft System Management
Server (SMS)
What the NetWorker Module Backs Up and Restores
The NetWorker Module provides backup and restore capability for:
•
•
•
•
•
The Exchange Server information store as a single entity
Individual or multiple Exchange databases and storage groups
Individual or multiple private mailboxes (also called "user mailboxes" or
simply "mailboxes")
Key Management Server (KMS)
Site Replication Server (SRS)
With release 3.1, the NetWorker Module backs up and restores:
•
•
•
Individual items in private mailboxes, such as e-mail messages, tasks,
contacts, and calendar items
Public folders
Individual items in public folders
The primary save and recover operation provided by the Exchange Server is a
database operation, also referred to as an information store (IS) operation. The
IS is the collection of mailbox and public folder databases associated with an
Exchange Server. A database backup uses the Exchange backup API to save all
information in a database, and it also manages the log files. Restoring a
database backup is the only way to recover from a disaster situation. The
NetWorker Module's primary role is to provide the mechanism that integrates
the Exchange database backup technology with the Legato NetWorker feature
set.
16
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 1: NetWorker Module Overview
Items in mailboxes and public folders can be recovered from a database
backup. However, this requires recovering the entire database to a separate
recovery server (see "Directed Recoveries" on page 65). To solve this problem,
the NetWorker Module also provides support for item-level backup of
mailboxes and public folders. When you perform a mailbox or public folder
backup, all items are backed up individually. This allows for easy recovery of
any items in the mailbox or public folder to the original Exchange server.
Note: Item level backups cannot be used to restore a database or perform a
disaster recovery; only database backups can be used to recover from a
disaster.
Other things to keep in mind about mailbox/public folder level backups
include:
•
•
•
They take much longer than a database backup, and have a negative
impact on the memory and CPU of the Exchange Server while it is
running.
They do not take advantage of the Exchange concept of single-instance
storage, and the save sets produced may be many times the size of the
original data.
They rapidly increase the size of the NetWorker client file index. This
may require additional disk space on the NetWorker server.
Important: Anything under the information store hierarchy (MSEXCH:IS/...) is
backed up and recovered at the database level. This also includes Site
Replication Server (MSEXCH:SRS) and Key Management Server
(MSEXCH:KMS) because these applications use the Exchange backup API.
Objects under the private mailboxes (MSEXCH:MB/...) or public folder trees
(MSEXCH:PF/...) hierarchy are backed up and recovered at the item level. You
cannot perform an item level recover operation unless you have performed an
item level backup operation.
Using the NetWorker Module with NetWorker Software
The NetWorker software provides back up and restore capability for
filesystem data only. A filesystem backup, however, does not save Exchange
Server data in recoverable form.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
17
1
Using the NetWorker Module with NetWorker Software
This NetWorker Module is an extension of the NetWorker software that
connects the NetWorker software to the Exchange Server for the purpose of
backing up and restoring Exchange data.
1
The Exchange Server software can reside on either the same computer as the
NetWorker server software, or on a separate computer. In general, it is best to
have the NetWorker server software and Exchange Server software on different
computers.
However, the NetWorker Module and the NetWorker client software must be
installed on the same computer as the Exchange Server software. Figure 1
provides a sample configuration with the NetWorker Module on the Exchange
Server host, and the NetWorker server on a separate computer.
Figure 1. NetWorker Module Software on the Exchange Server Host
NetWorker
Storage Node
NetWorker Server Host
(UNIX or Windows)
NetWorker Client
for Windows 2000
Microsoft Exchange 2000
Server
NetWorker Module
for Exchange 2000 Server
LAN or WAN
NetWorker Client
for Windows 2000,
Windows NT 4.0,
or Windows 9x
NetWorker Client
for UNIX
NetWorker Client
for NetWare
In addition, the Exchange Server host computer must be configured as a client
of the NetWorker server. For configuration information, refer to the Legato
NetWorker Administrator’s Guide.
18
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 1: NetWorker Module Overview
About Exchange Database Backups
The Exchange Server application programming interface (API) and the
NetWorker Module define backup levels in terms of operations involving
databases and transaction logs. This is different than how the NetWorker
software defines and uses backup levels. For information about NetWorker
backup levels, refer to the Legato NetWorker Administrator’s Guide.
Exchange Server databases can be backed up at four different levels: full, copy,
incremental, and differential (see Table 1). Databases must be backed up at
level full or copy before an incremental or differential backup can be
performed.
Important: Private mailboxes, public folders, and the individual items they
contain, can only be backed up at level full. For more information on
operations involving mailboxes and public folders, see "Chapter 5: Mailbox
and Public Folder Operations" on page 69.
Table 1. Exchange Server Database Backup Levels
Exchange Server
Backup Level
Full
Backs Up
Committed Transaction
Logs Truncated After
Backup
All databases and
transaction logs
yes
Incremental
All transaction logs
created since the last
backup
yes
Differential
All transaction logs
created since the last
full or incremental
backup
no
Copy
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
no
19
1
Exchange Transaction Log Files and Truncation
Exchange Transaction Log Files and Truncation
In the standard transaction logging Exchange uses, each database transaction
in a storage group is written to a transaction log file and then to the database.
When a log file reaches 5 MB, a new log file is started. As the number of
transactions grows, log files accumulate. Transactions may be recovered by
restoring the data from the log files.
1
Exchange transaction log files are stored on the Exchange Server host
computer. Because transaction log files may accumulate quickly over time, the
Exchange Server software allows transaction log files to be truncated (deleted)
to shorten backup and recover times and conserve disk space. For this reason,
after any successful full or incremental backup, the NetWorker Module
software truncates those transaction log files containing transactions that have
already been committed to the Exchange database.
The NetWorker Module can perform a database backup at any of the available
backup levels. Table 1 on page 19 summarizes the function of each backup
level.
Important: Never manually delete transaction logs. You can only delete
transaction logs by performing a full or incremental backup.
Circular Logging
Circular logging is an Exchange Server operation that overwrites and reuses
the first log file after the data it contains has been written to the database.
Circular logging is disabled by default. By enabling circular logging, you
reduce drive storage space requirements. However, without complete
transaction log files, you cannot recover anything more recent than the last full
backup. Therefore, in a normal production environment, circular logging is not
recommended. It is used primarily for public folder stores that hold Network
News Transfer Protocol (NNTP) news feeds, where log file sets are not
required.
It is strongly recommended that you disable circular logging in Exchange 2000
Server. Exchange 2000 Server does not permit incremental or differential
backups if circular logging is enabled.
For information about disabling circular logging, refer to the Microsoft
Exchange 2000 Server documentation.
20
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 1: NetWorker Module Overview
Backup Operations
Like the NetWorker server software, the NetWorker Module enables you to
perform scheduled backups as well as unscheduled, or manual, backups. Only
scheduled backups automatically save all the information the NetWorker
software needs to restore an entire filesystem in the event of a disaster. A
manual backup does not automatically save the NetWorker client file indexes
or generate a NetWorker bootstrap file.
Manual Backups
You can request a backup independent of scheduled backups. This is called a
manual backup. In this case, the NetWorker Module begins the backup
immediately. For more information, see "Chapter 2: Manual Backups" on
page 29.
You can start a manual backup using either of two interfaces running on the
Exchange Server host:
•
•
The NetWorker User for Exchange Server program, the NetWorker Module
graphical user interface.
For information on how to use this program for manual backups, see
"Performing a Manual Backup" on page 30.
A Windows command prompt (the cmd.exe command line interface). For
information on how to start a manual backup from a command prompt,
see "NetWorker Module Backup Commands" on page 106.
Scheduled Backups
You can set up a backup to start automatically at a particular time. This is
called a scheduled backup.
•
To set up a scheduled backup, you must use the NetWorker
Administrator program, which is the graphical user interface for the
NetWorker software. For more information, see "Chapter 3: Scheduled
Backups" on page 39.
How Backups Work
When a scheduled backup for a Microsoft Exchange Server client is triggered
by nsrd on the NetWorker server, savegrp executes the NetWorker Module
backup command (nsrxchsv) on the client instead of performing a standard
save. The nsrxchsv program sends the backup data received from Microsoft
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
21
1
How Backups Work
Exchange Server to the NetWorker server through an X-Open Backup Services
Application Programming Interface (XBSA). The final results of the savegrp
execution are sent back to the server and are included in the savegroup
completion report, which is sent according to the notification set up in the
NetWorker Administrator program for the Savegroup event.
1
The NetWorker software performs the scheduling and storage management
tasks. The NetWorker Module software passes the data from the Microsoft
Exchange Server to the NetWorker server. Figure 2 shows the functional
relationship between the NetWorker server, the NetWorker Module, and the
Microsoft Exchange Server during a scheduled backup.
Figure 2. NetWorker Client/Server Interaction
During a Backup Initiated by the NetWorker Module
NetWorker Client
Microsoft Exchange Server
Databases and Logs
NetWorker Server
File
Media
Index
Database
NetWorker
Backup
XBSA
Restore nsrxchsv
Interface
Storage
Media
nsrindexd
nsrmmdbd
nsrmmd
nsrexecd
savegrp
nsrd
Legend
xxxx
service
interprocess
communication
data
Running Backups in Parallel
For a given operation, the NetWorker server software starts a separate backup
process on the client host for each save set specified. For example, if you open
the NetWorker Administrator program and specify MSEXCH:IS in the Save Set
22
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 1: NetWorker Module Overview
attribute on the General tab of the client resource, the server software starts one
process on the client host to back up the entire Exchange Server Information
Store.
If multiple save sets are specified, the server starts a corresponding number of
processes in parallel on the client host. For example, specifying two storage
groups for backup causes the server to start two backup processes in parallel:
one for each storage group. Thus you can back up all the storage groups on the
Exchange server in parallel. However, you cannot back up multiple databases
within the same storage group in parallel.
Backup Recommendations
The log files for a storage group contain the database transactions for all
mailbox stores or public folder stores in the group. For this reason, the storage
group is the best unit for backup, because backups automatically include the
transaction logs for all mailbox stores or public folder stores in the group.
To improve post-recovery processing of Exchange databases, minimize the
number of transaction logs that are backed up by increasing the frequency of
full backups. As a rule of thumb, schedule a full backup when there are more
than 50 log files.
It is strongly recommended that you use the NetWorker client/server
software to schedule regular, frequent backups of the following critical
Windows 2000 components on both the Exchange Server host and the domain
controller for that host:
•
•
•
•
The Windows system partition (the drive on which Windows is installed,
for example, C:). This includes the Windows system directory.
SYSTEM STATE (this includes the Active Directory). A backup of the
Active Directory is required whenever configuration changes are made.
SYSTEM FILES
SYSTEM DB
It is important to back up these components at the same time. The easiest and
safest way to do this is to open the NetWorker Administrator program and
specify All in the Save Set attribute on the General tab of the client resource
used for the filesystem backup (see "Task 2: Create a Client Resource" on
page 42 for instructions). When you restore these components, it is also
important to restore them all at the same time. Failure to back up or recover
these components together will yield unpredictable results.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
23
1
Restore Operations
Note: The save set MSEXCH:DS is obsolete in NetWorker Module release 3.0
and later, because Exchange 2000 Server stores directory information in the
Active Directory, instead of in its own directory store.
1
For more information about backing up and recovering the Windows 2000
components and filesystem, refer to the sections specific to Windows 2000 in
the Legato NetWorker Administrator’s Guide, Windows Version.
Restore Operations
Using the NetWorker Module with NetWorker software and the Exchange
Server, you can initiate a restore operation of Exchange data at any time. For
more information, see "Chapter 4: Restoring Data from a Backup" on page 55.
Restore and Recover Phases
Strictly speaking, recovery is the process that returns backed-up data to its
previous state, so that data is once again accessible for designated users
running the Exchange Server software. The recovery process occurs in two
main phases:
•
•
24
The restore operation, which is performed by the NetWorker Module
software—In the restore phase, the NetWorker Module retrieves
backed-up data from a storage device and copies the data to a specified
destination so that it is available to the Exchange Server software. (At this
point the data is not yet accessible by Exchange users).
The subsequent recover operation, which is performed by the Exchange
Server software—In the recover phase, the Exchange Server software
processes the data restored by the NetWorker Module. Exchange applies
any restored transaction logs to the restored databases as necessary,
ensuring the databases are consistent. This returns the Exchange Server
objects to the state they were in at the time of the backup.
With the NetWorker Module software, depending on the context,
"recover" refers to either:
• The processing by the Exchange Server software of the data restored
by the NetWorker Module software.
• The entire process that begins with the NetWorker Module restore
operation and ends with the Exchange objects returned to the state
they were in at the time of the backup—at which point the data is
once again accessible by Exchange users.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 1: NetWorker Module Overview
How Restores Work
A restore request invokes the NetWorker Module recover command, nsrxchrc.
The NetWorker XBSA API translates the object names requested by the
NetWorker Module into a format the NetWorker software understands, and
forwards them to the NetWorker server nsrd service. The media service,
nsrmmd, invokes nsrmmdbd to search the NetWorker server’s online media
database for the media volumes that contain the objects requested.
After the media is mounted, nsrmmd sends the data through the NetWorker
XBSA API to nsrxchrc, which recovers the data to the Microsoft Exchange
Server directories.
Figure 3 shows how data moves from the NetWorker server to the Exchange
server during a NetWorker Module restore session.
Figure 3. NetWorker Client/Server Interaction
During a Recovery Initiated by the NetWorker Module
NetWorker Client
Microsoft Exchange Server
Databases and Logs
NetWorker Server
File
Media
Index
Database
Backup
NetWorker
Restore nsrxchrc
XBSA
Interface
Storage
Media
nsrindexd
nsrmmdbd
nsrmmd
nsrd
Legend
xxxx
service
interprocess
communication
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
data
25
1
Recovering Component Objects from a Backup
Recovering Component Objects from a Backup
The choice of which Exchange objects get backed up determines the objects
that can be recovered. This is due to the way the Exchange Server processes
and stores data. It is important to understand this when configuring Group
and Schedule resources in the NetWorker Administrator program for
scheduled backups.
1
When backing up the IS, storage groups, and databases, keep the following in
mind.
•
•
•
•
26
The IS can be backed up as a single entity. From an IS backup, the
NetWorker Module software can restore individual or multiple storage
groups or databases, but not private mailboxes or public folders. To
restore private mailboxes and public folders from a database backup,
perform a directed recover of the database. See "Directed Recoveries" on
page 65 for instructions.
The IS cannot be recovered from a backup of multiple private mailboxes
or public folders.
A mailbox store (a database containing several mailboxes) can be
recovered only from the following backups:
– Entire Exchange Server
– Storage group that contains the mailbox store
– Mailbox store as a single entity
A mailbox store cannot be recovered from an operation that backs up
every mailbox in the store separately.
Similarly, a public folder store (a database containing several public folders)
can be recovered only from the following backups:
– Entire Exchange Server
– Storage group that contains the public folder store
– Public folder store as a single entity
Note: A database cannot be recovered from a backup of individual objects
in the database. For example, a public folder store cannot be recovered
from a backup of every individual, separate public folder.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 1: NetWorker Module Overview
Table 2 lists the Exchange objects that can be backed up and recovered.
Table 2. Objects Recoverable from Backups
1
Objects Recoverable
from the Backup
Object Backed Up
Information Store (IS)
• IS (all storage groups and databases)
• One or more storage groups
• One or more databases, for example, a public
folder store and a mailbox store
• One or more mailboxes and public folders
(by performing a directed recover operation,
as described in "Directed Recovery of a
Mailbox or Public Folder from a Database
Backup" on page 74)
Storage group
• The storage group
• One or more databases in the storage group,
for example, a public folder store
All public folders
• Each public folder tree
• A specific public folder
• Public folder items
A public folder hierarchy
• Public folder hierarchy
• One or more folders in the public folder store
• One or more items in the public folders
A single public folder
• The public folder
• Individual items in the public folder
A private mailbox
• One or more mailboxes
• One or more folders or items in the mailbox
A single mailbox
• The mailbox
• Individual items in the mailbox
One or more individual
mailbox items or public folder
items
The individual items
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
27
Recovering Component Objects from a Backup
1
28
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 2: Manual Backups
This chapter describes how to use the NetWorker User for Exchange Server
program for manual backups. This chapter includes the following sections:
•
•
"About Manual Backups" on page 29
"Performing a Manual Backup" on page 30
About Manual Backups
You can initiate a backup at any time, independent of a schedule. An
unscheduled backup is called a manual backup because it begins immediately.
Manual backups are sometimes called on-demand or ad hoc backups. When a
backup is started manually, items marked for backup are processed
sequentially.
The best way to protect Exchange Server data is to schedule backups to occur
automatically on a regular basis. For this reason, manual backups are
generally performed only when you do not want to wait until the next
scheduled backup. Although you will probably not perform manual backups
often, the procedure is introduced here to get you started quickly with using
the NetWorker Module software. Scheduled backups are configured in the
NetWorker Administrator program. For information on configuring
scheduled backups, see "Chapter 3: Scheduled Backups" on page 39.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
29
Performing a Manual Backup
Performing a Manual Backup
You can perform a manual backup from either of two interfaces on the
Exchange Server:
•
2
•
NetWorker User for Exchange Server program, the NetWorker Module
graphical user interface. To use the NetWorker User for Exchange
program to perform a manual backup, see "Task 1: Open the NetWorker
User for Exchange Server Program" below.
Windows command prompt (the cmd.exe command line interface) on the
NetWorker client host. To start a manual backup from a command
prompt, see "NetWorker Module Backup Commands" on page 106.
For instructions on performing backups and restores from the command line,
see "Appendix A: Save Set Notation and Command Syntax" on page 103.
To perform a manual backup, complete the following tasks:
•
•
•
•
•
"Task 1: Open the NetWorker User for Exchange Server Program" on
page 30
"Task 2: Configure the Backup" on page 31
"Task 3: Set the Backup Options" on page 34
"Task 4: Start and Monitor the Backup" on page 37
"Task 5: Complete the Backup Process" on page 38
Task 1: Open the NetWorker User for Exchange Server Program
1. From the Windows Start menu, open the NetWorker User for Exchange
Server program. The main window appears, as shown in Figure 4 on
page 31.
2. The NetWorker server to which the NetWorker client is currently
connected appears at the bottom of the main window in the status bar. To
specify a different NetWorker server, select Select NetWorker Server from
the Operation menu, as shown in Figure 4 on page 31.
30
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 2: Manual Backups
Figure 4. Main Window: Select NetWorker Server
2
3. Select a server from the list and click OK.
The name of the server appears in the status bar at the bottom of the main
window.
Task 2: Configure the Backup
1. Click the Backup button on the toolbar, as shown in Figure 5.
Figure 5. Main Window: Backup Button
The Backup window opens, as shown in Figure 6 on page 32. In the
Backup window, you can browse Exchange Server objects that can be
backed up, mark objects for backup, and start a backup operation. The
Backup window displays Exchange objects in a hierarchy, similar to the
way drive letters, folders, subfolders, and individual files are depicted in
the Windows Explorer interface.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
31
Task 2: Configure the Backup
Figure 6. Backup Window
2
2. Click the plus sign next to any object to expand the object to the next
sublevel. For example, click the plus sign next to Microsoft Exchange
Server, then expand a storage group to see the databases in the storage
group. You can browse and mark objects down to the individual items in
mailboxes and public folders.
3. Mark the Exchange objects to back up. To mark an Exchange object, either:
•
•
•
Click the check box next to the object.
Right-click the object and select Mark.
Click the object you want to back up or restore. Then do one of the
following:
— Select Mark from the File menu.
— Click the Mark button on the toolbar.
Table 3 on page 33 indicates the correspondence of what is marked to what
is backed up. For example, marking the Information Store specifies a
backup (which occurs sequentially) of all databases contained in every
storage group on the Exchange Server. Marking a storage group specifies
a (sequential) backup of each database in the storage group.
32
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 2: Manual Backups
Keep the following in mind when marking items:
• Marking an item automatically marks all sub-items.
• An item is partially marked if some, but not all, sub-items are
marked.
• Marking all sub-items will automatically mark the item above it.
Table 3. Effect of Marking Particular Exchange Objects
To Back Up...
2
Mark This Object
All databases in all storage groups Information Store
All databases in a particular
storage group
<storage_group_name>
A particular database
<database_name>
All private mailboxes
Private Mailboxes
A particular mailbox
<mailbox_name>
A particular mailbox item
<mailbox_item_name>
All public folders
Public Folder Trees
A particular public folder
<public_folder_name>
A particular public folder item
<public_folder_item_name>
For information on which objects must be backed up for successful
recoveries, see "Exchange Transaction Log Files and Truncation" on
page 20.
Note: The Backup window does not retain the marking of objects once the
window is closed. If you close and reopen the Backup window, you must
select Exchange objects anew for the next backup operation.
4. (Optional) To unmark an item, select it and then click Unmark. With a
multibutton mouse, the secondary button alternately marks and unmarks
objects.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
33
Task 3: Set the Backup Options
Task 3: Set the Backup Options
1. Click the Backup button on the toolbar.
2. In the Backup window, select Backup Options from the Options menu.
3. In the Backup Options dialog box, shown in Figure 7, set the backup
options. The Backup Options dialog box has three tabs, providing options
for Exchange, NetWorker, and NetWorker Module.
Note: When marking Exchange objects for backup, the Backup window
does not retain the backup options selected once the Backup window is
closed. If you close and reopen the Backup window, you must specify
backup options anew for the next backup operation.
2
4. For backing up one or more databases (not individual mailbox items or
public folder items), set the backup level in the Exchange tab, shown in
Figure 7. Click the level you want for this backup: full, copy, incremental,
or differential. For a description of these levels, see Table 1 on page 19.
Note: The first backup of Exchange Server data is always a full backup.
Figure 7. Backup Options Dialog Box: Exchange Tab
34
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 2: Manual Backups
5. Set backup options that pertain to the NetWorker software in the
NetWorker tab, shown in Figure 8.
•
•
•
•
•
Save Set Expiration Time — Specify how long save set entries are
browsable and the associated media volumes are excluded from
automatic recycling. The expiration time cannot be set if the browse
time or retention time is set.
Save Set Browse Time — Specify how long save set entries are
browsable. The browse time cannot be set if the expiration time or
retention time is set.
Save Set Retention Time — Specify how long save set entries are
excluded from automatic recycling. The retention time cannot be set
if the expiration time or browse time is set.
Group Selection — Specify the group that NetWorker server saves
the backup data to. NetWorker server saves the data to the pool
associated with the group selected. This option cannot be set if the
Pool option is set.
Pool Selection — Specify the pool that NetWorker server saves the
backup data to. This option cannot be set if the Group option is set.
Figure 8. Backup Options Dialog Box: NetWorker Tab
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
35
2
Task 3: Set the Backup Options
6. Set backup options that pertain to the NetWorker Module software in the
NetWorker Module tab, shown in Figure 9 on page 37.
•
•
2
•
36
Diagnostic Output Level — Specify the amount of diagnostic output
that will appear in the Backup Status window and be saved in the
<NetWorker_install_path>\applogs\nsrxchsv.log file. In general, set this
level above zero only when you are troubleshooting or closely
monitoring a backup.
Input File — Specify an input file to configure a scheduled backup of
a large number of individual Exchange components, such as multiple
private mailboxes (rather than the entire mailbox database). The -I
input-file command option reads the database, mailbox, and/or public
folder names to be backed up from the Input file. For more
information on input files, see "Using an Input File to Specify
Multiple Items for Backup" on page 70.
Temporary Folder Location — Specify the folder for temporary files
during the backup operation.
The NetWorker Module creates temporary files during any backup
that includes one or more individual mailboxes, mailbox folders,
and/or mailbox items. A temporary file as large as 2 GB may be
created during backup of a single large mailbox or mailbox folder.
The default location of these temporary files is
<NetWorker_install_path>\tmp.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 2: Manual Backups
Figure 9. Backup Options Dialog Box: NetWorker Module Tab
2
7. After setting the appropriate backup options, click OK to save the settings
and exit the Backup Options dialog box.
Task 4: Start and Monitor the Backup
1. After marking objects and setting the backup options, click the Start
button.
2. During the backup, you can monitor the progress of the backup in the
Backup Status window of the NetWorker User program. Figure 10 on
page 38 shows a Backup Status window indicating a successful backup.
3. You can cancel a backup at any time by selecting End Backup from the File
menu or by closing the Backup browse window while the backup is in
progress.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
37
Task 5: Complete the Backup Process
Task 5: Complete the Backup Process
1. After the backup is finished, close the Backup Status window shown in
Figure 10.
Figure 10. Backup Status Window
2
38
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 3: Scheduled Backups
This chapter explains how to use the NetWorker Module software with the
NetWorker Administrator program to configure scheduled backups. It
includes the following sections:
•
•
•
•
•
•
•
"About Scheduled Backups" on page 39
"Windows and Exchange Permissions for Mailbox Backups" on page 40
"Configuring a Scheduled Backup" on page 40
"Windows and Exchange Permissions for Mailbox Backups" on page 40
"Excluding the Exchange Installable File System from Backups" on
page 51
"Creating Custom Directives" on page 51
"Improving Performance" on page 53
About Scheduled Backups
The most reliable way to protect Exchange data is to configure backups to start
and run automatically at regular intervals. As with filesystem backups,
scheduled backups of Exchange data are configured using the NetWorker
Administrator program (the graphical user interface for the NetWorker
software). The process of scheduling Exchange backups is similar to
scheduling regular filesytem backups, and requires a working knowledge of
the NetWorker client and server software.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
39
Windows and Exchange Permissions for Mailbox Backups
Windows and Exchange Permissions for Mailbox Backups
To perform a mailbox backup, the Windows domain account you use to log on
to the NetWorker server host must:
•
•
Belong to the Backup Operators group of Windows users
Have permissions for Exchange 2000 Server and the Exchange private
mailbox database
Configuring a Scheduled Backup
This section explains how to configure scheduled backups of the Information
Store, Key Management Server (if installed) and Site Replication Server (if
installed). Perform the steps in this section in the NetWorker Administrator
program. The major tasks are:
3
"Task 1: Create a Group Resource" on page 40
"Task 2: Create a Client Resource" on page 42
"Task 3: Create a Schedule and Set the Backup Level" on page 46
"Task 4: Test the Configuration" on page 49
For detailed instructions on configuring NetWorker resources, refer to the
Legato NetWorker Administrator’s Guide.
Task 1: Create a Group Resource
In the NetWorker Administrator program, you need to create one or more
backup Group resources for the Exchange Server data. The Group resource
defines the backup start time, backup level, and schedule.
To create a group resource:
1. In the NetWorker Administrator program, click Manage Groups from the
Configure tab.
2. Right-click the main Groups icon, and select Create from the pop-up
menu. The Create Group dialog box appears, as shown in Figure 11 on
page 41.
40
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 3: Scheduled Backups
Figure 11. Create Group Dialog Box
3
3. For the Name attribute, enter the name of the group.
4. The optional Comment attribute can be used to enter a description of the
group.
5. For the Start Time attribute, enter a new time, unless you want to keep the
default time of 3:33 a.m.
6. For the Autostart attribute, select Enabled.
7. For the Client Retries attribute, change the number of retries, if necessary.
This value specifies the number of times the NetWorker software attempts
to back up a failed client.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
41
Task 2: Create a Client Resource
8. Select a backup level in the Level attribute or select a schedule with the
levels that you want in the Schedule attribute.
a. If the Level and Schedule attributes are not visible, close the Create
Group dialog box.
b. In NetWorker Administrator, open the Options menu, select
Customize, and click the Window Configurations tab.
c. Select the Display Hidden Attributes option.
d. Click Ok to save your setting and exit.
e. Re-open the Create Group dialog box. The Level and Schedule
attributes are visible. Select the level or schedule you want.
9. Click the Preferences tab.
10. For the Clones attribute, select Yes if you want to automatically clone the
group’s backed-up data.
3
Note: If you select No, do not complete the subsequent clone-related
attributes.
11. For the Clone Pool attribute, select the appropriate clone pool for the
cloned data (requires cloning to be enabled).
12. Complete the other attributes as necessary and click OK.
When you select a start time for your different groups, make sure you schedule
them far enough apart so that one group has completed backing up before the
next group starts.
When you finish creating a backup group, the group appears as a choice in the
Create Client dialog box (see Figure 12 on page 43) where you assign each
client individually to a group.
Task 2: Create a Client Resource
Each Exchange Server host must be set up as a NetWorker client. Create and
configure a Client resource in the NetWorker Administrator program for the
Exchange Server on which the NetWorker Module is installed.
The NetWorker software provides a preconfigured backup Group resource
named Default. You can use the Default group for Exchange backups,
although it might not be best for segregating and organizing data into
subgroups. You can modify the Default group’s attributes, but you cannot
delete the Default group from the list of NetWorker groups.
42
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 3: Scheduled Backups
To create a client resource:
1. In the NetWorker Administrator program, click Manage Clients from the
Configure tab.
2. Right-click the Clients icon, and select Create. The Create Client dialog box
appears, as shown in Figure 12.
Figure 12. Create Client Dialog Box
3
3. In the Name attribute, enter a name for the client. Often, this is the client’s
hostname.
4. The Comment attribute can be used to enter a description of the client.
This may be helpful to distinguish multiple Clients resources that use the
same name.
5. In the Save Set list, enter the name of the save sets for the Exchange Server
objects that you want backed up on this client.
Note: Until release 3.0 of this NetWorker Module software, a full backup
was always performed when MSEXCH: was specified. In release 3.0 and
later, the backup level specified in the backup group schedule is used.
For further information on save set specifications, see "Appendix A: Save
Set Notation and Command Syntax" on page 103.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
43
Task 2: Create a Client Resource
6. From the Group list, select a group to which the client will be added. For
information on creating group resources, see "Task 1: Create a Group
Resource" on page 40.
7. From the Schedule list, select a schedule. For information on creating
schedules, see "Task 3: Create a Schedule and Set the Backup Level" on
page 46.
8. From the Directive list, select a directive. For more information on creating
directives, see "Creating Custom Directives" on page 51.
9. From the Browse Policy list, select a browse policy. Preconfigured values
are: Week, Month, Quarter, Year, and Decade. If you created custom
policies, they appear in this list.
10. From the Retention Policy list, select a retention policy. Preconfigured
values are: Week, Month, Quarter, Year, and Decade. If you created
custom policies, they appear in this list.
3
11. Select the Preferences tab, as shown in Figure 13.
Figure 13. Preferences tab
44
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 3: Scheduled Backups
12. In the Archive Users list, enter each user that is authorized to use the
archive services. If no users are listed, then only administrators are
allowed to use the archive services on the client. The \ and @ characters
are not allowed in the user names for this attribute.
13. In the Aliases list, enter the nicknames for the client computers that
queries can match. Otherwise, queries match only the client name.
14. If a storage node exists, enter the name of each storage node to which the
client can back up data in the Storage Nodes list. The client backs up to
each active enabled storage node in the order they appear in the list. The
default storage node, nsrserverhost, represents the server.
15. If cloning is desired, enter the storage node names for cloned data in the
Clone Storage Nodes list in the same manner as the previous step .
16. Select the Remote tab, as shown in Figure 14.
3
Figure 14. Remote Tab
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
45
Task 3: Create a Schedule and Set the Backup Level
17. In the Remote Access list, enter users who are allowed to back up and
recover this client’s files. If left empty, only users logged into this client are
valid.
Note: If you already have NetWorker administrator rights, you
automatically have remote access rights.
18. In the Remote User attribute, enter the domain\username of the remote
users that can run remote commands on this client and access application
specific data. This step is only required for mailbox backups.
19. In the Password attribute, enter the password for the Remote User
account. The Remote User account must have a non-blank password. This
step is only required for mailbox backups.
20. In the Backup Command attribute, enter the NetWorker Module backup
command and any command options that you need. For example:
3
nsrxchsv.exe
21. (Optional) In the Executable Path attribute, enter the path to the NSR
executables on this client. For example:
<NetWorker_install_path>\nsr\bin
22. Complete any other attributes as necessary and click OK.
Task 3: Create a Schedule and Set the Backup Level
The NetWorker server backs up each client computer across your network
according to a backup schedule. A client’s backup schedule tells the
NetWorker software what level of backup operation (for example, full or
incremental) to perform on a given day for specified save sets.
The type and scope of the backup is determined by the backup level you
specify. These levels can be set to back up a client’s entire filesystem, or only
data that has changed since the last full backup.
You customize each client’s backup schedule in the Schedules dialog box to
best suit your needs. For example, some clients may have data you want to
back up at the full level every three days, with incremental backups
in-between. Other clients may have less critical data that only needs a full
backup once a month, with incremental backups and/or level backups on
other days.
Backing up Exchange Servers can take several hours because of the size of
items that must be backed up. A full backup takes longer than an incremental
or differential backup. Generally, the backup schedule is set so that a full
46
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 3: Scheduled Backups
backup of each Exchange Server is performed periodically, for example, once
a week. Incremental or differential backups, may be performed more
frequently, usually once a day.
If there’s a particular group that you want backed up at the same level every
time, you don’t need to use the Schedules dialog box. Instead, you can set the
backup level using the Level attribute in the Edit Group dialog box (see Figure
16 on page 49).
To create a backup schedule:
1. In the NetWorker Administrator program, click Manage Schedules from
the Configure tab.
2. Right-click the main Schedules icon, and select Create. The Create
Schedule dialog box appears, as shown in Figure 15.
3
Figure 15. Create Schedule Dialog Box
3. For the Name attribute, enter the name of the schedule.
4. The optional Comment attribute can be used to enter a description of the
schedule.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
47
Task 3: Create a Schedule and Set the Backup Level
5. For the Period attribute, select Week or Month. The value you select
changes the way levels set for each day are duplicated:
•
•
Week — Levels selected for each day of the week are duplicated to
the corresponding day of each subsequent week. For example, if you
select a full backup for a Friday, every Friday is configured for a full
backup.
Month — Levels selected for each date in the month are duplicated to
the corresponding date in each subsequent month. For example, if
you select a full backup for the first of the month, every month has a
full backup on the first of the month.
6. Select a backup level for each day of the period (week or month) displayed
in the Schedules dialog box:
a. Select the day.
b. Click the Set Level button.
c. Select the appropriate backup level and click OK.
3
7. Click Prev Month or Next Month to see the backup calendars for
preceding or future months.
8. Click OK.
You can set up as many NetWorker backup schedules as you want, as long as
you give each one a unique name.
To assign a backup schedule to a client, you must assign the appropriate
schedule for the Schedule attribute in the Create Client or Edit Client dialog
box.
To back up a group at the same level every time:
1. In the NetWorker Administrator program, click Manage Groups from the
Configure tab.
2. Right-click the icon of the group you want to edit, and select Edit. The Edit
Group dialog box appears, as shown in Figure 16 on page 49.
48
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 3: Scheduled Backups
Figure 16. Edit Group Dialog Box
3
3. Select a backup level in the Level attribute and click OK.
Task 4: Test the Configuration
You can test the backup configuration by starting a scheduled backup group
manually (on demand). Each client in the group is backed up at a level
corresponding to the level for the day of the manual backup. This is defined by
the schedule identified in the client’s Schedule attribute (see Figure 12 on
page 43).
To start a backup group manually:
1. In the NetWorker Administrator program, click Manage Groups from the
Configure tab.
2. Right-click the group you want to start, and select Start.
3. Click Yes to start the group.
NetWorker immediately backs up the clients in the group, overriding the
scheduled backup start time.
Refer to the Legato NetWorker Administrator’s Guide for detailed information on
starting backup groups.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
49
Checking Backup Results
Note: You can write the results of a scheduled backup to a log file by entering
the following in the Action attribute of the Create Notification dialog box:
nsrlog -f filename
Refer to the Legato NetWorker Administrator’s Guide for details on using the
NetWorker administration program to customize your notifications.
Checking Backup Results
NetWorker provides several methods of verifying the results of a backup:
•
•
3
A series of messages written to the NetWorker Module for Exchange
Server log files on the Exchange Server host (nsr\applogs\nsrxchsv.log).
A scrolling list of messages displayed in the Group Control window of
the NetWorker administration program.
These messages are displayed in three lists: pending save sets, completed
save sets, and failed save sets.
•
•
A “savegroup completion” notice upon completion of a scheduled
backup.
The backup level that was specified can be viewed in the Volumes tab or
Indexes tab in the NetWorker Administrator program. Table 4 shows the
media database notation for each backup level.
Table 4. Media Index Entries for Backup Levels
Backup Level
50
Notation in
NetWorker Media Database
Full
full
Copy
copy
Incremental
incr
Differential
diff
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 3: Scheduled Backups
Excluding the Exchange Installable File System from
Backups
In Exchange 2000 Server, the Exchange Installable File System (ExIFS) allows
file level access to various items in the Information Store. In Windows (for
example, in Windows Explorer), the ExIFS is displayed as a disk drive, using
the drive letter M:.
A scheduled filesystem backup attempts to back up files on the M: drive. This
will not be successful because the Information Store files will have many of its
files open. It is also not possible to restore the Exchange Server databases by
recovering a backup of the ExIFS. For this reason it is usually best to skip ExIFS
during a filesystem backup. This can be done easily by creating a custom
directive. See "Creating Custom Directives" below for instructions.
3
Creating Custom Directives
Directives are special programs that control how the NetWorker server
processes files and directories during backup and recovery. A directive
contains instructions to assist the backup process, maximize the efficiency of a
backup, and handle special files.
There are two types of directives: local and global.
•
•
Local directives reside on the NetWorker client filesystem, and are stored
in local directive files named nsr.dir. Each directory on the filesystem that
requires a local directive must have a local directive file residing in the
directory.
Global directories are resources that reside on the NetWorker server, and
are configured in the Directive resource of the NetWorker Administrator
program. Directive resources are then specified in the Directive attribute
of the Client resource for each NetWorker client.
Both local and global directives use the same format, except that global
directives contain an additional line indicating the directory on the client
computer that is acted upon by the directives. This additional line uses the
format <<directory>>.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
51
How to Create a Custom Directive
How to Create a Custom Directive
To create a custom directive to skip the file system backup of ExIFS as
discussed in "Excluding the Exchange Installable File System from Backups"
on page 51:
1. In the NetWorker Administrator program, click Manage Directives from
the Configure tab.
2. Right-click the Directives icon, and select Create. The Create Directive
dialog box appears, as shown in Figure 17.
Figure 17. Create Directive Dialog Box
3
3. In the Name attribute, enter a name for the new directive.
4. In the Directive list, enter the following commands:
<< "M:" >>
skip: *.*
5. Click OK.
6. Next you need to edit the Client resource that is used for the filesystem
backup of the Exchange server. Right-click the icon of the client you want
to edit, and select Edit. The Edit Client dialog box appears, as shown in
Figure 18 on page 53.
52
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 3: Scheduled Backups
Figure 18. Edit Client Dialog Box
3
7. From the Directive list, select the name of the custom directive you just
created.
8. Click OK.
Improving Performance
To improve backup performance:
•
•
•
Dedicate separate physical drives for the log files of the storage groups.
When each set of log files has its own physical drive, server performance
improves. To optimize fault tolerance, use hardware mirroring with
redundant array of independent drives (RAID).
Set backups for private mailboxes at separate times from backups of the
Information Store. Even when they are in different backup groups,
network congestion may result from performing these backups
simultaneously.
Set start times for different backup groups far enough apart that each
backup operation can finish before the next backup operation starts.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
53
Improving Performance
•
•
Set scheduled backups for times when the network is less busy, for
example, nights and weekends.
Do not back up the Exchange Installable File System. For more
information, see "Excluding the Exchange Installable File System from
Backups" on page 51.
3
54
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 4: Restoring Data from a Backup
This chapter explains how to use the NetWorker User for Exchange Server
program to restore data. It contains the following sections:
•
•
•
•
•
"Interfaces for Restore Operations" on page 55
"Performing the Restore Operation" on page 55
"Recovering the Key Management Server" on page 64
"Directed Recoveries" on page 65
"Replaying Transaction Logs" on page 66
Interfaces for Restore Operations
You can perform a restore operation at any time from the Exchange Server host
using either of the following two interfaces:
•
•
The NetWorker User for Exchange Server program. For instructions on
performing a restore from the NetWorker User for Exchange Server
program, see "Performing the Restore Operation" below.
The command line (using the nsrxchrc.exe command and appropriate
command options). For instructions on performing restore operations
from the command line, see "Appendix A: Save Set Notation and
Command Syntax" on page 103.
Performing the Restore Operation
Use the following roadmap to perform a restore of the Exchange data:
"Task 1: Set Exchange Database Properties to Allow a Recovery" on page 56
"Task 2: Select a Backup Version (Optional)" on page 57
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
55
Task 1: Set Exchange Database Properties to Allow a Recovery
"Task 3: Check or Specify the Backup Time (Optional)" on page 58
"Task 4: View the Required Media Volumes (Optional)" on page 60
"Task 5: Set the Recover Options (Optional)" on page 61
"Task 6: Start the Recover Operation" on page 63
"Task 7: Verify the Recovery" on page 64
Task 1: Set Exchange Database Properties to Allow a Recovery
To recover an Exchange database, you must first set the database properties to
allow the database to be overwritten with the restored data.
Note: This is not necessary for recovering the Key Management Server (KMS),
the Site Replication Server (SRS), mailboxes, or public folders.
To allow an Exchange database to be overwritten:
1. Open the Exchange System Manager.
2. Right-click the Exchange database you want to restore and select
Properties.
4
3. In the Database Properties dialog box opens, select the Database tab.
4. In the Database tab, select "The database can be overwritten by a restore"
(see Figure 19 on page 57).
56
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 4: Restoring Data from a Backup
Figure 19. Exchange System Manager
Database Properties Dialog Box
4
Task 2: Select a Backup Version (Optional)
To view and select available backups (versions) of an object:
1. Start the NetWorker User for Exchange Server program.
2. From the main window, select Recover from the Operation menu.
3. In the Recover window select an object for recovery.
4. From the View menu, select Versions.
5. The Versions window lists the date and time of each available backup of
the selected object. Versions are sorted according to backup times, most
recent first. Object size, backup time, and backup volume location are also
shown for each version. If the backup media volume is currently online,
the volume location includes an identifier for the storage device.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
57
Task 3: Check or Specify the Backup Time (Optional)
Task 3: Check or Specify the Backup Time (Optional)
If you want to recover an object from a backup prior to the most recent backup,
you can specify the date and time of a backup to restore. This is called the
browse time. For any particular browse time selected, the Recover window
displays a directory tree of recoverable objects for that specific backup point in
time.
The current browse time appears at the bottom of the Recover window, on the
status line at the right. By default, the browse time is the current date and time.
When you change the browse time, you are instructing the NetWorker Module
to recover to a different point in time.
When selecting the browse time, ensure the time falls between two previous
backup times. Do not set a browse time to closely coincide with the time of a
previous backup, when backup data was perhaps being written to the
NetWorker server. The NetWorker Module software uses the browse time as a
reference point for identifying the files that must be restored to fulfill a
particular request.
If you select a browse time that is earlier than the time of the first backup, the
file index is empty. If you change the browse time to a future time, you see the
objects as of the most recent backup.
4
Example: How Browse Time Affects Files Used for Recovery
This example illustrates how the set of files required for recovering Exchange
Server objects changes according to the selected browse time.
The timeline in Figure 20 on page 59 shows a hypothetical sequence of backup
operations: a full backup followed by three incremental backups, and a final
full backup.
Following the figure is a list of the sets of files required for recovering
Exchange objects to the states they were in at different points along the
timeline.
58
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 4: Restoring Data from a Backup
Figure 20. Browse Time Selection
•
•
•
To recover the data backed up during the first full backup (Full 1), select a
browse time in the range BT1 (that is, any point after Full 1 ends, but
before Incr 1 begins).
To recover both Full 1 and Incr 1, select a browse time in the range BT 2
(that is, any point after Incr 1 ends, but before Incr 2 begins).
If no browse time is selected, the NetWorker Module defaults to the
current time. In Figure 20, this has the effect of selecting Full 2.
Table 5 summarizes the backups that are recovered for each Browse Time
range shown in Figure 20.
4
Table 5. Effects of Browse Time Selection
Browse Time Selection Range
Backup That Is Recovered
BT 1
Full 1
BT 2
Full 1 + Incr 1
BT 3
Full + Incr 1 + Incr 2
BT 4
Full + Incr 1 + Incr 2 + Incr 3
BT 5
Full 2
To change or check the browse time of a backup to recover:
1. Start the NetWorker User for Exchange Server program.
2. From the main window, select Recover from the Operation menu.
3. In the Recover window, select Change Browse Time from the View menu.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
59
Task 4: View the Required Media Volumes (Optional)
4. The Change Browse Time dialog box opens. Whenever the Change Browse
Time dialog box is opened, the browse time is reset to the default date and
time.
5. In the Change Browse Time dialog box, select a new date from the
calendar. Use Previous Month or Next Month to change from the current
month.
6. Enter a new time (for example, 10:28p) and click OK. Valid values are:
•
•
•
Hours: 0 through 12
Minutes: 0 through 60
“a” (for a.m.) or “p” (for p.m.)
Task 4: View the Required Media Volumes (Optional)
You can check which media volumes the NetWorker Module needs for the
restore operation. This may be useful when:
•
•
4
The default browse time is changed to a time in the distant past.
You are restoring from a large backup that used multiple storage
volumes.
To restore from an incremental or differential backup, the NetWorker software
needs access to certain media volumes. Table 6 shows the media volumes
necessary to perform a restore from each type of backup.
Table 6. Media Volumes Needed to Restore Data
Backup Level
60
Restore the Data
from the Volumes That Contain...
Full
The full backup
Copy
The copy backup
Incremental
• The full backup immediately preceding
the given incremental backup
• All incremental backups that occurred
between the full backup and the given
incremental
Differential
• The full backup immediately preceding
the given differential backup
• The differential backup
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 4: Restoring Data from a Backup
To view the required volumes:
1. Start the NetWorker User for Exchange Server program.
2. From the main window, select Recover from the Operation menu.
3. In the right pane of the Recover window, click the icon of the items to
recover and click the Mark button.
4. Select Required Volumes from the View menu.
The Required Volumes window opens and displays a list of the volumes
required to perform the restore operation.
Task 5: Set the Recover Options (Optional)
Before starting a restore operation, check the recover option settings. To
change the recover option settings:
1. In the Recover window, select Recover Options from the Options menu.
2. On the Exchange tab, shown in Figure 21 on page 62, set the following
options for how the Exchange Server behaves following the NetWorker
Module restore operation.
a. Select "Replay only logs for this restore" to restore a database to a
particular point in time, or to replay all logs to minimize the loss of
transactions.
This option causes the Exchange Server software to ignore new log
files built after the most recent NetWorker Module backup and
restores to the point in time when the backup was performed.
If this option is not selected, Exchange will use new log files built
after the most recent NetWorker Module backup and restores to the
point in time when the system crashed. This could be after the point
in time when the most recent backup was performed.
b. Select "Put databases online after recover" to automatically mount the
recovered databases after completing the recover operation.
When this option is not selected, the Exchange Server software does
not put the databases online after the recover operation. In this case
the database must be put online manually after the data is recovered.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
61
4
Task 5: Set the Recover Options (Optional)
Figure 21. Exchange Tab in Recover Options Dialog Box
4
3. In the NetWorker Module tab, shown in Figure 22 on page 63, set the
following options for the behavior of the NetWorker Module during the
restore operation.
a. Diagnostic Output Level — Specify the level of detail for display of
diagnostic messages
b. Input File — Specify an input file to select the names of the databases,
mailboxes, public folders, and any objects marked for recovery. For
more information on input files, see "Using an Input File to Specify
Multiple Items for Backup" on page 70.
c. Temporary Folder Location — Specify a location to store the
temporary files. These files are deleted after the restore is completed.
If no location is specified, the location defaults to
<NetWorker_install_path>\tmp.
62
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 4: Restoring Data from a Backup
Figure 22. NetWorker Module Tab
in Recover Options Dialog Box
4
Task 6: Start the Recover Operation
Note: Before you perform a recovery, ensure that objects marked for recovery
are not currently being backed up.
To start a recover operation:
1. Open the Recover Window.
2. In the right pane of the Recover window, click the icon of the item to
recover and click the Mark button.
3. A check mark appears beside the item selected. To unmark an item in the
Recover window, click the Unmark button.
4. Click the Start button.
If the backup volume containing the objects is loaded in the device attached to
the NetWorker server, the recovery starts.
If the recover operation does not begin, the wrong volume might be mounted.
Contact the system administrator for assistance. You can cancel the recovery
by selecting End Recover from the File menu.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
63
Task 7: Verify the Recovery
When the recovery is complete, NetWorker Module displays messages in the
Recover Status window.
Note: For instructions on performing recoveries within a Microsoft cluster, see
"Chapter 6: Backup and Recovery of an Exchange Server in a Microsoft
Cluster" on page 79.
Task 7: Verify the Recovery
To verify recovery of the Exchange objects:
1. Log on to the Exchange recovery server host using a Windows 2000
account with Exchange Server permissions.
2. Before the restore, if you did not select the "Put databases online after
restore" option on the Exchange tab of the Recover Options dialog box in
the Exchange Module, use the Exchange System Manger to put the
databases online now.
3. Verify that the recovered Exchange Server database is present in the
Exchange Server System Manager directory tree.
4
Recovering the Key Management Server
The KMS does not provide an automated way to take a database offline prior
to performing a recover. It also requires the user to provide a password
whenever the KMS service is started. For these reasons the KMS recover
process requires more manual steps than the recover process for Exchange or
SRS.
KMS recovery also requires the Active Directory to contain the user accounts
of administrators who were given full permission to manage the KMS. If the
Active Directory containing the KMS administrator accounts is lost or
damaged, it must be recovered before you can recover the KMS.
How to Recover the KMS Database
To recover the KMS database:
1. Verify that the required KMS administrator accounts exist in the Active
Directory. Restore the Active Directory if necessary.
2. Stop the KMS service (MSExchangeKMS).
3. When the KMS service is stopped, move any existing KMS files from the
KMS installation folder (KMSDATA) to a temporary folder.
64
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 4: Restoring Data from a Backup
4. Start the KMS service.Verify that it is ready for a recover operation by
making sure the application event log shows the following error message:
KMS cannot mount the key database. Either the database is
missing or it is corrupted. The service started, but
Admin/User can not do any operation except restoring the
database from a backup set. After restoring, please stop
and restart the service.
5. Open the NetWorker User for Exchange Server program.
6. In the Recover window, mark the version of KMS that you want.
7. Click the Start button to begin the recover operation.
8. Stop and restart the KMS service following the recovery.
9. Delete the files you saved to the temporary folder.
Directed Recoveries
In case of a problem recovering to the original Exchange Server host, such as a
disk drive crash, you can perform a directed recovery to recover data to a
different Exchange Server host. The Directed Recover operation allows you to
recover a backup of the original Exchange host to a different Exchange host.
You can use the recovered data to configure a new Exchange host.
How to Configure the NetWorker Administrator Program
Before performing a directed recover, ensure the following in the NetWorker
Administrator program:
•
•
Your username is included in the Administrator attribute of the
NetWorker server that backs up the source client’s data. Click Set Up
Server from the Configure tab to open the Set Up Server dialog box, then
select the General tab.
Your hostname, or <[email protected]>, is entered in the Remote Access
attribute on the Remote tab of the NetWorker client from which the data
was backed up. Click Manage Clients from the Configure tab and
right-click the client to which you want remote access, then select Edit.
For detailed instructions on configuring the NetWorker Administrator
program for directed recovery, refer to the Legato NetWorker Administrator’s
Guide.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
65
4
How to Start a Directed Recover
Important: You cannot recover an Exchange 5.5 database to an Exchange 2000
server, or vice versa.
How to Start a Directed Recover
You must manually create a target database on the recovery server if it does not
exist. The database name must exactly match the name of the database being
recovered. Set the “database can be overwritten” property in the Exchange
System Manager Database Properties dialog box shown in Figure 19 on
page 57.
To perform a directed recover to a recovery server:
1. In the NetWorker User for Exchange Server program on the administering
client, select Directed Recover from the Operations menu.
2. In the Source Client dialog box, select the name of the client whose files
you are recovering and click OK.
4
3. In the Directed Recover window, mark the database to recover.
4. Click the Start button on the toolbar to perform the directed recovery.
For more information about directed recover operations, refer to the Legato
NetWorker Administrator’s Guide.
Replaying Transaction Logs
After Exchange Server files are restored, the Exchange software may take a
long time to replay the transaction logs. The time required to replay the logs
depends on the system configuration, Exchange Server parameters, and the
number of logs restored. You can monitor transaction log progress with the
Windows Event Viewer. The following message appears while the transaction
logs are replaying:
The database engine is replaying log file exxnnnnn.log
where:
xx is the storage group number starting with 00
nnnnn is a five-digit hexadecimal number.
66
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 4: Restoring Data from a Backup
If there is a gap in the log file sequence, the Exchange Server cannot replay any
existing or restored logs. This causes the following Exchange Server error:
Log file gap detected. Max recovered log: exxnnnnn.log
This situation can occur in various ways, as for example when a filesystem
recovery (which restores some log files) is performed prior to recovery of
Exchange Server databases. To prevent such an error, the NetWorker Module
causes only recovered logs to be replayed when it detects a log file gap.
4
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
67
Replaying Transaction Logs
4
68
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 5: Mailbox and Public Folder Operations
This chapter addresses special considerations for operations with mailboxes
and public folders. It includes the following sections:
•
•
•
•
•
"Mailbox and Public Folder Backup and Restore Requirements" on
page 69
"Backing Up Mailboxes and Public Folders" on page 70
"Using an Input File to Specify Multiple Items for Backup" on page 70
" Recovering Mailboxes and Public Folders" on page 73
" Directed Recovery of a Mailbox or Public Folder from a Database
Backup" on page 74
Mailbox and Public Folder Backup and Restore
Requirements
To back up or restore a mailbox or public folder, the operator must be logged
on to the Exchange Server host as a member of the Exchange Administrators
group. In addition, the following permissions must be set for the operator in
the Exchange System Manager:
•
•
•
•
•
•
List contents
Read properties
Administer information store
View information store status
Receive as
Send as
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
69
Backing Up Mailboxes and Public Folders
Backing Up Mailboxes and Public Folders
Consider the following when planning mailbox and public folder backups:
•
•
•
Because a mailbox or public folder backup includes all attributes of each
individual item in the mailbox, backing up a large number of individual
mailboxes can take much longer, and require more disk space, than
backing up the Information Store or any particular database. The
Exchange Server must have sufficient space to accommodate temporary
files that the NetWorker Module software creates during mailbox
backups.
Mailboxes and public folders can be backed up only at level full. This
contributes to the time required for private mailbox backup operations,
but is necessary to ensure reliable data recovery.
The Information Store cannot be rebuilt by recovering a backup of private
mailboxes and public folders.
Using an Input File to Specify Multiple Items for Backup
You can use an input file to configure a scheduled backup of a large number
of individual Exchange components, such as multiple private mailboxes
(rather than the entire mailbox database). The -I input-file command option
reads the mailbox names to be backed up from the Input file.
Use the following roadmap to create an input file and specify it for use during
a backup:
5
•
•
"Task 1: Create the Input File" on page 70
"Task 2: Specify the Input File in the Client Resource" on page 72
Task 1: Create the Input File
Input files can be created either manually or automatically.
To manually create an input file:
1. Use any text editor to create a list of items in a .txt file (plain ASCII text
format). Enter each item name on a separate line, as shown in Figure 23 on
page 71.
70
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 5: Mailbox and Public Folder Operations
Figure 23. Mailbox Names in Input File
2. Save the file to the path for NetWorker executables that was specified
when the NetWorker client software was installed. The default installation
path for the NetWorker executables is:
%SystemDrive%\Program Files\Legato\nsr\bin.
When the NetWorker User for Exchange Server program performs a manual
backup or a restore operation, a list of marked items is automatically written
to <NetWorker_install_path>\tmp\NME_Marked_Items.txt. This file is in a
format that is suitable for use as an input file. This is a temporary file, so it will
be overwritten by each subsequent manual backup or restore operation.
To automatically create an input file containing specific items:
1. In the NetWorker User for Exchange Server program, in the Backup or
Restore window, mark the items to be included in the backup or restore
operation.
2. Start the backup or restore operation.
3. Copy the resulting NME_Marked_Items.txt file to a permanent location
(<NetWorker_install_path>\bin is recommended) and rename it.
4. In the NetWorker Administrator program, specify the input filename in
the Backup Command attribute under the Remote tab (NetWorker
Administrator>Edit Client>Remote Tab).
If the input file is not located in <NetWorker_install_path>\bin directory,
specify the full pathname to the file in the Backup Command attribute
under the Remote tab, using double backslashes instead of single
backslashes in the pathname. For an example, see Figure 24 on page 72.
To add or remove individual items, such as mailbox names, you can simply
edit the input file.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
71
5
Task 2: Specify the Input File in the Client Resource
Task 2: Specify the Input File in the Client Resource
Edit the Client resource as follows:
1. In the NetWorker Administrator program, click Manage Clients.
2. In the list of clients, right-click a client name and select Edit.
3. For the Backup Command attribute in the Remote tab of the Edit Client
dialog box:
a. If the input file is in the default directory
(<NetWorker_install_path>\bin), enter the backup command, the
command option, and the name of the input file:
nsrxchsv.exe -I input_file
b. If the input file is located in a directory other than the default, enter
the backup command, the command option, and the full path to the
file, using quotation marks and double backslashes as shown in
Figure 24:
nsrxchsv.exe -I “C:\\my_folder\\input_file.txt”
Figure 24. Specifying an Input File
5
72
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 5: Mailbox and Public Folder Operations
Recovering Mailboxes and Public Folders
This section covers methods for recovering mailboxes, public folders, and
individual items.
Note: When an Exchange user is having mail delivered to personal folders on
a client computer, the user is responsible for the recovery. The user can recover
the personal folders and Personal Address Book from a filesystem backup if
these items were stored on a mapped server drive. If the user has not
performed any local backups and no fileserver backups are available, the
user’s data is lost.
Deleted Item Retention
Versions of Microsoft Outlook and Microsoft Exchange Server earlier than
Exchange 2000 Server allowed you to use the Exchange Server to recover an
Outlook folder or item, even after deleting it. With Exchange 2000 Server, the
Exchange administrator can set a retention period, or a length of time, deleted
items remain stored on the Exchange Server. Within the retention period, a
user with the proper permissions can use the Exchange Server to recover an
entire mailbox, public folder, or individual item therein. For details on setting
retention periods, refer to the Microsoft documentation.
Restoring Mailboxes and Public Folders
To restore a mailbox, public folder, or individual item from a backup, see
"Performing the Restore Operation" on page 55.
Mailbox items are recovered to a folder in the original mailbox whose name
consists of the date and time of the restore and the words Recovered Items. A
separate Recovered Items folder is created in each mailbox that is recovered.
In the Recovered Items folder, the hierarchy of folders and messages in the
original mailbox is preserved.
You should move the recovered items to a different folder and then delete the
Recovered Items folder.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
73
5
Directed Recovery of a Mailbox or Public Folder from a Database Backup
Directed Recovery of a Mailbox or Public Folder from a
Database Backup
The easiest way to recover an individual user’s mailbox or a directory in a
public folder is through the recovery of a mailbox or public folder save set. If
these are not available, you can recover a mailbox or public folder from a
database backup using the Directed Recover feature in the NetWorker User for
Exchange Server program.
To do this, you must recover the original Microsoft Exchange database to a
new Microsoft Exchange Server host or virtual server. In the following
procedures, production server means the original Microsoft Exchange Server
host. The recovery server is the computer or virtual server to which you plan to
recover the object.
After you recover the user mailbox to the recovery server, you must merge the
recovered mailbox with the user’s mailbox on the original production server.
Software and Hardware Requirements
To set up the recovery server, configure a Microsoft Exchange Server host
identical to the original Exchange Server host. Software and hardware
requirements include:
•
•
•
•
5
•
•
Windows 2000
Microsoft Exchange 2000 Server
Legato NetWorker 6.x or later
Legato NetWorker Module for Microsoft Exchange Server, release 3.0 or
later
Software versions and service packs on production and recovery servers
must match those in use at the time the backup was made.
Sufficient hard disk capacity to accommodate temporary and restored
Exchange Server files (varies with size of databases)
How to Prepare the NetWorker Server for the Recover Operation
To prepare the NetWorker server host for the recover operation:
1. Start the NetWorker Administrator program.
2. Create a Client resource for the recovery server, if one does not already
exist.
74
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 5: Mailbox and Public Folder Operations
3. In the Remote Access attribute of the Client resource for the production
server, add:
[email protected]_server_name
For more information about NetWorker resources and resource attributes,
refer to the Legato NetWorker Administrator’s Guide.
How to Set Permissions for Public Folder Recovers
To recover individual items from public folders, you must have the proper
Exchange permissions. This is the case for public folders, such as the Internet
Newsgroups folder, created during the Exchange Server installation.
To set the permissions for items in a public folder:
1. Open the Exchange System Manager.
2. Open the Properties dialog box for the public folder (see Figure 25).
3. On the Permissions tab in the Properties dialog box, select the following:
–
–
–
Create Items
Read Items
Create Subfolders
Figure 25. Public Folder Properties Dialog Box: Permissions Tab
5
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
75
How to Recover a Mailbox
How to Recover a Mailbox
This procedure assumes:
•
•
The user’s mailbox was deleted and purged.
The user account was not removed from the Active Directory.
To recover a mailbox:
1. Create a target database on the recovery server with the same name as the
database being recovered. The names of the storage group and database
on the recovery server must exactly match the original. Set the database
properties to allow the database to be overwritten with the restored data.
For information, see "Task 1: Set Exchange Database Properties to Allow a
Recovery" on page 56.
2. On the recovery server, start the NetWorker Module for Exchange User
program.
3. Select Directed Recover from the Operation menu.
4. In the Source Client dialog box, select the NetWorker client hostname (the
name of the original Exchange Server). Click OK.
5. Mark the database to be recovered.
6. Click the Start button.
7. After the recover operation is finished, start the Exchange System
Manager program.
8. Ensure the recovered database is online.
5
9. Right-click the database and select Run Cleanup Agent. A red mark beside
the mailbox name indicates it is not attached to an Active Directory user.
10. Right-click the desired mailbox and select Reconnect.
11. Specify the name of an existing Active Directory user account that
corresponds to the mailbox.
12. Run the Exchange Active Directory Users and Computers program.
13. Right-click on the user name and select Exchange Tasks.
14. Select the Move Mailbox option and follow the wizard to specify the
desired target server and mailbox store. This will move the mailbox from
the database on the recovery server to the desired production server.
76
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 5: Mailbox and Public Folder Operations
How to Recover a Public Folder
To recover a public folder:
1. Create a target database on the recovery server with the same name as the
database being recovered. The names of the storage group and database
on the recovery server must exactly match the original. Set the database
properties to allow the database to be overwritten with the restored data.
For information, see "Task 1: Set Exchange Database Properties to Allow a
Recovery" on page 56.
2. On the recovery server, start the NetWorker Module for Exchange User
program.
3. Select Directed Recover from the Operation menu.
4. In the Source Client dialog box, select the NetWorker client hostname (the
name of the original Exchange Server). Click OK.
5. Mark the database to be recovered.
6. Click the Start button.
7. After the recover operation is finished, start the Exchange System
Manager program.
8. Ensure the recovered database is online.
9. On the recovery server, move the public folder back to the original server
using one of the following methods:
•
•
Use Microsoft Outlook to export the folder to a PST file, then on the
original server import the PST file. For more information, refer to the
Microsoft Outlook documentation.
Use the Microsoft Exchange System Manager to replicate the folder
contents back to the original server. For more information, refer to the
Microsoft Exchange documentation.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
77
5
How to Recover a Public Folder
5
78
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 6: Backup and Recovery of an
Exchange Server in a Microsoft Cluster
This chapter describes how to configure and use NetWorker software with the
NetWorker Module in an MSCS environment. It includes the following
sections:
•
•
•
•
“Using the NetWorker Module in a Microsoft Cluster” on page 79
“Scheduled Backups in a Microsoft Cluster” on page 80
“Manual Backups in a Microsoft Cluster” on page 82
“Recovering an Exchange Server Database in a Cluster” on page 85
Using the NetWorker Module in a Microsoft Cluster
You can use the NetWorker Module and NetWorker software release 5.7 or
later to back up a Microsoft Exchange Server operating in an MSCS
configuration. The procedures for using NetWorker Module in a cluster (on a
virtual server) are similar to those used on a stand-alone Exchange Server host.
However, certain configuration procedures should be followed to ensure
reliable backups and to simplify recovery. To use these instructions, the reader
should be familiar with Microsoft clustering technology. For more information
about MSCS, refer to Microsoft documentation.
Important: If a failover occurs or a group goes offline during a backup or
recover operation, the operation is immediately terminated. The user must
start the operation again when the virtual server is back online.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
79
Scheduled Backups in a Microsoft Cluster
Scheduled Backups in a Microsoft Cluster
To run scheduled backups, see the following procedures:
•
•
“How to Configure Scheduled Backups within a Microsoft Cluster” on
page 80
“How to Schedule a Backup within a Microsoft Cluster” on page 80
How to Configure Scheduled Backups within a Microsoft Cluster
Perform the following installation and configuration procedures to enable the
NetWorker Module software to perform backups and recoveries of Exchange
servers in a cluster. In the following instructions, node_a and node_b represent
the names of the physical nodes, and virtual_server_name represents the
network name of the Exchange server running on the node.
1. Install the NetWorker client software and the NetWorker Module for
Exchange Server software on the local disk of <node_a> and the local disk
of <node_b>. You may have as many as four physical nodes in a cluster. For
detailed instructions on installing the NetWorker software in a Microsoft
Cluster, refer to the Legato NetWorker Installation Guide, Windows Version.
When you install the NetWorker client software, you can specify the
NetWorker server hosts that may be used to back up the cluster data.
a. To modify the list of authorized servers after the installation, edit the
<NetWorker_install_path>\res\servers file.
b. After editing the file, restart the NetWorker Remote Exec Service.
2. Install the enabler for NetWorker Module on the NetWorker server host.
How to Schedule a Backup within a Microsoft Cluster
To schedule a backup within a Microsoft cluster, in the NetWorker
Administrator program on the NetWorker server host:
6
1. Create a Group resource to perform the Exchange backup. For
instructions, see “Task 1: Create a Group Resource” on page 40.
2. Create a Client resource for each physical node and virtual server: node_a,
node_b, and virtual_server_name. If you have more than one virtual server,
create a Client resource for each one. You may have as many as four
virtual servers in a cluster.
80
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 6: Backup and Recovery of an Exchange Server in a Microsoft Cluster
3. Make sure that the NetWorker server receives an authoritative DNS reply
for at least one of the names in the Client resource alias list. The reply is
authoritative when the reply message does not say “non-authoritative.”
To check for an authoritative DNS reply, enter the following command:
%SystemRoot%:\nslookup alias_name
where alias_name is the name that is listed for the Alias attribute in the
Client resource.
4. Edit the Client resource for virtual_server_name:
In the Edit Client dialog box, click the General tab and enter a value in the
Save Set attribute for the type of backup you want. For save set
specifications, see “Using Save Sets” on page 103.
Whether or not to use the -c option depends on whether or not the virtual
server name and client names match. Also keep in mind that if you use
both the -a option and the -c option with different client names, you must
perform a directed recover.
• If the virtual server name and the client name do not match, enter the
following for the Backup Command attribute (for each NetWorker
Client resource for Exchange):
nsrxchsv -a virtual_server_name -c client_name
• If the virtual server and client names match, enter the following
command in the Backup Command attribute:
nsrxchsv -a virtual_server_name
Note: During a scheduled backup, the NetWorker server automatically
sends the -c option (specifying the client name) to the NetWorker Module
backup program. If the client and virtual server names match, the backup
operation succeeds. If -a and -c do not match when a backup operation is
performed, the same options must be used to recover that particular
backup.
6
Important: Some older versions of the NetWorker server software do not send
the -c option. You can see if the -c option was sent by checking the activity
logged in <NetWorker_install_path>\applogs\nsrxchsv.log. If the -c option does
not appear in the log, add the -a and/or -c options to the Backup Command
attribute in the NetWorker Client resource in the NetWorker Administrator
program.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
81
Manual Backups in a Microsoft Cluster
5. Edit the Remote Access list to include the following literal strings:
[email protected]_a
[email protected]_b
6. Edit the Group resource for the Exchange backup group. Set the backup
level as shown in Table 4 on page 50.
7. Start the group manually, or wait for the next scheduled backup to occur.
8. After the backup operation is finished, use the Networker Administrator
program’s Index tab to verify that the backup was indexed using the
Exchange server’s network name, virtual_server_name.
Manual Backups in a Microsoft Cluster
The procedure for starting a manual backup operation within a Microsoft
Cluster is similar to starting a manual backup on a stand-alone Exchange
server host. The only difference is selecting the virtual server to make active in
the NetWorker User for Exchange Server software.
This section explains how to select the virtual server to make active in the
NetWorker User for Exchange Server software in a Microsoft cluster. After the
virtual server is selected, perform backups and recoveries just as you would
normally. For instructions on manual backups, see “How to Start a Manual
Backup in a Microsoft Cluster” below.
How to Start a Manual Backup in a Microsoft Cluster
To start a manual backup in a Microsoft Cluster:
1. Open the NetWorker User for Exchange Server program from within a
Microsoft Cluster.
2. In the Exchange Servers window, select a virtual server from the list of
online virtual servers in the cluster (see Figure 26 on page 83).
6
3. In the NetWorker User for Exchange Server main window, follow the
procedures in “Chapter 2: Manual Backups” on page 29.
82
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 6: Backup and Recovery of an Exchange Server in a Microsoft Cluster
Figure 26. Exchange Servers Dialog Box
How to Change the Virtual Server
To switch to another virtual server:
1. In the NetWorker User for Exchange Server program, close the Backup or
Recover window, if either is open.
2. From the Operation menu, click Select Exchange Server.
3. In the Exchange Servers dialog box, select the name of the virtual server to
open, and click OK (see Figure 26).
How to Start a Manual Backup from a Command Prompt in a Cluster
To start a manual backup of an Exchange virtual server in a Microsoft Cluster
from the Windows command line interface:
1. From the Windows command prompt on node_a or node_b, enter the
nsrxchsv command with the -a and -c options. For example:
nsrxchsv -s NetWorker_server -a virtual_server_name -c client
-l Backup_level MSEXCH:IS
where -a and -c identify the Exchange virtual server and the NetWorker
client index.
For information on save set syntax, see “Save Set Notation” on page 104.
(If you do not enter a valid save set parameter, the program returns an
error message and closes.)
Note: It is not necessary to use both the -a and -c options when the
virtual_server_name and client are the same.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
83
6
Using an Input File for an Operation in a Microsoft Cluster
2. When the backup is complete, use the Index tab in the NetWorker
Administrator program to verify that the backup was indexed using
virtual_server_name.
Using an Input File for an Operation in a Microsoft Cluster
To use the -I Input_file option to list the names of mailboxes to be backed up on
a virtual server in a Microsoft cluster, the Client resource must specify a
uniquely named input file for each virtual server in the cluster. The input files
must be identically located in the <NetWorker_install_path>\bin directory of
each physical node.
The input file can be specified in the NetWorker Administrator program or on
the command line. For detailed instructions about how to create and specify
an input file, see “Using an Input File to Specify Multiple Items for Backup” on
page 70.
Example:
1. Create an input file named vserver1.txt. Place copies of the file in the
<NetWorker_install_path>\bin directory on node a and in the
<NetWorker_install_path>\bin directory on node b.
2. Create an input file named vserver2.txt. Place copies of the file in the
<NetWorker_install_path>\bin directory on node b and in the
<NetWorker_install_path>\bin directory on node a.
3. Edit the Client resource for node_a by entering:
nsrxchsv.exe -I vserver1.txt -a vserver1
4. Edit the Client resource for node_b by entering:
nsrxchsv.exe -I vserver2.txt -a vserver2
6
84
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 6: Backup and Recovery of an Exchange Server in a Microsoft Cluster
Recovering an Exchange Server Database in a Cluster
The procedure for starting a recover operation within a Microsoft Cluster is
similar to starting one on a stand-alone Exchange server host. The only
difference is selecting the virtual server to make active in the NetWorker User
for Exchange Server program.
This section explains how to select the virtual server to make active. After the
virtual server is selected, you can perform regular backups and recoveries.
How to Start a Recovery in a Microsoft Cluster
To start a recovery in a Microsoft Cluster in the NetWorker User for Exchange
Server program:
1. Start the NetWorker User for Exchange Server program. (When you open
the program from within a Microsoft Cluster with multiple active virtual
servers, the Exchange Servers dialog box opens before the main window
opens.)
2. In the Exchange Servers dialog box, select a virtual server in the cluster
from the list and click OK (see Figure 26 on page 83).
3. After the main window opens (see Figure 4 on page 31), perform the
recovery as you normally would, beginning with Step 1.
To start a recovery in a Microsoft Cluster from a command prompt:
When recovering an Exchange Server database that resides on a virtual server,
use the nsrxchrc command with the -a and/or -c options to identify the
Exchange virtual server and the NetWorker client, and set the recover values
required for the virtual server. For details on command line syntax, see
“NetWorker Module Restore Commands” on page 108.
Note: The -a and -c options are both required when performing a directed
recover.
6
To recover an Exchange virtual server:
1. Set the database properties to allow the database to be overwritten with
the restored data. For information, see “Task 1: Set Exchange Database
Properties to Allow a Recovery” on page 56.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
85
Recovery Recommendations
2. At a Windows command prompt, following command, replacing the
values shown in the example with the values you require:
nsrxchrc -erq -c client -s NetWorker_server_name
-a virtual_server_name MSEXCH:IS
where -a and -c identify the Exchange virtual server and the NetWorker
client index.
Note: It is not necessary to use both the -a and -c options when the
virtual_server_name and client are the same.
Important: After the files are recovered, the Exchange Server may require a
long time to replay the transaction logs, depending on the system
configuration, Exchange Server parameters, and the number of logs recovered.
You can monitor transaction log progress with the Windows Event Viewer.
The advisory message indicates “The database engine is replaying log file
exxnnnnn.log”, where xx is the storage group number starting with 00, and
nnnnn is a five-digit hex number.
Recovery Recommendations
Keep the following tips in mind when performing backup and recovery
operations:
•
•
6
86
To improve post-recovery processing of Exchange databases, minimize
the number of transaction logs that are backed up. You can do this by
increasing the frequency of full backups. For example, schedule a full
backup whenever incremental or differential backups contain more than
50 log files.
Test your recovery procedures on a regular basis.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 7: Disaster Recovery
This chapter describes the procedures for recovering Exchange Server data in
the event of a disaster. It includes the following sections:
•
•
•
“Disaster Recovery Scenarios” on page 87
“Recovery Requirements” on page 88
“Performing the Recovery” on page 89
Disaster Recovery Scenarios
For the purpose of this guide, a disaster is any situation in which normal
day-to-day access to data on the Exchange Server host is disrupted due to
damage to critical hardware, software, or data on the host.
Plan for the possibility that a disaster recovery may become necessary at some
point. Proper disaster-recovery planning begins long before a failure occurs.
An Active Directory recovery plan can include clustering, RAID, and backup
and restore procedures, as well as ensure that you have an adequate number
of domain controllers for each domain and geographical location. Knowing
the minimum information that you need to back up in order to perform a
successful restore will help determine the best recovery method for your
situation.
A disaster may entail losing files, the operating system, or the entire computer.
The extent of the loss determines the method for recovering to the predisaster
state. In this chapter, it is assumed that all Exchange Server data on the
computer is entirely lost.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
87
Recovery Requirements
This chapter addresses two scenarios for disaster recovery:
•
•
Rebuilding the Exchange Server on the original host computer. In this
case, you partially install and configure the operating system with only
those files that enable the computer to communicate over the network.
After partially installing and configuring the operating system, you
perform a NetWorker filesystem recovery to recover the remaining
operating system and configuration files.
Building a new Exchange Server host on a new computer. This is
necessary if the original Exchange Server host is being replaced. In this
case, it is best to perform a complete installation and configuration of the
operating system.
The disaster recovery procedure described in this chapter pertains to both
scenarios, except where noted.
Recovery Requirements
To recover the Windows 2000 operating system to its predisaster state, you
should have the following information about the state of the computer
immediately prior to the disaster:
•
•
•
•
•
•
•
•
•
7
88
Operating system version and all previously applied patches, hot fixes,
service packs, and option packs
Hardware components and configuration
TCP/IP properties
Other protocols installed (in addition to TCP/IP)
IP address
Default gateway
Subnet mask
DNS server
Host properties:
– Computer name (also called the hostname)
– Full domain name
– Administrator account name and password
– Date / time properties
– Virtual memory settings
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 7: Disaster Recovery
Performing the Recovery
Use the following roadmap to recover an Exchange Server after a disaster:
•
•
•
•
“Task 1: Install the Operating System on the Exchange Server Host” on
page 89
“Task 2: Configure the Exchange Server Host for the Recovery” on page
91
“Task 3: Recover the Filesystem to the Exchange Server Host” on page 91.
Perform this task only if you are rebuilding the same Exchange Server
host (the same physical computer) used previously.
“Task 4: Recover the Exchange Server Data” on page 92
Task 1: Install the Operating System on the Exchange Server Host
1. If you’re building a new Exchange Server host on a new computer, format
the new drive.
2. Install the same Windows 2000 version, patches, hot fixes, service packs,
and options that were in use immediately prior to the disaster. Use the
information gathered during the disaster planning phase to match the predisaster
software configuration on the Exchange Server host exactly. For more
information, see “Recovery Requirements” on page 88. Install to the same
disk, partition (drive letter, for example, C:), and path used previously. For
installation information, refer to the operating system documentation.
3. While installing the operating system on the Exchange Server host, start the
Active Directory Users and Computers program on a domain controller.
4. Right-click the Exchange Server hostname in the main window, then click
Reset Account. (Do not delete the account.) Resetting the computer account
allows the (rebuilt) computer to rejoin the domain using the same name. If
this command is carried out when the computer is not reinstalled, the
computer cannot authenticate in the domain.
5. Install the computer into a workgroup, not a domain. If the computer being
recovered was previously a domain controller or a member of a domain,
it will be restored to the correct domain when the recovery is complete.
6. Configure the computer properties to match the original configuration.
This includes the local administrator account name and password,
hostname (the computer name), and fully qualified domain name.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
89
7
Task 1: Install the Operating System on the Exchange Server Host
For example, the fully qualified domain name for a computer named
mt_rainier in a domain named legato would be:
mt_rainier.legato.com
Note: If the original hostname is not used, you cannot recover the data that
was saved by the NetWorker software using the original hostname.
To ensure the correct domain name is specified:
a. On the desktop, right-click My Computer and select Properties.
b. In the System Properties dialog box, select the Network Identification
tab.
c. In the Network Identification dialog box, click the Properties button.
d. In the Identification Changes dialog box, click the More button.
e. In the DNS Suffix and NetBIOS Computer Name dialog box, ensure
that the Primary DNS Suffix Of This Computer text box contains the
domain name. If it does not, enter the domain name in this text box.
7. Configure the TCP/IP properties to match the original configuration, with
the same fully qualified domain name, IP address, default gateway,
subnet mask, and DNS server. To view the TCP/IP properties, enter the
following at the Windows command prompt:
ipconfig /all
If the IP address for the new computer does not match the original
address, the NetWorker software will assign a new host ID to the
computer and you must reregister the NetWorker software. For more
information, refer to the Legato NetWorker Installation Guide.
8. Ensure that the hosts file (%SystemRoot%\system32\drivers\etc\hosts)
includes an entry with the IP address and computer name of the
NetWorker server to be used in the recovery. The NetWorker software
requires this entry when either of the following conditions holds:
•
•
DNS is not in use or no DNS server is available.
The NetWorker server host being used in the recover operation is a
DNS server.
In either case, the entry in the hosts file should be on one line in the
following form:
IP_ address fully_qualified_domain_name hostname
as in the following example:
123.56.890.474 charon.pluto.legato.com charon
7
9. Configure the Date/Time Properties as they were configured before.
90
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 7: Disaster Recovery
After the operating system is installed, the installation process should restart
the computer automatically.
Task 2: Configure the Exchange Server Host for the Recovery
To configure the Exchange Server host for recovery:
1. Set the computer virtual memory settings to match the original
configuration by selecting Control Panel>System>Advanced>
Performance options>Virtual Memory>Change.
2. If the computer is to be a domain controller, edit
%SystemRoot%\system32\drivers\etc\hosts, adding the following
information about the NetWorker server host:
• IP address
• Fully qualified domain name
• Any aliases that will be used for the recovery
Save and close the hosts file.
3. Verify network connectivity to the NetWorker server host. To do this, run
the following command from a Windows command prompt on the
Exchange Server host:
ping NetWorker_server_name
4. Install release 5.7 or later of the NetWorker client software in the directory
where it was installed on the original Exchange Server host.
Task 3: Recover the Filesystem to the Exchange Server Host
Important: Perform this task only if you are rebuilding the same Exchange
Server host (the same physical computer) used previously.
To recover the filesystem to the Exchange Server host:
1. Open the NetWorker User client program.
7
2. Click the Recover button.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
91
Task 4: Recover the Exchange Server Data
3. In the Recover window, select, mark, and recover all of the following items
at the same time:
•
•
•
•
All local physical disk drives
SYSTEM STATE
SYTEM FILES
SYSTEM DB
4. From the Options menu in the Recover window, select Recover Options.
5. In the Recover Options window, select Overwrite Existing File.
6. Click the Start button to start the recovery.
7. Reboot the computer when the recovery operation is finished. This will
complete the filesystem recovery on the Exchange Server host to the
predisaster state.
Task 4: Recover the Exchange Server Data
The filesystem recovery performed in Task 3 restored some of the Exchange
Server application files. To complete the recovery:
1. Log on to the Exchange Server host with Windows 2000 domain
administrator privileges and Exchange Full Administrator privileges (not
just Exchange Administrator privileges). If you are logged on without the
proper privileges, you will not be able to run the Exchange 2000 Server
setup program in disaster recovery mode (in step 3 of this task).
2. Load the Exchange Server CD-ROM, or use Windows Explorer to navigate
to a network location where the Exchange Server installation files are
stored.
3. From a Windows command prompt, run the Exchange 2000 Server setup
program in disaster recovery mode using the following command:
setup.exe /DisasterRecovery
(There is no space character in /DisasterRecovery.)
4. Use the update program to install all Exchange 2000 Server service packs
and hot fixes that were installed on the Exchange host when it was backed
up before the disaster. Run the program using the following command:
7
update.exe /DisasterRecovery
92
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 7: Disaster Recovery
5. If you rebuilt an existing Exchange Server:
From each storage group directory, delete all existing e*.log files (except for
e01.log, e02.log, e03.log, and e04.log).
6. If you built a new Exchange Server from scratch:
a. In Exchange Server System Manager, re-create the storage groups
and databases that existed at the time of the backup to be recovered.
b. For each database to be recovered:
– Right click the database name and select Properties.
– In the Database Properties dialog box, select "Allow database to
be overwritten by a restore."
c. Install the Legato NetWorker software.
d. Install the NetWorker Module for Microsoft Exchange Server
software.
7. Open the Recover window in the NetWorker User for Exchange Server
program.
8. In the Recover window, specify the browse time and recover options to
use. For information about setting browse time and recover options, see
“Chapter 4: Restoring Data from a Backup” on page 55.
9. Mark the Exchange Server objects to recover, and click Start to begin the
recover operation.
10. When the recover operation finishes, reboot the computer.
If you encounter any security errors after this procedure (for example, an
"access denied" message or the System Attendant fails to start), run the
Exchange 2000 reinstall program to repair incorrect settings on the server.
7
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
93
Task 4: Recover the Exchange Server Data
7
94
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 8: Troubleshooting
This chapter provides helpful troubleshooting information. It contains the
following sections:
•
•
•
•
•
•
•
•
•
“Backup or Restore Operation Does Not Start” on page 95
“NetWorker Module Log Files” on page 96
“Specifying the Level of Diagnostic Output” on page 96
“Problems with Scheduled Mailbox Backups” on page 97
“Displaying Client File Index Contents” on page 98
“Using the Windows 2000 Event Log” on page 98
“Using Windows 2000 Support Tools” on page 99
“Active Directory Connection Problems” on page 99
“Monitoring Backups and Recoveries” on page 100
Backup or Restore Operation Does Not Start
The amount of time that NetWorker Module takes for a backup depends on
various factors, including the amount of data to be transferred, network traffic,
server load, and positioning of the recording medium (8mm tape, for example)
on the media volume.
A backup or restore operation may not start promptly if:
•
•
Another operation is already in progress. Before requesting a manual
backup, ensure that a scheduled backup or restore is not already in
progress.
No media volume is mounted. A backup cannot run if there is no
writable media volume mounted at the NetWorker server or storage node
(backup device). Therefore, it is best to have a labeled media volume
mounted in the storage device at all times. The volume should be labeled
for the volume pool where the backup is to be directed. If there is no
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
95
NetWorker Module Log Files
volume in the backup device when a scheduled backup is triggered, no
messages will appear in the status window, and the backup will wait for
operator intervention.
8
NetWorker Module Log Files
The activity of each NetWorker Module backup and restore operation,
including error messages, is logged on the Exchange Server host. The backup
log file is nsrxchsv.log. The recover log file is nsrxchrc.log. Both files are located
in the <NetWorker_install_path>\applogs directory (for example, c:\Program
files\nsr\applogs). The nsrxchsv.exe and nsrxchrc.exe commands append
current activity to an existing log, or create a new log if none exists. You can
delete these logs files if you do not need the information.
These log files should be provided for Legato technical support if a problem
occurs.
Specifying the Level of Diagnostic Output
The diagnostic output level for a backup or restore operation specifies the
amount of diagnostic output that appears in the Backup or Recover Status
window of the NetWorker User for Exchange Server program. The diagnostic
output level is saved in the following files:
•
•
<NetWorker_install_path>\applogs\nsrxchsv.log file (for a backup
operation)
<NetWorker_install_path>\applogs\nsrxchrc.log file (for a restore
operation).
The diagnostic output level can be set in the Backup Options or Recover
Options dialog boxes of the NetWorker User for Exchange Server program. In
general, you may only want to set the diagnostic output level above zero when
you are troubleshooting or closely monitoring a backup or restore operation.
96
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 8: Troubleshooting
Alternatively, you may set the diagnostic output level from the Windows
command prompt using the -D option with the nsrxchsv.exe and nsrxchrc.exe
commands. The syntax for this option is:
nsrxchsv.exe –D n
nsrxchrc.exe –D n
where n is a number between 0 (no output) and 9 (highest output).
Problems with Scheduled Mailbox Backups
Scheduled backups are initiated by the NetWorker Remote Exec service
(nsrexecd.exe) on the client machine. The NetWorker Client installation
configures this service to run under the local System account. This causes
problems with scheduled mailbox backups because the local System account
does not have the required privileges. For example, the scheduled backup may
fail with the following error:
OpenMsgStore() = 0x8004011d: The Microsoft Exchange Server
computer is not available. Either there are network problems or
the Microsoft Exchange Server computer is down for maintenance.
(Microsoft Exchange Server Information Store)
To identify which account is being used for the scheduled backup, check the
nsrxchsv.log file for the user name that invokes the backup. The following
example was taken from a backup that was run from the local System account:
Computer Name: ITCHY User Name: SYSTEM
To correct this problem, edit the NetWorker Client resource for each Exchange
server to specify the name of an account with sufficient privileges to back up
Exchange mailboxes, as follows:
1. Open the NetWorker Administrator program.
2. Click Manage Clients.
3. In the Clients window, right-click the name of the client and select Edit.
4. In the Edit Client dialog box, select the Remote tab.
5. For the Remote User attribute, enter the correct user name, and enter the
password in the Password attribute. (This is typically the name of the
account used to install the Exchange Server.)
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
97
8
Displaying Client File Index Contents
6. Ensure the following requirements are met:
a. The user must be logged on to the Exchange Server host as a member
of the Exchange Administrators group
b. The following permissions must be set for the user in the Exchange
System Manager:
– List contents
– Read properties
– Administer information store
– View information store status
– Receive as
– Send as
8
Displaying Client File Index Contents
The nsrinfo NetWorker client program may be used to display the contents of
the client file index. This can be useful to determine whether a particular
Exchange object has ever been backed up, or to display the files that were
backed up during a given backup sequence.
To display the contents of the client file index, enter the following command
at the Windows command prompt:
nsrinfo –s server –n msexch client
where server is the name of the NetWorker server, and client is the name of the
desired client (that is, the Exchange Server).
For details about using the nsrinfo command, see “Appendix A: Save Set
Notation and Command Syntax” on page 103, or refer to the Legato Command
Reference Guide.
Using the Windows 2000 Event Log
The Windows 2000 application event log can be a useful source of information
regarding backup or restore activity. Both the Exchange Server and the
NetWorker Module write information to the event log. This makes it possible
to follow the sequence of events that occur during a backup or restore.
It is also possible to save the contents of the event log to a file (either .evt or .txt).
In the event that a problem occurs, this event log file can be provided to Legato
technical support.
98
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 8: Troubleshooting
Using Windows 2000 Support Tools
The Windows 2000 CD provides support tools that can be helpful for
diagnosing problems. Two of the more useful tools provided include:
•
•
8
nltest — verifies that the locator is functioning. The following command
lists information about the specified domain:
nltest /dsgetdc:domain
netdiag — performs network diagnostic tests to identify configuration or
connection problems.
Refer to the sreadme.doc file in the \Support\Tools directory for a complete list
of the tools provided. To install the tools, run \Support\Tools\setup.exe on the
Windows 2000 CD. For more information, refer to the Active Directory
Support Tools section of the Windows 2000 online help.
Active Directory Connection Problems
Active Directory connection problems are often caused by DNS configuration
errors. Both the primary and secondary DNS server must have a valid entry
for the host. This can be verified by using the following commands at the
Windows command prompt:
nslookup host_name primary_dns_server
nslookup host_name secondary_dns_server
where host_name is the name of the Windows 2000 computer.
Windows 2000 Advanced Server allows Power Management to turn off the
network interface card. Make sure that this option is not enabled.
In an MSCS cluster, the private network configuration is important to ensure
correct operation. Refer to Microsoft Knowledge Base article Q258750,
“Recommended Private ‘Heartbeat’ Configuration on a Cluster Server” for
recommendations on configuring the cluster private network.
Cluster failover problems can occur if DNS is not configured correctly. The
primary and secondary DNS server must have valid host entries for each
physical node and each virtual server. Failover will not work if the virtual
server host entries are not valid.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
99
Monitoring Backups and Recoveries
Monitoring Backups and Recoveries
The Windows 2000 Performance Monitor is a tool for measuring the
performance of one or more computers on a network. It allows you to view the
behavior of objects such as processors, memory, cache, threads, and processes.
The Performance Monitor provides charting, alerting, and reporting
capabilities that reflect both current activity and ongoing logging. You can use
the Performance Monitor to monitor NetWorker Module backup and restore
operations. Because the NetWorker Module supports multiple Performance
Monitor instances, it is possible to monitor parallel operations.
8
This section explains how to use Windows 2000 to monitor backup and
recovery operations using the Performance Monitor.
Using the Performance Monitor
The Performance Monitor displays the NetWorker Module software in the
Performance object submenu during a backup or recovery operation.
To use the Performance Monitor:
1. Open the Performance Monitor by selecting Start>Programs>
Administrative Tools >Performance Monitor (see Figure 27 on page 101).
2. From the toolbar in the right-hand window pane, select the plus icon.
3. In the Add Counters dialog box, make sure that the correct server is
selected in the Select Counters From computer attribute.
4. Open the NetWorker User for Exchange program and start a backup or
recovery, then return to the Add Counters dialog box.
5. From the Performance Object list, select NetWorker Module for Exchange
Server.
6. From the Select Counters From list, select any of the counters that are
supported for the NetWorker Module and click Add.
Supported counters include:
Average Rate — Average throughput rate for all files in the current
operation.
File Bytes — Number of bytes processed by the current operation.
File Count — Number of Exchange files or mailboxes processed by the
current operation.
100
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Chapter 8: Troubleshooting
File Rate — Throughput rate for the current file.
Total Bytes — Total number of bytes processed during the current
operation.
8
The Performance Monitor window shown in Figure 27 reflects the system
activity as the backup or recovery operation proceeds.
Figure 27. Performance Monitor Window
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
101
Using the Performance Monitor
8
102
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Appendix A: Save Set Notation
and Command Syntax
This appendix provides command syntax, save set notation, and related
information for this NetWorker Module. It contains the following sections:
•
•
•
"Using Save Sets" on page 103
"NetWorker Module Backup Commands" on page 106
"NetWorker Module Restore Commands" on page 108
Using Save Sets
You use save sets to specify Exchange 2000 Server objects for the following
NetWorker Module operations:
•
•
Backups or restores from the command line. For example, to back up a
private mailbox named Ben Franklin and the database named
Engineering in the storage group named Engineering Group, enter the
following at the command prompt:
nsrxchsv "MSEXCH:MB/Ben Franklin" "MSEXCH:IS/Engineering
Group/Engineering"
Scheduled backups. For scheduled backups, save sets are specified in the
Save Set attribute (one save set per line) of the Client resource in the
NetWorker Administrator program, as shown in Figure 28 on page 104.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
103
Save Set Notation
Figure 28. Private Mailbox Save Sets in Edit Client Dialog Box
in NetWorker Administrator Program
A
Save Set Notation
Table 7 shows notation for the save sets that can be specified for NetWorker
Module backup and restore operations.
Note: Items containing white space must be enclosed in double quotations
when entered on a command line. Double quotes are not required when
entering save sets in the NetWorker Administrator program, or in an input
file.
Table 7. Save Set Notation (Part 1 of 2)
Save Set
Description
MSEXCH:
All Extensible Storage Engine (ESE)
enabled applications on the server. This
includes IS, SRS, and KMS; it does not
include private mailboxes and public
folders.
MSEXCH:IS
All storage groups
MSEXCH:IS/storage_group
All databases in a storage group
MSEXCH:IS/storage_group/database
A specific database in a storage group
104
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Appendix A: Save Set Notation and Command Syntax
Table 7. Save Set Notation (Part 2 of 2)
Save Set
Description
MSEXCH:KMS
All KMS storage groups
MSEXCH:KMS/storage_group
A specific KMS storage group
MSEXCH:KMS/storage_group/database
A specific KMS database in a storage
group
A
MSEXCH:SRS
All SRS storage groups
MSEXCH:SRS/storage_group
A specific SRS storage group
MSEXCH:SRS/storage_group/database
A specific SRS database in a storage
group
MSEXCH:MB
All private mailboxes
MSEXCH:MB/mailbox
A specific private mailbox
MSEXCH:MB/mailbox/folder/
A specific folder in a private mailbox
MSEXCH:MB/mailbox/folder/subject_line
An individual item in a specific folder in
a private mailbox
MSEXCH:PF
All public folders
MSEXCH:PF/folder_tree/folder/
A specific public folder
MSEXCH:PF/folder_tree/folder/subject_line
An individual item in a specific public
folder
Important: Use only the save set specifications in Table 7 on page 104 for
backing up Exchange Server objects. The NetWorker save set All is used only
for backing up an entire filesystem—save set All is not a valid NetWorker Module
save set and cannot be used for backing up Exchange Server objects. This is because
the NetWorker server software does not interact with the Exchange Server
application programming interface (API) for backup and restore operations;
that is the purpose of this NetWorker Module.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
105
Specifying Multiple Save Sets Using an Input File
Specifying Multiple Save Sets Using an Input File
To specify multiple save sets, such as several individual user mailboxes, you
can use the -I command. See "Using an Input File to Specify Multiple Items for
Backup" on page 70.
NetWorker Module Backup Commands
A
For scheduled backups of Exchange Server data, specify the nsrxchsv backup
command and command options in the Client resource of the NetWorker
Administrator program. The NetWorker Administrator software supports the
nsrxchsv command line options.
For manual operations from the command line on the NetWorker client host,
enter nsrxchsv, the backup command, or nsrxchrc, the restore command, with
appropriate command options.
Backup Command Syntax
Table 8 lists the command syntax for the nsrxchsv backup command. Table 9
lists the function of each command option.
Table 8. Backup Command Syntax
Function
Command Syntax
Backup
nsrxchsv [-a virtual_server] [-b pool][-c client_name] [-C]
[-D debug_level] [-e date]1 [-g group] [-I input_filename]
[-l backup_level] [-m masquerade] [-N name] [-q]
[-s NetWorker_server_name] [-v][-w browse_date] [-p temp_dir]
[-y retention_date] save_set1 [save_set2 save_set3 ...]1
1 See
Table 7 on page 104 for information about notation for specifying save sets.
Table 9. Backup Command Options (Part 1 of 3)
Command Option
Function
-a virtual_server_name
Specify MSCS virtual server name
-b pool
Specify NetWorker volume pool name
-c client_name
Specify NetWorker client name (name of client host whose
data is to be recovered)
106
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Appendix A: Save Set Notation and Command Syntax
Table 9. Backup Command Options (Part 2 of 3)
Command Option
Function
-D diagnostic_level
Specify level of diagnostic output, which can be used for
troubleshooting. Valid values are in the range 0 through 9; 0
is the default (when -D is not specified, there is no
diagnostic output).
-e date
Specify retention date. Refer to the NetWorker
Administrator’s Guide for details about using this option and
any restrictions that apply.
Specify expiration date. Refer to the NetWorker
Administrator’s Guide for details about using this option and
the restrictions that apply to using it with either the -w or -y
option.
-g group
Specify group name
-I input_file
Specify text file that lists Exchange objects and/or save sets
to back up. Additional Exchange objects and save sets may
also be specified on the same command line, for example:
nsrxchsv -I my_input_file MSEXCH:MB/ceo_mailbx_name
For complete information about using input text files, see
"Using an Input File to Specify Multiple Items for Backup"
on page 70.
-l [full | incr | diff | copy]
Specify backup level: use the -l option with the level
parameter you want, such as incr, in the command:
nsrxchsv -s NW_server_name -l incr
-m masquerade
Specify masquerade
-N
Specify save set name
-p temp_dir
Specify path to directory that stores temporary files
-q
Save in quiet mode
-s NW_server_name
Specify the NetWorker server that is to back up the
Exchange data
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
107
A
NetWorker Module Restore Commands
Table 9. Backup Command Options (Part 3 of 3)
A
Command Option
Function
-w browse_date
Specify browse date (not available with NetWorker server
release 5.7). With NetWorker server release 6.1, this option
may be used with the -y option but not with the -e option.
-y retention_date
Specify retention date (NetWorker server release 6.1 only).
With NetWorker server release 6.1, this option may be used
with the -w option but not with the -e option.
NetWorker Module Restore Commands
Table 10 lists the command syntax for the nsrxchrc restore command. Table 11
lists the restore command options.
Table 10. Recover Command Syntax
Function
Command Syntax
Recover
1 See
nsrxchrc [-erqv][-a virtual_server_name] [-c client_name] [-D Debug_level]
[-I input_file] [-p temp_dir] [-s NetWorker_server_name]
[-t browse_time] save_set1 [save_set2 save_set3 ...]1
Table 7 on page 104 for information about notation for specifying save sets.
Table 11. Recover Command Options (Part 1 of 2)
Option
Function
-a virtual_server_name
Specify MSCS virtual server name
-c client_name
Specify client name for directed recover
-D diagnostic_level
Specify level of diagnostic output, which can be used for
troubleshooting. Valid values are in the range 0 through 9; 0
is the default (when -D is not specified, there is no
diagnostic output).
-e
Replay only recovered logs
108
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Appendix A: Save Set Notation and Command Syntax
Table 11. Recover Command Options (Part 2 of 2)
Option
Function
-I input_file
Specify Input filename
-p temp_dir
Specify path to directory that stores temporary files
-q
Quiet mode
-r
Remount database
-s NetWorker_server_name
Specify NetWorker server
-t browse_time
Specify browse time
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
A
109
NetWorker Module Restore Commands
A
110
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Appendix B: Messages
This appendix lists NetWorker Module error and information messages you
might encounter. Suggestions are provided for resolving problems described
in the messages.
This appendix contains the following sections:
•
•
•
“Microsoft Exchange Server Messages”
“NetWorker Administrator Messages” on page 112
“NetWorker Module Messages” on page 112
Microsoft Exchange Server Messages
When the NetWorker Module encounters a Microsoft Exchange Server error
or condition requiring a warning during a backup or recover operation, it
writes a description of the error to the following files:
•
•
•
nsrschsv.log
nsrxchrc.log
Event log
The NetWorker Module cannot correct errors caused by the Exchange Server.
For information on resolving Exchange Server error messages, refer to the
Microsoft Exchange Server documentation, the Microsoft Knowledge Base on
the Microsoft web site, or Microsoft technical support.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
111
NetWorker Administrator Messages
NetWorker Administrator Messages
NetWorker error messages appear in the NetWorker Administrator window.
The display lists the messages encountered during the past 24 hours.
For complete information about NetWorker error messages, refer to the Legato
NetWorker Error Message Guide.
NetWorker Module Messages
The messages in this section are specific to the NetWorker Module software.
Table 12. NetWorker Module Error Messages (Part 1 of 7)
B
Message
Description
ADsOpenObject error error_code
for object_name
An error occurred when the program attempted
to bind to the Active Directory object. Check
communication problems with Active Directory.
A full backup will be performed. A backup level other than full was specified but
cannot be performed. Verify that circular logging
is not enabled. Also verify that a full backup is
performed for all databases in a storage group
before attempting an incremental or differential
backup.
Backup_item failed for item_url
An error occurred while backing up the specified
item.
Backup level converted from n to The backup program converts any differential
1.
level between 2 and 9 into a level 1.
Backup_pf failed for folder
An error occurred while performing a backup of
the specified folder.
Backup_pf_tree failed for
pf_tree
An error occurred while performing a backup of
the specified folder tree.
Bad backup level
An invalid backup level was specified with the –l
option.
112
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Appendix B: Messages
Table 12. NetWorker Module Error Messages (Part 2 of 7)
Message
Description
Can't get name or virtual
directory for PF tree pf_tree
The program cannot determine properties of the
specified folder. Check communication problems
with Active Directory.
Check spelling of PF tree name:
pf_tree
The folder tree name may be spelled incorrectly
on the command line.
Checking for marked PF tree
items
The backup program is verifying that all marked
items exist.
Cluster backup requires use of
-c or -a (or both).
In the Microsoft cluster environment you must
use the –a and/or –c options to identify the
virtual server name and client index.
Cluster recover requires use of
-c or -a (or both).
In the Microsoft cluster environment you must
use the –a and/or –c options to identify the
virtual server name and client index.
Connect_pub_folders failed for
url
The recover program was unable to connect to the
public folder tree.
Could not determine overwrite
status for sg_name / db_name
The recover program could not determine if the
specified database has been set to be overwritten
by a restore.
Create_folder failed for folder
The recover program was unable to create a
folder.
Created folder folder_url
The recover program created the specified folder.
Database sg_name / db_name
cannot be overwritten by
restore.
The specified database has not been set to be
overwritten by a restore. A database cannot be
restored unless this property is set.
Error binding to rootDSE:
error_code
The program was unable to bind to the directory
server. Check communication problems with
Active Directory.
Error creating folder folder_url
error_text
The recover program was unable to create the
specified folder.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
113
B
NetWorker Module Messages
Table 12. NetWorker Module Error Messages (Part 3 of 7)
B
Message
Description
Error creating PerfMon update
thread. error_text
The backup or recover program was unable to
start the Performance Monitor update thread.
Error: db_name database not
mounted
An attempt was made to back up a database that
is not online. Mount the database and repeat the
backup.
Error (error_code) getting
database CN for database
The program was unable to get the database CN
property. Check communication problems with
Active Directory.
Error (error_code) getting
parent LDAP path for database
The program was unable to get an LDAP path
from Active Directory. Check communication
problems with Active Directory.
Error (error_code) getting
storage group CN for
storage_group
The program was unable to get the storage group
CN property. Check communication problems
with Active Directory.
Error getting
The program was unable to get the
defaultNamingContext: error_code defaultNamingContext from Active Directory. Check
communication problems with Active Directory.
Error getting homeMDB for
mailbox
The program was unable to identify which
database contains the mailbox. Check
communication problems with Active Directory.
Error loading ESE dll. Status:
error_code
An error occurred when NetWorker Module
attempted to load the Exchange backup .dll file.
Error on get_server_dn:
error_code, error_text
The NetWorker Module was unable to obtain the
server distinguished name from Active Directory.
This may be caused by a network connection
problem with the domain controller.
Error opening file: file_name
The backup or recover program was unable to
open the file specified with the –I option. Verify
that the file name is spelled correctly and the file
exists.
Error opening stream for: item
The program was unable to open the specified
item.
114
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Appendix B: Messages
Table 12. NetWorker Module Error Messages (Part 4 of 7)
Message
Description
Error parsing parameter:
param_string
The format of the specified command line
parameter is incorrect.
Exchange Server server_name was
not found.
The NetWorker Module was unable to locate the
specified Exchange server. Verify that the server
name is spelled correctly.
ExOLEDB connection failed for
pf_tree
The backup or recover program was unable to
establish a connection to the specified public
folder tree.
Folder folder_url does not
exist. Attempting to recreate.
The public folder does not exist. The recover
program is re-creating the folder.
Folder name is not replicated
locally
The specified folder is not replicated to the local
server.
Found all marked PF tree items.
All public folder items marked for backup exist.
Get_extra_properties failed to
get property for class
object_class
The backup program was unable to get the
specified property for the object.
B
Internal system error, please
An error occurred between the backup or recover
see nsr\applogs\xbsa.messages on program and the NetWorker server (for example,
the client system for reason.
the NetWorker server does not have the required
enablers).
Invalid database: sg_name /
db_name
An invalid database name was specified. Make
sure the database name is spelled correctly and
exists on the Exchange server.
Invalid storage group: sg_name
An invalid storage group name was specified.
Make sure the storage group name is spelled
correctly and exists on the Exchange server.
Invalid target storage group:
sg_name
The specified storage group does not exist on the
server. Make sure the storage group name is
spelled correctly.
Invalid time specified:
time_string
The format of the specified browse time is invalid.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
115
NetWorker Module Messages
Table 12. NetWorker Module Error Messages (Part 5 of 7)
Message
Description
Item not found: item_name
The specified item was marked for backup but
was not found in the public folder.
Log file gap detected. Max
recovered log: exxnnnnn.log
A gap was detected between the highest sequence
number of the recovered logs and the existing log
files. The –e option will be used to specify the
replay of only recovered logs.
Mailbox_name <service mailbox no IPM data>
An attempt was made to back up a service
mailbox that does not contain IPM data. Only
user mailboxes can be backed up. (IPM is a
Microsoft abbreviation for inter-personal
message, or e-mail message.)
MSEXCH:DS saveset is obsolete.
Continuing...
MSEXCH:DS was specified as a target for the
backup or recover program. MSEXCH:DS is
obsolete for Exchange 2000. The backup or
recover program will continue processing other
valid targets.
No authority for backup
operation
The account used to perform a backup is not a
member of the Backup Operators group.
No authority for recover
operation
The account used to perform a recover is not a
member of the Backup Operators group.
No backup found, cannot recover
without backup
A recover operation cannot be performed on an
object that has not been backed up.
No backup target.
An Exchange object name was not specified for
the backup program.
No databases are mounted.
The storage group specified for backup does not
have any databases mounted. Mount the
databases and repeat the backup.
No IPM data
A mailbox contains no messages. (IPM is a
Microsoft abbreviation for inter-personal
message, or e-mail message.)
No recovery target.
An Exchange object name was not specified for
the recover program.
B
116
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Appendix B: Messages
Table 12. NetWorker Module Error Messages (Part 6 of 7)
Message
Description
No Storage Group match for
sg_name
An invalid storage group name was specified for
the backup program. Make sure the name is
spelled correctly and the storage group exists on
the server.
An attempt was made to recover a mailbox that
was never backed up.
Not enough storage is available
to process this command.
The NetWorker Module was unable to allocate
memory. It may be necessary to reduce the
number of programs that are currently running.
No virtual directory found for
PF tree: pf_tree
The program was unable to determine the name
of the folder tree virtual directory. Check
communication problems with Active Directory.
object_name backup not found.
Continuing...
The recover program could not find a backup of
the specified object. This could happen if all items
in a folder were not backed up. The recover
continues.
Open Cluster error: msg_string
An error occurred when the NetWorker Module
attempted to open a handle to the cluster.
Out of disk space backing up
mailbox
The disk containing \nsr\tmp does not have
enough free space to back up a mailbox.
Use the temporary folder location (-p) to specify a
directory with more available space.
Previous mailbox_item backup not The recover program could not find a backup of
found
the specified object. This could happen if all items
in a folder were not backed up.
Previous object_name backup not
found
An attempt was made to recover a storage group
or database that was never backed up.
Record open failed for
record_url. Error: error_code
The recover program was unable to re-create the
specified item.
Recovering folder_path...
The recover program is recovering items for the
specified folder.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
117
B
NetWorker Module Messages
Table 12. NetWorker Module Error Messages (Part 7 of 7)
B
Message
Description
Restore must be performed on
virtual server active node.
A restore operation was attempted from the node
that is not hosting the virtual server. Perform the
restore on the same node that is currently hosting
the virtual server.
Some marked PF tree items not
found.
Some public folder items marked for backup were
not found.
Starting backup of folder tree:
pf_tree
A backup is starting for the specified folder tree.
Unable to determine active node
for virtual server server_name:
error_text
Could not determine which physical node is
currently hosting the virtual server.
Unable to get DN for storage
group sg_name
The NetWorker Module was unable to obtain the
storage group distinguished name from Active
Directory. This may be caused by a network
connection problem with the domain controller.
Unable to get log file path for
storage group sg_name
The NetWorker Module was unable to determine
the path to the Exchange log files.
Unable to locate esebcli2.dll
Status: error_code
The NetWorker Module was unable to locate the
Exchange backup API DLL. This could occur if the
Exchange System Management components are
not installed.
Unable to locate folder tree
virtual directory for pf_tree
The program was unable to identify virtual
directory for the folder tree. Check
communication problems with Active Directory.
Unknown host host_name
The virtual server name specified with the –a
option does not exist. Check the spelling of the
server name.
118
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Glossary
This glossary contains terms and definitions found in this manual. Most of the
terms are specific to NetWorker products.
Administrator group
Members of this Windows NT user group usually
have all the rights and abilities of users in other
groups, plus the ability to create and manage all
the users and groups in the domain. Many
NetWorker functions can only be accomplished
by members of the Administrator group.
API
Acronym for Application Programming Interface,
an agreed-upon set of computer library routines
used to accomplish a task.
autochanger
Mechanism that uses a robotic arm to move media
among various components located in a device
including slots, media drives, media access ports,
and transports. Autochangers automate media
loading and mounting functions during backups
and recovers.
backup group
A NetWorker client or group of clients configured
to start backing up files to the NetWorker server at
a designated time of day.
Backup Operators
group
A Windows NT group whose members have the
capability to log onto a domain from a
workstation or a server, back it up, and restore the
data. Backup Operators also can shut down
servers or workstations.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
119
Glossary
Glossary
120
backup volume
Backup media, such as magnetic tape or optical
disk. See also “media volume.”
bootstrap
Information that includes the server index, media
index, and configuration files needed for
recovering NetWorker after a disk crash.
browse policy
Policy that determines how long entries for your
files remain in the online file index.
client file index
Database of information maintained by
NetWorker which tracks every file or filesystem
backed up. See also “online client indexes.”
clone
Process by which NetWorker makes an exact copy
of saved data (save sets). NetWorker can clone
individual save sets or the entire contents of a
backup volume.
clone volume
Duplicated volume. NetWorker can track four
types of volumes: backup, archive, backup clone,
and archive clone. Save sets of different types
cannot be intermixed on one volume.
command line
Shell prompt, where you enter commands (for
example, a DOS or C shell). NetWorker has
several command line utilities that perform the
same function as many of the commands available
through the graphical interface. See also “shell
prompt.”
daemon
Program that is not invoked explicitly, but lies
dormant waiting for a specified condition(s) to
occur. See also “service.”
device
Backup device (tape drive, optical drive, or
autochanger) connected to the NetWorker server;
used for backing up and recovering client files.
enabler codes
Special codes provided by Legato that allow you
to run your NetWorker software product. Look
for the 16-character enabler code on the certificate
included with your software.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Glossary
Any Exchange Server data that can be backed up
and recovered as a single entity. This includes the
IS, any storage group, database, mailbox, private
folder, and individual item in a mailbox or public
folder.
filesystem
1. A File tree that is on a specific disk partition or
other mount point. 2. The entire set of all files on a
computer. 3. A method of storing files.
heterogeneous
Heterogeneous networks are networks with
systems of different platforms that interact
meaningfully across the network.
information store
The repository on a Microsoft Exchange Server
host that includes the private information store
and public information store. The public store
holds all public folder hierarchies and public
folder replicas configured for that store. The
private store holds all private folders and
associated information, such as individual
mailbox messages and attachments. In addition,
the client can have a personal folder file that
consists of folders stored on the client host
computer.
The information store:
• Delivers messages addressed to users on the
same home server as the sender.
• Forwards messages addressed to recipients on
other servers and systems to the message
transfer agent (MTA) for delivery.
• Provides rules and views.
Maintains storage and age limits.
information store
databases
The public database and private database that
hold the information in the public and private
information stores.
interoperability
Ability of software and hardware on multiple
computers from multiple vendors to communicate
meaningfully.
IS
See information store.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Glossary
Exchange Server
object
121
Glossary
Glossary
122
Key Management
Server (KMS)
A Microsoft Exchange 2000 Server component that
may be installed on a designated server in an
administrative group. KMS provides centralized
administration and archival of private keys, and
maintains every user's private encryption key in
an encrypted database. The keys are used for
encrypting e-mail messages and signing messages
with digital signatures. There can be one Key
Management server per administrative group.
log files
See transaction log files.
mailbox store
The part of Information Store that maintains
information in user mailboxes. A mailbox store
consists of a rich-text .edb file, plus a streaming
native Internet content .stm file.
MAPI (Microsoft
Messaging API)
Set for messaging applications that is widely
supported by messaging vendors, primarily
attributable to Microsoft.
media index
Database of information maintained by
NetWorker which tracks every backup volume.
media manager
The NetWorker component that tracks save sets to
backup volumes. The nsrmmdbd service is
responsible for making entries in the NetWorker
online media index.
media volume
A unit, such as a magnetic tape or optical disk, on
which backed-up data is stored. See also “backup
volume.”
Microsoft Cluster
Server (MSCS)
Built-in feature of Windows NT Server, Enterprise
Edition. It is software that supports the connection
of two servers into a “cluster” for higher
availability and easier manageability of data and
applications.
Microsoft Exchange
Client
Program that a client uses to read, write, and
manipulate the post office and folders.
mount
To make a database available for use or to place a
removable tape or disc into a drive.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Glossary
Exchange supports multiple databases contained
within a storage group. A storage group includes
one to five databases and one set of transaction log
files for all databases in the storage group. You
can create a maximum of four storage groups on
one server.
If each storage group contains the maximum of
five databases, you can create a maximum of 20
databases on one server.
You can use multiple databases to increase the
number of simultaneous users on a server and
lessen the risk of a damaged database. Because the
size of each database is decreased, data recovery is
faster and does not require the server to be offline.
multiplex
Method of transmitting multiple streams of data
simultaneously through the same channel.
NetWorker
Administrator
program
The graphical user interface (GUI) for the
NetWorker server software.
NetWorker client
A computer that can access the backup and
recover services from a NetWorker server. Clients
may be workstations, PCs, or fileservers.
NetWorker server
Computer on a network running the NetWorker
software, containing the online indexes, and
providing backup and recover services to the
clients on the same network.
NetWorker User for
Exchange Server
The graphical user interface for the NetWorker
Module for Microsoft Exchange Server software.
From this interface you can initiate unscheduled
backups as well as recoveries.
nsrhost
Logical hostname of the computer that is the
NetWorker server.
object
See “Exchange Server object.”
online client indexes
Databases on a NetWorker server that contain
information pertaining to client backups and
backup volumes. See also “client file index.”
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Glossary
Multiple Information
Stores and Storage
Groups
123
Glossary
Glossary
124
OST (offline message
store)
Message store (typically on a user’s hard disk)
that stores messages locally and allows for
replication of information between the client and
the server.
PAB (personal
address book)
User’s list of recipients. The file physically resides
on the user’s workstation.
pathname
Instructions for accessing a file. An absolute
pathname tells you how to find a file beginning at
the root directory and working down the
directory tree. A relative pathname tells you how to
find the file starting where you are now.
PDC (primary
domain controller)
Server in a Windows NT Server domain where
changes are made to user accounts.
permission
Rights given to a user to perform specific actions
on an object. Read-only is an example: It allows a
user to read, but not alter a file.
properties
Attributes of an object, such as the display name
of a recipient.
pst file
The filename extension of a file created by
Exchange Server to store individual mailbox items
(such as e-mail messages). The pst files typically
reside on the workstation of the user who owns
the mailbox.
public folder store
The part of the Exchange Information Store that
maintains information in public folders. A public
folder store consists of a rich-text .edb file, plus a
streaming native Internet content .stm file.
recover
The NetWorker command used to browse the
server index and recover files from a backup
volume to a client’s disk.
recycle
A volume whose data has passed both its browse
and retention policies and is available for
relabeling and reuse.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Glossary
Database of configuration information central to
Windows NT operations. The overall effect
centralizes all Windows NT settings and provides
control over system, security, and user account
settings.
resource
Resource represents a component of the
NetWorker software that describes the NetWorker
server and its clients. Devices, schedules, clients,
groups, and pools are all examples of NetWorker
resources. Each resource contains a list of
attributes, defining the parameters to use for the
configured NetWorker resource. Use the
NetWorker administration program to configure
NetWorker resources and their attributes.
retention policy
Policy that determines how long to retain entries
in the media index for recovery.
save
The NetWorker command that backs up client
files to backup volumes and makes data entries in
the online index.
save set
Set of files or a filesystem that NetWorker has
backed up onto backup media during a backup
session. Save sets are assigned a “save set id,” an
internal number which identifies the backup
session to NetWorker for subsequent restoration
to primary disk.
save set ID
Internal identification number assigned to a save
set by NetWorker.
scanner
The NetWorker program used to read a backup
volume when the online indexes are no longer
available.
scheduled backup
The type of backup that is set to start
automatically at a specified time. You use the
NetWorker Administrator program to set up and
configure scheduled backups. A scheduled
backup is initiated by the NetWorker server
software.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Glossary
registry
125
Glossary
Glossary
126
service
Program that is not invoked explicitly, but lies
dormant waiting for a specified condition(s) to
occur. See also “daemon.”
shell prompt
Cue for input in a shell window where you enter a
command. See also “command line.”
Site Replication
Service (SRS)
A directory service (similar to the directory used
in Exchange Server 5.5) implemented in Exchange
2000 to allow the integration with downstream
Exchange 5.x sites using both RPC and mail-based
replication. Site Replication Service works in
conjunction with Active Directory Connector to
provide replication services from Active Directory
to the Exchange 5.x Directory Service.
stand-alone device
Backup device that contains a single drive for
backing up data. Stand-alone devices cannot store
or automatically load backup volumes.
storage group
A collection of mailbox stores and public folder
stores that share a set of transaction log files.
Exchange manages each storage group with a
separate server process.
storage manager
Application that manages the storage devices and
media used for backup and restore requests.
NetWorker Module is a storage manager that
connects NetWorker services to Microsoft
Exchange Server to provide storage management
for databases and transaction logs.
transaction log files
The log files for a storage group, which contain
the database transactions for all mailbox stores or
public folder stores in the group.
truncation
Truncation is an Exchange Server operation that
deletes an Exchange transaction log file.
volume
Backup media, such as magnetic tape or optical
disk. See also “media volume.”
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Glossary
Internal identification assigned to a backup
volume by NetWorker. The volume ID is entered
in the NetWorker server’s media database for
volume policy management.
volume name
Name you assign to a backup volume when it is
labeled internally by NetWorker.
volume pool
Feature that allows you to sort backup data to
selected volumes. A volume pool contains a
collection of backup volumes to which specific
data has been backed up.
Windows NT Server
domain
Collection of Windows NT servers administered
as a single unit.
XBSA
Acronym for X/Open Backup Services
Application Programming Interface, which
connects NetWorker functionality to NetWorker
Module. For more information about X/Open,
visit the X/Open web site at www.xopen.org.
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Glossary
volume ID
127
Glossary
Glossary
128
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
Index
A
Administrators group, description of
API, description of 119
autochanger
description of 119
error messages
figures
NetWorker process during BusinesSuite
Module restore 25
NetWorker process during NetWorker Module
backup 22
file index
(See also client file index)
description of 120
filesystem, description of 121
heterogenous, description of
121
I
information store and databases, description
of 121
interoperability, description of 121
client 18
clone volume, description of 120
clone, description of 120
command line
description of 120
Configure for a Directed Recovery 65
M
D
120
E
e-mail
"savegroup completion" notification
enabler codes, description of 120
H
119
C
daemon, description of (See also service)
device, description of 120
F
119
B
backup
e-mail notification 50
group(s) 119
viewing results 51
volume 120
Backup Operators group, description of
backup, scheduled 125
bootstrap 120
browse policy, description of 120
BusinesSuite Module
recover, graphic of 25
111
MAPI (Messaging API) 122
media
database 25
description of 122
media index
description of 122
media manager, description of 122
Microsoft Cluster Server (MSCS), description
of 79, 122
Microsoft Messaging API (MAPI) 122
MSCS (Microsoft Cluster Server) 79, 122
multiplex, description of 123
50
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
129
Index
N-X
N
NetWorker
client, description of 123
resource, description of 125
server, description of 123
NetWorker Module
backup, graphic of 22
NetWorker User for Exchange Server, description
of 123
nsrd
functionality 21
role during backup 25
nsrhost, description of 123
nsrmmd
functionality during recover 25
save set(s) 125
savegroup completion report 22
savegrp
functionality 21
scanner 125
scheduled backup 125
scheduled backup(s) 21
services
description of (See also daemon) 126
shell prompt, description of 126
stand-alone device, description of 126
Start a Recovery 61, 63
storage manager, description of 126
T
Task
40
O
V
object, description of
online indexes 123
123
P
Index
pathname, description of 124
Prepare the NetWorker Server for the Directed
Recovery 74
R
volume
ID, description of 127
name, description of 127
X
XBSA
NetWorker
(See also NetWorker XBSA)
recover
description of 124
Recovering a Private Mailbox from a Database
Backup 66
recycle, description of 124
Registry 125
restore 25
retention policies 125
S
save
description of 125
save set
identification (ssid) 125
130
Legato NetWorker Module for Microsoft Exchange 2000 Server
Administrator’s Guide
