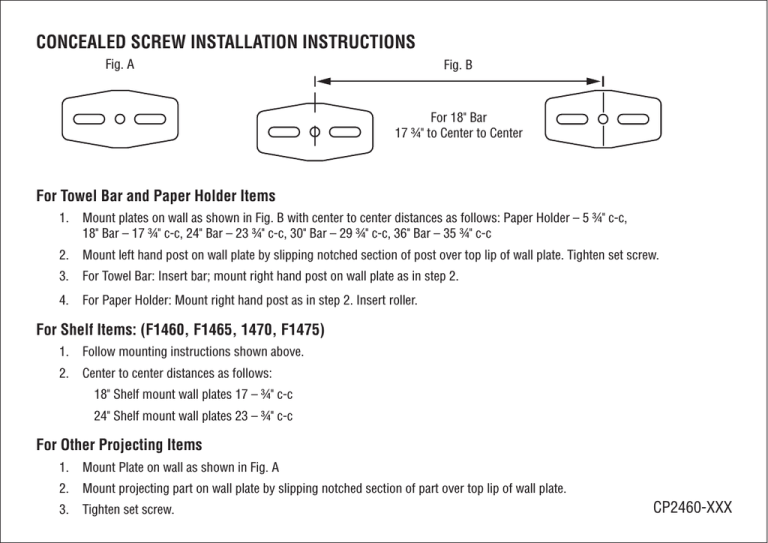

CONCEALED SCREW INSTALLATION INSTRUCTIONS
Fig. A
Fig. B
For 18" Bar
17 ¾" to Center to Center
For Towel Bar and Paper Holder Items
1.
Mount plates on wall as shown in Fig. B with center to center distances as follows: Paper Holder – 5 ¾" c-c,
18" Bar – 17 ¾" c-c, 24" Bar – 23 ¾" c-c, 30" Bar – 29 ¾" c-c, 36" Bar – 35 ¾" c-c
2.
Mount left hand post on wall plate by slipping notched section of post over top lip of wall plate. Tighten set screw.
3.
For Towel Bar: Insert bar; mount right hand post on wall plate as in step 2.
4.
For Paper Holder: Mount right hand post as in step 2. Insert roller.
For Shelf Items: (F1460, F1465, 1470, F1475)
1.
Follow mounting instructions shown above.
2.
Center to center distances as follows:
18" Shelf mount wall plates 17 – ¾" c-c
24" Shelf mount wall plates 23 – ¾" c-c
For Other Projecting Items
1.
Mount Plate on wall as shown in Fig. A
2.
Mount projecting part on wall plate by slipping notched section of part over top lip of wall plate.
3.
Tighten set screw.
CP2460-XXX
